Werma 69000055 Data Sheet

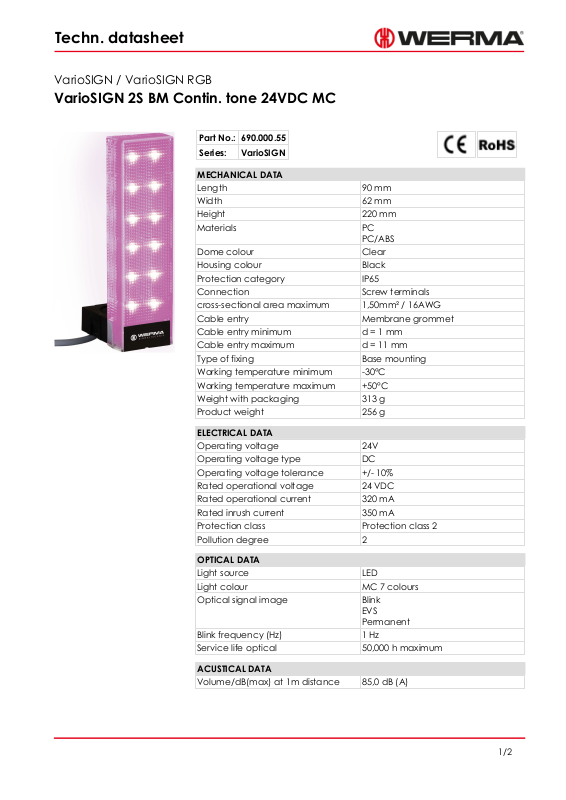

Techn. datasheet

VarioSIGN / VarioSIGN RGB

VarioSIGN 2S BM Contin. tone 24VDC MC

Part No.: 690.000.55
Series: VarioSIGN

MECHANICAL DATA

Length 90 mm
Width 62 mm
Height 220 mm
Materials PC

Dome colour Clear
Housing colour Black
Protection category IP65
Connection Screw terminals
cross-sectional area maximum 1,50mm² / 16AWG
Cable entry Membrane grommet
Cable entry minimum d = 1 mm
Cable entry maximum d = 11 mm
Type of fixing Base mounting
Working temperature minimum -30°C
Working temperature maximum +50°C
Weight with packaging 313 g
Product weight 256 g

PC/ABS

ELECTRICAL DATA

Operating voltage 24V
Operating voltage type DC
Operating voltage tolerance +/- 10%
Rated operational voltage 24 VDC
Rated operational current 320 mA
Rated inrush current 350 mA
Protection class Protection class 2
Pollution degree 2

OPTICAL DATA

Light source LED
Light colour MC 7 colours
Optical signal image Blink

EVS

Permanent
Blink frequency (Hz) 1 Hz
Service life optical 50,000 h maximum

ACUSTICAL DATA

Volume/dB(max) at 1m distance 85,0 dB (A)

1/2

Techn. datasheet

VarioSIGN / VarioSIGN RGB

VarioSIGN 2S BM Contin. tone 24VDC MC

Acoustic signal image Continuous tone
Audio frequency 2400 Hz
Acoustic service life 5,000 h minimum

DRAWING

2/2
