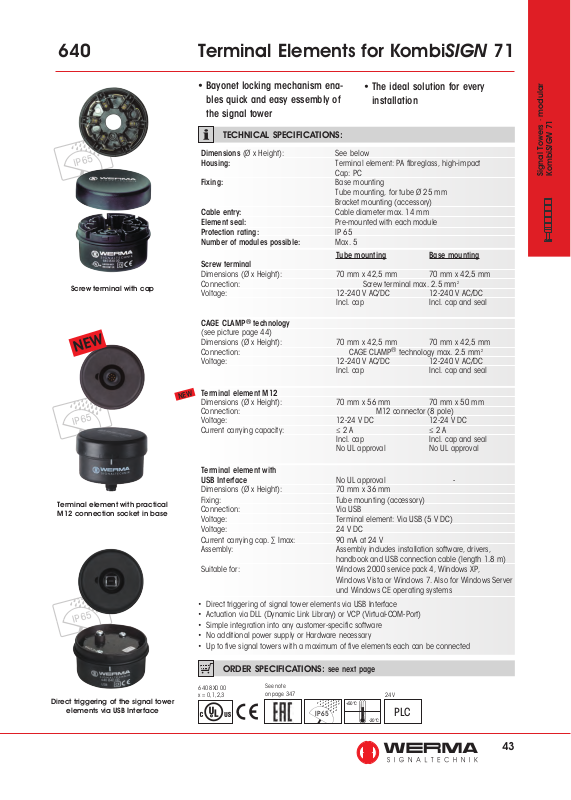

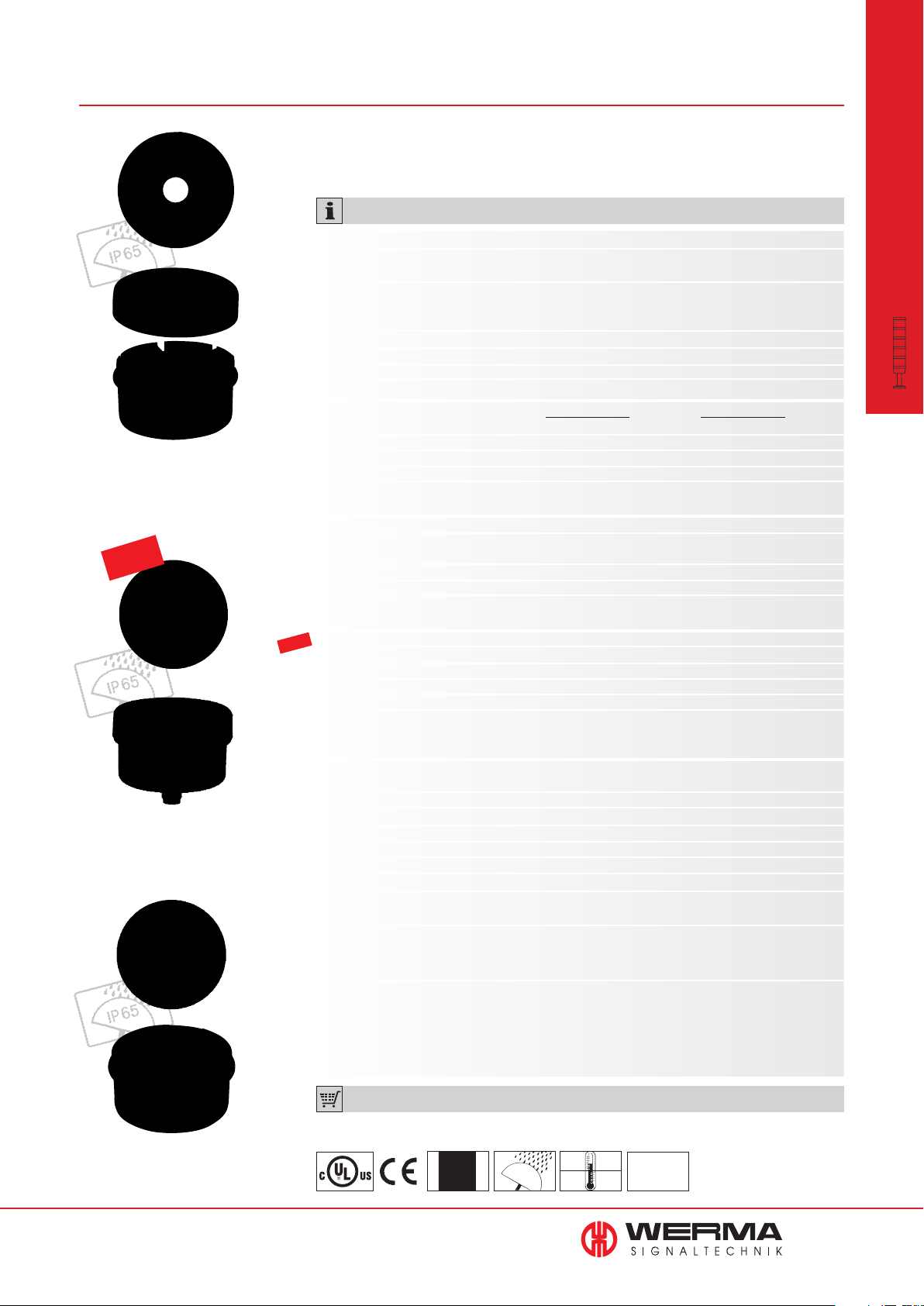

640 Terminal Elements for KombiSIGN 71
Screw terminal with cap
NEW
• Bayonet locking mechanism enables quick and easy essembly of
• The ideal solution for every
installation
the signal tower
TECHNICAL SPECIFICATIONS:
Dimensions (Ø x Height): See below
Housing: Terminal element: PA fi breglass, high-impact
Cap: PC
Fixing: Base mounting
Tube mounting, for tube Ø 25 mm
Bracket mounting (accessory)
Cable entry: Cable diameter max. 14 mm
Element seal: Pre-mounted with each module
Protection rating: IP 65
Number of modules possible: Max. 5
Tube mounting Base mounting
Screw terminal
Dimensions (Ø x Height): 70 mm x 42,5 mm 70 mm x 42,5 mm
Connection: Screw terminal max. 2.5 mm
Voltage: 12-240 V AC/DC 12-240 V AC/DC
Incl. cap Incl. cap and seal
CAGE CLAMP
®
technology
(see picture page 44)
Dimensions (Ø x Height): 70 mm x 42,5 mm 70 mm x 42,5 mm
Connection: CAGE CLAMP
®
technology max. 2.5 mm
Voltage: 12-240 V AC/DC 12-240 V AC/DC
Incl. cap Incl. cap and seal
2
modular
•
KombiSIGN 71
Signal Towers
2
Terminal element with practical
M12 connection socket in base
Terminal element M12
NEW
Dimensions (Ø x Height): 70 mm x 56 mm 70 mm x 50 mm
Connection: M12 connector (8 pole)
Voltage: 12-24 V DC 12-24 V DC
Current carrying capacity: ≤ 2 A ≤ 2 A
Incl. cap Incl. cap and seal
No UL approval No UL approval
Terminal element with
USB Interface No UL approval -
Dimensions (Ø x Height): 70 mm x 36 mm
Fixing: Tube mounting (accessory)
Connection: Via USB
Voltage: Terminal element: Via USB (5 V DC)
Voltage: 24 V DC
Current carrying cap. ∑ Imax: 90 mA at 24 V
Assembly: Assembly includes installation software, drivers,
handbook and USB connection cable (length 1.8 m)
Suitable for: Windows 2000 service pack 4, Windows XP,
Windows Vista or Windows 7. Also for Windows Server
und Windows CE operating systems
• Direct triggering of signal tower elements via USB Interface
• Actuation via DLL (Dynamic Link Library) or VCP (Virtual-COM-Port)
• Simple integration into any customer-specifi c software
• No additional power supply or Hardware necessary
• Up to fi ve signal towers with a maximum of fi ve elements each can be connected
Direct triggering of the signal tower
elements via USB Interface
ORDER SPECIFICATIONS:
640 8X0 00
x = 0,1,2,3
See note
on page 347
see next page
IP 65
+50°C
-20°C
24 V
PLC
43
Page 2
640
Terminal Elements for KombiSIGN 71
ORDER SPECIFICATIONS:
modular
•
KombiSIGN 71
Signal Towers
Tube mounting Base mounting
Screw terminal 640 830 00 640 820 00
CAGE CLAMP
Terminal element M12 640 860 55 640 850 55
NEW
Terminal element with USB interface 640 840 00 -
®
640 810 00 640 800 00
ACCESSORIES:
Base with integrated tube
Base for tube (metal)
Tube Ø 25 mm, Aluminium eloxiert
100 mm long
250 mm long
400 mm long
600 mm long
800 mm long
1000 mm long
Suitable accessories can be found on page 67.
975 840 10
975 840 91
975 845 10
975 840 25
975 840 40
975 840 60
975 840 80
975 840 03

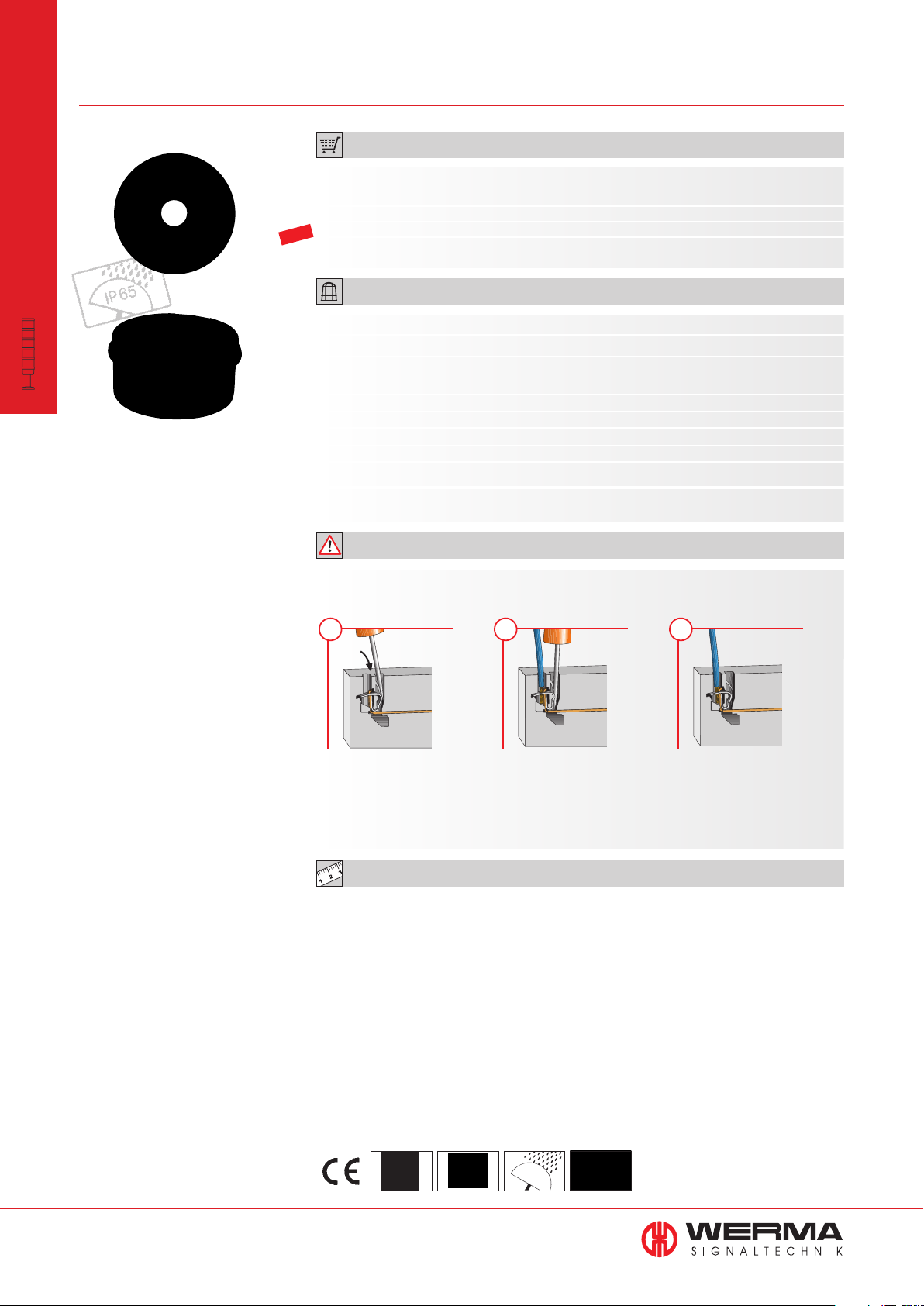

ADDITIONAL INFORMATION:
Terminal elements with CAGE CLAMP
guaranteeing a secure and reliable contact.
®
technology enable leads to be quickly and easily wired,
1 2 3
Insert screwdriver at a slight
angle into opening as far
as possible.
CAGE CLAMP® is a registered trademark of WAGO Kontakttechnik GmbH.
Open spring-loaded clamp with
the help of the screwdriver and
insert wire as far as possible
TECHNICAL DIAGRAMS:
see page 308
Remove screwdriver the wire is fi rmly
clamped.
44
See note
on page 347
170 g
IP 65
+50°C
-20°C
