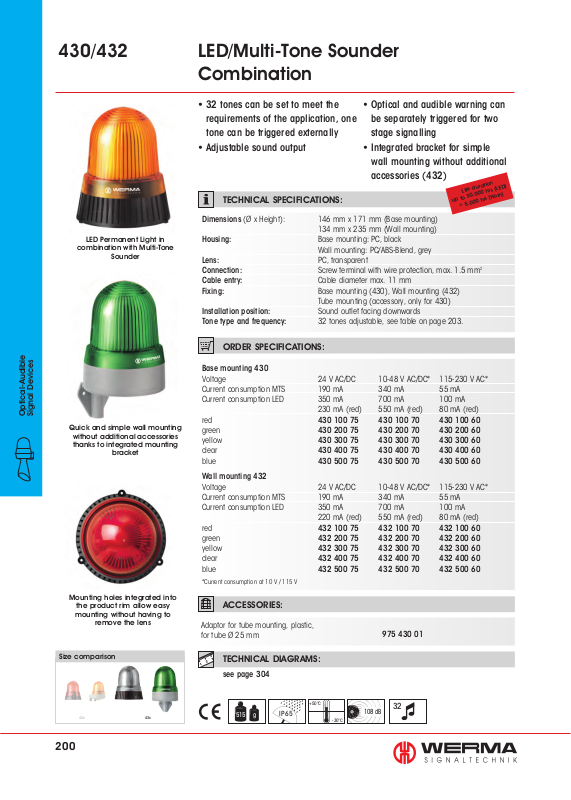

430/432 LED/Multi-Tone Sounder

Combination

combination with Multi-Tone

Optical-Audible

Signal Devices

Quick and simple wall mounting

without additional accessories
thanks to integrated mounting

LED Permanent Light in

Sounder

bracket

• 32 tones can be set to meet the
requirements of the application, one
tone can be triggered externally

• Adjustable sound output

• Optical and audible warning can
be separately triggered for two
stage signalling

• Integrated bracket for simple
wall mounting without additional
accessories (432)

Life duration

TECHNICAL SPECIFICATIONS:

Dimensions (Ø x Height): 146 mm x 171 mm (Base mounting)
134 mm x 235 mm (Wall mounting)
Housing: Base mounting: PC, black
Wall mounting: PC/ABS-Blend, grey

Lens: PC, transparent
Connection: Screw terminal with wire protection, max. 1.5 mm
Cable entry: Cable diameter max. 11 mm
Fixing: Base mounting (430), Wall mounting (432)

Tube mounting (accessory, only for 430)

Installation position: Sound outlet facing downwards
Tone type and frequency: 32 tones adjustable, see table on page 203.

ORDER SPECIFICATIONS:

Base mounting 430

Voltage 24 V AC/DC 10-48 V AC/DC* 115-230 V AC*
Current consumption MTS 190 mA 340 mA 55 mA
Current consumption LED 350 mA 700 mA 100 mA
230 mA (red) 550 mA (red) 80 mA (red)
red 430 100 75 430 100 70 430 100 60
green 430 200 75 430 200 70 430 200 60
yellow 430 300 75 430 300 70 430 300 60
clear 430 400 75 430 400 70 430 400 60
blue 430 500 75 430 500 70 430 500 60

up to 50,000 hrs (LED)

+ 5,000 hrs (Horn)

2

Mounting holes integrated into

the product rim allow easy

mounting without having to

remove the lens

Size comparison

43x

Wall mounting 432

Voltage 24 V AC/DC 10-48 V AC/DC* 115-230 V AC*
Current consumption MTS 190 mA 340 mA 55 mA
Current consumption LED 350 mA 700 mA 100 mA
220 mA (red) 550 mA (red) 80 mA (red)
red 432 100 75 432 100 70 432 100 60
green 432 200 75 432 200 70 432 200 60
yellow 432 300 75 432 300 70 432 300 60
clear 432 400 75 432 400 70 432 400 60
blue 432 500 75 432 500 70 432 500 60

*Current consumption at 10 V / 115 V

ACCESSORIES:

Adaptor for tube mounting, plastic,
for tube Ø 25 mm

975 430 01

TECHNICAL DIAGRAMS:

see page 304

515 g

IP 65

+50°C

108 dB

-30°C

32

200
