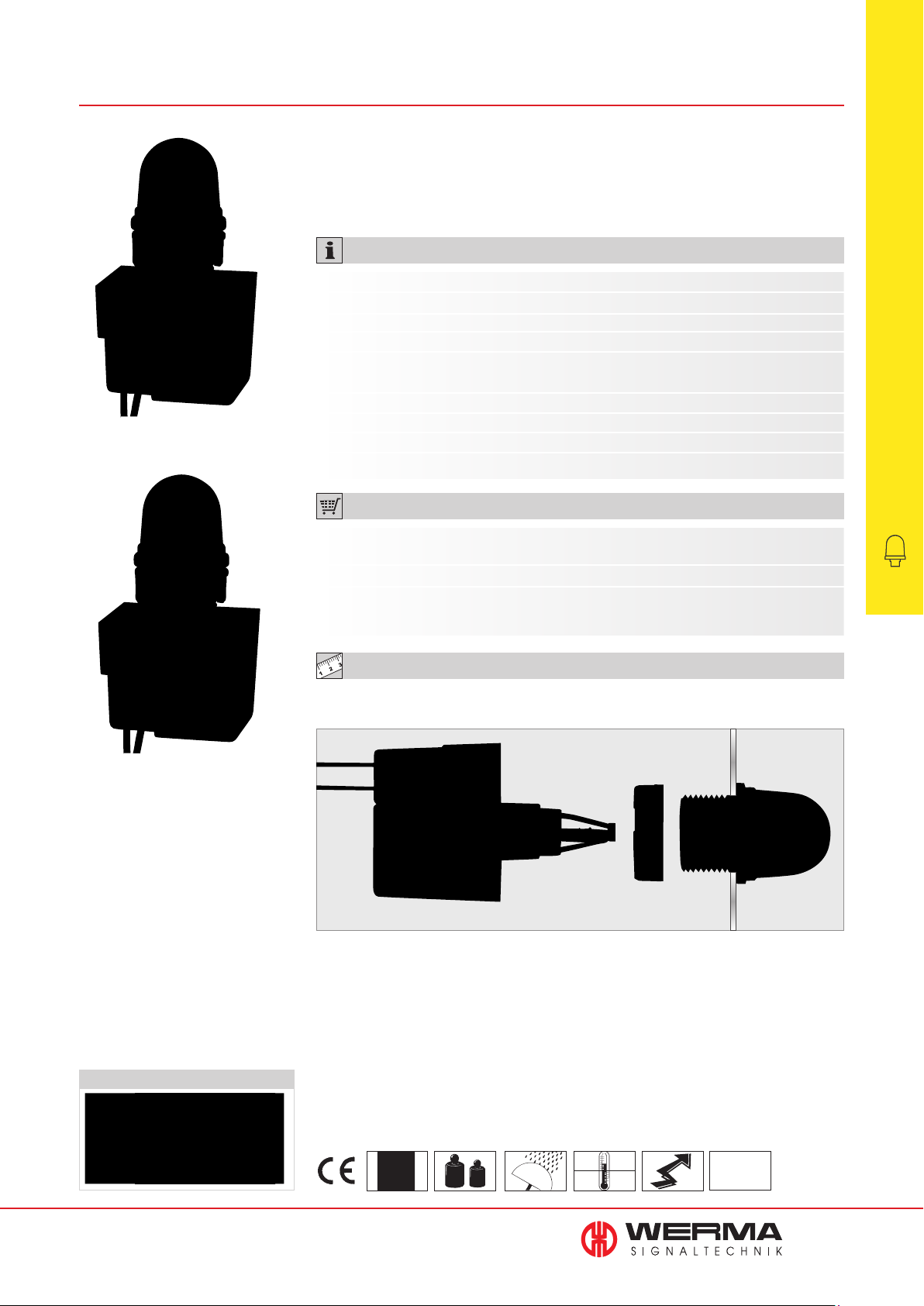

232 Installation Flashing Beacon
• Extremely bright Xenon Flash
• Multivoltage Flashing Beacon
• Simple installation by clicking the
• 22 mm installation diameter for
the control panel/switchgear programme
beacon onto the housing
TECHNICAL SPECIFICATIONS:
Dimensions (Ø x Height): 29 mm x 32 mm (Protrusion from panel)
Housing: PC/ABS-Blend
Lens: PC, transparent
Connection: 2 wires, c. 600 mm long
Fixing: Installation mounting for Ø 22.5 mm (M22 x 1.5 mm)
with anti-twist device
Flash frequency: 1.5 Hz
Flash energy: 1 Ws
Life duration: 4 x 10
Nut and seal included in assembly.
ORDER SPECIFICATIONS:
Voltage 24 V AC/DC (10-100 V DC) 115 V AC 230 V AC
(20-72 V AC)
Current consumption 140 mA 30 mA 20 mA
red 232 100 55 232 100 67 232 100 68
yellow 232 300 55 232 300 67 232 300 68
6
fl ashes
Flashing Beacons
•
Optical Signal Devices
Installation Beacons
Sizes of Flashing Beacons
TECHNICAL DIAGRAMS:
see page 302

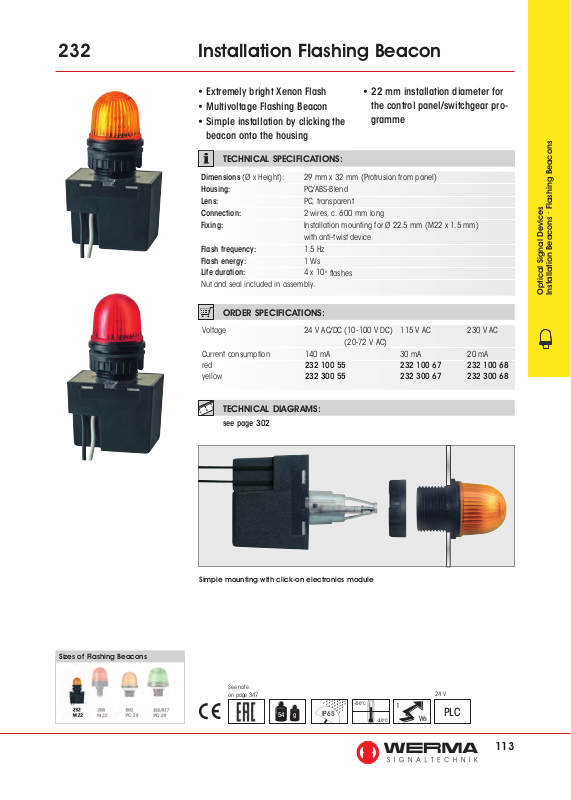

Simple mounting with click-on electronics module
See note
on page 347
54 g
IP 65
+50°C
-20°C
24 V
1
Ws
PLC
113
