1. Start Up

1.1 Introduction

WellGate 3701A/3702A is a one-port/two-port FXS+FXO gateway. It supports an innovative intelligent call rouging function that transparently routes calls to destination either through PSTN or Internet.

WellGate 3701A/3702A provides voice over IP and FAX over IP services for ITSP/ISP Internet Telephony Services Provider and Office/SOHO IP-PBX application.

Application Architecture

 FXO ports can connect with PSTN Line or Extension Line of PBX

 FXS ports can connect with Phone Set or Trunk Line of PBX

IP

Network

PBX

FXS

FXO

FXS

FXO

PBX

Extension

Extension port

Trunk side

IP

Network

IP

Network

PBXPBX

FXS

FXO

FXS

FXO

PBXPBX

Extension

Extension port

Trunk side

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

6

1.2 Features and specification

Features

- ITU-T H.323 v2/v3/v4 compliance

- Automatically Dial Path Selection (IP or PSTN)

- PSTN Line switch to telephone set when power is failure

- PPPoE support

- Behind NAT router or IP sharing device

- DNS server inquiry

- Automatically Gatekeeper Discovery

- Provide Peer-to-Peer Mode (Non Gatekeeper needed) selection

- E.164 Dial Plan

- TFTP/FTP software upgrade

- Remote configuration/ reset

- LED indication for system status

- MS-NetMeeting v3.0 compatible

- Support Fix IP and DHCP

- Parameters of VoIP packet

Audio feature

- Codec -- G.711 a/μlaw, G.723.1 (6.3kbps), G.729, G.729A

- G.168/165-compliant adaptive echo cancellation

- Dynamic Jitter Buffer

- Completed voice band signaling support

- Provide In-band or Out-band DTMF generation/detection

- Provide call progress tone

Management Feature

- TELNET/Console port and Web Browser configuration

Certification

- UL, CE, FCC

FXS Features

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

7

- 2-wire loop start

- Programmable On-Hook voltage, Ring voltage/Cadence/Frequency, Loop

current

- Line polarity reversal generation

FXO Features

- 2-wire loop start

- Support auto-attendant (Tone or voice greeting)

- PSTN polarity reversal detection

- Provide 2nddial tone to PSTN

- Disconnect tone detection

- Asking ping function with the inside or outside calls

Environmental

- Operation temp:0°C to 40°C

- Humidity: 10% to 90% (Non-condensing)

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

8

1.3 Accessories and equipment

 The voice gateway in 2/4 FXS ports models and two RJ-45 connector

(WAN and LAN).

 The AC adapter.

 The CD of user manual.

 The connection cable in RS-232 interface.

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

9

1.4 Appearance

Front panel: The LED lights provide related system messages of the gateway.

WellGate 3701A

WellGate 3702A

Power: Light on means Gateway is power on, and vice versa. TEL: Light on means the line is in use (off-hook), and vice versa. LINE: Light on means the line is in use (off-hook), and vice versa.

Status:

1. LED light on means Gateway has successfully registered to Gatekeeper

when it is in Gatekeeper Mode.

2. LED flash means Gateway is not registered to Gatekeeper when it is in

Gatekeeper Mode.

3. Or when Gateway is in downloading mode, LED should be flash as well.

4. LED light off means Gateway is in Peer-to-Peer Mode.

Ready:

1. Light on and slow flash means Gateway is in normal mode.

2. Light on and fast flash means Gateway is in downloading mode.

WAN: Connected to Public Ethernet

1. Line- LED light on means Gateway is physically connected to the Ethernet

correctly.

2. ACT- LED light on and flash when Ethernet data is being transmitted /

received.

LAN: Switch to another device, such as PC

1. Line- LED light on means Gateway is physically connected to the Ethernet

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

10

correctly.

2. ACT- LED light on and flash when Ethernet data is being transmitted

received.

Back panel:

WellGate 3701A

WellGate 3702A

1. Ethernet Port

LAN/WAN: 10/100 Base-T; RJ-45 socket, complied with ETHERNET

10/100base-T. The pin-out is as following:

PIN 1, 2: Transmit

PIN 3, 6: Receive

2. COM:

RS232 console port (DB-9pin male connector) Note: use straightforward cable to connect to your computer.

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

11

PINOUTS

Pin Name Dir Description

2 RXD Receive Data

3 TXD Transmit Data

5 GND System Ground

3. TEL:

RJ-11 connector, FXS interface is for connecting the analog phone sets or trunk line of PABX.

4. LINE:

RJ-11 connector, FXO interface is for connecting the extension line of PABX or PSTN Line.

5. 12V DC:

Input AC 100V~120V;output DC12V.

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

12

2. How to Setup and Connect basically

2.1 System Requirement

1. One PC (a) Pentium 100 or above, 64 RAM, Windows 98 or above.

(b) Ethernet card or COM port

2. One standard straightforward RS-232 cable (female connector to Gateway

side).

3. Analog telephone sets.

4. PBX extension Lines or PSTN Lines.

5. Software tools (a) Hyper Terminal, TELNET, Web Browser.

(b) Gatekeeper (optional).

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

13

2.2 IP Environment Setting

User must prepare a valid IP address, complied with IP Network, for Gateway’s proper operation.

For testing the validation of chosen IP address, using the same IP configuration in other PC or Notebook, and then try to connect to Public Internet (go to well-known website, receive Internet mail, or ping a specific public IP address). If it works, use the same IP address and network configuration for Gateway. Please follow up the step for the configuration of your computer or notebook.

2.2.1 For Windows 2000/NT

Please make sure that the network interface of your computer is working fine and the cross over line (RJ-45) is connecting with the computer correctly or you could use a hub to connect with your computer and this gateway. Turn on your computer and configure the network parameter as follow:

1 Go to the start menu and enter the setting area. Click control panel.

2 Enter the network configuration.

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

14

Figure 2.1: Network Configuration

3 Select the Property of the LAN card.

4 Setup the ip address, subnet mask and default gateway as below:

Figure 2.2: Configure the network

5 Click OK after you finished the network setup.

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

15

The default ip address, netmask and default gateway address of the gateway is 10.1.1.3, 255.255.0.0, 10.1.1.254.

2.3 Network configurations in your gateway

1 Key in the ip address of the gateway (http://10.1.1.3) with the browser

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

16

2 After key in the ip address, you have to enter the user name and password

to enter the WEB configuration. (Username: root ; No password)

Figure 2.3: Login the username and password

3 You will enter the main page of the configuration after key in the login name

and password correctly:

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

17

Figure 2.4: The main WEB configuration

4 Press the Network Interface to configure the networking of your gateway:

Figure 2.5: The Network Interface

2.3.1 Static ip address

1 Please get the correct ip address, netmask and default gateway address

from your ISP first. Press the OK button if you finished.

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

18

Figure 2.5: Configure the static ip address

2 Press the commit if you finish the configuration.

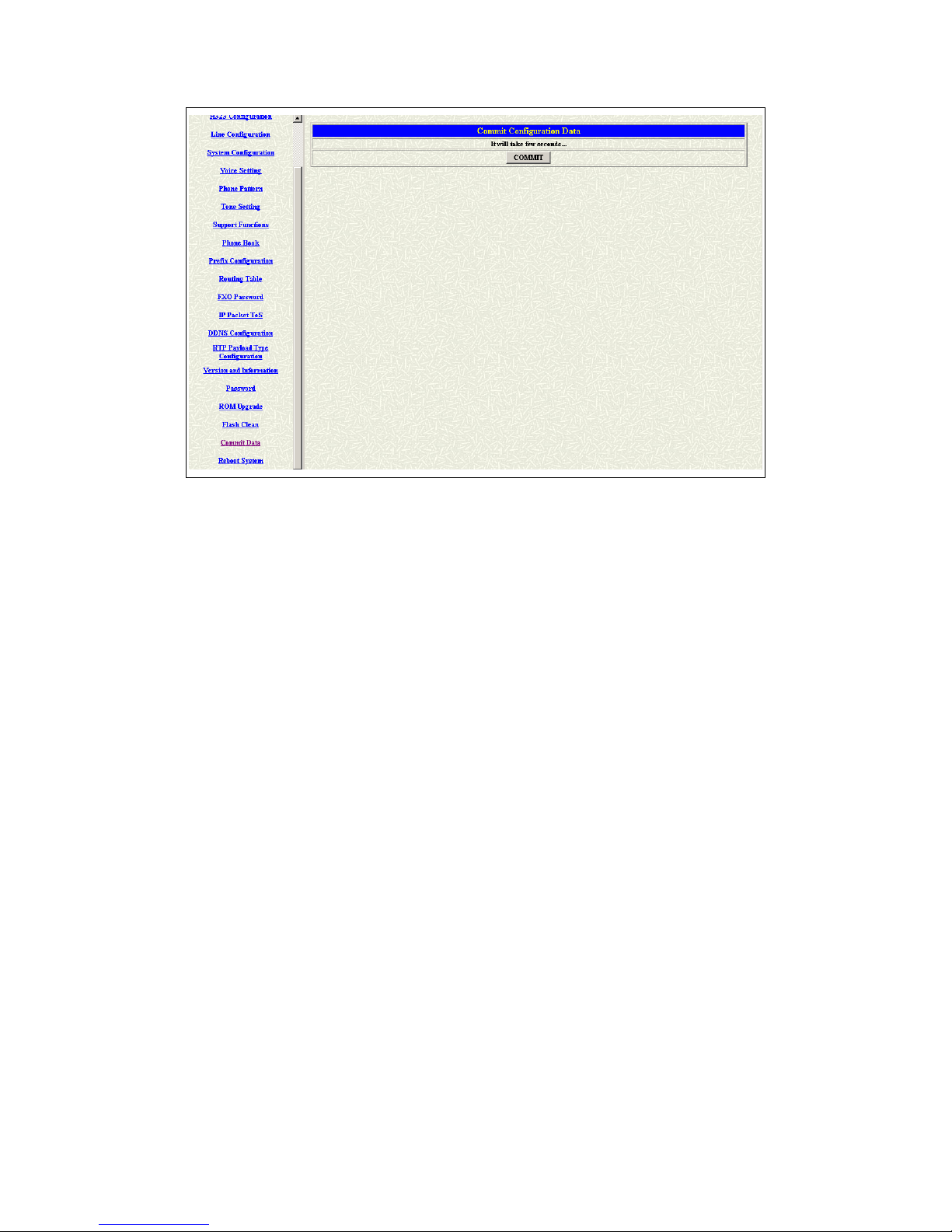

Figure 2.6: Commit the data

3 Press the reboot if you want the configuration executed.

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

19

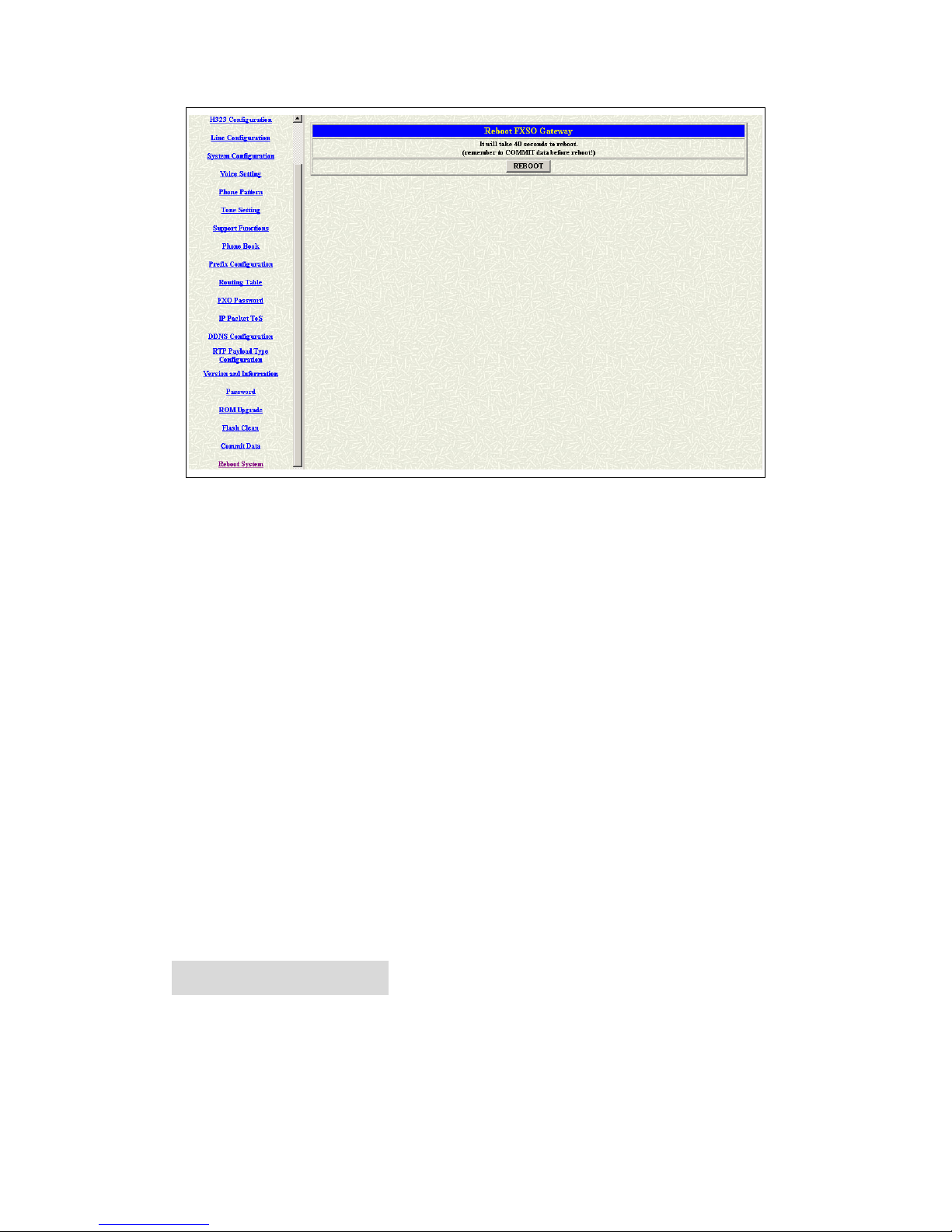

Figure 2.7: Reboot the system

2.3.2 DHCP mode

1 Change to the DHCP mode if you are using the cable modem or DHCP

server.

Figure 2.8: Enable the DHCP function

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

20

2 Please commit the data and reboot the machine after you enable the DHCP

function.

2.3.3 PPPoE mode

1 Chang the PPPoE mode in the IP mode table.

Figure 2.9: Chage to PPPoE mode

2 Please commit the data and reboot the machine after you finished the

configuration of PPPoE.

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

21

Figure 2.10: Enter the PPPoE connection info

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

22

2.4 Making a VoIP Call

There are two modes that you could configure the gateway for making VoIP calls. One is the Peer-to-Peer mode, another is GK routed mode. The configurations and functions are different. Please make sure about the mode you want and follow up the step to configure your gateway.

2.4.1 Configure the gateway into the Peer-to-Peer mode

1 Enter the H323 Configuration table and change the mode to Peer-to-Peer.

Figure 2.10: Configure the Peer-to-Peer mode

2 Press the OK button which is on the buttom of this page to save the

configuration.

Figure 2.11: Press OK to save the data

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

23

3 Enter the Phone Book configuration table and configure the name, ip

address and phone number of the destination.

Figure 2.12: Phone Book

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

24

【Example】

Figure 2.13: The example of Phone Book configuration

The name of the destination: test The E164 number (phone number) of the destination: 123 The ip address of the destination: 10.1.1.100 The call signal port of the destination: 1720 (The port will be 1720 if you don’ t define it) Drop prefix:

Enable – The e164 number you define will be deleted

Disable – The e164 number you define will be kept Insert prefix: To add a number you define in this table

Press the “Add Data” button when you finished, and the new table will display on the first index if you press the Phone Book configuration button.

4 Please Commit it and Reboot the system if the configuration is finished.

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

25

Figure 2.14: To show the Phone Book record

【The application in the drop and insert function】

Input (E164) Drop Insert Output

100 Disable X 100

200 Disable 0 0200

300 Enable X X

400 Enable 500 500

※ X – Do not enter any numbers

Phone Book is only for the Peer-to-Peer mode. Fifty index support.

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

26

2.4.2 Configure the gateway into the GK routed mode

1 Enter the H323 Configuration table and change the mode from Peer-to-Peer

to GK routed. To change the GK information from your service provider (Ex: The Gatekeeper IP, Registered Prefix and Registered Alias).

Figure 2.15: Configure the GK info

2 Press the OK button which is on the buttom of this page to save the

configuration.

Figure 2.16: Press OK to save the data

3 Press the Commit Data and Reboot System buttons when you finished the

configuration.

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

27

2.4.2.1 The type in GK routed mode

There are two types in the GK routed mode you could choose. One is Gateway type and another is Terminal type. There are some different functions, applications and configurations between the Gateway type and Terminal type. Please get more info from the table as below:

Gateway Type Terminal Type

Prefix number is necessary Prefix number is not necessary

The E164 number of each port

should be follow the prefix number

The E164 number of each port

could be different

Support the one-stage dialing

Do not support the one-stage

dialing

The default type of the all series Welltech gateway are Gateway type. But the LanPhone is the terminal type. You could change the type for your gateway but the LanPhone couldn’t. Please pick up the type you want to use with your gateway and pay more attentions about the rules as above. There are two example for the Gateway type and Terminal type as below:

FXSO H.323 Gateway User Manual Document Ver.: 2.2 Release Mar., 2004

28

【Example – Gateway type】

Figure 2.17: Gateway Type configuration

The prefix number is necessary if you configure it to be a gateway. The number of ports must be followed the prefix number.

【Example – Terminal type】

WELLTECH 3701A, 3702A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
