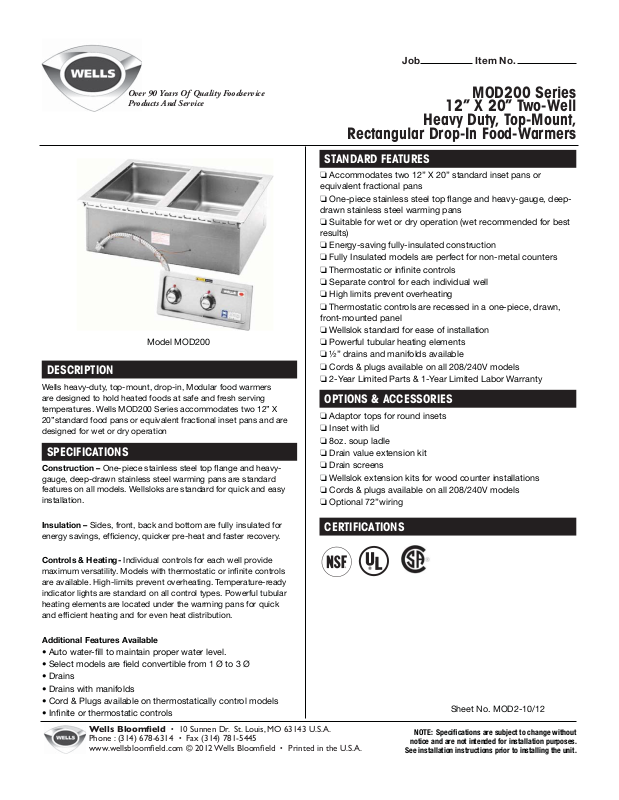

Model MOD200
DESCRIPTION
Wells heavy-duty, top-mount, drop-in, Modular food warmers
are designed to hold heated foods at safe and fresh serving
temperatures. Wells MOD200 Series accommodates two 12” X
20”standard food pans or equivalent fractional inset pans and are
designed for wet or dry operation
SPECIFICATIONS
Construction – One-piece stainless steel top fl ange and heavy-
gauge, deep-drawn stainless steel warming pans are standard
features on all models. Wellsloks are standard for quick and easy
installation.
MOD200 Series
12” X 20” Two-Well
Heavy Duty, Top-Mount,
Rectangular Drop-In Food-Warmers
STANDARD FEATURES
❏ Accommodates two 12” X 20” standard inset pans or
equivalent fractional pans
❏ One-piece stainless steel top fl ange and heavy-gauge, deep-
drawn stainless steel warming pans
❏ Suitable for wet or dry operation (wet recommended for best
results)
❏ Energy-saving fully-insulated construction
❏ Fully Insulated models are perfect for non-metal counters
❏ Thermostatic or infi nite controls
❏ Separate control for each individual well
❏ High limits prevent overheating
❏ Thermostatic controls are recessed in a one-piece, drawn,
front-mounted panel
❏ Wellslok standard for ease of installation
❏ Powerful tubular heating elements
❏ ½” drains and manifolds available
❏ Cords & plugs available on all 208/240V models
❏ 2-Year Limited Parts & 1-Year Limited Labor Warranty
OPTIONS & ACCESSORIES
❏ Adaptor tops for round insets
❏ Inset with lid
❏ 8oz. soup ladle
❏ Drain value extension kit
❏ Drain screens
❏ Wellslok extension kits for wood counter installations
❏ Cords & plugs available on all 208/240V models
❏ Optional 72”wiring
Insulation – Sides, front, back and bottom are fully insulated for
energy savings, effi ciency, quicker pre-heat and faster recovery.
Controls & Heating- Individual controls for each well provide
maximum versatility. Models with thermostatic or infi nite controls
are available. High-limits prevent overheating. Temperature-ready
indicator lights are standard on all control types. Powerful tubular
heating elements are located under the warming pans for quick
and effi cient heating and for even heat distribution.
Additional Features Available
• Auto water-fi ll to maintain proper water level.
• Select models are fi eld convertible from 1 Ø to 3 Ø
• Drains
• Drains with manifolds
• Cord & Plugs available on thermostatically control models
• Infi nite or thermostatic controls
Wells Bloomfi eld · 10 Sunnen Dr. St. Louis, MO 63143 U.S.A.
Phone : (314) 678-6314 · Fax (314) 781-5445
www.wellsbloomfi eld.com © 2012 Wells Bloomfi eld · Printed in the U.S.A.
CERTIFICATIONS
Sheet No. MOD2-10/12
NOTE: Specifi cations are subject to change without
notice and are not intended for installation purposes.
See installation instructions prior to installing the unit.
Over 90 Years Of Quality Foodservice
Products And Service
MOD200 Series
12” X 20” Two-Well
Heavy Duty, Top-Mount,
Rectangular Drop-In Food-Warmers
OTE:
N
Specifications are
subject to change without
notice and are not intended
for installation purposes.
See installation instructions
prior to installing the unit.
Model
Number
MOD200 Infinite Controls no
MOD200CSA Infinite Controls no
MOD200D Infinite Controls with
MOD200DM Infante Controls with
MOD200T Thermostatic Controls
MOD200TD Thermostatic Controls
MOD200TDM Thermostatic Controls
MOD200TDMAF Thermostatic Controls
Description Volts Watts
Drains
Drains
Drains
Drains & Manifold
no Drains
with Drains
with Drains & Manifold
with Drains, Manifold
& Auto-Fill
Cords and plugs are available on all 120V and on all 208/240V models (optional)
Cord
6-15P
6-15P
6-15P
6-15P
6-15P
6-15P
OVERALL
Width
Left to Right
Inches
(MM)
(749)
(749)
29-1/2
(749)
29-1/2
(749)
29-1/2
(749)
29-1/2
(749)
29-1/2
(749)
29-1/2
(749)
Phase Optional
Per
Well
208/240V 900/1200 1Ø NONE 29-1/2
208V
240V
208/240V 900/1200 1Ø NEMA
208/240V 900/1200 1Ø NEMA
208/240V 1240/1650 1Ø NEMA
208/240V 1240/1650 1Ø NEMA
208/240V 1240/1650 1Ø NEMA
208/240V 1240/1650 1Ø NEMA
1800
2400
Power
Supply
1Ø NONE 29-1/2
SPECIFICATIONS
OVERALL
Length
Front to Back
Inches
(MM)
23-5/8
23-5/8
23-5/8
23-5/8
23-5/8
23-5/8
23-5/8
23-5/8
(600)
(600)
(600)
(600)
(600)
(600)
(600)
(600)
OVERALL
Height
Inches
(MM)
9-3/4
(248)
9-3/4
(248)
9-3/4
(248)
9-3/4
(248)
9-3/4
(248)
9-3/4
(248)
9-3/4
(248)
9-3/4
(248)
CONTROL
PANEL
Width
Front to Back
Inches
(MM)
14
(356)
14
(356)
14
(356)
14
(356)
14
(356)
14
(356)
14
(356)
18
(457)
CONTROL
PANEL
Height
Left to Right
Inches
(MM)
6-1/4
(159)
6-1/4
(159)
6-1/4
(159)
6-1/4
(159)
6-1/4
(159)
6-1/4
(159)
6-1/4
(159)
6-1/4
(159)
Shipping
Weights
Pounds
(KG)
51
(23.2)
51
(23.2)
51
(23.2)
51
(23.2)
51
(23.2)
51
(23.2)
51
(23.2)
56
(25.5)
Crate Size
Cubic Feet
(Cubic
Meters)
7.89
(0.384)
7.89
(0.384)
7.89
(0.384)
7.89
(0.384)
7.89
(0.384)
7.89
(0.384)
7.89
(0.384)
7.89
(0.384)
Approvals
N U
N C
N U
N U
N U
N U
N U
N U
AutoFill models require a water connection. Please refer to the operator’s manual and installation instructions for details.
Due to periodic changes in designs, methods, procedures, policies and regulations, the specifi cations contained in this sheet are subject to change without notice. While Wells
exercises good faith efforts to provide information that is accurate, we are not responsible for errors or omissions in information provided or conclusions reached as a result of using the
Wells Bloomfi eld · 10 Sunnen Dr. St. Louis, MO 63143 U.S.A.
Phone : (314) 678-6314 · Fax (314) 781-5445
www.wellsbloomfi eld.com © 2012 Wells Bloomfi eld · Printed in the U.S.A.
specifi cations. By using the information provided, the user assumes all risks in connection with such use.
