Wells MOD100T Installation Manual

MOD100T
WELLS BLOOMFIELD, LLC
10 Sunnen Drive P.O.Box 430195
St. Louis, MO 63143 USA
telephone: 314-781-2777
fax: 314-781-2714
www.wellsbloomfield.com
OWNERS MANUAL

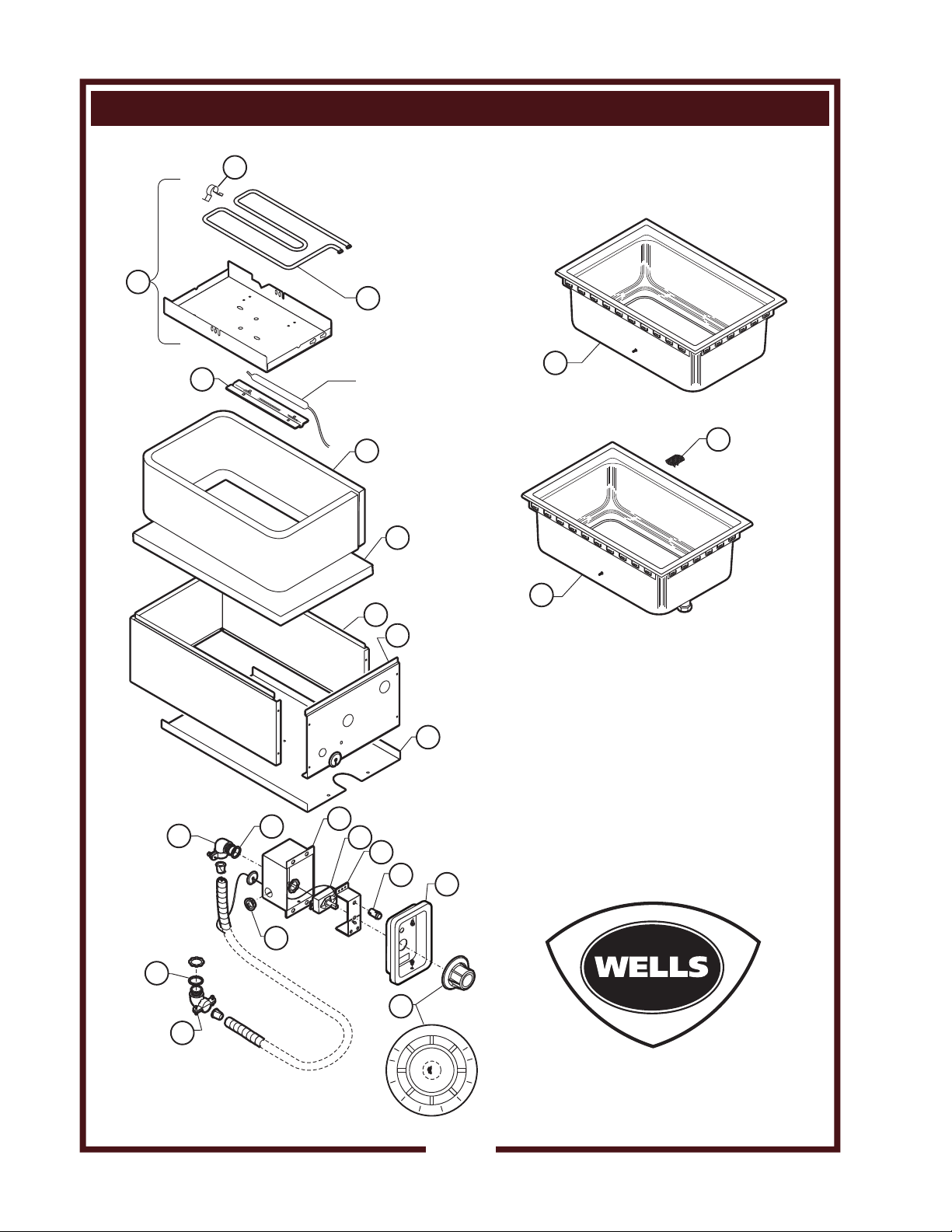

EXPLODED VIEW
011C
BUILT-IN
SINGLE WELL
MODULAR
WARMERS
with
THERMOSTAT
CONTROL
MODELS
MOD100T MOD100TD MOD100HT
MOD100HTD
MOD127TD
Includes
INSTALLATION
USE & CARE
PARTS LIST
IMPORTANT: DO NOT DISCARD THIS MANUAL
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
PRINTED IN UNITED STATES OF AMERICA
2M-308017 Rev. (A) M011C.01 110506
LIMITED WARRANTY STATEMENT
Unless otherwise specified, all commercial cooking equipment manufactured by WELLS BLOOMFIELD, LLC is warranted against defects in materials and workmanship for a period of one year from the date of original installation or 18 months from the date of shipment from our factory, whichever comes first, and is for the benefit of the original purchaser only. THIS WARRANTY IS THE COMPLETE AND ONLY WARRANTY, EXPRESSED OR IMPLIED IN LAW OR IN FACT, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, AND/OR FOR DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH WELLS BLOOMFIELD PRODUCTS. This warranty is void if it is determined that, upon inspection by an authorized service agency, the equipment has been modified, misused, misapplied, improperly installed, or damaged in transit or by fire, flood or act of God. It also does not apply if the serial nameplate has been removed, or if service is performed by unauthorized personnel. The prices charged by Wells Bloomfield for its products are
based upon the limitations in this warranty. Seller’s obligation under this warranty is limited to the repair of defects without charge by a Wells Bloomfield factory authorized service agency or one of its sub-service agencies. This service will be provided on customer’s premises for non-portable models. Portable models (a device with a cord and plug) must be taken or shipped to the closest authorized service agency, transportation charges prepaid, for service. In addition to restrictions contained in this warranty, specific limitations are shown in the Service Policy and Procedure Guide. Wells Bloomfield authorized service agencies are located in principal cities. This warranty is valid in the United States and Canada and void elsewhere. Please consult your classified telephone directory, your foodservice equipment dealer or contact:
10 Sunnen Dr., P.O.Box 430129 St. Louis MO 63143 USA
phone (314) 781-2777 or fax (314) 781-2714
for information and other details concerning warranty.
Wells Bloomfield, LLC
SERVICE POLICY AND PROCEDURE GUIDE and ADDITIONAL WARRANTY EXCLUSIONS
1. Resetting of safety thermostats, circuit breakers, over load protectors, and/or fuse replacements are not covered by this warranty unless warranted conditions are the cause.
2. All problems due to operation at voltages or phase other than specified on equipment nameplates are not covered by this warranty. Conversion to correct voltage and/or phase must be the customer’s responsibility.
3. All problems due to electrical connections not made
in accordance with electrical code requirements and wiring diagrams supplied with the equipment are
not covered by this warranty.
4. Replacement of items subject to normal wear, to include such items as knobs, light bulbs; and, normal maintenance functions including adjustments of thermostats, adjustment of micro switches and replacement of fuses and indicating lights are not covered by warranty.
5. Damage to electrical cords and/or plug due to exposure to excessive heat are not covered by this warranty.
6. Full use, care, and maintenance instructions supplied with each machine. Noted maintenance and
preventative maintenance items, such as servicing and
cleaning schedules, are customer responsibility. Those miscellaneous adjustments noted are customer responsibility. Proper attention to preventative maintenance and scheduled maintenance procedures will prolong the life of the appliance.
7. Travel mileage is limited to sixty (60) miles from an Authorized Service Agency or one of its sub-service agencies.
8. All labor shall be performed during regular working hours. Overtime premium will be charged to the buyer.
9. All genuine Wells replacement parts are warranted for ninety (90) days from date of purchase on non­warranty equipment. This parts warranty is limited only to replacement of the defective part(s). Any use of
non-genuine Wells parts completely voids any
warranty.
10. Installation, labor, and job check-outs are not
considered warranty and are thus not covered by this warranty.
11. Charges incurred by delays, waiting time or operating
restrictions that hinder the service technician’s ability to perform service are not covered by warranty. This includes institutional and correctional facilities.
M011C.01 2M-308017 Owners Manual for Built-In Single-Well Modular T’Stat Warmers
SHIPPING DAMAGE CLAIM PROCEDURE
NOTE: For your protection, please note that equipment in
this shipment was carefully inspected and packaged by skilled personnel before leaving the factory. Upon acceptance of this shipment, the transportation company assumes full responsibility for its safe delivery. IF SHIPMENT ARRIVES DAMAGED:
1. VISIBLE LOSS OR DAMAGE: Be certain that any visible loss or damage is noted on the freight bill or express receipt, and that the note of loss or damage is signed by the delivery person.
2. FILE CLAIM FOR DAMAGE IMMEDIATELY:
Regardless of the extent of the damage.
3. CONCEALED LOSS OR DAMAGE: if damage is unnoticed until the merchandise is unpacked, notify the transportation company or carrier immediately, and file “CONCEALED DAMAGE” claim with them. This should be done within fifteen (15) days from the date the delivery was made to you. Be sure to retain the container for inspection.
Wells Bloomfield cannot assume liability for damage or loss incurred in transit. We will, however, at your request, supply you with the necessary documents to support your claim.
xi
TABLE OF CONTENTS
WARRANTY xi FEATURES & OPERATING CONTROLS 2 PRECAUTIONS & GENERAL INFORMATION 3 AGENCY LISTING INFORMATION 3 INSTALLATION 4 OPERATION 6 MAINTENANCE INSTRUCTIONS 7 CLEANING INSTRUCTIONS 8 TROUBLESHOOTING SUGGESTIONS 10 EXPLODED VIEW & PARTS LIST 12-14 WIRING DIAGRAM 15 PARTS & SERVICE 16 CUSTOMER SERVICE DATA 17
INTRODUCTION
Thank You for purchasing this Wells Bloomfield appliance. Proper installation, professional operation and consistent maintenance of this appliance will ensure that it
gives you the very best performance and a long, economical service life. This manual contains the information needed to properly install this appliance, and to use and care for the
appliance in a manner which will ensure its optimum performance.
SPECIFICATIONS
MODEL VOLTS AMPS WATTS POWER SUPPLY CORD
MOD100T
MOD100TD
MOD127TD NOT SUPPLIED
M011C.01 2M-308017 Owners Manual for Built-In Single-Well Modular T’Stat Warmers
120 VAC 1ø 13.8A 1600W 208 VAC 1ø 6.0A 1240W 240 VAC 1ø 6.9A 1600W 208 VAC 1ø 6.0A 1240W 240 VAC 1ø 6.9A 1600W
1
NOT SUPPLIED
FEATURES & OPERATING CONTROLS
A. THERMOSTAT
1. On THERMOSTATICALLY CONTROLLED warmers, power is applied to the heating element according to the control knob position and the actual temperature at the temperature sensing thermobulb.
2. The desired temperature is controlled by rotating the TEMPERATURE CONTROL KNOB. The knob has a numeric scale, where higher numbers correspond to higher temperature.
3. On warmers equipped with an INDICATOR LIGHT, the light will glow when the thermostat is calling for heat (i.e. the element is energized).
4. The TEMPERATURE CONTROL KNOB will rotate approximately 300º, and will reach a “stop” at both ends. The OFF position is marked.
NOTE: The dial position is an indication of the temperatu re setting. Actual temperature will vary depending upon the type of product and food consistency.
B. MOUNTING
1. MOD-series built-in warmers may are equipped with WELLSLOKS, uniquely designed turnout tabs which help secure the warmer top flange to the countertop.
3. See the Installation Instructions, supplied with the particular appliance, for details.
C. DRAINS
1. Suffix “D” units (e.g. MOD-300TD) have drains for each pan, with each pan having an individual drain valve.
M011C.01 2M-308017 Owners Manual for Built-In Single-Well Modular T’Stat Warmers
2
PRECAUTIONS AND GENERAL INFORMATION
This appliance is intended for use in commercial establishments only.
This appliance is intended consumption. No other use is manufacturer or its agents.
Operators of this appliance must be familiar with the appliance use, limitations and associated restrictions. Operating instructions must be read and understood by all persons using or installing this appliance.
Cleanliness of this appliance is essential to good sanitation. Read and follow all included cleaning instructions and schedules to ensure the safety of the food product.
Disconnect this appliance from electrical power before performing any maintenance or servicing.
This appliance is not jet stream approved. Do not direct water jet or steam jet at this appliance, or at any control panel or wiring. Do not splash or pour water on, in or over any controls, control panel or wiring.
Exposed surfaces of this appliance can be hot to the touch and may cause burns.
Do not operate this appliance if the control panel is damaged. Call your Authorized Wells Service Agent for service.
The technical content of this manual, including any wiring diagrams, schematics, parts breakdown illustrations and/or adjustment procedures, is intended for use by qualified technical personnel.
Any procedure which requires the use of tools must be performed by a qualified technician.
This manual is considered to be a permanent part of the appliance. This manual and all supplied instructions, diagrams, schematics, parts breakdown illustrations, notices and labels must remain with the appliance if it is sold or moved to another location.
This appliance is made in the USA. Unless otherwise noted, this appliance has American sizes on all hardware.
to hold pre-heated food for human
recommended or authorized by the
WARNING:
SHOCK HAZARD
All servicing requiring access to non-insulated electrical components must be performed by a factory authorized technician. DO NOT open any access panel which requires the use of tools. Failure to follow this warning can result in severe electrical shock.
CAUTION:
RISK OF
DO NOT connect or energize this appliance until all installation instructions are read and followed. Damage to the appliance may result if these instructions are not followed.
DAMAGE
CAUTION:
HOT SURFACE
Exposed surfaces can be hot to the touch and may cause burns.
Refer to the product nameplate for the specific appliance for agency listings. In general:
This appliance conforms to NSF Standard 4 for sanitation only if installed in accordance with the supplied Installation Instructions.
UL Listed warmers are
M011C.01 2M-308017 Owners Manual for Built-In Single-Well Modular T’Stat Warmers
U Listed under UL File E6070.
3
AGENCY LISTING INFORMATION
STD 4
E6070
UL Listed Warmers
INSTALLATION
NOTE: DO NOT discard
the carton or other packing materials until you have inspected the appliance for hidden damage and tested it for proper operation. Refer to SHIPPING DAMAGE CLAIM PROCEDURE on the inside front cover of this manual.
WARNING:
RISK OF INJURY
Installation procedures must be performed by a qualified technician with full knowledge of all applicable electrical and plumbing codes. Failure can result in personal injury and property damage.
CAUTION
FIRE HAZARD
Avoid storing flammable or combustible materials in, on or near the appliance.
IMPORTANT: For warmers installed in plastic counter tops, the counter material must be protected from the heat of the warmer in order to prevent discoloration and/or deterioration. Wellsloks are not suitable for this purpose. The installer should contact the manufacturer or distributor of the countertop material for specific instructions.
IMPORTANT: Wellslok Extension Kits must be used ONLY with UL Listed warmers approved for installation in wood counter tops. Refer to the Installation Instructions provided with the warmer.
UNPACKING & INSPECTION
Carefully remove the appliance from the carton. Remove all protective plastic film, packing materials and accessories from the Appliance before connecting electrical power or otherwise performing any installation procedure.
Carefully read all instructions in this manual and the Installation Instruction Sheet packed with the appliance before starting any installation.
Read and understand all labels and diagrams attached to the appliance.
Carefully account for all components and accessories before discarding packing materials. Store all accessories in a convenient place for later use.
INSTALLATION NOTES
1. Installation and start up of built-in warmers MUST be performed by an authorized installation company.
2. It is the RESPONSIBILITY OF THE INSTALLER to verify that this warmer installation is in compliance with the specifications listed in this manual and on the specification sheet provided.
3. It is the RESPONSIBILITY OF THE INSTALLER to check with the AUTHORITY HAVING JURISDICTION, in order to verify that this warmer installation is in compliance with local code requirements.
4. Water supply and drain installation must meet all applicable local, state and federal plumbing codes and ordinances.
5. Refer to Installation Instructions included with the warmer for Underwriters Laboratories conditions of acceptability, electrical requirements and other installation concerns.
BUILT-IN WARMERS
1. This is a GENERAL GUIDE. For specific cutout dimensions and other installation details, refer to the Installation Instructions supplied with the warmer.
2. Cutout dimensions for warmer units and control panels are listed on the Installation Instructions provided with the warmer.
NOTE: Verify the dimensions are correct for the installation before making the cutout.
M011C.01 2M-308017 Owners Manual for Built-In Single-Well Modular T’Stat Warmers
4
3. For “top-mounted” warmers (i.e. warmers mounted from above the counter top): a. Verify that provided sealants are applied to the underside of the warmer top flange prior to setting the unit into the cutout. b. After installation, verify that the tabs on the Wellsloks are turned out to lock the warmer into the counter c. Apply a thin bead of food-grade silicone sealant around the flange to seal it to the counter. d. Wellslok extension kits are available for installing warmers in counter tops where the standard Wellslok would not normally reach. The extension kit will adapt to counter tops up to 1¾” thick.
ELECTRICAL INSTALLATION
1. Refer to the product nameplate. Verify the electrical service power. Voltage and phase must match the nameplate specifications. Wiring the warmer to the wrong voltage can severely damage the unit or cause noticeably decreased performance.
2. Available electrical service amperage must meet or exceed the specifications listed on the specification sheet provided with the warmer.
3. Warmer and control unit must be connected to an appropriate building ground. Ground connection will be marked “GND” or ” " .
NOTE: Wire gauge, insulation type and temperature rating , as well as type, size and construction of conduit, must meet or exceed applicable specifications of local codes and of the National Electrical Code.
E. PLUMBING INSTALLATION
For use in the State of Massachusetts, this appliance must be installed in compliance with Massachusetts Fuel Gas and
Plumbing Code CMR 248.
1. IMPORTANT: All plumbing installations must be performed by a qualified plumber.
2. For units equipped with a DRAIN LINE: Some jurisdictions may require an approved air gap or other back-flow prevention device in the drain. It is the responsibility of the plumber to determine such requirement, to provide and properly install the required device.
INSTALLATION
NOTE: Damage caused by
leaks due to improper installation is NOT covered by warranty.
CAUTION:
SHOCK HAZARD
The ground lug of this appliance must be connected to a suitable building ground.
IMPORTANT:
Contact a licensed electrician to install and connect electrical power to the appliance.
IMPORTANT:
Damage due to being connected to the wrong voltage or phase is NOT covered by warranty.
IMPORTANT: Electrical installation other than as specified on the specification sheet will void the UL listing, and may void the warranty.
NOTE: Plumb connections must be made in compliance with all Federal, State and Local Plumbing Codes and Ordinances.
M011C.01 2M-308017 Owners Manual for Built-In Single-Well Modular T’Stat Warmers
5
OPERATION
CAUTION:
HOT SURFACE
Exposed surfaces can be hot to the touch and may cause burns.
CAUTION:
SHOCK HAZARD
DO NOT splash or pour water onto control panel or wiring.
Always use an inset. DO NOT place food directly into the warmer.
Always pour hot water into the warmer before it is preheated. DO NOT pour water into a dry, heated warmer. This may damage the unit.
DO NOT put ice into a warmer pan. This will cause condensation on the inside of the warmer. Damage caused by condensation is NOT covered by warranty.
Stir thick food items frequently to keep food heated uniformly.
Keep insets covered to maintain food quality and temperature.
WET OR DRY OPERATION for WARMERS
1. Carefully read the description of the warmer operation on the specification sheet.
2. a. Most warmers are designed for WET OR DRY operation. b. Warmers may be used wet, or may be used dry. However warmers may NOT be used wet-to-dry or dry-to-wet unless they have been allowed to cool to room temperature between the change in wet or dry operation. c. Wells Manufacturing recommends operating WET for consistent food heating. d. If your wet-operation warmer is allowed to run dry, turn it OFF and allow to cool to room temperature before adding water.
3. If the warmer is to be used for WET operation, add approximately 1” of hot tap water before turning the warmer ON. Use of hot water will allow a faster preheat. a. Check the water level frequently and add hot water as necessary to prevent the warmer from running dry. Do not add water to the warmer if it has run dry. b. If your wet-operation warmer is allowed to run dry, turn it OFF and allow to cool to room temperature before adding water.
4. Damage caused by allowing a wet-operation warmer to run dry, is NOT covered by warranty. Damage caused by adding water to a dry warmer when hot is NOT covered by warranty.
PRE-HEATING THE WARMER
1. Place desired pan(s) or inset(s) with approp riate adapter top on warmer. a. Insets are available as accessories in 2½ qt., 4qt., 7 qt., and 11 qt. sizes with lids and adapter tops. b. For dry operation, a 6” deep pan or inset is recommended.
2. Turn temperature control to HI or highest temperature setting.
3. Allow warmer to preheat for approximately 30 minutes, then set the control for the desired temperature. Be sure to keep the warmer covered during preheat and operation.
OPERATION
1. Always use an inset. DO NOT place food directly into the warmer.
2. Check water level in wet-operation warmer fre quently during use. Running warmers dry will lower the temperature of the food in the insert pan, and may damage the warmer.
3. Alternating between wet and dry operation in any individual warmer is NOT recommended.
4. DO NOT use metal tools, steel wool, or caustic or abrasive cleanser to clean warmer pan.
M011C.01 2M-308017 Owners Manual for Built-In Single-Well Modular T’Stat Warmers
6
MAINTENANCE INSTRUCTIONS
CARE OF STAINLESS STEEL
Stainless steel is a marvelous material: strong, lustrous and low maintenance. With a minimum of care, it will normally retain its beauty and durability for the life of the equipment. In some applications, however, special care is required in order to maintain stainless steel’s special properties.
External components, such as cabinets and control panels, are finished with a grain pattern. This pleasing finish is best maintained by cleaning with a non-abrasive cleanser applied with a soft cloth. Rub only in the direction of the grain. In the absence of visible grain, rub only along the longest axis of the appliance.
Restore stainless steel’s luster by applying a polish specifically made for stainless steel. Spray on, wipe off with a soft cloth, rubbing in the direction of the grain.
Never use metal implements, wire brushes, abrasive scratch pads or steel wool to clean stainless steel.
Warmer pans, insets and other vessels are subject to a harsher environment. Wells Manufacturing uses an very high quality stainless steel (#304DDQ) for our food warmer pans. Even the highest quality stainless steel, however, is mostly iron, and will rust, pit and corrode under the following conditions:
Poor Water Quality: Hard water (water with a high content of dissolved minerals)
will leave mineral deposits when allowed to dry. Calcium (lime) can buildup on heated surfaces, even under water. If left unattended, hard water spots and lime buildup can lead to rusting, corrosion and pitting.
Contact with Chlorides: Chlorides (specific compounds of chlorine) are found in
food, table salt and many cleansers. Chlorides can attack the surface of stainless steel, resulting in corrosion and pitting.
Keep your stainless steel warmers clean and free from calcium buildup. Use alkaline, alkaline chlorinated or non-chloride cleanser. Use citric acid-based cleaners to remove calcium deposits.
For additional information, please read the NAFEM Stainless Steel Equipment and Cleaning Guide. Contact NAFEM at : North American Association of Food Equipment Manufacturers 401 N. Michigan Avenue Chicago, Illinois 60611-4267 (312) 644-6610
M011C.01 2M-308017 Owners Manual for Built-In Single-Well Modular T’Stat Warmers
7
CLEANING INSTRUCTIONS
CAUTION:
SHOCK HAZARD
Do NOT splash or pour water into or over any control panel or wiring.
CAUTION:
SHOCK HAZARD
Disconnect warmer from electric power before cleaning
CAUTION:
BURN HAZARD
Allow warmer to cool completely before cleaning.
DAILY CLEANING INSTRUCTIONS PREPARATIONS: Turn control knob(s) to OFF. Allow warmer to cool
before proceeding. Remove any insets, pans and/or adapter tops. Drain or remove water from well if used for wet operation.
FREQUENCY: Minimum - daily. TOOLS: Mild Detergent
Solution: 10 Parts Warm Water to 4 Parts Vinegar Plastic Scouring Pad Clean Cloth or Sponge Food-Grade Silicone Sealant
1. Wipe entire unit down using a clean cloth or sponge and mild detergent.
2. Use a plastic scouring pad to remove any hardened food particles or mineral deposits. IMPORTANT: Do NOT use steel wool for cleaning.
3. Rinse warmer thoroughly with a vinegar and water solution to neutralize all detergent cleanser residue.
4. Inspect warmer flange-to-counter seal. Reseal with food-grade silicone sealant if necessary. Failure to do so may allow grease and water to leak into insulation and heating element, causing a potential fire and/or electric shock hazard.
5. Inspect warmer tank for damage. Damage to the outer body may allow grease and water to leak into insulation and heating element, causing a potential fire and/or electric shock hazard. Contact your Authorized Wells Service Agency to inspect warmer if water or grease contamination is suspected.
6. Close drain valve. Add proper amount of warm water. Turn control knob(s) ON and check for proper operation.
M011C.01 2M-308017 Owners Manual for Built-In Single-Well Modular T’Stat Warmers
8
CLEANING INSTRUCTIONS
WEEKLY CLEANING INSTRUCTIONS PREPARATIONS: Remove any insets, pans and/or adapter tops.
Drain or remove water from well if used for wet operation.
FREQUENCY: Weekly, or whenever lime or scale is seen accumulating on the sides of the warmer pans.
TOOLS: Commercial Delime Cleaner Plastic Scouring Pad Clean Cloth or Sponge
1. Add water to pans until water is at normal operating level (1” - 1 1/2” deep) or covers accumulated scale.
2. Heat water to maximum temperature (190ºF or higher).
3. Pour contents of one package of commercial delime cleaner into each warmer pan. Stir to dissolve cleaner. Turn heat control OFF. Cover pans.
4. Allow solution to soak at least one hour, or overnight for heavy scale buildup.
5. Drain hot water from pans. Scrub with a plastic scouring pad. Rinse thoroughly with hot water, then dry.
6. Refill pans with hot tap water and resume operation.
7. Heavy scale buildup may require additional treatments.
CAUTION:
CHEMICAL BURN
Deilimng chemicals may be caustic. Wear appropriate personal protective equipment. Follow cleaner manufacturer's instructions for safest use.
HAZARD
M011C.01 2M-308017 Owners Manual for Built-In Single-Well Modular T’Stat Warmers
9
TROUBLESHOOTING SUGGESTIONS
SYMPTOM POSSIBLE CAUSE SUGGESTED REMEDY
No power to warmer Circuit breaker off or tripped Reset circuit breaker
Warmer will not heat Temperature control not set
Set control to desired temperature
Verify flange-to counter seal is
Wet insulation
sound, or reseal with food-grade silicone sealant
Warmer trips circuit breaker
Warmer slow to heat
Pan leaking or other internal damage
Internal damage Mineral deposits on pan acting
as a insulator
Wired to wrong voltage
Contact your Authorized Wells Service Agency for repairs
Contact your Authorized Wells Service Agency for repairs
Clean pan(s) with delime cleaner Verify supply voltage - must
match voltage on warmer nameplate
Check drain valve for debris and close fully
Contact your Authorized Wells Service Agency for repairs
Drain-equipped unit will not hold water
Drain valve not fully closed Drain valve damaged or pan(s)
leaking
There are no user-serviceable components in this appliance. In all instances of damage or malfunction, contact your Authorized Wells Service Agency for repairs.
M011C.01 2M-308017 Owners Manual for Built-In Single-Well Modular T’Stat Warmers
10
MAINTENANCE INSTRUCTIONS
CARE OF STAINLESS STEEL
Stainless steel is a marvelous material: strong, lustrous and low maintenance. With a minimum of care, it will normally retain its beauty and durability for the life of the equipment. In some applications, however, special care is required in order to maintain stainless steel’s special properties.
External components, such as cabinets and control panels, are finished with a grain pattern. This pleasing finish is best maintained by cleaning with a non-abrasive cleanser applied with a soft cloth. Rub only in the direction of the grain. In the absence of visible grain, rub only along the longest axis of the appliance.
Restore stainless steel’s luster by applying a polish specifically made for stainless steel. Spray on, wipe off with a soft cloth, rubbing in the direction of the grain.
Never use metal implements, wire brushes, abrasive scratch pads or steel wool to clean stainless steel.
Warmer pans, insets and other vessels are subject to a harsher environment. Wells Manufacturing uses an very high quality stainless steel (#304DDQ) for our food warmer pans. Even the highest quality stainless steel, however, is mostly iron, and will rust, pit and corrode under the following conditions:
Poor Water Quality: Hard water (water with a high content of dissolved minerals)
will leave mineral deposits when allowed to dry. Calcium (lime) can buildup on heated surfaces, even under water. If left unattended, hard water spots and lime buildup can lead to rusting, corrosion and pitting.
Contact with Chlorides: Chlorides (specific compounds of chlorine) are found in
food, table salt and many cleansers. Chlorides can attack the surface of stainless steel, resulting in corrosion and pitting.
Keep your stainless steel warmers clean and free from calcium buildup. Use alkaline, alkaline chlorinated or non-chloride cleanser. Use citric acid-based cleaners to remove calcium deposits.
For additional information, please read the NAFEM Stainless Steel Equipment and Cleaning Guide. Contact NAFEM at : North American Association of Food Equipment Manufacturers 401 N. Michigan Avenue Chicago, Illinois 60611-4267 (312) 644-6610
M011C.01 2M-308017 Owners Manual for Built-In Single-Well Modular T’Stat Warmers
11
EXPLODED VIEW
MOD-100T, MOD-100TD, MOD100HT, MOD100HTD
21
2
1
3
THERMOBULB
5
10
6
11
7
8
11
M011C.01 2M-308017 Owners Manual for Built-In Single-Well Modular T’Stat Warmers
9
14
12
13
20
13
12
MODEL: MOD100T, MOD100HT
15
16
17
19
18
IL1905, Rev A
12
MOD-100T, MOD-100TD, MOD100HT, MOD100HTD
PARTS LIST
Fig
No
1
2
3 5 6
7
8
9
10
11
12 13
14
15
16 17 18 19
M011C.01 2M-308017 Owners Manual for Built-In Single-Well Modular T’Stat Warmers
20 21
Part No Qty Description Application
2N-300166UL 2N-303375UL ELEM HEATING 240V 1650W 2N-46660UL ELEM 240V 1200W LLW-1220 MOD100HTD
2N-46681UL ELEM 120V 1650W SMPT
P2-WL0071
P2-WL0076 PAN ELEM ASSY MOD100HTD MOD100HTD208 P2-WL0077 PAN ELEM ASSY MOD100HT MOD100HT, MOD100HT6, MOD100 HTW P2-WL0079 PAN ELEM ASSY MOD100HTD MOD100HTD
P2-WL0080 PAN ELEM ASSY MOD100T120V D8-303352 1 BRKT THERMO BULB ALL
2H-36196 4.25 INSUL FG .6 MICRO 1X 45 ALL 2H-36050 1.75 INSUL FG .6 MICRO 1X36 ALL
P2-40628 2 SHROUD SIDE MOD100DT P2-45066 1 SHROUD WRAP MOD 100 ROHS MOD100T
P2-45067 1 SHROUD FR MOD 100 ROHS MOD100T P2-40629 P2-45186 SHROUD BOT MOD 100 ROHS
5P-21709 1 SCREEN DRAIN WARMERS ALL P2-30401
P2-30402 PAN W/ DRAIN P2-44564 PAN ASSY SMP TMP MOD100H MOD100HT, MOD100HT6
P2-WL0056 PAN ASSY W/DRAIN MOD100HTD MOD100HTD, MOD100HTD208
2K-33996X
2I-Z12311 2 GASKET-FIBER WASHER MOD100T P2-306959 1 BOX CONTROL MOD100T/WARMER ALL
2T-38968
2T-46551 T HERMO CTRL 96IN CAP RO P2-40843 1 BRKT MTG THERMO INFINITE MOD100T
2J-35687 1 LIGHT SIGNAL GLO DOT W#8 ALL I7-Z12221 1 PANEL, FRONT MOD100T 2R-40498 1 KNOB ASSY MOD 100DT MOD100T, MOD100T-120V 2K-31040 1 BUSHING HEYCO 7/8 O.D. ALL
2C-30397 4 CLIP ELEM M P ALL
ELEM 208V 1650W MODS MOD100HTD208
MOD100T, MOD100TD, MOD100T6,
1
PAN ELEM ASSY MOD100T 208
1
SHROUD BOT MOD100HT
1
PAN W/O DRAIN MOD100T
1
2 3 MOD100T-120V
1
FTG FLEX CONDUIT 90X3/8
THERMO K TYPE SS206ET R
MOD100TD6, MOD100HT
MOD100T-120V, MOD100T6-120V, MOD100TD-120, MOD100TD6120
MOD100T, MOD100T-230, MOD100T6, MOD100TD, MOD100TD-230, MOD100TD6 , MOD100TDAF
MOD100T-120, MOD100T6-120, MOD100TD-120, MOD100TD6120
MOD100HTM MOD100HT6, MOD100HTD, MOD100HTD208
MOD100HT, MOD100HT6, MOD100HTD, MOD100HT208, MOD100HTW
MOD100TD, MOD100TD-120, MOD100TD6, MOD100TD6120
ALL
MOD100T, MOD100TD, MOD100HT, MOD100HTD, MOD100HTW
MOD100T6, MOD100T6-120V, MOD100TD6120, MOD100HT6
13
EXPLODED VIEW & PARTS LIST
WELLS
MOD-127TD
504102
MOD-127TD ONLY
500706
50397 (pk 6)
21709
MOD-127TD ONLY
make from
56196
(150' roll)
8706-109
503352
50177
60846
58968
60843
55687
500702
THERMOBULB (ref.)
65067
51023
M011C.01 2M-308017 Owners Manual for Built-In Single-Well Modular T’Stat Warmers
50177
8706-109
51040
14
60498
2
0
OFF
HI
LO
8
3
7
6
4
5
WIRING DIAGRAM
M011C.01 2M-308017 Owners Manual for Built-In Single-Well Modular T’Stat Warmers
15
PARTS & SERVICE
Always use an inset. DO NOT place food directly
into the warmer pan.
DESCRIPTION PART NO. ADAPTERS & INSETS
ADAPTER TOP, convert 12” x 20” warmer to hold two 7 qt. insets 21502
ADAPTER TOP, convert 12” x 20” warmer to hold two 4 qt. and two 2½ qt 21503
ADAPTER TOP, convert 12” x 20” warmer to hold three 4 qt. insets 21616
ADAPTER TOP, convert 12” x 20” warmer to hold one 7qt. and one 4 qt. 21618
ADAPTER TOP, convert 12” x 20” warmer to hold four qt. insets 21623
ADAPTER TOP, convert 12” x 27” SMPT-27 to hold three 7 qt. insets 21503
QT. ROUND INSET w/ lid 20773 4 QT. ROUND INSET w/ lid 20774 7 QT. ROUND INSET w/ lid 20587 11 QT. ROUND INSET w/ lid 20908 11 QT. ROUND INSET w/ hinged lid 21057
M011C.01 2M-308017 Owners Manual for Built-In Single-Well Modular T’Stat Warmers
16
PARTS & SERVICE
DESCRIPTION PART NO. ACCESSORIES
6 oz. SOUP LADLE 21764 WELLSLOK EXTENSION KIT, for UL LISTED
circular warmers only, adapt to wood counter up to 1¾” thick 22592*
WELLSLOK EXTENSION KIT, for UL LISTED 12” x 20” warmers only, adapt to wood counter up to 1¾” thick 22593*
* Wellslok Extension Kits for UL Listed units approved for installation in wood counter tops One well units require one kit / Two and three well units require two kits / four and five well units require three kits
DRAIN VALVE EXTENSION KIT, extension from drain to counter front with remote handle, for use with “D” models only, excluding “DM” models 20385
DRAIN SCREEN 21709 OPTIONAL 72” WIRING, thermostatically controlled
warmers ** ** contact factory customer service for availability
IMPORTANT: Use only factory authorized service parts and replacement filters.
For factory authorized service, or to order factory authorized replacement parts, contact your Wells authorized service agency, or call:
Wells Bloomfield, LLC
10 Sunnen Dr., St. Louis MO 63143 USA
Service Dept.
phone: (314) 781-2777 fax: (314) 781-2714
Service Parts Department can supply you with the name and telephone number of the WELLS AUTHORIZED SERVICE AGENCY nearest you.
CUSTOMER SERVICE DATA
RESTAURANT _____________________________ LOCATION _____________ INSTALLATION DATE ________________________ TECHNICIAN ___________ SERVICE COMPANY ________________________________________________ ADDRESS ___________________________ STATE ______ ZIP__________ TELEPHONE NUMBER (_____)_____-_________
EQUIPMENT MODEL NO. _______________ EQUIPMENT SERIAL NO. _______________
VOLTAGE: (check one) 120 208 240
M011C.01 2M-308017 Owners Manual for Built-In Single-Well Modular T’Stat Warmers
please have this information available if calling for service
17
Genuine Parts
Protect - YOU - All - Ways
SERVICE TRAINING - QUALITY SERVICE
CUSTOMER SATISFACTION
Commercial Food Equipment Service Association
Wells Bloomfield proudly supports CFESA
Commercial Food Equipment Service Association
SERVICE TRAINING - QUALITY SERVICE
CUSTOMER SATISFACTION
WELLS BLOOMFIELD, LLC
10 Sunnen Drive P.O.Box 430195 St. Louis, MO 63143 USA
telephone: 314-781-2777
fax: 314-781-2714
www.wellsbloomfield.com
PRINTED IN UNITED STATES OF AMERICA
Loading...
