Welch Allyn LS-135, LS-150 User manual

LS-135 & LS-150 Halogen Exam Lights

Exam/Procedure Light

Service Manual

Owner’s Manual

TABLE OF CONTENTS

LS-135 & LS-150 HALOGEN EXAM LIGHT . . . . . . . . . . .1

ASSEMBLY INSTRUCTIONS FOR LS-135 & LS-150 . . .3

OPERATION OF FLEXIBLE ARM . . . . . . . . . . . . . . . . . .7

LAMP REPLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . .8

CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

ORDERING INFORMATION . . . . . . . . . . . . . . . . . . . . .10

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

SERVICE INFORMATION . . . . . . . . . . . . . . . . . . . . . . .13

DISASSEMBLY INSTRUCTIONS . . . . . . . . . . . . . . . . . .14

LS-135 & LS-150 HALOGEN EXAM LIGHT

Thank you for purchasing your new Halogen Exam Light by Welch Allyn,
the worldwide leader in illuminated medical diagnostic instrumentation.
By following the use and care guidelines given in this booklet, you will
enjoy years of dependable, trouble-free service from your new exam
light.

This exam light can be used for topical examinations of the skin such as
abrasions, foreign body removal, and other similar applications.

WARNINGS & CAUTIONS:

CAUTION: All users of this exam light should be thoroughly trained
in the medical examinations appropriate to the equipment.
Furthermore, they should read and understand the instructions
contained within this manual before use. Failure to do so may result
in injury to the patient or damage to the equipment.

CAUTION: Do not use the LS-135 or LS-150 for transillumination,
as erythema may result. Contact Welch Allyn regarding appropriate
lights for transillumination applications.

INTENSE LIGHT: Lamp is extremely bright. Do not stare at the
lamp when in use. May be harmful to eyes.

CAUTION: Remove power cord from electrical outlet and allow
lamp to cool 10 minutes before replacing with Welch Allyn lamp.
For the LS-135 use lamp No.: 04430 and for the LS-150 use lamp
No.: 04450.

DANGER: Electric Shock Hazard - do not disassemble the
instrument. Refer servicing to qualified service personnel. There
are no user serviceable parts other than the lamp.

CAUTION: Use the examination light in its intended working range
of 12 to 36 inches. Exposures at closer distances may be harmful to
skin.

1

DANGER: Risk of explosion if used in the presence of Flammable
anesthetics.

IPXØ: Not protected against the ingress of water.

HOT SURFACE: Lamp surface is hot. May be harmful to skin if

touched.

Guidelines for the safe use of the LS-135 & LS-150 include:

General good practices to minimize risk of harm to the skin from
optical radiation hazards include: minimizing illumination intensity
at the tissue examination site, minimizing exposure times, and
taking additional precautions when skin sensitivity has been
altered through tissue trauma or the use of anesthesia.

General good practices to minimize risk of harm to the eyes from
optical radiation hazards include: avoiding looking at bright light
sources and their reflections, and protecting eyes where normal
pupil sizes and aversion responses are not present.

SWITCH: Switch operation is described as follows:

Off position when rocker switch is oriented towards this
marking.

On or full light intensity position.

On or low light intensity position (LS-135 only).

NOTE: This product complies with current required standards for
electromagnetic interference and should not interfere with other
equipment or be affected by other compliant devices. As a pre­caution, avoid using this device in close proximity to other equip­ment.

2

ASSEMBLY INSTRUCTIONS FOR LS-135 & LS-150

Required tools for assembly: Phillips #2 or #3 screwdriver.

1. Remove all items from the
shipping carton. Check for
damage or missing
components. Refer to
photo 1 and table 1. Notify
Welch Allyn, or your
nearest Service Center of
any damage or missing
parts using the appropriate
phone number listed on
page 13.

2. With the Base Assembly
placed on a suitable
surface (5’ x 2’ table or
carpeted floor), identify the
flange end of the pole.
Feed the electrical
connector through the
center hole of the base,
taking care not to pull the
twist tie holding the
electrical connector at the
other end of the pole into
the pole. Refer to photo 2.

1

4

No.

1 Base Assembly

2 Luminaire-Flexible Arm Assembly

3 Pole Assembly

4 Parts Kit

#1

#1

Description

• Base Cover Plate

• Screw 1/4-20 x 1” Phillips

•1/4” External Lockwasher

Flange

#2

3

2

3

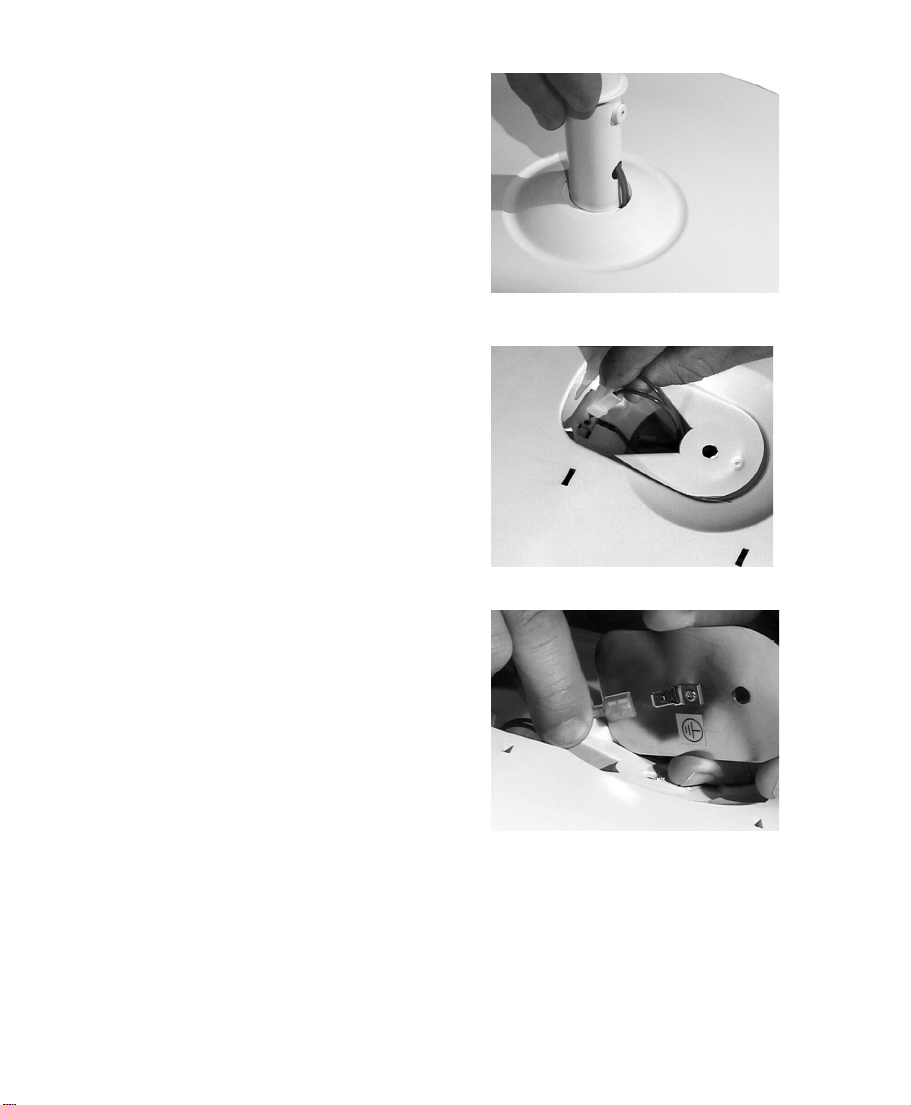

3. Take care to orient the pole tab to
base notch. Push pole into base.
Refer to photo 3.

4. Tip the base/pole onto its side and
grasp the wire harness white
connector. Align the harness
connector to the corresponding
connector in the base and connect
each together by firmly pressing
into place. Refer to photo 4.

5. From the parts kit, obtain the base
cover plate and attach the
remaining wire connector to the
corresponding tab located on the
cover plate. Refer to photo 5.

#3

#4

5

4

6. From the parts kit, obtain the
screw and external lockwasher and
install through the plate, place the
plate into the base, threading
screw clockwise into pole. Tighten
firmly, using screwdriver. Refer to
photo 6.

7. With the base/pole still lying on its
side, gently pull the electrical
connector from inside of the pole
using the twist tie. Remove and
discard twist tie. Refer to photo 7.
Orient the Luminaire-flexible arm
assembly’s electrical connector to
the remaining pole electrical
connector and connect each by
firmly pressing together. Refer to
photo 8.

#6

#7

#8

5

8. Connect the flexible arm to the
pole by lining up the slots on the
black plastic connector (nearest the
electrical connector) above the
pole cut outs. Push flexible arm
into pole until it clicks into place.
Refer to photo 9.

9. Stand light assembly up onto its
base and plug into an appropriate
outlet. Please refer to warnings
and caution section as well as the
operations section prior to use.

Pole Cut Out

#9

6

OPERATION OF FLEXIBLE ARM

Your new LS-135 & LS-150 light has been carefully designed to give you
optimum performance to enable you to easily articulate and place the
light exactly where you need it. These design attributes include:

• The lamp has been offset at a 12° angle relative to the Luminaire

housing, allowing the physician an unobstructed view of the field
of interest.

• A pole to flexible arm joint that allows the flexible arm to be freely

rotated about the pole 270°.

• A flexible arm to Luminaire joint that allows rotation of the

Luminaire about the flexible arm 300°.

• A 24” flexible arm that allows you to easily articulate and hold the

Luminaire in an infinite number of positions.

Please use the following guidelines for proper articulation of the flexible
arm:

• The flexible arm should be articulated (bent), NOT TWISTED.

Twisting of the flexible arm beyond its rotation stops will
decrease the life of the arm and can cause it to lose its ability to
hold position.

• Failure of the flexible arm due to twisting may void the warranty.

Special Note: We recommend that you DO NOT acutely bend the

flexible arm as shown below.

7

LAMP REPLACEMENT

Disconnect power cord from electrical outlet prior to replacement.

Allow lamp to cool 10 minutes prior to replacement.

1. Exposing the Lamp (Refer to photo 1)

• Turn power switch to the off (“ ”) position and unplug power

cord from outlet.

so that the lamp points up (towards

• Rotate Light Assembly

ceiling).

• Completely loosen screw in Lamp Housing

the Lamp

.

####

2. Freeing the Lamp and Lamp Socket (Refer to photo 2)

!!!!

and lift to expose

""""

• Release the Lamp Retaining Wire

from the Lamp Housing

$$$$

pushing on wire “ears” towards Lamp Socket and swing out as
shown to free the Lamp

and Lamp Socket

####

.

%%%%

3. Removing the Lamp Socket (Refer to photos 3 and 4)

• Hold the Lamp

Lamp Socket
rocking it slightly to remove it from the Lamp
Lamp Socket Wires

by its outer rim. Grasp the white sides of the

####

as shown, pull on the Lamp Socket

%%%%

####

.

&&&&

8

""""

while

%%%%

. Do not pull on

by

4. Install the new Lamp

• Verify that the lamp number located on the metal plate inside the

Light Assembly

(photo #2) matches the replacement lamp

''''

number.

• Replace Lamp

Housing

""""

and reattach Lamp Retaining Wire

####

.

to Lamp

$$$$

• Align Lamp pins to Lamp Socket holes and reconnect Lamp

Socket.

• Reinstall Lamp Housing

onto Light Assembly

""""

by first

!!!!

engaging Lamp Housing tab (opposite screw) into Light
Assembly. Fully tighten screw.

• Reconnect Power cord and verify Lamp operation.

# 1

####

!!!!

# 2

$$$$

""""

####

""""

''''

####

%%%%

%%%%

# 3

# 4

&&&&

9

CLEANING

1. Unplug the unit prior to cleaning.

2. The entire unit can be wiped down with a cloth slightly dampened
with a mild solution of detergent and water. Wipe the unit dry with a
clean, dry cloth. Be careful not to allow moisture to enter into the unit
or allow the plug prongs to get wet.

3. Do not plug the light back into the electrical outlet until the light is
thoroughly dry.

NOTE: Do not sterilize the unit.

CAUTION: Do not immerse in cleaning solutions

WARRANTY

Welch Allyn will repair or replace, free of charge, any parts of its own
manufacture that prove to be defective for reasons other than misuse,
neglect, damage in shipment, or normal wear. This warranty is in effect
for one year from the original date of purchase.

ORDERING INFORMATION

Catalog #

04450 Halogen replacement lamp for LS-150 Halogen Exam Light

04430 Halogen replacement lamp for LS-135 Halogen Exam Light

44350 Caster base accessor y, LS-135 & LS-150 Halogen Exam Light

10

Description

SPECIFICATIONS

Leakage Current: The products listed within this

manual comply with the agency requirements listed
below

Environment:

Transport/Storage: Operating:

-20°C - 49°C, 10°C - 35°C
10% - 95% R.H. Max, 30% - 75% R.H. Max,
500hPa - 1060hPa Altitude 500hPa - 1060hPa Altitude

Class I Equipment
Continuous Operation

ETL listed:
UL2601-1,

US

C

CSA C22.2 No. 601.1,
IEC 60601-1, AS 3200.1.
IEC 6 0 6 01-1-2

Australia EMC Framework Compliance

N344

9.5 cm
(3.75”)

23 cm
(9”)

Ø 36 cm
(Ø14”)

Approximate Physical

Dimensions

12°

63 cm
(25”)

89 cm
(35”)

The CE mark on this product indicates that it has been tested to and
conforms with the provisions noted within the 89/336/ECC
Electromagnetic Compatibility Directive.

Authorized European Representative Address:
European Regulatory Manager
Welch Allyn, LTD.
Kells Road, Navan
County Meath, Republic of Ireland
Telephone: [phone]
Fax: [phone]

11

(9.5’)

(9.5’)

Cord

2.9 M

Length

To t a l

Weight

2.9 M

7.8 kg

7.8 kg

(17.3 lbs)

(9.5’)

2.9 M

7.8 kg

(17.3 lbs)

(17.3 lbs)

(9.5’)

2.9 M

7.8 kg
(17.3 lbs)

(9.5’)

(9.5’)

(9.5’)

2.9 M

2.9 M

2.9 M

7.8 kg

7.9 kg

(17.3 lbs)

7.9 kg

(17.4 lbs)

(9.5’)

2.9 M

7.9 kg

(17.4 lbs)

(17.4 lbs)

(9.5’)

2.9 M

7.9 kg
(17.4 lbs)

(9.5’)

2.9 M

7.9 kg
(17.4 lbs)

Life

Lamp

Color

Te m pe r -

Working

Distance

@ 65 cm

Spot Size

sity

Inten-

age

Watt -

(3)

Fuse

put

Out-

hrs (4)

hrs (4)

hrs (4)

ature

3000K 5,000

3000K 5,000

3000K 5,000

(12” min) (2)

(12” min) (2)

30.5 cm min

30.5 cm min

(24”)

29 cm

(11.4”)

29 cm

(1)

35w 525fc

35w 525fc

250v,

250v,

500mA

2.9A

12v~

12v~

(12” min) (2)

30.5 cm min

(11.4”)

29 cm

(11.4”)

(1)

(1)

35w 525fc

250v,

315mA

630mA

2.9A

2.9A

12v~

3000K 5,000

30.5 cm min

29 cm

35w 525fc

250v,

12v~

hrs (4)

(12” min) (2)

(11.4”)

(1)

315mA

2.9A

3000K 5,000

30.5 cm min

29 cm

35w 525fc

250v,

12v~

hrs (4)

(12” min) (2)

(11.4”)

(1)

315mA

2.9A

hrs (4)

hrs (4)

hrs (4)

4700K 3,000

4700K 3,000

4700K 3,000

(12” min) (2)

(12” min) (2)

30.5 cm min

30.5 cm min

(13”)

50w 576fc 33 cm

50w 576fc 33 cm

350v,

250v,

800mA

4.2A

12v~

12v~

(12” min) (2)

30.5 cm min

(13”)

(13”)

50w 576fc 33 cm

250v,

500mA

1000mA

4.2A

4.2A

12v~

hrs (4)

4700K 3,000

(12” min) (2)

30.5 cm min

(13”)

50w 576fc 33 cm

250v,

500mA

4.2A

12v~

hrs (4)

4700K 3,000

(12” min) (2)

30.5 cm min

(13”)

50w 576fc 33 cm

250v,

500mA

4.2A

12v~

Input

Model

400mA

44302 230v~50Hz,

44300 120v~60Hz,

60Hz,

250mA

500mA

44303 100v~50/

44304 230/

250mA

250mA

240v~50Hz,

44306 240v~50Hz,

600mA

44502 230v~50Hz,

44500 120v~60Hz,

60Hz,

350mA

44503 100v~50/

750mA

44504 230/

350mA

240v~50Hz,

350mA

44506 240v~50Hz,

(1) Full intensity
(2) Recommended minimum working distance, see cautions regarding skin exposure.
(3) Non-user serviceable in-line single acting type.
(4) Lamp life may vary slightly due to usage patterns.

12

SERVICE INFORMATION

For Technical Support or to obtain return instructions, please contact your
nearest Welch Allyn service center listed below:

Welch Allyn, Inc. Welch Allyn, GmbH PSC

4341 State Street Road Zollerstrasse 2-4
Skaneateles Falls, NY 13153-0220 72417 Juningen, Germany
Phone: [phone] Phone: [phone]
Fax: [phone] Fax: [phone]

Welch Allyn, Ltd. - Canada Welch Allyn, LTD - Singapore

160 Matheson Blvd. E., Unit #2 300 Beach Road #25-08
Mississauga, Canada L4Z 1V4 The Concourse
Phone: [phone] Singapore 199589
Fax: [phone] Phone: [phone]

Welch Allyn, Ltd. - UK

Cublington Road Welch Allyn China Service Center
Aston Abbots, Buckinghamshire Room 708, 227 Huang Pi Road, North
England HP22 4ND Central Plaza
Phone: [phone] Shanghai 200003, China
Fax: [phone] Phone: [phone]

Welch Allyn France

814 rue Charles de Gaulle Welch Allyn, Ltd. - Australia
77100 Mareuil les Meaux Metro Center Unit 5
France 38 South Street
Phone: [phone] Rydalmere NSW 2116, Australia
Fax: [phone] Phone: [phone]

Fax: [phone]

Fax: [phone]

Fax: [phone]

For service in Latin America and the Caribbean region, contact:

MD International

11300 N.W. 41st Street
Miami, FL 33178 USA
Phone: [phone]
Fax: [phone]

13

DISASSEMBLY INSTRUCTIONS

If returning a floor stand unit for service, disassemble the flexible arm
from the pole to prevent damage.

1. Turn the power switch to the OFF position ( ) and unplug the
cord from the outlet.

2. Using a small flat head screwdriver, CAREFULLY pull back the
tabs at the top of the pole slightly - just enough to disengage
them from the black plastic insert in the pole.

3. Pull up on the bottom end of the flexible arm. Unplug the
electrical connector and remove Luminaire-Flexible Arm
assembly from the pole.

4. Tilt the pole/base onto its side and unscrew the large phillips
head screw located on the bottom center of the base.

5. Remove the metal base cover plate and disconnect the
connector attached to it.

6. Disconnect the remaining electrical connector from the base and
pull the pole out of the base.

7. Securely wrap the three components (base, pole, and Luminaire
assembly) and loose parts in suitable protective packaging) for
shipment to your authorized service center.

NOTE: This product contains no materials classified as hazardous.
Therefore, its disposal is not deemed as harmful to the the environment
or health risk to individuals disposing of the product. As a precaution, it is
recommended you contact your local disposal and/or recycling authority
for information regarding the disposal of the equipment.

14

Welch Allyn, Inc.
4341 State Street Road
PO Box 220
Skaneateles Falls, NY 13153-0220
U.S.A.
Telephone: [phone] or
315-685-4100
Fax: [phone]

Part No. 443011 Rev. A Printed in U.S.A.
