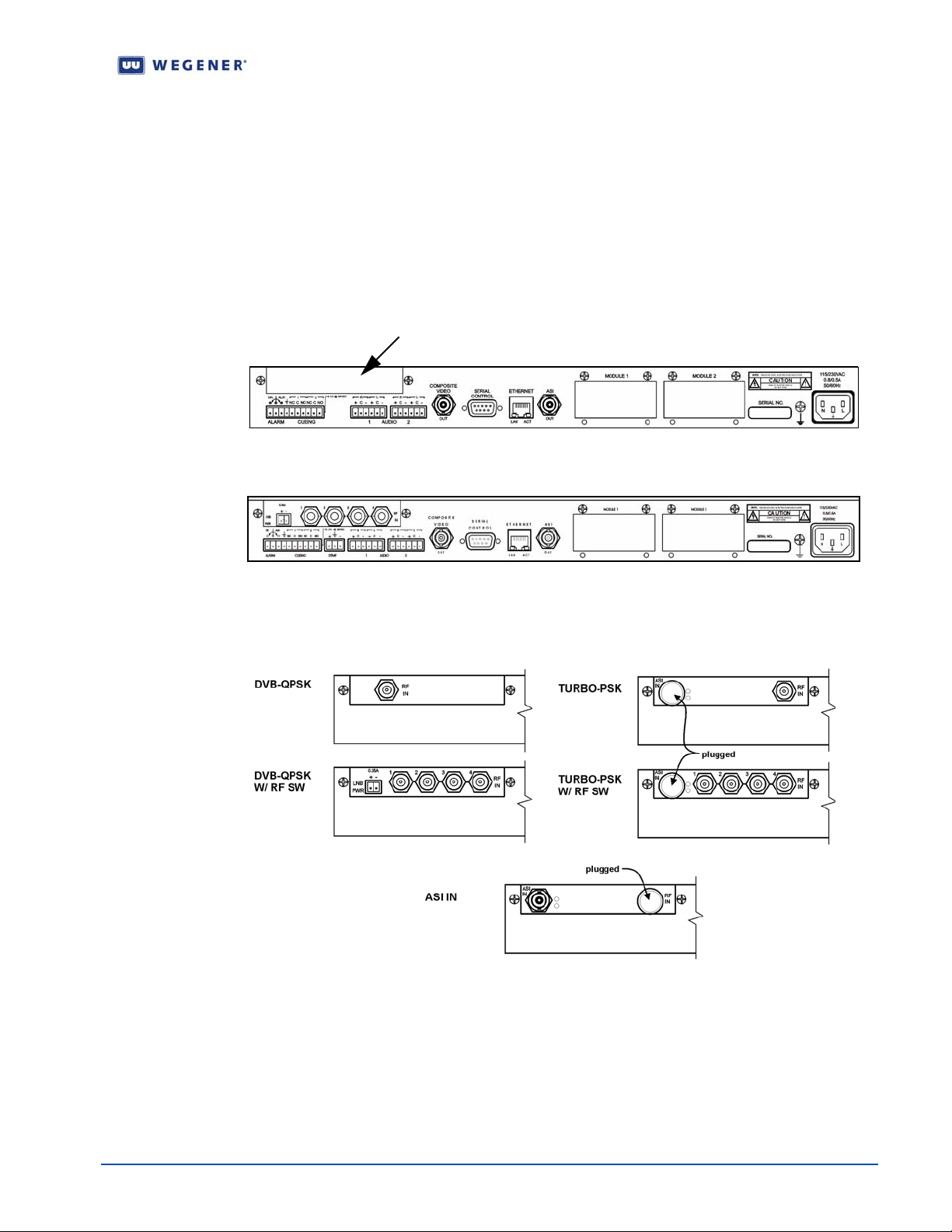

Figure 1.4: Unity 4600 Transport In Options . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Rear panel Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Table 1.3: Rear panel Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Table 1.4: Front-panel Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

2.4 Serial Port Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Device assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Device configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Table 1.5: Device Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Device handling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

2.5 Installation Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

www.wegener.com 800032-01 Rev. G iii

CHAPTER 3 OPERATION

3.1 Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

3.2 Operation from Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

RF input check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Audio/video check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

DTMF Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Relay Pulse Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Functional summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Automated recovery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Monitoring and control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

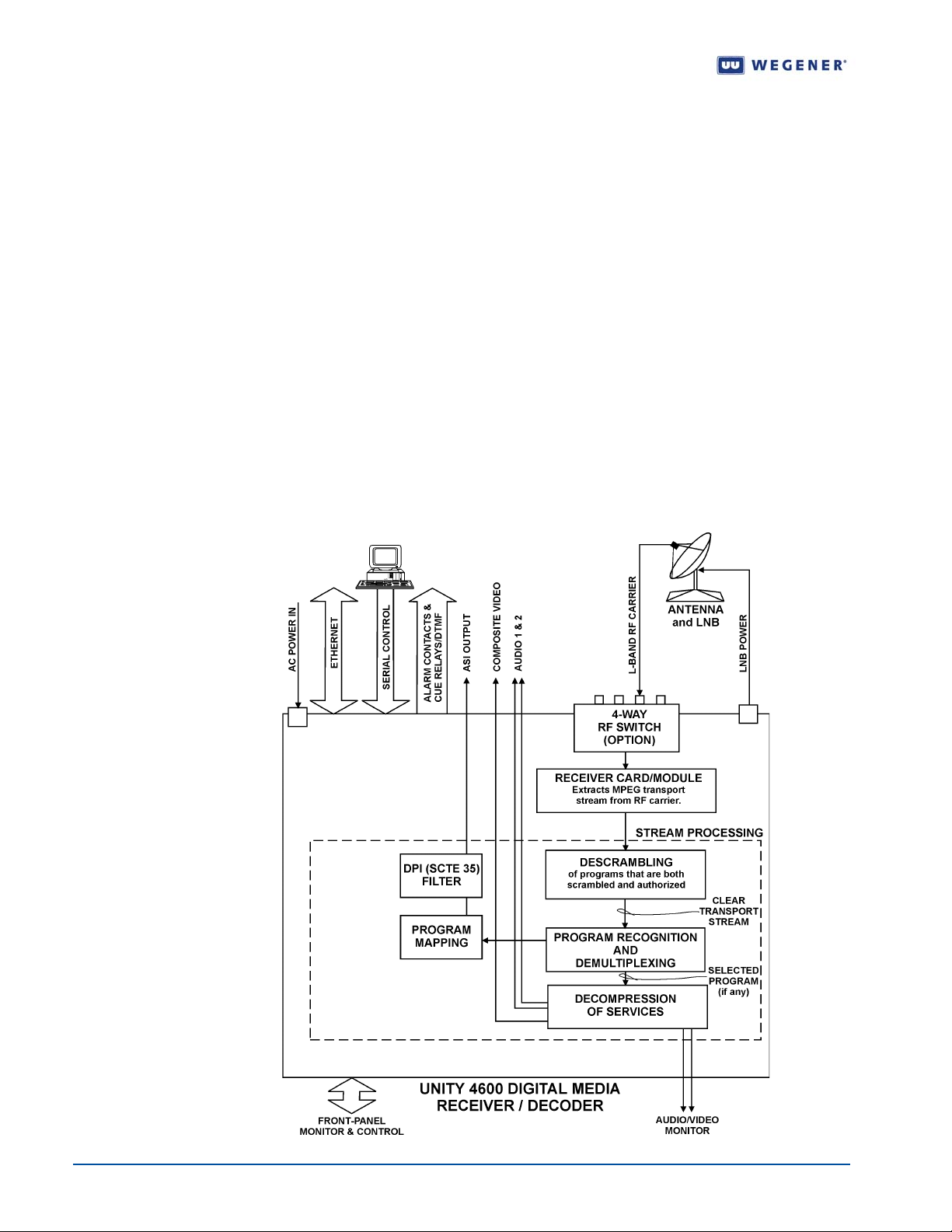

Figure 1.5: Unity 4600 Functional Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . 28

Front-panel layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Figure 1.6: Unity 4600 Front-panel Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

LCD screen relationships. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

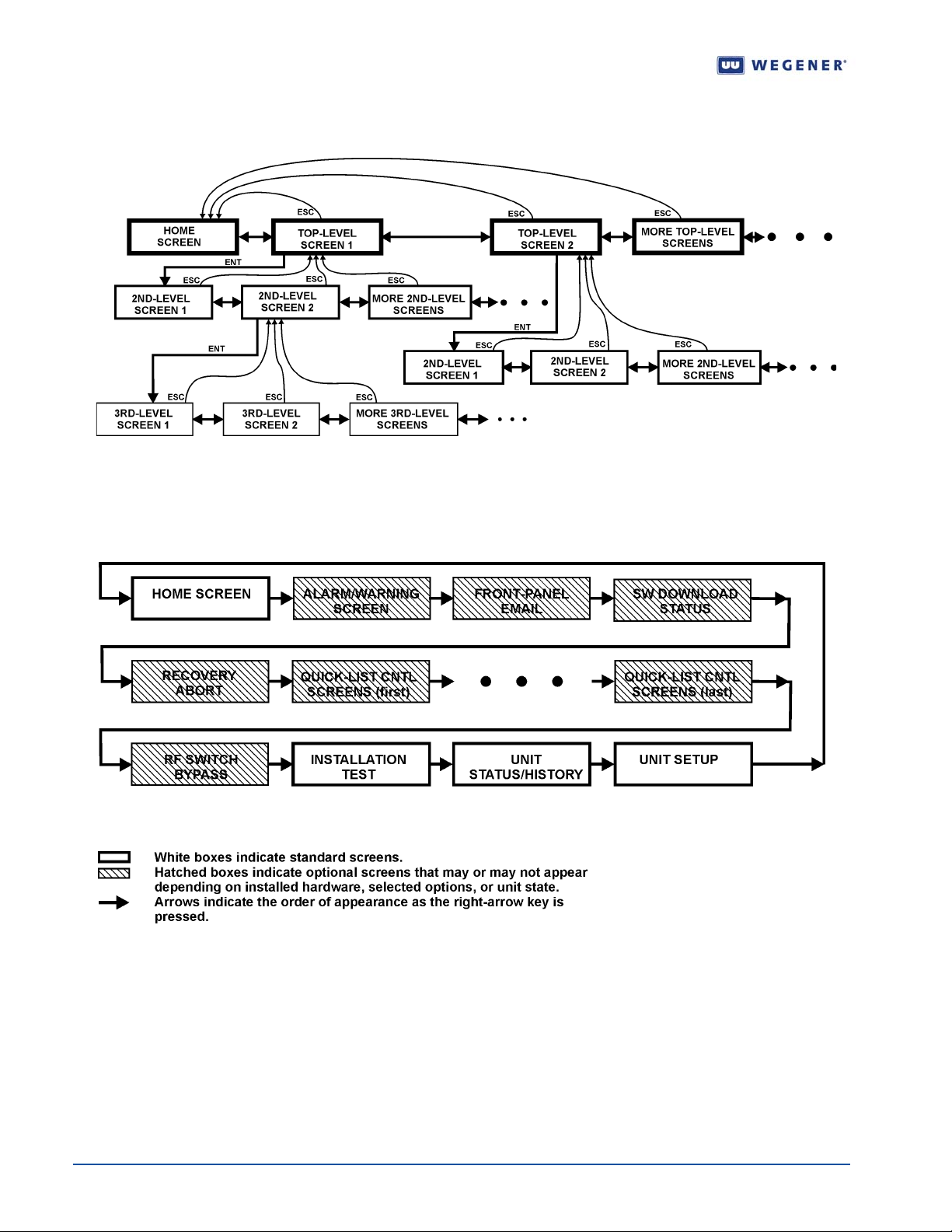

Figure 1.7: LCD Screen Relationships . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

LCD screen content. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Figure 1.8: Unity 4600 Top-level Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Table 1.6: Summary of Top-Level LCD Screens and Their Functions. . . . . . . . 31

Home and default screens. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Interpreting LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Figure 1.9: LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table 1.7: Front-panel LED Indicator Descriptions. . . . . . . . . . . . . . . . . . . . . . . 33

Front-panel audio monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

3.3 Operation from Local/Remote Terminal . . . . . . . . . . . . . . . . . . . . . . . . . 35

Overview and syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

User commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 1.8: Command directory for Unity 4600 terminal commands. . . . . . . . . . 35

CHAPTER 4 MAINTENANCE AND TROUBLESHOOTING

4.1 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

4.2 General Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

No output or indications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

No audio, video, or ASI output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Missing an audio, video, or ASI output while others are okay . . . . . . . . . . . . . . . . 52

4.3 Alarms and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Table 1.9: Alarm and Warning Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

CHAPTER 5 CUSTOMER SERVICE

5.1 Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

iv 800032-01 Rev. G www.wegener.com

Unity 4600 User’s Manual

5.2 Technical Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Appendix A Monitoring and Control Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

A.1 Basic Navigation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

A.2 Info Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

A.3 Menu Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

A.4 Parameter Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

www.wegener.com 800032-01 Rev. G v

This page intentionally left blank

vi 800032-01 Rev. G www.wegener.com

CHAPTER 1 GENERAL INFORMATION

1.1 Manual Overview

This manual provides instructions and refere nce information for the p roper inst a llation
and operation of the Wegener

The manual is divided into the following chapters:

Chapter 1 General Information - a description of your Unity 4600, its functions

and specifications, and a glossary of terms.

Chapter 2 Installation - procedures and information for the correct and safe

installation of your Unity 4600.

Chapter 3 Operation - instructions for starting and operating your Unity 4600.
Chapter 4 Maintenance and Troubleshooting - information about maintaining

your Unity 4600 and resolving possible operating difficulties.

Chapter 5 Customer Service - Our warranty and information on obtaining help.

An Index of keywords is also provided to help you quickly locate needed information.
Please e-mail any suggestions or comments concerning this manual to

manuals@wegener .com. If you prefer to post them throug h the mail, please send your
comments to the address below. If you have substantial or complex changes to
recommend, our preference is that you copy the page(s) in question, mark your
changes on that copy , and fax or mail us the copy. W e always appreciate constructive
criticism.

Unity 4600 Digital Media Receiver/Decoder.

Our Address:

Attn: Manuals

Wegener Communications, Inc.
Technology Park / Johns Creek
11350 Technology Circle
Duluth, GA 30097-1502

Our Fax Number: [phone]

wegener.com 800032-01 Rev. G 1

General Information

1.2 Unity 4600 Overview

Functional Description

The Wegener Model Unity 4600 Digital Media Receiver/Decoder is a fully DVB-compliant
satellite video IRD. The

Unity 4600 receives an L-band RF carrier from an external LNB,

demodulates the carrier, extracts the MPEG transport stream, and provides the
decompressed program or programs to DVB-ASI, composite video, and/or stereo audio
outputs.

Features include:

 Control by local user or remote COMPEL
 Download of software application upgrades via satellite

 Supports COMPEL
 Supports receiver card options using either DVB-QPSK or Advanced Turbo-Modulations

®

/CA Conditional Access at transport level or by program

(Turbo-QPSK, T-8PSK, or T-16QAM)

 DVB-ASI transport stream output with network-controlled program mapping
 Supports ISO 13818-1 transport rates from 2.5 to 55 Mbps (with local decompression) or up

to 86.25 Mbps (to program-mapped ASI transport only)

 Local decompression of MPEG-2 video and MPEG-2 (L1 and L2) and/or Dolby AC-3 audio
 Auto-recognition and support of 525-line NTSC or 625-line PAL
 Audio-only mode option for radio networks
 Cueing relays and DTMF cue tone outputs standard (DTMF available only on units built

before 10/07)

 Alarm relay
 Cueing relays
 Optional SCTE 35 DPI message filter for network control of local ad avails
 Optional front-panel audio and video monitors
 Web browser control (August 2004)

®

system

Physical Description

The Unity 4600 is housed in a standard, 1 RU, rack-mountable chassis. Its front panel (see

Figure 1.1) provides a user interface through six push buttons and an LCD as well as

monitoring through both audio and video ports. The rear panel holds connectors for input
and output signals, LNB power supply, serial and Ethernet monitoring and control, alarm
and user relays, and AC input power. The unit also includes two Unity expansion module
slots.

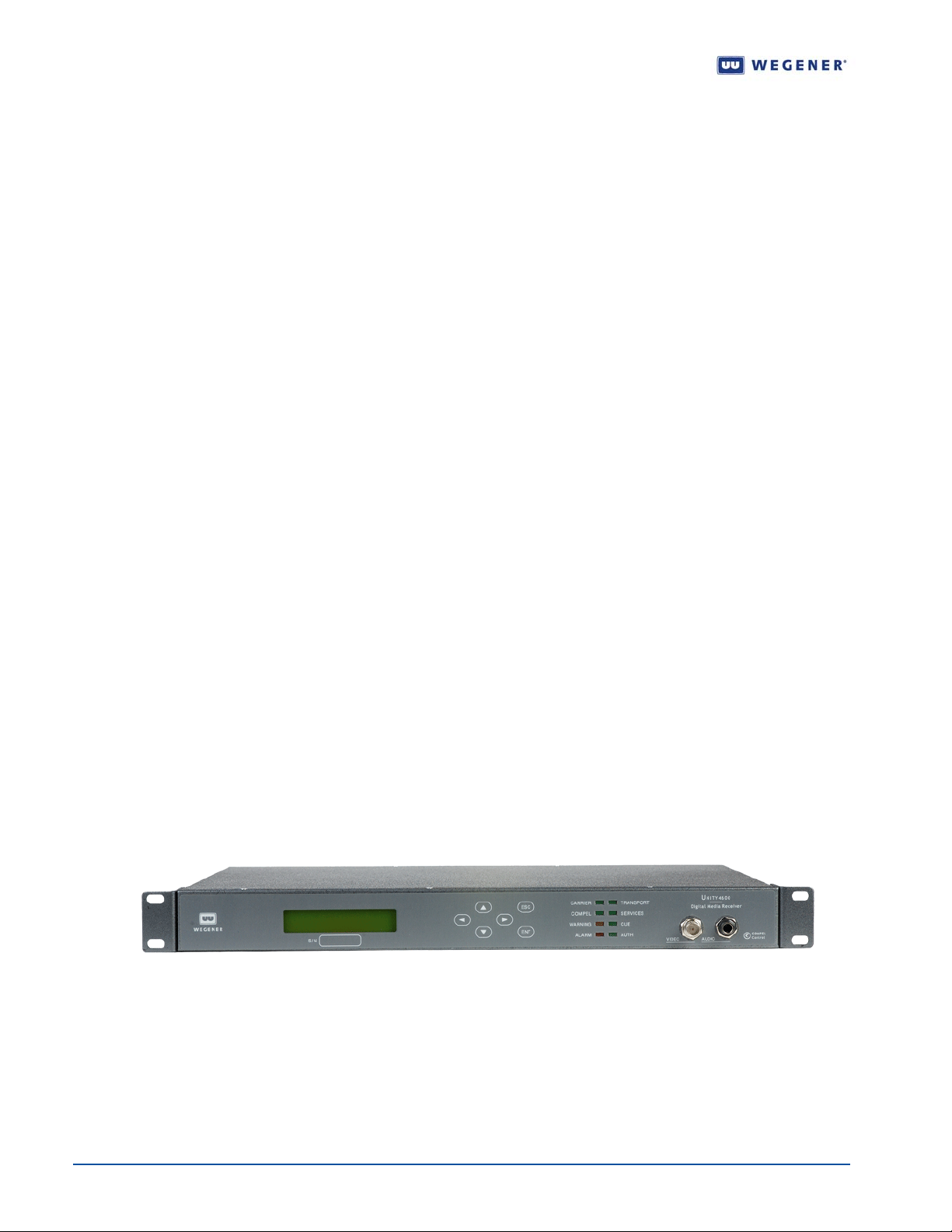

Figure 1.1: The Unity 4600 Digital Media Receiver/Dec od er

2 800032-01 Rev. G www.wegener.com

1.3 Unity 4600 Specifications

Table 1.1: Technical Specifications

Characteristic Specification

POWER

Voltage 90-132 or 175-264 VAC auto-detect/selected
Frequency 60/50 Hz ± 2%
Consumption < 35 watts typical with full LNB DC load & QPSK receiver

Unity 4600 User’s Manual

TRANSPORT IN OPTIONS
CONDITIONAL ACCESS

Wegener COMPEL®/CA
PIN Scrambling
Turnaround option to bypass scrambled

streams to ASI output

TRANSPORT DEMULTIPLEXING

Aggregate MPEG Transport Rate 2.5 to 86.25 Mbps (55 Mbps in Release 1) if not limited by

Number of Programs Unlimited
PSI Recognition Automatic

DVB ASI OUTPUT

Physical Layer 270 Mbaud signaling on coaxial cable
Levels ~1.1 V

See See Transport In Options on page 6.

Transport-le vel or by p rog ra m

(Contact factory)

symbol-rate limits of installed receiver card. This rate is
guaranteed for reception and transmission to ASI port only. For
local decompression of audio and video, the maximum transport
rate remains 55 Mbps.

into 75 Ω unbalanced

p-p

Stream Padding Minimum of one K28.5 null character padding in inter-byte gaps,

strategy after that is to add equal pad amounts between bytes
before adding extra padding between TS packets

Stream Processing (network-controlled)

PROGRAM DECOMPRESSION

Video MPEG-2, 4:2:0 Chroma sampling
Audio MPEG-1 Layers 1 & 2
Audio Dolby AC-3 (optional), L/R downmix only

COMPOSITE VIDEO OUTPUT

Output Level 1.0 V
Output Impedance 75 Ω

www.wegener.com 800032-01 Rev. G 3

Program mapping (routing of incoming program content to up to 16
virtual programs at output) and/or conditional DPI filtering.

, ± 2%

p-p

General Information

Characteristic Specification

Multiburst

NTSC: From 0.5 to 4.2 MHz: ≤ ±0.8 dB

PAL-B: From 0.5 to 4.8 MHz: ≤ ±1.2 dB
Differential Gain ≤ 4 IRE
Differential Phase

L/C Gain Inequality
L/C Delay Inequality

≤ 1.5°

≤ ±4 IRE

≤ ±26 ns

Line Time W -fo rm D ist or ti on ≤ 1.0 IRE p-p
Field Time W-form Distortion ≤ 3 IRE p-p
Video SNR Weighted ≥ 56 dB
VBI Data Re-insertion EIA 608 closed captioning & XDS from ATSC and also

Harmonic and Tandberg proprietary protocols

AUDIO OUTPUT

Output Level-MAX PPL +18.0 dBm into 600 ohms @ 0 dB attenuation

+ 24.0 dBm is optional
Output level adjust range 0 to 20 dB attenuation in 2 dB steps from Output Levels above
Output Impedance Balanced: < 60 Ω
Frequency Response 20Hz to 20 kHz, + 0.5/-1.5 dB

50 Hz to 15 kHz, ± 0.5 dB
Phase Accuracy 50 Hz to 15 kHz, ≤ ±2° from linear phase

SNR ≥ 80 dB (22 Hz to 20 kHz) unweighted
Dynamic Range 24 bits

DTMF OUTPUT (where available)

Type Low-Z balanced output
DTMF tones 16 tone-pairs, std. telco DTMF
Tone Timing < 230 ms to generate 4 tone-pair sequence
Output Level Range +8 to –2 dBm into 600 Ω; software adjustable in step increments

of 6% of full-scale voltage

FRONT-PANEL MONITORS (actively-isolated from, but otherwise buffered copies of the

standard analog outputs)
Video Composite video; 1 V

p-p

, 75 Ω

Audio One stereo pair (user-selectable from audio port 1 or 2),

Level: ~ -13 dB below main audio output

(if set for +18 dBu output PPL)

Impedance: < 60 Ω, unbalanced

4 800032-01 Rev. G www.wegener.com

Unity 4600 User’s Manual

Characteristic Specification

SERIAL PORTS

Standard RS232, DCE
Handshaking None
Selectable Services Terminal monitoring and control

Modem dial-in
Auxiliary async data output (Release 2 or later)

COMPEL® E-mail character-based async output

Local COMPEL control input (testing only)
Baud Rates Up to 38.4 kilobaud
Formatting 8 data bits, one start, one stop-bit, half-duplex. Parity selection

set by unit software.

ETHERNET PORT

Physical Layer Full-duplex, auto-negotiating 10baseT, 100baseT (twisted pair)

on RJ45 jack
Media Access and Link Layers Per IEEE 802.3 (Ethernet)
Network and Transport Layers Binds to TCP/IP stack which enables Web-based control

(Release 4 or later).

ALARM/CUEING RELAYS One relay dedicated to indicate unit ALARMS and two relays

dedicated to user control (such as cueing). The ALARM relay

automatically de-energizes for alarm conditions so that power

loss to the unit indicates as an alarm. The user-cue relays may

also be placed in a nonvolatile "Follow Warning" setting such

that the relay is ON for unit warning states and OFF when there

is no warning. When in "Follow Warning", the relay will not

respond to volatile settings, the Pulse command, or any

nonvolatile commands sent to "all" relays. An individual relay

must be addressed directly to set it back to ON or OFF.
Type Form C, wiper contacts NC contact when de-energized and NO

contact when energized
Polarity Common, NC and NO contacts supplied externally
Rating 30VDC open circuit, 100 mA max current closed

FRONT-PANEL EMAIL

CHASSIS

Up to 512-character messages from COMPEL®. New

messages over-write older messages. May also be cleared by

local user.

Height Std. 1RU 1.75 inches (4.45cm)
Width EIA std. 19 inches (48.26cm)
Depth Back of rack-ears to rear panel: 14.9 inches (37.85 cm)

Back of rack-ears to end of connectors: 15.7 inches (39.88 cm)

Weight ~10.5 lb. (with Receiver card & AV monitor option only)

www.wegener.com 800032-01 Rev. G 5

General Information

Characteristic Specification

Cooling Fan-cooled with left-side inlet and right-side exhaust (viewed

ENVIROMENTAL

Operating Temperature +10°C to +50°C (+50°F to +122°F) Unit gives warning indication

Storage Temperature -20°C to +70°C (-4°F to 158°F)

AGENCY APPROVALS

UL UL1950, 3rd Edition
FCC Part 15B Class A, per Title 47 CFR (FCC rules)
CE EN60950, EN55022(94), and EN55024(98)—tested per

from front). Fan is activated after unit reaches specific
temperature.

for over-temperature conditions

EN61000-4-2(95), -4-3(02), -4-4(95), -4-5(95), -4-6(96), and –4­11(94)

Table 1.2: Transport In Options

Characteristic Specification

DVB-QPSK RECEIVER OPTION (No RF Switch)

RF INPUT

Input Impedance 75Ω unbalanced
Input VSWR, 75-Ω system < 2.1:1 (9.0 dB R.L. min), 950-1450 MHz

< 3.0:1 (6.0 dB R.L. min), 1450-2150 MHz

Surge Resistance Guaranteed survival from up to 10 direct-coupled 8kV

discharges (per IEC 801-2)

RF TUNING

Input Frequency Range 950 to 2150 MHz
LO Leakage at Input ≤ -50 dBm
Symbol-rate Range 2 to 45 Msps (may be limited by Transport Rate limits)
Tuning Resolution 10 kHz
Input Signal Level Range -25 to -65 dBm
Signal Level Warning Limits

warns within +10/-5 dB of upper limit and +5/-10 dB of lower limit

Maximum Aggregate Input Power -5 dBm min

DEMODULATOR/FEC

Modulation QPSK (α =.35) per DVB (EN 300 421)
Carrier acquisition range ±1 MHz or ± 10% of symbol-rate QPSK, whichever is greater

6 800032-01 Rev. G www.wegener.com

Unity 4600 User’s Manual

Characteristic Specification

Max Eb/N0 @ Quasi-error-free threshold
(less than one uncorrected error-event per

hour)

RF Power Level Estimator
(locked to carriers or not)

LNB DC POWER (supplied on RF center conductor)

Activation User- or network-controlled selectable: ON or OFF
Voltage ~ +18.7 VDC nominal at no loading, +18.0 VDC min. at max

Per EN300 421:
QPSK R=1/2: 4.5 dB,
QPSK R=2/3: 5.0 dB,
QPSK R=3/4: 5.5 dB,
QPSK R=5/6: 6.0 dB,
QPSK R=7/8: 6.4 dB

Unitless metric SIGNAL corresponds to input power as follows:
above -25dBm

-25dBm

-35dBm

-45dBm

-55dBm

-65dBm
below -65dBm
no signal

Accuracy: unit to unit <±5 dBm; over frequency <±10 dBm

loading

Extrapolated from 90 up to 100+
90
70
50
30
10
Extrapolate from 10 down to <0
<0

Current (full load) 350 mA max
Short-circuit protection Thermal fuse, tripping at ~500 mA.
European “Universal LNB” Software may be upgraded for “Universal Single LNB”

polarization and freq-band control per ASTRA recommendation

DVB-QPSK RECEIVER WITH 4-PORT RF SWITCH OPTION

SWITCHED RF INPUTS

Input Impedance 75Ω unbalanced
Isolation, port-to-port > 45 dB , 950-1450 MHz

> 40 dB, 1450-2150 MHz

Input VSWR, 75-Ω system, selected port < 2.6:1 (7 dB R.L. min), 950-1450 MHz

Not guaranteed, 1450-2150 MHz

Input VSWR, 75-Ω system, unselected port < 2.0:1 (10 dB R.L min), 950-1450 MHz

Not guaranteed, 1450-2150 MHz

www.wegener.com 800032-01 Rev. G 7

General Information

Characteristic Specification

Surge Resistance Guaranteed survival from up to 10 direct-coupled 8kV

discharges (per IEC 801-2) whether port is selected or not
RF TUNING Same as QPSK option described above
DEMODULATOR/FEC Same as QPSK option described above
LNB DC POWER Supplied on separate 2-pin header. Performance otherwise the

same as QPSK option described above

TURBO PSK RECEIVER OPTION, BROADCOM PROTOCOL

RF INPUT

Input Impedance 75Ω unbalanced
Input VSWR, 75-Ω system <1.9:1 (10 dB R.L. min), 950-1450 MHz

< 1.9:1 (10 dB R.L. min), 1450-2150 MHz

Surge Resistance Guaranteed survival from up to 10 direct-coupled 8kV

discharges (per IEC 801-2)
RF TUNING

Input Frequency Range 950 to 2150 MHz
LO Leakage at Input ≤ -60 dBm
Symbol-rate Range 1 to 30 Msps (may be limited by Transport Rate limits)
Tuning Resolution 10 kHz
Input Signal Level Range -25 to -65 dBm
Signal Level Warning Limits warns within +10/-5 dB of upper limit and +5/-10 dB of lower

limit

Maximum Aggregate Input Power 0 dBm max

DEMODULATOR/FEC

Modulation 1. DVB-QPSK (α =.35) per EN 300 421

2. Advanced "Turbo-QPSK" (α =.20 default; R=½, ¾) per

Broadcom proprietary protocol

3. Advanced "Turbo-8PSK" (α =.20 default; R=2/3, 5/6, 8/9) per

Broadcom proprietary protocol. [R=¾ Type I and II; contact

factory.]

4. Advanced "Turbo-16QAM" (α =.20 default; R=¾) per

Broadcom proprietary protocol

Carrier acquisition range ±1 MHz or ± 10% of symbol-rate QPSK, whichever is greater

8 800032-01 Rev. G www.wegener.com

Unity 4600 User’s Manual

Characteristic Specification

Max Eb/N0 @ Quasi-error-free threshold
(less than one uncorrected error-event per

hour)

RF Power Level Estimator
(locked to carriers or not)

1. DVB-QPSK
QPSK R=1/2: 4.5 dB,
QPSK R=2/3: 5.0 dB,
QPSK R=3/4: 5.5 dB,
QPSK R=5/6: 6.0 dB,
QPSK R=7/8: 6.4 dB

2. Turbo-QPSK
R=1/2: 2.4,
R=3/4: 3.6

3. Turbo-8PSK
R=2/3: 4.8 dB,
R=3/4(I): 5.4,
R=3/4(II): 5.8,
R=5/6: 6.8,
R=8/9: 8.2

4. Turbo-16QAM
R=3/4: 6.6 dB

Unitless metric SIGNAL corresponds to input power as follows:

above -25dBm

-25dBm

-35dBm

-45dBm

-55dBm

-65dBm
below -65dBm
no signal

Accuracy: unit to unit <±5 dBm; over frequency <±10 dBm

LNB DC POWER (supplied on RF center conductor)

Activation User- or network-controlled selectable: ON or OFF
Voltage ~ +18.7 VDC nominal at no loading, +18.0 VDC min. at max

loading

Current (full load) 350 mA max
Short-circuit protection Thermal fuse, tripping at ~500 mA.
European “Universal LNB” Software may be upgraded for “Universal Single LNB”

polarization and freq-band control per ASTRA recommendation

Extrapolated from 90 up to 100+
90
70
50
30
10
Extrapolate from 10 down to <0
<0

www.wegener.com 800032-01 Rev. G 9

General Information

Characteristic Specification

TURBO PSK RECEIVER WITH 4-PORT SWITCH OPTION

RF SWITCH INPUT 4-port, si ngle-throw switch

Input Impedance 75Ω unbalanced
Isolation, port-to-port > 45 dB , 950-1450 MHz

> 40 dB, 1450-2150 MHz

Input VSWR, 75-Ω system, selected port < 1.9:1 (10 dB R.L. min), 950-1450 MHz

< 1.9:1 (10 dB R.L. min), 1450-2150 MHz

Input VSWR, 75-Ω system, unselected port < 1.9:1 (10 dB R.L. min), 950-1450 MHz

< 1.9:1 (10 dB R.L. min), 1450-2150 MHz

Surge Resistance Guaranteed survival from up to 10 direct-coupled 8kV

discharges (per IEC 801-2) whether or not port is selected
RF TUNING Same as Turbo PSK option described (above)
DEMODULATOR/FEC Same as Turbo PSK option described (above)
LNB DC POWER Supplied on RF Input Port 4 - same electrical characteristics as

described for single-input Turbo PSK option (above)

ASI TRANSPORT INPUT OPTION

DVB-ASI INPUT One input per DVB ASI per EN50083-9 Annex B

Physical layer 270 Mbaud signaling on 75Ω coax cable
Minimum byte gaps Down to 0-byte interbyte gaps
Transport data rate Limited to rates allowed by parent IRD

10 800032-01 Rev. G www.wegener.com

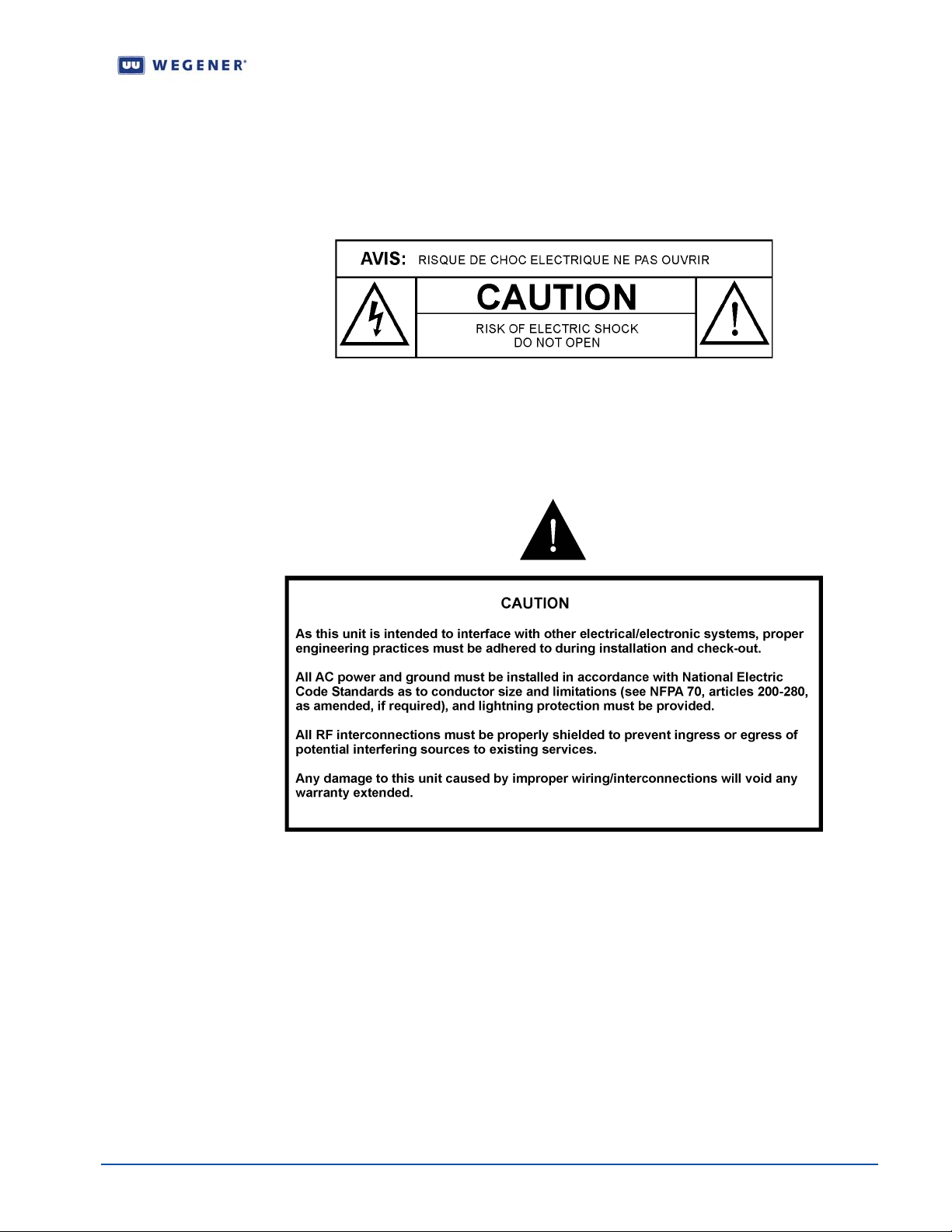

1.4 Safety Summary

The Unity 4600 is designed for safe use with few special precautions required of the user.
The following items are basic precautions to use when installing and working with your

Unity 4600:

Do not open the Unity 4600 chassis cover.

The Unity 4600 incorporates security labels over some of the screws. There are no user­serviceable components within the
opening the unit will void your warranty. If you have questions, cont act Wegener's Customer
Service Department at the address or numbers listed in
page 59.

Unity 4600 User’s Manual

Unity 4600. Tampering with these security labels or

Chapter 5 Customer Service on

www.wegener.com 800032-01 Rev. G 11

General Information

1.5 Glossary of Terms and Abbreviations

Term Definition

Ad avail, digital The opportunity for a local program splicer to insert local content in the MPEG PES streams

in substitution for “regular” network-distributed programming. The avail is bounded by
“splice out” and “splice in” points. "Splice points" are seamless insertion points (located for
the splicer by DPI messages) where the compressed stream may be broken and
substituted without frame-by-frame interruption of video.

Ad avail, analog The opportunity for local users to switch from the network-supplied programming to locally-

generated content (commercials). This is signaled by use of DTMF tones or closures of cue

relays.
Alarm
Application Software The main host software which sets up the unit hardware, runs the process of acquiring

ASI (or DVB-ASI) An “asynchronous” bit-serial physical interface for transport streams. Transmitting and

Audio Language
Descriptor

Automated Recovery
(or Recovery)

Boot loader Software residing in non-writable zone of flash which executes at unit reset. It will verify and

CA See "Conditional Access".

COMPEL

Conditional Access Wegener’s system for securing the transmitted transport stream from unauthorized access.

®

A condition or notification of a condition that prevents proper Unity 4600 functioning.

transport stream sources, sets up and monitors the demux and decompression processes,

monitors unit operations, and interfaces with the network and local users.

receiving functions are designed such that the time relationships between all packets and

their timing references are unchanged.

Legacy 3-character MPEG descriptor applied to a program’s audio streams. It was

originally allocated to designate languages, but is now used for generic identification.

The mechanism used when the Unity 4600 is unable to acquire a valid transport stream,

loses network control or detects an invalid control stream, or is unable to deliver the

required services using its current settings. The unit automatically begins attempting

operations under "backup" unit settings stored in the presets table until it can return to

normal operation or is stopped by local user command.

load the preselected application.

Wegener's network control software that may be used to manage your Unity 4600 as well

as other hardware.

It features distribution of ciphered authorizing messages within a special PID. Upon

deciphering in secure processors within the IRD, these messages continuously update the

IRD with the current descrambling key.
DPI Digital Program Insert. A special message, borne in an MPEG PID associated with a

particular program, that signals the boundaries of ad avails.
DTMF Dual-Tone Multi-Frequency. Tone signaling system used by the legacy telephone system.

Tone pairs represented each of the keyboard items 0-9, *, and #. This system may be used

to control external cueing equipment.
DVB Digital Video Broadcast working group. This is a shorthand designation for a group of

industry standards that provide enhancements in the use of MPEG transport streams. (For

example, one DVB standard defined the standard way QPSK-modulated carriers would

convey these streams over satellite world-wide.)
Eb/N

0

12 800032-01 Rev. G www.wegener.com

Energy-per-bit per Noise density-per-Hertz. This is a unitless ratio that expresses signal-to-

noise ratio in carrier transmission systems that convey digital data. A quality measurement

for any such system is the E

error rates. This is called the “E

needed to just convey the digital data within acceptable

b/N0

threshold”.

b/N0

Unity 4600 User’s Manual

Term Definition

Ethernet The widely-used LAN technology specified by IEEE standard 802.3
IRD Integrated Receiver-Decoder. A product which features a "receiver" to extract transport

streams from satellite-borne carriers and a companion "decoder" to decompress MPEG
elementary streams (from within said transport streams) in order to recreate the original
audio/video/data signals. The

Unity 4600 is an IRD.

Keep-alives
(COMPEL)

KMS Key Management System. The sub-system within the Wegener Conditional Access system

LAN
LCD
LED
Mbps, kbps or M sps Units of data transport rate - Megabits per second (1 million bits per second), kilobits per

MPEG Moving Picture Experts Group - refers to the method of video compression established by

Network Protection
Mode

Simple COMPEL network messages, addressed to "all", bearing date and time.These are
transmitted regularly (every 5 seconds, for example) so that IRDs may quickly and
continuously verify their network connection.

that creates and ciphers the scrambling keys and then distributes them to the uplink
UMX5010 and all downlinked IRDs conveyed in a special PID within the transport stream.

Local area network. Y our Unity 4600 may be connected to an Ethernet LAN.
Liquid crystal display. The front-panel screen on your Unity 4600 is a liquid crystal display.
Light-emitting diode. The front-panel indicator lights on your Unity 4600 are LEDs

second (1 thousand bits per second), or million symbols per second (1 million symbols per
second)

this group. (The Unity 4600 utilizes the MPEG2 format for video.)
A non-volatile setup parameter whose value is “Shared” or “Protected” (or “not Shared”).

Similarly, each network control stream has a “Share” status field as part of the COMPEL
packet framing. A network control stream is considered “invalid” to the Unity 4600 if the
network ID in the stream differs from that of the IRD and if either the network stream or the

Unity 4600 are set to be “Protected”. For test purposes only, there is a generic network ID

that the COMPEL system may transmit which is always considered to be “valid” by all IRDs.

NTSC National Television System Committee. The composite color video standard used

domestically (and in a few countries outside US) based on 525-line 59.97 Hz field rate (with
2:1 interlace).

PAL Phase-Alternating-Line. A set of composite color video standards used worldwide (outside

US) which implements a line-by-line reversal of phase of one of the orthogonal color
components. For our use, all PAL signals are assumed to be 625-line 50 Hz field-rate
systems with varying chroma and luma bandwidths and color subcarrier frequencies.

PAT Program Allocation Table. A PSI table within an MPEG transport stream which cross-

references all available programs to a PID for its PMT. This table is always present in legal
transport streams and must always be in the clear (not scrambled) even when Conditional
Access scrambling is used.

PCR Program Clock Reference. A time-base signal used to synchronize the IRDs internal timing

to the same timing in the MPEG encoder for the received program. Multiple programs may
share a PCR, depending on the multiplexer used to create the final transport stream.

PES Stream Packetized Elementary Stream. The MPEG designation for a compressed component of a

Program (such as audio or video) which includes the timing information necessary for
synchronization (e.g. - synchronizing audio to video).

PID (or Packet ID) The unique transport stream packet identifier assigned to each constituent data stream

within the transport stream. Also, in this document, “PID” is used to designate the stream
itself.

www.wegener.com 800032-01 Rev. G 13

General Information

Term Definition

PMT Program Map Table. A PSI table within an MPEG transport stream which cross-references

a program (or programs) against all the PIDs that bear its component streams (such as

audios, video, DPI, PCR, etc.). IRDs need this table to decode the compressed

components of that program.
Presets Table A non-volatile table of unit presets. This table is used for either automatic recoveries or as a

shorthand method to quickly reconfigure the unit. The presets table may be programmed at

the factory and edited by the customer, either locally or via network control.
Program A single media stream (combination of audio, video, data, etc.) tied to a common time base.
Program Number A numerical code representing a program.
PSI Tables A group of information-bearing tables, each borne by well-known PIDs, regularly

transmitted in the transport stream. See also “PAT” and “PMT”. Also, ISO 13818-1 gives a

thorough description of these and other Tables.
PTS Presentation Time Stamp. A marker signal associated with audio and video streams within

a program conveyed in MPEG transport stream. This signal allows the audio and video to

be presented in synchronism to each other.
RAM Random access memory. A general term for all volatile memory types out of which

application software executes and into which its variables, state information, and messages

are stored. RAM is also used to designate the volatile storage used by the Transport

Demux and decompression devices.
RF Radio frequency
Service Descriptor Service Descriptors are text entries in the Service Descriptor table (SDT, defined per a DVB

standard). Service Descriptors are used to give text names to the Programs within transport

streams.
Service settings That part of the Unit Settings which allow for the local detection, decompression, and output

(or "display") of a program's services.
Setting,

Last Commanded
Setting,

Last Successful

Setting, Permanent That non-volatile Unit Setting which the IRD will attempt, if in Normal Operation, after a unit

Setting, Temporary A spe ci al volatile unit setting with a timed expiration period. The command to invoke this

The most recent Unit Setting requested by a user (local or network) command. This value is

non-volatile.

The most recent Unit Setting, which is NOT a T emporary Setting, at which the IRD was able

to deliver services while free of alarms. This may also be the Last Commanded setting or it

may be the attempted (Transient) setting at which auto-recovery was successful. This value

is non-volatile.

reset. This will be the Last Commanded setting unless, since that command was issued,

the IRD had executed an Auto-Recovery and successfully acquired at one of the Pre s et

settings. In other words, the Permanent Setting is the most recent of the Last Commanded

and Last Successful Settings.

special setting and the subsequent success of the IRD to find services at this setting does

not affect the non-volatile value of the Last Commanded or Last Successful Settings. Also,

if the compliant IRD receives a command to change its Permanent Setting while in a

Temporary Setting, the Temporary Setting will not be aborted, but the new Permanent

Setting will be recorded in NVRAM as the Last Commanded setting and the Permanent

Setting pointer will refer to that.
Setting, Transient A volatile Unit Setting used for immediate acquisition of services. Transient settings are

either Temporary settings (see above) or Presets used for attempted acquisition during

Auto-Recovery. If, in the case of Presets, the attempt is successful, those settings become

Permanent Settings.

14 800032-01 Rev. G www.wegener.com

Term Definition

Unity 4600 User’s Manual

T

MRA

Maximum Recommended Ambient Temperature, the highest operating temperature for
which the unit is rated

Transport Stream
(or MPEG Transport

Stream)

A multiplex of several data streams, each of which is borne in transport packets, 188-byte
blocks containing a sync word, header information (including a PID), and payload data. This
multiplex includes PSI data tables, programs, padding, and floating PIDs such as those

®

used by COMPEL

network control.

Warning A condition or notification of (1) a condition that may compromise the proper performance

of your Unity 4600; or (2) any non-alarm condition that should be brought to local user’s
attention.

www.wegener.com 800032-01 Rev. G 15

General Information

This page intentionally left blank

16 800032-01 Rev. G www.wegener.com

CHAPTER 2 INSTALLATION

This chapter provides instructions on unpacking, mountin g, and connecting your Unity

4600

as well as connector information including detailed pinouts.

2.1 Unpacking and Inspection

Carefully unpack the unit and its ac power cord and inspect for obvious signs of
physical damage that might have occurred during shipment. Any damage claims must
be reported to the carrier immediately. Be sure to check the package contents
carefully for important documents and materials.

Note: Please save the packing materials and original shipping containers in case

you must later return the unit for repair. Packing these units in other
containers in such a way that they are damaged will void your warranty.

2.2 Location and Mounting

The Unity 4600 may be mounted in a standard 19-inch equipment rack or set up for
desktop operation. In either location, maintain a clean, dry environment for your

4600

.

Unity

WARNING

DANGER

FCC-mandated suppression of radiated emissions

If the Ethernet port has a cable connected to it, that cable MUST be properly shielded
and grounded. This must be done to minimize RF emissions which could interfere with
nearby equipment.

This is a Class A product. In a domestic environment this product may cause radio
interference for which the user may need to take mitigating action.

To avoid damage to this and other equipment, or personal injury, the following items
should be strictly observed.

Elevated Operating Ambient

When equipment is installed in a closed or multi-unit rack assembly, the operating
ambient of the rack environment may be greater than the room ambient. Therefore,
consideration should be given to the ambient air temperature within the rack, and not
just inside the room, when deciding if the maximum recommended ambient operating
temperature (T

Equipment should be installed such that airflow required for safe operation of the
equipment is not compromised. The
empty spaces between units if heat rise is prevented b y ensuri ng it s side vents remain
unblocked with adequate clearance around the vent holes.

) is being met.

MRA

Reduced Air Flow

Unity 4600 may be arranged in a rack without

wegener.com 800032-01 Rev. G 17

Installation

Mechanical Loading

Mounting of the equipment in a rack should be such that a hazardous condition is not
produced by uneven loading. This unit is not very heavy, but total rack loading must be
considered. Also, do not rest any unsupported equipment on your

Circuit Overloading

Consideration should be given to the connection of the equipment to the supply circuit and
the effect that overloading of circuits could have on overcurrent protection and supply
wiring. Ensure that the total rack or breaker power consumption does not exceed the limits
of the AC branch circuit. Appropriate consideration of equipment ratings should be used
when addressing this concern.

Reliable Earthing

Reliable earthing of rack-mounted equipment should be maintained. Particular attention
should be given to supply connections other than direct connections to the branch circuit
(use of power strips, chassis ground lugs, etc.).

Unity 4600.

Rack Mounting

WARNING

Desktop Installation

WARNING

Your Unity 4600 is sized at a single RU and will fit an EIA-standard, 19-inch-wide equipment
rack.

1. First install angle brackets or cross-supports capable of supporting both the unit and its
connecting cables. Screw or bolt the supports securely to the equipment rack.

2. Place the
secure the

The front brackets must be secured to the rack. If front brackets are left unsecured, the unit
may shift forward and fall from the rack duri ng inst allation or ope ration. Failure to se cure the
front brackets may result in personal injury and/or damage to the equipment.

To set up the Unity 4600 in a desktop environment, place the Unity 4600 on a flat surface
where it will not be subject to spills or impacts. Also route cables to the unit so that they will
not be hit or pulled causing damage to the connectors or to the unit it self. Ensure a suf ficient
flow of cool air (
temperature range is not exceeded.

Locate the Unity 4600 and its cables to avoid impacts, spills, and pulling cables and to
ensure sufficient air flow. Failure to locate the
in damage to the equipment.

Unity 4600

Unity 4600

See Reduced Air Flow on page 17.) so that the unit's operating ambient

on its supports and use four anchor screws or bolts and nuts to

front brackets to the rack.

Unity 4600 in a proper environment may result

18 800032-01 Rev. G www.wegener.com

2.3 Unity 4600 Connections

Unity 4600 User’s Manual

Rear panel views

Transport In Options

Figure 2.1 and Figure 2.3 illustrate the rear panel views for the Unity 4600 connections.

Note: DTMF is not available for units manufactured after 10/22/2007.

Figure 2.1 shows the connector locations on the Unity 4600 rear panel.

Figure 2.1: Unity 4600 rear panel without DTMF

See Figure 2.3 for Transport In
Options for this slot.

Figure 2.2: Unity 4600 rear panel with DTMF

Figure 2.3 below shows rear panel views of the five available receiver modules.

Figure 2.3: Unity 4600 Transport In Options

Rear panel Connectors

www.wegener.com 800032-01 Rev. G 19

Table 2.1: Rear panel Connectors below lists the Unity 4600 rear panel connectors, their

types and pinout information. See Interpreting LEDs on page 33 for descriptions of rear
panel indicators.

Installation

Table 2.1: Rear panel Connectors

Connector

Designation

ALARM/CUEING 10-pin male header

(mates to removable

DTMF

(where available)

3-pin male header
(mates to removable
terminal-strip)

Type Pin Signal Name

terminal-strip)

1

(on left as viewed

from rear of unit)

2 COM:
3 Alarm (COM closes here on alarm or if

4 GND
5 Cue Relay #1: N.C. contact
6 Cue Relay #1: Common contact
7 Cue Relay #1: N.O. contact
8 Cue Relay #2: N.C. contact
9 Cue Relay #2: Common contact

10 Cue Relay #2: N.O. contact

1 (on left as viewed
from rear of unit)

2 GND

OK (COM closes here when OK)

power is off)

DTMF tone, non-inverted output

AUDIO

(same for both

ports 1 and 2)

COMPOSITE VIDEO

OUT

SERIAL CONTROL RS232, 9-pin D

6-pin male header

(mates to removable

term strip)

BNC Jack Composite Video Out

female jacks

3 DTMF tone, inverted output

1 (on left as viewed

from rear of unit)

2 Right GND
3 Right ‘-’
4 Left ‘+’
5 Left GND
6 Left ‘-’

1 DCD (internally pulled to +5V)

2 RxD (data output)
3 TxD (data input)
4 DTR (not connected)
5 GND

Right ‘+’

6 DSR (internally pulled to +5V)

20 800032-01 Rev. G www.wegener.com

Unity 4600 User’s Manual

Connector

Designation

ETHERNET RJ45 Jack 1

Type Pin Signal Name

(on left as viewed

from rear of unit)

7 RTS (internally pulled to +5V, may be

upgraded for handshaking)

8 CTS (not used presently, may be upgraded

for handshaking)

9 RI (internally pulled to +5V, with weak

current limiting)
TXDO +

2 TXDO ­3 RXDI +
4 Shorted together, then terminated into an
5
6 RXDI ­7 Shorted together, then terminated into an
8

AC ground.

AC ground.

ASI OUT BNC Jack DVB-ASI Transport Output

115/230 VAC Std. IEC Receptacle AC line in

DVB-QPSK Transport In Option

RF IN Type F coax jack L-band RF Input from external LNB (with

LNB DC on center pin)

DVB-QPSK with 4-way RF Switch Transport In Option

RF IN – 1 through 4 Type F coax jacks 4-way RF Switch Inputs (with DC block)

LNB PWR* 2-pin male header

(mates to removable

terminal-strip)

Turbo-PSK Transport In Option

ASI IN <plugged> Not used

RF IN Type F coax jack L-band RF Input from external LNB (with

Turbo-PSK with 4-way RF Switch Transport In Option

ASI IN <plugged> Not used

(on left as viewed

from rear of unit)

1

2 LNB DC Output return leg

LNB DC Output positive leg

LNB DC on center pin)

RF IN – 1 through 3 Type F coax jacks 4-way RF Switch Inputs (with DC block)

RF IN 4 Type F coax jack 4-way RF Switch Input (with LNB DC on

center pin)

ASI Transport In Option

www.wegener.com 800032-01 Rev. G 21

Installation

Connector

Designation

ASI IN BNC Jack DVB-ASI Input

RF IN <plugged> Not used

* LNB DC power may be locked to OFF by network.

Type Pin Signal Name

Table 2.2 below lists the Unity 4600 front-panel connectors, their types and pinout

information.

Table 2.2: Front-panel Connectors

Connector

Designation

Video Monitor BNC jack Composite Video monitor
Audio Monitor ¼” stereo phone jack Stereo audio headphone monitor,

Type Pin Signal Name

2.4 Serial Port Configuration

selectable between audio ports 1 or 2

Device assignments

Device configurations

The Unity 4600 has one external serial port. A “device” must be assigned once to the serial
port, but no “device” may be assign ed more than once. In addition, more than one device
may be assigned at one time but only one device which accepts input may be assigned. (If
multiple devices are assigned to the serial port, the port’s settings are controlled by the
device with higher priority according to the list below.) Device port assignment and device
configuration (see below) may be controlled only from the unit front panel and the network
may disable this capability. The possible devices are:

1. Terminal

2. Modem (“modem” being remote terminal via modem)

3. Local COMPEL

®

4. Auxiliary Data

5. Printer (including COMPEL® e-mail and reports)

When a serial port configuration command is received, the specified configuration is
immediately stored for the specified d evice (e. g. for the “Terminal” device). If a serial port is
currently assigned another device, then its output buffer is immediately flushed and the port
re-configured. Communication is fixed at 1 start, 1 stop, and 8 data bits, with no hardware
handshaking. No provision for software handshaking is made in this Release. The serial
port’s behavior for each of its device types is described in the following table:

Table 2.3: Device Configurations

Device Serial Port Behavior (Italics are Programmable, Bold are Fixed)

Terminal Configured to 19.2k, N, 8, 1. The unit responds to the terminal commands as

described in

Modem Configured to B, P, 8, 1. The unit responds to the commands as described in

3.4 Operation from Local/Remote Terminal on page 59.

22 800032-01 Rev. G www.wegener.com

3.4 Operation from Local/Remote Terminal on page 59.

Unity 4600 User’s Manual

Device Serial Port Behavior (Italics are Programmable, Bold are Fixed)

Aux Data Configured to B, P, 8, 1. This is an output only (all inputs ignored).

Device handling

Local

COMPEL

Printer Configured to B, P, 8, 1. This is an output only.

The legal values for B are: 1200, 2400, 4800, 9600, 19.2k, or 38.4 kilobaud.
The legal values for P are: ‘O’, ‘E’, or ‘N’ for Odd, Even, or No parity.

Configured to B, P, 8, 1. This is an input for testing only.

T erminal I/O - The Terminal device is used for command and control of the Unity 4600. This
I/O is a basic VT100-like emulation. All I/O is prompted by user-input text strings terminated
in carriage-returns. The ter minal, whether local or remote (via modem or telnet over TCP/
IP), should be set to local echo ON.

The unit only echoes a carriage-return/linefeed and then a

‘>’ prompt after user entry.
Modem I/O - The Modem device operates in a similar manner to the Terminal device.

Whereas the Terminal device was limited to a specific configuration, the modem device may
be set to one of several. The Modem device does not use special handshaking or special
control characters, and only supports auto-answer modems. To access the modem
command interface, the serial-port device must first be set to Modem. The "Terminal/IO"
discussion above on emulation and echoing would then apply. The user wo uld send the u nit
a carriage return and then the unit would return a prompt to enter the "modem password". If
the correct password is entered, then modem access is enabled. Upon enabling modem
access, the

Unity 4600 will output a welcome banner. Af ter that, I/O is indistinguishable from

normal terminal access, with the same restriction on local user access as set by the
Network. Modem access is disabled when either (1) a new input serial-port device is
selected, (2) when there is no user input for 10 minutes, (3) the OH command is received, or
(4) the unit is reset.

Aux Data - The Aux Data device is defined to allow for async data streams to be carried
within the transport stream and their raw payload output on an IRD serial port. The PID of
these streams may or may not be assigned to a program number within a PMT. To recover
the data, the IRD need only be given the PID and baud rate. The range of legal PIDs is
established by the ISO 13818 standard as 20 to 1f fe (hex) . This may be performe d either by

COMPEL

®

command or by the local user (if local control is enabled).

COMPEL® - This device is defined to allow for input of the COMPEL cont rol stream (for

testing only). There is no output.
PRINTER OUTPUT - This is an output-only device. For the Printer device, there are three

legal types: COMPEL-requested Reports, COMPEL E-mail, and Raw COMPEL (binary)
Data. The first output type are IRD status reports identical to those that the local user may
request. These are always available for the Printer device. The second output type must be
enabled by a non-volatile control. The last type, Raw COMPEL, must also be enabled by a
non-volatile control (actually a factory setting that can only be modified with debug access).
It is exclusive of the other outputs (the others are not allowed if dumping Raw COMPEL).
For this type, the COMPEL data stream, while being processed normally by the IRD host
processor, is also output as-is to the Printer device. This data is binary and includes non­printing characters.

www.wegener.com 800032-01 Rev. G 23

Installation

2.5 Installation Testing

The Unity 4600 has a number of installation tests that may be performed from the front
panel. From the Home screen, press the right arrow until the Installation Testing screen is
displayed.

RF input check

Audio/video check

This test is used to verify an RF connection to a properly functioning LNB at any RF port.
Perform the check as follows:

1. Press

2. Press

3. Press the right-arrow button repeatedly to display the input levels at RF Ports 2, 3, and 4 as

4. Press

This test puts out a video test pattern and audio test tones to allow verification of video and
audio connections. The video pattern is vertical color bars. On Port 1, the audio is a slowly
pulsing (triangle-wave) tone with a higher frequency on Right than on Left. On Port 2, the
audio is a slowly pulsing (sine-wave) tone also with higher frequency on Right than on Left.
On each port, the audio tones alternately pulse (~1 second) left then right, then repeat. Use
the following steps to enable or disable this audio/video test mode:

1. From the RF Input Check screen, press the right-arrow button to bring up the Audio/Video

2. The Audio/Video Check screen will indicate that the test mode is either "Enabled" or

3. Press

ENT

from the Installation Testing screen to bring up the RF Input Check screen.

ENT

again to display the input level estimate at RF Port 1. This will be an average of

the estimated levels at each of the twenty-four domestic transponder center frequencies.

well.

ESC

to return to the RF Input Check screen.

Check screen.

"Disabled".

ENT

to switch the test mode between "Enabled" and "Disabled".

4. Press the left-arrow button to return to the RF Input Check screen or
Installation Testing screen.

ESC

to return to the

DTMF Setup This test allows the setup of DTMF tone levels and verification of connections to cue

equipment.
Note: DTMF output capability not offered on equipment manufactured after 10/22/07.
Use the following steps to set the DTMF level:

1. From the

Setup

2. Press
tones. The tones (actually tone-pairs) are played out at about one-second intervals from 1
through 9, 0, *, #, A, B, C, D, and then repeating.

3. Press the arrow buttons to adjust the volume. Up-arrow or right-arrow to increase volume,
down-arrow or left-arrow to decrease volume. The number of black squares on the LCD
indicates the current volume.

Audio/Video Check

screen.

ENT

to display the

screen, press the right-arrow button to display the

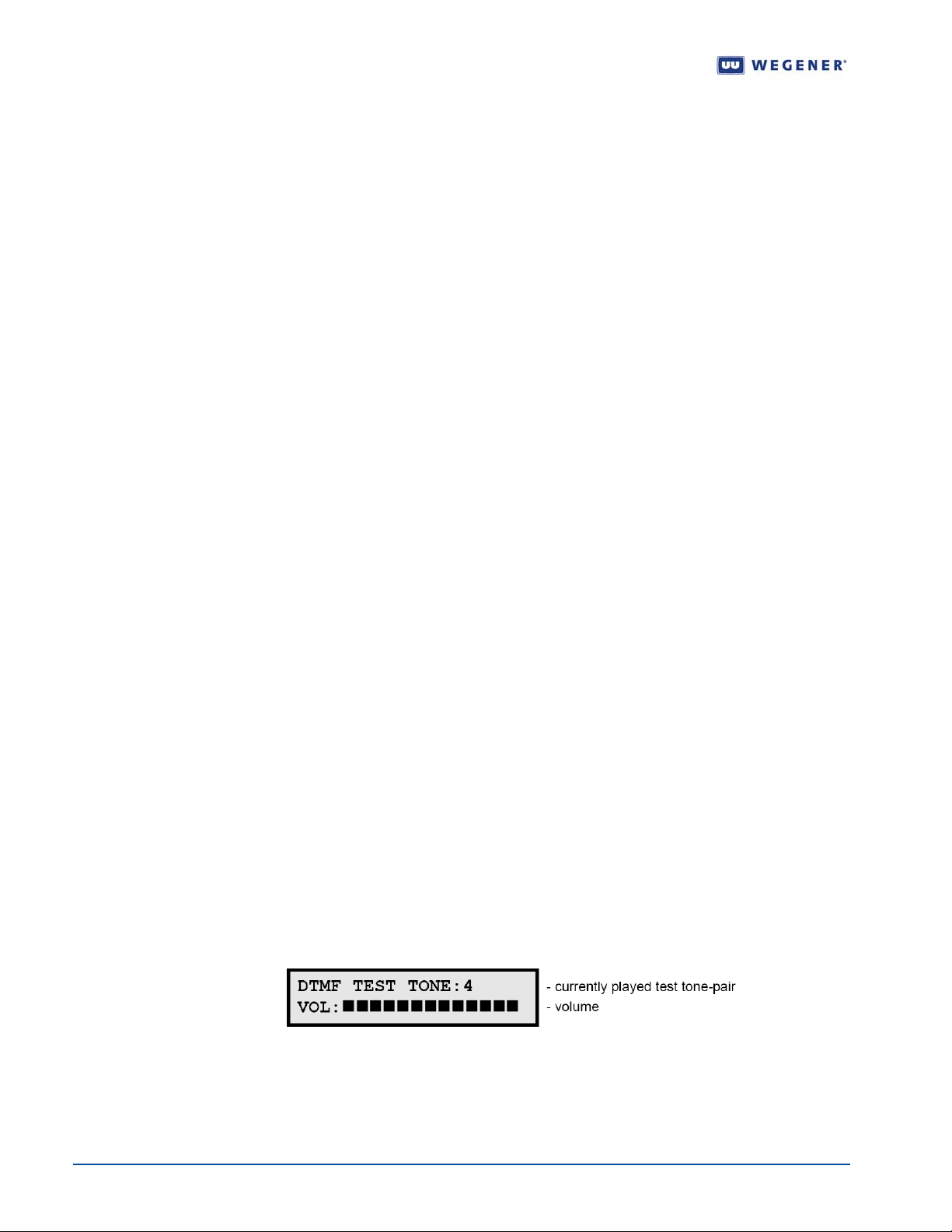

DTMF Test Tone

screen and begin output of the DTMF test

DTMF

24 800032-01 Rev. G www.wegener.com

Unity 4600 User’s Manual

Relay Pulse Check

4. Press

This test may be used to verify connections to the alarm or cue relays. Each relay, as it is
tested, will energize and de-energize about once per second. Use the following steps to
check these connections:

1. First, verify that each relay is set either to ON or OFF. Relays placed in the nonvolatile

2. From the DTMF Level Set screen, press the right-arrow button to display the Relay Pulse

3. Press

4. The Relay Check screen will indicate that the relay is On or Off as it switches on and off

5. Press the right-arrow button to test the remaining cue relays and the alarm relay.

6. Press

ESC

to return to the

screen.

"Follow Warning" setting will not respond to the Pulse command used in this test.

Check screen.

ENT

to display the Relay 1 Check screen.

about once per second. At the same time, a user should see the ohm-meter reading
between the output contacts alternate between zero and (virtually) infinite.

ESC

to return to the Relay Check screen.

DTMF Setup

screen or

ESC

to return to the

Installation T esting

www.wegener.com 800032-01 Rev. G 25

Installation

This page intentionally left blank

26 800032-01 Rev. G www.wegener.com

CHAPTER 3 OPERATION

This chapter provides an overview of Unity 4600 operation, details of controls and
indicators, the alarm/warning system, and user interface details.

3.1 Theory of Operation

Functional summary

From one selected RF input feed, the Unity 4600 receives an L-band RF carrier from
an external antenna LNB. It then demodulates the carrier and extract s the transmitted
MPEG transport stream. If the stream is scrambled and the unit is properly authorized,
it applies the descrambling algorithm to re-generate that transport stream as it
appeared at the multiplexer in the uplink compression system. (Alternately, if u sing
per-program viewing access, only the authorized programs will be descrambled.) This
transport stream is then supplied to the ASI transport output, perhap s with program re­mapping or conditional DPI filtering (under network control). The

Unity 4600 also

decompresses the components of a selected program and provides the audio, video,
and/or data services for output.

Note: The user or network may wish to have a null program assignment if no

attempt at local decompression is desired. This is required for the new HD
programming.

As needed, auxiliary functions are also provided, such as re-insertion of vertical
blanking interval data (closed captioning for examp le) in the video output.

3.1 presents

a logical block diagram of Unity 4600 operation.
Available outputs from the Unity 4600 include:

 DVB-ASI transport output with program
 Decompressed MPEG video as composite video output (NTSC or PAL)
 Two independent, decompressed audio streams (MPEG or Dolby AC-3 downmix) to

balanced analog audio outputs

 Re-insertion of VBI line data from various proprietary and ATSC protocols
 Alarm relay
 User control relays for cueing
 DTMF cueing tones
 Front-panel audio (one stereo pair) and composite video monitor outputs

(number and descriptor) mapping

Automated recovery

If unable to deliver required services to predetermin ed standards, or if unable to d etect

®

a required network control stream (COMPEL

), the Unity 4600 attempts to resume
normal operation through a process called Automated Recovery. Referring to an
internal, non-volatile list of "presets", the

Unity 4600 will attempt to restore either

services or network control, depending on what caused the recovery. A "preset" is a
list of unit settings, and the list of these presets is called the Preset Table. Automated
Recovery will attempt to restore the unit according to each preset (one at a time) in the
order in which they are listed in the table. The process continues (repeating attempts if
necessary) until the unit successfully resumes normal operation or is halted by local
user command.

If successful with a preset, the settings in that preset become the
permanent unit settings. Later, the local user (or the network, if available) may abort the
results of the Automated Recovery and force th e unit ba ck to its last commanded setting.

wegener.com 800032-01 Rev. G 27

Operation

Several user- or network-programmab le obje cts control the Aut om a te d Rec ov er y. In
addition to the contents of the Preset Table, these objects include the Services Recovery
Timeout, the Network Recovery Timeout, the Recovery Iteration Time, and the Local
Control Re-enable Timeout. The first two timeouts control how long the unit will wait after
loss of services or network control, respectively, before entering Automated Recovery. The
Recovery Iteration Time sets the maximum time the unit will spend attempting recovery at
each preset. The last is a special timeout for disaster recovery, such as loss of a satellite,
where units whose local control was previously disabled by the network are re-enabled so
that local users may implement more complex recovery plans.

Monitoring and control

Most routine Unity 4600 operations can be performed over Wegener’s COMPEL® Network
Control System. Control is "broadcast" to individual units through a "ghost-PID" data
component of the incoming transport stream. The

Unity 4600 is considered disconnected

from the network at any time this special stream is not being received .
In addition to the remote COMPEL network control, three methods are provided for "local"

monitoring and control of the

Unity 4600: a web browser interface (later release), a terminal

interface (direct serial or via telnet over TCP/IP), and a front-panel interface.
Note: Local control may be limited by COMPEL command.

The remainder of this chapter details these local monitor and control interfaces.

Figure 3.1: Unity 4600 Functional Block Diagram

28 800032-01 Rev. G www.wegener.com

3.2 Operation from Front Panel

Unity 4600 User’s Manual

Front-panel layout

The Unity 4600 front panel (3.2) includes the following four main parts: a liquid crystal
display (LCD), six pushbuttons, eight LED indic at or s, an d th e fro n t-panel aud i o an d vid eo
monitor ports. Essentially all control available through the network or terminal is also
available from the front panel.

The front-panel LCD (1, see LCD screen relationships on page 29) supports unit
monitoring and control by displaying screens containing status information, menu navigation
pointers, and parameter input fields. Each LCD screen has a lab el or head ing on th e firs t
row and information, parameters, or prompts on the second row which may cycle through
multiple messages depending on the context.

The six pushbuttons (2) are your means of commanding the Unity 4600 from the front panel.
Use the four arrow buttons to navigate through menu screens and p arameter selections and
to scroll through available choices or characters when editing an input field. Press the
(Enter) button to select menus (downward navigation), to open editable input fields, or to
commit edited parameters to the
without saving the entry or selection.
menu structure to the home screen.

The eight front-panel LEDs (3) provide status information about your Unity 4600 and its
processes. See
details. (Two additional LEDs are located on the rear panel and provide Ethernet status
indications.)

At far right are the video port and audio p ort ( 4) includ ed for moni toring fr om the fr ont panel.

T able 3.2: Front-p anel LED Indicator Descriptions on page 33 for complete

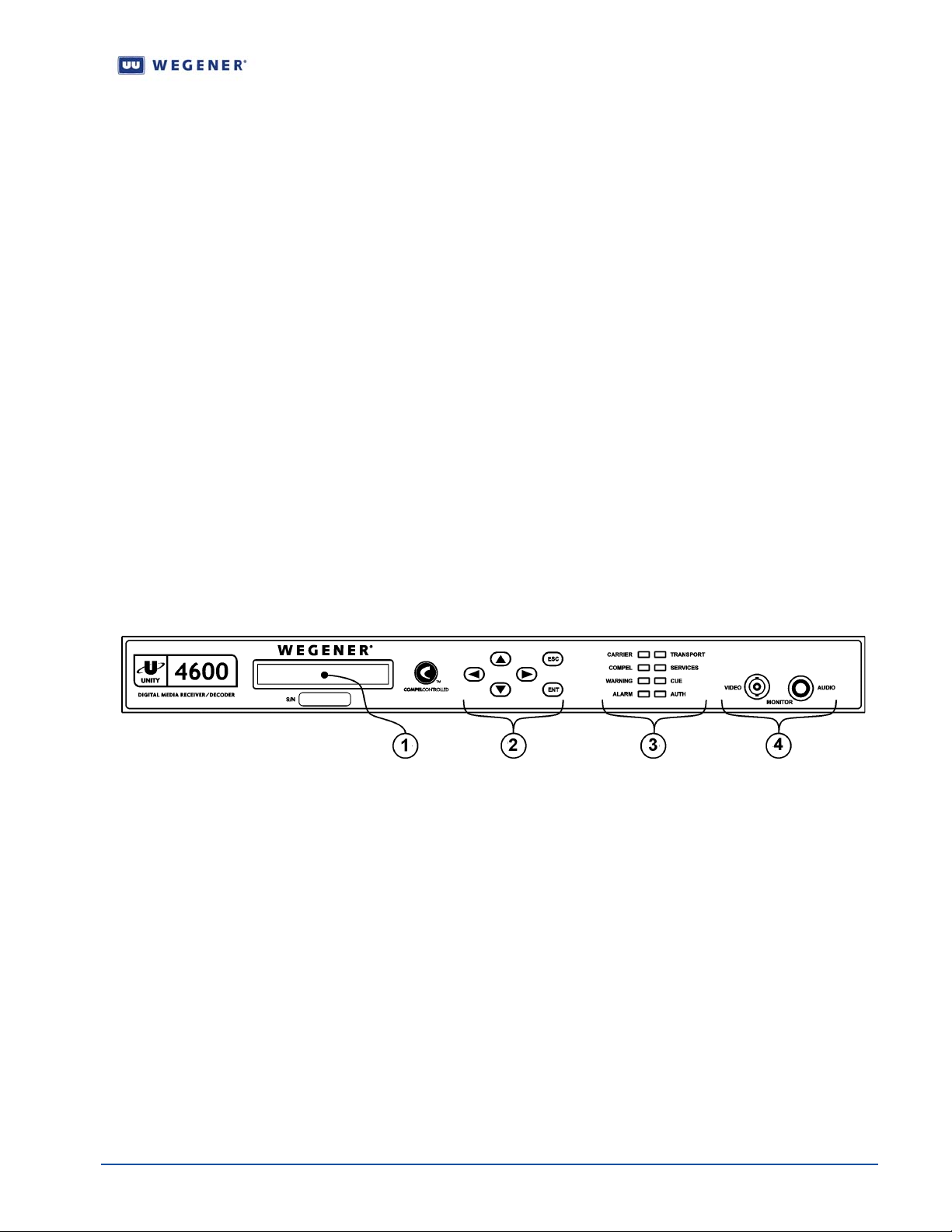

Figure 3.2: Unity 4600 Front-panel Layout

Unity 4600. Press ESC (Escape) to exit an input field

ESC also provides upward navigation through the

ENT

LCD screen relationships

www.wegener.com 800032-01 Rev. G 29

Figure 3.3 shows LCD screen relationships from the top level downward. These screens are

structured in two dimensions, reflecting their relationships as peers, as parents, and as
children of other screens. The up-and-do wn dim en sio n re pr es en ts the parent-child scr ee n
relationships (navigated with the
peer relationship (navigated with the right- and left-arrow buttons). A parent screen is
usually a menu screen covering some category of
screens are opened by pressing
provide access to finer details of unit monitoring and control. Multiple child screens of a
parent menu screen are all peers to each other. However, the most significant set of peer
screens are the top-level screens that have no parent and that include the home screen.
The home screen may be reached by pressing and holding
any other LCD screen
screen types and using front-panel push buttons to navigate and control the Unity 4600.

. Appendix A Monitoring and Control Details gives more details on

ESC and ENT buttons). The side-to-side dimension is the

Unity 4600 operation or status. Its child

ENT at the parent screen. These child screens then

ESC

(or pressing it repeatedly) from

Operation

Figure 3.3: LCD Screen Relationships

LCD screen content

Available top-level screens are shown in order in Figure 3.4: Unity 4600 Top-level Screens
on page 30. Some screens are only available under certain unit conditions or when certain
optional hardware is installed. These optional screens are represented by hatched boxes.

Figure 3.4: Unity 4600 Top-level Screens

30 800032-01 Rev. G www.wegener.com

Unity 4600 User’s Manual

Top-Level LCD Screens

Table 3.1 lists the top-level screens and their functions.

Table 3.1: Summary of Top-Level LCD Screens and Their Functions

Screen Name Functions/Applications

Home Screen

Unit Info (Shortcut) Screen

Alarm/Warning Screens

(when applicable)

Recovery Abort

(when applicable)

Front-Panel Email

(when applicable)

SW Download Status

(when applicable)

Quick-List Control Screens (Multiple)

RF Switch Bypass

(when RF switch option is installed)

Shows basic receive settings and indications about special unit
conditions

 Shows unit’s serial number, label, and model number
 Shows unit’s application software version number
 Shows other key unit information.

 Shows current alarms and warnings (if any)
 Shows historic alarms
 Allows user to clear historic alarm records
 Allows user to acknowledge/clear certain warnings.

 Allows user to abort a recovery in progress or abort the result of an

automated recovery - or -

 Allows user to adopt a recovered setting as a new permanent

setting

Allows user to read and clear unread email sent by network control

Allows user to monitor the progress of a software download over
satellite

A variable number of commonly-used control screens duplicated at
the top level for easy access

Allows the user to force the receiver to accept a carrier only at a
designated feed port at all times

Installation Test

Allows user to implement special test modes useful at initial unit
installation

www.wegener.com 800032-01 Rev. G 31

Operation

Screen Name Functions/Applications

Unit Status/History

Unit Setup

Allows user to access unit status and diagnostics. Typical items
located under this menu include:

 Current unit state
 Signal Quality
 Last commanded and last successful unit settings
 Program Analysis
 Local audio/video decompression history
 Network control status/history
 Current LAN settings
 Encryption settings
 Unit internal temperature
 Option module presence/status
 Unit information screen (including software version)
 Control to clear diagnostics

Allows user to control unit. Typical controls located under this menu
include:

 Set permanent unit settings (tuning, program, audio selection)
 Add/edit/move/delete Presets
 NTSC Pedestal
 Buffer control (PCR offset)
 Audio attenuation
 Audio front-panel monitor select
 Muting
 VBI line re-insertion enable
 Recovery mode timeouts
 Serial port setup
 LNB LO frequency set
 LNB DC power set
 User cue relays
 Signal quality indicator thresholds
 Minimum alarm/warning indication times
 LAN settings
 NVRAM operations
 Alarm (history) latching enable
 Program Mapping Ghost PID pass list
 Current unit software selection
 Unit label edit
 Unit reset

Home and default screens

The home screen appears on the LCD by de fault at boot up. During operation, the user may
return to the home screen at any time, from any location in the menu hierarchy, by pr essing
the Escape (

ESC) button repeatedly (or pressing and holding it). Regardless of the current

location within the LCD menu hierarchy, if no front-panel keypress is made for more than 5
minutes, the LCD reverts to the default screen. Usually, this is the home screen. However,
under some conditions (two are described below), another screen becomes the de fault. If
more than one of these conditions exist simultaneously, priority is given in the order listed.

Note: Regardless of which screen is the current default, the user may still access all

available screens using the left- and right-arrow,

ENT and ESC buttons.)

Download Screen as default

If the Unity 4600 is in an ACCEPT PACKETS Download state, then the Download screen
becomes default.

32 800032-01 Rev. G www.wegener.com

Unity 4600 User’s Manual

Audio FP Monitor Selection Screen as default

For two minutes, or until ESC is pressed, the Level 2 Audio FP Monitor Selection screen is
the default if the unit features a front-panel audio mon itor jack an d the us er plug s in a ¼”
stereo phone plug. Note that this is NOT usually a first-level screen, unlike other default
examples.

On the home screen, the (right-pointing arrow) field will quickly flash (a half-second ON
and a half-second OFF) to signal the user that the right arrow button is active for user
control. Pressing either the left or right arrow buttons will cause the

Unity 4600 to display the

other top-level screens in succession. If ther e are current alarm and warning indicatio ns, the
text "See alarms" or "See Warnings" will appear before the arrow and pressing the right
arrow will display the applicable alarm or warning message(s).

Interpreting LEDs

Front panel LEDs

Figure 3.5 provides the meaning of the color and state of ea ch LED.

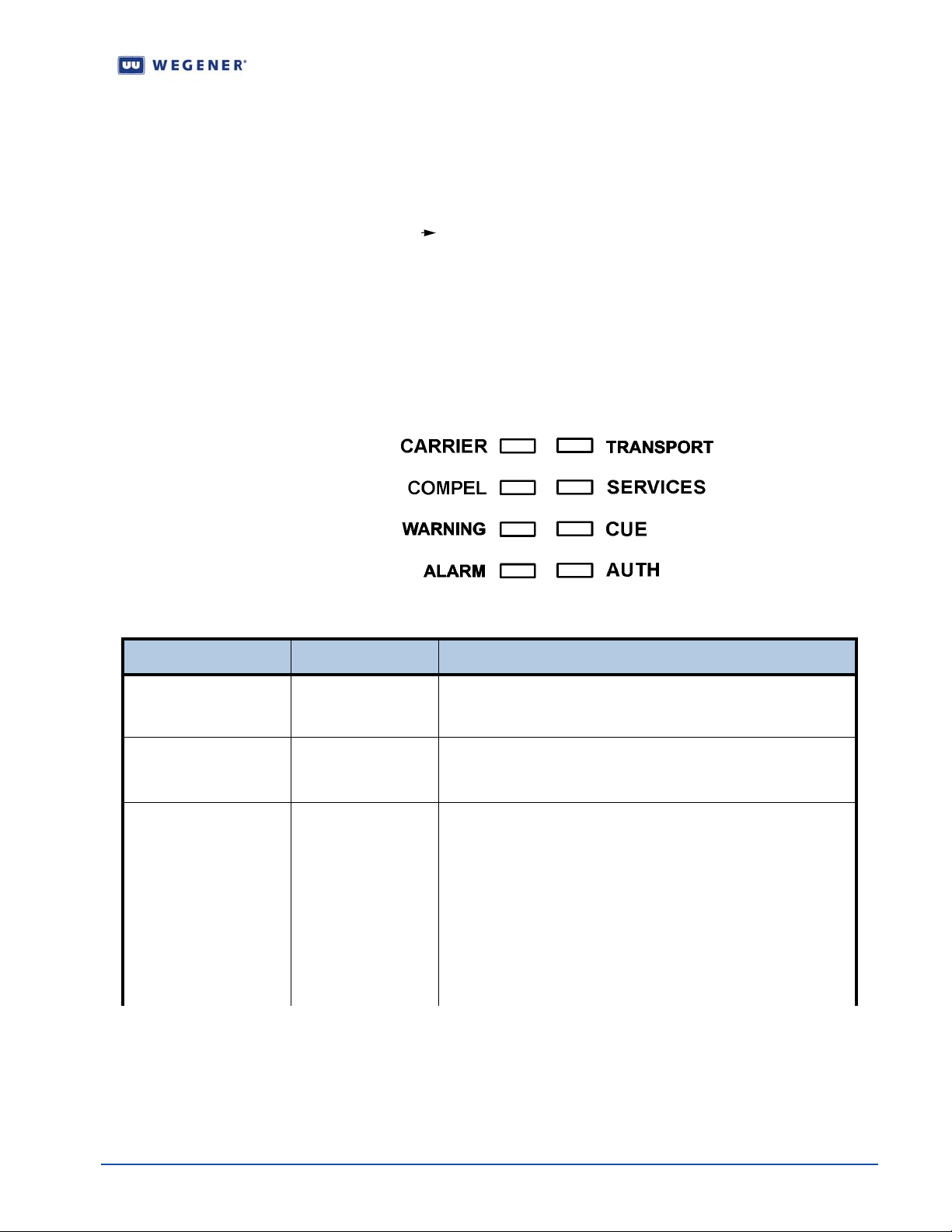

Figure 3.5: LED Indicators

Table 3.2: Front-panel LED Indicator Descriptions

Indicator Label Color and State* Meaning

CARRIER

TRANSPORT

GREEN constant Unit has demod and FEC lock on the RF carrier
Off Unit does not have demod and FEC lock on the RF carrier

GREEN constant Unit recognizes a valid tran sport stream
Off Unit does not recognize a valid transport stream

COMPEL

www.wegener.com 800032-01 Rev. G 33

®

GREEN constant COMPEL control stream received within last two minutes

(including keep-alives) while locked continuously on the current
transport stream for >2 minutes

GREEN flash Unit has had a verified transport stream for >2 minutes and

COMPEL is required but no valid COMPEL

GREEN flutter COMPEL has been addressed to unit within last 5 seconds

(excluding keep-alives)

Off Otherwise. Note that this LED must be OFF when there is no valid

Transport stream OR COMPEL

Operation

Indicator Label Color and State* Meaning

SERVICES

WARNING

CUE

ALARM

AUTH

GREEN constant Unit is processing services for delivery
Off Unit is not processing services
YELLOW constant One or more warning indications exist, usually the failure of a non-

essential item, or to warn of an impending failure of an essential
item

Off No warning conditions
GREEN constant A user cue relay is closed (energized).
GREEN flutter During a user relay “pulse” activation on any relay.

Off All user cue relays are open (de-energized).
RED constant One or more current alarm indications.
RED blink An alarm event has occurred in the past and has not been

acknowledged and cleared by the user. Note that this state may
exist together with a current alarm (RED constant). In that case,
the blink state is defined as quickly cycling OFF-ON-OFF
(~100ms each) approximately every 2 seconds.

Off No alarm condition currently exist s .
GREEN constant Unit has transport MPEG sync and the stream is not scrambled

(in the clear). Streams that are “clear” are always presumed to be
“authorized”.

OR

Unit is authorized for current scrambled transport stream (or
selected program) and has transport MPEG sync. When using
Wegener CA (’97 Version), being “authorized” means being
addressed with current and valid ciphered keystream messages.
In a PIN system, if the transport stream is scrambled, and the unit
has been programmed with any key other than the null ‘00000’,
then it presumes that it is “authorized”.

GREEN flutter

Off Unit has transport sync, the transport stream is scrambled, and

* LED states are defined as follows: Blink - alternating ON for ~100ms and OFF for ~2 seconds; Flash - alternating
ON for ~500ms and OFF for ~500ms. Flutter - like flash but with shorter ~100ms ON and OFF times.

Unit has successfully deciphered a valid descrambling seed in the
last five seconds. Normal behavior in functioning CA system.

the unit is NOT authorized. Also OFF if no transport sync.

Rear panel LEDs

The Unity 4600 also has two LED (light-emitting diode) indicators on the rear panel. They
provide the following indications:

LAN – Green LED: On if active LAN connection detected. OFF otherwise.
ACT – Yellow LED: Flashing ON if ethernet packets are output or addressed packets are

input. OFF otherwise.

34 800032-01 Rev. G www.wegener.com

Unity 4600 User’s Manual

Front-panel audio monitor

To monitor audio output from the front panel, insert a 1/4-inch stereo phone plug into the
audio monitor port. The
Audio FP (front-panel) Monitor Selection screen. This second-level me nu screen allows th e
user to select and monitor the desired audio stream. After two minutes without a keypress
from the front panel, the

Unity 4600 will detect the phone plug and immediately display the

Unity 4600 will revert to the default LCD screen.

3.3 Operation from Local/Remote Terminal

Overview and syntax

This section applies to control by both the Terminal and Modem devices. Once a user has
fulfilled the password requirement for Modem access, the communication is identical to
Terminal control.

Approved clients for Terminal monitoring and control via telnet include Tera Term,
Windows

and ANSI terminals are approved. To exit, use the client’s exit/escape sequence or get
debug access in the IRD to use the QUIT or EXIT command.

Commands listed in this section detail command syntax and action taken. Commands
consist of a command field and a parameter field. Each command field and parameter field
is space delimited. Optional parameters are indicated by square brackets, [ ], and
conditional parameters are indicated by braces, {}.

For example, COMMAND_NAME parameter1 {parameter2} [parameter3] indicates that
parameter1 must be entered, parameter2 entered only when a certain condition is met
(certain option is installed, etc.), and parameter3 is optional. Both commands and
parameters may be entered in upper or lower case; the interface is not case-sensitive.

®

2000 telnet, and Windows® XP telnet and no special login is required. VT100

Incorrect or incomplete commands result in "Invalid Command" being displayed at the
terminal. Parameter errors on User commands generate "Invalid parameter name" where
parameter name is the name of the incorrectly entered parameter.

User commands

ABORT

Insert is terminated. See TEMP command.

ABORTREC x

x:C - make the unit’s permanent setting equal to the last commanded setting

S - make the unit’s permanent setting equal to the last successful setting
Command either

1) aborts an ongoing automated recovery;

2) aborts the successful results of an automated recovery; or

3) accepts the successful results of an automated recovery.
With either value for x, this command is interpreted as a direct local user command to establish/confirm

Note: Any commands controlling carriers, programs, or services may be disabled from

®

COMPEL

Table 3.3: Command directory for Unity 4600 terminal commands

the unit’s permanent settings.

.

ADDE location COMPEL-req [tags-req] [aud1] [aud1_rt] [aud2] [aud2_rt] [margin]

location: Value from 1 up to max (highest entry #) indicating location in Preset table.

www.wegener.com 800032-01 Rev. G 35

Operation

COMPEL-req:Values are REQ, NR, or GL.

Forces COMPEL
setting (respectively) when attempting this Preset during Recovery.

®

to be temporarily required, not required, or left as normal global unit

tags-req: Values are

REQ, NR, or GL.

Forces Carrier ID Tags to be temporarily required, not required, or left as normal global unit
setting (respectively) when attempting this Preset during Recovery.

aud1: Language descriptor (or wildcard ‘*’) for audio stream to be assigned to Audio port 1.
aud1_rt:S - Stereo (left and right components routed as connected at original MPEG encoder)

1 - Original left component to both L and R outputs
2 - Original right component to both L and R outputs
M - Sum of left and right components to both L and R outputs
R - Reverse of "Stereo" above (if allowed by hardware)

aud2: Language descriptor (or wildcard ‘*’) for audio stream to be assigned to Audio port 2.
aud1_rt: Same as aud1_rt above
margin: Margin offset in dB. Ranges between 0 and N dB. (See

This command augments the

ADDS command to populate the extended Preset Entry. Note that if this

MARGIN command for N.)

Preset is used to acquire services (through Recovery or user command), these temporary
COMPEL and Tags-required parameters, if used, will be adopted as the permanent global
unit parameters.

ADDS location [format] [feed #] [carrier freq] [data rate] [FEC] [Tag Site] program# [label]

location: Value from 1 up to max (highest entry #) indicating location in settings table.

For format, feed # , carrier freq, data rate, FEC, tag site, program #, and label see PERM command.
This command adds entries to the

U5000-style preset table at the entry number given. If entry at location

was already in use, it will be overwritten.

APPSTAT

Forces IRD to report the status of the two application storage spaces, showing current and backup

application software (if any). A Local Control Command (available from the terminal
regardless of "Local Control Enable/Disable" commands from the network).

APPSWITCH

Unloads the currently executing application software and, instead, loads and runs the backup software.

AUDATTEN port# atten

port#: Either 1 or 2 for audio ports 1 or 2.
atten: Must be a numeric value for attenuation in dB. Legal values are given in individual IRD

specifications.

36 800032-01 Rev. G www.wegener.com

Unity 4600 User’s Manual

This command sets audio attenuation, where 0 gives 0dB attenuation (maximum level). A Local Control

Command (available from the terminal regardless of "Local Control Enable/Disable"
commands from the network).

AUDIOMODES

Lists all the supported audio decompress ion or pass- th ro u gh mo de s (e.g. , MPEG 1 La ye r 2, Dolby AC-

3, MP3, SMPTE302, etc.)

AUDMON port#

port#: Either 1 or 2 for audio ports 1 or 2.

Connects a sample of audio port port# to the single audio monitor jack (where available). A Local Control

Command (available from the terminal regardless of "Local Control Enable/Disable"
commands from the network).

AUXPID [PID]

PID: Selects the PID (in hex) for the transport packet s carrying the desired data stream. Must be

20 to 1FFE inclusive. If PID is omitted, the current value is displayed.

Sets the PID used for Aux Data extraction.

CLRDIAG

Clears all the volatile counts and statistics, as if the unit was reset. A Local Control Command (available

from the terminal regardless of "Local Control Enable/Disable" commands from the
network).

CLRIND

Clears both current “Acknowledged” Alarm and Warning indications and (past) Latched Alarm

indications. A Local Control Command (available from the terminal regardless of "Local
Control Enable/Disable" commands from the network).

DELS entry

entry: Value from 1 up to max (given in section 2.1) indicating entry number in settings table.

Deletes an entry in the Preset Table.

DPAT

Command reports current Program Allocation Table (PAT) from incoming transport stream.

DPSI

Command reports complete PSI information tracing all programs and th eir components to MPEG PIDs.

A Local Control Command (available from the terminal regard less of "Local Control Enable /
Disable" commands from the network).

DTMFTST [level] [tone]

level: Integer between 0 and 100 inclusive.

www.wegener.com 800032-01 Rev. G 37

Operation

tone: Tone code (0-15 signifying digits 1-9,0,*,#,A-C).
Volatile test command for DTMF output, if supplied. Tones will be output at the percentage of full-scale

voltage indicated by level. If tone is supplied, then that tone is output continuously. If tone is
omitted, then the IRD cycles endlessly through all tones, 1 second per tone. Disable with
TESTOFF command. A Local Control Command (available from the terminal regar dless of
"Local Control Enable/Disable" commands from the network).

DTMFVOL percent

percent: Integer between 0 and 100 inclusive.

Command to set DTMF output tone levels. Immediately after entry of the command, the IRD will play out

all 16 tones (at a rate where they are individually identifiable) at the commanded level. If
percent is ‘0’, output is essentially OFF. If percent is ‘100’, level is maximum spec level.
Entering command without parameters still plays out the tone sequence and then reports
current level setting. A Local Control Command (available from the terminal regardless of
"Local Control Enable/Disable" commands from the network).

EMAIL x

x: Either E for Enabled, or D for Disabled.

Command to enable COMPEL

®

printed email. A Local Control Command (available from the terminal

regardless of "Local Control Enable/Disable" commands from the network).

ERRORS type threshold

type: Either E for Error’d Seconds or C for Continuity-count errors.
threshold: Integer between

1 and 255.

Command to set either Error’d-seconds-rate or Continuity-count Alarm threshold. Unit will show an alarm

if, over any previous 60 second interval, the number of type events which are detected
exceeds threshold. A Local Control Command (available from the terminal regardless of
"Local Control Enable/Disable" commands from the network).

EXIT

Command ends telnet sessions. Same as QUIT command.

FORCERF port

port: Either OFF or the numbers 1, 2, 3, or 4.

Command to either disable or enable effective RF switch bypassing. If port is a number, then all

subsequent carrier reception is sought at that RF feed port, regardless of the current Unit
Setting. If port is
without parameters gives current status, either
where n is either

OFF, then normal RF switch function is restored. Entering the command

Normal RF Switch, or Forced RF Feed Port n

1, 2, 3, or 4. A Local Control Command (available from the terminal

regardless of "Local Control Enable/Disable" commands from the network).

GHOSTLIST action PID

action: A for Add or D for Delete.

38 800032-01 Rev. G www.wegener.com

Unity 4600 User’s Manual

PID: Hex number between 1 and 1FFE (except 11, reserved for SDT).
Command to add or delete entries in the list of ghost PIDs to pass to the ASI transport output (while

Program Mapping is enabled). Entering command without the action or pid parameter
dumps the current list.

H [command]

command: Any of the terminal command names (PC, R, PORT, etc.).

If an

H or any invalid command beginning with an H is entered and command is omitted, the whole help

screen will be displayed, consisting of a list of all currently available commands and a brief
description of each listing. If an
and

command is a valid User Command Name, then detailed help for command is displayed.

H or any invalid command beginning with an H is entered

A Local Control Command (available from the terminal regard less of "Local Control Enable /
Disable" commands from the network).

INDPERS indication time

indication: A or Alarm or W for Warning.
time: Time in seconds.

Command to set the minimum indication-time persistence for eith er Alarms or Warnings, per the value

of indication, for the time period given by time. Entering command without parameters
shows the current settings. A Local Control Command (available from the terminal
regardless of "Local Control Enable/Disable" commands from the network).

IPCONFIG

Command requests report of all current IP parameters (I P address, Gateway address, subnet mask) and

assignment mode (static or DHCP). A Local Control Command (available from th e terminal
regardless of "Local Control Enable/Disable" commands from the network).

LAN GATEWAY addr

addr: IP address formatted as n1:n2:n3:n4 where n1, n2, n3, and n4 are integers between 0 and

255.

Command sets the IRD’s static internet Gateway IP address. No protection is offered against entry of

non-standard addresses (e.g. 0:0:0:0). Omitting the addr para meter shows the current static
Gateway IP. This will not be the current Gateway IP address if dynamically assigned. Use
the

IPCONFIG command for that. A Local Control Command (available from the terminal

regardless of "Local Control Enable/Disable" commands from the network).

LAN IP addr

addr: IP address formatted as n1:n2:n3:n4 where n1, n2, n3, and n4 are integers between 0 and

255.

Command sets the IRD’s static IP address. No protection is offered against entry of non-standard

addres-ses (e.g., 0:0:0:0). Omitting the
not be the current IP address if dynamically assigned. Usethe

addr parameter shows the current static IP. This will

IPCONFIG command for that.

A Local Control Command (available from the terminal regard less of "Local Control Enable /
Disable" commands from the network).

www.wegener.com 800032-01 Rev. G 39

Operation

LAN MODE mode

mode: DHCP, WEG, or STATIC.

Command sets the IP configuration to either dynamic DHCP, "Wegener" mode, or static IP addresses.

If static, see

LAN IP, LAN GATEWAY, and LAN SUBNET commands. Omitting the mode

parameter shows the current mode. This is a Local Control Command (available from the
terminal regardless of "Local Control Enable/Disable" commands from the network).

Assigning "Wegener" mode IP address forces the assignment of a static IP address for testing. This

address is of the form: 172.16.xy.yy. The x is the one- or two-decimal-digit Product ID (also
called the COMPEL download ID). 'yyy' are the last (least significant) digits of the unit serial
number (most significant to left). The presumed subnet mask is 255.25 5.0.0 but the gateway
is not defined. As an example, if a

Unity 4600 with product ID=9 and SN=260050 is set to

"Wegener" IP address mode, it's new static IP address becomes 172.16.90.50.

To fix possible address contention, the IRD, when the application initializes, attempts to detect an IP

address conflict (using ARP). If a conflict is detected, the unit adds one hundred (decimal)
to the last field of the attempted IP address and tries again. Using the above example, if

172.16.90.50 has already been assigned on that LAN, then the IRD re-attempts with an IP
address equal to 172.16.90.150.

LAN SUBNET addr

addr: IP address formatted as n1:n2:n3:n4 where n1, n2, n3, and n4 are integers between 0 and

255. Note that not all values can be legal.

Command sets the IRD’s static subnet mask address. Command entries that do not assert legal IP

address masks will be rejected. Omitting the

addr parameter shows the current static subnet

mask. This will not be the current subnet mask if dynamically assigned. Use IPCONFIG
command for that. A Local Control Command (available from the terminal regardless of
"Local Control Enable/Disable" commands from the network).

LATCHALARMS x

x: Either E for Enable, or D for Disable.

Command enables or disables the latching of unit alarms.

LNBPWR output

output: Either ON or OFF.

Non-volatile command enables or disables LNB DC power ind ependently o f any other se ttings. A Local

Control Command (available from the terminal regardless of "Local Control Enable/Disable"
commands from the network).

LNBTST voltage_range tone

voltage_range:Either H or L (for High and Low).
tone: Either

Volatile test command to force use of the ASTRA Universal LNB functions. Disable with

ON or OFF.

TESTOFF

command. A Local Control Command (available from the terminal regardless of "Local
Control Enable/Disable" commands from the network).

40 800032-01 Rev. G www.wegener.com

Unity 4600 User’s Manual

LOADNV source

source: B for Backup (by user), C for Original Customer-configuration, or P for Production-default

settings. Key security parameters (e.g., serial number) are not affected by the

C or P loads.

Command reloads NVRAM memory from Flash memory defaults.

Note: The unit must reset after execution of this command.

MARGIN margin_offset

margin_offset:Integer values between 0 and N in the form of x.x, representing dB (to tenths of a dB). N

is defined by individual IRD specifications for every mo du lat ion /F EC co mb ination.

Command sets the Margin Warning point. This provides warning to local users that their Eb/No’s are

approaching the error-threshold where system performance will collapse. (Supersedes SNR
command.) A Local Control Command (available from the terminal regardless of "Local
Control Enable/Disable" commands from the network).

MOVEP source destination

source: Preset Table entry number which will source Unit settings.
destination: Preset Table entry number to which the Unit settings will be moved.

Command moves the Unit settings at the

original
data at the original

source entry is deleted and that entry position is now considered unused. The setting

destination entry is then moved to the next lower un used Preset position.

source entry to the destination entry. The setting data at the

(One will always be available because the entry that held the original
made “unused”.)

MUTE [source][source][source] [...]

source: Source can be any of the following:

ASI - to indicate the DVB-ASI transport output.
V - to indicate Video.
A[specifier] - to indicate Audio.

An

A without the specifier indicates all audio outputs.

If present, The specifier consists of one or two characters. The first ch ar acte r sp ecifi es the
audio port number and the second character specifies either the right or left channel, as in

A1L (audio 1, left channel) or A2R (audio 2, right channel).

If the second character is omitted, this indicates both stereo channels are included.

Example:

MUTE V A1L A4 A3R mutes the video, audio Port 1 left channel, audio port 4 (both channels),

and audio port 3 right channel

Note: If no

source is specified then video and all audios are selecte d.

Mutes the specified outputs.

Note: The

MUTE command is only allowed when local control is enabled by the network..

source settings was

OH

On hook. Disables modem access. Modem access is only re-enabled by successful modem password

entry. A Local Control Command (available from the terminal regardless of "Local Control
Enable/Disable" commands from the network).

www.wegener.com 800032-01 Rev. G 41

Operation

PARTPID pid

pid: Hex value between 20 and 1FFE to set a value, and 0 to disable.

Command sets the borderline (or “partition”) PID at, and above which, the IRD may expect compatible

scrambling against which it may apply the proper descrambler. PIDs below this point may
be scrambled with an alien, 3rd party system. See individual IRD specs for more detail on
unit behavior. A Local Control Command (available from the terminal regardless of "Local
Control Enable/Disable" commands from the network).

PC device baud parity

device: One of MODEM, TERMINAL, AUXDATA, CA, or COMPEL®.
baud:
parity:

1200, 2400, 4800, 9600, 19200, or 38400.
N, E, or O.

Configures communication parameters for any serial de vice. A Local Control Command (availa ble from

the terminal regardless of "Local Control Enable/Disable" commands from the network).

PERM [format] [pol/feed#] [carrier freq] [data rate] [FEC] [Tag Site] [program#] [label]

format: If an RF input, one of the legal modulation formats: QPSK for DVB-QPSK; 8PSK for DVB-

8PSK

;TQPSK for Turbo-QPSK); T8PSK for Turbo-8PSK;T16QAM for Turbo-16-QAM; or 16QAM

for

DVB 16QAM. May be omitted if DVB-QPSK.

For an

ASI Transport input, specify ASI. If this parameter is set to OK, then the current setting,

if a Transient setting, becomes the new Permanent setting.

pol/feed#: If an

RF input, one of four possible RF feeds, 1, 2, 3 or 4.

If an

ASI input, one of two possible ASI feeds, 1 or 2.

If no RF option, this field may be used for

ASTRA polarization, H or V.

This field may be omitted if no RF switch option is installed.

carrier freq:If an RF input, the downlink carrier frequency in MHz (precision to two decimal places OK).

Field is omitted for an ASI input only.

data rate: If an RF input, the Transport data rate in Mbps (precision to two decimal places OK).

Field is omitted for an ASI input only.

FEC: If an RF input, the inner FEC ratio. Field is omitted for an ASI input only.

The legal options are: for
for

8PSK- 2/3, 5/6, 8/9; and for 16 QAM- 3/4, and 7/8.

QPSK- 1/2, 2/3, 3/4, 5/6, and 7/8;

Other legal values may be defined for new modulation formats.

tag site: If an RF input, the tag site for Carrier ID tag. Field is omitted for an ASI input only.
program#: Program number, ‘*’ for wildcard, or null (for no program assigned).
label: Channel Label (optional, may be omitted).

Command to establish new Permanent Unit Setting with the parameter values given. If the format is set

to

OK, no other parameters are accepted or required.

PERMCH value

42 800032-01 Rev. G www.wegener.com

Unity 4600 User’s Manual

value: Either the value of a settings table entry number OR the Channel Label of an entry, priority

given to Label if any ambiguity.

N

is number of Preset support this product).

If an entry number, legal values range from 1 up to N (where

Unit Settings set to equal those in the Preset Table entry specified by value.

PING [-t] [-n count] [-l size] [-w timeout] addr

-t: If supplied as shown, PING specified host until interrupted by console-entry of ‘control-C’.

-n count: Integer substituted for

-l size: Send buffer specified as

-w timeout:

Wait for each reply the number of milliseconds specified by

count is number of echo requests to send.

size bytes.

timeout

.

addr: IP address formatted as n1:n2:n3:n4 where nn1, n2, n3, and n4 are inte gers between 0 and

255.

Traditional Unix

PING command with verbatim Unix syntax. Response from IRD will indicate success or

failure. User will be warned if

PING cannot be attempted because no local IP address has

been set. A Local Control Command (available from the terminal regardless of "Local
Control Enable/Disable" commands from the network).

PORT device

device: Device assigned to the Aux/Term port, either TERMINAL, MODEM or AUXDATA.

Assigns the given device to the Aux/Term port. A Local Control Command (available from the terminal

regardless of "Local Control Enable/Disable" commands from the network).

PW password

password: One to six alphanumeric characters.

Changes the modem password to the designated password. A Local Control Command (available from

the terminal regardless of "Local Control Enable/Disable" commands from the network).

QUIT

Command ends telnet sessions. Same as EXIT command.

R type [page]

www.wegener.com 800032-01 Rev. G 43

Operation

type: Indicates the type of report as follows:

C - Carrier Status
P - Parameters
G - Group Status
GL - Genlock system (if installed and applicable)
M - MPEG PSI Status
NC - Network Controller Status
R - Relay Status
RTLOG - non-volatile log of last 10 “tuning” type commands
S - Settings Status
ST - Settings Table
SP - Serial Port Configuration

See also parameters for RP and RD commands

[page]: This option can have a value of 1 to 40 and is only applicable for the group status report.

Indicates the page to be reported. If omitted, all eight pages are rep orted and scrolls off th e
terminal screen.

With the R command, the user gets a combined report of unit non-volatile settings and status and

diagnostics for each item grouping (e.g., RF for all unit settings and all status diagnostics for
carrier
acq/tracking). A Local Control Command (available from the terminal regardless of "Local
Control
Enable/Disable" commands from the network).

RD group

group: Indicates group of status/diagnostic information to report, as follows:

AUD - Audio service diagnos.
AW - Alarm/Warning status
CA - Conditional Access diagnostics
DPI - Conditional Digital Program Insertion (DPI)
GL - Genlock system (if installed and applicable)
LAN - IP/Ethernet diagnostics

NTW - COMPEL
PRGMP - Program mapping at ASI output
MSC - Miscellaneous diagnostics
REC - Automated Recovery status
RF - Carrier Acquisition/Tracking diagnostics
RPA - Return Path diagnostics
SW - Software download/self-test status
TS - Transport Stream diagnostics
VID - Video service diagnostics

®

network control diagnostics

Expanded report on unit volatile diagnostic and status information. A Local Control Command (available

from the terminal regardless of "Local Control Enable/Disable" commands from the
network).

RE state [number]

state: ON, OFF, or W
number: 1 or 2, or E1 thru En (for n-relay expansion option module, if installed) indicating the affected

user relay.

44 800032-01 Rev. G www.wegener.com

Unity 4600 User’s Manual

This non-volatile command sets the user (or expansion) relay addressed by number to the ON/OFF or

Note: The

"Follow-Warn" (if '

W value for the state parameter is only accepted for the native relays (1 or 2).

W) state specified.

If state is specified, but number is omitted, then the command is applied to ALL installed relays, with one

exception. The exception is that the command to ALL relays will not be accepted by a native
user cue relay already set in the logical "Follow-warn" state. (It MUST be individually
addressed to return it to the

ON or OFF non-volatile state. Entering this command without

parameters shows the state of installed relays.

RP group

group: Indicates group of parameters to report, as follows:

AUD - Audio service diagnos.
AW - Alarm/Warning status
CA - Conditional Access diagnostics
DPI - Conditional Digital Program Insertion (DPI)
GL - Genlock system (if installed and applicable)
LAN - IP/Ethernet diagnostics
NTW - COMPEL
PRGMP - Program mapping at ASI output
MSC - Miscellaneous diagnostics
REC - Automated Recovery status
RF - Carrier Acquisition/Tracking diagnostics
RPA - Return Path diagnostics
SW - Software download/self-test status
TS - Transport Stream diagnostics

VID - Video service diagnostics

®

network control diagnostics

Expanded report on unit NV operating parameters. A Local Control Command (available from the

terminal regardless of "Local Control Enable/Disable" commands from the network).

RESET

Resets unit. A Local Control Command (available from the terminal regardless of "Local Control Enable/

Disable" commands from the network).

RPATH

Command to display all return path non-volatile settings. A Local Control Command (available from the

terminal regardless of "Local Control Enable/Disable" commands from the network). A Local
Control Command (available from the terminal regardless of "Local Control Enable/Disable"
commands from the network).

RPATH FROM domain

domain: Legal string of keyboard characters in proper domain-name format (e.g.,

string1.string2.string3…)

Domain name portion of “from” email address in Return Path reporting. A Local Control Command

(available from the terminal regardless of "Local Control Enable/Disable" commands from
the network).

RPATH RELAY addr

www.wegener.com 800032-01 Rev. G 45

Operation

addr: IP address formatted as n1:n2:n3:n4 where nn1, n2, n3, and n4 are integers between 0 and

255.

IP address of local Mail Relay server, if any. A Local Control Command (available from the terminal

regardless of "Local Control Enable/Disable" commands from the network).

RPATH SEND

Command ordering IRD to immediately send a Return Path report. A L ocal Control Command (available

from the terminal regardless of "Local Control Enable/Disable" commands from the
network).

RPATH TO username@addr

username: Legal string of keyboard characters without white space.
addr: IP address formatted as

255.

n1:n2:n3:n4 where nn1, n2, n3, and n4 are integers between 0 and

Email address destination for Return Path reporting. A Local Control Comman d (available from the

terminal regardless of "Local Control Enable/Disable" commands from the network).

SAVENV

Saves all the current global and Unit Setting NV parameters (in NVRAM) to the Flash memory space

designated as

BACKUP.

Note: Some unit-set parameters, which would not make sense to “back up”, may not be saved.

A Local Control Command (available from the terminal regardless of "Local Control Enable/Disable"

commands from the network).

SAVEP [entry#] [channel_label]

entry#: A Preset Table Entry number or the text, PERM. If a preset entry, must be equal to a number

between

1 and N inclusive, where N is the highest entry number.

channel_label:Channel Label associated with a unit setting or a Preset Table entry. If attem p tin g to

supply the

channel_label parameter alone, a value of PERM is not legal. Parameter must be

a string of continuous non-white-space keyboard characters. Unit will truncate user input to
10 characters.

Command saves current Unit Settings to a Preset Table entry, or if

entry# is PERM, a current Transient

Setting is loaded into the unit's Permanent unit setting. Those metadata fields in the
extended Preset Entry that have no analog in the current Unit setting will be populated with
spec defaults. User must use

ADDE command to set those fields.

If entry# is supplied alone, current unit settings are written to that entry, overwriting existing data if it had

been in use. If channel_label is supplied alone, and if that same Label already appears at
a used Preset Table entry, then the current unit settings overwrite that old Preset data. If
channel_label is supplied alone and no used Preset has that Label, then the current
settings are written to the lowest empty Preset Table entry and then given that same Label.
If both entry# and channel_label parameters are supplied, then the cu rrent unit settings are
written at that Entry (overwriting existing data if any) and that entry is supplied that same
Label (equal to channel_label).

46 800032-01 Rev. G www.wegener.com

SERVICE video_pid [pcr_pid] [audio1_pid] [audio2_pid]

video_pid: Hex value between 20 and 1FFE.

Unity 4600 User’s Manual

audio1_pid:Hex value between
audio2_pid:Hex value between
pcr_pid: Hex value between

20 and 1FFE.
20 and 1FFE.

20 and 1FFE.

Command selects A/V services directly by PID number only. This changes Unit Setting #11 to “By PID”

if not already set that way.

SET parameter value

SET TO destination [time]

SET FROM source

parameter: One of format, feed, freq [for “carrier freq”], rate [for “data rate”], FEC, tag [for “tag site”],

prog [for “program”], margin [for “Eb/No margin warning zone”], aud1, or aud2 [for

“descriptors assigned to audio ports 1 and 2”]. See

PERM and ADDE commands for

definitions and limits.

value: Value of the parameter as in any settings command (
destination:
time: Length of insert in either

PERM, TEMP, number or label of a Preset table entry.

HH:MM:SS format (valid range is 0:00:00 to 18:00:00, leading zeros

OK to omit on hours) OR in number of seconds. (A one-hour
of

1:00:00 or 3600.)

PERM, TEMP, ADDS, etc.)

TEMP could have a parameters:

source:

SET sets the value of individual parameters in a ‘scratch pad’ settings group. SET TO will store the scratch

PERM, CURR, number or label of a Preset table entry.

pad settings to a search table entry or to the permanent or temporary settings (requires an
insert time as a second parameter).

SET FROM loads the scratch pad settings from a search

table entry or from the current or permanent settings.

SETAUDIO port route [program] [atten]

port: Value of 1 to 6 indicating an audio port
route: S - Stereo (Left and Right components routed as connected at original MPEG encoder)

1 - Original Left component to both L and R outputs
2 - Original Right component to both L and R outputs
M - Sum of Left and Right components to both L and R outputs
R - Reverse of “Stereo” above (if allowed by hardware)

program: Can be a three character name or an ‘*’. If the 3-character name is specified, the unit will

route the audio PES stream with the specified name to the port. If ‘‘*’ is specified, the unit
will default to the first audio program in the PMT that is not routed to another port.

www.wegener.com 800032-01 Rev. G 47

Operation

atten: Must be a numeric value for attenuation in dB. Legal values are given in Table 1.1 on page 3.

This programs the net audio attenuation, where ‘0’ gives 0dB attenuation (ma ximum level).
If field omitted, attenuation remains unchanged on that audio port.

The audio PES stream, with the language descriptor

program, is decompressed in the port audio port,

and then its components are routed to the Le ft an d Right outputs according to route. That
ports attenuation is changed to atten, if supplied.

SETLABEL label

label: Unit label. Field entry is truncated at 10 characters.

Sets Unit Label displayed on IRD home LCD screen (and Terminal Welcome Banners), if supported in

this IRD.

SETLNB {Rf_feed} LO_freq

Rf_feed: If the RF Switch expansion option is installed, this is one input to that switch (1 through 4).

If no RF Switch option is installed, then it is an error to enter data here!

LO_freq: Either a number or mnemonic. If a number, this value represents the

MHz. It can have up to two decimal places and its valid range is from
mnemonics are
MHz default),

C (for Standard C-band, 5150 MHz default), KU (for US Ku-band, 10750

EHKU (for European Hi Ku-band, 10600 MHz default), or ELKU ( for European

LNB LO frequency in

0 to 14000.00. The legal

Low Ku-band, 9750 MHz default).

(1) If the current LNB mode selected is

Universal: This command is legal only when entered without

parameters. In this case, the IRD returns the current calculated setting command sent to the
LNB (either “9.75 GHz” or “10.60 GHz”).

(2) If the current LNB mode selected is

LO: This command sets the assumed LNB LO frequency to th e

value entered in MHz OR the MHz value represented by the mnemonic. If there is an
optional RF switch installed, then the rf_feed field data must be entered. Entering the
command without parameters returns the current setting.

A Local Control Command (available from the terminal regardless of "Local Control Enable/Disable"

commands from the network).

SETPEDEST xxx

xxx: E for enable or D for disable.

Enables or disables the “pedestal” setup, the addition of +7.5 IRE to the luminance level of active NTSC

video, if NTSC is in use. A Local Control Command (available from the terminal rega rdless
of "Local Control Enable/Disable" commands from the network).

SETPIN value

value: Decimal representation of PIN key, between 0 and 16777215.

Command sets the PIN scrambling key number.

SETTIMEOUT source time

48 800032-01 Rev. G www.wegener.com

Unity 4600 User’s Manual

source: 1 - Not used. (In legacy IRDs, this was Fade timeout.)
2 - Services Recovery Timeout. (In legacy IRDs, this was Installation timeout.)

3 - Network Recovery Timeout. (In legacy IRDs, this was No COMPEL

®

timeout.

4 - Recovery Iteration Time. (In legacy IRDs, this was Header Seek timeout.)
5 - Local Control Re-enable Timeout. (In legacy IRDs this was Local (Control) Recovery timeout.)

time: Time-out value in seconds or

35999999 (9999:59:59 hms) for all others.

HHHH:MM:SS format. Minimum value is 1, and maximum value

Command sets Automated Recovery timeout specified by source to the value specified by time.

SETUID [id]

id: Unit ID number between 00 and 99 inclusive.

Command for assigning the unit ID number for gaining "talker" access on a shared serial bus. The factory

default setting for id is '00', which also disables terminal daisy-chain capability. If the
parameter is omitted, then this command returns the current unit ID setting. Command is
only applicable to products that feature serial "daisy-chain".

SP program

program: Either an integer between 1 and 65,535 (representing a number) or an al phanumeric string

(representing a name), preference being on a number to resolve ambiguity.

Command changes selected

program by Program Number (from PAT) or SDT de scriptor. This command

works similarly to a PERM command.

TEMP [format] [feed #] [carrier freq] [data rate] [FEC] [Tag Site] program# time

For format, feed #, carrier freq, data rate, FEC, tag site, and program #, see PERM command.
time: Length of insert in either

OK to omit on hours) OR in number of seconds. (A one-hour
of

1:00:00 or 3600.)

HH:MM:SS format (valid range is 0:00:00 to 18:00:00, leading zeros

TEMP could have a parameters:

Command which performs a volatile temporary insert for an amount of time given by time. Unit sets its

temporary Unit Settings to the values given.

Note: No label may be applied using this terminal command.

TEMPCH value time

value:

Either the value of a Preset table entry number OR the Channel Label of an entry, priority given
to Label if any ambiguity. If an entry number, legal values range from

1

up to N (where N is

number of Preset support this product).
time: Same as for TEMP.
Volatile command which sets volatile temporary Unit Settings to those retrieved from the Preset table

according to value for time given by time. Similar to TEMP command.

TEMPSENS

Command displays internal unit temperature if available.

www.wegener.com 800032-01 Rev. G 49

Operation

TEST group value

group: Mnemonic for a test group: Either RF, AV, DTMF, or REL.
value: Parametric value which has meaning depending on the test group selected.

Command to activate Installation Test Modes. A Local Control Command (available from the terminal

regardless of "Local Control Enable/Disable" commands from the network).

If group is

RF, the legal values are 1, 2, 3, 4, and OFF. Entering numbers for value cause the IRD to report

the RF level (not locked to carrier) at that RF Feed Port every few seconds. Entering
stops the measurement.

If group is

If group is

AV, the legal values are ON and OFF. If ON, a test pattern is activated on the video output and

test tones activated on the audio output, the same as the generic

DTMF, the legal values are ON and OFF. If ON, the command behaves like the DTMFVOL

TESTMODE command.

command entered with no parameters

If group is

REL, the legal values are ON and OFF. If ON, both user cue relays are alternately energized

and de-energized.

TESTOFF

Command stops all volatile test functions as if unit were reset. A Local Control Command (available from

the terminal regardless of "Local Control Enable/Disable" commands from the network).

OFF

UNMUTE [source][source][source][...]

source: Same as the MUTE command.
Identical to

VER

MUTE except specified services are unmute d .

Displays the boot-up Welcome banner and the versions of hardware and software components within

the IRD. Should include the unit serial number, model number, and customer ID. A Local
Control Command (available from the terminal regardless of "Local Control Enable/Disable"
commands from the network).

VBI enable line field

enable: E for Enable or D for Disable.
line: Line # where VBI data is normally to be re-inser ted. Values below
field: Field # where VBI data is normally to be re-inserted. Values are

7 or above 22 are illegal.

1 or 2 for upper and lower.

Command enables or disables VBI data re-insertion on the line and field indicated for those IRDs that

support that function.

50 800032-01 Rev. G www.wegener.com

CHAPTER 4 MAINTENANCE AND TROUBLESHOOTING

4.1 Maintenance

Maintenance of the Unity 4600 is limited to keeping the chassis clean and ensuring
that cables remain firmly connected. Occasionally wipe the exterior with a soft, damp
cloth to remove any accumulated dust and dirt and check that cables are securely
attached.

The Unity 4600 incorporates security labels over some of the screws. There are no
user-serviceable components within the
labels or opening the unit will void your warranty. If you have any questions, contact
Wegener’s Customer Service Department at the address or numbers listed under
Customer Service.

Unity 4600. Tampering with the security

4.2 General Troubleshooting

This section is not intended as an exhaustive list of all possible situations, but a list of
the most common installation problems. Please contact us (see Chapter 5, Customer
Service), with any problems you cannot resolve independently.

If you are experiencing any difficulties, first check the LED indicators on the Unity

4600

front panel. See Table 3.2: Front-panel LED Indicator Descriptions on page 33

for details about the LED indicators. Note that during typical operation, the green

CARRIER, TRANSPORT, COMPEL, SERVICES, and AUTH LEDS should be

on.

No output or indications

No audio, video, or ASI output

If the unit provides no output and neither the LCD nor any LEDs are lit, the re is likely a
loss of AC power or the internal power supply has failed. Do the following:

1. Check that AC power cord is firmly connected at both ends.

2. Check that your AC power source is supplying AC power.

3. If both checks a) and b) are okay, contact Customer Service (see Chapter 5) before
returning the unit for service.

LEDS: ALARM ON and CARRIER OFF

The Unity 4600 is unable to lock to an RF carrier at the selected RF port:

1. If the first front-panel alarm message is "No RF Signal", then: (1) either the outdoor
antenna LNB is not operating or is not connected to the IRD at the selected RF port;
or (2) the selected IRD RF port has failed; or (3) the IRD receiver card has failed. To
rule out (1), verify that the LNB (and any inte rme diate line amplifiers) has DC power
and trace the connection from the LNB to the IRD or try replacing the LNB. If a
spectrum analyzer is available, look for the carrier at the L-band intermediate

wegener.com 800032-01 Rev. G 51

Maintenance and Troubleshooting

frequency (for domestic C-band satellites, this is 5150 minus the downlink frequency in
MHz). To rule out (2), try connecting the RF cable to another RF port and selec t that port (or
use RF Switch Bypass to force that other port). To rule out (3), try using another IRD.

2. If the first alarm message is “No Carrier Lock”, verify the RF Feed Port, Carrier Frequency,
Data Rate, FEC Ratio, and ID Tag (if Tags are in use) settings. Also verify that the LNB LO
frequency setting (in the IRD) is correct for the selected RF feed port.

3. If the alarm message is “RF signal overload”, then reduce the carrier power entering the

Unity 4600

the RF circuit between the LNB and the IRD.

LEDS: ALARM ON and CARRIER ON

The Unity 4600 may not be authorized for the network’s Conditional Access. If the AUTH
LED is OFF and the alarm message, "Unauthorized for CA” appears, contact your network
provider to gain authorization in its Conditional Access database.

. Either add in-line attenuation (a splitter will do) or remove line amplification in

Missing an audio, video, or ASI output while others are okay

LEDS: ALARM or WARNING ON
Check the front-panel display for alarm or warning messages. Table 4.1: Alarm and

Warning Descriptions on page 53 describes Unity 4600 alarm and warning messages. If

the message definitions are too technical to help debug the problem, report the messages
to your network provider.

LEDS: ALARM and WARNING OFF
If no alarms or warnings are shown, suspect a bad connection or mis-programming of the

Unity 4600:

1. If audio or video are missing, check at the front-panel monitor jacks. If okay on the front
monitors, check the signal connections from the rear of the unit to the destination. If an
audio is missing from the rear panel outputs and cannot be detected at the front-pan el
monitors, check that a valid audio stream is selected for that port and that the network
provider has supplied non-quiet programming on that audio.

2. If the ASI output is missing, check the signal connections from the rear of the unit to the
destination. If okay, check with the network provider to verify what Program Mapping
(Release 2 or later) may be in effect.

4.3 Alarms and Warnings

The alarm and warning system is intended to alert the local user of a present or impending
loss of services.
messages that the Unity 4600 may display. For problems you cannot resolve on your own,
please contact Wegener Customer Service (see Chapter 5), and be prepared to describe
your signal setup,
messages.

Table 4.1 below lists many (but not all) of the possible alarm and warning

Unity 4600 configuration, and any displayed alarm and warning

Alarms

An alarm is asserted when the unit is unable (or presumed to be unable) to perform a
required function or deliver required services.

Warnings

A warning is asserted when an alarm condition is imminent or to indicate other conditions
requiring user attention.

52 800032-01 Rev. G www.wegener.com

Unity 4600 User’s Manual

Table 4.1: Alarm and Warning Descriptions

LCD Alarm or Warning

Message

App Self-testing New application software was recently promoted from the

backup to primary executing position and is now performing
its initial self-test. This is a Warning for normal behavior and is
not a fault.

App SW d-load fail Download of application software to backup flash space has

failed. Contact network TOC and advise.

App SW switch fail Unable to switch to backup software from network command,

usually because that software image is not available or
corrupted.

ASI TS muted ASI Transport output has been muted per user or network

command.

Aud N buff overflow

(N=audio port number)

Aud N data lost

(N=audio port number)

Aud N LD not in PMT

(N=audio port number)

Audio port N PES data buffer overflow . Audio PES data being
delivered faster than can be decompressed. There may be a
problem with the STC at uplink Mux or in the IRD.

Audio port N PES data not available (buffer underflow). here
may be a problem in the hardware for that audio port or in the
uplink encoder. Check that PTS values in the audio stream do
not grossly lead PCR.

No audio PID found in PMT with assigned language
descriptor for hard-assigned port N. Check that the language
descriptor requested by the user or network is actually
assigned to an existing audio stream.

Meaning / Possible Cause

Aud N PID not found

(N=audio port number)

Aud N type invalid

(N=audio port number)

Auto-Recovery Auto-recovery in progress. This may be caused by any of the

Bad audio N PTS

(N=audio port number)

Bad PMT One or more Program Map Tables are corrupted. See "No

Bad Sec Micro SN Serial number read from secure processor does not match

Bad VBI Data FN LM

(N=field number;

M=line number)

Audio PID found in PMT with requested language descriptor but
no PES data detected. Check uplink encoder.

Audio PES stream type not supported.

following problems on a previously commanded or
successfully acquired transport stream: (1) IRD unable to
deliver services for time exceeding Services Recovery
Timeout; (2) IRD required to maintain connection to

®

COMPEL
exceeding Network Recovery Timeout; or (3) IRD detects
invalid incoming COMPEL header.

Excessive jumps or jitter in Audio port N PTS values

PMT" indication.

unit. There may be a an attempt at piracy, a defective NVRAM
memory, or a defective secure processor.

VBI data for field N, line M is unrecognized or in an
unsupported format. Contact TOC to confirm that the version
of application code in your IRD is current.

and IRD has not detected COMPEL for time

www.wegener.com 800032-01 Rev. G 53

Maintenance and Troubleshooting

LCD Alarm or Warning

Message

Bad Video data Video PES stream appears to be invalid. Check if other IRDs

see similar problem on the same program.

Bad Video PTS Excessive jumps or jitter in video PTS values. There may be a

defective uplink encoder or mux.

Content for ASI N/A Program content requested to route to ASI output cannot be

found in over-satellite transport mux. Contact network TOC
and advise.

Content Routing problem ASI transport output bears no program content because a

Content Routing Table has not been loaded from the network
or is corrupt. Contact network TOC.

Eb/N0 Margin warning Eb/N0 value less than sum of Threshold + Margin—evaluated

over 10 sec. intervals. Unless the margin setting is incorrect,
this indicates a marginal downlink.

FP email fail An FP Email message was received which was corrupt or

invalid. User should acknowledge the warning to clear, and
then notify the network TOC.

High Error Rate High errored seconds rate, presumably useless signal—

evaluated over 60 sec. intervals. Signal-to-noise ratio is
insufficient or there is severe terrestrial or antenna cross-pol
interference.

Meaning / Possible Cause

High RF level There is carrier lock, but the RF signal level is too high.

ID Tag Mismatch Carrier ID frequency text mismatch. User or network has

entered carrier frequency text or tag site ID incorrectly or unit
is on the wrong carrier.

ID Tags Lost Carrier ID tags disappeared. There may be a failure at the

uplink inserter (UMX5010) or loss of COMPEL® PID. See "ID
Tag Mismatch" indication.

Invalid COMPEL Hdr Invalid COMPEL header detected in incoming COMPEL

messages. This will cause the unit to immediately attempt
automatic recovery to a backup preset. The IRD is not set up
for connection to this COMPEL system.

Invalid VBI data fmt VBI data found in PID or video user data in unrecognized or

unsupported format (protocol).

Invalid video format Video format in requested program is not supporte d.

IP address conflict LAN detected but cannot use because of IP address conflict.

KMS stream lost KMS stream lost after initially detected in this transport

stream. There could be an uplink problem. See also "No KMS
stream" indication.

Lost COMPEL PID Data traffic at designated packet ID (PID) for COMPEL has

been lost for more than two minutes. See "No COMPEL"
indication.

Lost VBI Data FN LM

(N=field number;

M=line number)

54 800032-01 Rev. G www.wegener.com

VBI data for field N, line M has disappeared. If any is
expected, contact network TOC.

Unity 4600 User’s Manual

LCD Alarm or Warning

Message

Low RF level There is carrier lock, but the RF signal level is too low.

New PAT with changes The version number on the Program Allocation table has

changed and a new program lineup has been submitted.
Changes have been made on uplink transport mux.

New PMT with changes The version number on one or more of the Program Map

Tables has changed with a new PID lineup submitted.
Changes have been made on uplink transport mux.

No ASI stream Corrupt or missing input ASI stream. Only applicable if ASI

input is available and selected. Check connection and source.

No audio for Port N

(N=audio port number)

No Carrier Lock Carrier lock cannot (or has not) been acquired and

No COMPEL Data traffic is detected at designated packet ID (PID) for

No "free" otherwise-unassigned audio can be allocated to
wildcard-assigned port
streams than installed audio ports. If so, explicitly assign a
desired language descriptor to this audio port.

maintained. Check that requested settings are correct. Check
RF level indication and RF connection. For new installations,
check antenna pointing and polarization.

COMPEL®. However, no valid COMPEL messages have
been detected during the last two minutes. There may be no
connection to the network. If required to maintain a
connection, the unit will eventually attempt an automatic
recovery to a backup preset. To debug, check that the
COMPEL system at the uplink is functional and that the data
connection to inserter (such as UMX5010) is good. Also
check for fault indications or functional problems at
UMX5010.

Meaning / Possible Cause

N

. There may be fewer audio PES

No COMPEL PID No traffic detected at designated packet ID (PID) for

COMPEL, so no connection is made to the network. The
COMPEL PID setting in the unit may be incorrect. Also see
"No COMPEL indication".

No Def for mapping ASI transport output bears no program content because an

Output Definition Table has not been loaded from the
network. Contact network TOC.

No DHCP server found IRD is required to get IP settings from DHCP server but none

are detected on the LAN.

No genlock sync IRD supports and has genlock option installed and enabled,

but no video reference sync is detected.

No ID Tag found

No KMS stream No KMS stream detected since transport stream acquisition.

No LAN detected No Ethernet LAN connection. Check LEDs on rear and check

www.wegener.com 800032-01 Rev. G 55

No carrier ID tags in COMPEL® stream. Set IRD not to
expect ID tags or check uplink UMX5010.

Unit will not be authorized if not connected to the KMS
stream. Check that KMS PID is set correctly in unit. If okay,
check the uplink.

other devices on the LAN.

Maintenance and Troubleshooting

LCD Alarm or Warning

Message

No PAT No Program Allocation Table detected in input carrier (or

terrestrial interface). Check that legal ISO transport is
available from uplink mux. Often, this indication may appear
when the connection between the uplink transport mux and
the DVB modulator is lost.

No PCR No Program Clock Reference found, either in video or stand-

alone PID. Check uplink mux or that program's encoder.

No PMT No Program Map T able found for a program listed in P AT. This

could be a fault in the uplink mux.

No RF signal No carrier lock with low RF signal power indication. There

may be a disconnected RF signal. Check connection and
check that LNB has DC power.

No SDT entry No Service Descriptor Table, or the t able is corrupt or missing

proper entries. Uplink mux may not support this DVB feature
or may have fault.

No valid software No valid application software available in either the primary or

backup flash positions. Unit will need service.

No VBI Data FN LM

(N=field number;

M=line number)

VBI data not found in video user data or PID for Field N line M
If any is expected, contact network TOC.

Meaning / Possible Cause

PAT disappeared Formerly valid Program Allocation Table ceases to be

received or becomes corrupt. See "No PAT" indication.

PAT version changed Version number in Program Allocation Table has changed but

no change to program lineup.

PCR disappeared Formerly valid Program Clock Reference ceases to be

received or becomes corrupt. See "No PCR" indication.

PCR jitter Ex cessive jitter in Program Clock Reference values. This may

degrade timing of output video signals. Check uplink encoder
for that program.

PCR value jump Unrecoverable transition in incoming Program Clock

Reference values. This has forced re-initialization of services.
Check uplink encoder for that program.

PMT disappeared Formerly valid Program Map Table ceases to be received or

becomes corrupt. See "No PMT" indication.

PMT version changed Version number on one or more of the Program Map Tables

has changed but no change to PID lineup.

Prog blackout on ASI Some services available from satellite not routed to IRD ASI

output per program mapping instructions from COMPEL
This is not necessarily a fault.

Program in blackout Selected program not available for local decompression

because this program content was blocked to ASI transport
output by network. Contact network TOC.

®

.

56 800032-01 Rev. G www.wegener.com

Unity 4600 User’s Manual

LCD Alarm or Warning

Message

Program not found Program selected for local decompression (to local audio/

video outputs) not available-invalid Program number for this
Transport.

Reverted to b-up app User-requested application failed self-test and Unit reverte d

to Backup application. Notify your network TOC.

RF signal overload No carrier lock with RF signal power above specification

range. There may be too much line amplification in RF feed.

SDT disappeared Formerly valid Service Descriptor Table ceases to be

received or becomes corrupt. See "No SDT entry" indication.

Sec Micro no resp

Ser pt N fail

(N=audio port number)

Ser pt N input fail

(N=audio port number)

Ser pt N output fail

(N=audio port number)

Secure processor does not respond to local host or may be
missing. SIM card may be mis-installed, loose, or defective.

Unknown or miscellaneous hardware failure on serial port N.

Input buffer overflow on serial port N. Send device at uplink
may be set too fast compared to IRD serial port device,
especially if sending data constantly with only one stop bit.
Try changing to 1.5 stop bits.

Output buffer overflow on serial port N. Send device at uplink
may be set too fast compared to IRD serial port device,
especially if sending data constantly with only one stop bit.
Try changing to 1.5 stop bits.

Meaning / Possible Cause

Setting out of range Current unit setting combination is illegal for installed receiver

card. Unit will be unable to acquire a carrier and transport
stream until corrected by the user.

Test Mode in use One of the installation test modes is being used. This may

interfere with normal unit operation.

Unauthorized for CA Unit unauthorized for Conditional Access in use. Contact

network provider. Also see "No KMS stream" & "KMS stream
lost" indications.

Unit overheating Unit overheating. Check that unit vents are not blocked and

that internal fan is connected and operating.

Unread FP email Unread Front-Panel email message present. Warning should

clear after user opens the screen containing the email.

Using backup settings Current permanent unit settings derived from successful

Auto-Recovery. User should review settings and restore to
primary if desired.

Video Buff overflow Video PES data buffer overflow. Video PES data is being

delivered faster than can be decompressed. There may be a
problem with the STC at uplink mux or in the IRD.

Video cmd muted Video output muted by command from network or loca l user.

Video not found Video PES data cannot be found at PID declared by PMT.

There may be an uplink mux or encoder failure.

Video PES data lost Video PES data in selected program is unavailable. There

may be an uplink encoder failure.

www.wegener.com 800032-01 Rev. G 57

Maintenance and Troubleshooting

This page intentionally left blank

58 800032-01 Rev. G www.wegener.com

CHAPTER 5 CUSTOMER SERVICE

5.1 Warranty

The following warranty applies to all Wegener Communications products including the

Unity 4600 Professional Media Server:

All Wegener Communicatio ns product s are warranted against defective mate rials
and workmanship for a period of one year after shipment to customer.

Communications
Wegener Communications' option, replacing parts, subassemblies, or entire

assemblies.
indirect, or consequential damages. This warranty does not cover parts or
equipment which have been subject to misuse, negligence, or accident by the
customer during use. All shipping costs for warranty repairs will be prepaid by the
customer. There are no other warranties, express or implied, except as stated
herein.

5.2 Technical Support

If the unit should fail to perform as described, if you need help resolving problems with
your

Unity 4600, or for questions about obtaining service for your Unity 4600, please

contact

624-0294

Wegener Communications Customer Service at [phone], Fax (678)

, or e-mail [e-mail].

Wegener

' obligation under this warranty is limited to repairing or, at

Wegener Communications shall not be liable for any special,

To return a product for service:

1. Obtain a
copy of the
information to:

2. To help us identify and control returned units, plainly write the RMA number on the
outside of the product-shipping container. This will help us return your unit to you as
quickly as possible.

3. Return the product, freight prepaid, to the address below:

Service Department RMA# ________
Wegener Communications, Inc.
359 Curie Drive

Alpharetta, GA 30005

Note: All returned material must be shipped freight prepaid. C.O.D. shipments will

Return Material Authorization (RMA)

RMA Request Form

[e-mail]

not be accepted.

to

[phone]

number by completing and faxing a

. Or you may e-mail the same

.

wegener.com 800032-01 Rev. G 59

Customer Service

This page intentionally left blank

60 800032-01 Rev. G www.wegener.com

APPENDIX A MONITORING AND CONTROL DETAILS

A.1 Basic Navigation

Monitoring and control of the Unity 4600 from the front panel is accomplished by first
navigating to the appropriate screen for the desired function (see

relationships and LCD screen content on page 30 for scr een structure and content s).

Press ENT to move downward through menus and screen levels and ESC to return
upward through the screen structure. Press the right- and left-arrow buttons to move
between peer screens.
holding the

A.2 Info Screens

Info screens are read-only and display information that cannot be edited. The home
screen is this type of screen. Other screens of this type display
navigation helps.

For info screens like the Software Application Version screen shown below, the text on
the second row will contain the current information (the software version in this
example). If no key presses are made, after a brief delay, the second row begins
alternating between this content and the following navigation prompts:

The home screen may always be reached by pressing and

ESC

button or by pressing it repeatedly.

LCD screen

Unity 4600 status or

? Other Screens? @

Menu Up? Press <ESC>

Home? Hold In <ESC>

first row:

second row:

after brief delay

APPLICATION CURRENT: APPLICATION CURRENT: APPLICATION CURRENT:

? Other Screens? @

APPLICATION CURRENT:

V100

Menu Up? Press <ESC> Home? Hold In <ESC>

(to move to other screens at the same level)

(to move to the parent menu screen)

(to return to the Home screen)

-information label

- content

wegener.com 800032-01 Rev. G 61

A.3 Menu Screens

Menu screens are also read-only and display the menu name for a group of screens. For
example, the Miscellaneous Setups screen is a menu screen. The child screens "beneath"
a menu screen (reached by pressing
menus, information screens, etc.

For menu screens like the Miscellaneous Setups screen below, the text on the second row
will cycle between the following prompts:

ENT) may be any of the screen types (i.e. other

Press <ENTER>

?

Other Screens?

Menu Up? Press <ESC>

Home? Hold In <ESC>

second row:

after brief delay

MISC SETUPS MISC SETUPS MISC SETUPS

?

Other Screens?

@

first row:

@

MISC SETUPS

Press <ENTER>

Menu Up? Press <ESC> Home? Hold In <ESC>

(to move to the child screens)

(to move to other screens at the same level)

(to move to the parent menu screen)

(to return to the Home screen)

-information label

- navigation prompt

62 800032-01 Rev. G www.wegener.com

A.4 Parameter Screens

Parameter screens display a specific parameter that can be edited (if the correct authority
has been established). Such screens contain an alphanumer ic or list-select field. Th ere ar e
no carries or borrows when wrapping on a numeric field (i.e. to go from 0999 to 1000, 4
digits must be edited).

For parameter screens like the Unit Label screen below, the second row contains the
current value of the parameter. Upon pressing
the first character to be edited (Only for editable alphanumeric fields. List-select fields will
not display a cursor). Use the arrow buttons to scroll through characters or list selections.
After making the desired change, press
Press

ESC if you wish to cancel the change. If no key presses are made, after a brief delay,

the second row begins alternating between the following prompts:

Unity 4600 User’s Manual

ENT, a blinking underscore appears under

ENT again to commit the entry to the Unity 4600.

Change? Press <ENTER>

?

Other Screens?

Home? Hold In <ESC>

second row:

after brief delay

UNIT LABEL: UNIT LABEL: UNIT LABEL:

?

Other Screens?

@

first row:

@

UNIT LABEL:

Unity 4600

Menu Up? Press <ESC> Home? Hold In <ESC>

(to begin editing the parameter)

(to move to other screens at the same level)

(to return to the Home screen)

-information label

- editable parameter

www.wegener.com 800032-01 Rev. G 63

This page intentionally left blank

64 800032-01 Rev. G www.wegener.com

INDEX

Unity 4600 User’s Manual

A

ac power connector. . . . . . . . . . 21

ad avail . . . . . . . . . . . . . . . . . . . 12

address

customer service . . . . . . . . . . 59

return materials . . . . . . . . . . . 59

agency approvals . . . . . . . . . . . . 6

air flow for safe operation . . . . . 17

alarm

definition. . . . . . . . . . . . . . . . . 12

ALARM LED . . . . . . . . . . . . . . . 34

alarm/cueing

connector . . . . . . . . . . . . . . . . 20

relays . . . . . . . . . . . . . . . . . . . . 5

amperage, unit. . . . . . . . . . . . . . . 3

anchor screws . . . . . . . . . . . . . . 18

angle brackets. . . . . . . . . . . . . . 18

application software. . . . . . . . . . 12

approvals by agency . . . . . . . . . . 6

ASI. . . . . . . . . . . . . . . . . . . . . . . 12

audio

connectors . . . . . . . . . . . . . . . 20

fp monitor selection screen . . 33

output . . . . . . . . . . . . . . . . . . . . 4

tones. . . . . . . . . . . . . . . . . . . . 24

audio language descriptor. . . . . 12

audio monitor, front-panel . . . . . 35

AUTH LED. . . . . . . . . . . . . . . . . 34

authorized stream . . . . . . . . . . . 34

automated recovery. . . . . . . . . . 12

auxiliary data async input . . . . . . 5

B

baud rates . . . . . . . . . . . . . . . . . . 5

bolts, anchor . . . . . . . . . . . . . . . 18

boot loader. . . . . . . . . . . . . . . . . 12

brackets, mounting . . . . . . . . . . 18

C

cables

connecting to unit . . . . . . . . . . 19

routing of . . . . . . . . . . . . . . . . 18

CARRIER LED . . . . . . . . . . . . . 33

CE certification . . . . . . . . . . . . . . 6

changes to manual, suggestions for

1

chassis

cooling of . . . . . . . . . . . . . . . . . 5

description of . . . . . . . . . . . . . . 2

dimensions of . . . . . . . . . . . . . . 5

earthing . . . . . . . . . . . . . . . . . 18

opening . . . . . . . . . . . . . . . . . 11

circuit overloading . . . . . . . . . . . 18

claims of damage . . . . . . . . . . . 17

classification by FCC. . . . . . . . . . 6

cleaning the U4600 . . . . . . . . . . 51

clearance around unit . . . . . . . . 17

command syntax. . . . . . . . . . . . 35

comments or suggestions . . . . . . 1

commercials . . . . . . . . . . . . . . . 12

COMPEL. . . . . . . . . . . . . . . . . . 12

input . . . . . . . . . . . . . . . . . . . . . 5

LED . . . . . . . . . . . . . . . . . . . . 33

components, user-serviceable . 11,

51

composite video output . . . . . . . . 3

Conditional Access . . . . . . . 12, 13

connecting the unit . . . . . . . . . . 19

connection to supply circuit. . . . 18

connectors, rear-panel . . . . . . . 19

consumption, power . . . . . . . . . . 3

contacting Wegener regarding

manual . . . . . . . . . . . . . . . . . 1

controlling the U4600

remotely . . . . . . . . . . . . . . . . . 35

cross supports. . . . . . . . . . . . . . 18

CUE LED. . . . . . . . . . . . . . . . . . 34

customer service phone number 59

D

damage claims . . . . . . . . . . . . . 17

decompression, audio and video. 3

default LCD screens . . . . . . . . . 33

demod and FEC lock. . . . . . . . . 33

demodulator/FEC specifications . 6,

8

description of U4600

functional . . . . . . . . . . . . . . 2, 27

physical . . . . . . . . . . . . . . . . . . 2

descriptor

audio language. . . . . . . . . . . . 12

service . . . . . . . . . . . . . . . . . . 14

desktop installation . . . . . . . . . . 18

difficulties with the U4600 . . . . . 51

digital program insert (DPI) . . . . 12

digital video broadcast (DVB) . . 12

dimensions of chassis . . . . . . . . . 5

down arrow . . . . . . . . . . . . . . . . 29

download

screen . . . . . . . . . . . . . . . . . . 33

DPI . . . . . . . . . . . . . . . . . . . . . . 12

dual-tone multi-frequency (DTMF) .

12

connector . . . . . . . . . . . . . . . . 20

output. . . . . . . . . . . . . . . . . . . . 4

DVB. . . . . . . . . . . . . . . . . . . . . . 12

DVB-ASI . . . . . . . . . . . . . . . . . . 12

output. . . . . . . . . . . . . . . . . . . . 3

E

earthing. . . . . . . . . . . . . . . . . . . 18

Eb/No,energy-per-bit noise density

per hertz . . . . . . . . . . . . . . . 12

elevated operating ambient. . . . 17

e-mail

customer service . . . . . . . . . . 59

return materials . . . . . . . . . . . 59

e-mail address

regarding manual. . . . . . . . . . . 1

environment for mounting . . . . . 17

environmental specifications for the

U4600. . . . . . . . . . . . . . . . . . 6

equipment

earthing . . . . . . . . . . . . . . . . . 18

power ratings . . . . . . . . . . . . . 18

equipment rack . . . . . . . . . . 17, 18

Ethernet. . . . . . . . . . . . . . . . . . . 13

connector pinouts. . . . . . . . . . 21

port specifications . . . . . . . . . . 5

shielding of cable . . . . . . . . . . 17

European certification . . . . . . . . . 6

F

fax number

customer service . . . . . . . . . . 59

manuals . . . . . . . . . . . . . . . . . . 1

return materials . . . . . . . . . . . 59

Wegener Communications. . . . ii

FCC

classification. . . . . . . . . . . . . . . 6

emissions suppression mandated

by . . . . . . . . . . . . . . . . . . . . 17

FEC lock . . . . . . . . . . . . . . . . . . 33

Federal Communications

Commission . . . . . . . . . . . . . 6

follow warning . . . . . . . . . . . . 5, 25

formatting of serial ports . . . . . . . 5

frequency of supplied power. . . . 3

front brackets . . . . . . . . . . . . . . 18

front panel

www.wegener.com 800032-01 Rev. G 65

connectors . . . . . . . . . . . . . . . 22

monitors . . . . . . . . . . . . . . . . . . 4

operation from. . . . . . . . . . . . . 27

front-panel

audio monitor . . . . . . . . . . . . . 35

functional description . . . . . . . 2, 27

G

grounding. . . . . . . . . . . . . . . . . . 18

H

handshaking. . . . . . . . . . . . . . . . . 5

height of chassis . . . . . . . . . . . . . 5

housing, U4600 . . . . . . . . . . . . . . 2

I

IEC receptacle . . . . . . . . . . . . . . 21

illustration

front-panel LEDs. . . . . . . . . . . 33

pushbuttons . . . . . . . . . . . . . . 29

U4600 photo . . . . . . . . . . . . . . . 2

info screens . . . . . . . . . . . . . . . . 61

inspecting the U4600 . . . . . . . . . 17

installation . . . . . . . . . . . . . . . . . 17

desktop . . . . . . . . . . . . . . . . . . 18

rack. . . . . . . . . . . . . . . . . . . . . 18

safety during . . . . . . . . . . . . . . 11

integrated receiver-decoder (IRD) .

13

interference, radio . . . . . . . . . . . 17

K

Keep-alives . . . . . . . . . . . . . . . . 13

key management system (KMS) 13

L

labels, security . . . . . . . . . . . 11, 51

LAN . . . . . . . . . . . . . . . . . . . . . . 13

LCD . . . . . . . . . . . . . . . . . . . . . . 13

LED

definition . . . . . . . . . . . . . . . . . 13

indicators. . . . . . . . . . . . . . . . . 33

left arrow . . . . . . . . . . . . . . . . . . 29

light-emitting diodes (LEDs). . . . 13

liquid crystal display (LCD) . . . . 13

LNB

DC power . . . . . . . . . . . . . . . . . 8

power connector . . . . . . . . . . . 21

loading, mechanical . . . . . . . . . . 18

local-area network (LAN) . . . . . . 13

location and mounting . . . . . . . . 17

lugs, grounding . . . . . . . . . . . . . 18

M

mailing address

manual comments or questions 1

maintenance . . . . . . . . . . . . . . . 51

mechanical loading . . . . . . . . . . 18

menu screens . . . . . . . . . . . . . . 62

modem dialing . . . . . . . . . . . . . . . 5

monitors, front-panel audio and

video . . . . . . . . . . . . . . . . . . . 4

mounting

desktop. . . . . . . . . . . . . . . . . . 18

equipment rack. . . . . . . . . . . . 18

location and . . . . . . . . . . . . . . 17

Moving Picture Experts Group

(MPEG) . . . . . . . . . . . . . . . . 13

MPEG transport stream

definition . . . . . . . . . . . . . . . . . 15

multi-unit rack assembly . . . . . . 17

N

National Television System

Committee (NTSC) . . . . . . . 13

network protection mode . . . . . . 13

NTSC. . . . . . . . . . . . . . . . . . . . . 13

O

opening the chassis. . . . . . . . . . 11

operating ambient temperatur e . 17

operating temperature . . . . . . . . . 6

operation of the U4600 . . . . . . . 27

output

absence of . . . . . . . . . . . . . . . 51

audio. . . . . . . . . . . . . . . . . . . . . 4

composite video . . . . . . . . . . . . 3

DTMF . . . . . . . . . . . . . . . . . . . . 4

DVB-ASI . . . . . . . . . . . . . . . . . . 3

overcurrent protection . . . . . . . . 18

overloaded circuits. . . . . . . . . . . 18

overview of U4600. . . . . . . . . . . . 2

P

packet ID (PID) . . . . . . . . . . . . . 13

packetized elementary stream. . 13

packing materials. . . . . . . . . . . . 17

PAL . . . . . . . . . . . . . . . . . . . . . . 13

parameter screens. . . . . . . . . . . 63

parity setting . . . . . . . . . . . . . . . . 5

PAT . . . . . . . . . . . . . . . . . . . . . . 13

PCR . . . . . . . . . . . . . . . . . . . . . . 13

PES stream . . . . . . . . . . . . . . . . 13

phase-alternating-line (PAL) . . . 13
phone number

customer service. . . . . . . . . . . 59

physical description of Unity 4600 2

PID. . . . . . . . . . . . . . . . . . . . . . . 13

pinouts, connector . . . . . . . . . . . 20

PMT . . . . . . . . . . . . . . . . . . . . . . 14

polarity of alarm/cueing relays. . . 5
port specifications

Ethernet . . . . . . . . . . . . . . . . . . 5

RS232 serial. . . . . . . . . . . . . . . 5

power

LNB. . . . . . . . . . . . . . . . . . . . . . 8

rating of equipment. . . . . . . . . 18

specifications . . . . . . . . . . . . . . 3

power strips, use of . . . . . . . . . . 18

precautions for safety . . . . . . . . 11

presentation time stamp (PTS) . 14

presets table . . . . . . . . . . . . 12, 14

program . . . . . . . . . . . . . . . . . . . 14

program allocation table (PAT) . 13
program clock reference (PCR). 13

program decompression . . . . . . . 3

program map table (PMT) . . . . . 14

program number . . . . . . . . . . . . 14

protected status. . . . . . . . . . . . . 13

PSI table . . . . . . . . . . . . . . . . . . 14

PTS . . . . . . . . . . . . . . . . . . . . . . 14

pulse activation . . . . . . . . . . . . . 34

pushbuttons. . . . . . . . . . . . . . . . 29

functions of. . . . . . . . . . . . . . . 29

R

rack

earthing of. . . . . . . . . . . . . . . . 18

mounting in. . . . . . . . . . . . . . . 18

spacing in . . . . . . . . . . . . . . . . 17

total loading of . . . . . . . . . . . . 18

rack assembly, temperature of . 17
radiated emissions, suppressing 17

radio interference. . . . . . . . . . . . 17

random access memory (RAM). 14

rear-panel connections . . . . . . . 19

recovery. . . . . . . . . . . . . . . . . . . 12

reduced air flow . . . . . . . . . . . . . 17

relays, alarm/cueing . . . . . . . . . . 5

reliable earthing. . . . . . . . . . . . . 18

return for repair . . . . . . . . . . . . . 17

Return Material Authorization

(RMA) . . . . . . . . . . . . . . . . . 59

RF emissions. . . . . . . . . . . . . . . 17

RF input specifications . . . . . . 6, 8

right arrow . . . . . . . . . . . . . . . . . 29

RJ45 Ethernet port . . . . . . . . 5, 21

routine operations . . . . . . . . . . . 27

routing cables . . . . . . . . . . . . . . 18

RS232 serial ports. . . . . . . . . . . . 5

pinouts of . . . . . . . . . . . . . . . . 20

S

safety. . . . . . . . . . . . . . . . . . . . . 11

66 800032-01 Rev. G www.wegener.com

Unity 4600 User’s Manual

screen

default. . . . . . . . . . . . . . . . . . . 33

download . . . . . . . . . . . . . . . . 33

home . . . . . . . . . . . . . . . . . . . 33

screws, anchor . . . . . . . . . . . . . 18

SDT . . . . . . . . . . . . . . . . . . . . . . 14

security labels . . . . . . . . . . . 11, 51

security of transport stream. . . . 12

selectable services . . . . . . . . . . . 5

serial port

specifications of . . . . . . . . . . . . 5

service descriptor . . . . . . . . . . . 14

SERVICES LED . . . . . . . . . . . . 33

services, selectable . . . . . . . . . . . 5

setting up the U4600 . . . . . . . . . 17

shared status. . . . . . . . . . . . . . . 13

shipping container . . . . . . . . . . . 17

side vents . . . . . . . . . . . . . . . . . 17

signal, time-base . . . . . . . . . . . . 13

signaling, DTMF . . . . . . . . . . . . 12

signal-to-noise ratio. . . . . . . . . . 12

size of chassis. . . . . . . . . . . . 5, 18

software

application . . . . . . . . . . . . . . . 12

boot loader . . . . . . . . . . . . . . . 12

network control. . . . . . . . . . . . 12

spacing the unit in rack . . . . . . . 17

specifications, U4600 . . . . . . . 3-6

splice points. . . . . . . . . . . . . . . . 12

standards, video . . . . . . . . . . . . 13

start bit. . . . . . . . . . . . . . . . . . . . . 5

stop bit. . . . . . . . . . . . . . . . . . . . . 5

storage temperature . . . . . . . . . . 6

stream . . . . . . . . . . . . . . . . . . . . 14

suggestions or comments . . . . . . 1

supply circuit, connection to . . . 18

suppressing emissions . . . . . . . 17

synchronization . . . . . . . . . . . . . 13

syntax, terminal command . . . . 35

T

T(MRA) . . . . . . . . . . . . . . . . 15, 17

table

presets . . . . . . . . . . . . . . . . . . 14

program map (PMT). . . . . . . . 14

PSI . . . . . . . . . . . . . . . . . . . . . 14

service descriptor (SDT). . . . . 14

tampering . . . . . . . . . . . . . . . . . 11

telnet . . . . . . . . . . . . . . . . . . 28, 35

temperature

ambient operating . . . . . . . . . 17

MRA . . . . . . . . . . . . . . . . . . . . 15

operating and storage . . . . . . . 6

terminal monitoring and control. . 5

terminal operation . . . . . . . . . . . 35

testing . . . . . . . . . . . . . . . . . . . . 24

total rack loading. . . . . . . . . . . . 18

transport

demultiplexing . . . . . . . . . . . . . 3

sync . . . . . . . . . . . . . . . . . . . . 34

TRANSPORT LED . . . . . . . . . . 33

transport stream . . . . . . . . . . . . 15

troubleshooting . . . . . . . . . . . . . 51

U

Underwriter Laboratories (UL)

listing. . . . . . . . . . . . . . . . . . . 6

uneven mechanical loading. . . . 18

unpacking and inspection . . . . . 17

up arrow . . . . . . . . . . . . . . . . . . 29

user cue relay . . . . . . . . . . . . . . 34

user-serviceable components . . 11,

51

V

ventilation of unit. . . . . . . . . . . . 17

video standards. . . . . . . . . . . . . 13

voiding warranty . . . . . . . . . 11, 17

voltage of supplied power . . . . . . 3

W

warning

definition. . . . . . . . . . . . . . . . . 15

WARNING LED. . . . . . . . . . . . . 33

warranty . . . . . . . . . . . . . . . . . . 59

voiding of . . . . . . . . . . . . . 11, 17

width of chassis. . . . . . . . . . . . . . 5

www.wegener.com 800032-01 Rev. G 67

This page intentionally left blank

© 2007 Wegener Communications, Inc. All rights reserved.

800032-01 Rev. G

Seventh Edition: December 2007

Wegener Communications, Inc.

Technology Park/Johns Creek

11350 Technology Circle

Duluth, GA 30097-1502

Phone: [phone]

Fax: [phone]
