Instruction Manual
Manual de Instrucciones
ENGLISH
Manuel d’Instructions
TWIST ’N EDGER600
WARNING:
Read and follow all Safety Rules and Operating Instructions before using this product. Read instructions carefully before assembling. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual del operador y siga todas las advertencias e instruc­ciones de seguridad. Antes de ensamblar el producto lea cuidado­samente el instructivo. El no hacerlo puede resultar en lesiones gra­ves.
AVERTISSEMENT:
Veuillez lire le manuel de l’utilisateur et bien respecter tous les avertissements et toutes les instructions de sécurité. Bien lire les instructions avant d’assembler l’outil. Tout défaut de le faire pourrait entraîner des blessures graves.
WEED EATER 1030 Stevens Creek Road Augusta, GA 30907
850 Matheson Blvd. West
Mississauga, Ontario L5V 0B4
545186765 Rev. 2 3/4/09 BRW
WEED EATER
IDENTIFICATION OF SAFETY SYMBOLS
DANGER: Use only specified trimmer head,
spool, and 0.065 inch (1.65 mm) recommended trimmer line. Never use blades, flailing devices, wire, rope, string, etc. Unit is designed for line trim­mer use only. Failure to follow these instructions may result in serious injury.
WARNING: This unit can be dangerous! Careless or improper
use can cause serious injury.
WARNING: This unit is double insulated. Failure to have the unit
repaired by qualified service personnel can cause the double insulation construction to become ineffective and result in serious injury.
Read the operator ’s manual before use. Failure to follow instructions could result in serious injury. Save operator’s manual.
To reduce the risk of electric shock, do not expose unit to water. Do not operate unit on wet ground or in rain.
Trimmer line can throw objects violently. You can be blinded or injured. Always wear hearing protection and safety glasses marked Z87. Always wear heavy, long pants, long sleeves, boots and gloves.
Hazard zone for thrown objects.
S Trimmer line throws objects violently. S You and others can be blinded/injured. S Keep children, bystanders, and animals
50 feet (15 meters) away.
Secure hair above shoulder length. Do not wear jewelry, loose clothing, or clothing with loosely hanging straps, ties, tassels, etc. They can be caught in moving parts.
2
IDENTIFICATION OF SAFETY SYMBOLS
This unit is double insulated. All internal service must be completed by an authorized service dealer. Disconnect unit from power source before cleaning or servicing.
Do not use with damaged cord. Repair or replace damaged cord immediately.
Store unit indoors in a high, dry place out of the reach of children. Store unit unplugged.
This unit is for household use only and not for commercial use.
When servicing unit, use only identical replace­ment parts.
Never allow children to operate this unit.
SAFETY RULES
WARNING: When using electric gar-
dening appliances, basic safety precautions must always be followed to reduce the risk of fire, electric shock, and serious injury. Read and follow all instructions.
SAFETY INFORMATION ON THE UNIT
This power unit can be dangerous! Operator is responsible for following the warnings and instructions in this manual and on the unit. Read entire instruction manual before using unit! Be thoroughly familiar with the controls
and the proper use of the unit. Restrict the use of this unit to persons who read, understand, and follow unit and manual warnings and instructions. Never allow children to operate this unit. Close attention is necessary when used near children.
DANGER: Never use blades or flail-
ing devices. Unit is designed for line trimmer use only. Use of any other accessories or at­tachments will increase the risk of injury.
3
WARNING: Trimmer line throws ob-
jects violently. You and others can be blinded/ injured. Wear safety glasses, boots, and leg protection. Keep body parts clear of rotating line. Keep children, bystanders, and animals 50 feet (15 meters) away. If approached stop unit immediately. If situations occur which are not covered in this manual, use care and good judgement. If you need assistance, call 1-800-554-6723.
OPERATOR SAFETY
S Dress properly. Always wear safety
glasses or similar eye protection when op­erating, or performing maintenance on your unit. (Safety glasses are available.) Always wear face or dust mask if operation is dusty. Always wear heavy, long pants, long sleeves, boots, and gloves. Do not gobare­foot or wear sandals.
S Secure hair above shoulder length. Secure
or remove loose clothing and jewelry or clothing with loosely hanging ties, straps, tassels, etc. They can be caught in moving parts.
S Being fully covered also helps protect you
from debris and pieces of toxic plants thrown by spinning line.
S Stay alert. Do not operate unit when you are
tired, ill, upset or under influence of alcohol, drugs, or medication. Watch what you are doing; use common sense.
S Avoid unintentional starting of the unit.
Never carry unit with your finger on the switch. Be sure the switch is in the OFF position and never touch the switch when connecting extension cord.
ELECTRICAL SAFETY
WARNING: Avoid a dangerous envi-
ronment. To reduce the risk of electrical shock, do not use in rain, in damp or wet loca­tions, or around swimming pools, hot tubs, etc. Do not expose to snow, rain, or water to avoid the possibility of electrical shock.
S Use a voltage supply as shown on unit. S Avoid dangerous situations. Do not use in
the presence of flammable liquids or gases to avoid creating a fire or explosion and/or causing damage to unit.
S To reduce the risk of electrical shock, this
equipment has a polarized plug (one blade is wider than the other) and will require the use of a polarized extension cord. The ap­pliance plug will fit into a polarized exten­sion cord only one way. If the plug does not fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord. A polar­ized extension cord will require the use of a polarized wall outlet. This plug will fit into the polarized wall outlet only one way. If plug does not fit fully into the wall outlet, re­verse the plug. If it still does not fit, contact a qualified electrician to install the proper wall outlet. Do not change the equipment plug, extension cord receptacle, or extension cord plug in any way.
S To reduce risk of electrical shock, use exten-
sion cords specifically marked as suitable for outdoor appliances having electrical rating not less than the rating of unit. Cord must be marked with suffix “W--A” (in Canada “W”). Make sure your extension cord is in good condition. Inspect extension cord before use and replace if damaged. Do not use a dam­aged cord. Cord insulation must be intact with no cracks or deterioration. Plug connectors must be undamaged. An undersized exten­sion cord will cause a drop in line voltage re­sulting in loss of power and overheating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord (see SELECT AN EXTENSION CORD in the OP­ERATION section).
S Do not use multiple cords. S Do not abuse cord. Never carry the unit by
the extension cord or yank extension cord to disconnect unit.
S Use cord retainer to prevent disconnection
of extension cord from unit and possible damage to the unit due to plug movement (see ATTACH THE EXTENSION CORD TO YOUR TRIMMER in the OPERATION section).
S Do not use the unit if the switch does not
turn the unit on and off properly. Repairs to the switch must be made by your autho­rized service dealer.
S Keep the extension cord clear of operator
and obstacles at all times. Do not expose cords to heat, oil, water, or sharp edges.
S To avoid the possibility of electric shock,
avoid body contact with any grounded con­ductor, such as metal fences or pipes.
S Ground Fault Circuit Interrupter (GFCI)
protection should be provided on circuit or outlet to be used. Receptacles are avail­able having built-in GFCI protection and may be used for this measure of safety.
UNIT SAFETY
S Inspect unit before use. Replace damaged
parts. Make sure all handles, guards, and fasteners are in place and securely fas­tened. Parts that are damaged must be re­paired or replaced by an authorized service dealer These include head parts that are cracked, or chipped, guards, and any other part that is damaged.
S Do not repair unit yourself. S Use only 0.065 inch (1.65 mm) diameter
recommended trimmer line (see USER RE­PLACEABLE SERVICE PARTS in the SERVICE AND ADJUSTMENTS section). Never use wire, rope, string, etc.
S Use specified trimmer spool. Make sure
spool is properly installed and all parts are securely fastened.
S Use only WEED EATER replacement parts
and accessories as recommended.
CUTTING SAFETY
WARNING: Inspect area to be cut.
Remove objects (rocks, broken glass, nails, wire, string, etc.) which can be thrown or be­come entangled in cutting head.
4
S Do not overreach or stand on unstable sup-
port. Keep firm footing and balance.
S Keep the cutting head below waist level. Do
not raise handles above your waist. Cutting head can come dangerously close to your body.
S Keep away from cutting head and spinning
line.
S Use unit properly. Use only for trimming,
scalping, and mowing. Do not force unit. It will do the job better and with less risk of in­jury at the rate for which it was designed.
S Use only in daylight or in good artificial light.
MAINTENANCE SAF ET Y
WARNING: Disconnect unit from the
power supply before performing mainte­nance, or when changing trimmer line. S Maintain unit according to recommended
procedures. Keep cutting line at proper length. Follow instructions for changing trimmer line.
S Have all service and maintenance not ex-
plained in this manual performed by an au­thorized service dealer to avoid creating a hazard.
S Never douse or squirt the unit with water or
any other liquid. Clean unit and labels with a damp sponge. Keep handles dry, clean, and free from oil and grease.
S Keep the air vents clean and free of debris
to avoid overheating the motor . Clean after each use.
TRANSPORTING AND STORAGE
S Stop the unit and disconnect the power
source when not in use.
S Carry the unit with motor stopped.
S Store unit indoors in a high, dry place out of
the reach of children. Store unit unplugged.
S Do not hang unit so that the trigger switch is
depressed.
DOUBLE INSULATION CONSTRUCTION
This unit is double insulated to help protect against electric shock. Double insulation construction consists of two separate “layers” of electrical insulation instead of grounding. Tools built with this insulation system are not intended to be grounded. No grounding means is provided on this unit, nor should a means of grounding be added to this unit. As a result, the extension cord used with your unit can be plugged into any standard 120 volt electrical outlet. Safety precautions must be observed when operating any electrical tool. The double in­sulation system only provides added protec­tion against injury resulting from an internal electrical insulation failure.
WARNING: All electrical repairs to
this unit, including housing, switch, motor, wires, etc., must be diagnosed and repaired by qualified service personnel. Replacement parts for a double insulated appliance must be recommended by the manufacturer. A double insulated appliance is marked with the words “double insulation” or “double insulated”. The symbol (square within a square) be marked on the appliance. Failure to have the unit repaired by qualified service person­nel can cause the double insulation construc­tion to become ineffective and result in seri­ous injury.
may also
SAVE THESE INSTRUCTIONS
ASSEMBLY
WARNING: If received assembled,
review all assembly steps to ensure your unit is properly assembled and all fasteners are secure.
SHAFT ASSEMBLY
WARNING: Ensure that the excess
wire between the switch handle and motor housing is not twisted and is enclosed in switch handle and motor housing during assembly of the unit. Failure to do so may result in damage to the wires and/or the unit or serious injury to the operator including electrocution.
1. Push the tube into the switch handle until it snaps into place.
Switch Handle
Tube
2. Push the tube into the motor housing until it snaps into place.
Tube
Motor Housing
3. Try to remove tube from switch handle and motor housing. If the tube remains in place, it is properly snapped into place. If the tube will not remain in place, repeat steps 1 and
2. Push until the tube snaps into place.
ATTACHING THE SHIELD
WARNING: The shield must be prop-
erly installed. The shield provides partial protection from the risk of thrown objects to the operator and others. Your unit is equipped with a linelimiter pin,which cuts excess line to the proper length while running.
5
NOTE: If shield is not properly installed, dam-
age to unit (including motor failure) will result.
1. Place the shield onto the motor housing. Ensure the cutting head remains free to rotate and the line is not caught between the shield and the motor housing (see fol­lowing illustration).
Motor Housing
Cutting Head
2. Align the installation arrow on the shield with the installation arrow on the motor housing as shown.
Installation arrows
Line Limiter Pin
Shield
WHEEL ASSEMBLY
1. Fit the two halves of the wheel together (see illustration).
Wheel
2. Attach the wheel to the trimmer. Make sure the wheel is fitted into the groove on the motor housing.
Motor Housing
3. Clip the wheel together securely on the other side. The wheel should turn freely.
INST ALLATION OF ASSIST HANDLE
1. Press the two buttons on the sides of the switch handle.
Groove
3. Twist the shield as illustrated until it snaps securely into place. Make sure the shield is assembled to the unit as shown in the illustration below and in the KNOW YOUR TRIMMER section of this manual.
Button
Assist Handle
2. Push the assist handle over the buttons and release the buttons.
3. Adjust the handle to the most comfortable operating position by pressing the buttons and moving the handle.
Button
6
HEIGHT ADJUSTMENT
1. Turn height adjuster in the direction indi­cated to unlock (see illustration).
Height adjuster
Unlocked
Locked
2. Adjust the length of the tube to the most comfortable operating position.
3. Turn height adjuster in the opposite direc­tion to lock.
OPERATION
KNOW YOUR TRIMMER
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
Switch Handle
Trigger Switch
Assist Handle
Power Cord
Trimmer Head
Motor Housing
Tube
Instruction Manual
Debris Shield
Wheel
Line Limiter Pin
7
POWER CORD
The POWER CORD is where you attach your extension cord to the unit.
TRIGGER SWITCH
TheTRIGGERSWITCHisusedtoturnonthe unit. Squeeze the trigger switch to operate the unit. Release to stop.
LINE LIMITER PIN
The LINE LIMITER PIN cuts the cutting line to the proper cutting length.
TRIMMER HEAD
The TRIMMER HEAD holds cutting line and rotates during operation.
OPERATING INSTRUCTIONS
Use only a voltage supply as specified on your unit.
SELECT AN EXTENSION CORD
Extension Cord Gauge Chart
Length of Cord Gauge
25 Ft. (7.5 m) 50 Ft. (15 m) 100 Ft. (30 m)
Extension cords are available for this unit.
18 Gauge 16 Gauge 16 Gauge
ATTACH THE EXTENSION CORD TO YOUR TRIMMER
1. Form a loop in your extension cord.
2. Push the loop through the slot in the han­dle (see illustration).
CORRECT OPERATING POSITION
Trimming Edging
WARNING: Always wear eye protec-
tion. Never lean over the trimmer head. Rocks or debris can ricochet or be thrown into eyes and face and cause blindness or other serious injury. When operating unit, stand as shown and check for the following:
S Wear eye protection and heavy clothing. S Hold trigger handle with right hand and as-
sist handle with left hand.
S Keep unit below waist level. S Cut only from your right to your left to en-
sure debris is thrown away from you. With­out bending over, keep line near and paral­lel to the ground and not crowded into material being cut.
AUTOMATIC LINE FEED SYSTEM
When the trimmer is initially started, a small length of cutting line is fed out.
3. Position the loop over the cord retainer and pull back to secure.
4. Connect power cord of unit to extension cord.
Line Limiter Pin
After approximately 5 seconds, the line will be cut to the correct length by the line limiter pin as the motor reaches full speed. Make sure
the motor is up to full speed before trim­ming. If the noise of the cutting line being cut
cannot be heard, more line will need to be fed out.
To feed more line:
S Allow the motor to stop completely; then, re-
start the motor and allow it to reach full speed.
8
S Repeat until you hear the line hitting against
the line limiter pin (do not repeat this proce-
dure more than 6 times). If problems are experienced with the auto­matic line feed, refer to the TROUBLE­SHOOTING TABLE.
To manually feed the nylon line:
S If required, the cutting line can be fed out
manually. S To operate, press and release manual line
feed button while gently pulling on one of
the lines until the line reaches the line limiter
pin.
Manual Line Feed Button
S When the required amount of line is fed out,
gently pull on the second line (there is no
need to press the manual line feed button
again). S If the line extends past the line limiter pin,
too much line has been fed out. If too much
line is fed out, remove the spool cap and
click spool counterclockwise until the line is
at the desired length.

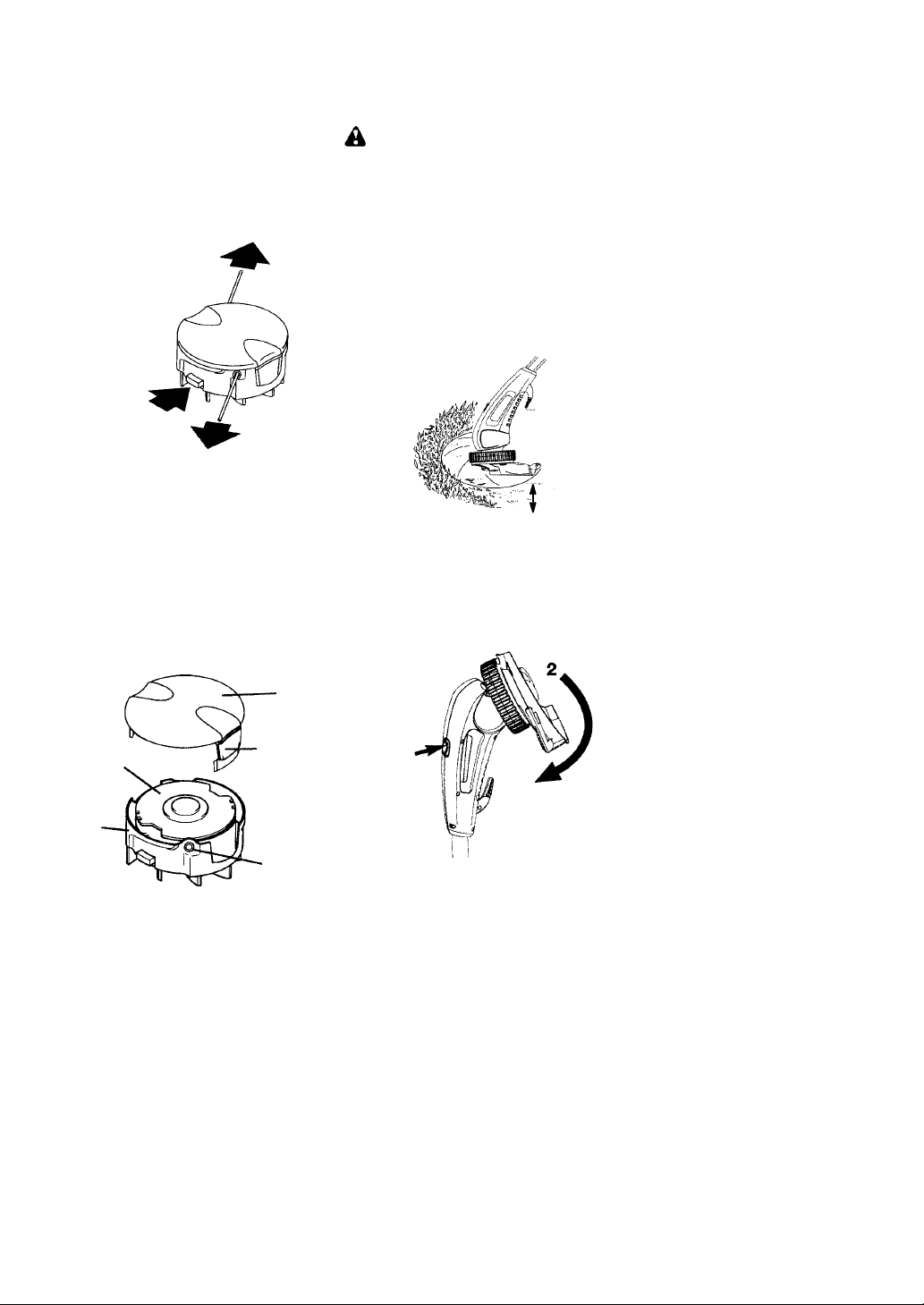

To remove spool cap:
1. Press and hold in the two cap release
latches.
2. Pull cap away from the hub.
2. Replace the cap, pressing firmly down to­wards the hub to ensure cap is fully se­cured.
3. Check that the cap is secure by trying to remove it without pressing the two latches.
WARNING: Use only 0.065 inch (1.65
mm) diameter line. Other sizes of line will not ad­vance properly and will result in improper cutting head function or can cause serious injury. Do not use other materials such as wire, string, rope, etc. Wire can break off during cutting and become a dangerous missile that can cause se­rious injury. See page 3 for warning concerning other cutting devices.
TRIMMING
Hold the bottom of the trimmer head about 3 inches (8 cm) above the ground and at an an­gle. Allow only the tip of the line to make con­tact. Do not force trimmer line into work area.
Trimming
3 inches (8 cm) above ground
EDGING POSITION
You can twist the lower portion of the unit into an edging position. Press button and twist lower portion of unit as shown in the illustra­tion until it snaps into place. To return to trim­ming position, press button and twist lower portion in opposite direction.
Cap
Cap
Spool
Hub
To reinstall spool cap:
1. Keep all areas of the cap and hub clean. Failure to do so may prevent the cap be­ing securely located in the hub.
release latch
Eyelet
Button
EDGING
While edging, allow unit to rest on wheel for extra stability. Edge in direction shown in il­lustration. Allow the tip of the lineto make con­tact. Do not force the line. Take extra caution while edging as objects can be thrown from the trimmer line.
9
Edging Direction
Edging
MOWING
Your trimmer is ideal for mowing in places conventional lawn mowers cannot reach. In the mowing position, keep the line parallel to the ground. Avoid pressing the head into the ground as this can scalp the ground and dam­age the tool.
Mowing
SCALPING
The scalping technique removes unwanted vegetation down to the ground. Hold the bot­tom of the trimmer head about 3 inches (8 cm) above the ground and at an angle. Allow the tip of theline to strike the ground around trees, posts, monuments, etc. This technique in­creases line wear.
Scalping
MAINTENANCE
WARNING: Disconnect unit from
power source before performing mainte­nance.
GENERALRECOMMENDATIONS
The warranty on this unit does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, the operator must maintain unit as instructed in this manual. Various adjust­ments will need to be made periodically to properly maintain your unit.
BEFORE EACH USE
CHECK FOR LOOSE FASTENERS AND PARTS
S Housing Screws S Debris Shield
CHECK FOR DAMAGED OR WORN PARTS
Contact an authorized service dealer for re­placement of damaged or worn parts.
SWEEPING
The fanning action of the rotating line can be used for a quick and easy clean up. Keep the line parallel to and above the surfaces being swept and move the tool from side to side.
Sweeping
S Trigger Switch -- Ensure switch functions
properly by pressing and releasing the trig­ger switch. Make sure motor stops.
S Debris Shield -- Discontinue use of unit if
debris shield is damaged.
AFTER EACH USE
INSPECT AND CLEAN UNIT AND LA­BELS
S After each use, inspect complete unit for
loose or damaged parts. Never use a dam­aged trimmer.
S Clean the unit using a damp cloth with a
mild detergent.
S Wipe off unit with a clean dry cloth. S Use a soft brush to clean around the inside
of the debris shield, thecutting head and the motor housing air vents.
10
S Remove the wheel by pressing one of the
buttons. Clean the wheel and groove on the motor housing with a soft brush. Reinstall wheel (see ASSEMBLY section).
Air Vents
Groove
SERVICE AND ADJUSTMENTS
REPLACING THE LINE
WARNING: Disconnect unit from
power source before servicing.
1. Press and hold in the two cap release latches.
2. Pull cap away from the hub.
Cap
Cap
Spool
Hub
3. Remove old spool.
4. Clean entire surface of hub and spool.
5. Replace with a pre--wound spool or cut two lengths of 13 feet (4 meters) of 0.065 (1.65 mm) diameter WEED EATER brand line. Use of heavier lines could overload and damage unit.
release latch
Eyelet
WARNING: Never use wire, rope,
string, etc., which can break off and become a dangerous missile.
6. Insert one end of the lineabout 1/2 inch (1 cm) into one of the small holes in the up­per section of the inside of the spool.
7. Wind the line evenly and tightly onto the spool. Wind in the direction of the arrow found on the spool.
8. Push the line into the notch, leaving 3 to 5 inches (7 -- 12 cm) unwound.
9. Repeat on the lower section of the spool.
Notches
11
10. Place spool into hub with cut out area of spool in line with eyelets (see illustration).
Cut out area of spool
Eyelet
11. Remove one line from notch and feed line through eyelet. Repeat for second line.
12. Reinstall the spool cap.
USER REPLACEABLE SERVICE PARTS
REPLACEMENT PART PART NUMBER Spool with 0.065Trimmer Line 545124402 Spool Cap 545124417 Assist Handle 545124404 Wheel 545124405
STORAGE
S Store unit and extension cord indoors in a
WARNING: Perform the following
steps after each use. S Stop the unit and disconnect the power
source when not in use.
S Carry the unit with motor stopped.
high, dry place out of the reach of children. Store unit unplugged.
S Store unit with all guards in place. Position
unit so that any sharp object cannot acci­dentally cause injury.
12
TROUBLESHOOTING TABLE
WARNING: Always stop unit and disconnect from the power source before performing
all of the recommended remedies below except remedies that require unit to be operating.
TROUBLE CAUSE REMEDY
Trimmer head stops under a load or does not turn when switch is pressed.
Line does not advance, line is too short, or trimmer vibrates.
Excessive noise when unit is run­ning.
Line releases continuously.
Line usage is excessive.
Wheel stops turning.
1. Crowding trimmer line against material being cut.
2. Electrical failure.
3. Thrown circuit breaker.
4. Debris stopping head.
1. Line improperly routed in head.
2. Line improperly wound into spool.
3. Incorrect line size
4. Not enough line outside of head.
5. Manual line feed not working.
6. Dirt buildup on unit.
1. Motor has not reached full speed before use.
2. Too much line has been released from the spool.
3. Line limiter pin missing from shield.
1. Line improperly routed in head.
2. Spool damaged.
1. Line improperly routed in head.
2. Line size is incorrect.
3. Crowding line against material being cut.
4. Spool worn or damaged.
1. Dirt or debris buildup on wheel or in groove.
1. Allow tip of line to do the cutting.
2. Contact your authorized service dealer.
3. Check Breaker Box.
4. Remove debris.
1. Check line routing.
2. Rewind line tightly and evenly.
3. Use only 0.065 in. (1.65 mm) dia. line.
4. Remove spool cap and spool. Manually feed line. Reinstall cap and spool. See Automatic Line Feed System section.
5. Rewind line tightly and evenly. Check that line is in correct section of spool.
6. Clean unit.
1. Allow the motor to reach full speed
before use.
2. Rewind line tightly and evenly. See
Automatic Line Feed System section.
3. Contact your authorized service dealer.
1. Check line routing.
2. Replace spool.
1. Check line routing.
2. Replace spool.
3. Cut with tip of line fully extended.
4. Replace spool.
1. Clean wheel and groove on motor housing (see Maintenance section).
13
LIMITED WARRANTY
WEED EATER, a division of Husqvarna Con-
sumer Outdoor Products N.A., Inc., warrants to the original consumer purchaser that each new WEED EATER brand electric or cordless pro­duct is free from defects in material and work­manship and agrees to repair or replace under this warranty any defective WEED EATER brand electric or cordless product within two (2) years from the original date of purchase. If your WEED EATERbrand electric or cordless product should fail within the limited warranty period, you may return it in complete condition, prepaid, with proof of purchase, to the dealer from whom it was purchased for repair or re­placement at the option of WEED EATER. This warranty is not transferable and does not cover damage or liability caused by improper handling, improper maintenance or alteration, or the use of accessories and/or attachments not specifically recommended by WEED EATER for this product. Additionally, this warranty does not cover parts that will wear and require re­placement with reasonable use during the war­ranty period. This warranty does not cover pre­delivery set- -up or normal adjustments explained in the instruction manual. Should you have any unanswered questions concerning this warranty, please contact: WEED EATER, a division of Husqvarna Consumer Outdoor Products N.A., Inc. 1030 Stevens Creek Road Augusta, GA 30907 1-- 800- -554- -6723
In Canada, contact:
WEED EATER
850 Matheson Blvd. West Mississauga, Ontario L5V 0B4 Giving the model number, serial number and date of purchase of your product and the name and address of the authorized dealer from whom it was purchased. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTH­ER RIGHTS WHICH VARY FROM STA TE TO STATE. NO CLAIMS FOR CONSEQUENTIAL OR OTHER DAMAGES WILL BE ALLOWED, AND THERE ARE NO OTHER EXPRESS WARRANTIES EXCEPT THOSE EX­PRESSLY STIPULATED HEREIN. SOME STA TES DO NOT ALLOW LIMIT A­TIONS ON HOW LONG AN IMPLIED WAR­RANTY LASTS OR THE EXCLUSION OR LIMI TATI ONS O F INCI DEN TAL O R CO NSE ­QUENTIAL DAMAGES, SO THE ABOVE LIM­ITATIONS OR EXCLUSION MAY NOT APPL Y TO YOU. This is a limited warranty within the meaning of that term as defined in the Magnuson--Moss Act of 1975. The policy of WEED EATER is to continuous- ly improve its products. Therefore, WEED EATER reserves the right to change, modify, or discontinue models, designs, specifica­tions, and accessories of all products at any time without notice or obligation to any pur­chaser.
14
Loading...
