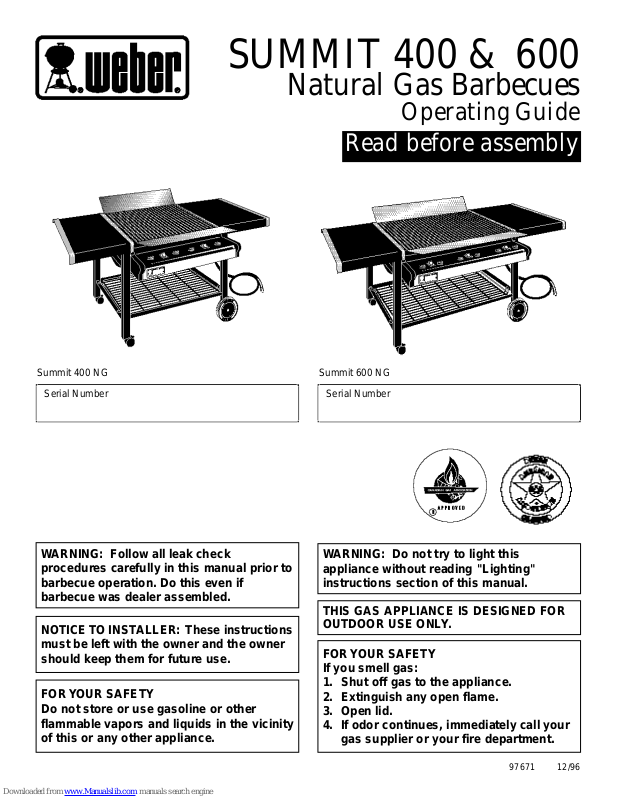

Weber Summit 400 NG, Summit 600 NG Operating Manual

SUMMIT 400 & 600

Natural Gas Barbecues

Operating Guide

Read before assembly

Summit 400 NG

Serial Number

WARNING:Follow all leak check
procedures carefully in this manual prior to
barbecue operation.Do this even if
barbecue was dealer assembled.

NOTICE TO INSTALLER:These instructions
must be left with the owner and the owner
should keep them for future use.

FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.

Summit 600 NG

Serial Number

WARNING:Do not try to light this
appliance without reading "Lighting"
instructions section of this manual.

THIS GAS APPLIANCE IS DESIGNED FOR
OUTDOOR USE ONLY.

FOR YOUR SAFETY
If you smell gas:

1.Shut off gas to the appliance.

2.Extinguish any open flame.

3.Open lid.

4.If odor continues,immediately call your
gas supplier or your fire department.

97671 12/96

WARNINGS

■ Do not store a spare or disconnected LP t a n k

under or near this barbecue.

■ Improper assembly may be dangerous. Please

carefully follow the assembly instructions in this manual.

■ After a period of storage, and/or nonuse, the

Weber Gas Barbecue should be checked for gas
leaks and burner obstructions before using. See
instructions in this manual for correct procedures.

■ Do not operate the Weber Gas Barbecue if there

is a gas leak present.

■ Do not use a flame to check for gas leaks.

■ Combustible materials should never be within 24

inches of the top, bottom, back or sides of your
Weber Gas Barbecue.

■ Do not put a barbecue cover or anything flammable

on or in the storage area under the barbecue.

■ Your Weber Gas Barbecue should never be used

by children.

■ You should exercise reasonable care when

operating your Weber Gas Barbecue. It will be hot
during cooking or cleaning, and should never be
left unattended.

■ Should the burners go out during operation, turn

all gas valves off. Open the lid and wait five
minutes before attempting to relight, using the
lighting instructions.

■ Do not use charcoal or lava rock in your We b e r

Gas Barbecue.

■ Never lean over open grill or place hands or

fingers on the front edge of the cooking box.

■ Should a grease fire occur, turn off all burners and

leave lid closed until fire is out.

■ Do not enlarge valve orifices or burner ports when

cleaning the valves or burners.

■ The Weber Gas Barbecue should be thoroughly

cleaned on a regular basis.

■ L P gas is not natural gas. The conversion or

attempted use of natural gas in an LP unit or LP
gas in a natural gas unit is dangerous and will
void your warranty.

■ Do not attempt to disconnect any gas fitting while

your barbecue is in operation.

■ Use heat-resistant barbecue mitts or gloves when

operating barbecue.

■ This barbecue is for residential use only.

Failure to fo l l ow the Dange rs ,Warnings and Cautions contained in this Owner’s Manual may

result in serious bodily injury or death, or a fire or an explosion causing damage to pro p e rt y.

DANGER

2

TABLE OF CONTENTS

Warnings 2
Warranty 4
A Word of Thanks 4
Standards and Codes Information 5

Storage 5
Operation 5
Natural Gas Supply Testing 5

*REFER TO YOUR STEP-BY-STEP SECTION AT

THIS TIME

Lighting 6

Crossover Ignition System 6
To Extinguish 6

Manual Lighting 7

To Extinguish 7

Cooking 8
Storage 8
Cleaning 8
Maintenance 9-13

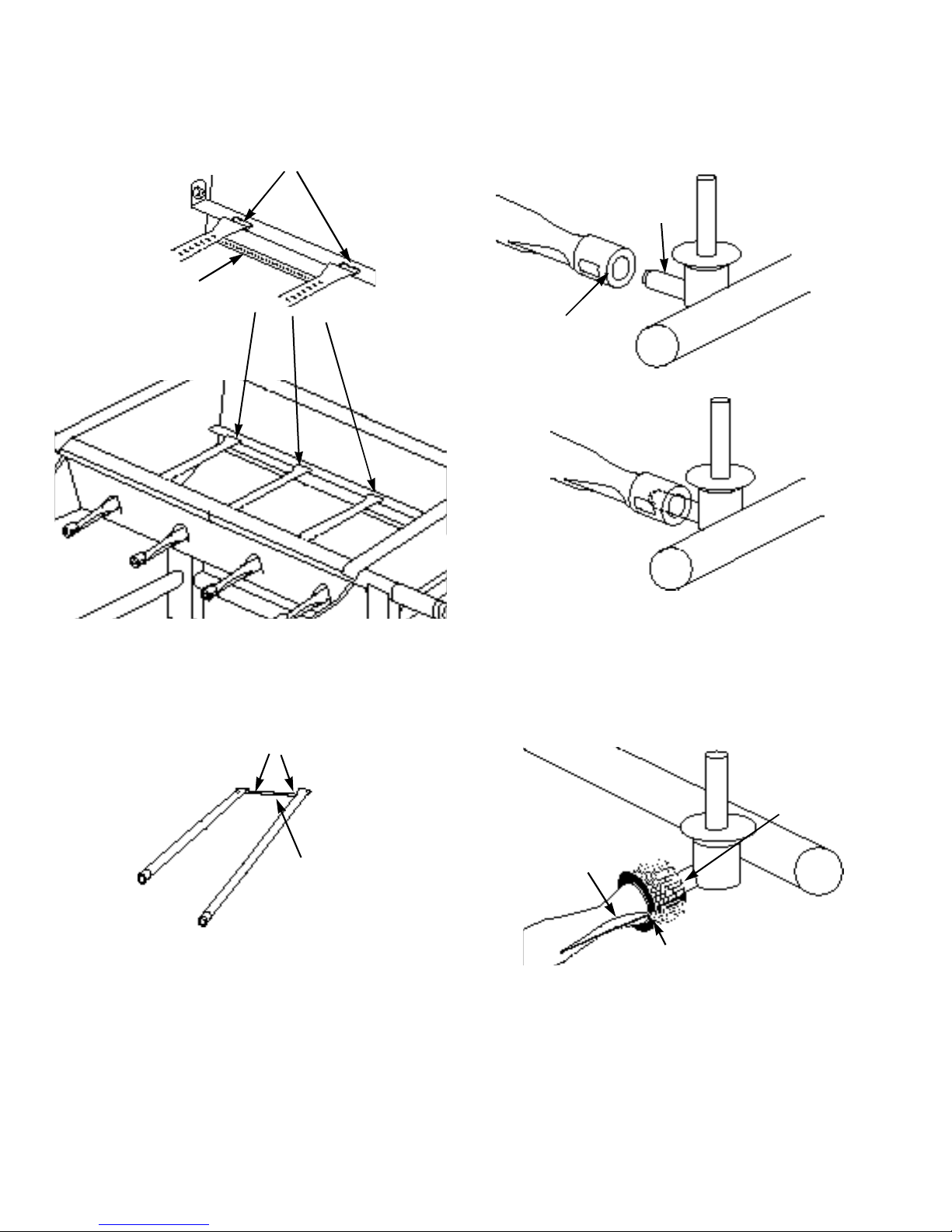

Spider Stopper Guards 9
Inspection and Cleaning of the

Spider Stopper Guards 9

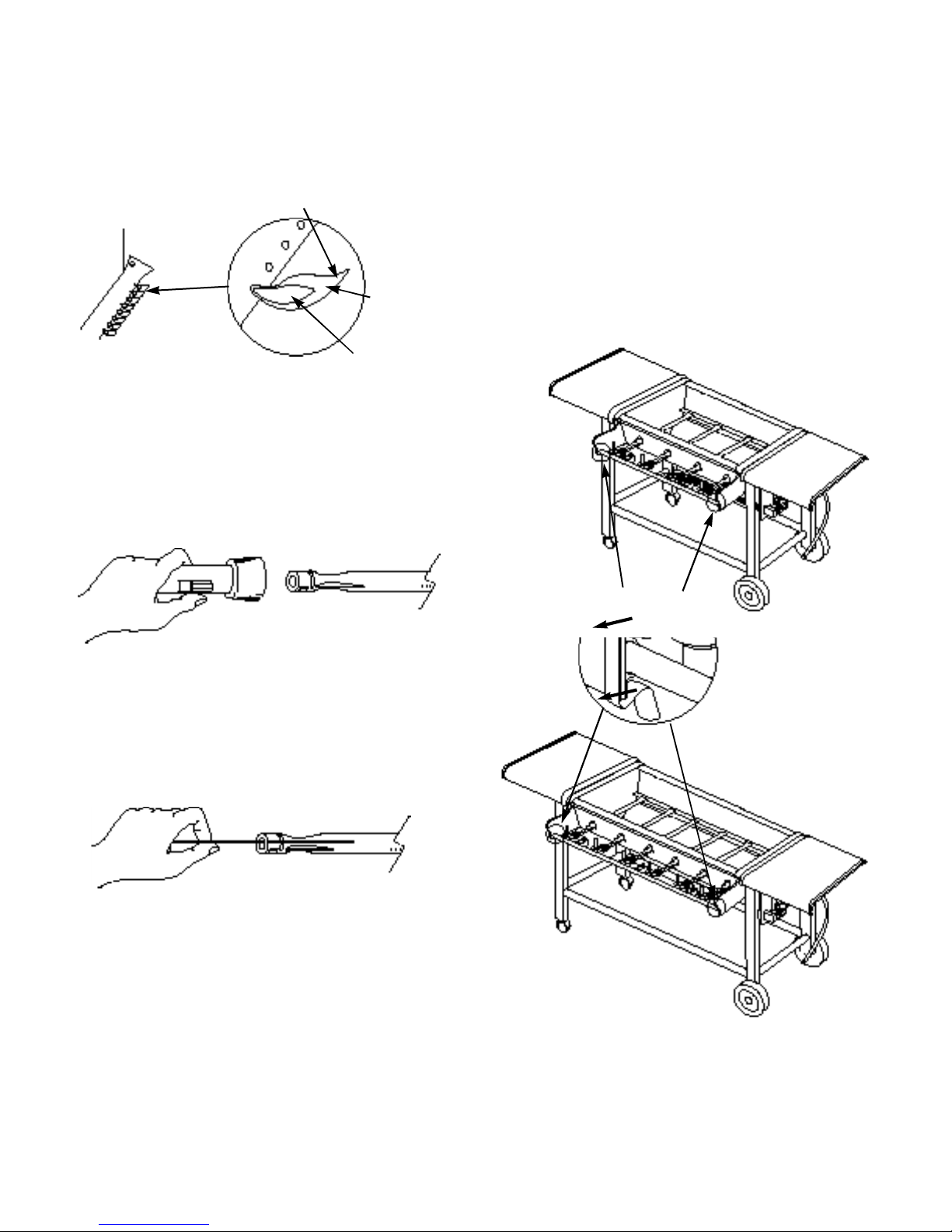

Main Burner Flame Pattern 10

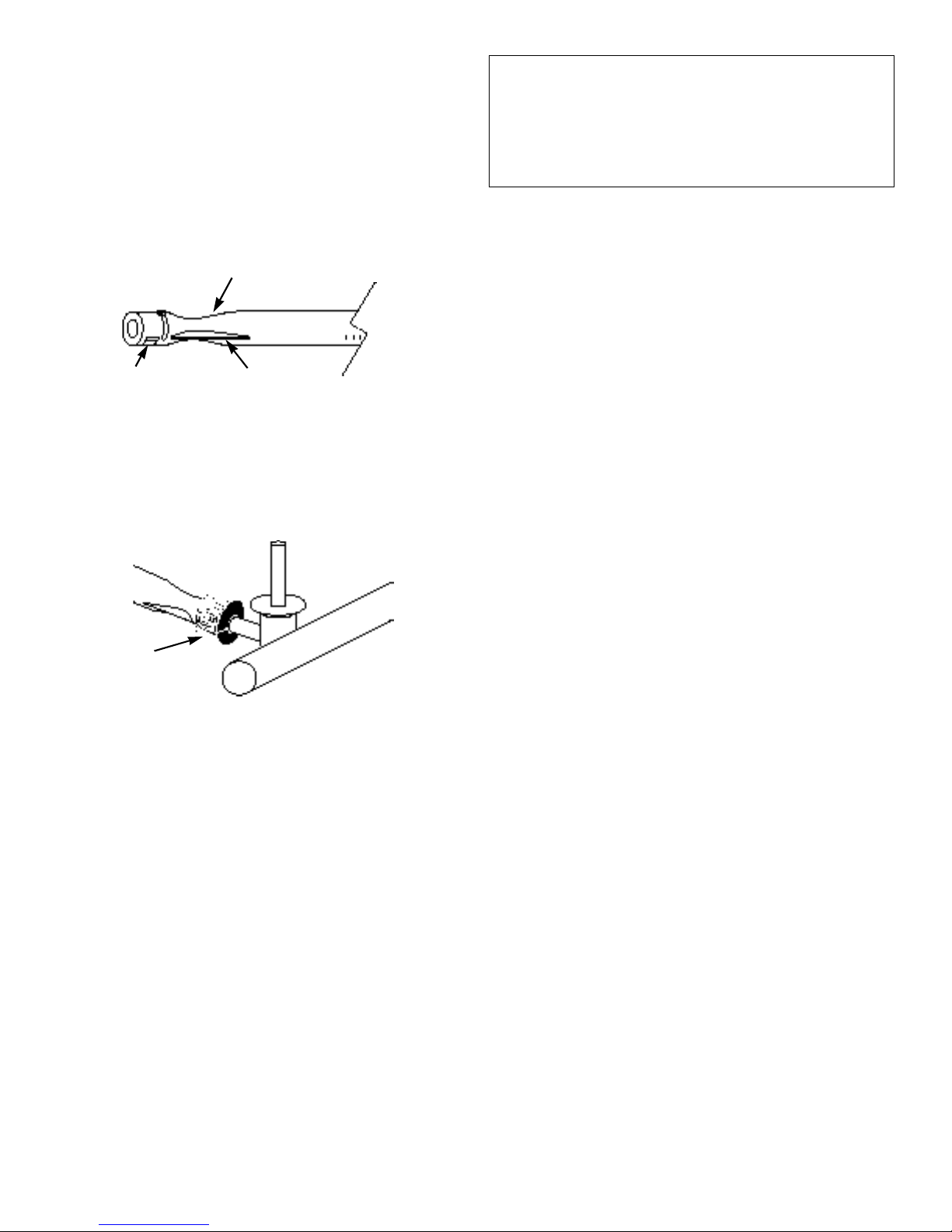

Main Burner Cleaning Procedure 10
Replacing the Main Burners 10

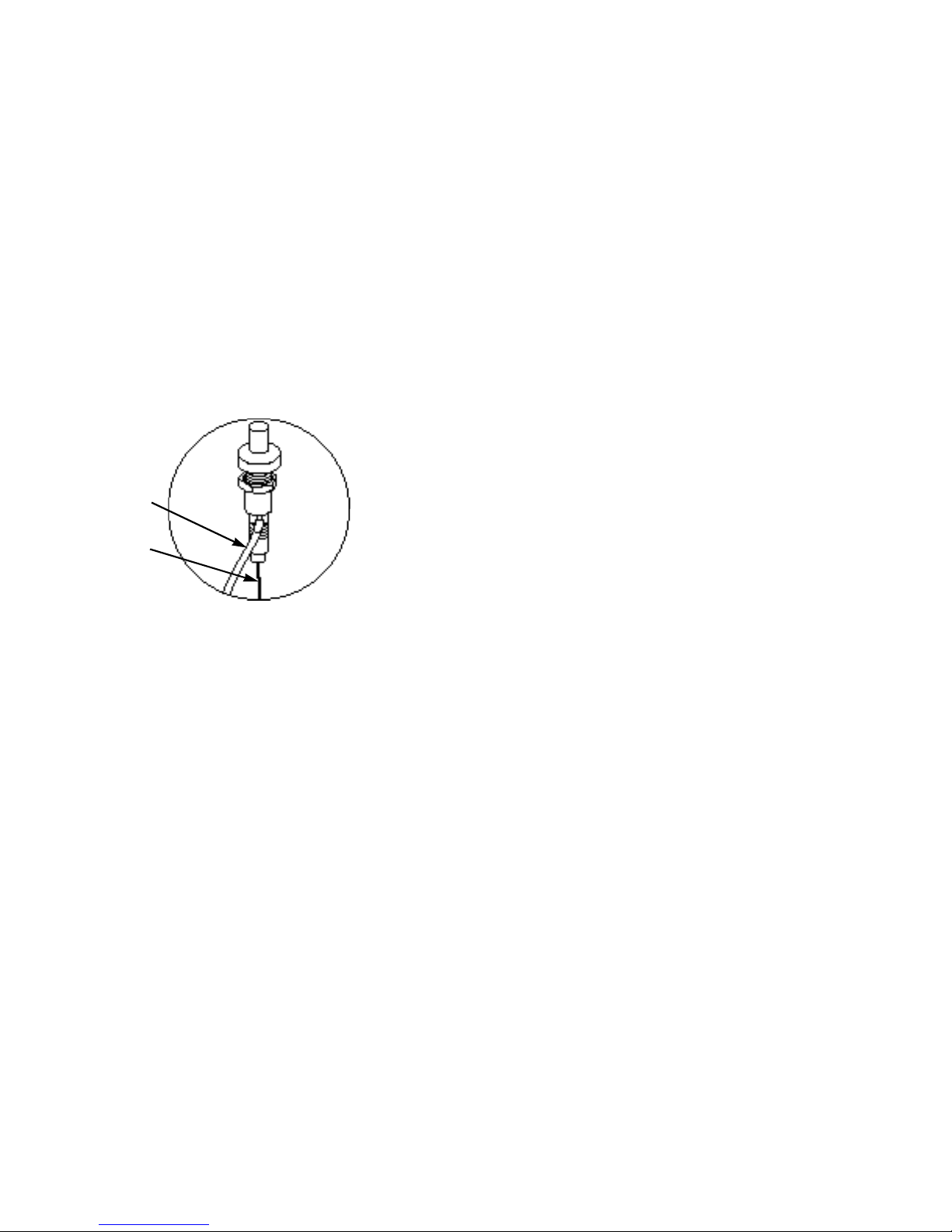

Crossover Ignition System Operations 13

Troubleshooting 14

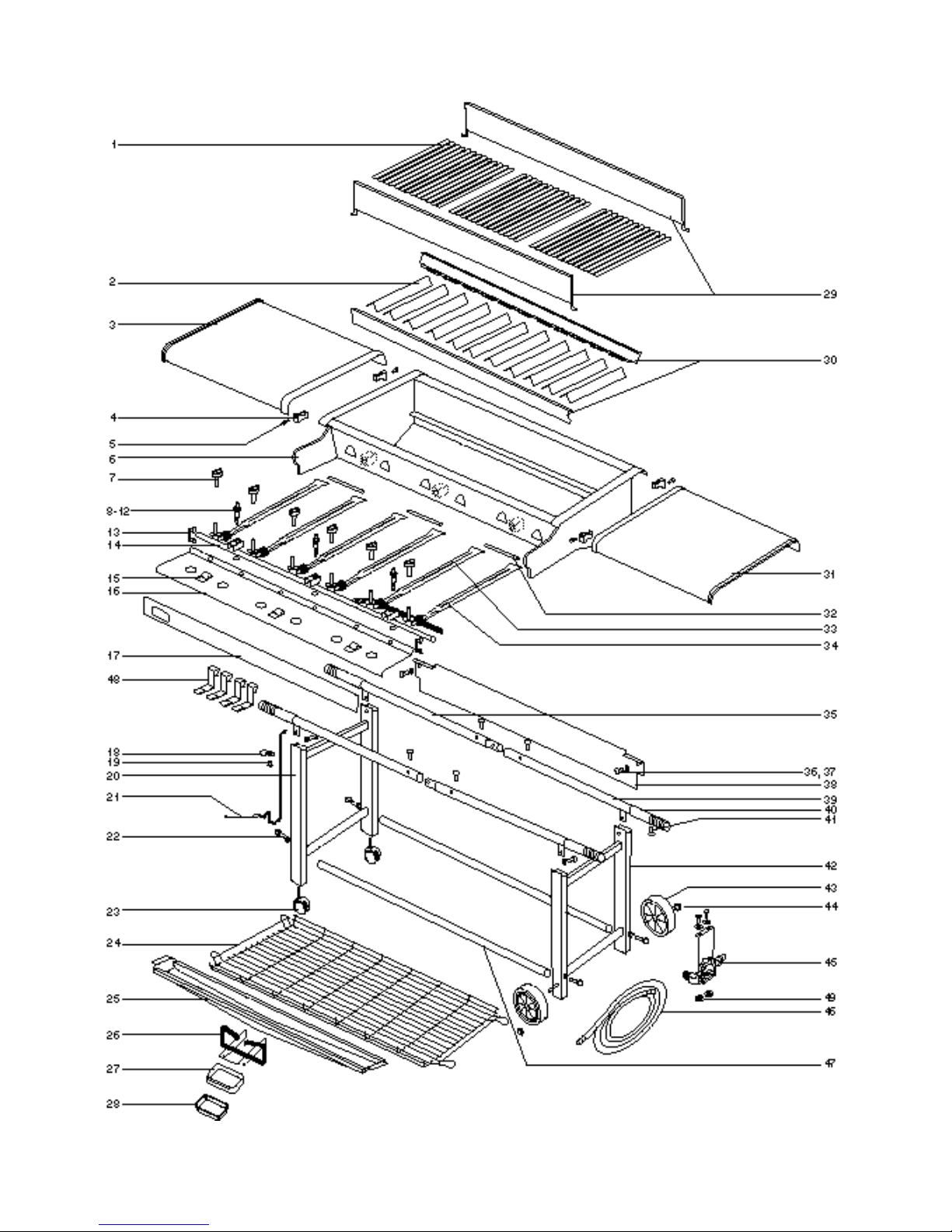

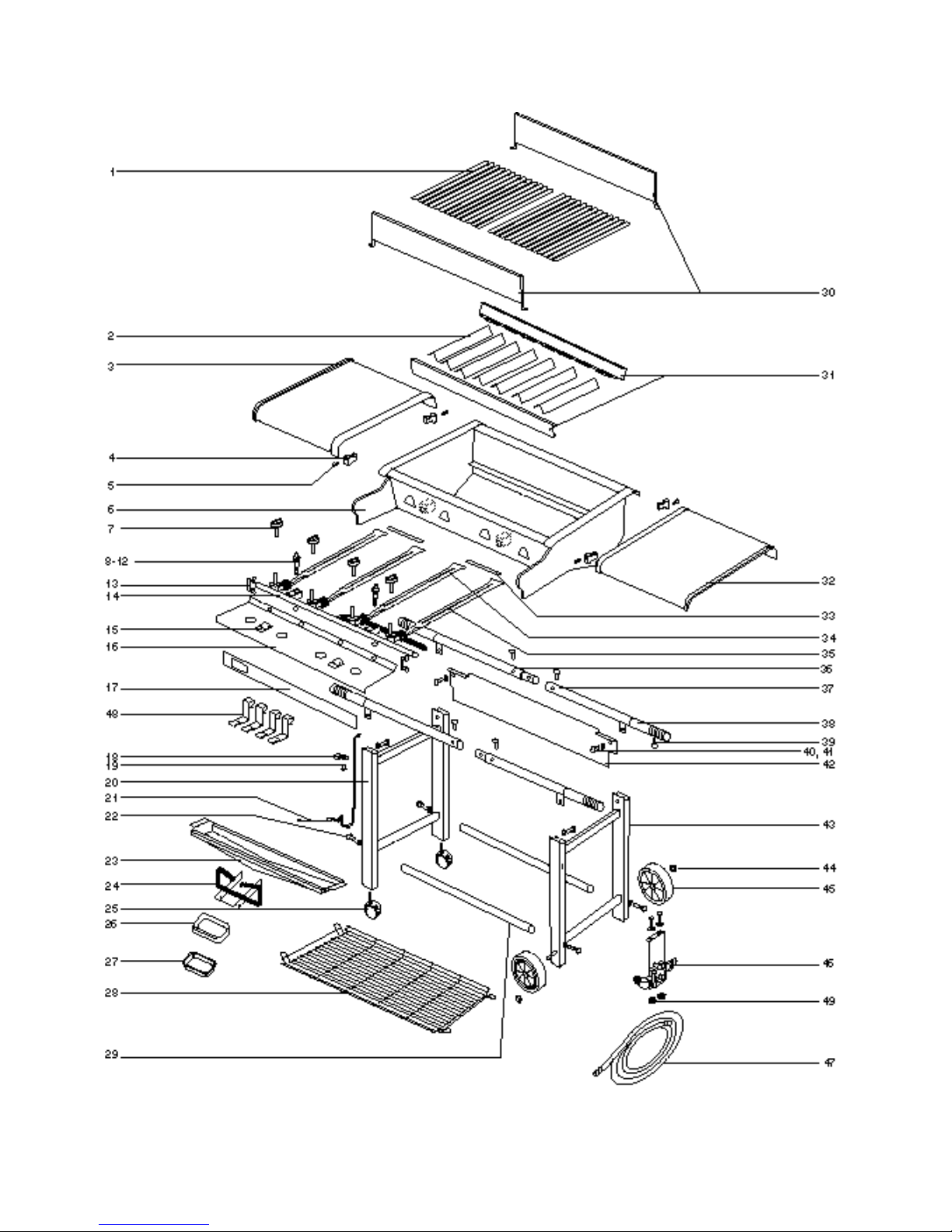

Exploded Views and Replacement parts Lists 16-19

Summit 400 NG 16-17
Summit 600 NG 18-19

Patents and Trademarks 20

3

Weber-Stephen Products Co. (Weber) hereby warrants to the ORIGINAL PURCHASER of this Weber Gas Barbecue

WARRANTY

Thank you for choosing a Weber Barbecue. Our family here at Weber has worked hard to produce the
highest quality products for your satisfaction. While we give much attention to our products, an occasional
error may occur. Our knowledgeable Customer Service staff is prepared to help you with any problems with
parts or assembly. Call our toll free number. For quicker service, please have your owner’s manual and
serial number available for reference. We also welcome any comments or suggestions you might have
regarding our products. We wish you the best in outdoor cooking enjoyment.

Weber-Stephen Products Company
Customer Service Center
200 E. Daniels Road
Palatine, IL 60067-6266
(888) 33-SUMMIT
(888-337-8664)

that it will be free of defects in material and workmanship from the date of purchase as follows:

Aluminum Castings, 25 years,
Cooking Grates and Flavorizer Bars, 7 years,

All Remaining Parts, 5 years,
when assembled and operated in accordance with the printed instructions accompanying it.
Weber may require reasonable proof of your date of purchase. THEREFORE, YOU SHOULD RETAIN YOUR SALES

SLIP OR INVOICE.
This Limited Warranty shall be limited to the repair or replacement of parts which prove defective under normal use and

service and which on examination shall indicate, to Weber's satisfaction, they are defective. Before returning any parts,
contact Weber-Stephen Products Co. Customer Service Center. If Weber confirms the defect and approves the claim,
Weber will elect to replace such parts without charge. If you are required to return defective parts, transportation charges
must be prepaid. Weber will return parts to the purchaser, freight or postage prepaid.

This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration,
misapplication, vandalism, improper installation or improper maintenance or service, or failure to perform normal and
routine maintenance, including but not limited to damage caused by insects within the burner tubes, as set out in this
owner's manual.

Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes or tornadoes, acid rain,
discoloration due to exposure to chemicals either directly or in the atmosphere, is not covered by this Limited Warranty.

There are no other express warrants except as set forth herein and any applicable implied warranties of merchantability
and fitness are limited in duration to the period of coverage of this express written Limited Warranty. Some states do not
allow limitation on how long an implied warranty lasts, so this limitation may not apply to you.

Weber is not liable for any special, indirect or consequential damages. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.

Weber does not authorize any person or company to assume for it any other obligation or liability in connection with the
sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on We b e r.

This Warranty applies only to products sold at retail.

A WORD OF THANKS

4

Your Weber Gas Barbecue is a portable outdoor cooking

STANDARDS AND CODES INFORMATION

REFER TO YOUR STEP-BY­STEP GUIDE AT THIS TIME
FOR BARBECUE ASSEMBLY

WARNING: Make sure your barbecue is set up properly
and leak checked before attempting to operate.

appliance. With the Weber Gas Barbecue you can grill,
barbecue, roast and bake with results that are difficult to
duplicate with indoor kitchen appliances. The closed lid and
Flavorizer Bars produce that "outdoor" flavor in the food.

The Weber Gas Barbecue is portable so you can easily
change its location in your yard or on your patio.
Portability means you can take your Weber Gas
Barbecue with you if you move.

The natural gas supply is easy to use and gives you more
cooking control than charcoal fuel.

■ These instructions will give you the minimum

requirements for operating and maintaining your
Weber Gas Barbecue. Please read the instructions
carefully before using your Weber Gas Barbecue.
Improper assembly can be dangerous.

■ Not for use by children.

■ If there are local codes that apply to portable gas

grills, you will have to conform to them. If there are no
local codes, you must conform to the latest edition of
the National Fuel Gas Code: ANSI Z 223.1.

■ This Weber Gas Barbecue is designed for natural

(piped in city) gas only. Do not use Liquid Propane
(LP) bottled gas.The valves, orifices and hose are for
natural gas only.

■ Do not use with charcoal fuel.

■ Use the natural gas regulator supplied with the barbecue.

■ The regulator is set for 4.5 inches of water column

pressure.

For Installation in Canada

These instructions, while generally acceptable, do not
necessarily comply with the Canadian Installation codes,
particularly with piping above and below ground. In
Canada the installation of this appliance must comply with
local codes and/or Standard CAN/CGA-B149.1
(Installation Code for Natural Gas Burning Appliances and
Equipment).

■ Check that the areas under the control panel and the
bottom tray are free from debris that might obstruct

the flow of combustion or ventilation air.

■ The Spider Stopper Guards should also be checked
for any obstructions. Refer to Maintenance Section.

Operating area

WARNING: Only use this barbecue outdoors in a well
ventilated area. Do not use in a garage, building,
breezeway or any other enclosed area.

■ Never use your Weber Gas Barbecue under an
unprotected combustible roof or overhang.

■ Your Weber Gas Barbecue is not intended to be
installed in or on recreational vehicles and/or boats.

■ Keep this grill away from combustible materials when
in use at a minimum of 24 inches of the top, bottom,
back or sides.

■ The entire cooking box gets hot when in use. Do not
leave unattended.

■ Keep any electrical supply cord and the fuel supply
hose away from any heated surface.

■ Keep the cooking area clear of flammable vapors
and liquids, such as gasoline, alcohol, etc., and

combustible materials.

Natural Gas supply testing

■ Disconnect your Weber Gas Barbecue when the gas
supply is being tested at high pressures. This
appliance and its individual shutoff valve must be
disconnected from the gas supply piping system
during any pressure testing of that system at test
pressures in excess of 1/2 psig (3.5 kPa).

■ Turn off your Weber Gas Barbecue when the gas
supply is being tested at low pressures. This

appliance must be isolated from the gas supply
piping system by closing its individual manual shutoff
valve during any pressure testing of the gas supply
piping system at the pressure equal to or less than
1/2 psig (3.5 kPa).

Storage

■ The gas must be turned OFF at the natural gas
supply when the Weber Gas Barbecue is not in use.

■ When storing the Weber Gas Barbecue, make sure
that the inside shut off valve and/or locking outdoor
shut off valve is secured in the OFF position. When
the Weber Gas Barbecue is stored indoors, the gas
supply MUST BE DISCONNECTED.

■ After a period of storage and/or nonuse the Weber
Gas Grill should be checked for gas leaks and any
obstructions in the burner tubes before using. Refer
to Maintenance Section.

5

LIGHTING

WARNING: Check hose before each use of barbecue
for nicks, cracking, abrasions or cuts. If the hose is
found to be damaged in any way, do not use the
barbecue. Contact your dealer.

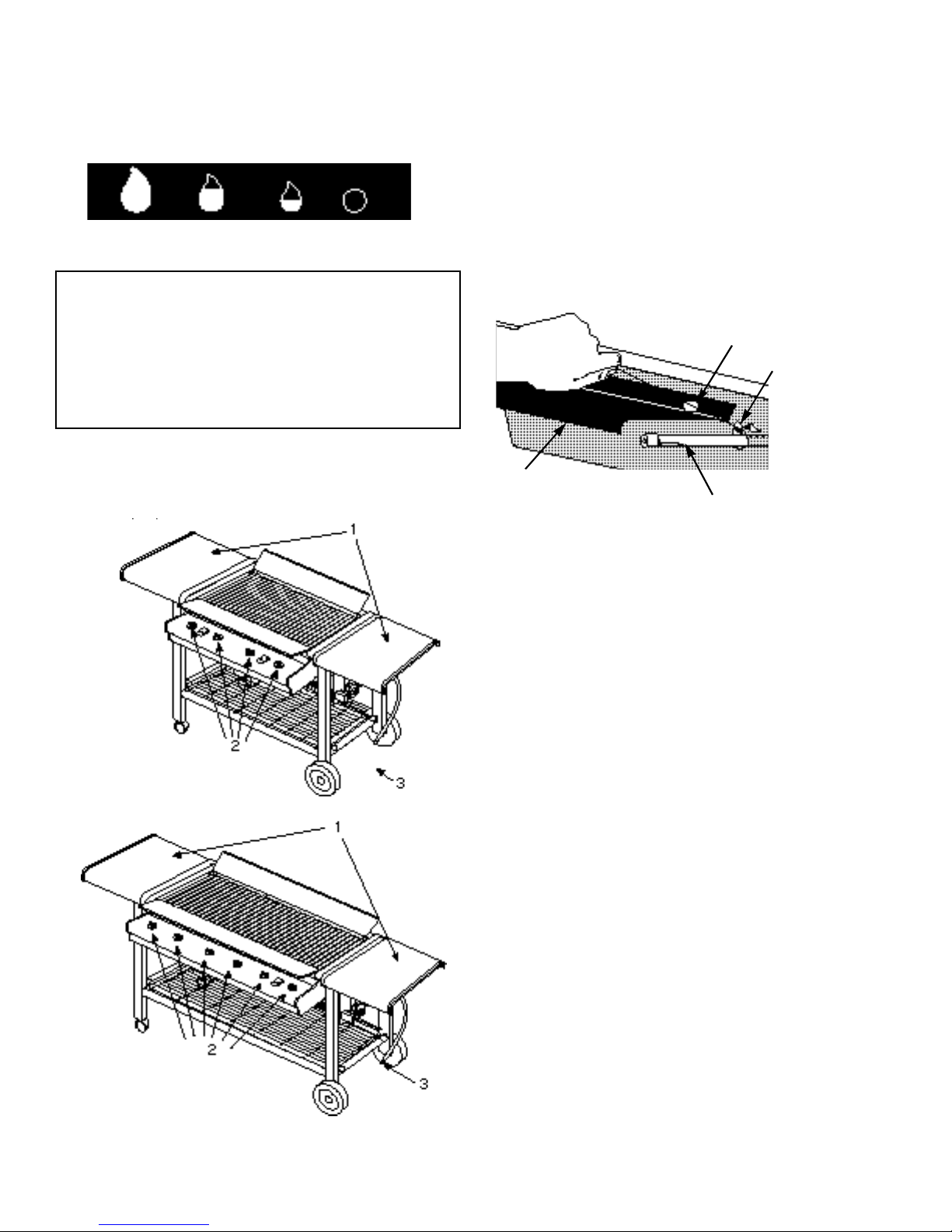

1 ) Open the sliding work surfaces and splash guards.

Figure 1.

2) Make sure all burner control knobs are OFF. (Push
each burner control knob down and turn clockwise.)

3) Turn on gas supply.

WA R N I N G : Do not lean over open barbecue. Ke e p
your face and body at least one foot aw ay from the
m a t chlight hole when lighting the barbecue.

4) Select Heat Zone.

5) Push LEFT burner control knob down and turn to
START/HI.

6) Push the Crossover Ignition Button several times, so
it clicks each time.

7) Check that the burner is lit by looking through the
matchlight hole above the burner control knob.

WARNING: If the burner does not light, turn the LEFT
burner control knob to OFF and wait 5 minutes to let
the gas clear before you try again or try to light with
a match.

8) After the LEFT burner is lit you can turn on the
RIGHT burner.

Note - Always light the LEFT burner first.The RIGHT
burner ignites from the LEFT burner.

TO EXTINGUISH

Turn gas supply OFF at the source, then push down
and turn each burner control knob clockwise to OFF.

EACH HEAT ZONE OPERATES INDEPENDENTLY.

Summary lighting instructions are on the control panel.

Crossover Ignition System

Note - The Crossover Ignition System ignites the Left
burner of each Heat Zone with a spark from the igniter
electrode inside the Gas Catcher Ignition Chamber.You
generate the energy for the spark by pushing the
Crossover Ignition Button until it clicks.

Figure 1

DA N G E R

Failure to open sliding work surfaces
while igniting the barbecue, or not waiting 5
minutes to allow the gas to clear if the
barbecue does not light, may result in an
explosive flame-up which can cause serious
bodily injury or death.

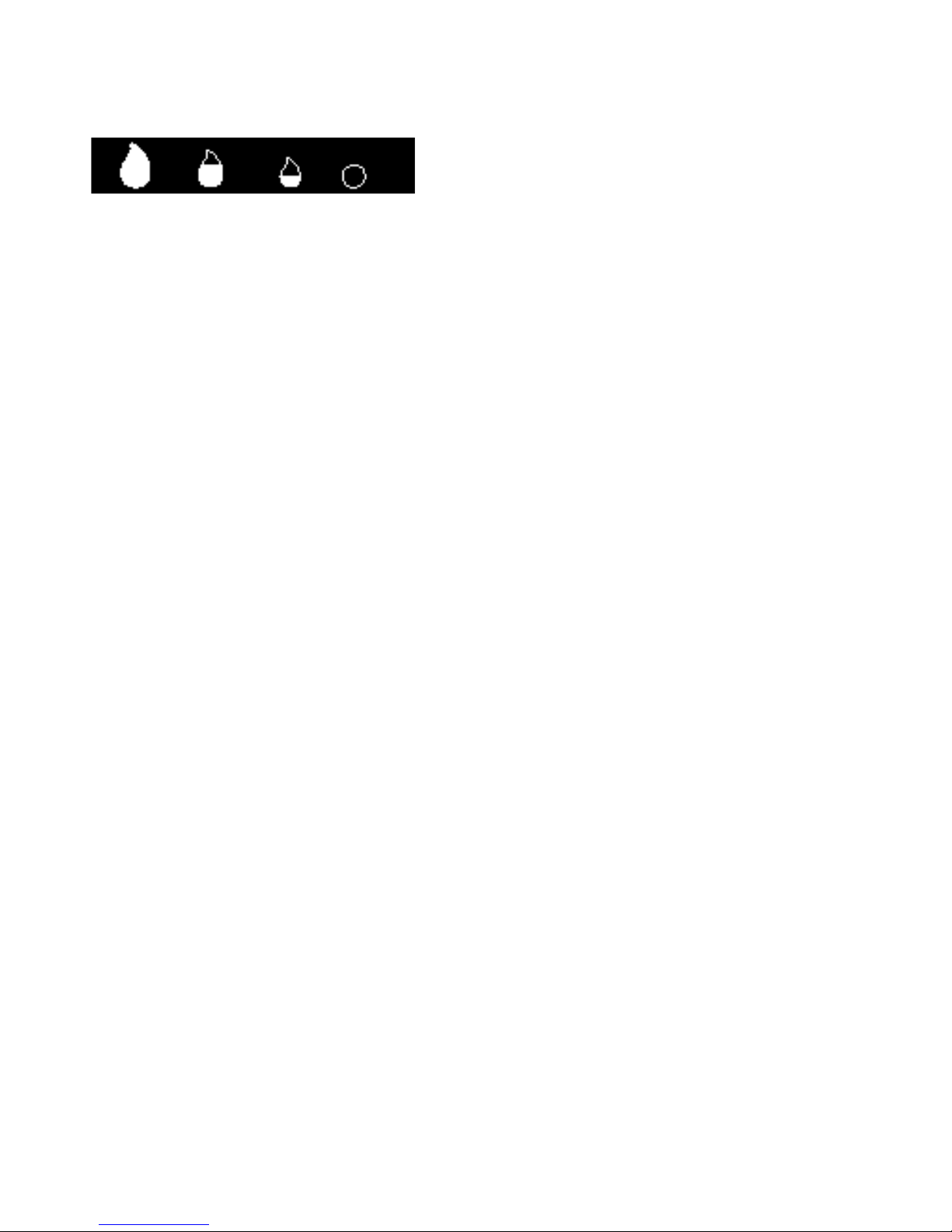

High Medium Low Off

Crossover Ignition System
Summit 400

Crossover Ignition System
Summit 600

6

MANUAL LIGHTING

EACH HEAT ZONE OPERATES INDEPENDENTLY.

1) Open the sliding work surfaces and splash guards.
Figure 2.

2) Make sure all burner control knobs are turned OFF.
(Push each burner control knob down and turn
clockwise.)

3) Turn on gas supply.

4) Select Heat Zone.

5) Put a match in the match holder and strike the match.

6) Push LEFT burner control knob down and turn to
H (high).

WARNING: Do not lean over open barbecue. Keep
your face and body at least one foot away from the
matchlight hole when lighting the barbecue.

7) Insert match holder and lit match through matchlight
hole to ignite LEFT burner. Figure 3.

DA N G E R

Failure to open sliding work surfaces while
igniting the barbecue, or not waiting 5 minutes
to allow the gas to clear if the barbecue does not
light, may result in an explosive flame-up which
can cause serious bodily injury or death.

Figure 2

Figure 3

Manual Lighting
Summit 400

Summary lighting instructions are on the control panel

High Medium Low Off

matchlight hole
in control panel

Hole in cooking
box assembly

Control panel

Left burner tube

8) Observe if LEFT burner has ignited by looking
through matchlight hole.

WARNING: If LEFT burner fails to ignite turn LEFT
burner control knob to OFF and wait 5 minutes before
attempting to ignite again.

9) After the LEFT burner is lit you can turn on the
RIGHT burner.

Note: Always light the LEFT burner first.The RIGHT
burner ignites from the LEFT burner.

TO EXTINGUISH

Turn gas supply OFF at the source, then push down
and turn each burner control knob clockwise to OFF.

Manual Lighting
Summit 600

7

COOKING

The Weber Gas Barbecue should not be moved when
operating or hot.

You can adjust the LEFT and RIGHT burners as desired.
The control settings High (H), Medium (M), Low (L), or Off
(O) are described in your Weber cookbook. The cookbook
uses these notations to describe the settings of the LEFT
and RIGHT burners.

Note: Cooking conditions may require the adjustment of
the burner controls.

If burners go out during cooking, turn off all burners
and wait 5 minutes before relighting.

CAUTION: Check the bottom tray for grease build-up
before each use. Remove excess grease to avoid a
grease fire in the bottom tray.

CLEANING

■ When storing the Weber Gas Barbecue, make sure
that the inside shut off valve and/or locking outdoor

shut off valve is secured in the OFF position. When
the Weber Gas Barbecue is stored indoors, the gas
supply MUST BE DISCONNECTED.

■ After a period of storage and/or nonuse the Weber
Gas Grill should be checked for gas leaks and any
obstructions in the burner tubes before using. (See
Maintenance Section.)

■ Check that the areas under the control panel and the
bottom tray are free from debris that might obstruct
the flow of combustion or ventilation air.

■ The Spider Stopper Guards should also be checked
for any obstructions. (See Maintenance Section.)

STORAGE

High Medium Low Off

C AU T I O N : Turn your Weber Gas Barbecue OFF and
wait for it to cool before cl e a n i n g .

C AU T I O N : Do not clean your Flavo r i zer Bars or
cooking grates in a self-cleaning ov e n . R e p l a c e m e n t
cooking grates and Flavo r i zer Bars are ava i l a bl e
t h rough your retailer or the We b e r-Stephen Customer
S e rvice Center.

Outside surfaces - Use a warm soapy water solution.
C AU T I O N : Do not use oven cl e a n e r, abrasive cl e a n s e rs

( k i t chen cl e a n s e rs) cl e a n e rs that contain citrus pro d u c t s
or abrasive cleaning pads on barbecue or cart surfaces.

Bottom tray - Remove excess grease and then wash with

warm soapy water.
F l avo r i zer Bars and Cooking Grates- Clean with a

suitable brass bristle brush. As needed, remove from grill
and wash with warm soapy water.

C a t ch pan - Disposable foil trays are available, or you can
line the catch pan with aluminum foil. To clean the catch
pan, wash with warm soapy water.

Thermometer - Wipe with warm soapy water, clean with plastic
scrub ball. Do not put in dishwasher or submerge in water.

Inside cooking module - Brush any debris off of burners
tubes. DO NOT ENLARGE BURNER PORTS (OPENINGS).
Wash inside of cooking box with warm soapy water.

Inside Lid - While lid is warm, wipe inside with paper towel
to prevent flaking due to grease build-up.

Stainless steel surfaces - Wash with a soft cloth and a
soap and water solution.

8

Spider Stopper Guards

MAINTENANCE

We recommend that you inspect the Spider Stopper
G u a rds at least once a ye a r. Also inspect and clean
the Spider Stopper Guards if any of the fo l l ow i n g
symptoms should ever occur.

1. The smell of gas in conjunction with the burner flames
appearing yellow and lazy.

2. Barbecue does not reach temperature.

3. Barbecue heats unevenly.

4. One or more of the burners do not ignite.

Your Weber Gas Barbecue, as well as any outdoor gas
appliance, is a target for spiders and other insects. T h e y
can nest in the venturi section of the burner tubes. T h i s
blocks the normal gas flow, and can cause the gas to flow
back out of the air shutter. Figure 4. This could result in a
fire in and around the air shutters, under the control panel,
causing serious damage to your barbecue.

Venturi

Air shutter

The Spider Stopper Guard is factory installed. It fits tightly
around the air shutter section of the burner tube and the
valve, thereby preventing spiders and other insects access
to the burner tubes through the air shutter openings.
Figure 5.

Venturi fin

Figure 4

DANGER

Failure to correct these symptoms
m ay result in a fire which can cause
serious bodily injury or death and cause
damage to property.

Inspection and Cleaning of the Spider
Stopper Guards

To inspect the Spider Stopper Guards, remove the control
panel and look to see if they have dust or dirt on their
outside surfaces. If they are dirty, brush off the outside
surface of the Spider Stopper Guards with a soft bristle
brush (an old toothbrush for example). Check that there
are no gaps in the Spider Stopper Guards’ seams or in
the fit around the burners or valves.

Spider Stopper

Guard

Figure 5

9

MAINTENANCE

Main Burner Cleaning Procedure

Turn off the gas supply. Remove the manifold. Look

inside each burner with a flashlight. Figure 7.

Clean the inside of the burners with a wire (a straightened
out coat hanger will work). Figure 8. Check and clean the
air shutter opening at the ends of the burners. Check and
clean the valve orifices at the base of the valves. Use a
brass bristle brush to clean outside of burners. This is to
make sure all the burner ports are fully open.

CAUTION: Do not enlarge the burner ports when
cleaning.

Figure 7

Figure 8

Replacing the Burners

Main Burner Flame Pattern

The Weber Gas Barbecue burners have been factory set
for the correct air and gas mixture. The correct flame
pattern is shown in Figure 6.

Tips occasionally yellowish

Burner inside
cooking box

Figure 6

If the flames do not appear to be uniform the length of the
burner tube, follow the burner cleaning procedures.

Light blue

Dark blue

1 . Your Weber Gas Barbecue must be OFF and cool.
2 . Turn OFF gas at source.
3 . Disconnect regulator.
4 . To remove control panel refer to “Remove the control

panel and the front panel” in the Step-By-Step Guide.
5 . Remove splash guards.
6 . Remove cooking grates.
7 . Remove Flavorizer bars.

8. Remove the manifold by unsnapping the clips at the

right and left front of the cooking box. Figure 9.

Summit 400

Summit 600

Figure 9

10

MAINTENANCE

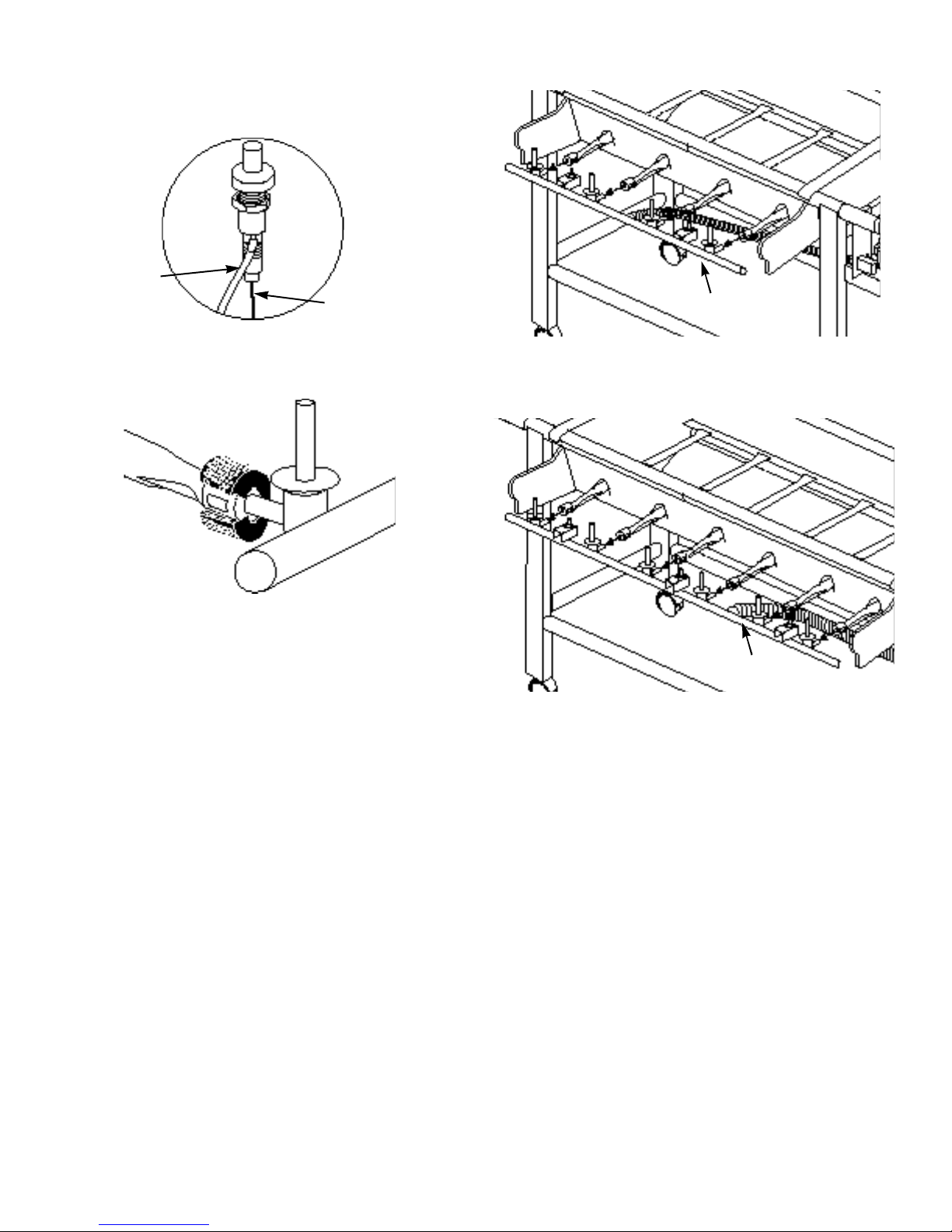

9. Disconnect white and black wire from each igniter.
Figure 10.

White wire

Figure 10

10. Unlatch the Spider Stopper Guards and remove.
Figure 11.

Black wire

11. Pull the manifold out of the burners. Figure 12.

Manifold

Summit 400

Figure 11

Manifold

Summit 400

Figure 12

11

MAINTENANCE

12. Slide the burner assembly from each Heat Zone. The
left and right burners are connected by the Crossover
tube. Figure 13 (a).

Figure 13

Crossover tube

Pull out of here

14. To reinstall the burners, reverse steps 3 through 13.

CAUTION: The burner openings must be positioned
properly over the valve orifices. Figure 15 (a).

Check proper assembly before fastening manifold in
place. Figure 15 (b).

(a)

Valve

Burner

(b)

13. Lift and twist the burner assembly slightly to separate
the crossover tube from the burners. Remove the
burners from the cooking box. Figure 14.

Separate here

Crossover tube

Figure 14

Figure 15

15. Reinstall the Spider Stopper Guards. Slightly rotate
the Spider Stopper Guards so that the seams are in
line with the Venturi fins. There should be no gaps in
the seams or in the fit around the burners and valves.
Figure 16.

Check fit
around valve

Venturi fin

Check fit around burner

Figure 16

12

MAINTENANCE

Crossover Ignition System Operations

If the Crossover Ignition System fails to ignite the Front
burner, light the Front burner with a match. If the Front
burner lights with a match, then check the Crossover
Ignition System.

■ Check that both the white and black ignition wires are
attached properly. Figure 17.

■ Check that the Crossover Ignition button pushes the
igniter (button) down, and returns to the up position.

■ Check to see if the igniter is loose in the frame.
Tighten if necessary; See Step “Install igniter” for
correct procedure.

If the Crossover Ignition System still fails to light, contact
Weber-Stephen Customer Service.

White wire

Black wire

Figure 17

13

TROUBLESHOOTING

Problem

Burners burn with a yellow or orange flame,
in conjunction with the smell of gas.

Burner does not light, or flame is low
in HIGH position.

Experiencing flare-ups:

CAUTION: Do not line the bottom tray
with aluminum foil.

Burner flame pattern is erratic. Flame is low
when burner is on HIGH. Flames do not run
the whole length of the burner tube.

Inside of lid appears to be “peeling.”
(Resembles paint peeling.)

Check

Inspect Spider Stopper Guards for
possible obstructions. (Blockage of
holes.)

Is fuel hose bent or kinked?

Does the Front burner light with a
match?

Are you preheating barbecue in the
prescribed manner?

Are the cooking grates and
Flavorizer Bars heavily coated with
burned-on grease?

Is the bottom tray "dirty" and not
allowing grease to flow into catch pan?

Are burners clean?

The lid is porcelain-on-steel, not
paint. It cannot “peel.” What you are
seeing is baked on grease that has
turned to carbon and is flaking off.

THIS IS NOT A DEFECT.

Cure

Clean Spider Stopper Guards.
(See Maintenance Section.)

Straighten fuel hose.

If you can light the Front
burner with a match, then
check the Crossover Ignition
System.(See Maintenance
Section.)

All burners on high for 10 to 15
minutes for preheating.

Clean thoroughly. (See
Cleaning Section.)

Clean bottom tray.

Clean burners. (See
Maintenance Section.)

Clean thoroughly. (See
Cleaning Section.)

If the problem cannot be corrected using these methods, please contact your Weber-Stephen Customer Service.

14

15

EXPLODED VIEW FOR SUMMIT 400 NG

16

REPLACEMENT PARTS LIST FOR SUMMIT 400 NG

1 Cooking grate
2 Flavorizer Bars (7)
3 Left work surface
4 Glides (4)
5 Phillips head 1/4-20 x 1 inch machine screws (4)
6 Cooking box (assembly)
7 Burner control knobs (4)
8 Igniter (2)

9 Igniter lock nut (2)
10 Igniter wire (black) (2)
11 Igniter wire (white) (2)
12 Gas catcher ignition chamber (2)
13 Manifold mounting clips (2)
14 Manifold assembly / Corrugated gas line
15 Igniter buttons (2)
16 Control panel
17 Front panel
18 Match holder bracket
19 Plastic button
20 Caster frame
21 Match holder
22 1/4-20 x 3 1/2 inch bolt (4)
23 Bottom tray
24 Catch pan holder
25 Casters (2)
26 Catch pan
27 Drip pans (2)
28 Accessory rack
29 Bottom connectors (2)
30 Splash guards (2)
31 Flavorizer bar / Cooking grate holders (2)
32 Right work surface
33 Crossover tubes (2)
34 Left burner (2)
35 Right burner (2)
36 Top frame rail #1 (2)
37 Top frame rail #2 (2)
38 Plastic handle (4)
39 #8-16 x 1 inch screw (8)
40 1/4-20 x 1/2 inch bolts (10)
41 1/4 inch nylon washers (10)
42 Back panel
43 Wheel frame
44 Wheel hub caps (2)
45 Wheels (2)
46 Regulator mounting bracket
47 Hose
48 Tool holder (4)
49 1/4-20 keps nut (2)

All items are single quantities unless otherwise specified.
Parts can be ordered directly from Weber-Stephen

Products Company by phone or mail.

Note - Do not return parts to Weber-Stephen Products Co.
without first contacting the Customer Service Center by
phone or mail. R e t u rning the part may not be necessary.

While we give much attention to our products,
unfortunately an occasional error may occur. If a part is
missing, do not go back to the store. Call the Weber
Customer Service Center toll free 1-888-33-SUMMIT
(1-888-337-8664) to receive immediate assistance. Have
your owner’s manual and serial number of the barbecue
available for reference.

Weber-Stephen Products Company
Customer Service Center
250 South Hicks Road
Palatine, IL 60067-6241
(888) 33-SUMMIT
(888-337-8664)

WARNING:
Use only Weber factory authorized part s .T h e
use of any part that is not factory authorized can
be dange ro u s .This will also void your warranty.

17

EXPLODED VIEW FOR SUMMIT 600 NG

18

REPLACEMENT PARTS LIST FOR SUMMIT 600 NG

1 Cooking grates (3)

2 Flavorizer Bars (11)

3 Left work surface

4 Glides (4)

5 Phillips head 1/4-20 x 1 inch machine screws (4)

6 Cooking box (assembly)

7 Burner control knobs (6)

8 Igniter (3)

9 Igniter lock nut (3)
10 Igniter wire (black) (3)
11 Igniter wire (white) (3)
12 Gas catcher ignition chamber (3)
13 Manifold mounting clips (2)
14 Manifold assembly / Corrugated gas line
15 Igniter buttons (3)
16 Control panel
17 Front panel
18 Match holder bracket
19 Plastic button
20 Caster frame
21 Match holder
22 1/4-20 x 3 1/2 inch bolt (4)
23 Casters (2)
24 Accessory rack
25 Bottom tray
26 Catch pan holder
27 Catch pan
28 Drip pans (2)
29 Splash guards (2)
30 Flavorizer bar / Cooking grate holders (2)
31 Right work surface
32 Crossover tubes (3)
33 Left burner (3)
34 Right burner (3)
35 Top frame rail #1 (2)
36 1/4-20 x 1/2 inch bolts (10)
37 1/4 inch nylon washers (10)
38 Back panel
39 Top frame rail #2 (2)
40 Plastic handle (4)
41 #8-16 x 1 inch screw (8)
42 Wheel frame
43 Wheels (2)
44 Wheel hub caps (2)
45 Regulator mounting bracket
46 Hose
47 Bottom connectors (2)
48 Tool holder (4)
49 1/4-20 keps nut (2)

All items are single quantities unless otherwise specified.
Parts can be ordered directly from Weber-Stephen

Products Company by phone or mail.

Note - Do not return parts to Weber-Stephen Products Co.
without first contacting the Customer Service Center by
phone or mail. R e t u rning the part may not be necessary.

While we give much attention to our products,
unfortunately an occasional error may occur. If a part is
missing, do not go back to the store. Call the Weber
Customer Service Center toll free 1-888-33-SUMMIT
(1-888-337-8664) to receive immediate assistance. Have
your owner’s manual and serial number of the barbecue
available for reference.

Weber-Stephen Products Company
Customer Service Center
250 South Hicks Road
Palatine, IL 60067-6241
(888) 33-SUMMIT
(888-337-8664)

WARNING:
Use only Weber factory authorized part s .T h e
use of any part that is not factory authorized can
be dange ro u s .This will also void your warranty.

19

PATENTS & TRADEMARKS

© 1996 Weber-Stephen Products Co. Weber, the silhouette, Flavorizer and Crossover are registered
U.S. trademarks; Summit, Grill Cozy, Gas Catcher, Spider Stopper, and Steam-N-Chips, are
trademarks, all of Weber-Stephen Products Co., 200 East Daniels Road, Palatine, IL 60067-6266.
U.S.A.

Summit Series Gas Barbecues are covered by U.S. Patent Nos. 4,677,964; 4,727,853; 4,777,927;
4,829,978; 4,860,724; 4,941,817; and 4,966,125; and, Canada patent Nos. 1,283,586 and 1,300,995.
Printed in the U.S.A.
