Weber D6, D4 User Manual 2

SUMMIT

PLATINUM D4 & D6

BUILT-IN NG GAS GRILL OWNER'S GUIDE

42374

YOU MUST READ THIS OWNERS GUIDE

BEFORE OPERATING YOUR GAS GRILL

 DANGER

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open ﬂ ames.

3. Open lid.

4. If odor continues, keep away from the appliance and immediately call your gas supplier or your ﬁ re department.

Leaking gas may cause a ﬁ re or explosion which can cause serious bodily injury or death, or damage to property.

 WARNING

1. Do not store or use gasoline or other ﬂ ammable liquids or vapors in the vicinity of this or any other appliance .

2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

 WARNING: Follow all leak-check

procedures carefully in this manual prior to barbecue operation. Do this even if the barbecue was dealer-assembled.

NOTICE TO INSTALLER: These instructions must be left with the owner and the owner should keep them for future use.

THIS GAS APPLIANCE IS DESIGNED FOR OUTDOOR USE ONLY.

WARNING: Do not try to light this appliance

without reading the “Lighting Instructions” section of this manual.

42374 US 10/03/05

US English

Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual may result in serious bodily injury or death, or in a ﬁ re or an explosion causing damage to property.

 Do not store a spare or disconnected liquid propane cylinder under or near this barbecue.  Improper assembly may be dangerous. Please follow the assembly instructions carefully.  After a period of storage, and/or nonuse, the Weber® gas barbecue should be checked for gas leaks and burner

obstructions before use. See instructions in this manual for correct procedures.

 Do not operate the Weber® gas barbecue if there is a gas leak present.  Do not use a ﬂ ame to check for gas leaks.

 Combustible materials should never be within 24 inches of the back or sides of your Weber® gas barbecue.  Do not put a barbecue cover or anything ﬂ ammable on, or in the storage area under the barbecue.  Your Weber® gas barbecue should never be used by children. Accessible parts of the barbecue may be very hot.

Keep young children away while it is in use.

 You should exercise reasonable care when operating your Weber® gas barbecue. It will be hot during cooking or

cleaning and should never be left unattended, or moved while in operation.

 Should the burners go out while in operation, turn all gas valves off. Open the lid and wait ﬁ ve minutes before

attempting to relight, using the lighting instructions.

 Do not use charcoal or lava rock in your Weber® gas barbecue.  Never lean over open grill or place hands or ﬁ ngers on the front edge of the cooking box.  Should a grease ﬁ re occur, turn off all burners and leave lid closed until ﬁ re is out.  Do not enlarge valve oriﬁ ces or burner ports when cleaning the valves or burners.  The Weber® gas barbecue should be thoroughly cleaned on a regular basis.  Liquid propane gas is not natural gas. The conversion or attempted use of natural gas in a liquid propane unit or

liquid propane gas in a natural gas unit is dangerous and will void your warranty.

 Do not attempt to disconnect any gas ﬁ tting while your barbecue is in operation.  Use heat-resistant barbecue mitts or gloves when operating barbecue.  Keep any electrical supply cord and the fuel supply hose away from any heated surfaces.  Combustion byproducts produced when using this product contain chemicals known to the state of California to

cause cancer, birth defects, or other reproductive harm.

 Do not use this barbecue unless all parts are in place. The unit must be properly assembled according to the

instructions outlined in the “Assembly Instructions”.

DANGERS & WARNINGS

DANGER

WARNINGS

LIQUID PROPANE GAS UNITS ONLY:

 Use the pressure regulator and hose assembly that is supplied with your Weber® gas barbecue.  Do not attempt to disconnect the gas regulator and hose assembly or any gas ﬁ tting while your barbecue is in

operation.

 A dented or rusty liquid propane cylinder may be hazardous and should be checked by your liquid propane supplier.

Do not use a liquid propane cylinder with a damaged valve.

 Although your liquid propane cylinder may appear to be empty, gas may still be present, and the cylinder should be

transported and stored accordingly.

 If you see, smell or hear the hiss of escaping gas from the liquid propane cylinder:

1. Move away from liquid propane cylinder.

2. Do not attempt to correct the problem yourself.

3. Call your ﬁ re department.

WARRANTY

Weber-Stephen Products Co. (Weber) hereby warrants to the ORIGINAL PURCHASER of this Weber and workmanship from the date of purchase as follows:

gas grill that it will be free of defects in material

Aluminum Castings, lifetime, 1 year paint

Stainless Steel Hood Section, 25 years Porcelain Hood Section, 25 years Burners, 10 years Igniter, 3 years Porcelain Enameled Cooking Grates, 3 years no rust through Porcelain Enameled Cast Iron Cooking Grates, 5 years no rust

Weber® is not liable for any special, indirect or consequential damages. Some regions do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you. Weber® does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on Weber®. This Warranty applies only to products sold at retail.

WEBER-STEPHEN PRODUCTS CO. Customer Service Center 1890 Roselle Road, Suite 308 Schaumburg, IL 60195 USA

www.weber.com

through Stainless Steel Cooking Grates, 7 years no rust through Porcelain Enameled Flavorizer® Bars, 1 year no rust through

The natural gas supply is easy to use and gives you more cooking control than charcoal fuel.

• These instructions will give you the minimum requirements for

Stainless Steel Flavorizer® Bars, 5 year no rust through Thermoplastic/Thermoset Parts, 10 years Excluding

• Not for use by children.

• If there are local codes that apply to portable gas grills, you will have to

fading Rotisserie and all related components, 1 year

• This Weber® gas barbecue is designed for natural (piped in city) gas only.

All Remaining Parts, 5 years

when assembled and operated in accordance with the printed instructions accompanying it. Weber may require reasonable proof of your date of purchase. THEREFORE, YOU SHOULD RETAIN YOUR SALES SLIP OR INVOICE. This Limited Warranty shall be limited to the repair or replacement of parts that prove defective under normal use and service and which on examination shall indicate, to Weber’s satisfaction, they are defective. Before returning any parts, contact the Customer service representative in your region using the contact information sheet provided with your manual. If Weber defect and approves the claim, Weber® will elect to replace such parts without charge. If you are required to return defective parts, transportation charges must be prepaid. Weber prepaid. This Limited Warranty does not cover any failures or operating difﬁ culties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or service, or failure to perform normal and routine maintenance, including but not limited to damage caused by insects within the burner tubes, as set out in this owner’s manual. Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes or tornadoes, discoloration due to exposure to chemicals either directly or in the atmosphere, is not covered by this Limited Warranty.

will return parts to the purchaser, freight or postage

conﬁ rms the

• Do not use with charcoal fuel.

• Check that the area under the control panel and the bottom tray are free

STORAGE

• The gas must be turned OFF at the natural gas supply when the Weber®

• Check that the areas under the control panel and the slide out bottom

• The Spider /Insect Screens should also be checked for any obstructions.

assembling your Weber carefully before using your Weber® gas barbecue. Improper assembly can be dangerous.

conform to them. If there are no local codes, you must conform to the latest edition of the National Fuel Gas Code: ANSI Z 223.1/NFPA54.

Do not use liquid propane (LP) bottled gas. The valves, oriﬁ ces and hose are for natural gas only.

from debris that might obstruct the ﬂ ow of combustion or ventilation air.

gas barbecue is not in use.

tray are free from debris that might obstruct the ﬂ ow of combustion or ventilation air.

(See Section: “Annual Maintenance.”)

gas barbecue. Please read the instructions

There are no other express warrants except as set forth herein and any applicable implied warranties of merchantability and ﬁ tness are limited in duration to the period of coverage of this express written Limited Warranty. Some regions do not allow limitation on how long an implied warranty lasts, so this limitation may not apply to you.

GENERAL INSTRUCTIONS

OPERATING

 WARNING: Only use this barbecue outdoors in a

well-ventilated area. Do not use in a garage, building, breezeway or any other enclosed area.

 WARNING: Your Weber® gas barbecue shall not be

used under an unprotected combustible roof or overhang.

 WARNING: Your Weber® gas barbecue is not intended

to be installed in or on recreational vehicles and/or boats.

 WARNING: Do not use the barbecue within 24 inches

of combustible materials, top, bottom, back or sides of the grill.

 WARNING: The entire cooking box gets hot when in

use. Do not leave unattended.

 WARNING: Keep any electrical supply cord and the fuel

supply hose away from any heated surface.

 WARNING: Keep the cooking area clear of ﬂ ammable

vapors and liquids, such as gasoline, alcohol, etc., and combustible materials.

 ATTENTION: This product has been safety tested and is only certiﬁ ed for use in a speciﬁ c country. Refer to country designation located on outer carton.

GAS SUPPLY TESTING

• Disconnect your Weber® gas barbecue when the gas supply is being tested at high pressures. This appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa).

• Turn OFF your Weber® gas barbecue when the gas supply is being tested at low pressures. This appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at the pressure equal to or less than 1/2 psig (3.5 kPa).

GRILLING METHODS

NOTE: If grill looses heat while cooking refer to the troubleshooting section of this manual.

 WARNING: Do not move the Weber® gas barbecue

when operating or while barbecue is hot.

You can adjust the Left and Right burners in each burner set as desired. The control settings are High (H), Medium (M), Low (L), or Off (O).

Note: The temperature inside your cooking box for the ﬁ rst few uses, while surfaces are still very reﬂ ective, may be hotter than those shown in your cookbook. Cooking conditions. Such as wind and weather, may require the adjustment of the burner controls to obtain the correct cooking temperatures.

These parts may be gas carrying or gas burning components. Please contact Weber-Stephen Products Co., Customer Service Department for genuine Weber-Stephen Products Co. replacement part(s) information.

 WARNING: Do not attempt to make any repair to gas carrying or gas burning components without contacting Weber-Stephen Products Co., Customer Service Department. Your actions, if you fail to follow this product Warning, may cause a ﬁ re or an explosion resulting in serious personal injury or death and damage to property.

GENERAL INSTRUCTIONS

If burners go out during cooking, open lid, turn off all burners and wait ﬁ ve minutes before relighting. Preheating - Your Weber® gas barbecue is an energy-efﬁ cient appliance. It

operates at an economical low BTU rate. To preheat: after lighting, close lid and turn all burners to high (HH). Preheating to between 500° and 550° F (260° and 290° C) will take 10 to 15 minutes depending on conditions such as air temperature and wind. Drippings and grease - The Flavorizer® bars are designed to “smoke” the correct amount of drippings for ﬂ avorful cooking. Excess drippings and grease will accumulate in the catch pan under the slide out bottom tray. Disposable foil drip pans are available that ﬁ t the catch pan.

 WARNING: Check the bottom tray for grease build-up

before each use. Remove excess grease to avoid a grease ﬁ re in the slide out bottom tray.

CLEANING

 WARNING: Turn your Weber® gas barbecue OFF and

wait for it to cool before cleaning.

 CAUTION: Do not clean your Flavorizer® bars or

cooking grates in a self-cleaning oven.

For availability of replacement cooking grates and Flavorizer® bars contact the Customer Service Representative in your area using the contact information on our website. Log onto www.weber.com

Outside surfaces - Use a warm soapy water solution to clean, then rinse with

water.

 CAUTION: Do not use oven cleaner, abrasive cleansers

(kitchen cleansers) cleaners that contain citrus products, or abrasive cleaning pads on barbecue or cart surfaces.

Slide out Bottom tray - Remove excess grease, then wash with warm soapy

water, then rinse

Flavorizer® bars and Cooking grates - Clean with a suitable brass bristle brush. As needed, remove from grill and wash with warm soapy water, then rinse with water.

Catch pan - Disposable foil trays are available, or you can line the catch pan with aluminum foil. To clean the catch pan, wash with warm soapy water, then rinse.

Thermometer - Wipe with warm soapy water; clean with plastic scrub ball.

Inside cooking module - Brush any debris off of burner tubes. DO NOT ENLARGE BURNER PORTS (OPENINGS). Wash inside of cooking box with

warm soapy water and a water rinse.

Inside Lid - While lid is warm, wipe inside with paper towel to prevent grease build-up. Flaking built-up grease resembles paint ﬂ akes.

Stainless steel surfaces - Wash with a soft cloth and a soap and water solution. Be careful to scrub with the grain direction of the stainless steel.

Thermoset surfaces - Wash with a soft cloth and a soap and water solution.

Do not use cleaners that contain acid, mineral spirits or xylene. Rinse well after cleaning.

Thermoset work surfaces are not to be used as cutting boards.

Preserve Your Stainless Steel

Your grill or its cabinet, lid, control panel and shelves may be made from stainless steel. To keep the stainless steel looking its best is a simple matter. Clean it with soap and water, rinse with clear water and wipe dry. For stubborn particles, the use of anon-metallic brush can be used.

 IMPORTANT: Do not use a wire brush or abrasive cleaners on the stainless steel surfaces of your grill as this will cause scratches.

 IMPORTANT: When cleaning surfaces be sure to rub/ wipe in the direction of the grain to preserve the look of your stainless steel.

GAS INSTRUCTIONS

CHECK FOR GAS LEAKS

 DANGER

Do not use an open ﬂ ame to check for gas leaks. Be sure there are no sparks or open ﬂ ames in the area while you check for leaks. Sparks or open ﬂ ames will result in a ﬁ re or explosion which can cause serious bodily injury or death and damage to property.

 WARNING: You should check for gas leaks every time

you disconnect and reconnect a gas ﬁ tting.

Note - All factory-made connections have been thoroughly checked for gas leaks. The burners have been ﬂ ame-tested. As a safety precaution however, you should recheck all ﬁ ttings for leaks before using your Weber® gas barbecue. Shipping and handling may loosen or damage a gas ﬁ tting.

 WARNING: Perform these leak checks even if your

barbecue was dealer or store assembled.

You will need: a soap and water solution, and a rag or brush to apply it.

Turn on gas supply. Check for leaks by wetting the connections with the soap and water solution and watching for bubbles. If bubbles form or if a bubble grows, there is a leak.

Note - Since some leak test solutions, including soap and water, may be slightly corrosive, all connections should be rinsed with water after checking for leaks.

 WARNING: Do not ignite burners when leak checking.

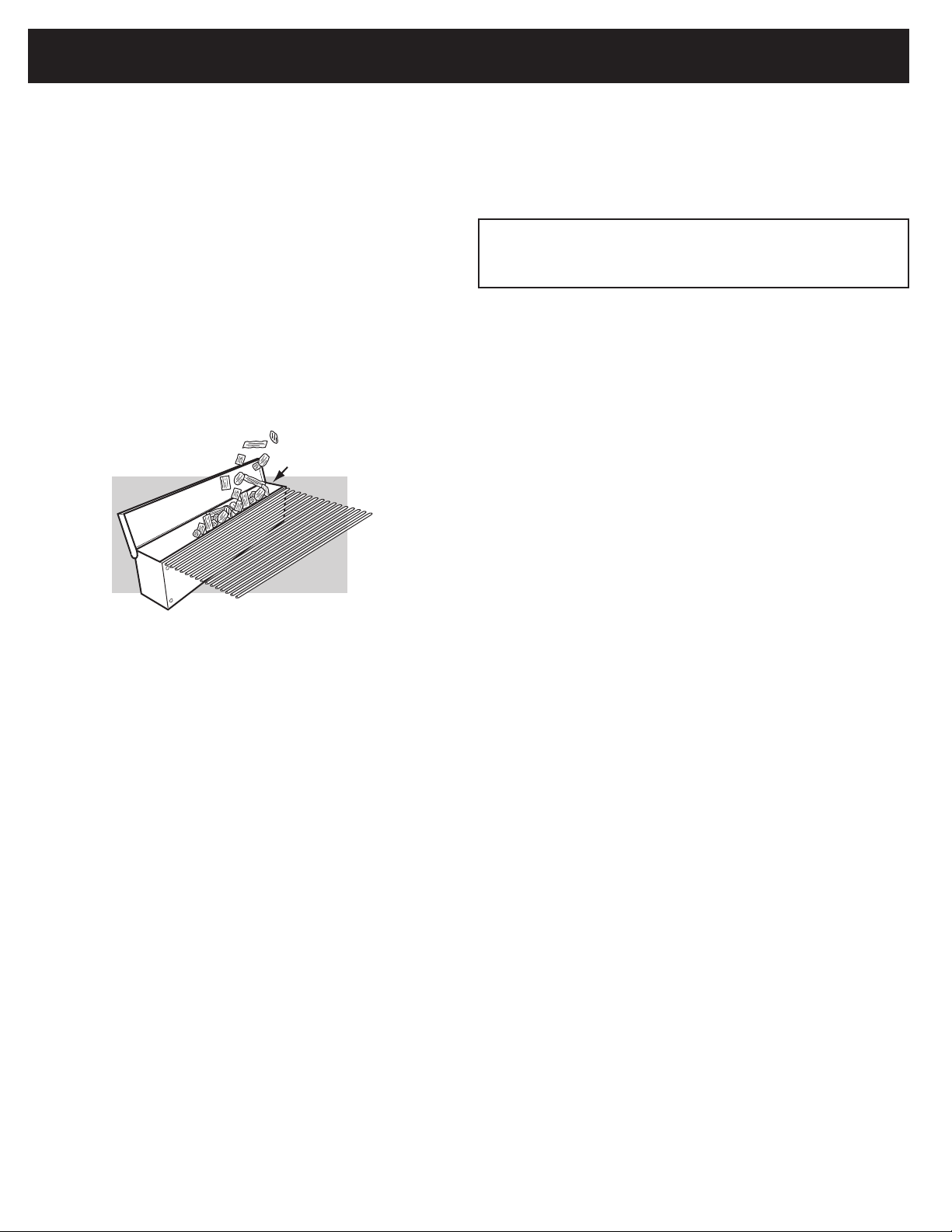

REMOVE CONTROL PANEL

Part required: Phillips Screwdriver. Remove the burner control knobs (1). The screws (2) need to be removed from the control panel (3) before the control panel is removed from the grill.

(1)

(2)

(3)

WARNING: The gas connections of your Summit

gas grill have been factory tested. We do however recommend that you leak check all gas connections before operating your Summit® gas grill.

(1)

(2)

(3)

GAS INSTRUCTIONS

Completely remove the control panel (4) from the cooking box assembly exposing the valves, burners, igniter, and manifold.

Remove the Front Panel by sliding the panel up and out of the slots.Put your ﬁ ngers under the front edge of the control panel and lift off.

(4)

(2)

(4)

(2)

GAS INSTRUCTIONS

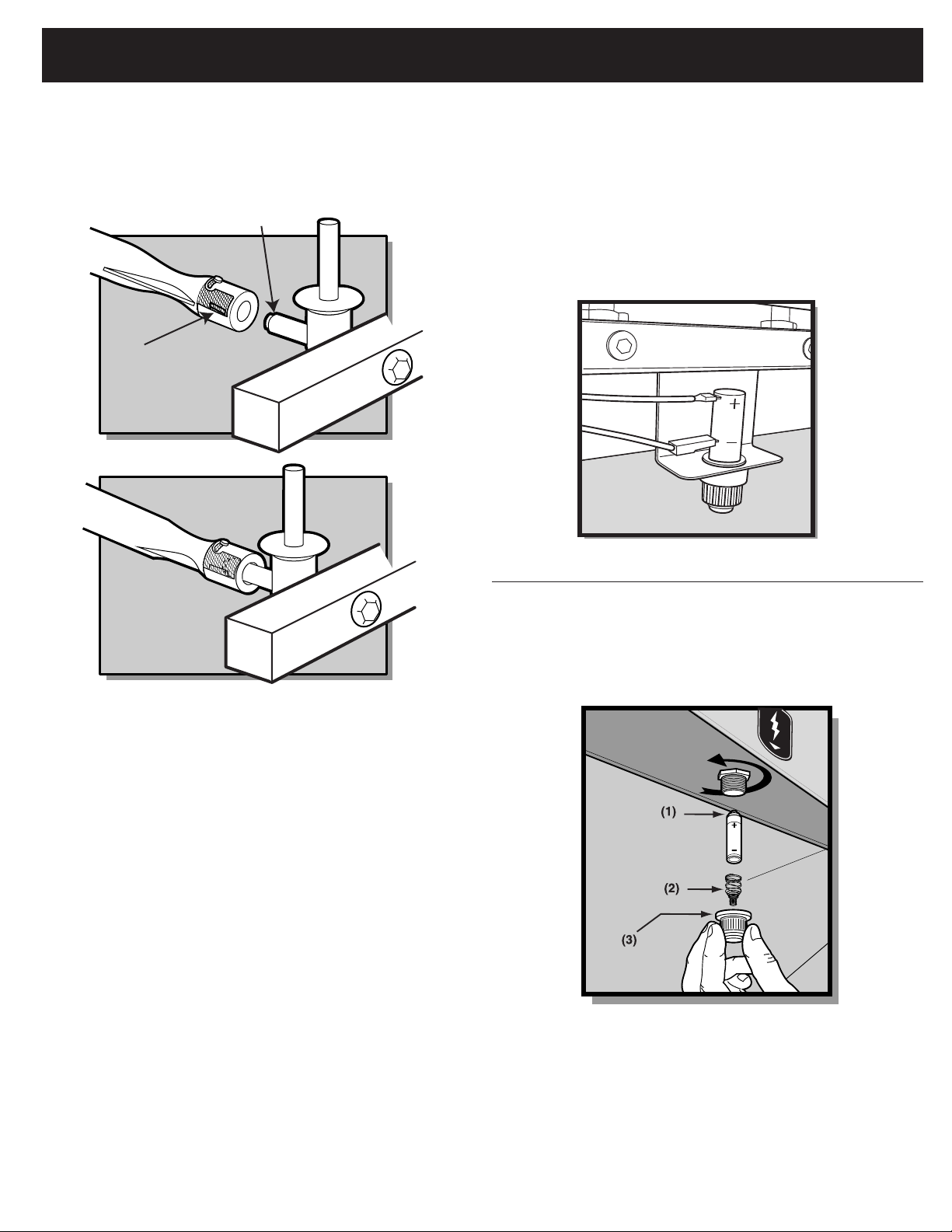

Check:

1) Gas line-to-manifold connections.

 WARNING: If there is a leak at connection (1), retighten the ﬁ tting with a wrench and recheck for leaks with soap and

water solution. If a leak persists after re-tightening the ﬁ tting, turn OFF the gas. DO NOT OPERATE THE GRILL. Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com®.

2) Valves to manifold connections.

 WARNING: If there is a leak at connections (2), turn OFF the gas. DO NOT OPERATE THE GRILL. Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber. com®.

When leak checks are complete, turn gas supply OFF at the source and rinse connections with water.

(1)

(2)

(1)

(2)

GAS INSTRUCTIONS

REINSTALL CONTROL PANEL

Parts required: control panel, screws, and burner control knobs.

Place the control panel back onto the control panel brackets on either side of the front of the cooking box. Line up screws with screw holes on both the control panel and control panel brackets. Tighten screws. Reinstall burner control knobs & igniter wires (if necessary). Place corresponding control knobs down onto the valve stems. From the underside of the control

panel, replace the two wires (1, 2) of each igniter.

(1)

(2)

1 = Solid Blue Wire 2 = White Tab with Black Wire 3 = Yellow Tab with Black Wire 4 = Blue Tab with Black Wire

1 = Grounding Wire 2 = Solid Red Wire 3 = Green Tab with Black Wire 4 = White Tab with Black Wire 5 = Yellow Tab with Black Wire 6 = Blue Tab with Black Wire
