Weber 43154 User Manual

GAS GRILL

Built-In LP Gas Grill Owner’s Guide

S-640

#43154

#00000

YOU MUST READ THIS OWNER’S GUIDE

BEFORE OPERATING YOUR GAS GRILL

 DANGER

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flames.

3. Open lid.

4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.

Leaking gas may cause a fire or explosion which can cause serious bodily injury or death, or damage to property.

 WARNING:

1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.

2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

 WARNING: Follow all leak-check

procedures carefully in this manual prior to barbecue operation. Do this even if the barbecue was dealer-assembled.

NOTICE TO INSTALLER: These instructions must be left with the owner and the owner should keep them for future use.

THIS GAS APPLIANCE IS DESIGNED FOR OUTDOOR USE ONLY.

 WARNING: Do not try to light this

appliance without reading the “Lighting Instructions” section of this manual.

43154 US 03/03/08

US ENGLISH

WARNINGS

DANGERS AND WARNINGS

Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property.

 Do not store a spare or disconnected liquid propane cylinder under or near this barbecue.  Improper assembly may be dangerous. Please follow the assembly instructions carefully.  After a period of storage, and/or nonuse, the Weber® gas barbecue should be checked for gas leaks and burner obstructions

before use. See instructions in this manual for correct procedures.

 Do not operate the Weber® gas barbecue if there is a gas leak present.  Do not use a flame to check for gas leaks.  Combustible materials should never be within 24 inches (61 cm) of the back or sides of your Weber® gas barbecue.  Do not put a barbecue cover or anything flammable on, or in the storage area under the barbecue.  Your Weber® gas barbecue should never be used by children. Accessible parts of the barbecue may be very hot. Keep young

children away while it is in use.

 You should exercise reasonable care when operating your Weber® gas barbecue. It will be hot during cooking or cleaning and

should never be left unattended, or moved while in operation.

 Should the burners go out while in operation, turn all gas valves off. Open the lid and wait five minutes before attempting to

relight, using the lighting instructions.

 Do not use charcoal or lava rock in your Weber® gas barbecue.  Never lean over open grill or place hands or fingers on the front edge of the cooking box.  Should a grease fire occur, turn off all burners and leave lid closed until fire is out.  Do not enlarge valve orifices or burner ports when cleaning the valves or burners.  The Weber® gas barbecue should be thoroughly cleaned on a regular basis.  Liquid propane gas is not natural gas. The conversion or attempted use of natural gas in a liquid propane unit or liquid propane

gas in a natural gas unit is dangerous and will void your warranty.

 Do not attempt to disconnect any gas fitting while your barbecue is in operation.  Use heat-resistant barbecue mitts or gloves when operating barbecue.  Keep any electrical supply cord and the fuel supply hose away from any heated surfaces.  Combustion byproducts produced when using this product contain chemicals known to the state of California to cause cancer,

birth defects, or other reproductive harm.

 Do not use this barbecue unless all parts are in place. The unit must be properly assembled according to the assembly

instructions.

 Proposition 65 Warning: Handling the brass material on this product exposes you to lead, a chemical known to the state of

California to cause cancer, birth defects or other reproductive harm.

(Wash hands after handling this product.)

LIQUID PROPANE GAS UNITS ONLY:

 Use the pressure regulator and hose assembly that is supplied with your Weber® gas barbecue.  Do not attempt to disconnect the gas regulator and hose assembly or any gas fitting while your barbecue is in operation.  A dented or rusty liquid propane cylinder may be hazardous and should be checked by your liquid propane supplier. Do not

use a liquid propane cylinder with a damaged valve.

 Although your liquid propane cylinder may appear to be empty, gas may still be present, and the cylinder should be

transported and stored accordingly.

 If you see, smell or hear the hiss of escaping gas from the liquid propane cylinder:

1. Move away from liquid propane cylinder.

2. Do not attempt to correct the problem yourself.

3. Call your fire department.

 DANGER

 WARNINGS

WWW.WEBER.COM

WARRANTY

Weber-Stephen Products Co. (Weber) hereby warrants to the ORIGINAL PURCHASER of this Weber® gas grill that it will be free of defects in material and workmanship from the date of purchase as follows:

Aluminum castings 25-years (2 years on paint; excludes fading) Stainless steel Shroud, 25-years; Porcelain-enameled shroud, 25-years Cookbox Assembly 10-years (2 year on paint excludes fading) Stainless steel burners tubes, 10-years Stainless steel cooking grates, 5-years no rust through or burn through Stainless steel Flavorizer bars, 5-years no rust through or burn through Porcelain-enameled cast-iron cooking grates, 5-year no rust through or burn through Porcelain-enameled cooking grates, 3-years no rust through or burn through Porcelain-enameled Flavorizer bars, 2-years no rust through or burn through Infrared Rotisserie Burner, 2-years All remaining parts, 2-years

When assembled and operated in accordance with the printed instructions accompanying it. Weber may require reasonable proof of your date of purchase. THEREFORE, YOU SHOULD RETAIN YOUR SALES SLIP OR INVOICE. This Limited Warranty shall be limited to the repair or replacement of parts that prove defective under normal use and service and which on examination shall indicate, to Weber’s satisfaction, they are defective. Before returning any parts, contact the Customer Service Representative in your area using the contact information on our website. If Weber confirms the defect and approves the claim, Weber will elect to replace such parts without charge. If you are required to return defective parts, transportation charges must be prepaid. Weber will return parts to the purchaser, freight or postage prepaid. This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or

service, or failure to perform normal and routine maintenance, including but not limited to damage caused by insects within the burner tubes, as set out in this owner’s manual. Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes or tornadoes, discoloration due to exposure to chemicals either directly or in the atmosphere, is not covered by this Limited Warranty.

There are no other express warrants except as set forth herein and any applicable implied warranties of merchantability and fitness are limited in duration to the period of coverage of this express written Limited Warranty. Some regions do not allow limitation on how long an implied warranty lasts, so this limitation may not apply to you. Weber is not liable for any special, indirect or consequential damages. Some regions do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you. Weber does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on Weber. This Warranty applies only to products sold at retail.

WEBER-STEPHEN PRODUCTS CO. Customer Service Center 1890 Roselle Road, Suite 308 Schaumburg, IL 60195 USA

For replacement parts call: 1-800-446-1071 www.weber.com

WWW.WEBER.COM

EXPLODED VIEW S-640

(

)

$% $&

$( $)

S640_LP_US

&% &&

&( &)

((

()

WWW.WEBER.COM

EXPLODED VIEW LIST S-640

Shroud Hardware1.

Disposable Drip Pan20.

Smoker Box39.

Shroud2.

Thermometer3.

Thermometer Bezel4.

Handle5.

Qrill Out6.

Rotisserie Motor7.

Rotisserie Bracket8.

Warming Rack9.

Handle Light

Drip Tray21.

Catch Pan22.

Catch Pan Holder23.

Left Rear Panel24.

Left Panel25.

Left Door26.

Door Handles27.

Right Door28.

Smoker Bar40.

Smoker Burner41.

Cookbox42.

Bulkhead43.

Manifold Hose44.

Hose / Regulator45.

Rear Frame Support46.

Vent Cover47.

Cooking Grates10.

Flavorizer11.

Burner Tubes12.

Manifold13.

Control Panel14.

Small Knob Bezel15.

Small Knob16.

Large Knob17.

Large Knob Bezel18.

Bars

Left Vent Bracket29.

Kick Vent30.

IR Burner Cover31.

Infrared Burner32.

IR Burner Box33.

IR Burner Igniter Wire34.

Thermocouple35.

IR Burner Hose36.

Rotisserie Spit Assembly37.

Front Frame Support48.

Right Rear Panel49.

Tank Scale50.

Tank Enclosure Bracket51.

Tank Glides52.

Tank Enclosure Base53.

Right Frame Panel54.

Matchstick Holder55.

Bottom Panel56.

Water Baffle / Heat Shield19.

WWW.WEBER.COM

Cooking Grate38.

Right Vent Bracket57.

WARRANTY

OPERATING

Liquid Propane (LP) gas supply is easy to use and gives you more cooking control than charcoal fuel.

• These instructions will give you the minimum requirements for assembling your

• Not for use by children.

• If there are local codes that apply to portable gas grills, you will have to conform to

• The pressure regulator supplied with the Weber® gas barbecue must be used.

• This Weber® gas barbecue is designed for use with liquid propane (LP) gas only.

• Do not use with charcoal fuel.

• Check that the area under the control panel and the bottom tray are free from

• The areas around the LP cylinder must be free and clear from debris.

• Replacement pressure regulators and hose assemblies must be those specified

gas barbecue. Please read the instructions carefully before using your

Weber

gas barbecue. Improper assembly can be dangerous.

Weber

them. Installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2 as applicable.

This regulator is set for 11 inches of water column (pressure).

Do not use with natural (piped in city) gas. The valves, orifices, hose and regulator are for LP gas only.

debris that might obstruct the flow of combustion or ventilation air.

by Weber-Stephen Products Co.

FOR INSTALLATION IN CANADA

These instructions, while generally acceptable, do not necessarily comply with the Canadian Installation codes, particularly with piping above and below ground. In Canada the installation of this appliance must comply with local codes and/or Standard CSA-B149.2 (Propane Storage and Handling Code).

 WARNING: Only use this barbecue outdoors in a well-

ventilated area. Do not use in a garage, building, breezeway or any other enclosed area.

 WARNING: Your Summit® Built-In gas barbecue shall not be

used under an unprotected combustible roof or overhang.

 WARNING: Do not use the barbecue within 24 inches (610

mm) of combustible materials, top, bottom, back or sides of the grill.

 WARNING: The entire cooking box gets hot when in use. Do

not leave unattended.

 WARNING: Keep any electrical supply cord and the fuel

supply hose away from any heated surface.

 WARNING: Keep the cooking area clear of flammable vapors

and liquids such as gasoline, alcohol, etc., and combustible materials.

 WARNING: Never store an extra (spare) LP cylinder under or

near the Weber

gas barbecue.

 WARNING: Keep the ventilation openings of the cylinder

enclosure free and clear of debris.

 WARNING: Turn off the gas at the LP gas supply cylinder

when the outdoor cooking gas appliance is not in use.

 WARNING: Never store an outdoor cooking gas appliance

indoors unless the LP cylinder is disconnected and removed from the outdoor cooking gas appliance.

 WARNING: LP cylinders must be stored outdoors out of

the reach of children and must not be stored in a building, garage, or any other enclosed area.

STORAGE AND/OR NONUSE

• The gas must be turned off at the liquid propane cylinder when the Weber® gas barbecue is not in use.

• LP cylinder must be stored outdoors in a well-ventilated area out of reach of children. Disconnected LP cylinder must not be stored in a building, garage or any other enclosed area.

• Check that the areas under the control panel and the slide out bottom tray are free from debris that might obstruct the flow of combustion or ventilation air.

• The Spider/Insect Screens should also be checked for any obstructions. (See Section: “Annual Maintenance.”)

GRILLING METHODS

Note: If grill loses heat while cooking refer to the troubleshooting section of this manual.

 WARNING: Do not move the Weber® gas barbecue when

operating or while barbecue is hot.

You can adjust the individual main burners as desired. The control settings are START/ HI, MEDIUM, LOW, or OFF.

Note: The temperature inside your cooking box for the first few uses, while surfaces are still very reflective, may be hotter than those shown in your cookbook. Cooking conditions, such as wind and weather, may require the adjustment of the burner controls to obtain the correct cooking temperatures.

If burners go out during cooking, open lid, turn off all burners and wait five minutes before relighting.

Preheating - Your Weber an economical low BTU rate. To preheat: after lighting, close lid and turn all burners to “START/HI”. Preheating to between 500° and 550° F (260° and 290° C) will take 10 to 15 minutes depending on conditions such as air temperature and wind.

Drippings and grease - The Flavorizer amount of drippings for flavorful cooking. Excess drippings and grease will accumulate in the catch pan under the slide out bottom tray. Disposable foil drip pans are available that fit the catch pan.

gas barbecue is an energy-efficient appliance. It operates at

bars are designed to “smoke” the correct

 WARNING: Check the bottom tray for grease build-up before

each use. Remove excess grease to avoid a grease fire in the slide out bottom tray.

CLEANING

 WARNING: Turn your Weber® gas barbecue off and wait for it

to cool before cleaning.

 CAUTION: Do not clean your Flavorizer® bars or cooking

grates in a self-cleaning oven.

For availability of replacement cooking grates and Flavorizer® bars contact the Customer Service Representative in your area using the contact information on our website. Log onto www.weber.com

Outside surfaces - Use a warm soapy water solution to clean, then rinse with water.

 CAUTION: Do not use oven cleaner, abrasive cleansers

(kitchen cleansers), cleaners that contain citrus products, or abrasive cleaning pads on barbecue or cart surfaces.

WWW.WEBER.COM

GENERAL INSTRUCTIONS

Slide out Bottom tray - Remove excess grease, then wash with warm soapy water, then rinse.

Flavorizer

needed, remove from grill and wash with warm soapy water, then rinse with water.

Catch pan - Disposable foil trays are available, or you can line the catch pan with aluminum foil. To clean the catch pan, wash with warm soapy water, then rinse.

Thermometer - Wipe with warm soapy water; clean with plastic scrub ball.

Inside cooking module - Brush any debris off of burner tubes. DO NOT ENLARGE BURNER PORTS (OPENINGS). Wash inside of cooking box with warm soapy water

and a water rinse.

Inside Lid - While lid is warm, wipe inside with paper towel to prevent grease build-up. Flaking built-up grease resembles paint flakes.

Stainless steel surfaces - Wash with a soft cloth and a soap and water solution. Be careful to scrub with the grain direction of the stainless steel.

bars and Cooking grates - Clean with a suitable brass bristle brush. As

GENERAL INSTRUCTIONS

IMPORTANT LP CYLINDER INFORMATION

Failure to follow these DANGER statements exactly may result in a fire causing death or serious injury.

 NEVER store a spare LP Cylinder under or near this

barbecue.

 NEVER fill the tank beyond 80% full.

GENERAL INSTRUCTIONS

 DANGER

Do not use cleaners that contain acid, mineral spirits or xylene. Rinse well after cleaning.

Preserve Your Stainless Steel - Your grill or its cabinet, lid, control panel and shelves

may be made from stainless steel. To keep the stainless steel looking its best is a simple matter. Clean it with soap and water, rinse with clear water and wipe dry. For stubborn particles, the use of a non-metallic brush can be used.

 IMPORTANT: Do not use a wire brush or abrasive cleaners

on the stainless steel surfaces of your grill as this will cause scratches.

 IMPORTANT: When cleaning surfaces be sure to rub/wipe

in the direction of the grain to preserve the look of your stainless steel.

The proper filling methods for the filling of your cylinder are by weight or volume, as described in NFPA 58. Please make sure your filling station fills your LP cylinder by weight or volume. Ask your filling station to read purging and filling instructions on the LP cylinder before attempting to fill.

LEAK CHECK PREPARATION

CHECK THAT ALL BURNER VALVES ARE OFF

Valves are shipped in the “OFF” position, but you should check to be sure that they are turned off. Check by pushing down and turning clockwise. If they do not turn, they are off. Proceed to the next step. If they do turn continue turning them clockwise until they stop, then they are off. Proceed to the next step.

Your Weber® gas grill is equipped for a cylinder supply system designed for vapor withdrawal.

 WARNING: Only use this grill outdoors in a well-ventilated

area. Do not use in a garage, building, breezeway or any other enclosed area.

CONNECTING THE LIQUID PROPANE CYLINDER

All Weber® liquid propane gas grill regulators are equipped with a UL-Listed tank connection as per the latest edition of ANSI Z21.58. This will require a liquid propane tank that is similarly equipped with a Type 1 connection in the tank valve. This Type 1 coupling allows you to make a fast and totally safe hookup between your gas grill and your liquid propane tank. It eliminates the chance of leaks due to a POL fitting that is not properly tightened. Gas will not flow from the tank unless the Type 1 coupling is fully engaged into the coupling.

 WARNING: Make sure that the LP cylinder valve is closed.

Close by turning valve clockwise.

 DANGER

Do not use an open flame to check for gas leaks. Be sure there are no sparks or open flames in the area while you check for leaks. Sparks or flames will result in a fire or explosion which can cause serious bodily injury or death, and damage to property.

TYPE 1 CONNECTIVE COUPLING

1 Type 1 Valve

2 Hand Wheel 3 External Thread 4 Thermally Sensitive Nut 5 Propane Regulator

WWW.WEBER.COM

GAS INSTRUCTIONS

Some LP tanks have differing top collar assembles. (The top collar is the metal protective ring around the valve.) One series of tanks mount with the valve facing front (a). The other tanks mount with the valve facing away from the fuel scale (b). Weber recommends the use of cylinder manufacturer’s Manchester and Worthington, with a

47.6 lb water capacity. Other cylinders may be acceptable for use with the appliance provided they are compatible with the appliance retention means (see illustrations).

The LP cylinder is installed inside the tank enclosure or tank cabinet, on the tank scale.

1) Turn the LP cylinder so the opening of the valve is either to the front, side or rear of the Weber

2) Lift tank up into position on the tank scale.

3) Loosen the cylinder lock wing nut. Swing the cylinder lock down. Tighten the wing nut.

gas barbecue. Lift and hook the cylinder onto the fuel gauge.

GAS INSTRUCTIONS

TO CONNECT THE HOSE TO THE CYLINDER:

4) Remove the plastic dust cover from the valve.

5) Screw the regulator coupling onto the tank valve, clockwise, or to the right. Handtighten only.

Note: This connection tightens clockwise and will not allow gas to flow unless the connection is tight. The connection requires tightening by hand only.

 WARNING: Do not use a wrench to tighten the connection.

Using a wrench could damage the regulator coupling and could cause a leak.

You will need: LP cylinder, a soap and water solution and a rag or brush to apply it.

6) Mix soap and water.

7) Turn on the cylinder valve.

8) Check for leaks by wetting the fitting with the soap and water solution and watching for bubbles. If bubbles form, or if a bubble grows, there is a leak.

If there is a leak, turn off the gas and tighten the fitting. Turn the gas back on and recheck with the soap and water solution. If leak does not stop do not use the barbecue. Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com®.

9) When leak checking is complete, turn gas supply off at the source and rinse connections with water.

WWW.WEBER.COM

GAS INSTRUCTIONS

CHECK FOR GAS LEAKS

 WARNING: The gas connections of your Summit® gas grill

have been factory tested. We do however recommend that you leak check all gas connections before operating your Summit

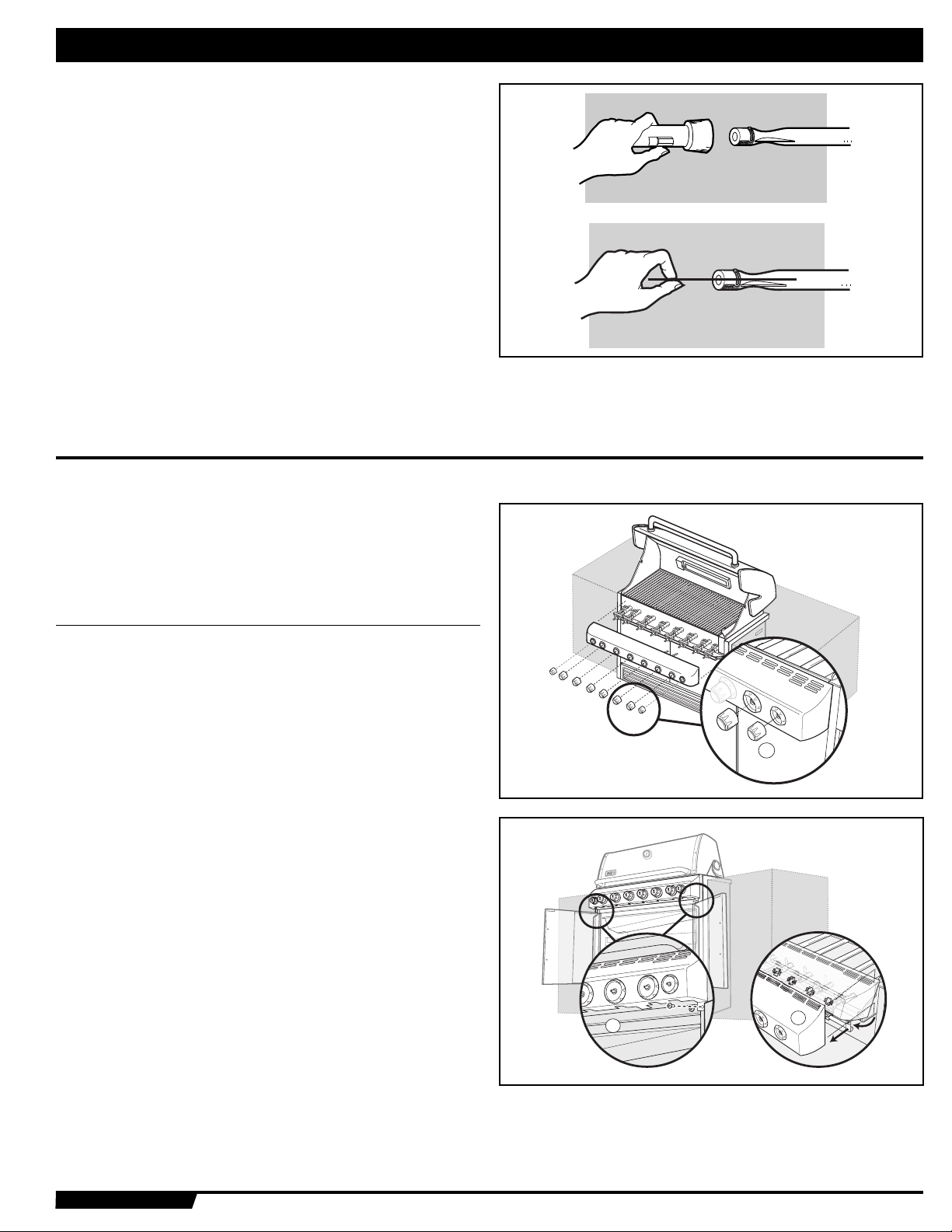

REMOVE CONTROL PANEL

Tool required: Phillips Screwdriver.

1) Remove the burner control knobs.

2) Remove the two screws that secure the control panel to the frame.

3) Remove the control panel. Tilt panel forward and lift up and away from grill.

gas grill.

Completely remove the control panel (3) from the cooking box assembly exposing the valves, burners, igniter, and manifold.

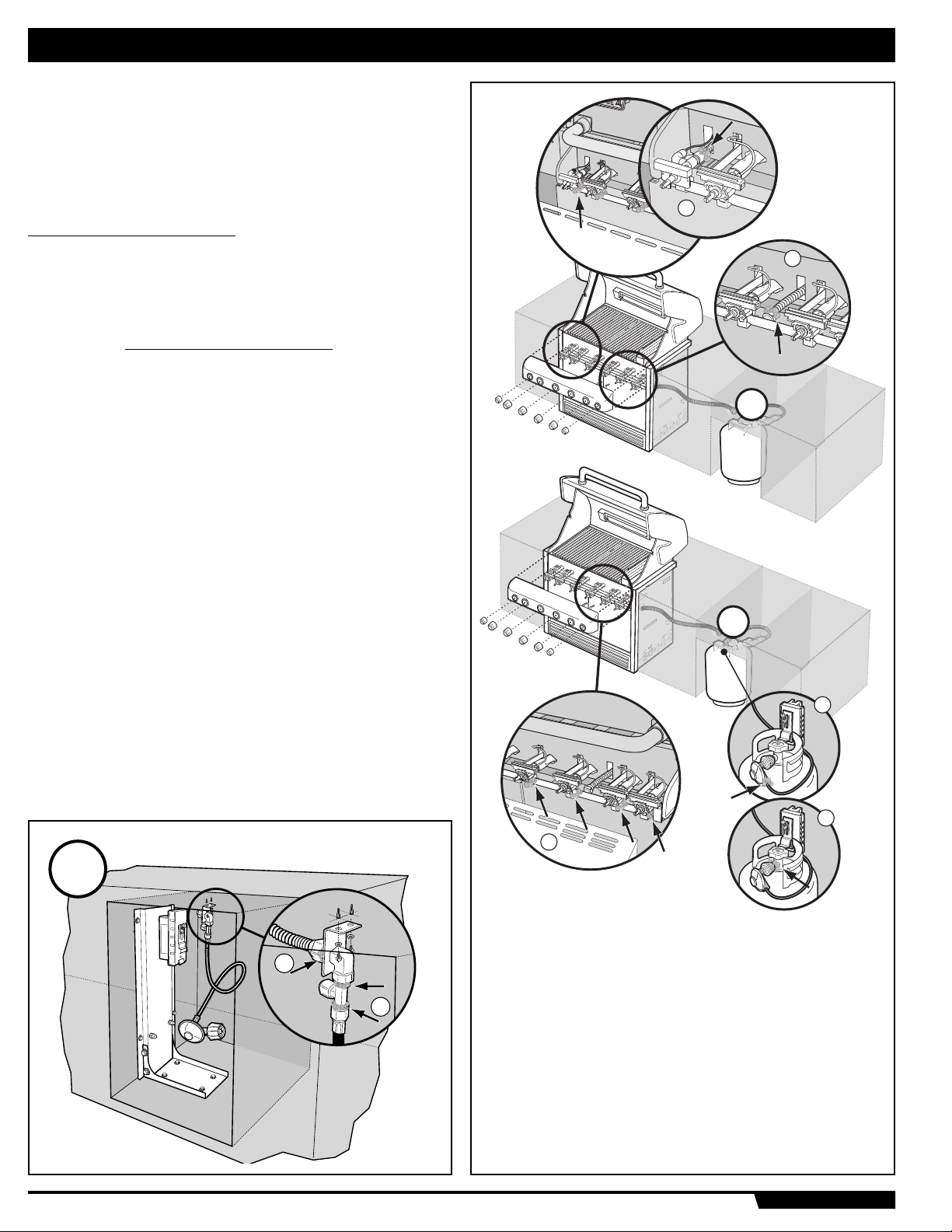

CHECK FOR GAS LEAKS

 DANGER

Do not use an open flame to check for gas leaks. Be sure there are no sparks or open flames in the area while you check for leaks. Sparks or open flames will result in a fire or explosion, which can cause serious bodily injury or death and damage to property.

 WARNING: You should check for gas leaks every time you

disconnect and reconnect a gas fitting.

Note: All factory-made connections have been thoroughly checked for gas leaks. The burners have been flame-tested. As a safety precaution however, you should recheck all fittings for leaks before using your Weber® Gas Barbecue. Shipping and handling may loosen or damage a gas fitting.

 WARNING: Perform these leak checks even if your barbecue

was dealer or store assembled.

You will need: a soap and water solution, and a rag or brush to apply it.

Note: Since some leak test solutions, including soap and water, may be slightly corrosive, all connections should be rinsed with water after checking for leaks.

If your grill has a side burner make sure the side burner is off. To perform leak checks: open cylinder valve by turning the cylinder valve handwheel counterclockwise.

 WARNING: Do not ignite burners when leak checking.

Check for leaks by wetting the connections with the soap and water solution and watching for bubbles. If bubbles form or if a bubble grows, there is a leak.

WWW.WEBER.COM

+ 19 hidden pages
