Weber 43146 User Manual

GAS GRILL

Built-In NG Gas Grill Owner’s Guide

S-440 - NG

#43146

#00000

YOU MUST READ THIS OWNER’S GUIDE

BEFORE OPERATING YOUR GAS GRILL

 DANGER

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flames.

3. Open lid.

4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.

Leaking gas may cause a fire or explosion which can cause serious bodily injury or death, or damage to property.

 WARNING:

1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.

2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

 WARNING: Follow all leak-check

procedures carefully in this manual prior to barbecue operation. Do this even if the barbecue was dealer-assembled.

NOTICE TO INSTALLER: These instructions must be left with the owner and the owner should keep them for future use.

THIS GAS APPLIANCE IS DESIGNED FOR OUTDOOR USE ONLY.

 WARNING: Do not try to light this

appliance without reading the “Lighting Instructions” section of this manual.

43146 US 03/03/08

US ENGLISH

WARNINGS

DANGERS AND WARNINGS

Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property.

 Do not store a spare or disconnected liquid propane cylinder under or near this barbecue.  Improper assembly may be dangerous. Please follow the assembly instructions carefully.  After a period of storage, and/or nonuse, the Weber® gas barbecue should be checked for gas leaks and burner obstructions

before use. See instructions in this manual for correct procedures.

 Do not operate the Weber® gas barbecue if there is a gas leak present.  Do not use a flame to check for gas leaks.  Combustible materials should never be within 24 inches (61 cm) of the back or sides of your Weber® gas barbecue.  Do not put a barbecue cover or anything flammable on, or in the storage area under the barbecue.  Your Weber® gas barbecue should never be used by children. Accessible parts of the barbecue may be very hot. Keep young

children away while it is in use.

 You should exercise reasonable care when operating your Weber® gas barbecue. It will be hot during cooking or cleaning and

should never be left unattended, or moved while in operation.

 Should the burners go out while in operation, turn all gas valves off. Open the lid and wait five minutes before attempting to

relight, using the lighting instructions.

 Do not use charcoal or lava rock in your Weber® gas barbecue.  Never lean over open grill or place hands or fingers on the front edge of the cooking box.  Should a grease fire occur, turn off all burners and leave lid closed until fire is out.  Do not enlarge valve orifices or burner ports when cleaning the valves or burners.  The Weber® gas barbecue should be thoroughly cleaned on a regular basis.  Liquid propane gas is not natural gas. The conversion or attempted use of natural gas in a liquid propane unit or liquid propane

gas in a natural gas unit is dangerous and will void your warranty.

 Do not attempt to disconnect any gas fitting while your barbecue is in operation.  Use heat-resistant barbecue mitts or gloves when operating barbecue.  Keep any electrical supply cord and the fuel supply hose away from any heated surfaces.  Combustion byproducts produced when using this product contain chemicals known to the state of California to cause cancer,

birth defects, or other reproductive harm.

 Do not use this barbecue unless all parts are in place. The unit must be properly assembled according to the assembly

instructions.

 Proposition 65 Warning: Handling the brass material on this product exposes you to lead, a chemical known to the state of

California to cause cancer, birth defects or other reproductive harm.

(Wash hands after handling this product.)

LIQUID PROPANE GAS UNITS ONLY:

 Use the pressure regulator and hose assembly that is supplied with your Weber® gas barbecue.  Do not attempt to disconnect the gas regulator and hose assembly or any gas fitting while your barbecue is in operation.  A dented or rusty liquid propane cylinder may be hazardous and should be checked by your liquid propane supplier. Do not

use a liquid propane cylinder with a damaged valve.

 Although your liquid propane cylinder may appear to be empty, gas may still be present, and the cylinder should be

transported and stored accordingly.

 If you see, smell or hear the hiss of escaping gas from the liquid propane cylinder:

1. Move away from liquid propane cylinder.

2. Do not attempt to correct the problem yourself.

3. Call your fire department.

 DANGER

 WARNINGS

WWW.WEBER.COM

WARRANTY

Weber-Stephen Products Co. (Weber) hereby warrants to the ORIGINAL PURCHASER of this Weber® gas grill that it will be free of defects in material and workmanship from the date of purchase as follows:

Aluminum castings 25-years (2 years on paint; excludes fading) Stainless steel Shroud, 25-years; Porcelain-enameled shroud, 25-years Cookbox Assembly 10-years (2 year on paint excludes fading) Stainless steel burners tubes, 10-years Stainless steel cooking grates, 5-years no rust through or burn through Stainless steel Flavorizer bars, 5-years no rust through or burn through Porcelain-enameled cast-iron cooking grates, 5-year no rust through or burn through Porcelain-enameled cooking grates, 3-years no rust through or burn through Porcelain-enameled Flavorizer bars, 2-years no rust through or burn through Infrared Rotisserie Burner, 2-years All remaining parts, 2-years

When assembled and operated in accordance with the printed instructions accompanying it. Weber may require reasonable proof of your date of purchase. THEREFORE, YOU SHOULD RETAIN YOUR SALES SLIP OR INVOICE. This Limited Warranty shall be limited to the repair or replacement of parts that prove defective under normal use and service and which on examination shall indicate, to Weber’s satisfaction, they are defective. Before returning any parts, contact the Customer Service Representative in your area using the contact information on our website. If Weber confirms the defect and approves the claim, Weber will elect to replace such parts without charge. If you are required to return defective parts, transportation charges must be prepaid. Weber will return parts to the purchaser, freight or postage prepaid.

This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or service, or failure to perform normal and routine maintenance, including but not limited to damage caused by insects within the burner tubes, as set out in this owner’s manual. Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes or tornadoes, discoloration due to exposure to chemicals either directly or in the atmosphere, is not covered by this Limited Warranty.

There are no other express warrants except as set forth herein and any applicable implied warranties of merchantability and fitness are limited in duration to the period of coverage of this express written Limited Warranty. Some regions do not allow limitation on how long an implied warranty lasts, so this limitation may not apply to you. Weber is not liable for any special, indirect or consequential damages. Some regions do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you. Weber does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on Weber. This Warranty applies only to products sold at retail.

WEBER-STEPHEN PRODUCTS CO. Customer Service Center 1890 Roselle Road, Suite 308 Schaumburg, IL 60195 USA

For replacement parts call: 1-800-446-1071 www.weber.com

WWW.WEBER.COM

EXPLODED VIEW S-440

(

)

$) $*

S440_NG_US

(# ($

WWW.WEBER.COM

EXPLODED VIEW LIST S-440

Shroud Hardware1.

Shroud2.

Thermometer3.

Thermometer Bezel4.

Handle5.

Grill Out6.

Rotisserie Motor7.

Rotisserie Bracket8.

Handle Light

Water Baffle / Heat Shield19.

Disposable Drip Pan20.

Drip Tray21.

Catch Pan22.

Catch Pan Holder23.

Left Rear Panel24.

Left Panel25.

Left Door26.

Rotisserie Spit Assembly37.

Smoker Box38.

Smoker Bar39.

Smoker Burner40.

Cookbox41.

Bulkhead42.

Manifold Hose43.

Rear Frame Support44.

Warming Rack9.

Cooking Grates10.

Flavorizer11.

Burner Tubes12.

Manifold13.

Control Panel14.

Small Knob Bezel15.

Small Knob16.

Bars

Door Handles27.

Right Door28.

Left Vent Bracket29.

Kick Vent30.

IR Burner Cover31.

Infrared Burner32.

IR Burner Box33.

IR Burner Igniter Wire34.

Vent Cover45.

Front Frame Support46.

Right Rear Panel47.

Right Frame Panel48.

Matchstick Holder49.

Bottom Panel50.

Right Vent Bracket51.

Large Knob17.

Large Knob Bezel18.

WWW.WEBER.COM

Thermocouple35.

IR Burner Hose36.

GENERAL INSTRUCTIONS

OPERATING

The natural gas supply is easy to use and gives you more cooking control than charcoal fuel.

• These instructions will give you the minimum requirements for assembling your

• Not for use by children.

• If there are local codes that apply to portable gas grills, you will have to conform to

• This Weber® gas barbecue is designed for natural (piped in city) gas only. Do not

• Do not use with charcoal fuel.

• Check that the area under the control panel and the bottom tray are free from

gas barbecue. Please read the instructions carefully before using your

Weber

gas barbecue. Improper assembly can be dangerous.

Weber

them. Installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2 as applicable.

use liquid propane (LP) bottled gas. The valves, orifices and hose are for natural gas only.

debris that might obstruct the flow of combustion or ventilation air.

STORAGE

• The gas must be turned off at the natural gas supply when the Weber® gas barbecue is not in use.

• When the Weber® gas barbecue is stored indoors, the gas supply must be disconnected.

• The Weber® gas barbecue should be checked for gas leaks and any obstructions in the burner tubes before using. (See Section: “Maintenance/Annual Maintenance”).

• Check that the areas under the control panel and the slide out bottom tray are free from debris that might obstruct the flow of combustion or ventilation air.

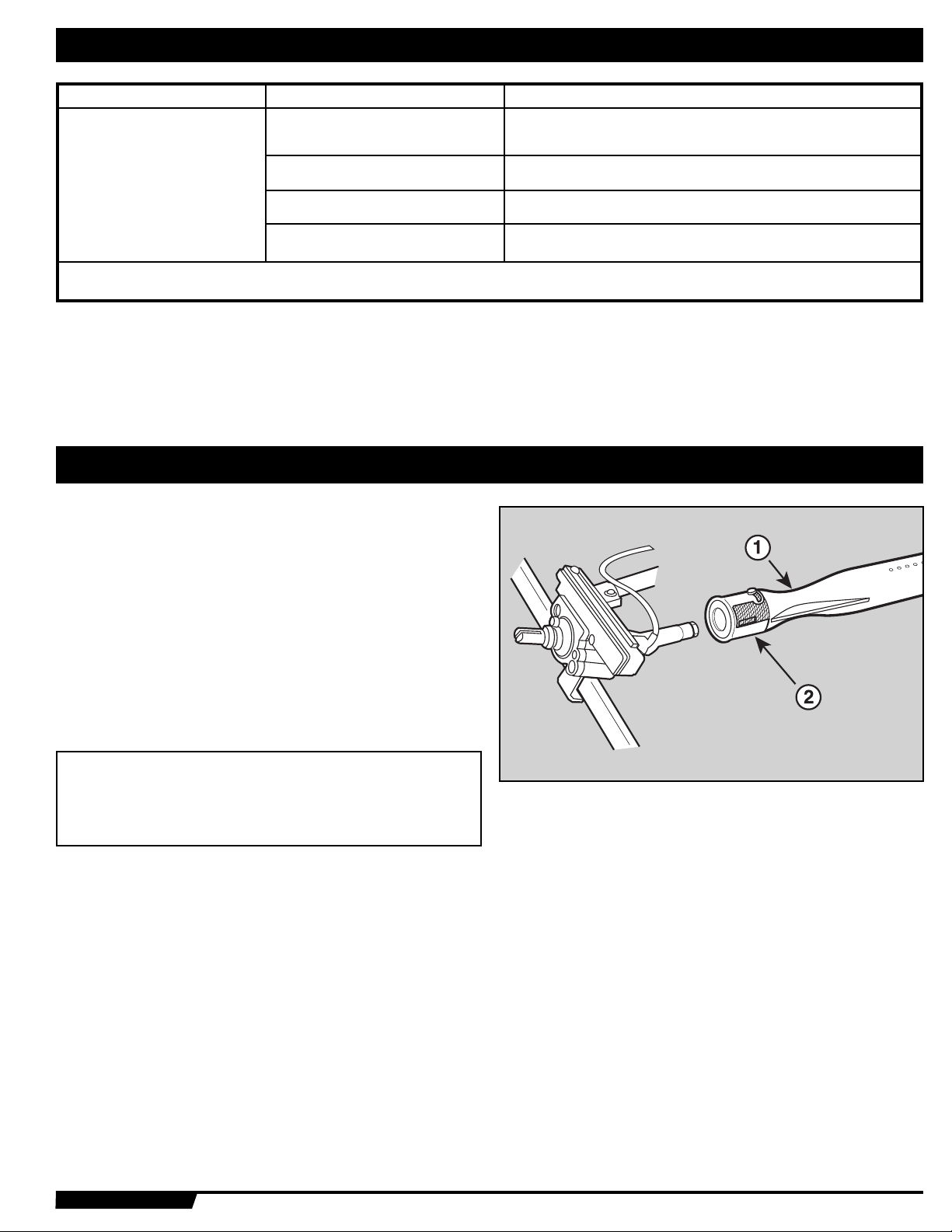

• The Spider /Insect Screens should also be checked for any obstructions. (See Section: "Maintenance/Annual Maintenance").

OPERATING

 WARNING: Only use this barbecue outdoors in a well-

ventilated area. Do not use in a garage, building, breezeway or any other enclosed area.

 WARNING: Your Weber® gas barbecue shall not be used

under overhead combustible construction.

 WARNING: Do not use the barbecue within 24 inches (610

mm) of combustible materials. This includes the top, bottom, back or sides of the grill.

 WARNING: The entire cooking box gets hot when in use. Do

not leave unattended.

 WARNING: Keep any electrical supply cord and the fuel

supply hose away from any heated surface.

 WARNING: Keep the cooking area clear of flammable vapors

and liquids, such as gasoline, alcohol, etc., and combustible materials.

GAS SUPPLY TESTING

• Disconnect your Weber® gas barbecue when the gas supply is being tested at high pressures. This appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa).

• Turn off your Weber® gas barbecue when the gas supply is being tested at low pressures. This appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at the pressure equal to or less than 1/2 psig (3.5 kPa).

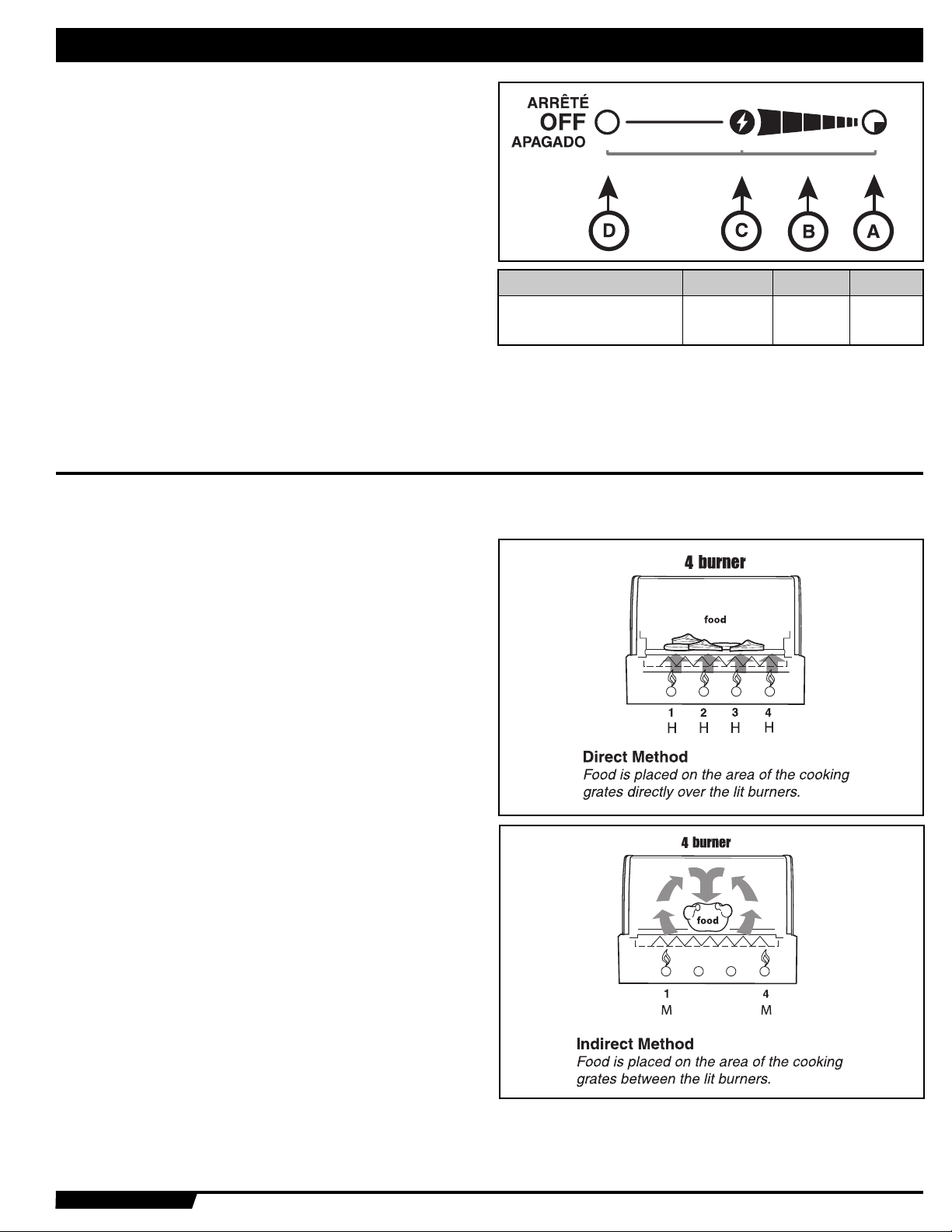

GRILLING METHODS

Note: If grill loses heat while cooking refer to the troubleshooting section of this manual.

 WARNING: Do not move the Weber® gas barbecue when

operating or while barbecue is hot.

You can adjust the individual main burners as desired. The control settings are START/ HI, MEDIUM, LOW, or OFF.

Note: The temperature inside your cooking box for the first few uses, while surfaces are still very reflective, may be hotter than those shown in your cookbook. Cooking conditions, such as wind and weather, may require the adjustment of the burner controls to obtain the correct cooking temperatures.

If burners go out during cooking, open lid, turn off all burners and wait five minutes before relighting.

Preheating - Your Weber

an economical low BTU rate. To preheat: after lighting, close lid and turn all burners to “START/HI”. Preheating to between 500° and 550° F (260° and 290° C) will take 10 to 15 minutes depending on conditions such as air temperature and wind.

Drippings and grease - The Flavorizer amount of drippings for flavorful cooking. Excess drippings and grease will accumulate in the catch pan under the slide out bottom tray. Disposable foil drip pans are available that fit the catch pan.

gas barbecue is an energy-efficient appliance. It operates at

bars are designed to “smoke” the correct

 WARNING: Check the bottom tray for grease build-up before

each use. Remove excess grease to avoid a grease fire in the slide out bottom tray.

CLEANING

 WARNING: Turn your Weber® gas barbecue off and wait for it

to cool before cleaning.

 CAUTION: Do not clean your Flavorizer® bars or cooking

grates in a self-cleaning oven.

For availability of replacement cooking grates and Flavorizer® bars contact the Customer Service Representative in your area using the contact information on our website. Log onto www.weber.com

Outside surfaces - Use a warm soapy water solution to clean, then rinse with water.

 CAUTION: Do not use oven cleaner, abrasive cleansers

(kitchen cleansers), cleaners that contain citrus products, or abrasive cleaning pads on barbecue or cart surfaces.

WWW.WEBER.COM

GAS INSTRUCTIONS

Slide out Bottom tray - Remove excess grease, then wash with warm soapy water, then rinse.

Flavorizer

needed, remove from grill and wash with warm soapy water, then rinse with water.

Catch pan - Disposable foil trays are available, or you can line the catch pan with aluminum foil. To clean the catch pan, wash with warm soapy water, then rinse.

Thermometer - Wipe with warm soapy water; clean with plastic scrub ball.

Inside cooking module - Brush any debris off of burner tubes. DO NOT ENLARGE BURNER PORTS (OPENINGS). Wash inside of cooking box with warm soapy water

and a water rinse.

Inside Lid - While lid is warm, wipe inside with paper towel to prevent grease build-up. Flaking built-up grease resembles paint flakes.

Stainless steel surfaces - Wash with a soft cloth and a soap and water solution. Be careful to scrub with the grain direction of the stainless steel.

bars and Cooking grates - Clean with a suitable brass bristle brush. As

GAS INSTRUCTIONS

INSTALL GAS SUPPLY

GENERAL SPECIFICATIONS FOR PIPING

Note: Contact your local municipality for building codes regulating outdoor gas barbecue installations. In absence of Local Codes, you must conform to the latest edition of the National Fuel Gas Code: ANSI Z 223.1/NFPA 54, or CAN/CGA-B149.1, Natural Gas and Propane Installation Code. WE RECOMMEND THAT THIS INSTALLATION BE DONE BY A PROFESSIONAL. Some of the following are general requirements taken from the latest edition of the National Fuel Gas Code: ANSI Z 223.1/NFPA 54, or CAN/CGA-B149.1, Natural Gas and Propane Installation Code for complete specifications.

• This barbecue is designed to operate at 4.5 inches of water column pressure (.163 psi).

• A manual shut-off valve must be installed outdoors, immediately ahead of the quick disconnect.

• An additional manual shut-off valve indoors should be installed in the branch fuel line in an accessible location near the supply line.

• Pipe compound should be used which is resistant to the action of natural gas when connections are made.

• The outdoor connector must be firmly attached to rigid, permanent construction.

 WARNING: Do not route the 10 foot hose under a deck. The

hose must be visible.

GAS LINE PIPING

• If the length of the line required does not exceed 50 feet, use a 5/8" O.D. tube. One size larger should be used for lengths greater than 50 feet.

• Gas piping may be copper tubing, type K or L; polyethylene plastic tube, with a minimum wall thickness of .062 inch; or standard weight (schedule 40) steel or wrought iron pipe.

• Copper tubing must be tin-lined if the gas contains more than 0.3 grams of hydrogen sulfide per 100 cubic feet of gas.

• Plastic tubing is suitable only for outdoor, underground use.

• Gas piping in contact with earth, or any other material which may corrode the piping, must be protected against corrosion in an approved manner.

• Underground piping must have a minimum of 18" cover.

TEST CONNECTIONS

All connections and joints must be thoroughly tested for leaks in accordance with local codes and all listed procedures in the latest edition of the National Fuel Gas Code: ANSI Z 223.1/NFPA 54, or CAN/CGA-B149.1

Do not use cleaners that contain acid, mineral spirits or xylene. Rinse well after cleaning.

Preserve Your Stainless Steel - Your grill or its cabinet, lid, control panel and shelves

may be made from stainless steel. To keep the stainless steel looking its best is a simple matter. Clean it with soap and water, rinse with clear water and wipe dry. For stubborn particles, the use of a non-metallic brush can be used.

 IMPORTANT: Do not use a wire brush or abrasive cleaners

on the stainless steel surfaces of your grill as this will cause scratches.

 IMPORTANT: When cleaning surfaces be sure to rub/wipe

in the direction of the grain to preserve the look of your stainless steel.

 DANGER

Do not use an open flame to check for gas leaks. Be sure there are no sparks or open flames in the area while you check for gas leaks. This will result in a fire or explosion which can cause serious bodily injury or death and damage

to property.

WWW.WEBER.COM

GAS INSTRUCTIONS

TYPE OF GAS

Your natural gas grill is factory built to operate using natural gas only. Never attempt to operate your grill on gases other than the type specified on the grill rating plates. Your grill operates at 4.5” of water column pressure. If replacement of the hose becomes necessary, factory specified parts are required. See your local dealer. For safety and design reasons, the conversion of a Weber Natural gas to operation using LP gas requires the change out of the entire gas supply system of the grill. If this becomes necessary, see your dealer for additional information.

grill from operation using

WHAT IS NATURAL GAS?

Natural gas, often called methane, is a safe modern fuel. Natural gas is supplied by your local utility and should be readily available if your house is already heated with gas.

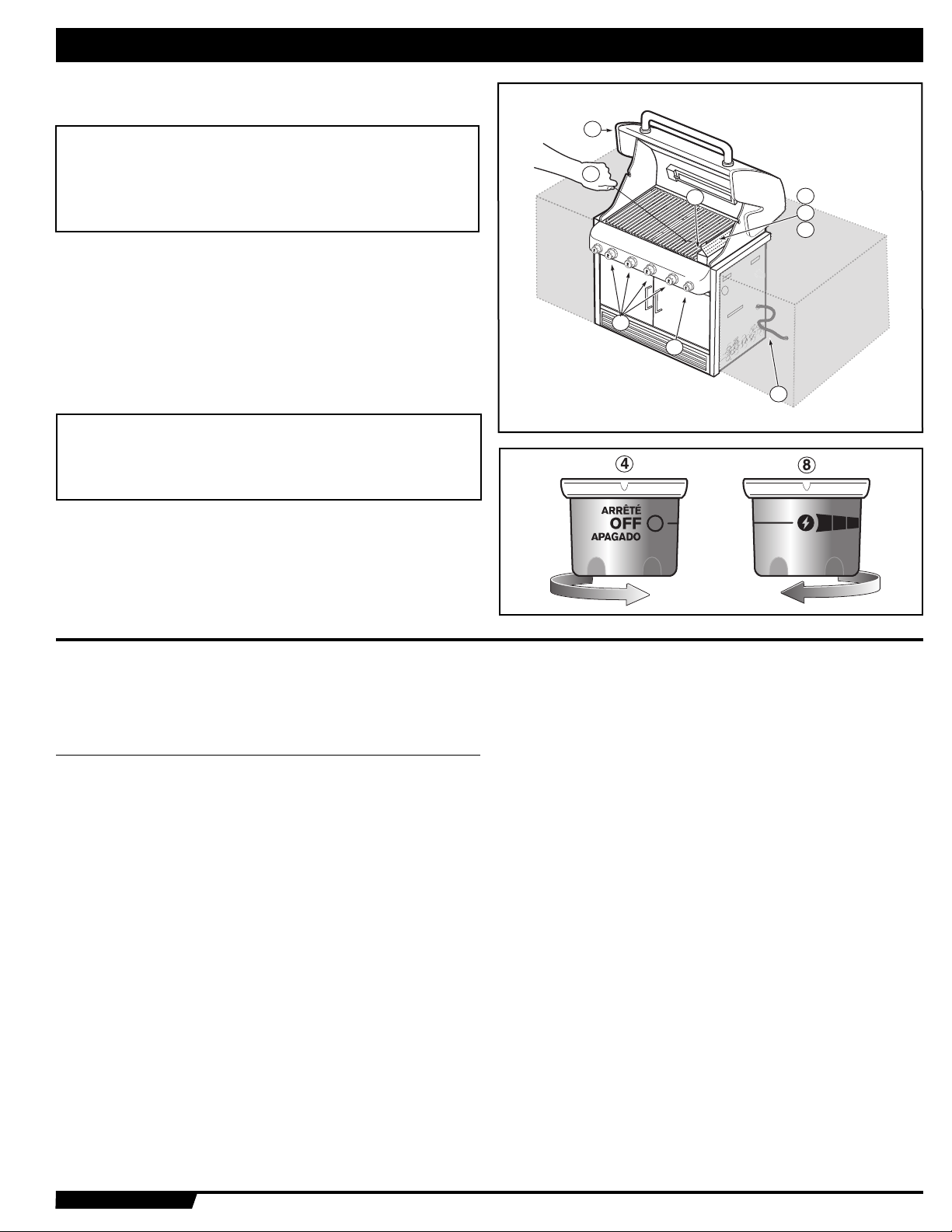

LEAK CHECK PREPARATION

CHECK THAT ALL BURNER VALVES ARE OFF

Valves are shipped in the “OFF” position, but you should check to be sure that they are turned off. Check by pushing in and turning clockwise. If they do not turn, they are off. Proceed to the next step. If they do turn continue turning them clockwise until they stop, then they are off. Proceed to the next step.

10.

1 Main Gas Line

2 Shut Off Valve

3 Corrugated Gas Line

4 Regulator Mounting Bracket

5 1/2”(1.27mm) Flared Gasket

6 Cap (Optional Side Burner)

7 Regulator (not included)

1/2”(1.27mm)SAE 45 Adapter

Fitting

Corrugated Gas Line to

Manifold

CHECK FOR GAS LEAKS

 WARNING: The gas connections of your Summit® gas grill

have been factory tested. We do however recommend that you leak check all gas connections before operating your Summit® gas grill.

REMOVE CONTROL PANEL

Tool required: Phillips Screwdriver.

1) Remove the burner control knobs.

2) Remove the two screws that secure the control panel to the frame.

7 8

10 Gas Flow

WWW.WEBER.COM
