Weber 41061 User Manual 2

LP GAS GRILL OWNER’S GUIDE

Guía del propietario del asador de gas licuado de propano - Pg 12 Guide de l’utilisateur du grill à gaz PL - Pg 21

Assembly, Ensamblaje, Assemblage - Pg 4

PLACE STICKER HERE

#41061

 DANGER

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, keep away from the appliance and immediately call your fire department.

Failure to follow these instructions could result in fire or explosion, which could cause property damage, personal injury or death.

THIS GAS APPLIANCE IS INTENDED FOR OUTDOOR USE ONLY.

1. Never operate this appliance unattended.

2. Never operate this appliance within 10 ft (3 m) of any structure, combustible material or other gas cylinder.

3. Never operate this appliance within 25 ft (7.5 m) of any flammable liquid.

4. If a fire should occur, keep away from the appliance and immediately call your fire department. Do not attempt to extinguish an oil or grease fire with water.

Failure to follow these instructions could result in fire, explosion or burn hazard, which could cause property damage, personal injury or death.

 DANGER

 This instruction manual contains important information necessary for the proper assembly

and safe use of the appliance.

 Read and follow all warnings and instructions before assembling and using the appliance.  Follow all warnings and instructions when using the appliance.  Keep this manual for future reference.

41061 US 09/16/09 LP

US English

GENERAL INSTRUCTIONS

 WARNINGS

 Follow all leak-check procedures carefully in this manual prior to barbecue operation. Do this even if the barbecue was dealer-

assembled.

 Do not store a spare or disconnected propane cylinder under or near this barbecue.  Improper assembly may be dangerous. Please carefully follow the assembly instructions in this manual.  After a period of storage, and/or nonuse, the Weber

before use. See instructions in this manual for correct procedures.

 Do not operate the Weber® gas barbecue if there is a gas leak present.  Do not use a flame to check for gas leaks.  Combustible materials should never be within 24 inches (63.5cm) of the back or sides of your Weber® gas barbecue.  Your Weber® gas barbecue should never be used by children. Accessible parts of the barbecue may be very hot. Keep young

children away while it is in use.

 You should exercise reasonable care when operating your Weber® gas barbecue. It will be hot during cooking or cleaning and

should never be left unattended, or moved while in operation.

 Should the burner go out while in operation, turn the gas valve off. Open the lid and wait five minutes before attempting to

relight, using the lighting instructions.

 Do not use charcoal or lava rock in your Weber® gas barbecue.  Never lean over an open grill or place hands or fingers on the front edge of the cooking box.  Should a grease fire occur, turn off the burner and leave lid closed until fire is out.  Do not enlarge valve orifice or burner ports when cleaning the valve or burner.  The Weber® gas barbecue should be thoroughly cleaned on a regular basis.  Use the regulator that is supplied with your Weber® gas barbecue.  Propane gas is not natural gas. The conversion or attempted use of natural gas in a propane unit or propane gas in a natural gas

unit is dangerous and will void your warranty.

 Do not attempt to disconnect any gas fitting while your barbecue is in operation.  Use heat-resistant barbecue mitts or gloves when operating the barbecue.  Keep any electrical supply cord away from any heated surfaces.  Combustion byproducts produced when using this product contain chemicals known to the state of California to cause cancer,

birth defects, or other reproductive harm.

 Do not use this barbecue unless all parts are in place. The unit must be properly assembled according to the instructions

outlined in the “Assembly Instruction” section of the Owner’s Guide.

 Do not use the Weber® Q™ grill in a vehicle trunk, station wagon, mini-van, sport utility vehicle (SUV),or recreational vehicle (RV).  Do not attempt to disconnect the gas regulator or any gas fitting while your barbecue is in operation.  Do not build this model of grill in any built-in or slide in construction. Ignoring this Warning could cause a fire or an explosion

that can damage property and cause serious bodily injury or death.

 Proposition 65 Warning: Handling the brass material on this product exposes you to lead, a chemical known to the state of

California to cause cancer, birth defects or other reproductive harm. (Wash hands after handling this product.)

 If you see, smell or hear the hiss of escaping gas from the propane cylinder:

1. Move away from propane cylinder.

2. Do not attempt to correct the problem yourself.

3. Call your fire department.

gas barbecue should be checked for gas leaks and burner obstructions

WARRANTY, GARANTÍA, GARANTIE

Weber-Stephen Products Co. (Weber®) hereby warrants to the ORIGINAL PURCHASER of this Weber® gas grill that it will be free of defects in material and workmanship from the date of purchase as follows:

Aluminium Castings

Thermoplastic/Thermoset Parts

All Remaining Parts

Stationary cart

when assembled and operated in accordance with the printed instructions accompanying it. Weber may require reasonable proof of your date of purchase. THEREFORE, YOU SHOULD RETAIN YOUR SALES SLIP OR INVOICE. This Limited Warranty shall be limited to the repair or replacement of parts that prove defective under normal use and service and which on examination shall indicate, to Weber defective. Before returning any parts, contact the Customer service representative in your region using the contact information sheet provided with your manual. If Weber the claim, Weber® will elect to replace such parts without charge. If you are required to return defective parts, transportation charges must be prepaid. Weber® will return parts to the purchaser, freight or postage prepaid. This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or service, or failure to perform normal and routine maintenance, including but not limited to damage caused by insects within the burner tubes, as set out in this owner’s manual. Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes or tornadoes, discoloration due to exposure to chemicals either directly or in the atmosphere, is not

covered by this Limited Warranty.

5 year, 2 years paint excluding fading or discoloration 5 years excluding fading 2 years 2 years

’s satisfaction, they are

confirms the defect and approves

There are no other express warrants except as set forth herein and any applicable implied warranties

of merchantability and fitness are limited in duration to the period of coverage of this express written Limited Warranty. Some regions do not allow limitation on how long an implied warranty lasts, so this limitation may not apply to you.

is not liable for any special, indirect or consequential damages. Some regions do not allow the

Weber exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.

Weber

does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on Weber®. This Warranty applies only to products sold at retail.

WEBER-STEPHEN PRODUCTS CO. Customer Service Center 1890 Roselle Road, Suite 308 Schaumburg, IL 60195 USA

For replacement parts call: 1-800-446-1071

Visit www.weber.com®, select your country of origin, and register your grill today.

Weber-Stephen Products Co. (Weber) le garantiza por este medio al COMPRADOR ORIGINAL de este asador de gas Weber® que el mismo estará libre defectos en cuanto a materiales y a mano de obra a partir de la fecha de compra según lo siguiente:

Piezas coladas de aluminio

5 años, la pintura 2 años excluyendo la pérdida de intensidad o decoloración

Partes termoplásticas/o termocuradas

Todas las demás partes

Carro estacionario

cuando se ensambla y opera de acuerdo a las instrucciones impresas que lo acompañan. Weber pudiese requerir prueba razonable de la fecha de compra. POR LO TANTO, DEBERÁ GUARDAR SU RECIBO O FACTURA DE VENTA. Esta garantía limitada está limitada a la reparación o reemplazo de piezas que se resultasen defectuosas bajo uso y servicio normal y las cuales al examinarse indiquen, a la plena satisfacción de Weber, de que efectivamente son defectuosas. Antes de devolver cualquier parte, contacte al Representante de Atención al Cliente en su área, cuya información de contacto la encontrará en nuestro sitio web. Si Weber confirma el defecto y aprueba el reclamo, ésta elegirá entre reparar o reemplazar tal pieza sin cargo alguno. Si usted tiene que retornarnos las partes defectuosas, los gastos de transporte deben ser prepagados. Weber retornará las partes al comprador con transporte o

franqueo prepagado. Esta Garantía Limitada no cubre ninguna falla o problema de operación a causa de accidentes, abuso, mal uso, alteración, uso en aplicaciones indebidas, vandalismo, instalación inapropiada o mantenimiento o servicio inapropiados, o por no llevar a cabo el mantenimiento normal y rutinario, entre los que se incluyen, pero sin limitación, los daños causados por insectos dentro de los tubos quemadores, según se detalla en este manual del propietario. Esta Garantía Limitada no cubre el deterioro o daños a causa de condiciones de tiempo inclementes tales como granizo, huracanes, terremotos o tornados ni tampoco la decoloración por exposición a sustancias químicas bien sea por contacto directo o por las mismas contenidas en la atmósfera.

Weber-Stephen Products Co. (Weber®) garantit par la présente déclaration à l’ACHETEUR ORIGINAL de ce barbecue l’absence de tout vice de matière et de fabrication à compter de la date d’achat à compter de la date d’achat pendant les périodes suivantes:

Roues en aluminium

5 años excepto por decoloración 2 años 2 años

5 ans, 2 ans pour la peinture sauf décoloration

Thermoplastique/Pièces

Toutes les autres pièces

thermoformées

Chariot stationnaire

Sous réserve du montage et de l’utilisation de l’appareil conformément aux instructions imprimées qui l’accompagnent. Weber peut exiger que vous apportiez une preuve raisonnable de la date d’achat. C’EST POURQUOI VOUS DEVEZ CONSERVER VOTRE REÇU DE CAISSE OU FACTURE. La présente garantie est limitée à la réparation ou au remplacement de pièces qui se révèlent défectueuses dans des conditions normales d’utilisation et d’entretien et dont l’examen permet à

de conclure qu’elles sont effectivement défectueuses. Avant de renvoyer toute pièce, contactez

Weber le Représentant régional du Service après-vente en vous reportant à la fiche de renseignements sur les contacts sur notre site Internet. Si Weber® confirme le défaut et le bien-fondé de la réclamation, la pièce concernée sera remplacée gratuitement. Si vous devez renvoyer des pièces défectueuses, vous devez prendre les frais de transport à votre charge. Weber payé. La présente garantie limitée ne couvre aucune panne ou difficulté de fonctionnement due à un accident, à un usage brutal ou incorrect, à des modifications, à un emploi abusif, au vandalisme, ainsi qu’à une installation ou à un entretien incorrects, ou à une absence d’entretien normal et périodique, y compris, entre autres, aux dégâts causés par la présence d’insectes à l’intérieur des tubes de brûleurs, ainsi que le précise le présent guide.

5 ans sauf décoloration 2 ans 2 ans

renverra les pièces à l’acheteur en port

No existen ningunas otras garantías expresas que no sean las acá indicadas y cualesquiera garantías implícitas de comerciabilidad y aptitud de uso están limitadas en duración al tiempo de cobertura de esta expresa Garantía Limitada por escrito. Algunas regiones no permiten limitación alguna en el tiempo que una garantía implícita pueda durar, por lo que esta limitación pudiera no aplicarle a usted. Weber no se hace responsable de cualesquier daños especiales, indirectos o emergentes. Algunas regiones no permiten la exclusión o limitación de daños incidentales o emergentes, por lo que esta limitación o exclusión pudieran no aplicarle a usted. Weber no autoriza a persona o empresa alguna a asumir a nombre de ella ninguna obligación o responsabilidad en relación con la venta, instalación, uso, retiro, devolución o reemplazo de sus equipos, y ninguna tal representación será vinculante para Weber. Esta Garantía aplica solo a aquellos productos vendidos al por menor.

WEBER-STEPHEN PRODUCTS CO. Customer Service Center 1890 Roselle Road, Suite 308 Schaumburg, IL 60195 USA

Para partes de repuesto llame a: 1-800-446-1071

Visite www.weber.com®, elija su país de origen y registre su barbacoa.

La détérioration ou les dégâts dûs à des conditions atmosphériques rigoureuses telles que grêle, ouragans, tremblements de terre ou tornades, à la pluie acide, à la décoloration due à une exposition à des substances chimiques appliquées directement ou présentes dans l’atmosphère, ne sont pas couverts par la présente garantie limitée.

Il n’existe aucune garantie explicite autre que celles énumérées dans la présente déclaration et toute garantie implicite d’aptitude à la commercialisation et d’adaptation à l’utilisation prévue est limitée, en termes de durée, à la période de couverture de la présente garantie limitée explicite. Il se peut que certains pays interdisent toute limitation de la durée d’une garantie limitée et que cette limitation ne vous soit donc pas opposable.

Weber

n’est responsable d’aucun dommage particulier, indirect ni incident. Il se peut que certains pays interdisent l’exclusion des dommages imprévus ou incidents, ou les limitations les affectant, et que ces limitations ou cette exclusion ne vous soient donc pas opposables. Weber® n’autorise aucune personne ni société à assumer en son nom une autre obligation ou responsabilité quelconque liée à la vente, à l’installation, à l’utilisation, au démontage, au renvoi ou au remplacement de son matériel; aucune représentation de cette sorte n’est opposable à Weber®. La présente garantie ne s’applique qu’aux produits vendus au détail.

Onward Manufacturing Service Clientèle

Pour des pièces de rechange, veuillez appelez au : 1-800-265-2150 www.weber.com

Rendez-vous sur le site www.weber.com®, sélectionnez votre pays et enregistrez votre barbecue dès aujourd’hui.

WWW.WEBER.COM

Lid - 1

Tapa - 1 Couvercle - 1

Disposable Drip Pan - 2

Recipientes para escurrimientos desechables - 2 Contenant jetable - 2

PARTS LIST, LISTA DE PIEZAS, LISTE DES PIÉCES

Cooking Grate - 1

Parrilla de cocción - 1 Grille de cuisson - 1

Catch Pan - 1

Recipiente recibidor - 1 Lèchefrite - 1

Stainless Steel Pan Head Phillips Screw (1/4 - 20 x 1 1/2" Screw) - 2

Tornillo Phillips de cabeza armada de acero inoxidable 1/4 - 20 x 1 1/2 pulgadas - 2 Vis Phillips à tête cylindrique large en acier inoxydable de 0,6 à 50 x 2,5 cm (1/4 - 20 x 1 po) - 2

Control Knob - 1

Perilla de control - 1 Manette de réglage - 1

Cotter Pin - 2

Asa - 2 Goupille fendue - 2

Handle Spacer - 2

Espaciador del asa - 2 Entretoise de poignée - 2

Hinge Pin - 2

Tubo del quemador - 2 Axe de charnière - 2

Handle - 1

Pasador - 1 Poignée - 1

Thermometer - 1

Termómetro - 1 Thermomètre - 1

Wing Nut - 1

Tuerca de palomilla - 1 Écrou à oreilles - 1

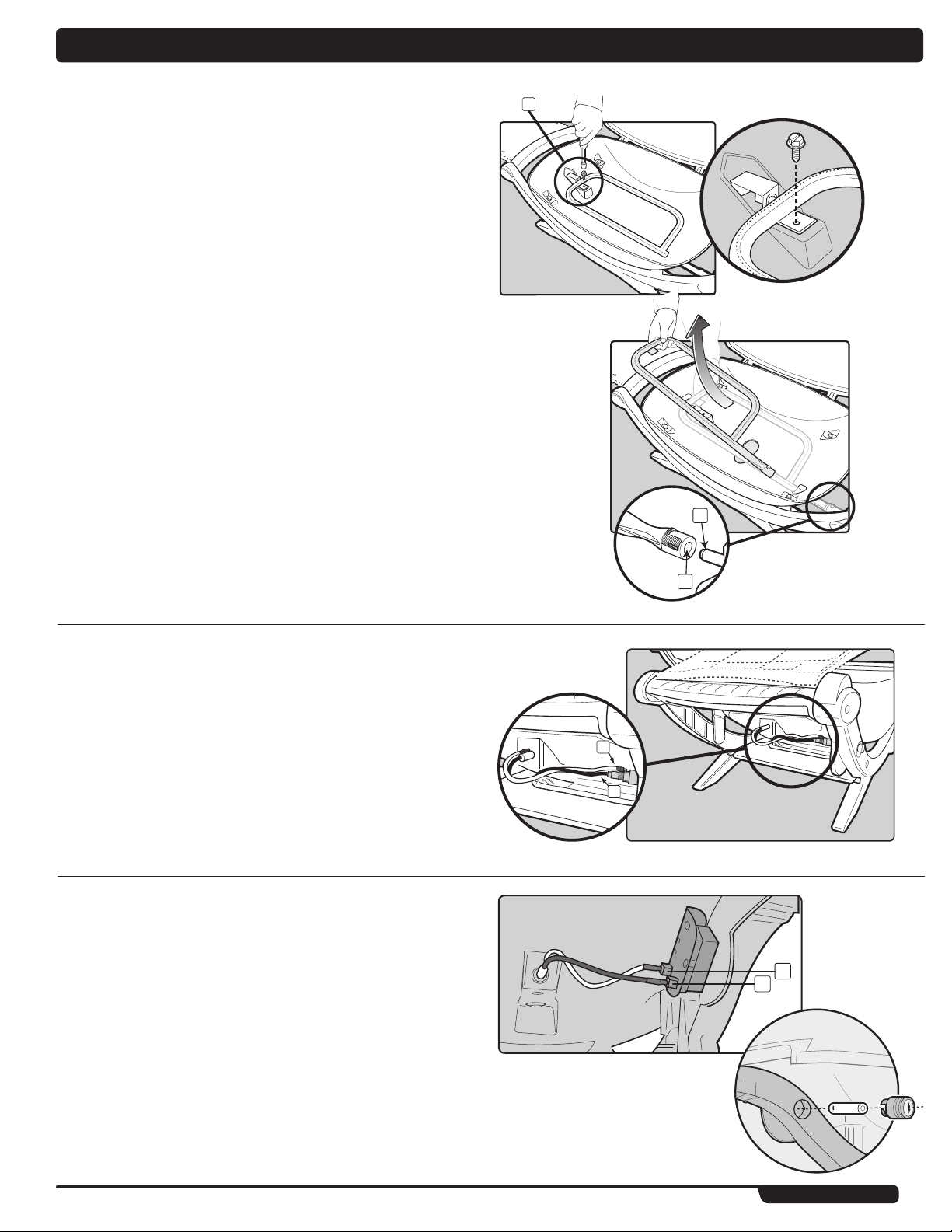

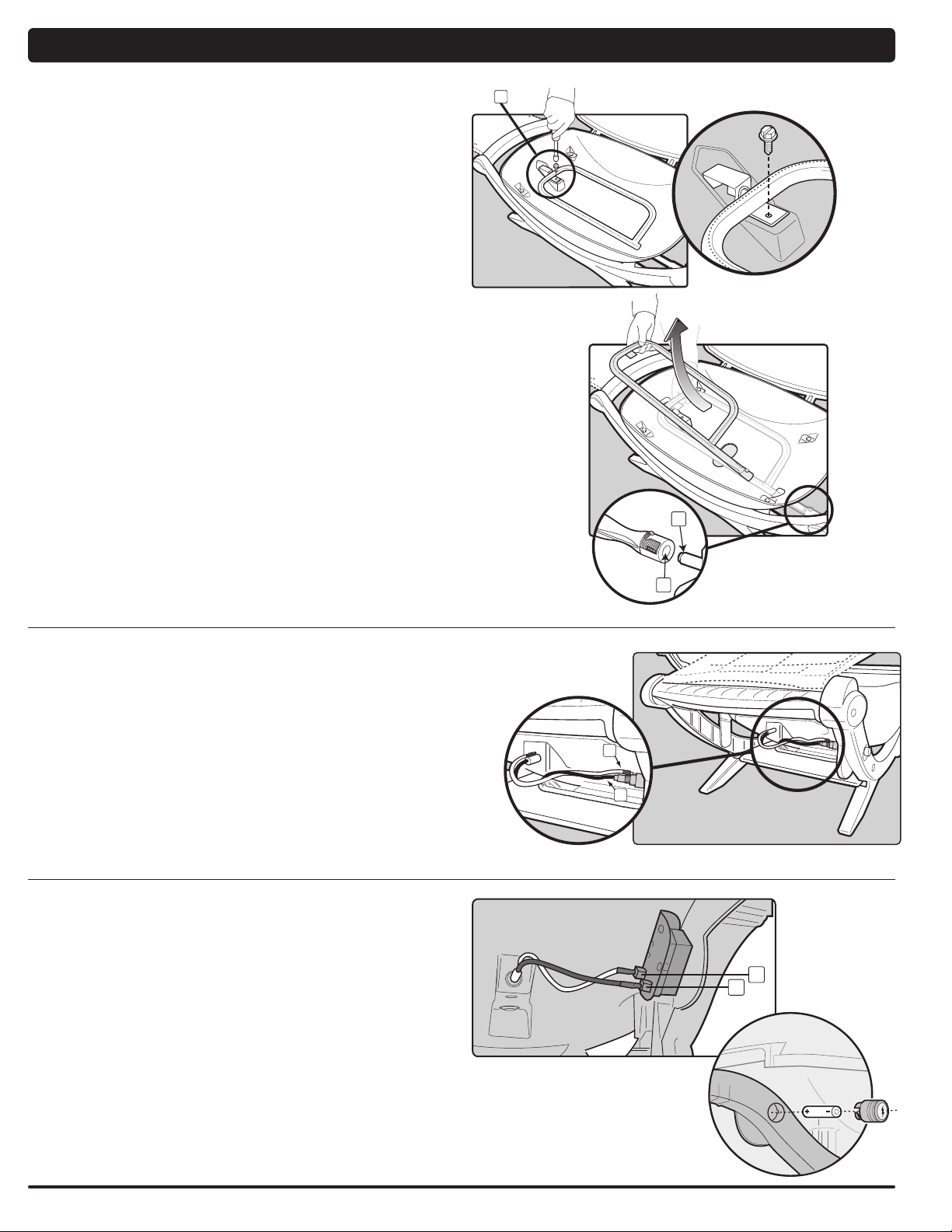

ASSEMBLY, ENSAMBLAJE, ASSEMBLAGE

A B C

2 -

1 -

2 -

1 -

2 -

Electronic Ignition Button - 1

Botón de encendido electrónico - 1 Bouton d’allumage électronique - 1

D E

1 - 1 -

1 -

If you have questions or need advice regarding your grill or it’s safe operation, please call our toll-free hotline 1-800-446-1071 and a Weber out. Your Weber appliance. With the Weber® gas grill you can grill, roast and bake with results that are difficult to duplicate with indoor kitchen appliances. The closed lid produces that “outdoor” flavor in the food. The Weber® gas grill is portable so you can easily change its location in your yard or on your patio. Portability means you can take your Weber® gas grill with, if you move. Propane gas supply is easy to use and gives you more cooking control than charcoal fuel.

• These instructions will give you the minimum

gas grill is a portable outdoor cooking

requirements for assembling your Weber® gas grill. Please read the instructions carefully before using your Weber® gas grill. Improper assembly can be dangerous.

® Q™

Expert will help you

DANGERS AND WARNINGS

• Not for use by children.

• If there are local codes that apply to portable gas grills, you will have to conform to them. If there are no local codes, you must conform to the latest edition of the National Fuel Gas Code: ANSI Z

223.1/NFPA54.

• The pressure regulator supplied with the Weber® gas grill must be used. This regulator is set for 11 inches of water column (pressure).

• This Weber® gas grill is designed for use with propane gas only. Do not use with natural (piped in city) gas. The valve and regulator is for Propane gas only.

• Do not use with charcoal fuel.

• This Weber® gas grill is not intended for commercial use.

• The use of alcohol, prescription or non-prescription drugs may impair the consumers ability to properly assemble or safely operate the appliance.

• This Weber never be used as a heater.

• Do not leave the Weber® gas grill unattended. Keep children and pets away from the Weber® gas grill at all times.

• Check that the area under the control panel and the bottom tray are free from debris that might obstruct the flow of combustion or ventilation air.

For Installation in Canada: These instructions, while generally acceptable, do not necessarily comply with the Canadian Installation codes, particularly with piping above and below ground. In Canada the installation of this appliance must comply with local codes and/or Standard CAN/CGA-B149.1 Natural Gas and Propane Installation Code.

gas grill is not intended for and should

STORAGE AND/OR NONUSE

• When the Weber® gas grill is not in use, the propane cylinder must be DISCONNECTED and the propane cylinder stored outdoors in a wellventilated space. Place dust caps on cylinder valve outlets when cylinder is not in use.

• The Weber leaks and any obstructions in the burner tubes before using. (See Sections: “General Maintenance and Annual Maintenance.”)

• The Spider/Insect Screen should also be checked for any obstructions. (See Section: “Annual Maintenance.”)

gas grill should be checked for gas

OPERATING  WARNING: Only use this grill outdoors

in a well-ventilated area. Do not use in a garage, building, breezeway or any other enclosed area.

 WARNING: Your Weber gas grill shall

not be used under any overhead combustible construction.

 WARNING: Your Weber® gas grill is

not intended to be installed in or on recreational vehicles and/or boats.

 WARNING: Do not use the grill within

24 inches of combustible materials.

 WARNING: The entire cooking box

gets hot when in use. Do not leave unattended.

 WARNING: Keep any electrical supply

cord away from any heated surface.

 WARNING: Keep the cooking area

clear of flammable vapors and liquids such as gasoline, alcohol, etc., and combustible materials.

 WARNING: Never store an extra

(spare) Propane cylinder under or near the Weber

gas grill.

 WARNING: When cooking, the

appliance must be on a level, stable surface in an area clear of combustible material. An asphalt surface (blacktop) may not be acceptable for this purpose.

COOKING

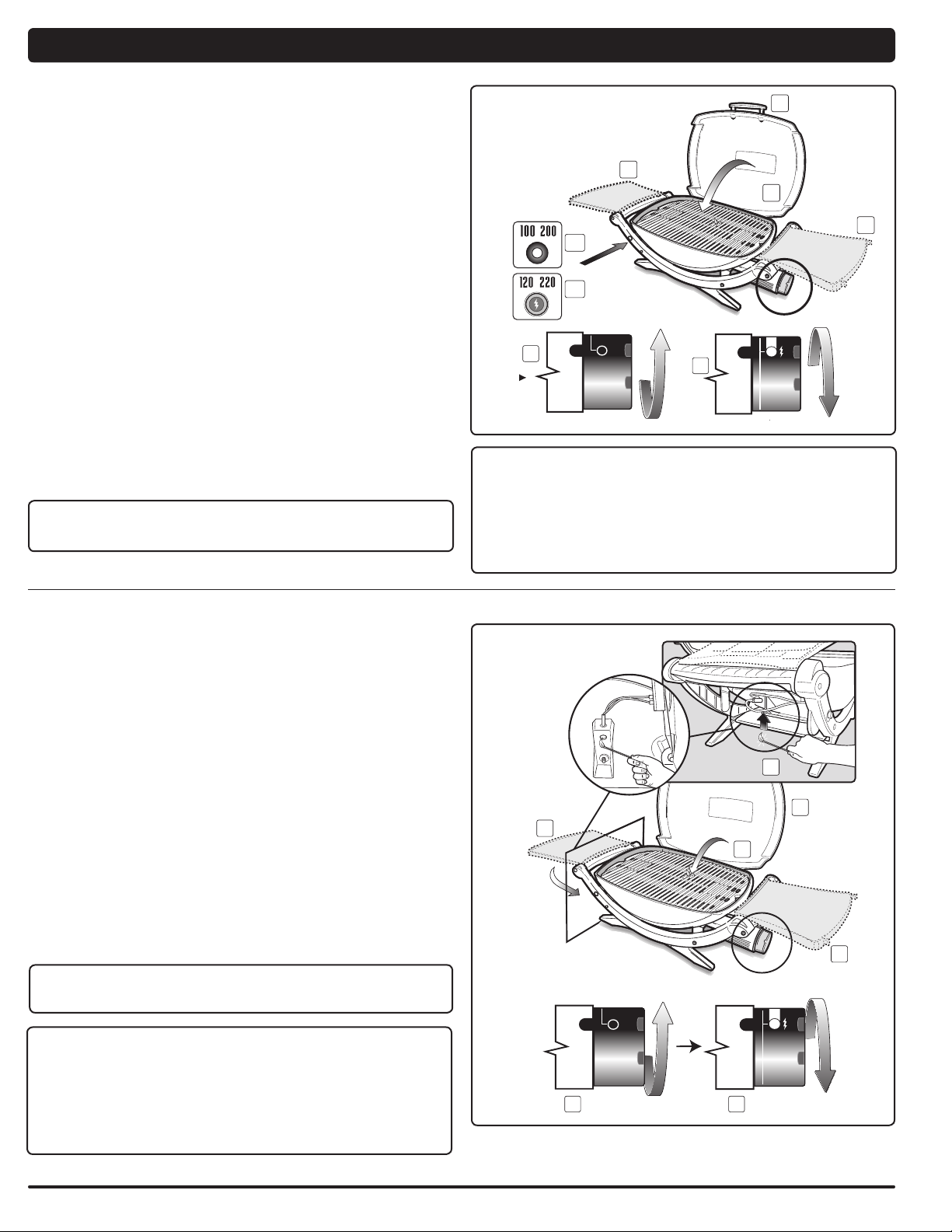

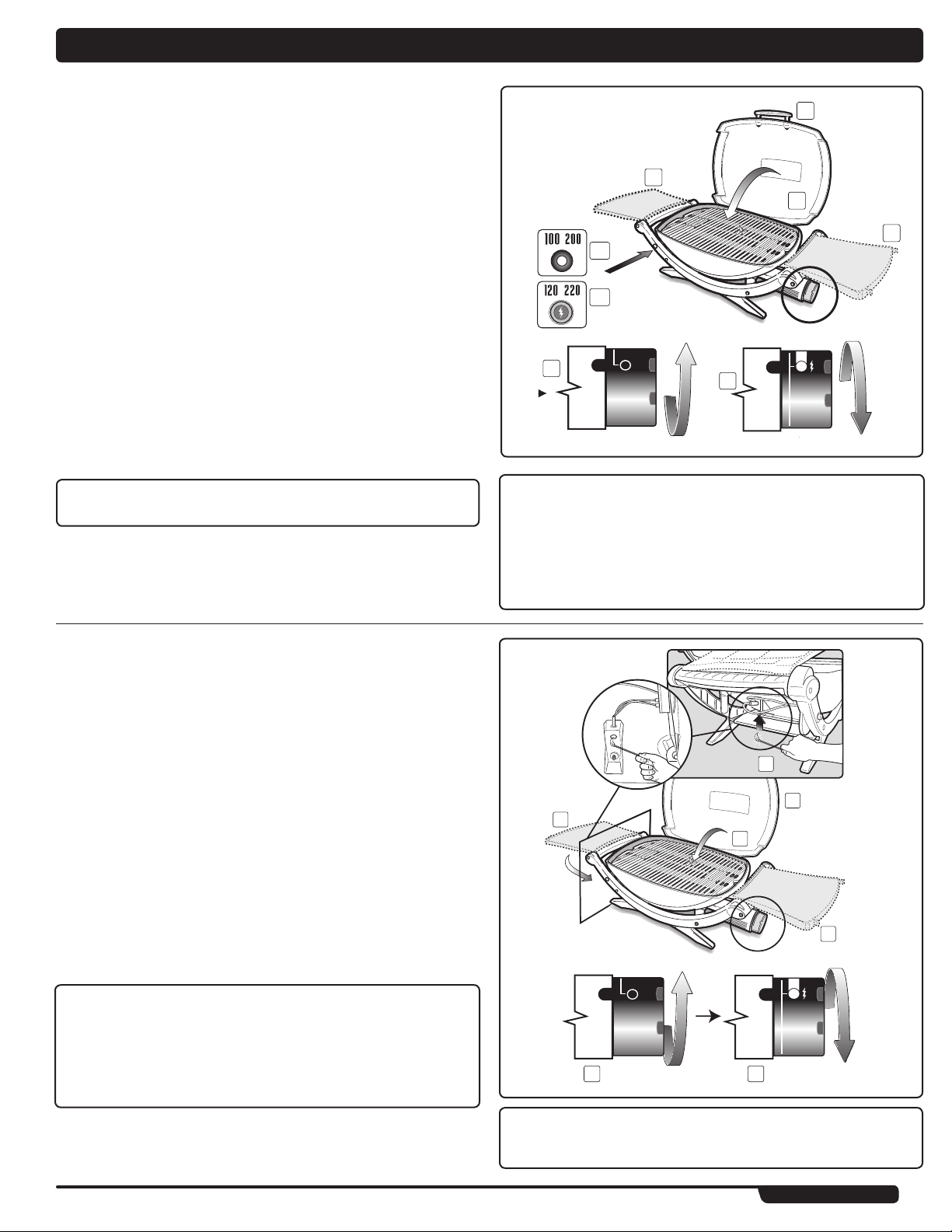

Getting started: Refer to your Q™ Cards grilling guide. To light the grill: Refer to the lighting instructions in this

owners manual and printed on the fold out tables (Q120, 200, 220) of your grill.

To preheat the grill: Light the Weber

lighting instructions in this owners manual. Close the lid and turn the Burner Control Knob to Start/Hi. Preheat the grill for 5-10 minutes (depending on conditions such as air temperature and wind). Once the grill is preheated, set the Burner Control knob to the setting specified in the recipe or suggested in the Q™ Cards grilling guide.

Note: Wind and weather may require adjustment of the burner control knob to obtain the correct cooking temperature.

If the burner goes out during cooking, open the lid, turn off the burner, and wait five minutes before relighting.

Drippings and grease: Excess drippings and grease will collect in the catch pan in the slide-out bottom tray (located on the underside of the grill). Disposable Weber

drip pans are available that fit the catch pan.

® Q™

according the

 WARNING: Check the catch pan and

the bottom of the grill for grease build-up before each use. Remove excess grease to avoid a fire in the bottom of the grill.

 WARNING: Do not move the Weber® Q™

when operating or while the grill is hot.

CLEANING

 WARNING: Turn your Weber

gas grill OFF and wait for it to cool before cleaning.

For availability of replacement cooking grate contact the Customer Service Representative in your region using the contact information on our web site. Log onto www.weber.com®.

Outside surfaces - Use a warm soapy water solution to clean, then rinse with water.

 CAUTION: Do not use oven cleaner,

abrasive cleansers (kitchen cleansers) cleaners that contain citrus products, or abrasive cleaning pads on grill or cart surfaces.

Slide out Bottom tray - Remove excess grease, then

wash with warm soapy water, then rinse Cooking grate - Clean with a suitable brass bristle brush.

As needed, remove from grill and wash with warm soapy water, then rinse with water.

Catch pan - Disposable foil trays are available, or you can line the catch pan with aluminum foil. To clean the catch pan, wash with warm soapy water, then rinse.

Inside Cooking Box - Brush any debris off of

burner tubes. DO NOT ENLARGE BURNER PORTS (OPENINGS). Wash inside of cooking box with warm soapy water and a water rinse.

Inside Lid - While lid is warm, wipe inside with paper towel to prevent grease build-up. Flaking built-up grease resembles paint flakes.

Fold out work tables (Q120, 200, 220) - Wash with a soft cloth and a soap and water solution.

Do not use cleaners that contain acid, mineral spirits or xylene. Rinse well after cleaning.

Fold out work tables are not to be used as cutting boards.

WWW.WEBER.COM

GAS INSTRUCTIONS

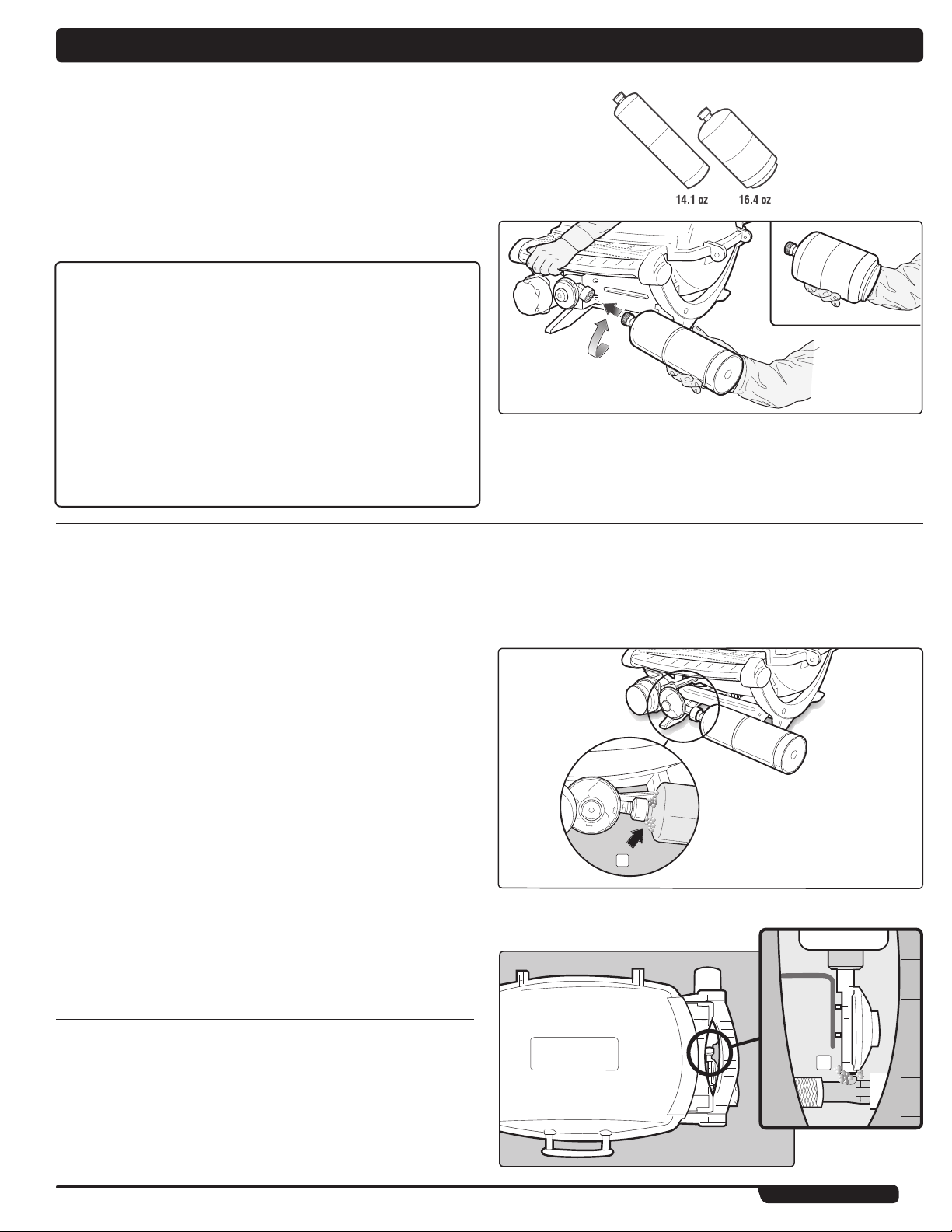

ATTACH PROPANE CYLINDER

Use propane cylinders with a capacity of 14.1 oz or 16.4 oz. You can find these tanks in the camping, hardware, plumbing section of the store you are shopping at.

 CAUTION: Use cylinders that are marked “Propane fuel” only.

Note: Your Weber® gas grill is equipped with a cylinder supply system designed for vapor withdrawal.

While holding carrying handle closest to propane cylinder with one hand, push propane cylinder into regulator and turn clockwise until tight.

 DANGER

Do not use an open flame to check for gas leaks. Be sure there are no sparks or open flames in the area while you check for leaks. Sparks or flames will result in a fire or explosion which can cause serious bodily injury or death, and damage to property.

 DANGER

Do not store a spare LP-gas cylinder under or near this appliance. Never fill the cylinder beyond 80 percent full. If the instructions are not followed exactly, a fire causing death or serious injury may occur.

 WARNING: Do not use a wrench to tighten the connection.

Using a wrench could damage the regulator coupling and could cause a leak.

CHECK FOR GAS LEAKS

After a period of nonuse, we recommend that you perform the following maintenance procedures for your safety.

• Inspect the burner for correct flame pattern. Clean if necessary, following the procedures outlined in the “General Maintenance” section of this manual.

• Check all gas fittings for leaks.

 WARNING: You should check for gas leaks every time you

disconnect and reconnect a gas fitting.

Note: All factory-made connections have been thoroughly checked for gas leaks.

The burners have been flame tested. As a safety precaution however, you should recheck all fittings for leaks before using your Weber® gas grill. Shipping and handling may have loosened or damaged a gas fitting.

 WARNING: Perform these leak checks even if your grill was

dealer- or store-assembled.

You will need a soap and water solution and a rag or brush to apply it. To perform leak checks make sure the Burner is in the off position and turn on gas supply.

 WARNING: Do not ignite burner while leak checking.

Check for leaks by wetting the connections with the soap and water solution and watching for bubbles. If bubbles form, or if a bubble grows, there is a leak. Note: Since some leak test solutions, including soap and water, may be slightly corrosive, all connections should be rinsed with water after checking for leaks.

Check:

1) Regulator-to-propane cylinder connection.

 WARNING: If there is a leak at connection (1), remove

propane cylinder. Do not operate grill. Use a different propane cylinder and recheck for leaks with soap and water solution. If a leak persists after retightening the propane cylinder, turn OFF the gas. DO NOT OPERATE THE GRILL. Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com

Check:

2) Valve-to-regulator connections.

 WARNING: If there is a leak at connection (2) turn OFF the

gas. DO NOT OPERATE THE GRILL. Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com

When leak checks are complete, turn gas supply OFF at the source and rinse connections with water.

OPERATING

 WARNING: Do not lean over the open grill. Keep your face

and body at least one foot away from the matchlight hole when lighting the grill.

LIGHTING

Summary lighting instructions are on the fold out work surface.

1) Open the lid.

2) Unfold the work surfaces (Q120, 200, 220).

3) Make sure the control knob is turned OFF. (Push control knob in and turn

clockwise to ensure that it is in the OFF position.)

 WARNING: Do not lean over the open grill. Keep your face

and body at least one foot away from the matchlight hole when lighting the grill.

4) Push burner control knob down and turn to START/HI. 5a) Push the red ignition button several times, so it clicks each time (Q100, 200).

5b) Push the electronic ignition button several times. You will hear it spark (Q120, 220).

6) Check that the burner is lit by looking down through the cooking grate. You should

see a flame.

 WARNING: If the burner does not light, turn the burner

control knob to OFF and wait 5 minutes to let the gas clear before you try again or try to light with a match.

TO EXTINGUISH

Push in and turn burner control knob clockwise to the OFF position.

 CAUTION do not fold in tables until grill is cold

(Q120, 200, 220).

 DANGER

Failure to open the lid while igniting the grill’s burner, or not waiting 5 minutes to allow the gas to clear if the grill does not light, may result in an explosive flame-up which can cause serious bodily injury or death.

OFF

START/

MANUAL LIGHTING

1) Open the lid.

2) Unfold the work surfaces (Q120, 200, 220).

3) Make sure the burner control knob is turned OFF.

WARNING: Do not lean over the open grill. Keep your face

and body at least one foot away from the matchlight hole when lighting the grill.

4) Strike a match and put the flame into the matchlight hole under the igniter.

5) Push burner control knob down and turn to START/HI.

6) Check that the burner is lit by looking down through the cooking grate. You should

see a flame.

 WARNING: If the burner does not light, turn the burner

control knob to OFF and wait 5 minutes to let the gas clear before you try again or try to light with a match.

TO EXTINGUISH

Push in and turn burner control knob clockwise to the OFF position.

 CAUTION do not fold in tables until grill is cold

(Q120, 200, 220).

OFF

START/ HI

3 5

WWW.WEBER.COM

MAINTENANCE

ANNUAL MAINTENANCE

INSPECTION AND CLEANING OF THE SPIDER/INSECT SCREEN

To inspect the spider/insect screen, remove the control knob bracket. If there is dust or dirt on the screen, remove the burner for cleaning the screen. Brush the spider/inspect screen, lightly, with a soft bristle brush (i.e. an old toothbrush).

 CAUTION: Do not clean the spider/insect screen with hard

or sharp tools. Do not dislodge the spider/insect screen or enlarge the screen openings.

Lightly tap the burner to get debris and dirt out of the burner tube. Once the spider/ insect screen and burner is clean replace the burner. If the spider/insect screen becomes damaged or cannot be cleaned, call Weber-Stephen Products Customer Service for replacement parts.

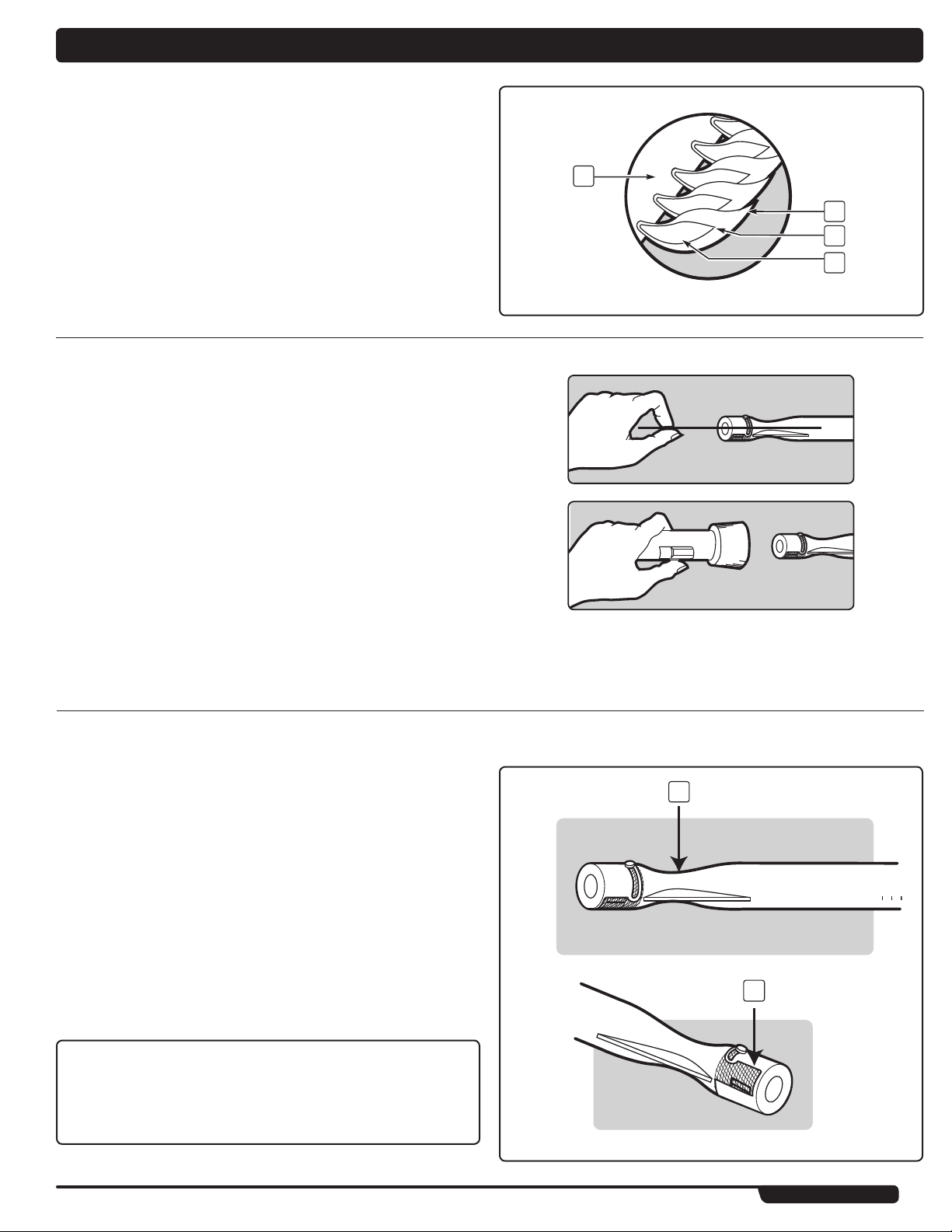

MAIN BURNER FLAME PATTERN

The Weber® gas grill burner has been factory set for the correct air and gas mixture. The correct flame pattern is shown.

1) Burner tube

2) Tips occasionally flicker yellow

3) Light blue

4) Dark blue

If the flames do not appear to be uniform throughout the burner tube, follow the burner cleaning procedures.

2 3 4

MAIN BURNER CLEANING PROCEDURE

Turn off the gas supply. Remove the burner. (See Replacing Burner Tube.) Look inside the burner with a flashlight. Clean the inside of the burner with a wire (a straightened-out coat hanger will work). Check and clean the air shutter opening at the ends of the burner. Check and clean the

valve orifice at the base of the valve. Use a Steel bristle brush to clean outside of burner. This is to make sure all the burner ports are fully open.

 CAUTION: Do not enlarge the burner ports when cleaning.

WEBER® SPIDER/INSECT SCREENS

Your Weber® gas grill, as well as any outdoor gas appliance, is a target for spiders and other insects. They can nest in the venturi section (1) of the burner tube. This blocks the normal gas flow, and can cause the gas to flow back out of the air shutter. This could result in a fire in and around the air shutter, causing serious damage to your grill.

The burner tube air shutter is fitted with a stainless steel screen (2) to prevent spiders and other insects access to the burner tube through the air shutter openings. We recommend that you inspect the Spider/Insect screen at least once a year. Also inspect and clean the the Spider/Insect screen if any of the following symptoms should ever occur:

1) The smell of gas in conjunction with the burner flames appearing yellow and lazy.

2) Grill does not reach temperature.

3) Grill heats unevenly.

4) Burner does not ignite.

 DANGER

Failure to correct the above mentioned symptoms may result in a fire, which can cause serious bodily injury or death, and cause damage to property.

MAINTENANCE

REPLACING BURNER TUBE

1) Your Weber® Q™ grill must be OFF and cool.

2) Unscrew and remove propane cylinder from the valve/regulator assembly.

3) Open the lid.

4) Remove cooking grate.

5) Remove the 1/4 x 20 inch screw that holds the burner tube to the cookbox (x).

6) Carefully slide the burner tube out from the cook box.

 Caution: The burner opening (1) must be positioned properly

over the valve orifices (2).

7) To reinstall the burner, reverse 5) through 7).

IGNITION SYSTEM OPERATIONS (Q100, 200)

If the ignition system fails to ignite the burner, light the burner with a match. If the burner lights with a match, then check the ignition system.

• Check that both the white(1) and black(2) ignition wires are attached properly.

• Check that the ignition button pushes the igniter (button) down, and returns to the

up position.

If the ignition system still fails to light, Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com

ELECTRONIC IGNITION SYSTEM OPERATIONS (Q120, 220)

If the electronic ignition system fails to ignite the burner, light the burner with a match. If the burner lights with a match, then check the Electronic Ignition System.

• Check that both of the ignition wires are attached properly to the igniter electrodes

on the ignition module. Black wire to electrode (1), white wire to electrode (2).

• Check that the Electronic Ignition Button is working by listening and looking for

sparks at the burner.

REPLACE BATTERY IF NECESSARY

AAA alkaline battery only. See illustration:

If the Electronic Ignition System still fails to light, contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com

WWW.WEBER.COM

TROUBLESHOOTING

PROBLEM CHECK CURE

Burners burn with a yellow or orange flame, in conjunction with the smell of gas.

Burner does not light, or flame is low in HIGH position.

Experiencing flare-ups:  CAUTION: Do not line the bottom tray with aluminum foil.

Burner flame pattern is erratic. Flame is low when burner is on HIGH. Flames do not run the whole length of the burner tube.

Inside of lid appears to be “peeling.” (Resembles paint peeling.)

Burner does not light when igniter button is pushed.

Burner flame does not ignite completely around the burner tube.

If problems cannot be corrected by using these methods, please contact the Customer Service Representative in your region using the contact information on our web site. Log onto www.weber.com

Inspect Weber® Insect/Spider screen for possible obstructions. (Blockage of holes.)

Is LP cylinder fuel low or empty? Does the burner light with a match?

Are you preheating grill in the prescribed manner? Is the cooking grate heavily coated with burned-on grease?

Is the bottom tray “dirty” and not allowing grease to flow into catch pan? Is the burner clean?

The lid is cast aluminum, not paint. It cannot “peel”. What you are seeing is baked on grease that has turned to carbon and is flaking off. THIS IS NOT A DEFECT.

Does burner light with a match? If you can light burner with a match, refer to “IGNITION SYSTEMS

Are the burner ports clean and fully open? Clean burner. (See Section “Annual Maintenance”.) Use a small paper clip to

Clean Weber® Insect / Spider screen. (See Section “Annual Maintenance”)

Replace propane cylinder. If you can light the burner with a match, then check the ignition system.

Burner on high for 10 minutes for preheating.Clean thoroughly. (See Section “Cleaning”) Clean bottom tray.

Clean burner. (See Section “Annual Maintenance”.)

Clean thoroughly. (See Section “Cleaning”.)

OPERATION”.

unclog any dirty ports.

+ 22 hidden pages
