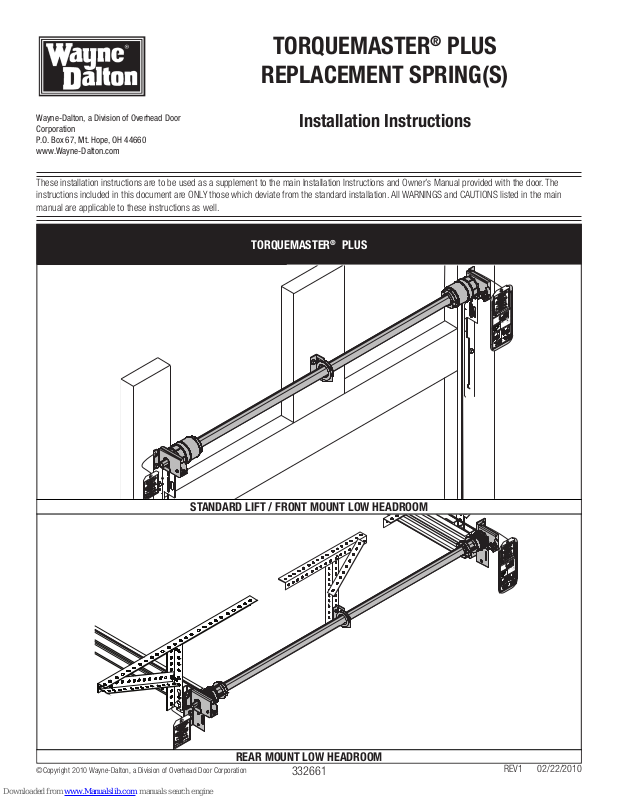

TORQUEMASTER® PLUS
REPLACEMENT SPRING(S)
Wayne-Dalton, a Division of Overhead Door
Corporation
Installation Instructions
P.O. Box 67, Mt. Hope, OH 44660
www.Wayne-Dalton.com
These installation instructions are to be used as a supplement to the main Installation Instructions and Owner’s Manual provided with the door. The
instructions included in this document are ONLY those which deviate from the standard installation. All WARNINGS and CAUTIONS listed in the main
manual are applicable to these instructions as well.
