Outdoor Lighting
O
N
/
O
F
F
P
R
O
G
R
A
M
O
N
/
O
F
F
P
R
O
G
R
A
M
O
N
/
O
F
F
P
R
O
G
R
A
M
Module
For plug-in landscape, patio
and holiday lighting
Model HA-04WD
Operating Instructions
and Owner’s Manual
This product is compatible with
other Z-Wave™ enabled products
IMPORTANT NOTICE!
Read the enclosed instructions carefully before installing the
Model HA-04WD Outdoor Lighting Module. Pay close attention to all
instruction steps and notes. This manual should be retained for future
reference.
Table of contents
Package Contents ....................................................................................................................... 2
Introduction ...............................................................................................................................2-3
Installation ................................................................................................................................... 4
Manual Operation .....................................................................................................................5-6
Programming ............................................................................................................................... 7
Specications .............................................................................................................................. 7
Compliance ................................................................................................................................. 8
Package Contents
1
Model HA-04WD
Outdoor Lighting Modules
Instruction
Manual
Introduction
Thank you for purchasing the HA-04WD
HomeSettings Outdoor Lighting Module.
HomeSettings products by Wayne-Dalton allow
to control your home by remote control
you
can create a complete Home Control and Access
Network by combining your Outdoor Lighting
Module with other HomeSettings products. Indoor
and outdoor lighting, TVs, garage door openers,
and thermostats are just a few of the items you
can easily control with additional HomeSettings
products
.
. You
2
Page 2
O
N
/
O
F
F
P
R
O
G
R
A
M
Introduction continued:
Your new Outdoor Lighting Module is compatible
with the complete range of Z-Wave
™
enabled
HomeSettings products. Furthermore, other
Z-Wave
™
enabled controllers regardless of brand
will also work with your Outdoor Lighting Module.
Please consult with your controller supplier for more
details.
Home Control Basics:
HomeSettings products allow you to easily control
multiple devices in a home with the push of a button
in what is known as a “scene”. Turning on all of the
lights as you come home is an example of a scene.
Dimming lights and closing your curtains to watch
TV, it’s also a scene.
Visit www.wayne-dalton.com/access to get ideas
on how to create scenes with your Outdoor Lighting
Module and other Z-Wave
™
enabled HomeSettings
products.
Introduction
3
1 Installation
Installation
1. Plug the HA-04WD Outdoor
Lighting Module into a 120VAC,
60Hz outlet.
PLUG OUTDOOR MODULE
INTO OUTLET
2. Plug a lamp, appliance, or
other electronic device into the
module.
3. Turn the knob or switch on
the lamp, appliance, or other
electronic device to the ON
position.
4
Page 3
2 Installation
O
N
/
O
F
F
P
R
O
G
R
A
M
O
N
/
O
F
F
P
R
O
G
R
A
M

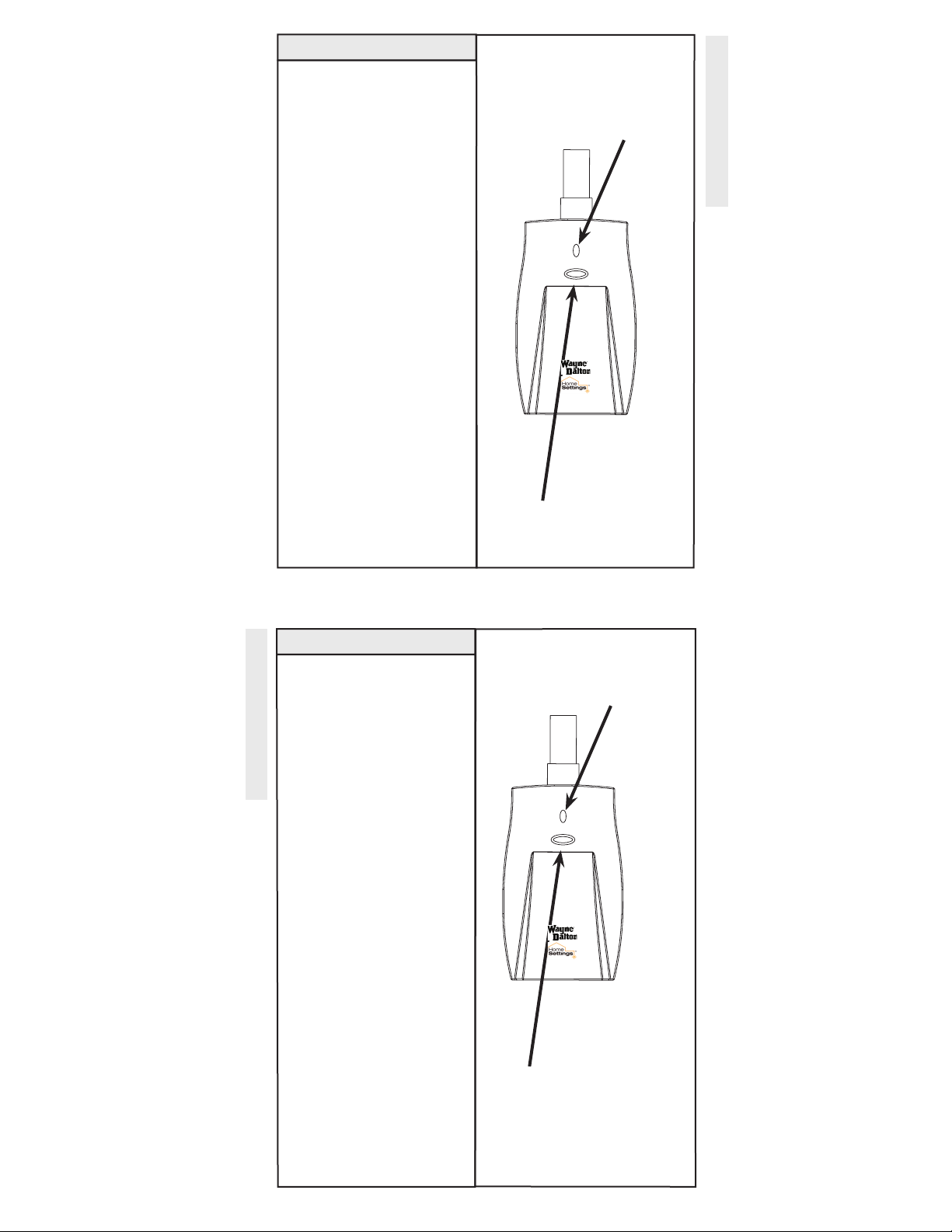

4. To manually turn ON the
HA-04WD Outdoor Lighting
Module, press and release the
Program/ON/OFF button. The
green indicator LED will turn ON,
and the lamp, appliance or other
electronics module plugged into
the HA-04WD Outdoor Lighting
Module will also turn ON.
Installation
GREEN LED
3 Installation (continued)
Installation
5. To manually turn OFF the
HA-04WD Outdoor Lighting
Module, simply press and
release the Program/ON/OFF
button. The green indicator
will turn OFF and the lamp,
appliance or other electronic
device plugged into the
HA-04WD Outdoor Lighting
module will also turn OFF.
Note: If the device does not turn
ON, confirm the power switch
for your device is turned to the
“ON” position.
PROGRAM ON/OFF BUTTON
5
GREEN LED
Note: This module must be
mounted in a vertical position
with the receptacle facing
downward and with the
receptacle not reaching ground
level.
6
PROGRAM ON/OFF BUTTON
Page 4
Installation (Continued)
4 Programming
Refer to the instructions for
the HA-07WD Deluxe Remote
Control, HA-09WD Remote
Control, or WDHA-12R Gateway
Module for programming this
device.
5 Specifications
For Indoor and Outdoor use in
Dry, Damp and Wet Locations
Ratings:
15 Amperes Resistive
8.3 Amperes Tungsten
120VAC, 60 Hz
Operating Temperature Range:
-35˚ C to 60˚ C
Programming/Specication
Made In China
FCC and IC Statement
Compliance
FCC Regulatory Information:
This equipment has been tested and found to comply with the limits for
NOTE:
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try and correct the interference by one or more of the following measures:
a) reorient or relocate the receiving antenna,
b) increase the separation between the equipment and receiver,
c) connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
IC Regulatory Information:
This Class B digital apparatus meets all requirements of the Canadian Interference
Causing Equipment Regulations. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation
of the device.
Cet appareillage numérique de la classe B répond a toutes les exigences de
l’interférence canadienne causant des règlements d’équipement. L’opération est
sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l’interférence
nocive, et (2) ce dispositif doit accepter n’importe quelle interférence reçue, y compris
l’interférence qui peut causer l’opération peu désirée.
WARNING:
Wayne-Dalton Corp. could void the user’s authority to operate this equipment.
Changes or modications to this receiver not expressly approved by
7
© Copyright 2006 Wayne-Dalton Corp. Part No. 0000345 New 3/22/06
8
You can reach us Toll Free 1-888-827-3667 for Consumer Assistance
or online at www.wayne-dalton.com/access
