Waves DLA
Software Audio Processor
Users Guid e
DLA Stereo time adjuster
DLA-X Delay and Cross-feed
This document is up to date with Waves DLA version 3.5.
Waves DLA software guide page 1 of 6
The DLA plug-in
NTRODUCTION
I
The DLA Plug-Ins are small T DM utility plug-ins that delay the audio passing
through. This is not the delay effect used as an echo generator. It is a handy tool
for applying short delays for a few useful applications.
DLA consists of 8 different plug-in components.
2 Straightforward delay for time adjustment.
3 Fixed delays or Plug-In specific delay compensation components.
3 Cross-feed delay components.
This short guide will describe ea c h of the different DLA components.
IME ADJUSTERS
T
Some digital audio processors use “lookahead” to perform their application thus
delaying the signal by the lookahead length. When such a plug-in is used on an
audio track, the track’s time alignment is offset. Some Audio application can
automatically compensate for this slide other’s can’t. In a TDM multitrack project
such an offset can cause phase shifting and comb filtering, or just an annoying
latency when the delay is longer. To fix the issue, delaying the other tracks by the
same amount aligns the time of all tracks.
Waves has many plug-ins with “Lookahead” and some go as far a 8240 samples
on 44.1Khz audio, which is about 187ms. This is enough to slide the track away
from the rest of the playback. You can open a DLA plug-in with 8240 samples on
the other tracks to align playback back to sample accuracy.
DLA, DLA Plus
The DLA and DLA Plus components are similar in that they allow you to select a
preset or specify the required delay manually.
DLA
Waves DLA software guide page 2 of 6
Handles the shorter delays of up to 1000 samples or 22.73 ms @ 44.1kHz. It has
only one control to set a value between 0-1000.
DLA Plus
Goes up to 7999 samples or 181.8ms @ 44.1kHz. It has one control for 0 – 999
samples and a separate control for 1K increments betw een 1 and 8.
DLA Plus includes a set of presets to compensate for some single plug-ins as
well as some plug-in chains. It has some different presets to compensate for the
same plug-in in different sample rates such as 96kHz or 192kHz and includes
delay compensation presets for the components of the Waves Masters bundle.
If you adjust DLA and you need more delay you can hot switch between DLA and
DLA Plus will update with the settings that were in the DLA plug-in to which you
can now add further delay.
Waves DLA software guide page 3 of 6
L1-DLA, C1-DLA and UltraPitch–DLA
Waves DLA version 3.5 provides 3 fixed length DLA components to compensate
for some of our Gold bundle plug-ins –
L1-DLA
Delays the signal by 64 samples to compensate for the lookahead in
L1UltraMaximizer as well as Renaissance Compressor, Renaissance VOX
and L2UltraMaximizer.
C1-DLA
Delays the signal by 340 samples to compensate for the lookahead in the C1
comp/sidechain and C1 Compressor/gate. Other C1 components C1
compressor and C1 gate do not introduce delay and therefor require no
compensation.
UltraPitch-DLA
Delays the signal by 8240 samples to compensate for the delay of any UltraPitch
component.
Waves DLA software guide page 4 of 6
EL AY AND CROSS FEED
D
The DLA-X process family is based on short time stereo cross feed delays (not
an echo effect). DLA-X is the basic effect; DLA-XL controls the amount of cross
feed separately for the high and low frequencies, and DLA-XLB has an optional
longer delay of low frequencies. While DLA-X processors can be useful used on
mono input sources, it is most effective on stereo inputs, and especially when
used in cascade with either PS-Spread or PS-Split can give spectacular and
dramatic results.
DLA-X

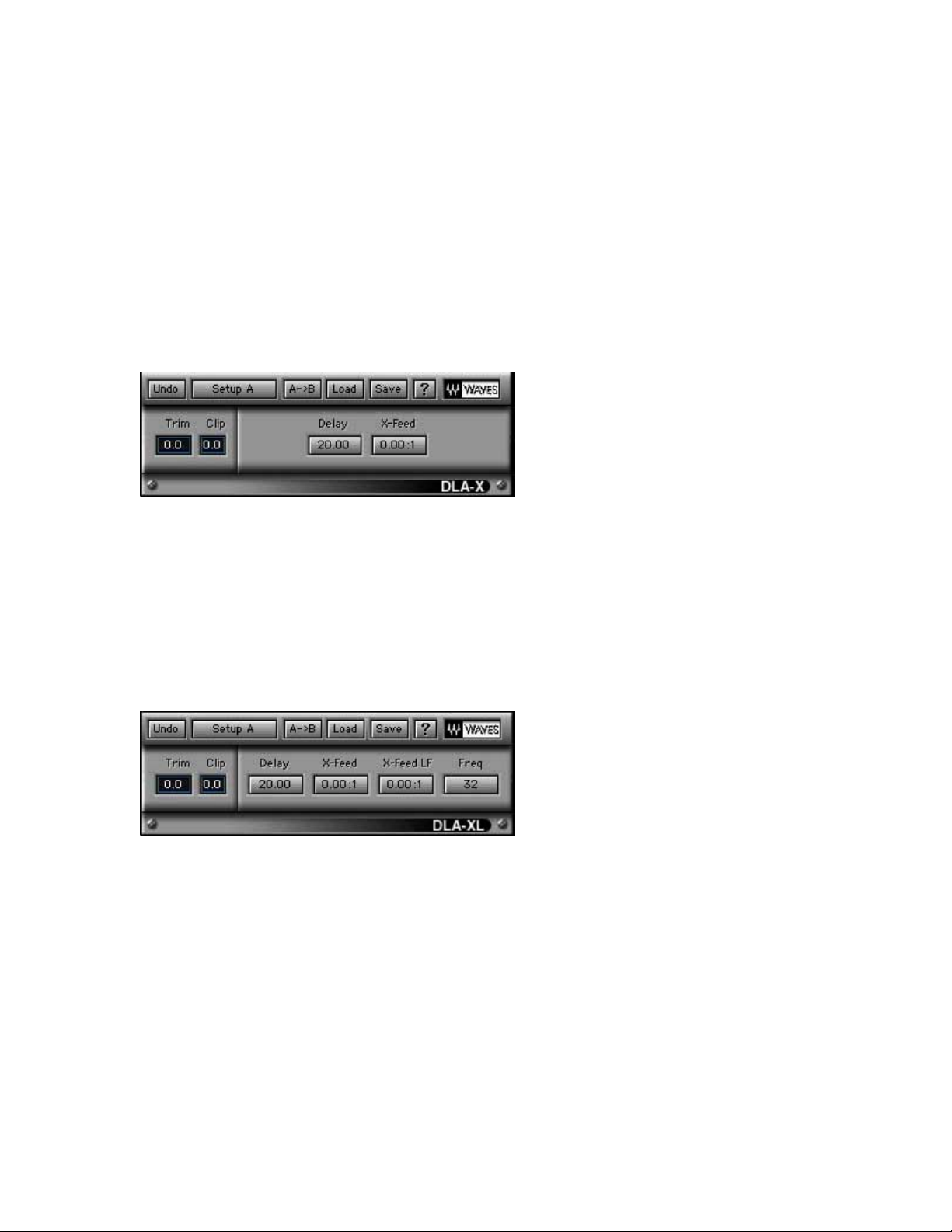

The basic Delay and Cross feed plug-in. It has the following controls:
Delay 0.50 – 20.00ms. Determines the delay until the signal will be fed back and
mixed with the direct signal.
X-Feed 0.00:1 – 1.00:1. Determines the amount of cross feed between the left
and right channels.
Trim is a gain control allowing to pad the input 0 - -6dBfs.
Clip is just a counter showing you how many clipped samples pass through the
plug-in. To avoid clipping use the Trim control.
DLA-XL
This Component extends the DLA-X with a frequency domain crossover allowing
a separate Cross-feed ratio for frequencies above and below the crossover.
On top of the DLA-X controls It has the following controls:
X-Feed LF ratio 0.00:1 – 1.00:1. Determines the amount o f cross feed betw een
the left and right channels for frequencies below the crossover. This is a ratio of
the overall cross-feed set by the X-Feed control.
Freq. 32 – 16384Hz Sets the crossover frequency.
Waves DLA software guide page 5 of 6
DLA-XLB
This component is just like the DLA-XL with the addition of a Bass delay On/Off
control. This control adds further delay to the low frequencies.
DLA-X family and PS22.
The DLA-X and PS processes complement each other. When used on mono
input sources DLA-X tends to produce a comb-filter coloration side effect as a
result of the interaction between the delayed and original sound. On the other
hand, PS-Split (and for a lesser extent PS-Spread) will split the spectrum of a
central sound so that distinct frequency bands will exist only in one of the two
stereo channels, this has a different kind of coloration side effect.
When DLA-X and PS plug-ins are used together, the DLA-X cross-feeds the
missing frequency bands from one channel to the other, but since each channel
has different frequency bands, the interaction between the delayed and original
signal is avoided. A similar, but more complex effect takes place on stereo input.
Note that following PS-Split by a stereo compatible reverb will achieve similar
results, so using DLA-X is not needed in this case.
PS-Split is the tool to use when you wish to split input mono sounds into two
almost completely separate stereo positions, e.g. for a dramatic left-right split. It
is capable of extreme and dramatic stereo separation effects. Best results are
normally achieved when used in conjunction with one of the DLA-X plug-ins, but
it can also be used either on its own or with a reverb effects unit.
All three effects are fully user-adjustable from zero effect up to a high degree of
effect — as much or as little reprocessing of stereo effect as you want or need.
The quality as well as amount of the stereo effect is also fully under user control.
The PS22-Spread component has the basic set of controls common to all 3 PS
components.
Waves DLA software guide page 6 of 6
