[ CARE AND USE MANUAL ]
ACQUITY UPLC BEH SEC COLUMNS AND STANDARDS
CONTENTS
I.INTRODUCTION
II.CONFIGURING AN ACQUITY UPLC SYSTEM FOR USE IN SEC PROTEIN SEPARATIONS
a. Calibrators
III.GETTING STARTED
a.eCord™ Installation
b.Column Connectors
c.Column Installation
d.Column Equilibration
e.Useful Functional Tests for Benchmarking a New Column
IV. COLUMN SPECIFICATIONS AND USE
a.SEC Eluent and Needle Wash Preparation
b.Sample Preparation
c.Column Specification
V.TROUBLESHOOTING
VI. COLUMN CLEANING, REGENERATION AND STORAGE
a.Cleaning and Regeneration
b.Storage
VII. INTRODUCING eCord INTELLIGENT CHIP TECHNOLOGY
a.Introduction
b.Installation
c.Manufacturing Information
d.Column Use Information
VIII. ORDERING INFORMATION
I. INTRODUCTION
Thank you for choosing a Waters ACQUITY UPLC® BEH SEC guard, column, and/or standard mix that are integral parts of Waters ACQUITY UPLC SEC System Solution. The BEH125 SEC offering is best suited for the analysis of peptides and proteins in the molecular weight range from 1,000–80,000 Daltons that include insulin and its aggregates. The BEH200 SEC column was designed to characterize proteins ranging in molecular weight range from 10,000–450,000 Daltons that include monoclonal IgG monomers from aggregates, while our BEH450 SEC is best suited for the analyses of proteins and conjugates that range from 100,000–1.5 million Daltons
(Fig 1). All of these SEC chemistries are based on Waters Ethylene Bridged Hybrid (BEH)-based particle technology and diol-bonded surface that provide a stable chemistry with minimal non-desired secondary interactions for proteins and peptides. The columns are manufactured in a cGMP, ISO 9001 certified plant using ultra pure reagents. Each batch of Protein Separation Technology SEC packing material has been tested and qualified using a protein test mixture (that is also available for purchase), and the results are held to narrow specification ranges to ensure reproducible performance. Every column is also individually tested for efficiency. A Performance Test Chromatogram along with a Certification of
ACQUITY UPLC BEH SEC Columns |
1 |
[ CARE AND USE MANUAL ]
II. CONFIGURING AN ACQUITY UPLC SYSTEM FOR USE IN SEC PROTEIN SEPARATIONS
a. Calibrators
In order to obtain the best performance from your SEC column, it is important that your ACQUITY UPLC system is properly configured. It is recommended that only pre-cut tubing is used, and that the ID of all connecting tubing is 0.005” or less for optimal chromatographic performance.
Size-exclusion chromatography may require modifications to an existing ACQUITY UPLC system. Please refer to “Size-Exclusion and Ion-Exchange Chromatography of Proteins using the ACQUITY UPLC System” (P/N 715002147A) for specific recommendations that can be obtained at www.waters.com/chemcu
The sample loop used may affect the performance of your separation. Optimally, select the smallest volume sample loop that is required for the application. Sample loops larger than 20 µL with the ACQUITY UPLC BEH SEC column are not recommended.
III. GETTING STARTED
A Performance Test Chromatogram and a Certification of Analysis (COA) are available for each shipped ACQUITY UPLC BEH SEC column. The COA is specific to each batch of packing material and includes the batch number and chromatographic separation obtained using defined protein standards. This document is available upon request at www.waters.com/chemcu
|
|
|
|
|
|
Blue Dextran |
|
|
|
|
|
|
|
|
|
|
||
1,000,000 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ACQUITY UPLC BEH125 SEC, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1.7 µm: 1K–80K Daltons |
|
|
|
IgM (900 kDa) |
Thyroglobulin (669 kDa) |
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
IgG (150 kDa) |
|
|
|
|
|
ACQUITY UPLC BEH200 SEC, |
100,000 |
|
|
|
|
|
|
|
|
|
|
|
Amylglucosidase (97 kDa) |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1.7 µm: 10K–450K Daltons |
|
|
|
|
|
|
|
|
Conalbumin (75 kDa) |
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
Ovalbumin (44 kDa) |
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
Myoglobin (17 kDa) |
|
|
|
|
|
|
|
|
|
ACQUITY UPLC BEH450 SEC, |
||||
10,000 |
|
|
|
|
RNase A (13.7 kDa) |
|
|
|
|
|
|
|
|
|
2.5 µm: 100K–1500K Daltons |
|||
|
|
|
|
Aprotinin (6.5 kDa) |
|
|
||||||||||||
MW |
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
1000 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Angiotensin frag 1-7 (899 Da) |
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
Allantoin (158 Da) |
Uracil (112 Da) |
|
|
|
|
|
|||
100 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
0.4 |
|
|
0.6 |
|
|
|
0.8 |
1.0 |
|
|
Normalized Retention Volume (Vr/VC)
Protein standards; T: 30°C; Mobile phase: 100mM sodium phosphate, pH=6.8
Figure 1. Calibration Curves on ACQUITY UPLC BEH125, BEH200, and BEH450 SEC Columns
|
1 |
4 |
5 |
7 |
ACQUITY UPLC |
|
0.15 |
BEH125 SEC |
|||
|
|
6 |
|
||
|
2 |
3 |
|
|
|
AU |
0.10 |
|
|
|
|
|
|
|
|
|
|
|
0.05 |
|
|
|
|
|
0.00 |
|
|
|
|
|
0.12 |
|
2 |
4 |
5 |
7 |
|
|
|
|
|
||
|
|
|
|
|
|
|
AU |
0.08 |
1 |
|
3 |
|
|
|
|
|
6 |
|||
|
|
|
|
|
|
|
|
0.04 |
|
|
|
|
|
|
0.00 |
|
|
|
|
|
|
|
Thyroglobulin dimer |
|
|
|
0.10 |
(Approx. 1.4 million Daltons) |
2 |
5 |
|
0.08 |
|
1 |
|
AU |
0.06 |
|
3 |
|
|
|
|||
|
0.04 |
|
|
|
|
0.02 |
|
|
|
|
0.00 |
|
|
|
ACQUITY UPLC
BEH200 SEC
ACQUITY UPLC BEH450 SEC
Note: Stds 4 and 6 above were not included in the BEH450 Column test mix
7
2 |
3 |
4 |
5 |
|
6 |
7 |
8 min |
|
Compounds: |
|
|
|
|
|
|
||
1. Thyroglobulin (670K) |
|
5. Myoglobin (17K) |
|
|||||
2. BSA (66K) |
|
|
6. Angiotensin Frag 1–7 (899) |
|
||||
3. Ovalbumin (44K) |
|
7. Uracil (112) |
|
|||||
4. Carbonic Anhydrase (29K) |
|
|
|
|
||||
|
|
|
|
|
||||
Columns |
ACQUITY UPLC BEH125, 1.7 µm |
ACQUITY UPLC BEH450, 2.5 µm |
||||||
ACQUITY UPLC BEH200 1.7 µm |
||||||||
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
Column |
|
|
|
4.6 x 150 mm |
|
|||
Configuration |
|
|
|
|
||||
|
|
|
|
|
|
|
||
|
|
|
|
|
||||
Mobile Phase |
|
|
100 mM Sodium Phosphate Buffer, pH 6.8 |
|
||||
|
|
|
|
|
|
|
|
|
Weak |
|
|
100% Milli-Q® Water |
|
||||
Needle Wash |
|
|
|
|||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
Strong |
|
|
|
100% Milli-Q Water |
|
|||
Needle Wash |
|
|
|
|
||||
|
|
|
|
|
|
|
||
|
|
|
|
|
||||
Seal wash |
|
|
90/10 water/methanol |
|
||||
|
|
|
|
|
|
|||
|
|
Thyroglobulin 0.3 mg/mL |
|
|
|
|||
|
|
BSA 0.3 mg/mL |
|
|
Thyroglobulin 3 mg/mL |
|||
Samples: |
|
Ovalbumin 0.3 mg/mL |
|
BSA 5 mg/mL |
|
|||
Diluted in |
|
Carbonic Anhydrase 0.3 mg/mL |
|
Ovalbumin 3 mg/mL |
||||
mobile phase |
|
Myoglobin 0.3 mg/mL |
|
Myoglobin 2 mg/mL |
|
|||
|
Angiotensin Frag. 1–7 0.1 mg/mL |
|
Uracil 0.1 mg/mL |
|
||||
|
|
Uracil 0.1 mg/mL |
|
|
|
|||
|
|
|
|
|
|
|||
Injection Vol. |
|
|
|
2 µL, Full Loop |
|
|||
|
|
|
|
|
|
|
||
Flow Rate |
|
|
|
0.3 mL/min |
|
|
||
|
|
|
|
|
|
|||
Column Temp. |
|
|
Ambient |
|
|
|||
|
|
|
|
|
|
|
|
|
Detection |
|
UV @ 220 nm |
|
|
UV @ 280 nm |
|
||
Wavelength |
|
|
|
|
||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
Figure 2. Separation of Protein and Peptide Standards on ACQUITY UPLC BEH125, BEH200, and BEH450 SEC Columns

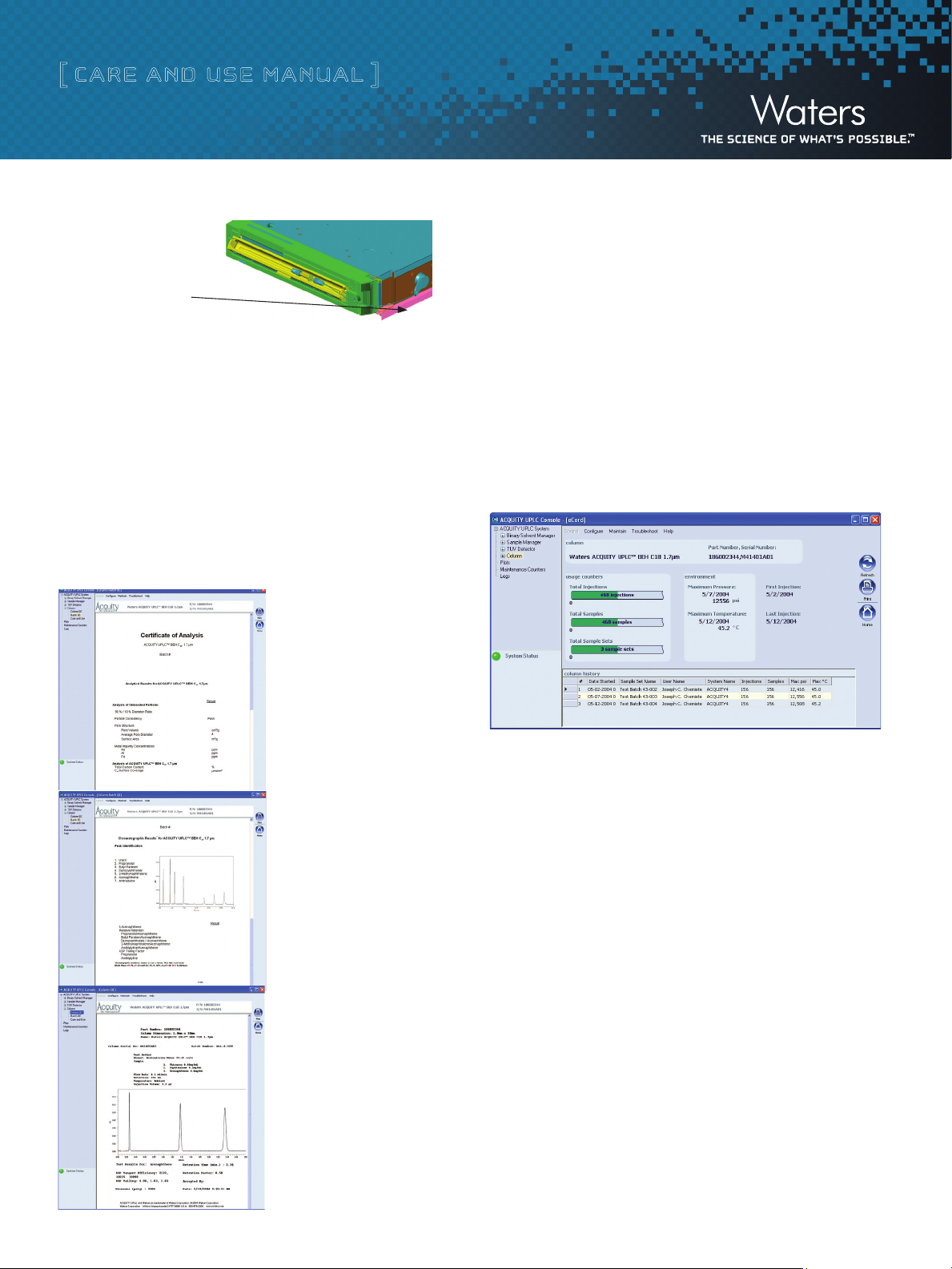

a. eCord Installation
The eCord button should be attached to the side of the ACQUITY UPLC column heater module. The eCord button is magnetized and does not require specific orientation.
ACQUITY UPLC BEH SEC Columns |
2 |
[ CARE AND USE MANUAL ]
b. Column Connectors

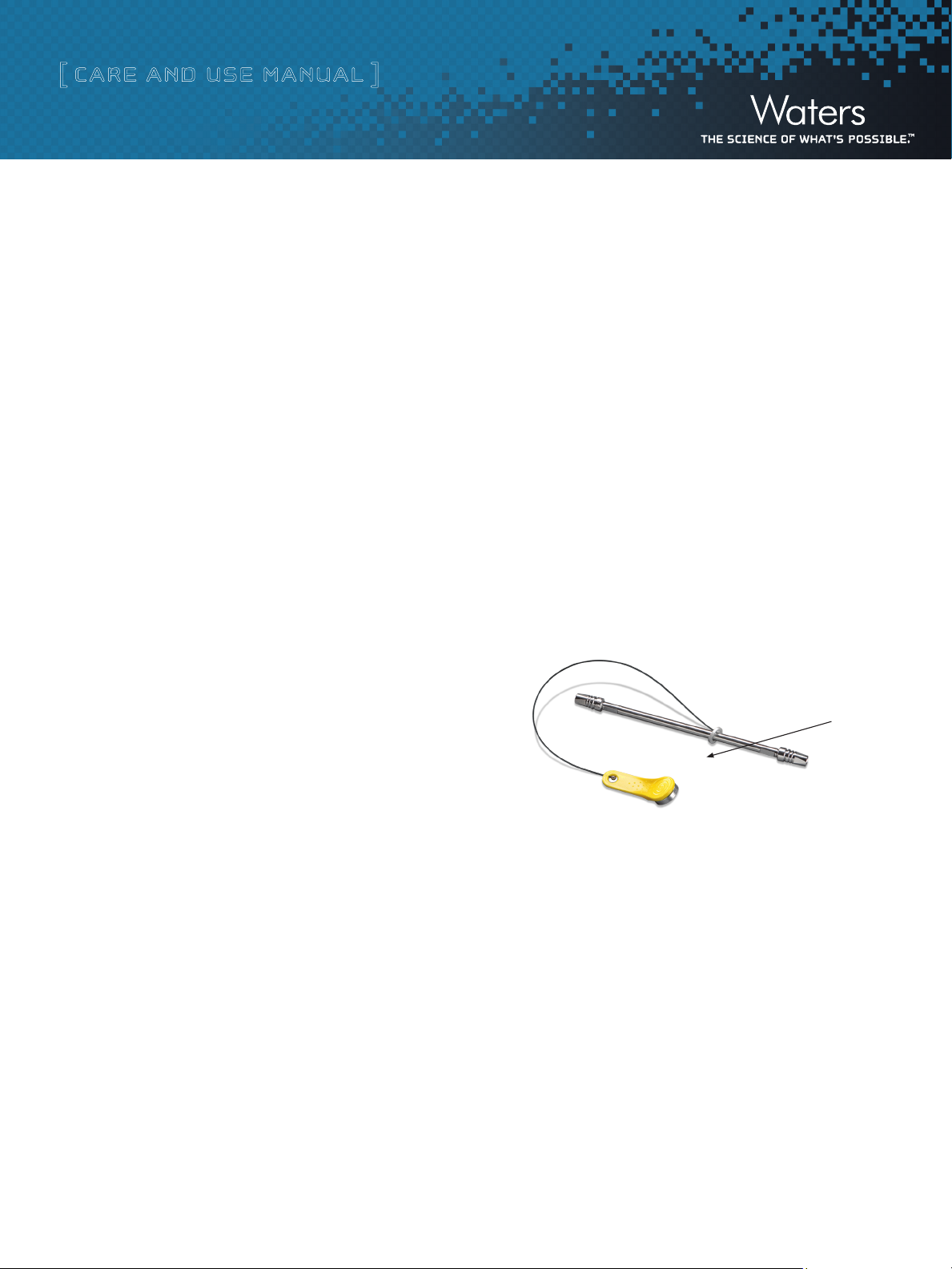

It is is recommended to use the 150 mm column stabilizer (P/N 205000365) to connect the ACQUITY UPLC BEH SEC column to the ACQUITY UPLC system. A reusable fitting is supplied with the ACQUITY UPLC column stabilizer.
c. Column Installation
1.Prior to placing the column on the system, purge the solvent delivery system of any organic or water-immiscible mobile phases. When connecting the column, orient it in the proper direction as noted by the arrow on the column inlet side which indicates the correct direction of solvent flow.
2.Flush column with 100% aqueous buffer, by pumping at a flow rate of 0.2 mL/min.
3.Ensure that the mobile phase is flowing freely from the column outlet. Attach the column outlet to the detector using .004” ID tubing (P/N 430001562). Monitor the system pressure to ensure the column is within its pressure limitations.
4.Gradually increase the flow rate, by not more than 0.1mL/min at a time, as described in Step 2.
5.Once the system pressure has stabilized, ensure that there are no leaks at either the column inlet or outlet.
d. Column Equilibration
ACQUITY UPLC BEH SEC columns are shipped in 20% methanol in water. It is important to ensure mobile-phase compatibility before changing to a different mobile-phase system. Equilibrate the column with a minimum of 10 column volumes of the buffer to be used (refer to Table 1 for column volumes).
Table 1. Empty Column Volumes in mL (multiply by 10 for flush solvent volume)
Column Dimension |
Approximate Volume |
|
|
4.6 x 150 mm |
2.5 mL |
|
|
4.6 x 300 mm |
5.0 mL |
|
|
e. Useful Functional Tests for Benchmarking a New Column
Waters recommends performing a benchmarking test upon receipt of your column and throughout the lifetime usage. By using a separation of common proteins with an appropriate method, you can:
Verify the performance of the column upon receipt.
Monitor the condition of the columns for extended use.
Troubleshoot separation difficulties that may arise.

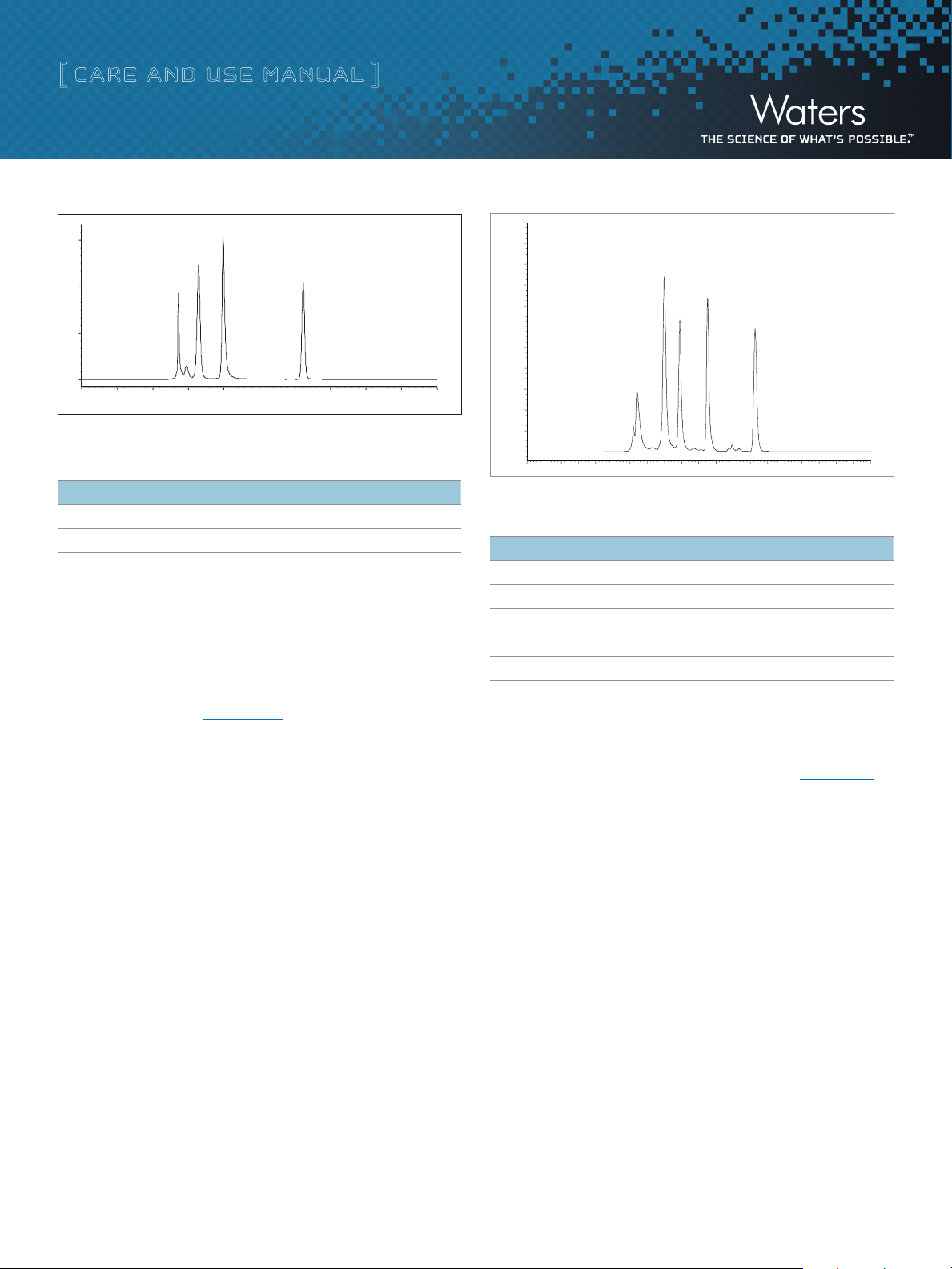

The BEH125 SEC Protein Standard Mix (P/N 186006519), BEH200 SEC Protein Standard Mix (P/N 186006518), and BEH 450 SEC Protein Standard Mix (P/N 186006842) were specifically designed for this purpose with carefully chosen proteins and/or peptides to provide a good representation of the intended application. Figure 3 is an example of the Performance Test Chromatogram using

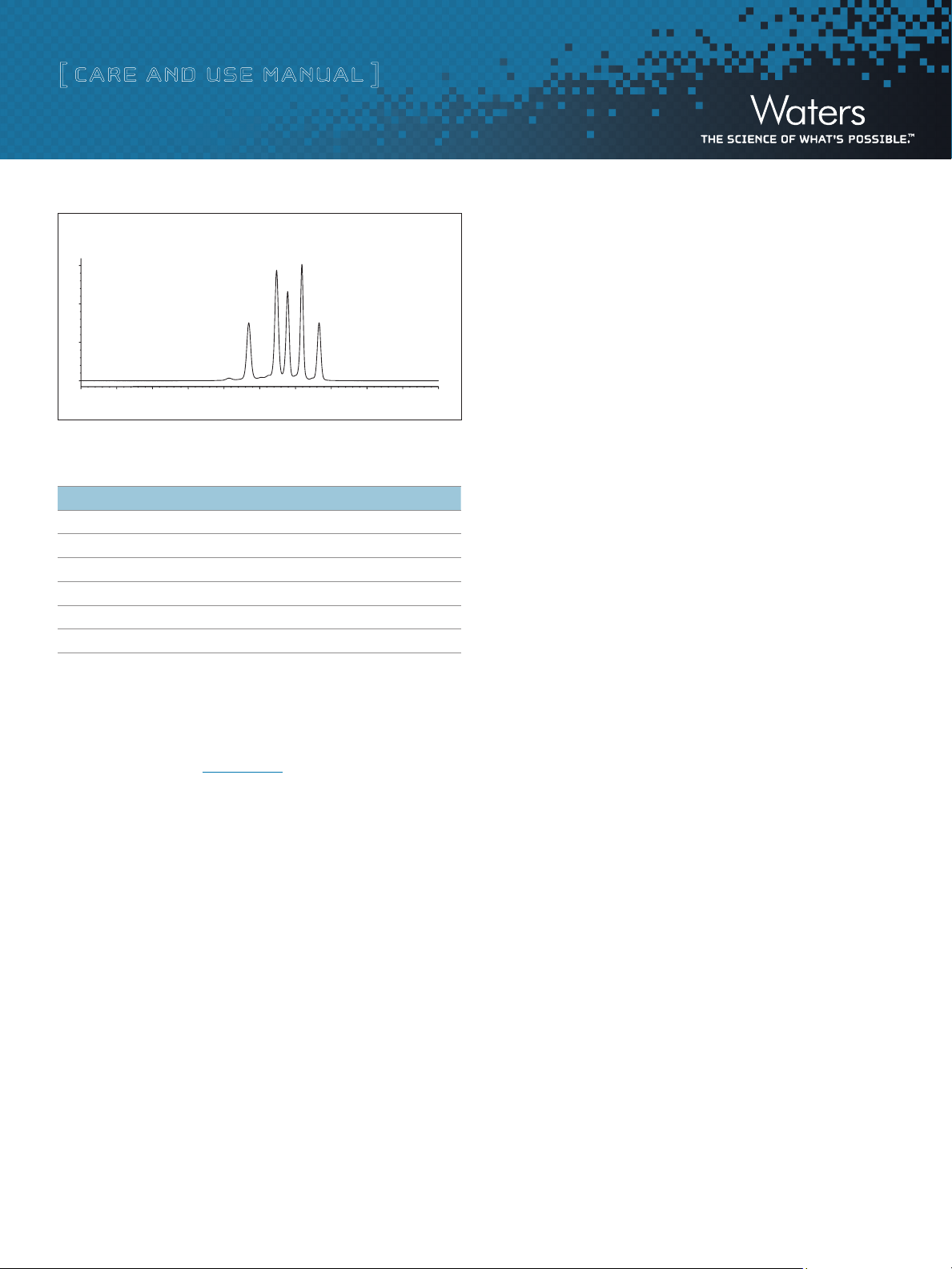

Part Number 186006519, Figure 4 is an example of the Performance Test Chromatogram using Part Number 186006518. Figure 5 is an example of the Performance Test Chromatogram using Part Number 186006842. These are typical results obtained in a waters laboratory using 4.6 x 150 mm columns on an ACQUITY UPLC system.
Buffer Preparation for Standard:
Chemicals:
-Sodium Phosphate Monobasic, Monohydrate
-Sodium Phosphate Dibasic, Anhydrous
-Milli-Q Water
Preparation of 100mM Sodium Phosphate Buffer (500 mL)
-Weigh out 500 ± 0.02 grams of H2O into a 500 mL beaker.
-Weigh out 3.55 ± 0.02 grams of Sodium Phosphate dibasic and add to the 500 mL beaker.
-Weigh out 3.45 ± 0.02 grams of Sodium Phosphate monobasic and add to the 500 mL beaker.
-Stir for a minimum of 30 minutes then filter the solution through a 0.2 µm Millipore GV filter.
-Take the pH and record the value for reference purposes (approximate pH: 6.8).
