Wascomat W675 Parts Diagram
Spare Parts Catalogue
Catalogue de pièces de rechange
Laveuses essoreuses
Valid up to machine No. -xxx/99999
E675,W675
Washer extractor
438 9191-22DOC. NO.
EDITION 44.2009
List of issues
E675,SU675c,SU675s,W675,W675c,W675s,W3330M
Illustration Page Table of contents
101770 27 Control panel Clarus
101771 59 Detergent container

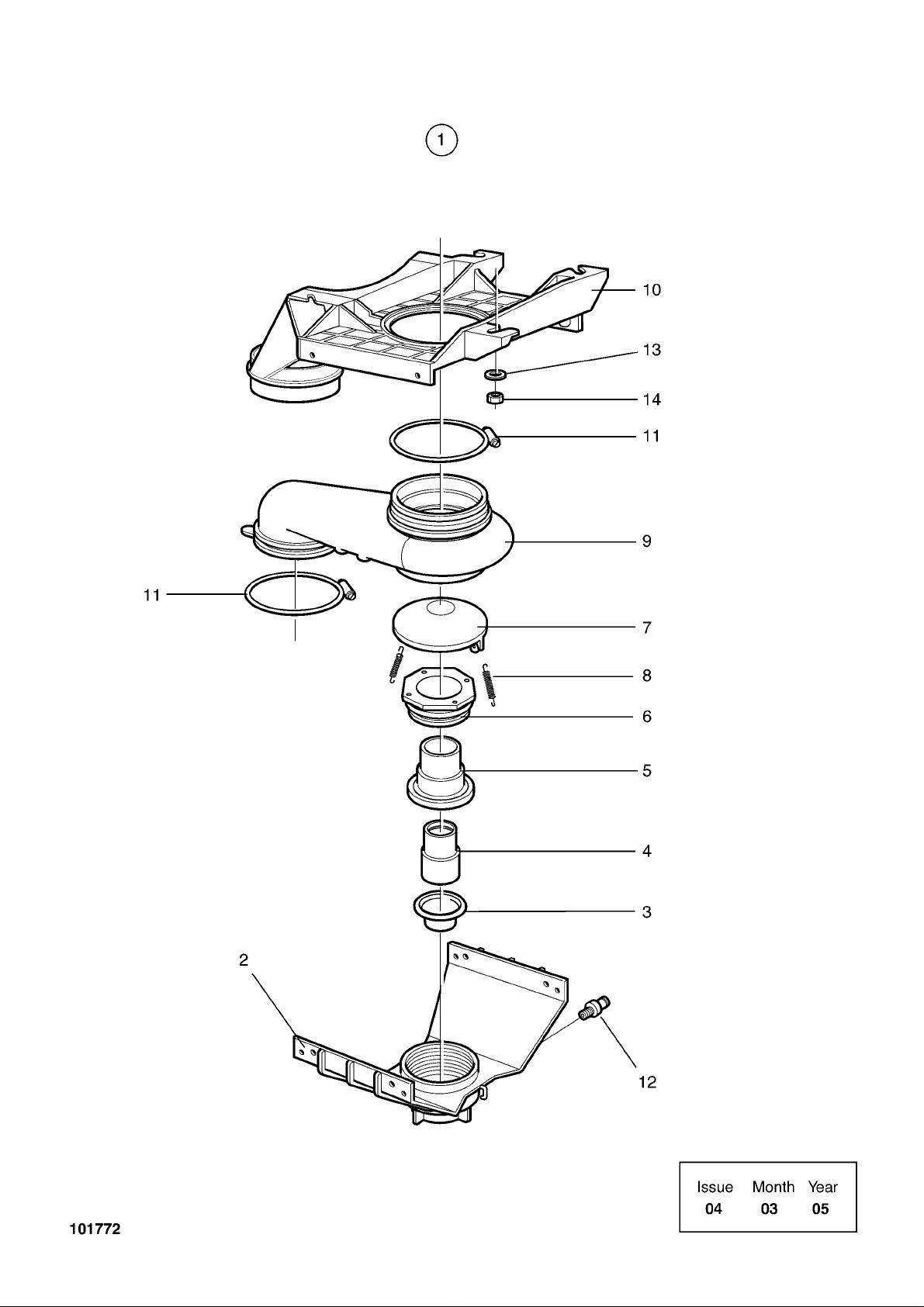

101772 51 Drain valve
101774 7 Base and outer drum
101776 15 Door lock

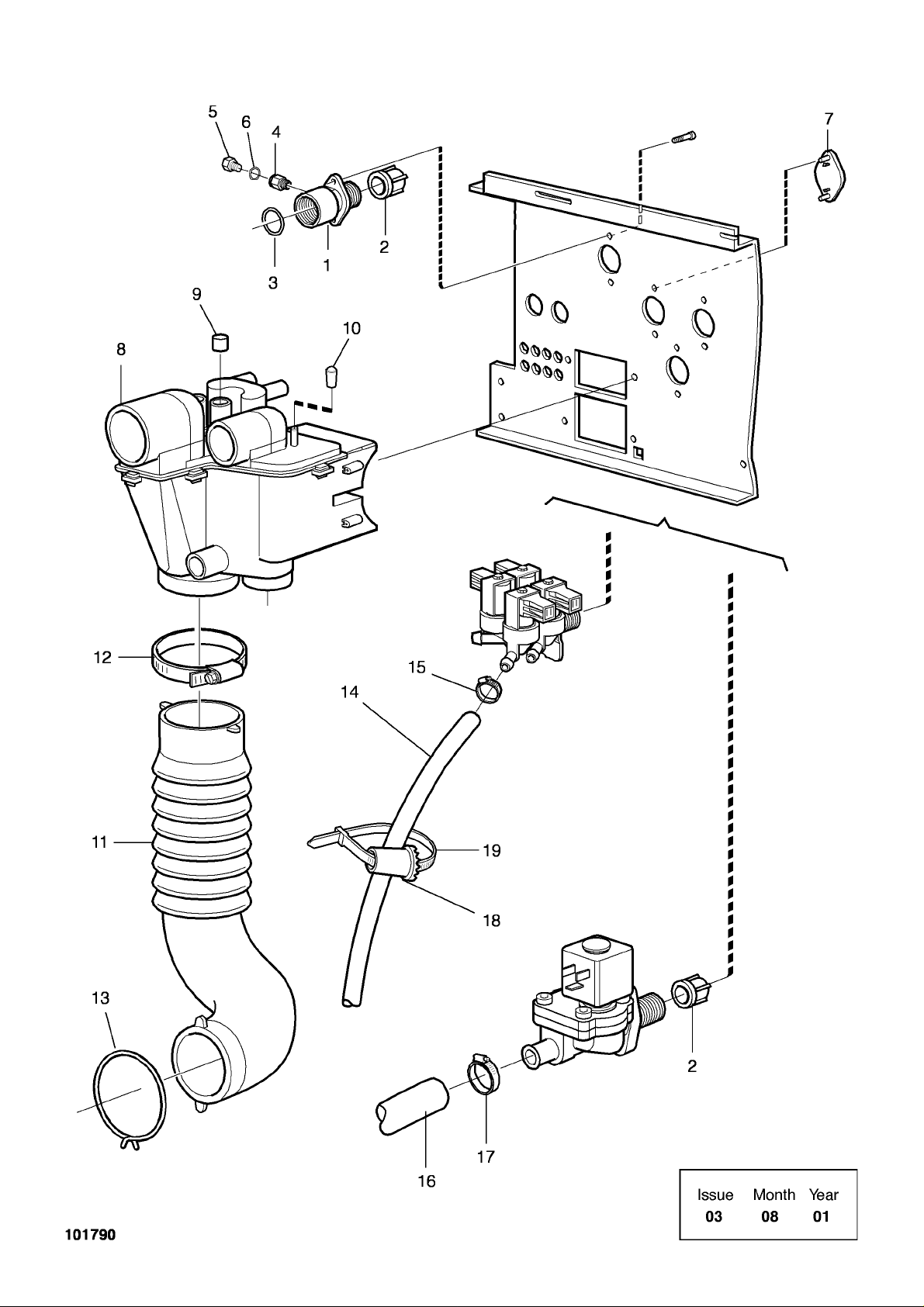

101790 47 Water connections
101918 57 Steam components
101924 55 Drain valve, electrical

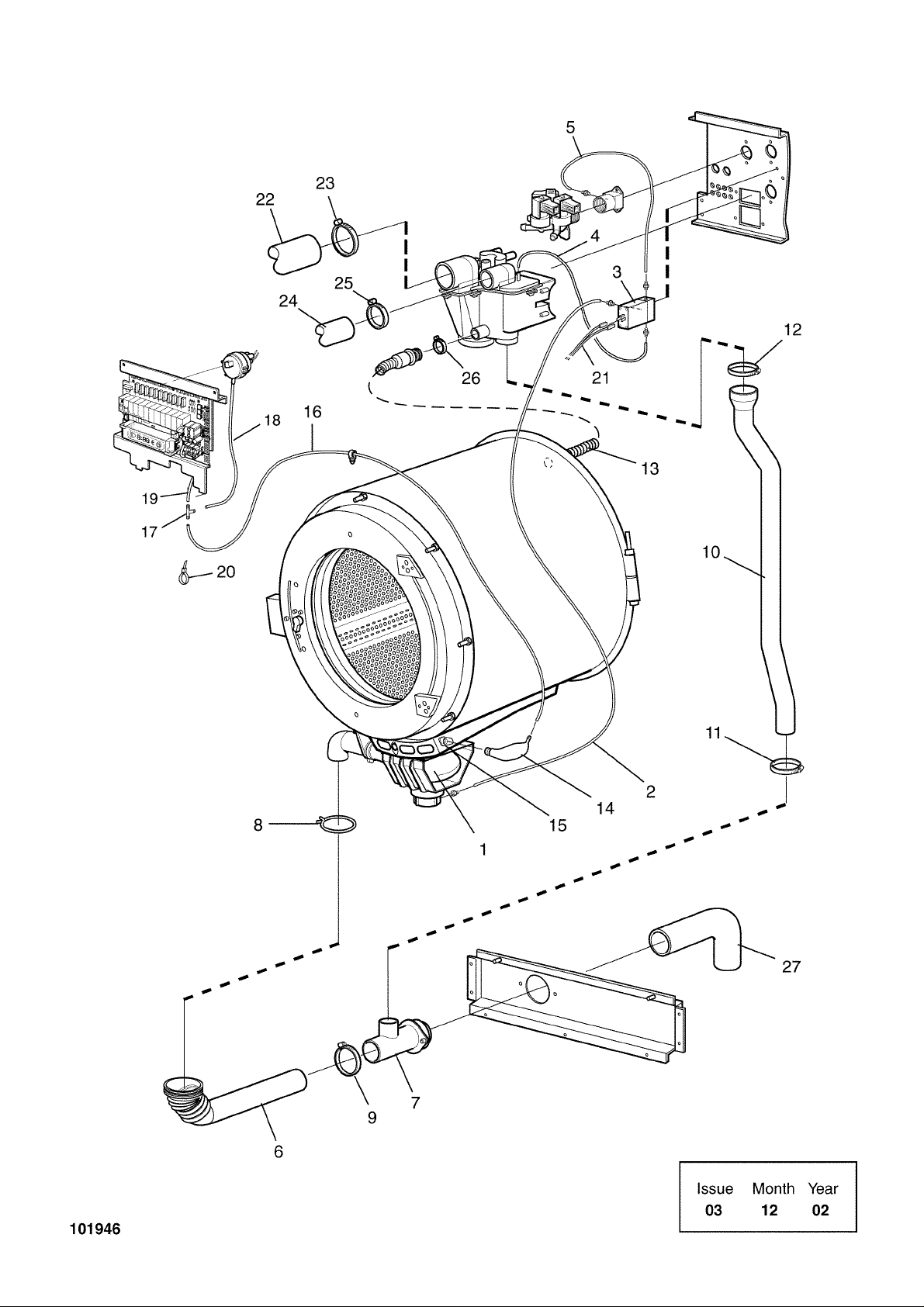

101946 53 Drain valve and hoses
101949 29 Control panel Classic

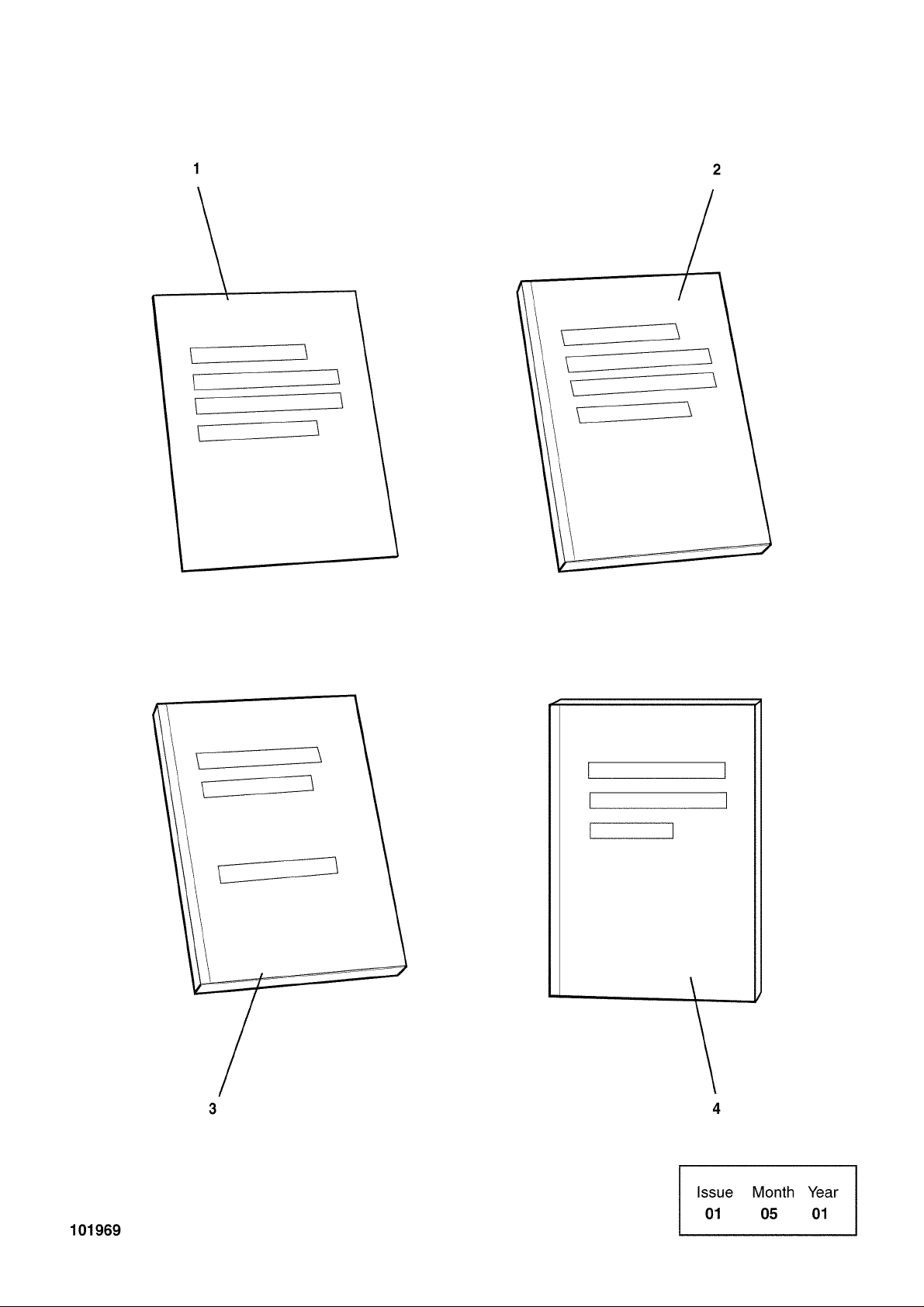

101969 71 Technical documentation
101979 63 Coin meter USA
101988 43 Electric components 3AC
101989 45 Electric components Classic 3AC
101990 17 Motors
101991 61 Manual starter unit, Classic

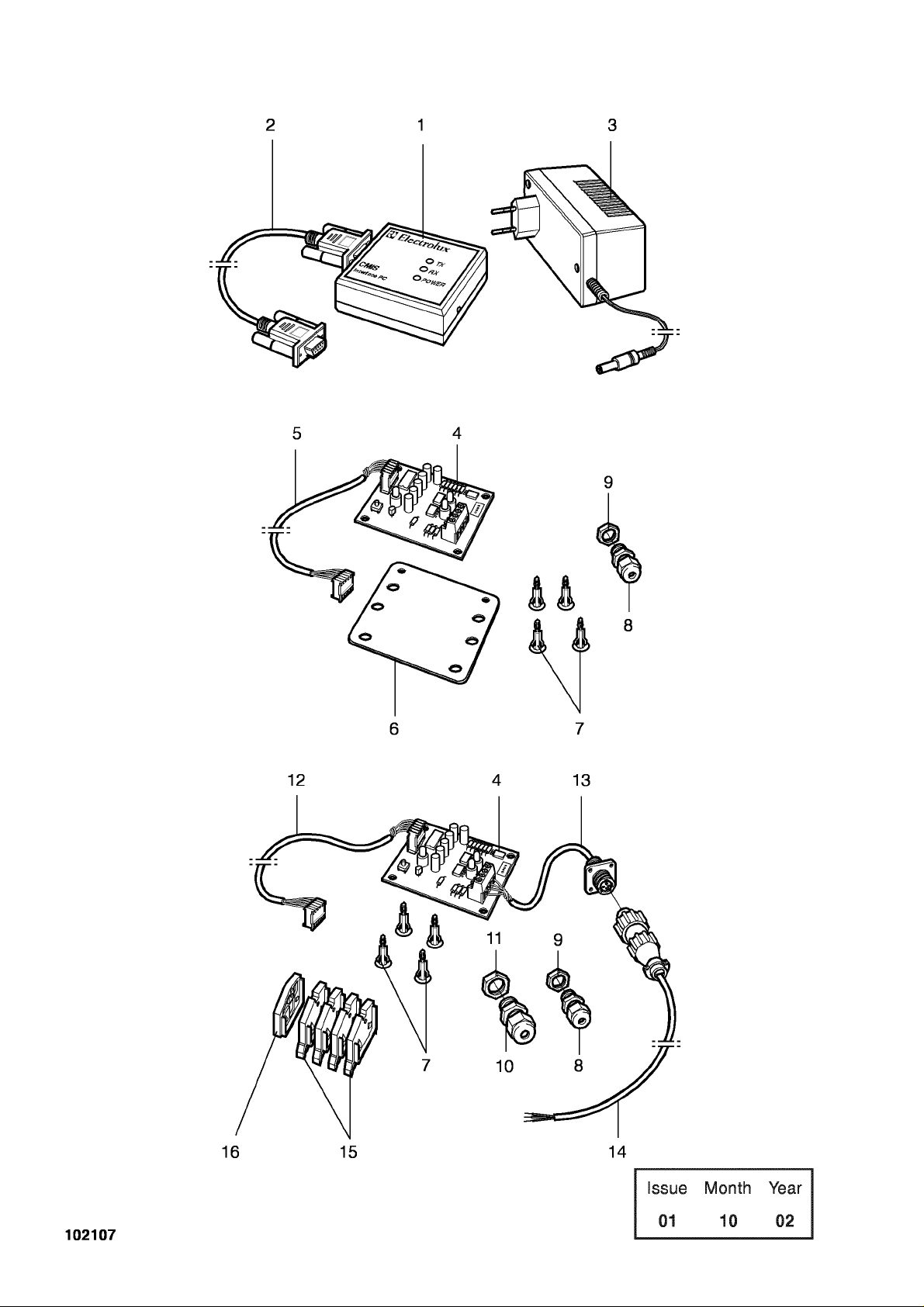

102107 67 CMIS
102110 13 Door and hinged joint
102111 25 Control panel Exacta
102112 11 Drum, rear gable
102113 9 Lining and top panel

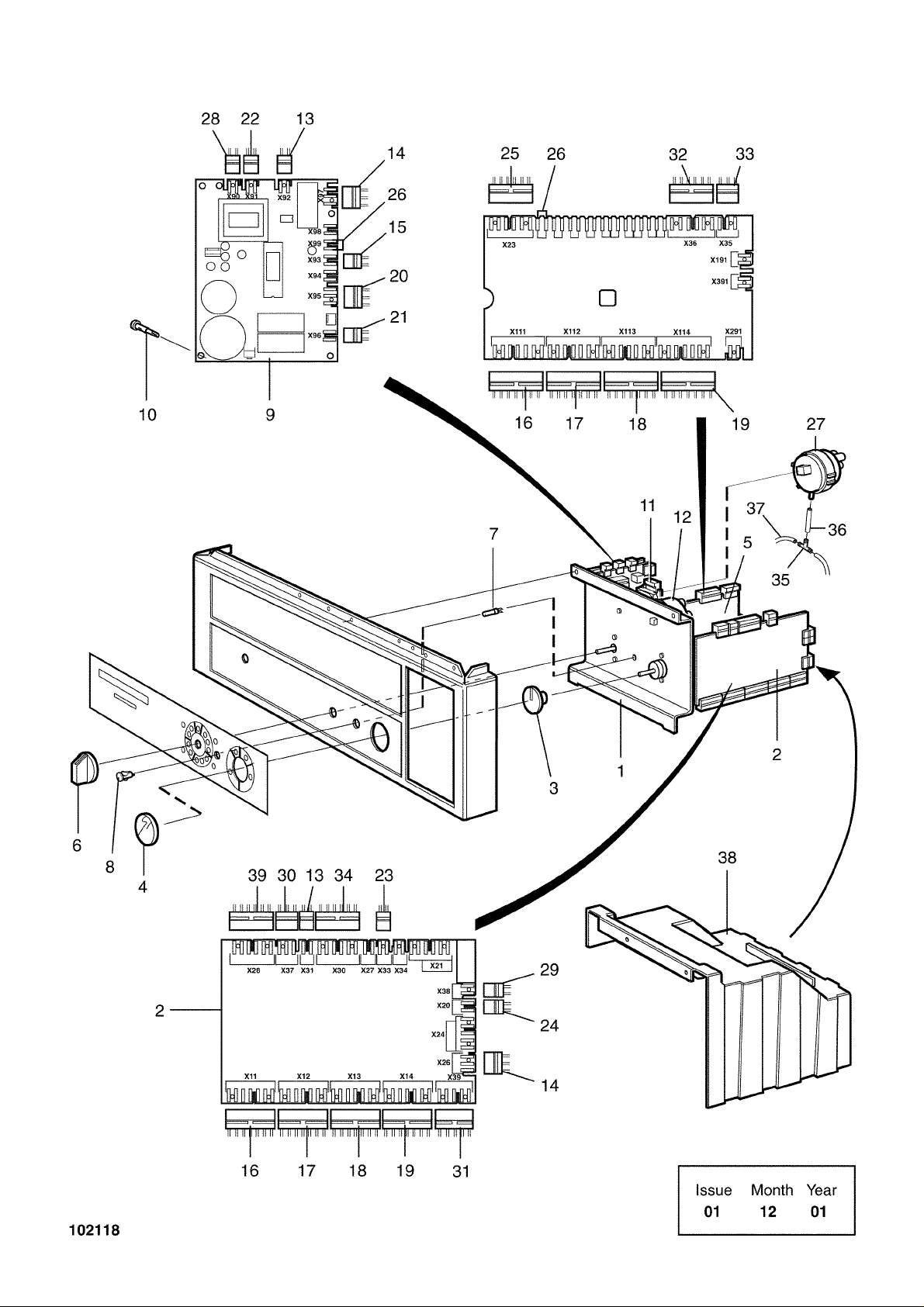

102118 35 Electric components Classic OL02

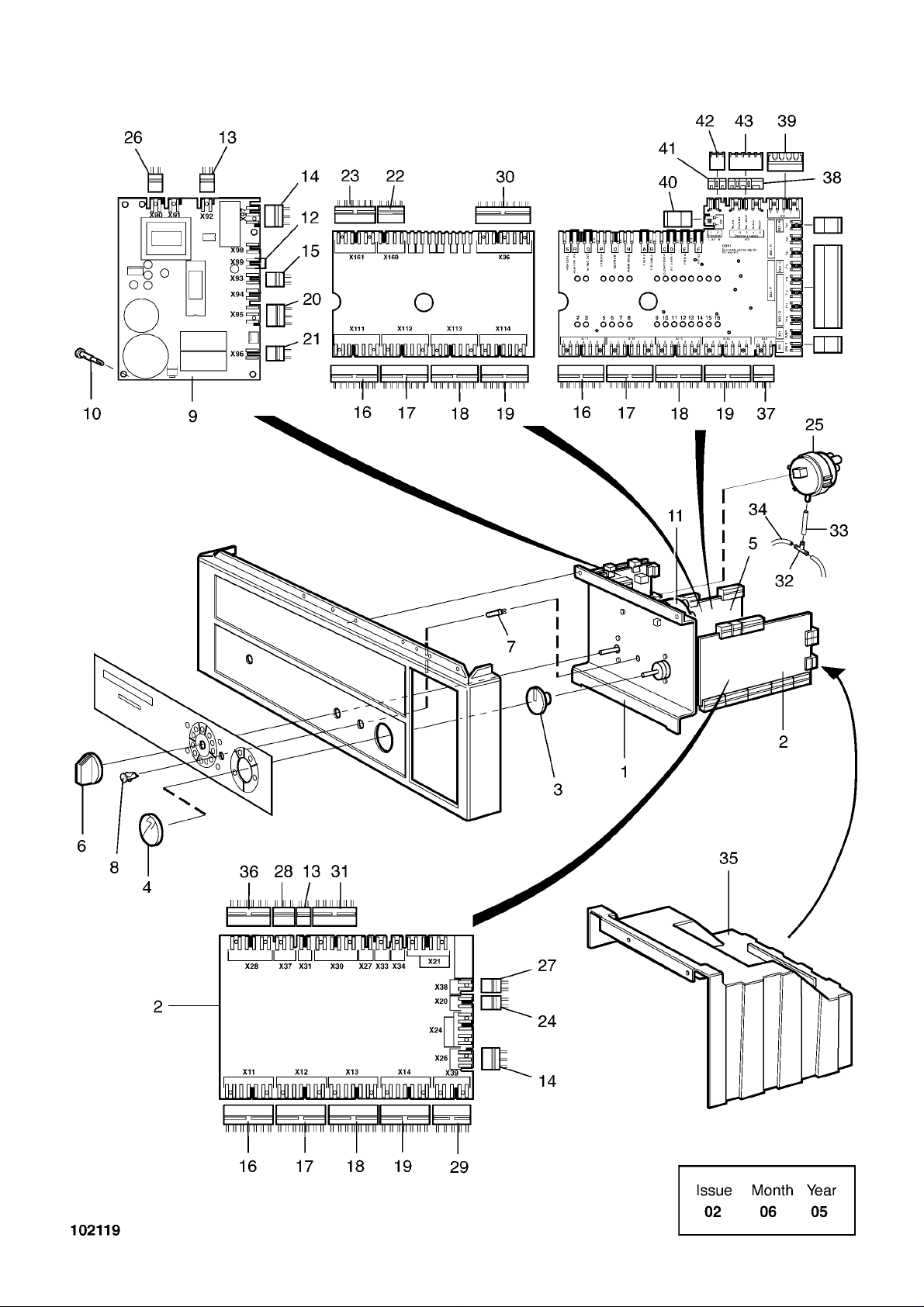

102119 39 Electric components Classic OL03

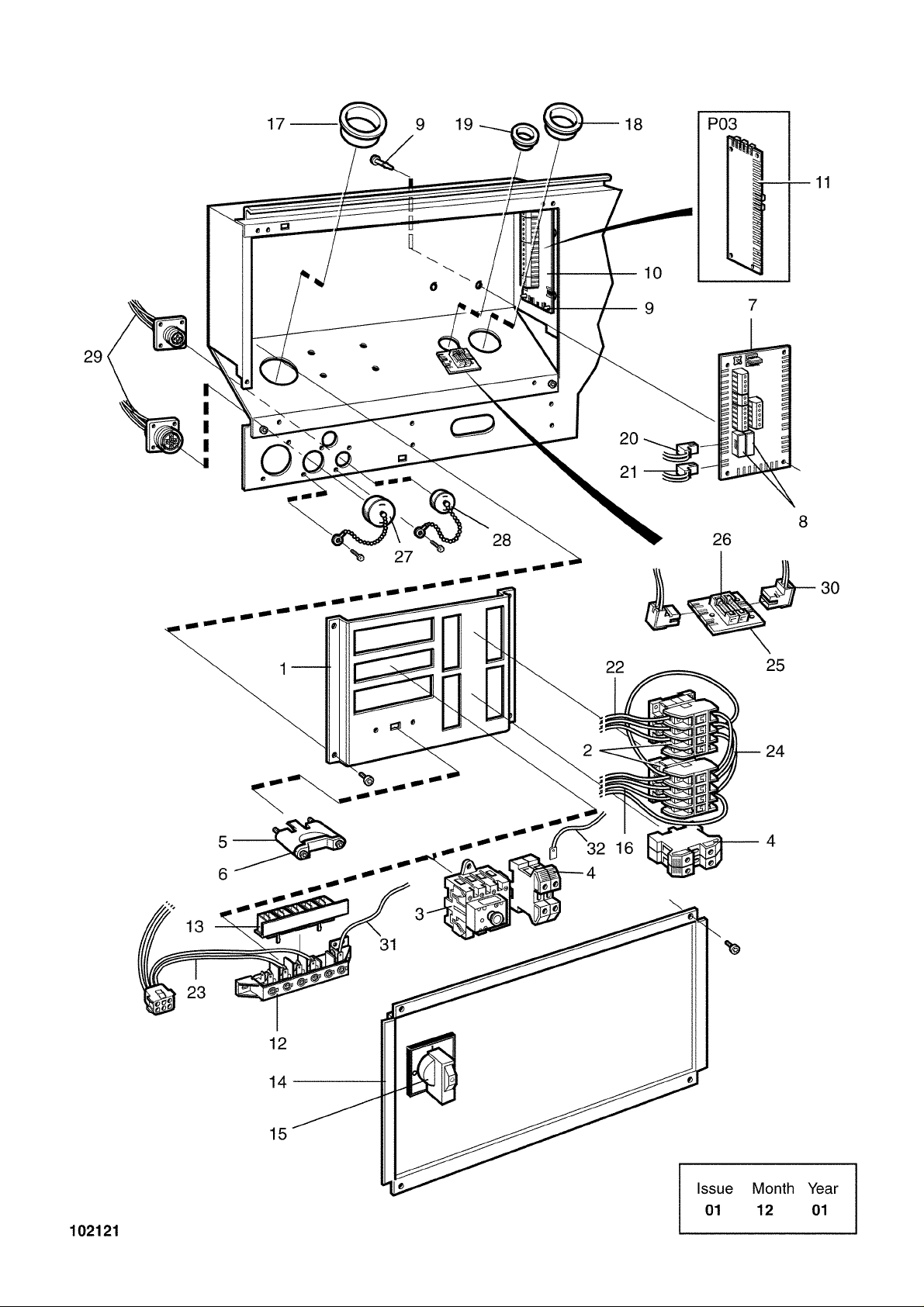

102121 41 Electric components connection

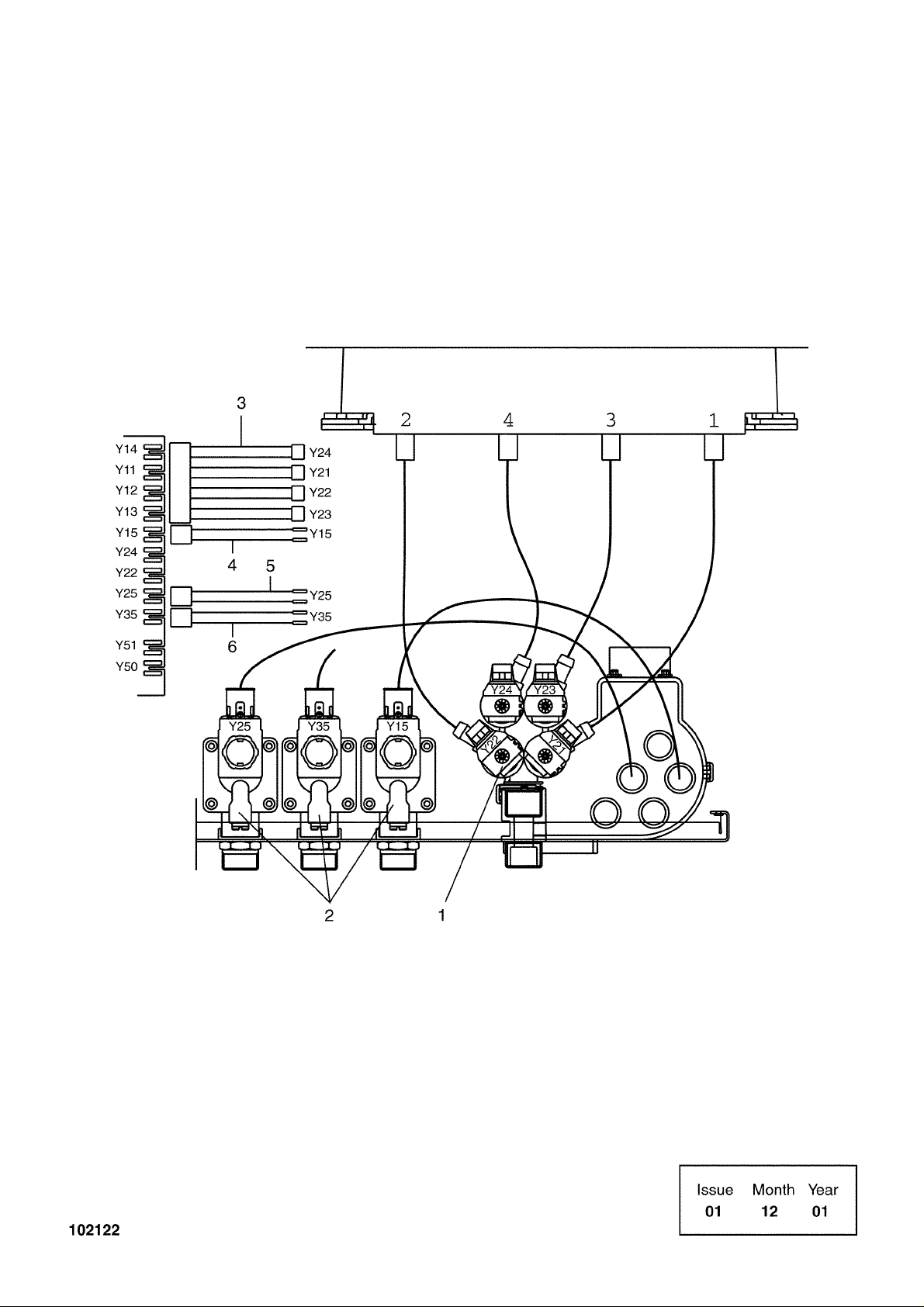

102122 49 Inlet valves and cable set
102125 31 Electrical components Exacta

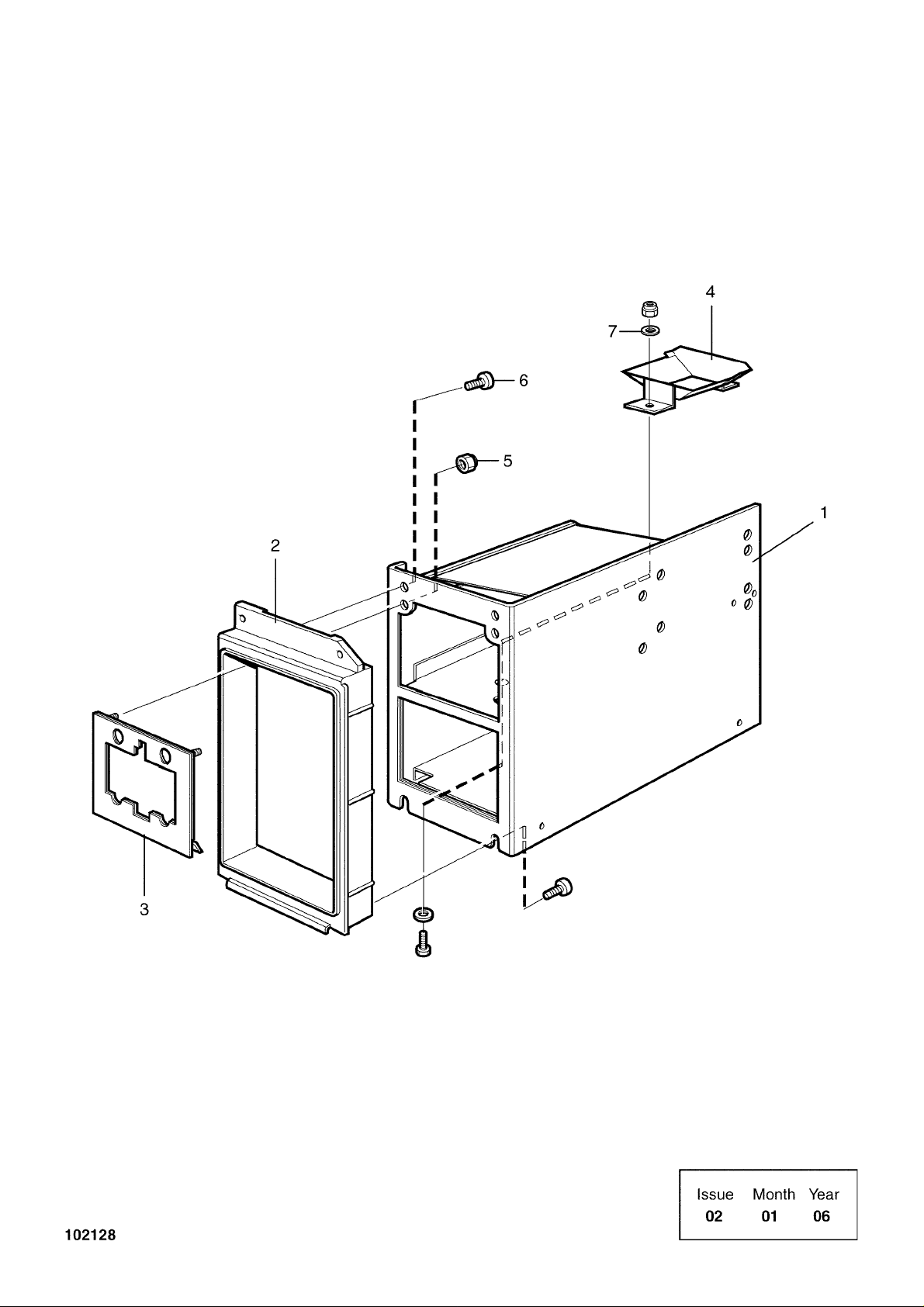

102128 65 Coin meter USA Classic
Group
Groupe
Group
Groupe
Page
Page
5
E675,SU675c,SU675s,W675,W675c,W675s,W3330M
Table of contents Table des matières Page/Page
Base and outer drum Base et tambour externe 7
Lining and top panel Panneau frontal avec pupitre de commande 9
Drum, rear gable Tambour, pignon arrière 11
*Door and hinged joint Assemblage articulé et plaque 13
Door lock Serrure de porte 15
Motors Moteurs 17
Control panel Exacta Pupitre de commande Exacta 25
Control panel Clarus Pupitre de commande Clarus 27
Control panel Classic Pupitre de commande Classic 29
Electrical components Exacta Composants électriques Exacta 31
Electric components Classic OL02 Composants électriques Classic OL02 35
Electric components Classic OL03 Composants électriques Classic OL03 39
Electric components connection Composants électriques raccordement électrique 41
Electric components 3AC Composants électriques 3AC 43
Electric components Classic 3AC Composants électriques Classic 3AC 45
Water connections Raccords d'eau 47
Inlet valves and cable set Inlet valves and cable set 49
Drain valve Vanne de vidange 51
Drain valve and hoses Purgeur et flexible 53
Drain valve, electrical Drain valve, electrical 55
Steam components Composants 57
Detergent container Compartiment à savon 59
Manual starter unit, Classic Sans monnayeur unité de démarrage, Classic 61
Coin meter USA Monnayeur USA 63
Coin meter USA Classic Monnayeur USA Classic 65
CMIS CMIS 67
Technical documentation Documentation technique 71
Group
Groupe
E675,W675,W675c,W675s
Base and outer drum
Base et tambour externe
Item
Article
Qua.
Qua.
Art.No
Réf. article
Description Description Info
Schéma
101774/4 4 2 2007
Info
1 432 4415-51 Frame Base 3
2 4 432 1453-01 •Tensioner •Crochet 3
3 4 725 2465-71 •Screw •Vis 3 M8X70
4 8 471 7807-02 •Tension plate •Tôle de serrage 3 18x8,4x2
5 2 732 2118-01 •Locking nut •Contre-écrou 3 M8
6 1 432 1451-01 •Bracket •Support 3
7 Rq 471 9822-99 Plug Fiche 3
8 3 471 9822-24 Heating element Élément de chauffage 1,2 6.36kW 230V -795/6881
3 471 9827-24 Heating element Élément de chauffage 1,2 6.36kW 230V 795/6882-
3 471 9822-21 Heating element Elément chauffant 1,2 6.6kW 240V -795/6881
3 471 9827-21 Heating element Élément de chauffage 1,2 6.6kW 240V 795/6882 3 471 9822-22 Heating element Elément chauffant 1,2 7kW 254V -795/6881
3 471 9827-22 Heating element Élément de chauffage 1,2 7kW 254V 795/6882-
3 471 9822-23 Heating element Elément chauffant 1,2 7.4kW 277V -795/6881
3 471 9827-23 Heating element Élément de chauffage 1,2 7.6kW 277V 795/6882 3 471 9823-41 Heating element Elément chauffant 1,2 3,65 kW 240V, Mop -795/6881
9 1 432 2951-01 Cable set Jeu de câbles 3 230V 1AC -795/6881
1 413 2965-03 Cable set Jeu de câbles 3 230V 795/6882 1 432 2951-05 Cable set Jeu de câbles 3 400V Heating -795/6881
1 413 2965-02 Cable set Jeu de câbles 3 400V 795/6882-
10 1 432 2953-06 Cable set Jeu de câbles 3 400V -795/6881
1 413 2965-01 Cable set Jeu de câbles 3 400V 795/6882-
11A 1 438 4118-01 Plug Fiche 3 HW
11 1 472 9913-22 Sensor Capteur 1,2 Complete
12 1 471 8192-01 •Bushing •Douille 1
13 1 432 3082-74 Cable set Jeu de câbles 3
Illustration
14
1 432 1654-01 Cover Couvercle 3
15 1 432 1653-01 Clamp Bride de fixation 3
16 1 471 9550-54 Transformer Transformateur 1 200V
1 471 9550-59 Transformer Transformateur 1 356V,380V,415V,440V,480V
17 1 432 2985-01 Cable set Jeu de câbles 3
18 1 432 1477-01 Bracket Pupitre 3
19 1 432 2198-01 Rubber strip Joint caoutchouc 3
Issue
Issue
Notes
Remarques
Month
Month
Page
Page
7
Year
Year
Group
Groupe
E675,W675,W675c,W675s
Lining and top panel
Panneau frontal avec pupitre de commande
Item
Article
Qua.
Qua.
Art.No
Réf. article
Description Description Info
Schéma
102113/3 7 4 2006
Info
1 1 432 2200-61 Front plate Panneau avant 3 Green
1 432 2200-62 Front plate Panneau avant 3 Complete, yellow
1 432 2200-63 Front plate Panneau avant 3 White
1 432 2200-64 Front plate Panneau avant 3 Complete, red
1 432 2200-65 Front panel Panneau avant 3 Complete, beige/almond
1 432 2200-66 Front plate Panneau avant 3 Complete, Dubix
1 432 2200-67 Front plate Panneau avant 3 Complete, blue
1 432 2200-70 Front plate Panneau avant 3 Stainless
2 1 432 2182-04 •Strip •Ruban 3
3 2 471 8196-01 •Plug •Fiche 3
4 3 438 5109-02 •Guide pin •Broche de guidage 3
5 1 471 4672-67 •Protection •Protection 3
6 2 432 2044-01 Side panel Panneau latéral 3 Grey
2 432 2044-02 Side panel Panneau latéral 3 White
2 432 2044-10 Side panel Panneau latéral 3 Stainless
7 2 432 2180-01 Spacer Entretoise 3
8 1 432 2068-01 Rear panel Paroi arrière 3 Upper
9 1 432 2076-01 Rear panel Panneau arrière 3 Lower
10 6 471 8458-02 Nut Écrou 3 M6
11 1 432 2107-01 Brace bracket Support de montant 3
12 1 432 2844-01 Cover plate Couvercle 3 DS
13 1 432 2131-07 Brace Montant 3
14 2 471 7565-21 Velcro tape Bande de serrage 3
15 1 432 2121-02 Brace Montant 3
16 1 472 9915-25 Top panel Couvercle 3 With detergent container
1 472 9915-26 Top panel Couvercle 3 No detergent container
1 472 9915-75 Top panel Couvercle 3 With detergent container With
Illustration
1 472 9915-76
Top panel Couvercle 3 No detergent container With
1 471 7826-10 •Lock •Serrure 1,2
1 472 9900-99 •Key •Touche 1,2 SET
17 2 438 5335-01 Guide Guide 3
18 1 432 2170-01 Plate Cloison 3
19 1 471 7967-02 Grommet Oeillet 3
20 2 471 7977-03 Cover plug Couvre-bouchon 3
21 1 471 8641-02 Plug Fiche 3
22 2 471 8344-35 Screw Vis 3 M6X16
23 2 735 2153-01 Lock washer Rondelle d'arrêt 3 6,4
24 2 471 7864-01 Clip Colliers de serrage 3 M6
Notes
Remarques
lock
lock
Issue
Issue
Month
Month
Page
Page
9
Year
Year
Group
Groupe
E675,W675,W675c,W675s
Drum, rear gable
Tambour, pignon arrière
Item
Article
Qua.
Qua.
Art.No
Réf. article
Description Description Info
Schéma
102112/1 5 1 2004
Info
1 1 432 1574-31 Outer drum Tambour extérieur 3 Non-heated
1 432 1574-32 Outer drum Tambour extérieur 3 El/Dual heating
1 432 1574-33 Outer drum Tambour extérieur 3 Steam
2 1 432 1609-41 Back plate Pignon arrière 3
3 1 432 1504-21 •Inner drum •Intérieur du tambour 1
4 1 472 9913-16 •Repair kit •Kit de reconditionnement 3
5 1 ••Bushing ••Douille
6 1 ••Ball bearing ••Roulement à billes
7 1 ••Ball bearing ••Roulement à billes
8 2 ••Sealing ring ••Bague d'étanchéité
9 1 ••Sealing ring ••Bague d'étanchéité
10 1 438 8155-05 ••Seal ••Joint
11 1 432 1549-01 •Lining •Panneau de renfort 3
12 1 432 1564-01 •Bearing housing •Logement de palier 3
13 1 432 1544-01 •End piece •Pignon 3
14 10 471 8323-01 •Screw •Vis 3 M6X12
15 10 471 8328-02 •Screw •Vis 3 M12X50
16 1 432 1554-01 •Pulley •Poulie 3
17 1 735 9630-01 •Wedge •Cale 3 18x11x63
18 1 735 3147-00 •C-clamp •Presse à main 3 SGA 60
19 2 432 1569-01 Tension strap Extenseur 3
20 2 471 9222-59 Screw Vis 3 M8X140
21 4 471 8502-34 Washer Rondelle 3 8,4x24x2
22 2 732 2118-01 Locking nut Contre-écrou 3 M8
23 8 471 7807-02 Tension plate Tôle de serrage 3 18x8,4x2
Illustration
Issue
Issue
Notes
Remarques
Month
Month
Page
Page
11
Year
Year
Group
Groupe
E675,W675,W675c,W675s
Door and hinged joint
Assemblage articulé et plaque
Item
Article
Qua.
Qua.
Art.No
Réf. article
Description Description Info
Schéma
102110/2 9 8 2009
Info
1 1 432 1874-01 Support frame Panneau de fixation 3
2 4 471 8458-02 Nut Écrou 3 M6
3 11 471 8527-01 Spring washer Rondelle à ressort 3
4 11 471 8404-02 Locking nut Contre-écrou 3 M6
5 1 432 1890-01 Trim panel Plaque de décoration 3
* 1 432 1888-11 Trim panel Panneau d'habillage 3 Stainless
6 1 432 4312-01 Door Plaque 1 Complete
1 432 4312-02 Door Plaque 1 Lagoon/ AquaClean Complete
7 1 432 1828-01 •Door •Plaque 3
8 1 432 1858-01 •Door glass •Vitre de la porte 1,2
1 432 1858-02 •Door glass •Vitre de la porte 1,2 Lagoon/ AquaClean
9 1 432 1843-02 •Door gasket •Joint de porte 1,2
10 4 432 1950-02 •Hinged joint •Assemblage articulé 1
11 8 438 4062-01 •Bushing •Douille 3
12 2 432 1962-01 •Pin •Goupille 3
13 1 432 1955-01 •Knob •Bouton de porte 1,2 Complete
14 1 ••Knob ••Bouton de porte
15 1 ••Bushing ••Douille
16 3 ••Ball ••Bille
17 3••Spring••Ressort
18 3 728 8362-11 ••Screw ••Vis
19 1 472 9913-01 •Kit, lock shaft •Kit réparation de poignée 1,2
20 1 ••Lock shaft ••Axe de verrouillage
21 1 ••Washer ••Rondelle 3
22 2 ••Bushing ••Douille
23 1 ••Torsion spring ••Ressort rotatif
24 1 725 2366-61 •Screw •Vis 3 M6SF 6X12
25 1 432 1956-01 •Cover washer •Rondelle protection 3
26 12 471 8344-36 Screw Vis 3
Illustration
27
4 432 1951-01 Bracket Support de montage 3
28 1 432 2620-01 Sign Signe 3
1 432 2620-02 Sign Signe 3 Wascomat
1 432 2620-07 Sign Signe 3
1 432 2620-04 Sign Signe 3 Zanussi
1 432 2620-08 Sign Signe 3
29 4 471 8471-01 Pop rivet Rivet 3
30 1 432 2198-02 Rubber strip Joint caoutchouc 3
* 31 1 438 8115-04 Rubber strip Joint caoutchouc 3 L=1470
Issue
Issue
Notes
Remarques
Month
Month
Page
Page
13
Year
Year
Group
Groupe
Page
Page
15
E675,SU675c,SU675s,W675,W675c,W675s,W3330M
Door lock
Serrure de porte
Item
Article
Qua.
Qua.
Art.No
Réf. article
Description Description Info
Schéma
101776/2 3 10 2003
Info
1 1 472 9913-72 Door locking device Serrure de porte 1,2 CONVERSION KIT -795/3535
2 1 Lock plate Case de serrure
3 1 Catch Dispositif blocage
4 1 471 9679-01 Microswitch Microrupteur 1,2
5 1 Actuator Actuator
6 2 Screw Vis M5X16
7 1 432 1960-01 Cover Couvercle 3
8 1 Plate Cloison
9 2 Locking nut Contre-écrou M5
10 1 438 9561-01 Door locking device Serrure de porte 1,2 Complete 795/3536-
11 3 471 8342-47 Screw Vis 3 M6X25
12 1 432 2905-01 Cable set Jeu de câbles 3
Illustration
Issue
Issue
Notes
Remarques
Month
Month
Year
Year
Group
Groupe
Page
Page
17
E675,W675,W675c,W675s
Motors
Moteurs
Item
Qua.
Article
Qua.
Art.No
Réf. article
Description Description Info
Schéma
101990/1 6 9 2006
Info
1 1 438 9700-62 Motor Moteur 3 200-240V 3AC 60 Hz Complete
1 438 9709-61 Motor Moteur 3 380-415V 3AC 50Hz Complete
1 438 9700-61 Motor Moteur 3 415-480V 3AC 60Hz Complete
1 438 9709-62 Motor Moteur 3 190-200V 3AC 50Hz Complete
1 438 9709-63 Motor Moteur 3 400-415/230V 3AC 50Hz
2 1 471 4647-66 •Pulley •Poulie 3
3 1 •Pipe •Tube
4 2 438 4049-01 •Damper •Amortisseur 3
5 2 471 8502-24 •Washer •Rondelle 3 12x35
6 2 471 7867-01 •Pin •Goupille/broche 3
7 1 432 1465-01 •Flange bushing •Douille à bride 3
8 2 432 1463-01 •Bracket •Support de montage 3
9 2 432 1472-01 •Clamp •Bride de fixation 3
10 1 438 9710-62 Extract motor Moteur 3 200-240V 3AC 60 Hz Complete
1 438 9719-61 Extract motor Moteur 3 380-415V 3AC 50Hz Complete
1 438 9710-61 Extract motor Moteur 3 415-480V 3AC 60Hz Complete
1 438 9719-62 Extract motor Moteur 3 190-200V 3AC 50Hz
1 438 9719-63 Extract motor Moteur 3 400-415/230V 3AC 50Hz
11 1 432 1210-91 •Pulley •Poulie 3 50Hz
1 432 1210-92 •Pulley •Poulie 3 60Hz
12 1 472 9913-44 •Sensor •Capteur 1,2
13 1 432 3905-01 •Magnet •Aimant 3
14 2 •Pipe •Tube
15 2 438 4049-01 •Damper •Amortisseur 3
16 3 471 8502-24 •Washer •Rondelle 3 12x35
17 2 471 7867-01 •Pin •Goupille/broche 3
18 2 432 1463-01 •Bracket •Support de montage 3
19 2 432 1472-01 •Clamp •Bride de fixation 3
20 2 432 1455-01 Washer Rondelle 3
21 1 471 8356-08 Screw Vis 3 M12X300
22 1 471 8637-03 Pipe Tube 3
23 1 471 8502-10 Washer Rondelle 3 12x35
24 1 732 2122-01 Locking nut Contre-écrou 3 M12
25 1 471 7701-13 Ribbed belt Courroie poly V 1,2 Set of 3
26 1 471 7705-09 Ribbed belt Courroie poly V 1,2 50Hz
1 471 7705-10 Ribbed belt Courroie poly V 1,2
27 1 432 2994-01 Cable set Jeu de câbles 3
28 1 432 3083-36 Cable set Jeu de câbles 3 -795/4624
1 432 3093-36 Cable set Jeu de câbles 3 795/4625-
Illustration
Issue
Issue
Notes
Remarques
Complete
Complete
Month
Month
Year
Year
Group
Groupe
E675,W675,W675c,W675s
Control panel Exacta
Pupitre de commande Exacta
Item
Article
Qua.
Qua.
Art.No
Réf. article
Description Description Info
Schéma
102111/1 2 5 2004
Info
1 1 432 2016-01 Front panel Panneau avant 3
2 1 432 2720-01 Panel sign Voyant du tableau 1 Program 2A01, 2G41
1 432 2720-02 Panel sign Voyant du tableau 1 Program 2H11
1 432 2720-17 Panel sign Voyant du tableau 1 Program 2H12
1 432 2720-03 Panel sign Voyant du tableau 1 Program 2G01
1 432 2720-04 Panel sign Voyant du tableau 1 Program 2W01, 2H01, 2H02,
1 432 2720-11 Panel sign Voyant du tableau 1 Program 2L31
1 432 2720-06 Panel sign Voyant du tableau 1 Program 2L01, 2L02
1 432 2720-05 Panel sign Voyant du tableau 1 Program 2L41
1 432 2720-14 Panel sign Voyant du tableau 1 Program 2L51
1 432 2720-08 Panel sign Voyant du tableau 1 Program 2M01
1 432 2720-09 Panel sign Voyant du tableau 1 Program 2H21
1 432 2720-10 Panel sign Voyant du tableau 1 Program 2L11, 2L12
1 432 2720-12 Panel sign Voyant du tableau 1 Program 2R01
1 432 2720-15 Panel sign Voyant du tableau 1 Program 2S01
1 432 2720-13 Panel sign Voyant du tableau 1 Program 2A11
3 1 432 2649-03 Instruction plate Plaque instruction utilisation 3 Program 2G41 Japanese
1 432 2649-04 Instruction plate Plaque instruction utilisation 3 Program 2W41 Japanese
1 432 2649-05 Instruction plate Plaque instruction utilisation 3 Program 2L41 Japanese
1 432 2649-06 Instruction plate Plaque instruction utilisation 3 Program 2L51 Japanese
1 432 2649-07 Instruction plate Plaque instruction utilisation 3 Program 2H42 Japanese
1 432 2649-20 Instruction plate Plaque instruction utilisation 3 Program 2A01 English
1 432 2649-21 Instruction plate Plaque instruction utilisation 3 Program 2M01 French
1 432 2649-22 Instruction plate Plaque instruction utilisation 3 Program 2M11, Mop Danish
1 432 2649-23 Instruction plate Plaque instruction utilisation 3 Program 2H12 Swedish
1 432 2649-24 Instruction plate Plaque instruction utilisation 3 Program 2M12 Swedish
1 432 2649-25 Instruction plate Plaque instruction utilisation 3 Program 2C01 Spanish
1 432 2649-26 Instruction plate Plaque instruction utilisation 3 Program 2A01 Danish
1 432 2649-27 Instruction plate Plaque instruction utilisation 3 Program 2A01 Swedish
1 432 2649-28 Instruction plate Plaque instruction utilisation 3 Program 2L01 English
1 432 2650-02 Instruction plate Plaque instruction utilisation 3 Program 2A01 Danish
1 432 2650-03 Instruction plate Plaque instruction utilisation 3 Program 2H11 Swedish
1 432 2650-04 Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-05 Instruction plate Plaque instruction utilisation 3 Program 2L41 Japanese
1 432 2650-06 Instruction plate Plaque instruction utilisation 3 Program 2S01, Selecta USA
1 432 2650-07 Instruction plate Plaque instruction utilisation 3 Program 2G01 English
1 432 2650-08 Instruction plate Plaque instruction utilisation 3 Program 2G01 German
1 432 2650-09 Instruction plate Plaque instruction utilisation 3 Program 2G01 French
1 432 2650-10 Instruction plate Plaque instruction utilisation 3 Program 2G01 Swedish
1 432 2650-11 Instruction plate Plaque instruction utilisation 3 Program 2L31, Emerald USA
1 432 2650-12 Instruction plate Plaque instruction utilisation 3 Program 2L01 English
1 432 2650-13 Instruction plate Plaque instruction utilisation 3 Program 2M01, Mop English
1 432 2650-14 Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-16 Instruction plate Plaque instruction utilisation 3 Program 2H21, Hygienic
1 432 2650-17 Instruction plate Plaque instruction utilisation 3 Program 2L11, Thermoboost
1 432 2650-18 Instruction plate Plaque instruction utilisation 3 Program 2L12, Laundrette
1 432 2650-19 Instruction plate Plaque instruction utilisation 3 Program 2H02, Selecta Da nis h
1 432 2650-20 Instruction plate Plaque instruction utilisation 3 Program 2H01, Hospital
1 432 2650-24 Instruction plate Plaque instruction utilisation 3 Program 2A01, W3240
1 432 2650-25 Instruction plate Plaque instruction utilisation 3 Program 2M11, Mop Swedish
1 432 2650-26 Instruction plate Plaque instruction utilisation 3 Program 2F01, Farm Swedish
Illustration
Issue
Issue
Notes
Remarques
2M11, 2F01, 2F02
Swedish
English
Danish
German
German
English
Swedish
Month
Month
Page
Page
19
Year
Year
Group
Groupe
E675,W675,W675c,W675s
Control panel Exacta
Pupitre de commande Exacta
Item
Article
Qua.
Qua.
Art.No
Réf. article
Description Description Info
Schéma
102111/1 2 5 2004
Info
1 432 2650-27 Instruction plate Plaque instruction utilisation 3 Program 2R01, QSR Swedish
1 432 2650-28 Instruction plate Plaque instruction utilisation 3 Program 2F01, Farm English
1 432 2650-29 Instruction plate Plaque instruction utilisation 3 Program 2R01, QSR English
1 432 2650-30 Instruction plate Plaque instruction utilisation 3 Program 2F01, Farm German
1 432 2650-31 Instruction plate Plaque instruction utilisation 3 Program 2F02, Westfalla
1 432 2650-32 Instruction plate Plaque instruction utilisation 3 Program 2L01 German
1 432 2650-33 Instruction plate Plaque instruction utilisation 3 Program 2M01, Mop German
1 432 2650-34 Instruction plate Plaque instruction utilisation 3 Program 2R01, QSR German
1 432 2650-35 Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-36 Instruction plate Plaque instruction utilisation 3 Program 2H21, Hygienic,
1 432 2650-37 Instruction plate Plaque instruction utilisation 3 Program 2L12, Nyborg English
1 432 2650-38 Instruction plate Plaque instruction utilisation 3 Program 2F01, Farm French
1 432 2650-39 Instruction plate Plaque instruction utilisation 3 Program 2L01 French
1 432 2650-40 Instruction plate Plaque instruction utilisation 3 Program 2L02, Mench French
1 432 2650-41 Instruction plate Plaque instruction utilisation 3 Program 2R01, QSR French
1 432 2650-42 Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-43 Instruction plate Plaque instruction utilisation 3 Program 2L12 French
1 432 2650-44 Instruction plate Plaque instruction utilisation 3 Program 2F01, Farm Italian
1 432 2650-45 Instruction plate Plaque instruction utilisation 3 Program 2G01 Italian
Illustration
1 432 2650-46
Instruction plate Plaque instruction utilisation 3 Program 2R01, QSR Italian
1 432 2650-47 Instruction plate Plaque instruction utilisation 3 Program 2L12 Italian
1 432 2650-48 Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-49 Instruction plate Plaque instruction utilisation 3 Program 2F01, Farm Spanish
1 432 2650-50 Instruction plate Plaque instruction utilisation 3 Program 2G01 Spanish
1 432 2650-51 Instruction plate Plaque instruction utilisation 3 Program 2L01 Spanish
1 432 2650-52 Instruction plate Plaque instruction utilisation 3 Program 2R01, QSR Spanish
1 432 2650-53 Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-54 Instruction plate Plaque instruction utilisation 3 Program 2L12 Spanish
1 432 2650-55 Instruction plate Plaque instruction utilisation 3 Program 2F01, Farm Dutch
1 432 2650-56 Instruction plate Plaque instruction utilisation 3 Program 2G01 Dutch
1 432 2650-57 Instruction plate Plaque instruction utilisation 3 Program 2L01 Dutch
1 432 2650-58 Instruction plate Plaque instruction utilisation 3 Program 2L02, Mench Dutch
1 432 2650-59 Instruction plate Plaque instruction utilisation 3 Program 2R01, QSR Dutch
1 432 2650-60 Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-61 Instruction plate Plaque instruction utilisation 3 Program 2L12, Nyborg Dutch
1 432 2650-62 Instruction plate Plaque instruction utilisation 3 Program 2F01, Farm Danish
1 432 2650-63 Instruction plate Plaque instruction utilisation 3 Program 2G01 Danish
1 432 2650-64 Instruction plate Plaque instruction utilisation 3 Program 2L01 Danish
1 432 2650-65 Instruction plate Plaque instruction utilisation 3 Program 2R01, QSR Danish
1 432 2650-66
Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-67 Instruction plate Plaque instruction utilisation 3 Program 2A01 Finnish
1 432 2650-68 Instruction plate Plaque instruction utilisation 3 Program 2F01, Farm Finnish
1 432 2650-69 Instruction plate Plaque instruction utilisation 3 Program 2G01 Finnish
1 432 2650-70 Instruction plate Plaque instruction utilisation 3 Program 2L01 Finnish
1 432 2650-71 Instruction plate Plaque instruction utilisation 3 Program 2M11, Mop Finnish
1 432 2650-72 Instruction plate Plaque instruction utilisation 3 Program R01 Finnish
1 432 2650-73 Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-74 Instruction plate Plaque instruction utilisation 3 Program 2A01 Norwegian
1 432 2650-75 Instruction plate Plaque instruction utilisation 3 Program 2F01, Farm
Issue
Issue
Notes
Remarques
German
German
Nyborg English
French
Italian
Spanish
Dutch
Danish
Finnish
Norwegian
Month
Month
Page
Page
21
Year
Year
Group
Groupe
E675,W675,W675c,W675s
Control panel Exacta
Pupitre de commande Exacta
Item
Article
Qua.
Qua.
Art.No
Réf. article
Description Description Info
Schéma
102111/1 2 5 2004
Info
1 432 2650-76 Instruction plate Plaque instruction utilisation 3 Program 2G01 Norwegian
1 432 2650-77 Instruction plate Plaque instruction utilisation 3 Program 2L01 Norwegian
1 432 2650-78 Instruction plate Plaque instruction utilisation 3 Program 2M11, Mop
1 432 2650-79 Instruction plate Plaque instruction utilisation 3 Program 2R01, QSR
1 432 2650-80 Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-81 Instruction plate Plaque instruction utilisation 3 Program 2L12, Nyborg
1 432 2650-82 Instruction plate Plaque instruction utilisation 3 Program 2F01 Polish
1 432 2650-83 Instruction plate Plaque instruction utilisation 3 Program 2G01 Polish
1 432 2650-84 Instruction plate Plaque instruction utilisation 3 Program 2L01 Polish
1 432 2650-85 Instruction plate Plaque instruction utilisation 3 Program 2R01, QSR Polish
1 432 2650-86 Instruction plate Plaque instruction utilisation 3 Program 2W01, Aqua Clean
1 432 2650-87 Instruction plate Plaque instruction utilisation 3 Program 2L12, Nyborg Polish
1 432 2650-88 Instruction plate Plaque instruction utilisation 3 Program 2L31, Emerald
1 432 2650-89 Instruction plate Plaque instruction utilisation 3 Program 2S01, Selecta
1 432 2650-90 Instruction plate Plaque instruction utilisation 3 Program 2L31, Emerald
1 432 2650-91 Instruction plate Plaque instruction utilisation 3 Program 2S01, Selecta French
1 432 2650-92 Instruction plate Plaque instruction utilisation 3 Program 2L01 Italian, English
1 432 2650-93 Instruction plate Plaque instruction utilisation 3 Program 2A11 Mats/heavy
1 432 2650-94 Instruction plate Plaque instruction utilisation 3 Program 2A11 Mats/heavy
1 432 2650-95 Instruction plate Plaque instruction utilisation 3 Program 2A11 Mats/heavy
1 432 2650-96 Instruction plate Plaque instruction utilisation 3 Program 2A11 Mats/heavy
1 432 2650-97 Instruction plate Plaque instruction utilisation 3 Program 2F02, Westfalla
1 432 2650-98 Instruction plate Plaque instruction utilisation 3 Program 2H11
1 432 2652-06 Instruction plate Plaque instruction utilisation 3 Program 2G01 Swedish
1 432 2652-07 Instruction plate Plaque instruction utilisation 3 Program 2G01 English
1 432 2652-08 Instruction plate Plaque instruction utilisation 3 Program 2L01 English
1 432 2652-09 Instruction plate Plaque instruction utilisation 3 Program 2G01 German
1 432 2652-10 Instruction plate Plaque instruction utilisation 3 Program 2L01 German
1 432 2652-11 Instruction plate Plaque instruction utilisation 3 Program 2L12 German
1 432 2652-12 Instruction plate Plaque instruction utilisation 3 Program 2G01 French
1 432 2652-13 Instruction plate Plaque instruction utilisation 3 Program 2L01 French
1 432 2652-14 Instruction plate Plaque instruction utilisation 3 Program 2L12 French
1 432 2652-15 Instruction plate Plaque instruction utilisation 3 Program 2G01 Italian
1 432 2652-16 Instruction plate Plaque instruction utilisation 3 Program 2L12 Italian
1 432 2652-17 Instruction plate Plaque instruction utilisation 3 Program 2G01 Spanish
1 432 2652-18 Instruction plate Plaque instruction utilisation 3 Program 2L01 Spanish
1 432 2652-19 Instruction plate Plaque instruction utilisation 3 Program 2L12 Spanish
1 432 2652-20 Instruction plate Plaque instruction utilisation 3 Program 2G01 Dutch
1 432 2652-21 Instruction plate Plaque instruction utilisation 3 Program 2L01 Dutch
1 432 2652-22 Instruction plate Plaque instruction utilisation 3 Program 2L12 Dutch
1 432 2652-23 Instruction plate Plaque instruction utilisation 3 Program 2A01 Danish
1 432 2652-24 Instruction plate Plaque instruction utilisation 3 Program 2G01 Danish
1 432 2652-25 Instruction plate Plaque instruction utilisation 3 Program 2L01 Danish
1 432 2652-26 Instruction plate Plaque instruction utilisation 3 Program 2H21 Danish
1 432 2652-27 Instruction plate Plaque instruction utilisation 3 Program 2A01 Finnish
Illustration
Issue
Issue
Notes
Remarques
Norwegian
Norwegian
Norwegian
Norwegian
Polish
Spanish
Spanish
French
laundry, Swedish
laundry, Danish
laundry, Norwegian
laundry, Finnish
Swedish
Finnish/Swedish
Month
Month
Page
Page
23
Year
Year
Loading...
