Wascomat Junior W 75, Super Junior W 105, Senior w 125, Giant W 185 Operating & Maintenance Manual
Page 1
WARNING: ALL OPERATING AND MAINTENANCE PROCEDURES SHOWN ON THE NEXT
PAGE OF THIS MANUAL MUST BE FOLLOWED DAILY FOR PROPER OPERATION OF
YOUR WASCOMAT MACHINE.
PLEASE ENTER THE FOLLOWING INFORMATION AS IT APPEARS ON THE MACHINE(S)
DATA PLATE(S).
MAKE CERTAIN TO KEEP THIS MANUAL IN A SECURE PLACE FOR FUTURE
REFERENCE.
MACHINE TYPE OR MODEL
MACHINE SERIAL NUMBER(S)
ELECTRICAL CHARACTERISTICS:________ VOLTS, _______ PHASE,_______ HZ.
OPERATING & MAINTENANCE MANUAL
WASCOMAT JUNIOR W 75
WASCOMAT SUPER JUNIOR W 105
WASCOMAT SENIOR W 125
WASCOMAT GIANT W 185
471 1562-74/01
97.43
Page 2
NOTICE TO: OWNERS, OPERATORS AND DEALERS OF WASCOMAT MACHINES
II
IMPROPER INSTALLATION AND INADEQUATE MAINTENANCE, POOR HOUSEKEEPING AND WILLFUL
NEGLECT OR BYPASSING OF SAFETY DEVICES MAY RESULT IN SERIOUS ACCIDENTS OR INJURY.
TO ASSURE THE SAFETY OF CUSTOMERS AND/OR OPERATORS OF YOUR MACHINE, THE FOLLOWING MAINTENANCE CHECKS MUST BE PERFORMED ON A DAILY BASIS.
1. Prior to operation of the machine, check to make certain that all operating instructions and
warning signs are affixed to the machine and legible. (See the following page of this manual
for description and location of the signs.) Missing or illegible ones must be replaced immediately. Be sure you have spare signs and labels available at all times. These can be obtained from your dealer or Wascomat.
2. Check the door safety interlock, as follows:
(a) OPEN THE DOOR of the machine and attempt to start in the normal manner:
For coin-operated models, insert the proper coins to start the machine.
For manually operated models, place the ON-OFF switch in the ON position and
press the Start switch.
For FL and EX models, insert a program card, turn the starter knob to the Start
position and place the ON-OFF switch in the ON position.
For HI-TEK microprocessor models, turn the key switch to the RUN position, choose
a program and press the START button.
For SELECTA 28 models, select a wash program and press the Start button.
THE MACHINE(S) SHOULD NOT START !
(b) CLOSE THE DOOR to start machine operation and, while it is operating, attempt to
open the door without exerting extreme force on the door handle. The door should
remain locked!
If the machine can start with the door open, or can continue to operate with the door
unlocked, the door interlock is no longer operating properly. The machine must be
placed out of order and the interlock immediately replaced.
(See the door interlock section of the manual.)
3. DO NOT UNDER ANY CIRCUMSTANCES ATTEMPT TO BYPASS OR REWIRE ANY OF
THE MACHINE SAFETY DEVICES AS THIS CAN RESULT IN SERIOUS ACCIDENTS.
4. Be sure to keep the machine(s) in proper working order: Follow all maintenance and
safety procedures. Further information regarding machine safety, service and parts can be
obtained from your dealer or from Wascomat through its Teletech Service Telephone - 516/
371-0700.
All requests for assistance must include the model, serial number and electrical characteristics as
they appear on the machine identification plate. Insert this information in the space provided on the
previous page of this manual.
5. WARNING: DO NOT OPERATE MACHINE(S) WITH SAFETY DEVICES BYPASSED, REWIRED OR
INOPERATIVE! DO NOT OPEN MACHINE DOOR UNTIL DRUM HAS STOPPED ROTATING!
Page 3
SAFETY AND WARNINGS SIGNS
Replace If Missing Or Illegible
One or more of these signs must be affixed on each machine as indicated, when not included as part of the front instruction panel.
LOCATED ON THE OPERATING INSTRUCTION SIGN OF THE MACHINE:
LOCATED AT THE REAR OF THE MACHINE:
INSTALLATION AND MAINTENANCE WARNINGS
1. This machine MUST be securely bolted to an uncovered concrete floor, according to
the installation instructions, to reduce the risk of fire and to prevent serious injury, or
damage to the machine.
2. If installed on a floor of combustible material, the floor area below this machine must
be covered by a metal sheet extending to the outer edges of the machine.
3. This machine MUST be connected to a dedicated electrical circuit to which no other
lighting unit or general purpose receptacle is connected. Use copper conductor only.
4. This machine MUST be serviced and operated in compliance with manufacturer's
instructions. CHECK DOOR LOCKS EVERY DAY FOR PROPER OPERATION TO PRE
VENT INJURY OR DAMAGE. IF THE DOOR LOCK FAILS TO OPERATE PROPERLY,
PLACE THE MACHINE OUT OF ORDER UNTIL THE PROBLEM IS CORRECTED.
5. Disconnect power prior to servicing of machine.
6. To remove the top panel for service on those models on which it is secured by screws
at the rear, first remove the screws. Be certain to reinstall them when remounting the
top panel. To remove the top panel for service on those models on which it is secured
by one or two keylocks, use the keys originally shipped in the drum package. Be
certain to relock after remounting the top panel.
MANUFACTURED BY WASCATOR
DISTRIBUTED BY WASCOMAT INWOOD, NEW YORK, USA
LOCATED ON THE DOOR:
DO NOT ATTEMPT TO OPEN DOOR
UNTIL PROGRAM HAS FINISHED AND
DRUM HAS STOPPED ROTATING.
WARNING !
If you need to order more safety or warning
signs, call Wascomat's parts department at
516-371-2000, or call your local dealer.
471 7651-17
CAUTION
1. Do not open washer door until cycle is completed, operating
light is off, and wash cylinder has stopped rotating.
2. Do not tamper with the door safety switch or door lock.
3. Do not attempt to open door or place hands into washer to
remove or add clothes during operation. This can cause
serious injury.
MACHINE SHOULD NOT BE USED BY CHILDREN
PRECAUCION
1. No abra la puerta de la máquina lavadora sino hasta que la
máquina haya terminado su ciclo, la luz operativa esté apaga
da y el cilindro de lavado haya completamento terminado de
girar.
2. No interferia o manipule el switch o la cerradura de la puerta.
3. No trate de abrir la puerta o meta las manos dentro de la
máquina para meter o sacar ropa mientras la máquina está
en operación, pues puede resultar seriamento herido.
LAS MÁQUINAS NO DEBEN SER USADAS POR NIÑOS
471 76 62 02
Page 4
23
Contents
Wascomat Junior W 75 • Wascomat Super Junior W 105
Wascomat Senior W 125 • Wascomat Giant W 185
Introduction ...................................................................... 1
Technical data.................................................................. 2
Installation ........................................................................ 7
Safety rules ....................................................................15
Mechanical and electrical design ...................................16
Procedure.......................................................................33
Wash programs.............................................................. 35
Maintenance...................................................................40
Trouble-shooting ............................................................41
The manufacturer reservs the right to make changes to design and
material specifications.
Safety instructions
• The machine is designed for water washing only.
• The machine must not be used by children.
• All installation operations are to be carried out by qualified
personnel. Licensed personnel are necessary for all electric
power wiring.
• The interlock of the door must be checked daily for proper
operation and must not be bypased.
• All seepage in the system, due to faulty gaskets etc., must be
repaired immediately.
• All service personnel must be fully familiar with the operating
manual before attempting any repair or maintenance of the
machine.
• The machine must not be sprayed with water, otherwise short
circuiting may occur.
• Fabrics softener with volatile or inflammable fluids are not to
be used in the machine.
Page 5
1
Introduction
Introduction
The Wascomat Junior, Super Junior, Senior and Giant models washer/
extractors have been developed to cover the heavy duty and various size
requirements of coin laundries, apartment houses, hotels, motels, nursing
homes, hospitals, professional laundries, restaurants, schools, colleges and
all on-premises laundries where high quality automatic washing and quick
formula variation are required.
The W models offer four pre-set wash programs Hot, Warm, Cold and
Permanent Press which can be selected by turning the rotary program
selector on the front panel. These programs are designed to suit a variety
of fabrics and offer different water temperature programs. The machine is
designed for connection to hot and cold water supplies.
All parts of the machine which come into contact with the items being
washed are made of heavy gauge surgical stainless steel, ensuring long life
and lasting beauty, as well as full protection for no-iron fabrics. All electrical
components are made accessible for servicing by simply removing the top
panel.
This manual contains a technical description of the Wascomat W75, W105,
W125 and W185 model machines and instructions for their installation,
operation and maintenance. Together with the wiring diagram which
accompanies each individual machine it should be kept in a safe place for
easy reference.
When ordering spare parts always give the machine serial number, model,
voltage and other electrical characteristics appearing on the nameplate at
the rear of the machine.
1193
1
Fig.
1
Page 6
2
Technical data
Technical data Wascomat Junior W75
Dry load capacity up to 7.5 kg 18 lbs
Overall dimensions Width 660 mm 26 in
Depth 649 mm 25 9/16 in
Height 1050 mm 41 11/32 in
Net weight 107 kg 235 lbs
Dyn force 1.2±2.6 kN 290±620 lbs. force
Crated dimensions Volume 0.62 m
3
21.9 cu.ft
Weight 117 kg 257 lbs
Inner drum Diameter 520 mm 20 1/2 in
Depth 356 mm 14 in
Volume 75 litre 2.7 cu.ft
Speed of rotation Wash 54 r.p.m.
Extraction 543 r.p.m.
G-factor During wash 0.8
During extraction 90
Motor speed During wash 344 r.p.m.
During extraction 3514 r.p.m.
Voltage requirements Choice:
120 V 1-phase 60 Hz
or
208-240 V 3-Phase 60 Hz
Rated output power Motor, wash, 3-phase 110 W
0.15 HP
Motor, extract., 3-phase 550 W
0.75 HP
Motor, wash, 1-phase 110 W
0.15 HP
Motor, extract., 1-phase 370 W
0.5 HP
Water connections
Recommended water pressure 2-6 kp/cm
2
25-85 psi
Hose connection, water 20 DN 3/4 in
Hose connection, drain 74 mm 3 in
Page 7
3
Technical data
Technical data Wascomat Super Junior W105
Dry load capacity up to 10 kg 25 lbs
Overall dimensions Width 660 mm 26 in
Depth 766 mm 30 5/32 in
Height 1050 mm 41 11/32 in
Net weight 147 kg 323 lbs
Dyn force 1.7 ±3.4 kN 408±816 lbs. force
Crated dimensions Volume 0.65 m
3
23.0 cu.ft.
Weight 158 kg 348 lbs
Inner drum Diameter 520 mm 20 1/2 in
Depth 473 mm 18 5/8 in
Volume 100 litre 3.6 cu.ft
Speed of rotation Wash 54 r.p.m.
Extraction 543 r.p.m.
G-factor During wash 0.8
During extraction 90
Motor speed During wash 344 r.p.m.
During extraction 3514 r.p.m.
Voltage requirements Choice:
120 V 1-phase 60 Hz
or
208-240 V 3-Phase 60 Hz
Rated output power Motor, wash 3-phase 150 W
0.2 HP
Motor, extract. 3-phase 900 W
1.2 HP
Motor, wash 1-phase 140 W
0.18 HP
Motor, extract. 1-phase 550 W
0.75 HP
Water connections
Recommended water pressure 2-6 kp/cm
2
25-85 psi
Hose connection, water 20 DN 3/4"
Hose connection, drain 74 mm 3"
Page 8
4
Technical data
Technical data Wascomat Senior W125
Dry load capacity up to 16 kg 35 lbs
Overall dimensions Width 745 mm 29 11/32 in
Depth 995 mm 39 in
Height 1196 mm 47 3/32 in
Net weight 210 kg 462 lbs
Dyn force 2.4±4.8 kN 576±1152 lbs. force
Crated dimensions Volume 1.06 m
3
39 cu.ft.
Weight 222 kg 489 lbs
Inner drum Diameter 620 mm 24 1/2 in
Depth 520 mm 20 1/2 in
Volume 157 litre 5.65 cu.ft
Speed of rotation Wash 52 r.p.m.
Extraction 500 r.p.m.
G-factor During wash 0.9
During extraction 87
Motor speed During wash 330 r.p.m
During extraction 3450 r.p.m
Voltage requirements Choice:
208-240 V 1-phase 60 Hz
or
208-240 V 3-Phase 60 Hz
Rated output power Motor, wash 3-phase 300 W
0.4 HP
Motor, extract. 3-phase 1300 W
1.8 HP
Motor, wash 1-phase 270 W
0.45 HP
Motor, extract. 1-phase 1500 W
2,0 HP
Water connections
Recommended water pressure 2-6 kp/cm
2
25-85 psi
Hose connection, water 20 DN 3/4"
Hose connection, drain 74 mm 3"
Page 9
5
Technical data
Technical data Wascomat Giant W 185
Dry load capacity up to 23 kg 51 lbs
Overall dimensions Width 827 mm 32 5/8 in
Depth 1085 mm 42 3/4 in
Height 1315 mm 51 3/4 in
Net weight 264 kg 582 lbs
Dyn force 3.1±5.2 kN 744±1248 lbs. force
Crated dimensions Volume 1.42 m
3
50.2 cu.ft.
Weight 275 kg 606 lbs
Inner drum Diameter 700 mm 27 9/16 in
Depth 600 mm 23 5/8 in
Volume 230 litre 8.1 cu.ft
Speed of rotation Wash 45 r.p.m.
Extraction 455 r.p.m.
G-factor During wash 0.8
During extraction 81
Motor speed During wash 360 r.p.m
During extraction 3480 r.p.m
Voltage requirements Choice:
208-240 V 1-phase 60 Hz
or
208-240 V 3-Phase 60 Hz
Rated output power Motor, wash 3-phase 400 W
0.55 HP
Motor, extract. 3-phase 2000 W
2.7 HP
Motor, wash 1-phase 400 W
0.55 HP
Motor, extract. 1-phase 1800 W
2.4 HP
Water connections
Recommended water pressure 2-6 kp/cm
2
25-85 psi
Hose connection, water 20 DN 3/4"
Hose connection, drain 74 mm 3"
Page 10
6
Technical data
Outline and dimensions
W75 W105 W125 W185
mm inches mm inches mm inches mm inches
A 1050 41 11/32 1050 41 11/32 1196 47 3/32 1315 51 3/4
B 437 17 7/32 437 17 7/32 465 18 5/16 540 21 1/4
C 660 26 660 26 775 30 1/2 860 33 27/32
D 678 26 3/4 795 31 10/32 995 39 3/16 1085 42 11/16
E 895 35 895 35 1040 41 1160 45 3/4
F 100 3 15/16 100 3 15/16 100 3 15/16 100 3 15/16
G 125 4 15/16 125 4 15/16 270 10 5/8 260 10 1/4
H 980 38 1/2 980 38 1/2 1130 44 1/2 1250 49 7/32
J – – – – – – 1230 48 7/16
K 890 35 890 35 1035 40 3/4 1155 45 1/2
L – – – – – – 225 8 7/8
M 205 8 205 8 205 8 205 8
N 160 6 5/16 160 6 5/16 160 6 5/16 160 6 5/16
Electrical
cable
connection
2 3 1
L
M
N
K J H
E
D
A
B
C
1 Cold water
2 Hot water
W75, 105, 125
W185
2447
G
4
F
1 Cold water
2 Hot water
3 Hot water
Page 11
7
Installation
2
3
4
0271
1677
1132
Installation
Machine foundation
The machines are designed to be bolted in
position to a concrete floor or specially prepared
concrete foundation. A template showing the size
of the foundation and positioning of the
foundation bolts is delivered with each machine.
For installation on an existing concrete floor, the
floor must be at least 8" thick and of good quality.
If the floor does not meet these requirements,
then a 6-8" high concrete foundation should be
made. A prefabricated steel base is available for
mounting of machines without an additional
foundation.
Follow the instructions below when making a
concrete foundation:
1. Decide where to place the machine and
consider maintenance requirements, i.e.
determine a suitable distance from the rear of
the foundation to the wall, and the distance
from the foundation to the nearest side wall.
The distance should be at least 16 and 12
inches, respectively.
2. Break up the floor to a depth of 3 inches,
making sure that the sides of the hole slope
inwards - the bottom of the hole should be 5
inches longer than the upper length.
3. Wet the hole well. Brush the bottom and sides
with cement grout.
4. Prepare a casing and fill with concrete to form
foundation. Make sure the foundation is level.
5.
Use the template to position the foundation
bolts correctly - bolts are to extend 1 1/2"
above concrete.
NOTE: A prefabricated steel frame, designed
to be placed in the concrete instead of the
individual mounting bolts, is available.
F = machine
G = foundation
W75 W105 W125 W185
mm inches mm inches mm inches mm inches
A 364 14 11/32 481 18 15/16 508 20 600 23 2/3
B 593 23 11/32 710 27 15/16 910 35 13/16 960 37 3/4
C 635 25 747 29 13/32 950 37 13/32 1000 39 3/8
D 87 3 7/16 87 3 7/16 102 4 102 4
E 530 20 7/8 530 20 7/8 600 23 5/8 700 27 9/16
F 660 26 660 26 745 29 11/32 827 32 5/8
G 700 27 9/16 700 27 9/16 800 31 1/2 880 34 2/3
H 643 25 5/16 715,6 28 3/16 786 30 15/16 922 36 1/8
I - - - - 991 39 1090 42 7/8
K - - - - 281 11 236 9 7/16
Fig.
2
Fig.
3
Fig.
4
Page 12
8
Installation
5
6
7
0274
0950
1133
Mechanical installation
• Place wide steel shims on the concrete foundation over the bolts.
• Lift the machine and lower it in position. Never
use the door or the door handle to lift or lower
the machine.
• Check that the machine is level front-to-rear
and side-to-side and standing firmly on the
four (W75, W105) or six (W125 W185) supporting points. Spacing washers must be
mounted if one or more of these points is not
resting against the floor/foundation.
• Place flat washers over the foundation bolts
and secure the machine in position by tightening the self-locking nuts. See illustration
below.
• Check and tighten the nuts every week for the
first month.
selflocking
nut
flat washer
Fig.
5
Fig.
6
Fig.
7
Page 13
9
Installation
Electrical installation
Although the machines are fitted with a thermal
overload in the motor windings a separate threephase common-trip circuit breaker must be
installed for all three-phase machines.
For proper overcurrent protection, check the data
plate at the rear of the machine. Also consult
local electrical code for special requirements.
Connect L1, L2, L3 and ground wires according
to the markings of the terminal block. The cable
is to hang in a large loose loop, supported by the
clip of the terminal block.
After installation, do the following for 3-phase
machines:
Check the incoming power for a high voltage leg.
If present, connect that line to L2 on the terminal
block.
Start the machine and check that the drum
rotates in the proper direction during extraction,
i.e. counter-clockwise when seen from the front.
If the drum rotates in the wrong direction intercharge line L1 and L3 at the power connection
terminal.
8
1830
9
1838
10
1839
Fig.
8
Fig.
9
Fig.
10
Page 14
10
Installation
11
Water connection
NOTE
All plumbing must conform to national
and local plumbing codes.
Incoming water lines do not require non-return or
back-suction valves, as the machine is already
fitted with a siphon breaker. However, all incoming lines must be fitted with shut-off valves.
• Water inlets are labelled for hot and cold
water connection.
• Flush the water system thoroughly and check
that the filter at the machine inlet is fitted
correctly.
• Connect the machine to the water mains with
3/4" reinforced rubber hosing not to exceed 6
ft in length. Hang the hosing in a large loop.
Do not use rigid piping.
12
1832
Fig.
11
Fig.
12
Fig.
13
W 75, W105, W125
W 185
1870
13
hot water cold water
1846
W 75, W105, W125
W 185
hot water cold water hot water
(to detergent supply box)
1844
Page 15
11
Installation
How to size water supply piping for Wascomat coin laundries
1. Calculate the total number of gallons of water that would be needed if all present (and
future) washers were to fill at the same time. Assume the W75 (18-lb.) uses 7 gallons
per fill; W105 (25-lb.) uses 10 gallons per fill; W125 (35-lb.) uses 14 gallons per fill‚
W185 (80-lb.) uses 20 gallons per fill; and W244 (75-lb.) uses 30 gallons per fill. If
water pipe runs of 70 feet or longer are required, multiply by 1.25 to compensate for
pipe friction which reduces flow rates.
2. Using the Flow Chart below and knowing the water pressure in the water main at your
store, select a pipe diameter that has a gallons per minute (gpm) flow rate the same or
higher than the total calculated above. The hot water line and the cold water line
supplying the washers must
each be this size diameter, since many fills are all hot or
all cold. This will assure fill times of approximately 1 minute and normal cycle times.
Wascomat washers are designed to operate at 25–85 PSI Call your local water utility
company if you do not know the water pressure in your water main.
GALLONS PER MINUTE FLOW CHART
Pipe internal Water pressure from the water main
Diameter, Inches 25 psi 40 psi 60 psi 80 psi
1/2 21 gpm 27 gpm 33 gpm 37 gpm
3/4 36 46 56 64
1 63 85 104 120
1-1/4 112 148 181 208
1-1/2 160 210 257 297
1-3/4 209 273 334 385
2 257 335 410 473
2-1/2 419 548 670 772
3 580 760 930 1070
3-1/2 650 840 1025 1185
4 720 920 1120 1300
5 1500 1960 2400 2770
6 1930 2530 3100 3580
3. The water line from the laundry to the water main in the street must carry
double the
total gallons capacity calculated in paragraph 1. Select the correct diameter from the
Flow Chart. (You will note from the chart that two 2'' pipes do
not equal the flow rate of
a 4 inch pipe; two 1'' pipes do
not equal the flow rate of a 2 inch pipe, etc... Use the
correct gpm flow rates!)
Page 16
12
Installation
14
1833
15
1140
16
1141
Drain connection
Connect a 3" (75 mm) flexible hose to the drain
outlet of the machine.
The drain hose must not have sharp bends and
must slope from the machine to assure proper
drainage. The outlet must open freely to the main
drains.
Do not reduce the size of the drain connection
from the machine to the waste line.
Start-up and safety checklist
Before initial start-up of a Wascomat washerextractor, the following safety checks must be
performed:
• Make sure the machine is properly bolted to
the floor.
• Make sure that all electrical and plumbing
connections have been made in accordance
with applicable local codes.
• Use only flexible water fill and drain hoses of
the proper length to avoid sags and kinks.
• Make sure the machine is properly grounded
electrically.
Fig.
14
Fig.
15
Fig.
16
Page 17
13
Installation
17
18
Before the machine is operated, the door safety
interlock must be checked for proper operation
as follows:
• When washer loading door is open, the machine must not start. Verify this by attempting
to start washer with door open (see section
”Procedure”).
• When washer is in operation, the loading door
is locked and cannot be opened. Verify this by
attempting to open the loading door when the
machine is operating. If necessary, consult
this manual for proper operation of the door
lock and door safety interlock or call a qualified serviceman.
IMPORTANT:
Door safety interlock must be checked
daily in accordance with above procedure.
WARNING:
Before servicing Wascomat equipment,
disconnect electrical power.
1195
1196
Fig.
17
Fig.
18
Page 18
14
Function control check-out list
In the machine cylinder, you will find the warranty
registration card, a copy of the warranty policy,
the bolt hole template and other pertinent materia. The warranty card should be completed and
sent to Wascomat. All other items should be
placed in a safe place for future reference.
The machine should be cleaned when the installation is completed, and checked out as detailed
below without loading the machine with fabrics:
1. Check the incoming power for proper voltage,
phase and cycles.
2. Open manual shut-off valves to the machine.
3. Turn on electric power.
4. Check the function of the door safety interlock
as detailed on page 10 of this manual.

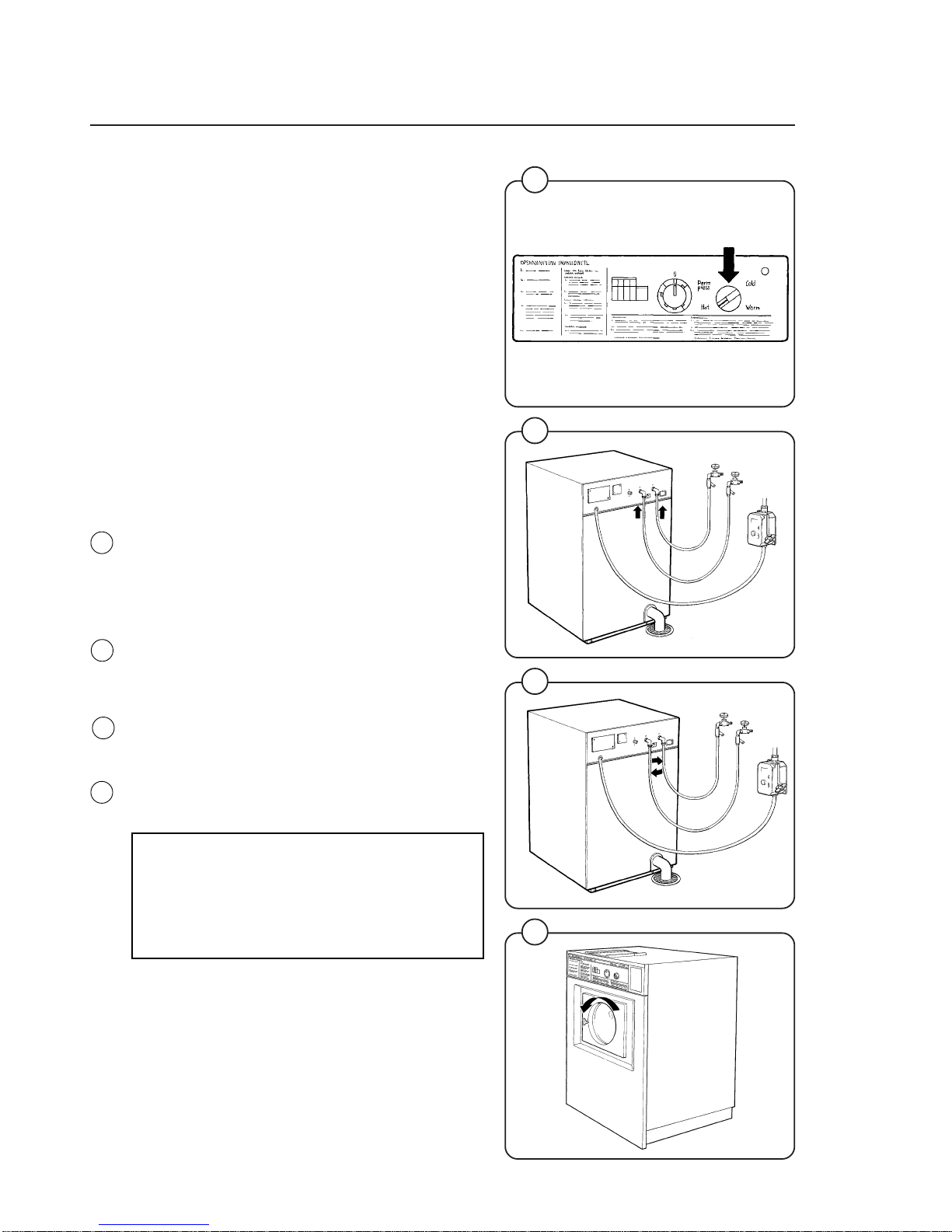

5. Select the HOT program and start the machine.
6. Run through a complete cycle, checking for
water temperature, drain operation and extract
direction.
7. When the program is in the Soak cycle, hot
and cold water should be entering the machine. In the Wash cycle only hot water should
enter.
8. If cold water comes in, the hoses are improperly connected. Reverse hot and cold water
hoses.
9. Machine must spin in a counter-clockwise
direction, as seen from the front, during extraction. If it does not, reverse lines L1 and L3.
NOTE
All machines are factory tested prior to
shipment. Occasionally, some residual
water may be found when the machine is
installed.
Installation
19
1189
1835
1836
22
1190
20
21
Fig.
19
Fig.
20
Fig.
21
Fig.
22
Page 19
15
Safety rules
Safety rules
• This machine is designed for water washing only.
• All installation operations are to be carried out by qualified
personnel. Licensed personnel are necessary for all electric
power wiring.
• The interlock of the door must be checked daily for proper
operation and must not be bypassed.
• All seepage in the system, due to faulty gaskets etc., must be
repaired immediately.
• All service personnel must be fully familiar with the operating
manual before attempting any repair or maintenance of the
machine.
• This machine must not be sprayed with water, otherwise short
circuiting may occur.
• This machine must not be used by children.
• Fabrics softener with volatile or inflammable fluids are not to be
used in the machine.
Page 20
16
Mechanical and electrical design
General
The door, cycle indicator, coin meter or manual start switches, control light
and program-selection knob are located at the front of the machine.
All control and indicating components, i.e. relays, level control, cycle timer,
etc are assembled under the top cover, easily accessible from the top of
the machine for simplified servicing.
Main units
1 Program-selector - rotary switch for choice of different wash programs.
2 Door - with automatic locking device which remains locked until the cycle
is completed and the drum has stopped rotating.
3 Detergent supply box - three compartments for automatic injection of
powdered detergents and fabric softener.
4 Inner cylinder - of stainless steel supported at the rear by two ballraces.
5 Outer drum - of stainless steel (18/8) securely attached to the frame.
6 Wash and extract motor - for reversing wash action and high speed spin
action.
7 Hot and cold water valves - program and level controlled solenoid valves
for filling with water, and for flushdown of automatic detergent dispenser.
8 Drain valve - timer controlled for draining the machine of water.
9 Siphon breaker - to prevent water in the machine from re-entering the
water supply system.
10 Control unit - plug-in type for time and temperature control of the diffe-
rent wash cycles.
11. Coin-meter or manual start switches.
Fig.
23
Page 21
17
Mechanical and electrical design
Machine construction
Outer shell
The outer shell is made of heavy gauge surgical steel and is attached to a heavy
duty, rigid head casting (back gable).
The whole assembly is mounted on a heavy gauge fabricated steel base,
galvanized for long life and corrosion resistance.
Panels
The machines are equipped with a top panel made of stainless steel. The front
panel is available in different colors or in stainless steel. The colored panels are
made of phosphatized steel plate. For servicing purposes, the panels can easily be
removed.
Inner cylinder
The inner cylinder is made of perforated surgical stainless steel. It is equipped with
three lifting ribs and has highly-polished side sheets and back with maximum
embossed perforated area to assure high flow of water and supplies through fabrics.
Scientifically correct ratio of cylinder diameter and depth assures maximum washing
action.
The shaft is electrically welded to the reinforced back of the cylinder. A specially
designed chrome-plated sleeve bushing protects the seals from wear.
1678
23
1
11
2
4
8
3
9
7
10
5
6
Fig.
23
Page 22
18
Mechanical and electrical design
24
Back gable and bearing
The back gable and the bearing trunnion housing are constructed of a
webbed heavy casting for extra rigidity. There are three neoprene seals to
protect from filtration of water. The sleeve bearings are water protected. An
intermediate safety outlet provides an escapement for any possible condensation.
The seals are mounted on a chrome-plated, specially hardened sleeve
bushing that is mounted on the drive shaft to prevent wear of the seals and
shaft. The main bearing is fitted machine-tight into the bearing trunnion
housing. A C-clamp is placed on the shaft to prevent the cylinder from
moving in and out.
The extension of the bearing trunnion housing supports the rear bearing
holding the shaft. The bearings are permanently lubricated and need no
maintenance.
W 75
2412
Rear wall
Bearing house
Rear bearing
Inner drum
Bushing
Sealing rings
Front bearing
Fig.
24
Page 23
19
Mechanical and electrical design
Door, description
The door consists of a backing frame (1), door
(2), glass (3) and door gasket (4). The backing
frame and door are both made of enameled
aluminium. The backing frame is bolted directly
to the outer shell of the washing machine.The
door hinges are fastened on the outside of the
backing frame and the door lock (5) on the inside. The heat-hardened glass is mounted in the
door using a special rubber seal which also acts
as a gasket between the door and the washing
machine’s outer shell when the door is closed.
Door lock, description
The door lock consists of a circuit board (1) with
a connector. Mounted on the board are the lock
plate (2), against which the locking bolt turns to
lock the door, and a microswitch (3) which closes
when the locking bolt has locked the door.
There is also a locking device on the circuit board
which acts to lock the locking bolt in place when
the machine starts up.
The locking device consists of a double-acting
solenoid (4), a delay unit (5) and the locking
device itself (6) which operates sideways in
blocking the locking bolt with a stud. The locking
device can be affected by both the solenoid and
the delay unit.
The lock operates as follows:
• When the door is shut and the locking bolt
moved to the lock position, the micro switch
will indicate that the door is closed.
• When the machine is started, the solenoid
actuates the locking device, blocking the door
lock. The locking device signals the delay
unit, closing a switch in the unit. The washing
machine motor will start and water enter the
machine only after the delay unit receives the
information that the door is locked. The bimetallic spring in the delay unit is warmed up
at the beginning of the program.
• Once the washing machine stops at the end of
a cycle, the solenoid pulls back the locking
stud and allows the door to open. The delay
unit is spring-mounted in the locking device
and is also pulled back by the solenoid. The
solenoid operates for about two minutes to
allow the bi-metallic spring to cool enough not
to lock the door again.
• If current should disappear during a cycle, the
delay unit will keep the door locked for about
two minutes, ensuring that the wash water can
drain out (The drain valve opens automatically
when current is lost).
25
26
1148
1149
NOTE
Do not repair a faulty door lock.
Allways replace the old unit
with a new one, to assure proper operation of the door safety
interlock.
3
2
3
4
1
5
5
6
4
2
1
Fig.
25
Fig.
26
Page 24
20
Mechanical and electrical design
Control unit
The cycle timer(1) and rotary program selector(2) are mounted just behind
the control panel.
The relays (3) and level controls (4) are located at the top of the machine,
easily accessible for service, as are the motor capacitors (5) on 1-phase
models..
Electrical connections to the machine are made by quick-disconnect plugs.
The timer scheme and basic circuit diagram are available at the end of this
manual.
1192
27
5
Fig.
27
Page 25
21
Mechanical and electrical design
Relays
The Wascomat W models employ two relays.
The relays control:
• the wash speed (1)
• the extract speed (2)
Construction
The body of the relay holding the stationary
contacts is made of current-resistant plastic. A
solenoid and a contact bank hold the moving
contacts. The contacts are spring-loaded to
assure the correct contact pressure.
The relay is constructed for continous operation,
whether mounted horizontally or vertically.
Screw-type terminals provide perfect connections
even when one or two wires have different diameters.
Operation
When the solenoid is energized, the two halves
of the magnet core are drawn together, pulling
down the moving contacts, thus making or
breaking the circuit. When the current cuts out,
springs force the contact bank into its original
position, thus closing or opening the circuits.
Trouble shooting
If the relay fails to operate despite power to the
coil, turn off the power and check the solenoid by
measuring the resistance across the terminals
(1).
If the relay hums when power is applied, this
indicates either a break in the insulator holding
the moving contacts at the axle where it holds the
top half of core (3), or a rusty core (4), which can
be cleaned.
Make sure that the moving contact assembly
moves freely. Always replace burnt or pitted
contacts (2) ... do not reuse contacts.
28
1197
29
0301
Fig.
28
Fig.
29
Page 26
22
Drive motor
Description in general
The motor is mounted on an axle with rubber
dampeners.
The V-belt is tightened by turning the motor on
the axle and locking it in place using the
tensioner on the rear side of the motor. The
motor and tensioner have vibration and noise
dampening rubber suspensions.
Construction in general
The motor consists of stator, rotor and endshields with ball-bearings. The stator and the
rotor consist of plates, insulated from each other
and welded together. The stator is provided with
slots in which the 2-pole and 18-pole windings
are wound. The windings are impregnated with a
temperature-resistant sound-insulating resin
varnish according to class B. The end-shields are
die-cast. The ball bearings are permanently
lubricated.
Construction of single-phase motor
Single-phase motors have an 18-pole winding
(wash-speed) the same as three-phase motors,
using a continuously connected capacitor, while
the 2-pole winding (extract-speed) is a specially
designed winding with both a continuously
connected capacitor and a starting capacitor.
Function of 3-phase motor
When the stator winding is charged, a magnetic
field will occur, which in turn will rotate the rotor
at a fixed RPM depending upon the number of
poles in the winding. The 18-pole winding gives
the wash speed and the 2-pole winding the
extract-speed. When operating with load, the
speed deviates slightly from the synchronous
(no-load) speed. This difference is called the slip
and is usually expressed as a percentage of the
syncronous speed. The motors will work satisfactorily at nominal voltage +10%-15%.
Function of single-phase motor
When the stator winding is charged without a
capacitor, two counteracting magnetic fields are
created. When a capacitor is connected, it will
displace one of the two magnetic fields adding it
to the other, creating a torque turning the rotor in
a specific direction. The RPM is the same as for
the 3-phase motor.
Mechanical and electrical design
31
1153
1154
30
Fig.
30
Fig.
31
Page 27
23
Mechanical and electrical design
Principal wiring and points of measuring on single-phase
motors.
The numbers at the connection points refer to the terminal numbers at the motor connector plug.
The numbers in circles indicate points of ampere measurements.
1216
32
Fig.
32
Page 28
24
32
Mechanical and electrical design
1700
W125 208-240 V 60 Hz single-phase
Page 29
25
32
Mechanical and electrical design
1791
Page 30
26
Mechanical and electrical design
Motor connections
1, 2 and 3: wash speed (18-pole winding).
4, 5 and 6: extract speed (2-pole winding)
7 and 9: motor overload protector.
Motor overload protector
The motor is equipped with two self-resetting,
thermal overload protectors, situated one in each
of the windings of the stator. The protectors are
connected in series and will trip at a temperature
of 120°C (248°F) (3-phase) or 130°C (266°F)
(single phase). In the event the protectors fail
but the motor remains otherwise undamaged, an
overload protector may be mounted in the control
unit of the machine. Before making such installation check to ascertain that the windings are not
damaged. A burned out motor can be re-wound.
NOTE
Before connecting a separate overload
protector consult the local code.
Single-phase W125 and W185 machines are
also equipped with a manually set overload
protector mounted on the extract relay in the
control unit. This overload protector protects the
motor during the start-up of the extraction.
Removing the motor
• Remove the drain valve (1) from the long shaft
by pulling it straight up.
• Remove the tensioning unit (2) on the rear of
the motor.
• Disconnect the connector (3) placed
diagonally under the rear edge of the motor.
• Remove the two screws (4). Pull the shaft
forward slightly until the guide pins pull out of
the shaft brackets. Remove the motor unit.
34
33
0304
1157
Blue
White
Black
Black
Blue
HIGH SPEED
Overload protector
White
LOW SPEED
Fig.
33
Fig.
34
Page 31
27
Mechanical and electrical design
35
1198
Water level controls
One pressure switch is used to control the correct water levels
during various cycles of the washing program.
Adjustment
All pressure switches are factory-calibrated to meet specific
requirements. The trip level for any one pressure switch can be
changed only within narrow limits because each trip range requires a different set of springs.
Water level
As a guide for checking the level control for proper functioning, the
normal level should be at the bottom of the door glass.
Fig.
35
Page 32
28
Mechanical and electrical design
Inlet valves
Construction
The valve has a single-inlet with either one, two
or three outlets, each with its own solenoid coil.
The body is made of heat-resistant polyamid
plastic and the solenoids encased in water-tight
plastic.
A filter screen on the inlet side prevents dirt from
entering the valve. Flow restrictors can be placed
at either the inlet or any of the outlets.
Operation
When the solenoid is energized, the springloaded plunger is drawn up and the pilot valve in
the center of the diaphragm open. Because of
the difference in diameter between the pilot valve
opening and the ventilating hole in the diaphragm, the pressure above the diaphragm drops
to a point where the admission pressure below
the diaphragm can lift the diaphragm, thus opening the valve.
When the current to the solenoid is cut off, the
plunger spring will press the plunger against the
pilot opening of the diaphragm. The pressure
above the diaphragm then rises to correspond to
the water inlet pressure and the pressure of the
spring will close the valve.
36
1161
37
1185
solenoid
plunger
ventilating hole
diaphragm
pilot valve
Fig.
37
Fig.
36
Page 33
29
Mechanical and electrical design
40
1181
38
1186
39
1187
Maintenance instructions
Limescale can block the hole in the valve diaphragm and interfere with the function of the valve.
It is therefore advisable to dismantle and clean
the valve at certain regular intervals. The frequency depends on operating conditions and the
level of contamination in the water.
Trouble shooting
If the valve does not open
• Check that power is supplied to the coil.
• Check the coil with an instrument to determine
whether there is a break or a short circuit.
• Dismantle the valve (see below) and check
the openings in the valve diaphragm.
• Check the inlet strainer and clean as required.
• Undo the coil and clean the surfaces of the
magnetic core.
If the valve does not close
• Check that the coil is not live. The valve is
normally closed when the magnet is not
energised.
• Check the return spring.
• Check the diaphragm (pilot pressure opening).
Dismantling the valve
• Pull the coil straight upwards. Use a screwdriver if necessary to carefully undo the coil.
• Use the tool supplied with the machine
(attached to one of the hoses when the
machine is delivered) to open the valve
housing. Slide the tool over the protruding
plastic sleeve to that the pegs on the tool
engage the corresponding sockets in the
valve housing.
• Use a spanner or a pair of pliers and unscrew
the upper part of the valve housing.
Fig.
38
ventilating hole
pilot valve
Fig.
39
Fig.
40
Page 34
30
Mechanical and electrical design
Inlet valve for W75-W185
The water inlets have brass bodies with larger
cross section of the outlet in order to achieve a
shorter filling time for the machine.
Construction
The valve housing is made of pressed brass. The
spring-loaded plunger is made of stainless steel
and located at its lower end.
Operation
The valve is automatically operated by means of
a rubber diaphragm and a pilot valve in exactly
the same way as the supply injector valve.
NOTE: To strip, clean, re-assemble and
troubleshoot the inlet valve, follow the
instructions outlined for the supply injector
valve.
Fig.
41
41
3963
42
3961
Fig.
42
Coil
Spring
Plunger
Diaphragm
Body
Page 35
31
Mechanical and electrical design
43
1182
Soap supply box
The three-compartment soap supply box is located at the top of the machine. Viewed from the front, the compartments marked with figures 1, 2 and 3
are used as follows:
Compartment 1
This compartment is used for adding detergent to the wash at the start of
the Soak cycle.
Compartment 2
This compartment is used for adding supplies to the wash at the beginning
of the Wash cycle.
The insert is used to help prevent oversudsing.
Compartment 3
The small compartment is used for adding liquid fabric softener, which is
flushed down by a siphon action at the start of the third rinse.
Fig.
43
Page 36
32
Mechanical and electrical design
44
1159
Drain valve
Description
The drain valve is operated by using the pressure
in the cold water intake. A tube (1) is connected
between the cold water intake and a solenoid
valve (2). When the solenoid valve is activated,
it opens and allows water to flow into the feeder
tube (3). The water presses up a piston (4),
which uses the pressure lid (5) to close the drain
valve rubber membrane. When the solenoid
valve cuts out, the water presure and the springs
(7) on the lid push the piston back, allowing the
water to pass the solenoid valve and drain out via
the return tube (8).
Trouble shooting
If the drain valve doesn’t close:
• Check that the solenoid valve (2) receives
electricity.
• Check that the solenoid valve and the tubes
are clear by:
- removing the drain hose (3).
- Check that water exits the hose when the
valve is activated.
• Check that the diaphragm (9) is undamaged.
If the drain valve doesn’t open:
• Check that the return tube (8) is open.
• Check that the piston (4) doesn’t seize.
Fig.
44
Page 37
33
Procedure
47
45
46
1199
0256
1200
Procedure for use
Preparations
Sort the laundry according to the categories listed
on the control panel. Check washing instructions
on garment tags.
Empty pockets and close zippers.
Open door, put laundry in the machine and close
door.
Washing
Turn control knob to desired wash program.
Add detergent and fabric softener in the compart-
ments on top of the machine:
• pre-wash detergent in compartment 1
• regular detergent in compartment 2
• liquid fabric softener in compartment 3
Follow dosage instructions on detergent package.
Liquid detergent can only be added at the begin-
ning of the specific cycle.
Insert coins or tokens. When the right amount has
been added the machine starts automatically.
Finishing
When the wash program is finished, open the
door and take out the laundry.
When necessary, clean the door gasket and
detergent compartments. Wipe off the machine
with a damp cloth.
Leave the door open when the machine is not in
use.
Leave the machine in the condition you would
expect to find it in.
Fig.
45
Fig.
46
Fig.
47
Page 38
34
To change the wash programs
You can change the following parameters in the
wash programs by adding or removing jumpers
on the timer circuit board.
Optinal changes
By installing optional equipment, you can reduce
the wash programs:
- no prewash
- only two rinses
Water level during prewash/mainwash
With jumper A (see figure) in place the machine
fills water to the high level during prewash,
mainwash and rinses.
If you remove jumper A the machine fills water to
the low level during pre- and mainwash and to
the high level during rinses.
Contact your local dealer for detailed information.
To change the wash programs
48
1201
Fig.
48
Fig.
48
Page 39
35
Wash Programs
In the figure below is an overview of the four wash programs.
On the following pages you will find a more detailed description of the
programs.
Wash Programs
49
1202
HOT WARM GENTLE ACTION PERM PRESS
Time Temp. Water Time Temp. Water Time Temp. Water Time Temp. Water
(Min.) Level (Min.) Level (Min.) Level (Min.) Level
Prewash 3 Warm High 3 Warm High 3 Cold High 3 Warm High
Detergent 1
Drain 1 1 1 1
Mainwash 5 Hot Low 5 Warm Low 5 Warm Low 5 Warm Low
Detergent 2
Drain 1 1 1 1
Rinse 1 1 Cold High 1 Cold High 1 Cold High 1 Cold High
Drain 1 1 1 1
Extract 0.5 0.5 0.5 0.5
Rinse 2 1 Cold High 1 Cold High 1 Cold High 1 Cold High
Drain 1 1 1 1
Extract 0.5 0.5 0.5 0.5
Rinse 3 2 Cold High 2 Cold High 2 Cold High 2 Cold High
Detergent 3
Drain 1 1 1 1
Extract 4 4 4 1
Shake-out 1.5 1.5 1.5 1.5
Total time 24.5 24.5 24.5 21.5
(water fill time
not included)
Fig.
49
COLD
PO2 CH
Page 40
36
Wash Programs
50
1203
Program group 1
Wash program, Hot
After the machine has started and the door
automatically locked, the drain valve will close
and the hot and cold water valves will open to fill
the machine with mixed hot and cold water to the
level determined by the level control.
When this level is reached, both water valves will
close. During filling and then through the wash
program the drum has a reversing rotation.
At the end of the soak, the drain valve will open,
whereafter hot water will fill to the level determined by the level control. At the same time detergent from compartment 2 is mixed with the
incoming hot water.
The water level controlled machine will now wash
the fabrics for 5 minutes. The machine is then
emptied.
Cold water is filled to the high level for the first
rinse which lasts one minute, followed by spin
extraction for 30 seconds. After the extraction
comes the second rinse in cold water, ending
with spin extraction, whereafter the third rinse is
started. Fabric softener is automatically admitted
during the third rinse. The fabrics are rinsed in
cold water for two minutes followed by a spin
extraction of four minutes duration. Finally there
is a shake out for one and a half minutes.
HOT
Time Temp. Water
(Min.) Level
Prewash 3 Warm High
Detergent 1
Drain 1
Mainwash 5 Hot Low
Detergent 2
Drain 1
Rinse 1 1 Cold High
Drain 1
Extract 0.5
Rinse 2 1 Cold High
Drain 1
Extract 0.5
Rinse 3 2 Cold High
Detergent 3
Drain 1
Extract 4
Shake-out 1.5
Total time 24.5
(water fill time
not included)
Fig.
50
Page 41
37
Wash Program, Warm
On starting the machine, the door will automatically be locked, and the pre-wash carried out as
previously described, whereafter the main wash
is started.
As the main wash is started, the drain valve
closes, detergent is admitted and mixed hot and
cold water is filled to the level determined by the
level control.
On reaching this level, the water valves are
closed.
The water level controlled machine will now wash
the fabrics for six minutes. The machine is then
emptied.
Cold water is filled for the first rinse which lasts
one minute, followed by spin extraction for 30
seconds.
After this extraction comes the second rinse in
cold water ending with spin extraction, whereafter
the third rinse is started. Fabric softener is
automatically admitted during the third rinse. The
fabrics are rinsed with cold water for two minutes
followed by a spin extraction of four minutes
duration. Finally there is a shake out forone and
a half minutes.
Wash Programs
51
1204
WARM
Time Temp. Water
(Min.) Level
Prewash 3 Warm High
Detergent 1
Drain 1
Mainwash 5 Warm Low
Detergent 2
Drain 1
Rinse 1 1 Cold High
Drain 1
Extract 0.5
Rinse 2 1 Cold High
Drain 1
Extract 0.5
Rinse 3 2 Cold High
Detergent 3
Drain 1
Extract 4
Shake-out 1.5
Total time 24.5
(water fill time
not included)
Fig.
51
Page 42
38
Wash Programs
52
1205
Wash Program, Cold (with gentle action)
On starting the machine, the door will automatically be locked, the drain valve closed, the cold
water valve opened and the pre-wash carried out
as previously described, whereafter the main
wash is started.
As the main wash is started, the drain valve
closes, detergent is admitted and cold and hot
water are filled to the level determined by the
level control.
On reaching this level, water walves are closed.
The water level controlled machine will now wash
the fabrics for six minutes. The machine is then
emptied.
Cold water is filled for the first rinse which lasts
one minute, followed by spin extraction for 30
seconds.
After this extraction comes the second rinse in
cold water concluded with spin extraction, whereafter the third rinse is started.
Fabric softener is automatically admitted during
the third rinse. The fabrics are rinsed with cold
water for two minutes followed by a spin extraction of four minutes duration. Finally there is a
shake out forone and a half minutes.
COLD
Time Temp. Water
(Min.) Level
Prewash 3 Cold High
Detergent 1
Drain 1
Mainwash 5 Warm Low
Detergent 2
Drain 1
Rinse 1 1 Cold High
Drain 1
Extract 0.5
Rinse 2 1 Cold High
Drain 1
Extract 0.5
Rinse 3 2 Cold High
Detergent 3
Drain 1
Extract 4
Shake-out 1.5
Total time 24.5
(water fill time
not included)
Fig.
52
Page 43
39
Wash Program, Permanent Press
On starting the machine, the door will automatically be locked, the drain valve closed, the hot and
cold water valves opened and the pre-wash will
be carried out as previously described, whereafter the main wash is started.
As the main wash is started, the drain valve
closes, detergent is admitted and mixed hot and
cold water is filled to the level determined by the
level control.
On reaching this level, the water valves are
closed and the wash motor starts its reversing
rotation.
The water level controlled machine will now wash
the fabrics for six minutes. The machine is then
emptied.
Cold water is filled for the first rinse which lasts
one minute, followed by spin extraction for 30
seconds.
Fabric softener is automatically admitted during
the third rinse. The fabrics are rinsed with cold
water for two minutes followed by a spin extraction of one minutes duration. Finally there is a
shake out forone and a half minutes.
Wash Programs
53
1206
PERM PRESS
Time Temp. Water
(Min.) Level
Prewash 3 Warm High
Detergent 1
Drain 1
Mainwash 5 Warm Low
Detergent 2
Drain 1
Rinse 1 1 Cold High
Drain 1
Extract 0.5
Rinse 2 1 Cold High
Drain 1
Extract 0.5
Rinse 3 2 Cold High
Detergent 3
Drain 1
Extract 1
Shake-out 1.5
Total time 21.5
(water fill time
not included)
Fig.
53
Page 44
40
Maintenance
Preventive maintenance has been reduced to a
minimum by the careful design of reliable components and material.
However, the following measures should be
taken at regular intervals and in proportion to the
hours of service.
IMPORTANT!
Make certain that all electrical power to
the machine is shut off before removing
top or rear panels.
Daily
• Check the door lock and interlock before
starting operations.
• The soap supply box should be cleaned at the
end of each working day as follows:
- Use a spatula to scrape loose any deter-
gent which may have stuck on the inside of
the dispenser.
- Flush the loosened detergent with warm
water.
- Wipe dry and leave lid open.
• Check that the drain valve does not leak and
that it opens properly.
• Check that the door does not leak. Clean
residual detergent and foreign matter from the
door gasket.
• Wipe the outside of the machine.
• When the machine is not in use, leave door
slightly open to allow moisture to evaporate.
Weekly
• Remove the hose from the drain connection
and clean the inside of the drain valve.
Every three months
• Remove the rear panel of the machine and
check that the V-belt of the wash motor is
undamaged and correctly tensioned.
• Check that all tubing, piping and connections
are free from leaks.
• Wipe and clean the inside of the machine,
making sure that the control components are
protected from moisture and dirt during the
cleaning operation.
Maintenance
54
1833
55
1207
Fig.
54
Fig.
55
Page 45
41

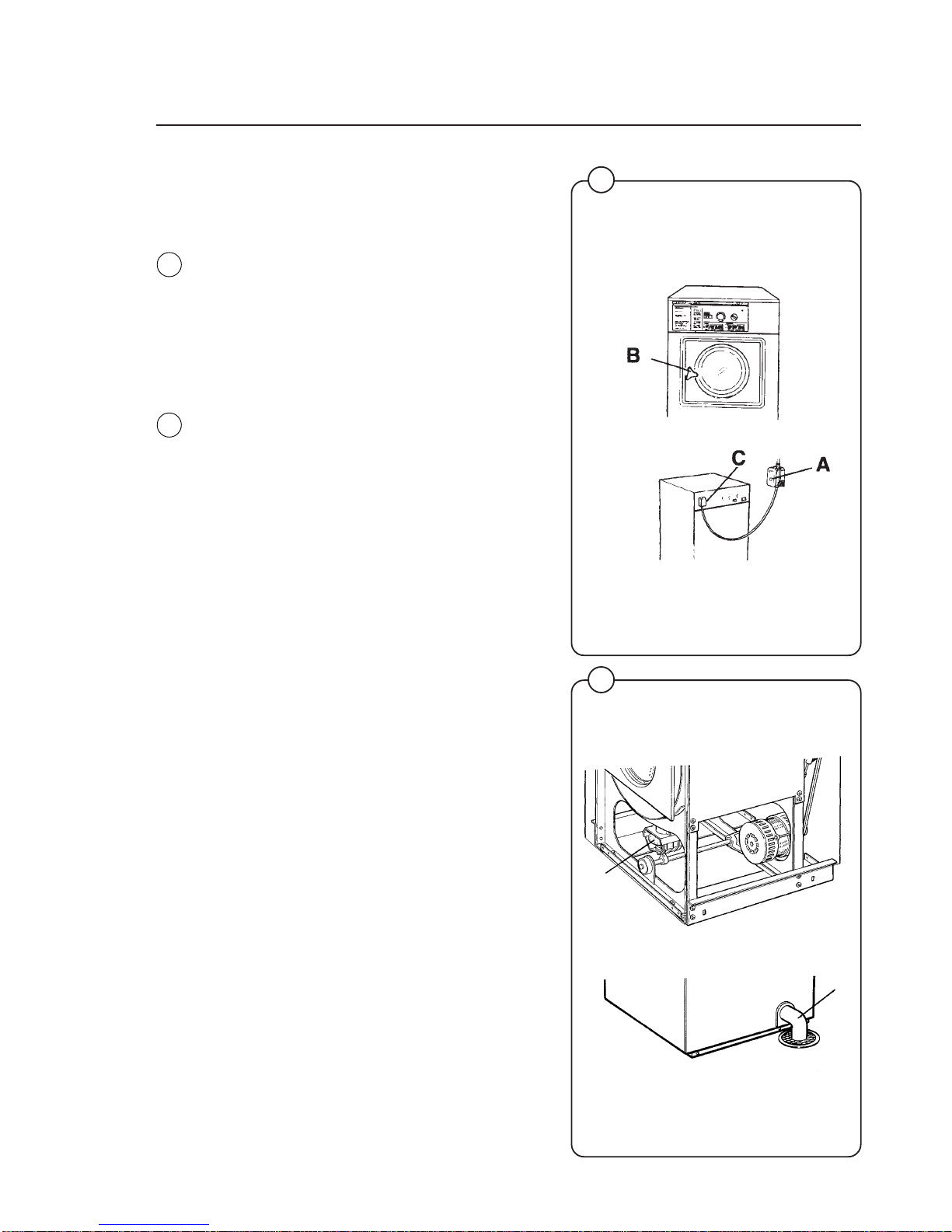

Trouble shooting
Trouble shooting
If the machine does not start
A Check circuit breaker in the power feed line to
the machine.
B Check the door safety switches.
C Check the glass cartridge fuse.
If water does not drain
A Check the drain valve and drain solenoid for
proper operation.
B Disconnect the drain hose connected to drain
line. If full flow of water comes out, the pro-
blem is in the main waste line. If water flow is
slow, the problem is the accumulation of
foreign materials between the drain valve and
shell outlet of machine. Clean valve body of
any foreign objects found.
56
1208
57
1209
A
B
Fig.
56
Fig.
57
Page 46
42
Trouble shooting
58
1210
59
1211

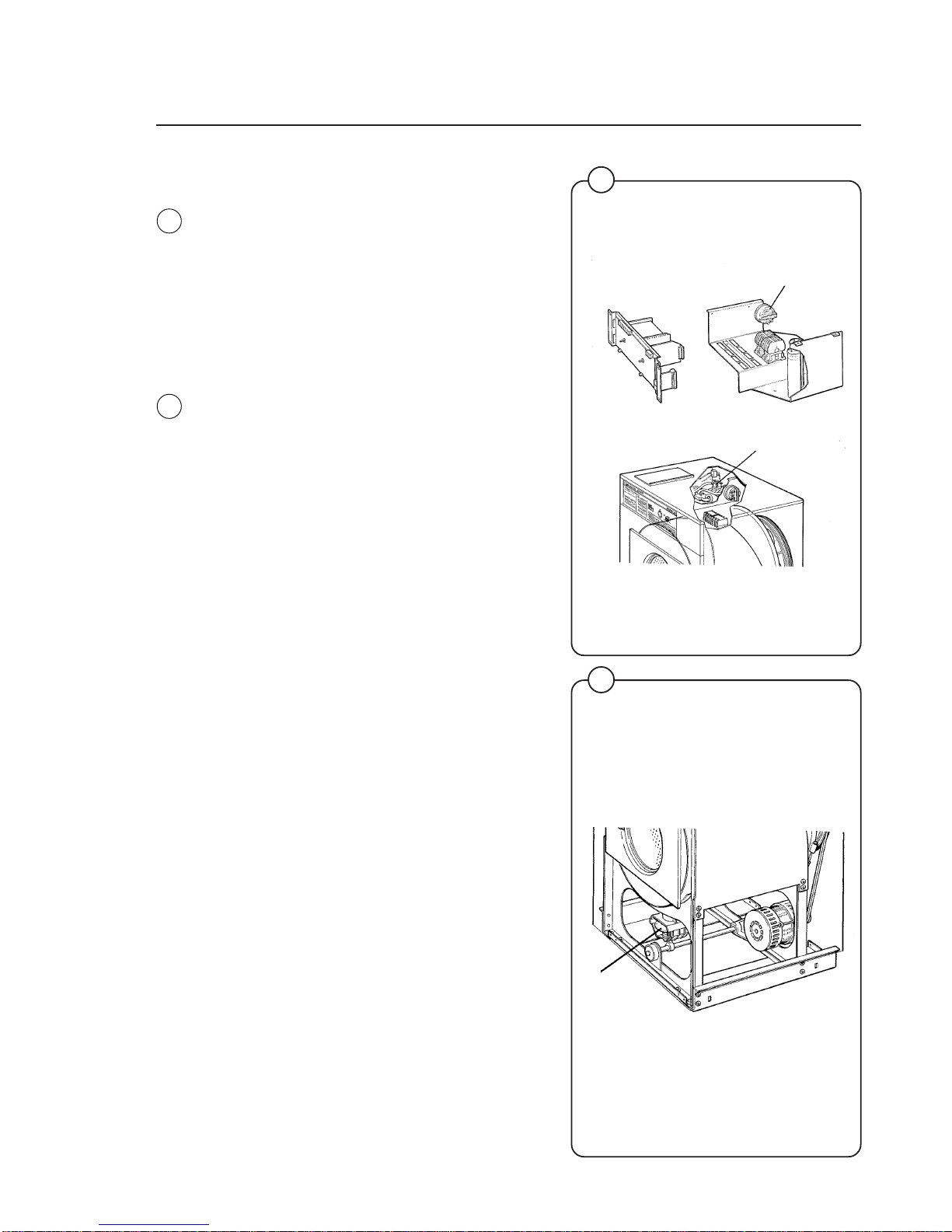

If machine does not extract
A Check extract relay and relay coil for proper
operation.
If motor does not operate at wash speed
A Check wash relay.
B Check normally-closed contact of extract
relay.
C Check motor and V-belt.
D Review procedures outlined under section ”If
machine does not start” above.
A
A
Fig.
58
Fig.
59
B
C
Page 47
43
If machine runs slowly on wash speed or there
is a slapping or thumping noise.
A Replace V-belts
If a metallic noise can be heard at rear of
machine
A Tighten pulley on motor shaft
If the door is leaking
A Check the door gasket. If the gasket is in good
condition, install a 4-7 mm rubber hose seal
around the entire gasket, using the slits
provided.
Trouble shooting
60
1207
1175
1176
61
62
A
Fig.
60
Fig.
61
Fig.
62
Page 48
44
If there is a leaking around the glass
A Replace door gasket if worn.
If water does not enter the machine.
A Check the valve coils on inlet valves.
B Check wires leading to valve coils.
C Be sure manual shut-off valves are in open
position.
Trouble shooting
63
1212
64
A
Fig.
63
Fig.
64
1837
Page 49
45
If water continues to fill without stopping.
A Check hose attached to level control unit.
B Check inlet valves for dirt underneath the
valve diaphragm. To localize, shut off power.
If water continues to flow, inlet valves have
foreign material in them and should be thoroughly cleaned.
If water continues to flow without filling
machine.
A Check seating of drain valve.
Trouble shooting
65
1214
66
1215
A
B
A
Fig.
65
Fig.
66
Page 50
46
If machine vibrates excessively.
Tighten mounting bolts.
Trouble shooting
67
1140
Fig.
67
Loading...
