Wacker Neuson VP 1340A, VP 1340AW, VP 1550A, VP 1550AW, VPH70 Operator's Manual

Operator’s Manual

Vibroplate

VP 1340A

VP 1340AW

VP 1550A

VP 1550AW

0154569EN

0154569en / 008

VP 1340A/VP 1550A Table of Contents

Foreword 3

1 Safety Information 4

1.1 Laws Pertaining to Spark Arresters ...................................................... 4

1.2 Operating Safety .................................................................................. 5

1.3 Operator Safety while using Internal Combustion Engines .................. 6

1.4 Service Safety ...................................................................................... 7

1.5 Label Locations .................................................................................... 8

1.6 Warning and Informational Labels ........................................................ 9

2 Technical Data 12

2.1 Engine Data ........................................................................................ 12

2.2 Machine Data ..................................................................................... 13

2.3 Sound and Vibration Measurements .................................................. 13

2.4 Dimensions ......................................................................................... 14

3 Operation 15

3.1 Recommended Fuel ........................................................................... 15

3.2 Application .......................................................................................... 15

3.3 Before Starting ................................................................................... 15

3.4 To Start ............................................................................................... 16

3.5 To Stop ............................................................................................... 16

3.6 Operation ............................................................................................ 17

wc_bo0154569008enTOC.fm 1

Table of Contents VP 1340A/VP 1550A

4 Maintenance 18

4.1 Periodic Maintenance Schedule ..........................................................18

4.2 Spark Plug ...........................................................................................20

4.3 Air Cleaner ..........................................................................................21

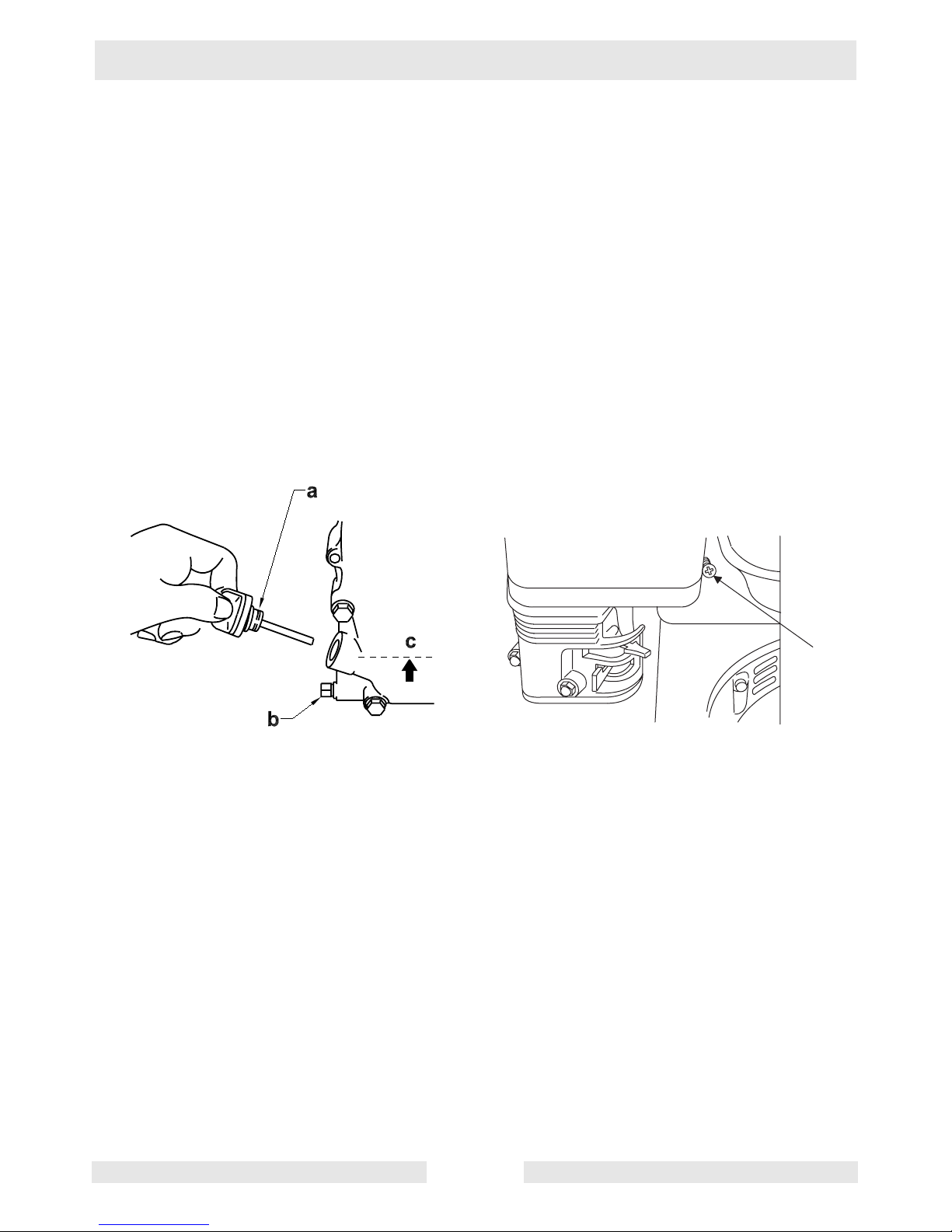

4.4 Engine Oil ............................................................................................22

4.5 Adjusting Engine Speed ......................................................................22

4.6 Carburetor Adjustment ........................................................................23

4.7 Cleaning Sediment Cup ......................................................................23

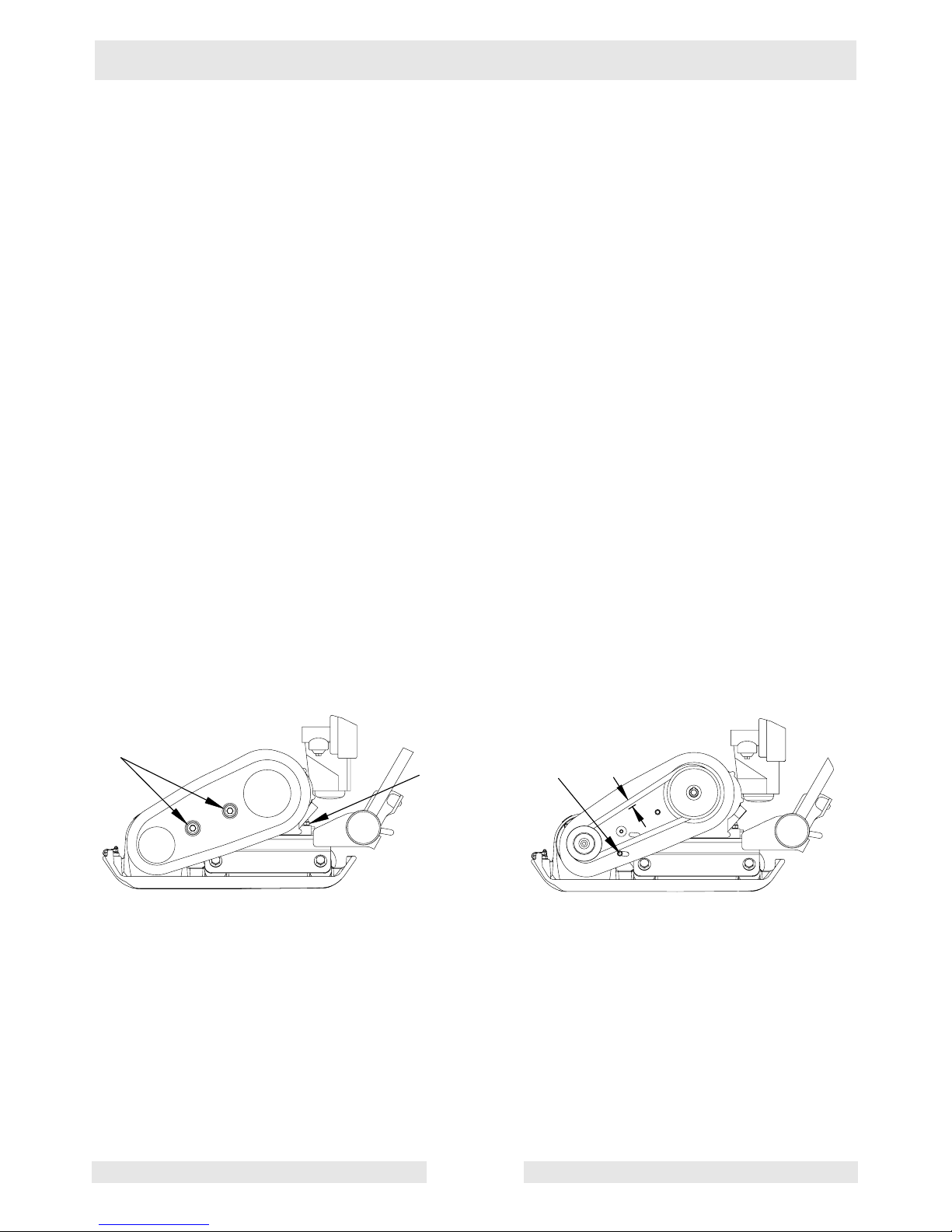

4.8 Drive Belt .............................................................................................24

4.9 Exciter Lubrication ...............................................................................25

4.10 Cleaning Plate .....................................................................................25

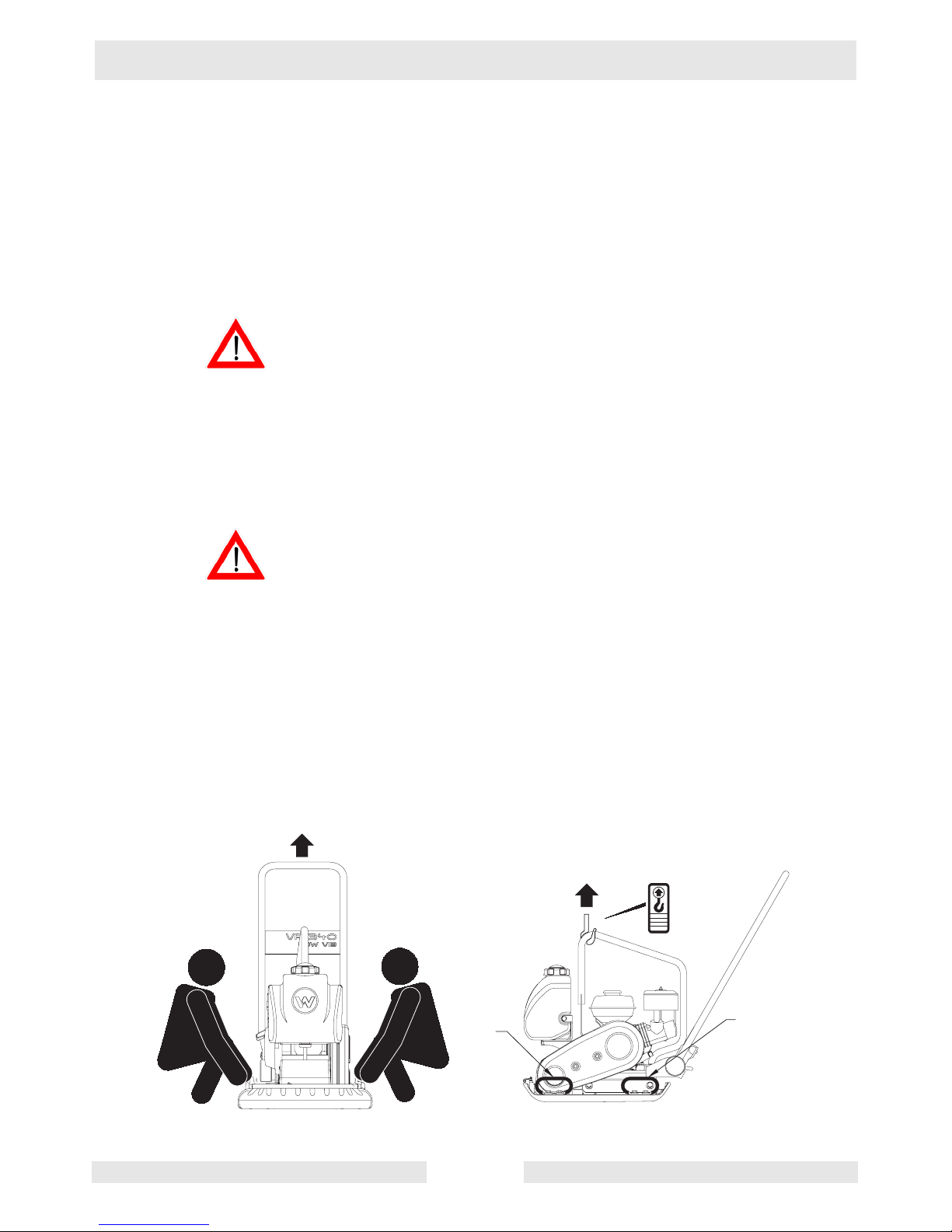

4.11 Lifting Machine ....................................................................................26

4.12 Transporting Machine ..........................................................................27

4.13 Storage ................................................................................................27

4.14 Troubleshooting ...................................................................................28

wc_bo0154569008enTOC.fm 2

Foreword

WARNING

CALIFORNIA

Proposition 65 Warning:

Engine exhaust, some of its constituents, and certain vehicle
components, contain or emit chemicals known to the State of
California to cause cancer and birth defects or other reproductive
harm.

This manual provides information and procedures to safely operate
and maintain this Wacker Neuson model. For your own safety and
protection from injury, carefully read, understand and observe the
safety instructions described in this manual.

Keep this manual or a copy of it with the machine. If you lose this
manual or need an additional copy, please contact Wacker Neuson
Corporation. This machine is built with user safety in mind; however,
it can present hazards if improperly operated and serviced. Follow
operating instructions carefully! If you have questions about operating
or servicing this equipment, please contact Wacker Neuson
Corporation.

The information contained in this manual was based on machines in
production at the time of publication. Wacker Neuson Corporation
reserves the right to change any portion of this information without
notice.

All rights, especially copying and distribution rights, are reserved.

Copyright 2009 by Wacker Neuson Corporation.

No part of this publication may be reproduced in any form or by any
means, electronic or mechanical, including photocopying, without
express written permission from Wacker Neuson Corporation.

Any type of reproduction or distribution not authorized by Wacker
Neuson Corporation represents an infringement of valid copyrights
and will be prosecuted. We expressly reserve the right to make
technical modifications, even without due notice, which aim at
improving our machines or their safety standards.

wc_tx000001gb.fm 3

Safety Information VP 1340A/VP 1550A

1. Safety Information

This manual contains DANGER, WARNING, CAUTION, NOTICE and
NOTE callouts which must be followed to reduce the possibility of
personal injury, damage to the equipment, or improper service.

This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.

DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.

DANGER

WARNING indicates a hazardous situation which, if not avoided, could
result in death or serious injury.

WARNING

CAUTION indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.

CAUTION

NOTICE: Used without the safety alert symbol, NOTICE indicates a
situation which, if not avoided, could result in property damage.

Note: Contains additional information important to a procedure.

1.1 Laws Pertaining to Spark Arresters

Notice: State Health Safety Codes and Public Resources Codes

specify that in certain locations spark arresters be used on internal
combustion engines that use hydrocarbon fuels. A spark arrester is a
device designed to prevent accidental discharge of sparks or flames
from the engine exhaust. Spark arresters are qualified and rated by
the United States Forest Service for this purpose.

In order to comply with local laws regarding spark arresters, consult
the engine distributor or the local Health and Safety Administrator.

wpm_si000305gb.fm 4

VP 1340A/VP 1550A Safety Information

1.2 Operating Safety

Familiarity and proper training are required for the safe operation of the
machine. Machines operated improperly or by untrained personnel
can be hazardous. Read the operating instructions contained in this
manual and the engine manual, and familiarize yourself with the
location and proper use of all controls. Inexperienced operators should
receive instruction from someone familiar with the machine before
being allowed to operate it.

1.2.1 Do not allow anyone to operate this equipment without proper training.
People operating this equipment must be familiar with the risks and
hazards associated with it.

1.2.2 Do not touch the engine or muffler while the engine is on or
immediately after it has been turned off. These areas get hot and may
cause burns.

1.2.3 Do not use accessories or attachments that are not recommended by
Wacker Neuson. Damage to equipment and injury to the user may
result.

1.2.4 NEVER operate the machine with the beltguard missing. Exposed
drive belt and pulleys create potentially dangerous hazards that can
cause serious injuries.

1.2.5 NEVER leave the machine running unattended.

1.2.6 Be sure operator is familiar with proper safety precautions and
operation techniques before using machine.

1.2.7 ALWAYS wear protective clothing appropriate to the job site when
operating the machine.

1.2.8 Wear hearing protection when operating equipment.

1.2.9 Close fuel valve on engines equipped with one when machine is not
being operated.

1.2.10 Store the machine properly when it is not being used. The machine
should be stored in a clean, dry location out of the reach of children.

1.2.11 Always operate machine with all safety devices and guards in place
and in working order. Do not modify or defeat safety devices. Do not
operate machine if any safety devices or guards are missing or
inoperative.

1.2.12 Read, understand, and follow procedures in the Operator’s Manual
before attempting to operate the machine.

wpm_si000305gb.fm 5

Safety Information VP 1340A/VP 1550A

1.3 Operator Safety while using Internal Combustion Engines

Internal combustion engines present special hazards during operation
and fueling. Read and follow the warning instructions in the engine
owner’s manual and the safety guidelines below. Failure to follow the

WARNING

1.3.1 DO NOT run the machine indoors or in an enclosed area such as a

1.3.2 Do not smoke while operating the machine.

1.3.3 Do not smoke when refueling the engine.

1.3.4 Do not refuel a hot or running engine.

1.3.5 Do not refuel the engine near an open flame.

1.3.6 Do not spill fuel when refueling the engine.

1.3.7 Do not run the engine near open flames.

warnings and safety standards could result in severe injury or death.

deep trench unless adequate ventilation, through such items as
exhaust fans or hoses, is provided. Exhaust gas from the engine
contains poisonous carbon monoxide gas; exposure to carbon
monoxide can cause loss of consciousness and may lead to death.

1.3.8 Refill the fuel tank in a well-ventilated area.

1.3.9 Replace the fuel tank cap after refueling.

1.3.10 ALWAYS check the fuel lines and the fuel tank for leaks and cracks
before starting the engine. Do not run the machine if fuel leaks are
present or the fuel lines are loose.

wpm_si000305gb.fm 6

VP 1340A/VP 1550A Safety Information

1.4 Service Safety

A poorly maintained machine can become a safety hazard! In order
for the machine to operate safely and properly over a long period of
time, periodic maintenance and occasional repairs are necessary.

WARNING

1.4.1 Do not attempt to clean or service the machine while it is running.
Rotating parts can cause severe injury.

1.4.2 Do not crank a flooded engine with the spark plug removed on
gasoline-powered engines. Fuel trapped in the cylinder will squirt out
the spark plug opening.

1.4.3 Do not test for spark on gasoline-powered engines if the engine is
flooded or the smell of gasoline is present. A stray spark could ignite
the fumes.

1.4.4 Do not use gasoline or other types of fuels or flammable solvents to
clean parts, especially in enclosed areas. Fumes from fuels and
solvents can become explosive.

1.4.5 Keep the area around the muffler free of debris such as leaves, paper,
cartons, etc. A hot muffler could ignite the debris and start a fire.

1.4.6 Replace worn or damaged components with spare parts designed and
recommended by Wacker Neuson Corporation.

1.4.7 Disconnect the spark plug on machines equipped with gasoline
engines, before servicing, to avoid accidental start-up.

1.4.8 Keep the machine clean and labels legible. Replace all missing and
hard-to-read labels. Labels provide important operating instructions
and warn of dangers and hazards.

wpm_si000305gb.fm 7

Safety Information VP 1340A/VP 1550A

1.5 Label Locations

wpm_si000305gb.fm 8

wpmgr005939

VP 1340A/VP 1550A Safety Information

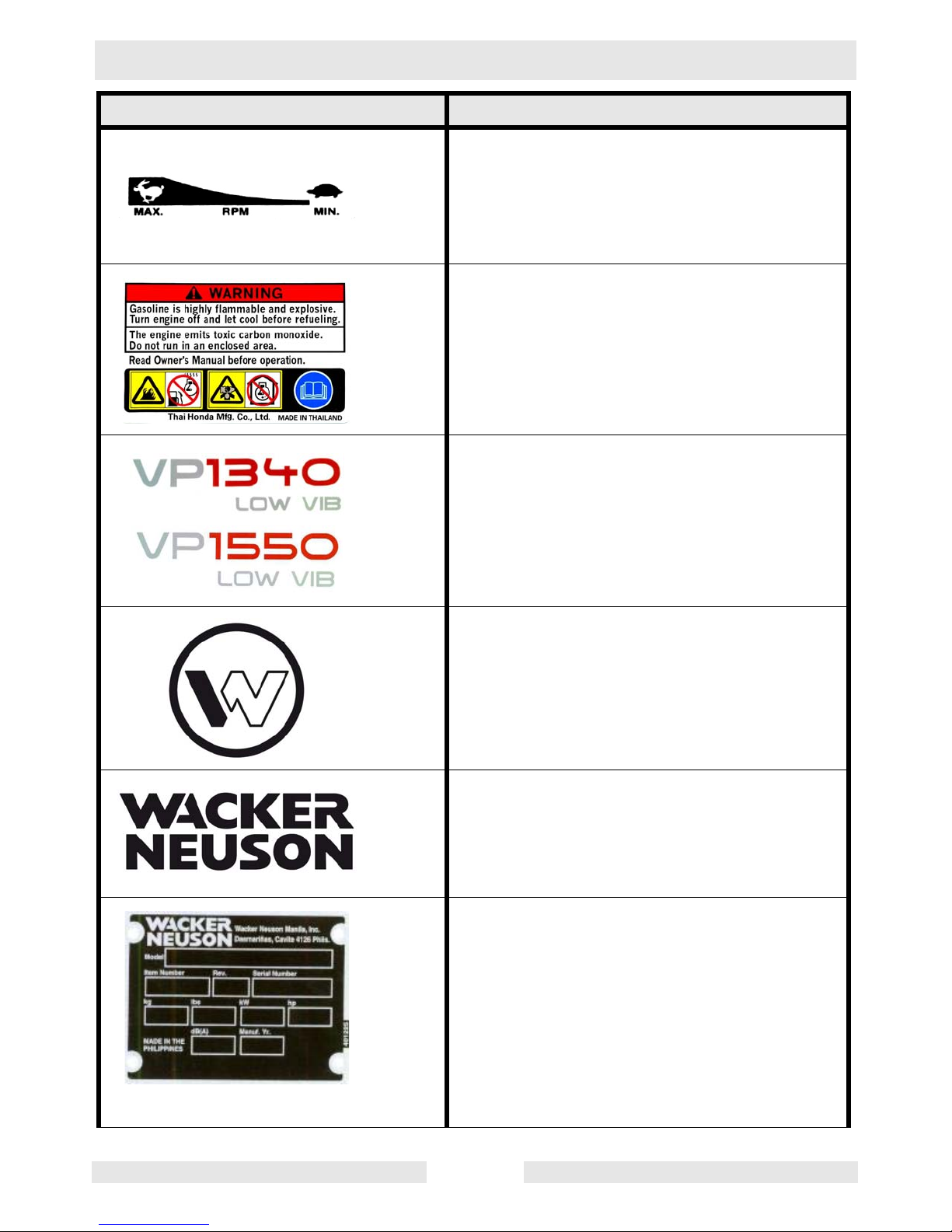

1.6 Warning and Informational Labels

Wacker Neuson machines use international pictorial labels where
needed. These labels are described below:

Label Meaning

WARNING!
Always wear hearing and eye protection when
operating this machine.

WARNING!
Hot surface!

Guaranteed sound power level in dB(A).

WARNING!
Hand injury if caught in moving belt.
Always replace beltguard.

CAUTION!
Read and understand the supplied Operator’s
Manual before operating this machine. Failure
to do so increases the risk of injury to yourself
or others.

NOTICE
Lifting point.

wpm_si000305gb.fm 9

Safety Information VP 1340A/VP 1550A

Label Meaning

Throttle control lever:
Turtle = Idle or Slow
Rabbit = Full or Fast

DANGER!
Engines emit carbon monoxide; operate only
in well-ventilated area. Read the Operator’s
Manual.
No sparks, flames, or burning objects near the
machine. Shut off the engine before refueling.

Label-machine model

Company logo

Company label

A nameplate listing the model number, item
number, revision number, and serial number is
attached to each unit. Please record the infor­mation found on this plate so it will be avail­able should the nameplate become lost or
damaged. When ordering parts or requesting
service information, you will always be asked
to specify the model number, item number,
revision number, and serial number of the unit.

wpm_si000305gb.fm 10

VP 1340A/VP 1550A Safety Information

Label Meaning

This machine may be covered by one or more
patents.

wpm_si000305gb.fm 11

Technical Data VP 1340A/VP 1550A

2. Technical Data

2.1 Engine Data

Engine Power Rating

Net power rating per SAE J1349. Actual power output may vary due to
conditions of specific use.

VP 1340A/AW

0009031
0009032

Engine

Engine Make Honda

Engine Model GX 160 UT1 SWX2

Maximum rated power

kW (Hp)

@ rated speed

Spark Plug NGK BPR 6ES

Electrode Gap

Operating speed

Air Cleaner

Engine Lubrication

Engine Oil Capacity

mm (in.)

rpm

type

oil grade

ml (oz.)

0.7-0.8 (0.028–0.031)

3.6 (4.8)

@ 3600 rpm

3600

Dual element

SAE 10W30

SG or SF

600 (20)

VP 1550A/AW

0009027
0009028

Fuel

Fuel Tank Capacity

Valve Clearance (cold)
Inlet:
Outlet:

wpm_td000314gb.fm 12

type

l (qts.)

mm (in.)

Regular unleaded gasoline

3.6 (3.8)

0.15 (0.006)

0.20 (0.008)

VP 1340A/VP 1550A Technical Data

2.2 Machine Data

VP 1340A/AW

0009031
0009032

VP 1550A/AW

0009027
0009028

Plate

Weight kg (lbs.) VP 1340A: 74 (163)

VP 1340AW: 76 (168)

VP 1550A: 83 (184)

VP 1550AW: 86 (190)
Water Tank Capacity l (qts.) 3.8 (4.0) 7.6 (8.0)
Exciter Speed rpm 5800 ± 100
Exciter Lubrication ml (oz.) 240 (8)

Automatic transmission fluid

Dextron III/Mercon or equivalent

Dimensions mm (in.)

588 (23) x 400 (16) x 911 (35) 588 (23) x 500 (20) x 911 (35)

2.3 Sound and Vibration Measurements

The required sound specification, Paragraph 1.7.4.f of 89/392/EEC
Machinery Directive, is:

• the guaranteed sound power level (LWA) = 108 dB(A).

• the sound pressure level at operator’s location (LpA):
VP1340A/AW = 95 dB(A), VP1550A/AW = 96 dB(A).

These sound values were determined according to ISO 3744 for the
sound power level (L
(L

) at the operator’s location.

pA

) and ISO 6081 for the sound pressure level

WA

The weighted effective acceleration value, determined according to
EN ISO 5349, is approximately:

2

VP1340A/AW = 4.50 m/s

, VP1550A/AW = 4.50 m/s2.

The sound and vibration measurements were obtained with the
machine operating on crushed gravel at nominal engine speed.

wpm_td000314gb.fm 13

Technical Data VP 1340A/VP 1550A

2.4 Dimensions

mm (in.)

911 (36)

400 (16)

588 (23)

wpmgr005966

wpm_td000314gb.fm 14

VP 1340A/VP 1550A Operation

3. Operation

3.1 Recommended Fuel

The engine requires regular grade unleaded gasoline. Use only fresh,
clean gasoline. Gasoline containing water or dirt will damage fuel
system. Consult engine owner’s manual for complete fuel
specifications.

3.2 Application

This plate is designed for compacting loose, granular soils, gravel, and
paving stones. It is intended to be used in confined areas and areas
next to structures such as walls, curbs, and foundations. Plates
equipped with water tanks can be used for compacting asphalt.

This plate is not recommended for compacting cohesive soils with a
heavy clay content. For cohesive soil, use a vibratory rammer or
sheepsfoot roller.

3.3 Before Starting

3.3.1 Read and understand the safety and operating instructions at the
beginning of this manual.

3.3.2 Check:

• Oil level in the engine

• Fuel level

• Condition of the air cleaner

• Tightness of the external fasteners

• Condition of the fuel lines

wpm_tx001087gb.fm 15

Operation VP 1340A/VP 1550A

3.4 To Start

See Graphic: wc_gr00001 4

3.4.1 Open fuel valve by moving lever to the right (a1).

Note: If engine is cold, move choke lever to close position (b1). If
engine is hot, set choke to open position (b2).

3.4.2 Turn engine switch to “ON” (e1).

3.4.3 Open throttle by moving it slightly to left (d1).

3.4.4 Pull starter rope (c).

Note: If the oil level in the engine is low, the engine will not start. If this
happens, add oil to engine. Some engines are equipped with an oil
alert light (f) that will come on while pulling the starter rope.

3.4.5 Open choke as engine warms (b2).

3.4.6 Open throttle fully to operate.

3.5 To Stop

See Graphic: wc_gr00001 4

3.5.1 Reduce engine RPM to idle by moving throttle completely to right (d2).

3.5.2 Turn engine switch to “OFF” (e2).

3.5.3 Close fuel valve by moving lever to the left (a2).

wpm_tx001087gb.fm 16

VP 1340A/VP 1550A Operation

3.6 Operation

Run the engine at full throttle and allow the plate to pull itself along at
its normal speed. When operating on an incline it may be necessary to
assist the plate by pushing it forward slightly. When operating downhill
hold the plate back slightly, if it begins to pick up speed. Depending on
the material being compacted, three or four passes are recommended
to achieve the best compaction.

While a certain amount of moisture in the soil is necessary, excessive
moisture may cause soil particles to stick together and prevent good
compaction. If soil is extremely wet, allow it to dry somewhat before
compacting.

If soil is so dry as to create dust clouds while operating plate, some
moisture should be added to the ground material to improve
compaction. This will also reduce service to the air filter.

For compacting asphalt, use a water tank to wet the asphalt and the
underside of plate. This will prevent asphalt material from sticking.
Two passes are usually sufficent to ensure good compaction.

When using the plate on paving stones, attach a pad to the bottom of
the plate to prevent chipping or grinding surface of stones. A special
polyurethane pad designed for this purpose is available as an optional
accessory.

NOTICE: DO NOT operate the plate on concrete or on extremely hard,
dry, compacted surfaces. The plate will jump rather than vibrate and
could damage both the plate and the engine.

wpm_tx001087gb.fm 17

Maintenance VP 1340A/VP 1550A

4. Maintenance

4.1 Periodic Maintenance Schedule

4.1.1 Engine Maintenance

The chart below lists basic engine maintenance. Refer to the engine
manufacturer’s Operation Manual for additional information on engine
maintenance.

Check fuel level.
Check engine oil level.
Inspect fuel lines.
Inspect air filter. Replace as needed.
Clean air cleaner elements.
Change engine oil.
Clean engine cooling fins.
Clean sediment cup / fuel filter.
Check and clean spark plug.
Check and adjust valve clearance.
Change exciter oil.

Daily

before

starting









After

first

20 hrs.



Every

2 weeks

or

50 hrs.



Every

month

or

100 hrs.







Every

year

or

300 hrs.





wpm_tx001088gb.fm 18

VP 1340A/VP 1550A Maintenance

4.1.2 Machine Maintenance

The chart below lists basic machine maintenance.

Check external hardware.
Check and adjust drive belt.
Inspect shockmounts for damage.
Replace shockmounts as needed.
Change exciter oil.

Note: When machine is being used in asphalt, it is highly
recommended that shockmoun ts are r eplaced every year or
after 300 hours of usage.

Daily

before

starting



After

first

20 hrs.



Every

2 weeks

or

50 hrs.



Every

month

or

100 hrs.

Every

year

or

300 hrs.





wpm_tx001088gb.fm 19

Maintenance VP 1340A/VP 1550A

4.2 Spark Plug

See Graphic: wc_gr00002 8

Clean or replace the spark plug as needed to ensure proper operation.
Refer to your engine operator’s manual.

The muffler becomes very hot during operation and remains hot for a
while after stopping the engine. Do not touch the muffler while it is hot.

WARNING

Note: Refer to section “Technical Data” for the recommended spark

plug type and the electrode gap setting.

4.2.1 Remove the spark plug and inspect it.

4.2.2 Replace the spark plug if the insulator is cracked or chipped.

4.2.3 Clean the spark plug electrodes with a wire brush.

4.2.4 Set the electrode gap (a).

4.2.5 Tighten the spark plug securely.

NOTICE: A loose spark plug can become very hot and may cause
engine damage.

wpm_tx001088gb.fm 20

VP 1340A/VP 1550A Maintenance

4.3 Air Cleaner

See Graphic: wc_gr000025

The engine is equipped with a dual element air cleaner. Service air
cleaner frequently to prevent carburetor malfunction.

NOTICE: NEVER run engine without air cleaner. Severe engine
damage will occur.

NEVER use gasoline or other types of low flash point solvents for
cleaning the air cleaner. A fire or explosion could result.

WARNING

To service:

4.3.1 Remove air cleaner cover (a). Remove both elements and inspect
them for holes or tears. Replace damaged elements.

4.3.2 Wash foam element (b) in solution of mild detergent and warm water.
Rinse thoroughly in clean water. Allow element to dry thoroughly. Soak
element in clean engine oil and squeeze out excess oil.

4.3.3 Tap paper element (c) lightly to remove excess dirt. Replace paper
element if it appears heavily soiled.

wpm_tx001088gb.fm 21

Maintenance VP 1340A/VP 1550A

4.4 Engine Oil

See Graphic: wc_gr00002 2

4.4.1 Drain the oil while the engine is still warm.

4.4.2 Remove the oil filler plug (a) and the drain plug (b) to drain the oil.

Note: In the interests of environmental protection, place a plastic sheet
and a container under the machine to collect any liquid that drains off.
Dispose of this liquid in accordance with environmental protection
legislation.

4.4.3 Install the drain plug.

4.4.4 Fill the engine crankcase with the recommended oil up to the level of

the plug opening (c). See section Technical Data for oil quantity and
type.

4.4.5 Install the oil filler plug.

wc_gr000022

4.5 Adjusting Engine Speed

See Graphic: wc_gr00028 0

Adjust to a full load speed of 3600 ± 100 rpm.
To adjust engine speed:

4.5.1 Place machine on a rubber test mat to prevent it from moving.

4.5.2 Start engine and allow it to warm up for a minute.

4.5.3 Turn throttle stop screw (a) in to increase speed, out to decrease

speed. Make sure throttle lever is touching stop screw before
measuring RPM.

NOTICE: Running plate at a speed higher than that listed in Technical
Data can damage both the plate and the engine.

a

wc_gr000280

wpm_tx001088gb.fm 22

VP 1340A/VP 1550A Maintenance

4.6 Carburetor Adjustment

See Graphic: wc_gr000032

4.6.1 Start the engine and allow it to warm up to operating temperature.

4.6.2 Set the pilot screw (a) two turns out. See Note.

4.6.3 With the engine idling, turn the pilot screw (a) in or out to the setting
that produces the highest rpm.

4.6.4 After the pilot screw is adjusted, turn the throttle stop screw (b) to
obtain the standard idle speed. See Technical Data.

Note: On some engines the pilot screw is fitted with a limiter cap (c)
to prevent excessive enrichment of the air-fuel mixture in order to
comply with emission regulations. The mixture is set at the factory and
no adjustment should be necessary. Do not attempt to remove the
limiter cap. The limiter cap cannot be removed without breaking the
pilot screw.

wc_gr000032

4.7 Cleaning Sediment Cup

See Graphic: wc_gr000029

4.7.1 Turn the fuel valve off.

4.7.2 Remove the sediment cup (a) and the O-ring (b).

4.7.3 Wash both thoroughly in a nonflammable solvent. Dry and reinstall
them.

4.7.4 Turn the fuel valve on and check for leaks.

b

a

wc_gr000029

wpm_tx001088gb.fm 23

Maintenance VP 1340A/VP 1550A

4.8 Drive Belt

See Graphic: wpmgr0 05 992

On new machines or after installing a new belt, check the belt tension
after first 20 hours of operation. Check and adjust the belt every 50
hours thereafter.

To adjust the belt:

4.8.1 Loosen the two screws (a) on the beltguard, then remove the

beltguard, keeping the screw assemblies captured on the beltguard.

4.8.2 Loosen the four nuts (b) which hold the engine to the console, and the
screw (c) which holds the beltguard back to the console.

4.8.3 Slide the engine backward (towards the handle) to tighten the belt,
forward to loosen the belt.

4.8.4 Adjust the belt so that it deflects 10–13 mm (d) when pressed midway
between the belt pulleys.

4.8.5 Make sure that the clutch pulley (f) and the exciter pulley (e) are in
alignment. Place a straight edge against the exciter pulley (e) and
move the engine so that the two pulleys are parallel.

4.8.6 Torque all nuts and screws to 20.5 Nm as you reassemble the
machine.

a

b

c

d

wpmgr005992

wpm_tx001088gb.fm 24

VP 1340A/VP 1550A Maintenance

4.9 Exciter Lubrication

See Graphic: wpmgr006018

The bearings in the exciter assembly are splash lubricated and rotate
at very high speed. It is important to maintain the exciter oil at the
correct level and change it regularly.

Check oil level in exciter every 50 hours of operation.
To check oil level, place plate on a flat, level surface. Remove the drain

plug (a) with seal ring (b). Oil level should be at drain plug threads. Add
oil as required.

Change exciter oil every 300 hours of operation.
To drain oil, remove plug (a) from end of exciter and tilt plate up.
Note: In the interests of environmental protection, place a plastic sheet

and a container under the machine to collect any liquid which drains
off. Dispose of this liquid in accordance with environmental protection
legislation.

Place plate on a level surface and add oil through plug opening until oil
reaches the drain plug threads. See Technical Data.

NOTICE: DO NOT overfill. Too much oil in the exciter can reduce
performance an d damage the drive belt.

a

b

4.10 Cleaning Plate

wpmgr006018

Clean plate after use to remove dirt, stones, and mud caught under the
engine console. If plate is being used in a dusty area, check engine
cylinder cooling fins for heavy dirt accumulation. Keep engine cylinder
fins clean to prevent engine from overheating.

wpm_tx001088gb.fm 25

Maintenance VP 1340A/VP 1550A

4.11 Lifting Machine

See Graphic: wpmgr0 06 022

See Technical Data for weight of the machine.

To lift machine manually:

4.11.1 Stop the engine.

4.11.2 Obtain help from a partner and plan the lift.

To avoid burns or fire hazards, let the engine cool before transporting
the machine or storing it indoors. Turn the fuel valve to the off position

WARNING

4.11.3 Grasp machine by the lifting handles (a) and (b).

Note: On the VP1340, the left fr on t li fting handle (a) is n ot p re s en t.

Grasp lifting handle (b) with both hands.

4.11.4 Lift machine as shown.

and keep the engine level to prevent fuel from spilling.

To reduce risk of back injury while lifting, keep feet flat on ground and
shoulder width apart. Keep head up and back straight.

WARNING

To lift machine mechanically:

NOTICE: Before attempting to lift, be sure that lifting devices can
safely handle weight of the machine. See Technical Data for weight of
the machine.

4.11.5 Attach hook, harness, or cable to machine as shown (c), and lift as
desired.

NOTICE: DO NOT lift the vibroplate by its guide handle. The vibroplate
can shift, causing it to fall.

c

CAUTION

VORSICHT

PRECAUTION

PRECAUCION

wpm_tx001088gb.fm 26

a

wpmgr006022

b

VP 1340A/VP 1550A Maintenance

4.12 Transporting Machine

See Graphic: wpmgr006042

To avoid burns or fire hazards, let engine cool before transporting
machine or storing indoors.

WARNING

4.12.1 Turn fuel valve to the off position and keep the engine level to prevent
fuel from spilling.

4.12.2 Tie down machine on vehicle to prevent machine from sliding or tipping
over. Tie machine to vehicle at points shown on graphic.

4.13 Storage

If plate is being stored for more than 30 days:

4.13.1 Remove loose stones and dirt from plate.

4.13.2 Clean engine cylinder cooling fins.

4.13.3 Clean or replace air filter.

4.13.4 Change exciter oil.

4.13.5 Change engine oil and follow procedures described in engine manual
for engine storage.

4.13.6 Cover plate and engine and store in a clean, dry area.

wpm_tx001088gb.fm 27

wpmgr006042

Maintenance VP 1340A/VP 1550A

4.14 Troubleshooting

Problem / Symptom Reason / Remedy

Plate does not develop full

speed. Poor compaction.

• Engine throttle control not completely open.

• Throttle control not adjusted correctly.

• Ground too wet, plate sticking. Allow soil to dry
before compacting.

• Drive belt loose or worn, slipping on pulleys. Adjust
or replace belt. Check that engine mounting bolts
are tight.

• Exciter bearings binding. Check condition and level
of oil in exciter. Add or change oil.

• Air filter clogged with dust, reducing engine perfor­mance. Clean or replace air filter.

• Engine speed too low. Check engine speed with
tachometer. Adjust or repair engine to run at correct
speed. Refer to engine manual.

Engine running, no vibration • Engine throttle not open.

• Drive belt loose or broken. Adjust or replace.

• Clutch damaged. Inspect and replace clutch.

Plate jumps or compacts

unevenly.

• Engine speed too low. Check engine speed.

• Too much oil in exciter. Adjust oil to correct level.

• Ground surface too hard.

• Shockmounts loose or damaged.

wpm_tx001088gb.fm 28

EC DECLARATION OF CONFORMITY

EG-KONFORMITÄTSERKLÄRUNG

CE-DECLARACIÓN DE CONFORMIDAD

DÉCLARATION DE CONFORMITÉ DE LA CEE

WACKER NEUSON MANILA, INC., DASMARIÑAS, CAVITE, PHILIPPINES

AUTHORIZED REPRESENTATIVE IN THE EUROPEAN UNION
BEVOLLMÄCHTIGTER VERTRETER FÜR DIE EUROPÄISCHE GEMEINSCHAFT
REPRESENTANTE AUTORIZADO EN LA UNIÓN EUROPEA
REPRÉSENTANT AGRÉÉ AUPRÈS DE L’UNION EUROPÉENNE

hereby certifies that the construction equipment specified hereunder / bescheinigt, daß das Baugerät / certifica que la máquina de
construcción / atteste que le matériel :

1. Category / Art / Categoría / Catégorie

WACKER NEUSON SE
Preußenstraße 41
80809 München

Vibratory Plates / Rüttelplatten

Planchas Vibratorias / Plaques Vibrantes

2. Type - Typ - Tipo - Type

VP 1340A, VP 1340AW, VP 1550A, VP 1550AW

3. Item number of equipment / Artikelnummer / Número de referencia de la máquina / Numéro de référence du matériel :

0009031, 0009032, 0009027, 0009028

4. Net installed power / absolute installierte Leistung / Potencia instalada neta / Puissance installée nette :

VP 1340A, VP 1340AW, VP 1550A, VP 1550AW 3,6kW

Has been sound tested per Directive 2000/14/EC / In Übereinstimmung mit Richtlinie 2000/14/EG bewertet worden ist / Ha sido
ensayado en conformidad con la norma 2000/14/CE / A été mis à l’épreuve conforme aux dispositions de la directive 2000/14/CEE :

Conformity Assessment Procedure
/ Konformitätsbewertungsverfahren
/ Procedimiento para ensayar
conformidad / Procédé pour
l’épreuve de conformité

Name and address of notified
body / Bei folgender
einbezogener Prüfstelle /
Oficina matriculadora /
Organisme agrée

Measured sound power level /
Gemessener Schallleistungspegel
/ Nivel de potencia acústica
determinado / Niveau de puissance
acoustique fixé

Guaranteed sound power level /
Garantierter Schallleistungspegel /
Nivel de potencia acústica
garantizado / Niveau de puissance
acoustique garanti

Annex VI / Anhang VI /

Anexo VI / Annexe VI

and has been produced in accordance with the following standards / und in Übereinstimmung mit folgenden Richtlinien hergestellt
worden ist / y ha sido fabricado en conformidad con las siguientes normas / et a été produit conforme aux dispositions des directives
européennes ci-après :

Zertifizierungsinstitut

Zertifizierungsstelle

63069 Offenbach/Main

2000/14/EG
98/37/EG
89/336/EG
EN 500-1
EN 500-4

22.01.09

Date / Datum / Fecha / Date

VP 1340A_1550A_Q_2009_WN.fm

VDE-Prüf- und

Merianstraße 28

VP 1340A/AW 104 dB(A)
VP 1550A/AW 105 dB(A)

Heinz Gengnagel
President & CEO

VP 1340A/AW 108 dB(A)
VP 1550A/AW 108 dB(A)

WACKER NEUSON MANILA, INC.

Wacker Construction Equipment AG · Preußenstraße 41 · D-80809 München · Tel.: [phone] - 0 · Fax: +49 - (0)89-3 54 02-3 90

Neuson Corporation · P.O. Box 9007 · Menomonee Falls, WI 53052-9007 · Tel. : [phone] · Fax: [phone] · Tel. : [phone]

Wacker
Wacker Asia Pacific Operations · Skyline Tower, Suite 2303, 23/F · 39 Wang Kwong Road, Kowloon Bay, Hong Kong · Tel. [phone] · Fax: [phone]
