Operator’s Manual
Vibroplate
VP 1135A
5000191669 05 0311
Copyright
notice
© Copyright 2011 by Wacker Neuson Corporation.
All rights, including copying and distribution rights, are reserved.
This publication may be photocopied by the original purchaser of the machine. Any
other type of reproduction is prohibited without express written permission from
Wacker Neuson Corporation.
Any type of reproduction or distribution not authorized by W acker Neuson Corp oration
represents an infringement of valid copyrights. Violators will be prosecuted.
T ra d emarks
Manufacturer
Tra n slated
instructions
All trademarks referenced in this manual are the property of their respective owners.
Wacker Neuson Manila Incorporated
Lot 2,Blk 1 Phase , PEZA Drive, First Cavite Industrial Estate, Brgy. Langkaan
Dasmariñas, Cavite, Philippines
Tel: +63-(0)2-580-7136 Fax: +63-(0)2-580-712
www.wackerneuson.com
This Operator’s Manual presents a translation of the original instructions. The original
language of this Operator’s Manual is American English.
AP 1135A Table of Contents
Foreword 3
1. Emission System Control Information 4
2. Safety Information 5
2.1 Laws Pertaining to Spark Arresters ...................................................... 5
2.2 Operating Safety .................................................................................. 6
2.3 Operator Safety while using Internal Combustion Engines .................. 7
2.4 Service Safety ...................................................................................... 8
2.5 Label Locations .................................................................................... 9
2.6 Warning and Informational Labels ...................................................... 10
3. Technical Data 12
3.1 Engine Data ........................................................................................ 12
3.2 Machine Data ..................................................................................... 13
3.3 Sound and Vibration Measurements .................................................. 13
3.4 Dimensions ......................................................................................... 14
4. Operation 15
4.1 Recommended Fuel ........................................................................... 15
4.2 Application .......................................................................................... 15
4.3 Before Starting ................................................................................... 15
4.4 To Start ............................................................................................... 16
4.5 To Stop ............................................................................................... 16
4.6 Operation ............................................................................................ 17
wpm_bo5000191669_05TOC.fm 1
Table of Contents AP 1135A
5. Maintenance 18
5.1 Periodic Maintenance Schedule ..........................................................18
5.2 Spark Plug ...........................................................................................20
5.3 Air Cleaner ..........................................................................................21
5.4 Engine Oil ............................................................................................22
5.5 Adjusting Engine Speed ......................................................................22
5.6 Carburetor Adjustment ........................................................................23
5.7 Cleaning Sediment Cup ......................................................................23
5.8 Drive Belt .............................................................................................24
5.9 Exciter Lubrication ...............................................................................25
5.10 Cleaning the Plate ...............................................................................25
5.11 Lifting Machine ....................................................................................26
5.12 Transporting Machine ..........................................................................27
5.13 Storage ................................................................................................27
5.14 Troubleshooting ...................................................................................28
wpm_bo5000191669_05TOC.fm 2
Foreword
WARNING
CALIFORNIA
Proposition 65 Warning:
Engine exhaust, some of its constituents, and certain vehicle
components, contain or emit chemicals known to the State of
California to cause cancer and birth defects or other reproductive
harm.
This manual provides information and procedures to safely operate
and maintain this Wacker Neuson model. For your own safety and
protection from injury, carefully read, understand and observe the
safety instructions described in this manual.
Keep this manual or a copy of it with the machine. If you lose this
manual or need an additional copy, please contact Wacker Neuson
Corporation. This machine is built with user safety in mind; however,
it can present hazards if improperly operated and serviced. Follow
operating instructions carefully! If you have questions about operating
or servicing this equipment, please contact Wacker Neuson
Corporation.
The information contained in this manual was based on machines in
production at the time of publication. Wacker Neuson Corporation
reserves the right to change any portion of this information without
notice.
All rights, especially copying and distribution rights, are reserved.
Copyright 2011 by Wacker Neuson Corporation.
No part of this publication may be reproduced in any form or by any
means, electronic or mechanical, including photocopying, without
express written permission from Wacker Neuson Corporation.
Any type of reproduction or distribution not authorized by Wacker
Neuson Corporation represents an infringement of valid copyrights
and will be prosecuted. We expressly reserve the right to make
technical modifications, even without due notice, which aim at
improving our machines or their safety standards.
wc_tx000001gb.fm 3
Emission Control System Information
1 Emission Control Systems Information and Warranty
The Emission Control Warranty and associated information is valid only for the
U.S.A., its territories, and Canada.
1.1 Emission Control Systems Warranty Statement
See the supplied engine owner’s manual for the applicable exhaust and
evaporative emission warranty statement.
4 wpm_tx001755gb.fm
AP 1135A Safety Information
2. Safety Information
This manual contains DANGER, WARNING, CAUTION, NOTICE, and
NOTE signal words which must be followed to reduce the possibility
of personal injury, damage to the equipment, or improper service.
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
DANGER
WARNING indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
WARNING
CAUTION indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
CAUTION
NOTICE: Used without the safety alert symbol, NOTICE indicates a
situation which, if not avoided, could result in property damage.
Note: Contains additional information important to a procedure.
2.1 Laws Pertaining to Spark Arresters
Notice: State Health Safety Codes and Public Resources Codes
specify that in certain locations spark arresters be used on internal
combustion engines that use hydrocarbon fuels. A spark arrester is a
device designed to prevent accidental discharge of sparks or flames
from the engine exhaust. Spark arresters are qualified and rated by
the United States Forest Service for this purpose.
In order to comply with local laws regarding spark arresters, consult
the engine distributor or the local Health and Safety Administrator.
2.2 Operating Safety
wpm_si000329gb.fm 5
Safety Information AP 1135A
Familiarity and proper training are required for the safe operation of the
machine. Machines operated improperly or by untrained personnel
can be hazardous. Read the operating instructions contained in this
WARNING
2.2.1 Do not allow anyone to operate this equipment without proper training.
2.2.2 Do not touch the engine or muffler while the engine is on or
2.2.3 Do not use accessories or attachments that are not recommended by
2.2.4 NEVER operate the machine with the beltguard missing. Exposed
manual and the engine manual, and familiarize yourself with the
location and proper use of all controls. Inexperienced operators should
receive instruction from someone familiar with the machine before
being allowed to operate it.
People operating this equipment must be familiar with the risks and
hazards associated with it.
immediately after it has been turned off. These areas get hot and may
cause burns.
Wacker Neuson. Damage to equipment and injury to the user may
result.
drive belt and pulleys create potentially dangerous hazards that can
cause serious injuries.
2.2.5 Never leave the machine running unattended.
2.2.6 Be sure operator is familiar with proper safety precautions and operation techniques before using machine.
2.2.7 Always wear protective clothing appropriate to the job site when operating the machine.
2.2.8 Wear hearing protection when operating equipment.
2.2.9 Close fuel valve on engines equipped with one when machine is not being operated.
2.2.10 Store the machine properly when it is not being used. The machine should be stored in a clean, dry location out of the reach of children.
2.2.11 Always operate machine with all safety devices and guards in place and in working order. Do not modify or defeat safety devices. Do not operate machine if any safety devices or guards are missing or inoperative.
2.2.12 Read, understand, and follow procedures in the Operator’s Manual before attempting to operate the machine.
wpm_si000329gb.fm 6
AP 1135A Safety Information
2.3 Operator Safety while using Internal Combustion Engines
Internal combustion engines present special hazards during operation
and fueling. Read and follow the warning instructions in the engine
owner’s manual and the safety guidelines below. Failure to follow the
WARNING
2.3.1 DO NOT run the machine indoors or in an enclosed area such as a
2.3.2 Do not smoke while operating the machine.
2.3.3 Do not smoke when refueling the engine.
2.3.4 Do not refuel a hot or running engine.
2.3.5 Do not refuel the engine near an open flame.
2.3.6 Do not spill fuel when refueling the engine.
2.3.7 Do not run the engine near open flames.
warnings and safety standards could result in severe injury or death.
deep trench unless adequate ventilation, through such items as
exhaust fans or hoses, is provided. Exhaust gas from the engine
contains poisonous carbon monoxide gas; exposure to carbon
monoxide can cause loss of consciousness and may lead to death.
2.3.8 Refill the fuel tank in a well-ventilated area.
2.3.9 Replace the fuel tank cap after refueling.
2.3.10 ALWAYS check the fuel lines and the fuel tank for leaks and cracks before starting the engine. Do not run the machine if fuel leaks are present or the fuel lines are loose.
wpm_si000329gb.fm 7
Safety Information AP 1135A
2.4 Service Safety
A poorly maintained machine can become a safety hazard! In order
for the machine to operate safely and properly over a long period of
time, periodic maintenance and occasional repairs are necessary.
WARNING
2.4.1 Do not attempt to clean or service the machine while it is running. Rotating parts can cause severe injury.
2.4.2 Do not crank a flooded engine with the spark plug removed on gasoline-powered engines. Fuel trapped in the cylinder will squirt out the spark plug opening.
2.4.3 Do not test for spark on gasoline-powered engines if the engine is flooded or the smell of gasoline is present. A stray spark could ignite the fumes.
2.4.4 Do not use gasoline or other types of fuels or flammable solvents to clean parts, especially in enclosed areas. Fumes from fuels and solvents can become explosive.
2.4.5 Keep the area around the muffler free of debris such as leaves, paper, cartons, etc. A hot muffler could ignite the debris and start a fire.
2.4.6 Replace worn or damaged components with spare parts designed and recommended by Wacker Neuson Corporation.
2.4.7 Disconnect the spark plug on machines equipped with gasoline engines, before servicing, to avoid accidental start-up.
2.4.8 Keep the machine clean and labels legible. Replace all missing and hard-to-read labels. Labels provide important operating instructions and warn of dangers and hazards.
wpm_si000329gb.fm 8
AP 1135A Safety Information
2.5 Label Locations
wpm_si000329gb.fm 9
wpmgr005963
Safety Information AP 1135A

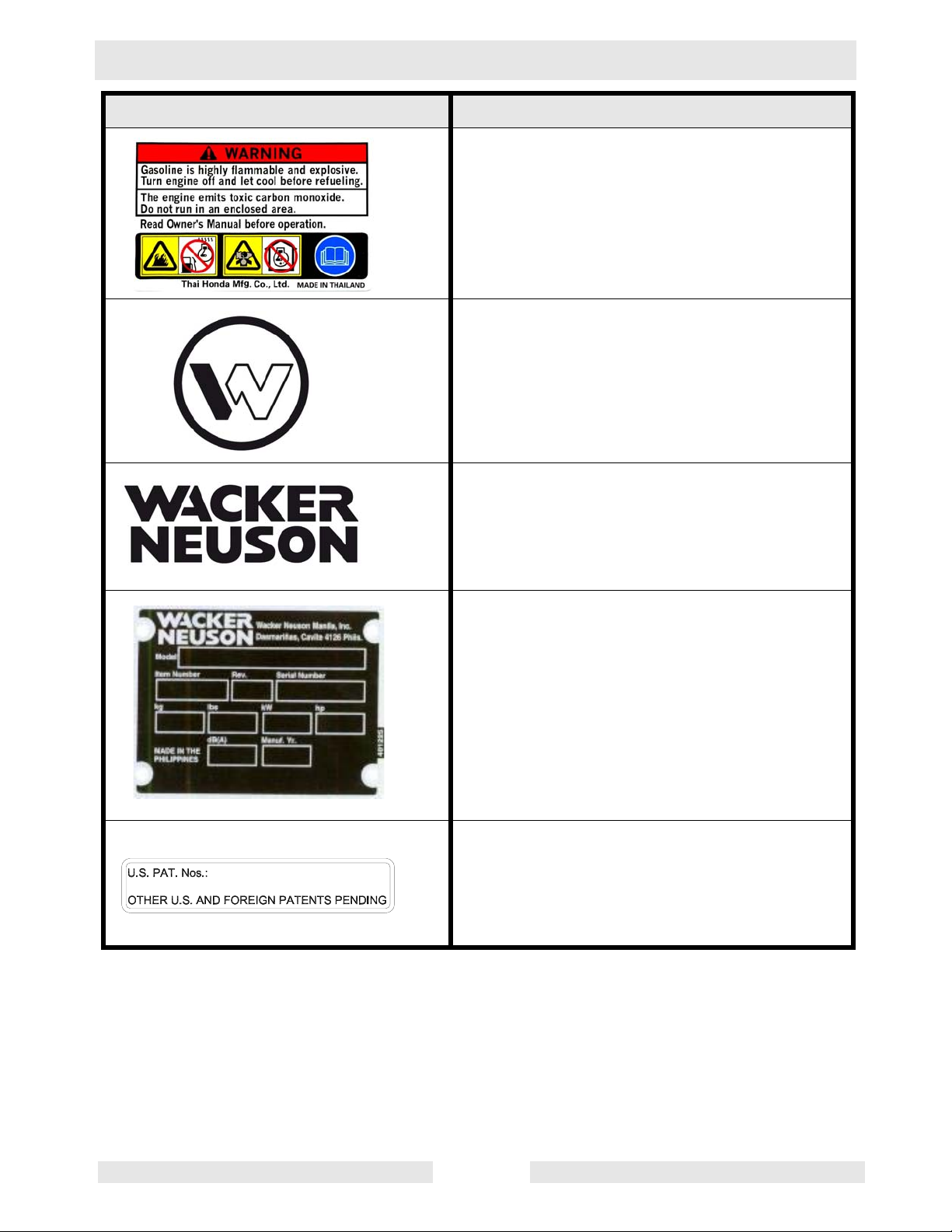

2.6 Warning and Informational Labels
Wacker Neuson machines use international pictorial labels where
needed. These labels are described below.
Label Meaning
WARNING!
Hot surface!
Guaranteed sound power level in dB(A).
WARNING!
Hand injury if caught in moving belt.
Always replace beltguard.
CAUTION!
Read and understand the supplied Operator’s
Manual before operating this machine. Failure
to do so increases the risk of injury to yourself
and others.
WARNING!
Always wear hearing and eye protection when
operating this machine.
Throttle control lever:
Turtle = Idle or Slow
Rabbit = Full or Fast
wpm_si000329gb.fm 10
AP 1135A Safety Information
Label Meaning
DANGER!
Engines emit carbon monoxide; operate only
in well-ventilated area. Read the Operator’s
Manual.
No sparks, flames, or burning objects near the
machine. Shut off the engine before refueling.
Company logo
Company label
A nameplate listing the model number, item
number, revision number, and serial number is
attached to each unit. Please record the information found on this nameplate so it will be
available should the nameplate become lost or
damaged. When ordering parts or requesting
service information, you will always be asked
to specify the model number, item number,
revision number, and serial number of the unit.
This machine may be covered by one or more
patents.
wpm_si000329gb.fm 11
Technical Data AP 1135A
3. Technical Data
3.1 Engine Data
Engine Power Rating
Net power rating per SAE J1349. Actual power output may vary due to
conditions of specific use.
AP 1135A
0009519
Engine
Engine Make Honda
Engine Model GX 120 UT1 SWX2
Max. rated power @ rated
kW (Hp)
2.6 (3.5) @ 3600 rpm
speed
Spark Plug BPR6ES (NGK)
W20EPR-V (DENSO)
Electrode Gap
Operating speed
Air Cleaner
Engine Lubrication
mm (in.)
rpm
type
oil grade
0.7-0.8 (0.028–0.031)
3600
Dual element
SAE 10W30
SG or SF
Engine Oil Capacity
Fuel
Fuel Tank Capacity
ml (oz.)
type
l (qts.)
560 (19)
Regular unleaded gasoline
2.5 (2.6)
wpm_td000338gb.fm 12
AP 1135A Technical Data
3.2 Machine Data
AP 1135A
0009519
Plate
Weight
Exciter Speed
Exciter Lubrication
kg (lbs.)
rpm
ml (oz.)
Dextron III/Mercon or equivalent
Dimensions
mm (in.)
3.3 Sound and Vibration Measurements
The required sound specification, Paragraph 1.7.4.f of 89/392/EEC
Machinery Directive, is:
• the guaranteed sound power level (LWA) = 105 dB(A).
• the sound pressure level at operator’s location (LpA) = 93 dB(A).
These sound values were determined according to ISO 3744 for the
sound power level (LWA) and ISO 6081 for the sound pressure level
(LpA) at the operator’s location.
The weighted effective acceleration value, determined according to
EN ISO 5349, is approximately 4.5 m/s2.
60 (132)
5800 ± 100
207 (7)
Automatic transmission fluid
521 (21) x 350 (14) x 914 (36)
The sound and vibration measurements were obtained with the
machine operating on crushed gravel at nominal engine speed.
wpm_td000338gb.fm 13
Technical Data AP 1135A
3.4 Dimensions
mm (in.)
914 (36)
521 (21)350 (14)
wpmgr005989
wpm_td000338gb.fm 14
AP 1135A Operation
4. Operation
4.1 Recommended Fuel
The engine requires regular grade unleaded gasoline. Use only fresh,
clean gasoline. Gasoline containing water or dirt will damage fuel
system. Consult engine owner’s manual for complete fuel
specifications.
4.2 Application
This plate is designed for compacting loose, granular soils, gravel, and
paving stones. It is intended to be used in confined areas and areas
next to structures such as walls, curbs, and foundations. Plates
equipped with water tanks can be used for compacting asphalt.
This plate is not recommended for compacting cohesive soils with a
heavy clay content. For cohesive soil, use a vibratory rammer or
sheepsfoot roller.
4.3 Before Starting
4.3.1 Read and understand the safety and operating instructions at the beginning of this manual.
4.3.2 Check:
• Oil level in the engine
• Fuel level
• Condition of the air cleaner
• Tightness of the external fasteners
• Condition of the fuel lines
wpm_tx001135gb.fm 15
Operation AP 1135A
4.4 To Start
See Graphic: wc_gr000014
4.4.1 Open fuel valve by moving lever to the right (a1).
Note: If engine is cold, move choke lever to close position (b1). If
engine is hot, set choke to open position (b2).
4.4.2 Turn engine switch to “ON” (e1).
4.4.3 Open throttle by moving it slightly to left (d1).
4.4.4 Pull starter rope (c).
Note: If the oil level in the engine is low, the engine will not start. If this
happens, add oil to engine. Some engines are equipped with an oil
alert light (f) that will come on while pulling the starter rope.
4.4.5 Open choke as engine warms (b2).
4.4.6 Open throttle fully to operate.
4.5 To Stop
See Graphic: wc_gr000014
4.5.1 Reduce engine RPM to idle by moving throttle completely to right (d2).
4.5.2 Turn engine switch to “OFF” (e2).
4.5.3 Close fuel valve by moving lever to the left (a2).
wpm_tx001135gb.fm 16
AP 1135A Operation
4.6 Operation
Run the engine at full throttle and allow the plate to pull itself along at
its normal speed. When operating on an incline it may be necessary to
assist the plate by pushing it forward slightly. When operating downhill
hold the plate back slightly, if it begins to pick up speed. Depending on
the material being compacted, three or four passes are recommended
to achieve the best compaction.
While a certain amount of moisture in the soil is necessary, excessive
moisture may cause soil particles to stick together and prevent good
compaction. If soil is extremely wet, allow it to dry somewhat before
compacting.
If soil is so dry as to create dust clouds while operating plate, some
moisture should be added to the ground material to improve
compaction. This will also reduce service to the air filter.
When using the plate on paving stones, attach a pad to the bottom of
the plate to prevent chipping or grinding surface of stones. A special
polyurethane pad designed for this purpose is available as an optional
accessory.
NOTICE: DO NOT operate the plate on concrete or on extremely hard,
dry, compacted surfaces. The plate will jump rather than vibrate and
could damage both the plate and the engine.
wpm_tx001135gb.fm 17
Maintenance AP 1135A
5. Maintenance
5.1 Periodic Maintenance Schedule
5.1.1 Engine Maintenance
The chart below lists basic engine maintenance. Refer to the engine
manufacturer’s Operation Manual for additional information.
Check fuel level.
Check engine oil level.
Inspect fuel lines.
Inspect air filter. Replace as needed.
Clean air cleaner elements.
Change engine oil.
Clean engine cooling fins.
Clean sediment cup / fuel filter.
Check and clean spark plug.
Check and adjust valve clearance.
Change exciter oil.
Daily
before
starting
After
first
20 hrs.
Every
2 weeks
or
50 hrs.
Every
month
or
100 hrs.
Every
year
or
300 hrs.
wpm_tx001136gb.fm 18
AP 1135A Maintenance
Machine Maintenance
The chart below lists basic machine maintenance.
Check external hardware.
Check and adjust drive belt.
Inspect shockmounts for damage.
Replace shockmounts as needed.
Change exciter oil.
Note: When machine is being used in asphalt, it is highly
recommended that shockmounts are replaced every year or
after 300 hours of usage.
Daily
before
starting
After
first
20 hrs.
Every
2 weeks
or
50 hrs.
Every
month
or
100 hrs.
Every
year
or
300 hrs.
wpm_tx001136gb.fm 19
Maintenance AP 1135A
5.2 Spark Plug
See Graphic: wc_gr000028
Clean or replace the spark plug as needed to ensure proper operation.
Refer to your engine operator’s manual.
The muffler becomes very hot during operation and remains hot for a
while after stopping the engine. Do not touch the muffler while it is hot.
WARNING
Note: Refer to section “Technical Data” for the recommended spark
plug type and the electrode gap setting.
5.2.1 Remove the spark plug and inspect it.
5.2.2 Replace the spark plug if the insulator is cracked or chipped.
5.2.3 Clean the spark plug electrodes with a wire brush.
5.2.4 Set the electrode gap (a).
5.2.5 Tighten the spark plug securely.
NOTICE: A loose spark plug can become very hot and may cause
engine damage.
wpm_tx001136gb.fm 20
AP 1135A Maintenance
5.3 Air Cleaner
See Graphic: wc_gr000025
The engine is equipped with a dual element air cleaner. Service air
cleaner frequently to prevent carburetor malfunction.
NOTICE: NEVER run engine without air cleaner. Severe engine
damage will occur.
NEVER use gasoline or other types of low flash point solvents for
cleaning the air cleaner. A fire or explosion could result.
WARNING
To service:
5.3.1 Remove air cleaner cover (a). Remove both elements and inspect them for holes or tears. Replace damaged elements.
5.3.2 Wash foam element (b) in solution of mild detergent and warm water. Rinse thoroughly in clean water. Allow element to dry thoroughly. Soak element in clean engine oil and squeeze out excess oil.
5.3.3 Tap paper element (c) lightly to remove excess dirt. Replace paper element if it appears heavily soiled.
wpm_tx001136gb.fm 21
Maintenance AP 1135A
5.4 Engine Oil
See Graphic: wc_gr000022
5.4.1 Drain the oil while the engine is still warm.
5.4.2 Remove the oil filler plug (a) and the drain plug (b) to drain the oil.
Note: In the interests of environmental protection, place a plastic sheet
and a container under the machine to collect any liquid that drains off.
Dispose of this liquid in accordance with environmental protection
legislation.
5.4.3 Install the drain plug.
5.4.4 Fill the engine crankcase with the recommended oil up to the level of
the plug opening (c). See section Technical Data for oil quantity and
type.
5.4.5 Install the oil filler plug.
wc_gr000022
5.5 Adjusting Engine Speed
See Graphic: wc_gr000280
Adjust to a full load speed of 3600 ± 100 rpm.
To adjust engine speed:
5.5.1 Place machine on a rubber test mat to prevent it from moving.
5.5.2 Start engine and allow it to warm up for a minute.
5.5.3 Turn throttle stop screw (a) in to increase speed, out to decrease speed. Make sure throttle lever is touching stop screw before measuring RPM.
NOTICE: Running plate at a speed higher than that listed in Technical
Data can damage both the plate and the engine.
a
wc_gr000280
wpm_tx001136gb.fm 22
AP 1135A Maintenance
5.6 Carburetor Adjustment
See Graphic: wc_gr000032
5.6.1 Start the engine and allow it to warm up to operating temperature.
5.6.2 Set the pilot screw (a) two turns out. See Note.
5.6.3 With the engine idling, turn the pilot screw (a) in or out to the setting that produces the highest rpm.
5.6.4 After the pilot screw is adjusted, turn the throttle stop screw (b) to
obtain the standard idle speed. See Technical Data.
Note: On some engines the pilot screw is fitted with a limiter cap (c)
to prevent excessive enrichment of the air-fuel mixture in order to
comply with emission regulations. The mixture is set at the factory and
no adjustment should be necessary. Do not attempt to remove the
limiter cap. The limiter cap cannot be removed without breaking the
pilot screw.
wc_gr000032
5.7 Cleaning Sediment Cup
See Graphic: wc_gr000029
5.7.1 Turn the fuel valve off.
5.7.2 Remove the sediment cup (a) and the O-ring (b).
5.7.3 Wash both thoroughly in a nonflammable solvent. Dry and reinstall them.
5.7.4 Turn the fuel valve on and check for leaks.
wpm_tx001136gb.fm 23
Maintenance AP 1135A
5.8 Drive Belt
See Graphic: wc_gr000290
On new machines or after installing a new belt, check the belt tension
after first 20 hours of operation. Check and adjust the belt every 50
hours thereafter.
To adjust the belt:
5.8.1 Loosen the two screws (a) on the beltguard, then remove the beltguard, keeping the screw assemblies captured on the beltguard.
5.8.2 Loosen the four nuts (b) which hold the engine to the console, and the screw (c) which holds the beltguard back to the console.
5.8.3 Slide the engine backward (towards the handle) to tighten the belt, forward to loosen the belt.
5.8.4 Adjust the belt so that it deflects 10-13 mm (3/8in–1/2in) (d) when
pressed midway between the belt pulleys.
5.8.5 Make sure that the clutch pulley (f) and the exciter pulley (e) are in alignment. Place a straight edge against the exciter pulley (e) and move the engine so that the two pulleys are parallel.
5.8.6 Torque all nuts and screws to 20.5 Nm (15 ft.lbs.) as you reassemble the machine.
B
=
>
@
?
A
w c _ g r 0 0 0 2 9 0
wpm_tx001136gb.fm 24
AP 1135A Maintenance
5.9 Exciter Lubrication
See Graphic: wpmgr006019
The bearings in the exciter assembly are splash lubricated and rotate
at very high speed. It is important to maintain the exciter oil at the
correct level and change it regularly.
Check oil level in exciter every 50 hours of operation.
To check oil level, place plate on a flat, level surface. Remove the drain
plug (a) with seal ring (b). Oil level should be at drain plug threads. Add
oil as required.
Change exciter oil every 300 hours of operation.
To drain oil: Remove plug (a) from end of exciter and tilt plate up.
Note: In the interests of environmental protection, place a plastic sheet
and a container under the machine to collect any liquid which drains
off. Dispose of this liquid in accordance with environmental protection
legislation.
Place plate on a level surface and add approximately 210 ml of oil
through plug opening until oil reaches the drain plug threads.
NOTICE: DO NOT overfill. Too much oil in exciter can reduce
performance and damage drive belt.
a
b
5.10 Cleaning the Plate
Clean plate after use to remove dirt, stones, and mud caught under the
engine console. If plate is being used in a dusty area, check engine
cylinder cooling fins for heavy dirt accumulation. Keep engine cylinder
fins clean to prevent engine from overheating.
wpmgr006019
wpm_tx001136gb.fm 25
Maintenance AP 1135A
5.11 Lifting Machine
See Graphic: wpmgr006039
See Technical Data for weight of the machine.
To lift machine manually:
5.11.1 Stop the engine.
5.11.2 Obtain help from a partner and plan the lift.
To avoid burns or fire hazards, let the engine cool before transporting
the machine or storing it indoors. Turn the fuel valve to the off position
WARNING
5.11.3 Grasp machine by the lifting handles (a) and (b).
5.11.4 Lift machine as shown.
and keep the engine level to prevent fuel from spilling.
To reduce risk of back injury while lifting, keep feet flat on ground and
shoulder width apart. Keep head up and back straight.
WARNING
a
b
wpmgr006039
wpm_tx001136gb.fm 26
AP 1135A Maintenance
5.12 Transporting Machine
See Graphic: wpmgr006058
To avoid burns or fire hazards, let engine cool before transporting
machine or storing indoors.
WARNING
5.12.1 Turn fuel valve to the off position and keep the engine level to prevent fuel from spilling.
5.12.2 Tie down machine on vehicle to prevent machine from sliding or tipping over. Tie machine to vehicle at points shown on graphic.
5.13 Storage
5.13.1 Remove loose stones and dirt from plate.
5.13.2 Clean engine cylinder cooling fins.
5.13.3 Clean or replace air filter.
5.13.4 Change exciter oil.
5.13.5 Change engine oil and follow procedures described in engine manual
5.13.6 Cover plate and engine and store in a clean, dry area.
wpmgr006058
If plate is being stored for more than 30 days:
for engine storage.
wpm_tx001136gb.fm 27
Maintenance AP 1135A
5.14 Troubleshooting
Problem / Symptom Reason / Remedy
Plate does not develop full
speed. Poor compaction.
Engine running, no vibration • Engine throttle not open.
• Engine throttle control not completely open.
• Throttle control not adjusted correctly.
• Ground too wet, plate sticking. Allow soil to dry
before compacting.
• Drive belt loose or worn, slipping on pulleys. Adjust
or replace belt. Check that engine mounting bolts
are tight.
• Exciter bearings binding. Check condition and level
of oil in exciter. Add or change oil.
• Air filter clogged with dust, reducing engine performance. Clean or replace air filter.
• Engine speed too low. Check engine speed with
tachometer. Adjust or repair engine to run at correct
speed. Refer to engine manual.
• Drive belt loose or broken. Adjust or replace.
• Clutch damaged. Inspect and replace clutch.
Plate jumps or compacts
unevenly.
• Engine speed too low. Check engine speed.
• Too much oil in exciter. Adjust oil to correct level.
• Ground surface too hard.
• Shockmounts loose or damaged.
wpm_tx001136gb.fm 28
