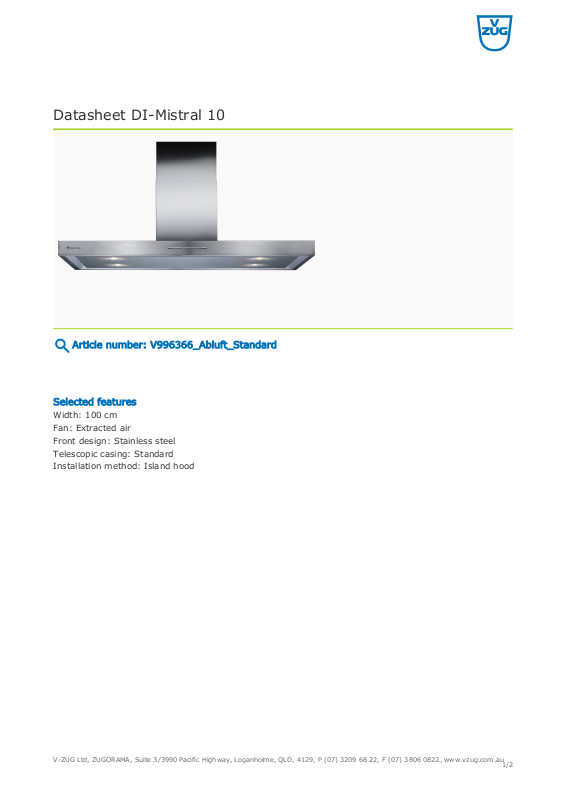

Datasheet DI-Mistral 10
Article number: V996366_Abluft_Standard
Selected features
Width: 100 cm Fan: Extracted air Front design: Stainless steel Telescopic casing: Standard Installation method: Island hood
V-ZUG Ltd, ZUGORAMA, Suite 3/3990 Pacific Highway, Loganholme, QLD, 4129, P (07) 3209 68 22, F (07) 3806 0822, www.vzug.com.au
Details DI-Mistral 10
Range hood features
Metal grease filter: 1­Extracted air­Side exhaust­Halogen spotlights: 4.0­Automatic after-running time­Intensive setting­Grease filter cleaning indicator­Dimmable light­Connection for fresh air/exhaust
­air flap Connection for window contact
­switch Power levels: 4­of which: number of intensive
­levels: 1 Fan power level display­Air delivery rate: 825.0 m³/hr­Static pressure: 419.0 pascal­Motor(s): 1­Motor output: 260.0 watt­2-duct radial fans­Electronic control­Noise emission: 40 dB­Good grease absorption­Perfect cooking vapour capture­Easy to clean and operate­Grease filter can be washed in
­the dishwasher Exhaust air connection
­(diameter): 150.0 mm
Service and interfaces
Warranty: 2 year(s)-
Energy
Voltage: 220-240 volt­Connected loads: 0,64 kilowatt­Fuse protection: 10 ampere-
Dimensions
Appliance width mm: 1000­Appliance depth mm: 700­Empty weight: 42.0 kg-
