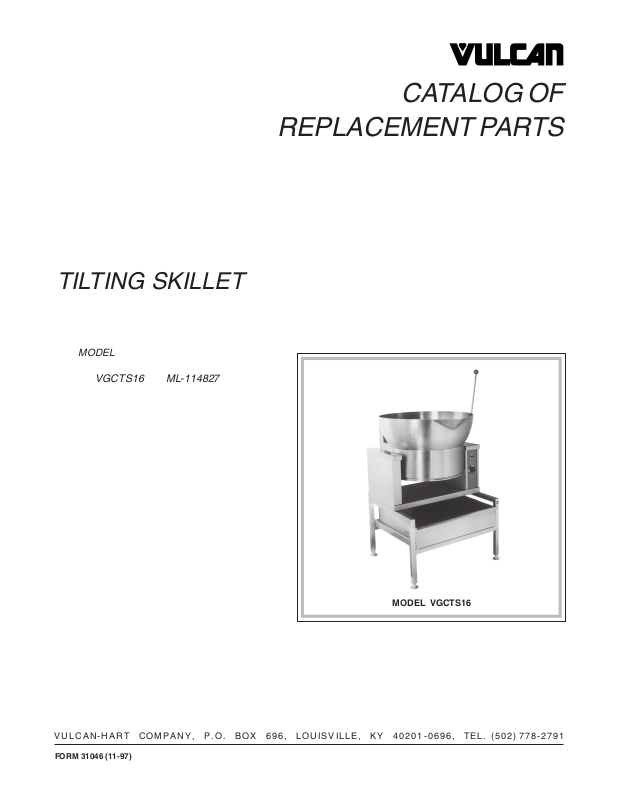

Vulcan-Hart VGCTS16 User Manual

TILTING SKILLET

MODEL

VGCTS16 ML-114827

CATALOG OF

REPLACEMENT PARTS

MODEL VGCTS16

VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201-0696, TEL. [phone]

FORM 31046 (11-97)

VGCTS16 TILTING SKILLET REPLACEMENT PARTS

1

2

3

44

47

43

42

46

45

10

9

11

12-13

14

6

7

8

15

16

28

30

27

26

31

32-33

34

29

17

4

18

5

22

21

19-20

23

24

25

39

40

41

© VULCAN-HART COMPANY, 1997

38

36

PL-52815

37

35

TILTING SKILLET ASSEMBLY

– 2 –

REPLACEMENT PARTS VGCTS16 TILTING SKILLET

TILTING SKILLET ASSEMBLY

ILLUS. PART
PL-52815 NO. NAME OF PART AMT.

1 00-851370 Cover Assy. ..............................................................................................................................1

2 00-836964 Knob .........................................................................................................................................1

3 00-851372 Handle ......................................................................................................................................1

4 00-851373 Nut - Acorn ...............................................................................................................................1

5 00-851393 Cover - Bottom .........................................................................................................................1

6 00-851371 Pan Assembly .......................................................................................................................... 1

7 00-851374 Bearing .....................................................................................................................................2

8 00-851392 Collar - Actuator ....................................................................................................................... 1

9 00-844367-00064 Thermostat - Hi-Limit ................................................................................................................1

10 00-851394 Burner ....................................................................................................................................... 1

11 00-844367-00066 Sensor - Flame .........................................................................................................................1

12 00-851386 Orifice (NAT)(Select as Required)............................................................................................ 1

13 00-851387 Orifice (LP)(Select as Required) .............................................................................................. 1

14 00-851391 Cover - Console (R.H.) .............................................................................................................1

15 00-844367-00008 Lug - Ground ............................................................................................................................1

16 00-850151 Joint - Gas Swivel..................................................................................................................... 1

17 00-851017 Elbow - Street 3⁄4 ....................................................................................................................... 1

18 00-844367-00049 Solenoid - Gas.......................................................................................................................... 1

19 00-844367-00047 Regulator - Gas Pressure (Nat)................................................................................................ 1

20 00-844367-00048 Regulator - Gas Pressure (LP) .................................................................................................1

21 FP-022-11 Union - Pipe ..............................................................................................................................1

22 FP-013-17 Elbow - Street 1⁄2 x 90 Deg. ....................................................................................................... 1

23 00-844367-00059 Valve - Gas Shut-Off ................................................................................................................1

24 00-851531 Coupling - Red ......................................................................................................................... 1

25 00-851395 Panel - Access ......................................................................................................................... 1

26 00-851527 Union Elbow ............................................................................................................................. 1

27 FP-026-20 Bushing - Red 3⁄4 to 1⁄2 ............................................................................................................... 1

28 00-851399 Bracket - Switch Mounting........................................................................................................ 1

29 00-881971 Switch - Limit ............................................................................................................................1

30 00-851398 Bracket - Retaining ...................................................................................................................1

31 00-851397 Spacer - Pot ............................................................................................................................. 1

32 00-844367-00053 Controller - Potentiometer (120V)(Select as Required)............................................................ 1

33 00-850545 Control - Pot Clockwise (240V)(Select as Required) ............................................................... 1

34 00-851419 Module - Ignition .......................................................................................................................1

35 00-844367-00056 Transformer ..............................................................................................................................1

36 00-844367-00051 Block - Terminal (208V. Thru 480V.) ........................................................................................2

37 00-844367-00052 Section - End ............................................................................................................................1

38 00-851396 Plate - Component Mounting.................................................................................................... 1

39 00-850589 Light - Pilot (Green)(28V) ......................................................................................................... 1

40 00-844367-00005 Bezel ........................................................................................................................................ 1

41 00-851401 Dial Assembly........................................................................................................................... 1

42 00-844485 Light - Pilot (Red)(120V)........................................................................................................... 1

43 00-881970 Switch - Power ......................................................................................................................... 1

44 00-851400 Label - Control ..........................................................................................................................1

45 00-851389 Cord Set ................................................................................................................................... 1

46 00-851388 Coil - Glow ................................................................................................................................1

47 00-851390 Cover - Console (L.H.) ............................................................................................................. 1

00-851566 Pan - Sliding Drain ................................................................................................................... 1

00-850604 Foot - Adjustable ...................................................................................................................... 4

00-851542 Strainer .....................................................................................................................................1

00-844367-00060 Ignition Wire Harness ...............................................................................................................1

00-850153 Block - Terminal ....................................................................................................................... 2

00-851322 Boot - Rubber ...........................................................................................................................1

00-850687 Thermocouple .......................................................................................................................... 1

00-851402 Thermocouple .......................................................................................................................... 1

00-851403 Label - Operation (English) ...................................................................................................... 1

00-851545 Open Stand W/Sliding Pan and Hose ......................................................................................1

00-850480 Hose .........................................................................................................................................1

00-850700 Clamp - Hose ...........................................................................................................................1

– 3 –

VGCTS16 TILTING SKILLET REPLACEMENT PARTS

FORM 31046 NOVEMBER 1997 PRINTED IN U.S.A.
