Item # __________________________
MODEL 2T2036D
C.S.I. Section 11420

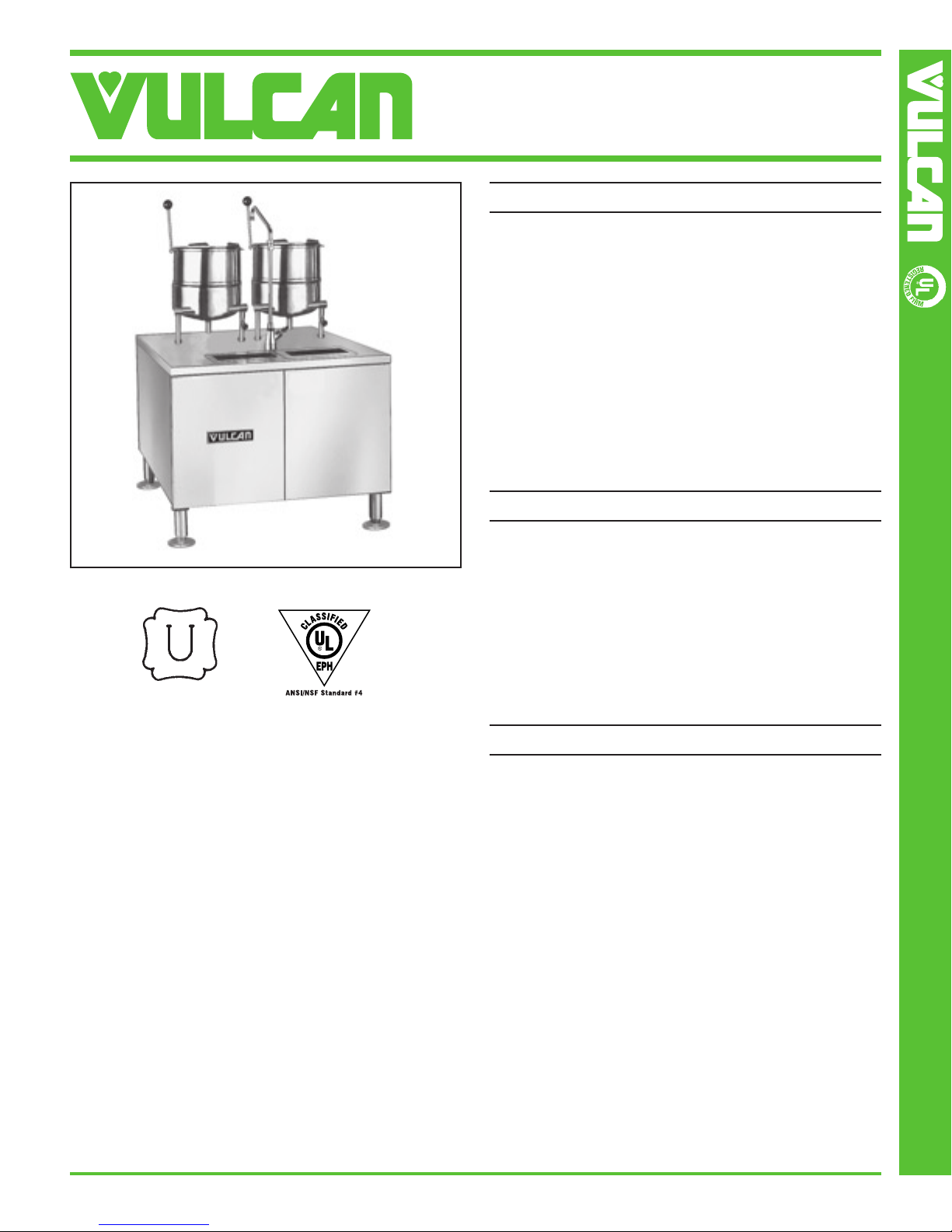

TWO 24 QUART 2/3 JACKETED TILTING
DIRECT STEAM KETTLES ON CABINET BASE
STANDARD FEATURES
■ Two 2/3 jacketed tilting steam kettles, 24 quart capacity each.
■ Steam jacketed kettles mounted on 28" high base cabinet
with front full height doors, slip-off stainless steel side and
aluminized rear panel with 6" adjustable legs with flanged
feet for anchoring.
■ Fully welded hemispheric bottom kettle with type 304 stainless
steel jacket and type 316 stainless steel liner. Jacket tested
to 50 psi (3.4 kg/cm
5-50 psi per kettle.
■ Steam control valve on right trunnion leg.
■ 12" single temperature deck mounted faucet.
■ One year limited parts and labor warranty.
2
). Requires 21 lbs./hr. of steam flow at
OPTIONS
Vulcan-Hart Co.
ISO9001
A2780
MODEL: 2T2036D
SPECIFICATIONS:
Two 24 quart 2/3 jacketed tilting steam kettles mounted on a
36" wide cabinet base, Vulcan-Hart Model No. 2T2036D. Steam
jacketed kettles mounted on 28" high base cabinet with front full
height doors, slip-off stainless steel side and aluminized rear
panel with 6" adjustable legs with flanged feet for anchoring.
Fully welded hemispheric bottom kettle with type 304 stainless
steel jacket and type 316 stainless steel liner. Jacket tested to
50 psi (3.4 kg/cm
steam flow, 21 lbs./hr. of 5-50 psi steam flow per kettle. Steam
control valve on right trunnion leg. 12" single temperature deck
mounted faucet.
Exterior dimensions:
Cabinet: 36"w x 33"d x 28"h on 6" adjustable legs. Overall height
to the lip of the kettles - 47
Classified by U L to NSF Std. #4. Meets ASME code.
2
). Requires a total of 42 lbs./hr. of 5-50 psi
1
/2", to the top of the handle - 561/4".
■■ Correction package.
- Cabinet door with hasp (lock by others).
- Security type tamper resistant fasteners.
■■ Tilting kettle strainer (one) (two).
■■ 12" dual temperature faucet.
■■ Mount and interconnect kettle with boiler base at factory.
Includes steam supply piping. Shipped on one skid.
■■ Second year extended limited parts and labor warranty.
ACCESSORIES
■■ Stainless steel back panel.
■■ Lift-off cover (one) (two).
■■ Contour measuring strip.
■■ Single perforated stainless steel basket (one) (two).
■■ Ball float trap.
■■ Pressure reducing valve.
Two 24 Quart
2
/
3
Jacketed Tilting Kettles On Cabinet Base
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-32384 (10-03)
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
MODEL 2T2036D
TWO 24 QUART 2/3 JACKETED TILTING
DIRECT STEAM KETTLES ON CABINET BASE
DIRECT STEAM DATA:
Steam supply to the kettle must:
1. Maintain a steady 13 psi flow under operating conditions.
2. Have a minimum flow rate of 42 lbs. (1.2 BHP)/hr., dry steam.
3. Be adequately trapped to provide dry steam. (See ball float trap.)
EQUIPMENT CLEARANCE:
Rear: 2" Right: 0" Left: 0"
CAPACITIES (in 4 oz. servings):
24 quarts / 6 gallons / 22.5 liters - 192 servings.
SERVICE CONNECTIONS:
3
A Steam Supply Connection:
B Drain: Condenser box, compartment and boiler,1
open air gap type drain within 12" of condenser box and for best results
at a distance so that steam vapors will not enter the steamer from
underneath the control area. Do not connect solidly to any drain
connection.)
C Water Supply Connection for Kettle Filler Faucet:
NOTE:
• Dimensions which locate the above connections have a tolerance of +
or -3" (+ or -75 mm).
• Installation of backflow preventers, vacuum breakers and other specific
code requirements is the responsibility of the owner and installer. It is
the responsibility of the owner and installer to comply with local codes.
• Plastic drains are not recommended due to inherent limited tempera-
tures of the plastic. Boiler purge temperatures may exceed 180°F. The
installer may be required to provide means to reduce boiler purge water
temperature to be that of the condensate temperature of 140°F or less.
• This appliance is manufactured for commercial installation only and is
not intended for home use.
/4".
1
/4" NPT. (Provide an
1
/4" NPT.
NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and
specifications without notice.
F-32384 (10-03)
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
