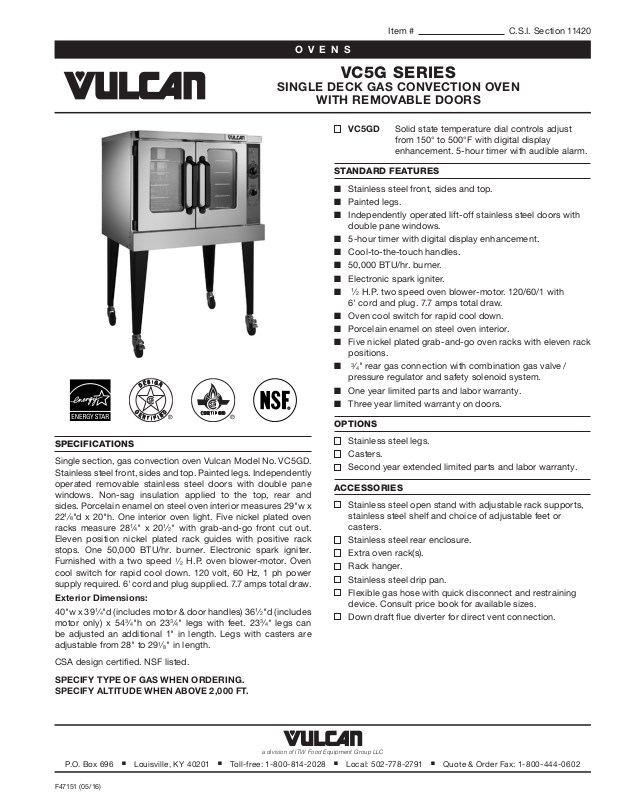

Vulcan VC5GD User Manual

Item # C.S.I. Section 11420

OVENS

VC5G SERIES

SINGLE DECK GAS CONVECTION OVEN

WITH REMOVABLE DOORS

VC5GD Solid state temperature dial controls adjust

from 150° to 500°F with digital display
enhancement. 5-hour timer with audible alarm.

STANDARD FEATURES

■ Stainless steel front, sides and top.

■ Painted legs.

■ Independently operated lift-off stainless steel doors with
double pane windows.

■ 5-hour timer with digital display enhancement.

■ Cool-to-the-touch handles.

■ 50 ,000 BTU/ hr. b u rner.

■ Electronic spark igniter.

■ 1⁄2 H.P. two speed oven blower-motor. 120/60/1 with
6' cord and plug. 7.7 amps total draw.

■ Oven cool switch for rapid cool down.

■ Porcelain enamel on steel oven interior.

■ Five nickel plated grab-and-go oven racks with eleven rack
positions.

■ 3⁄4" rear gas connection with combination gas valve /
pressure regulator and safety solenoid system.

■ One year limited parts and labor warranty.

■ Three year limited warranty on doors.

SPECIFICATIONS

Single section, gas convection oven Vulcan Model No. VC5GD.
Stainless steel front, sides and top. Painted legs. Independently
operated removable stainless steel doors with double pane
windows. Non-sag insulation applied to the top, rear and
sides. Porcelain enamel on steel oven interior measures 29"w x
221⁄8"d x 20"h. One interior oven light. Five nickel plated oven
racks measure 281⁄4" x 201⁄2" with grab-and-go front cut out.
Eleven position nickel plated rack guides with positive rack
stops. One 50,000 BTU/hr. burner. Electronic spark igniter.
Furnished with a two speed 1⁄2 H.P. oven blower-motor. Oven
cool switch for rapid cool down. 120 volt, 60 Hz, 1 ph power
supply required. 6' cord and plug supplied. 7.7 amps total draw.

Exterior Dimensions:

40"w x 391⁄4"d (includes motor & door handles) 361⁄2"d (includes
motor only) x 543⁄4"h on 233⁄4" legs with feet. 233⁄4" legs can
be adjusted an additional 1" in length. Legs with casters are
adjustable from 28" to 291⁄8" in length.

CSA design certied. NSF listed.

SPECIFY TYPE OF GAS WHEN ORDERING.
SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.

OPTIONS

Stainless steel legs.
Casters.
Second year extended limited parts and labor warranty.

ACCESSORIES

Stainless steel open stand with adjustable rack supports,
stainless steel shelf and choice of adjustable feet or
casters.

Stainless steel rear enclosure.
Extra oven rack(s).
Rack hanger.
Stainless steel drip pan.
Flexible gas hose with quick disconnect and restraining

device. Consult price book for available sizes.
Down draft ue diverter for direct vent connection.

a divisi on of ITW F ood Equipment Group LLC

P.O. Box 696 ■ Louisville, KY 40201 ■ Toll-free: 1-800-814-2028 ■ Local: 502-778-2791 ■ Quote & Order Fax: [phone]

F47151 (05/16)

INSTALLATION INSTRUCTIONS

2.59

OVENS

VC5G SERIES

SINGLE DECK GAS CONVECTION OVEN

WITH REMOVABLE DOORS

1. A combination gas valve/pressure regulator and safety sole­noid system is included in this unit. Natural gas is 5.0" W.C.,
Propane gas is 10.0" W.C.

2. An adequate ventilation system is required for commercial
cooking equipment. Information may be obtained by writing to
the National Fire Protection Association, Batterymarch Park,
Quincy, MA 02289. When writing, refer to NFPA No. 96.

3. These units are manufactured for installation in accordance
with ANSZ223.1 (latest edition), National Fuel Gas Code.
Copies may be obtained from American Gas Association Inc.,

(65)

29.00
(737)

15.00
(381)

39.97

(1015)

Accredited Standards Committee Z223, 400 N. Capitol St. NW,
Washington, DC 20001 or the Secretary Standards Council,
NFPA, 1 Batterymarch Park, Quincy, MA 02169-7471.

4. Clearances: Combustible Non-combustible
Rear 0" 0"
Right Side 2" 0"
Left Side 1" 0"

5. This appliance is manufactured for commercial installation
only and is not intended for home use.

40.10

(1019)

37.23
(928)

31.04
(788)

22.125
(562)

30.31
(770)

23.75
(603)

54.06
(1373)

20.00
(508)

26.50
(673)

7.31

(199)

3/4" NPT

WEIGHT

MODEL

NO. WIDTH

DEPTH

(INCLUDES

HANDLES) HEIGHT

BTU/HR.

PER OVEN

TOTAL

BTU/HR. ELECTRICAL

WITH SKID

& PACKAGING

LBS. KG LBS. KG

WITHOUT SKID

& PACKAGING

VC5G 40" 391⁄4" 54" 50,000 50,000 120/60/1 389 176 333 151

a divisi on of ITW F ood Equipment Group LLC

P.O. Box 696 ■ Louisville, KY 40201 ■ Toll-free: 1-800-814-2028 ■ Local: 502-778-2791 ■ Quote & Order Fax: [phone]

F47151 (05/16)

NOTE: In line w ith its po licy to con tinuall y improve its products, Vulc an reserves the r ight to change mate rials and speci catio ns without notice .
