01
1.Important Safety Information
Warnings ........................................................................................................................ 01
Safety Precautions Instruction ....................................................................................... 02
2.Accessories ............................................................................................................. 05
3. Installing the LED TV
Installing the Stand ........................................................................................................ 06
4. Overview of the TV set
Front View ...................................................................................................................... 07
Rear View ...................................................................................................................... 08
5.Connect External Devices
Connect the Power Cord ............................................................................................... 09
Conect to Antenna or Cable ...........................................................................................09
Connect Device Via HDMI interface .............................................................................. 09
Connect Device Via Component(Y/Pb/Pr) + Audio L/R Interface .................................. 10
Connect Device Via Video + Audio L/R Interface .......................................................... 10
Connect PC Via VGA/HDMI Interface ........................................................................... 11
Supporting signals ......................................................................................................... 11
6.Using the Remote Control
Inserting Remote Control Batteries................................................................................ 12
Operating the Remote Control ....................................................................................... 12
Remote Control .............................................................................................................. 13
Summary of Remote Control function buttons ............................................................... 14
7.Basic Operation of the TV
Turning the TV On and Off ............................................................................................. 15
Select Language ............................................................................................................ 15
Install TV Channels Automatically ................................................................................. 15
Changing Channels ....................................................................................................... 15
Adjusting the Volume ..................................................................................................... 16
Selecting the Input Source ............................................................................................. 16
Access to the On Screen Display Menu ........................................................................ 16
Contents
Page 2
02

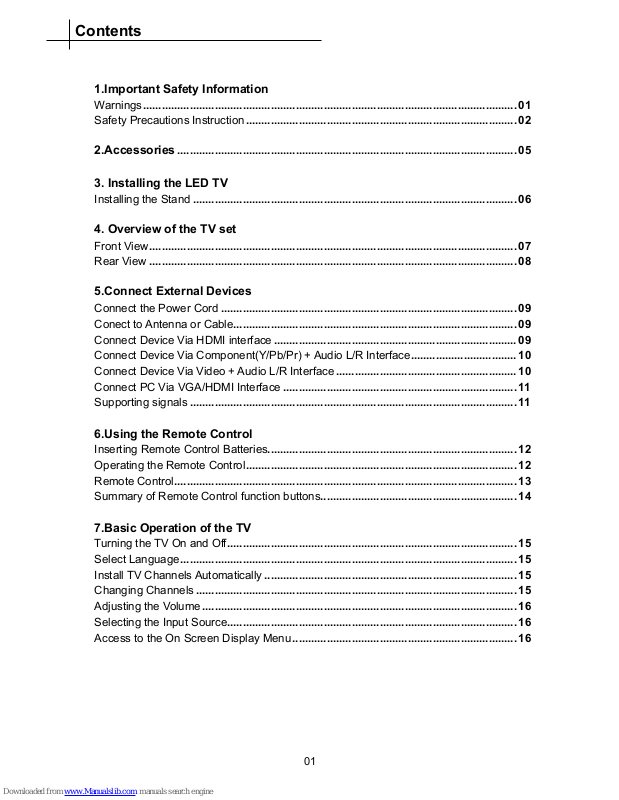

Contents
8. Channel setting
Channel menu ............................................................................................................... 17
9. Picture Setting
Picture menu .................................................................................................................. 18
10. Sound Setting
Sound menu................................................................................................................... 19
11. Time setting
Time menu ..................................................................................................................... 20
12. Option Setting
Option menu .................................................................................................................. 21
13. Multimedia
Media Play - USB Device ............................................................................................. 22
14. Troubleshooting................................................................................................... 24
15. Specication ......................................................................................................... 26
Page 3
01
1.Read these instructions.
2.Keep these instructions.
3.Heed all warnings.
4.Follow all instructions.
5.Do not use this apparatus near water.
6.Clean only with dry cloth.
7.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8.Do not install near any heat sources such as radiators, heat registers, stoves, or other appara-
tus (including ampliers) that produce heat.
9.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.
10.Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11.Only use attachments/accessories specied by the manufacturer.
12.Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold
paratus. When a cart is used, use caution when moving the cart/apparatus combination to
from tip-over.
13. Unplug this apparatus during lighting storms or when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus. the apparatus has been exposed to rain or moisture. does not operate normally, or has been dropped.
15. WARNING:To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To
Rain Or Moisture.
16. Apparatus shall not be exposed to dripping or splashing and no objects lled with liquids,
such as vases, shall be placed on the apparatus.
17. The mains plug or appliance coupler shall remain readily operable.
18. Use in outdoor: This TV is not designed for outdoors installation. Do not expose the TV to
rain, as it may result in a re or an electric shock. Also, do not expose the TV to direct sunlight,
as it may heat up and become damaged.
Dangerous Voltage: The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of dangerous voltage
within the inside of the product that may be sufcient level to constitute a risk of
electric shock to persons.
Instruction: The
exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and servicing instructions in the literature accompanying the appliance.
Safety:
TO REDUCE THE RISK OF ELECTRICAL SHOCK DO NOT REMOVE COVER
(OR BACK). NO USER SERVICEABLEPARTS ARE INSIDE. REFER TO QUALI-
FIED PERSONNEL ONLY.
Important Safety Information1
Warnings
Page 4
02
Safety Precautions Instruction
Observing the simple precautions discussed in this booklet will provide you with many years of
enjoyment and safe operation.
This product complies with all applicable India safety requirements.
1. Read & Follow Instructions
All safety and operating instructions should be read and followed before the TV is operated.
2. Retain Instructions
The safety and operating instructions should be retained for future reference.
3. Heed Warnings
All warnings on the TV and in the operating instructions should be adhered to.
4. Cleaning
Unplug the TV from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a soft and slightly damp cloth for cleaning.
5. Water and Moisture
Do not use this TV near water, for example, near a bathtub,wash bowl, kitchen sink, or laundry
tub, in a wet basement, or near a swimming pool.
6. Accessories Carts and Stands
Do not place this TV on a slippery or tilted surface, or on an unstable cart, stand, or table. The
TV may slide or fall, causing serious injury to a child or adult, and serious damage to the TV.
7. Transporting the Television
A TV and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the TV and cart combination to overturn.
8. Ventilation
Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of
the TV and to protect it from overheating, and these openings must not be blocked or covered.
The openings should never be blocked by placing the TV on a bed, sofa, rug, or other similar
surface. The TV should not be placed in a built-in installation such as a bookcase or rack unless
proper ventilation is provided.
9. Power Sources
This TV should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power supply to your home, consult your electronics retailer or
local power company.
Important Safety Information
1
Page 5
03
12. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the TV be sure the antenna or cable
system is grounded so as to provide some protection against voltage surges and built up static
charges. Article 810 of the National Electrical Code (U.S.A.), ANSI / NFPA 70 provides information with regard to proper grounding of the mast and supporting structure, grounding of the leadin wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge
unit, connect on to grounding electrodes, and requirements for the grounding electrode.
Example of Grounding According to National
Electrical Code Instructions
NEC - National Electrical Code
Ground Clamp
Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Ground Clamps
Electric Service
Equipment
Power Service Grounding
Electrode System (NEC
Art 250, Part H)
10. Power-Cord Protection
Power-supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to cords at plugs,convenience
receptacles, and the point where they exit from the TV.
11. Lightning
For added protection for the TV during a lightning storm, or when it is left unattended and unused
for long periods of time,unplug it from the wall outlet and disconnect the antenna or cable system.
This will prevent damage to the TV from lightning and power-line surges.
13. Power Lines
An outside antenna system should not be located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall on to power lines or circuits. When installing an
outside antenna system, extreme care should be taken to keep from touching such power lines or
circuits as contact with them might be fatal.
14. Overloading
Do not overload wall outlets and extension cords as this can result in a risk of re or electric
shock.
Important Safety Information1
Page 6
04
15. Object and Liquid Entry
Never push objects of any kind into this TV through openings as they may touch dangerous volt-
age points or short-out parts that could result in a re or electric shock. Never spill liquid of any
kind on or inside the TV.
16. Servicing
Do not attempt to service this TV yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualied service personnel.
17. Damage Requiring Service
Unplug from the wall outlet and refer servicing to qualied
service personnel under the following conditions:
a. If the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the TV has been exposed to rain or water.
d. If the TV does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operating instructions as an improper adjustment of other
controls may result in damage and will often require extensive work by a qualied technician to
restore the product to its normal operation.
e. If the TV has been dropped or the cabinet has been damaged.
f. If the TV exhibits a distinct change in performance.
Important Safety Information 1
Page 7
05
Please make sure the following items are included with your LED TV.
If any items are missing, please contact your dealer.
User Guide
Remote Control 2 batteries
Accessories
2
LED TV
Vu 80 cms (32”) LED TV
Model: 32D6545
Before using the TV, please read this manual
thoroughly and retain it for future reference. For
more detailed instructions, please see the User Manual.
USER MANUAL
English
www.vutvs.com
80cms LED T V 32D65 45
-/--
P.MODE
S.MODE
FAV
SLEEP
FREEZE
CH.LIST
AUTO
ASPECT
SOURCE D ISPLAY
CH
Page 8
06
Installing the LED TV
3
Installing the Stand
1. Lay the TV flat on a table with the LED screen face down. To prevent the TV from being
scratched, put a piece of soft cloth on the table on which the screen will be set. (see Figure 1)
2. Place the base in position as shown.(see Figure 2)
3.Insert and tighten 4 screws(provided)into pedestal holes as shown. (see Figure 3)
4. Stand the TV up. (see Figure 4)
Wall Mounting
It is recommended that you can call your local TV dealer or a licensed contractor to secure the
television to the wall using a suitable VESA 100x100 mm,M4x10mm.
NOTE: You must remove the pedestal before you install the wall mount bracket.
Figure 1 Figure 2 Figure 3
Figure 1 Figure 2 Figure 3
Page 9
07
Overview of the TV set
4
Front View
Item Description
1
Power Switch the TV on/standby.
2
MENU Switch OSD menu ON/OFF.
3
INPUT Select input source.
4
CH
Channel up / down when source is TV, or select a control while in
OSD menu.
5
+VOL-
Increase / Decrease sound volume or adjust a highlighted control
while in OSD menu.
1
2
3
5
4
Page 10
08

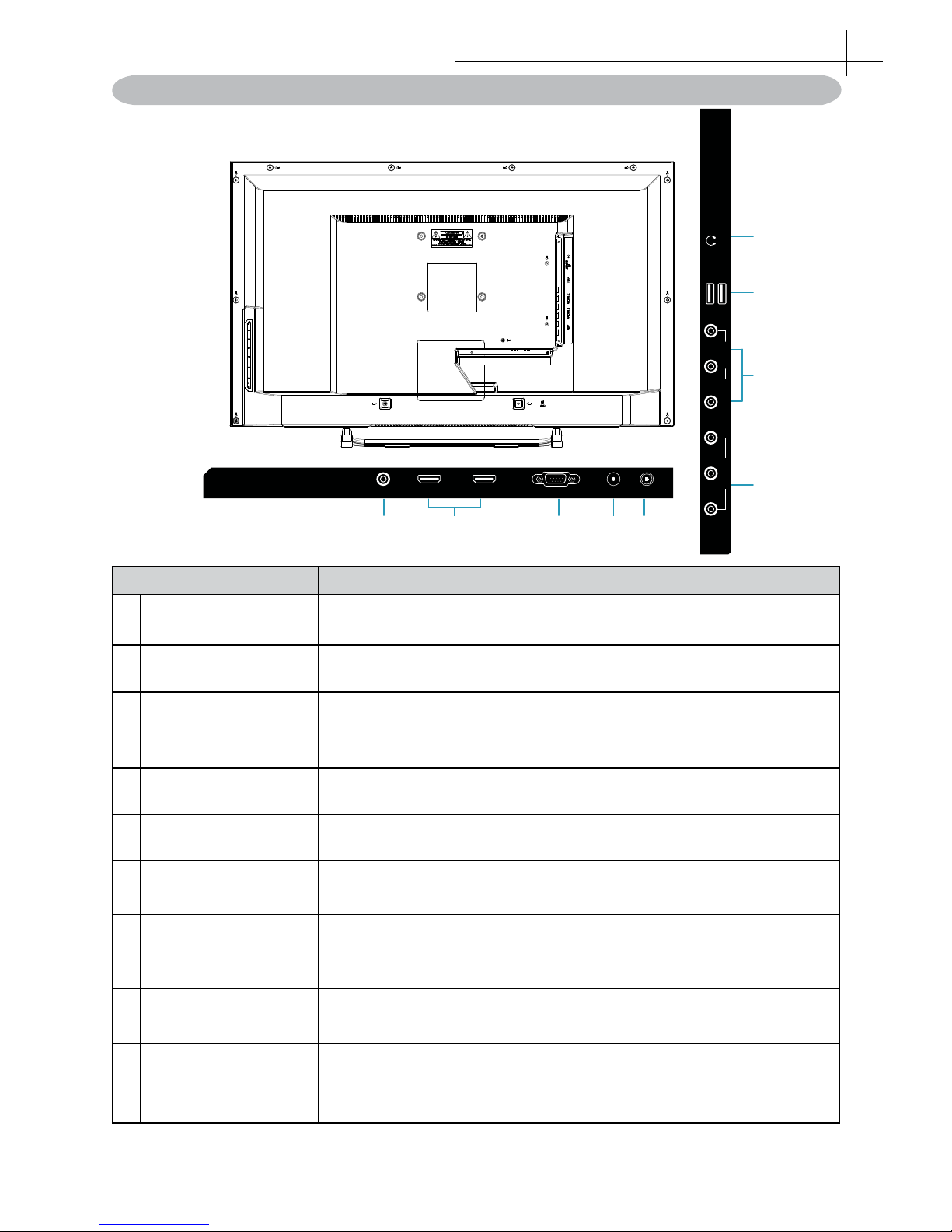

Rear View
Item Description
1 AV OUT
Connect a external device to the composite MINI AV OUT in jacks
on most video equipment.
2 HDMI Input Terminal Connect this port to the HDMI output of A/V device.
3 VGA signal input
Connect a 15-pin D-sub RGB cable to the RGB output of your
computer and the other end to the RGB input on the rear of the LED
TV.
4 PC Audio input
Connect the RGB Audio Out on your computer to the RGB Audio on
the rear of the LED TV.
5 RF Connect this jack to your Cable or VHF/UHF antenna.
6 YPbPr signal input Connect this port to the YPbPr output of A/V device.
7 AV IN (CVBS/L/ R)
Connect a external device to the composite VIDEO(V) and
AUDIO(L/R) out jacks on most video equipment.
*L/R (Audio in) is sharing with YPbPr.
8 USB Connect to your USB devices, such as USB ash drive.
9 EARPHONE
Connect to your earphones. By connecting the earphones, you can
listen to the sound from the TV on headphones.
*If you connect the earphones,the TV speakers will be muted.
Overview of the TV set
4
1 2 3 4 5
6
7
8
9
HDMI1
HDMI2
RF IN
VGA IN
PC AUDIO IN
MINI AV OUT
L
VIDEO
R
Y
EARPHONE
Pr
Pb
YPbPr IN
AUDIO IN
USB2
USB1
Page 11
09
You can also enjoy high-denition programming by subscribing to a high-denition
cable service or a high-denition satellite service. For the optimum picture quality,
be sure to connect this device to your TV via the HDMI or component video (with
audio) input on the back of your LED TV.

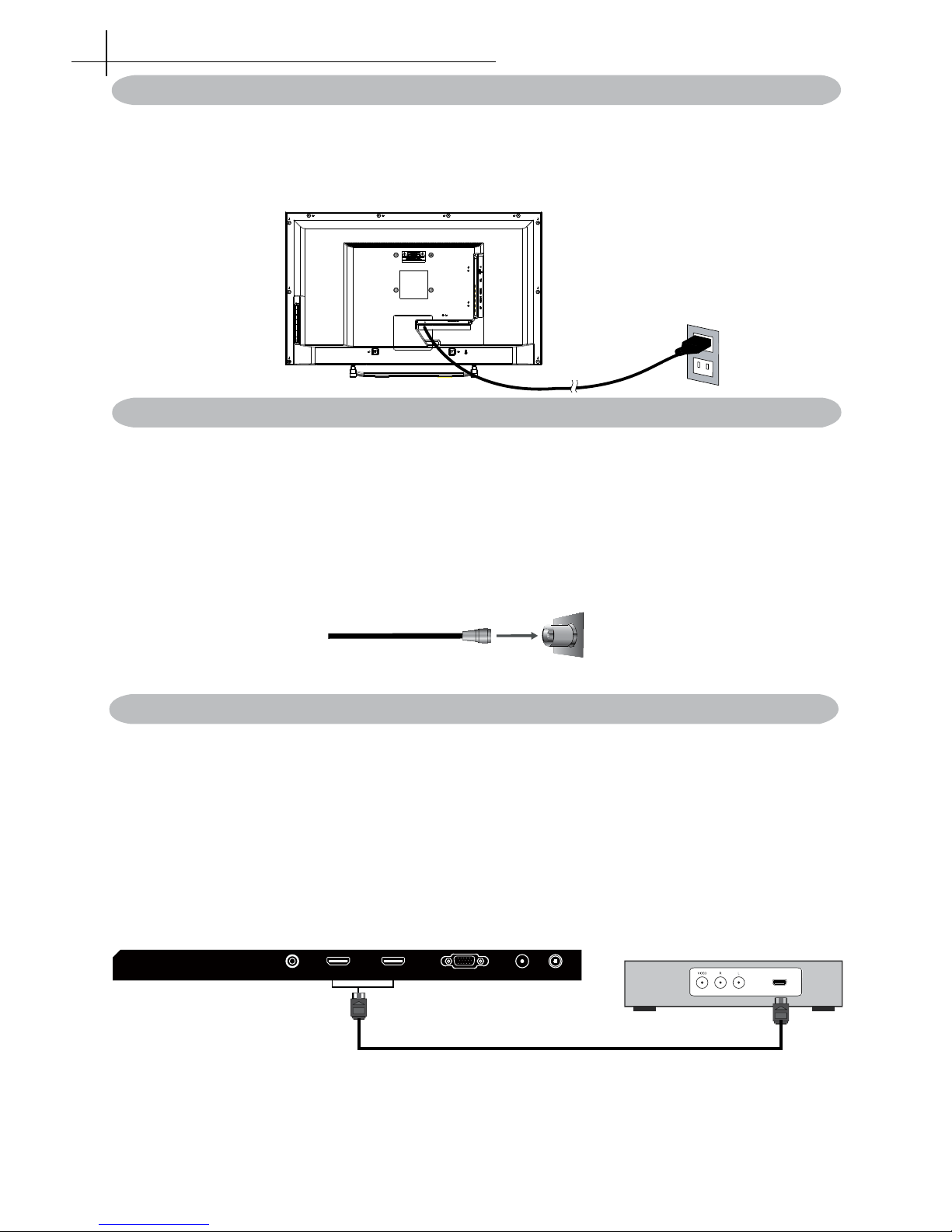

HDMI Connection
75-ohm coaxial cable
Rear of TV
VHF/UHF/CABLE input
Connect the Power Cord
HDMI
HDMI1
HDMI2
RF IN
VGA IN
PC AUDIO IN
MINI AV OUT
Optional HDMI cable ( not included )
TV REAR PANEL
Digital set top box, gaming
console,or Blu-ray w / HDMI
interface
Connect Device Via HDMI interface
Cable or VHF/UHF
Typical wall antenna jack is used in apartment buildings, connect the antenna
cable, as shown in
below diagram (Please use the correct type of antenna cable).
We strongly recommend that you connect the antenna/cable input using a 75-ohm
coaxial cable (not supplied) to ensure the best picture quality.
Conect to Antenna or Cable
How to connect with power cord
Plug the power cord into the power outlet. Ensuring that the cord is tightly
connected at both ends.
It is strongly recommended for best broadcast reception, to use digital
cable, satellite, or a high quality roof top antenna.
Connect External Devices
5
Page 12
10

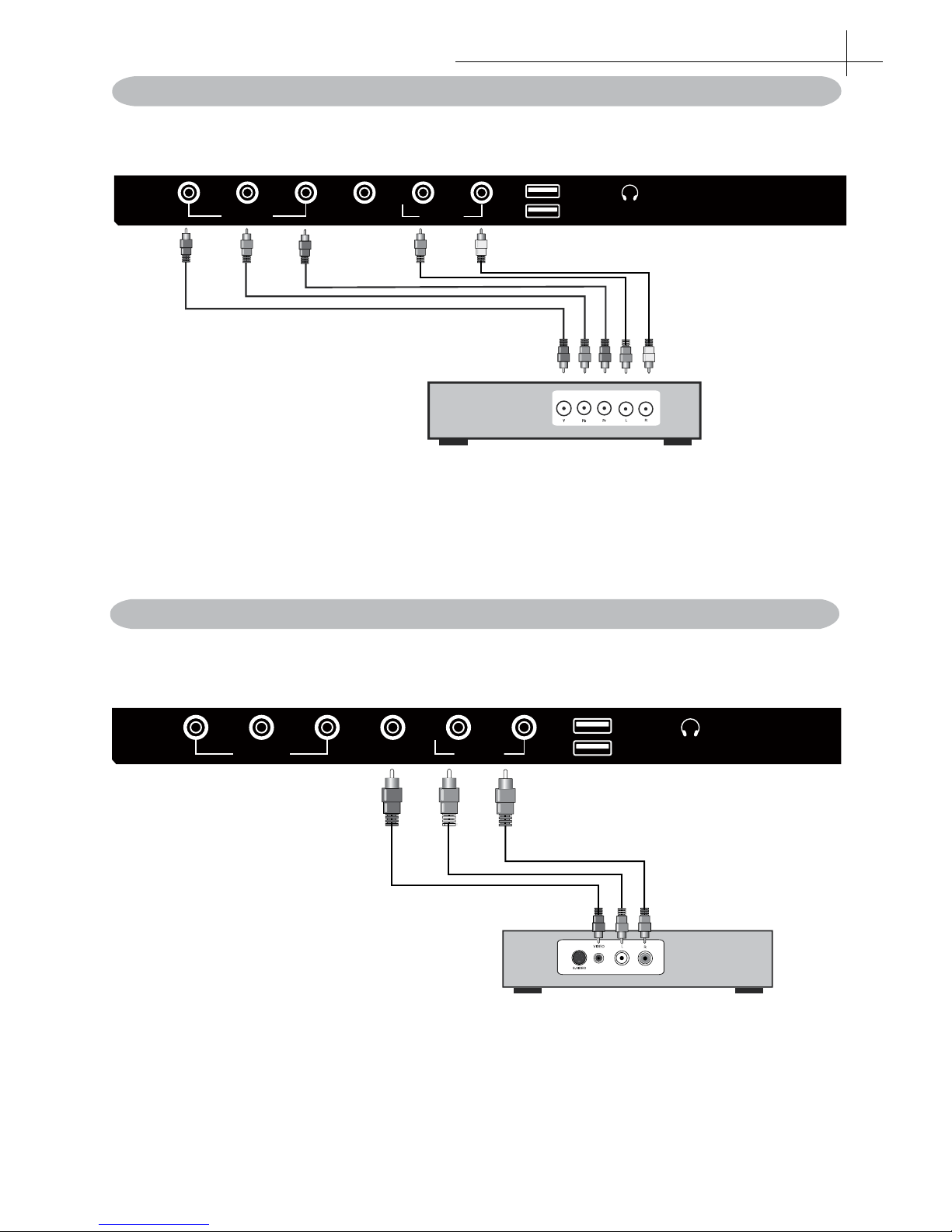

Connect Device Via Component(Y/Pb/Pr) + Audio L/R Interface
Connect Device Via Video + Audio L/R Interface
Connect External Devices
5
TV REAR PANEL
Optional Component cables
(not included)
Digital set top box, gaming console or DVD
L
VIDEO
R
Y
EARPHONE
Pr
Pb
YPbPr IN
AUDIO IN
USB2
USB1
TV REAR PANEL
Audio Video Cable (not included)
Digital set top box, gaming console or DVD
L
VIDEO
R
Y
EARPHONE
Pr
Pb
YPbPr IN
AUDIO IN
USB2
USB1
Page 13
11
Connect External Devices
5
HDMI1
HDMI2
RF IN
VGA IN
PC AUDIO IN
MINI AV OUT

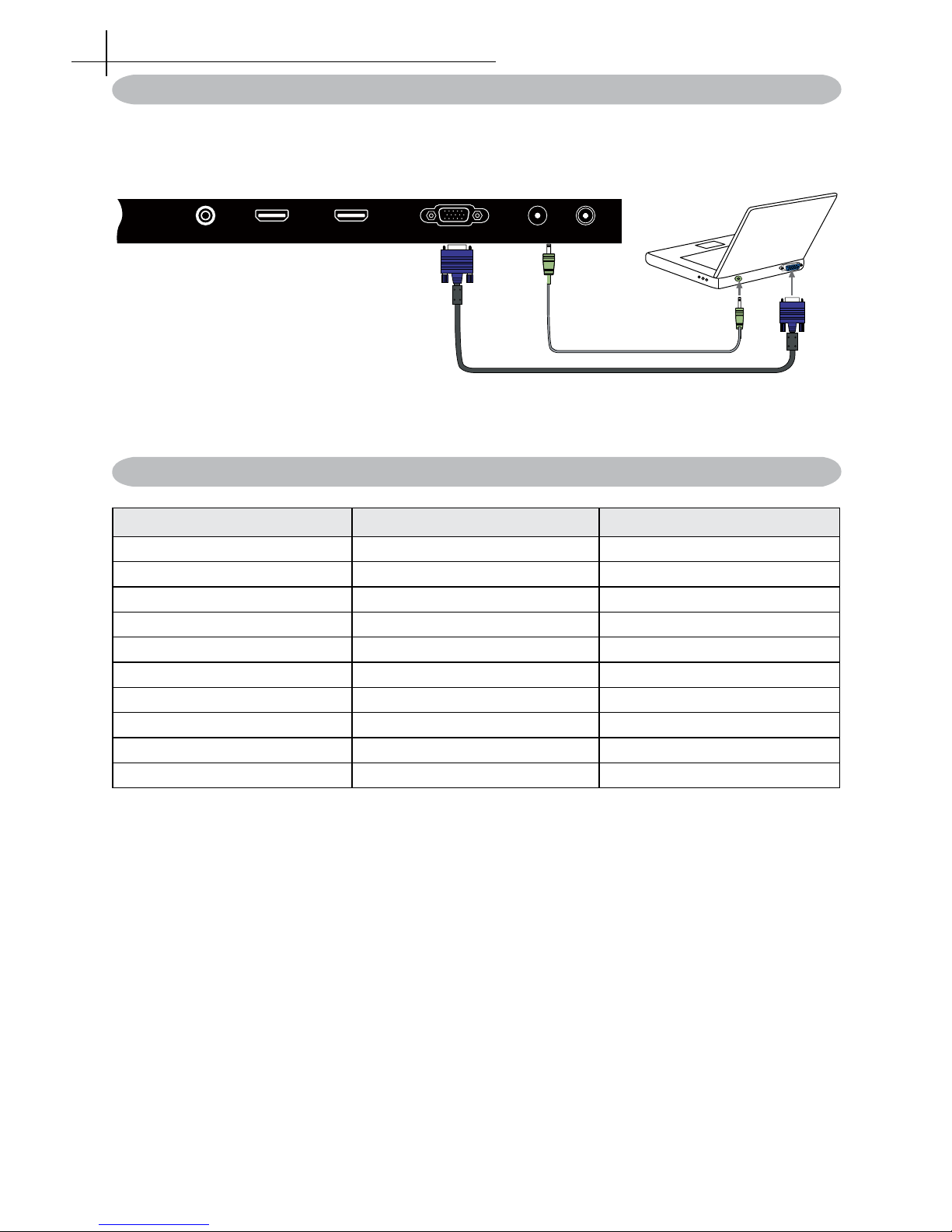

Use the LED TV as the monitor of your computer.
The picture below shows the connection for PC. The LED TV can also be connected to PC
with VGA or HDMI output.
YPbPr VGA HDMI(DVI)
480i 640X480 / 60 480i
576i 800X600 / 60 576i
480P 1024X768 / 60 480P
576P 1280X1024 / 60 576P
720P / 50 1366X768 / 60 720P / 50
720P / 60 1920X1080 / 60 720P / 60
1080i / 50 1080i / 50
1080i / 60 1080i / 60
1080P / 50 1080P / 50
1080P / 60 1080P / 60
Supporting signals
Connect PC Via VGA/ HDMI Interface
Page 14
12
Using the Remote Control
6
30 30
IR Receive
-/--
P.MODE
S.MODE
FAV
SLEEP
FREEZE
CH.LIST
AUTO
ASPECT
SOURCE DISPLAY
CH

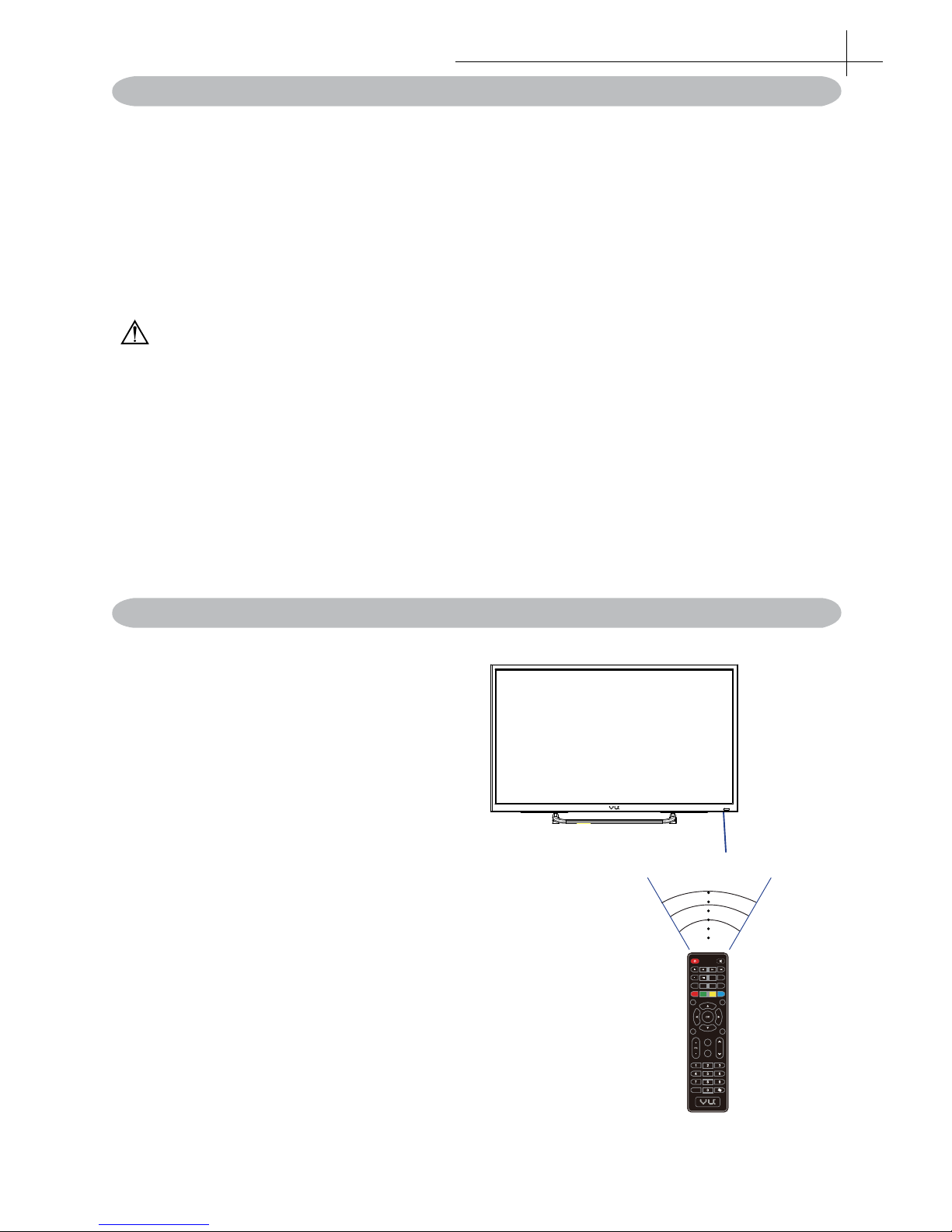

Operating the Remote Control
Inserting Remote Control Batteries
1 .Aim Remote Control directly at the
Remote Control Sensor on the left
down corner of the TV set.
2 .Remote Control range is at approx.16
feet with angles of approx.30 degree.
3. Avoid obstructions between the
Remote Control and the sensor.
☼If you do not intent to use the remote control
for a long time, remove the batteries.
☼If the remote control does not operate
correctly, or if the operating range .
reduced,replace both batteries with new ones.
1. Remove the battery cover by pulling then lifting the knob on the cover.
2. Insert the batteries, corresponding to the (+) and (-) markings on the battery compartment.
3. Reattach the battery cover.
CAUTION
• Only use the specied AAA batteries.
• Do not mix new and old batteries. This may result in creaking or leakage, which may pose a
risk of re or lead to personal injury.
• Insert batteries according to (+) and (-) markings. Inserting the batteries incorrectly may result
in leakage, which may pose a risk of re or lead to personal injury.
• Dispose of the battery in accordance with local laws and regulations.
• Keep the batteries away from children or pets.
• When the remote control will not to be used for an extended period, remove the batteries.
Page 15
13
7
4
21
19
9
13
17
14
22
10
25
27
26
3
5
6
2
18
8
1
11
12
15
16
20
24
23
28

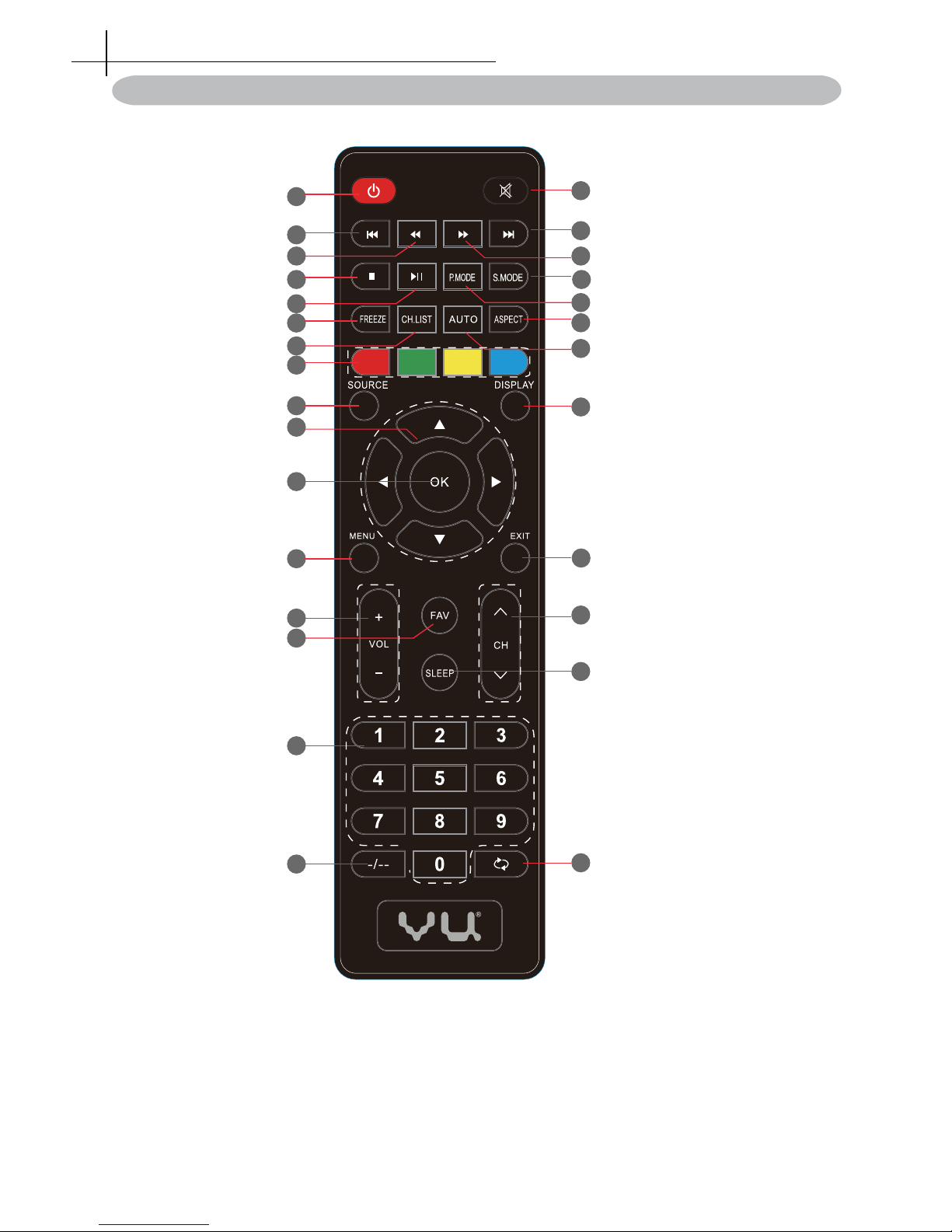

Remote Control
Using the Remote Control
6
Page 16
14
Using the Remote Control
6

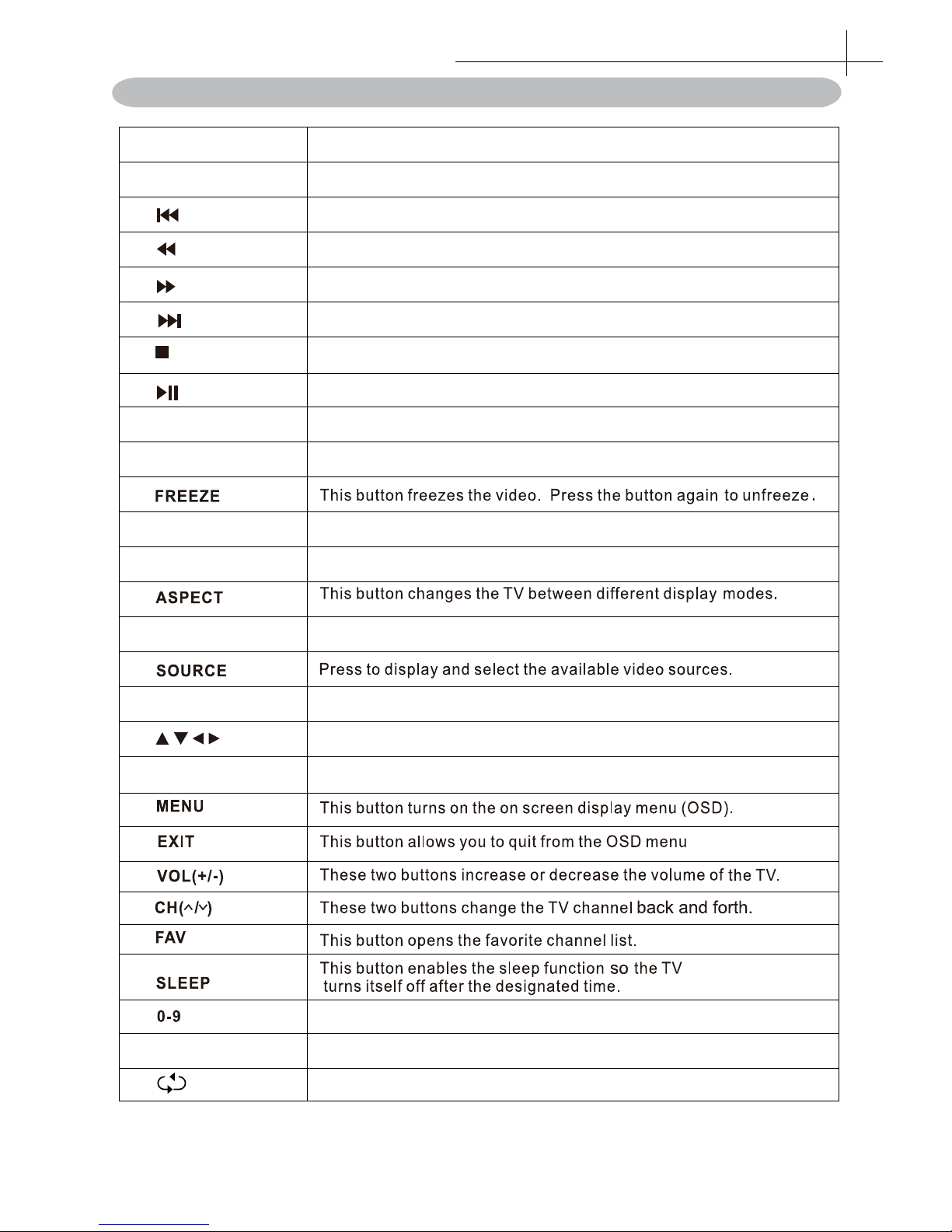

Summary of Remote Control function buttons
1. POWER
Press to enter or exit standby mode.
2. MUTE
Press to turn on or off the Audio Sound.
3.
4.
5.
7.
8.
6.
17.
11.
14.
15.
18.
21.
10.
19.
20.
13.
12.
16.
9.
28.
23.
27.
26.
24.
25.
22.
OK
S.MODE
Press to change the audio mode.
P.MODE
Press to select the picture mode.
To play the previous chapter, title or track.
To play the next chapter, title or track.
Press to scan in forword.
Press to scan in reuerse.
Press to play or stop the current program.
Press the botton to stop the current program.
According to the OSD prompt operation.
Color
DISPLAY
Press to display the information window.
CH.LIST
Press to display the Channel List.
AUTO
Press to adjust automatically in VGA mode.
Press the direction buttons to select menu options or settings.
Confirmation button,select the OSD menuoption.
Press to change the channel of the TV in ATV mode.
-/--
Press this button before entering a programme greater than 09.
Press to return to the channel last viewed.
Page 17
15

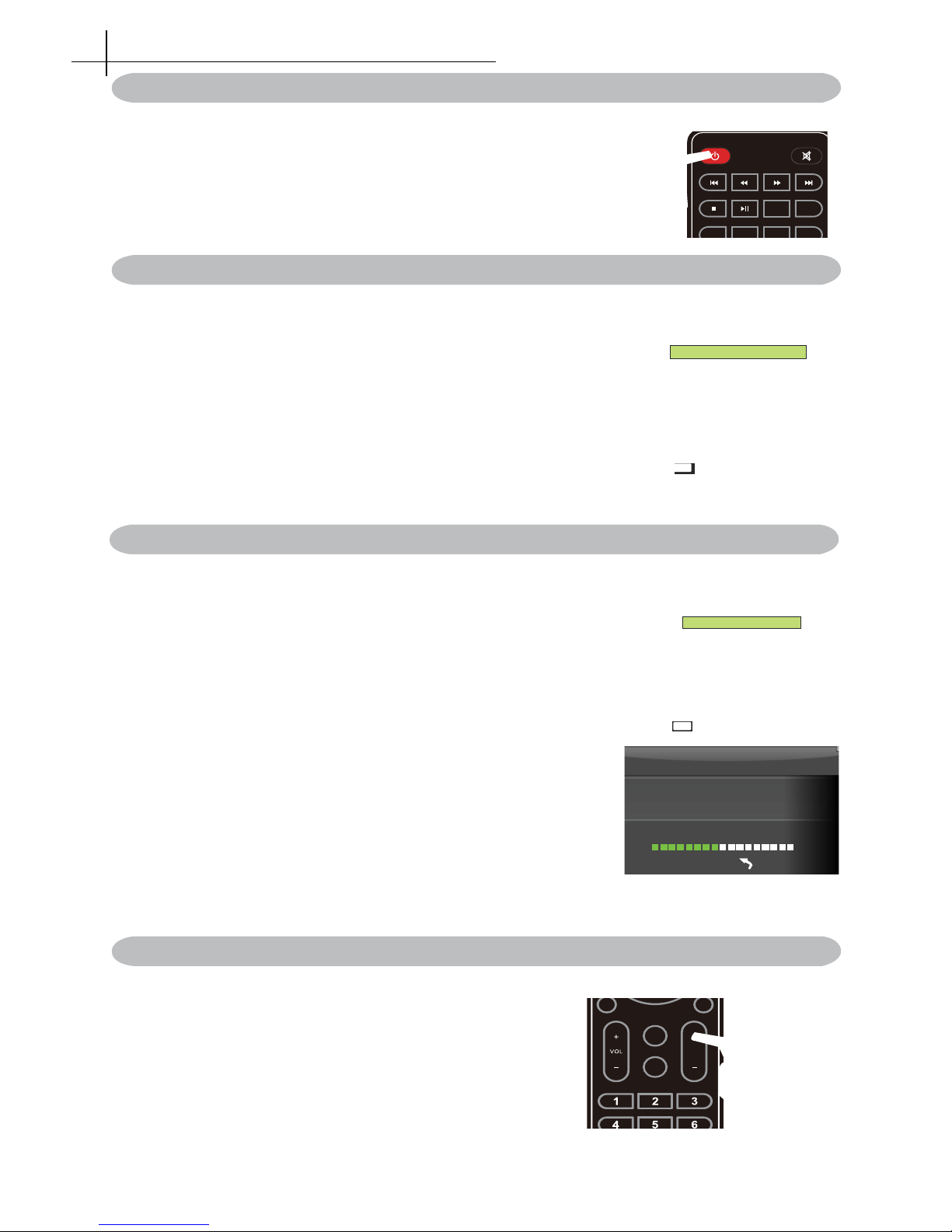

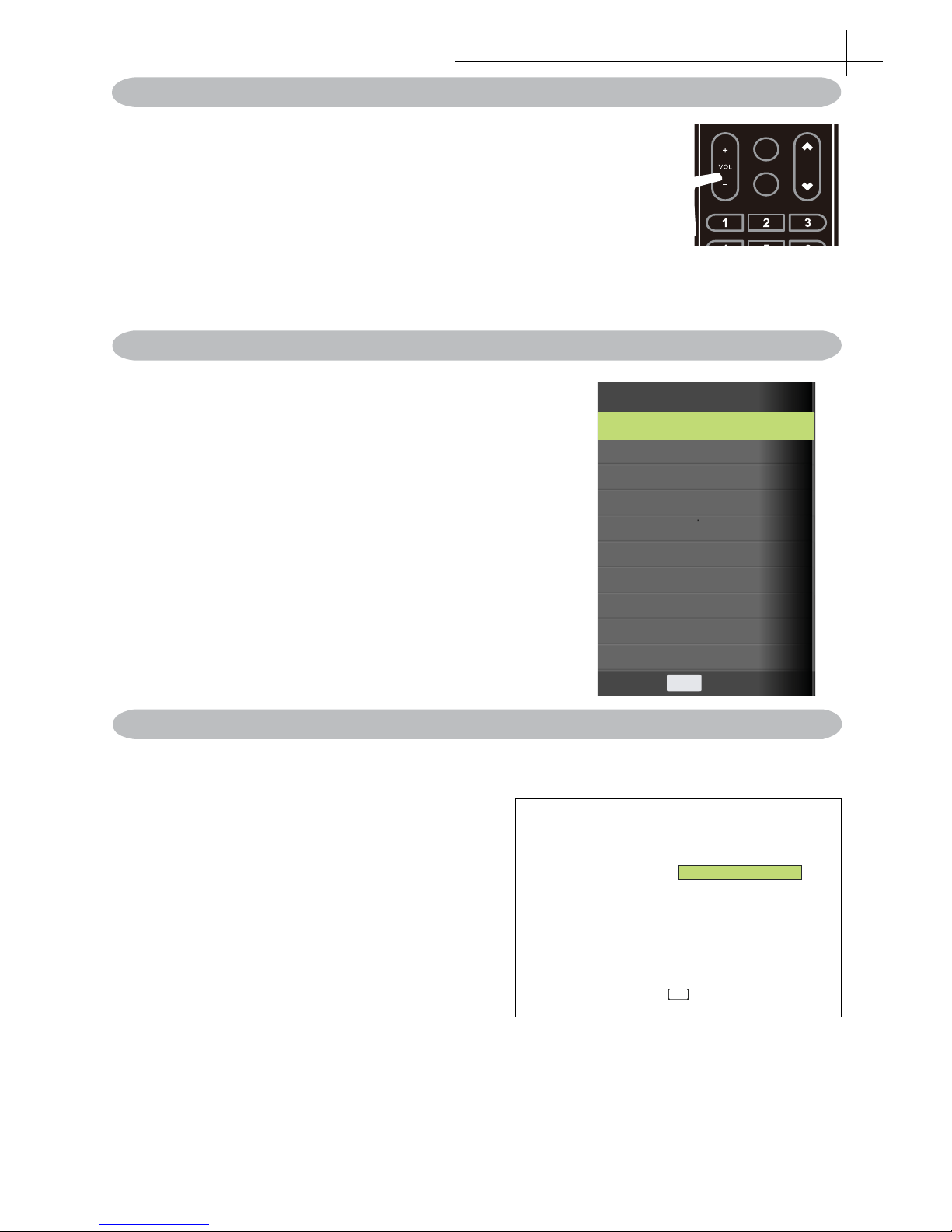

Press the POWER button on the remote control.
You can also use the Power button on the side of the
panel.
P.MODE
S.MODE
FREEZ E
CH.LIST
AUTO
ASPECT
＊ If there is no input signal within 15 minutes, TV will be
turned off automatically.
Turning the TV On and Off
Select Language
The rst time you switch on the TV,please select the
language for the TV menu and follow the On Screen
Display prompt to complete the TV setup.
Language Setting
1 .Press MENU on the Remote Control to display the
main Menu.
2. Press◄ or ►to locate the Option Setting.
3. Press▼to highlight OSD Language item.
press►to enter OSD Language submenu.
4. Press◄ or ► to select one of OSD languages.
5. Press MENU to return.
1. Using Channel Buttons
Press +CH- button to change channels, and the TV
changes channels in sequence. You will see all channels
that have been memorized. Channels erased or not
memorized will not be shown.
＊ Return to the previous channel, press RETURN
button.
Changing Channels
OS D Lang uage En glish
Blu e Scre en
Ke y Lo ck Of f
Rese t
So ftwa re Upd ate( USB)
Of f
Asp ect Ratio 16 :9
OP TION
Move Menu En ter Exit
OK
Install TV Channels Automatically
1 .Press MENU on the Remote Control to display
the main Menu.
2. Press◄ or ►to locate the Channel Setting.
3. Press▼to highlight Auto Scan item.
4.press►to enter Auto Scan submenu.
5. Press MENU to return.
CHANNE L
Au to Tuning
ATV Manu al Tunin g
Pro gramm e Edi t
Move Menu Ente r Exit
OK
Ch ann el Tuning
TV : 5 Progr am me(s)
44%. .. 4 33.75M H Z (TV )
Menu
FAV
SLEE P
CH
Basic Operation of the TV
7
Page 18
16
Basic Operation of the TV
7
Press VOL +/- to adjust volume.
To turn off the volume, press MUTE.
To restore volume, press MUTE again, or press
VOL + directly.
1.Press MENU on the remote control to display the
main Menu.
The icons on the top of main menu stand for the
following five settings:CHANNEL/PICTURE/SOUND/
TIME/OPTION Settings (lt is subject to current source
model).
2. Press◄ or ►to locate your desired setting.
3. Press▲ or ▼to highlight an item need to adjust.
4. Press ◄ or ► to adjust the setting or Press
OK to enter submenu.
5. Press MENU to return.
To select the TV or other external input sources connected to
the TV.
1. Press the SOURCE button on the remote control.
2. Press ▲ or ▼ to select the required input source between
TV, AV,YPbPr, ,HDMI1, HDMI2 ,PC,Media1or Media 2.
3. To conrm the selection, press OK button to enter.
Adjusting the Volume
CHA NNE L
Au to Tun ing
ATV Manu al Tu ning
Pr og ram me Ed it
Move Men u En te r Exit
OK
Selecting the Input Source
Access to the On Screen Display Menu
PC
AV
Media1
Media2
Input Source
TV
YPbPr
Enter
OK
HDMI1
HDMI2
FAV
SLEE P
CH
Page 19
17
Channel setting
8
Item Function Operation Range
Auto Scan
Enter
Auto Scan,it shows the process of frequency
and the number of channels.
Press▲ or ▼to
highlight an
item, press OK
or
►
button to
enter
submen.
ATV Manual
Tuning
Enter
ATV Manual Tuning, and then select the
project which you need to change.
Programme Edit
Enter
Programme Edit, and then use the color
buttons on the remote control for editing.
(red for "delete" button, the green button to
"rename", yellow button for "move", a dark blue
button for "skip", "FAV" button can be set like
program)
CHANNEL
Aut o Tun ing
ATV Manua l Tun in g
Programme Edit
Move Menu Ent e r Exit
OK
Channel menu
Press MENU on the remote control to display the main Menu.
1. Press◄ or ►to select CHANNEL.
2. Press▲ or ▼to highlight an item, press OK button to enter submenu.
NOTE:CHANNEL can be only selected under ATV condition, others can’t be used.
Page 20
18
Move Menu Ent er Exit
Pict ure Mode Standa rd
Color Temperat ure Medium
Noise Red uctio n Middle
Cont rast 50
Brig h t ness 50
Color 50
Tint 50
Sha rpn e ss 50
Move Menu Ent er Exit
OK
Item Function Operation Range
Picture menu
Press MENU on the remote control to display the main Menu.
1. Press◄ or ►to select PICTURE.
2. Press▲ or ▼to highlight an item, press OK button to enter submenu.
Picture Setting
9
Picture mode Select your viewing preference from 4 options.
Press▲ or
▼to highlight
an item, press
OK or ◄►
button to enter
submenu.
• Dynamic
• User
• Standard
• Mild
Contrast Set contrast intensity. 0-100
Brightness Set overall brightness. 0-100
Color Set color intensity. 0-100
Tint
Adjust colors toward green or red tint.
Note: Tint is available to be adjusted only when
the system of the video signal is NTSC.
0-100
Sharpness Adjust the picture clarity. 0-100
Color
Temperature
Cycle among color temperture display modes:Cool/
Warm/Mediom.
Noise
Reduction
Select to reduce the noise level of connected
equipment:Off/Low/Middle/High.
Page 21
19
Sound Setting 10
Sound menu
SOUND
Sou n d Mod e St an dard
Balan ce 0
Aut o Volu me Of f
Tre ble 50
Bass 50
Move Menu Ent e r Exit
OK
Press MENU on the remote control to display the main Menu.
1. Press◄ or ►to select SOUND.
2. Press▲ or ▼to highlight an item, press OK button to enter submenu.
Item Function Operation Range
Sound mode
Selects a sound type when viewing programs or
videos that support multiple sounds.
* If you select the User mode,you can individually
set the Bass and Treble.
Press▲ or
▼to highlight
an item,
press OK
or ► button
to enter
submenu.
• Standard
• Music
• Movie
• Sports
• User
Treble
Navigate using the left right buttons to increase or
decrease high frequency intensity. 0-100
Bass
Navigate using the left right buttons to increase or
decrease low frequency intensity.
0-100
Balance
Adjusts the volume balance of the left or right
speaker .
-50~50
Auto Volume
To turn on/off AVC ( automatic volume control )
function.
Press ► to
adjustment.
On/Off
Page 22
20
Time setting
11
Time menu
Press MENU on the remote control to display the main Menu.
1. Press◄ or ►to select TIME.
2. Press▲ or ▼to highlight an item, press OK button to enter submenu.
Slee p Timer Off
OSD Timer 30s
Auto Sleep Off
TIME
Move
Menu
En t e r
Exit
OK
Item Function Operation Range
Sleep Timer
Closed or choose TV enters the sleep time, press the
right key to adjust: off / 10 min / 20min/30 min / 60 min
/ 90min/120min/180min/240min. Explains: the time is
set up to start to sleep time, the nal 30 seconds, the
system prompt "press any key to cancel", to conrm
whether conrm to shut down, at the same time, the
system automatically set it to off.
Press ► to
adjustment.
• Off
• 10min-
240min
Auto sleep
Select on, the TV will be automatically turned off, in
case of no signal in TV & input source or no remote
control input.
• Off
• 3H
• 4H
• 5H
OSD Timer
Allow selection of the display time of the on-screen
menu.
Page 23
21
Option menu
Option Setting
12
Press MENU on the remote control to display the main Menu.
1. Press◄ or ►to select OPTION.
2. Press▲ or ▼to highlight an item, press OK button to enter submenu.
OSD La n gua g e English
Blue Screen
Ke y Lock Of f
Reset
So f t ware Update(US B )
Off
Asp e ct Rat io 16:9
OP TION
Move Menu Ent e r Exit
OK
Item Function Operation Range
OSD
Language
Setup menu display language.
Press ◄
or ► to
Adjustment.
Aspect Ratio
Allow to select the option of Aspect Ratio: 4:3, 16:9,
Zoom1, Zoom2，full.
Blue Screen Select blue screen function on/off.
• On
• Off
Key Lock
Allow you to select the keylock to be On or Off.
When keylock’s condition is on, you can’t use the
key panel button.
• On
• Off
Reset Select Reset choose what you want.
Software
Update(USB)
For service use only.
Page 24
22
First press INPUT into multimedia channel, plug in USB storage device, the following picture
mark color, if blue say television has to recognize the USB, gray has said no to recognize.
After conrmed television to recognize USB storage devices, press ◄ or ►button to select photo/
music/movie/text, and press OK button to enter photo/music/movie/text operation basic same.
Media Play - USB Device
Multimedia
13
Pause
1. Press ◄ or ► to choose the sub-folder if necessary, then press OK to enter the folder. Press
OK button
to play, press the exit button to return back. Press OK button to select the up folder, and return to
the previous level menu, press ◄ or ► buttons to turn pages.
2. Press ►button to start playback or pause. Press button to stop playback.
3. Press button to play to the last item. Press
button to play to the next item.
Page 25
23
Multimedia
13
TYPE CONTAINER FILE EXTENSION
JPEG .jpg , .jpeg
BMP .bmp
PNG .png
MUSIC
MP3 .mp3
WMA .wma
AAC .aac,.M4A
VIDEO
AVI .avi
MP4, MOV .mp4, .mov
RM/RMVB .rm,.rmvb
TS,TRP .ts , .trp
MKV .mkv
DAT .dat
VOB .vob
TEXT
Text .txt
Precautions when using a USB device
• MTP (Media Transfer Protocol) is not supported.
• Max HDD capacity:500G.
• This unit supports only USB Flash Drive with FAT32 format. This TV is not guaranteed the USB
Flash Drive with other formats (such as FAT16 or NTFS).
• Certain types of USB Digital camera and audio devices may not be compatible with this TV.
Media only guarantees to support USB Flash Drive. Other devices such as ash card reader,
USB HDD, USB Digital Camera and audio devices may not be compatible with this TV.
• If a USB device requires high power (more than 500mA or 5V), the USB device may not be
supported.
• This TV is not supported the USB device with multiple partitions.
• Please connect directly to the USB port of your TV. If you are using a separate cable connection
or through a USB hub, there may be a USB compatibility problem.
•Before connecting your device to the TV, please back up your les to prevent them from damage
or loss of data. Any data le damage or data loss is at your own risk.
•The higher the resolution of the image, the longer it takes to display on the screen.
• How fast a USB device is detected differs from device to device.
• For unsupported or corrupted les, the "unsupported File" message is displayed.
• MP3 les with DRM that have been downloaded from a non-free site cannot be played. Digital
Rights Management (DRM) is a technology that supports the creation of content, the distribution
and management of the content in an integrated and comprehensive way, including the
protection of the rights and interests of the content providers, the prevention of the illegal
copying of contents, as well as managing billings and settlements.
• When moving to a photo, loading may take a few seconds. At this point, the loading icon will
appear at the screen.
• If USB card reader is connected, its volume may not be detected.
• If USB device does not function properly, please unplug and reconnect it.
• If verify whether the USB device is functioned properly with your PC.
Page 26
24
Problem Possible Solution
No power • Make sure the power cord is properly connected to the
LED TV AC power socket.
• Make sure the AC power cord is properly connected to the
wall outlet.
• Make sure the DC power button is ON (Blue LED).
• Plug another electrical device (like a radio) to the power
outlet to verify that the outlet is supplying the proper voltage.
No picture • The TV station may be experiencing problems. Try another
channel.
• The Cable TV signal may be scrambled or encoded. Please
contact your local cable operator.
• Make sure that connection to other components are correct
referring to the user guide.
• Make sure that setup has been done correctly after
connections.
• Make sure the correct input is selected and the input signal is
compatible.
Strange color, light color,
or color misalignment
• Ensure that the video cable is securely connected.
• The picture may appear dim in a brightly lit room.
• Adjust brightness, contrast, saturation (color), and tint
referring to the user guide.
• Check the input signal setting.
No sound • Check your audio connections are properly connected
referring to the user guide.
• The MUTE button may have been pressed, try pressing this
button again.
• Check your audio settings, your TV audio may be set to
minimum.
• Press the Volume + (Up) button on the remote control.
Troubleshooting
14
Page 27
25
Troubleshooting14
Problem Possible Solution
Remote control unit does
not operate
• Make sure the directions of batteries are inserted correctly
referring to the user guide.
• Batteries could be weak or dead. Replace with new batteries.
• Is a uorescent light illuminated near the remote control
sensor?
• The path of the remote control beam may be blocked. Make
sure the path is clear and that the remote control is aimed at
the remote control sensor on the TV.
• Press the POWER button on the remote control to see if you
can turn on the TV.
• Press MENU button on the remote control to see if there is a
MENU shown on the screen.
• Press only one button at a time and it is the correct one for
the operation you want to perform.
Unit cannot be operated • External inuences such as lightning or static electricity may
cause improper operation. In this case, operate the unit after
rst turning on the power of the LED TV and the AVC
System, or unplug the AC cord for 1 to 2 minutes, then
replug again.
Power is cut off suddenly • Is the sleep timer set in advance?
• Is there no signal in PC mode or HDMI mode?
• The internal temperature of the unit has increased. Remove
any objects blocking the vent or clean as necessary.
No CATV reception (or no
reception above CH13)
• Is the AIR/CABLE option set correctly? Please set the AIR/
CABLE option to CABLE referring to the user guide.
• CATV is connected improperly or not connected; please
check all the CATV connections.
• The cable TV service is interrupted; please contact your
cable operator.
Picture is cut off/with
sidebar screen
• Is the image positioned correctly?
• Are screen mode adjustments such as picture size set
correctly?
• Press WIDE button repeatedly on the remote control to see if
you can get the picture you prefer.
Page 28
26
Specication
15
Model 32D6545
Weight
net 5.20Kg±0.3
gross 6.7Kg±0.3
Dimensions
(W × H × D)
with stand 731.2×468.9 × 186.3
mm
without
stand
731.2 ×435.6 × 70.7
mm
Aspect ratio
16:9
Native resolution
1920x1080
Built-in speakers
8W × 2
Signal input
• HDMI × 2
• VGA × 1
• PC AUDIO × 1
• RF × 1
• YPbPr × 1
• AV IN ( CVBS/L/R) × 1
• USB × 2
Signal output
• EARPHONE× 1
• AV OUT× 1
Power supply
100-240V~, 50/60 Hz
Power consumption
65W (Max.)
Operating temperature
Temperature: 0°C ~ 40°C (at sea level)
Humidity: 20% ~80% non-condensing
Altitude: 0 meter to 2,000 meters above sea level
Storage temperature
Temperature: -20°C ~ +60°C (at sea level)
Humidity: 10% ~90% non-condensing
Altitude: 0 meter to 3,790.3 meters above sea level
Video systems
PAL,SECAM,NTSC
Design and specications are subject to change without notice.
