UP406
4-Line Office Phones
Deskset
User’s manual
Congratulations
on your purchase of this VTech product. Before using this product, please read
the Important safety information.
This user’s manual provides you with the complete installation, setup and
operation instructions.
For customer service or product information, visit our website at
businessphones.vtech.com or call 1 (800) 595-9511. In Canada, please dial
1 (800) 267-7377.
Model number: ErisBusinessSystem™ UP406
Type: 4-Line Office Phones Deskset
Serial number:
Purchase date:
Place of purchase:
Both the model and serial numbers of your VTech product can be found on the
bottom of the deskset.
Save your sales receipt and original packaging in case it is necessary to return
your telephone for warranty service.
Compatible with
Hearing Aid T-Coil
TIA-1083
ErisBusinessSystem™ is a trademark of VTech Communications, Inc.
Telephones identified with this logo have reduced noise and interference when
used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083
Compliant Logo is a trademark of the Telecommunications Industry Association.
Used under license.
T
Important safety information
This symbol is to alert you to important operating or servicing instructions that may appear
in this user’s manual. Always follow basic safety precautions when using this product to
reduce the risk of injury, fire, or electric shock.
Safety information
• Read and understand all instructions in the user’s manual. Observe all markings on
the product.
• Avoid using a telephone during a thunderstorm. There may be a slight chance of electric shock
from lightning.
• Do not use the telephone to report a gas leak in the vicinity of the leak. Under certain
circumstances, a spark may be created when the adapter is plugged into the power outlet, or
when the handset is replaced in its cradle. This is a common event associated with the closing
of any electrical circuit. The user should not plug the phone into a power outlet, and should
not put a charged handset into the cradle, if the phone is located in an environment containing
concentrations of flammable or flame-supporting gases, unless there is adequate ventilation. A
spark in such an environment could create a fire or explosion. Such environments might include:
medical use of oxygen without adequate ventilation; industrial gases (cleaning solvents; gasoline
vapors; etc.); a leak of natural gas; etc.
• Do not use this product near water, or when you are wet. For example, do not use it in a wet
basement or shower, or next to a swimming pool, bathtub, kitchen sink, or laundry tub. Do not
use liquids or aerosol sprays for cleaning. If the product comes in contact with any liquid, unplug
any line or power cord immediately. Do not plug the product back in until it has dried thoroughly.
• Install this product in a protected location where no one can trip over any line or power cords.
Protect cords from damage or abrasion.
• If this product does not operate normally, see the Troubleshooting section on pages 84-90 of this
user’s manual. If you cannot solve the problem, or if the product is damaged, refer to the Limited
warranty section on pages 94-95. Do not open this product except as directed in your user’s manual.
Opening the product or reassembling it incorrectly may expose you to hazardous voltages or
other risks.
• This power adapter is intended to be correctly oriented in a vertical or floor mount position. The
prongs are not designed to hold the plug in place if it is plugged into a ceiling, an under-the-table
or cabinet outlet.
Caution: Use only the power adapter provided with this product. To obtain a replacement,
visit our website at businessphones.vtech.com or call 1 (800) 595-9511. In Canada,
please dial 1 (800) 267-7377.
i
Important safety information
Especially about cordless telephones
• Electrical power: The telephone base must be connected to a working electrical outlet. The
electrical outlet should not be controlled by a wall switch. Calls cannot be made from the handset
if the telephone base is unplugged, switched off or if the electrical power
is interrupted.
• Power adapter: The power adapter is intended to be correctly oriented in a vertical or floor mount
position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling,
under-the-table or cabinet outlet.
Precautions for users of implanted cardiac pacemakers
Cardiac pacemakers (applies only to digital cordless telephones):
Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary
evaluation of the interference between portable wireless telephones and implanted cardiac
pacemakers. Supported by the U.S. Food and Drug Administration, WTR recommends to
physicians that:
Pacemaker patients
• Should keep wireless telephones at least six inches from the pacemaker.
• Should NOT place wireless telephones directly over the pacemaker, such as in a breast pocket,
when it is turned ON.
• Should use the wireless telephone at the ear opposite the pacemaker.
WTR’s evaluation did not identify any risk to bystanders with pacemakers from other persons using
wireless telephones.
Especially about telephone answering systems
Two-way recording: This unit does not sound warning beeps to inform the other party that the call is
being recorded. To ensure that you are in compliance with any federal or state regulations regarding
recording a telephone call, you should start the recording process and then inform the other party
that you are recording the conversation.
SAVE THESE INSTRUCTIONS
ii
Parts checklist
Your telephone package contains the following items. Save your sales receipt
and original packaging in the event warranty service is necessary.
Go to
businessphones.vtech.com
to register your product for
enhanced warranty support and
latest VTech product news.
Index ......................................................97
v
Getting started
Deskset overview
CALL HISTORY
• Press to view caller ID
information (page 65).
DELETE
• While playing a message,
press to delete the message
(page 77).
• While reviewing the caller ID
information, press to delete
an individual entry (page 68).
• While predialing, press to
delete digits (page 38).
MENU/SELECT
• Press to enter the menu.
• While in the menu, press to
select an item or save an
entry or setting.
MESSAGE WAITING
indicator
• Flashes when there are
new messages in the
private mailbox (page 76).
ANS SYS
• Press to enter the
answering system menu.
LINE 1-LINE 4 keys
• Press to make or answer
a call on the desired line
(pages 37-38).
CANCEL
• While in a menu, press to
cancel an operation and
exit the menu display.
DIRECTORY
• Press to view directory
information (page 58).

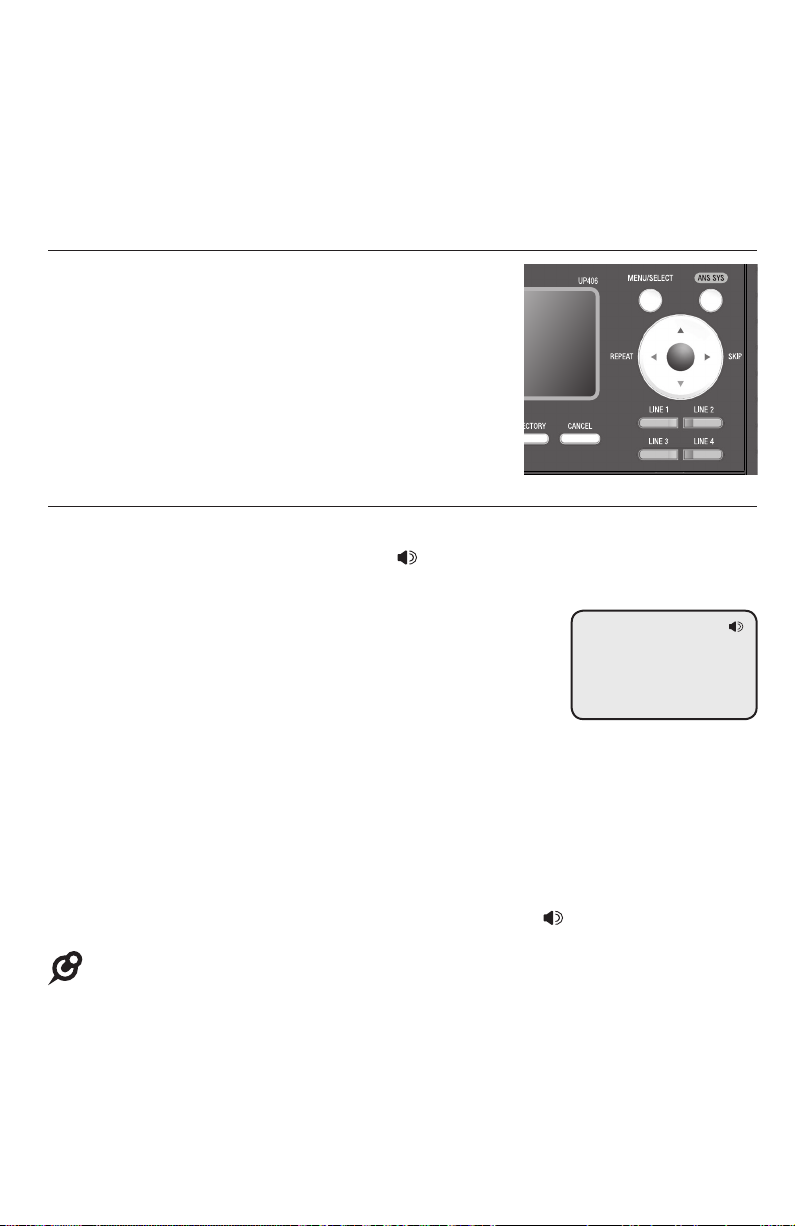

Navigation keys
• While in menus, press or to scroll through the menus, highlight
items or change settings. Press /SKIP to enter the selected item, or
press /REPEAT to return to the previous menu.
• While entering names or numbers, press /REPEAT or /SKIP to
move the cursor to the left or right.
• While playing back messages, press /REPEAT to repeat the
message, or press /SKIP to skip to the next message.
1
Getting started
Deskset overview
One-touch keys
• Press to dial the desired
one-touch number (page 54).
Directory card
To write names on the directory
card, follow the steps below:
1. Pull out the directory card.
2. Write the information on the
directory card.
3. Replace the directory card
under the plastic cover.
SPEAKER
• Press to turn on the
speakerphone. Press again
to turn it off (page 38).
MIC
FLASH
• During a call, press to
answer an incoming call
when you receive a call
waiting alert (page 39).
HOLD
• Press to place an
outside call on hold
(page 40).
INTERCOM
• When in idle mode,
press to initiate an
intercom call (page 50).
MUTE
• During a call, press to
mute the microphone
(page 39).
HEADSET
• When a corded headset
is connected to the
deskset, press to make,
answer or hang up a
call (page 38).
TRANSFER
• Press to transfer a call to an
extension (pages 51 and 52).
CONFERENCE
• Press to add another
extension or outside line to
an existing call
(pages 47-49).
AUTO REDIAL
• Press to view the last
10 numbers dialed
(page 44 and page 46).
p/VOLUME/q
• During a call, press to
adjust the listening volume
(page 39).
• During message playback,
press to adjust the playback
volume (page 77).
• Press to adjust the ringer
volume when in idle mode
(page 30).
LOWER
• When assigning or dialing a one-touch
number, press to switch to the lower
location (the second 16 locations) of a
2
one-touch key (pages 53-55).
Getting started
Deskset overview
Main menu
The > symbol highlights a menu item.
Main menu
>Ringers
Set Date/Time
One Touch
Phone Settings
• Ringers (page 30)
• Set Date/Time (page 31)
• One Touch (pages 53-54)
• Phone Settings (pages 30-36)
• System Setup (pages 24-29)
• Registration (pages 20-22)
• Customer Support (page 36)
Using menus
• Press MENU/SELECT to show the main menu.
• Press or to scroll through menu items.
• Press MENU/SELECT or /SKIP to select a
highlighted menu item.
• Press MENU/SELECT to save changes.
• Press CANCEL to cancel an operation, exit the
menu display or return to the idle screen.
3
Getting started
Deskset icon display
L1 L2 L3 L4
MUTE
PRIV
REC
MB
NEW
Telephone lines - On when this deskset is selected under the
corresponding line group setting.
Ringer off - On steadily when the ringer volume is set to OFF .
Headset - On steadily when using a corded headset.
Speakerphone - On steadily when using the speakerphone.
Mute - Microphone is muted.
Call privacy - On steadily when the call privacy feature is set to On.
Record a call - On steadily when recording a call.
New private mailbox message - New message in the private mailbox.
Private mailbox on - The private mailbox is turned on.
New caller ID log - Missed and new calls.
4
Getting started
Alert tones and lights
Alert tones
One beepYou have set the hold reminder on.
-OR-
The telephone is recording a memo.
-OR-
You have set the message alert tone on.
-OR-
There is an incoming call waiting.
Lights
LINE 1/LINE 2/LINE 3/LINE 4
• On when a telephone line is in
use.
• Flashes when the telephone line
is on hold.
• Flashes quickly when there is an
incoming call or a transfer call.
Large lighted display
INTERCOM
• On when the deskset
is on an intercom call.
• Flashes when there
is an incoming
intercom call.
MUTE
• On with the
microphone is muted.
HEADSET
• On when the corded
headset is in use.
MESSAGE WAITING
• Flashes when there
are new private
messages.
ANS SYS
• On when the private
mailbox is on.
• Flashes when the
answering system is
playing or recording
announcements or
messages.
HOLD
• On when a telephone
line is on hold.
SPEAKER
• On when the
speakerphone is on.
5
Getting started
Introduction
This UP406 deskset is not a stand-alone telephone. You must purchase
the UP416 console and connect this telephone to the console before use.
This system is not compatible with any other VTech 4 line business telephones,
except for the UP416 console and UP407 handset.
The UP406 deskset is hearing-aid compatible and can be connected to
the console via an Ethernet switch or router. This telephone features a
speakerphone for handsfree use and a headset jack compatible with most twoband 2.5mm corded headsets (sold separately).
There are two network ports, known as the Ethernet port and PC port, at the
back of the deskset The Ethernet port allows the UP406 deskset to connect
with the UP416 console via an Ethernet switch or router. The PC port is for
another device such as a personal computer to connect to the Ethernet network
through this deskset.
The UP406 deskset supports intercom and call transfers between
system extensions and is capable of connecting five parties on the same
conference call.
This telephone also features a 32-number one- and two-touch memory for
faster dialing and has a directory that can store up to 50 additional numbers
with names. This telephone has a caller ID feature that supports caller ID with
call waiting service. Caller ID services are subscriber services available from
many telephone service providers for a fee. The telephone can store up to 200
caller ID entries.
Your UP406 deskset also features a built-in digital answering system with a
private mailbox. You can access the private mailbox from a non-system touchtone telephone. For details, see the Answering system operation section
(pages 76-78). This user’s manual contains detailed instructions for using your
UP406 deskset. Please read this user’s manual before using this telephone.
6
Getting started
Planning your system
The UP406 package includes only the deskset. It is not a stand-alone
telephone and requires connection with UP416 console through Ethernet
network (see diagram below) to function. You can also purchase UP407
cordless handset or IS6100 cordless headset to expand your system.
To order them, visit our website at businessphones.vtech.com or call
1 (800) 595-9511. In Canada, dial 1 (800) 267-7377.
You must install and set up UP416 console first before expanding your
system with this UP406 deskset.
Make sure you connect the console and all desksets to the Ethernet
network. You can use the existing Ethernet wall jack to which your
computer is already connected, or set up a new network.
IS6100 cordless headset
Ethernet switch/Router
(up to 15 stations)
UP407
cordless
handset
Phone lines
1((
+06
%#0%'.
1((
+06
%#0%'.
UP407
cordless
handset
UP416 console
1((
+06
%#0%'.
UP407
cordless
handset
UP406 deskset
IS6100 cordless headset
IS6100 cordless headset
NOTES:
• Make sure you connect only one telephone system to the desired telephone lines.
• You can have only one console in a system.
• You can register only one UP407 cordless handset and one VTech IS6100 cordless headset to an
UP406 deskset. For optimal performance, make sure you do not register more than five cordless
accessories. More cordless accesossies still work, but you might experience degradation in various
performances.
• When a deskset has cordless accessories, the cordless accessories are all part of the same
extension. Only one device with the same extension can be used at a time.
• You must have telephone jacks and an electrical outlet not controlled by a wall switch near where you
are installing the phone.
• Make sure you assign a unique extension number to each individual phone in your telephone system.
See Set extension number on page 24.
7
Use onlySupplied Adapter
L4L3/4L2L1/2
5.1
Use onlySupplied Adapter
Use onlySupplied Adapter
L4L3/4L2L1/2
5.1
Use onlySupplied Adapter
Getting started
Planning your system
Use the existing Ethernet wall jack:
Use the PC port on the deskset as an Internet pass-through.
1. Unplug your Ethernet cable of your computer from the existing Ethernet wall
jack.
2. Plug one end of the Ethernet cable into the Ethernet port (
the deskset and the other end into the Ethernet wall jack.
3. Connect your computer to the Ethernet network through the PC port (
the deskset.
) at the back of
) of
Use only
Supplied
Adapter
NOTES:
• The PC port does not function when there is no power connected to this deskset.
• This telephone system does not support Power over Ethernet (PoE).
• If you are using the Gigabit system, the connection speed of your computer will be slower.
Set up a new network:
Contact your technical support for the Ethernet network setup.
Make sure your Ethernet switch or router has enough slots to accommodate
the console, each deskset and your computers.
8
Getting started
Installation
Install the deskset close to the Ethernet switch or router connected to the UP416
console and a power outlet not controlled by a wall switch. The deskset can be
placed on a flat surface or vertically mounted on the wall (pages 16-19). For optimum
range and better reception, place the deskset in a central and open location.
Your product may be shipped with a protective sticker covering the deskset display,
remove it before use.
For customer service or product information, visit our website at
businessphones.vtech.com or call 1 (800) 595-9511. In Canada, dial
1 (800) 267-7377.
Avoid placing the deskset too close to:
• Communication devices such as television sets, VCRs, or other cordless telephones.
• Excessive heat sources.
• Noise sources such as a window with traffic outside, motors, microwave ovens,
refrigerators, or fluorescent lighting.
• Excessive dust sources such as a workshop or garage.
• Excessive moisture.
• Extremely low temperature.
• Mechanical vibration or shock such as on top of a washing machine or
work bench.
9
Getting started
Deskset installation
• This is not a stand-alone telephone. Make sure you have completed
the installation and basic setup of the UP416 console, before you
proceed with the installation of your deskset.
•Do not power up the deskset until you have plugged in the Ethernet
cable as instructed in step 4.
•The power adapter is intended to be correctly oriented in a vertical
or floor mount position. The prongs are not designed to hold the
plug in place if it is plugged into a ceiling, under-the-table or cabinet
outlet.
1. Plug the end of the coiled handset cord into the
jack on the left side of the telephone.
2. Lift the kickstand as the arrow indicates below to release it from the groove.
There are seven pairs of grooves designed to hold the deskset at different
angles for optimum visibility.
3. Snap the kickstand into the desired grooves until it locks into place.
10
Getting started
Use onlySupplied Adapter
L4L3/4L2L1/2
5.1
Use onlySupplied Adapter
Deskset installation
4. Connect the Ethernet cable and power adapter as shown below.
NOTES:
• Use only the power adapter supplied with this product. To order a replacement power adapter,
visit our website at businessphones.vtech.com or call 1 (800) 595-9511. In Canada, please
dial 1 (800) 267-7377.
• If you want to use an occupied Ethernet wall jack, use the PC port on the deskset as an Internet pass-
through. For details, see Use the existing Ethernet wall jack on page 8.
Plug the other end of the
Ethernet cable into the
6
Plug the large end
of the deskset
power adapter into
an electrical outlet
not controlled by a
wall switch.
Ethernet switch or router
connecting to your console.
Ethernet switch/
Router
Router
Route the power
cord through the
slots.
Plug the small end
of the deskset power
adapter into the power
jack at the back of the
deskset.
11
Route the Ethernet
cable through the
slots.
Plug one end of the
Ethernet cable into the
Ethernet port (
) at the
back of the deskset.
Getting started
Deskset installation (auto set IP)
After the deskset is powered up, it takes at least one minute for the deskset
to start up the system and the screen displays booting.... during startup.
The deskset is set to obtain IP address automatically by default. The screen
displays Obtaining IP from DHCP server Please wait... when the deskset
is obtaining IP from the Ethernet switch or router. When an IP is obtained, the
screen displays IP obtained: XXX.XXX.X.XXX Press SELECT to proceed.
If the deskset cannot obtain the IP address automatically, it displays No IP assigned. Check network. and then the Network setup menu. You may need
to enter the IP address manually under the Set static IP menu. See To set
static IP when initially setting up the deskset section (page 14) for details.
To connect the deskset to the UP416 console:
1. When the deskset displays IP obtained: XXX.
XXX.X.XXX Press SELECT to proceed, press
MENU/SELECT.
2. The deskset displays Enter the name of the
Console connecting to this phone. Press
MENU/SELECT.
3. The deskset displays Console’s name. The console’s
name is set as Console by default. If you have
changed your console’s name, enter the same name
using dialing keys on the deskset. Otherwise, skip to
step 4 to continue.
• Press DELETE to delete a character.
• Press /REPEAT or /SKIP to move the cursor left
or right.
• Press 0 to add a space.
When you finish editing, press MENU/SELECT to save.
4. The deskset screen displays Please set an
extension number to this phone. Press
MENU/SELECT to continue.
5. Press /REPEAT or /SKIP to choose the desired
extension number. The extension number ranges from
11 to 26. Press MENU/SELECT to continue.
(Continued on next page)
IP obtained:
XXX.XXX.X.XXX
Press SELECT
to proceed
Enter the name
of the Console
connecting to
this phone
Console’s name
Console_
Please set an
extension number
to this phone.
Set Ext No.
12
12
Getting started
Deskset installation (auto set IP)
6. The deskset screen displays Connecting to Console... It takes up to 60
seconds to complete the connection. The screen displays Connected to Console (Console represents the name of the console) when the
connection is successful.
• If the deskset displays Please check: 1. Console’s name and network
info 2. Ethernet, make sure you enter your console’s name correctly and
the Ethernet switch or router is installed properly. Repeat steps 3-5 above
to connect to console again.
7. The deskset displays Starting... It takes a while
for the system to finish the startup and the deskset
enters idle screen when the startup is done.
8. Lift the handset. If you hear a dial tone, the
installation was successful.
NOTES:
• If the connection is not successful, the deskset returns to the previous screen. Try the connection
process again.
• Make sure you assign a unique extension number to the deskset.
• If you want to replace a deskset and keep the same extension number, release its extension number
after disconnected from the console. See Release extension number in the online complete user’s
manual of your UP416 console.
Starting...
13
Getting started
Deskset installation (set static IP)
To set static IP when initially setting up the deskset:
Instructions on this page are for users to enter static IP to set up the
deskset, due to a failure in obtaining IP from the Ethernet switch or
router automatically. If you have successfully obtained the IP from your
Ethernet switch or router, you do not need to perform the steps below.
1. If the deskset cannot obtain an IP address from the Ethernet switch or router
after you power it up, the screen displays No IP obtained. Check network,
then displays the network setup menu.
2. Press or to scroll to Set static IP, then press MENU/SELECT.
3. The screen displays Enter static IP Use the dialing keys to enter a
specific IP.
• Press DELETE to delete a character.
• Press # to add a dot.
• Press /REPEAT or /SKIP to move the cursor to the left or right.
When entering a specific IP, make sure the IP range is not blocked by the
Ethernet switch or router. If you are installing more than one deskset in the
system, keep the first three sets of digits consistent and the last one different
among different desksets. For example, if you enter 192.168.1.1 as the static
IP of the first deskset, make sure the first three sets of digits are also set as
192.168.1 in other system desksets.
4. Press MENU/SELECT. The screen displays Subnet mask: Use the dialing
keys to enter a specific subnet mask.
• Press DELETE to delete a character.
• Press # to add a dot.
• Press /REPEAT or /SKIP to move the cursor to the left or right.
5. Press MENU/SELECT. The screen displays Router/Gateway: Use the dialing
keys to enter a specific gateway.
• Press DELETE to delete a character.
• Press # to add a dot.
• Press /REPEAT or /SKIP to move the cursor to the left or right.
6. Press MENU/SELECT to save. The screen displays IP obtained: XXX.
XXX.X.XXX Press SELECT to proceed, press MENU/SELECT.
7. The deskset displays Enter the name of the Console connecting to this
phone. Press MENU/SELECT.
(Continued on next page)
14
Getting started
Deskset installation (set static IP)
8. The deskset displays Console’s name. The console’s name is set as
Console by default. If you have changed your console’s name, enter the
same name using dialing keys on the deskset. Otherwise, skip to step 9 to
continue.
• Press DELETE to delete a character.
• Press /REPEAT or /SKIP to move the cursor left or right.
• Press 0 to add a space.
When you finish editing, press MENU/SELECT to save.
9. The deskset screen displays Please set an extension number to this phone. Press MENU/SELECT to continue.
10. Press /REPEAT or /SKIP to choose the desired extension number. The
extension number ranges from 11 to 26. Press MENU/SELECT to continue.
11. The deskset screen displays Connecting to Console... It takes up to 60
seconds to complete the connection. The screen displays Connected to Console (Console represents the name of the console) when the
connection is successful.
• If the deskset displays Please check: 1. Console’s name and network
info 2. Ethernet, make sure you enter your console’s name correctly
and the Ethernet switch or router is installed properly. Repeat steps 3-5
above to connect to console again.
12. The deskset displays Starting... It takes a while for the system to finish the
startup and the deskset enters idle screen when the startup is done.
13. Lift the handset. If you hear a dial tone, the installation was successful.
NOTE: Make sure the static IP you entered is not occupied by other network devices. You can
check the occupied IP addresses occupied in your router menu.
15
Getting started
Wall mount installation
To mount the deskset on the wall
1. Unplug the power adapter from the power outlet. Unplug the Ethernet cable
from the Ethernet switch or router.
2. Put the corded handset aside. Use a coin to rotate the handset tab 180
degrees. The protruding edge holds the corded handset when the phone is
mounted on the wall.
Protruding edge
Handset tab
3. Lift the kickstand as indicated by the arrows below to release it from the
grooves.
16
Getting started
Wall mount installation
4. Snap the kickstand into the outermost grooves until it locks into place.
5. Install the wall mount bracket to the deskset as shown below. Insert the
upper tabs of the mounting bracket into the upper slots at the back of the
deskset. Press the lower tabs of the mounting bracket into the lower slots at
the back of the deskset until they lock into place.
17
Getting started
Wall mount installation
6. Connect the Ethernet cable to the Ethernet network that your console is
connected to. Plug the power adapter into an electrical outlet not controlled
by a wall switch.
Standard wall plate
Ethernet switch/
RouterRouter
Router
7. Align the upper wall mounting hole on the back of the deskset with the upper
tab of the standard wall plate. Make sure the lower wall mounting hole on the
mounting bracket also aligns with the lower tab of the standard wall plate.
Push the deskset down until it clicks securely in place.
8. Bundle the Ethernet cable and power adapter cord neatly with twist ties.
18
Getting started
Wall mount installation
Wall mount to tabletop installation
To change the deskset from the wall mount position to tabletop position, follow
the steps below.
1. If the Ethernet cable and power adapter cord are bundled, untie them first.
2. Push the deskset up to remove it from wall. Unplug the Ethernet cable from
the Ethernet switch or router and the power adapter from the power outlet.
3. See Deskset installation section on pages 10-11.
19
Getting started
Adding and registering a cordless handset
You can add a new handset (UP407, purchased separately) to your deskset. The
cordless handset must be registered with the UP406 deskset before use. When first
purchased, the expansion handset shows Choose Handset in Registration at
base menu. And put handset on cradle to register.
Make sure the cordless handset is properly installed before you begin registration.
Refer to the user’s manual of the cordless handset for details. If the handset does
not have enough power to proceed with the registration, you need to charge the
new handset for at least five minutes.
To register an UP407 cordless handset to your UP406 deskset
NOTE: Register each cordless handset or headset separately.
1. Make sure the cordless handset is out of the
charger and the screen shows Choose Handset in
Registration at base menu. And put handset on
cradle to register.
2. On the UP406 deskset, press MENU/SELECT.
3. Press or to scroll to Registration and press
MENU/SELECT or /SKIP.
4. Press MENU/SELECT again or press /SKIP to select
Handset. The deskset screen shows Registering
handset... (Put handset on cradle to start).
5. Place the unregistered cordless handset into the
charger. The handset screen displays Registering... Please wait. The handset beeps once and begins
registering to the UP406 deskset. It takes up to 60
seconds to complete the registration. When the
registration is successful, the UP406 deskset shows
Handset registered and then the handset shows
Ext Handset.
6. Lift the handset, then press the desired line key (LINE 1-LINE 4). If you hear
a dial tone, the registration was successful.
One Touch
Phone Settings
System setup
>Registration
Registration
>Handset
DECT Headset
Deregistration
Registering
handset...
(Put handset on
cradle to start)
If the registration is not successful, the UP406 deskset returns to the previous
screen. To reset the handset, remove the handset from the cradle. Wait for about
two minutes, then try the registration process again.
20
Getting started
Adding and registering a cordless headset
You can use this deskset handsfree when you register a DECT 6.0 cordless
headset (IS6100, purchased separately) to the deskset. You can only register
one cordless headset to the deskset. Make sure the headset is charged before
use. Refer to the user’s manual of the cordless headset for details.
Place the headset in the headset charger and note the color of the button.
If the button flashes in blue and red alternately, the headset is unregistered.
If the button shows a constant red light (charging) or a constant blue light (fully
charged), the headset is registered to other deivce. Deregister the headset
before you register it to the deskset. See the deregistration instructions in the
user’s manual of the telephone to which it is currently registered.
To register an IS6100 cordless headset to your UP406 deskset
NOTE: Register each cordless handset or headset separately.
1. Place the headset in the headset charger and allow
it to charge for at least five minutes before beginning
registration. Make sure the headset is out of the
headset charger before you begin registration.
2. On the UP406 deskset, press MENU/SELECT.
3. Press or to scroll to Registration and press
MENU/SELECT or /SKIP.
4. Press or to scroll to DECT Headset, then
press MENU/SELECT or /SKIP. The UP406 deskset
shows Registering DECT Headset... (Put DECT headset in charger) It takes up to 60 seconds to
complete the registration.
5. Place the headset into the cradle. The UP406
deskset shows DECT Headset registered when the
registration is successful.
6. Lift the headset, then press on the headset. If you hear a dial tone,
the registration was successful.
If there is no dial tone, or the light on the headset flashes blue and red
alternately, the registration was not successful. Remove the headset from
the headset charger. Wait for about two minutes, then repeat the registration
process again, starting with Step 2 above.
One Touch
Phone Settings
System setup
>Registration
Registration
Handset
>DECT Headset
Deregistration
Registering
DECT Headset...
(Put DECT headset
in charger)
21
Getting started
Deregistering cordless handset and cordless headset
If you have a registered handset and/or headset, and need to replace one of
them or both, you will have to deregister both devices first, then register each
device to the deskset separately. Please read all the instructions on this
page before beginning the deregistration process.
Please make sure the telephone system is not in use before deregistration.
To deregister the cordless handset and headset from the UP406
deskset
1. On the deskset, press MENU/SELECT.
2. Press or to scroll to Registration and press
MENU/SELECT or /SKIP.
3. Press or to scroll to Deregistration and press
MENU/SELECT or /SKIP.
4. The deskset screen shows Deregister all devices? Press ‘SELECT’ to confirm. Press MENU/SELECT
to confirm.
5. The process takes up to 10 seconds to complete.
The deskset shows Handset deregistered. DECT Headset deregistered. when the deregistration is
successful. The deskset returns to the Registration
menu. To return to the idle screen, press
CANCEL twice.
One Touch
Phone Settings
System setup
>Registration
Registration
Handset
DECT Headset
>Deregistration
Deregister
all devices?
Press ‘SELECT’
to confirm
NOTES:
• To register a cordless handset again, refer to the registration information on page 20.
• To register a cordless headset again, refer to the registration information on page 21.
22
Getting started
Adding a corded headset
You can use this telephone handsfree when you install any industry-standard
Plug a 2.5 mm headset into
the HEADSET (
the side of the deskset.
) jack on
NOTE: The HEADSET button on the deskset controls only the corded headset. For more
details on the operation of the corded headset, refer to the user’s manual of the corded headset.
23
Getting started
System setup
Menu settings
Use this menu to change the telephone system settings.
1. Press MENU/SELECT when in idle mode (when the deskset is not in use) to
enter the main menu.
2. Press or to scroll to the feature to be changed. The > symbol indicates
the selected menu item.
3. Press MENU/SELECT or /SKIP to select the menu item.
4. Press CANCEL to exit setup without making changes.
NOTE: Press CANCEL to cancel an operation, exit the menu display, or return to idle mode.
Set extension number
Each individual phone (console or deskset) in the telephone system MUST
be assigned a unique extension number for the intercom feature to work. The
assignment is done when the deskset is initially setup.
To change the extension number:
1. When the telephone is idle, press MENU/SELECT.
2. Press or to scroll to System Setup, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Set Ext No., then press
MENU/SELECT or /SKIP.
4. The screen displays Set Ext No. Press /REPEAT or
/SKIP to choose the desired extension number
(11-26).
5. Press MENU/SELECT to save the setting and return to
the previous menu. To exit without making changes,
press CANCEL.
6. You have to release the old extension number from the
console to make it available for other desksets. See
Release extension number in the user’s manual of
the UP416 console for more details.
One Touch
Phone Settings
>System Setup
Registration
System Setup
>Set Ext No.
Prime Line
Network Setup
Set Ext No.
11
NOTES:
• If you want to assign an extension number that is already being used, see Release extension
number on UP416 console user’s manual to replace the number.
• If the console this deskset is connected to has been reset to default, you will need to assign the
extension number of the deskset again.
24
Getting started
System setup
Prime line
Use this feature, also known as automatic line selection, to choose which line is
automatically selected each time you make an outside call. If you select Auto,
the deskset picks up any plugged telephone line starting from Line 1.
To set the prime line:
1. When the telephone is idle, press MENU/SELECT.
2. Press or to scroll to System Setup, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Prime Line, then press
MENU/SELECT or /SKIP.
4. Press or to choose the desired line, then press
MENU/SELECT or /SKIP. To exit without making
changes, press CANCEL.
NOTE: If you install less than four telephone line cords to the
UP416 console and select Auto as your Prime line setting, make
sure you plug in your telephone line cords starting from L1/2 jack.
Avoid having any unoccupied telephone jack between other
occupied telephone jacks.
One Touch
Phone Settings
>System Setup
Registration
System Setup
Set Ext No.
>Prime Line
Network Setup
Prime Line
Line 3
Line 4
>Auto
25
Getting started
System setup
Network setup
The deskset must have an IP address locating its connection with the Ethernet
switch or router. You can set the deskset to obtain IP from a DHCP server
automatically or assign a specific IP on your own. The deskset obtains IP from
the Ethernet switch or router automatically by default.
To enable the Auto set IP:
1. When the deskset is idle, press MENU/SELECT.
2. Press or to scroll to System Setup, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Network Setup, then press
MENU/SELECT or /SKIP.
4. Press or to scroll to Auto set IP, then press
MENU/SELECT or /SKIP.
5. Press or to scroll to Yes, then press MENU/SELECT
or /SKIP.
6. The screen displays Obtain IP from DHCP server?
Press MENU/SELECT to save the setting.
7. The screen displays Obtaining IP from DHCP server Please wait... The process takes up to one minute.
8. The screen displays IP obtained: XXX.XXX.X.XXX Check network info? when the IP is successfully
assigned. Press MENU/SELECT to read the network info,
or press CANCEL to return to the previous menu.
• If the system fails to assign an IP automatically, the
screen displays Unable to obtain IP. Please check
DHCP server. briefly, and then Set static IP to this
extension? You may press MENU/SELECT to enter the
Static IP setting menu.
9. Reboot the deskset to update the IP.
One Touch
Phone Settings
>System Setup
Registration
System Setup
Set Ext No.
Prime Line
>Network Setup
Network Setup
>Auto set IP
Set static IP
Discovery Method
Auto set IP
>Yes
No
Obtain IP from
DHCP server?
26
IP obtained:
192.168.1.103
Check
network info?
Getting started
System setup
Network setup (continued)
If you want to switch from Auto set IP to Set static IP, you have to disable the Auto
set IP setting first.
To disable the Auto set IP:
1. When the deskset is idle, press MENU/SELECT.
2. Press or to scroll to System Setup, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Network Setup, then press
MENU/SELECT or /SKIP.
4. Press or to scroll to Auto set IP, then press
MENU/SELECT or /SKIP.
5. Press or to scroll to No, then press MENU/SELECT or /SKIP to save the
setting. To exit without making changes, press CANCEL.
To enable the Static IP:
1. When the deskset is idle, press MENU/SELECT.
2. Press or to scroll to System Setup, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Network Setup, then press
MENU/SELECT or /SKIP.
4. Press or to scroll to Set static IP, then press
MENU/SELECT or /SKIP.
5. The screen displays Enter static IP. Use the dialing keys
to enter a specific IP.
• Press DELETE to delete a digit.
• Press # to add a dot.
• Press /REPEAT or /SKIP to move the cursor to
the left or right.
When entering a specific IP, make sure the IP range is not blocked by the
Ethernet switch or router. If you are installing more than one deskset in the
system, keep the first three sets of digits consistent and the last one different
among different desksets. For example, if you enter 192.168.1.1 as the static
IP of the first deskset, make sure the first three sets of digits are also set as
192.168.1 in other system desksets.
6. Press MENU/SELECT to proceed. The screen displays Subnet mask: XXX.XXX.X.X. Use the dialing keys to enter a specific subnet mask.
• Press DELETE to delete a digit.
• Press # to add a dot.
• Press /REPEAT or /SKIP to move the cursor to the left or right.
Auto Set IP
Yes
>No
Network Setup
Auto set IP
>Set static IP
Discovery Method
Enter static IP
192.168.1._
<’#’ = Add dot>
Subnet mask:
255.255.0._
<’#’ = Add dot>
27
Getting started
System setup
Network setup (continued)
7. Press MENU/SELECT to proceed. The screen displays Router/Gateway: XXX.XXX.X.XXX. Use the dialing
keys to enter a specific gateway.
• Press DELETE to delete a digit.
• Press # to add a dot.
• Press /REPEAT or /SKIP to move the cursor to
the left or right.
8. Press MENU/SELECT to save. The screen displays IP obtained: XXX.XXX.X.XXX Check network info?
Press MENU/SELECT to read the network info, or press CANCEL to return to the main menu.
• If the IP entered is invalid, the screen displays
IP is invalid. briefly, and then returns to the
Enter static IP screen.
9. Reboot the deskset to update the IP.
Discovery method
Use this feature to change the connection mode of the deskset when you
changed to a different Ethernet switch or router. By default, the discovery
method is set to Mode B.
Router/Gateway:
192.168.1._
<’#’ = Add dot>
IP obtained:
192.168.1.3
Check
network info?
To change the discovery method:
1. When the deskset is idle, press MENU/SELECT.
2. Press or to scroll to System Setup, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Network Setup, then press
MENU/SELECT or /SKIP.
4. Press or to scroll to Discovery method, then
press MENU/SELECT or /SKIP.
5. Press or to scroll between Mode A or
Mode B (Default), then press MENU/SELECT or
/SKIP to save the setting. To exit without making
changes, press CANCEL.
28
Network Setup
Auto set IP
Set static IP
>Discovery Method
Discovery Method
Mode A
>Mode B (Default)
Getting started
System setup
Network info
Use this feature to view the information of the IP address, subnet mask, router/
gateway, DNS servers and DHCP server of the deskset.
To check the network information:
1. When the deskset is idle, press MENU/SELECT.
2. Press or to scroll to System Setup, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Network Info, then press
MENU/SELECT or /SKIP.
4. Press or to browse through the
network information.
Network Info
IP address:
192.168.1.3
Subnet mask:
Network Info
Subnet mask:
255.255.255.0
Router/Gateway:
Network Info
Router/Gateway:
192.168.1.1
DNS servers:
29
Telephone settings
Telephone setup
Ringer volume
Use this feature to set the ringer volume to one of six levels or turn the ringer off.
When the ringer is off, the icon appears on the deskset screen. The UP406
deskset stores the volume setting for all lines.
1. When the deskset is idle, press MENU/SELECT.
2. Press MENU/SELECT again or press /SKIP to select
Ringers.
3. Press MENU/SELECT again or press /SKIP to select
Ringer Volume.
4. Press , , /REPEAT, /SKIP, or /VOLUME/
on the deskset to adjust the ringer volume.
5. Press MENU/SELECT to save the setting and return to
the previous menu. To exit without making changes,
press CANCEL.
>Ringers
Set Date/Time
One Touch
Phone Settings
Ringers
>Ringer Volume
Ringer Tone
-OR-
Volume
When the deskset is idle, press /VOLUME/ to adjust
the ringer volume, then press MENU/SELECT to save.
NOTE: The ringer volume also determines the ringer volume for intercom calls. If the deskset
ringer volume is set to off, it is silenced for all incoming calls, including intercom calls.
Ringer tone
Use this feature to choose one of the ten ringer tones for incoming calls. You
can choose different ringer tones for different lines so you can easily identify
which line is calling.
1. When the deskset is idle, press MENU/SELECT.
2. Press MENU/SELECT again or press /SKIP to select
Ringers.
3. Press or to scroll to Ringer Tone, then press
MENU/SELECT or /SKIP.
4. Press or to select the desired line (Line 1,
Line 2, Line 3 or Line 4), then press MENU/SELECT
or /SKIP.
5. Press or to select a desired ringer tone.
6. Press MENU/SELECT to save the setting and return to
the previous menu. To exit without making changes,
press CANCEL or /REPEAT.
7. Repeat steps 4-6 above to choose ringer tones for
other lines if desired.
Ringers
Ringer Volume
>Ringer Tone
Ringer Tone
>Line 1
Line 2
Line 3
Line 1
>Tone 1
Tone 2
Tone 3
30
Telephone settings
Telephone setup
Set date/time
The answering system displays the date and time of the message while playing
messages. Before using the answering system, set the date and time as
follows.
Follow the steps below to set the month, day, year
and time:
1. When the deskset is idle, press MENU/SELECT.
2. Press or to scroll to Set Date/Time, then press
MENU/SELECT or /SKIP.
3. Use the dialing keys to enter the month (MM), day (DD)
and year (YY). Press /REPEAT or /SKIP to scroll
between month, day and year.
4. Press MENU/SELECT to move to the time setting.
5. Use the dialing keys to enter the hour and minute.
6. Press /REPEAT or /SKIP to select AM or PM.
7. Press MENU/SELECT to save the setting and return to the
previous menu. To exit without making changes, press
CANCEL.
Ringers
>Set Date/Time
One Touch
Phone Settings
Set Date
01/01/14
MM/DD/YY
Set Time
12:00 AM
LCD language
This feature allows you to change the language used for all screen displays.
The language settings on the console, desksets and cordless handset are
independent. By default, the language is set to English.
1. When the deskset is idle, press MENU/SELECT.
2. Press or to scroll to Phone Settings, then press
MENU/SELECT or /SKIP.
3. Press MENU/SELECT again or press /SKIP to select
LCD Language.
4. Press or to select English, Français or
Español.
5. Press MENU/SELECT or /SKIP to save the setting
and return to the previous menu. To exit without
making changes, press CANCEL.
31
Ringers
Set Date/Time
One Touch
>Phone Settings
Phone Settings
>LCD Language
Home area code
Key Tone
LCD Language
>English
Francais
,
~
Espanol
Telephone settings
Telephone setup
Home area code
Use this feature to program this deskset to recognize your home area code.
This feature makes it easy for you to place a call from the caller ID log.
When you receive a call from within your home area code, the caller ID
information only displays the seven digits of the telephone number. When you
dial from the call log, only seven digits are dialed.
1. When the deskset is idle, press MENU/SELECT.
2. Press or to scroll to Phone Settings, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Home area code, then press
MENU/SELECT or /SKIP.
4. The screen displays Home area code. Use the dialing
keys to enter a three-digit area code.
• Press DELETE to delete a digit.
• Press /REPEAT or /SKIP to move the cursor to the
left or right.
5. Press MENU/SELECT to save the setting and return to the previous menu. To exit
without making changes, press CANCEL.
Phone Settings
LCD Language
>Home area code
Key Tone
Home area code
_
Key tone
The deskset is set to beep with each key press. If you turn off the key tone,
there are no beeps when you press keys.
1. When the deskset is idle, press MENU/SELECT.
2. Press or to scroll to Phone Settings, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Key Tone, then press
MENU/SELECT or /SKIP.
4. Press or to choose On or Off.
5. Press MENU/SELECT or /SKIP to save the setting
and return to the previous menu. To exit without making
changes, press CANCEL or /REPEAT.
32
Phone Settings
LCD Language
Home area code
>Key Tone
Key Tone
>On
Off
Telephone settings
Telephone setup
LCD contrast
Use this feature to adjust the screen contrast to one of eight levels to optimize
readability in different lighting conditions.
1. When the deskset is idle, press MENU/SELECT.
2. Press or to scroll to Phone Settings, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to LCD Contrast, then press
MENU/SELECT or /SKIP.
4. Press or to choose the desired screen contrast
level (Level 1 - Level 8).
5. Press MENU/SELECT or /SKIP to save the setting
and return to the previous menu. To exit without making
changes, press CANCEL or /REPEAT.
Dial mode
The dial mode is preset to tone dialing. If you have pulse (rotary) service, you
must change the dial mode to pulse dialing before using the telephone.
1. When the deskset is idle, press MENU/SELECT.
2. Press or to scroll to Phone Settings, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Tone/Pulse, then press
MENU/SELECT or /SKIP.
4. Press or to choose Tone or Pulse.
5. Press MENU/SELECT or /SKIP to save the setting
and return to the previous menu. To exit without
making changes, press CANCEL or /REPEAT.
Phone Settings
Home area code
Key Tone
>LCD Contrast
LCD Contrast
Level 2
Level 3
>Level 4
Phone Settings
Key Tone
LCD Contrast
>Tone/Pulse
Tone/Pules
>Tone
Pulse
33
Telephone settings
Telephone setup
Call privacy
The call privacy is set to Off by default. The deskset allows other extensions
to join a call in progress. You can turn this setting on to ensure that only one
device uses a line at a time.
To turn this feature on or off:
1. When the deskset is idle, press MENU/SELECT.
2. Press or to scroll to Phone Settings, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Call Privacy, then press
MENU/SELECT or /SKIP.
4. Press or to scroll to On or Off.
5. Press MENU/SELECT or /SKIP to save the setting
and return to the previous menu. To exit without
making changes, press CANCEL or /REPEAT.
NOTE: To temporarily change the call privacy setting during a call, see page 41.
Music on hold
Music on hold (M.O.H) is available on this deskset. When you put a call on
hold, the caller will hear the music that comes with the deskset. You can select
a desired built-in music for this feature or turn it off.
When this feature is turned off and you put a call on hold, the caller will hear a
beep every 10 seconds.
2. Press or to scroll to Phone Settings, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Music on Hold, then press
MENU/SELECT or /SKIP.
4. Press or to select a desired music or Off if you
want to turn this feature off.
5. Press MENU/SELECT or /SKIP to save the setting
and return to the previous menu. To exit without
making changes, press CANCEL or /REPEAT.
NOTE: Source of music files: FreeMusicArchive.org. Used under open license.
34
Phone Settings
Tone/Pulse
Call Privacy
>Music on Hold
Music on Hold
Music 2
Music 3
>Off
Telephone settings
Telephone setup
Hold reminder
When this feature is on and there is a call on hold, the deskset beeps once
every 30 seconds.
To turn this feature on or off:
1. When the deskset is idle, press MENU/SELECT.
2. Press or to scroll to Phone Settings, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Hold Reminder, then press
MENU/SELECT or /SKIP.
4. Press or to scroll to On or Off.
5. Press MENU/SELECT or /SKIP to save the setting
and return to the previous menu. To exit without
making changes, press CANCEL or /REPEAT.
Phone rename
Use this feature to rename the deskset.
To change the setting:
1. When the deskset is idle, press MENU/SELECT.
2. Press or to scroll to Phone Settings, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Phone Rename, then press
MENU/SELECT or /SKIP.
4. Use the dialing keys to change the name (up to
12 characters).
• Press /REPEAT or /SKIP to move the cursor left
or right.
• Press DELETE to delete a character.
5. Press MENU/SELECT to save the setting and return to the previous menu.
To exit without making changes, press CANCEL.
Phone Settings
Call Privacy
Music on Hold
>Hold Reminder
Hold Reminder
>On
Off
Phone Settings
Music on Hold
Hold Reminder
>Phone Rename
Phone Rename
Deskset_
35
Telephone settings
Telephone setup
Set default
Use this feature to reset all settings of this deskset to their default settings. All
phone settings, directory, caller ID history, redial list, one-touch memory, private
mailbox messages will be reset.
To reset all feature settings to default:
1. When the deskset is idle, press MENU/SELECT.
2. Press or to scroll to Phone Settings, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Set Default.
4. Press MENU/SELECT or /SKIP. The screen displays
Set phone to default settings? Press ‘SELECT’
to confirm.
5. Press MENU/SELECT. The deskset reboots to reset
all settings.
Customer support
Use this feature to display the VTech website.
1. When the deskset is idle, press MENU/SELECT.
2. Press or to scroll to Customer Support, then
press MENU/SELECT or /SKIP.
3. Press CANCEL to return to the previous menu.
Phone Settings
Hold Reminder
Phone Rename
>Set Default
Set phone to
default settings?
Press ’SELECT’
to confirm
businessphones.
vtech.
com
36
Telephone operation
Telephone operation
The deskset comes programmed to select a line automatically for calls when
you do not press a line key. To override the automatic line selection setting,
see Prime line on page 25 for details. When you answer a call, the deskset
automatically selects the ringing line.
Line indicators
Each of the four indicators on LINE 1-LINE 4
indicate the state of the corresponding
telephone line.
• On when the corresponding line is in use.
• Flashes slowly when the line is on hold.
• Flashes rapidly when there is an incoming call on
the corresponding line.
Making and ending a call
To make a call from the deskset:
1. Lift the handset or press SPEAKER .
-OR To override automatic line selection, press LINE 1-
LINE 4 for the desired line, then lift the handset.
2. Wait for a dial tone, then enter the telephone number.
The screen displays the elapsed time as you talk (in
hours, minutes and seconds).
L1
Line 1 00:00:01
To end a call from the deskset:
• Place the handset on the deskset to hang up.
-OR-
• Press the corresponding line key (LINE 1-LINE 4) to hang up.
-OR-
• If you are using the speakerphone, press SPEAKER to hang up.
NOTE: The elapsed time is not affected by accessing services from your telephone service provider.
37
Telephone operation
Telephone operation
To make a call using a corded headset:
Make sure a corded headset is connected to the deskset (page 23).
1. Press HEADSET on the deskset.
2. Wait for a dial tone, then dial the number.
3. To hang up, press HEADSET.
To make a call using a cordless headset:
You can make a call using a registered cordless headset (see Adding and
registering a cordless headset on page 21). For more details on the cordless
headset operation, refer to the IS6100 user’s manual.
1. Enter the telephone number. Press DELETE to make corrections.
2. Lift the handset or press SPEAKER to dial.
3. Press on the cordless headset.
4. To hang up, press .
On hook dialing (predialing)
1. Enter the telephone number. Press DELETE to make corrections.
2. Lift the handset or press SPEAKER to dial.
-OR-
To override automatic line selection, press LINE 1-LINE 4 for the desired line,
then lift the handset.
Full duplex speakerphone
During a call, press SPEAKER to switch between handsfree speakerphone
and normal handset use. Press SPEAKER again if you are using
speakerphone or place the handset on the deskset to hang up.
Answering a call
Lift the handset, or press the corresponding line key (LINE 1-LINE 4),
SPEAKER or HEADSET on the deskset, or press on a registered
cordless headset to answer an incoming call.
Temporary ringer silencing
When the telephone is ringing, you can temporarily silence the ringer of the
deskset without disconnecting the call. Press MUTE to silence the ringer. The
next call rings normally at the preset volume.
38
Telephone operation
Options while on calls
Call waiting
If you subscribe to call waiting service with your telephone service provider, you
hear a beep if someone calls while you are in the middle of a call.
• Press FLASH to put your current call on hold and take
the new call.
• Press FLASH at any time to switch back and forth
between calls.
Volume control
Use this feature to independently set the listening volume
to one of six levels for each of the listening options
(corded handset, corded headset and speakerphone).
All settings are independent. While on a call, press
/VOLUME/ to adjust the listening volume.
Mute
Use this feature during a telephone conversation to silence the microphone. You
can hear the caller, but the caller cannot hear you.
To mute a call:
• Press MUTE. When mute is on, the MUTE lights up;
the screen also displays MUTE.
L1
Volume
To take a call off mute:
• Press MUTE again and resume speaking.
Temporary tone dialing
If you have pulse (rotary) service only, use this feature to temporarily switch
pulse to touch-tone dialing during a call by pressing TONE .
1. Press TONE during a call.
2. Use the dialing keys to enter the desired number. The telephone sends
touch-tone signals.
The telephone automatically returns to pulse dialing mode after you end
the call.
39
Telephone operation
Options while on calls
Hold
Use this feature to hold one line while accessing another, or as part of the
conference and call transfer features.
While on a call, press HOLD. The corresponding line
key (LINE 1-LINE 4) indicator for the line on hold flashes
slowly. After the call has been put on hold, a beep
sounds every 30 seconds. (To turn off the reminder
beep, see Hold reminder on page 35).
If you are using the speakerphone, the speakerphone turns off and the
SPEAKER key turns off automatically after you press HOLD. If you are
using the corded headset, the headset turns off and the HEADSET key turns
off automatically after you press HOLD.
To release the hold, press line key (LINE 1-LINE 4) of the line being put
on hold.
Music on hold (M.O.H) is available on this deskset if you have turned on the
Music on hold setting (page 34). When you put a call on hold, the caller will hear
the music that comes with the deskset.
NOTES:
• You cannot put an intercom call on hold.
• The call privacy setting remains unchanged after the call is put on hold.
• The call ends automatically after it is put on hold for 10 minutes.
Switching between lines
Use this feature to switch between lines during an outside call:
1. Press the desired line key (LINE 1-LINE 4) of another telephone line to
make or answer another call. The current call is put on hold automatically.
2. To return to the first call, press the line key (LINE 1-LINE 4) of the original
call. The second line is put on hold automatically.
40
Telephone operation
Options while on calls
Call privacy
During a call, you can temporarily change the call privacy setting to allow or
disallow other extensions to join the call. The original setting is automatically
restored after you hang up.
To turn call privacy off during a call:
1. During the call, press MENU/SELECT.
2. Press MENU/SELECT to select Call Privacy.
L1PRIV
>Call Privacy
Record Call
3. Press or to choose Off, then press
MENU/SELECT.
Other extensions can now join the call by pressing
the corresponding line key (LINE 1-LINE 4).
To turn call privacy back on during a call:
L1
Call Privacy
>On
Off
1. During the call, press MENU/SELECT.
2. Press MENU/SELECT to select Call Privacy.
3. Press or to choose On, then press MENU/SELECT.
The deskset displays PRIV.
No extension can join the call now. If another extension tries to access the line
you are using, it displays Line is not available at this time.
NOTES:
• You cannot set call privacy during intercom calls.
• To set call privacy for every incoming and outgoing call, see page 34.
41
Telephone operation
Options while on calls
Recording a call
Use this feature to record a phone conversation during a call. The recording is
treated the same as memos and is marked as a new message in the private
mailbox. You cannot record a conference call nor an intercom call, and you
cannot use another line while you are recording a phone conversation. Listen
to recorded conversation the same way as incoming messages or memos (see
Message playback on page 76).
To record a call:
1. During a call, press MENU/SELECT.
2. Press or to scroll to Record call, then press
MENU/SELECT.
3. Press MENU/SELECT to choose Start recording.
4. The recording starts and the screen shows REC.
There is a beep sound.
NOTE: To ensure that you are in compliance with any federal or
state regulations regarding recording a telephone call, you should
start the recording process and then inform the other party that
you are recording the call.
To stop recording:
Place the handset back to the deskset, or press
SPEAKER to hang up if you are using the
speakerphone.
-OR-
1. Press MENU/SELECT during the recording.
2. Press or to scroll to Record Call, then press MENU/SELECT.
3. Press MENU/SELECT to choose Stop recording. The system saves the
conversation into the private mailbox.
L1
Call Privacy
>Record Call
L1
Record Call
>Start recording
L1
Record Call
>Stop recording
REC
42
Telephone operation
Options while on calls
Chain dialing
While you are on a call, you can initiate a dialing sequence from the numbers in
the directory, caller ID history, redial list or one-touch memory.
Chain dialing can be useful if you wish to access other numbers (such as bank
account numbers or access codes) from the directory, caller ID history, redial
list or one-touch memory.
To access the directory while on a call:
1. Press DIRECTORY, then press or to scroll to the desired entry.
2. Press MENU/SELECT to dial the desired entry. To exit without making
changes, press CANCEL and continue with the conversation.
To access the call history while on a call:
1. Press CALL HISTORY, then press or to scroll to the desired entry.
2. Press MENU/SELECT to dial the desired entry. To exit without making
changes, press CANCEL and continue with the conversation.
To access the redial list while on a call:
1. Press AUTO REDIAL, then press or to scroll to the desired entry.
2. Press MENU/SELECT to dial the desired number. To exit without making
changes, press CANCEL and continue with the conversation.
To access the one touch entry while on a call:
Press the desired one-touch key for the number in the upper location.
-OR-
Press LOWER, then the desired one-touch key for the number in the
lower location.
43
Telephone operation
Redial
The last 10 telephone numbers dialed (up to 30 digits) are stored in system
memory. If there is a cordless handset registered to this deskset, the redial
memory is shared between the deskset and its registered cordless handset.
To view the 10 most recently dialed numbers
1. Press AUTO REDIAL to enter the redial list and display the most recently
called number.
2. Press or to view other recently called numbers.
3. Press CANCEL to exit the redial list.
To redial a number
When the desired number displays on the screen:
• Lift the handset.
-OR-
• Press SPEAKER or HEADSET.
To override automatic line selection, press LINE 1-LINE 4 for the desired line,
then lift the handset.
To copy a redial entry to directory
1. Press AUTO REDIAL to enter the redial list and display the most recently
called number.
2. Press or to view other recently called numbers.
3. Press /REPEAT or /SKIP to choose Copy to DIR, then press MENU/SELECT.
4. The deskset displays Enter Name. Use the dialing keys to enter the name
(up to 15 characters).
• Press /REPEAT or /SKIP to move the cursor to the left or right.
• Press DELETE to delete a character.
5. Press MENU/SELECT to save. The deskset displays Enter Number. Use the
dialing keys to enter the number (up to 30 digits).
• Press DELETE to delete a digit.
• Press /REPEAT or /SKIP to move the cursor to the left or right.
• You can include a pause while storing a dialing sequence that requires
one during actual dialing. Press or to choose Add pause, then press
MENU/SELECT. A P appears on the screen.
• Store a signal for switching to temporary tone signaling. If you have dial
pulse (rotary) service, this signal is required for some special services.
Press or to choose Send tone, then press MENU/SELECT. A T appears
on the screen. All numbers you enter after this will send touch-tone signals
during dialing.
44
Telephone operation
Redial
To copy a redial entry to directory (continued)
• You can store the flash signal required by some special services as part of a
dialing sequence. Press or to choose Add flash, then press
MENU/SELECT. An F appears on the screen.
6. Press or to choose Done, then press MENU/SELECT. To exit without
making changes, press or to choose Cancel and then press
MENU/SELECT, or press CANCEL to return to the previous menu.
To copy a redial entry to one-touch memory
1. Press AUTO REDIAL to enter the redial list and display the most recently
called number.
2. Press or to view other recently called numbers.
3. Press /REPEAT or /SKIP to choose Copy to 1-touch, then press
MENU/SELECT.
4. The deskset displays Press a 1-touch key to save the number.
• Press the one-touch button for the destination party in the upper location
(the first 16 one-touch location).
-OR-
• Press LOWER, then press the one-touch button for the destination party in the
lower location (the second 16 one-touch location).
5. The deskset displays Number saved to 1-touch key.
To delete a number
While the screen displays the desired number, press DELETE to delete the
number from the redial memory. The screen displays Redial deleted.
45
Telephone operation
Redial
Auto-redial
Use this feature to automatically redial a number up to ten times.
1. Press AUTOREDIAL to enter the redial list and display the most recently
called number.
2. Press or to view other recently called numbers.
3. While the screen displays the desired number, press /REPEAT or /SKIP to
choose Auto redial, then press MENU/SELECT.
4. The telephone calls the desired number using the speakerphone. The screen
displays Redial in XX sec.
5. When the other party answers, you will need to take an action to speak
with the other party and stop the auto-redial attempts. Press MUTE on the
deskset, then lift the handset, press SPEAKER or HEADSET to speak
with the other party.
• After a call is placed, if the line is busy, you will hear a busy tone for a few
seconds before the set hangs up. The call will be redialed 30 seconds
later. This process repeats up to 10 times or until the called number is no
longer busy. If the line is still busy after 10 attempts, no more attempts
are made.
• If the line is ringing but no party answers after two attempts, no more
attempts are made.
• If you want to turn off the auto-redial feature during the 30-second waiting
time, press CANCEL.
46
Telephone operation
Conference call
The system can support 5-way conference with a maximum of one outside call
and four system extensions (including the initiating party), or two outside calls
and three system extensions (including the initiating party). The outside call
must be established first because an intercom call cannot be placed on hold.
There are two ways to establish a conference call.
A. Inviting parties using Intercom
The party who initiates the conference invites other system extensions to join
the conference by using intercom after establishing the first outside call.
-ORB. Join a call in progress
Other system extensions can join the call in progress by pressing the line key
which is currently in use for the conference to join the call.
A. Inviting parties using Intercom
1. Make or answer an outside call.
2. Press another available line key to make another
outside call. The original outside call is put on hold.
When the external party picks up, you can have a
private conversation with that party.
-OR-
Press INTERCOM. The outside call is put on hold. Press or to scroll
to the desired extension, or enter the desired extension number directly.
The called extension picks up the intercom call. You can now have a private
conversation with that extension.
3. Press CONFERENCE at any time to begin the conference call.
4. If necessary, repeat step 2 (Intercom method) and step 3 above to invite
another system extension to join the conference until the maximum capacity
is reached.
5. Place the corded handset on the deskset or press SPEAKER if you are
using speakerphone to hang up. If the party who initiates the conference
call hangs up, the conference call will be ended. The call will also be ended
when all parties hang up.
L1 L2PRIV
Conf. 00:00:00
L1:8005959511
L2:8002677377
NOTE: If you want to start a conference with two outside calls, make sure you have invited two
outside calls before inviting any system extensions.
47
Telephone operation
Conference call
To drop an outside line
• Press the corresponding line key (LINE 1-LINE 4).
-OR-
• If there are two outside calls, press MENU/SELECT, and then press or to
choose End Line X. Press MENU/SELECT to confirm.
-OR-
• If the other end of the outside line hangs up the call, press the corresponding
line key (LINE 1-LINE 4) to release that line for other system extension use.
B. Join a call in progress
1. Make or answer an outside call on the deskset, then press MENU/SELECT.
2. If the call privacy of your deskset is set to On, follow the instructions of
To turn call privacy off during a call on page 41 to turn off the setting
temporarily.
3. Any system extension can join the call by pressing the line key currently in
use to join the conference until the maximum capacity is reached.
4. Place the corded handset on the deskset or press SPEAKER if you
are using speakerphone to hang up. The call will be ended when all parties
hang up.
NOTES:
• If the system extension which initiated the call does not turn off the call privacy setting and you
try to join that call, the screen displays Line is not available at this time.
• If you have answered another outside call during a conference and want to resume the original
call, end the existing call first, then lift the corded handset, or press SPEAKER , or press
CONFERENCE.
48
Telephone operation
Conference call
Call scenario
The table below provides you with more information on the number of outside
lines available for use during a conference call under different call scenarios.
A. Inviting parties using Intercom
Device that
starts a
conference call
Console112
Deskset113
B. Join a call in progress
Device that
starts a
conference call
Console/Deskset112
Number of
outside calls in
a conference
121
211
220
123
212
222
Number of
outside calls in
a conference
Number of
extensions in a
conference
Number
of system
extensions joined
in a conference
21
30
Outside lines
available for
other extension
to use
Outside lines
available for
other extension
to use
49
Telephone operation
Intercom
You can use the intercom feature for conversations between this deskset and a
system deskset, or between two system desksets.
The console and each deskset in the telephone system MUST be assigned a
unique extension number for the intercom feature to work. The assignment is
done when the deskset is initially set up.
Make an intercom call to an extension
1. Press INTERCOM on the deskset when it is idle.
2. Press or to scroll to a desired extension, then
press MENU/SELECT.
-OR-
Use the dialing keys to dial the extension number.
3. The screen displays Intercom to: XX (XX represents
the extension number of destination device).
-OR-
If you have assigned extension numbers as one-touch entries (see Assign a
one-touch entry on pages 53-54), you can initiate an intercom by pressing the
desired one-touch button.
1. When the deskset is idle, press the desired one-touch button, or press
LOWER followed by the desired one-touch button.
2. The deskset displays Intercom to: XX (XX represents the extension number
of the destination device).
Intercom to:
>Reception 11
Meeting room 12
Ext 13 13
NOTES:
• Before the intercom call is answered, you can cancel the intercom by pressing SPEAKER
or CANCEL.
• You cannot intercom an extension that is on a call.
• If all four telephone lines are in use, the intercom feature is not available.
Answer an intercom call
When you receive an intercom call, you hear a ringing tone and your screen
displays Intercom from: XX (XX represents the extension number of the
calling device). Lift the handset or press SPEAKER to answer.
End an intercom call
Place the handset back to the deskset or press SPEAKER if you are using
the speakerphone.
Answer an incoming call during an intercom call
If you receive an incoming outside call during an intercom call, there is an
alert tone.
To answer the call, press the corresponding line key (LINE1-LINE 4). The
intercom call ends automatically.
50
Telephone operation
Call transfer
You can transfer a call to any other system telephone. Only the recipient
extension can answer the transferred call; other extensions cannot seize the
line at that moment.
Blind transfer
While on a call, you can transfer a call directly without notifying the
desired extension:
1. Press TRANSFER on the deskset while on a call. The
call is put on hold.
2. Press or to scroll to the desired extension, then
press MENU/SELECT.
-OR-
Use the dialing keys to dial the extension number.
3. The destination device rings. Choose either
option below.
• Answer the call by lifting the corded handset, or
pressing SPEAKER .
• You can resume the call by pressing the
corresponding flashing line key (LINE 1-LINE 4) on
the deskset before the destination device answers
the call.
4. Put the corded handset on the deskset or press SPEAKER to hang up.
Transfer to:
>Reception 11
Meeting room 12
Ext 13 13
NOTES:
• If the private mailbox of the destination extension is off, the transferred call will only ring on the
destination extension for five minutes. If the destination extension does not answer within that period,
the transferred call ends.
• If the private mailbox of the destination extension is busy, the call ends.
• If the destination extension does not answer within five minutes, the extension which initiated the
transfer can retrieve the call by pressing the corresponding line key.
51
Telephone operation
Call transfer using intercom
Transfer a call and speak to the receiving party
You can transfer a call and speak to the receiving party before completing the
transfer while on a call:
1. Press INTERCOM on the deskset while on a call. The
call is put on hold.
2. Press or to scroll to a desired extension, then
press MENU/SELECT.
-OR-
Use the dialing keys to enter the desired extension number.
3. The destination extension rings and the call is answered by lifting the
handset or pressing SPEAKER. You can now talk to the destination party
privately.
4. Press TRANSFER to transfer the call to the destination extension. The
deskset returns to idle.
Intercom to:
>Ext 11 11
Ext 12 12
Ext 13 13
52
Telephone operation
One touch
This deskset has 32 one- and two-touch memory locations (speed dial
locations) where you can store the phone numbers or system extension
numbers you wish to dial using fewer keys than usual. You can store up to
30 digits in each location.
You can access the first 16 locations using only the one-touch buttons. To
access the remaining 16 locations, press LOWER and then the one-touch
button for the desired location. You might wish to write the names, telephone
numbers, or extension numbers of the one-touch entries on the directory card,
using the light gray spaces for the upper 16 locations and the white spaces for
the lower 16 locations.
Assign a one-touch entry
Use the following steps to program the one-touch keys.
1. When the deskset is idle, press MENU/SELECT.
2. Press or to scroll to One Touch, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Program, then press
MENU/SELECT or /SKIP.
4. The screen displays Enter Number:
5. Use the dialing keys to enter a telephone number (up
to 30 digits) or an extension number.
• Press DELETE to delete a digit.
• Press /REPEAT or /SKIP to move the cursor to
the left or right.
• You can include a pause while storing a dialing
sequence that requires one during actual dialing.
Press or to choose Add pause, then press
MENU/SELECT. A P appears on the screen.
• Store a signal for switching to temporary tone signaling. If you have dial
pause (rotary) service, this signal is required for some special services.
Press or to choose Send tone, then press MENU/SELECT. A T appears
on the screen. All numbers you enter after this will send touch-tone signals
during dialing.
• You can store the flash signal required by some special services as part of a
dialing sequence. Press or to choose Add flash, then press
MENU/SELECT. An F appears on the screen. Continue storing the number
as usual.
System Setup
Ringers
Set Date/Time
>One Touch
One Touch
View
>Program
Enter Number:
18005959511_
Select to:
Done
53
Telephone operation
One touch
Assign a one-touch entry (continued)
6. Press or to choose Done, then press MENU/SELECT to save the
setting and return to the previous menu. To exit without making changes,
press or to choose Cancel, then press MENU/SELECT, or press
CANCEL to previous menu.
7. The screen displays Press a 1-touch key to save the number.
8. Press the desired one-touch key to store a the
telephone number in the upper location.
-OR-
Press LOWER, then press the desired one-touch key
to store the telephone number in the lower location.
9. The screen displays Number saved to 1-touch key
briefly, and then One Touch #XX (XX represents
the one-touch location) and the telephone number or
extension number.
NOTE: If the one-touch location already has an assigned number, the screen displays
Replace 1-touch key memory? Press MENU/SELECT to replace the old number with the
new one.
Press a
1-touch key
to save the
number
One Touch #18
18005959511
Edit
Review the one-touch entry
1. When the deskset is idle, press MENU/SELECT.
2. Press or to scroll to One Touch, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to View, then press
MENU/SELECT or /SKIP.
One Touch
>View
Program
4. Press or to scroll to the desired one-touch location. The screen displays
the one-touch location number and the telephone number or extension
number.
To dial a one-touch entry
When the deskset is idle, press the desired one-touch button for the destination
party in the upper location.
-OR-
When the deskset is idle, press LOWER, then press the one-touch button for the
destination party in the lower location.
The deskset dials the one-touch number using the speakerphone.
54
Telephone operation
One touch
Edit the one-touch key
1. When the deskset is idle, press MENU/SELECT.
2. Press or to scroll to One Touch, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to View, then press
MENU/SELECT or /SKIP.
4. Press or to scroll to the desired one-touch location.
5. Press MENU/SELECT to select Edit.
6. The screen displays Edit Number. Use the dialing keys to
edit the number.
• Press DELETE to delete a digit.
• Press /REPEAT or /SKIP to move the cursor to the left or right.
• You can include a pause while storing a dialing sequence that requires
one during actual dialing. Press or to choose Add pause, then press
MENU/SELECT. A P appears on the screen.
• Store a signal for switching to temporary tone signaling. If you have dial
pause (rotary) service, this signal is required for some special services.
Press or to choose Send tone, then press MENU/SELECT. A T appears
on the screen. All numbers you enter after this will send touch-tone signals
during dialing.
• You can store the flash signal required by some special services as part of a
dialing sequence. Press or to choose Add flash, then press
MENU/SELECT. An F appears on the screen. Continue storing the number
as usual.
7. Press or to scroll to Done, then press MENU/SELECT to save the setting.
One Touch #18
18005959511
Edit
Edit Number:
18005959511_
Select to:
Done
Delete an one-touch key
1. When the deskset is idle, press MENU/SELECT.
2. Press or to scroll to One Touch, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to View, then press
MENU/SELECT or /SKIP.
4. Press or to scroll to the desired one-touch location.
5. Press /SKIP to scroll to Delete, then press
MENU/SELECT.
6. The deskset displays Delete memory? Press
MENU/SELECT to confirm. To exit without making changes,
press CANCEL.
55
One Touch #18
18005959511
Delete
Delete
memory?
Directory
About the directory
Use the directory to store names and phone numbers. Directory entries
are not shared with other extensions. The console and each deskset have
their own directories. If a cordless handset is registered to this deskset, the
directory memory is shared between the deskset and its registered cordless
handset.
Capacity
The directory of this deskset can store up to 50 entries, with a maximum of
15 alphanumeric characters (including spaces) for names and 30 digits for
telephone numbers. A convenient search feature can help you quickly find and
dial numbers (page 59).
If there are already 50 entries, the screen shows Directory memory full when
you try to create a new directory entry. You cannot store a new number until you
delete one. If you try to view the directory when there are no entries, the screen
displays Directory 0 entry.
Exit the directory
On the deskset, press CANCEL to cancel an operation and return to
previous screen.
56
Directory
Create directory entries
Create a new directory entry
Use the following steps to store a name and
number in the directory.
1. When the deskset is idle, press DIRECTORY.
2. The deskset shows a summary with the
number of directory entries stored. Press
MENU/SELECT to add an entry.
3. The screen displays Enter Name. Use the dialing keys
to enter the name (up to 15 characters). Each time
you press a key, the character on that key appears.
When entering a name in the directory, the first letter
of each word is automatically capitalized. Additional
key presses produce other characters on that key. See
the chart below.
Enter Name
Christine Smith_
Dialing
keys
1
2
3
4
5
6
7
8
9
0
*
#
1234567891011
1.-
abcABC2
defDEF3
ghiGHI4
jklJKL5
mno MNO6
pqrsPQRS7
tuvTUV8
wxyzWXYZ9
Space
0
Char acters by number of key p res ses
()*#&/,
• Press DELETE to delete a character.
• Press /REPEAT or /SKIP to move the cursor to the left or right.
• Press 0 to add a space.
4. Press MENU/SELECT to save. The screen displays Enter Number. Use the
dialing keys to enter the number (up to 30 digits).
• Press DELETE to delete a digit.
• Press /REPEAT or /SKIP to move the cursor to the left or right.
• You can include a pause while storing a dialing sequence that requires
one during actual dialing. Press or to choose Add pause, then press
MENU/SELECT. A P appears on the screen.
57
Directory
Create directory entries
Create a new directory entry (continued)
• Store a signal for switching to temporary tone
signaling. If you have dial pulse (rotary) service,
this signal is required for some special services.
Press or to choose Send tone, then press
MENU/SELECT. A T appears on the screen. All
numbers you enter after this will send touch-tone
signals during dialing.
• You can store the flash signal required by some special services as part of a
dialing sequence. Press or to choose Add flash, then press
MENU/SELECT. An F appears on the screen.
5. Press or to scroll to Done, then press MENU/SELECT. To exit without
making changes, press CANCEL, or press or to scroll to Cancel, then
press MENU/SELECT.
Review directory entries
1. When the deskset is idle, press DIRECTORY. The
screen displays a summary with the number of
directory entries stored.
2. Press or to browse through the directory. Entries
appear alphabetically by the first letter in the name.
3. Press CANCEL twice to cancel an operation and return to idle mode.
Enter Number
8005959511_
Select to:
Done
Directory
XX entries
‘MENU’ =Add entry
58
Directory
Search directory
Search by name
The names appear in alphabetical order. Follow the steps below to search for
directory entries on the deskset.
1. Press DIRECTORY on the deskset. The screen displays a summary with the
number of directory entries stored.
2. Press or to browse through the directory.
3. Use the dial pad keys (2-9) to enter a letter to start a name search.
• If there is an entry matching the letter you press, the directory shows the
first name beginning with that letter.
• If there is no entry matching the letter you press, the directory shows the
next closest entry or the last entry.
For example, if you have the names Jennifer, Jessie, Kevin and Linda in your
directory:
• If you press 5 (JKL) once, you see Jennifer.
• If you press 5 (JKL) twice, you see Kevin.
• If you press 5 (JKL) three times, you see Linda.
• To view Jessie, press while Jennifer is displayed.
59
Directory
Dial, delete or edit entries
You can dial, delete or edit a directory entry (name and number) when it is
shown on the deskset screen. You can use the directory review (page 58) or
name search (page 59) to show an entry.
Display dial
When a number is displayed on the screen, you can dial the number by lifting the
corded handset, or pressing SPEAKER or the desired line key (LINE 1-LINE 4).
Delete an entry
1. When a directory entry appears, press MENU/SELECT.
2. Press or to choose Delete, then press
MENU/SELECT.
3. The deskset displays Delete contact? Press
MENU/SELECT to confirm.
Edit
Copy to 1-touch
>Delete
-OR-
When a directory entry appears, press DELETE, then press MENU/SELECT
to confirm.
32/50
Christine Smith
60
Directory
Dial, delete or edit entries
Edit an entry
1. When a directory entry appears, press MENU/SELECT.
2. Press or to choose Edit, then press MENU/SELECT.
3. The screen displays Enter Name. Use the dialing keys
to edit the name. If you only want to edit the number,
skip to step 4.
• Press DELETE to delete a character.
>Edit
Copy to 1-touch
Delete
• Press /REPEAT or /SKIP to move the cursor to
the left or right.
4. Press MENU/SELECT to save. The screen displays
Christine Smith_
Enter Number. Use the dialing keys to edit
the number.
• Press DELETE to delete a digit.
• Press /REPEAT or /SKIP to move the cursor to
the left or right.
• You can include a pause while storing a dialing
sequence that requires one during actual dialing.
8005959511_
Done
Press or to choose Add pause, then press
MENU/SELECT. A P appears on the screen.
• Store a signal for switching to temporary tone signaling. If you have dial
pulse (rotary) service, this signal is required for some special services.
Press or to choose Send tone, then press MENU/SELECT.
A T appears on the screen. All numbers you enter after this will send
touch-tone signals during dialing.
• You can store the flash signal required by some special services as part
of a dialing sequence. Press or to choose Add flash, then press
MENU/SELECT. An F appears on the screen. Continue storing the number
as usual.
5. Press or to scroll to Done, then press MENU/SELECT. To exit without
making changes, press CANCEL.
32/50
Christine Smith
Enter Name
Enter Number
Select to:
61
Directory
Dial, delete or edit entries
Copy a directory entry to one touch
1. When a directory entry appears, press MENU/SELECT.
2. Press or to choose Copy to 1-touch, then press MENU/SELECT.
3. The screen displays Enter Number. Use the dialing
keys to edit the number.
• Press DELETE to delete a digit.
• Press /REPEAT or /SKIP to move the cursor to
the left or right.
Edit
>Copy to 1-touch
Delete
• You can include a pause while storing a dialing
sequence that requires one during actual dialing.
Press or to choose Add pause, then press
MENU/SELECT. A P appears on the screen.
• Store a signal for switching to temporary tone
Enter Number:
8005959511_
Select to:
Done
signaling. If you have dial pulse (rotary) service,
this signal is required for some special services.
Press or to choose Send tone, then press MENU/SELECT.
A T appears on the screen. All numbers you enter after this will send
touch-tone signals during dialing.
• You can store the flash signal required by some special services as part
of a dialing sequence. Press or to choose Add flash, then press
MENU/SELECT. An F appears on the screen. Continue storing the number
as usual.
4. Press or to scroll to Done, then press MENU/SELECT.
5. The deskset displays Press a 1-touch key to save the number.
• Press the one-touch button for the destination party in the upper location.
-OR-
• Press LOWER, then press the one-touch button for the destination party in the
lower location.
6. The deskset displays Number saved to 1-touch key.
32/50
Christine Smith
62
Caller ID
About the caller ID
This telephone supports caller ID services that most telephone service
providers offer. Caller ID allows you to see the name, number, date and time
of calls. Depending on your service subscription, you might see the caller’s
number, or the caller’s name and number from the telephone service provider
after the first or second ring. Caller ID information might not be available
for every incoming call. Callers may intentionally block their names and/or
telephone numbers.
This product can provide information only if both you and the caller are in areas
offering caller ID service and if both telephone service providers use compatible
equipment.
Information about caller ID with call waiting
Caller ID with call waiting lets you see the name and telephone number of the
caller before answering the telephone, and while on another call.
It might be necessary to change telephone service to use this feature. Contact
your telephone service provider if:
• You have both caller ID and call waiting, but as
separate services (you might need to combine
these services).
• You only have caller ID service, or only call
L1
CHRISTINE SMITH
11:00PM MON 12/21
waiting service.
• You do not subscribe to caller ID or call waiting services.
There are fees for caller ID services. In addition, services may not be available
in all areas.
This product can provide information only if both you and the caller are in areas
offering caller ID service and if both telephone service providers use compatible
equipment. The time and date, along with the call information, are from the
telephone service provider.
001/090NEW
Line 1
8005959511
NOTES:
• You can use this product with regular caller ID service, or you can use this product’s other features
without subscribing to caller ID or combined caller ID with call waiting service.
• The format of telephone numbers displayed depends on the home area code you set (See Home area
code on page 32 for explanations and instructions on area code settings).
63
Caller ID
Caller ID information
How the caller ID information (call log) works
The telephone stores caller ID information for the last 200 incoming calls in
the deskset. Entries are stored in reverse chronological order. The telephone
deletes the oldest entry when the log is full to make room for new calls.
Each extension has independent caller ID information. Deleting the caller ID
information on any one extension does not affect the caller ID information on
other extensions.
If you have a cordless handset registered to this deskset,
the caller ID memory is shared between the deskset and
the cordless handset.
If you answer a call before the information appears on the
screen, it does not show in the caller ID information.
Review the caller ID information to determine who called, to easily return
the call, or to copy the caller’s name and number into your directory or
one-touch memory.
The time and date of the call and the caller’s name and telephone number are
included in the display.
Appears when there are
new or missed calls.
L1 L2 L3 L4
Ext 12
Deskset
11:00PM MON 12/21
Caller’s name
Caller’s number
Time of call
L1
CHRISTINE SMITH
11:00PM MON 12/21
001/090NEW
Line 1
8005959511
Date of call
If you subscribe to caller ID service, this phone automatically resets the time
and date using the caller ID information from the first incoming call after initial
setup, or each time the power resumes after a power outage.
NOTES:
• The caller ID information might not be available for every incoming call. Callers might intentionally block
their names and/or telephone numbers.
• Each entry can store up to 30 digits for the telephone number and 15 characters for the name.
64
Caller ID
Caller ID operation
Memory match
If the incoming telephone number is an exact match
with a telephone number in your directory, the name that
appears on the screen matches the corresponding name
L1
CHRISTINE SMITH
in your directory.
For example, if Christine Smith calls, her name appears
11:00PM MON 12/21
as Chris if this is how you entered it into your directory.
NOTE: The number you see on your caller ID is in the format from the telephone service
provider. It usually delivers 10-digit telephone numbers (area code plus telephone number).
The telephone system ignores the area code when searching for a match and displays the
name of the first corresponding number from the directory.
Missed (new) calls indicator
When there are new or missed calls and you try to review the caller ID log by
pressing CALL HISTORY, the screen shows XX New call(s).
All new or missed entries are counted as missed calls. Each time you review a
call history entry with the icon NEW, the number of missed calls decreases by
one. When all the entries in the caller ID information become old (have been
reviewed), the system removes the missed calls alert from the display, and the
NEW indicator turns off.
001/090NEW
Line 1
8005959511
Review the caller ID information
1. When the deskset is idle, press
CALL HISTORY. The deskset displays
XX New calls (the number of missed call) and
XX calls (the total number of missed calls and
reviewed calls).
2. Press or to review the caller ID
information. The caller ID entries are stored in
reverse chronological order starting with the
most recent entry.
3. To exit without making changes, press CANCEL.
65
Call History
XXX New calls
XXX calls
‘DELETE’=Del all
Caller ID
Caller ID operation
View dialing options
Although the incoming call history entries
have 10 digits (the area code plus the
seven-digit number), in some areas, you
may need to dial the seven digits only,
1 plus the seven digits, or 1 plus the area
L1
CHRISTINE SMITH
11:00PM MON 12/21
code plus the seven digits. You can change
and store the number of digits that you dial
in the call history.
While reviewing the call history, press
# (pound key) repeatedly on the deskset to
show different dialing options for local and long distance numbers before dialing
or saving the telephone number in the directory.
Dial a call history entry
1. When in the caller ID history, press or to browse the number you wish
to call.
2. Lift the handset or press SPEAKER .
-OR-
To override automatic line selection, press the desired line key (LINE 1-
LINE 4), then lift the handset to call.
001/090NEW
Line 1
8005959511
18005959511
8005959511
Press #
5959511
15959511
Save a call history entry to the directory
66
Caller ID
Caller ID operation
1. When in the caller ID history, press or to browse to the number you
wish to save.
2. Press MENU/SELECT, then press or to choose
Copy to DIR.
3. Press MENU/SELECT. The screen displays Enter Name. Use the dialing keys to edit the name.
>Copy to DIR
Copy to 1-touch
Delete
• Press DELETE to delete a character.
• Press /REPEAT or /SKIP to move the cursor to
the left or right.
4. Press MENU/SELECT to save. The screen displays
Enter Number. Use the dialing keys to edit the
L1
Enter Number
8005959511_
Done
number.
• Press DELETE to delete a digit.
• Press /REPEAT or /SKIP to move the cursor to the left or right.
• You can include a pause while storing a dialing sequence that requires
one during actual dialing. Press or to choose Add pause, then press
MENU/SELECT. A P appears on the screen.
• Store a signal for switching to temporary tone signaling. If you have dial
pulse (rotary) service, this signal is required for some special services.
Press or to choose Send tone, then press MENU/SELECT. A T appears
on the screen. All numbers you enter after this will send touch-tone signals
during dialing.
• You can store the flash signal required by some special services as part of a
dialing sequence. Press or to choose Add flash, then press
MENU/SELECT. An F appears on the screen. Continue storing the number
as usual.
5. Press or to scroll to Done, then press MENU/SELECT. To exit without
making changes, press CANCEL.
001/090NEWL1
8005959511
Select to:
NOTE: You will need to change how a caller ID number is dialed if the entry does not appear
in the correct format. Caller ID numbers may appear with an area code that might not be
necessary for local calls, or without a 1 that might be necessary for long distance calls (see
View dialing options on page 66 for more information).
67
Caller ID
Caller ID operation
Copy a caller ID entry to one touch
1. When the desired number appears, press MENU/SELECT.
2. Press or to choose Copy to 1-touch, then press
MENU/SELECT.
3. The deskset displays Press a 1-touch key to save the number.
• Press the one-touch button for the destination party
in the upper location.
-OR-
• Press LOWER, then press the one-touch button for the destination party in the
lower location.
4. The deskset displays Number saved to 1-touch key.
Delete entries
To delete a call history entry:
1. When in the caller ID history, press or to
browse to the number you wish to delete.
2. Press DELETE to delete the shown entry from
the caller ID history.
3. The screen displays Caller ID deleted.
-OR-
1. When in the caller ID history, press or to scroll to
the desired number you wish to delete.
2. Press MENU/SELECT, then press or
to choose Delete.
3. Press MENU/SELECT, the screen displays
Caller ID deleted.
L1
Copy to DIR
>Copy to 1-touch
Delete
L1
Copy to DIR
Copy to 1-touch
>Delete
001/090NEW
8005959511
001/090NEW
8005959511
To delete all call history entries:
1. When the deskset is idle, press CALL HISTORY.
2. Press DELETE. The screen displays All calls history deleted, then returns
to the idle screen.
68
Caller ID
Reasons for missing caller ID information
Reasons for missing caller ID information
There are also occasions when other information or no information shows for
various reasons:
On-screen messageReason
PRIVATE NAME
PRIVATE NUMBER
PRIVATE CALLER
UNKNOWN NAME
UNKNOWN NUMBER
UNKNOWN CALLER
The caller prefers not to show the name.
The caller prefers not to show the phone number.
The caller prefers not to show the phone number
and name.
Your telephone service provider cannot determine
the caller’s name.
Your telephone service provider cannot determine
the caller’s number.
No information is available about this caller.
69
Answering system
Private mailbox setup
This deskset has a private mailbox that can answer calls and record messages
when the auto attendant of the console and the private mailbox of the deskset
are turned on.
When the auto attendant in the console picks up a call, the caller has to enter
the extension number of this deskset to access the private mailbox. The private
mailbox answers the call after the ring delay time you set in the
Private mailbox delay section below.
Private mailbox on/off
You can turn the private mailbox on or off. The deskset displays MB when the
private mailbox is set to On.
1. When the deskset is idle, press ANS SYS.
2. Press or to scroll to Private Mailbox, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Priv MB ON/OFF, then
press MENU/SELECT or /SKIP.
4. Press or to choose On or Off.
5. Press MENU/SELECT or /SKIP to save the setting.
Private mailbox delay
Use this feature to choose how long this phone rings before the private mailbox
picks up a call.
Priv MB ON/OFF
>On
Off
1. When the deskset is idle, press ANS SYS.
2. Press or to scroll to Private Mailbox, then press
MENU/SELECT or /SKIP.
Priv MB Delay
6 seconds
3. Press or to scroll to Priv MB Delay, then press
MENU/SELECT or /SKIP.
4. Press or to choose the desired time (6 seconds to 40 seconds).
5. Press MENU/SELECT.
70
Answering system
Private mailbox setup
Announcement
An announcement plays when calls are answered by the private mailbox. The
system has a default announcement, “Hello, please leave a message after the tone.” You can use this announcement or record your own.
You can record an announcement up to 150 seconds.
To record the announcement:
1. When the deskset is idle, press ANS SYS.
2. Press or to scroll to Private Mailbox, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Announcement, then press
MENU/SELECT or /SKIP.
4. Press or to scroll to Record, then press
MENU/SELECT or /SKIP.
5. Lift the handset or face the deskset, then record
your announcement. The screen displays Record OGM and the time elapsed. Press MENU/SELECT to
stop recording.
To play the announcement:
1. When the deskset is idle, press ANS SYS.
2. Press or to scroll to Private Mailbox, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Announcement, then press
MENU/SELECT or /SKIP.
4. Press or to scroll to Play, then press
MENU/SELECT or /SKIP.
5. The screen displays Play OGM and the time elapsed.
Press MENU/SELECT to stop the playback.
NOTE: When you are recording or playing your announcement and there are incoming calls,
you can press or to view the caller ID information. To answer the call, lift the handset, or
press the corresponding line key (LINE 1-LINE 4), SPEAKER or HEADSET on the
deskset.
71
Answering system
Private mailbox setup
To reset the announcement:
1. When the deskset is idle, press ANS SYS.
2. Press or to scroll to Private Mailbox, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Announcement, then press
MENU/SELECT or /SKIP.
4. Press or to scroll to Reset, then press MENU/SELECT or /SKIP. The
screen displays Reset announcement to default?.
5. Press MENU/SELECT to confirm.
Call intercept
When a caller is leaving a message on your private mailbox, you can stop the
recording and talk to the caller by pressing the corresponding line key (LINE 1-LINE 4). Choose whether private incoming messages can be intercepted by the
deskset during recording.
1. When the deskset is idle, press ANS SYS.
2. Press or to scroll to Private Mailbox, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Call Intercept, then press
MENU/SELECT or /SKIP.
4. Press or to choose On or Off.
5. Press MENU/SELECT or /SKIP to save the setting
and return to the previous menu. To exit without
making changes, press CANCEL.
Announcement
Play
Record
>Reset
Private Mailbox
Delete all megs
Record Memo
>Call Intercept
Call Intercept
>On
Off
72
Answering system
Answering system setup
Remote access code
Use this code to select a three-digit number to allow remote access of the
answering system from another telephone. You can change the code to any
number from 000-999. This code is 333 by default.
1. When the deskset is idle, press ANS SYS.
2. Press or to scroll to Ans Sys Setup, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Remote Code, then press
MENU/SELECT or /SKIP.
4. The screen displays Remote Code. Use the dialing
keys to enter a three-digit remote code.
• Press DELETE to delete a digit.
• Press /REPEAT or /SKIP to move the cursor to
the left or right.
5. Press MENU/SELECT to save the setting and return to
the previous menu. To exit without making changes,
press CANCEL.
Message date/time
The message date and time is set to Announce by default. During message
playback, you hear the date and time the message was received. You can
change this setting to skip the date and time information.
Play Messages
Private Mailbox
>Ans Sys Setup
Record Time
Ans Sys Setup
>Remote Code
Msg Date/Time
Message Alert
Remote Code
333
1. When the deskset is idle, press ANS SYS.
2. Press or to scroll to Ans Sys Setup, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Msg Date/Time, then press
MENU/SELECT or /SKIP.
4. Press or to choose Announce or Skip.
5. Press MENU/SELECT or /SKIP to save the setting
and return to the previous menu. To exit without
making changes, press CANCEL or /REPEAT.
73
Ans Sys Setup
Remote Code
>Msg Date/Time
Message Alert
Msg Date/Time
>Announce
Skip
Answering system
Answering system setup
Message alert
Use this feature to turn the audible message alert on or off.
If the message alert tone is on, the deskset beeps every 30 seconds when
there are new messages in the private mailbox.
1. When the deskset is idle, press ANS SYS.
2. Press or to scroll to Ans Sys Setup, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Message Alert, then press
MENU/SELECT or /SKIP.
4. Press or to choose On or Off.
5. Press MENU/SELECT or /SKIP to save the setting
and return to the previous menu. To exit without
making changes, press CANCEL or /REPEAT.
Message Length
Use this feature to set the maximum length of each recorded message.
If you choose Greeting only, the caller hears the selected announcement but
is not able to record a message. If you choose 1 minute, 2 minutes or
3 minutes, the caller can record a message up to that specific time period. If
you choose Unlimited, the caller can record a message of any length, up to
the remaining time for all messages and memos.
Ans Sys Setup
Remote Code
Msg Date/Time
>Message Alert
Message Alert
>On
Off
1. When the deskset is idle, press ANS SYS.
2. Press or to scroll to Ans Sys Setup, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Message Length, then
press MENU/SELECT or /SKIP.
4. Press or to choose Greeting only, 1 minute,
2 minutes, 3 minutes, or Unlimited.
5. Press MENU/SELECT or /SKIP to save the setting
and return to the previous menu. To exit without
making changes, press CANCEL or /REPEAT.
74
Ans Sys Setup
Msg Date/Time
Message Alert
>Message Length
Message Length
>Greeting only
1 minute
2 minutes
Answering system
Answering system setup
Call screening
Use this feature to choose whether incoming messages can be heard over the
speaker when they are being recorded. If you turn call screening on, your hear
the incoming message on your deskset when a call comes in.
1. When the deskset is idle, press ANS SYS.
2. Press or to scroll to Ans Sys Setup, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Call Screening, then press
MENU/SELECT or /SKIP.
4. Press or to choose On or Off.
5. Press MENU/SELECT or /SKIP to save the setting
and return to the previous menu. To exit without
making changes, press CANCEL or /REPEAT.
Recording time
Use this feature to check the remaining recording time in the system.
1. When the deskset is idle, press ANS SYS.
2. Press or to scroll to Record Time, then press
MENU/SELECT or /SKIP.
3. Press CANCEL to return to the previous menu.
Ans Sys Setup
Message Alert
Message Length
>Call Screening
Call Screening
>On
Off
Play Messages
Private Mailbox
Ans Sys Setup
>Record Time
75
Time left:
20:00
Answering system
Answering system operation
New message indication
The icon displays on the deskset when there are new messages and/or
memos in the private mailbox.
The MESSAGE WAITING indictor on the deskset flashes when there are new
messages in private mailbox.
Call screening
If the answering system and call screening are turned on (see Call screening
on page 75), the announcement and the incoming message broadcast at the
deskset when a call arrives. During message recording, press /VOLUME or
VOLUME/ to adjust the volume.
Call intercept
When a caller is leaving a message on your private mailbox, you can stop the
recording and talk to the caller by pressing the corresponding line key (LINE 1-
LINE 4). You can turn this feature on or off. See Call intercept on page 72.
Message playback
You can choose to play the new messages only or play all
messages (new messages and old messages).
By default, the system announces the date and time of
the recording before playing each message. After the last
message, you hear “End of the messages.”
>Play Messages
Private Mailbox
Ans Sys Setup
Record Time
To listen to messages in the mailbox:
1. While the deskset is idle, press ANS SYS on
the deskset.
Play Messages
>Play new msgs
Play all msgs
2. Press or to choose Play Messages, then press
MENU/SELECT.
3. Press or to choose Play new msgs to play the new messages only or
Play all msgs to play all the messages in the mailbox.
4. Press MENU/SELECT or /SKIP to play the messages.
5. The system announces the number of messages, date and time the
message was received, then starts playing the messages. If there are no
messages in the mailbox, the system announces, “No new messages.” if you
have chosen Play new msgs, or “No messages.” if you have chosen Play all msgs.
NOTES:
• If you want to play the messages without hearing the date and time information, set the
Msg Date/Time option to Skip. For details, see Message date/time on page 73.
• When you are playing the messages and there are incoming calls, you can press or to view
the caller ID information. To answer the call, lift the handset, or press the corresponding line key
(LINE 1-LINE 4), SPEAKER or HEADSET on the deskset.
76
Answering system
Answering system operation
Options during playback
When a message is playing, you can adjust the playback volume, skip, repeat,
delete the message, or switch between speakerphone and handset earpiece.
When a message is playing on the deskset:
• Press /VOLUME or VOLUME/ to adjust the message playback volume.
• Press /SKIP after the date and time announcement to skip to the
next message.
• Press /REPEAT to repeat the current message. Immediately press
/REPEAT after the date and time announcement to hear the previous
message.
• Press to stop the message playback. Press to start the message playback.
• Press DELETE after the date and time announcement to delete the message. The
system announces “Message deleted.”
• Lift the handset to listen to the message playback through the handset
earpiece. Place the handset on the deskset or press SPEAKER to switch
back to speakerphone.
Delete all private mailbox messages
You can use this feature to delete all messages stored in the private mailbox.
1. When the deskset is idle, press ANS SYS.
2. Press or to scroll to Private Mailbox, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Delete all msgs, then press
MENU/SELECT or /SKIP.
4. The screen displays Delete all messages? Press
MENU/SELECT to confirm. The screen displays All
messages are deleted.
Private Mailbox
Priv MB Delay
Announcement
>Delete all msgs
Delete
all
messages?
77
Answering system
Answering system operation
Record memo
Memos are messages you record as reminders for yourself. Play and delete
them the same way as incoming messages.
1. When the deskset is idle, press ANS SYS.
2. Press or to scroll to Private Mailbox, then press
MENU/SELECT or /SKIP.
3. Press or to scroll to Record Memo, then press
MENU/SELECT or /SKIP.
4. Lift the handset or face the deskset to record your memo. The screen displays
Record memo and the time elapsed. Press MENU/SELECT to stop recording.
NOTE: When you are recording your memo and there are incoming calls, you can press
or to view the caller ID information. To answer the call, lift the handset, or press the
corresponding line key (LINE 1-LINE 4), SPEAKER or HEADSET on the deskset.
Record memo
00:15
Press SELECT to:
STOP
78
Answering system
Remote access
Use this feature to reach your answering system remotely by calling any
telephone line connected this deskset from any touch-tone telephone. Make
sure the auto attendant feature of your UP416 console, and the private mailbox
of the extension are turned on for this feature to work. Remote access can only
play messages stored in the private mailbox.
To remotely reach the answering system:
1. Dial any telephone line connected to the console from any
touch-tone telephone.
2. When the system answers, enter the extension number.
3. When the private mailbox of the extension answers, enter the three-digit
remote access code (333 is the default code; see Remote access code on
page 73to change it).
4. You can also enter the following remote commands.
Remote commands:
1
1
2
3
7
8
9
0
#
5. Hang up to end the call.
Press to play all new messages.
Press to play all messages.
Press within three seconds of the message playing to go back to
the previous message.
Press after three seconds of the message playing to repeat the
message currently playing.
Press to skip the current message.
Press to play private mailbox announcement.
• Press 9 and wait for the beep before speaking.
• Press # to stop recording.
Press to stop the playing message.
Press to start recording a memo.
• Press # to stop recording.
Press to turn the private mailbox on or off.
Press during a message playback to delete current message.
Press during a message playback to delete all messages.
79
Answering system
Remote access
NOTES:
• If you do not enter the valid remote access code after you enter the answering system successfully,
the answering system starts to record the message after the tone.
• If the memory is full, the system announces, “Memory is full” when you try to record a memo by
pressing 9. You cannot record new memo until some old messages in the mailboxes are deleted.
Check the system remaining space frequently to maintain availability of space (page 75).
80
Appendix
Deskset display screen messages
All messages are
deleted
Call History
EMPTY
Caller ID
deleted
Check network
Contact saved
to Directory
DECT Headset
registered
DECT Headset
deregistered
Directory 0 entry
Directory
memory full
Ended
Extension busy.
Please try
again later
Handset
registered
Handset
deregistered
Int.
Intercom from:
Intercom to:
All messages in the private mailbox
are erased.
There are no entries in the caller ID history.
A Caller ID history is deleted.
The deskset cannot obtain an IP address.
A number is saved to the directory.
The cordless headset registration
was successful.
The cordless headset is deregistered from the
telephone system.
There are no directory entries.
The directory is full. You cannot save new
entries unless you delete some current
entries.
You have just ended a call.
The deskset extension is on a call.
The cordless handset registration
was successful.
The cordless handset is deregistered from the
telephone system.
The deskset is on an intercom call.
There is an intercom call coming in.
The deskset is making an intercom call.
81
Appendix
Deskset display screen messages
Line is not
available
at this time
Line X
Line X
Incoming call
No answer.
Please try again
later
No IP assigned.
Check network.
Number already
saved
Number saved
to
1-touch key
Obtain IP from
DHCP server?
Phone is set
to default
Redial deleted
Redial empty
Registering
DECT Headset...
Registering
handset...
(Put handset on
cradle to start)
Registration
failed
The telephone line cord is not plugged into
the console; or
The line you are trying to reach is on a
conference call; or
Call privacy is turned on on the line your are
trying to reach.
The telephone line X is in use.
There is an incoming call from line X.
The destination extension does not answer
the intercom call.
There is no IP assigned to the deskset.
The telephone number you have entered is
already stored in the directory.
The number is saved to the one-touch
memory.
The deskset will obtain an IP address from
the DHCP server.
The deskset telephone settings are reset to
default settings.
A redial list entry is deleted.
The redial list is empty.
The deskset is registering a cordless headset.
The deskset is registering a cordless handset.
Registration of a cordless handset or a DECT
headset is failed.
82
Appendix
Deskset display screen messages
System busy.
Please try
again later
Transfer from:
Transfer Line X
to:
Unable to obtain
IP. Please check
DHCP server.
XX New calls
All telephone lines are in use.
There is a transferred call from the console or
a deskset extension.
The deskset is transferring a call to a
system extension.
The deskset is unable to obtain an IP
address. You may need to check the DHCP
server.
There are new calls in the caller ID history.
83
Appendix
Troubleshooting
If you have difficulty with your telephone, please try the suggestions below.
For customer service, visit our website at businessphones.vtech.com or call
1 (800) 595-9511. In Canada, dial 1 (800) 267-7377.
The deskset fails to obtain an IP from the Ethernet switch or router.
• Make sure your Ethernet switch or router is properly installed and plugged
into the Ethernet network.
• Make sure the DHCP is enabled on your router, so that it can allocate
IP automatically.
• You may need to enter a static IP to the deskset. Refer to Network setup on
page 26 for details.
The deskset displays Check Network.
• Make sure your deskset is connected to the Ethernet switch or router
properly.
• If you have set a static IP manually, you need to reboot the deskset to apply
the new setting.
• Your router may have reassigned a new IP address to the deskset. Reboot
the deskset to update.
• You Ethernet cable may be defective. Try installing a new one.
My telephone base doesn’t work at all.
• Make sure the power cord is securely plugged in.
• Make sure you plug the Ethernet cable securely and firmly into the deskset
and the Ethernet switch or router.
• Refer to Deskset installation on pages 10-11 to reset the system. Allow at least
one minute for the deskset to reset.
• This system is not compatible with any other VTech 4 line business
telephones, except for the UP416 and UP407 telephones.
There is no dial tone.
• First try all the suggestions above.
• Make sure you plug the handset cord securely and firmly into the
the deskset and the corded handset.
• Your Ethernet cable might be defective. Try installing new ones.
• Make sure a line is selected. Press a line key or SPEAKER .
• If there is no dial tone when you press HEADSET, make sure the corded
headset is firmly connected to the
jack.
84
jack on
Appendix
Use onlySupplied Adapter
Use onlySupplied Adapter
Use onlySupplied Adapter
Use onlySupplied Adapter
Use onlySupplied Adapter
Troubleshooting
I cannot dial out.
• First try all the suggestions above.
• Make sure you have a dial tone before dialing. The corded handset might
take a second or two to connect the deskset and produce a dial tone. This is
normal. Wait an extra second before dialing.
• Make sure the deskset is set to the correct dial mode (pulse dial or tone dial)
for the service in your area. Refer to Dial mode on page 33 to set the dial
mode.
• If the other telephones in your building are having the same problem, contact
your telephone service provider.
I cannot switch a call from the deskset to the UP407 cordless handset.
• Make sure the system has only one line operating. You cannot switch the call
from the deskset to your UP407 cordless handset if there is more than one
telephone line in operation.
The deskset obtained an IP from the Ethernet switch or router but is not
connected to the console.
• You have to enter the name of the console and assign an extension
number to this deskset after an IP is obtained. Refer to Deskset installation on pages 12-14 for details.
• Make sure both the console and deskset are directly connected to the
same Ethernet switch or router.
My computer can’t connect to the network after plugging the Ethernet
cable through the PC port (
• Make sure the deskset is connected to power. The PC port (
).
) does not
work when the deskset does not have power source or during a
power outage.
• Make sure you plug the Ethernet cable connecting to the Ethernet switch
or router into the Ethernet port and the Ethernet cable connecting to the
computer into the PC port (
).
The network connection speed on my computer drops significantly after
plugging the Ethernet cable through the PC port (
).
• If you are using Gigabit Ethernet system, the connection speed drops to
100M after plugging the Ethernet cable through the PC port (
85
).
Appendix
Troubleshooting
The deskset flashes Check network when idle.
• Make sure you plug the Ethernet cable connecting to the Ethernet switch
or router into the Ethernet port and the Ethernet cable connecting to the
computer into the PC port.
• If you changed to a new Ethernet switch or router, make sure the discovery
method matches to the console. Refer to Discovery method on page 28 to
set the discovery method.
I cannot make intercom calls.
• Make sure you choose the correct extension.
• The destination telephone might be on an external call. Wait and try again.
• Make sure the INTERCOM light is off before you make an intercom call. If
the light is on, the system is busy or the intercom is unavailable. Try again
when the intercom light goes off.
• Check to make sure that each system extension has a unique extension
number. Refer to Set extension number on page 24 for details.
I cannot transfer outside calls.
• If you are on a conference call with another telephone in the same system,
the call cannot be transferred.
• If the destination telephone is on an outside call or intercom call with another
system telephone, the call cannot be transferred.
• Check to make sure that each system extension has a unique extension
number. Refer to Set extension number on page 24 for details.
I cannot join a conversation in progress.
• The call privacy feature prevents another set on the system from interrupting
a conversation. Make sure you turn off call privacy during a call. See Call
privacy on pages 34 and 41.
I hear a double-beep sound every 30 seconds.
• There is a call on hold at this extension. Press the LINE key of the call on
hold to return to the call and turn off the reminder beep.
I get noise, static, or weak signals on my cordless handset even when I’m
near the deskset.
• You may be able to improve the performance of your deskset by installing
your new deskset as far as possible from any other existing corded or
cordless telephone system that may already be installed.
• Other electronic products such as HAM radios and other DECT phones can
cause interference with your cordless phone. Try installing your phone as far
away as possible from these types of electronic devices.
86
Appendix
Troubleshooting
• Do not install this deskset near a microwave oven or on the same electrical
outlet. You might experience decreased performance while the microwave
oven is operating.
• If you plug your telephone in with a modem or a surge protector, plug the
deskset (or modem/surge protector) into a different location. If this does not
solve the problem, relocate your deskset or modem farther apart from one
another, or use a different surge protector.
• Relocate your telephone to a higher location. The telephone might have
better reception in a high area.
• If the other telephones in your building are having the same problem, contact
your telephone service provider.
The deskset display screen is blank.
• Make sure the power cord is connected to both the deskset and an electrical
outlet not controlled by a wall switch.
My calls fade in and out while I’m using my corded handset.
• If you have a corded headset plugged into the telephone, try unplugging it
and firmly plugging it in again.
• If you are using the speakerphone when this problem occurs, eliminate any
background noise. Noise from the television, radio, or other appliances might
cause the speakerphone to cut in and out. Try engaging the MUTE button
when you are not speaking or eliminating the background noise.
My deskset does not ring when I receive a call.
• Make sure that the ringer is not off. Refer to Ringer volume on page 30 in this
user’s manual.
• Make sure the telephone line cords, power cord and Ethernet cable are
plugged in securely.
• Make sure the system is properly set up. Refer to Deskset installation on
pages 10-11 for details.
• If the other telephones in your building are having the same problem, contact
your telephone service provider.
• Test a working telephone at the telephone jack. If another telephone has the
same problem, contact your telephone service provider.
• The telephone line cord might be defective. Try installing a new
line cord.
• Make sure that the Line group assignment is correct. See Line group
section on UP416 console’s user’s manual for more details.
87
Appendix
Troubleshooting
My caller ID isn’t working.
• Caller ID is a subscription service. You must subscribe to this service
from your telephone service provider for this feature to work on your
telephone base.
• The caller must be calling from an area that supports caller ID.
• Both your and your caller’s telephone service providers must use caller ID
compatible equipment.
• Make sure the area codes are set correctly on the deskset. See
Home area code on page 32 for details.
System does not receive caller ID when on a call.
• Make sure you subscribe to caller ID with call waiting features from your
telephone service provider. Caller ID feature works only if both you and the
caller are in areas offering caller ID service, and if both telephone service
providers use compatible equipment.
The outgoing announcement is not clear.
• When recording the announcement, make sure you speak in a normal tone
of voice about nine inches from the deskset.
• Make sure there is no background noise (television, music, traffic, etc.) when
recording.
The private mailbox does not record messages.
• Make sure the auto attendant is turned on at the console.
• Make sure the private mailbox is turned on at the deskset (page 70).
• Make sure the memory of the answering system is not full. Please refer to
the Recording time on page 75 in the user’s manual. If the memory is full,
the system announces “Memory full” and then hangs up. You need to delete
some old messages in order to make room for new messages.
• If Greeting only is selected in the Message length menu (page 74), the
answering system only plays the outgoing announcement. It does not record
incoming message.
The private mailbox does not answer after the correct delay ring.
• Make sure the auto attendant is turned on at the console.
• Make sure the private mailbox is turned on at the deskset (page 70).
• If all four outgoing telephone lines are in use, the system cannot answer
incoming calls.
88
Appendix
Troubleshooting
The private mailbox is recording incomplete messages.
• If the message length is not set to unlimited and a caller leaves a very long
message, part of it may be lost when the system disconnects the call after
the set message length. See Message Length on page 74 for details.
• If the caller pauses for longer than seven seconds, the system stops
recording and disconnects the call.
• If the system’s memory becomes full during message recording, the system
stops recording and disconnects the call.
• If the caller’s voice is very soft, the system may stop recording and
disconnect the call.
I have difficulty hearing messages.
• Press /VOLUME to increase the speaker volume on the deskset.
The answering system does not respond to remote access commands.
• Make sure you are using the correct remote access code (page 73).
• Make sure you are calling from a touch-tone telephone (away from home).
When dialing a number, you should hear tones. If you hear clicks, then it is
not a touch-tone telephone and cannot activate the answering system.
• The answering system might not detect the remote access code when
your announcement is playing. Wait until the announcement is over before
entering the code.
• There might be interference on the telephone line you are using. Press the
dial pad keys firmly when dialing.
I subscribe to a nontraditional telephone service that uses my computer
to establish connections, and my telephone doesn’t work.
• Make sure your computer is powered on.
• Make sure your Internet connection is working properly.
• Make sure that the software is installed and running for your nontraditional
telephone service.
• Make sure to plug your USB telephone adapter into a dedicated USB port on
your computer. Do not plug it into a multiple port USB hub (USB splitter) that
is not powered.
• In a few rare instances, the USB port on your computer may not have
enough power. Try using a USB hub with its own external power supply.
• If you are using a firewall, it may prevent access to your nontraditional
telephone service provider. Contact your service provider for more
information.
89
Appendix
Troubleshooting
Common cure for electronic equipment.
If the telephone base does not seem to be responding normally, do the
following (in the order listed):
1. Disconnect the power from the deskset.
2. Wait a few minutes.
3. Connect the power to the deskset.
4. Wait for the deskset to synchronize its connection. This will take at least one
minute to finish.
90
Appendix
Maintenance
Taking care of your telephone
• Your telephone base contains sophisticated electronic parts, so you must treat it with care.
• Avoid rough treatment.
• Place the corded handset down gently.
• Save the original packing materials to protect your telephone base if you ever need to ship it.
Avoid water
• You can damage your telephone base if it gets wet. Do not use the corded handset in the rain, or
handle it with wet hands. Do not install the telephone base near a sink, bathtub or shower.
Electrical storms
• Electrical storms can sometimes cause power surges harmful to electronic equipment. For your
own safety, take caution when using electric appliances during storms.
Cleaning your telephone
• Your telephone base has a durable plastic casing that should retain its luster for many years.
Clean it only with a soft cloth slightly dampened with water or a mild soap.
• Do not use excess water or cleaning solvents of any kind.
Remember that electrical appliances can cause serious injury if used when you are wet or
standing in water. If the telephone base should fall into water, DO NOT RETRIEVE IT UNTIL
YOU UNPLUG THE POWER CORD AND TELEPHONE LINE CORDS FROM THE WALL, then
pull the unit out by the unplugged cords.
91
Appendix
FCC part 68 and ACTA
This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by
the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this
equipment contains, among other things, a product identifier in the format US:AAAEQ##TXXXX.
This identifier must be provided to your telephone service provider upon request.
The plug and jack used to connect this equipment to premises wiring and the telephone network
must comply with the applicable Part 68 rules and technical requirements adopted by ACTA. A
compliant telephone cord and modular plug is provided with this product. It is designed to be
connected to a compatible modular jack that is also compliant. An RJ11 jack should normally be
used for connecting to a single line and an RJ14 jack for two lines. See Installation Instructions in
the user’s manual.
The Ringer Equivalence Number (REN) is used to determine how many devices you may connect
to your telephone line and still have them ring when you are called. The REN for this product is
encoded as the 6th and 7th characters following the US: in the product identifier (e.g., if ## is 03,
the REN is 0.3). In most, but not all areas, the sum of all RENs should be five (5.0) or less. For more
information, please contact your telephone service provider.
This equipment may not be used with Party Lines. If you have specially wired alarm dialing
equipment connected to telephone line, ensure the connection of this equipment does not disable
your alarm equipment. If you have questions about what will disable the alarm equipment, consult
your telephone service provider or a qualified installer.
If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem has
been corrected. Repairs to this telephone equipment can only be made by the manufacturer or its
authorized agents. For repair procedures, follow the instructions outlined under the
Limited Warranty.
If this equipment is causing harm to the telephone network, the telephone service provider may
temporarily discontinue your telephone service. The telephone service provider is required to notify
you before interrupting service. If advance notice is not practical, you will be notified as soon as
possible. You will be given the opportunity to correct the problem and the telephone service provider
is required to inform you of your right to file a complaint with the FCC. Your telephone service
provider may make changes in its facilities, equipment, operation, or procedures that could affect
the proper functioning of this product. The telephone service provider is required to notify you if such
changes are planned.
If this product is equipped with a corded or cordless handset, it is hearing aid compatible.
If this product has memory dialing locations, you may choose to store emergency telephone
numbers (e.g., police, fire, medical) in these locations. If you do store or test emergency numbers,
please:
Remain on the line and briefly explain the reason for the call before hanging up.
Perform such activities in off-peak hours, such as early morning or late evening.
Industry Canada
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
The term ‘’IC:‘’ before the certification/registration number only signifies that the Industry Canada
technical specifications were met.
The Ringer Equivalence Number (REN) for this terminal equipment is 0.1. The REN is an
indication of the maximum number of devices allowed to be connected to a telephone interface.
The termination on an interface may consist of any combination of devices subject only to the
requirement that the sum of the RENs of all the devices does not exceed five.
This product meets the applicable Industry Canada technical specifications.
92
Appendix
FCC part 15
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful inter ference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
This Class A digital apparatus complies with Canadian requirements:
CAN ICES-3 (A)/NMB-3 (A)
Cet appareil numérique de classe A est conforme à l’exigence canadienne:
CAN ICES-3 (A)/NMB-3 (A)
WARNING: Changes or modifications to this equipment not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Caution: To maintain the compliance with the FCC’s RF exposure guideline, place the base unit at
least 20cm from nearby persons.
93
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
