Battery installation and charging

THIS SIDE UP

Battery Pack

BT5632 / BT5872

3.6V 550mAh Ni-MH

WARNING: DO NOT BURN OR PUNCTURE BATTERIES

MADE IN CHINA

THIS SIDE UP

Battery Pack

BT5632 / BT5872

3.6V 550mAh Ni-MH

WARNING: DO NOT BURN OR PUNCTURE BATTERIES

MADE IN CHINA

THIS SIDE UP

Battery Pack

BT5632 / BT5872

3.6V 550mAh Ni-MH

WARNING: DO NOT BURN OR PUNCTURE BATTERIES

MADE IN CHINA

THIS SIDE UP

Battery Pack

BT5632 / BT5872

3.6V 550mAh Ni-MH

WARNING: DO NOT BURN OR PUNCTURE BATTERIES

MADE IN CHINA

Pair your rst

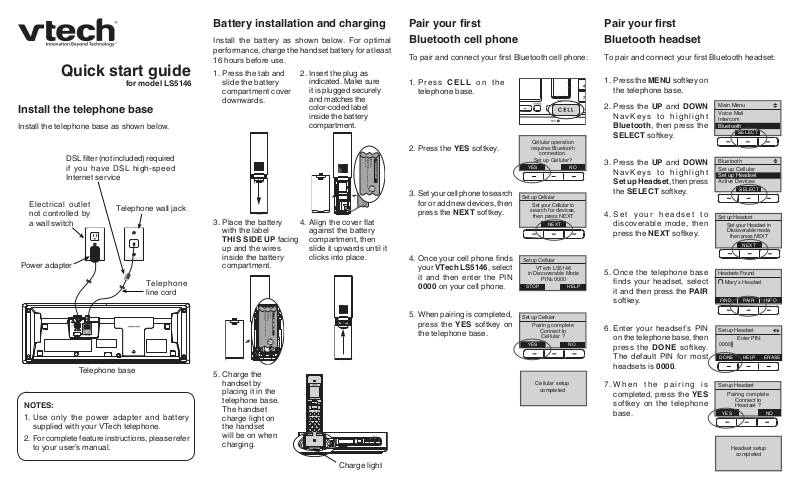

Quick start guide

for model LS5146

Install the telephone base

Install the telephone base as shown below.

DSL lter (not included) required

if you have DSL high-speed Internet service

Electrical outlet not controlled by a wall switch

Power adapter

Telephone wall jack

Tel e ph on e line cord

Install the battery as shown below. For optimal performance, charge the handset battery for at least 16 hours before use.

Insert the plug as

Press the tab and

1. slide the battery compartment cover

downwards.

2. indicated. Make sure it is plugged securely and matches the color-coded label inside the battery compartment.

Place the battery

3. Align the cover at with the label THIS SIDE UP facing up and the wires inside the battery

4. against the battery compartment, then slide it upwards until it clicks into place.

compartment.

Bluetooth cell phone

To pair and connect your rst Bluetooth cell phone:

Pr e s s C E LL on t he

1. telephone base.

Cellular operation

Press the YES softkey.

Set your cell phone to search

3. for or add new devices, then press the NEXT softkey.

Once your cell phone nds

4. your VTech LS5146,

select it and then enter the PIN 0000 on your cell phone.

requires Bluetooth

connection.

Set up Cellular?

Set up Cellular

Set your Cellular to

search for devices,

then press NEXT

NEX T

Set up Cellular

VTech LS5146

in Discoverable Mode

PIN=0000

STO P

NOYES

HEL P

Bluetooth headset

To pair and connect your rst Bluetooth headset:

Press the MENU softkey on

1. the telephone base.

Press the UP and DOWN

2. N a v K ey s t o h i g h li g ht

Bluetooth, then press the SELECT softkey.

Press the UP and DOWN

3. N a v K ey s t o h i g h li g ht Set up Headset, then press the SELECT softkey.

S et y o ur h e a d s e t t o

4. discoverable mode, then press the NEXT softkey.

Once the telephone base

nds your headset, select

it and then press the PAIR softkey.

Main Menu Voice Mail

Intercom

Bluetooth

Set up Cellular

Set up Headset

Active Devices

Set up Headset

Headsets Found

FIN D

SEL ECT

Set your Headset in Discoverable mode,

then press NEXT

NEX T

Mary’s Headset

PAI R

INF O

Telephone base

NOTES:

Use only the power adapter and battery

1. supplied with your VTech telephone.

For complete feature instructions, please refer

2. to your user’s manual.

Charge the

5. handset by placing it in the telephone base. The handset charge light on the handset will be on when charging.

Charge light

When pairing is completed,

5. press the YES softkey on the telephone base.

Set up Cellular

Pairing complete

Connect to

Cellular ?

Cellular setup

completed

Enter your headset’s PIN

NOYES

on the telephone base, then press the DONE softkey. The default PIN for most

Set up Headset

Enter PIN:

0000

DON E

HEL P

ERA SE

headsets is 0000.

W h e n t h e p a i r i n g i s

7. completed, press the YES softkey on the telephone base.

Set up Headset

Pairing complete

Connect to

Headset ?

Headset setup

completed

NOYES

Make, receive and end calls

To make a HOME call:

Di a l t he te le ph o ne nu mb er, t h en pr es s

• HOME/FLASH or on the handset, or HOME on the telephone base.

To receive a HOME call:

Press HOME/FLASH or on the handset or

• HOME on the telephone base.

If you have a Bluetooth headset connected, press

the call button on your headset to receive HOME calls.

To make a CELL call:

Dial the telephone number, then press CELL on

• the handset or telephone base.

To receive a CELL call:

Press CELL or on the handset or CELL on the

• telephone base.

To end a HOME or CELL call on the handset:

Press the OFF/CANCEL or return the handset in

• the telephone base or charger.

To end a call on the telephone base:

Press HOME for a HOME call.

•

Press CELL for a CELL call

•

Voice mail setup

If you subscribe to voice mail service provided by your telephone service provider, you can easily access your voice mail features using the right NavKey on the handset or telephone base when the

telephone is not in use, but you must rst set your

voice mail codes on the telephone base.

To set your voice mail codes:

Press the MENU softkey

1. on the telephone base.

Press the UP and DOWN

2. NavKeys to highlight

Settings, then press the SELECT softkey.

Press the UP and DOWN

3. NavKeys to highlight Voice Mail Codes, then press the SELECT softkey.

Press the UP and DOWN

4. NavKeys to highlight

Voice Mail access, Play Messages, Skip Message, Repeat Message, Delete Message, Msg Time Stamp, then

press the SELECT softkey.

Use the dial pad to enter

5. your access number.

Press the ERASE

•

softkey to delete a highlighted character.

Press and hold

•

the # key to enter a two-second dialing

pause (if necessary)

and then enter your PIN or password.

6. Press the SAVE softkey

to conrm your setting.

Main Menu Intercom

Bluetooth

Settings

Settings LCD Contrast

Clear Voice Mail

Voice Mail Codes

Voice Mail access

Play Messages Skip Message

Voice Mail Codes

SAV E

SEL ECT

Voice Mail access

ERA SE

Access to voice mail codes

Voice Mail

To access your programmed voice mail codes:

Press MENU/SEL on the handset or the MENU

1. softkey on the telephone base. Press the UP or DOWN NavKeys to select

Voice Mail.

Press MENU/SEL on the handset or the SELECT

3. softkey on the telephone base to dial your voice mail service. When connected to your service, press the

4. OPTI O NS s o f tkey to di s p lay various ca l l options. Press the UP and DOWN NavKeys to highlight

5. one of the below options, then press the SELECT softkey.

Play Messages

•

Skip Message

•

Repeat Message

•

Delete Message

•

Msg Time Stamp

•

Hold Home Call

•

6. Press

MENU/SEL on the handset or the SELECT

softkey on the telephone base.

Main Menu Phone Book

Call Log

Voice Mail

SEL ECT

More about Bluetooth

You can ma k e and rec e i ve calls us i n g t h e HOME and CELL lines. The HOME line is your conventional telephone land line. The CELL line is the communications service provided through your

Bluetooth enabled cell phone.

Before using your Bluetooth device(s) with the telephone base, make sure that:

Your cell phone and/or headset devices are not

•

connected to any other Bluetooth device(s) and the Bluetooth wireless function is on.

Your device is connected to the telephone base

• and on the Active Devices list.

If you experience difculty using your Bluetooth cell phone:

Make sure that your Bluetooth cell phone is

working properly. See your Bluetooth device(s)

user’s manual for more information.

Delete the VTech LS5146 device on your cell

phone, then delete your cell phone on the Pair Devices list.

Repeat the pairing process in

Pair your rst Bluetooth cell phone in this Quick start guide.

IMPORTANT!

If your product is not working properly:

Refer to the Troubleshooting section of the

• user’s manual. Visit our website at www.vtechphones.com or

•

call 1 (800) 595-9511. In Canada, go to www.

vtechcanada.com

The BLUETOOTH® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by VTech

Holdings Limited is under license. VTech Holdings Limited is

a member of Bluetooth SIG, Inc. Other trademarks and trade

names are those of their respective owners.

or 1 (800) 267-7377.
