V-Tech DT596KP User Manual

Product Information

DT596KP Series

2-Wire Outdoor Staon

DESCRIPTION FEATURES

2-wire system color outdoor station with keypad
access control

DIMENSION

90

176

28

32

► Full stainless steel design with vandal

proof function;

► 4mm plexiglass cover for protecting;

► Keypad password access control;

► Color CCD Camera with high resolution;

► Name plate with background light;

► Two locks control by separately through

password;

1* Max.80 groups passwords to be
authorized to different users;

► Infra-red LED for night view;

► IP55 protection rate;

► Rainy cover for surface mounting or full

ush mounting by stainless steel panel;

► Compatible with all DT two wire system

models

1. Parts and Funcons

Camera Lens

Speaker

98

98

Indicator(red)

Indicator(blue)

Touch Sensitive
Digital Keypad

Nameplate
Call Button
Microphone

Camera Lens

Speaker

Indicator(red)

Indicator(blue)

Touch Sensitive
Digital Keypad

Nameplate
Call Button
Screws for panel

mounting
Microphone

1

2 3

4 5 6

7

0 #

*

DT596/KP

1

2 3

4 5 6

7

0 #

*

DT596F/KP

2. Door Staon Mounng

176 mm

220 mm

1

2 3

4 5 6

7

0 #

*

90 mm

1

4 5 6

7

*

98

2 3

0 #

119 mm

28 mm

Rainy Cover

98

Side View

Mounting box

DT596/KP Mounting

1 2

Drill holes in the wall to match the size of
screws and attach the rainy cover to the wall.

adjust camera angle

Connect the cable correctly and adjust
right angle for camera

43

Attach the panel to the rainy cover Use the screwdriver and the screw

to fix the panel

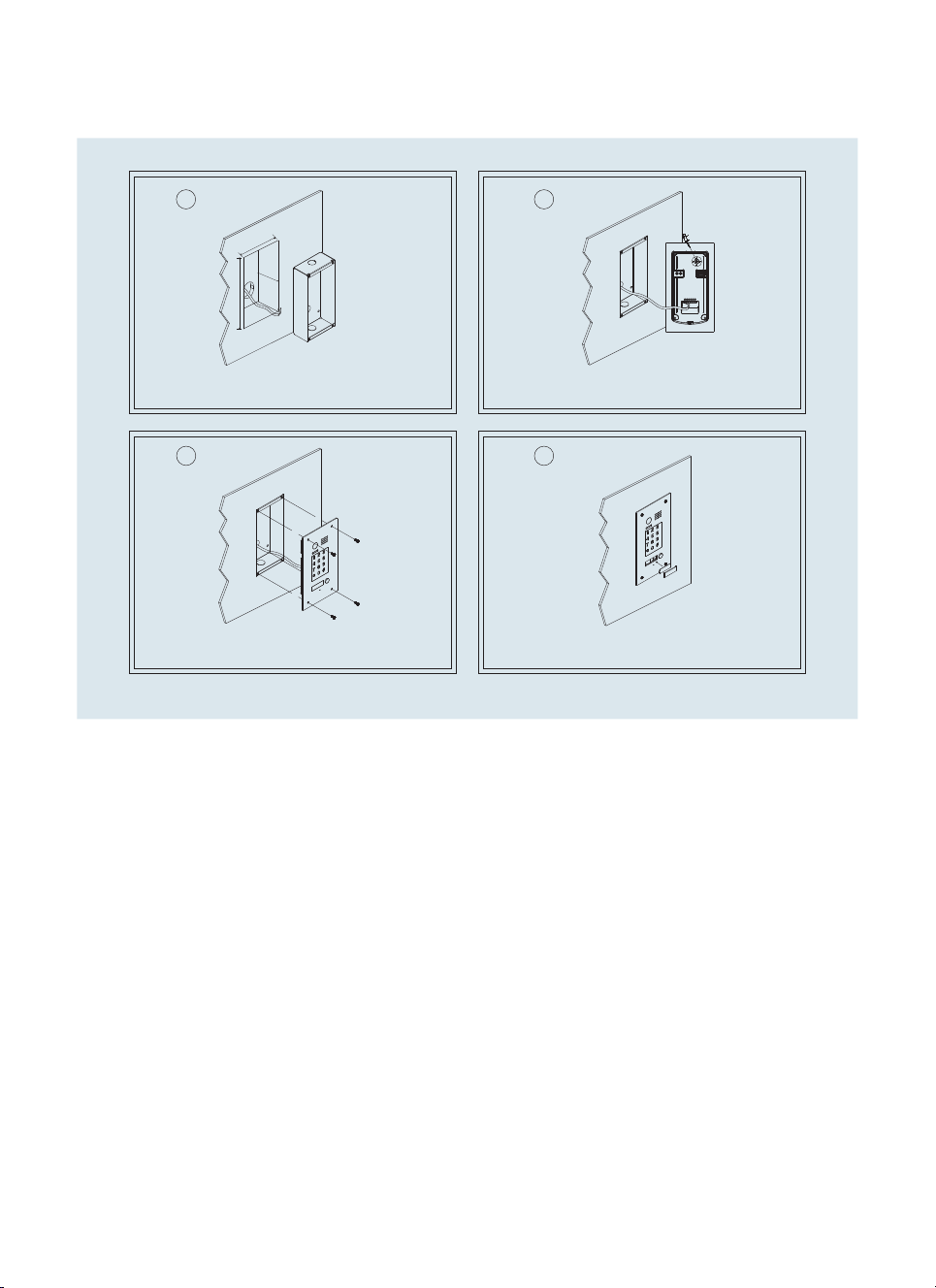

DT596F/KP Mounting

1

90mm

52mm

174mm

Drill a hole in the wall to match the size of the
mounting box and attach to the wall.

Attach the panel to the mounting box and
use screws supplied to fix the panel

2

adjust camera angle

Connect the cable correctly and adjust
right angle for camera

43

Place name label

3. Specicaon

*Power Supply : DC 24V (supplied by PS4-24V or PS5-24V);

*Power Consumption: Standby 60mA; Working status 200mA;

*Camera: Pinhole Sharp Color CCD; 420 TV Lines;

*Unlocking time: 1-99s, set by monitor or outdoor station;

*Talk Time: 90S;

*Lock Power supply: 12Vdc, 300mA(Internal Power);

*Temperature: -100C~+450C;

*Wiring: 2 wires (non-polarity);

*Dimension: 176(H)×90(W)×28(D)mm(DT596/KP)

220(H)×119(W)×52(D)mm(DT596F/KP)

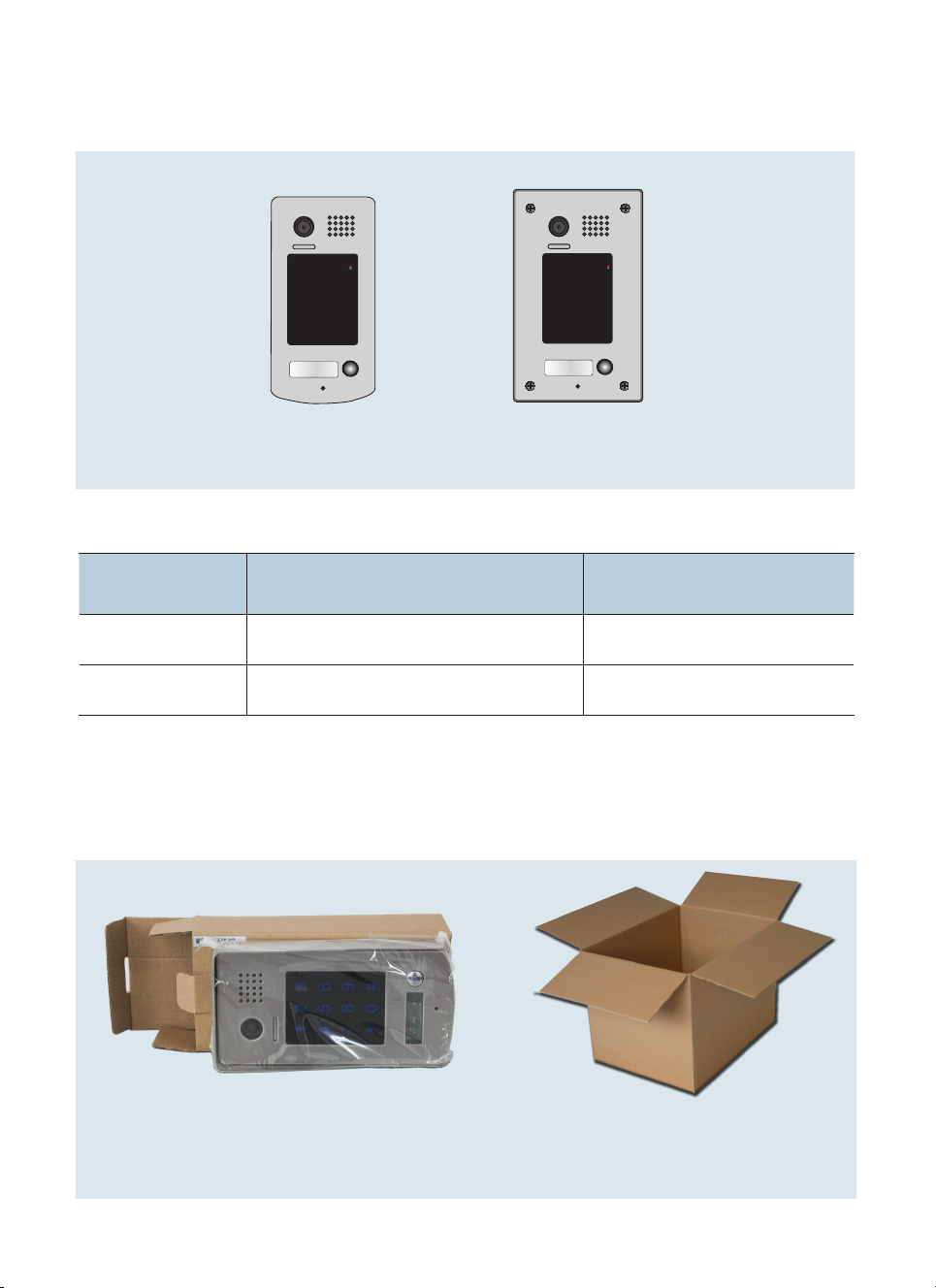

4. Ordering Informaon for Door Staon

1

1

2 3

4 5 6

98

7

0 #

*

DT596/KP DT596F/KP

Model No. Brief Description Remark

2 3

4 5 6

7

0 #

*

98

DT596/KP

DT596F/KP

Color CCD Outdoor Staon with rain
cover (Keypad Version)

Color CCD Outdoor Staon by ush
mounng(Keypad Version)

5. Packing Informaon

Dimensions: 202(H)×100(W)×60(D)mm

Gross Weight: 0.75Kg

NSTC,PAL must be specied

NSTC,PAL must be specied

Carton: 415 (H)×360 (W)×265 (D)mm

Quanlity: 28PCS
