2 -Wire Intercom System
DT591/592 User Manual
DT591 DT592
DT-ENG-591/592-V1 100S719
CONTENTS
1.Parts and Functions............................................................................................. 1
2.Terminal Descriptions .......................................................................................... 1
3.Specications ...................................................................................................... 2
4.Mounting .............................................................................................................. 2
4.1 Mounting Without Rainy Cover ...................................................................... 2
4.2 Mounting With Rainy Cover ........................................................................... 3
4.3 Placing Name Label ...................................................................................... 3
4.4 Adjusting Camera Angle ................................................................................ 4
5.System Wiring and Connections ......................................................................... 4
5.1 Basic Connection........................................................................................... 4
5.2 Electric Lock Connection ............................................................................... 5
5.2.1 Door Lock Controlled with Internal Power ............................................ 5
5.2.2 Door Lock Controlled with Dry Contact ................................................ 5
5.2.3 How to setup the unlock parameter in Monitor ...................................... 6
5.3 Multi Doorstations Connection....................................................................... 7
5.4 Multi Monitors Connection ............................................................................. 8
5.4.1 Basic IN-OUT Wiring Mode ................................................................. 8
5.4.2 With DBC-4 Wiring Mode .................................................................... 9
6.Setup ................................................................................................................... 10
6.1 DIP Switches Settings of Doorstation ............................................................ 10
6.2 DIP Switches Settings of Monitor .................................................................. 10
6.3 Notices........................................................................................................... 12
7.Cables Requirements .......................................................................................... 13
1.Parts and Functions
BUS
PL
S1+ S2+ S-
Camera Lens
Night View LED
Speaker
Nameplate
Call Button
Microphone
Note: DT592 has two call buttons.
2.Terminal Descriptions
176 mm
90 mm
Rainy Cover
23 mm
ON
12
MIC adjustment
SPK adjustment
-1-
1 2 3
ON
Lock Control Jumper
1 2
Doorstation Code DIP
Main Connect Port
Lock Control Jumper:
•
Doorstation Code DIP:
•
Main Connect Port:
•
To select the lock type: see 5.2.1 , 5.2.2
Total 4 doorstations can be supported,see 6.1
To connect the bus line and the electronic locks.
• BUS: Connect to the bus line, no polarity.
• PL: External lock power input, connect to the power positive(power +).
• S1+, S2+: Lock power(+) output, to connect 2 locks.
• S-: Lock power(-) output, connect to the power(-) input of locks(only when using the camera to
power the locks, if using the external power supply for the locks, the S- will not be connected).
3.Specications
Lock Power supply: 12Vdc, 300mA(Internal Power)
Power Consumtion: 1W in standby, 12W in working
NO, COM dry contact: Max. 48V dc 1.5A
Unlocking time: 1 to 9 seconds, set by Monitor
Working temperature: -10ºC ~ 45ºC
4.Mounting
4.1 Mounting Without Rainy Cover
1 2 3 4
160-165cm
1
2
-2-
4.2 Mounting With Rainy Cover
1 2 3 4
1
2
160-165cm
4.3 Placing Name Label
Move the plastic cover away to open the transparent name label cover, insert a name paper, then put
the plastic cover back to the panel.
name label
-3-
ON
12

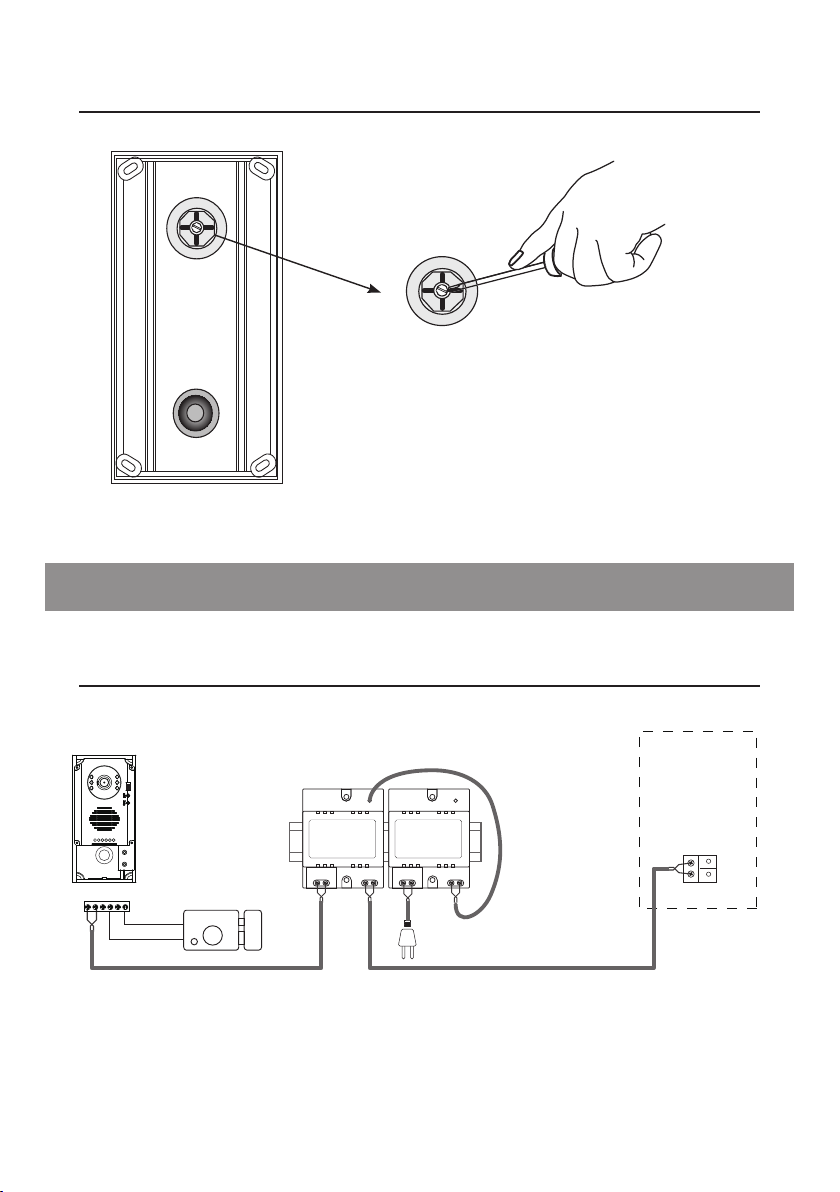

4.4 Adjusting Camera Angle
use a screwdriver to loosen the screw and then adjust
the angle of the camera ,then x the screw.
5.System Wiring and Connections
5.1 Basic Connection
L1 L2 PL S1+ S2+ S-
ON
12
monitor
DPS PS4
-
+
AC~
-4-
5.2 Electric Lock Connection
5.2.1 Door Lock Controlled with Internal Power
Note:
1. Electronic lock of Power-on-to-unlock type should be used.
2. The door lock is limited to 12V, and holding current must be less than 250mA.
3. The door lock control is not timed from Exit Button(EB).
4. The
Unlock Mode
Parameter of Monitor must be set to 0 (by default).
connect one lock connect two locks
Connect one lock
Jumper position in
BUS PL
EB
*
S1+S2
1-2
+
S-
EB
*
LOCK
EB
*
5.2.2 Door Lock Controlled with Dry Contact
Note:
1. The external power supply must be used according to the lock.
2. The jumper must be taken off before connecting.
3. Setup the
Unlock Mode
of Monitor for different lock types.
Connect two locks
Jumper position in
BUS PL S1+ S2+ S-
nd
2
ST
1
1-2
LOCK
LOCK
nd
2
ST
1
• Power-on-to-unlock type:Unlock Mode=0 (by default)
• Power-off-to-unlock type:Unlock Mode=1
-5-
connect one lock connect two locks
Home
Installer
setup
Caliber
TouchScreen
BUS PL
Take off the Jumper
S1+S2
S-
+
BUS PL
Take off the Jumper
S1+S2
S-
+
POWER
SUPPLY
LOCK
5.2.3 Unlock parameter setting(set on monitor)
Manual
Monitor
Memory
Playback
About
?
1.Touch item on main
menu page.
Installation settings:
[0010]#:Remove all remote control
[0011]#:Add remote control
[8000]#:Set as master unit 0
[8001]#:Set as slaver unit 1
[8002]#:Set as slaver unit 2
[8003]#:Set as slaver unit 3
[8004]#:Set as guard unit
[8005]#:Set as not guard unit
[8006]#:Panel on as slaver unit called
[8007]#:Panel off as slaver unit called
[8008]#:Date format:MM/DD/YYYY
[8009]#:Date format:DD/MM/YYYY
[8010]#:Set lock mode to 0
[8011]#:Set lock mode to 1
[8021]~[8029]
#Set the lock time of 1~9s
Multi language settings:
---
Monitor
Album
Intercom
User Setup
Code Number:[----]
Multimedia
Close
09/30/2010 Thu.16:41
3
1
2
6
5
4
9
7
8
0
2.Touch the screen anywhere
and hold for 2s.
Cancel
POWER
SUPPLY
H/W : --- a1.3
S/W: V17.11.418.00
Local addr: --Unlock timing: --Video standard: UI-CODE: --MCM-VER.: --Updated: ---
LOCK
4.A digital keypad and setting
3.Touch Installer setup item
instructions will be shown.
Note:
1.must connect DT591/592 correctly before setting.
2.the parameter will be saved in DT591/592 automatically,so you need only set on one monitor.
3.the above diagram is t for icon menu series monitors only, to text menu series monitors,please
refer to the corresponding user manual.
-6-
5.3 Multi Doorstations Connection
monitors
L1 L2 PL S1+ S2+ S-
BUS
DBC4
A B C D
DPS
PS5
85~260VAC
ID=10
ON
1 2
1# Camera
L1 L2 PL S1+ S2+ S-
ID=00
ON
ON
12
1 2
2# Camera3# Camera4# Camera
ID=01ID=11
L1 L2 PL S1+ S2+ S-
ON
ON
12
1 2
L1 L2 PL S1+ S2+ S-
ON
12
ON
ON
12
1 2
-7-
5.4 Multi Monitors Connection
5.4.1 Basic IN-OUT Wiring Mode
ON
1 2 3 4 5 6
Code=15, DIP-6=on
ON
1 2 3 4 5 6
Code=14, DIP-6=off
ON
1 2 3 4 5 6
Code=0, DIP-6=off
monitor
monitor
monitor
DPS
PS5
ID=00
ON
1 2
-8-
85~260AC

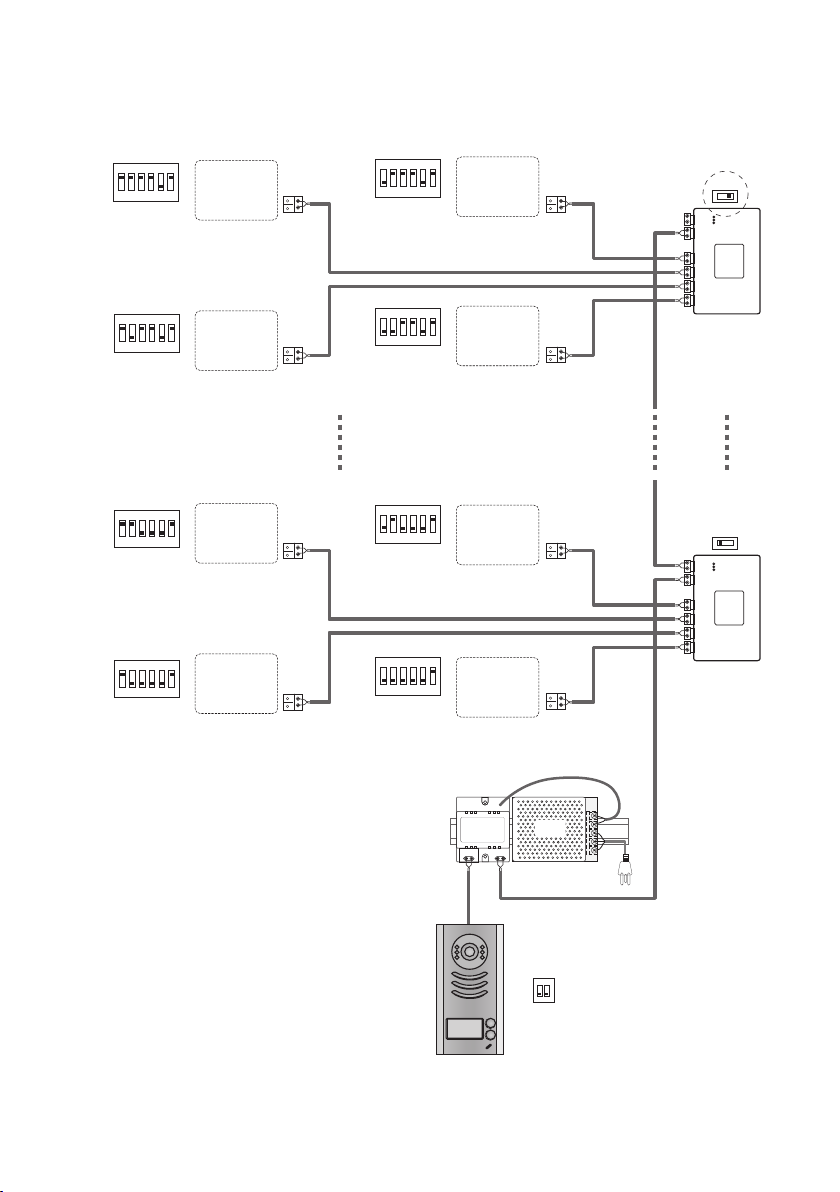

5.4.2 With DBC-4 Wiring Mode
ON
1 2 3 4 5 6
Code=15, DIP-6=on
ON
1 2 3 4 5 6
Code=13, DIP-6=on
ON
1 2 3 4 5 6
Code=3, DIP-6=on
ON
1 2 3 4 5 6
Code=1, DIP-6=on
monitor
monitor
monitor
monitor
ON
1 2 3 4 5 6
Code=14, DIP-6=on
ON
1 2 3 4 5 6
Code=12, DIP-6=on
ON
1 2 3 4 5 6
Code=2, DIP-6=on
ON
1 2 3 4 5 6
Code=0, DIP-6=on
monitor
monitor
monitor
monitor
HI
OUT
IN
DBC-4
A B C D
HI
OUT
IN
DBC-4
A B C D
-9-
DPS
PS5
ID=00
ON
1 2
85~260AC
6.Setup
ON(1)
ON
=
OFF(0)
ON
=
6.1 DIP Switches Settings of Doorstation
Total 2 bits on the DIP switches can be congured.The switches can be modied either before or after
installation.
Bit state Descriptions
1
1 2
ON
2
ON
ON
1 2
ON
1 2
Default setting, ID = 0(00), set to the rst Door Station.
ID = 1(10), set to the second Door Station.
ID = 2(01), set to the third Door Station.
ID = 3(11), set to the fourth Door Station.
6.2 DIP Switches Settings of Monitor
There are 6 bit switches in total. The DIP switches are used to configure the User Code for each
Monitor.
Bit-6 is used to set video impedance,it should be set to ON if the Monitor is in the end of the line(bus),
otherwise set to OFF.
Bit state Setting Bit state Setting
ON
1 2 3 4 5 6
The monitor is
not at the end
of the bus.
ON
1 2 3 4 5 6
The monitor
is at the end
of the bus.
-10-
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3 4 5 6
Bit-1 to Bit-5 are used to User Code setting. The value is from 0 to 31, which have 32 different codes .
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3 4 5 6
Bit state User Code Bit state User Code Bit state User Code
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
ON
1 2 3 4 5 6
ON
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
ON
1 2 3 4 5 6
Code=0 Code=11 Code=22
Code=1
Code=2 Code=13
Code=3 Code=14
Code=4 Code=15
Code=5 Code=16
Code=6 Code=17
Code=7 Code=18
Code=8 Code=19
Code=9 Code=20
Code=10 Code=21
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
ON
ON
Code=12
ON
ON
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
ON
1 2 3 4 5 6
ON
ON
1 2 3 4 5 6
ON
ON
1 2 3 4 5 6
ON
Code=23
Code=24
Code=25
Code=26
Code=27
Code=28
Code=29
Code=30
Code=31
Note:Monitors response button A must set the user code from 0
to 15.and button B set the user code from 16 to 31.
A
B
A
-11-
6.3 Notices
Name Discription Usage
PS5-24V
Power supply,85~260Vac input,24Vdc/3A
output,10 DIN modules
Connect with multi doorstations or
multi monitors(up to 2 or above)
PS4-24V
Power supply,85~260Vac input,24Vdc/1A
output,for basic kit only,4 DIN modules
Connect with one doorstation and one
monitor(DT16 can be connected two)
-12-

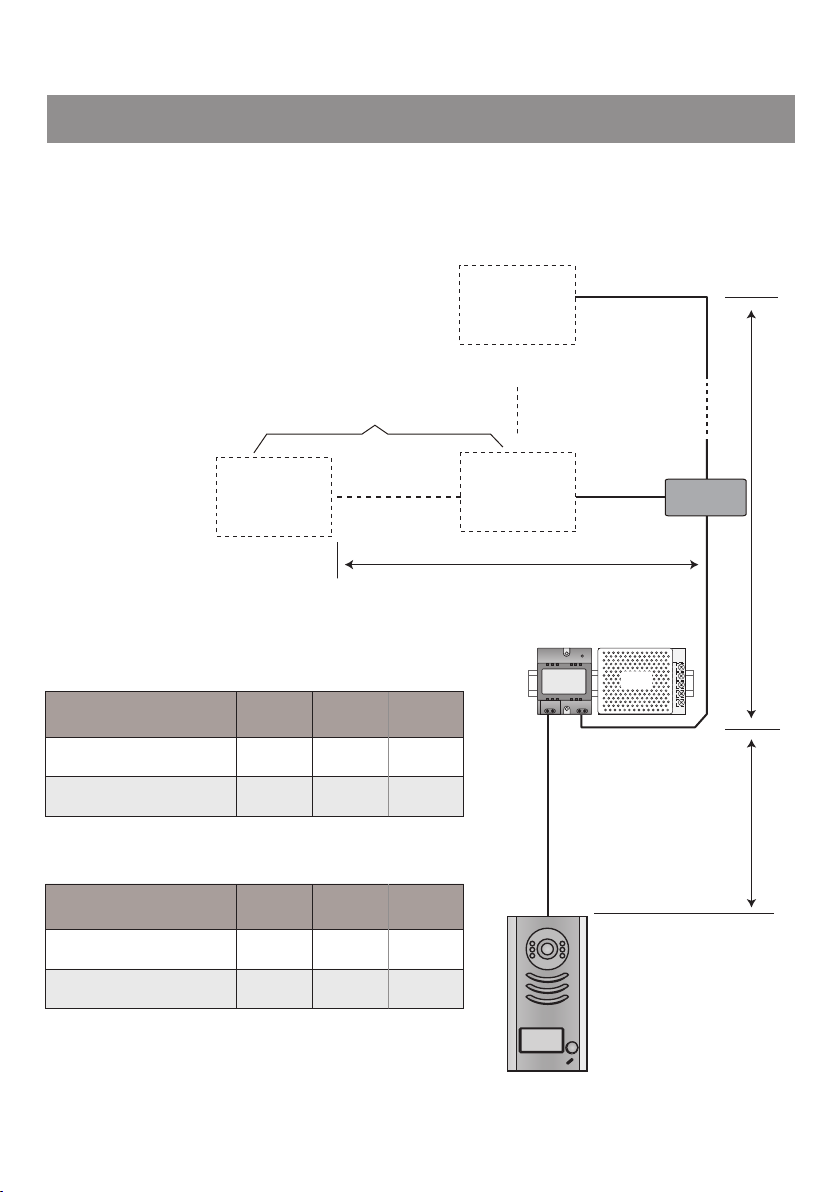

7.Cables Requirements
The maximum distance of the wiring is limited in the DT system. Using different cables may also affect the
maximum distance which the system can reach.
The farest monitor
monitor
with two or four monitors
monitor
When Monitor quantity < 20
Cable Usage A B C
2
Twisted cable 2x0.75 mm
Twisted cable 2x1 mm
60 60 30
2
80 80 40
When Monitor quantity > 20
Cable Usage A B C
2
Twisted cable 2x1 mm
Twisted cable 2x1.5 mm
Note:If the monitor has been specied the distance,refer to the
parameter.
70 30 20
2
70 50 30
monitor
C
DPS
DBC/DBC-4
B
PS5
A
-13-
The design and specications can be changed without notice to the user. Right to
interpret and copyright of this manual are preserved.
