VTech DS6301, DS6321, DS6322 User Manual

User’s manual

Accessory handset for use with
VTech models DS6311/DS6321/

DS6322

w w w.v t e c h p h o n e s . c o m

Model: DS6301

Congratulations

on purchasing your new VTech product. Before using this telephone, please
read the Important safety instructions on page 9 of this manual.

This manual has instructions for setup and registration of your new handset.
For full instructions on using the handset, see the user’s manual that came
with your telephone base.

If you cannot nd your user’s manual, you can view or download it at
www.vtechphones.com.

For support, shopping, and everything new at VTech, visit our website at
www.vtechphones.com. In Canada, visit www.vtechcanada.com.

The ENERGY STAR® program (www.energystar.gov) recognizes
and encourages the use of products that save energy and help
protect our environment. We are proud to mark this product with
the ENERGY STAR® label indicating it meets the latest energy

efciency guidelines.

The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any use
of such marks by VTech Holdings Limited is under license. VTech Holdings Limited is
a member of Bluetooth SIG, Inc. Other trademarks and trade names are those of their
respective owners.

Table of contents

Getting started ................................... 1

Parts checklist ...................................... 1

Battery installation ............................... 2

Battery charging ................................... 3

Add and register a handset .................. 4

Replace a handset ............................... 5

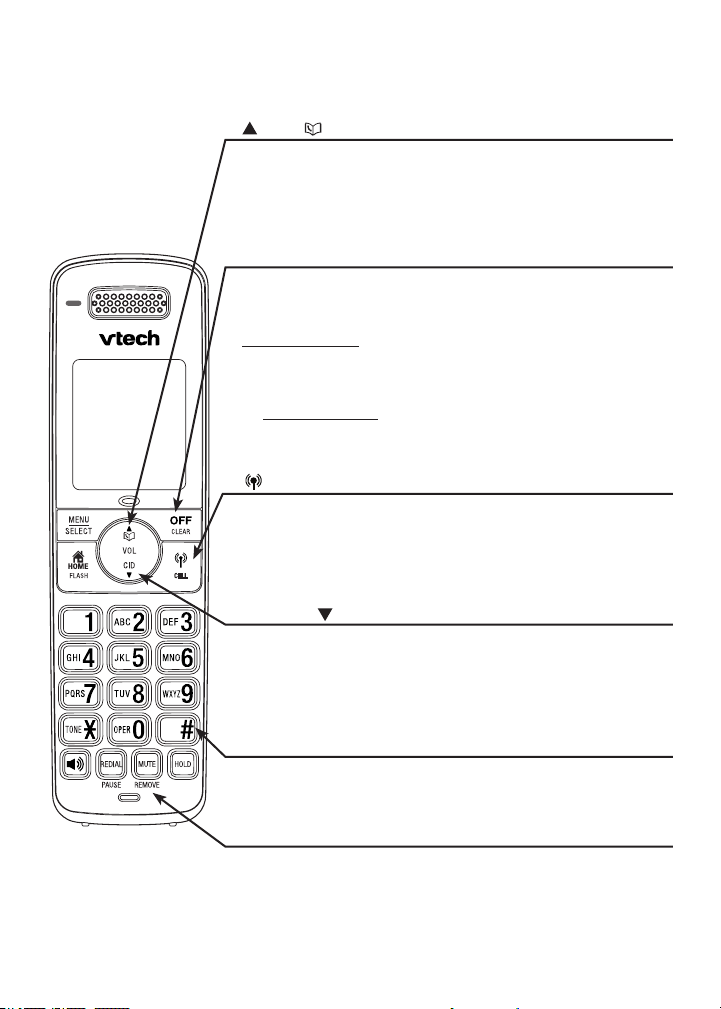

Handset layout ..................................... 6

Appendix ............................................. 8

Battery .................................................. 8

Important safety instructions ................ 9

Precautions for users of implanted

cardiac pacemakers ........................ 10

Operating range ................................. 10

Maintenance ....................................... 10

About cordless telephones................. 11

The RBRC® seal ................................. 11

Warranty ............................................. 12

FCC, ACTA and IC regulations .......... 14

Technical specications ..................... 16

Getting started

Parts checklist

Your telephone contains the following items. Save your sales receipt and
original packaging in the event warranty service is necessary.

Handset

Charg er and p owe r a dapter

To purchase a replacement battery or a power adapter, visit our website at
www.vtechphones.com or call 1 [phone]. In Canada, go to
www.vtechcanada.com or dial 1 [phone].

Batte ry

User’s manu al

Batte ry
compartme nt
cover

1

Getting started

Battery installation

Install the battery as shown below.

If the battery compartment cover is on the handset, press the indentation

1.

and slide the cover to remove.
Plug the battery connector securely into the socket inside the handset

2.

battery compartment, matching the color-coded label.
Place the battery with the label THIS SIDE UP facing up and the wires

3.

inside the battery compartment.

Align the cover at against the battery compartment, then slide it towards

4.

the center of the handset until it clicks into place.
Charge the handset by placing it in the telephone base or charger. The

5.

CHARGE light is on when the handset charges.

1

4

If the handset will not be used for a long time, disconnect and remove

•
the battery to prevent possible leakage.

To purchase a replacement battery, visit our website at

•
www.vtechphones.com or call 1 [phone]. In Canada, go to
www.vtechcanada.com or dial 1 [phone].

2

5

CHARGE light

3

2

Getting started

Battery charging

Once you have installed the battery, the screen indicates the battery status
(see the table below). If necessary, place the handset in the telephone base
or charger to charge the battery. For best performance, keep the handset in
the telephone base or charger when not in use. The battery is fully charged
after 16 hours of continuous charging. See the table on page 8 for battery
operating times.

If the screen is blank, you need to charge the handset without interruption for
at least 10 minutes to give the handset enough charge to use the telephone
for a short time. When the battery is low, the handset beeps and shows
Low battery and a ashing . If you are on a call in low battery mode, the
handset beeps every minute.

The following table summarizes the battery charge indicators and actions
to take.

Battery indicators Battery status Action

The screen is blank. Battery has no charge

The screen shows
Place in charger and

ashes.

The screen shows
Low battery,

ashes, and the

handset beeps.

The screen shows
HANDSET X.

and the handset cannot
be used.

Battery has very little
charge and the handset
cannot be used.

Battery has enough
charge to be used for a
short time.

Battery is charged. To keep the battery charged,

Charge without interruption
until the screen shows
HANDSET X (at least
10 minutes).

Charge without interruption
until the screen shows
HANDSET X (at least
four minutes).

Charge without interruption
until the screen shows
HANDSET X (at least
30 minutes).

place it in the telephone base
or charger when not in use.

3
