V-Tech AT27SD-TD7 User Manual

ENGLISH

VIDEO DOOR PHONE SYSTEM

USER MANUAL

Monitor

1

2

User Setup Estate

3

4

Manual

Intercom

Management

Direct Call
Guard Unit

Intelligent

Home

09/08/2011 Tue. 09:58

Alarm

Security

Multimedia

Close

C5-ENG-AT27SDTD7-V1

Precautions

●●Slots● or● openings● in● the●back●of●the●monitor,●are●provided●for●
ventilation●and●to●ensure●reliable●operation●of●the●video●monitor●
or●equipment●and●to●protect●if●from●overheating.●These●openings●
must●not●be●blocked●or●covered.●The●monitor●●should●never●be●
placed●near●or●over●a●radiator●or●heat●register●and●should●not●be●
placed●in●a●built-in●installation●such●as●a●bookcase●unless●proper●
ventilation●is●provided.

●●All●parts●should●be●protected●from●violence●vibration.●And●not●
allow●be●impacting,●knocking●and●dropping.

●●For●clean●the●LCD●screen,●using●hands●or●wet●cloth●is●forbidden.

●●Please●do●the●cleanness●with●soft●cotton●cloth,●please●do●not●use●the●
organic●or●chemical●clean●impregnate.●If●necessary,●please●use●pure●
water●or●dilute●soap●water●to●clean●the●dust.

●●Image●distortion●may●occur●if●the●video●door●phone●is●mounted●
too●close●to●magnetic●field●e.●g.●Microwaves,●TV,●computer●etc.

●●Please● keep● away● the● video●door● monitor● from● wet,●high●
temperature,●dust,●and●caustic●and●oxidation●gas●in●order●to●avoid●
any●unpredictable●damage.

●●Do●NOT●open●the●device●in●any●condition,●call●the●administrator●
for●help●if●there●is●any●problem●or●mulfunction●happens.●

Contents

1. Parts and Functions ....................................................................... 1

2. Basic Door Release Operation ...................................................... 2

3. About Home screen ....................................................................... 2

4. Basic Setup Instructions ................................................................ 3

5.Memory SD card ............................................................................ 7

6.Intercom function ........................................................................... 9

7. Defense Alarm Operation(optional) .............................................. 10

8. Remote Control Function(optional) .............................................. 11

9. Estate Management ....................................................................... 12

10. Intelligent Home .........................................................................12

11. Specications .............................................................................. 12

The●model●you●purchase●maybe●haven't●all●functions●mentioned●here,●but●



the●functions●contained●in●your●product●can●be●found●in●this●manual.

1. Parts and Functions

6

7

10

1

1
2

3

4

5

8

9

Key Functions

1.●LCD●screen

2.●LED●indicator

3.●Unlock●key

4.●Mon/Talk●key

5.●Menu●key

6.●Microphone

7.●Speaker

8.●Mounting●Hook

9.●Connection●Port

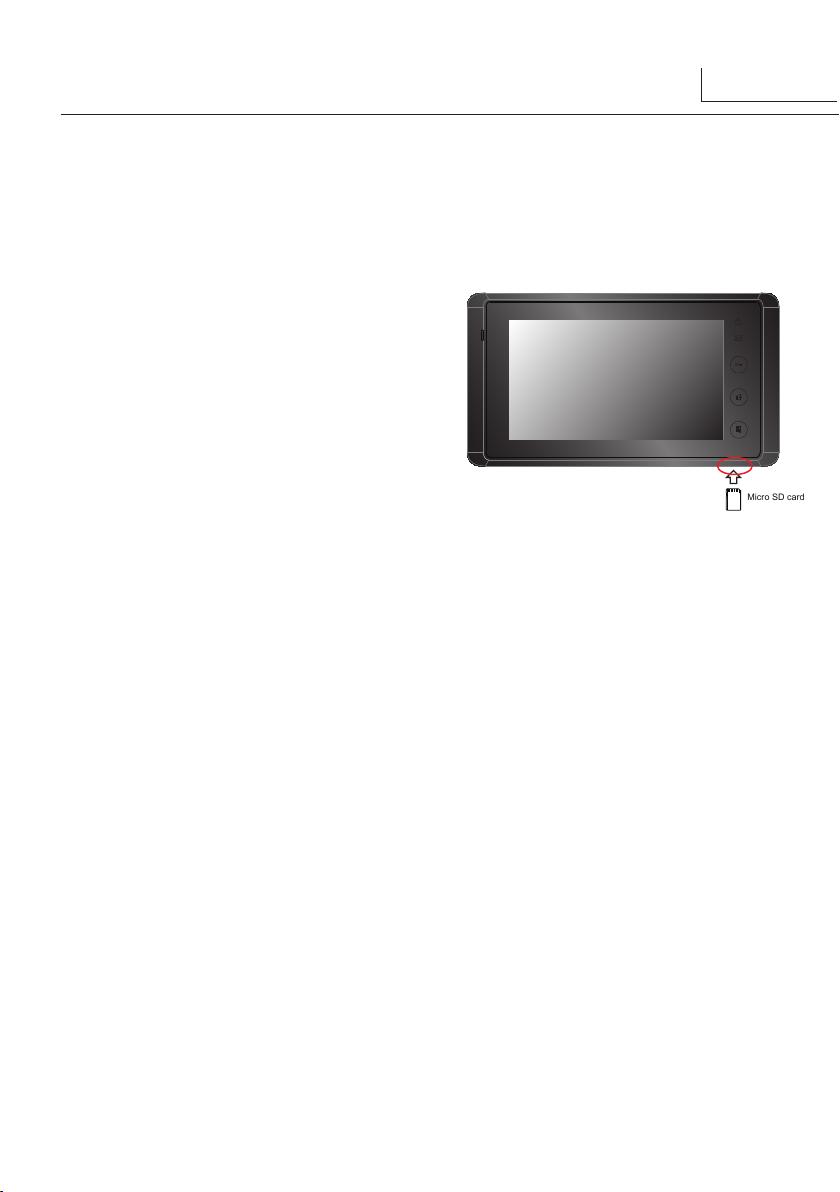

10.SD●card●slot

●●Display●the●images●from●outdoor●station.Touch●operation.

●●Normally●light●on●when●in●use

●●Press●to●release●the●door●for●visitors●during●talking●or●monitoring.

●●Press●to●view●the●outside●condiction.

●●Press●to●talk●with●the●visitors●while●receiving●a●call.

●●Press●to●open●a●list●of●actions●available●on●the●current●screen.

●●Receives●sound●from●the●user.

●●Output●sound●from●the●outdoor.

●●Used●to●hang●up●the●monitor●unit

●●Bus●line●terminal

●●Press●to●activate●the●intercom●function●page.

2. Basic Door Release Operation

2

1.● Input●room●numbers●on●Door●Station● of●
the●building●or●main●entrance,●the●Monitor●
rings,●at●the●same●time,●the●screen●displays●
the●visitor's●image.

2.● Press●

conversation.●If●nobody●answers●the●phone,●
the● screen●will● be●turned●off●automatically●
after●30●seconds.●

3.● During ● calling●or● talking● state,● P r ess●

UNLOCK

the●door●for●the●visitor.

4.● When●the●monitor●is●in●standby●mode,●press●

Mon/TALK

view.During●monitoring,pressing●
Button●or●touch●● ●icon●can●open●the●door.

Button●●or●touch●● ●icon●to●open●

●Button,●you●can●see●the●outside●

UNLOCK

3. About Home screen

The● Home●screen●is●your● starting● point● for●
using●all●the●applications●on●your●monitor.●You●
can● customize● your●Home●screen●to●display●
applications,●logos,●and●languages.
To●open●the●home●screen●page,●tap●●
twice●on●the●monitor●or●press●the●LCD●screen●
anywhere●twice.

Menu

●key●

Mon/TALK

touch ●icon●on● screen,● you●can●talk●
with●the● visitor●for● 90●seconds.●During●
co m mu n ic a ti o n, ● pr e ss ●
Button●or●touch ●icon●again●to●end●the●

●Button●on●monitor● or●

M o n / T A L K

●
