V-Tech AT27 User Manual

Product Information

AT27 Series

CAT5 Indoor Monitor

DESCRIPTION FEATURES

CAT5 system 7 inch Digital Color TFT Monitor
with touch screen

DIMENSION

225

24.5

125

23

► Slim design with touch sensor button;

► Three color styles of housing for choice;

► Touch screen operation;

► Color icons menu display;

*1 Inner 128MB ash memory plus extended
max.16G SD card external picture
recording;

► 12pcs 8-chord Melodies for choose freely;

► Compatible with all AT outdoor & Indoor

stations ;

*1 Multi language & Remote controller
operation(customized);

*1 Depends on models

1. Parts and Funcons

Microphone

Speaker

SD card slot

LCD Screen
Indicator

UNLOCK Button

TALK/MON Button

MENU Button

Mounting Hook

Connection Port

Mounting Hook

2. Monitor Mounng

Wall Mounting Desktop Mounting

3. Specicaon

*Power Supply : DC 24V (supplied by system);

*Power Consumption: Standby 1W; Working status 5W;

*Display Device: 7” Digital TFT screen with 16:9 rate;

*Resolution: 800*480 pixels

*Memory: 128MB inner ash memory, Micro mini SD card;

*Picture Format: TVS (JPG);

*Wiring: CAT5 cable,polarity;

*Monitor Dimension: 125(H)×225(W)×23(D)mm

4. Ordering Informaon for Monitor

Main Menu

Monitor ...
Manual Monitor
Intercom
User Setup
Close

About

i

AT27/TD7

Main Menu

Monitor ...
Manual Monitor
Intercom
User Setup
Close

About

i

Manual
Monitor

Memory
Playback

？

Intercom

Monitor

Multimedia

Close

User Setup

Album

About

09/30/2010 Thu.16:41

Manual
Monitor

Memory
Playback

About

？

Album

Monitor

Intercom

User Setup

AT27SD/TD7

Model No. Brief Description Menu style*2

AT27/TD7-W

AT27/TD7-B

7 inch digital color TFT screen monitor with touch screen
operaon& picture memory & white housing

7 inch digital color TFT screen monitor with touch screen
operaon & picture memory & black housing

Color icon menu

7 inch digital color TFT screen monitor with touch screen

AT27SD/TD7-W

AT27SD/TD7-B

operaon & picture memory & photo frame & white
housing

7 inch digital color TFT screen monitor with touch screen
operaon & picture memory & photo frame & black

Ture color icon

(upgraded)

housing

Multimedia

Close

09/30/2010 Thu.16:41

Remark: NTSC, PAL must be specied on monitor with picture memory function;

*2 please refer to appendix part in each product information.

5. Oponal Accessories (Not included)

Item Brief Description Remark

SD-2 Micro SD card 2G/4G/8G/16G

DB1-W Desk top bracket in white color For desktop mounng

DB1-B Desk top bracket in black color For desktop mounng

6. Packing Informaon

Dimensions: 163(H)×242(W)×38(D)mm

Gross Weight: 0.69Kg

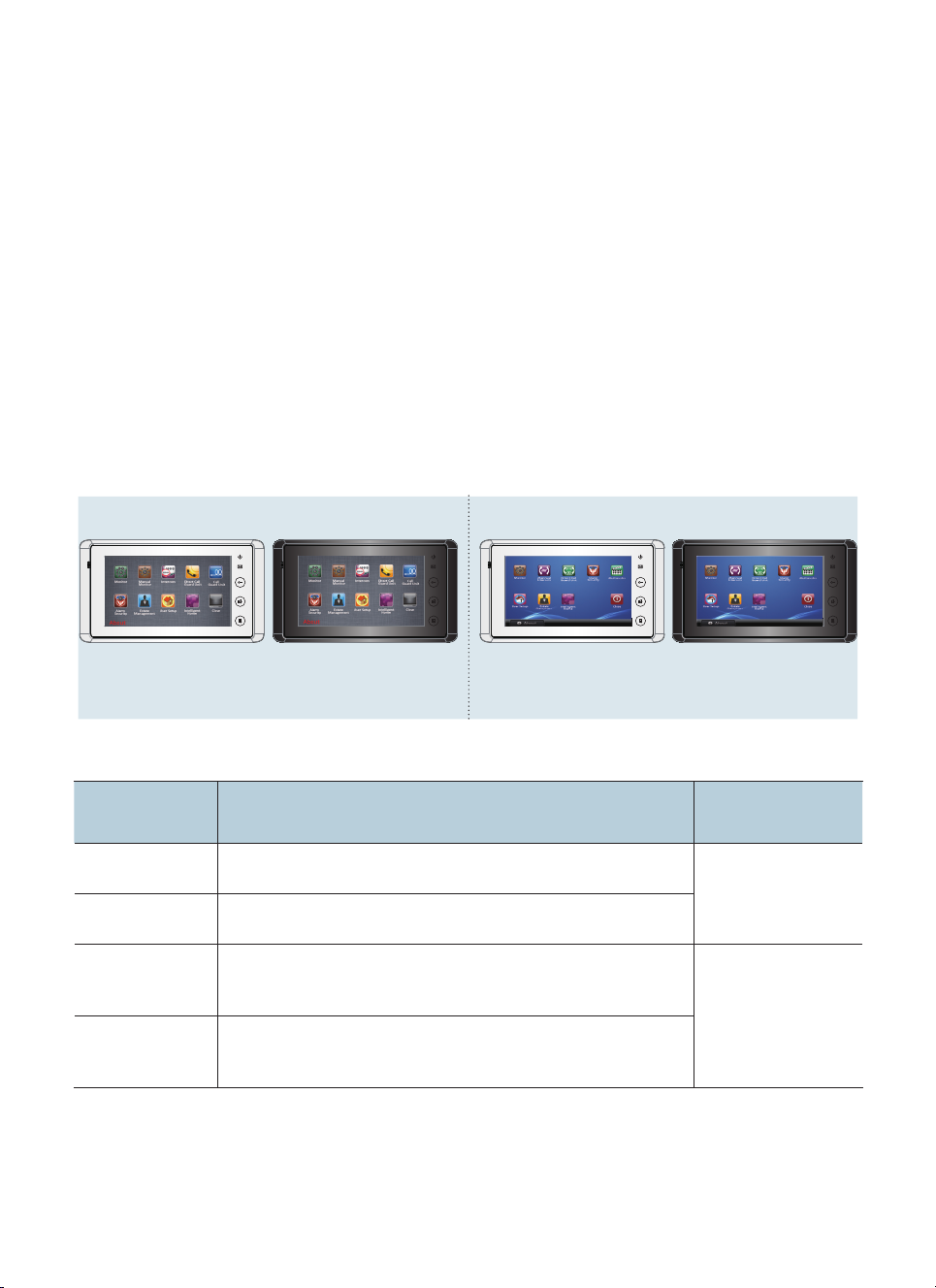

7. App: Menu style*2

Color icon menu style Ture color icon style (upgraded)

Carton: 530 (H)×340 (W)×258 (D)mm

Quanlity: 24PCS
