W E B E D I T I O N

O W N E R ' S M A N U A L

DEAR VOLVO OWNER

THANK YOU FOR CHOOSING VOLVO

We hope you will enjoy many years of driving pleasure in your Volvo. The car has been designed for the safety and comfort of you and your passengers. Volvo is one of the safest cars in the world. Your Volvo has also been designed to satisfy all current safety and environmental requirements.

In order to increase your enjoyment of the car, we recommend that you familiarise yourself with the equipment, instructions and maintenance information contained in this owner's manual.

* Option/accessory, for more information, see Introduction.

01 Introduction

Owner's Manual in the car's screen......... 13

Reading the owner's manual.................... 13

Digital owner's manual in the car.............. 16

Recording data......................................... 18

Accessories and extra equipment............ 19

Support and information about the car on

the Internet................................................ 20

Volvo ID..................................................... 21

Environmental philosophy......................... 22

The owner's manual and the environ-

ment.......................................................... 24

Laminated glass........................................ 24

02 Safety

General information on seatbelts.............. 26

Seatbelt - putting on................................. 27

Seatbelt - loosening.................................. 28

Seatbelt - pregnancy................................ 28

Seatbelt reminder...................................... 29

Seatbelt tensioner..................................... 29

Safety - warning symbol........................... 30

Airbag system........................................... 31

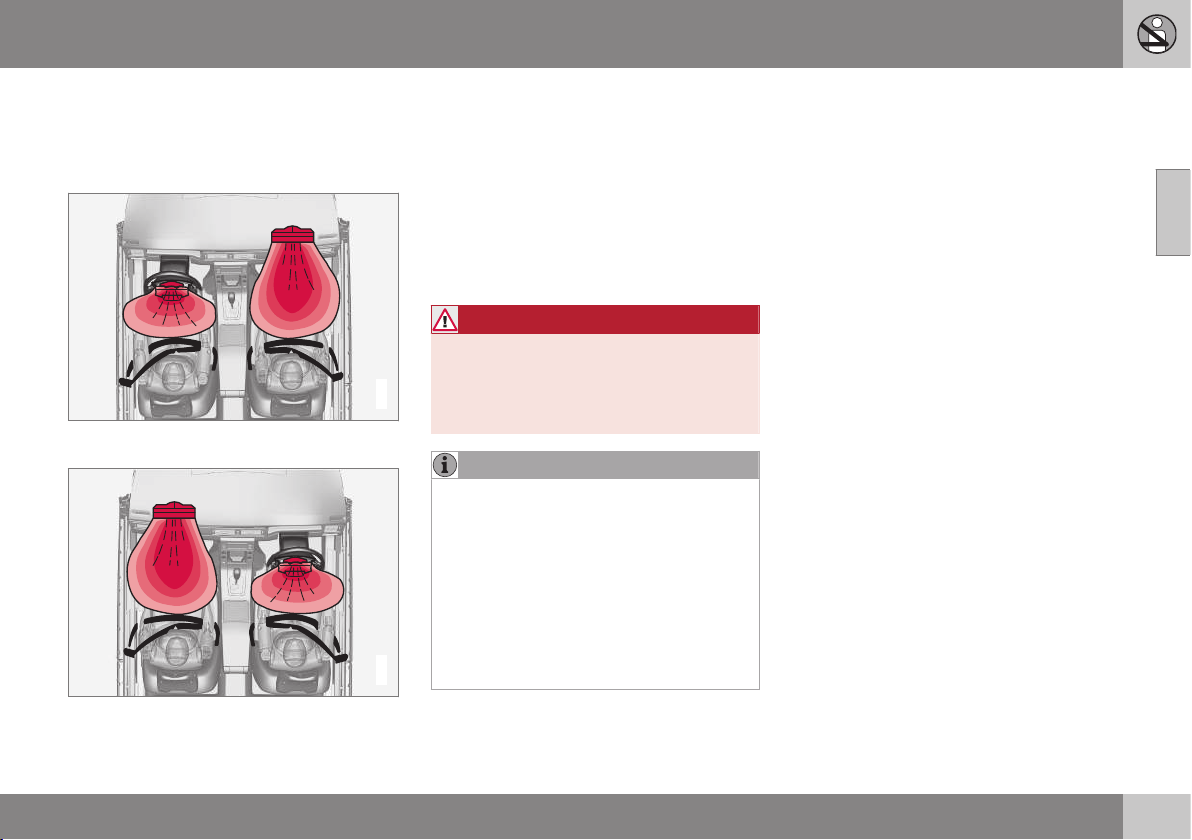

Airbags on driver's side............................ 32

Passenger airbag...................................... 32

Passenger airbag - activating/deactivat-

ing*............................................................ 34

Side airbag (SIPS)..................................... 36

Side airbag (SIPS) - child seat/booster

cushion..................................................... 37

Inflatable Curtain (IC)................................ 37

General information on WHIPS (whiplash

protection)................................................. 38

WHIPS - child seats.................................. 39

WHIPS - seating position.......................... 39

When the systems deploy......................... 40

General information on safety mode......... 41

Safety mode - attempting to start the

car............................................................. 42

Safety mode - moving the car.................. 43

Pedestrian airbag...................................... 43

Pedestrian airbag - moving the car........... 44

Pedestrian airbag - folding up.................. 44

General information on child safety.......... 45

Child seats................................................ 46

Child seats - location................................ 50

Child seat - ISOFIX................................... 51

ISOFIX - size classes................................ 51

ISOFIX - types of child seat...................... 52

Child seats - upper mounting points........ 54

Table of contents

* Option/accessory, for more information, see Introduction.

03 Instruments and controls

Instruments and controls, left-hand drive

car - overview........................................... 56

Instruments and controls, right-hand

drive car - overview................................... 59

Combined instrument panel...................... 62

Analogue combined instrument panel -

overview.................................................... 62

Digital combined instrument panel -

overview.................................................... 63

Eco guide & Power guide*........................ 66

Combined instrument panel - meaning of

indicator symbols...................................... 67

Combined instrument cluster - meaning

of warning symbols................................... 69

Outside temperature gauge...................... 71

Trip meter.................................................. 71

Clock......................................................... 71

Combined instrument panel - license

agreement................................................. 72

Symbols in the display.............................. 73

Volvo Sensus............................................ 75

Key positions............................................ 76

Key positions - functions at different lev-

els.............................................................. 77

Seats, front................................................ 78

Seats, front - electrically operated............ 80

Seats, rear................................................. 81

Steering wheel.......................................... 83

Light switches........................................... 84

Position/parking lamps............................. 86

Daytime running lights.............................. 86

Tunnel detection*...................................... 87

Main/dipped beam.................................... 87

Active main beam*.................................... 88

Active Xenon headlamps*......................... 90

Rear fog lamp........................................... 90

Brake lights............................................... 91

Hazard warning flashers........................... 91

direction indicators................................... 92

Interior lighting.......................................... 93

Home safe light duration........................... 94

Approach light duration............................ 94

Headlamps - adjusting headlamp pat-

tern............................................................ 95

Wipers and washers................................. 98

Power windows....................................... 100

Door mirrors............................................ 102

Windows and rearview and door mirrors

- heating.................................................. 103

Rearview mirror - interior........................ 104

Glass roof*.............................................. 104

Compass*............................................... 105

Menu navigation - combined instrument

panel....................................................... 106

Menu overview - analogue combined

instrument panel..................................... 107

Menu overview - digital combined instru-

ment panel.............................................. 107

Messages................................................ 107

Messages - handling............................... 108

MY CAR.................................................. 109

Trip computer......................................... 110

Trip computer - analogue combined

instrument panel..................................... 111

Trip computer - digital combined instru-

ment panel.............................................. 115

Trip computer - supplementary informa-

tion.......................................................... 119

Trip computer - trip statistics*................ 120

Table of contents

* Option/accessory, for more information, see Introduction.

04 Climate control

General information on climate control... 122

Actual temperature................................. 123

Sensors - climate control........................ 123

Air quality................................................ 123

Air quality - passenger compartment fil-

ter............................................................ 124

Air quality - Clean Zone Interior Package

(CZIP)*..................................................... 124

Air quality - IAQS*................................... 125

Air quality - material................................ 125

Menu settings - climate control.............. 125

Air distribution in the passenger com-

partment.................................................. 126

Electronic climate control - ECC*........... 128

Electronic temperature control - ETC..... 129

Heated front seats*................................. 130

Heated rear seat*.................................... 130

Fan.......................................................... 131

Auto-regulation....................................... 131

Temperature control in the passenger

compartment.......................................... 132

Air conditioning....................................... 132

Demisting and defrosting the wind-

screen..................................................... 133

Air distribution - recirculation.................. 134

Air distribution - table............................. 135

Engine block heater and passenger com-

partment heater*..................................... 137

Engine block heater and passenger com-

partment heater* - direct start................ 138

Engine block heater and passenger com-

partment heater* - immediate stop......... 139

Engine block heater and passenger com-

partment heater* - timer.......................... 139

Engine block heater and passenger com-

partment heater* - messages................. 140

Additional heater*.................................... 141

Fuel-driven additional heater*................. 141

Electric additional heater*....................... 142

05 Loading and storage

Storage spaces....................................... 144

Storage compartment driver’s side........ 146

Tunnel console........................................ 146

Tunnel console - armrest........................ 146

Tunnel console - cigarette lighter and

ashtray*................................................... 147

Glovebox................................................. 147

Glovebox - cooling*................................ 147

Inlay mats*.............................................. 148

Vanity mirror............................................ 148

Tunnel console - 12 V-sockets............... 148

Loading................................................... 149

Loading - long load................................. 150

Roof load................................................. 150

Load retaining eyelets............................. 151

Loading - bag holder ............................. 151

Loading - folding bag holder*................. 151

12 V socket - cargo area......................... 152

Cargo net................................................ 153

Hat shelf.................................................. 155

Table of contents

* Option/accessory, for more information, see Introduction.

06 Locks and alarm

Remote control key................................. 157

Remote control key - losing ................... 157

Remote control key - personalisation*.... 158

Locking/unlocking - indicator................. 159

Lock indicator......................................... 159

Remote control key - electronic immobi-

liser.......................................................... 160

Remote-controlled immobiliser with

tracking system*..................................... 160

Remote control key - functions............... 161

Remote control key - range.................... 162

Remote control key with PCC* - unique

functions................................................. 163

Remote control key with PCC* - range... 164

Detachable key blade............................. 164

Detachable key blade - detaching/

attaching................................................. 165

Detachable key blade - unlocking doors 165 Remote control key/PCC - replacing the

battery..................................................... 166

Keyless drive*.......................................... 167

Keyless Drive* - range............................. 167

Keyless Drive* - secure handling of the

remote control key.................................. 168

Keyless Drive* - interference to remote

control key function................................ 168

Keyless Drive* - locking.......................... 169

Keyless Drive* - unlocking...................... 169

Keyless Drive* - unlocking with the key

blade....................................................... 170

Keyless Drive* - lock settings................. 170

Keyless Drive* - antenna location........... 171

Locking/unlocking - from the outside .... 171

Manual locking of the door..................... 172

Locking/unlocking - from the inside....... 173

Total airing function................................ 174

Locking/unlocking - glovebox................. 174

Locking/unlocking - tailgate.................... 174

Locking/unlocking - fuel filler flap........... 176

Deadlocks*.............................................. 176

Child safety locks - manual activation.... 177

Child safety locks - electrical activation* 178

Alarm....................................................... 179

Alarm indicator........................................ 180

Alarm - automatic re-arming................... 180

Alarm - automatic arming....................... 180

Alarm - remote control key not working. 181

Alarm signals........................................... 181

Reduced alarm level............................... 181

Type approval - remote control key sys-

tem.......................................................... 182

Table of contents

* Option/accessory, for more information, see Introduction.

07 Driver support

Electronic stability control (ESC) - gen-

eral.......................................................... 184

Electronic stability control (ESC) - opera-

tion.......................................................... 185

Electronic stability control (ESC) - sym-

bols and messages................................. 186

Road Sign Information (RSI)................... 188

Road sign information (RSI)* - operation 188 Road sign information (RSI)* - limitations 190

Speed limiter*.......................................... 190

Speed limiter* - getting started............... 191

Speed limiter* - changing speed............. 192

Speed limiter - temporary deactivation

and standby mode*................................. 192

Speed limiter* - alarm for speed excee-

ded.......................................................... 193

Speed limiter* - deactivation................... 194

Cruise control*........................................ 194

Cruise control* - managing speed.......... 195

Cruise control* temporary deactivation

and standby mode.................................. 196

Cruise control* - resume set speed........ 197

Cruise control* - deactivate.................... 198

Adaptive cruise control (ACC)*............... 199

Adaptive cruise control* - function......... 200

Adaptive cruise control* - overview........ 202

Adaptive cruise control* - managing

speed...................................................... 203

Adaptive cruise control* - set time inter-

val............................................................ 204

Adaptive cruise control* - temporary

deactivation, and standby mode............ 205

Adaptive cruise control* - overtaking

another vehicle........................................ 206

Adaptive cruise control* - deactivate...... 206

Adaptive Cruise Control* - queue assis-

tance....................................................... 206

Adaptive cruise control* - switch cruise

control functionality................................ 208

Radar sensor........................................... 209

Radar sensor - limitations....................... 209

Adaptive cruise control* - fault tracing

and action............................................... 211

Adaptive cruise control* - symbols and

messages................................................ 212

Distance Warning*.................................. 214

Distance Warning* - limitations............... 215

Distance Warning* - symbols and mes-

sages....................................................... 216

City Safety™........................................... 217

City Safety™ - function........................... 217

City Safety™ - operation........................ 218

City Safety™ - limitations....................... 219

City Safety™ - laser sensor.................... 221

City Safety™ - symbols and messages.. 223

Collision warning system*....................... 224

Collision warning system* - function...... 225

Collision warning system* - detection of

cyclists.................................................... 226

Collision warning system* - detection of

pedestrians............................................. 227

Collision warning system* - operation.... 228

Collision warning system* - limitations... 229 Collision warning system* - camera sen-

sor limitations.......................................... 230

Collision warning system* - symbols and

messages................................................ 232

Driver Alert System*................................ 233

Driver Alert Control (DAC)*...................... 233

Driver Alert Control (DAC)* - operation... 234 Driver Alert Control (DAC)* - symbols and

messages................................................ 235

Lane assistance*..................................... 236

Lane Keeping Aid - function................... 236

Lane Keeping Aid - operation................. 238

Lane Keeping Aid - limitations................ 238

Table of contents

* Option/accessory, for more information, see Introduction.

Lane Keeping Aid - symbols and mes-

sages....................................................... 240

Park Assist*............................................. 241

Park assist syst* - function..................... 241

Park assist syst* - backward.................. 243

Park assist syst* - forward...................... 243

Park assist syst* - fault indication........... 244

Park assist syst* - cleaning the sensors. 244

Park assist camera.................................. 245

Park assist camera - settings................. 247

Park assist camera - limitations.............. 249

Park Assist Pilot (PAP)*........................... 249

Park Assist Pilot (PAP)* - function.......... 250

Park Assist Pilot (PAP)* - operation........ 250

Park Assist Pilot (PAP)* - limitations....... 252

Active Park Assist (PAP)* - symbols and

messages................................................ 253

BLIS........................................................ 254

BLIS - operation...................................... 255

CTA*........................................................ 256

BLIS and CTA - symbols and messages 258

Adjustable steering force........................ 259

Type approval - radar system................. 259

08 Starting and driving

Alcohol lock*........................................... 261

Alcohol lock* - functions and operation.. 261

Alcohol lock* - storage............................ 262

Alcohol lock* - before starting the engine 262

Alcohol lock* - to bear in mind................ 264

Alcohol lock* - symbols and messages.. 265

Starting the engine.................................. 266

Switching off the engine......................... 267

Steering lock........................................... 267

Jump starting.......................................... 268

Gearboxes............................................... 269

Manual gearbox...................................... 269

Gear shift indicator*................................ 270

Automatic gearbox - Geartronic*............ 270

Automatic gearbox - Powershift*............ 274

Gear selector inhibitor............................. 276

Hill start assist (HSA)*............................. 277

Start/Stop*.............................................. 277

Start/Stop* - function and operation....... 278

Start/Stop* - the engine does not stop... 279

Start/Stop* - the engine auto-starts........ 281

Start/Stop* - the engine does not auto-

start......................................................... 282

Start/Stop* - involuntary stop manual

gearbox................................................... 282

Start/Stop* - settings.............................. 283

Start/Stop* - symbols and messages..... 284

ECO*....................................................... 286

Foot brake............................................... 288

Foot brake - anti-lock braking system.... 289

Foot brake - emergency brake lights and

automatic hazard warning flashers......... 290

Foot brake - emergency brake assis-

tance....................................................... 290

Parking brake.......................................... 290

Driving in water....................................... 291

Overheating............................................. 292

Driving with open tailgate....................... 293

Overload - starter battery........................ 293

Before a long journey.............................. 293

Winter driving.......................................... 294

Fuel filler flap - Opening/closing............. 294

Fuel filler flap - manual opening.............. 295

Filling up with fuel................................... 295

Fuel - handling........................................ 296

Fuel - petrol............................................. 296

Fuel - diesel............................................. 297

Table of contents

* Option/accessory, for more information, see Introduction.

Catalytic converters................................ 298

Filling with fuel - with a fuel can.............. 299

Diesel particle filter (DPF)........................ 299

Economical driving.................................. 300

Driving with a trailer................................ 301

Driving with a trailer - manual gearbox... 302 Driving with a trailer - automatic gearbox 302

Towing bracket....................................... 303

Detachable towbar* - storage................. 303

Detachable towbar* - specifications....... 304

Detachable towbar* - attachment/

removal................................................... 304

Trailer Stability Assist - TSA.................... 307

Towing.................................................... 308

Towing eye.............................................. 309

Recovery................................................. 310

09 Wheels and tyres

Tyres - maintenance............................... 312

Tyres - direction of rotation.................... 313

Tyres - tread wear indicators.................. 314

Tyres - air pressure................................. 314

Wheel and wheel rim dimensions........... 315

Tyres - dimensions.................................. 315

Tyres - load index................................... 316

Tyres - speed ratings.............................. 316

Wheel nuts.............................................. 317

Winter tyres............................................. 317

Spare wheel*........................................... 318

Changing wheels - taking out the spare

wheel*..................................................... 319

Changing wheels - removing wheels...... 319

Changing wheels - fitting........................ 321

Warning triangle...................................... 323

Jack........................................................ 324

First aid kit*............................................. 324

Tyre pressure monitoring*....................... 324

Tyre pressure monitoring system

(TPMS)* - general.................................... 325

Tyre pressure monitoring (TPMS)* -

adjust (recalibration)................................ 326

Tyre pressure monitoring system

(TPMS)* - status...................................... 327

Tyre pressure monitoring (TPMS)* - acti-

vate/deactivate....................................... 328

Tyre pressure monitoring (TPMS)* - rec-

ommendations........................................ 328

Tyre pressure monitoring (TPMS)* - driv-

eable punctured tyres*............................ 329

Tyre pressure monitoring (TPMS)* - recti-

fying low tyre pressure............................ 329

Tyre pressure monitoring (TM)*............... 330

Emergency puncture repair*................... 331

Emergency puncture repair kit* - loca-

tion.......................................................... 332

Emergency puncture repair kit* - over-

view......................................................... 333

Emergency puncture repair* - operation. 334 Emergency puncture repair* - recheck-

ing........................................................... 336

Inflating tyres with the compressor from

the emergency puncture repair kit*......... 337

Emergency puncture repair* - returning

components to their places.................... 337

Emergency puncture repair kit* - sealant 338 Type approval - tyre pressure monitoring

(TPMS).................................................... 339

Table of contents

* Option/accessory, for more information, see Introduction.

10 Maintenance and service

Volvo service programme....................... 346

Book service and repair*......................... 346

Raising the car........................................ 349

Bonnet - opening and closing................. 351

Engine compartment - overview............. 351

Engine compartment - checking............. 352

Engine oil - general................................. 352

Engine oil - checking and filling.............. 353

Coolant - level......................................... 355

Brake and clutch fluid - level.................. 356

Climate control system - fault tracing and

repair....................................................... 357

Lamp replacement - general................... 357

Lamp replacement - location of front

lamps...................................................... 358

Lamp replacement - headlamps............. 358

Lamp replacement - cover for main/

dipped beam bulbs................................. 359

Lamp replacement - dipped beam......... 359

Lamp replacement - main beam............. 360

Lamp replacement - extra main beam.... 360

Lamp replacement - direction indicators

front......................................................... 360

Lamp replacement - position/parking

lamps front.............................................. 361

Lamp replacement - daytime running

lights....................................................... 361

Lamp replacement - location of rear

lamps...................................................... 361

Lamp replacement - direction indicators

rear, brake lights and reversing lamp..... 362

Lamp replacement - rear fog lamp......... 362

Lamp replacement - vanity mirror light-

ing........................................................... 363

Lamps - specifications ........................... 363

Wiper blades........................................... 364

Washer fluid - filling................................ 366

Starter battery - general.......................... 367

Battery - symbols.................................... 369

Starter battery - replacement.................. 369

Battery - Start/Stop................................. 370

Electrical system..................................... 372

Fuses - general....................................... 372

Fuses - in engine compartment.............. 373

Fuses - under glovebox.......................... 376

Fuses - under the right-hand front seat.. 379

Car wash................................................. 381

Polishing and waxing.............................. 382

Water and dirt-repellent coating............. 383

Rustproofing........................................... 384

Cleaning the interior................................ 384

Paint damage.......................................... 385

Table of contents

11 Specifications

Type designations................................... 388

Dimensions............................................. 390

Weights................................................... 391

Towing capacity and towball load.......... 392

Engine specifications.............................. 394

Engine oil - adverse driving conditions... 395

Engine oil - grade and volume................ 396

Coolant - grade and volume................... 398

Transmission fluid - grade and volume... 399

Brake fluid - grade and volume............... 400

Fuel tank - volume.................................. 401

Air conditioning, fluid - volume and

grade....................................................... 402

Fuel consumption and CO2 emissions... 403

Tyres - approved tyre pressures............. 407

12 Alphabetical Index

Alphabetical Index.................................. 408

Table of contents

INTRODUC T I O N

01 Introduction

}}

* Option/accessory, for more information, see Introduction.

Owner's Manual in the car's screen

A digital version of the owner's manual is available1 on the car's screen. The owner's manual provides information about how the car works.

For cars with owner information in the screen, the printed owner's manual is a supplement and contains important text, the latest updates, as well as instructions that can be useful when, for practical reasons, it is not possible to read the information on the screen.

The owner's manual is also available on Volvo's support page and can be downloaded as a mobile app.

Changing the display language may mean that some information does not correspond to national or local laws and regulations.

IMPORTANT

The driver is always responsible that the vehicle is driven safely in traffic and that applicable laws and regulations are followed. It is also important that the car is maintained and handled in accordance with Volvo's recommendations in the owner's information.

If there should be a difference between the information on the screen and in the printed manual then it is always the printed information that applies.

Reading the owner's manual

A good way of getting to know your new car is to read the owner's manual, ideally before your first journey.

Reading the owner's manual is a good way to become familiar with new functions, get advice on how best to handle the car in different situations and learn how to make the best use of all the car's features. Please pay attention to the safety instructions contained in the owner's manual.

The specifications, design features and illustrations in this owner's manual are not binding. We reserve the right to make modifications without prior notice.

Owner's Manual in mobile devices

NOTE

The Owner's manual is available for download as a mobile application (applies for certain car models and mobile devices), see www.volvocars.com.

The mobile application also includes video and searchable content and easy navigation between different sections.

Options/accessories

All types of option/accessory are marked with an asterisk*.

In addition to standard equipment, the owner's manual also describes options (factory fitted equipment) and certain accessories (retrofitted extra equipment).

The equipment described in the owner's manual is not available in all cars - they have different equipment depending on adaptations for the needs of different markets and national or local laws and regulations.

In the event of uncertainty over what is standard or an option/accessory, contact a Volvo dealer.

Applies to certain car models.

01 Introduction

Special texts

WARNING

Warning texts appear if there is a risk of injury.

IMPORTANT

"Important" texts appear if there is a risk of damage.

NOTE

NOTE texts give advice or tips that facilitate the use of features and functions for example.

Footnote

There is footnote information in the owner's manual that is located at the bottom of the page. This information is an addition to the text that it refers to via a number. If the footnote refers to text in a table then letters are used instead of numbers for referral.

Message texts

In the car there are displays that show menu texts and message texts. In the owner's manual the appearance of these texts differs from the normal text. Examples of menu texts and message texts:

Media, Sending location.

Decals

The car contains different types of decal which are designed to convey important information in a simple and clear manner. The decals in the car have the following descending degree of importance for the warning/ information.

Warning for personal injury

G031590

Black ISO symbols on yellow warning field, white text/image on black message field. Used to indicate the presence of danger which, if the warning is ignored, may result in serious personal injury or fatality.

Risk of property damage

G031592

White ISO symbols and white text/image on black or blue warning field and message field. Used to indicate the presence of danger which, if the warning is ignored, may result in damage to property.

01 Introduction

Information

G031593

White ISO symbols and white text/image on black message field.

NOTE

It is not intended that the decals illustrated in the owner's manual should be exact replicas of those in the car. They are included to show their approximate appearance and location in the car. The information that applies to your particular car can be found on the decal on the car.

Procedure lists

Procedures where action must be taken in a certain sequence are numbered in the owner's manual.

When there is a series of illustrations for step-by-step instructions each step is numbered in the same way as the corresponding illustration.

Lists of letters appear adjacent to the series of illustrations where the order of the instructions is not significant.

Arrows appear numbered and unnumbered and are used to illustrate a movement.

Arrows with letters are used to clarify a movement when the reciprocal order is of no relevance.

If there is no series of illustrations for step-bystep instructions then the different steps are numbered with normal numbers.

Position lists

Red circles containing a number are used in overview images where different components are pointed out. The number recurs in the position list featured in connection with the illustration that describes the item.

Bulleted lists

A bulleted list is used when there is a list of points in the owner's manual.

Example:

•

Coolant

•

Engine oil

Related information

Related information refers to other articles containing closely-associated information.

Images

The manual's images are sometimes schematic and may deviate from the car's appearance depending on equipment level and market.

To be continued

}} This symbol is located furthest down to

the right when an article continues on the following page.

Continued from previous page

|| This symbol is located furthest up to the

left when an article continues from the previous page.

Related information

•

The owner's manual and the environment (p. 24)

•

Support and information about the car on the Internet (p. 20)

01 Introduction

Digital owner's manual in the car

The owner's manual can be read on the screen in the car2. The content is searchable and it is easy to navigate between different sections.

Open the digital owner's manual - press the

MY CAR button in the centre console, press OK/MENU and select

Owner's manual.

For basic navigation, see Operating the system. See below for a more detailed description.

Owner's manual, start page.

There are four options for finding information in the digital owner's manual:

•

Search - Search function for finding an

article.

•

Categories - All articles sorted into cate-

gories.

•

Favourites - Quick access to favourite-

bookmarked articles.

•

Quick Guide - A selection of articles for

common functions.

Select the information symbol in the lower right-hand corner in order to obtain information about the digital owner's manual.

NOTE

The digital owner's manual is not available while driving.

Search

Searching using the character wheel.

Character list.

Changing the input mode (see following table).

Use the character wheel to enter a search term, e.g. "seatbelt".

1. Turn TUNE to the desired letter, press OK/MENU to confirm. The number and letter buttons on the control panel in the centre console can also be used.

2. Continue with the next letter and so on.

Applies to certain car models.

01 Introduction

}}

3. To change the input mode to numbers or special characters, or to perform a search, turn TUNE to one of the options (see explanation in the following table) in the list for changing the input mode (2), press OK/MENU.

123/AB C

Change between letters and numbers with OK/MENU.

Change to special characters with OK/MENU.

Perform the search. Turn TUNE to select a search result article, press OK/MENU to go to the article.

a|A

Changes between lowercase and uppercase letters with OK/ MENU.

| | }

Changes from the character wheel to the search field. Move the cursor with TUNE. Delete any misspelling with EXIT. To return to the character wheel, press OK/MENU.

Note that the digit and letter buttons on the control panel can be used for editing in the search field.

Enter with the numerical keyboard

Numerical keyboard.

Another way of entering characters is to use the centre console's buttons 0-9, * and #.

When e.g. 9 is pressed, a bar appears with all characters3 under the button, e.g.

W, x, y, z

and 9. Quick presses on the button move the cursor through these characters.

•

Stop with the cursor on the desired character in order to select it - the character is shown on the enter line.

•

Delete/undo using EXIT.

To enter a number, hold in the corresponding number key.

Favourites

Located here are the articles that are saved as favourites. To select an article as a favourite, see the heading "Navigating in an article" below.

Turn TUNE to navigate in the favourite list and press OK/MENU to open an article. Press EXIT to go back to the previous view.

Quick Guide

Located here is a selection of articles for getting to know the car's most common functions. The articles can also be accessed via categories, but are collected here for quick access.

Turn TUNE to navigate in the Quick Guide and press OK/MENU to open an article. Press EXIT to go back to the previous view.

The character for each button may vary depending on market/country/language.

01 Introduction

Navigating in an article

Home - leads to the start page for the

owner's manual. Favourite - adds/removes an article as a

favourite. You can also press the FAV button in the centre console to add/ remove an article as a favourite.

Highlighted link - leads to linked article.

Special texts - if the article contains

warnings, important or note texts then an associated symbol is shown here as well as the number of such texts in the article.

Turn TUNE to navigate between the links or scroll in an article. When the screen has scrolled to the start/end of an article the home and favourite options are accessed by scrolling a further step up/down. Press OK/ MENU to activate the selection/highlighted link. Press EXIT to go back to the previous view.

Related information

•

Support and information about the car on the Internet (p. 20)

Recording data

Certain information about the vehicle's operation and functionality, and any incidents, are recorded in the car.

Your vehicle contains a number of computers whose function is to continuously check and monitor the vehicle's operation and functionality. Some of the computers can record information during normal driving if they detect an error. In addition, information is recorded in the event of a collision or incident. Parts of the recorded information are required so that technicians can diagnose and rectify faults in the vehicle during servicing and maintenance and so that Volvo can fulfil legal requirements and other regulations.

In addition to this, the information is used for research purposes by Volvo in order to continually develop quality and safety, as the information can contribute to a better understanding of the factors that cause accidents and injuries.

The information includes details of the status and functionality of various systems and modules in the vehicle with regard to engine, throttle, steering and brake systems, amongst other things. This information may include details regarding the way the driver drives the vehicle, such as vehicle speed, brake and accelerator pedal use, steering wheel movement and whether or not the driver and passengers have used their seatbelts. For the

01 Introduction

* Option/accessory, for more information, see Introduction.

reasons given this information may be stored in the vehicle's computers for a certain length of time, but also as a result of a collision or incident. This information may be stored by Volvo as long as it can help to further develop and further enhance safety and quality and as long as there are legal requirements and other regulations that Volvo needs to consider.

Volvo will not contribute to the above-described information being disclosed to third parties without the vehicle owner's consent. However, due to national legislation and regulations Volvo may be required to disclose such information to authorities such as police authorities, or others who may assert a legal right to have access to it.

To be able to read and interpret the information recorded by the computers in the vehicle requires special technical equipment that Volvo, and workshops that have entered into agreements with Volvo, have access to. Volvo is responsible that the information, which is transferred to Volvo during servicing and maintenance, is stored and handled in a secure manner and that the handling complies with applicable legal requirements. For further information - contact a Volvo dealer.

Accessories and extra equipment

The incorrect connection and installation of accessories and extra equipment can negatively affect the car's electronic system.

Certain accessories only function when associated software is installed in the car's computer system. Volvo therefore recommends that you always contact an authorised Volvo workshop before installing accessories or extra equipment which are connected to or affect the electrical system.

Heat-reflecting windscreen*

The windscreen is equipped with a heatreflecting film (IR) that reduces the solar heat radiation into the passenger compartment.

The positioning of electronic equipment, such as a transponder, behind a glass surface with heat-reflecting film may affect its function and performance.

For the optimal function of electronic equipment, it should be positioned on the part of the windscreen with no heat-reflecting film (see the highlighted area in the illustration).

Areas where IR film is not applied.

Dimensions

A 65 mm

B 150 mm

C 125 mm

01 Introduction

* Option/accessory, for more information, see Introduction.

Support and information about the car on the Internet

There is additional information regarding your car on the Volvo Cars website and support page. From the website, it is also possible to navigate through to My Volvo, a personal web page for you and your car.

Support on the Internet

Go to support.volvocars.com or use the QR code below to visit the page. The support page is available for most markets.

QR code that leads to the support page.

The information on the support page is searchable and can also be subdivided into different categories. Available here is support for options related to e.g. Internet connected services and functions, Volvo On Call (VOC)*, the navigation system* and apps. Video and step-by-step instructions explain different procedures, e.g. how the car is connected to the Internet via a mobile phone.

Downloadable information from the support page

Maps

For cars equipped with Sensus Navigation*, there is the facility to download maps from the support page.

Mobile apps

For selected Volvo models from model year 2014 and 2015, the owner's manual is available in the form of an app. The VOC* app can also be accessed from here.

Owner's manuals from previous model years

Owner's manuals from previous model years are available here in PDF format. The Quick Guide and supplement can also be accessed from the support page. Select car model and model year in order to download the publication required.

Contact

On the support page there is contact information for customer support and the nearest Volvo dealer.

My Volvo on the Internet

From www.volvocars.com it is possible to navigate through to My Volvo Web which is a personal Web page for you and your car.

Create a personal Volvo ID, log in to My Volvo Web and get an overview of service, agree-

ments and warranties, amongst other things. At My Volvo Web there is also information about accessories and software adapted for your car model.

Related information

•

Volvo ID (p. 21)

Applies to certain markets.

01 Introduction

* Option/accessory, for more information, see Introduction.

Volvo ID

Volvo ID is your personal ID that provides access to various services5.

Examples of services:

•

My Volvo - Your personal web page for you and your car.

•

In an Internet-connected car* - Certain functions and services require that you have registered your car to a personal Volvo ID, for example to be able to send a new address from a map service on the Internet directly to the car.

•

Volvo On Call, VOC* - Volvo ID is used when logging in to the Volvo On Call mobile app.

Advantages of Volvo ID

•

One user name and one password to access online services, i.e. only one username and one password to remember.

•

When changing the username/password for a service (e.g. VOC) it will also be changed automatically for other services (e.g. My Volvo Web)

Create a Volvo ID

To create a Volvo ID you need to enter a personal e-mail address. Then follow the instructions in the e-mail message that is automatically sent to the specified address in order to complete the registration. It is possible to cre-

ate a Volvo ID via one of the following services:

•

My Volvo - Enter your e-mail address and follow the instructions.

•

For an Internet-connected car* - Enter your e-mail address in the app that requires Volvo ID and follow the instructions. Alternatively, press the Connect

button

in the centre console twice and

select

Apps Settings and follow the

instructions.

•

Volvo On Call, VOC* - Download the latest version of the VOC app. Choose to create a Volvo ID from the start page, enter e-mail address and follow the instructions.

Related information

•

Support and information about the car on the Internet (p. 20)

The services available may vary over time and vary depending on equipment level and market.

01 Introduction

* Option/accessory, for more information, see Introduction.

Environmental philosophy

Your Volvo complies with strict international environmental standards and is also manufac-

tured in one of the cleanest and most resource-efficient plants in the world. Volvo Car Corporation is constantly working on the

development of safer and more efficient products and solutions in order to reduce the negative impact on the environment.

Environmental care is one of Volvo Cars' core values, which influence all operations. We also believe that our customers share our consideration for the environment.

Volvo Cars has global ISO certification, which includes the environmental standard ISO 14001 covering all factories and several of our other units. We also set requirements for our partners so that they work systematically with environmental issues.

Fuel consumption

Volvo cars have competitive fuel consumption in each of their respective classes. Lower

fuel consumption generally results in lower emission of the greenhouse gas, carbon dioxide.

It is possible for the driver to influence fuel consumption. For more information, read under the heading "Contributing to a better environment".

Efficient emission control

Your Volvo is manufactured following the concept "Clean inside and out" – a concept that encompasses a clean interior environment as well as highly efficient emission control. In many cases the exhaust emissions are well below the applicable standards.

Clean air in the passenger compartment

A passenger compartment filter prevents dust and pollen from entering the passenger compartment via the air intake.

A sophisticated air quality system Interior Air Quality System* (IAQS) ensures that the incoming air is cleaner than the air in the traffic outside.

The system consists of an electronic sensor and a carbon filter. The incoming air is monitored continuously and if there is an increase in the level of certain unhealthy gases, such

01 Introduction

* Option/accessory, for more information, see Introduction.

as carbon monoxide, then the air intake is closed. Such a situation may arise in heavy traffic, queues and tunnels for example.

The entry of nitrous oxides, ground-level ozone and hydrocarbons is prevented by the carbon filter.

Interior

The interior of a Volvo is designed to be pleasant and comfortable, even for people with contact allergies and for asthma sufferers. Extreme attention has been given to choosing environmentally-compatible materials.

Volvo workshops and the environment

Regular maintenance creates the conditions for a long service life and low fuel consumption for your car. In this way you contribute to a cleaner environment. When Volvo's workshops are entrusted with the service and maintenance of your car it becomes part of our system. Volvo makes clear demands regarding the way in which our workshops are designed in order to prevent spills and discharges into the environment. Our workshop staff have the knowledge and the tools required to guarantee good environmental care.

Contributing to a better environment

It is easy to contribute to a better environment - here are a few tips:

•

Avoid letting the engine idle - switch off the engine when stationary for longer

periods. Pay attention to local regulations.

•

Drive economically - think ahead.

•

Perform service and maintenance in accordance with the instructions in the owner's manual - follow the Service and Warranty Booklet's recommended intervals.

•

If the car is equipped with an engine block heater*, use it before starting from cold - it improves starting capacity and reduces wear in cold weather and the engine reaches normal operating temperature more quickly, which lowers consumption and reduces emissions.

•

High speed increases consumption considerably due to increased wind resistance - a doubling of speed increases wind resistance 4 times.

•

Always dispose of environmentally hazardous waste, such as batteries and oils, in an environmentally safe manner. Consult a workshop in the event of uncertainty about how this type of waste should be discarded - an authorised Volvo workshop is recommended.

Following this advice can save money, the planet's resources are saved, and the car's durability is extended. For more information and further advice, see Eco guide (p. 66), Economical driving (p. 300) and Fuel consumption (p. 403).

Recycling

As a part of Volvo's environmental work, it is important that the car is recycled in an environmentally sound manner. Almost all of the car can be recycled. The last owner of the car is therefore requested to contact a dealer for referral to a certified/approved recycling facility.

Related information

•

The owner's manual and the environment (p. 24)

01 Introduction

* Option/accessory, for more information, see Introduction.

The owner's manual and the environment

The paper pulp in a printed owner's manual comes from Forest Stewardship Council

cer-

tified forests or other controlled sources.

The FSC® symbol shows that the paper pulp in a printed owner's manual comes from FSC® certified forests or other controlled sources.

Related information

•

Environmental philosophy (p. 22)

Laminated glass

The glass is reinforced which provides better protection against break-ins and improved sound insu-

lation in the passenger compartment. The windscreen and other windows* have laminated glass.

SAFETY

02 Safety

General information on seatbelts

Heavy braking can have serious consequences if the seatbelts are not used. Ensure that all passengers are using their seatbelts during the journey.

Tension the hip strap over the lap by pulling the diagonal shoulder belt up towards the shoulder. The hip strap must be positioned low down (not over the abdomen).

It is important that the seatbelt lies against the body so it can provide maximum protection. Do not lean the backrest too far back. The seatbelt is designed to protect in a normal seating position.

Unbelted occupants will be reminded to fasten their (p. 27) seatbelt by means of an audio and visual reminder (p. 29).

Remember

•

Do not use clips or anything else that can prevent the seatbelt from fitting properly.

•

The seatbelt must not be twisted or caught on anything.

WARNING

The seatbelts and airbags interact. If a seatbelt is not used or is used incorrectly, this may diminish the protection provided by the airbag in the event of a collision.

WARNING

Each seatbelt is designed for only one person.

WARNING

Never modify or repair the seatbelts yourself. Volvo recommends that you contact an authorised Volvo workshop.

If the seatbelt has been subjected to a major load, such as in conjunction with a collision, the entire seatbelt must be replaced. Some of the seatbelt's protective properties may have been lost even if the seatbelt does not appear damaged. The seatbelt must also be replaced if it shows signs of wear or damage. The new seatbelt must be type-approved and designed for installation at the same location as the replaced seatbelt.

Related information

•

Seatbelt - pregnancy (p. 28)

•

Seatbelt - loosening (p. 28)

•

Seatbelt tensioner (p. 29)

02 Safety

Seatbelt - putting on

Put on the seatbelt (p. 26) before driving starts.

Pull the belt out slowly and secure it by pressing its locking tab into the seatbelt buckle. A loud "click" indicates that the belt has locked.

Correctly fitted seatbelt.

Incorrectly fitted seatbelt. The belt must rest on the shoulder.

Seatbelt height adjustment. Press the button and move the belt vertically. Position the belt as high as possible without it chafing against your throat.

The locking tab at the centre rear seat only fits into the intended seatbelt buckle.

Remember

The seatbelt locks and cannot be withdrawn:

•

if it is pulled out too quickly

•

during braking and acceleration

•

if the car leans heavily.

Related information

•

Seatbelt - pregnancy (p. 28)

•

Seatbelt - loosening (p. 28)

•

Seatbelt tensioner (p. 29)

•

Seatbelt reminder (p. 29)

02 Safety

Seatbelt - loosening

Loosen the seatbelt (p. 26) when the car is stationary.

Press the red button on the seatbelt buckle and then let the belt retract. If the seatbelt does not retract fully, feed it in by hand so that it does not hang loose.

Related information

•

Seatbelt - putting on (p. 27)

•

Seatbelt reminder (p. 29)

Seatbelt - pregnancy

Seatbelt (p. 26) must always be worn during pregnancy. But it is crucial that it be worn in the correct way.

G020998

The diagonal section should wrap over the shoulder then be routed between the breasts and to the side of the abdomen.

The lap section should lay flat over the thighs and as low as possible under the abdomen. – It must never be allowed to ride upward. Remove the slack from the seatbelt and ensure that it fits as close to the body as possible. In addition, check that there are no twists in the seatbelt.

As the pregnancy progresses, pregnant drivers must adjust the seat (p. 78) and steering wheel (p. 83) such that they can easily maintain control of the vehicle as they drive (which means that they must be able to easily operate the foot pedals and steering wheel).

The aim should be to position the seat with as large a distance as possible between abdomen and steering wheel.

Related information

•

Seatbelt - putting on (p. 27)

•

Seatbelt - loosening (p. 28)

02 Safety

Seatbelt reminder

Unbelted occupants will be reminded to fasten their (p. 27) seatbelt by means of an audio and visual reminder.

The audio reminder is speed dependent, and in some cases time dependent. The visual reminder is located in the roof console and in the combined instrument panel (p. 62).

Child seats are not covered by the seatbelt reminder system.

Rear seat

The seatbelt reminder in the rear seat has two subfunctions:

•

Provides information on which seatbelts (p. 26) are being used in the rear seat. A message appears in the combined instrument panel when the seatbelts are in use, or if one of the rear doors has been opened. The message is acknowledged

automatically after approximately 30 seconds driving or after pressing the indicator stalk OK button (p. 106). If anyone is unbelted then the message can only be acknowledged manually by pressing the indicator stalk OK button.

•

Provides a warning if one of the rear seatbelts is unfastened during travel. This warning takes the form of a message in the combined instrument panel along with the audio/visual signal. The warning stops when the seatbelt is re-fastened, or it can also be acknowledged manually by pressing the OK button.

The combined instrument panel's information display shows which seatbelts are in use. This information is always available.

Seatbelt tensioner

Seatbelts (p. 26) on the driver's side, the passenger side and at the outer rear seats are fitted with seatbelt tensioners. A mechanism in the seatbelt tensioner tightens the seatbelt in the event of a sufficiently violent collision. The seatbelt then provides more effective restraint for the occupants.

WARNING

Never insert the tongue of the passenger's seatbelt into the buckle on the driver's side. Always insert the tongue of the seatbelt into the buckle on the correct side. Do not make any damages on seatbelts nor insert any foreign objects into a buckle. The seatbelts and buckles would then possibly not function as intended in the event of a collision. There is a risk of serous injury.

Related information

•

General information on seatbelts (p. 26)

02 Safety

Safety - warning symbol

The warning symbol is shown if a fault is detected during fault tracing or if a system has been activated. Where required, the warning symbol is shown together with a message in the combined instrument panel (p. 62) information display.

Warning triangle and warning symbol for the airbag system (p. 31) in the analogue combined instrument panel.

Warning triangle and warning symbol for the airbag system in the digital combined instrument panel.

The warning symbol in the combined instrument panel is switched on with the remote control key in key position II (p. 77), fault tracing is performed each time the ignition is switched on. The symbol clears after approx. 6 seconds provided the airbag system is fault-free.

The warning symbol is shown if a fault is detected during fault tracing or if a system has been activated. Where required, the warning symbol is shown together with a message in the display. If the warning symbol malfunctions, the warning triangle illuminates and

SRS airbag Service required or SRS

airbag Service urgent appears in the dis-

play. Volvo recommends that you contact an authorised Volvo workshop immediately.

WARNING

If the warning symbol for the airbag system remains illuminated or illuminates while driving, it means that the airbag system does not have full functionality. The symbol indicates a fault in the airbag system, the belt tensioner system, SIPS, the IC system or some other fault in the system. Volvo recommends that you contact an authorised Volvo workshop immediately.

Related information

•

General information on safety mode (p. 41)

02 Safety

Airbag system

In the event of a frontal collision the airbag system helps to protect the head, face and chest of the driver and passenger.

G018665

Airbag system viewed from above, left-handdrive car.

G018666

Airbag system viewed from above, right-handdrive car.

The system consists of airbags and sensors. A sufficiently violent collision trips the sensors and the airbag(s) are inflated and become hot. The airbag cushions the initial collision impact for the occupant. The airbag deflates when compressed by the collision. When this occurs, smoke escapes into the car. This is completely normal. The entire process, including inflation and deflation of the airbag, occurs within tenths of a second.

WARNING

Volvo recommends that you contact an authorised Volvo workshop for repair. Defective work in the airbag system could cause malfunction and result in serious personal injury.

NOTE

The detectors react differently depending on the nature of the collision and whether or not the seatbelt is fastened. Applies to all seatbelt positions apart from centre seat rear.

It is therefore possible that only one (or none) of the airbags may inflate in a collision. The detectors sense the force of the collision on the vehicle and the action is adapted accordingly so that one or more airbags are deployed.

Related information

•

Airbags on driver's side (p. 32)

•

Passenger airbag (p. 32)

•

Safety - warning symbol (p. 30)

02 Safety

Airbags on driver's side

To supplement the protection afforded by the seatbelt (p. 26) on the driver side, the car is equipped with two airbags (p. 31).

One of the airbags is folded up into the centre of the steering wheel. The steering wheel is marked AIRBAG.

Knee airbag on the driver's side in a left-handdrive car.

The second airbag (at knee level) is fitted in the lower part of the instrument panel on the driver's side; this panel is labelled AIRBAG.

WARNING

The seatbelts and airbags interact. If the belt is not used or is used incorrectly, this may diminish the protection provided by the airbags in the event of a collision.

Related information

•

Passenger airbag (p. 32)

Passenger airbag

To supplement the protection afforded by the seatbelt (p. 26) on the passenger side, the car is equipped with an airbag (p. 31).

The airbag is folded up into a compartment above the glovebox. Its cover panel is marked AIRBAG.

Location of the front passenger airbag in a lefthand drive car.

02 Safety

}}

* Option/accessory, for more information, see Introduction.

Location of the front passenger airbag in a righthand drive car.

The warning label for the passenger airbag is fitted in one of the following two locations in the car:

Alternative 1: Position of airbag label on passenger side sun visor.

Alternative 2: Position of airbag label on passenger side door pillar. The label becomes visible when the passenger door is opened.

WARNING

Never use a rear-facing child seat on a seat protected by an activated airbag. Failure to follow this advice can lead to death or serious injury to the child.

WARNING

The seatbelts and airbags interact. If the belt is not used or is used incorrectly, this may diminish the protection provided by the airbag in the event of a collision.

To minimise the risk of injury if the airbag deploys, passengers must sit as upright as possible with their feet on the floor and backs against the backrest. Seatbelts must be secured.

WARNING

Do not put objects in front of or above the dashboard where the passenger airbag is located.

WARNING

Never place a child in a child seat or on a booster cushion in the front seat if the airbag is activated.

Never allow anybody to stand or sit in front of the front passenger seat.

No one shorter than 140 cm should ever sit in the front passenger seat if the airbag is activated.

Failure to follow the advice given above can endanger life.

Switch - PACOS*

The front passenger airbag can be deactivated (p. 34) if the car is equipped with a switch, PACOS (Passenger Airbag Cut Off Switch).

WARNING

If the car is equipped with a front passenger airbag, but does not have a PACOS switch (Passenger Airbag Cut Off Switch), then the airbag will always be activated.

02 Safety

* Option/accessory, for more information, see Introduction.

Related information

•

Airbags on driver's side (p. 32)

•

Child seats (p. 46)

Passenger airbag - activating/ deactivating*

Front passenger airbag (p. 32) can be deactivated if the car is equipped with a switch, PACOS (Passenger Airbag Cut Off Switch).

Switch - PACOS

The switch for the passenger airbag (PACOS) is located on the passenger end of the instrument panel and is accessible when the passenger door is open.

Check that the switch is in the required position. The remote control key's key blade (p. 165) should be used to change position.

Location of airbag switch.

The airbag is activated. With the switch in this position, persons taller than 140 cm can sit in the front passenger seat, but

never children in a child seat or on a booster cushion.

The airbag is deactivated. With the switch in this position, children in a child seat or on a booster cushion can sit in the front passenger seat, but never persons taller than 140 cm.

WARNING

Activated airbag (passenger seat):

Never place a child in a child seat or on a booster cushion on the front passenger seat when the airbag is activated. This applies to everyone shorter than 140 cm.

Deactivated airbag (passenger seat): No one taller than 140 cm should ever sit

in the front passenger seat when the airbag is deactivated.

Failure to follow the advice given above can endanger life.

NOTE

When the remote control key is in key position II (p. 77) the warning symbol (p. 30) for the airbag is shown in the combined instrument panel for approx. 6 seconds.

Following which, the indicator in the roof console is illuminated showing the correct status for the front passenger seat airbag.

02 Safety

Indicator showing that the passenger airbag is activated.

A text message and a warning symbol in the roof console indicate that the airbag for the front passenger seat is activated (see preceding illustration).

WARNING

Never place a child in a child seat or on a booster cushion in the front seat if the air-

bag is activated and the symbol

in the roof console is illuminated. Failure to follow this advice could endanger the life of the child.

Indicator showing that the passenger airbag is deactivated.

A text message and a symbol in the roof console indicate that the airbag for the front passenger seat is deactivated (see preceding illustration).

WARNING

Do not allow anyone to sit in the front passenger seat if the message in the roof console indicates that the airbag is deactivated, and if the warning symbol (p. 30) for the airbag system is also displayed on the combined instrument panel. This indicates that there has been a severe malfunction. Visit a workshop as soon as possible. Volvo recommends that you contact an authorised Volvo workshop.

WARNING

Failure to follow the advice given above can endanger the lives of passengers in the car.

Related information

•

Child seats (p. 46)

02 Safety

Side airbag (SIPS)

In a side impact collision a large proportion of the collision force is transferred by the SIPS (Side Impact Protection System) to beams, pillars, the floor, the roof and other structural parts of the body. The side airbags at the driver's and front passenger seats protect the chest area and the hip and are an important part of the SIPS.

The SIPS bag system consists of two main components, side airbag and sensors. The side airbags are located in the front seat's backrests.

A sufficiently violent collision trips the sensors and the side airbags are inflated. The airbag inflates between the occupant and the door panel and thereby cushions the initial impact. The airbag deflates when compressed by the collision. The side airbag is normally only deployed on the side of the collision.

Driver's seat, left-hand drive.

Front passenger seat, left-hand drive.

WARNING

•

Volvo recommends that repairs are only carried out by an authorised Volvo workshop. Defective work in the SIPSbag system could cause malfunction and result in serious personal injury.

•

Do not put objects in the area between the outside of the seat and the door panel, since this area is required by the side airbag.

•

Volvo recommends the use only of car seat covers approved by Volvo. Other seat covers may impede the operation of the side airbags.

•

Side airbags are a supplement the seatbelts. Always use a seatbelt.

Related information

•

Airbags on driver's side (p. 32)

•

Passenger airbag (p. 32)

•

Side airbag (SIPS) - child seat/booster cushion (p. 37)

•

Inflatable Curtain (IC) (p. 37)

02 Safety

Side airbag (SIPS) - child seat/booster cushion

The protection provided by the car to children seated in a child seat or on a booster cushion is not diminished by the side airbag (p. 36).

Child seat/booster cushion (p. 46) can be placed on the front passenger seat provided that the car does not have an activated airbag (p. 34) on the front passenger side.

Related information

•

Passenger airbag (p. 32)

•

General information on child safety (p. 45)

Inflatable Curtain (IC)

The inflatable curtain helps to prevent the driver and passengers from striking their heads on the inside of the car during a collision.

The inflatable curtain IC (Inflatable Curtain) is part of the SIPS system (p. 36). It is fitted along the headlining on both sides and helps protect the driver and passengers in the car's outer seats. A sufficiently violent collision trips the sensors and the inflatable curtain is inflated.

WARNING

Never hang or attach heavy items onto the handles in the roof. The hook is only designed for light clothing (not for solid objects such as umbrellas for example).

Do not screw or install anything onto the car's headlining, door pillars or side panels. This could compromise the intended protection. Volvo recommends that you only ever use Volvo genuine parts that are approved for placement in these areas.

WARNING

Do not load the car higher than 50 mm under the top edge of the windows in the doors. Otherwise, the intended protection of the inflatable curtain, which is concealed in the headlining, may be compromised.

WARNING

The inflatable curtain is a supplement to the seatbelts.

Always use a seatbelt.

Related information

•

General information on seatbelts (p. 26)

•

Airbag system (p. 31)

•

Side airbag (SIPS) (p. 36)

02 Safety

General information on WHIPS (whiplash protection)

WHIPS (Whiplash Protection System) is a protection against whiplash injuries. The system consists of energy absorbing backrests and specially designed head restraints in the front seats.

The WHIPS system is actuated by a rear-end collision, where the angle and speed of the collision, and the nature of the colliding vehicle all have an influence.

WARNING

The WHIPS system is a supplement to the seatbelts. Always use a seatbelt.

Seat properties

When the WHIPS system is deployed, the front seat backrests are lowered backward to change the seating position of the driver and front seat passenger. This reduces the risk of whiplash injury.

WARNING

Never modify or repair the seat or WHIPS system yourself. Volvo recommends that you contact an authorised Volvo workshop.

Related information

•

WHIPS - child seats (p. 39)

•

WHIPS - seating position (p. 39)

•

General information on seatbelts (p. 26)

02 Safety

}}

WHIPS - child seats

The protection provided by the car to children seated in a child seat or on a booster cushion is not diminished by the WHIPS system (p. 38).

Child seat/booster cushion (p. 46) can be placed on the front passenger seat provided that the car does not have an activated airbag (p. 34) on the front passenger side.

Related information

•

General information on child safety (p. 45)

WHIPS - seating position

In order to obtain optimum protection from the WHIPS system (p. 38) the driver and passenger must have the correct seating position and make sure that the system's function is not obstructed.

Seating position

Set the correct seating position in the front seat (p. 78) before driving starts.

Driver and front seat passenger should sit in the centre of the seat with as little space as possible between the head and the head restraint.

Function

Do not leave any objects on the floor behind the driver's seat/passenger seat that may prevent the WHIPS system from functioning.

WARNING

Do not squeeze rigid objects between the rear seat cushion and the front seat's backrest. Make sure you do not to obstruct the function of the WHIPS system.

Do not place objects on the rear seat that may prevent the WHIPS system from functioning.

WARNING

If a rear seat backrest is folded down, the corresponding front seat must be moved forward so that it does not touch the folded backrest.

02 Safety

WARNING

If a seat has been subjected to extreme forces, such as due to a rear-end collision, the WHIPS system must be checked. Volvo recommends that it is checked by an authorised Volvo workshop.

Part of the WHIPS system's protective capacity may have been lost even if the seat appears to be undamaged.

Volvo recommends that you contact an authorised Volvo workshop to have the system checked even after a minor rearend collision.

When the systems deploy

In the event of a collision Volvo's different personal safety systems work together in order to minimise injury.

System Triggered

Seatbelt tensioner (p. 29) front seat

In the event of a frontal collision, and/or side-impact collision, and/or rear-end collision and/or overturning

Seatbelt tensioner (p. 29) rear seat

In a frontal collision and/or side-impact accident and/or overturning

Airbags (Steering wheel,

knee (p. 32) and passenger airbag (p. 32))

In a frontal collision

Side airbags (SIPS) (p. 36)

In a side-impact accident

System Triggered

Inflatable Curtain IC (p. 37)

In the event of a side impact and/or overturning and/or some frontal collisions

Whiplash protection WHIPS (p. 38)

In a rear-end collision

There is no seatbelt tensioner at the centre rear seat.

The bodywork of the car could be greatly deformed in a collision without airbag deployment. A number of factors such as the rigidity and weight of the object hit, the speed of the car, the angle of the collision etc. affects how the different safety systems of the car are activated.

If the airbags (p. 31) have deployed, the following is recommended:

•

Recovering the car. Volvo recommends that you have it conveyed to an authorised Volvo workshop. Do not drive with deployed airbags.

•

Volvo recommends that you engage an authorised Volvo workshop to handle the replacement of components in the car's safety systems.

•

Always contact a doctor.

NOTE

The airbags and belt tensioner system are deployed only once during a collision.

02 Safety

}}

WARNING

The airbag system's control module is located in the centre console. If the centre console is drenched with water or other liquid, disconnect the battery cables. Do not attempt to start the car since the airbags may deploy. Recovering the car. Volvo recommends that you have it conveyed to an authorised Volvo workshop.

WARNING

Never drive with deployed airbags. They can make steering difficult. Other safety systems may also be damaged. The smoke and dust created when the airbags are deployed can cause skin and eye irritation/injury after intensive exposure. In case of irritation, wash with cold water. The rapid deployment sequence and airbag fabric may cause friction and skin burns.

General information on safety mode

Safety mode is a protective state that is enforced when the collision may have damaged any of the car's vital functions, such as the fuel lines, sensors for one of the safety systems, or the brake system.

Warning triangle in the analogue combined instrument panel.

Warning triangle in the digital combined instrument panel.

If the car is involved in a collision, the text

Safety mode See manual may appear in the

combined instrument panel (p. 62) information display. This means that the car has reduced functionality.

WARNING

Never attempt to repair your car or reset the electronics yourself if the car has been in safety mode. This could result in personal injury or the car not functioning as normal. Volvo recommends that you engage an authorised Volvo workshop to check and restore the car to normal status after

Safety mode See manual has been

displayed.

02 Safety

Related information

•

Safety mode - attempting to start the car (p. 42)

•

Safety mode - moving the car (p. 43)

Safety mode - attempting to start the car

If the car is set in safety mode (p. 41) then an attempt to start the car can be made if everything seems normal and the absence of fuel leakage has been checked.

First, check that no fuel is leaking from the car. There must be no smell of fuel either.

If everything seems normal and you have checked for indications of fuel leakage, you may attempt to start the car.

Remove the remote control key and open the driver's door. If a message is now shown to the effect that the ignition is on, press the start button. Then close the door and reinsert the remote control key. The car's electronics will now try to reset themselves to normal mode. Then try to start the car.

If the message

Safety mode See manual is

still shown on the display, then the car must not be driven or towed, but a vehicle recovery service (p. 310) must be used instead. Even if the car appears to be driveable, hidden damage may make the car impossible to control once moving.

WARNING

Never, under any circumstances, attempt to restart the car if it smells of fuel when the

Safety mode See manual message

is displayed. Leave the car at once.

WARNING

If the car is in safety mode it must not be towed. It must be transported from its location. Volvo recommends that it is transported to an authorised Volvo workshop.

Related information

•

Safety mode - moving the car (p. 43)

02 Safety

}}

Safety mode - moving the car

If Normal mode is shown after Safety mode

See manual has been reset after attempting

to start the car (p. 42) , the car can be moved carefully out of a dangerous position.

Do not move the car further than necessary.

Related information

•

General information on safety mode (p. 41)

Pedestrian airbag

The airbag for pedestrians (Pedestrian Airbag) contributes in certain frontal collisions to alleviating the collision of the pedestrian with the car.

The pedestrian airbag (Pedestrian Airbag) is fitted under the bonnet near the windscreen. In the event of certain frontal collisions with a pedestrian, the sensors in the front bumper react and the airbag inflates if required, based on the force of the impact. The sensors are active at a speed of approx. 20-50 km/h and an ambient temperature between

-20 and +70°C. The sensors are designed to detect a collision

with an object that has similar properties to those of the human leg.

NOTE

There may be objects in the traffic environment that prompt a signal to the sensors that is similar to a collision with a pedestrian. It is possible that the system will be activated in the event of a collision with such an object.

If the airbag is activated (Pedestrian Airbag)

•

the rear part of the bonnet is raised and locked in this position

•

the hazard warning flashers are activated

•

the brake system is prepared for the upcoming emergency braking.

WARNING

Do not fit any accessories or change anything in the front. Incorrect intervention at the front may cause incorrect function in the system and lead to serious injury and damage to the car.

Volvo recommends that genuine wiper arms are used and that you only use genuine parts for them.

WARNING

Volvo recommends contacting an authorised Volvo workshop in the event of damage to the bumper in order to ensure that the system is intact.

02 Safety

Related information

•

Pedestrian airbag - moving the car (p. 44)

•

Pedestrian airbag - folding up (p. 44)

Pedestrian airbag - moving the car

The car may be moved if it has not been set in safety mode (p. 41).

If any of the other airbags in the passenger compartment were activated then the car remains in safety mode.

If only the pedestrian airbag (p. 43) (Pedestrian Airbag) has been activated:

1. Move the car to a safe location as close as possible.

2. Fold up the airbag in accordance with the instructions (p. 44).

3. Seek the nearest workshop.

WARNING

Volvo recommends that, after activation of the airbag, you contact an authorised Volvo workshop as soon as possible.

Related information

•

Pedestrian airbag (p. 43)

Pedestrian airbag - folding up

Pedestrian airbag (p. 43) (Pedestrian Airbag) must be folded up before the car is moved.

Airbag

Airbag housing

Velcro strap, right-hand side

Velcro strap, left-hand side

The airbag may feel warm and give off smoke. This is normal. Fold the airbag as follows:

1. Find the Velcro strap on the left-hand side (4).

2. Gather the airbag fabric along its length on the left-hand side. Then fold the gathered fabric towards the centre. Wind the Velcro strap (double sided) around as much fabric as possible and fasten it.

02 Safety

3. Press the rolled up portion of the airbag into the airbag housing (2).

4. Repeat points 1-3 for the right-hand side. It may be necessary to fold the gathered fabric twice on this side in order to wind the Velcro strap around it.

5. The airbag housing cover will be open slightly. This is completely normal.

Related information

•

Pedestrian airbag - moving the car (p. 44)

General information on child safety

Children of all ages and sizes must always sit correctly secured in the car. Never allow a child to sit on the knee of a passenger.

Volvo recommends that children travel in rear-facing child seats until as late an age as possible, at least until 3-4 years of age, and then front-facing booster cushions/child seats until up to 10 years of age.

The position of a child in the car and the choice of equipment are dictated by the child's weight and size; see Child seats (p. 46).

NOTE

Regulations regarding the placement of children in cars vary from country to country. Check what does apply.

Volvo has child safety equipment (child seats, booster cushions & attachment devices) which is designed for your particular car. Using Volvo's child safety equipment provides you with optimum conditions for your child to travel safely in the car. Furthermore, the child safety equipment fits and is easy to use.

NOTE

In the event of questions when fitting child safety products, contact the manufacturer for clearer instructions.

Child safety locks

The controls for operating the rear door power windows and the rear door opening handles can be blocked (p. 177) from opening from the inside.

Related information

•

Child seats (p. 46)

•

Child seats - location (p. 50)

•

Child seat - ISOFIX (p. 51)

•

Child seats - upper mounting points (p. 54)

02 Safety

Child seats

Children should sit comfortably and safely. Make sure that the child seat is being used correctly.

G020739

Child seats and airbags are not compatible.

NOTE

When using child safety products it is important to read the installation instructions included.

WARNING

Do not secure the straps of the child seat to the seat's horizontal adjustment bar, springs or the rails and beams under the seat. Sharp edges may damage the straps.

Look in the installation instructions for the child seat for the correct fitting.

02 Safety

}}

Recommended child seats

Weight Front seat (with deactivated airbag) Outer rear seat Centre rear

seat

Group 0 max 10 kg

Group 0+ max 13 kg

Volvo infant seat (Volvo Infant Seat) - rear-facing child seat, secured with the ISOFIX fixture system.

Type approval: E1 04301146 (L)

Group 0 max 10 kg

Group 0+ max 13 kg

Volvo infant seat (Volvo Infant Seat) - rear-facing child seat, secured with the car's seatbelt.

Type approval: E1 04301146 (U)

Volvo infant seat (Volvo Infant Seat) - rear-facing child seat, secured with the car's seatbelt.

Type approval: E1 04301146 (U)

Volvo infant seat (Volvo Infant Seat) rear-facing child seat, secured with the car's seatbelt.

Type approval: E1 04301146

(U)

Group 0 max 10 kg

Group 0+ max 13 kg

Child seats which are universally approved.

(U)

Child seats which are universally approved. (U)

With regard to other child seats your car should be included in the manufacturer's enclosed list of vehicles or be universally approved in accordance with the ECE R44 legal requirement.

02 Safety

Weight Front seat (with deactivated airbag) Outer rear seat Centre rear

seat

Group 1 9-18 kg

Volvo rear-facing/turnable child seat (Volvo Convertible Child Seat) - rear-facing child seat, secured with the car's seatbelt and straps.

Type approval: E5 04192 (L)

Volvo rear-facing/turnable child seat (Volvo Convertible Child Seat) - rear-facing child seat, secured with the car's seatbelt and straps.

Type approval: E5 04192 (L)

Group 1 9-18 kg

Child seats which are universally approved.

(U)

Child seats which are universally approved. (U)

Group 2 15-25 kg

Volvo rear-facing/turnable child seat (Volvo Convertible Child Seat) - rear-facing child seat, secured with the car's seatbelt and straps.

Type approval: E5 04192 (L)

Volvo rear-facing/turnable child seat (Volvo Convertible Child Seat) - rear-facing child seat, secured with the car's seatbelt and straps.

Type approval: E5 04192 (L)

Group 2 15-25 kg

Volvo rear-facing/turnable child seat (Volvo Convertible Child Seat) - front-facing child seat, secured with the car's seatbelt.

Type approval: E5 04191 (U)

Volvo rear-facing/turnable child seat (Volvo Convertible Child Seat) - front-facing child seat, secured with the car's seatbelt.

Type approval: E5 04191 (U)

Group 2/3 15-36 kg

Volvo booster seat with backrest (Volvo Booster Seat with backrest).

Type approval: E1 04301169 (UF)

Volvo booster seat with backrest (Volvo Booster Seat with backrest).

Type approval: E1 04301169 (UF)

02 Safety

Weight Front seat (with deactivated airbag) Outer rear seat Centre rear

seat

Group 2/3 15-36 kg

Booster cushion with and without backrest (Booster Cushion with and without backrest).

Type approval: E5 04216 (UF)

Booster cushion with and without backrest (Booster Cushion with and without backrest).

Type approval: E5 04216 (UF)

L: Suitable for specific child seats. These child seats may be intended for use in a special car model, limited or semi-universal categories. U: Suitable for universally approved child seats in this weight class. UF: Suitable for front-facing universally approved child seats in this weight class. B: Built-in child seats approved for this weight class.

Only for rear-facing child seat. Set the seat's backrest in upright position.

Related information

•

Child seats - location (p. 50)

•

Child seats - upper mounting points (p. 54)

•

Child seat - ISOFIX (p. 51)

•

General information on child safety (p. 45)

02 Safety

Child seats - location

Always fit child seats/booster cushions (p. 46) in the rear seat if the passenger airbag is activated (p. 34). If a child is sitting on the front passenger seat then he/she could suffer serious injury if the airbag deploys.

The warning label for the passenger airbag is fitted in one of the following two locations in the car:

Alternative 1: Position of airbag label on passenger side sun visor.

Alternative 2: Position of airbag label on passenger side door pillar. The label becomes visible when the passenger door is opened.

You may place:

•

a child seat/booster cushion on the front passenger seat provided there is no activated airbag on the front passenger side.

•

one or more child seats/booster cushions in the rear seat.

WARNING

Never use a rear-facing child seat on a seat protected by an activated airbag. Failure to follow this advice can lead to death or serious injury to the child.

WARNING

Never place a child in a child seat or on a booster cushion in the front seat if the airbag is activated.

Never allow anybody to stand or sit in front of the front passenger seat.

No one shorter than 140 cm should ever sit in the front passenger seat if the airbag is activated.

Failure to follow the advice given above can endanger life.

WARNING

Booster cushions/child seats with steel braces or some other design that could rest on the seatbelt buckle's opening button must not be used, as they could cause the seatbelt buckle to open accidentally.

Do not allow the upper section of the child seat to rest against the windscreen.

Related information

•

General information on child safety (p. 45)

•

Child seats - upper mounting points (p. 54)

•

Child seat - ISOFIX (p. 51)

02 Safety

Child seat - ISOFIX

ISOFIX is a fixture system for car child seats (p. 46) that is based on an international standard.

Mounting points for the ISOFIX fixture system are located at the lower section of the rear seat backrest, in the outer seats.

The location of the mounting points is indicated by symbols in the backrest upholstery (see preceding illustration).

Always follow the manufacturer's installation instructions when connecting a child seat to the ISOFIX mounting points.

Related information

•

ISOFIX - size classes (p. 51)

•

ISOFIX - types of child seat (p. 52)

•

General information on child safety (p. 45)

ISOFIX - size classes

There is a size classification for child seats using the ISOFIX (p. 51) fixture system in order to assist users in choosing the correct type of child seat (p. 52).

Size

class

Description

A Full size, front-facing child

seat

B Reduced size (alt. 1), front-

facing child seat

B1 Reduced size (alt.2), front-fac-

ing child seat

C Full size, rear-facing child seat

D Reduced size, rear-facing

child seat

E Rear-facing infant seat

F Transverse infant seat, left-

hand

G Transverse infant seat, right-

hand

WARNING

Never place the child in the passenger seat if the car is fitted with an activated airbag.

NOTE

If an ISOFIX child seat has no size classification, the car model must be included on the vehicle list for the child seat.

NOTE

Volvo recommends that you contact an authorised Volvo dealer for recommendations about which ISOFIX child seats Volvo recommends.

Related information

•

ISOFIX - types of child seat (p. 52)

02 Safety

ISOFIX - types of child seat

Child seats are in different sizes – cars are in different sizes. This means that not all child

seats are suitable for all seats in all car models.

Type of child seat Weight Size class

Passenger seats for ISOFIXA installation of child seats

Front seat Outer rear seat

Infant seat transverse max 10 kg F X X

G X X

Infant seat, rear-facing max 10 kg E X OK

(IL)

Infant seat, rear-facing max 13 kg E X OK

(IL)

D X OK

(IL)

C X OK

(IL)

Child seat, rear-facing 9-18 kg D X OK

(IL)

C X OK

(IL)

02 Safety

Type of child seat Weight Size class

Passenger seats for ISOFIXA installation of child seats

Front seat Outer rear seat

Front-facing child seat 9-18 kg B X

(IUF)

B1 X

(IUF)

A X

(IUF)

X: The ISOFIX position is not suitable for ISOFIX child seats in this weight class and/or size class. IL: Suitable for specific ISOFIX child seats. These child seats may be intended for a particular car model, limited or semi-universal categories. IUF: Suitable for front-facing ISOFIX child seats that are universally approved in this weight class.

ISOFIX is a fixture system for car child seats that is based on an international standard.

Volvo recommends rear-facing child seats for this group.

Make sure you select the right size class (p. 51) of child seat with ISOFIX fixture system.

Related information

•

Child seat - ISOFIX (p. 51)

02 Safety

Child seats - upper mounting points

The car is equipped with upper mounting points for certain front-facing child seats (p. 46). These mounting points are located on the rear of the seat.

Upper mounting points

The upper mounting points are primarily intended for use with front-facing child seats. Volvo recommends that small children should sit in rear-facing child seats to as late an age as possible.

NOTE

Fold the head restraints in order to facilitate fitting this type of child seat in cars with folding head restraints on the outer seats.

NOTE

In cars with a cargo cover over the luggage compartment, this must be removed before child seats can be attached to the securing points.

For detailed information on how the child seat should be tensioned in the upper mounting points, see the seat manufacturer's instructions.

WARNING

The child seat's straps must always be drawn through the hole in the head restraint leg before they are tensioned at the attachment point.

Related information

•

General information on child safety (p. 45)

•

Child seats - location (p. 50)

•

Child seat - ISOFIX (p. 51)

INSTRUME N T S A N D CONTROLS

03 Instruments and controls

Instruments and controls, left-hand drive car - overview

The overview shows where the car's displays and controls are located.

03 Instruments and controls

}}

Overview, left-hand drive cars

03 Instruments and controls

* Option/accessory, for more information, see Introduction.

Function See

Menus and messages, direction indicators, main/ dipped beam, trip computer

(p. 106), (p. 108), (p. 92), (p. 87) and (p. 119).

Manual gear changing in an automatic gearbox*

(p. 270).

Cruise control* (p. 194) and

(p. 199).

Horn, airbags (p. 83) and

(p. 31).

Combined instrument panel

(p. 62).

Menu navigation, audio control, phone control*

(p. 109) and the Sensus Infotainment supplement.

START/STOP ENGINE button

(p. 266).

Ignition switch (p. 76).

Screen for infotainment and display of menus

(p. 109) and the Sensus Infotainment supplement.

Function See

Door handle –

Control panel (p. 173),

(p. 178), (p. 100) and (p. 102).

Hazard warning flashers

(p. 91).

Control panel for infotainment system and menu navigation

(p. 109) and the Sensus Infotainment supplement.

Control panel for climate control

(p. 128) or (p. 129).

Gear selector (p. 269),

(p. 270) or (p. 274).

Parking brake (p. 290).

Wipers and washing

(p. 98).

Steering wheel adjustment

(p. 83).

Bonnet opener (p. 351).

Function See

Light switch, opener for tailgate

(p. 84) and (p. 174).

Seat adjustment* (p. 80).

Related information

•

Outside temperature gauge (p. 71)

•

Trip meter (p. 71)

•

Clock (p. 71)

03 Instruments and controls

}}

Instruments and controls, right-hand drive car - overview

The overview shows where the car's displays and controls are located.

03 Instruments and controls

Overview, right-hand drive cars

03 Instruments and controls

* Option/accessory, for more information, see Introduction.

Function See

Wipers and washing

(p. 98).

Manual gear changing in an automatic gearbox*

(p. 270).

Menu navigation, audio control, phone control*

(p. 109) and the Sensus Infotainment supplement.

Horn, airbags (p. 83) and

(p. 31).

Combined instrument panel

(p. 62).

Cruise control* (p. 194) and

(p. 199).

START/STOP ENGINE button

(p. 266).

Ignition switch (p. 76).

Screen for infotainment and display of menus

(p. 109) and the Sensus Infotainment supplement.

Door handle –

Function See

Control panel (p. 173),

(p. 178), (p. 100) and (p. 102).

Bonnet opener (p. 351).

Hazard warning flashers

(p. 91).

Control panel for infotainment system and menu navigation

(p. 109) and the Sensus Infotainment supplement.

Control panel for climate control

(p. 128) or (p. 129).

Gear selector (p. 269),

(p. 270) or (p. 274).

Parking brake (p. 290).

Menus and messages, direction indicators, main/ dipped beam, trip computer

(p. 106), (p. 108), (p. 92), (p. 87) and (p. 119).

Steering wheel adjustment

(p. 83).

Function See

Light switch, opener for tailgate

(p. 84) and (p. 174).

Seat adjustment* (p. 80).

Related information

•

Outside temperature gauge (p. 71)

•

Trip meter (p. 71)

•

Clock (p. 71)

03 Instruments and controls

* Option/accessory, for more information, see Introduction.

Combined instrument panel

The combined instrument panel's information display shows information on some of the car's functions, as well as messages.

•

Analogue combined instrument panel overview (p. 62)

•

Digital combined instrument panel - overview (p. 63)

•

Combined instrument panel - meaning of indicator symbols (p. 67)

•

Combined instrument cluster - meaning of warning symbols (p. 69)

Analogue combined instrument panel

- overview

The combined instrument panel's information display shows information on some of the car's functions, as well as messages.

Information display

Information display, analogue instrument panel.

There are further descriptions under the functions that use the display.

Gauges and indicators

Fuel gauge. When the indicator lowers to only one white marking1, the yellow indicator symbol for low level in the fuel tank is illuminated. See also Trip computer supplementary information (p. 119) and Filling up with fuel (p. 295).

Eco meter The meter provides an indication of how economically the car is being driven. The higher the reading on the scale, the more economical it is.

Speedometer

Tachometer. The meter indicates engine speed in thousands of revolutions per minute (rpm).

Gear shift indicator2 / Gear position indicator3. See also Gear shift indicator*

When the display's message Distance to empty fuel tank: starts to show

----, the marking becomes red.

Manual gearbox.

Automatic gearbox.

03 Instruments and controls

}}

* Option/accessory, for more information, see Introduction.

(p. 270), Automatic gearbox - Geartronic* (p. 270) or Automatic gearbox Powershift* (p. 274).

Indicator and warning symbols

Indicator and warning symbols, analogue instrument panel.

Indicator symbols

Indicator and warning symbols

Warning symbols

Functionality check

All indicator and warning symbols, apart from symbols in the centre of the information display, illuminate in key position II or when the engine is started. When the engine has started, all the symbols should go out except the parking brake symbol, which only goes out when the brake is disengaged.

If the engine does not start or if the functionality check is carried out in key position II then all symbols go out within a few seconds except the symbol for faults in the car's emissions system and the symbol for low oil pressure.

Related information

•

Combined instrument panel (p. 62)

•

Combined instrument panel - meaning of indicator symbols (p. 67)

•

Combined instrument cluster - meaning of warning symbols (p. 69)

•

Digital combined instrument panel - overview (p. 63)

Digital combined instrument panel overview

The combined instrument panel's information display shows information on some of the car's functions, as well as messages.

Information display

Information display, digital instrument panel*.

There are further descriptions under the functions that use the display.

Gauges and indicators

Various themes can be selected for the digital combined instrument panel. Possible themes are "Elegance", "Eco" and "Performance".

A theme can only be selected when the engine is running.

Certain engine variants do not have systems to warn of oil pressure loss. In cars with these variants the symbol for low oil pressure is not used. Warning for low oil level is via display text. For more information, see Engine oil - general (p. 352).

03 Instruments and controls

* Option/accessory, for more information, see Introduction.

To select the theme, press the left-hand stalk switch's OK button and select the

Themes

menu option by turning the thumbwheel on the lever. Press the OK button. Turn the thumbwheel to select the theme and confirm the selection by pressing the OK button.

On certain model variants, the appearance of the centre console's screen follows the theme selected for the combined instrument panel.

The contrast mode and colour mode for the instrument can also be set using the left-hand stalk switch.

For more information on menu navigation, see Menu navigation - combined instrument panel (p. 106).

The choice of theme and setting of contrast mode and colour mode can be stored for each remote control key in the car key memory*, see Remote control key - personalisation* (p. 158).

Gauges and indicators, theme "Elegance".

Fuel gauge. When the indicator lowers to only one white marking5, the yellow indicator symbol for low level in the fuel tank is illuminated. See also Trip computer supplementary information (p. 119) and Filling up with fuel (p. 295).

Temperature gauge for engine coolant

Speedometer

Tachometer. The meter indicates engine speed in thousands of revolutions per minute (rpm).

Gear shift indicator6 / Gear position indicator7. See also Gear shift indicator* (p. 270), Automatic gearbox - Geartronic*

(p. 270) or Automatic gearbox Powershift* (p. 274).

Gauges and indicators, theme "Eco".

Eco guide. See also Eco guide & Power guide* (p. 66).

Speedometer

Tachometer. The meter indicates engine speed in thousands of revolutions per minute (rpm).

Gear shift indicator6 / Gear position indicator7. See also Gear shift indicator*

When the display's message Distance to empty fuel tank: starts to show

----, the marking becomes red.

Manual gearbox.

Automatic gearbox.

03 Instruments and controls

* Option/accessory, for more information, see Introduction.

(p. 270), Automatic gearbox - Geartronic* (p. 270) or Automatic gearbox Powershift* (p. 274).

Gauges and indicators, theme "Performance".

Temperature gauge for engine coolant

Speedometer

Tachometer. The meter indicates engine speed in thousands of revolutions per minute (rpm).

Power guide. See also Eco guide & Power guide* (p. 66).

Gear shift indicator6 / Gear position indicator7. See also Gear shift indicator* (p. 270), Automatic gearbox - Geartronic* (p. 270) or Automatic gearbox Powershift* (p. 274).

Indicator and warning symbols

Indicator and warning symbols, digital instrument panel.

Indicator symbols

Indicator and warning symbols

Warning symbols

Functionality check

Related information

•

Combined instrument panel (p. 62)

•

Combined instrument panel - meaning of indicator symbols (p. 67)

•

Combined instrument cluster - meaning of warning symbols (p. 69)

•

Analogue combined instrument panel overview (p. 62)

When the display's message Distance to empty fuel tank: starts to show

----, the marking becomes red.

Manual gearbox.

Automatic gearbox.

03 Instruments and controls

* Option/accessory, for more information, see Introduction.

Eco guide & Power guide*

Eco guide and Power guide are two combined instrument panel (p. 62) instruments which help the driver to drive the car with optimum driving economy.

The car also stores statistics of journeys made, which can be viewed in the form of a block diagram; see Trip computer - trip statistics* (p. 120).

Eco guide

This instrument provides an indication of how economically the car is being driven.

To view this function, select the theme "Eco"; see Digital combined instrument panel - overview (p. 63).

Instantaneous value

Average value

Instantaneous value

The instantaneous value is shown here - the higher the reading on the scale, the better.

The instantaneous value is calculated based on speed, engine speed, engine power utilised plus use of the foot brake.

Optimum speed (50-80 km/h) and low engine speeds are encouraged. The pointers fall during acceleration and braking.

Very low instantaneous values illuminate the red zone on the meter (with a short delay), which means poor driving economy and hence should be avoided.

Average value

The average value slowly follows the instantaneous value and describes how the car has been driven most recently. The higher the pointers on the scale, the better the economy achieved by the driver.

Power guide

This instrument shows the relationship between how much power (Power) is being taken from the engine and how much power is available.

To view this function, select the theme "Performance"; see Digital combined instrument panel - overview (p. 63).

Available engine power

Engine power utilised

Available engine power

The smaller, upper pointer shows the available engine power9. The higher the reading on the scale, the more power is available in the current gear.

Engine power utilised

The larger, lower pointer shows the engine power utilised9. The higher the reading on the scale, the more power is being taken from the engine.

A large gap between the two pointers indicates a large power reserve.

Power is dependent on engine speed.

03 Instruments and controls

}}

* Option/accessory, for more information, see Introduction.

Combined instrument panel meaning of indicator symbols

The indicator symbols alert the driver that a function is activated, that the system is operating, or that an error or failure has occurred.

Indicator symbols

Symbol Specification

ABL fault

Emissions system

ABS fault

Rear fog lamp on

Stability system, see Electronic stability control (ESC) - general (p. 184)

Stability system, sport mode, see Electronic stability control (ESC) - operation (p. 185)

Engine preheater (diesel)

Low level in fuel tank

Information, read display text

Symbol Specification

Main beam On

Left-hand direction indicator

Right-hand direction indicator

Eco- function on, see ECO* (p. 286)

Start/Stop, the engine autostopped; see Start/Stop* function and operation (p. 278)

Tyre pressure system , see Tyre pressure monitoring* (p. 324)

ABL fault

The symbol illuminates if a fault has arisen in the ABL function (Active Bending Lights).

Emissions system

If the symbol illuminates after the engine has been started then it may be due to a fault in the car's emissions system. Drive to a workshop for checking. Volvo recommends that you seek assistance from an authorised Volvo workshop.

ABS fault

If this symbol illuminates then the system is not working. The car's regular brake system

continues to work, but without the ABS function.

1. Stop the car in a safe place and turn off the engine.

2. Restart the engine.

3. If the symbol remains illuminated, drive to a workshop to have the ABS system checked. Volvo recommends that you seek assistance from an authorised Volvo workshop.

Rear fog lamp on

This symbol illuminates when the rear fog lamp is switched on. There is only one rear fog lamp - it is located on the driver's side.

Stability system

A flashing symbol indicates that the stability system is operating. If the symbol illuminates with constant glow then there is a fault in the system.

Stability system, sport mode

Sport mode allows for a more active driving experience. The system then detects whether the accelerator pedal, steering wheel movements and cornering are more active than in normal driving and then allows controlled skidding of the rear section up to a certain level before it intervenes and stabilises the car. The symbol illuminates when the sport mode is activated.

03 Instruments and controls

* Option/accessory, for more information, see Introduction.

Engine preheater (diesel)

This symbol illuminates during engine preheating. Preheating mostly takes place due to low temperature.

Low level in fuel tank

When the symbol illuminates the level in the fuel tank is low, refuel as soon as possible.

Information, read display text

When one of the car's systems does not behave as intended, this information symbol illuminates and a text appears on the information display. The message text is cleared with the OK button, see Menu navigation - combined instrument panel (p. 106), or it disappears automatically after a time (time depending on which function is indicated). The information symbol can also illuminate in conjunction with other symbols.

NOTE

When a service message is shown, the symbol and message are cleared using the OK button, or disappear automatically after a time.

Main beam On

The symbol illuminates when main beam is on and with main beam flash.

Left/right-hand direction indicator

Both direction indicator symbols flash when the hazard warning flashers are used.

Eco function on

This symbol illuminates when the Eco function is activated.

Start/Stop

The symbol shines when the engine is autostopped.

Tyre pressure system

The symbol illuminates in the event of low tyre pressure, or if a fault arises in the tyre pressure system.

Reminder – doors not closed

If one of the doors is not closed properly then the information or warning symbol illuminates together with an explanatory image in the information display. Stop the car in a safe place as soon as possible and close the door that is open.

If the car is driven at a speed lower than approx. 7 km/h then the informa-

tion symbol illuminates.

If the car is driven at a speed higher than approx. 7 km/h then the warning

symbol illuminates.

If the bonnet10 is not closed properly then the warning symbol illuminates together with an explanatory image in the information display. Stop the car in a safe place as soon as possible and close the bonnet.

If the tailgate is not closed properly then the information symbol illuminates together with an explanatory image in the information display. Stop the car in a safe place as soon as possible and close the tailgate.

Related information

•

Combined instrument panel (p. 62)

•

Combined instrument cluster - meaning of warning symbols (p. 69)

•

Analogue combined instrument panel overview (p. 62)

•

Digital combined instrument panel - overview (p. 63)

Only cars with alarm*.

03 Instruments and controls

}}

Combined instrument cluster meaning of warning symbols

The warning symbols alert the driver that an important function is activated, or that a serious error or a serious failure has occurred.

Warning symbols

Symbol Specification

Low oil pressure

Parking brake applied, digital instrument panel

Parking brake applied, analogue instrument panel

Airbags – SRS

Seatbelt reminder

Alternator not charging

Fault in brake system

Warning

Low oil pressure

If this symbol illuminates during driving then the engine's oil pressure is too low. Stop the engine immediately and check the engine oil level, top up if necessary. If the symbol illuminates and the oil level is normal, contact a workshop. Volvo recommends that you seek assistance from an authorised Volvo workshop.

Parking brake applied

This symbol illuminates with a constant glow when the parking brake is applied. The symbol is illuminated during application. For more information, see Parking brake (p. 290).

Airbags – SRS

If this symbol remains illuminated or illuminates while driving, it means a fault has been detected in the seatbelt buckle, SRS, SIPS, or IC systems. Drive immediately to a workshop to have the system checked. Volvo recommends that you seek assistance from an authorised Volvo workshop.

Seatbelt reminder

This symbol flashes if someone in a front seat has not put on their seatbelt or if someone in a rear seat has taken off their seatbelt.

Alternator not charging

This symbol illuminates during driving if a fault has occurred in the electrical system. Visit a workshop. Volvo recommends that you seek assistance from an authorised Volvo workshop.

Fault in brake system

If this symbol illuminates, the brake fluid level may be too low. Stop the car in a safe place and check the level in the brake fluid reservoir; see Brake and clutch fluid - level (p. 356).

If the brake and ABS symbols illuminate at the same time, there may be a fault in the brake force distribution system.

1. Stop the car in a safe place and turn off the engine.

2. Restart the engine.

•

If both symbols extinguish, continue driving.

•

If the symbols remain illuminated, check the level in the brake fluid reservoir; see Brake and clutch fluid - level (p. 356). If the brake fluid level is normal but the symbols are still illuminated, the car can be driven, with great care, to a workshop to have the brake system checked. Volvo recommends that you seek assistance from an authorised Volvo workshop.

03 Instruments and controls

* Option/accessory, for more information, see Introduction.

WARNING

If the brake fluid is below the MIN level in the brake fluid reservoir, do not drive further before topping up the brake fluid.

The loss of brake fluid must be investigated by a workshop. Volvo recommends that you contact an authorised Volvo workshop.

WARNING

If the BRAKE and ABS symbols are lit at the same time, there is a risk that the rear end will skid during heavy braking.

Warning

The red warning symbol illuminates when a fault has been indicated which could affect the safety and/or driveability of the car. An explanatory text is shown on the information display at the same time. The symbol remains visible until the fault has been rectified but the text message can be cleared with the OK button; see Menu navigation - combined instrument panel (p. 106). The warning symbol can also illuminate in conjunction with other symbols.

Action:

1. Stop in a safe place. Do not drive the car further.

2. Read the information on the information display. Implement the action in accordance with the message in the display. Clear the message using the OK button.

Reminder – doors not closed

If the car is driven at a speed lower than approx. 7 km/h then the informa-

tion symbol illuminates.

If the car is driven at a speed higher than approx. 7 km/h then the warning

symbol illuminates.

If the bonnet11 is not closed properly then the warning symbol illuminates together with an explanatory image in the information display. Stop the car in a safe place as soon as possible and close the bonnet.

Related information

•

Combined instrument panel (p. 62)

•

Combined instrument panel - meaning of indicator symbols (p. 67)

•

Analogue combined instrument panel overview (p. 62)

•

Digital combined instrument panel - overview (p. 63)

Only cars with alarm*.

03 Instruments and controls

Outside temperature gauge

The display for the outside temperature gauge appears in the combined instrument panel.

Display for outside temperature gauge, digital instrument panel

Display for outside temperature gauge, analogue instrument panel

When the temperature lies between +2 °C to

-5 °C a snowflake symbol illuminates in the display. This warns of icy roads. If the car has been stationary then the gauge may show a reading that is too high.

Related information

•

Combined instrument panel (p. 62)

Trip meter

The trip meter display appears in the combined instrument panel.

Trip meter, digital instrument.

Display for trip meter

The two trip meters

T1 and T2 are used for

measuring short distances. The distance is shown in the display.

Turn the left stalk switch thumbwheel to show the required meter.

A long press (until the change occurs) on the left-hand stalk switch's RESET button resets the trip meter shown. For more information, see Trip computer - supplementary information (p. 119).

Related information

•

Combined instrument panel (p. 62)

Clock

The clock display appears in the combined instrument panel.

Clock, digital instrument panel.

Display for showing the time

Set the clock

The clock can be adjusted in the menu system MY CAR, see MY CAR (p. 109).

Related information

•

Combined instrument panel (p. 62)

Display appearance may differ depending on instrument variant.

03 Instruments and controls

Combined instrument panel - license agreement

A license is an agreement for the right to operate a certain activity or the right to use someone else's entitlement according to the terms and conditions in the agreement. The following text is Volvo's agreement with the manufacturer/developer.

Combined Instrument Panel Software

Open Source Software Notice

This product uses certain free / open source and other software originating from third parties, that is subject to the GNU Lesser General Public License version 2 (LGPLv2), The FreeType Project License ("FreeType License") and other different and/or additional copy right licenses, disclaimers and notices. The links to access the exact terms of LGPLv2, and the other open source software licenses, disclaimers, acknowledgements and notices are provided to you below. Please refer to the exact terms of the relevant License, regarding your rights under said licenses. Volvo Car Corporation (VCC) offers to provide the source code of said free/open source software to you for a charge covering the cost of performing such distribution, such as the cost of media, shipping and handling, upon written request. Please contact your nearest Volvo Dealer.

The offer is valid for a period of at least three (3) years from the date of the distribution of this product by VCC / or for as long as VCC offers spare parts or customer support.

This product includes software under following licenses:

LGPL v2.1: http://www.gnu.org/licenses/oldlicenses/lgpl-2.1.html

•

GNU FriBidi

•

DevIL

The FreeType Project License: http:// git.savannah.gnu.org/cgit/freetype/ freetype2.git/tree/docs/FTL.TXT

•

FreeType 2

MIT License: http://opensource.org/licenses/ mit-license.html

•

Lua

The time is shown in the middle of the instrument panel when an analogue instrument panel is fitted.

03 Instruments and controls

}}

* Option/accessory, for more information, see Introduction.

Symbols in the display

There are a variety of different symbols in the display in the car. The symbols are divided into warning, indicator and information symbols.

Shown below are the most common symbols with their meanings and a reference to where in the manual further information can be found.

- Red warning symbol, illuminates when a fault has been indicated which could affect the safety and/or driveability of the car. An explanatory text is shown on the information display in the combined instrument panel at the same time.

- When one of the car's systems does not behave as intended, this information symbol illuminates, and a text appears on the information display in the combined instrument panel. The yellow information symbol can also illuminate in conjunction with other symbols.

Warning symbols in the combined instrument panel

Symbol Specification See

Low oil pressure (p. 69)

Parking brake applied, digital instrument panel

(p. 69), (p. 290)

Parking brake applied, analogue instrument panel

(p. 69)

Airbags – SRS (p. 30),

(p. 69)

Seatbelt reminder (p. 26),

(p. 69)

Alternator not charging

(p. 69)

Fault in brake system

(p. 69), (p. 288)

Warning, safety mode

(p. 30), (p. 41), (p. 69)

Control symbols in the combined instrument panel

Symbol Specification See

ABL fault* (p. 67),

(p. 90)

Emissions system

(p. 67)

ABS fault (p. 67),

(p. 288)

Rear fog lampon(p. 67),

(p. 90)

Stability system, ESC (Electronic Stability Control), Trailer stability assist*

(p. 67), (p. 186), (p. 307)

Stability system, sport mode

(p. 67), (p. 186)

Engine preheater (diesel)

(p. 67)

Low level in fuel tank

(p. 67), (p. 140)

Information, read display text

(p. 67)

Main beam On (p. 67),

(p. 87)

03 Instruments and controls

* Option/accessory, for more information, see Introduction.

Symbol Specification See

Left-hand direction indicators

(p. 67)

Right-hand direction indicators

(p. 67)

Start/Stop*, engine autostopped

(p. 67), (p. 278)

ECO function*on(p. 67),

(p. 286)

Tyre pressure system*

(p. 67), Tyre pressure monitoring* (p. 324)

Information symbols in the combined instrument panel

Symbol Specification See

Main beam with auto dimming AHB*

(p. 88)

Camera sensor*, Laser sensor*

(p. 88), (p. 223), (p. 232), (p. 235), (p. 240)

Symbol Specification See

Adaptive cruise control*

(p. 212)

Adaptive cruise control*

(p. 203), (p. 212)

Adaptive cruise control*, Distance Warning* (Distance Alert)

(p. 212), (p. 214)

Adaptive cruise control*

(p. 202)

Cruise control* (p. 194)

Speed limiter (p. 190)

Radar sensor* (p. 212),

(p. 216), (p. 232)

Start/Stop* (p. 284)

Symbol Specification See

Distance warning* (Distance Alert), City SafetyTM, Collision warning system*, Autobrake*

(p. 216), (p. 223), (p. 232)

Engine block and passenger compartment heater*

(p. 140)

Engine block heater and passenger compartment heater* Service required

(p. 140)

Activated timer* (p. 140)

ABL system* (p. 90)

Low battery (p. 140)

03 Instruments and controls

}}

* Option/accessory, for more information, see Introduction.

Symbol Specification See

Park Assist Pilot PAP*

(p. 249)

Rain sensor* (p. 98)

Lane assistance* (p. 238)

Driver Alert System*, Lane assistance*

(p. 240)

Driver Alert System*, Lane assistance*

(p. 235), (p. 240)

Driver Alert System*, Time for a break

(p. 234)

Driver Alert System*, Time for a break

(p. 235)

Gear shift indicator

(p. 270)

Gear positions (p. 270)

Symbol Specification See

Recorded speed information*

(p. 188)

Measuring the oil level

(p. 353)

Information symbols in the roof console display

Symbol Specification See

Seatbelt reminder (p. 29)

Airbag, passenger seat, activated

(p. 34)

Airbag, passenger seat, deactivated

(p. 34)

Related information

•

Combined instrument panel - meaning of indicator symbols (p. 67)

•

Combined instrument cluster - meaning of warning symbols (p. 69)

•

Messages - handling (p. 108)

Volvo Sensus

Volvo Sensus is the heart of the personal Volvo experience and connects you with the car and outside world. Sensus provides information, entertainment and assistance when it is needed. Sensus consists of intuitive functions that both enhance the car journey and simplifies ownership of the car.

An intuitive navigation structure makes it possible to receive relevant support, information and entertainment when it is necessary, without distracting the driver.

Sensus covers all the car's solutions that enable connection* to the outside world and provides you with intuitive control over all the car's capabilities.

Volvo Sensus combines and presents many functions in several of the car's systems on the centre console's display screen. With Volvo Sensus the car can be personalised by means of an intuitive user interface. Settings

03 Instruments and controls

* Option/accessory, for more information, see Introduction.

can be made in Car settings, Audio and media, Climate control, etc.

With the centre console buttons and controls or the steering wheel's right-hand keypad* functions can be activated or deactivated and many different settings can be made.

With a press on MY CAR all settings related to the driving and control of the car are presented, such as City Safety, locks and alarm, automatic fan speed, setting the clock, etc.

With a press on the respective function RADIO, MEDIA, TEL,

*, NAV* and CAM* other sources, systems and functions can be activated, e.g. AM, FM, CD, DVD*, TV*, Bluetooth®*, navigation* and park assist camera*.

For more information about all functions/ systems, see the relevant section in the owner's manual or its supplement.

Overview

Control panel in centre console. The figure is schematic - the number of functions and layout of the buttons both vary, depending on the equipment selected and the market.

Navigation* - NAV, see separate supplement (Sensus Navigation).

Audio and media - RADIO, MEDIA, TEL*, see separate supplement (Sensus Infotainment).

Function settings - MY CAR, see MY CAR (p. 109).

Internet-connected car - *, see separate supplement (Sensus Infotainment).

Climate control system (p. 122).

Key positions

The remote control key can be used to set the vehicle's electrical system in different modes/ levels so that different functions are available; see Key positions - functions at different levels (p. 77).

Ignition switch with remote control key extracted/inserted.

NOTE

For cars with the Keyless* function the key does not need to be inserted into the ignition switch but can be stored in e.g. a pocket. For more information on Keyless functions, see Keyless drive* (p. 167).

03 Instruments and controls

}}

Insert the key

1. Hold the end of the remote control key

with the detachable key blade and insert the key in the ignition switch.

2. Then press the key in the lock up to its

end position.

IMPORTANT

Foreign objects in the ignition switch can impair the function or destroy the lock.

Do not press in the remote control key incorrectly turned - Hold the end with the detachable key blade; see Detachable key blade - detaching/attaching (p. 165).

Withdraw the key

Push the remote control key, allow it to eject, then pull it out from the ignition switch.

Key positions - functions at different levels

To enable the use of a limited number of functions with the engine switched off, the car's electrical system can be set in 3 different levels - 0, I and II - with the remote control key. This owner's manual describes these levels throughout using the denomination "key positions".

The following table shows the functions available in each key position/level.

Level Functions

Odometer, clock and temperature gauge are illuminated.

Electrically operated seats can be adjusted.

The audio system can be used for a limited time - see the Sensus Infotainment supplement.

Sun visor for glass roof, power windows, 12 V socket in the passenger compartment, RTI, phone, ventilation fan and windscreen wipers can be used.

The headlamps come on. Warning/indicator lamps illumi-

nate for 5 seconds. Several other systems are acti-

vated. However, electric heating in seat cushions and the rear window can only be activated after starting the engine.

This key position consumes a lot of current from the starter battery and should therefore be avoided!

03 Instruments and controls

* Option/accessory, for more information, see Introduction.

Selecting key position/level

•

Key position 0 - Unlock the car - This means that the car's electrical system is at level 0.

NOTE

To reach level I or II without starting the engine - do not depress the brake/clutch pedal when these key positions are due to be selected.

•

Key position I - With the remote control key fully inserted into the ignition switch

- Briefly press START/STOP ENGINE.

•

Key position II - With the remote control key fully inserted into the ignition switch

- Give a long15 press on START/STOP ENGINE.

•

Back to key position 0 - To return to key position 0 from position II and I - Briefly press on START/STOP ENGINE.

Audio system

For information on audio system functions with remote control key removed, see the Sensus Infotainment supplement.

Starting and stopping the engine

For information about starting/switching off the engine, see Starting the engine (p. 266).

Towing

For important information about the remote control key during towing, see Towing (p. 308).

Related information

•

Key positions (p. 76)

Seats, front

The car's front seats have different setting options for optimum seating comfort.

To adjust lumbar support*, turn the wheel16.

Forward/backward: lift the handle to adjust the distance to the steering wheel and pedals. Check that the seat is locked after adjusting position.

To raise/lower the front edge of seat cushion*, pump up/down.

Adjust backrest rake, turn the wheel.

Raise/lower the seat*, pump up/down.

Control panel for power seat*, see Seats, front - electrically operated (p. 80).

Not required for cars with the Keyless* function.

Approx. 2 seconds.

Also applies to electrically operated seat.

03 Instruments and controls

* Option/accessory, for more information, see Introduction.

WARNING

Adjust the position of the driver's seat before setting off, never while driving. Make sure that the seat is in locked position in order to avoid personal injury in the event of heavy braking or an accident.

Adjusting the front seat head restraints

The height of the head restraints can be adjusted.

Adjust the head restraint based on the person's height so that the whole of the back of the head is covered if possible.

To adjust the height, the button (see illustration) must be pressed while the restraint is moved up or down.

The head restraint can be adjusted in three different positions.

Lowering the passenger seat backrest*

The passenger seat backrest can be folded forward to make room for long loads.

Move the seat as far back/down as possible.

Adjust the backrest to an upright position.

Lift the catches on the rear of the backrest and fold it forward.

4. Push the seat forward so that the head restraint "locks" in under the glovebox.

Raising takes place in reverse order.

WARNING

Do not use the seat behind the passenger seat, or the rear centre seat, when the passenger seat's backrest is lowered.

WARNING

Grasp the backrest and make sure that it is properly locked after being folded up in order to avoid personal injury in the event of sudden braking or an accident.

Related information

•

Seats, front - electrically operated (p. 80)

•

Seats, rear (p. 81)

03 Instruments and controls

* Option/accessory, for more information, see Introduction.

Seats, front - electrically operated

The car's front seats have different setting options for optimum seating comfort. The power seat can be moved forward/backward and up/down. The front edge of the seat cushion can be raised/lowered. The backrest angle can be changed.

Electrically operated seat*

Front edge of seat cushion up/down

Raise/lower seat

Seat, forward/backward

Backrest rake

The power seats have overload protection which is tripped if a seat is blocked by an object. If this should happen, set the car's electrical system in key position I or 0 and

wait a short time before adjusting the seat again.

Only one movement (forward/back/up/down) can be made at a time.

Preparations

The seat can be adjusted for a certain time after unlocking the door with the remote control key without the key in the ignition switch. Seat adjustment is normally made in key position I and can always be made when the engine is running.

Seat with memory function*

The memory function stores settings for the seat and the door mirrors.

Store setting

Memory button

Button for storing settings

1. Adjust the seat and the door mirrors.

2. Press and hold button M while pressing button 1, 2 or 3 simultaneously. Hold the buttons depressed until the acoustic signal is heard and the text is shown the combined instrument panel.

The seat must be adjusted again before a new memory can be set.

Using a stored setting

Press one of the memory buttons 1-3 until the seat and the door mirrors stop. If the button is released, the movement of the seat and door mirrors will be interrupted.

Key memory* in remote control key

All remote control keys can be used by different drivers to store the settings for the driver's seat and door mirrors17, see Remote control key - personalisation* (p. 158).

Only if the car is equipped with power seat with memory and retractable power door mirrors.

03 Instruments and controls

}}

* Option/accessory, for more information, see Introduction.

Emergency stop

If the seat accidentally begins to move, press one of the setting buttons for the seat or memory buttons in order to stop the seat.

WARNING

Risk of crushing! Make sure that children do not play with the controls. Check that there are no objects in front of, behind or under the seat during adjustment. Make sure that none of the passengers in the rear seat is in danger of becoming trapped.

Heated seats

For heated seats, see Heated front seats* (p. 130) and Heated rear seat* (p. 130).

Related information

•

Seats, front (p. 78)

•

Seats, rear (p. 81)

Seats, rear

The rear seat backrest and the outer seat head restraints can be folded. The centre seat head restraint can be adjusted to suit the height of the passenger.

Head restraint, centre seat, rear

Adjust the head restraint according to passenger height so that the whole of the back of the head is covered if possible. Slide it up as required.

To lower the head restraint again, the button (see illustration) must be pressed while the restraint is carefully moved down.

The head restraint can be adjusted in five different positions.

WARNING

The centre seat head restraint must be in its lowest position when the centre seat is not used. When the centre seat is used, the head restraint must be correctly adjusted to the height of the passenger so that it covers the whole of the back of the head if possible.

Manual lowering of the outer head restraints, rear seat

Pull the locking handle closest to the head restraint to fold the head restraint forward.

The head restraint is moved back manually.

WARNING

The head restraint must be in locked position after being folded up.

03 Instruments and controls

Lowering the rear seat backrest

IMPORTANT

When the backrest is to be folded, the rear seat cup holder must not be open and there must be no objects in the rear seat. Nor may the seat belts be connected. Otherwise there is a risk of damage to the rear seat upholstery.

NOTE

The front seats may need to be pushed forwards, and/or the backrests adjusted upwards, in order that the rear backrests can be fully folded forward.

•

Both sections can be folded separately.

•

If the entire backrest is to be folded then the different sections should be folded separately.

If the right-hand section is being lowered

- release and adjust head restraint for the centre seat, see the earlier section "Head restraint, centre seat, rear".

The outer head restraints are lowered automatically when the backrests are lowered. Pull up the backrest's locking

handle

while folding the backrest for-

ward at the same time. A red indicator on the lock catch

shows that the back-

rest is no longer locked in place.

NOTE

When the backrests have been lowered the head restraints must be moved forward slightly so as not to make contact with the seat cushion.

Raising takes place in reverse order.

NOTE

When the backrest has been raised, the red indicator should no longer be showing. If it is still showing then the backrest is not locked in place.

WARNING

Check that the backrests and head restraints in the rear seat are locked properly after being folded up.

Related information

•

Seats, front (p. 78)

•

Seats, front - electrically operated (p. 80)

03 Instruments and controls

}}

* Option/accessory, for more information, see Introduction.

Steering wheel

The steering wheel can be adjusted in different positions and has controls for horn and cruise control, as well as menu, audio and phone control.

Adjusting

Adjusting the steering wheel.

Lever - releasing the steering wheel

Possible steering wheel positions

The steering wheel can be adjusted for both height and depth:

1. Push the lever forwards to release the steering wheel.

2. Adjust the steering wheel to the position that suits you.

3. Pull the lever back to fix the steering wheel in place. If the lever is stiff, press the steering wheel lightly at the same time as you push the lever back.

WARNING

Adjust the steering wheel and fix it before driving away.

With speed related power steering* the level of steering force can be adjusted, see Adjustable steering force (p. 259).

Keypads* and paddles*

Keypads and paddles in the steering wheel.

Cruise control* (p. 194)* and Adaptive cruise control (ACC)* (p. 199)*.

Paddle for manual gear changing in an automatic gearbox, see Automatic gearbox - Geartronic* (p. 270).

Audio and phone control, see supplement, Sensus Infotainment.

03 Instruments and controls

* Option/accessory, for more information, see Introduction.

Horn

Horn.

Press the centre of the steering wheel to signal.

Light switches

The headlamp control activates and adjusts the external lighting. It is also used to adjust display and instrument lighting and ambience lights (p. 93).

Overview, light switches

Overview, light switches.

Thumbwheel for adjusting display and instrument lighting as well as ambience lights*

Button for rear fog lamp

Knob for daytime running lights and parking lamps

Thumbwheel18 for headlamp levelling

Knob positions

Posi-

tion

Specification

Daytime running lightsA when the car's electrical system is in key position II or the engine is running.

Main beam flash can be used.

Daytime running lights, side marker lamps rear and position/ parking lamps when the car's electrical system is in key position II or the engine is running.

Side marker lamps rear and position/parking lamps when the car is parked.

Main beam flash can be used.

Daytime running lights, side marker lamps rear and position/ parking lamps in daylight when the car's electrical system is in key position II or the engine is running.

Dipped beam, side marker lamps rear and position/parking lamps in weak daylight or darkness or when the rear fog lamp

Not available for cars equipped with active Xenon headlamps*.

03 Instruments and controls

* Option/accessory, for more information, see Introduction.

Posi-

tion

Specification

is activated. On cars with active Xenon headlamps* (p. 90) the daytime running light lamps are switched on with reduced brightness.

The tunnel detection (p. 87)* function is activated.

The Active main beam (p. 88)* function can be used.

Main beam can be activated when dipped beam is switched on.

Main beam flash can be used.

Dipped beam, side marker lamps rear and position/parking lamps.

Main beam can be activated. Main beam flash can be used. On cars with active Xenon

headlamps the daytime running light lamps are switched on with reduced brightness.

Fitted in or under the front bumper.

Volvo recommends that

mode is used

when the car is driven.

WARNING

The car's audio system is not able to determine when daylight is too weak or sufficiently strong, e.g. in fog and rain, in all situations.

The driver is always responsible for ensuring that the car is driven with a beam pattern suitable for the traffic situation and in accordance with applicable traffic regulations.

Instrument lighting

Different display and instrument lighting is switched on depending on key position; see Key positions - functions at different levels (p. 77).

The display lighting is automatically subdued in darkness - the sensitivity is set with the thumbwheel.

The intensity of the instrument lighting is adjusted with the thumbwheel.

Headlamp levelling

The load in the car changes the vertical alignment of the headlamp beam, which could dazzle oncoming motorists. Avoid this by adjusting the height of the beam. Lower the beam if the car is heavily laden.

1. Leave the engine running, or have the car's electrical system in key position I.

2. Roll the thumbwheel up/down to raise/ lower beam alignment.

Thumbwheel positions for different load cases.

Only driver

Driver and passenger in the front passenger seat

Occupants in all seats

Occupants in all seats and maximum load in the cargo area

Driver and maximum load in the cargo area

Cars with active Xenon headlamps* have automatic headlamp levelling and are therefore not equipped with the thumbwheel.

Related information

•

Position/parking lamps (p. 86)

•

Daytime running lights (p. 86)

•

Main/dipped beam (p. 87)

03 Instruments and controls

Position/parking lamps

Position/parking lamps are switched on with the headlamp control knob.

Knob for headlamp control in the position for position/parking lamps.

Turn the knob to the position for

(number plate lighting is switched on at the same time).

If the car's electrical system is in key position II or the engine is running then the daytime running lights also switch on.

When it is dark outside and the tailgate is opened the rear position/parking lamps illuminate to alert traffic behind. This takes place irrespective of what position the knob is in or what key position the car's electrical system is in.

Related information

•

Light switches (p. 84)

Daytime running lights

With the knob for headlamp control in position, and the car's electrical system in key position II or the engine running, the daytime running lights are activated automatically in daylight.

Daytime running lights during the day. DRL

Knob for headlamp control in AUTO position.

With the knob for headlamp control in position the daytime running lights (Daytime Running Lights - DRL) are activated automatically when the car is driven in daylight. A light sensor on the top of the instrument panel changes from daytime running lights to dipped beam at twilight or when daylight becomes too weak. Switching to dipped beam also takes place when the rear fog lamps are activated.

On cars with halogen headlamps the daytime running light lamps are switched off when main or dipped beam is activated.

On cars with active Xenon headlamps (p. 90) the daytime running light lamps are switched on with reduced brightness when main or dipped beam is activated.

WARNING

This system help to save energy - it cannot determine in all situations when daylight is too weak or sufficiently strong, e.g. in mist and rain.

The driver is always responsible for ensuring that the car is driven with the correct beam pattern for the traffic situation and in accordance with applicable traffic regulations.

03 Instruments and controls

* Option/accessory, for more information, see Introduction.

Tunnel detection*

Tunnel detection changes the lighting from daytime running lights to dipped beam when the car is driven into a tunnel. Approx. 20 seconds after the car has left the tunnel, the lighting returns to daytime running lights.

The tunnel detection function is available in cars with rain sensor*. The sensor detects the entrance to a tunnel and resets the lighting from daytime running lights to dipped beam. Approx. 20 seconds after the car has left the tunnel, the lighting returns to daytime running lights. If the car is driven into another tunnel within this time period then dipped beam is kept switched on. This prevents frequent changes to the car's beam pattern.

Note that the headlamp control's knob must remain in

position for tunnel detection

to work.

Related information

•

Main/dipped beam (p. 87)

•

Light switches (p. 84)

Main/dipped beam

Stalk switch and knob for headlamp control.

Position for main beam flash

Position for main beam

Dipped beam

With the knob in position, dipped beam is activated automatically at dusk or when daylight becomes too weak. Dipped beam is also activated automatically when the rear fog lamp is activated.

With the knob in

position, dipped beam is always switched on when the engine is running or when key position II is active.

Main beam flash

Move the stalk switch gently towards the steering wheel to the position for main beam

flash. Main beam comes on until the stalk switch is released.

Main beam

Main beam can be activated when the knob is in position

. Activate/deactivate main beam by moving the stalk switch towards the steering wheel to the end position and then releasing. Alternatively, the main beam can be deactivated by a light press of the stalk switch toward the steering wheel.

When main beam has been activated the

symbol illuminates in the combined

instrument panel.

Related information

•

Active Xenon headlamps* (p. 90)

•

Active main beam* (p. 88)

•

Light switches (p. 84)

•

Headlamps - adjusting headlamp pattern (p. 95)

•

Tunnel detection* (p. 87)

When dipped beam is activated.

03 Instruments and controls

* Option/accessory, for more information, see Introduction.

Active main beam*

Active main beam function detects the headlamp beams from oncoming traffic or the rear lights of vehicles in front, and switches the lighting from main beam to dipped beam. The lighting returns to main beam when the incoming light has stopped.

Active main beam - AHB

Active main beam (Active High Beam - AHB) is a function which uses a camera sensor at the top edge of the windscreen to detect the headlamp beams from oncoming traffic or the rear lights of vehicles in front, and then switches from main beam to dipped beam. The function can also take streetlights into account.

The lighting returns to main beam about a second after the camera sensor no longer detects the headlamp beams from oncoming traffic or the rear lights from vehicles in front.

Activating/deactivating

AHB can be activated when the headlamp control's knob is in position

(provided that the function has not been deactivated in the menu system MY CAR, see MY CAR (p. 109)).

Stalk switch and knob for headlamp control in AUTO position.

The function can start while driving in the dark when the car's speed is 20 km/h or higher.

Activate/deactivate AHB by moving the lefthand stalk switch towards the steering wheel to the end position and then releasing. Deactivation when main beam is on means that the lights are reset directly to dipped beam.

Car with analogue combined instrument panel

When AHB is activated the

symbol illuminates in the instrument's information display.

When main beam has been switched on the

symbol also illuminates in the com-

bined instrument panel.

Car with digital combined instrument panel

When AHB is activated the

symbol turns white in the instrument's information display.

When main beam is activated, the symbol shines blue.

03 Instruments and controls

* Option/accessory, for more information, see Introduction.

Manual operation

NOTE

Keep the windscreen surface in front of the camera sensor free from ice, snow, mist and dirt.

Do not stick or attach anything to the windscreen in front of the camera sensor as this may reduce effectiveness or cause one or more of the systems dependent on the camera to stop working.

If the message Active main beam

Temporary unavailable Switch manually is

shown in the combined instrument panel's information display then you have to switch manually between main and dipped beam. However, the knob for headlamp control can

still remain in position

. The same

applies if the message

Windscreen sensors

blocked See manual

and the symbol

are shown. The

symbol goes out when

these messages are shown. AHB may be temporarily unavailable e.g. in

situations with dense fog or heavy rain. When AHB becomes available again, or the windscreen sensors are no longer blocked, the

message goes out and the

symbol illu-

minates.

WARNING

AHB is an aid for using the optimum beam pattern when conditions are favourable.

The driver always bears responsibility for manually switching between main and dipped beam when traffic situations or weather conditions so require.

IMPORTANT

Examples of when manual switching between main and dipped beam may be required:

•

In heavy rain or dense fog

•

In freezing rain

•

In snow flurries or slush

•

In moonlight

•

When driving in poorly lit built-up areas

•

When the traffic ahead has weak lighting

•

If there are pedestrians on or beside the road

•

If there are highly reflective objects such as signs in the vicinity of the road

•

When the lighting from oncoming traffic is obscured by e.g. a crash barrier

•

When there is traffic on connecting roads

•

On the brow of a hill or in a hollow

•

In sharp bends.

For more information on the limitations of the camera sensor, see Collision warning system*

- camera sensor limitations (p. 230).

Related information

•

Main/dipped beam (p. 87)

•

Light switches (p. 84)

03 Instruments and controls

* Option/accessory, for more information, see Introduction.

Active Xenon headlamps*

Active Xenon headlamps are designed to provide maximum illumination in bends and junctions and so provide increased safety.

Active Xenon headlamps ABL

Headlamp pattern with function deactivated (left) and activated (right) respectively.

If the car is equipped with active Xenon headlamps (Active Bending Lights – ABL) then the light from the headlamps follows the steering wheel movement in order to provide maximum lighting in bends and junctions and so provide increased safety.

The function is activated automatically when the car is started (provided that it has not been deactivated in the menu system MY CAR, see MY CAR (p. 109)). In the event

of a fault in the function the

symbol illu-

minates in the combined instrument panel at the same time as the information display shows an explanatory text and a further illuminated symbol.

Symbol Message Specification

Headlamp system malfunction Service required

The system is disengaged. Visit a workshop if the message remains. Volvo recommends that you contact an authorised Volvo workshop.

The function is only active in twilight or darkness and only when the car is moving.

The function20 can be deactivated/activated in the menu system MY CAR, see MY CAR (p. 109).

Related information

•

Main/dipped beam (p. 87)

•

Active main beam* (p. 88)

•

Light switches (p. 84)

•

Headlamps - adjusting headlamp pattern (p. 95)

Rear fog lamp

When visibility is reduced by fog the rear fog lamp can be used so that other road users shall notice vehicles in front at an early stage.

Button for rear fog lamp.

The rear fog lamp consists of one rear lamp and can only be switched on when key position II is active or the engine is running and the headlamp control's knob is in position

or .

Press the button for On/Off. The rear fog lamp indicator symbol in the combined

instrument panel and the lamp in the button illuminate when the rear fog lamp is switched on.

The rear fog lamp is switched off automatically when the engine is switched off or when

Activated on delivery from the factory.

03 Instruments and controls

}}

the headlamp control's knob is turned to position

or .

NOTE

Regulations on the use of rear fog lamps vary from country to country.

Related information

•

Light switches (p. 84)

Brake lights

The brake light automatically comes on during braking.

The brake light is switched on when the brake pedal is depressed. In addition, it is switched on when one of driving support systems Adaptive cruise control (p. 199), City Safety (p. 217) or Collision warning system (p. 224) brakes the car.

Related information

•

Foot brake - emergency brake lights and automatic hazard warning flashers (p. 290)

Hazard warning flashers

The hazard warning flashers warn other road users by means of all of the car's direction indicator lamps flashing simultaneously when this function is activated.

When the hazard warning flashers are activated both direction indicator symbols flash in the combined instrument panel.

Button for hazard warning flashers.

Press the button to activate the hazard warning flashers. Both direction indicator symbols in the combined instrument panel flash when the hazard warning flashers are used.

The hazard warning flashers are activated automatically when the car has been braked so suddenly that the emergency brake lights have been activated at a speed below 10 km/h. The hazard warning flashers remain on when the car has stopped and are deacti-

03 Instruments and controls

vated automatically when the car is driven off again or the button is depressed.

Related information

•

direction indicators (p. 92)

•

Foot brake - emergency brake lights and automatic hazard warning flashers (p. 290)

direction indicators

The car's direction indicators are operated with the left-hand stalk switch. The direction indicator lamps flash three times or continuously, depending on how far up or down the stalk switch is moved.

Direction indicators.

Short flash sequence

Move the stalk switch up or down to the first position and release. The direction indicator lamps flash three times. The function can be activated/deactivated in the menu system MY CAR, see MY CAR (p. 109).

Continuous flash sequence

Move the stalk switch up or down to the outer position.

The stalk switch remains in its position and is moved back manually, or automatically by the steering wheel movement.

Direction indicator symbols

For direction indicator symbols, see Combined instrument panel - meaning of indicator symbols (p. 67).

Related information

•

Hazard warning flashers (p. 91)

03 Instruments and controls

}}

* Option/accessory, for more information, see Introduction.

Interior lighting

The passenger compartment lighting is activated/deactivated with the buttons in the controls above the front seats and the rear seat.

Controls in roof console for the front reading lamps and passenger compartment lighting.

Reading lamp, left-hand side

Passenger compartment lighting (floor lamps* and ceiling lamps) - On/Off

Auto function for passenger compartment lighting

Reading lamp, right-hand side

All lighting in the passenger compartment can be switched on and off manually within 30 minutes from when:

•

the engine has been switched off and the car's electrical system is in key position 0

•

the car has been unlocked but the engine has not been started.

Front reading lamps*

The reading lamps are switched on or off by briefly pressing the relevant button in the roof console.

Brightness is adjusted by holding the button pressed in.

Rear reading lamps*

Rear reading lamps.

The lamps are switched on or off by briefly pressing the relevant button.

Brightness is adjusted by holding the button pressed in.

Floor lighting as ambient light*

To make the interior brighter while driving the floor lighting can be activated at dimmed level.

Floor lamp intensity can be changed in the menu system MY CAR, see MY CAR (p. 109).

Lighting in the front door storage compartments*

Lighting in the front door storage compartments comes on when the engine starts.

Glovebox lighting

Glovebox lighting is switched on and off respectively when the lid is opened or closed.

Vanity mirror lighting

The lighting for the vanity mirror (p. 148) is switched on and off respectively when the cover is opened or closed.

Lighting in the cargo area

The lighting in the cargo area is switched on and off respectively when the tailgate is opened or closed.

Auto function for passenger compartment lighting

The auto function is activated when the lamp in the AUTO button is lit.

The passenger compartment lighting is then switched on and off as indicated below.

The passenger compartment lighting is switched on and remains on for 30 seconds if:

•

the car is unlocked with the remote control key or key blade, see Remote control

03 Instruments and controls

* Option/accessory, for more information, see Introduction.

key - functions (p. 161) or Detachable key blade - unlocking doors (p. 165)

•

the engine has been switched off and the car's electrical system is in key position

Passenger compartment lighting is switched off when:

•

the engine is started

•

the car is locked.

The passenger compartment lighting is switched on and off respectively when a side door is opened or closed.

It remains switched on for two minutes if one of the doors is open.

If any lighting is switched on manually and the car is locked then it will be switched off automatically after two minutes.

Mood lights*

When the normal passenger compartment lighting is switched off and the engine is running, an LED illuminates in the front and rear roof console respectively in order to provide a low light and enhance the ambience while driving. The light also makes it easier during dark periods of the day to see objects in storage compartments, etc. This lighting switches off when the engine is switched off. The intensity and colour of the light can be changed in the menu system MY CAR, see MY CAR (p. 109).

Home safe light duration

Home safe lighting consists of dipped beam, parking lamps, lamps in the door mirrors, number plate lighting, interior roof lighting and floor lighting.

Some of the exterior lighting can be kept switched on to work as home safe lighting after the car has been locked.

1. Remove the remote control key from the ignition switch.

2. Move the left-hand stalk switch toward the steering wheel to the end position and release it. The function can be activated in the same way as with main beam flash; see Main/dipped beam (p. 87).

3. Get out of the car and lock the door.

When the function is activated, dipped beam, parking lamps, door mirror lamps, number plate lighting, interior roof lighting and floor lighting are switched on.

The length of time for which the home safe lighting should be kept on can be set in the menu system MY CAR, see MY CAR (p. 109).

Related information

•

Approach light duration (p. 94)

Approach light duration

Approach lighting consists of parking lamps, lamps in the door mirrors, number plate lighting, interior roof lighting and floor lighting.

Approach lighting is switched on with the remote control key, see Remote control key functions (p. 161), and is used to switch on the car's lighting at a distance.

When the function is activated with the remote control, the parking lamps, door mirror lamps, number plate lighting, interior roof lighting and floor lighting are switched on.

The length of time for which the approach lighting should be kept on can be set in the menu system MY CAR, see MY CAR (p. 109).

Related information

•

Home safe light duration (p. 94)

03 Instruments and controls

}}

* Option/accessory, for more information, see Introduction.

Headlamps - adjusting headlamp pattern

The headlamp pattern must be adjusted to avoid dazzling oncoming motorists and can be set for right or left-hand traffic.

G021151

Headlamp pattern, left-hand traffic.

G021152

Headlamp pattern, right-hand traffic.

Active Xenon headlamps*

The light pattern does not need to be adjusted. The headlamp pattern is designed in such a way that oncoming traffic is not dazzled.

Halogen headlamps

The headlamp pattern for halogen headlamps is readjusted by masking the headlamp lens. The headlamp pattern may not be as good.

Masking the headlamps

1. Copy the A and B templates for left-hand drive cars or the C and D templates for right-hand drive cars, see later section "Templates for halogen headlamps". The templates have a scale of 1:2. Use a photocopier with a zoom function for example, and copy the templates at 200 %:

•

A = LHD Right (left-hand drive, right lens)

•

B = LHD Left (left-hand drive, left lens)

•

C = RHD Right (right-hand drive, right lens)

•

D = RHD Left (right-hand drive, left lens)

2. Transfer the template to a self-adhesive waterproof material and cut it out.

3. Start from the design lines on the headlamp lenses; see the lines in the following figure. Position the self-adhesive templates at the design lines with the help of the illustration.

03 Instruments and controls

Upper row: left-hand drive cars, templates A and B. Lower row: right-hand drive cars, templates C and D.

03 Instruments and controls

Templates for halogen headlamps

03 Instruments and controls

* Option/accessory, for more information, see Introduction.

Wipers and washers

Wipers and washers clean the windscreen and rear window. The headlamps are cleaned with high-pressure washing.

Windscreen wipers

Windscreen wipers and windscreen washers.

Rain sensor, On/Off

Thumbwheel sensitivity/frequency

Windscreen wipers off

Move the stalk switch to position 0 to switch off the windscreen wipers.

Single sweep

Raise the stalk switch and release to make one sweep.

Intermittent wiping

Set the number of sweeps per time unit with the thumbwheel when intermittent wiping is selected.

Continuous wiping

The wipers sweep at normal speed.

The wipers sweep at high speed.

IMPORTANT

Before activating the wipers during winter ensure that the wiper blades are not frozen in, and that any snow or ice on the windscreen is scraped away.

IMPORTANT

Use plenty of washer fluid when the wipers are cleaning the windscreen. The windscreen must be wet when the windscreen wipers are operating.

Service position wiper blade

For cleaning the windscreen/wiper blades and replacement of wiper blades, see Car wash (p. 381) and Wiper blades (p. 364).

Rain sensor*

The rain sensor automatically starts the windscreen wipers based on how much water it

detects on the windscreen. The sensitivity of the rain sensor can be adjusted using the thumbwheel.

When the rain sensor is activated a lamp in the button is illuminated and the rain sensor

symbol

is shown in the combined

instrument panel.

Activating and setting the sensitivity

When activating the rain sensor, the car must be running or the remote control key in position I or II while the windscreen wiper stalk switch must be in position 0 or in the position for a single sweep.

Activate the rain sensor by pressing the rain sensor button

. The windscreen wipers

make one sweep. Press the stalk switch up for the wipers to

make an extra sweep. Turn the thumbwheel upward for higher sen-

sitivity and downward for lower sensitivity. (An extra sweep is made when the thumbwheel is turned upward.)

Deactivate

Deactivate the rain sensor by pressing the rain sensor button

or move the stalk

switch down to another wiper program.

For replacing the wiper blades and service position wiper blades, see Wiper blades (p. 364). For filling washer fluid, see Washer fluid - filling (p. 366).
