Volvo S60 2004 Owner Manual

2004 Volvo S60

2 0 0 4

VOLVO

S60

Introduction

Welcome to the world-wide family of Volvo owners. We trust that you will enjoy many years of safe driving in your Volvo, an automobile designed with your safety and comfort in mind. To help ensure your satisfaction with this vehicle, we encourage you to familiarize yourself with the equipment descriptions, operating instructions and maintenance requirements/recommendations in this manual. We also urge you and your passengers to wear seat belts at all times in this (or any other) automobile. And, of course, please do not

file:///K|/ownersdocs/2004/2004_S60/04s60_00.htm (1 of 8)12/30/2006 4:30:03 PM

2004 Volvo S60

operate a vehicle if you may be affected by alcohol, medication or any impairment that could hinder your ability to drive.

Your Volvo is designed to meet all applicable safety and emission standards, as evidenced by the certification labels attached to the driver's door opening and on the left wheel housing in the engine compartment.

For further information please contact your retailer, or:

In the USA:

Volvo Cars of North America Customer Relations P.O. Box 914 Rockleigh, New Jersey 07647-0914 800-458-1552

In Canada: Volvo Cars of Canada Ltd. 175 Gordon Baker Road North York, Ontario M2H 2N7 800-663-8255

General Information

Shiftlock (automatic transmission) When your car is parked, the gear selector is locked in the (P)ark position. To release the selector from this position, turn the ignition key to position II (or start the engine), depress the brake pedal, press the button on the front side of the gear selector and move the selector from (P)ark.

Keylock (automatic transmission) When you switch off the ignition, the gear selector must be in the (P)ark position before the key can be removed from the ignition switch.

Anti-lock Brake System (ABS) The ABS system in your car performs a self-diagnostic test when the vehicle first reaches the speed of approximately 12 mph (20 km/h). The brake pedal will pulsate several times and a sound may be audible from the ABS control module. This is normal.

Fuel filler door The fuel filler door, located on the right rear fender, is connected to your car's central locking system. Press the button on the light switch panel (see illustration on

page 30) when the car is at a standstill to unlock

the fuel filler door. Please note that the fuel filler door will remain unlocked until the car begins to move forward. An audible click will be heard when the fuel filler door relocks.

file:///K|/ownersdocs/2004/2004_S60/04s60_00.htm (2 of 8)12/30/2006 4:30:03 PM

2004 Volvo S60

Fuel filler cap After refueling, close the fuel filler cap by turning it clockwise until it clicks into place. If this cap is not closed tightly or if the engine is running when the car is refueled, the Malfunction Indicator Lamp ("Check Engine" light) will illuminate.

Important information Before you operate your car for the first time, please familiarize yourself with the new-engine oil consumption information on

page 78. You should also be familiar with the information in chapters one, two

and four of this manual. Information contained in the balance of the manual is extremely useful and should be read after operating the vehicle for the first time. The manual is structured so that it can be used for reference. For this reason, it should be kept in the car for ready access. Do not export your Volvo to another country before investigating that country's applicable safety and exhaust emission requirements. In some cases it may be difficult or impossible to comply with these requirements. Modifications to the emission control system(s) may render your Volvo not certifiable for legal operation in the U.S., Canada and other countries. All information, illustrations and specifications contained in this manual are based on the latest product information available at the time of publication. Please note that some vehicles may be equipped differently, depending on special legal requirements. Optional equipment described in this manual may not be available in all markets. Volvo reserves the right to make model changes at any time, or to change specifications or design without notice and without incurring obligation.

WARNING!

CALIFORNIA Proposition 65 Warning!

Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the state of California to cause cancer, and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

WARNING!

If your vehicle is involved in an accident, unseen damage may affect your vehicle's driveability and safety.

Volvo and the environment

Volvo is committed to the well being of its customers. As a natural part of this commitment, we care about

file:///K|/ownersdocs/2004/2004_S60/04s60_00.htm (3 of 8)12/30/2006 4:30:03 PM

2004 Volvo S60

the environment in which we all live. Caring for the environment means an everyday involvement in reducing our environmental impact. Volvo's environmental activities are based on a holistic view, which means we consider the overall environmental impact of a product throughout its complete life cycle. In this context, design, production, product use, and recycling are all important considerations. In production, Volvo has partly or completely phased out several chemicals including freons, lead chromates, naphtanates, asbestos, mercury and cadmium; and reduced the amount of chemicals used in our plants 50% since 1991. Volvo was the first in the world to introduce into production a three-way catalytic converter with a Lambda sond, now called oxygen sensor, in 1976. The current version of this highly efficient system reduces emissions of harmful substances (CO, HC, NOx) from the exhaust pipe by approximately 95% and the search to eliminate the remaining emissions continues. Volvo is the only automobile manufacturer to offer CFC-free retrofit kits for the air conditioning system of all models as far back as the 1975 model 240. Advanced electronic engine controls, refined purification systems and cleaner fuels are bringing us closer to our goal. After Volvo cars and parts have fulfilled their use, recycling is the next critical step in completing the life cycle. The metal content is about 75% of the total weight of a car, which makes the car among the most recycled industrial products. In order to have efficient and well controlled recycling, many Volvo variants have printed dismantling manuals, indicating the weight and material of individual components. For Volvo, all homogeneous plastic parts weighing more than 1.7 oz. (50 grams) are marked with international symbols that indicate how the component is to be sorted for recycling. In addition to continuous environmental refinement of conventional gasoline-powered internal combustion engines, Volvo is actively looking at advanced technology alternative-fuel vehicles. When you drive a Volvo, you become our partner in the work to lessen the car's impact on the environment.

To reduce your vehicle's environmental impact, you can:

● Maintain proper air pressure in your tires. Tests have shown decreased fuel economy with improperly

inflated tires.

● Follow the recommended maintenance schedule in your Warranty and Service Records Information

booklet.

● Drive at a constant speed.

● See an authorized Volvo retailer as soon as possible for inspection if the check engine (malfunction

indicator) lamp illuminates, or stays on after the vehicle has started.

● Properly dispose of any vehicle-related waste such as used motor oil, used batteries, brake pads, etc.

● When cleaning your car, use Volvo's own car care products, all of which have systematically been adapted

to the environment.

For additional information regarding the environmental activities in which Volvo Cars of North America, LLC. and Volvo Car Corporation are involved, visit our Internet Home Page at:

http://www.volvocars.com

PremAir® On the surface of the radiator in the engine compartment, there is a special coating called PremAir®. PremAir® works as a catalytic converter, converting most of the ground level ozone passing through the radiator into oxygen, thereby reducing harmful ground-level ozone.

file:///K|/ownersdocs/2004/2004_S60/04s60_00.htm (4 of 8)12/30/2006 4:30:03 PM

2004 Volvo S60

Instruments, switches and controls

Page

1. Front fog lights

2. Headlights/Parking lights/switch for unlocking fuel filler door

3. Rear fog light

4. Turn signals/High/low beams

5. Cruise control

6. Horn

7. Instrument panel

8. Audio controls in steering wheel

162

9. Windshield wipers

10. Parking brake (hand brake)

11. Center console switches

file:///K|/ownersdocs/2004/2004_S60/04s60_00.htm (5 of 8)12/30/2006 4:30:03 PM

2004 Volvo S60

12. Climate control

13. Audio system

157

14. 12 V socket

15. Hazard warning flashers

16. Glove compartment

17. Panel vents

18. Text window

19. Temperature gauge

20. Odometer/ Trip odometer/Cruise control indicator

22/ 36

21. Speedometer

22. Turn signal indicators

23. Tachometer

24. Ambient temperature/Clock/Selected gear indicator

25. Fuel gauge

26. Indicator and warning symbols

27. - -

28. Panel vents

29. Instrument lighting

30. Lighting panel

31. Reading lights

32. Interior lighting

33. Moonroof control

34. Seat belt reminder

35. Rearview mirror

36. Lock button, for all doors

37. Blocking rear seat power windows

38. Controls, power windows

39. Controls, sideview mirrors

40. Four-C active chassis system (R-models only)

file:///K|/ownersdocs/2004/2004_S60/04s60_00.htm (6 of 8)12/30/2006 4:30:03 PM

2004 Volvo S60

Contents

Safety Instruments and controls Climate control Interior Locks and alarm Starting and driving Wheels and tires Car care Maintenance and service Specifications Audio Index Back Cover

file:///K|/ownersdocs/2004/2004_S60/04s60_00.htm (7 of 8)12/30/2006 4:30:03 PM

2004 Volvo S60

Contents | Top of Page

file:///K|/ownersdocs/2004/2004_S60/04s60_00.htm (8 of 8)12/30/2006 4:30:03 PM

2004 Volvo S60

2 0 0 4

VOLVO

S60

Safety

pg. 1 Safety

Seat belts

Airbags (Supplemental Restraint System)

Side airbags (SIPS airbags)

Inflatable Curtain (IC)

Inspection of airbags, inflatable curtains and seat belt tensioners

WHIPS

Child safety

Occupant safety, Reporting safety defects

pg. 2 Safety

Seat belts Not wearing a seat belt is like believing "It'll never happen to me!" Volvo, the inventor of the three-point seat belt, urges you and all occupants of your car to wear seat belts and ensure that children are properly restrained, using an infant, car or booster seat determined by age, weight and height. Volvo also believes no child should sit in the front seat of a car.

NOTE: Legislation in your state or province may mandate seat belt usage. Additionally, most states and provinces have already made it mandatory for occupants of a car to use seat belts.

So, urging you to "buckle up" is not just our recommendation - legislation in your state or province may mandate seat belt usage. The few seconds it takes to buckle up may one day allow you to say, "It's a good thing I was wearing my seat belt."

NOTE: A chime will sound several times if the driver has not fastened his/her seat belt.

file:///K|/ownersdocs/2004/2004_S60/04s60_01a.htm (1 of 14)12/30/2006 4:30:04 PM

2004 Volvo S60

The seat belts are equipped with tensioners that reduce slack in the seat belts. These tensioners are triggered in situations where the airbags deploy.

The front seat belts also include a tension reducing device which, in the event of a collision, limits the peak forces exerted by the seat belt on the occupant.

Extending the lap belt

To buckle a seat belt:

Pull the belt out far enough to insert the latch plate into the receptacle until a distinct click is heard. The seat belt retractor is normally "unlocked" and you can move freely, provided that the shoulder belt is not pulled out too far. The retractor will lock up as follows:

● if the belt is pulled out rapidly

● during braking and acceleration

● if the vehicle is leaning excessively

● when driving in turns

For the seat belt to provide maximum protection in the event of an accident, it must be worn correctly. When wearing the seat belt remember:

● The belt should not be twisted or turned.

● The lap belt must be positioned low on the hips (not pressing against the abdomen).

Make sure that the shoulder belt is rolled up into its retractor and that the shoulder and lap belts are taut.

Before exiting the car, check that the seat belt retracts fully after being unbuckled.

If necessary, guide the belt back into the retractor slot.

file:///K|/ownersdocs/2004/2004_S60/04s60_01a.htm (2 of 14)12/30/2006 4:30:04 PM

2004 Volvo S60

Child seats: Please refer to page 19 for information on securing child seats with the seat belts.

pg. 3 Safety

During pregnancy Pregnant women should always wear seat belts. Remember that the belt should always be positioned in such a way as to avoid any possible pressure on the abdomen. The lap portion of the belt should be located low, as shown in the above illustration.

WARNING!

Seat belts:

● Never use a seat belt for more than one occupant. Never wear the shoulder portion of the belt under

the arm, behind the back or otherwise out of position. Such use could cause injury in the event of an accident. As seat belts lose much of their strength when exposed to violent stretching, they should be replaced after any collision, even if they appear to be undamaged.

● Never repair the belt on your own; have this work done by an authorized Volvo retailer only.

● Any device used to induce slack into the shoulder belt portion of the three-point belt system will

have a detrimental effect on the amount of protection available to you in the event of a collision.

● The seat back should not be tilted too far back. The shoulder belt must be taut in order to function

properly.

● Do not use child safety seats or child booster cushions/backrests in the front passenger's seat. We

also recommend that children who have outgrown these devices sit in the rear seat with the seat belt properly fastened.

file:///K|/ownersdocs/2004/2004_S60/04s60_01a.htm (3 of 14)12/30/2006 4:30:04 PM

2004 Volvo S60

Sample label found on all seat belts with tensioners

pg. 4 Safety

Airbags (Supplemental Restraint System)

Driver's side airbag As an enhancement to the three-point seat belt system, your Volvo is equipped with a Supplemental Restraint System (SRS) to complement the three-point seat belt system. The inflatable airbag is installed folded up in the center of the steering wheel. The wheel is embossed with SRS.

file:///K|/ownersdocs/2004/2004_S60/04s60_01a.htm (4 of 14)12/30/2006 4:30:04 PM

2004 Volvo S60

WARNING!

Never drive an SRS equipped car with your hands on the steering wheel pad / airbag housing.

Passenger side airbag The airbag on the front passenger side is folded up in a compartment above the glove compartment. The panel is embossed SRS.

WARNING!

No objects, accessory equipment or stickers may be placed on, attached to, or installed near the SRS cover in the center of the steering wheel, the SRS cover above the glove compartment or the area affected by airbag deployment.

Passenger side airbag - location

file:///K|/ownersdocs/2004/2004_S60/04s60_01a.htm (5 of 14)12/30/2006 4:30:04 PM

2004 Volvo S60

WARNING!

As its name implies, SRS is designed to be a SUPPLEMENT to - not a replacement for - the threepoint belt system. For maximum protection, wear seat belts at all times. Be aware that no system can prevent all possible injuries that may occur in an accident. When installing any optional equipment, make sure that the SRS system is not damaged. Do not attempt to service any component of the SRS yourself. Attempting to do so may result in serious personal injury. If a problem arises, take your car to the nearest authorized Volvo retailer for inspection as soon as possible.

pg. 5 Safety

NOTE: Deployment of SRS components occurs only one time during an accident. In a collision where deployment occurs, the airbags and seat belt tensioners activate. Some noise occurs and a small amount

file:///K|/ownersdocs/2004/2004_S60/04s60_01a.htm (6 of 14)12/30/2006 4:30:04 PM

2004 Volvo S60

of powder is released. The release of the powder may appear as smoke-like matter. This is a normal characteristic and does not indicate fire.

NOTE: Volvo's dual-threshold, dual-stage airbags use special sensors that are integrated with the front seat buckles. The point at which the airbag deploys is determined by whether or not the seat belt is being used, as well as the severity of the collision. Collisions can occur where only one of the airbags deploys.

If the impact is less severe, but severe enough to present a clear injury risk, the dual-stage airbags are triggered at just 70% of their total capacity. If the impact is more severe, the dual-stage airbags are triggered at full capacity.

WARNING!

Do not use child safety seats or child booster cushions/backrests in the front passenger's seat. We also recommend that occupants under 4 feet 7 inches (140 cm) in height who have outgrown these devices sit in the rear seat with the seat belt fastened. Never drive with the airbags deployed. The fact that they hang out can impair the steering of your car. Other safety systems can also be damaged. The smoke and dust formed when the airbags are deployed can cause skin and eye irritation in the event of prolonged exposure.

pg. 6 Safety

Airbags (Supplemental Restraint System) (Contd)

WARNING!

Children must never be allowed in the front passenger's seat. Volvo recommends that ALL occupants (adults and children) shorter than 4 feet 7 inches (140 cm) be seated in the back seat of any vehicle with a front passenger-side airbag. See

page 19 for guidelines.

Occupants in the front passenger's seat must never sit on the edge of the seat, sit leaning toward the instrument panel or otherwise sit out of position. The occupant's back must be as upright as comfort allows and be against the seat back with the seat belt properly fastened.

Feet must be on the floor, e.g. not on the dash, seat or out of the window.

No objects or accessory equipment, e.g. dash covers, may be placed on, attached to, or installed near the SRS hatch (the area above the glove compartment) or the area affected by airbag deployment (see

file:///K|/ownersdocs/2004/2004_S60/04s60_01a.htm (7 of 14)12/30/2006 4:30:04 PM

2004 Volvo S60

illustration on page 4).

There should be no loose articles, e.g. coffee cups, on the floor, seat or dash area.

Never try to open the SRS cover on the steering wheel or the passenger side dash. This should only be done by an authorized Volvo service technician.

Failure to follow these instructions can result in injury to the vehicle occupants

Warning light in the instrument panel A self-diagnostic system incorporated in the sensor monitors the SRS. This system does not, however, monitor the Side Impact Protection System (SIPS) airbags. If a fault is detected, the warning light will illuminate. The light is included in the warning/indicator light cluster in the instrument panel. Normally, the SRS warning lamp should light up when the ignition key is turned to positions I, II or III and should go out after 7 seconds or when the engine is started. Check that this light is functioning properly every time the car is started.

The following items are monitored by the self-diagnostic system:

● Sensor unit

● Cable harness

● Gas generator

WARNING!

If the SRS warning light stays on after the engine has started or if it comes on while you are driving, drive the car to the nearest authorized Volvo retailer for inspection as soon as possible.

pg. 7 Safety

NOTE: The information on this page does not pertain to the Side Impact Protection System airbags.

file:///K|/ownersdocs/2004/2004_S60/04s60_01a.htm (8 of 14)12/30/2006 4:30:04 PM

2004 Volvo S60

When are the airbags deployed? The SRS system is designed to deploy during certain frontal or front-angular collisions, impacts, or decelerations, depending on the crash severity, angle, speed and object impacted. The SRS sensor is designed to react to both the impact of the collision and the inertial forces generated by it and to determine if the intensity of the collision is sufficient for the seat belt tensioners or airbags to be deployed.

If the airbags have been deployed, we recommend the following:

● Have the car towed to an authorized Volvo retailer. Never drive with the airbags deployed.

● Have an authorized Volvo retailer replace the SRS system components.

● Use only new, Genuine Volvo Parts when replacing SRS components (airbags, seat belts, tensioners,

etc.).

When are the airbags NOT deployed? Not all frontal collisions activate the SRS system. If the collision involves a nonrigid object (e.g., a snow drift or bush), or a rigid, fixed object at a low speed, the SRS system will not necessarily deploy. Front airbags do not normally deploy in a side impact collision, in a collision from the rear or in a rollover situation. The amount of damage to the bodywork does not reliably indicate if the airbags should have deployed or not.

Seat belts - the heart of the Volvo safety system The heart of the Volvo safety system is the three-point seat belt (a Volvo invention)! In order for the SRS system to provide the protection intended, seat belts must be worn at all times by everyone in the car. The SRS system is a supplement to the seat belts.

WARNING!

Never drive with the airbags deployed. The fact that they hang out can impair the steering of your car. Other safety systems can also be damaged. The smoke and dust formed when the airbags are deployed can cause skin and eye irritation in the event of prolonged exposure.

pg. 8 Safety

Airbags (Supplemental Restraint System) (Contd)

file:///K|/ownersdocs/2004/2004_S60/04s60_01a.htm (9 of 14)12/30/2006 4:30:04 PM

2004 Volvo S60

WARNING!

If your car has been subjected to flood conditions (e.g. soaked carpeting/standing water on the floor of the vehicle) or if your car has become flood-damaged in any way, do not attempt to start the vehicle or put the key in the ignition before disconnecting the battery (see below). This may cause airbag deployment which could result in personal injury. Have the car towed to an authorized

Volvo retailer for repairs.

Automatic transmission:

Before attempting to tow the car, use the following procedure to override the shiftlock system to move the gear selector to the neutral position.

● Switch off the ignition for at least 10 minutes and disconnect the battery

● Wait at least one minute

● Insert the key in the ignition and turn it to position II

● Press firmly on the brake pedal.

● Move the gear selector from (P)ark to the (N)eutral position.

There is no maintenance to perform on the SRS yourself. The month and year shown on the decal on the door pillar indicate when you should contact your Volvo retailer for specific servicing or replacement of airbags and seat belt tensioners. This service must be performed by an authorized Volvo retailer.

Should you have any questions about the SRS system, please contact your authorized Volvo retailer or Volvo Customer Support.:

In the USA: Volvo Cars of North America, LLC. Customer Relations P.O. Box 914 Rockleigh, New Jersey 07647-0914 800-458-1552

In Canada: Volvo Cars of Canada Ltd. 175 Gordon Baker Road North York, Ontario M2H 2N7 800-663-8255

pg. 9 Safety

file:///K|/ownersdocs/2004/2004_S60/04s60_01a.htm (10 of 14)12/30/2006 4:30:04 PM

2004 Volvo S60

Front airbag (SRS) system As an enhancement to the three-point seat belt system, your Volvo is equipped with a Supplemental Restraint System (SRS). The Volvo SRS consists of an airbag (2) on both the driver's and passenger's sides and seat belt tensioners in both front door pillars. The system is designed to supplement the protection provided by the three-point seat belt system. All three rear seat belts are also equipped with tensioners.

The SRS system is indicated by the "SRS" embossed on the steering wheel pad and above the glove compartment, and by decals on both sun visors and on the front and far right side of the dash.

The airbags are folded and located in the steering wheel hub and above the glove compartment.

Deployment: The SRS airbags are designed to deploy during certain frontal or front-angular collisions, impacts, or decelerations, depending on the crash severity, angle, speed and object impacted. The airbags may also deploy in certain non-frontal collisions where rapid deceleration occurs.

The airbag system includes gas generators (1) surrounded by the airbags (2) and front seat belt tensioners for both of the front seats. To deploy the system, the sensor (3) activates the gas generators causing the airbags to be inflated with nitrogen gas.

As the movement of the seats' occupants compresses the airbags, some of the gas is expelled at a controlled rate to provide better cushioning. Both seat belt tensioners also deploy, minimizing any seat belt slack. The entire process, including inflation and deflation of the airbags, takes approximately twotenths of a second.

file:///K|/ownersdocs/2004/2004_S60/04s60_01a.htm (11 of 14)12/30/2006 4:30:04 PM

2004 Volvo S60

WARNING!

The SRS is designed to help prevent serious injury. Deployment occurs very quickly and with considerable force. During normal deployment and depending on variables such as seating position, one may experience abrasions, bruises, swellings, or other injuries as a result of airbag(s) deployment.

Never try to repair any part of the SRS or SIPS bag systems yourself. Any interference in the system could cause malfunction and serious injury. All work on these systems should be performed by an authorized Volvo retailer.

pg. 10 Safety

Side airbags (SIPS airbags)

SIPS airbag*

SIPS airbag (front seats only) As an enhancement to the structural Side Impact Protection System built into your car, the car is also equipped with Side Impact Protection System (SIPS) airbags. The SIPS airbag system consists of airbag modules built into the sides of both front seat backrests, wires and gas generators/sensor units (see illustration on next page).

file:///K|/ownersdocs/2004/2004_S60/04s60_01a.htm (12 of 14)12/30/2006 4:30:04 PM

2004 Volvo S60

The SIPS airbag system is designed to help increase occupant protection in the event of certain side impact collisions. The SIPS airbags are designed to deploy only during certain side-impact collisions, depending on the crash severity, angle, speed and point of impact. The airbags are not designed to deploy in all side impact situations.

NOTE: SIPS airbag deployment (one airbag) occurs only on the side of the vehicle affected by the impact. The airbags are not designed to deploy in all side impact situations.

*A SIPS airbag warning decal is also located at the end of the instrument panel on the driver's side of the car.

WARNING!

The SIPS airbag system is a supplement to the Side Impact Protection System and the three-point seat belt system. It is not designed to deploy during collisions from the front or rear of the car or in rollover situations.

The use of seat covers on the front seats may impede SIPS airbag deployment.

No objects, accessory equipment or stickers may be placed on, attached to or installed near, the SIPS airbag system or in the area affected by SIPS airbag deployment (see illustration above).

Never try to open or repair any components of the SIPS airbag system. This should be done only by an authorized Volvo service technician.

In order for the SIPS airbag to provide its best protection, both front seat occupants should sit in an upright position with the seat belt properly fastened.

Failure to follow these instructions can result in injury to the occupants of the vehicle in the event of an accident.

file:///K|/ownersdocs/2004/2004_S60/04s60_01a.htm (13 of 14)12/30/2006 4:30:04 PM

2004 Volvo S60

pg. 11 Safety

The SIPS airbag system This system consists of a gas generator (1), the side airbags (2), and electronic sensors/cables (3).

Contents | Top of Page

file:///K|/ownersdocs/2004/2004_S60/04s60_01a.htm (14 of 14)12/30/2006 4:30:04 PM

2004 Volvo S60

pg. 12 Safety

Inflatable Curtain (IC)

Volvo Inflatable Curtain (VIC) This system consists of inflatable curtains located along the sides of the roof liners, stretching from the center of both front side windows to the rear edge of the rear side door windows. It is designed to help protect the heads of the occupants of the front seats and the occupant of the outboard rear seating positions in certain side impact collisions.

NOTE: IC system deployment occurs only on the side of the vehicle affected by the impact.

In certain side impacts, BOTH the Inflatable Curtain (IC) and the Side Impact Airbag System (SIPSbag) will deploy, whereas, in some cases, ONLY the Inflatable Curtain (IC) will deploy. In cases where BOTH the IC and the SIPS-bag deploy, deployment will occur simultaneously.

If the inflatable curtain deploys, it remains inflated for approximately 3 seconds.

file:///K|/ownersdocs/2004/2004_S60/04s60_01b.htm (1 of 10)12/30/2006 4:30:05 PM

2004 Volvo S60

WARNING!

The IC system is a supplement to the Side Impact Protection System. It is not designed to deploy during collisions from the front or rear of the car or in most rollover situations.

Never try to open or repair any components of the IC system. This should be done only by an authorized Volvo service technician.

The inflatable curtains are designed to deploy only during certain side-impact collisions, depending on the crash severity, angle, speed and impact. The inflatable curtains are not designed to deploy in all side impact situations.

In order for the IC to provide its best protection, both front seat occupants and both outboard rear seat occupants should sit in an upright position with the seat belt properly fastened; adults using the seat belt and children using the proper child restraint system. Only adults should sit in the front seats. Children must never be allowed in the front passenger seat. See

page 19 for guidelines. Failure to

follow these instructions can result in injury to the vehicle occupants in an accident

pg. 13 Safety

Inspection of airbags, inflatable curtains and seat belt tensioners

The year and month specified on the decal in the door pillar( s) is the date when you should contact your Volvo retailer to inspect and, if necessary, replace the airbags and seat belt tensioners. If you have any questions concerning either system, contact an authorized Volvo retailer.

file:///K|/ownersdocs/2004/2004_S60/04s60_01b.htm (2 of 10)12/30/2006 4:30:05 PM

2004 Volvo S60

pg. 14 Safety

WHIPS

Whiplash Protection System (WHIPS) - front seats only The WHIPS system consists of specially designed hinges and brackets on the front seat backrests and

file:///K|/ownersdocs/2004/2004_S60/04s60_01b.htm (3 of 10)12/30/2006 4:30:05 PM

2004 Volvo S60

head restraints designed to help absorb some of the energy generated in a collision from the rear ("rearended").

In the event of a collision of this type, the hinges and brackets of the front seat backrests are designed to change position slightly to allow the backrest/head restraint to help support the occupant's head before moving slightly rearward. This movement helps absorb some of the forces that could result in the whiplash effect.

WARNING!

The WHIPS system is designed to supplement the other safety systems in your car. For this system to function properly, the three-point seat belt must be worn. Please be aware that no system can prevent all possible injuries that may occur in an accident.

If your car has been involved in a collision, the front seat backrests must be inspected by an authorized Volvo retailer even if the seats appear to be undamaged. Certain components in the WHIPS system may need to be replaced. Do not attempt to service any component in the WHIPS system yourself.

WARNING!

If the rear seat backrests are folded down, cargo must be secured to prevent it from sliding forward against the front seat backrests in the event of a collision from the rear. This could interfere with the action of the WHIPS system.

The WHIPS system is designed to function in certain collisions from the rear, depending on the crash severity, angle and speed.

Occupants in the front seats must never sit out of position. The occupant's back must be as upright as comfort allows and be against the seat back with the seat belt properly fastened.

pg. 15 Safety

file:///K|/ownersdocs/2004/2004_S60/04s60_01b.htm (4 of 10)12/30/2006 4:30:05 PM

2004 Volvo S60

WARNING!

Any contact between the front seat backrests and the folded rear seat could impede the function of the WHIPS system. If the rear seat is folded down, the occupied front seats must be adjusted forward so that they do not touch the folded rear seat.

Boxes, suitcases, etc. wedged behind the front seats (see illustration in center column) could impede the function of the WHIPS system.

pg. 16 Safety

Child safety

Volvo recommends the proper use of restraint systems for all occupants including children. Remember that, regardless of age and size, a child should always be properly restrained in a car.

Your car is also equipped with ISOFIX attachments, which make it more convenient to install child seats (see

page 17).

Restraint systems for children are designed to be secured in the vehicle by lap belts or the lap portion of a lap-shoulder belt. Such child restraint systems can help protect children in cars in the event of an accident only if they are used properly. However, children could be endangered in a crash if the child restraints are not properly secured in the vehicle. Failure to follow the installation instructions for your child restraint can result in your child striking the vehicle's interior in a sudden stop.

Holding a child in your arms is NOT a suitable substitute for a child restraint system. In an accident, a child held in a person's arms can be crushed between the vehicle's interior and an unrestrained person. The child could also be injured by striking the interior, or by being ejected from the vehicle during a sudden maneuver or impact. The same can also happen if the infant or child rides unrestrained on the

file:///K|/ownersdocs/2004/2004_S60/04s60_01b.htm (5 of 10)12/30/2006 4:30:05 PM

2004 Volvo S60

seat. Other occupants should also be properly restrained to help reduce the chance of injuring or increasing the injury of a child.

All states and provinces have legislation governing how and where children should be carried in a car. Find out the regulations existing in your state or province. Recent accident statistics have shown that children are safer in rear seating positions than front seating positions when properly restrained. A child restraint system can help protect a child in a vehicle. Here's what to look for when selecting a child restraint system:

● It should have a label certifying that it meets applicable Federal Motor Vehicle Safety Standards

(FMVSS 213) - or in Canada, CMVSS 213.

● Make sure the child restraint system is approved for the child's height, weight and development - the

label required by the standard or regulation, or instructions for infant restraints, typically provide this information.

● In using any child restraint system, we urge you to carefully look over the instructions that are

provided with the restraint. Be sure you understand them and can use the device properly and safely in this vehicle. A misused child restraint system can result in increased injuries for both the infant or child and other occupants in the vehicle.

When a child has outgrown the child safety seat, you should use the rear seat with the standard seat belt fastened. The best way to help protect the child here is to place the child on a cushion so that the seat belt is properly located on the hips (see

page 2). Legislation in your state or province may mandate the

use of a child seat or cushion in combination with the seat belt, depending on the child's age and/or size. Please check local regulations.

A specially designed and tested booster cushion (not available in Canada) for children between the age of 3 and approximately 10 years, weighing 33 - 80 lbs (15 - 36 kg) and 38 - 54 inches (97 - 137 cm) in height, can be obtained from your Volvo retailer.

WARNING!

● Do not use child safety seats or child booster cushions/backrests in the front passenger's seat. We

also recommend that children under 4 feet 7 inches (140 cm) in height who have outgrown these devices sit in the rear seat with the seat belt fastened.

● Keep vehicle doors and trunk locked and keep keys out of a child's reach. Unsupervised children

could lock themselves in an open trunk and risk injury. Children should be taught not to play in vehicles.

● On hot days, the temperature in the trunk or vehicle interior can rise very quickly. Exposure to

these high temperatures for even a short period of time can cause heat-related injury or death. Small children are particularly at risk.

file:///K|/ownersdocs/2004/2004_S60/04s60_01b.htm (6 of 10)12/30/2006 4:30:05 PM

2004 Volvo S60

pg. 17 Safety

Isofix attachments

ISOFIX fasteners and seat guide ISOFIX fasteners are installed in the rear seat (second row of seats in seven-seat models) on the outboard positions. One set of ISOFIX guides is also provided. Consult your Volvo retailer for more information on child safety accessories.

pg. 18 Safety

Child safety (Contd)

Child restraint anchorages

Child restraint anchorages Volvo cars are equipped with child restraint top tether anchorages in the rear seat. Refer to the child seat manufacturer's instructions for information on securing the child seat.

file:///K|/ownersdocs/2004/2004_S60/04s60_01b.htm (7 of 10)12/30/2006 4:30:05 PM

2004 Volvo S60

WARNING!

Child Restraint Anchorages are designed to withstand only those loads imposed by correctly fitted Child Restraints. Under no circumstances are they to be used for adult seat belts or harnesses. The anchorages are not able to withstand excessive forces on them in the event of collision if full harness seat belts or adult seat belts are installed to them. An adult who uses a belt anchored in a Child Restraint Anchorage runs a great risk of suffering severe injuries should a collision occur. Do not install rear speakers which would require the removal of the top tether anchors or interfere with the proper use of the top tether strap.

pg. 19 Safety

Keeping child seats in place (ALR/ELR*) To make child seat installation easier, each seat belt (except for the driver's belt) is equipped with a locking mechanism to help keep the seat belt taut.

When attaching the seat belt to a child seat:

● Attach the seat belt to the child seat according to the child seat manufacturer's instructions.

● Pull the seat belt out as far as possible.

● Insert the seat belt latch plate into the buckle (lock) in the usual way.

● Release the seat belt and pull it taut around the child seat.

A sound from the seat belt retractor will be audible at this time and is normal.

The belt will now be locked in place.

This function is automatically disabled when the seat belt is unlocked and the belt is fully retracted.

WARNING!

Do not use child safety seats or child booster cushions/backrests in the front passenger's seat. We also recommend that children who have outgrown these devices sit in the rear seat with the seat belt properly fastened.

Important! Why Volvo believes no child should sit in the front seat of a car.

file:///K|/ownersdocs/2004/2004_S60/04s60_01b.htm (8 of 10)12/30/2006 4:30:05 PM

2004 Volvo S60

It's quite simple really. A front airbag is a very powerful device designed, by law, to help protect an adult. Because of the size of the airbag and its speed of inflation, a child should never be placed in the front seat, even if he or she is properly belted or strapped into a child safety seat. Volvo has been an innovator in safety for over fifty years, and we'll continue to do our part. But we need your help. Please remember to put your children in the back seat, and buckle them up.

Volvo has some very specific recommendations:

● Always wear your seat belt.

● Airbags are a SUPPLEMENTAL safety device which, when used with a three-point seat belt can help

reduce serious injuries during certain types of accidents. Volvo recommends that you do not disconnect the airbag system in your vehicle.

● Volvo strongly recommends that ALL children sit in the rear seat of any vehicle and that they be

properly restrained.

● A child should NEVER sit in the front passenger seat of any vehicle equipped with a passenger-side

front airbag.

● Volvo recommends that ALL occupants (adults and children) shorter than four feet seven inches (140

cm) be seated in the back seat of any vehicle with a front passenger side airbag.

Drive safely!

* Automatic Locking Retractor/Emergency Locking Retractor

pg. 20 Safety

Occupant safety, Reporting safety defects

Seat belt maintenance Check periodically that the seat belts are in good condition. Use water and a mild detergent for cleaning. Check seat belt mechanism function as follows: attach the seat belt and pull rapidly on the strap.

Volvo Concern for Safety Safety is the Volvo cornerstone. Our concern dates back to 1927 when the first Volvo rolled off the production line. Three-point seat belts (a Volvo invention), safety cages, and energy absorbing impact zones were designed into Volvo cars long before it was fashionable or required by government regulation. We will not compromise our commitment to safety. We continue to seek out new safety features and to refine those already in our cars. You can help. We would appreciate hearing your suggestions about improving automobile safety. We also want to know if you ever have a safety concern with your car. Call us in the U.S. at: 800-458-1552 or in Canada at: 800-663-8255.

Occupant safety How safely you drive doesn't depend on how old you are but rather on:

file:///K|/ownersdocs/2004/2004_S60/04s60_01b.htm (9 of 10)12/30/2006 4:30:05 PM

2004 Volvo S60

● How well you see.

● Your ability to concentrate.

● How quickly you make decisions under stress to avoid an accident.

The tips listed below are suggestions to help you cope with the ever changing traffic environment.

● Never drink and drive.

● If you are taking any medication, consult your physician about its potential effects on your driving

abilities.

● Take a driver-retraining course.

● Have your eyes checked regularly.

● Keep your windshield and headlights clean.

● Replace wiper blades when they start to leave streaks.

● Take into account the traffic, road, and weather conditions, particularly with regard to stopping

distance.

Reporting Safety Defects in the U.S. If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Volvo Cars of North America. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your retailer, or Volvo Cars of North America. To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-800-424-9393 (or 202-366-0123 in Washington, D.C. area) or write to: NHTSA, U. S. Department of Transportation, Washington D. C. 20590. You can also obtain other information about motor vehicle safety from the Hotline.

Volvo strongly recommends that if your vehicle is covered under a service campaign, safety or emission recall or similar action, it should be completed as soon as possible. Please check with your local retailer or Volvo Cars of North America, LLC if your vehicle is covered under these conditions.

NHTSA can be reached at: Internet :

http://www.nhtsa.dot.gov

Telephone: 1-888-DASH-2-DOT (1-888-327-4236) (toll free) 1-800-424-9393 (toll free) 1-202-366-0123 (in Washington DC area)

Contents | Top of Page

file:///K|/ownersdocs/2004/2004_S60/04s60_01b.htm (10 of 10)12/30/2006 4:30:05 PM

2004 Volvo S60

2 0 0 4

VOLVO

S60

Instruments and controls

pg. 21 Instruments and controls

Instrument panel

Indicator and warning symbols

Switches in the center console

Steering wheel adjustment

Lighting panel

Lighting panel, Manually unlocking the fuel filler door

Turn signals

Windshield wipers/washer

Hazard warning flashers, rear window/sideview mirror defroster, heated front seats

Trip computer (option)

Cruise control

Parking brake, electric socket/cigarette lighter

Electrically operated windows

Rearview mirror/sideview mirrors

Electrically operated moonroof (option)

pg. 22 Instruments and controls

Instrument panel

file:///K|/ownersdocs/2004/2004_S60/04s60_02a.htm (1 of 12)12/30/2006 4:30:06 PM

2004 Volvo S60

1. Turn signal indicators - right/left

2. Text window

The text window displays information and warning messages.

3. Temperature gauge The pointer should be approximately midway on the gauge when driving. Do not drive the car if the warning light is on. The text window will provide you with additional information. If the engine temperature remains high, check coolant level - see

page 123.

4. Trip odometer The trip odometers are used for measuring shorter distances. The right-hand digit gives tenth of a mile/ kilometer. Press the button for more than 2 seconds to reset. Change between trip odometers 1 and 2 using one short press on the button.

5. Odometer

6. Speedometer

7. Warning symbol

8. High beam indicator

9. Tachometer

Indicates engine speed in thousands of revolutions per minute (rpm). Do not drive for long with the needle in the red section. The engine has an built-in function preventing excessively high engine speeds. When this function operates, you may discern some pulsation, which in that case is quite normal.

10. Gear and driving mode indicator The currently selected driving mode is displayed here. If you use the optional Geartronic function on the automatic transmission, the currently selected gear will be displayed.

11. Ambient temperature gauge

file:///K|/ownersdocs/2004/2004_S60/04s60_02a.htm (2 of 12)12/30/2006 4:30:06 PM

2004 Volvo S60

This display indicates the air temperature outside your car. A "snowflake" symbol in the text window is displayed when the temperature is in the range of 23 - 36° F (-5 - +2° C). Please note that this symbol does not indicate a fault with your car. At low speeds or when the car is not moving, the temperature readings may be slightly higher than the actual ambient temperature.

12. Clock/set button Turn the button to set the clock.

13. Fuel gauge The fuel tank holds approximately:

Front wheel drive: 18.5 US gals (70 liters) All Wheel drive: 19 US gals (72 liters) S80R: 18 US gal. (68 liters)

When a warning light in the gauge comes on, there are approximately 1.8 US gal. (8 liters) of fuel remaining in the tank.

14. Indicator and warning symbols

pg. 23 Instruments and controls

Indicator and warning symbols

The indicator and warning symbols light up when you turn the ignition key to the driving position (position II) before starting. This shows that the symbols are functioning. When the engine starts, all symbols go out. If the engine is not started within 5 seconds, all symbols except CHECK ENGINE and

go out. Certain symbols may not have their functions illustrated, depending on the car's equipment.

The symbol for the parking brake goes out when the parking brake is released.

Warning symbol

in center of dashboard

This symbol shines as a red or yellow light depending on the severity of the discovered fault.

Red symbol - Stop the car as soon as possible in a suitable location and read the message shown in the text window.

Yellow symbol - Follow the instructions shown in the text window.

file:///K|/ownersdocs/2004/2004_S60/04s60_02a.htm (3 of 12)12/30/2006 4:30:06 PM

2004 Volvo S60

Anti-lock brake system ABS

If the warning light comes on, there is a malfunction of the ABS system (the standard braking system will still function). The vehicle should be driven to a Volvo retailer for inspection. See page 93 for

additional information.

Stability Traction Control (STC)* system or Dynamic Stability Traction Control (DSTC)

system** This indicator light will flash when STC or DSTC is actively working to stabilize the car. See page 94

for more detailed information.

BRAKE Brake failure warning light If the light comes on while driving or braking, stop immediately, open the hood and check the brake fluid level in the reservoir. See page 124 for reservoir position and page 127 for instructions.

Canadian models are equipped with this warning light:

If the BRAKE and ABS warning lights come on at the same time, this could indicate a fault in the brake system.

● Stop the car in a suitable place and switch off the engine.

● Restart the engine.

● If both warning lights go off, no further action is required.

● If both lights are still on after the engine has been restarted, switch off the engine again and check the

brake fluid level (see page 124 for the location of the brake fluid reservoir).

* Standard on all models except the T5 turbo.

** Standard on the T5 turbo, option on all other models.

file:///K|/ownersdocs/2004/2004_S60/04s60_02a.htm (4 of 12)12/30/2006 4:30:06 PM

2004 Volvo S60

pg. 24 Instruments and controls

Indicator and warning symbols (Contd)

WARNING!

If the fluid level is below the MIN mark in the reservoir or if a "Brake failure - Service urgent" message is displayed in the text window: DO NOT DRIVE. Have the car towed to an authorized Volvo retailer and have the brake system inspected.

● If the brake fluid level is above the MIN mark, drive carefully to an authorized Volvo retailer and

have the brake system inspected.

pg. 25 Instruments and controls

Supplemental Restraint System SRS

If the light comes on (or stays on after the vehicle has started), the SRS diagnostic system has detected a fault. Drive to an authorized Volvo retailer for an inspection of the system. See the SRS section for more information.

Generator warning light

If the light comes on while the engine is running, have the charging system checked.

Seat belt reminder

This symbol lights up to indicate that the driver has not fastened his/her seat belt.

PARK BRAKE Parking brake applied This light will be on when the parking brake (hand brake) is applied. The parking brake lever is situated between the front seats.

Canadian models are equipped with this symbol.

Rear fog light

This light indicates that the fog light is on.

file:///K|/ownersdocs/2004/2004_S60/04s60_02a.htm (5 of 12)12/30/2006 4:30:06 PM

2004 Volvo S60

Turn signal indicator - trailer (certain models)

If you are towing a trailer, this light will flash simultaneously with the turn signals on the trailer. If the light does not flash when signaling, neither the trailer's turn signals nor the car's turn signals are functioning.

Oil pressure warning light

If the light comes on while driving, stop the car and then stop the engine immediately and check the engine oil level. See page 126. If the light stays on after restart, have the car towed to the nearest

authorized Volvo retailer. After hard driving, the light may come on occasionally when the engine is idling. This is normal, provided it goes off when the engine speed is increased.

CHECK ENGINE Malfunction indicator light

On-Board Diagnostic II (OBDII): As you drive, a computer called "OBDII" monitors your car's engine, transmission, electrical and emission systems. The CHECK ENGINE light will light up if the computer senses a condition that potentially may need correcting. When this happens, please have your car checked by a Volvo retailer as soon as possible.

A CHECK ENGINE light may have many causes. Sometimes, you may not notice a change in your car's behavior. Even so, an uncorrected condition could hurt fuel economy, emission cleanliness, and driveability. Extended driving without correcting the cause could even damage other components in your car.

Canadian models are equipped with this warning light.

pg. 26 Instruments and controls

Indicator and warning symbols (Contd)

Messages in the text window When a warning light in the instrument panel comes on, a message is also displayed in the text window. After you have read the message, you can erase it by pressing button A (see illustration).

NOTE: Certain messages cannot be erased until the condition has been corrected.

If a warning message is displayed when e.g. you are using the trip computer this message must be erased before you can access the function of your choice. Press button A to erase the warning message.

You can scroll through the stored messages by pressing button A (see illustration). The text window can be cleared (the message will be returned to memory) by pressing button A again.

file:///K|/ownersdocs/2004/2004_S60/04s60_02a.htm (6 of 12)12/30/2006 4:30:06 PM

2004 Volvo S60

Message Meaning: STOP SAFELY:

Stop and switch off the engine - to help prevent serious risk of damage.

STOP ENGINE:

Stop and switch off the engine - to help prevent serious risk of damage.

SERVICE URGENT:

Take your car to an authorized Volvo retailer for inspection as soon as possible.

SEE MANUAL:

Refer to your owner's manual. For additional information, please contact your Volvo retailer.

SERVICE REQUIRED:

Take your car to an authorized Volvo retailer for inspection at your convenience (but preferably before the next scheduled maintenance service).

FIX NEXT SERVICE:

Have the system affected inspected at the next scheduled maintenance service.

TIME FOR REGULAR SERVICE:

This light will come on at 7,500 mile (12,000 km) intervals, after 750 hours of driving or after 12 months, whichever occurs first, to remind the driver that the service interval has been exceeded. The light will stay on for 2 minutes after start until reset by the servicing retailer.

1) OIL LEVEL LOW - FILL OIL*

Check the oil level and top up if necessary. See

page 125

2) OIL LEVEL LOW - STOP SAFELY*

Stop as soon as possible and switch off the engine, check the oil level and top up if necessary. See

page 125

2) OIL LEVEL LOW - STOP ENGINE*

Stop as soon as possible and switch off the engine, check the oil level and top up if necessary. See

page 125

2) OIL LEVEL LOW - SEE MANUAL*

Stop as soon as possible and switch off the engine, check the oil level and top up if necessary. See

page 125

* These messages apply to R-line models only.

1) Orange warning symbol, see

page 23.

file:///K|/ownersdocs/2004/2004_S60/04s60_02a.htm (7 of 12)12/30/2006 4:30:06 PM

2004 Volvo S60

2) Red warning symbol, see page 23.

pg. 27 Instruments and controls

Switches in the center console

The positions of these buttons may vary, depending on the specifications of your car

1. Folding head restraints This button is used to fold down the outboard rear head restraints. The ignition key must be in position I or II or the engine must be running.

NOTE: If the head restraints have been folded down, they must be returned to their original position manually. The head restraints should be in the upright position before the rear seat backrests are folded down.

WARNING!

For safety reasons, no one should be allowed to sit in the outboard rear seat positions if the head restraints are folded down. If these positions are occupied, the head restraints should be in the upright (fixed) position.

2. Valet lock (trunk lock) Pressing this switch locks the trunk, even if the doors are unlocked. The trunk will remain locked even if the doors are locked/unlocked using the master key or the remote control. To use this function:

● Turn the master key to position II.

● Press the "Valet lock" button. An LED in the button will light up and "VALET LOCK ON" will be

displayed on the text window to indicate that this function is activated.

● The function can be turned off (deactivated) by turning the ignition key to position II and pressing the

file:///K|/ownersdocs/2004/2004_S60/04s60_02a.htm (8 of 12)12/30/2006 4:30:06 PM

2004 Volvo S60

"Valet lock" button again (the LED in the button will go out and "VALET LOCK OFF" will be displayed in the text window).

3. Not in use

4. Stability Traction Control (STC)/Dynamic Stability Traction Control (DSTC) (option)

Press this switch for at least half a second to turn the Spin Control (SC) function of the STC/ DSTC system on or off. An LED in the switch will light up to indicate that the system is on. See

page 94 for

more information on STC/ DSTC. The SC function should be switched off if you, for any reason, temporarily have to drive with tires of different dimensions (e.g., spare tire).

pg. 28 Instruments and controls

Switches in the center console (Contd)

R-models only: The Active Yaw Control function can be deactivated. See page 94 for more information.

Note: To help reduce the risk that the SC function is turned off inadvertently, the switch must be held in for at least half a second to disable this function. "STC/DSTC SPIN CONTROL OFF" will be displayed in the text window.

This function will be automatically reactivated when the engine is restarted.

WARNING!

Please be aware that the car's handling characteristics may be affected if Spin Control function is switched off.

5. Not in Use

6. Temporarily disconnecting the alarm sensors (option)

See

page 75 for more details.

7. Not in use

8. 12 volt socket

file:///K|/ownersdocs/2004/2004_S60/04s60_02a.htm (9 of 12)12/30/2006 4:30:06 PM

2004 Volvo S60

This 12 volt socket can be used to plug in certain accessories such as cellular telephones, etc. The ignition key must be in position 1 (or higher) for the auxiliary socket to function.

NOTE: The auxiliary sockets can also be used for cigarette lighters, which are available at your Volvo retailer.

Four-C active chassis system (R-models only)

Please see page 91 for information on adjusting the active chassis settings.

pg. 29 Instruments and controls

Steering wheel adjustment

Both the height and the reach of the steering wheel can be adjusted to a comfortable position for the driver. Pull down the lever on the left of the steering column. Adjust the steering wheel to a suitable position and press the lever back into place to lock the steering wheel in the new position. Check that the steering wheel is locked in the new position.

WARNING!

Never adjust the steering wheel while driving.

pg. 30 Instruments and controls

Lighting panel

file:///K|/ownersdocs/2004/2004_S60/04s60_02a.htm (10 of 12)12/30/2006 4:30:06 PM

2004 Volvo S60

A - Headlights and parking lights

All lighting off.

Models with daytime running lights: Low beam headlights will automatically come on if the ignition key is in position II. Front and rear parking lights and license plate lights will also be on. Volvo recommends the use of daytime running lights. If, however, you would prefer to have these lights turned off (USA only), please consult your Volvo retailer. Please note that the use of daytime running lights is mandatory in Canada.

NOTE: Bi-Xenon headlights (option): Turn the headlight switch to position 0 to activate a daylight sensor, which automatically switches the low beams on or off, depending on ambient light conditions. When driving in daylight, the headlights will switch off and the daytime running lights will come on. In darkness, the daytime running lights will switch off and the Bi-Xenon headlights will switch on.

Parking lights on. The parking lights should be switched off when you leave the car to help

avoid battery drain.

Headlights, parking lights, license plate lights and instrument panel illumination are on if the

ignition key is in position II.

If the headlight switch is in this position, all lights will go out when the ignition is switched off.

The headlight switch must be in this position before the high beams will function (this also applies on models equipped with the optional Bi-Xenon headlights).

Switch from high to low beams and vice versa by pulling the turn signal switch lever on the left side of steering column toward you.

file:///K|/ownersdocs/2004/2004_S60/04s60_02a.htm (11 of 12)12/30/2006 4:30:06 PM

2004 Volvo S60

B - Instrument lighting Move the thumb wheel up to increase brightness or down to decrease brightness. There is also an instrument panel illumination sensor (see illustration on

page 46) which automatically adjusts the level

of illumination.

The symbols have maximum illumination in daylight (only the background lighting can be adjusted). At night, both the symbol light and background lighting can be adjusted.

C - Unlocking the fuel filler door Press this button when the car is at a standstill to unlock the fuel filler door. Please note that the fuel filler door will remain unlocked until the car begins to move forward. An audible click will be heard when the fuel filler door relocks.

2004 Volvo S60

pg. 31 Instruments and controls

Lighting panel, Manually unlocking the fuel filler door

An LED in the switch indicates when the rear fog light is on.The rear fog light will only function in combination with the high/low beam headlights.By design, there is one rear fog light only, located in the driver's side tail light cluster.

E - Rear fog light The rear fog light is considerably brighter than the normal tail lights and should be used only when conditions such as fog, rain, snow, smoke or dust reduce visibility for other vehicles to less than 500 ft (150 meters).

Manually unlocking the fuel filler door The electric motor that controls the fuel filler door locking mechanism is located on the inside of the rear fender on the passenger side of the car, just behind the fuel filler door. To unlock this door manually:

1. Turn the knob (A) 1/4 turn counterclockwise to release the cover panel (B).

2. Fold down the cover panel to access the electric motor (C).

3. Press the catch (D) rearward to unlock the fuel filler door, or forward to lock the door.

pg. 32 Instruments and controls

Turn Signals

file:///K|/ownersdocs/2004/2004_S60/04s60_02b.htm (1 of 16)12/30/2006 4:30:07 PM

2004 Volvo S60

1. Lane change position In maneuvers such as lane changing, the driver can flash the turn signals by moving the turn signal lever to the first stop and holding it there. The lever will return to the neutral position when released.

2. Signal lever engaged for normal turns

3. High/low beam switch (headlights on).

Move the lever towards the steering wheel and release it.

Headlight flasher (headlights off). Move the lever towards the steering wheel. The headlight high beam will be on until the lever is released.

NOTE: If the turn signal indicator flashes faster than normal, check for a burned-out turn signal bulb.

3. Exterior courtesy lights

Home Safe System

When you leave your car at night, you can make use of the courtesy lighting function:

● Remove the key from the ignition switch.

● Pull the direction indicator lever towards the steering wheel (as when using the headlight flasher

function).

● Exit the car and lock the doors.

The headlights, parking lights, license plate lights and the lights in the sideview mirrors will now come on and remain on for 30, 60 or 90 seconds (the time interval is at your discretion and can be changed by an authorized Volvo retailer).

Approach lighting When approaching the car at night, press the yellow button in the central locking remote control (see illustration on

page 69). This lights up the interior courtesy lights, parking lights, license plate lights and

the lights in the sideview mirrors.

file:///K|/ownersdocs/2004/2004_S60/04s60_02b.htm (2 of 16)12/30/2006 4:30:07 PM

2004 Volvo S60

pg. 33 Instruments and controls

Windshield wipers/washer

Windshield wipers

Windshield wipers off

If the lever is in the 0 position and you move it upwards, the wipers will sweep one stroke at a time for as long as you hold the lever up.

Intermittent wiper function With the lever in this position, you can set the wiper interval by

twisting the control ring (A) upward to increase wiper speed or downward to decrease the speed.

Rain sensor (option) The rain sensor replaces the intermittent wiper function and automatically regulates wiper speed according to the amount of water on the windshield. The sensitivity of the sensor can be adjusted by twisting control A upward or downward.

Activating the rain sensor function:

1. Switch on the ignition.

2. Move the windshield wiper lever to the intermittent position. The rain sensor is deactivated when the ignition is switched completely off.

To reactivate the rain sensor function:

1. Switch on the ignition.

2. Move the windshield wiper lever to position 0 and then back to the intermittent position.

CAUTION: When washing the car in an automatic car wash, etc move the windshield wiper lever to position 0 or switch off the ignition completely to deactivate the rain sensor. If the sensor function is left on, the

file:///K|/ownersdocs/2004/2004_S60/04s60_02b.htm (3 of 16)12/30/2006 4:30:07 PM

2004 Volvo S60

wipers will start inadvertently in the car wash and could be damaged.

Wipers operate at "normal" speed

Wipers operate at "high" speed

3 - Windshield washer/headlight washer (certain models) The wipers will make 2-3 sweeps across the windshield and headlights (certain models) after the lever is released.

pg. 34 Instruments and controls

Hazard warning flashers, rear window/sideview mirror defroster, heated front seats

Hazard warning flashers The four-way flasher should be used to indicate that the vehicle has become a traffic hazard. To activate the flashers, press the triangular button in the center dash. Press the button again to turn off the flashers.

NOTE: Regulations regarding the use of the hazard warning flasher may vary, depending on where you live.

file:///K|/ownersdocs/2004/2004_S60/04s60_02b.htm (4 of 16)12/30/2006 4:30:07 PM

2004 Volvo S60

Sideview mirror and rear window defroster Press the switch to start heating the rear window and sideview mirrors to remove ice or condensation. An LED in the switch will light up.

A timer automatically switches off the heating to the sideview mirrors after approximately 6 minutes and to the rear window after approximately 12 minutes. The LED will go out correspondingly.

Heated front seats (option)

● The front seat heating can be switched on and off as required.

● Press the switch once for maximum seat heating. Both LEDs in the switch will be lit.

● Press the switch a second time for comfort heating. One LED in the switch will be lit.

● Press the switch a third time to turn the heating off completely. The seat heating for the passenger seat

should be switched off when the seat is not occupied.

pg. 35 Instruments and controls

Trip computer (option)

file:///K|/ownersdocs/2004/2004_S60/04s60_02b.htm (5 of 16)12/30/2006 4:30:07 PM

2004 Volvo S60

The trip computer stores information gathered from several systems in your car and has four menus that can be displayed in the text window.

● Driving distance on current fuel reserve

● Average fuel consumption

● Current fuel consumption

● Average speed

● Current speed in mph (Canadian models only)

NOTE: Warning messages from the car's monitoring systems will override the trip computer function. If a warning message is displayed in the text window while you are using the trip computer, you must acknowledge the message by pressing button A. Press button A again to return to the trip computer function.

Trip computer controls and functions The four* trip computer functions can be accessed by twisting control B one step at a time in either direction. Twisting a fifth** time returns you to the original function.

The trip computer can be reset (current data will be erased from system memory) by pressing RESET (button C).

1. Driving distance on current fuel reserve This function shows the approximate distance that can be driven on the fuel remaining in the tank. This calculation is based on average fuel consumption during the last 12 miles (20 km) of driving and the amount of fuel remaining in the tank when the reading was taken.

When the driving distance on current fuel reserve is less than 12 miles (20 km), "----" will be displayed in the text window.

2. Average fuel consumption This value indicates fuel consumption since the last time the trip computer was reset (by pressing RESET, button C). When the engine is switched off, information on fuel consumption is stored and remains in system memory until the RESET (button C) is pressed again.

3. Current fuel consumption This value indicates the current fuel consumption, based on readings taken once per second. When the car is not moving, "----" will be displayed.

4. Average speed This value indicates average speed since the last time the trip computer was reset (by pressing RESET, button C). When the engine is switched off, information on average speed is stored and remains in system memory until the RESET (button C) is pressed again.

file:///K|/ownersdocs/2004/2004_S60/04s60_02b.htm (6 of 16)12/30/2006 4:30:07 PM

2004 Volvo S60

5. Current speed in miles per hour (Canadian models only) This function provides the driver with an instantaneous conversion of the car's current speed from km/h to mph.

NOTE: Trip computer readings may vary slightly depending on the circumferences of the tires on the car.

*Five functions on Canadian models **A sixth time on Canadian models

pg. 36 Instruments and controls

Cruise control

Cruise control The cruise control panel is located on the left side of the steering wheel hub.

Engaging cruise control/setting speed

● Press the CRUISE button

● Press + or - to set the current speed

● Increase or decrease speed as desired

NOTE: Cruise control will not function at speeds below 22 mph (35 km/h).

Braking

Cruise control is automatically disengaged when the brake pedal is depressed. The currently set speed is stored in memory. Quickly pressing resume

will return the car to the previously set speed.

file:///K|/ownersdocs/2004/2004_S60/04s60_02b.htm (7 of 16)12/30/2006 4:30:07 PM

2004 Volvo S60

Acceleration

● Momentary acceleration, such as when passing another car, does not affect cruise control operation.

The car will automatically return to the previously set speed when you release the accelerator pedal.

● When the cruise control is already engaged, the car's speed can be increased or decreased by holding

down + or - until the car reaches the desired speed. One short press on either symbol corresponds to a speed change of approximately 1 mph (1.6 km/h).

Disengaging cruise control Cruise control can also be disengaged by:

● Pressing the CRUISE button.

● Putting the gear selector in (N)eutral.

NOTE: Cruise control is automatically disengaged if the engine is switched off, if the gear selector is placed in (N)eutral, if the car's speed drops to under 70% of the currently set speed or if the wheels start to spin.

Temporarily disengaging cruise control

● Press 0 to temporarily disengage cruise control. Press "resume" to return to the previously set

speed.

● Press the brake pedal. Press "resume" to return to the previously set speed.

WARNING!

Cruise control should not be used in heavy traffic or when driving on wet or slippery roads. Cruise control may not maintain set speed on steep downgrades.

pg. 37 Instruments and controls

Parking brake, electric socket/cigarette lighter

file:///K|/ownersdocs/2004/2004_S60/04s60_02b.htm (8 of 16)12/30/2006 4:30:07 PM

2004 Volvo S60

Parking brake (hand brake) The lever is situated between the front seats. The brake is applied to the rear wheels. The indicator light in the instrument panel will light up to indicate when the parking brake is applied. Apply the parking brake by pulling up firmly on the lever. Release the parking brake by depressing the button at the end of the lever and lowering the lever completely.

Auxiliary 12 volt socket

WARNING!

Always use the parking brake (hand brake) when parking. On hills, also turn the front wheels toward the curb. The indicator light in the instrument panel will light up even if the parking brake is applied only slightly. Be sure to pull the lever up sufficiently

Auxiliary sockets These 12 volt sockets can be used to plug in certain accessories such as cellular telephones, etc. The key must be in position I (or higher) for the auxiliary socket to function.

The auxiliary sockets can also be used for cigarette lighters, which are available at your Volvo retailer.

file:///K|/ownersdocs/2004/2004_S60/04s60_02b.htm (9 of 16)12/30/2006 4:30:07 PM

2004 Volvo S60

NOTE: The cover should be kept on when the auxiliary socket is not in use.

Ashtrays

Volvo cars in North America do not have an ashtray in the front seat as standard equipment. If you want to have an ashtray in the front seat, please contact your Volvo retailer.

pg. 38 Instruments and controls

Electrically operated windows

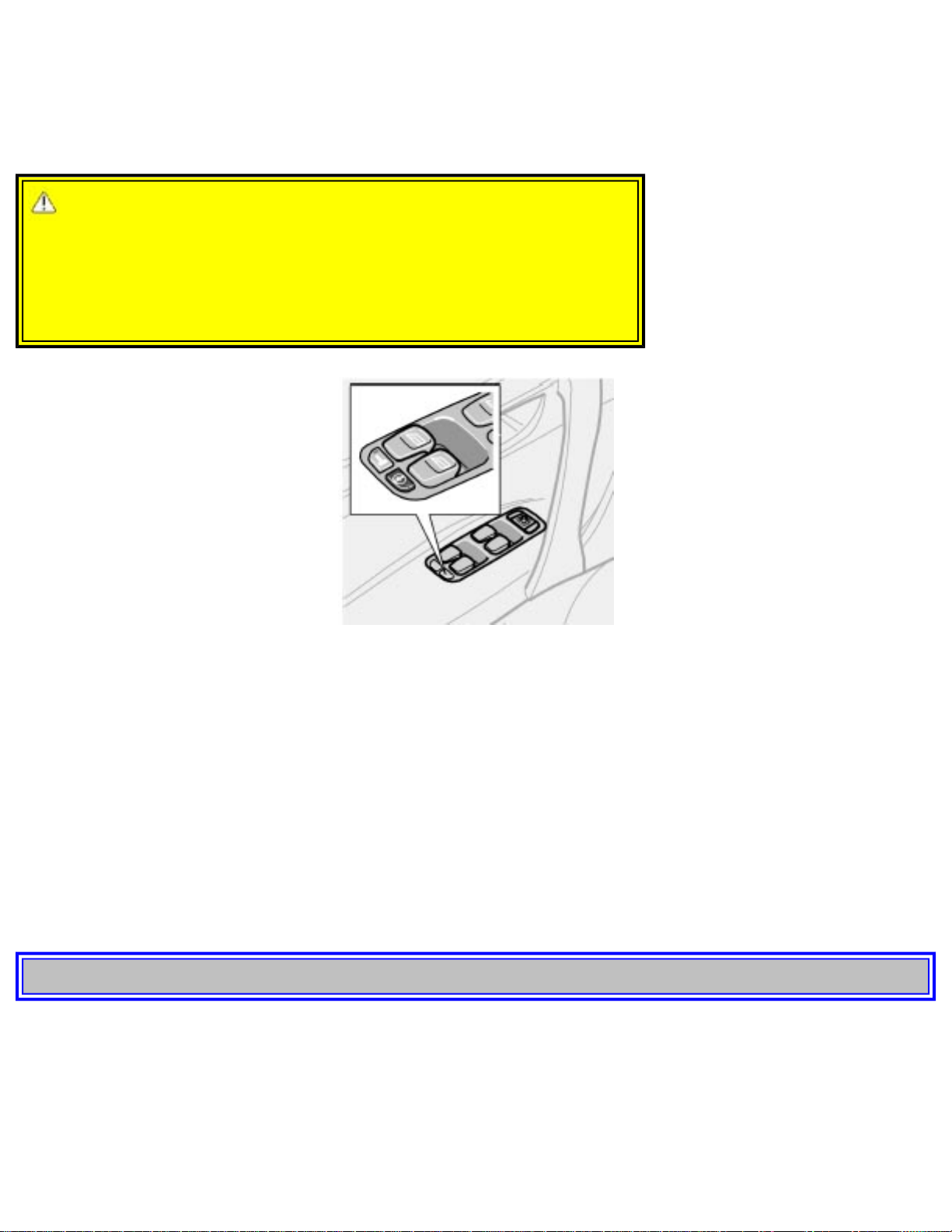

Electrically operated windows The electrically operated windows are controlled by buttons in the arm rests. The ignition switch must be ON * (ignition key in position I, II or the engine running) for the electrically operated windows to function.

To lower: Press down the front edge of the button to the first detent ("stop").

To raise: Lightly pull up the front edge of the button to the first detent ("stop").

* The electrically operated windows will also function after the ignition has been switched off as long as neither of the front doors has been opened.

Auto up/down function (front doors only): Either front door window can be opened or closed automatically.

Auto down: Press the front part of the button as far down as possible and release it immediately. To stop the window at any time, pull the button up.

Auto up: Pull the front part of the button up as far as possible and release it immediately. To stop the window at any time, press the button down.

A - front windows, B - rear windows

file:///K|/ownersdocs/2004/2004_S60/04s60_02b.htm (10 of 16)12/30/2006 4:30:07 PM

2004 Volvo S60

NOTE: The electrically operated windows in the front seat have an overload protecting circuit breaker which reverses movement of the electrically operated windows to their starting points if they are obstructed in any way. Thereafter the windows will operate normally again.

WARNING!

Always remove the ignition key when the vehicle is unattended. Make sure that childrens' hands are clear before raising the windows. Never leave children unattended in the car.

Cutout switch for rear windows

Cutout switch for rear windows The electrically operated rear door windows can be disabled by a switch located on the driver's door (see illustration).

If the LED in the switch is OFF: The rear door windows can be raised or lowered with the buttons on the rear door armrests or with the buttons on the driver's door armrest.

If the LED in the switch is ON: The rear door windows can only be raised or lowered with the buttons on the driver's door armrest.

pg. 39 Instruments and controls

file:///K|/ownersdocs/2004/2004_S60/04s60_02b.htm (11 of 16)12/30/2006 4:30:07 PM

2004 Volvo S60

Electrically operated window on the front passenger's side The control for the electrically operated window on the front passenger's seat operates that window only.

Electrically operated windows in the rear doors. The rear door windows can be operated with the control on each door and the switch on the driver's door. If the LED in the switch for blocking electrically operated windows in the rear doors (located in the driver's door control panel) is on, the rear door windows can only be operated from the driver's door.

pg. 40 Instruments and controls

Rearview mirror/sideview mirrors

file:///K|/ownersdocs/2004/2004_S60/04s60_02b.htm (12 of 16)12/30/2006 4:30:07 PM

2004 Volvo S60

Rearview mirror

A Normal position

B Night position, reduces glare from following headlights

Autodim function (option)

The autodim function reacts to headlights from following traffic and automatically reduces glare.

NOTE: This function is automatically switched off when the gear selector is placed in the Reverse position.

Electrically operated sideview mirrors The mirror control switches are located on the driver's door armrest.

Driver's side: Press the L switch (an LED in the switch will light up) to activate the adjustment control and then use this control to adjust the driver's door mirror.

Passenger's door: Press the R switch (an LED in the switch will light up) and then use the adjustment control to adjust the passenger's door mirror.

After you have adjusted the mirror(s), press the L or R switch again (the LED will go out) to deactivate the adjustment control.

WARNING!

The mirrors should always be adjusted prior to driving. Objects seen in the passenger's side wideangle sideview mirror are closer than they appear to be.

file:///K|/ownersdocs/2004/2004_S60/04s60_02b.htm (13 of 16)12/30/2006 4:30:07 PM

2004 Volvo S60

Remote central locking and sideview mirror memory-option If you lock the car and later unlock it with the same remote control and open the driver's door, the sideview mirrors (and the driver's seat) will automatically move to the position they were in when you left the car. This feature will work in the same way with all of the remote control transmitters (up to 3) that you use with your car. This feature will not function if you lock your car with the key.

pg. 41 Instruments and controls

Power moonroof (option)

Power moonroof To operate the moonroof, turn the ignition key to position I or II, or start the engine. The moonroof can be operated in two ways:

A. Tilt position

B. Sliding moonroof

A. Tilt position Open: With the moonroof closed, push up the rear edge of the switch (position 5 in the illustration

below). Close: Pull down and hold the rear edge of the switch (position 6 in the illustration below) until the moonroof has closed completely.

file:///K|/ownersdocs/2004/2004_S60/04s60_02b.htm (14 of 16)12/30/2006 4:30:07 PM

2004 Volvo S60

B. Sliding moonroof Manual open: Pull the switch rearward to position 3 and hold it until the moonroof has opened to the

position of your choice. Auto open: Pull the switch as far back as possible (position 4) and release it to automatically slide open the moonroof to the "comfort"* position. Pull the switch rearward again to open the moonroof completely. Manual close: Push the switch to position 2 and hold it until the moonroof has closed completely or to the position of your choice. Auto close: Push the switch forward as far as possible (position 1) and release it to automatically close the moonroof.

CAUTION:

● Remove ice and snow before opening the moonroof.

● Do not operate the moonroof if it is frozen closed.

● Never place heavy objects on the moonroof.

WARNING!

● Never open/close the moonroof it is obstructed in any way when in operation.

● Never allow a child to operate the moonroof.

● Never extend any object or body part through the open moonroof, even if the vehicle's ignition is

completely switched off.

● Never leave a child alone in a vehicle.

* A position where the moonroof is not quite fully open, which helps alleviate "rumbling" wind noise.

pg. 42 Instruments and controls

Power moonroof (option) (contd)

file:///K|/ownersdocs/2004/2004_S60/04s60_02b.htm (15 of 16)12/30/2006 4:30:07 PM

2004 Volvo S60

Sun visor: The optional moonroof also features a sliding sun visor. The visor slides open automatically when the moonroof is opened. The visor must be closed manually.

WARNING!

The moonroof must never be obstructed in any way when in operation.

Contents | Top of Page

file:///K|/ownersdocs/2004/2004_S60/04s60_02b.htm (16 of 16)12/30/2006 4:30:07 PM

2004 Volvo S60

2 0 0 4

VOLVO

S60

Climate control

pg. 43 Climate control

Climate control systems - general information

Air distribution

Electronic climate control, ECC

Manual climate control with air conditioning, A/ C

pg. 44 Climate control

Climate control systems - general information

Condensation on the inside of the windows Keeping the insides of the windows clean will help reduce the amount of condensation that forms on the windows. Use a commercial window cleaning agent to clean the windows.

Ice and snow Always keep the air intake grille at the base of the windshield free of snow.

Cabin air filter Replace the cabin air filter with a new one at the recommended intervals. Please refer to your Warranty and Service Records Information booklet, or consult your Volvo retailer for these intervals. The filter should be replaced more often when driving under dirty and dusty conditions. The filter cannot be cleaned and therefore should always be replaced with a new one.

Sensors The sunlight sensor on the dashboard and passenger compartment temperature sensor in the ECC control panel should not be covered in any way as this could cause incorrect information to be sent to the ECC system.

Parking the car in warm weather If your car has been parked in the sun in warm weather, opening the windows and moonroof (option) for several minutes before driving will help release the warm air from the passenger compartment. When the engine is running, close the windows and moonroof and use the recirculation function for several minutes to enable the air conditioning to cool the compartment as quickly as possible.

Windows and optional moonroof

file:///K|/ownersdocs/2004/2004_S60/04s60_03.htm (1 of 10)12/30/2006 4:30:08 PM

2004 Volvo S60

The ECC system will function best if the windows and optional moonroof are closed. If you drive with the moonroof open, we recommend that you manually adjust the temperature and blower control (the LED in the AUTO switch should be off).

Acceleration The air conditioning is momentarily disengaged during full-throttle acceleration.

Climate control maintenance All maintenance on the climate control systems should be carried out by an authorized Volvo service technician only.

Refrigerant Volvo cares about the environment. The air conditioning system in your car contains a CFC-free refrigerant R134a. This substance will not deplete the ozone layer. The system contains 2.2 lbs (1000 g) R134a and uses PAG oil.

Passenger compartment blower Approximately 50 minutes after the ignition is turned off, the blower may come on automatically, and run for seven minutes, to remove condensation in the A/C evaporator.

pg. 45 Climate control

Air distribution

Air distribution The incoming air is distributed through 14 ventilation points in the passenger compartment.

file:///K|/ownersdocs/2004/2004_S60/04s60_03.htm (2 of 10)12/30/2006 4:30:08 PM

2004 Volvo S60

Air vents in the dash A Open B Closed C Horizontal air flow D Vertical air flow

● Direct the outer air vents toward the side windows to defrost.

● In cold weather, close the air vents in the center of the dash to direct as much air as possible toward the windows.

Air vents in the door pillars A Open B Closed C Horizontal air flow D Vertical air flow

● Direct the outer air vents toward the side windows to defrost.

● In cold weather, close the air vents in the center of the dash to direct as much air as possible toward the windows.

pg. 46 Climate control

Electronic climate control, ECC

file:///K|/ownersdocs/2004/2004_S60/04s60_03.htm (3 of 10)12/30/2006 4:30:08 PM

2004 Volvo S60

pg. 47 Climate control

Electronic climate control, ECC (contd)

AUTO This function automatically regulates the Electronic Climate Control system so that the selected temperatures are maintained. The blower, heating, air distribution (air flow) and air conditioning are controlled. If you prefer to manually set any of these functions, the remaining functions will still be controlled

automatically. Pressing the AUTO button overrides any settings that were previously made manually.

Rear window and sideview mirror defrosters

This function defrosts/ de-ices the rear window and sideview mirrors. The LED in the switch will light up to indicate that the heating function is engaged. See

page 34 for additional information on this function.

Never use ice scrapers made of metal as they can easily scratch the mirror surface.

Temperature

These controls are used to individually set the temperature for both sides of the passenger compartment. Please note that the compartment will not be heated or cooled faster by setting the temperature higher or lower than necessary.

Set the control to the temperature you prefer.

Defroster

This function defrosts/ de-ices the windshield and front side windows. The LED in the switch will light up to indicate that the defrost function is engaged. Blower speed increases automatically and the air in the passenger compartment is dehumidified. Recirculation will not function while defrost is engaged.

Blower control

Turn the control clockwise to increase or counterclockwise to decrease the blower speed. Pressing the AUTO switch will automatically regulate blower speed and override manual adjustment.

file:///K|/ownersdocs/2004/2004_S60/04s60_03.htm (4 of 10)12/30/2006 4:30:08 PM

2004 Volvo S60

NOTE: Turning the blower control counter-clockwise until an orange LED comes on will turn both the blower and the air conditioning off.

pg. 48 Climate control

Electronic climate control, ECC (contd)

Air distribution Press AUTO to automatically regulate air flow or press any combination of the controls shown in the illustration to manually adjust air flow. An LED in the switch will light up if an air flow control has been pressed.

Heated front seats (option)

● Press the switch once for maximum seat heating. Both LEDs in the switch will be lit.

● Press the switch a second time for comfort heating. One LED in the switch will be lit.

● Press the switch a third time to turn the heating off completely. The LED will go off. The seat heating for the

passenger seat should be switched off when the seat is not occupied.

A/C - ON/OFF

Press the switch to turn the air conditioning on or off. The "ON" or "OFF" LED will light up to indicate if the system is switched on or off. Other functions will still be regulated automatically (if the AUTO switch is on).

● The air conditioning functions only at temperatures above 32° F (0° C).

● While the Defroster function is selected, the air conditioning is temporarily activated to dehumidify the air, even

if you have manually switched the air conditioning off. This will only function if the blower is not switched off.

Recirculation

Press this switch to engage the recirculation function (air in the passenger compartment recirculates - no fresh air

file:///K|/ownersdocs/2004/2004_S60/04s60_03.htm (5 of 10)12/30/2006 4:30:08 PM

2004 Volvo S60

enters the compartment). The LED in the switch will light up to indicate that the function is engaged.

● Use this function if the outside air is contaminated with exhaust gases, smoke, etc or to heat/cool the car quickly.

● Recirculation should not be used for more than 15 minutes. If your windows begin to fog or mist, make sure that

the recirculation function is switched off.

● Selecting Defroster automatically switches recirculation off.

● Timer mode activation: (Cars with the Interior Air Quality system have no timer mode) Press and hold the

recirculation button for at least 3 seconds to activate a recirculation timer mode. The amber LED in the recirculation button will flash 5 times to show that the timer mode is being activated. In timer mode, each time the recirculation button is pressed, the climate control system will recirculate the air in the passenger compartment for 5-12 minutes, depending on the outside air temperature, and then revert back to fresh air.

● Timer mode deactivation: Press and hold the recirculation button for 3 seconds. The amber LED in the

recirculation button will illuminate steadily for 5 seconds to show a return to "normal" mode.

pg. 49 Climate control

Electronic climate control, ECC (contd)

● In normal mode, when the recirculation button is pressed, the climate control system will recirculate the air in the

passenger compartment until the recirculation button is pressed again.

● Timer mode memory: If the car is turned off while timer mode is active, timer mode will still be active when the

car is restarted.

Interior air quality sensor (option)

Some cars are equipped with a multifilter and air quality sensor. The filter separates gases and particles, thereby reducing the amounts of odors and contaminants entering the car. The air quality sensor detects increased levels of contaminants in the outside air. When the air quality sensor detects contaminated outside air, the air intake closes and the air inside the passenger compartment is recirculated, i.e. no outside air enters the car. The filter also cleans recirculated passenger compartment air.

When the ECC system is in the AUTO mode, the green LED will be on

Operation Press

to operate the air quality sensor (normal setting).

Or:

Select one of the following three functions by pressing

1, 2 or 3 times.

1. The AUT LED lights. The air quality sensor is now activated.

2. No LED lights. Recirculation is not activated unless needed to cool the passenger compartment in a warm climate.

file:///K|/ownersdocs/2004/2004_S60/04s60_03.htm (6 of 10)12/30/2006 4:30:08 PM

2004 Volvo S60

3. The MAN LED lights. Recirculation is now activated.

Keep in mind the following:

● Make it a rule to have the air quality sensor activated at all times.

● Recirculation is limited in cold climates to avoid fogging.

● If window fogging occurs, you should deactivate the air quality sensor.

● If fogging occurs, use the defroster functions for the windshield, side windows and rear window. See page 47.

● The filter should be changed at the intervals recommended in the service schedule. However, if the car is used in

a severely contaminated environment, it may be necessary to change the filter more frequently.

pg. 50 Climate control

Manual climate control with air conditioning, A/C

pg. 51 Climate control

Manual climate control with air conditioning, A/C (contd)

A/C - ON/OFF

file:///K|/ownersdocs/2004/2004_S60/04s60_03.htm (7 of 10)12/30/2006 4:30:08 PM

2004 Volvo S60

The air conditioning function is engaged by pressing ON and disengaged by pressing OFF.

When you select Defroster

, the air conditioning is automatically engaged if the fan is not set to position 0.

Blower

Blower speed can be increased or decreased by turning the knob. If the knob is set to 0, the air conditioning function is automatically disengaged.

Temperature

Turn the control to set the temperature for the driver's and passenger's sides of the car. For cooler air, the air conditioning function must be engaged.

Rear window and sideview mirror defrosters

This function defrosts/de-ices the rear window and sideview mirrors. The LED in the switch will light up to indicate that the heating function is engaged. See

page 34 for additional information on this function.

Never use ice scrapers made of metal as they can easily scratch the mirror surface.

Heated front seats (option)

● Press the switch once for maximum seat heating. Both LEDs in the switch will be lit.

● Press the switch a second time for comfort heating. One LED in the switch will be lit.

● Press the switch a third time to turn the heating off completely. The LED will go off.

The seat heating for the passenger seat should be switched off when the seat is not occupied.

pg. 52 Climate control

Manual climate control with air conditioning, A/C (contd)

Recirculation

file:///K|/ownersdocs/2004/2004_S60/04s60_03.htm (8 of 10)12/30/2006 4:30:08 PM

2004 Volvo S60

Recirculation can be used to shut out stale air, exhaust, etc. from the passenger compartment. The air in the passenger compartment is then recirculated, i.e. no air from outside the car is taken into the car when this function is activated. Recirculation (together with the air conditioning system) cools the passenger compartment more quickly in warm weather.

If you allow the air in the car to recirculate, there is a risk of icing and fogging, especially in winter. The timer function minimizes the risk of ice, misting and stale air.

Activate the timer function as follows:

● Press for more than 3 seconds. The LED flashes for 5 seconds. The air recirculates in the car for 3-12

minutes depending on the outside temperature.

● The timer function is activated each time you press .

To switch off the timer function:

● Press again for more than 3 seconds. The LED lights for 5 seconds to confirm your selection.

Recirculation is always disconnected when you select

Defroster.

Air distribution

Use the air distribution control positions (marked with dots) between the different symbols to fine-tune air distribution for maximum comfort.

file:///K|/ownersdocs/2004/2004_S60/04s60_03.htm (9 of 10)12/30/2006 4:30:08 PM

2004 Volvo S60

Contents | Top of Page

file:///K|/ownersdocs/2004/2004_S60/04s60_03.htm (10 of 10)12/30/2006 4:30:08 PM

2004 Volvo S60

2 0 0 4

VOLVO

S60

Audio

pg. 157 Audio

Audio system HU-613 - overview

158

Audio system HU-803 - overview

159

Audio systems HU-613/HU-803

160

Program types (HU-803 only)

165

AUM (Advanced User Mode)

166

Audio system HU-613 - cassette deck

167

Audio system HU-613/HU-803 - CD player

169

Audio system HU-613/HU-803 - CD changer (accessory)

171

Dolby Surround Pro Logic HU-803 (option)

172

Audio systems - specifications

174

Audio systems - general information

175

HomeLink® Universal Transceiver - T5 (option on 2.4/2.4T)

176

pg. 158 Audio

Audio system HU-613 - overview

file:///K|/ownersdocs/2004/2004_S60/04s60_04a.htm (1 of 11)12/30/2006 4:30:09 PM

2004 Volvo S60

1. On/ off - press Volume - turn

2. Selector knob for: Stored radio frequencies CD changer - selecting disc

3. Selector knob: Radio Cassette CD CD changer (option)

4. Fader - press and turn Balance - press, pull and turn

5. Radio - Station seek up/down Cassette - selecting next/previous track CD - Selecting next/previous track

6. Radio - Manual station selection Cassette - Fast winding forward/backward CD - Fast forwards/backward

7. CD eject

8. CD slot

9. CD random play

10. Active Sound Control (ON or OFF)

11. Scan function

12. Dolby B Noise Reduction

13. Automatic presetting of radio stations

14. Bass - press and turn Treble - press, pull and turn

15. Tape direction selector

16. Cassette opening

17. Cassette eject

file:///K|/ownersdocs/2004/2004_S60/04s60_04a.htm (2 of 11)12/30/2006 4:30:09 PM

2004 Volvo S60

18. Display

pg. 159 Audio

Audio system HU-803 - overview

1. On/ off - press Volume - turn

2. Bass - press and turn Treble - press, pull and turn

3. Fader - press and turn Balance - press, pull and turn

4. Center volume - press and turn Effect channel volume - press, pull and turn

5. Selector knob for: Stored radio frequencies CD - selecting disc

6. Selector knob: Radio Internal CD changer Station scan - press External CD changer (option)

7. Radio - Station seek up/down CD - Selecting next/previous track

8. Radio - Manual station selection CD - Fast forward/backward

9. CD eject

10. Dolby Pro Logic - switching on

11. 2 channel stereo

file:///K|/ownersdocs/2004/2004_S60/04s60_04a.htm (3 of 11)12/30/2006 4:30:09 PM

2004 Volvo S60

12. 3 channel stereo

13. CD slot

14. CD random play

15. Program type

16. News

17. Traffic information

18. Automatic presetting of radio stations

19. Display

pg. 160 Audio

Audio systems HU-613/HU-803

Switch on/off Press the knob to switch on or turn off the radio.

Volume control Turn the knob clockwise to increase volume. Volume control is electronic and does not have an end stop. If you have a key pad in the steering wheel, increase or decrease the volume with the + or buttons.

Band selector Turn "SOURCE" knob to select FM or AM. The station and band are displayed. You can also select cassette deck, CD, or the optional CD changer if connected, with this knob.

file:///K|/ownersdocs/2004/2004_S60/04s60_04a.htm (4 of 11)12/30/2006 4:30:09 PM

2004 Volvo S60

Active sound control (ASC) The ASC (Active Sound Control) automatically adapts volume to vehicle speed.

Press the ASC button (HU-613) for several seconds to switch this function ON or OFF. This function is included in the Advanced User Mode on the HU-803 equipped with this feature.

"ASC ON" or "ASC OFF" will be shown in the display for several seconds.

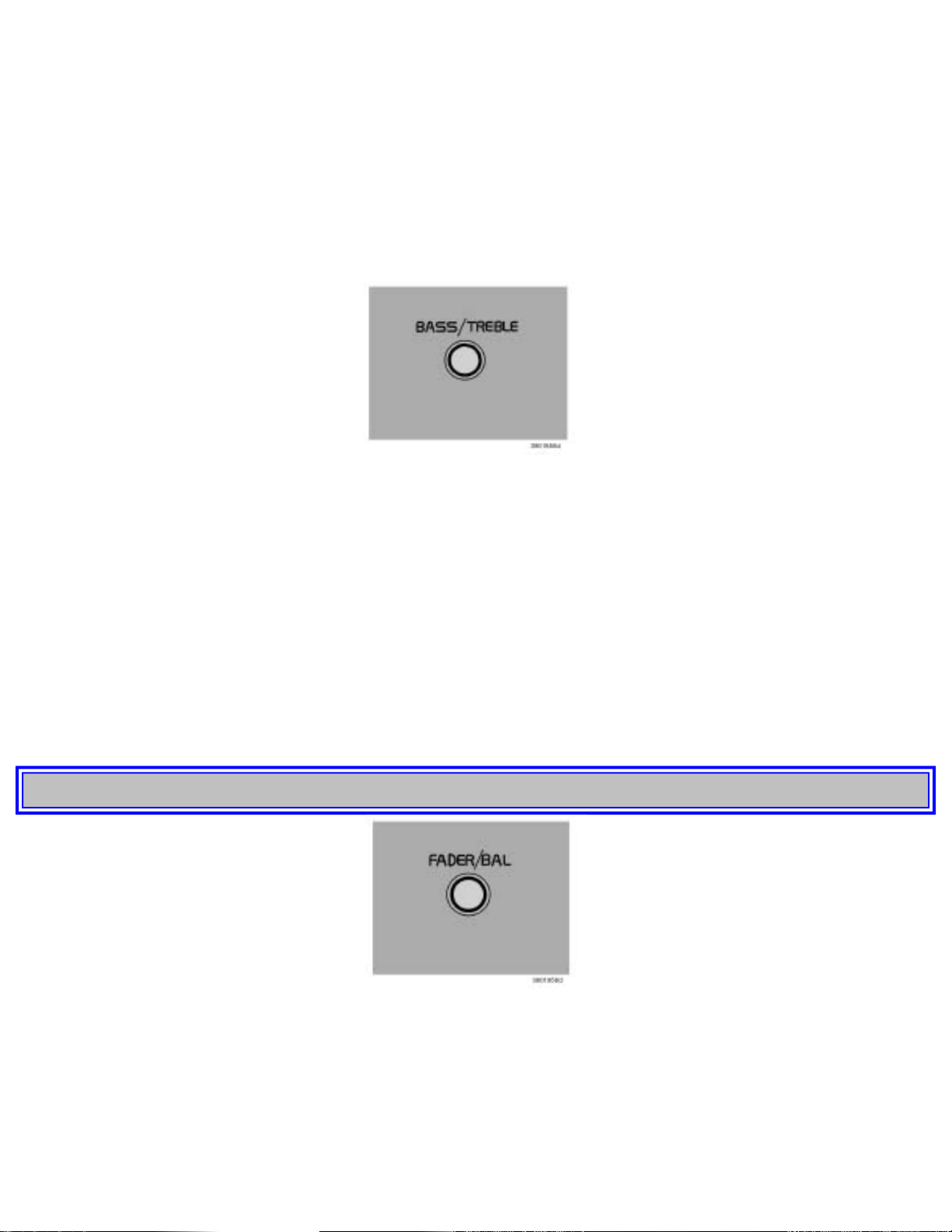

Bass Adjust the bass by pressing the button to extend the control and turning it to the left (less bass) or to the right (more bass). A "detent" indicates "equalized" bass. Press the button back in when you have made the adjustment.

Treble Adjust the treble by pressing the button to extend the control, pulling it out as far as possible, and then turning it to the left (less treble) or to the right (more treble). A "detent" indicates "equalized" treble. Press the button back in when you have made the adjustment.

pg. 161 Audio

Fader - Balance front/rear Adjust front/ rear speaker balance by pressing the button to extend the control and turning it to the left (more sound from the rear speakers) or to the right (more sound from the front speakers). A "detent" indicates "equalized" balance. Press the button back in when you have made the adjustment.

file:///K|/ownersdocs/2004/2004_S60/04s60_04a.htm (5 of 11)12/30/2006 4:30:09 PM

2004 Volvo S60

Balance right/left Adjust left/ right speaker balance by pressing the button to extend the control, pulling it out as far as possible and then turning it to the left (more sound from the left speakers) or to the right (more sound from the right speakers). A "detent" indicates "equalized" balance. Press the button back in when you have made the adjustment.

A - Setting station Press the left side of the button to select lower frequencies and the right side for higher frequencies. Set frequencies are displayed.

B - Station seek up/ down Press the left side (lower frequency) or right side (higher frequency) of the button to start the seek function. The radio seeks the next audible station and tunes it in. Repeat the procedure to continue the seek function.

pg. 162 Audio

Audio systems HU-613/HU-803 (contd)

Station setting Press the left button

to select a lower frequency and the right button for a higher frequency. The

file:///K|/ownersdocs/2004/2004_S60/04s60_04a.htm (6 of 11)12/30/2006 4:30:09 PM

2004 Volvo S60

set frequency is shown in the display.

Station seek up/down Press the left

or right-hand side of the button to seek lower or higher frequencies. The radio

seeks the next audible station and sets it. Press the button again to continue seek.

Steering wheel keypad If you have a keypad in the steering wheel, press the right or left arrow to select preset stations.

Scan function Press the SCAN button (HU-613) or the SOURCE knob (HU-803) to start the station scan function. When a station is found, scanning stops for several seconds, after which scanning will continue.

Press the SCAN button or SOURCE knob when a station has been found if you would like to listen to that station and to discontinue the scan function.

pg. 163 Audio

Automatic station preset This function seeks and stores up to 10 strong AM or FM stations in a separate memory. This function is especially useful in areas where you are not familiar with the radio stations.

1.Press in the "AUTO" button for at least 2 seconds. A number of strong signal stations (max. 10) from the currently selected waveband are now stored automatically in the memory. An "A" and "AUTO" is displayed. If there is no station with sufficient signal strength "NO STATION" is displayed.

2. Turn "1- 20/DISC" knob if you wish to change to another of the auto-stored stations.

Another auto-stored station is selected with each turn.

file:///K|/ownersdocs/2004/2004_S60/04s60_04a.htm (7 of 11)12/30/2006 4:30:09 PM

2004 Volvo S60

Programming stations

1. Tune in the desired frequency.

2. Press the "1-20/DISC" knob. Select a number by turning forwards or backwards. Press again to store the selected frequency and station.

Preset To choose a pre-set station, turn "1-20/DISC" knob to the stored number. The currently selected station is displayed.

Radio Data System (RDS, also referred to as RBDS) - HU-803 only This feature, which may not work in your area, functions only with FM broadcasts. The HU-803 radio in your car is equipped with an advanced system allowing information from broadcasters to be transmitted visually, as text, together with the audio signal. This information is then decoded by the radio and made available for several new and unique features. The RDS or Radio Data System operates in the FM band only, and the information transmitted is supplied exclusively by participating broadcasters. Volvo has no control over the accuracy of the data or information. Please refer to the following pages regarding specific descriptions and operation of these functions.

Coverage by local broadcasters may be limited at this time, but as the technology and benefits grow, you will find the radio in your car is equipped to take advantage of this system.

pg. 164 Audio

Audio systems HU-613/HU-803 (contd)

file:///K|/ownersdocs/2004/2004_S60/04s60_04a.htm (8 of 11)12/30/2006 4:30:09 PM

2004 Volvo S60

Traffic information (TP) - HU-803 only This feature may not be apply in your area and only functions with FM broadcasts. (See previous page)

Push the "TP" button for traffic information from RDS stations. "TP" is displayed when the function is connected.

When the unit is in Cassette or CD mode, the FM radio function will seek in the background for a station with a strong signal broadcasting traffic information. If a cassette or CD are playing when the radio receives a traffic bulletin, that function is interrupted and the bulletin is broadcast with the volume preselected for traffic information.

When the bulletin is finished the unit immediately returns to the previously set volume and continues playing the cassette or CD.

● Traffic information can only be heard when TP and are displayed at the same time.

● If only TP is displayed, it means that no traffic information is being broadcast from the current

transmitter.

● If you do not wish to listen to an ongoing traffic bulletin, press the TP button. The TP function,

however, is still connected and the radio waits for the next traffic bulletin.

● Press the TP button to switch off the TP function. TP will no longer be shown in the display.

News on/ off - HU-803 only This feature may not apply in your area and only functions with FM broadcasts. (See previous page)

Press the "NEWS" button to activate the news function. The text NEWS is displayed. Press the "NEWS" button again if you want to switch off the function.

file:///K|/ownersdocs/2004/2004_S60/04s60_04a.htm (9 of 11)12/30/2006 4:30:09 PM

2004 Volvo S60

As soon as a news broadcast begins, the news program will interrupt the Cassette, CD or CD changer.

If you do not wish to listen to the news program, press the "NEWS" button again. The news function will remain active and the radio will continue to monitor news programs.

pg. 165 Audio

Program type

Text displayed

News News Information Inform Sports Sports Talk Talk Rock Rock Classic rock Cls_ Rock Adult hits Adlt_ Hit Soft rock Soft_ Rck Top 40 Top_ 40 Country Country Oldies Oldies Soft Soft Nostalgia Nostalgia Jazz Jazz Classical Classicl Rhythm and Blues R_&_ B Soft Rhythm and Blues Soft_ R& B Foreign language Language Religious music Rel_ Musc Religious talk Rel_ Talk Personality Persnlty Public Public College College Weather Weather

Program type - HU-803 only The PTY function enables you to select specific types of programs. To search for a particular program type:

file:///K|/ownersdocs/2004/2004_S60/04s60_04a.htm (10 of 11)12/30/2006 4:30:09 PM

2004 Volvo S60

1. Press "PTY" button to initiate the function. The currently tuned station's program type is displayed.

2. Scroll through the list of program types by turning the "1- 20/DISC" knob.

3. When you have reached the program type you require press the "1- 20/DISC" knob to begin the search.

4. If there is more than one station with the selected program type, you can select using

, or the scan button. The PTY function is active until the radio finds the selected program type and as long as the selected station transmits that program type.

5. To return to standby mode, press PTY again. The CD will resume playing until the selected program type is sent again.

To deactivate PTY standby, press the PTY button again. The PTY symbol will turn off.

Volume of traffic information/news/PTY - HU-803 only If you change the volume when the TP, PTY or NEWS function is active, the new volume setting will be stored automatically.

Contents | Top of Page

file:///K|/ownersdocs/2004/2004_S60/04s60_04a.htm (11 of 11)12/30/2006 4:30:09 PM

2004 Volvo S60

pg. 166 Audio

AUM (Advanced User Mode)

● With the radio switched off, press and hold the volume wheel down for at least 5 seconds to start the

AUM function.

● Turn the 1- 20/DISC knob to choose an AUM function (see function list below).

● When the function has been chosen, the function's current setting flashes. Press the 1-20/DISC knob

to choose an alternative (e.g. ON/OFF, LOW/MID/HIGH, etc., depending on the function).

● Continue to choose function/alternative.

To reset all AUM functions to factory settings, turn the 1-20/DISC knob until "SET TO DEFAULT" is shown in the display, and then press the same knob. All AUM settings are reset to default position and the radio reverts to normal status (music, news, etc.).

To save any changes and revert to normal position, turn the 1-20/DISC knob until "BACK and SAVE" are shown in the display, and press the same knob again.

To revert to normal position without saving the changes, turn the 1-20/DISC knob until "BACK without SAVE" is shown in the display, and press the same knob again.

AUM functions The following functions are available on all audio systems:

● SET TO DEFAULT (See left-hand column).

● ASC (Active Sound Control) ON/OFF - The ASC function automatically matches the sound volume

to the speed of the car.

● ASC TABLE - Choose level of the ASC function (LOW/MID/HIGH).

● SRC ON/OFF - Use this function to activate/deactivate the function which reduces the noise in poor

reception conditions. The function is normally used when the radio is in AM mode.

● SRC TABLE - Choose level of SRC function (LOW/MID/HIGH).

● TAPE DOLBY ON/OFF - Activates/deactivates Dolby noise reduction when you listen to a cassette

tape (HU 405/605).

● BACK and SAVE (See above).

● BACK without SAVE (See above).

The following functions are available on the HU-803 only:

● AF SWITCHING ON/OFF (automatic frequency update) - The AF function ensures that the strongest

available transmitter for a program is selected.

file:///K|/ownersdocs/2004/2004_S60/04s60_04b.htm (1 of 14)12/30/2006 4:30:10 PM

2004 Volvo S60

● REGIONAL ON/OFF (regional radio program) - This function makes it possible to continue to listen

to a regional transmitter, even if the signal is weak.

● EON (Enhanced Other Networks)

● LOCAL/DISTANT - This function determines whether the radio program you are listening to is to be

switched off before e.g. a traffic report or news broadcast (if these functions are selected) only if the signal is strong (LOCAL) or whether the radio must also try to capture weaker signals (DISTANT).

● NETWORK ALL/TUNED - With this function you can decide whether the radio program you are

listening to is to be switched off before e.g. a traffic report or news broadcast (if these functions are selected) only if the report is on the channel you are listening to (TUNED), or whether the program is to be switched off regardless of which radio channel the report/broadcast is on (ALL).

pg. 167 Audio

Audio system HU-613 - cassette deck

Cassette deck (HU-613) - inserting a cassette Slide a cassette into the slot with the tape to the right (side 1 or A upwards). The ignition key must be in position I or II before a cassette can be inserted. "TAPE A" or "TAPE B" is displayed. When one side has finished playing the unit will automatically begin playing the other side. If a cassette is already inserted in the cassette deck select cassette play by turning the "SOURCE" knob.

Changing tape direction Press the "REV" button if you wish play the other side of the tape. The side being played is displayed.

Tape eject

file:///K|/ownersdocs/2004/2004_S60/04s60_04b.htm (2 of 14)12/30/2006 4:30:10 PM

2004 Volvo S60

If you press this button the tape stops and the cassette is ejected. To select a new mode (radio, CD) turn the "SOURCE" button. A cassette can be ejected even if the ignition is switched off.

Dolby B Noise reduction The function is preset. To switch the function off, hold down the "

" button until the Dolby symbol in the display goes out. Press the same button again to reactivate the function or use the Advanced User Mode function.

Fast winding The tape can be wound forward with "

" and backwards with " ". During fast winding "FF" (forward) respectively "REW" (backward) is displayed. Fast winding is interrupted if you press the button again.

pg. 168 Audio

Next/Previous track If you press "

" button the tape automatically winds forward to the next track. If you press " " button the tape automatically rewinds to the previous track. This feature requires at least a 5 second break between tracks. If you have the key pad in the steering wheel you can also use these arrows in the same way.

file:///K|/ownersdocs/2004/2004_S60/04s60_04b.htm (3 of 14)12/30/2006 4:30:10 PM

2004 Volvo S60

Dolby B Noise Reduction This function is preset. Do as follows to switch it off: hold the REV button depressed until the Dolby symbol in the display goes out. Press the same button again to reactivate the Dolby function.

pg. 169 Audio

Audio system HU-613/HU-803 - CD player

CD player - on HU-613: Insert a CD.

HU-803: Insert a CD. If you would like to insert another disc (a maximum of 4 CD's can be inserted in

the player), turn the "1-20/DISC" button so that "CD 2 Load Disc" is displayed. Insert the CD. Repeat this procedure for discs 3 and 4.

Turn the "SOURCE" knob to CD.

Selecting a disc (HU-803 only) Turn the "1-20/DISC" knob. The number of the disc and track is displayed.

CD eject HU-613: If you press this button the CD stops playing and the disc is ejected.

HU-803: The CD currently playing will be ejected. If more than one CD has been inserted, turn the "1-

file:///K|/ownersdocs/2004/2004_S60/04s60_04b.htm (4 of 14)12/30/2006 4:30:10 PM

2004 Volvo S60

20/DISC" to display the number of the CD you would like to eject and press the CD eject button.

NOTE: For traffic safety reasons, the ejected CD must be removed within 12 seconds or it will be automatically reinserted into the CD player.

Fast winding Press "

" or " " to seek within a track.

Next/previous track Press "

" to skip to the next track or " " to skip to the previous track. The track number is shown in the display. If you have the key pad in the steering wheel you can also use these arrows in the same way.

pg. 170 Audio

Random Press "RND" to connect the random function. The unit plays tracks from the disc in random order. "RND" (random) is displayed as long as the function is activated.

pg. 171

file:///K|/ownersdocs/2004/2004_S60/04s60_04b.htm (5 of 14)12/30/2006 4:30:10 PM

2004 Volvo S60

Audio system HU-613/HU-803 - CD changer (accessory)

CD player The accessory CD changer, mounted in the cargo area, can accommodate 10 discs. To load the magazine:

● Slide the cover on the CD changer open.

● Press the eject button.

● Pull the magazine out of the changer and insert the discs.

● Press the magazine back into the changer and slide the cover back into place.

Playing a CD Turn "SOURCE" to activate CD changer mode. The CD changer continues playing the disc and track that was being played most recently. If the CD changer magazine is empty "LOAD MAGAZINE" is displayed.

Selecting a disc Turn the "1-20/DISC" knob. The number of the disc and track is displayed.

Fast winding

file:///K|/ownersdocs/2004/2004_S60/04s60_04b.htm (6 of 14)12/30/2006 4:30:10 PM

2004 Volvo S60

Press " " or " " to seek within a track.

Changing tracks Press "

" to skip to the next track or " " to skip to the previous track. The disc and track numbers are shown in the display. If you have a keypad in the steering wheel, you can use the arrows.

Random Press RND (random) to connect the random function. A randomly selected disc plays a randomly selected track. A new disc and track are then chosen the same way. "RND" is displayed as long as this function is activated.

NOTE: Use only 12 cm CD's! Do not use CD's of a smaller dimension!

pg. 172 Audio

Dolby Surround Pro Logic HU-803 (option)

Dolby Surround Pro Logic (HU-803 only) During CD playback, Dolby Surround Pro Logic, together with the speaker in the center of the dashboard, offers you very clear and realistic sound.

The Dolby unit divides the normal stereo channels from left - right to left - center - right. In addition, ambient surround sound is produced by the rear speakers. This ambient surround sound mirrors the resonance of a recording studio.

Most recordings today are made so that the vocalist/soloist is heard from the center foreground while the orchestra is heard over the entire left-right panorama as well as from behind. This enables the Dolby Surround Pro Logic system to provide a unique listening experience.

file:///K|/ownersdocs/2004/2004_S60/04s60_04b.htm (7 of 14)12/30/2006 4:30:10 PM

2004 Volvo S60

Dolby Surround Pro Logic To select Dolby Surround Pro Logic during CD playback, press "

PL". "Dolby Pro Logic" is

displayed. Press "OFF" to return to 2 channel stereo.

3 channel stereo To select 3 channel stereo press "3-CH". "3 ch" is displayed. Press "OFF" to return to 2 channel stereo. This will also activate the center speaker.

pg. 173 Audio

Center speaker volume Set the center speaker volume by pressing the button to extend the control and turning it to the left (quieter) or to the right (louder). A "detent" indicates "normal" volume. Press the button back after setting.

Effect channel volume Set the power output of the rear channels by pressing the button to extend the control, pulling it out as

file:///K|/ownersdocs/2004/2004_S60/04s60_04b.htm (8 of 14)12/30/2006 4:30:10 PM

2004 Volvo S60

far as possible and turning it left or right. A "detent" indicates "normal" power output.

Press the button back after setting (Dolby Surround Pro Logic only).

pg. 174 AUdio

Audio systems - specifications

HU-613/HU-803

Output: HU-613/HU-803 4 x 25 W

4 x 50 W plus 4 x 75 W depending on the speaker system

HU-803 optional center speaker

1 x 25 W

Impedance: 4 Ohm Voltage required: 12 V, negative ground

Radio

Frequency: AM 530 - 1710 kHz FM 87.7 - 107.9 MHz

Alarm (HU-803 only) "Alarm!" is displayed when an alarm message is sent. The function is used to warn the driver of a serious accident or disaster situation.

Dolby noise reduction is manufactured under license from Dolby Laboratories Licensing Corporation.

"Dolby", "Pro Logic" and the double-D symbol

are trademarks of Dolby Laboratories Licensing Corporation. The Dolby Pro Logic Surround System is manufactured under licence from Dolby Laboratories Licensing Corporation.

CAUTION: The optional supplementary amplifier (HU-803) may be mounted under the front passenger's seat. If the floor of the car has become soaked for any reason, do not turn on the radio. This would cause damage to

file:///K|/ownersdocs/2004/2004_S60/04s60_04b.htm (9 of 14)12/30/2006 4:30:10 PM

2004 Volvo S60

the amplifier. Contact a Volvo retailer.

pg. 175 Audio

Audio systems - general information

Cassettes

● Store cassettes in their cases.

● Do not touch the tape surface with your fingers.

● Tapes should not be exposed to direct sunlight or extreme temperatures.

● Keep tapes away from oil, grease and other contaminants.

● For optimal tape deck performance Volvo does not recommend the use of C-120 tapes.

● Take up slack using a pen or a pencil before inserting a cassette in the cassette slot.

Cassette cleaning We recommend the use of the Volvo Cleaning Cassette available as a genuine Volvo accessory. Regular use improves sound quality, cleans vital parts and prevents tape tangle.

Compact disc care

● Before using a new disc for the first time, remove any burrs in the center/outer edge by running the

stem of a pen or similar object around the hole/edge of the disc.

● Use CD standard EN 60908 discs only. Discs not meeting this standard may cause problems with

system (poor sound). CDR discs can cause listening problems due to the quality of the disc or recording equipment used.

● Keep the discs clean. Wipe them with a soft, clean, lint-free cloth, working from the center outwards.

If necessary, dampen the cloth with a neutral soap solution. Dry thoroughly before using.

● Never use cleaning spray or antistatic liquid. Use only cleaners specifically made for CD's.

● Use discs of the correct size only (3.5" discs should never be used).

● Do not put tape or labels on the disc itself.

● Volvo does not recommend the use of plastic outer rings on the disc.

● Condensation may occur on discs/optical components of the changer in cold winter weather. The disc

can be dried with a clean, lint-free cloth. Optical components in the CD changer may, however, take up to one hour to dry off.

● Never attempt to play a disc which is damaged in any way.

● When not in use, the discs should be stored in their covers. Avoid storing discs in excessive heat,

direct sunlight or dusty locations.

pg. 176 Audio

HomeLink® Universal Transceiver - T5 (option on 2.4/2.4T)

file:///K|/ownersdocs/2004/2004_S60/04s60_04b.htm (10 of 14)12/30/2006 4:30:10 PM

2004 Volvo S60

HomeLink® Universal Transceiver HomeLink® is an advanced system that can be programmed to learn the codes of three different remote controlled-devices (e.g., garage door openers, remote lighting, entry door lock). HomeLink® 's sun visormounted transceiver, powered by your car's electrical system, may then be used in place of your handheld remote controls.

NOTE: For your security, the HomeLink® Universal Transceiver is designed to not function if you lock your car from the outside.

Programming the transceiver

1. The ignition switch must be turned to the "accessory" position (II) before programming the HomeLink® Universal Transceiver.

2. Begin by erasing all 3 factory default channels. Hold down the two outside buttons (buttons 1 and 3 in the illustration) on the HomeLink® Universal Transceiver for about 20 seconds, until HomeLink®'s indicator light begins to flash. Then release the buttons.

3. Hold your hand-held transmitter (garage door opener, for example) 2 to 5 in. (5 to 12 cm) away from the HomeLink® surface, keeping the indicator light in view. For placement questions, contact HomeLink® toll-free 1-800-355-3515 (Internet:

www.HomeLink.com).

4. Using two hands, push and hold both your hand-held transmitter's button and the transceiver button you wish to program. The indicator light will flash.

5.Using two hands, push and hold both your hand-held transmitter's button and the transceiver button you wish to program. The indicator light will flash first slowly, then rapidly. Rapid flashing tells you the

file:///K|/ownersdocs/2004/2004_S60/04s60_04b.htm (11 of 14)12/30/2006 4:30:10 PM

2004 Volvo S60

HomeLink® button has been successfully programmed. Release both buttons.

6. If you are programming a rolling code-equipped device (e.g., garage door opener or entry door lock), refer to "Programming rolling codes" on the next page to complete the programming process.

Repeat steps 3 and 4 to program the other two transceiver buttons.

If, after several attempts, you are unable to successfully train the HomeLink® Universal Transceiver to learn your hand-held transmitter's signal, contact HomeLink® toll-free 1-800-355-3515 (Internet:

www.

HomeLink.com).

pg. 177 Audio

WARNING!

● If you use HomeLink® to open a garage door or gate, be sure no one is near the gate or door while

it is in motion.

● Do not use the HomeLink® Universal Transceiver with any garage door opener that lacks safety

"stop" and "reverse" features as required by federal safety standards. (This includes any garage door opener model manufactured before April 1, 1982) A garage door opener that cannot "detect" an object, signaling the door to "stop" and "reverse" does not meet current federal safety standards. Using a garage door opener without these features increases the risk of serious injury or death. For more information on this matter, call toll-free 1-800-355-3515

(Internet:

www.HomeLink.com ).

NOTE: Canadian residents: During programming, your hand-held transmitter may automatically stop transmitting. To successfully train HomeLink®, continue to hold the HomeLink® button. At the same time, repeatedly press and hold your hand-held transmitter's button at two-second intervals until HomeLink® has learned your transmitter's code. The HomeLink® indicator light will flash first slowly, and then rapidly to indicate that the button has been successfully programmed.

Determining if your garage door uses a rolling code Determine, in one of the following ways, if your garage door uses a rolling code system and is manufactured after 1996:

● Refer to the garage door opener owner's manual for verification.

● If your hand-held transmitter appears to program the HomeLink® Universal Transceiver but the

programmed button does not activate the garage door, your garage door opener may have a rolling code.

file:///K|/ownersdocs/2004/2004_S60/04s60_04b.htm (12 of 14)12/30/2006 4:30:10 PM

2004 Volvo S60

● Press the programmed HomeLink® button. If the garage door opener has the rolling code feature, the

HomeLink® indicator light flashes rapidly and then glows steadily after approximately 2 seconds.

To train a rolling code garage door opener, follow these instructions after programming the desired transceiver button according to "Programming the transceiver." The help of a second person may make training easier.

1. Locate the training button on the garage door opener motor head unit. The location and color of the training button may vary. If you encounter difficulty, refer to the garage door opener owner's manual or call toll-free 1-800-355-3515 (Internet:

www.HomeLink.com).

2. Press the "training" button on the garage door opener motor head unit until the "training" light comes on.

3. Press and release the programmed HomeLink® button. Press and release the programmed HomeLink® button a second time to complete the training process.

4. Some garage door openers may require you to do this procedure a third time to complete the training.

5. The programmed button on your HomeLink® Universal Transceiver should now operate your garage door opener. The original hand-held transmitter can also be used, as desired, to operate the garage door.

The remaining two HomeLink® buttons can be programmed in the same way. In the event of any problems in programming the HomeLink® Universal Transceiver, call toll-free 1-800-355-3515 (Internet:

www.HomeLink.com).

pg. 178 Audio

HomeLink® Universal Transceiver - T5 (option on 2.4/2.4T) (contd)

Operating the HomeLink® Universal Transceiver Once programmed, the HomeLink® Universal Transceiver can be used in place of your hand-held transmitters.

To operate, the key must be turned to the "accessory" position (II) or the engine must be running. Press the programmed HomeLink® button to activate the garage door, driveway gate, security lighting, home security system, etc.

Your original hand-held transmitters may, of course, be used at any time.

file:///K|/ownersdocs/2004/2004_S60/04s60_04b.htm (13 of 14)12/30/2006 4:30:10 PM

2004 Volvo S60

Erasing programmed buttons

Individual buttons cannot be erased. To erase all three programmed buttons:

1. Turn the ignition key to the "accessory" position (II).

2. Hold down the two outside buttons on the HomeLink® Universal Transceiver for about 20 seconds, until HomeLink® 's indicator light begins to flash.

3. Release both buttons.

The HomeLink® buttons can be reprogrammed using the procedures described on the previous page.

Reprogramming a single HomeLink® button

1. Press and hold the desired HomeLink® button. Do not release the button until step 3 has been completed.

2. When the indicator light begins to flash slowly (after approximately 20 seconds), position your handheld transmitter 2 to 5 in. (5 to 12 cm) away from the HomeLink® surface.

3. Press and hold the hand-held transmitter button. The HomeLink® indicator light will flash first slowly, then rapidly. When the indicator light flashes rapidly, release both buttons.

The previously programmed device has now been erased and the new device can be activated by pressing the HomeLink® button that has just been programmed. This procedure will not affect any other programmed HomeLink® buttons.

NOTE:

● Retain the original transmitter(s) for future programming procedures (e.g., if you purchase a new car).

● For your own security, erase all programmed buttons on the HomeLink® Universal Transceiver when

you sell your car.

● Metallic sun protection films should not be used on any windows in a car equipped with HomeLink®

Universal Transceiver. This could interfere with the transceiver's function.

Contents | Top of Page

file:///K|/ownersdocs/2004/2004_S60/04s60_04b.htm (14 of 14)12/30/2006 4:30:10 PM

2004 Volvo S60

2 0 0 4

VOLVO

S60

Interior

pg. 53 Interior

Front seats

Interior lighting

Floor mats

Storage compartments

Rear seat and trunk

Spare wheel, tools and jack

pg. 54 Interior

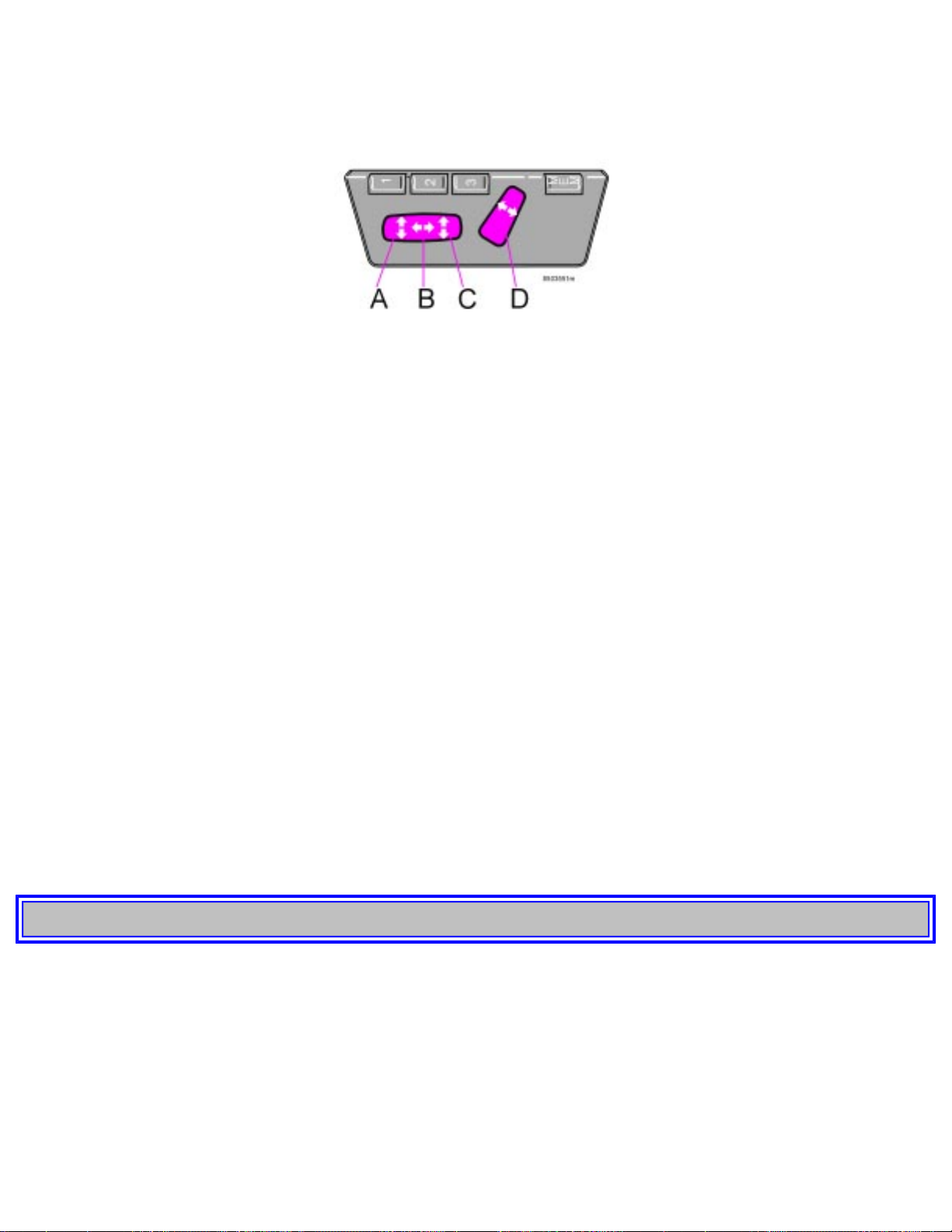

Front seats

Manual height adjustment - front seat The front edges of the driver and passenger seat cushions can be adjusted to seven different settings and the rear edges to nine different settings.

Lever (A) - adjusting the front edge of the seat.

Lever (B) - adjusting the rear edge of the seat.

Manual front-rear adjustment The seat can be moved forward or rearward by pulling up on the front-rear adjustment bar.

Check that the seat is securely locked into position after adjusting.

file:///K|/ownersdocs/2004/2004_S60/04s60_06a.htm (1 of 8)12/30/2006 4:30:10 PM

2004 Volvo S60

WARNING!

Do not adjust the seat while driving. The seat should be adjusted so that the brake pedal can be depressed fully. In addition, position the seat as far rearward as comfort and control allow.

pg. 55 Interior

Folding the backrests in the front seat The front passenger seat backrest can be folded to a horizontal position to make room for a long load. Fold the backrest as follows:

● Move the seat as far back as possible.

● Adjust the backrest to the upright position.

● Lift the catches on the rear of the backrest.

file:///K|/ownersdocs/2004/2004_S60/04s60_06a.htm (2 of 8)12/30/2006 4:30:10 PM

2004 Volvo S60

● Without releasing the catches, push the backrest forward.

● Move the seat as far forward as possible.

WARNING!

Cover sharp edges on the load to help prevent injury to occupants. Secure the load to help prevent shifting during sudden stops.

pg. 56 Interior

Front seats (Contd)

Power seat - (option on certain models) Operation Passenger seat: The seat can only be adjusted if the ignition key is in position I, II or if the engine is

running.

Driver's seat: The seat can be adjusted if the ignition key is in position I, II or if the engine is running. It can also be adjusted in the following circumstances:

1. Within 40 seconds of the ignition key being turned to position 0 or removed from the ignition switch.

2. After you have unlocked the driver's door with the key or remote control, the driver's seat can be adjusted during a 10 minute period if the door remains open. If the door is closed, the seat can be adjusted for 40 seconds. The ignition key can be in position 0 or not yet inserted in the ignition switch.

Remote keyless entry system and driver's seat The remote control transmitter also controls the electrically operated driver's seat in the following way:

● Adjust the seat to your preferences.

● When you leave your car, lock it using the remote control.

The next time you unlock the driver's door with the same remote control (the one you used to lock the doors with) and open the driver's door, the driver's seat will automatically move to the position in which you left it.

The seat will move to this position even if someone else has adjusted it since you last unlocked the car with the same remote control.

NOTE! This feature will work in the same way with all of the remote control transmitters (up to 3) that

file:///K|/ownersdocs/2004/2004_S60/04s60_06a.htm (3 of 8)12/30/2006 4:30:10 PM

2004 Volvo S60

you use with your car. This feature will not function if you lock your car with the key.

Power seat control panel

Seat adjustment If your Volvo is equipped with power seats, the following may be adjusted with the two switches at the side of the seat: A - Front edge of seat (raise/lower) B - Front-rear C - Rear edge of seat (raise/lower) D - Backrest tilt

NOTE! The power seats have an overload protector that activates if a seat is blocked by any object. If this occurs, switch off the ignition (key in position 0) and wait about 20 seconds before operating the seat again.

Please refer to the following page for information on programming the memory function in the driver's seat.

Emergency stop

If the seat accidentally begins to move, press one of the buttons to stop the seat.

pg. 57 Interior

file:///K|/ownersdocs/2004/2004_S60/04s60_06a.htm (4 of 8)12/30/2006 4:30:10 PM

2004 Volvo S60

WARNING!

Because the driver's seat can be adjusted with the ignition off, children should never be left unattended in the car.

Movement of the seat can be STOPPED at any time by pressing any button on the power seat control panel.

Do not adjust the seat while driving. The seat should be adjusted so that the brake pedal can be depressed fully. In addition, position the seat as far rearward as comfort and control allow.

The seat rails on the floor must not be obstructed in any way when the seat is in motion.

Programming the memory Please note that only the driver' s seat is equipped with the memory function. Three seat positions can be programmed. To program a seat position:

1. Adjust the seat to the desired position.

2. Hold down the MEM button.

3. While holding down the MEM button, press button 1 to program the current position of the seat. Buttons 2 and 3 can be programmed in the same way.

To move the seat to a programmed position, press and hold down button 1, 2 or 3 until the seat moves to the preset position and stops.

As a safety precaution, the seat will stop automatically if the button is released before the seat has reached the programmed position.

pg. 58 Interior

file:///K|/ownersdocs/2004/2004_S60/04s60_06a.htm (5 of 8)12/30/2006 4:30:10 PM

Volvo S60 2004 Owner Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

2004 Volvo S60

2004 Volvo S60

2004 Volvo S60

2004 Volvo S60

2004 Volvo S60

2004 Volvo S60

2004 Volvo S60

2004 Volvo S60

2004 Volvo S60
