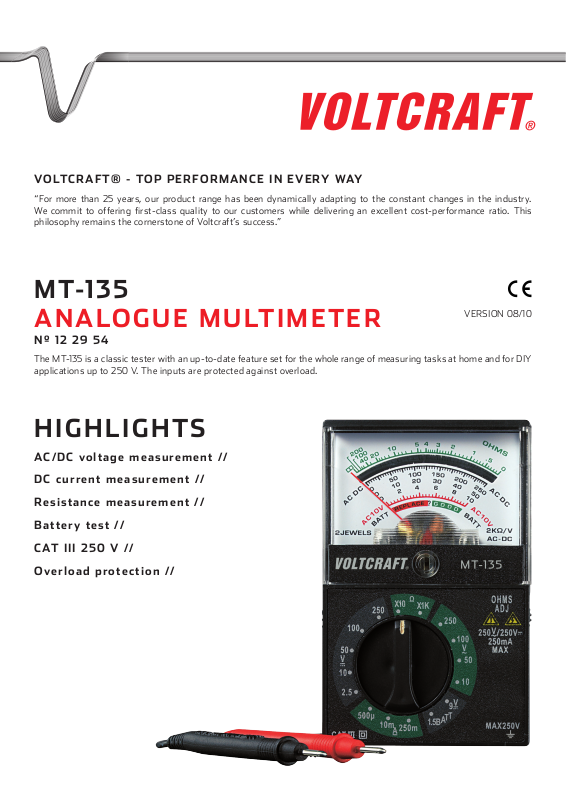

MT-135

VERSION 08/10

ANALOGUE MULTIMETER

Nº 12 29 54

The MT-135 is a classic tester with an up-to-date feature set for the whole range of measuring tasks at home and for DIY applications up to 250 V. The inputs are protected against overload.

HIGHLIGHTS

AC/DC voltage measurement //

DC current measurement //

Resistance measurement //

Battery test //

CAT III 250 V //

Overload protection //

TECHNICAL DATA

Meter: Moving coil instrument

Meter sensitivity: 185 μA

Maximum input current DC: 250 mA

Battery type: 1.5 V battery (type AA)

Fuse: 315 mA quick-acting, 250 V (F 315 mA / 250 V)

Weight: 120 g without test leads, battery incl.

Dimensions (W x H x D): approx. 64 x 35 x 100 mm

MEASUREMENT TOLERANCES

Statement of accuracy in ± %. The accuracy is valid for one (1) year at a temperature of +23 °C ± 5 °C, and at a relative humidity of less than 70 %, non-condensing (with the multimeter part).

Function Range Accuracy Input resistance

2.5 V

10 V

DC V

AC V

DC A

Ω (Ohm)

Battery test 1.5 V and 9 V batteries ---

50 V

100 V

250 V

10 V

50 V

100 V

250 V

500 µA

250 mA

x 10 Ω

2 kohm / V

± 5 %

F 315 mA / 250 V10 mA

---x 1 kΩ

PACKAGE CONTENT

Multimeter (with fixed test leads) // Battery // Operating instructions

This data sheet is published by Voltcraft®, Lindenweg 15, D-92242 Hirschau / Germany, Phone +49 180 586 582 7. The data sheet reflects the current technical specifications at time of print. We reserve the right to change the technical or physical specifications.
