VOLTCRAFT DSO-1000D Series User Guide

Download
Digital Storage Oscilloscope
DSO-1000D Series
USER MANUAL
Legal notice
These operating instructions are a publication by Voltcraft®, Lindenweg 15, D-92242 Hirschau/Germany, Phone +49 180/586 582 7 (www.voltcraft.de). All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. These operating instructions represent the technical status at the time of printing. Changes in technology and equipment reserved.
© Copyright 2012 by Voltcraft®.
TABLE OF CONTENTS
Table of Contents
SAFETY INSTRUCTIONS .................................................. 5
GETTING STARTED ........................................................ 10
DSO-1000D Series Overview ............................ 11
Appearance ...................................................... 14
Set Up .............................................................. 25
Built-in Help .................................................... 35
MEASUREMENT ............................................................ 36
Basic Measurement .......................................... 37
Automatic Measurement .................................. 44
Cursor Measurement ....................................... 58

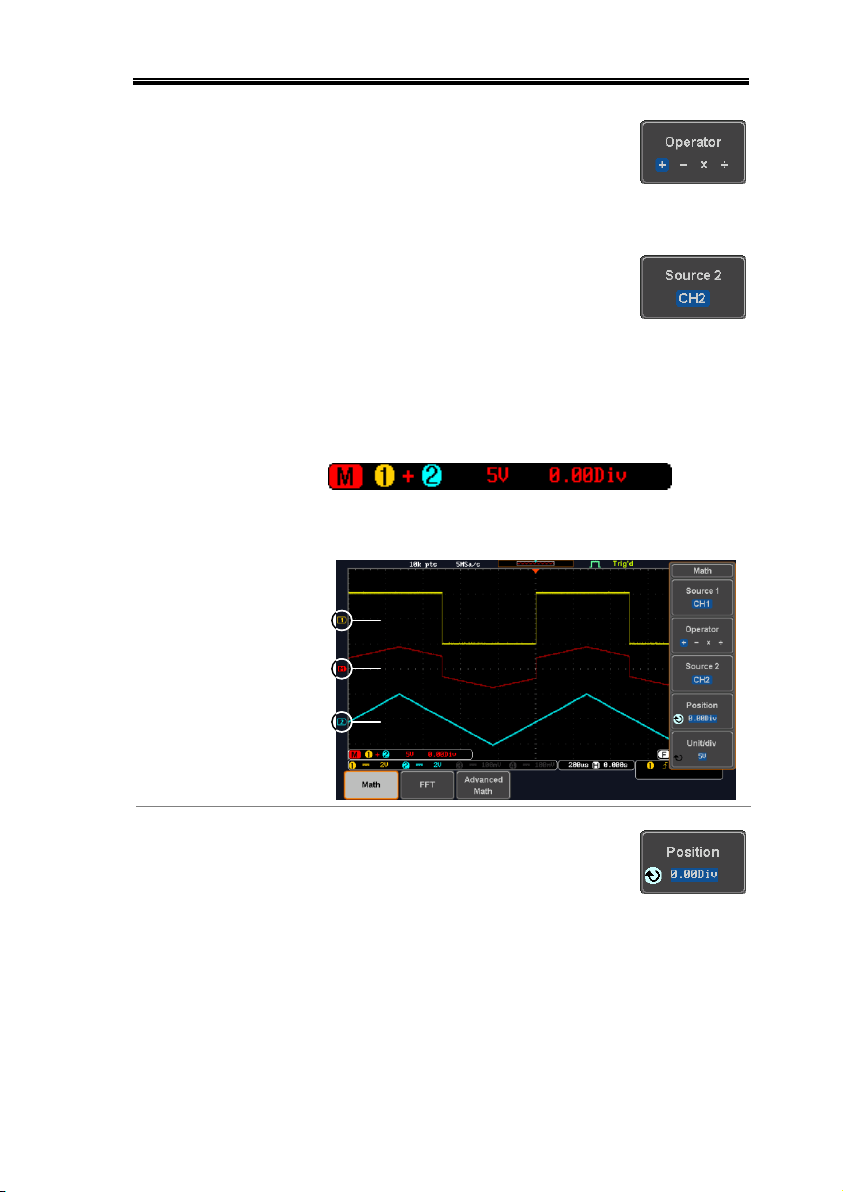

Math Operation ............................................... 66
CONFIGURATION .......................................................... 76

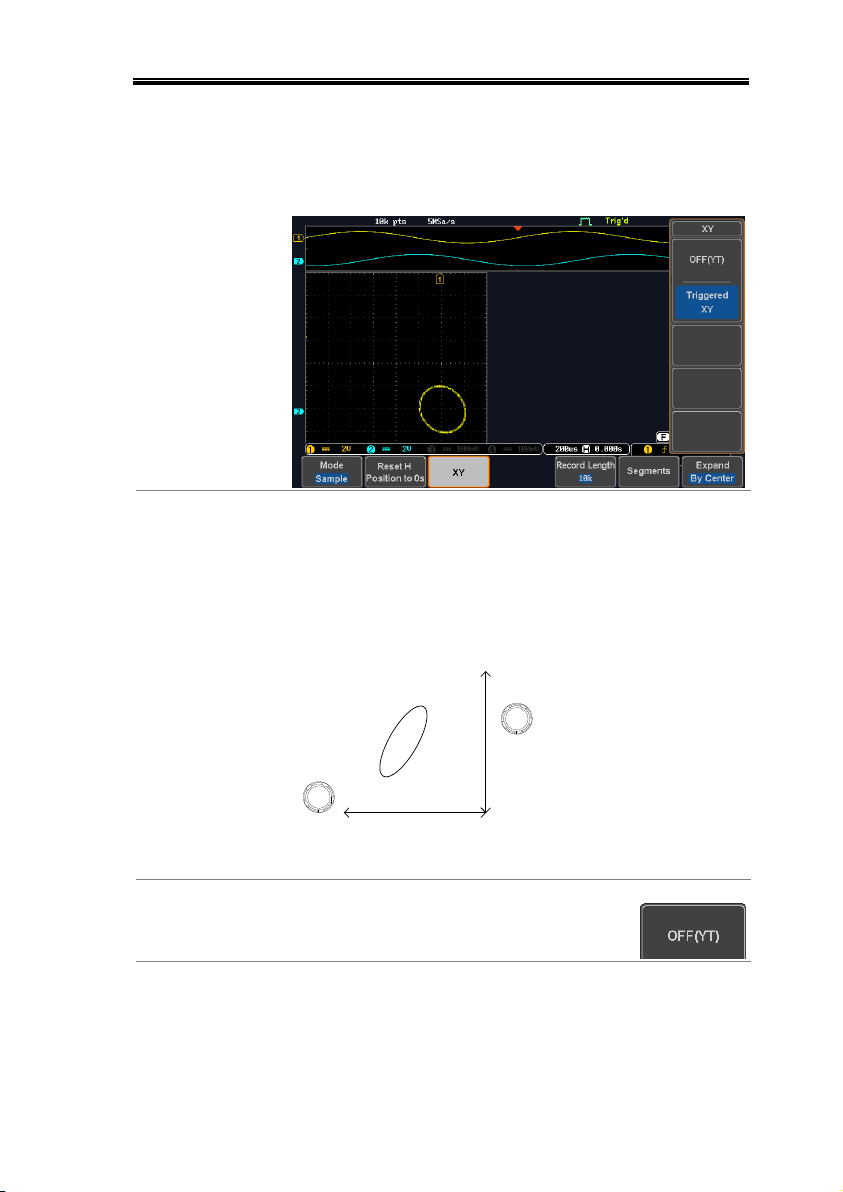

Acquisition ....................................................... 78
Display ............................................................. 83
Horizontal View ............................................... 89
Vertical View (Channel) .................................... 96
Trigger............................................................ 104
System Settings and Miscellaneous Settings .. 122
APPS ............................................................................ 125
Applications ................................................... 126
SAVE/RECALL ............................................................... 136
File Format/Utility .......................................... 137
Create/Edit Labels .......................................... 142
Save ............................................................... 145
Recall ............................................................. 153
Reference Waveforms ..................................... 159
3
DSO-1000D Series User Manual
FILE UTILITIES ............................................................. 161
HARDCOPY KEY ........................................................... 168
REMOTE CONTROL CONFIG ........................................ 172
Interface Configuration .................................. 173
MAINTENANCE ............................................................ 183
FAQ .............................................................................. 189
APPENDIX .................................................................... 191
Updating the Firmware ................................... 192
Installing Optional Apps ................................ 194
DSO-1000D Specifications ............................. 196
Probe Specifications ....................................... 200
DSO-1000D Dimensions ................................ 201
INDEX .......................................................................... 203
4
SAFETY INSTRUCTIONS
WARNING
Warning: Identifies conditions or practices that could result in injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that could result in damage to the DSO-1000D or to other properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal

SAFETY INSTRUCTIONS

This chapter contains important safety instructions that you must follow during operation and storage. Read the following before any operation to insure your safety and to keep the instrument in the best possible condition.

Safety Symbols

These safety symbols may appear in this manual or on the DSO­1000D.
5
DSO-1000D Series User Manual
Do not dispose electronic equipment as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased.
General Guideline
CAUTION
Make sure the BNC input voltage does not
exceed 300Vrms.
Never connect a hazardous live voltage to the
ground side of the BNC connectors. It might lead to fire and electric shock.
Do not place any heavy object on the DSO-
1000D.
Avoid severe impact or rough handling that
leads to damaging the DSO-1000D.
Do not discharge static electricity to the DSO-
1000D.
Use only mating connectors, not bare wires, for
the terminals.
Do not block the cooling fan opening. Do not perform measurement at a power source
or building installation site (Note below).
Do not disassemble the DSO-1000D unless you
are qualified.
(Measurement categories) EN 61010-1:2010 specifies the measurement categories and their requirements as follows. The DSO-1000D falls under category I.
Measurement category IV is for measurement performed at the
source of low-voltage installation.
Measurement category III is for measurement performed in the
building installation.
Measurement category II is for measurement performed on the
circuits directly connected to the low voltage installation.
Measurement category I is for measurements performed on
circuits not directly connected to Mains.

Safety Guidelines

6
SAFETY INSTRUCTIONS
Power Supply
WARNING
AC Input voltage: 100 - 240V AC, 50 - 60Hz,
auto selection. Power consumption: 30 Watts.
Connect the protective grounding conductor of
the AC power cord to an earth ground, to avoid electrical shock.
Cleaning the DSO-1000D
Disconnect the power cord before cleaning. Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid.
Do not use chemicals containing harsh materials
such as benzene, toluene, xylene, and acetone.
Operation Environment
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
Relative Humidity: ≤80%, 40°C or below; ≤45%,
41°C ~ 50°C
Altitude: < 2000m Temperature: 0°C to 50°C
(Pollution Degree) EN 61010-1:2010 specifies the pollution degrees and their requirements as follows. The DSO-1000D falls under degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or gaseous (ionized gases), that may produce a reduction of dielectric strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity caused by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-
conductive pollution occurs which becomes conductive due to condensation which is expected. In such conditions, equipment is normally protected against exposure to direct sunlight, precipitation, and full wind pressure, but neither temperature nor humidity is controlled.
7
DSO-1000D Series User Manual
Storage environment
Location: Indoor Temperature: -10ºC to 60ºC Humidity: Up to 93% RH (non-condensing) /
≤40ºC, up to 65% RH (non-condensing) / 41ºC ~ 60 ºC
Disposal
Do not dispose this instrument as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Please make sure discarded electrical waste is properly recycled to reduce environmental impact.
8
SAFETY INSTRUCTIONS
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)

Power cord for the United Kingdom

When using the oscilloscope in the United Kingdom, make sure the power cord meets the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in this lead are coloured in accordance with the following code:
As the colours of the wires in main leads may not correspond with the coloured marking identified in your plug/appliance, proceed as follows:
The wire which is coloured Green & Yellow must be connected to the Earth terminal marked with either the letter E, the earth symbol
or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the terminal marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment or contact the supplier.
This cable/appliance should be protected by a suitably rated and approved HBC mains fuse: refer to the rating information on the equipment and/or user instructions for details. As a guide, a cable of 0.75mm2 should be protected by a 3A or 5A fuse. Larger conductors would normally require 13A types, depending on the connection method used.
Any exposed wiring from a cable, plug or connection that is engaged in a live socket is extremely hazardous. If a cable or plug is deemed hazardous, turn off the mains power and remove the cable, any fuses and fuse assemblies. All hazardous wiring must be immediately destroyed and replaced in accordance to the above standard.
9
DSO-1000D Series User Manual
DSO-1000D Series Overview ............................ 11
Series lineup ............................................................................ 11
Main Features ......................................................................... 12
Accessories.............................................................................. 13
Appearance ...................................................... 14
DSO-1074D/1104D Front Panel ...................................... 14
Rear Panel ............................................................................... 21
Display ..................................................................................... 23
Set Up .............................................................. 25
Tilt Stand ................................................................................. 25
Power Up ................................................................................ 26
First Time Use........................................................................ 27
How to Use This Manual ..................................................... 30
Built-in Help .................................................... 35

GETTING STARTED

This chapter describes the DSO-1000D in a nutshell, including its main features and front / rear panel introduction. After going through the overview, follow the Set Up section to properly set up the oscilloscope for first time use. The Set Up section also includes a starter on how to use this manual effectively.
10
GETTING STARTED
Model name
Frequency bandwidth
Input channels
Max. Real-time Sampling Rate
DSO-1074D
70MHz
4
1GSa/s
DSO-1104D
100MHz
4
1GSa/s

DSO-1000D Series Overview

Series lineup

The DSO-1000D series consists of 2 models.
11
DSO-1000D Series User Manual
Features
7 inch, 800 x 480, WVGA TFT display. Available from 70MHz to 100MHz. Real-time sampling rate of 1GSa/s max. Deep memory: 10M points record length. Waveform capture rate of 50,000 waveforms per
second.
Vertical sensitivity: 1mV/div~10V/div. On-screen Help. 32 MB internal flash disk. Go-NoGo app. Remote Disk app
Interface
USB host port: front panel, for storage devices. USB device port: rear panel, for remote control
or printing (to PictBridge compatible printers).
Probe compensation output with selectable
output frequency (1kHz ~ 200kHz).
Ethernet port. Calibration output.

Main Features

12
GETTING STARTED
Standard Accessories
Part number
Description
N/A region dependent
Power cord
GTP-070B-4, for DSO-1074D
Passive probe; 70 MHz
GTP-100B-4, for DSO-1104D
Passive probe; 100 MHz
Optional Accessories
Part number
Description
GTC-001
Instrument cart, 470(W)x430(D)mm (U.S. type input socket)
GTC-002
Instrument cart, 330(W)x430(D)mm (U.S. type input socket)
GTL-110
Test lead, BNC to BNC heads
GTL-242
USB cable, USB2.0A-B type cable 4P
GTP-070B-4
Passive probe; 70 MHz
GTP-100B-4
Passive probe; 100 MHz
Standard Apps
Name
Description
Go-NoGo
Go-NoGo testing app.
Remote Disk
Allows the scope to mount a network share drive.
Drivers
USB driver
LabVIEW driver

Accessories

13
DSO-1000D Series User Manual
VARIABLE
POSITION
HORIZONTAL
POSITION
POSITION
POSITION
POSITION
VERTICAL
MATH
REF
BUS
SCALE
TRIGGER
LEVEL
PUSH TO
ZERO
SCALESCALESCALE
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO ZERO
SCALE
CH1 CH2 CH3 CH4
2V
CAT I
1MW16pF
300Vpk MAX.
Measure
Display
Cursor
Help
APP
Save/Recall
Acquire
Utility
Autoset
Run/Stop
Single
Default
Select
Search
Set/Clear
Zoom
CH1 CH2 CH3 CH4
M
R
B
Menu
50 %
Force-Trig
POWER
LCD
Variable knob and Select key
Autoset, Run/Stop, Single and Default settings
CH1~CH4
Trigger controls
Function keys
USB Host port, Probe Compensation terminals
Power button
Hardcopy key
Option key
Math, Reference and Bus keys
Bottom menu keys
Horizontal controls
Menu key
Vertical controls
Side menu keys
LCD Display
7” WVGA TFT color LCD. 800 x 480 resolution, wide angle view display.
Menu Off Key
Use the Menu Off key to hide the onscreen menu system.
Option Key
The Option key is used to access future installed options.

Appearance

DSO-1074D/1104D Front Panel

14
GETTING STARTED
Menu Keys
The side menu and bottom menu keys are used to make selections from the soft-menus on the LCD user interface.
To choose menu items, use the 7 Bottom menu keys located on the bottom of the display panel.
To select a variable or option from a menu, use the side menu keys on the side of the panel. See page 30 for details.
VARIABLE
POSITION
HORIZONTAL
POSITION
POSITION
POSITION
POSITION
VERTICAL
MATH
REF
BUS
SCALE
TRIGGER
LEVEL
PUSH TO
ZERO
SCALESCALESCALE
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
SCALE
Measure
Display
Cursor
Help
APP
Save/Recall
Acquire
Utility
Autoset
Run/Stop
Single
Default
Select
Search
Set/Clear
Zoom
CH1 CH2 CH3 CH4
M
R
B
Menu
50 %
Force-Trig
Digital Storage Oscilloscope
G D S - 1 1 0 4 B
100 MHz 1 GS/s
Visual Persistence Oscilloscope
Side menu keys
Bottom menu keys
Hardcopy Key
The Hardcopy key is a quick-save or quick-print key, depending on its configuration. For more information see pages 170(save) or 169(print).
Variable Knob and Select Key
Select
VARIABLE
The Variable knob is used to increase/decrease values or to move between parameters.
The Select key is used to make selections.
15
DSO-1000D Series User Manual
Function Keys
The Function keys are used to enter and configure different functions on the DSO-1000D.
Measure
Measure
Configures and runs automatic measurements.
Cursor
Cursor
Configures and runs cursor measurements.
APP
APP
Configures and runs applications.
Acquire
Acquire
Configures the acquisition mode.
Display
Display
Configures the display settings.
Help
Help
Shows the Help menu.
Save/Recall
Save/Recall
Used to save and recall waveforms, images, panel settings.
Utility
Utility
Configures the Hardcopy key, display time, language, probe compensation and calibration. It also accesses the file utilities menu.
Autoset
Autoset
Press the Autoset key to automatically set the trigger, horizontal scale and vertical scale.
Run/Stop Key
Run/Stop
Press to Freeze (Stop) or continue (Run) signal acquisition (page 40).
Single
Single
Sets the acquisition mode to single triggering mode.
16
GETTING STARTED
Default Setup
Default
Resets the oscilloscope to the default settings.
Horizontal Controls
The horizontal controls are used to change the position of the cursor, set the time base settings, zoom into the waveforms and search for events.

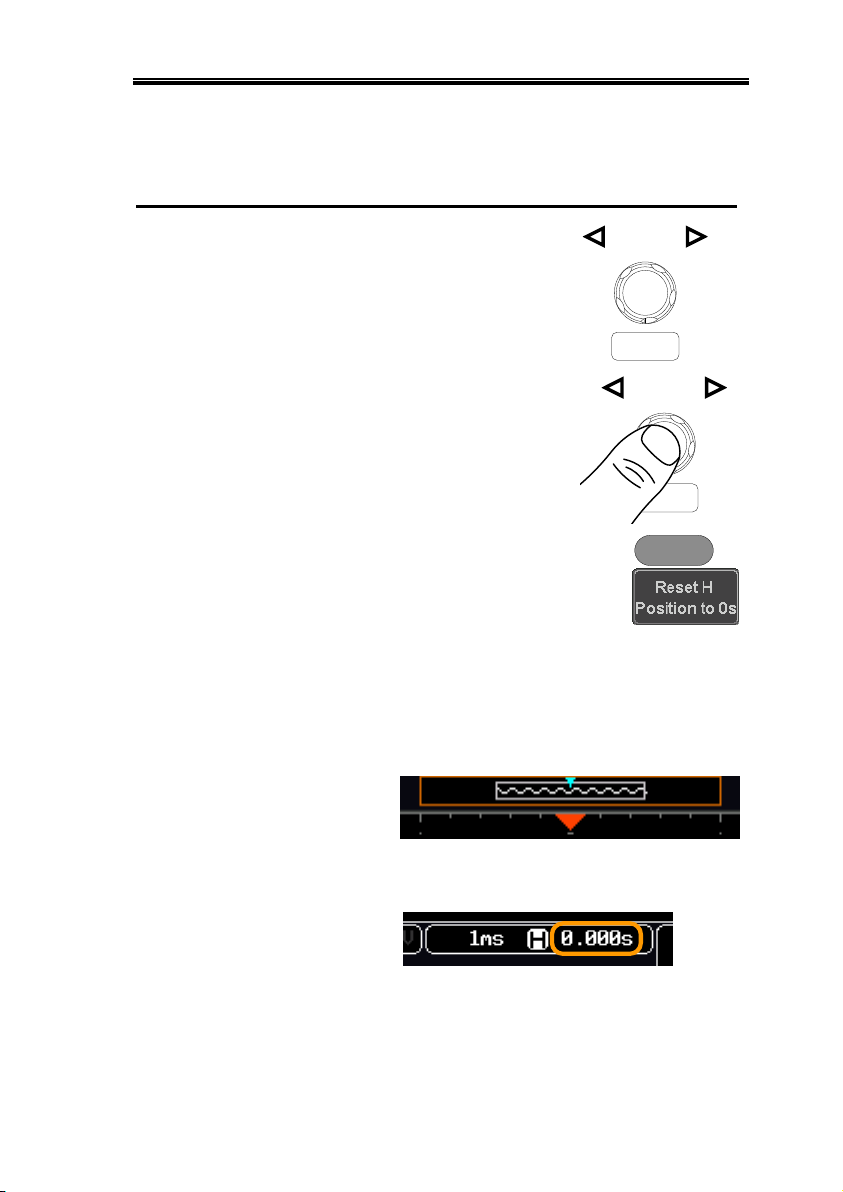

Horizontal Position
POSITION
PUSH TO
ZERO
The Position knob is used to position the waveforms horizontally on the display screen. Pressing the knob will reset the position to zero.
SCALE
SCALE
The Scale knob is used to change the horizontal scale (TIME/DIV).
Zoom
Zoom
Press Zoom in combination with the horizontal Position knob.
Play/Pause
The Play/Pause key allows you to play through a waveform in zoom mode.
Search
Search
Not available.
Search Arrows
Not available.
Set/Clear
Set/Clear
Not available.
17
DSO-1000D Series User Manual
Trigger Controls
The trigger controls are used to control the trigger level and options.
Level Knob
LEVEL
Used to set the trigger level. Pressing the knob will reset the level to zero.
Trigger Menu Key
Menu
Used to bring up the trigger menu.
50% Key
50 %
Sets the trigger level to the half way point (50%).
Force - Trig
Force-Trig
Press to force an immediate trigger of the waveform.
Vertical POSITION
POSITION
PUSH TO
ZERO
Sets the vertical position of the waveform. Push the knob to reset the vertical position to zero.
Channel Menu Key
CH1
Press the CH1~4 key to set and configure the channel.
(Vertical)SCALE Knob
SCALE
Sets the vertical scale of the channel (TIME/DIV).
External Trigger Input
EXT TRIG
Input impedance: 1MΩ Voltage input: ±15V(peak), EXT trigger capacitance:16pF.
18
GETTING STARTED
Math Key
MATH
M
Use the Math key to set and configure math functions.
Reference Key
REF
R
Press the Reference key to set or remove reference waveforms.
BUS Key
BUS
B
Not available.
Channel Inputs
CH1
Accepts input signals. Input impedance: 1MΩ. Capacitance: 16pF CAT I
USB Host Port
2V
TypeA, 1.1/2.0 compatible. Used for data transfer.
Ground Terminal
2V
Accepts the DUT ground lead for common ground.
Probe Compensation Outputs
2V
The probe compensation output is used for probe compensation. It also has an adjustable output frequency.
By default this port outputs a 2Vpp, square wave signal at 1kHz for probe compensation.
Please see page 124 for details.
19
DSO-1000D Series User Manual
Power Switch
POWER
Used to turn the power on/off.
: ON
: OFF
20
GETTING STARTED
LINE VOLTAGE
AC 100 240V
RANGE
FREQUENCY 50 60Hz
POWER MAX. 30 Watts
CAUTION
TO AVOID ELECTRIC SHOCK THE POWER CORD PROTECTIVE GROUNDING
DO NOT REMOVE COVERS. REFER SERVICING TO QUALIFIED PERSONNEL.
CONDUCTOR MUST BE CONNECTED TO GROUND.
Ser. No. Label
Calibration output
Key lock Power input socketFan
Go/No Go output
LAN portUSB Device port
Calibration Output
Outputs the signal for vertical scale accuracy calibration (page 184).
USB Device Port
The USB Device port is used for remote control.
LAN (Ethernet) Port
The LAN port is used for remote control over a network or when combined with the Remote Disk app, allows the scope to be mounted to a share disk.
Note: the LAN port is only available for the 4 channel models

Rear Panel

21
DSO-1000D Series User Manual
Power Input Socket
Power cord socket accepts AC mains, 100 ~ 240V, 50/60Hz.
For power up sequence, see page
26.
Security Slot
Kensington security slot compatible.
Go-No Go Output
Outputs Go-No Go test results (page 126) as a 500us pulse signal.
22
GETTING STARTED
Memory bar
Reference
waveform
Analog
Waveform
Bus
Channel status Horizontal status
Trigger
configuration
Waveform
frequency
Trigger position
Trigger status
Acquistion mode
Trigger level
Channel
Indicators
Memory length
and sample rate
Analog Waveforms
Shows the analog input signal waveforms.
Channel 1: Yellow
Channel 2: Blue
Channel 3: Pink
Channel 4: Green
Channel Indicators
The channel indicators show the zero volt level of the signal waveform for each activated channel. Any active channel is shown with a solid color.
Analog channel indicator
Reference waveform indicator
Math indicator
Trigger Position
Shows the position of the trigger.
Horizontal Status
Shows the horizontal scale and position.
Trigger Level
Shows the trigger level on the graticule.
Memory Bar

Display

23
DSO-1000D Series User Manual
The ratio and the position of the displayed waveform compared to the internal memory (page
89). The color of the active channel/bus is also shown as the color of the waveform within the memory bar.
Trigger Status
Trig’d
Triggered.
PrTrig
Pre-trigger.
Trig?
Not triggered, display not updated.
Stop
Trigger stopped. Also appears in Run/Stop (page 40).

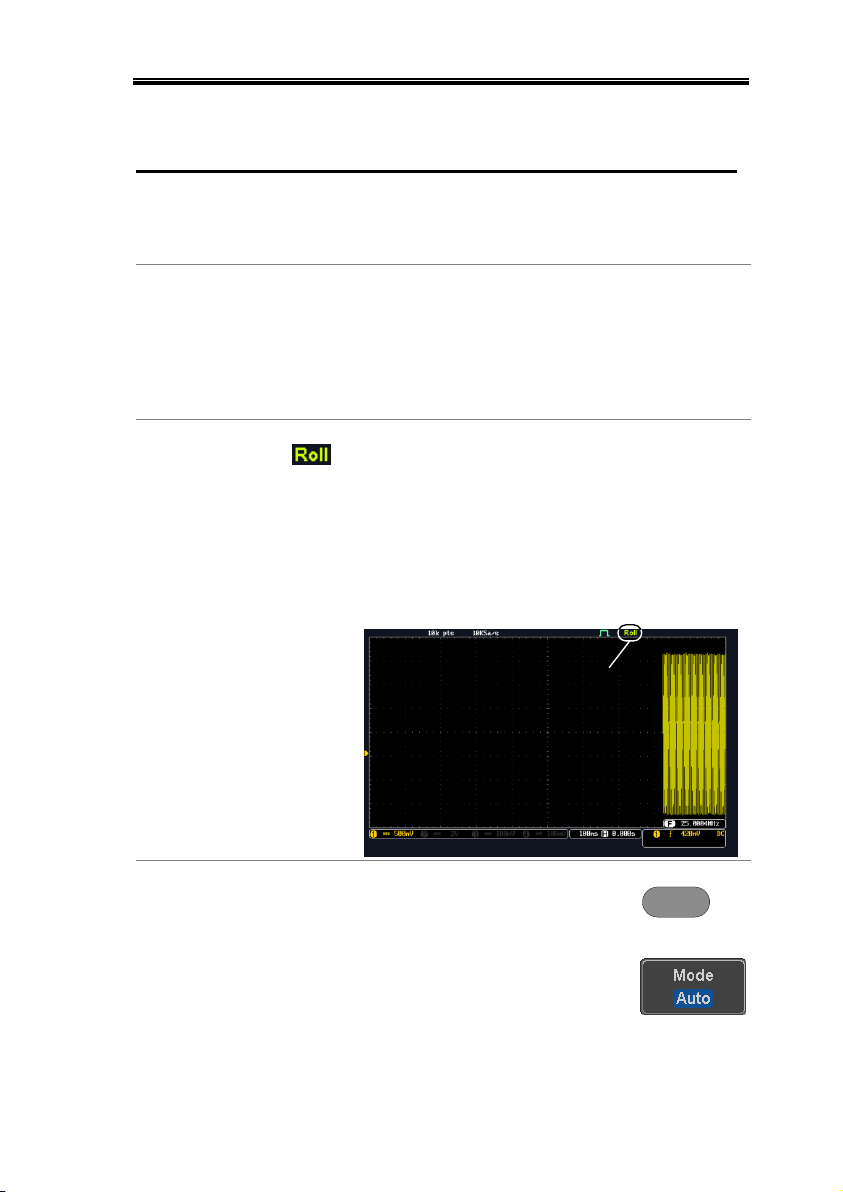

Roll
Roll mode.
Auto
Auto trigger mode.
For trigger details, see page 104.
Acquisition Mode
Normal mode
Peak detect mode
Average mode
For acquisition details, see page 78.
Signal Frequency
Shows the trigger source frequency.
Indicates the frequency is less than 2Hz (lower frequency limit).
Trigger Configuration
Trigger source, slope, voltage, coupling.
Horizontal Status
Horizontal scale, horizontal position.
For trigger details, see page 104.
Channel Status
Channel 1, DC coupling, 2V/Div.
For channel details, see page 96.
24
GETTING STARTED
Tilt
To tilt, pull the legs forward, as shown below.
Stand
To stand the scope upright, push the legs back under the casing as shown below.

Set Up

Tilt Stand

25
DSO-1000D Series User Manual
Requirements
The DSO-1000D accepts line voltages of 100 ~ 240V at 50 or 60Hz.
Step
1. Connect the power cord to
the rear panel socket.
2. Press the POWER key. The
display becomes active in ~ 30 seconds.
: ON
: OFF
POWER
Note
The DSO-1000D recovers the state right before the power is turned OFF. The default settings can be recovered by pressing the Default key on the front panel. For details, see page 154.

Power Up

26
GETTING STARTED
Background
This section describes how to connect a signal, adjust the scale, and compensate the probe. Before operating the DSO-1000D in a new environment, run these steps to make sure the instrument performs at its full potential.
1. Power On
Follow the procedures on the previous page.
2. Firmware
Update to the latest firmware.
Page 192
3. Reset System
Reset the system by recalling the factory settings. Press the Default key on the front panel. For details, see page 154.
Default
4. Connect Probe
Connect the probe to the Channel 1 input and to the probe compensation output. This output provides a 2Vp-p, 1kHz square wave for signal compensation by default.
Set the probe attenuation to x10 if the probe has adjustable attenuation.
VARIABLE
POSITION
HORIZONTAL
POSITION
POSITION
POSITION
POSITION
VERTICAL
MATH
REF
BUS
SCALE
TRIGGER
LEVEL
PUSH TO
ZERO
SCALESCALESCALE
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO ZERO
PUSH TO
ZERO
SCALE
CH1 CH2 CH3 CH4
2V
CAT I
1MW16pF 300Vpk MAX.
Measure
Display
Cursor
Help
APP
Save/Recall
Acquire
Utility
Autoset
Run/Stop
Single
Default
Select
Search
Set/Clear
Zoom
CH1 CH2 CH3 CH4
M
R
B
Menu
50 %
Force-Trig
POWER
x1
x10
X 10
X 1
CH1
2V

First Time Use

27
DSO-1000D Series User Manual
5. Capture Signal (Autoset)
Press the Autoset key. A square waveform appears on the center of the screen. For Autoset details, see page 38.
Autoset

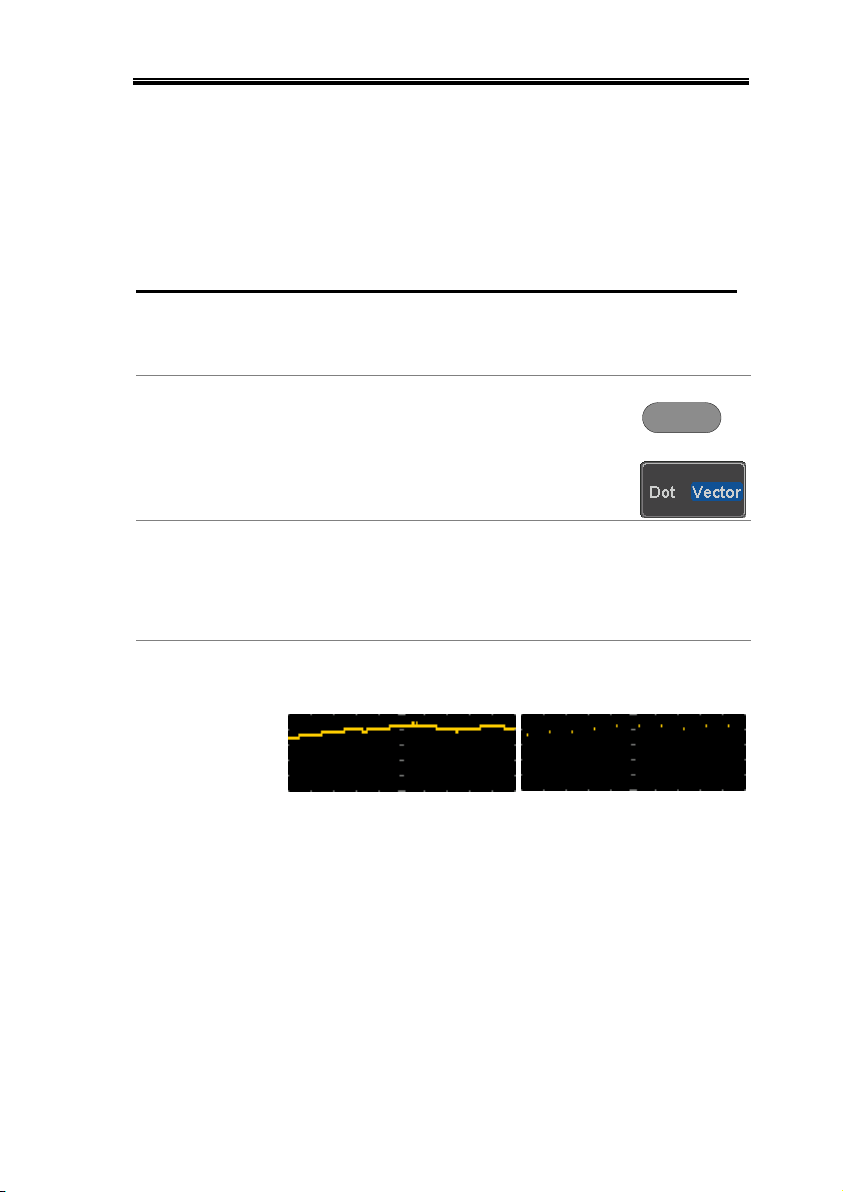

6. Select Vector Waveform
Press the Display key, and set the display to Vector on the bottom menu.
Display
7. Compensate Probe
Turn the adjustment point on the probe to make the square waveform edge flat.
Over
Compensation
Normal
Under
Compensation
28
GETTING STARTED
8. Start Operation
Continue with the other operations.
Measurement: page 36
Configuration: page 76
Save/Recall: page 136
File Utilities: page 161
Apps: page 125
Hardcopy key: page 168
Remote Control: page 172
Maintenance: page 183
29
DSO-1000D Series User Manual
Background
This section describes the conventions used in this manual to operate the DSO-1000D.
Throughout the manual any reference to pressing a menu key refers to the keys directly below or beside any menu icons or parameters.
When the user manual says to “toggle” a value or
parameter, press the corresponding menu item. Pressing the item will toggle the value or parameter.
Active parameters are highlighted for each menu item. For example in the example below, Coupling is currently set to DC.
If a menu item can be toggled from one value or parameter to another, the available options will be visible, with the current option highlighted. In the example below the slope can be toggled from a rising slope to a falling slope or either slope.
Menu item
Parameter
Menu item
Active
parameter
Optional
parameters
Menu item
Selecting a Menu Item, Parameter or Variable
When the user manual says to “select” a value from one of the side menu parameters, first press the corresponding menu key and use the Variable knob to either scroll through a parameter list or to increase or decrease a variable.

How to Use This Manual

30
GETTING STARTED
Example 1
1
2
3

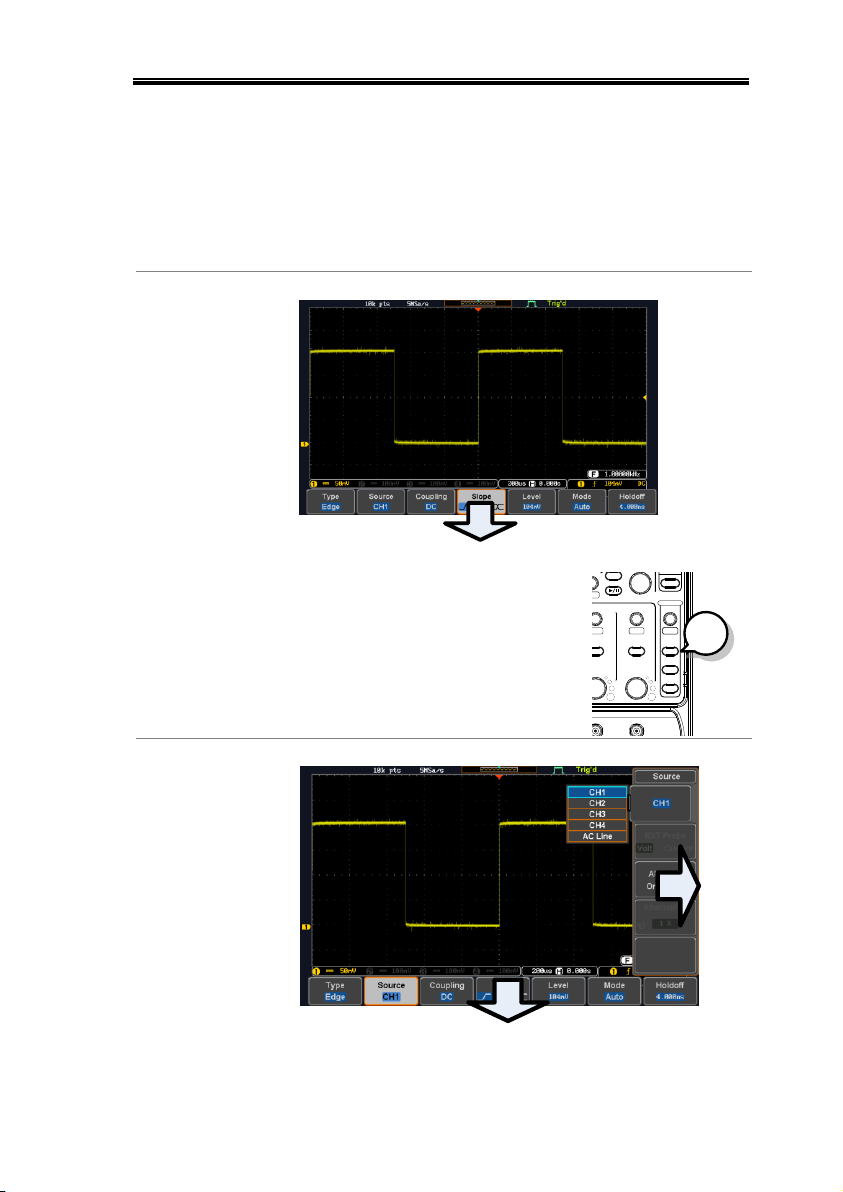

1. Press a bottom menu key to access
the side menu.
2. Press a side menu key to either set
a parameter or to access a sub menu.
3. If accessing a sub menu or setting
a variable parameter, use the Variable knob to scroll through menu items or variables. Use the Select key to confirm and exit.
Select
VARIABLE
4. Press the same bottom menu key
again to reduce the side menu.
Example 2
For some variables, a circular arrow icon indicates that the variable for that menu key can be edited with the Variable knob.
31
DSO-1000D Series User Manual
1
1. Press the desired menu key to select it. The
circular arrow will become highlighted.
2. Use the Variable knob to edit the value.
Toggling a Menu Parameter
1
1. Press the bottom menu key
to toggle the parameter.
Reduce Side Menu
1
32
GETTING STARTED

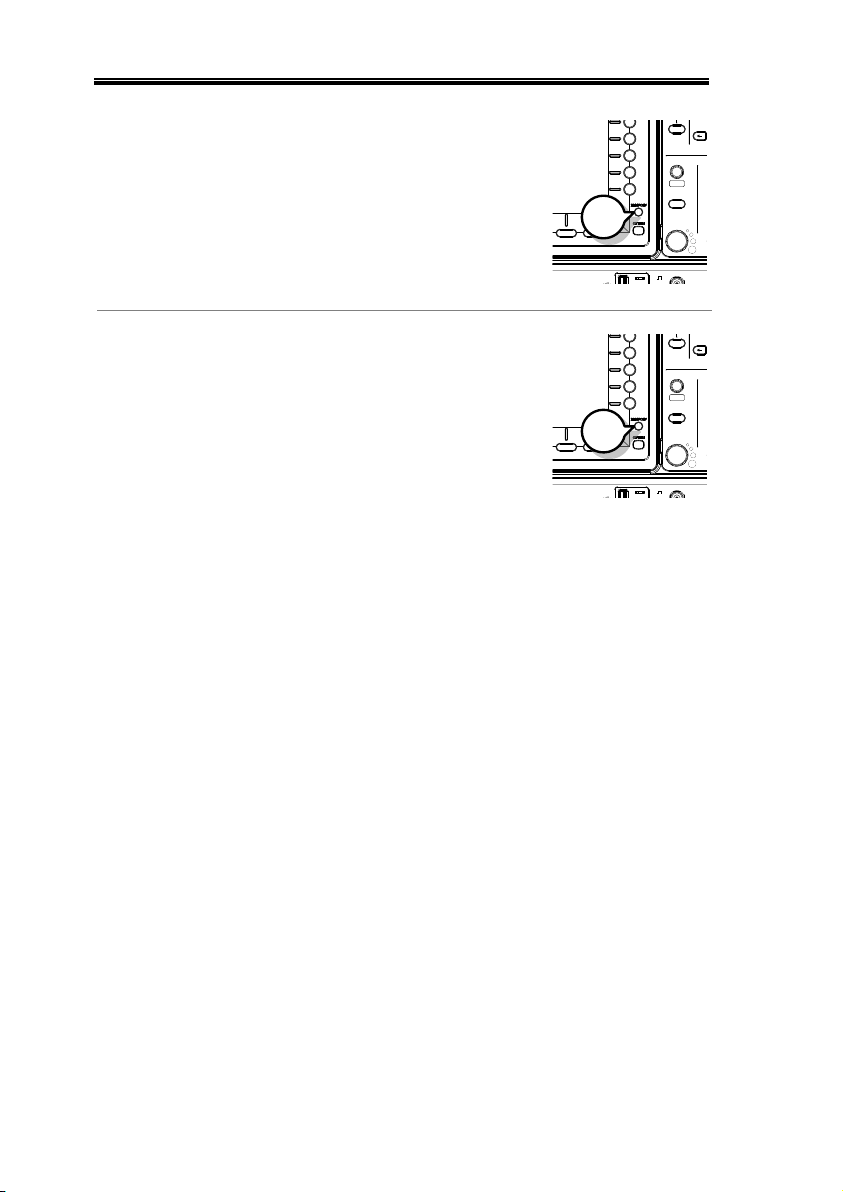

1. To reduce the side menu, press the
corresponding bottom menu that brought up the side menu originally.
For example: Press the Source soft-key to reduce the Source menu.
Reduce Lower Menu
1. Press the relevant function
key again to reduce the bottom menu. For example: press the Trigger Menu key to reduce the trigger menu.
POSITION
SCALE
TRIGGER
LEVEL
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
SCALE
APP
Save/Recall
Acquire
Utility
Autoset
Run/Stop
Single
Default
Zoom
Menu
50 %
Force-Trig
1
Remove All Menus
33
DSO-1000D Series User Manual
1. Press the Menu Off key to
reduce the side menu, press again to reduce the bottom menu.
VARIABLE
POSITION
HORIZONTAL
POSITION
POSITION
POSITION
POSITION
VERTICAL
MATH
REF
BUS
SCALE
TRIGGER
LEVEL
PUSH TO
ZERO
SCALESCALESCALE
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
SCALE
CH1 CH2 CH3 CH4
2V
Measure
Display
Cursor
Help
APP
Save/Recall
Acquire
Utility
Autoset
Run/Stop
Single
Default
Select
Search
Set/Clear
Zoom
CH1 CH2 CH3 CH4
M
R
B
Menu
50 %
Force-Trig
1
Remove On­Screen Messages
1. The Menu Off key can also be
used to remove any on screen messages.
VARIABLE
POSITION
HORIZONTAL
POSITION
POSITION
POSITION
POSITION
VERTICAL
MATH
REF
BUS
SCALE
TRIGGER
LEVEL
PUSH TO
ZERO
SCALESCALESCALE
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
SCALE
CH1 CH2 CH3 CH4
2V
Measure
Display
Cursor
Help
APP
Save/Recall
Acquire
Utility
Autoset
Run/Stop
Single
Default
Select
Search
Set/Clear
Zoom
CH1 CH2 CH3 CH4
M
R
B
Menu
50 %
Force-Trig
1
34
The Help key accesses a context sensitive help menu. The help menu contains information on how to use the front panel keys.
Panel Operation
1. Press the Help key. The
display changes to Help mode.
Help
2. Use the Variable knob to scroll up and down
through the Help contents. Press Select to view the help on the selected item.
Example: Help on the Display key
Home Key
Press the Home key to return to the main help screen.
Go Back
Press the Back key to go to the previous menu page.
Exit
Press the Help key again or press the Exit key to exit the Help mode.
Help

Built-in Help

35
DSO-1000D Series User Manual
Basic Measurement .......................................... 37
Channel Activation ................................................................ 37
Autoset .................................................................................... 38
Run/Stop ................................................................................ 40
Horizontal Position/Scale .................................................... 41
Vertical Position/Scale ......................................................... 43
Automatic Measurement .................................. 44
Measurement Items ............................................................... 44
Add Measurement ................................................................. 48
Remove Measurement .......................................................... 50
Gated mode ............................................................................ 51
Display All mode ................................................................... 52
High Low Function ............................................................... 53
Statistics ................................................................................... 54
Reference Levels .................................................................... 57
Cursor Measurement ........................................ 58
Use Horizontal Cursors ........................................................ 58
Use Vertical Cursors ............................................................. 62
Math Operation ................................................ 66
Basic Math Overview & Operators .................................... 66
Addition/Subtraction/Multiplication/Division .............. 66
FFT Overview & Window Functions................................ 68
FFT Operation ....................................................................... 69
Advanced Math Overview ................................................... 71
Advanced Math Operation .................................................. 72

MEASUREMENT

36
MEASUREMENT

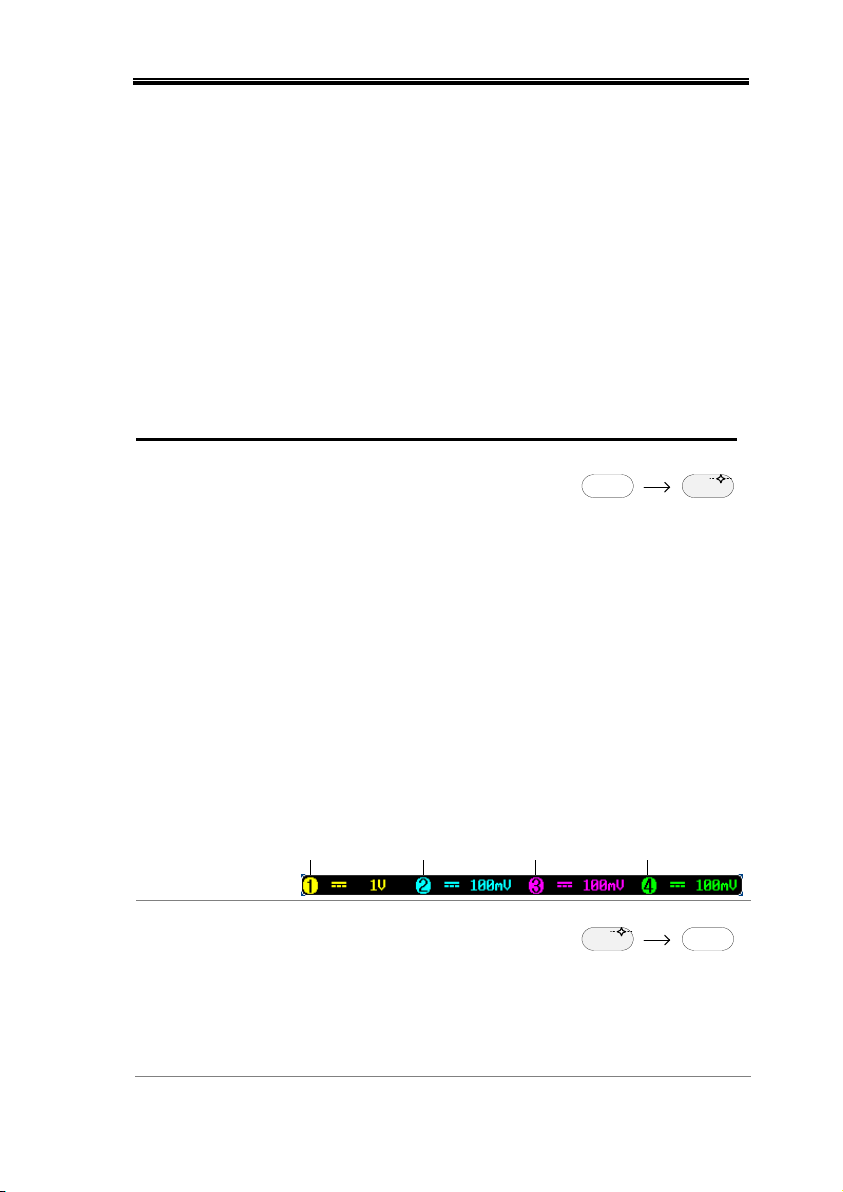

Activate Channel
To activate an input channel, press a channel key.
When activated, the channel key will light up. The corresponding channel menu will also appear.
CH1 CH1
Each channel is associated with the color shown beside each channel’s vertical SCALE dial: CH1: yellow, CH2: blue, CH3: pink and CH4: green.
When a channel is activated, it is shown above the bottom menu system.
CH1 CH3CH2 CH4
De-activate Channel
To de-activate a channel, press the corresponding channel key again. If the channel menu is not open, press the channel key twice (the first press shows the Channel menu).
CH1 CH1

Basic Measurement

This section describes the basic operations required in capturing and viewing the input signal. For more detailed operations, see the following chapters.
Cursor Measurement → from page 58 Configuration → from page 76
Before operating the oscilloscope, please see the Getting Started chapter, page 10.

Channel Activation

37
DSO-1000D Series User Manual
Default Setup
To activate the default state, press Default.
Default
Background
The Autoset function automatically configures the panel settings to position the input signal(s) to the best viewing condition. The DSO-1000D automatically configures the following parameters:
Horizontal scale Vertical scale Trigger source channel
There are two operating modes for the Autoset function: Fit Screen Mode and AC Priority Mode.
Fit Screen Mode will fit the waveform to the best scale, including any DC components (offset). AC priority mode will scale the waveform to the screen by removing any DC component.
Panel Operation
1. Connect the input signal to the
DSO-1000D and press the Autoset key.

Autoset

2. The waveform appears in the center of the
display.
Before
After
3. To undo Autoset, press Undo
Autoset from the bottom menu.
Autoset
38
MEASUREMENT

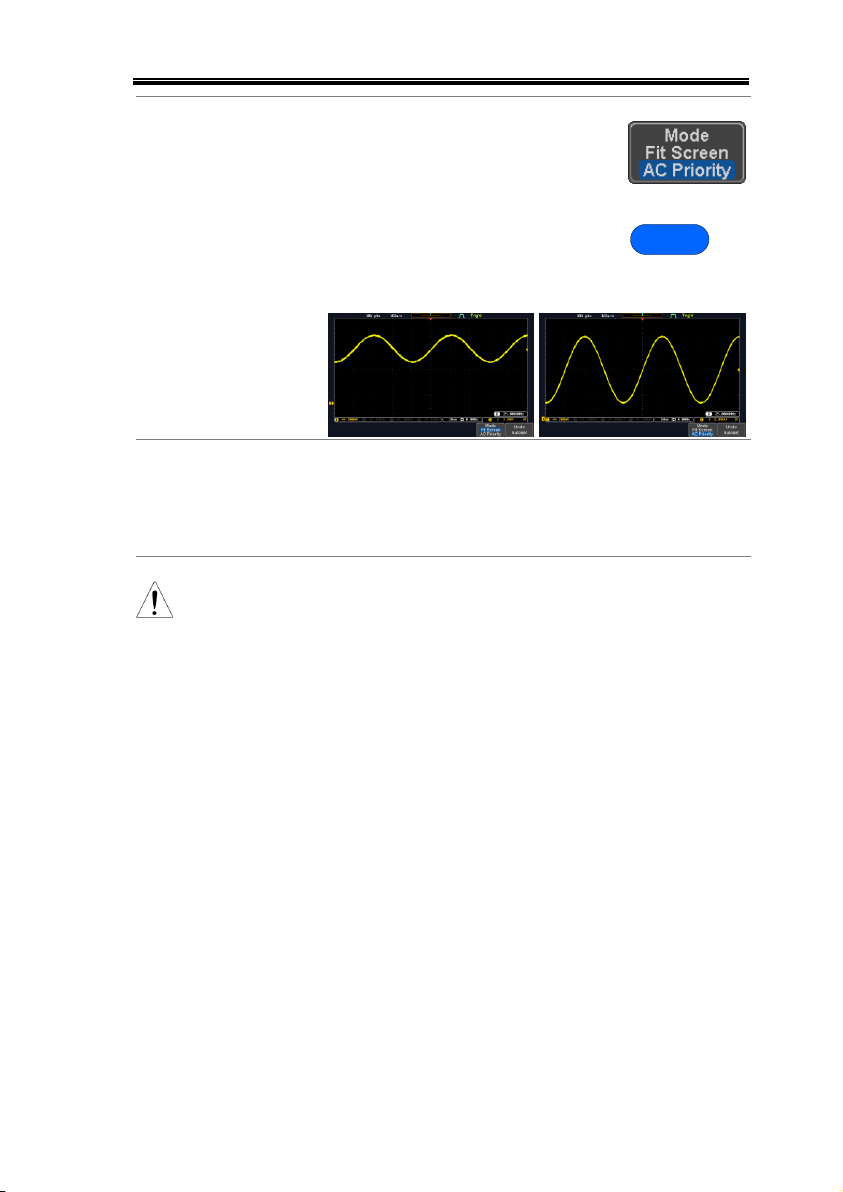

Change modes
1. Choose between Fit Screen Mode
and AC Priority Mode from the bottom menu.
2. Press the Autoset key again to use
Autoset in the new mode.
Autoset
Fit Screen Mode
AC Priority
Limitation
Autoset does not work in the following situations:
Input signal frequency is less than 20Hz Input signal amplitude is less than 10mV
Note
The Autoset key does NOT automatically activate the channels to which input signals are connected.
39
DSO-1000D Series User Manual
Background
By default, the waveform on the display is constantly updated (Run mode). Freezing the waveform by stopping signal acquisition (Stop mode) allows flexible observation and analysis. To enter Stop mode, two methods are available: pressing the Run/Stop key or using the Single Trigger mode.
Stop mode icon
When in Stop mode, the Stop icon appears at the top of the display.
Triggered icon
Freeze Waveform using the Run/Stop Key
Press the Run/Stop key once. The Run/Stop key turns red. The waveform and signal acquisition freezes.
Stop:
Run/Stop Run/Stop
To unfreeze, press the Run/Stop key again. The Run/Stop key turns green again.
Run:
Run/Stop Run/Stop
Freeze Waveform by Single Trigger Mode
Press the Single key to go into the Single Trigger mode. The Single key turns bright white.
In the Single Trigger mode, the scope will be put into the pre­trigger mode until the scope encounters the next trigger point. After the scope has triggered, it will remain in Stop mode, until the Single key is pressed again or the Run/Stop key is pressed.
SingleSingle
Waveform Operation
The waveform can be moved or scaled in both Run and Stop mode, but in different manners. For details, see page 89 (Horizontal position/scale) and page 96 (Vertical position/scale).

Run/Stop

40
MEASUREMENT
Set Horizontal Position
The horizontal position knob moves the waveform left and right.
POSITION
PUSH TO
ZERO
Set Horizontal Position to 0
Pressing the horizontal position knob will reset the horizontal position to 0.
POSITION
PUSH TO
ZERO
Alternatively, pressing the Acquire key and then pressing Reset H Position to 0s from the bottom menu will also reset the horizontal position.
Acquire
As the waveform moves, the display bar on the top of the display indicates the portion of the waveform currently shown on the display and the position of the horizontal marker on the waveform.
Position Indicator
The horizontal position is shown at the bottom of the display grid to the right of the H icon.

Horizontal Position/Scale

For more detailed configuration, see page 89.
41
DSO-1000D Series User Manual
Select Horizontal Scale
To select the timebase, turn the horizontal SCALE knob; left (slow) or right (fast).
SCALE
Range
5ns/div ~ 100s/div, 1-2-5 increments
The scale is displayed to the left of the H icon at the bottom of the screen.
Display bar
The display bar indicates how much of the waveform is displayed on the screen at any given time. Changes to timebase will be reflected on the display bar. The display bar is not shown in rolling acquisition mode.
Fast
Medium
Slow
Stop mode
In the Stop mode, the waveform size changes according to the scale.
Note
The Sample rate changes according to the timebase and record length. See page 82.
42
MEASUREMENT
Set Vertical Position
To move the waveform up or down, turn the vertical position knob for each channel.
POSITION
PUSH TO
ZERO
Push the vertical position knob to reset the position to 0.
As the waveform moves, the vertical position of the cursor appears on the display.
POSITION
PUSH TO
ZERO
Run/Stop mode
The waveform can be moved vertically in both Run and Stop mode.
Select Vertical Scale
To change the vertical scale, turn the vertical SCALE knob; left (down) or right (up).
SCALE
Range
1mV/div ~ 10V/div
1-2-5 increments
The vertical scale indicator for each channel on the bottom of the display changes accordingly.

Vertical Position/Scale

For more detailed configuration, see page 96.
43
DSO-1000D Series User Manual
V/I Measurements
Time Meas.
Delay Meas.
Overview
FPREShoot
RPREShoot
FOVShoot
ROVShoot
Cycle Area
Area
Cycle RMS
RMS
Cycle Mean
Mean
Low
High
Amplitude
Min
Max
Pk-Pk
Frequency
Dutycycle
-Width
+Width
FallTime
RiseTime
Period
-Edges
+Edges
-Pulses
+Pulses
FRR
FRF
FFR
Phase
LFF
LFR
LRF
LRR
FFF
Voltage/Current Measurement
Pk-Pk
(peak to peak)
Difference between positive and negative peak. (=max − min)
Max
Positive peak.
Min
Negative peak.

Automatic Measurement

The automatic measurement function measures and updates major items for Voltage/Current, Time, and Delay type measurements.

Measurement Items

44
MEASUREMENT
Amplitude
Difference between the global high value and the global low value, measured over the entire waveform or gated region. (=high − low)
High
Global high voltage. See page 53 for details.
Low
Global low voltage. See page 53 for details.
Mean
The arithmetic mean value is calculated for all data samples as specified by the Gating option.
Cycle Mean
The arithmetic mean value is calculated for all data samples within the first cycle found in the gated region.
RMS
The root mean square of all data samples specified by the Gating option.
Cycle RMS
The root mean square value is calculated for all data samples within the first cycle found in the gated region.
Area
Measures the positive area of the waveform and subtracts it from the negative area. The ground level determines the division between positive and negative areas.
Cycle Area
The Summation based on all data samples within the first cycle found in the gated region.
ROVShoot
Rise overshoot
45
DSO-1000D Series User Manual
FOVShoot
Fall overshoot
RPREShoot
Rise preshoot
FPREShoot
Fall preshoot
Time Measurement
Frequency
Frequency of the waveform.
Period
Waveform cycle time. (=1/Freq)
RiseTime
The time required for the leading edge of the first pulse to rise from the low reference value to the high reference value.
FallTime
The time required for the falling edge of the first pulse to fall from the high reference value to the low reference value.
+Width
Positive pulse width.
–Width
Negative pulse width.
Duty Cycle
Ratio of signal pulse compared with whole cycle. =100x (Pulse Width/Cycle)
+Pulses
Measures the number of positive pulses.
-Pulses
Measures the number of negative pulses.
+Edges
Measures the number of positive edges.
46
MEASUREMENT
-Edges
Measures the number of negative edges.
Delay Measurement
FRR
Time between:
Source 1 first rising edge and Source 2 first rising edge.
FRF
Time between: Source 1 first rising edge and Source 2 first falling edge.
FFR
Time between: Source 1 first falling edge and Source 2 first rising edge.
FFF
Time between: Source 1 first falling edge and Source 2 first falling edge.
LRR
Time between: Source 1 first rising edge and Source 2 last rising edge.
LFR
Time between: Source 1 first rising edge and Source 2 last falling edge.
LRF
Time between: Source 1 first falling edge and Source 2 last rising edge.
LFF
Time between: Source 1 first falling edge and Source 2 last falling edge.
Phase
The phase difference of two signals, calculated in degrees.
360x
t2
t1
47
DSO-1000D Series User Manual
Note
The in-built help system can be used to see detailed automatic measurement definitions.
Add Measurement Item
1. Press the Measure key.
Measure
2. Press Add Measurement from the
bottom menu.
3. Choose either a V/I, Time or Delay
measurement from the side menu and choose the type of measurement you wish to add.
V/I (Voltage/ Current)
Pk-Pk, Max, Min, Amplitude, High, Low, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, ROVShoot, FOVShoot, RPREShoot, FPREShoot
Time
Frequency, Period, RiseTime, FallTime, +Width, –Width, Duty Cycle, +Pulses, -Pulses, +Edges, ­Edges
Delay
FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Phase

Add Measurement

The Add Measurement function allows you to add up to eight automatic measurement items on the bottom of the screen from any channel source.
48
MEASUREMENT
4. All of the chosen automatic measurements will
be displayed in a window on the bottom of the screen. The channel number and channel color indicate the measurement source. For the analog inputs: yellow = CH1, blue = CH2, pink = CH3, green = CH4.
Choose a Source
The channel source for measurement items can be set either before or when selecting a measurement item.
1. To set the source, press either the
Source1 or Source2 key from the side menu and choose the source. Source 2 is only applicable for delay measurements.
Range
CH1~ CH4, Math
49
DSO-1000D Series User Manual
Remove Measurement Item
1. Press the Measure key.
Measure
2. Press Remove Measurement from the
bottom menu.
3. Press Select Measurement and select
the item that you want to remove from the measurement list.
Remove All Items
Press Remove All to remove all the measurement items.

Remove Measurement

Individual measurements can be removed at any time using the Remove Measurement function.
50
MEASUREMENT
Set Gating Mode
1. Press the Measure key.
Measure
2. Press Gating from the bottom
menu.
3. Choose one of the gating modes
from the side menu: Off (full record), Screen, Between Cursors.
Cursors On Screen
If Between Cursors is selected, the cursor positions can be edited by using the cursor menu.
Page 58

Gated mode

Some automatic measurements can be limited to a “gated” area between cursors. Gating is useful for measuring a magnified waveform or when using a fast time base. The gated mode has three possible configurations: Off (Full Record), Screen and Between Cursors.
51
DSO-1000D Series User Manual
View Measurement Results
1. Press the Measure key.
Measure
2. Press Display All from the bottom
menu.
3. Press Source from the side menu
and choose a measurement source.
Range
CH1~CH4, Math
4. The results of Voltage and Time type
measurements appear on the display.
Remove Measurements
To remove the measurement results, press OFF.
Delay Measurements
Delay type measurements are not available in this mode as only one channel is used as the source. Use the individual measurement mode (page 48) instead.

Display All mode

Display All mode shows and updates all items from Voltage and Time type measurements.
52
MEASUREMENT
Background
The High-Low function is used to select the method for determining the value of the High-Low measurement values.
Auto
Automatically chooses the best high-low setting for each waveform when measuring.
Histogram
Uses histograms to determine the high-low values. This mode ignores any preshoot and overshoot values. This mode is particularly useful for pulse-type waveforms
low
high
Min-max
Sets the high-low values as the minimum or maximum measured values.
low
high
Set High-Low
1. Press the Measure key.
Measure
2. Press High-Low from the bottom
menu.

High Low Function

53
DSO-1000D Series User Manual
3. Select the type of High-Low settings from the
side menu.
High-Low Settings:
Histogram, Min-Max, Auto
Restore Default High-Low Settings
To return to the default High-Low settings, press Set to Defaults.
Background
The Statistics function can be used to view a number of statistics for the selected automatic measurements. The following information is displayed with the Statistics function:
Value
Currently measured value
Mean
The mean value is calculated from a number of automatic measurement results. The number of samples used to determine the mean can be user-defined.
Min
The minimum value observed from a series of measured results for the selected automatic measurement items.

Statistics

54
MEASUREMENT
Max
The maximum value observed from a series of measured results for the selected automatic measurement items.
Standard Deviation
The variance of the currently measured value from the mean. The standard deviation equals the squared root of the variance value. Measuring the standard deviation can, for example, determine the severity of jitter in a signal. The number of samples used to determine the standard deviation can be user-defined.
Panel Operation
1. Press the Measure key.
Measure
2. Select at least one automatic
measurement.
Page 48
3. Press Statistics from the bottom
menu.
4. Set the number of samples to be
used in the mean and standard deviation calculations.
Samples:
2~1000
5. Press Statistics and turn Statistics
on.
6. The statistics for each automatic measurement
will appear at the bottom of the display in a table.
55
DSO-1000D Series User Manual
Reset Statistics
To reset the standard deviation calculations, press Reset Statistics.
56
MEASUREMENT
Background
The reference level settings determine the measurement threshold levels for some measurements like the Rise Time measurement.
High Ref: Sets the high reference level.
Mid Ref: Sets the middle reference for the first and second waveforms.
Low Ref: Sets the low reference level.
Panel Operation
1. Press the Measure key.
Measure
2. Press Reference Levels from the
bottom menu.
3. Set the reference levels from the side menu.
Ensure the reference levels do not cross over.
High Ref
0.0% ~ 100%
Mid Ref
0.0% ~ 100%
0.0% ~ 100%
Low Ref
0.0% ~ 100%
Default Settings
4. Press Set to Defaults to set the
reference levels back to the default settings.

Reference Levels

57
DSO-1000D Series User Manual
Panel Operation
1. Press the Cursor key once.
Cursor
2. Press H Cursor from the bottom
menu if it is not already selected.
3. When the H Cursor is selected,
repeatedly pressing the H Cursor key or the Select key will toggle which cursors are selected.
OR
Select
Range
Description
Left cursor ( ) movable, right cursor position fixed
Right cursor ( ) movable, left cursor position fixed
Left and right cursor ( + ) movable together

Cursor Measurement

Horizontal or vertical cursors are used to show the position and values of waveform measurements and math operation results. These results cover voltage, time, frequency and other math operations. When the cursors (horizontal, vertical or both) are activated, they will be shown on the main display unless turned off.

Use Horizontal Cursors

58
MEASUREMENT
4. The cursor position
information appears on the top left hand side of the screen
Cursor
Hor. position, Voltage/Current
Cursor
Hor. position, Voltage/Current
Delta (difference between cursors)
dV/dt or dI/dt
5. Use the Variable knob to move the
movable cursor(s) left or right.
VARIABLE
Select Units
6. To change the units of the
horizontal position, press H Unit.
Units
S, Hz, %(ratio), ˚(phase)
Phase or Ratio Reference
7. To set the 0% and 100% ratio or the
0˚ and 360˚ phase references for the current cursor positions, press Set
Cursor Positions As 100%.
Example
Horizontal
cursors
59
DSO-1000D Series User Manual
FFT
FFT cursors can use different units. For FFT details, see page
68.
Cursor
Hor. position, dB/Voltage
Cursor
Hor. position, dB/Voltage
Delta (difference between cursors)
dV/dt or d/dt
Example
Horizontal
cursors
XY Mode
XY mode cursors measure a number of X by Y measurements.
Cursor
Time, rectangular, polar co­ordinates, product, ratio.
Cursor
Time, rectangular, polar co­ordinates, product, ratio.
Delta (difference between cursors)
60
MEASUREMENT
Example
Horizontal
cursors
61
DSO-1000D Series User Manual
Panel Operation/ Range
1. Press the Cursor key twice.
Cursor
x2
2. Press V Cursor from the bottom
menu if it is not already selected.
3. When the V Cursor is selected,
repeatedly pressing the V Cursor key or the Select key will toggle which vertical cursor is selected.
OR
Select
Range
Upper cursor movable, lower cursor position fixed
Lower cursor movable, upper cursor position fixed
Upper and lower cursor movable together
4. The cursor position
information appears on the top left hand side of the screen.
,
Time: cursor 1, cursor 2
,
Voltage/Current: cursor1, cursor2
Delta (difference between cursors)
dV/dt or dI/dt
5. Use the Variable knob to move the
cursor(s) up or down.
VARIABLE

Use Vertical Cursors

62
MEASUREMENT
Select Units
6. To change the units of the vertical
position, press V Unit.
Units
Base (source wave units), % (ratio)
Base or Ratio Reference
7. To set the 0% and 100% ratio
references for the current vertical cursor position, press Set Cursor Positions As 100%.
Example
Horizontal
cursors
Vertical cursors
FFT
FFT has different content. For FFT details, see page 68.
,
Frequency/Time: cursor1, cursor2
,
dB/V: cursor1, cursor2
Delta (difference between cursors)
d/dt
63
DSO-1000D Series User Manual
Example
Horizontal
cursors
Vertical cursors

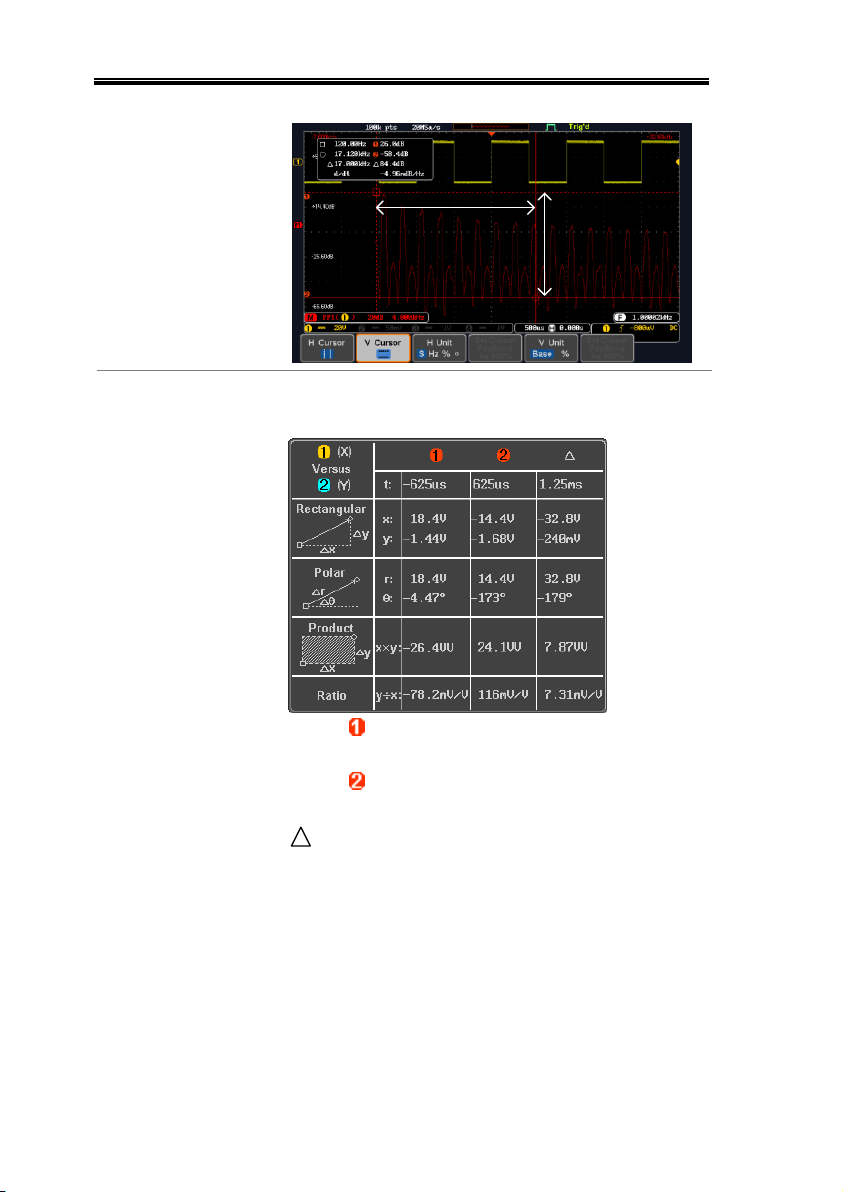

XY Mode
XY mode cursors measure a number of X by Y measurements.
Cursor
Rectangular, polar co-ordinates, product, ratio.
Cursor
Rectangular, polar co-ordinates, product, ratio.
Delta (difference between cursors)
64
MEASUREMENT
Example
Horizontal
cursors
Vertical cursors
65
DSO-1000D Series User Manual
Background
The Math function performs basic math functions (addition, subtraction, multiplication, division) on the input signals or the reference waveforms. The resultant waveform will be shown on the screen in real-time.
Addition (+)
Adds the amplitude of two signals.
Source
CH1~4, Ref1~4
Subtraction (–)
Extracts the amplitude difference between two signals.
Source
CH1~4, Ref1~4
Multiplication (×)
Multiplies the amplitude of two signals. Source
CH1~4, Ref1~4
Division (÷)
Divides the amplitude of two signals. Source
CH1~4, Ref1~4
Panel Operation
1. Press the Math key.
MATH
M
2. Press the Math key on the lower
bezel.
3. Select Source 1 from the side menu
Range
CH1~4, Ref1~4

Math Operation

Basic Math Overview & Operators

Addition/Subtraction/Multiplication/Division

66
MEASUREMENT
4. Press Operator to choose the math
operation.
Range
+, -, ×, ÷
5. Select Source 2 from the side menu.
Range
CH1~4, Ref1~4
6. The math measurement result appears on the
display. The vertical scale of the math waveform appears at the bottom of the screen.
From left: Math function, source1, operator, source2, Unit/div
Example
Math
Source 2
Source 1
Position and Unit
To move the math waveform vertically, press the Position key from the side menu and use the Variable knob to set the position.
Range
–12.00 Div ~ +12.00 Div
67
DSO-1000D Series User Manual
To change the unit/div settings, press Unit/div, then use the Variable knob to change the unit/div.
The units that are displayed depend on which operator has been selected, and whether the probe for the selected channel has been set to voltage or current.
Operator:
Unit/div:
Multiplication Division Addition/Subtraction
VV, AA or W V/V, A/A V or A
Turn Off Math
To turn off the Math result from the display, press the Math key again.
MATH
M
Background
The FFT Math function performs a Fast Fourier Transform on one of the input signals or the reference waveforms. The resultant spectrum will be shown on the screen in real-time. Four types of FFT windows are available: Hanning, Hamming, Rectangular, and Blackman, as described below.
Hanning FFT Window
Frequency resolution
Good
Amplitude resolution
Not good
Suitable for....
Frequency measurement on periodic waveforms

FFT Overview & Window Functions

68
MEASUREMENT
Hamming FFT Window
Frequency resolution
Good
Amplitude resolution
Not good
Suitable for....
Frequency measurement on periodic waveforms
Rectangular FFT Window
Frequency resolution
Very good
Amplitude resolution
Bad
Suitable for....
Single-shot phenomenon (this mode is the same as having no window at all)
Blackman FFT Window
Frequency resolution
Bad
Amplitude resolution
Very good
Suitable for....
Amplitude measurement on periodic waveforms
Panel Operation
1. Press the Math key.
MATH
M
2. Press FFT from the bottom menu.
3. Select the Source from the side
menu.
Range
CH1~4, Ref~4
4. Press the Vertical Units key from
the side menu to select the vertical units used.
Range
Linear RMS, dBV RMS

FFT Operation

69
DSO-1000D Series User Manual

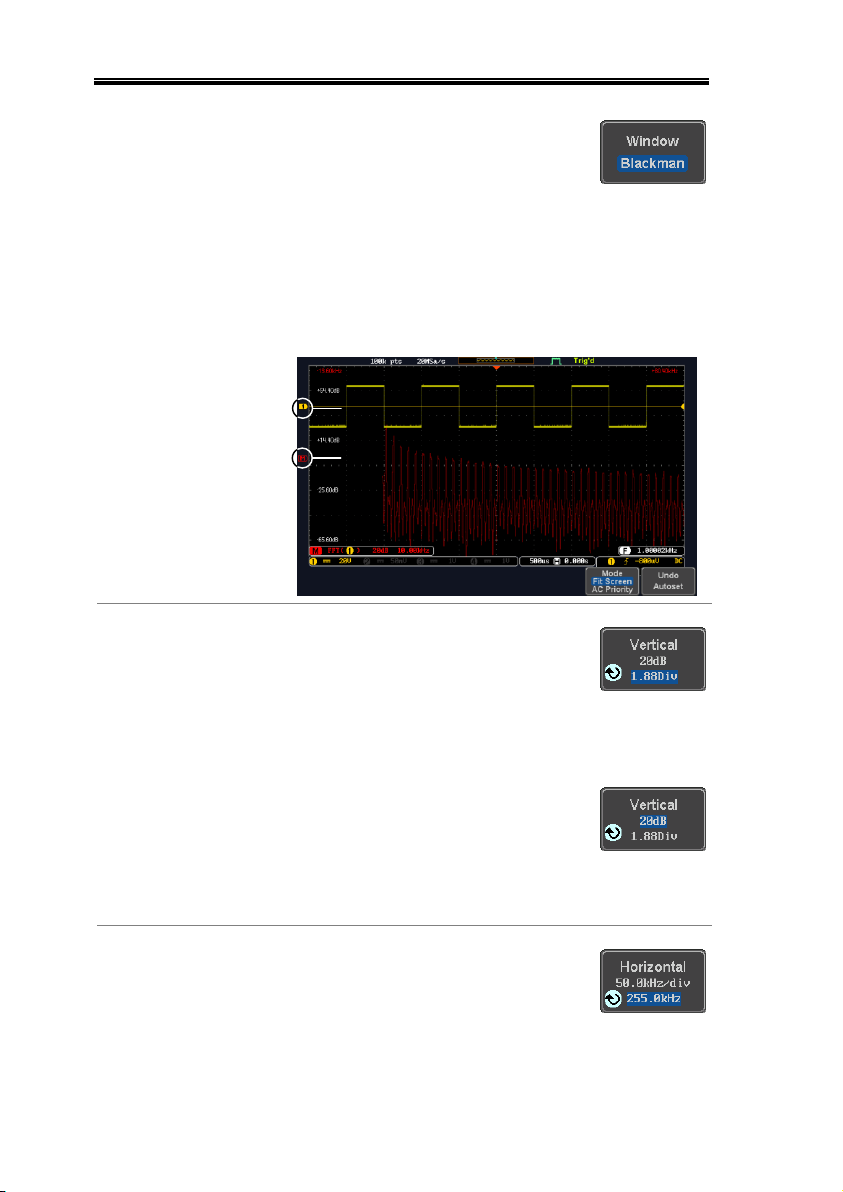

5. Press the Window key from the side
menu and select the window type.
Range
Hanning, Hamming, Rectangular, and Blackman.
6. The FFT result appears. For FFT, the horizontal
scale changes from time to frequency, and the vertical scale from voltage/current to dB/RMS.
Math
Source
Position and Scale
To move the FFT waveform vertically, press Vertical until the Div parameter is highlighted and then use the Variable knob.
Range
–12.00 Div ~ +12.00 Div
To select the vertical scale of the FFT waveform, press Vertical until the dB or voltage parameters are highlighted and then use the Variable knob.
Range
2mV~1kV RMS, 1~20 dB
Horizontal Position and Scale
To move the FFT waveform horizontally, press Horizontal until the Frequency parameter is highlighted and then use the Variable knob.
Range
0Hz ~ 2.5MHz
70
MEASUREMENT
To select the horizontal scale of the FFT waveform, press Horizontal repeatedly until the Hz/div parameter is highlighted and then use the Variable knob.
Range
10kHz/Div ~ 250kHz/Div
Background
The advanced math function allows complex math expressions to be created based on the input sources, reference waveforms or even the automatic measurements available from the Measure menu (see page 44).
An overview of each of the major parameters that can be used in the advanced math function are shown below:
Expression
Displays the function expression as it is created.
Source
Selects the source signal.
Source
CH1~4, Ref1~4
Function
Adds a mathematical function to the expression.
Function
Intg, Diff, log, Ln, Exp, Sqrt, Abs, Rad, Deg, Sin, Cos, Tan, Asin, Acos, Atan
Variable
Adds a user-specified variable to the expression. The variable is a floating point number consisting of a mantissa and an exponent.
Variable
VAR1, VAR2
Operator
Adds an operator or parenthesis to the function expression.

Advanced Math Overview

71
DSO-1000D Series User Manual
Operator
+, -, *, /, (, ), !(, <, >, <=, >=, ==, !=, ||, &&
Figure
Adds a value to the expression.
Figure
Integers, floating point, or floating point with exponent values.
Measurement
Adds automatic measurements to the expression. Not all automatic measurements are supported.
Measurement
Pk-Pk, Max, Min, Amp, High, Low, Mean, CycleMean, RMS, CycleRMS, Area, CycleArea, ROVShoot, FOVShoot, Freq, Period, Rise, Fall, PosWidth, NegWidth, Dutycycle, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Phase
Panel Operation
1. Press the Math key.
M
MATH
2. Press Advanced Math from the
bottom menu.
3. Press Edit Expression.
4. The Edit f(x) screen appears. CH1 + CH2 is
shown in the expression box as an example at startup.

Advanced Math Operation

72
MEASUREMENT
5. Press Clear to clear the expression
entry area.
6. Use the Variable knob and Select
key to create an expression.
Use the Variable knob to highlight a source, function, variable, operator, figure or measurement in orange.
Press the Select key to make the selection.
If a particular parameter is grayed out, it indicates that that particular parameter is not available at that time.
Select
VARIABLE
Back Space
7. To delete the last parameter press
Back Space.
8. When the expression is complete,
press OK Accept.
73
DSO-1000D Series User Manual
Example: CH1 + CH2
Advanced Math
Source1
Source2
Set the VAR1 & VAR2
9. Press VAR1 or VAR2 to set
VAR1/VAR2 if they were used in the expression created previously.
10. Press Mantissa.
Use the Left and Right arrow keys to select a digit and use the variable knob to set the value of the selected digit.
11. Press Exponent.
Use the Variable knob to set the exponent of the variable.
12. Press Go Back to finish editing
VAR1 or VAR2.
Vertical Position and Scale
13. Press Unit/div and use the Variable
knob to set the vertical scale of the math waveform.
14. Press Position and use the Variable
knob to set the vertical position of the math waveform on the display.
74
MEASUREMENT
Clear Advanced Math
To clear the advanced math result from the display, press the Math key again.
MATH
M
75
DSO-1000D Series User Manual
Acquisition ....................................................... 78
Select Acquisition Mode ....................................................... 78
Show Waveform in XY Mode............................................. 80
Set the Record Length .......................................................... 82
Display ............................................................. 83
Display Waveform as Dots or Vectors .............................. 83
Set the Level of Persistence ................................................. 84
Set the Intensity Level .......................................................... 84
Select Display Graticule........................................................ 87
Freeze the Waveform (Run/Stop)...................................... 88
Turn Off Menu ...................................................................... 88
Horizontal View ............................................... 89
Move Waveform Position Horizontally ............................ 89
Select Horizontal Scale ......................................................... 90
Select Waveform Update Mode .......................................... 91
Zoom Waveform Horizontally ........................................... 92
Play/Pause .............................................................................. 94
Vertical View (Channel) .................................... 96
Move Waveform Position Vertically .................................. 96
Select Vertical Scale ............................................................... 97
Select Coupling Mode ........................................................... 97
Input Impedance ................................................................... 98
Invert Waveform Vertically ................................................. 98
Limit Bandwidth .................................................................... 99
Expand by Ground/Center ............................................... 100
Select Probe Type ................................................................ 101
Select Probe Attenuation Level ......................................... 102
Set the Deskew ..................................................................... 102
Trigger ............................................................ 104
Trigger Type Overview ...................................................... 104
Trigger Parameter Overview ............................................. 106
Setup Holdoff Level ............................................................ 110
Setup Trigger Mode ............................................................ 111
Using the Edge Trigger ...................................................... 111

CONFIGURATION

76
CONFIGURATION
Using Advanced Delay Trigger ......................................... 113
Using Pulse Width Trigger................................................. 114
Using Video Trigger ............................................................ 116
Pulse Runt trigger ................................................................ 117
Using Rise and Fall Trigger ............................................... 119
Using the Timeout Trigger ................................................ 120
System Settings and Miscellaneous Settings .. 122
Select Menu Language ........................................................ 122
View System Information .................................................. 122
Erase Memory ...................................................................... 123
Probe Compensation Frequency ...................................... 124
77
DSO-1000D Series User Manual
Background
The acquisition mode determines how the samples are used to reconstruct a waveform.
Sample
This is the default acquisition mode. Every sample from each acquisition is used.
Peak detect
Only the minimum and maximum value pairs for each acquisition interval (bucket) are used. This mode is useful for catching abnormal glitches in the signal.
Average
Multiple acquired data is averaged. This mode is useful for drawing a noise-free waveform. To select the average number, use the Variable knob.
Average number: 2, 4, 8, 16, 32, 64, 128, 256
Panel Operation
1. Press the Acquire key.
Acquire
2. To set the Acquisition mode, press
Mode on the bottom menu.

Acquisition

The Acquisition process samples the analog input signals and converts them into digital format for internal processing.

Select Acquisition Mode

78
CONFIGURATION
3. Select an acquisition mode from
the side menu.
4. If Average was chosen, set the
number of samples to be used for the average function.
Mode
Sample, Peak Detect, Average
Average sample
2, 4, 8, 16, 32, 64, 128, 256
Example
Sample
Peak Detect
Average (256 times)
79
DSO-1000D Series User Manual

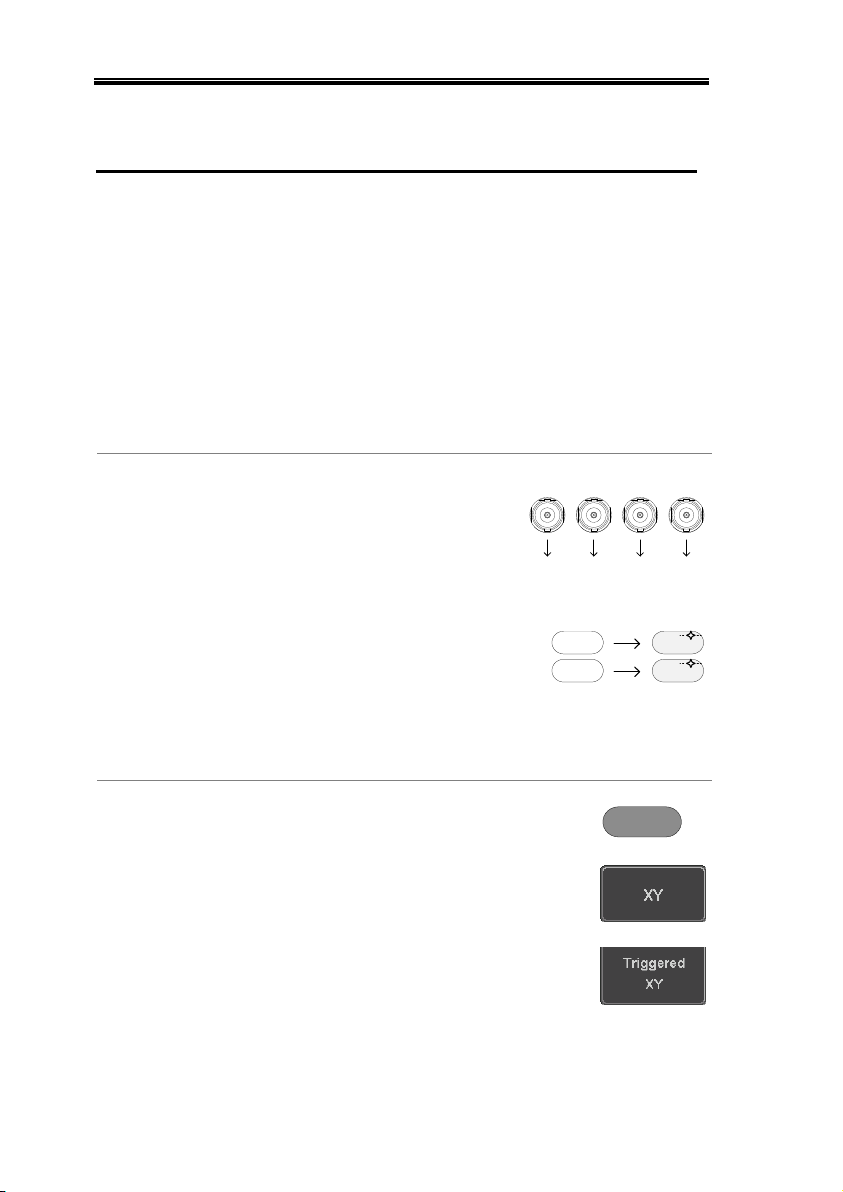

Background
The XY mode maps the input of channel 1 to the input of channel 2. In 4 channel models, the input of channel 3 can be mapped to the input of channel
4. This mode is useful for observing the phase relationship between waveforms.
Reference waveforms can also be used in XY mode. Ref1 is mapped to Ref2 and Ref3 is mapped to Ref4. Using the reference waveforms is the same as using the channel input waveforms.
Connection
1. Connect the signals to
Channel 1 (X-axis) and Channel 2 (Y-axis) or Channel 3 (X2-axis) and Channel 4 (Y2-axis).
CH3CH2CH1 CH4
YX X2 Y2
2. Make sure a channel pair is
active (CH1&CH2 or CH3&CH4). Press the Channel key if necessary. A channel is active if the channel key is lit.
CH1 CH1
CH2 CH2
Panel Operation
1. Press the Acquire menu key.
Acquire
2. Press XY from the bottom menu.
3. Choose Triggered XY from the side
menu.

Show Waveform in XY Mode

80
CONFIGURATION
XY mode is split into two windows. The top window shows the signals over the full time range. The bottom window shows XY mode.
To move the X Y waveform position, use the vertical position knob: Channel 1 knob moves the X Y waveform horizontally, Channel 2 knob moves the X Y waveform vertically. Similarly, the X2 and Y2 axis can be positioned using the channel 3 and channel 4 vertical position knobs.
POSITION
CH1
POSITION
CH2
The horizontal position knob and horizontal scale knob can still be used under the XY mode.
Turn Off XY Mode
To turn off XY mode, choose OFF (YT) mode.
Cursors and XY Mode
Cursors can be used with XY mode. See the Cursor chapter for details.
Page 57
81
DSO-1000D Series User Manual
Background
The number of samples that can be stored is set by the record length. Record length is important in an oscilloscope as it allows longer waveforms to be recorded.
The maximum record length for the DSO-1000D depends on the operating mode. The table below describes the record lengths that are available for each mode.
Limitations
Record Length
Normal
Zoom
FFT
FFT in Zoom Window
1k
✓ ✗ ✓
✓
10k
✓ ✓ ✓
✓
100k
✓ ✓ ✓
✓
1M
✓ ✓ ✓
✗
10M
✓ ✓ ✗
✗
Panel Operation
1. Press the Acquire key.
Acquire
2. Press the Record Length key on the
bottom menu and choose the record length.
Record length
1000, 10k, 100k, 1M, 10M points
Note
The sampling rate may also be changed when the record length is changed.

Set the Record Length

82
CONFIGURATION
Background
When the waveform is displayed on the screen, it can be displayed as dots or vectors.
Panel Operation
1. Press the Display menu key.

Display

2. Press Dot / Vector to toggle between
Dot and Vector mode.
Range
Dot
Only the sampled dots are displayed.
Vectors
Both the sampled dots and the connecting line are displayed.
Example:
Vectors
Dots
Display
The Display menu defines how the waveforms and parameters appear on the main LCD display.

Display Waveform as Dots or Vectors

83
DSO-1000D Series User Manual
Background
The persistence function allows the DSO-1000D to mimic the trace of a traditional analog oscilloscope.
A waveform trace can be configured to “persist”
for a designated amount of time.
Panel Operation
1. Press the Display menu key.
Display
2. To set the persistence time, press
the Persistence menu button on the bottom bezel.
3. Use the Variable knob to select a
persistence time.
Time
16ms, 30ms, 60ms, 120ms, 240ms,
0.5s, 1s, 2s,~4s, Infinite, Off
Clear
To clear persistence, press Clear Persistence.
Background
The intensity level of a signal can also be set to mimic the intensity of an analog oscilloscope by setting the digital intensity level.
Panel Operation
1. Press the Display menu key.
Display
2. Press Intensity from the bottom
menu.

Set the Level of Persistence

Set the Intensity Level

84
CONFIGURATION
Waveform Intensity
3. To set the waveform intensity, press Waveform
Intensity and edit the intensity.
Range
0~100%
Example
Waveform Intensity 50%
Waveform Intensity 100%
Graticule Intensity
4. To set the graticule intensity, press Graticule
Intensity from the side menu and edit the
intensity value.
Range
10~100%
Example
Graticule Intensity 100%
Graticule Intensity 10%
Backlight Intensity
5. To set the LCD backlight intensity, press
Backlight Intensity from the side menu and edit the intensity value.
Range
2~100%
85
DSO-1000D Series User Manual
Backlight Auto­Dim
6. To automatically dim the backlight after a set
duration, set Backlight Auto-Dim to On and then set the Time parameter to the appropriate time.
After a set amount of time with no panel activity, the screen will dim until a panel key is pressed again. This function will prolong the life of the LCD display.
Range
1~180 min
86
CONFIGURATION
Panel Operation
1. Press the Display menu key.
Display
2. Press Graticule from the bottom
menu.
3. From the side menu choose the
graticule display type.
Full
: Shows the full grid; X and Y axis
for each division.
Grid
: Show the full grid without the X
and Y axis.
Cross Hair
: Shows only the center X
and Y frame.
Frame
: Shows only the outer frame.

Select Display Graticule

87
DSO-1000D Series User Manual
Panel Operation
1. Press the Run/Stop key. The
Run/Stop key turns red and
waveform acquisition is paused.
Run/Stop Run/Stop
2. The waveform and the trigger
freezes. The trigger indicator on the top right of the display shows Stop.
3. To unfreeze the waveform,
press the Run/Stop key again. The Run/Stop key turns green again and acquisition resumes.
Run/Stop Run/Stop
Panel Operation
4. Press the Menu Off key
below the side menu keys to reduce a menu. The menu key needs to be pressed each time to reduce one menu.
See page 30 for more information.
VARIABLE
POSITION
HORIZONTAL
POSITION
POSITION
POSITION
POSITION
VERTICAL
MATH
REF
BUS
SCALE
TRIGGER
LEVEL
PUSH TO
ZERO
SCALESCALESCALE
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
SCALE
Measure
Display
Cursor
Help
APP
Save/Recall
Acquire
Utility
Autoset
Run/Stop
Single
Default
Select
Search
Set/Clear
Zoom
CH1 CH2 CH3 CH4
M
R
B
Menu
50 %

Freeze the Waveform (Run/Stop)

For more details about Run/Stop mode, see page 40.

Turn Off Menu

88
CONFIGURATION
Panel Operation
The horizontal position knob moves the waveform left/right.
Note: the horizontal position is not applicable in the Roll mode.
POSITION
PUSH TO
ZERO
As the waveform moves, a position indicator on the on the top of the display indicates the horizontal position of the waveform in memory.
Reset Horizontal Position
1. To reset the horizontal position,
press the Acquire key and then press Reset H Position to 0s from the bottom menu.
Alternatively, pushing the horizontal position knob will also reset the position to zero.
Acquire
POSITION
PUSH TO
ZERO
Run Mode
In Run mode, the memory bar keeps its relative position in the memory since the entire memory is continuously captured and updated.

Horizontal View

This section describes how to set the horizontal scale, position, and waveform display mode.

Move Waveform Position Horizontally

89
DSO-1000D Series User Manual

Select Horizontal Scale

To select the timebase (time/div), turn the horizontal Scale knob; left (slow) or right (fast).
SCALE
Range
5ns/div ~ 100s/div, 1-2-5 increment
The timebase indicator updates as the horizontal scale is adjusted.
Horizontal
position
Timebase
Run Mode
In Run mode, the memory bar and waveform size keep their proportion. When the timebase becomes slower, roll mode is activated (if the trigger is set to Auto).
Stop Mode
In Stop mode, the waveform size changes according to the scale.
Select Horizontal Scale
90
CONFIGURATION
Background
The display update mode is switched automatically or manually according to the timebase and trigger.
Normal
Updates the whole displayed waveform at once. Automatically selected when the timebase (sampling rate) is fast.
Timebase
≤50ms/div
Trigger
all modes
Roll Mode
Updates and moves the waveform gradually from the right side of the display to the left. Automatically selected when the timebase (sampling rate) is slow.
Timebase
≥100ms/div
Trigger
all modes
Roll mode
Select Roll Mode Manually
1. Press the Trigger Menu key.
Menu
2. Press Mode from the bottom menu
and select Auto (Untriggered Roll) from the side menu.

Select Waveform Update Mode

91
DSO-1000D Series User Manual
Background
When in Zoom mode, the screen is split into 2 sections. The top of the display shows the full record length, while the bottom of the screen shows the normal view.
Panel Operation
1. Press the Zoom key.
Zoom
2. The Zoom mode screen appears.
Zoom
timebase
Zoom
position
Zoom
window
Horizontal
position
Trigger
position
Horizontal Navigation
To scroll the waveform left or right, press Horizontal Position and use the Variable Position knob.
The horizontal position will be shown on the Horizontal Position icon.
VARIABLE

Zoom Waveform Horizontally

92
CONFIGURATION
Horizontal Scale
To change the horizontal scale, press
Horizontal Time/Div and use the Variable Position knob.
The scale will be shown on the Horizontal Time/Div icon.
VARIABLE
Zoom
To increase the zoom range, use the Horizontal Scale knob.
The zoom time base (Z) at the bottom of the screen will change accordingly.
SCALE
Move the Zoom Window
Use the Horizontal Position knob to pan the zoom window horizontally.
To reset the zoom position, press the Horizontal Position knob.
POSITION
PUSH TO
ZERO
The position of the zoom window, relative to the horizontal position is shown at the bottom of the screen next to the Zoom time base.
Scroll Sensitivity
To alter the scrolling sensitivity of the zoom window, press the Zoom Position key to toggle the scrolling sensitivity.
Sensitivity
Fine, Coarse
Reset the Zoom & Horizontal Position
To reset both the zoom and horizontal position, press Reset Zoom & H POS to 0s.
93
DSO-1000D Series User Manual
Exit
To go back to the original view, press the Zoom key again.
Zoom
Background
The Play/Pause key can be used to play through signals in the Zoom mode.
Panel Operation
1. Press the Play/Pause menu key.
2. The scope will go into the Zoom Play mode and
begin to scroll through the acquisition (from left to right).
The full-record length waveform will be shown at the top and the zoomed section will be shown at the bottom. The Play/Pause indicator shows the play status.
Zoom
timebase
Zoom
position
Zoom
window

Play/Pause

indicator
Play/Pause
94
CONFIGURATION
Zoom
To increase the zoom range, use the horizontal Scale knob.
The zoom time base (Z) at the bottom of the screen will change accordingly.
SCALE
Scroll Speed
To alter the scrolling speed of the zoom window, press the Zoom Position key to toggle the scrolling speed.
Sensitivity
Fine, Coarse
Alternatively, use the horizontal position knob to control the scroll speed.
Turning the Horizontal Position knob
determines the speed and direction of the scrolling.
Scroll
right
speed
Scroll
left
speed
POSITION
PUSH TO
ZERO
Reset the Zoom Position
To reset both the zoom position and horizontal position, press Reset Zoom & H POS to 0s.
Pause
Press the Play/Pause key to pause or resume playing the waveform.
Reverse Direction
Press the Play/Pause key when at the end of the record length to play back through the waveform in reverse.
Exit
To exit, press the Zoom key.
Zoom
95
DSO-1000D Series User Manual
Panel Operation
1. To move the waveform up or
down, turn the Vertical Position knob for each channel.
POSITION
PUSH TO
ZERO
2. As the waveform moves, the vertical position of
the cursor appears at the bottom half of the display.
View or Set the Vertical Position
1. Press a channel key. The vertical
position is shown in the Position /
Set to 0 soft key.
2. To change the position, press
Position / Set to 0 to reset the vertical position or turn the vertical position knob to the desired level.
CH1
POSITION
PUSH TO
ZERO
Run/Stop Mode
The waveform can be moved vertically in both Run and Stop mode.

Vertical View (Channel)

This section describes how to set the vertical scale, position, and coupling mode.

Move Waveform Position Vertically

96
CONFIGURATION
Panel Operation
To change the vertical scale, turn the Vertical Scale knob; left (down) or right (up).
SCALE
The vertical scale indicator on the bottom left of the display changes accordingly for the specific channel.
Range
1mV/div ~ 10V/div. 1-2-5 increments
Stop Mode
In Stop mode, the vertical scale setting can be changed.
Panel Operation
1. Press a channel key.
CH1
2. Press Coupling repeatedly to toggle
the coupling mode for the chosen channel.
Range
DC coupling mode. The whole portion (AC and DC) of the signal appears on the display.
AC coupling mode. Only the AC portion of the signal appears on the display. This mode is useful for observing AC waveforms mixed with DC signals.

Select Vertical Scale

Select Coupling Mode

97

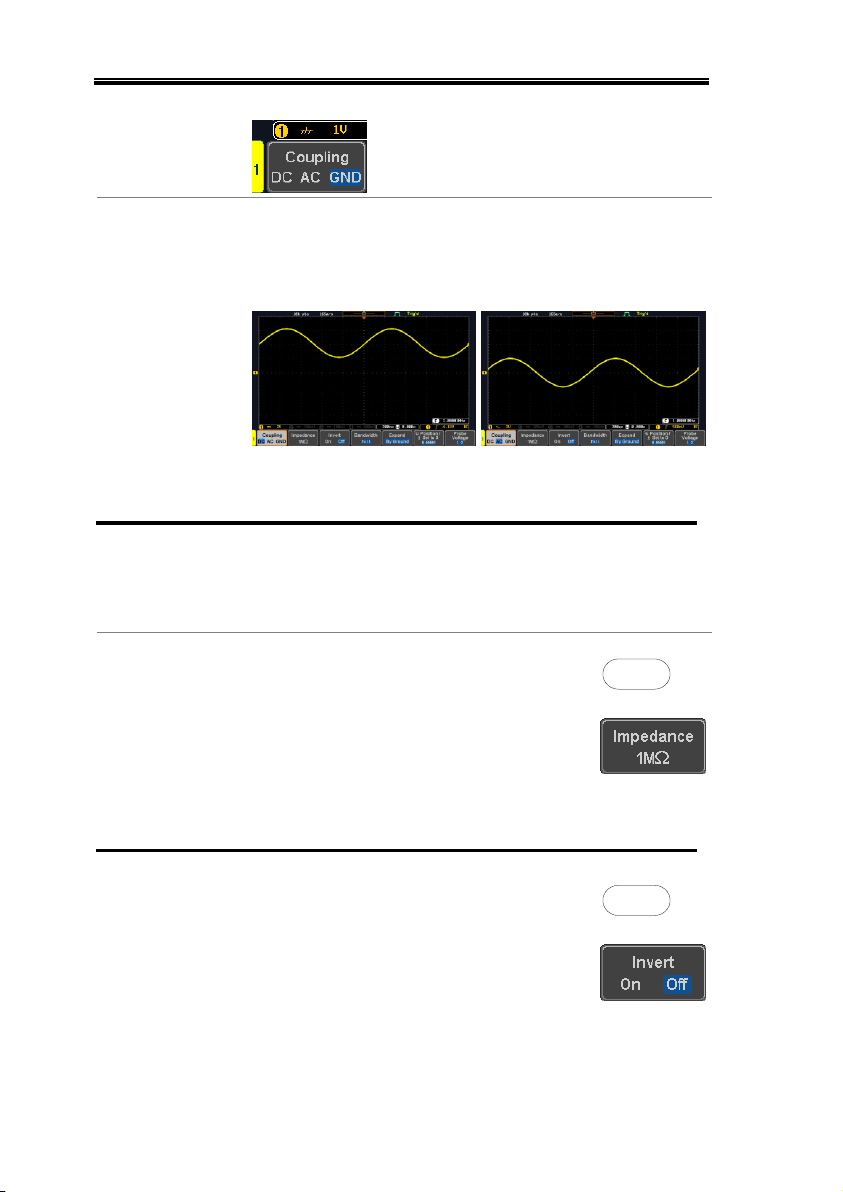

DSO-1000D Series User Manual
Ground coupling mode. The display shows only the zero voltage level as a horizontal line.
Example
Observing the AC portion of the waveform using AC coupling
DC coupling
AC coupling
Background
The input impedance of the DSO-1000D is fixed at 1MΩ. The impedance is displayed in the channel menu.
View Impedance
1. Press the Channel key.
CH1
2. The impedance is displayed in the
bottom menu.
Panel Operation
1. Press the Channel key.
CH1
2. Press Invert to toggle Invert On or
Off.

Input Impedance

Invert Waveform Vertically

98
CONFIGURATION

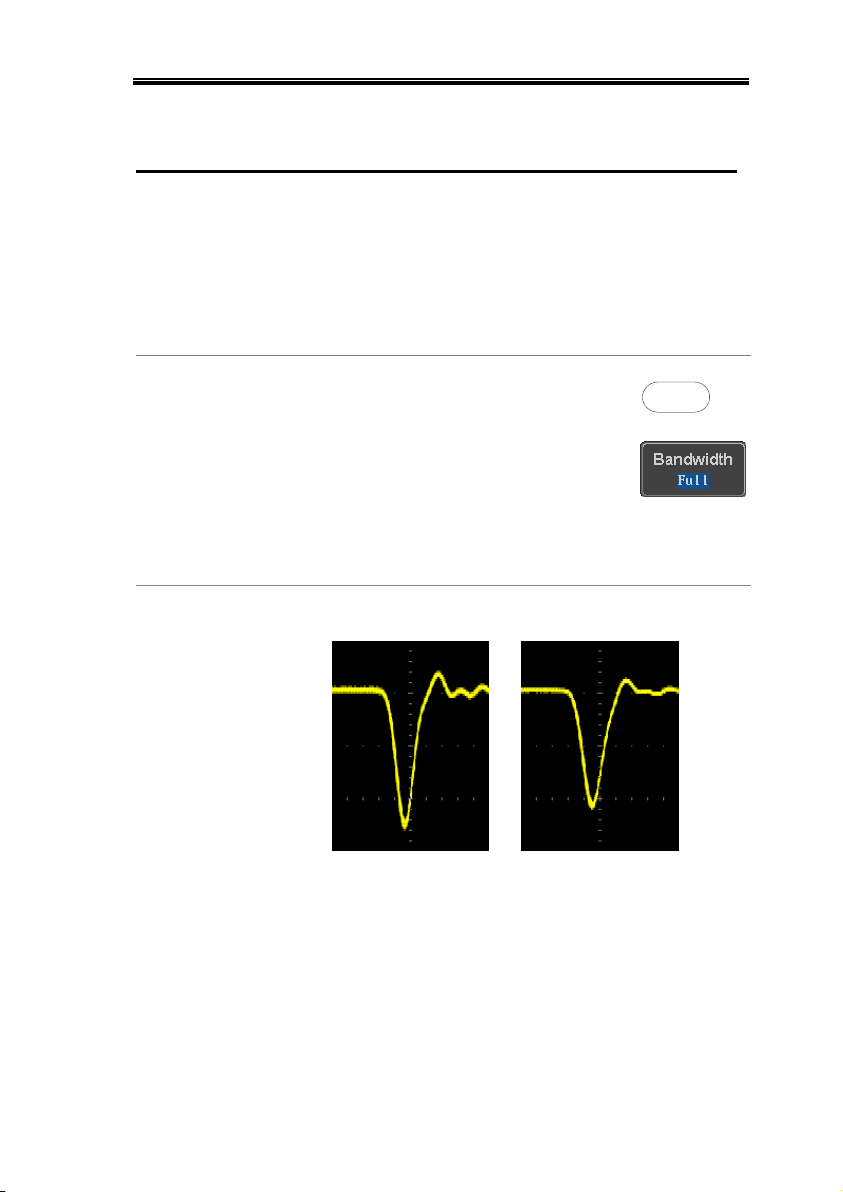

Background
Bandwidth limitation puts the input signal into a selected bandwidth filter.
This function is useful for cutting out high frequency noise to see a clear waveform shape.
The bandwidth filters available are dependent on the bandwidth of the oscilloscope model.
Panel Operation
1. Press the Channel key.
CH1
2. Press Bandwidth from the bottom
menu.
3. Choose a bandwidth* from the side menu.
Range
Full, 20MHz
Example
BW Full
BW Limit 20MHz

Limit Bandwidth

99
DSO-1000D Series User Manual
Background
When the voltage scale is changed, the Expand function designates whether the signal expands from the center of the screen or from the signal ground level. Expand by center can be used to easily see if a signal has a voltage bias. Expand by ground is the default setting.
Panel Operation
1. Press a channel key.
CH1
2. Press Expand repeatedly to toggle
between expand By Ground and Center.
Range
By Ground, By Center
Example
If the vertical scale is changed when the Expand function is set to ground, the signal will expand from the ground level*. The ground level does not change when the vertical scale is changed.
If the vertical scale is changed when the Expand function is set to center, the signal will expand from the center of the screen. The ground level will suit to match the signal position.
*Or from the upper or lower edge of the screen if the ground level is off-screen.

Expand by Ground/Center

100
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
