VOLTCRAFT BCC-100 User guide

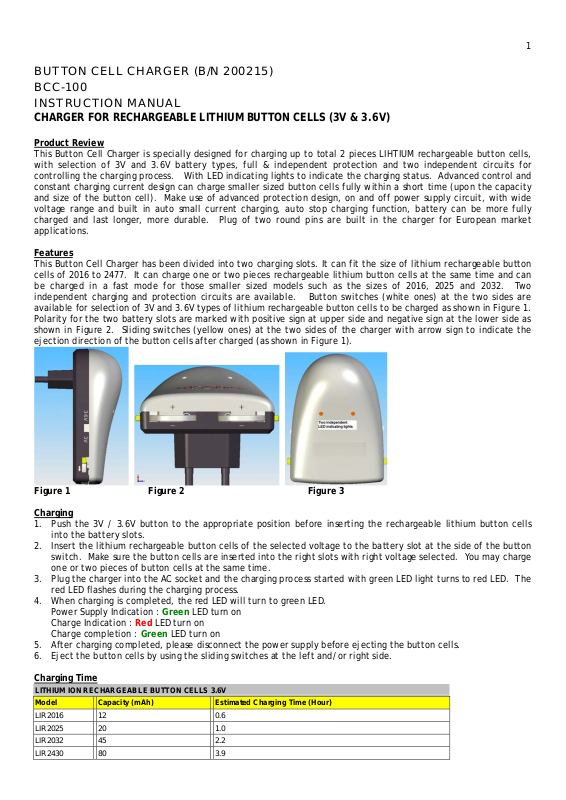

BUTTON CELL CHARGER (B/N 200215)





12

20

45

80

BCC-100
INSTRUCTION MANUAL

CHARGER FOR RECHARGEABLE LITHIUM BUTTON CELLS (3V & 3.6V)

Product Review

This Button Cell Charger is specially designed for charging up to total 2 pieces LIHTIUM rechargeable button cells,
with selection of 3V and 3.6V battery types, full & independent protection and two independent circuits for
controlling the charging process. With LED indicating lights to indicate the charging status. Advanced control and
constant charging current design can charge smaller sized button cells fully within a short time (upon the capacity
and size of the button cell). Make use of advanced protection design, on and off power supply circuit, with wide
voltage range and built in auto small current charging, auto stop charging function, battery can be more fully
charged and last longer, more durable. Plug of two round pins are built in the charger for European market
applications.

Features

This Button Cell Charger has been divided into two charging slots. It can fit the size of lithium rechargeable button
cells of 2016 to 2477. It can charge one or two pieces rechargeable lithium button cells at the same time and can
be charged in a fast mode for those smaller sized models such as the sizes of 2016, 2025 and 2032. Two
independent charging and protection circuits are available. Button switches (white ones) at the two sides are
available for selection of 3V and 3.6V types of lithium rechargeable button cells to be charged as shown in Figure 1.
Polarity for the two battery slots are marked with positive sign at upper side and negative sign at the lower side as
shown in Figure 2. Sliding switches (yellow ones) at the two sides of the charger with arrow sign to indicate the
ejection direction of the button cells after charged (as shown in Figure 1).

1

Figure 1 Figure 2 Figure 3
Charging

1. Push the 3V / 3.6V button to the appropriate position before inserting the rechargeable lithium button cells
into the battery slots.

2. Insert the lithium rechargeable button cells of the selected voltage to the battery slot at the side of the button
switch. Make sure the button cells are inserted into the right slots with right voltage selected. You may charge
one or two pieces of button cells at the same time.

3. Plug the charger into the AC socket and the charging process started with green LED light turns to red LED. The
red LED flashes during the charging process.

4. When charging is completed, the red LED will turn to green LED.
Power Supply Indication : Green LED turn on
Charge Indication : Red LED turn on
Charge completion : Green LED turn on

5. After charging completed, please disconnect the power supply before ejecting the button cells.

6. Eject the button cells by using the sliding switches at the left and/or right side.

Charging Time

LITHIUM ION RECHARGEABLE BUTTON CELLS 3.6V
Model

LIR2016
LIR2025
LIR2032
LIR2430

Capacity (mAh)

Estimated Charging Time (Hour)

0.6

1.0

2.2

3.9

2













65

LIR2450
LIR2477

LITHIUM MANGANESE RECHARGEABLE BUTTON CELLS 3 V
Model

ML2032

120
180

Capacity (mAh)

5.8

8.7

Estimated Charging Time (Hour)

3.2

Specifications

Input : AC 110 240V 50 / 60 Hz 2W
Output : 2 x 3.3V

2 x 4.2V

25 mA or
25 mA

Battery : Rechargeable Lithium Ion (3.6V) and Lithium Manganese (3V) Button Cells

Types

Battery : Suggested sizes of 2016 upto 2477

Size

Rating Label :

Warning

1) Before using this Button Cell Charger for charging, please read this instruction for correct operations.

2) Please make sure the batteries are placed in the correct battery slots and directions (battery polarity) before
charging. If the button cells are placed in wrong polarity, the LED will not light and they will not be charged.
The button cells and the charger will not be damaged.

3) This product is designed for Lithium Ion (3.6V) and Lithium Manganese (3V) rechargeable button cells only.
Please do not charge other type of batteries with different chemistry other than them. Otherwise the
batteries may explode causing personal injury and damage.

4) If the 3V button cell is charged under the wrong voltage selection of 3.6V, the button cells will be damaged
and in reverse, if the button cells of 3.6V are charged under the voltage selection of 3V, the button cells will
not be fully charged but will not be damaged.

5) Do not charge primary button cells which are non-rechargeable.

6) Do not put this product into water or flame which may explode.

7) Do not short circuit the battery terminals.

8) Do not expose the charger to rain, moisture and never immerse the charger in water.

9) Do not attempt to charge damaged or leaked battery.

10) Do not attempt to open and disassemble the charger.

11) Do not store the charger where it may be exposed to high temperature and high humidity, avoiding placing in
direct sunlight, for indoor use only.

12) Do not use the charger inside a drawer or closed cabinet, or cover with a cloth. Use in the well ventilation
environment.

13) Do not operate the charger if it appears damaged in any way.

Safety Standards : CE
Web site : www.dpbatteries.com.hk

Made in China
BCC100-IM- 01122007
