About this book

The vCloud Suite Architecture Overview and Use Cases publication provides information about the design and capabilities of cloud environments based on VMware vCloud® Suite.

vCloud Suite is a collection of interoperable VMware products. vCloud Suite Architecture Overview and Use Cases provides a listing of components, high-level design guidelines for vCloud Suite deployment and operation, as well as example use cases.

The provided architecture overview is based on concepts from the practical approach used by the VMware Professional Services organization.

vCloud Suite Architecture Overview does not include detailed installation and configuration instructions for individual components. You can find that information in the dedicated documentation sets for individual VMware products.

Intended Audience

This information is intended for IT professionals and business decision makers with prior knowledge of virtualization and data center operations, who want to understand the capabilities of vCloud Suite and learn about recommended deployment models and example use cases.

VMware Technical Publications Glossary

VMware Technical Publications provides a glossary of terms that might be unfamiliar to you. For definitions of terms as they are used in VMware technical documentation, go to

http://www.vmware.com/support/pubs.

VMware, Inc.

vCloud Suite Architecture Overview and Use Cases

6 VMware, Inc.

Introduction to vCloud Suite 1

vCloud Suite lets you build and operate software-defined data centers based on vSphere. vCloud Suite contains components that must be integrated to deliver IT as a service.

You download, install, and configure vCloud Suite components separately. When deployed and configured, the interoperable components enable the software-defined data center (SDDC), where resources are virtualized and available as a service. Control of the data center is fully automated by software, and hardware configuration is maintained through software systems. vCloud Suite makes it possible for workloads to run in private, public, or hybrid clouds.

Individual products in vCloud Suite are delivered as either installation packages for Windows or Linuxbased virtual appliances that you can deploy on ESXi hosts.

You can extend your vCloud Suite by using VMware vCloud Air as a second site in your datacenter environment. Use vCloud Suite together with with the vCloud Air to satisfy business needs such as business continuity and burst capacity.

vCloud Suite can serve the needs of different organizations, from SMBs to large enterprises and organizations in the public sector.

List of vCloud Suite Components

A vCloud Suite edition contains individual products with different versions. To ensure interoperability, you should verify that the components of your vCloud Suite environment are the correct versions.

vCenter Server is required for building the core inrastructure of the software-defined data center.

Table 1‑1. Components of vCloud Suite 5.8 and their versions

Product name Version Description

ESXi 5.5 Update 2 Provides bare-metal virtualization of

servers so you can consolidate your applications on less hardware.

vCenter Server 5.5 Update 2 Provides a centralized platform for

managing vSphere environments.

vCenter Orchestrator 5.5.2 Provides the capability to create

workflows that automate activities such as provisioning virtual machine, performing scheduled maintenance, initiating backups, and many others.

vCenter Update Manager 5.5 Update 2 Provides centralized, automated patch

and version management for vSphere and offers support for ESXi hosts, virtual machines, and virtual appliances.

VMware, Inc. 7

vCloud Suite Architecture Overview and Use Cases

Table 1‑1. Components of vCloud Suite 5.8 and their versions (Continued)

Product name Version Description

vCloud Networking and Security 5.5.3 Provides a security suite for vSphere.

vCloud Director 5.5.2 Provides the ability to build secure,

vCloud Automation Center 6.1 Provides functionality for deploying

vCloud Automation Center Application Service

vCenter Operations Manager 5.8.3 Provides comprehensive visibility and

vCenter Configuration Manager 5.7.2 Provides automation of configuration

vCenter Hyperic 5.8.2 Provides monitoring of operating

vCenter Infrastructure Navigator 5.8.2 Provides automated discovery of

vSphere Replication 5.8 Provides replication, at the individual

vCenter Site Recovery Manager 5.8 Provides disaster recovery capability

vSphere Data Protection 5.8 Provides advanced data protection

vCloud Networking and Security (formerly vShield) is a critical security component for protecting virtualized datacenters from attacks and misuse to help you achieve your compliancemandated goals.

multi-tenant clouds by pooling virtual infrastructure resources into virtual datacenters.

and provisioning of business-relevant cloud services across private and public clouds, physical infrastructure, hypervisors, and public cloud providers.

vCloud Automation Center Enterprise includes vCloud Automation Center Application Service.

6.1 Provides automated application provisioning in the cloud including deploying and configuring the application's components and dependent middleware platform services on infrastructure clouds.

insights into the performance, capacity and health of your infrastructure.

and compliance management across your virtual, physical and cloud environments, assessing them for operational and security compliance.

systems, middleware and applications running in physical, virtual, and cloud environments.

application services, visualizes relationships, and maps dependencies of applications on virtualized compute, storage and network resources.

virtual machine disk level, between datastores hosted on any storage.

that lets you perform automated orchestration and nondisruptive testing for virtualized applications.

with backup and recovery to disk via VMware vSphere with Operations Management Data Protection features.

8 VMware, Inc.

Chapter 1 Introduction to vCloud Suite

Table 1‑1. Components of vCloud Suite 5.8 and their versions (Continued)

Product name Version Description

vSphere Big Data Extensions 2.0 Simplifies running Big Data workloads

on the vSphere platform.

vSphere App HA 1.1 Provides high availability for the

applications that are running on the virtual machines in your environment.

vCenter Support Assistant 5.5.1.1 Provides proactive support, by

collecting support bundles on a regular basis.

VMware, Inc. 9

vCloud Suite Architecture Overview and Use Cases

10 VMware, Inc.

Architecture Overview 2

To enable the full set of vCloud Suite features, you must perform a series of installation and configuration operations. The software-defined data center provides different types of capabilities, with more complex features building on top of underlying infrastructure.

Delivering the full operational capabilities of vCloud Suite to your organization or clients is a structured process. In a large organization, it might involve cycles of assessment, design, deployment, knowledge transfer, and solution validation. Depending on your organization, you should plan for an extended process that involves different roles.

Not every environment needs the full scope of vCloud Suite capabilities at a given time. Start by deploying the datacenter core infrastructure, because it enables you to add capabilities as your organization requires them. Each of the software-defined data center layers might require you to plan and perform a separate deployment process.

VMware, Inc.

Self-service application

development

Application blueprinting

Application deployment

standardization

Infrastructure Service

Self-service user portal

Low administration

overhead

Management

Monitoring with performance

and capacity

Orchestration

Virtualization of physical compute, storage, and network assets

Catalogs and

standard templates

Software-defined Data Center Core Infrastructure

Application Platform Service

vCloud Suite Architecture Overview and Use Cases

Figure 2‑1. Layers of the Software-Defined Data Center

SDDC Core Infrastructure

Infrastructure Service

Application Platform Service

You can enhance your vCloud Suite environment by integrating additional products and services by VMware, in order to enable capabilities such as disaster recovery to cloud, software-defined storage, and software-defined networking. For information about implementing failover protection for virtual machines in vCloud Air, see “Disaster Recovery to Cloud,” on page 51.

The basis of the vCloud Suite deployment is the resource abstraction layer. By using VMware software, you can virtualize compute, network, and storage resources in your data center and abstract them from the underlying hardware. ESXi and vCenter Server enable you to establish a robust virtualized environment into which all other solutions integrate. The resource abstraction layer provides the foundation for the integration of orchestration and monitoring solutions by VMware. Additional processes and technologies build on top of the infrastructure to enable infrastructure as a service and platform as a service.

Infrastructure services introduce fast, self-service provisioning of virtual machines to physical, virtualized, or hybrid clouds. The IaaS layer is represented mainly by vCloud Automation Center, which provides service provisioning, catalog management, policy based management ,and authorization.

The application platform service enables end-to-end deployment and configuration of applications, along with their dependencies, to a target deployment infrastructure.

12 VMware, Inc.

Chapter 2 Architecture Overview

Conceptual Design of a vCloud Suite Environment on page 13

To start deploying vCloud Suite, you need a small number of physical hosts. Distribute your hosts into three types of clusters, in order to establish the foundation of a deployment that can later scale to tens of thousands of VMs.

vCloud Suite Components in the Management Cluster on page 15

The number of vCloud Suite components in the management cluster increases as you add capabilities. A management cluster can contain a minimal set of products, and you expand it as needed.

Software-Defined Data Center Core Infrastructure on page 16

The core of vCloud Suite environments consists of vSphere and the associated monitoring and orchestration products, such asvCenter Operations Manager and vCenter Orchestrator.

Delivering an Infrastructure Service on page 22

The ability to deliver infrastructure as a service represents the technological and organizational transformation from traditional data center operations to cloud. The infrastructure service lets you model and provision VMs and services across private, public, or hybrid cloud infrastructure.

Delivering Platform as a Service on page 25

Platform-as-a-Service (PaaS) lets you model and provision applications across private, public, and hybrid cloud infrastructures.

Conceptual Design of a vCloud Suite Environment

Management, Edge, and payload clusters run the entire vCloud Suite infrastructure, in addition to customer workloads.

Deploying and leveraging vCloud Suite is a process that involves both technological transformation and operational transformation. As new technologies are deployed in the data center, your organization must also implement appropriate processes and assign the necessary roles.

In the diagram below, technological capabilities in color appear over organizational constructs in grayscale.

VMware, Inc. 13

Organization

Operations

Provider

IT Business

Control

Service

Control

Operations

Control

Infrastructure

Control

Orchestration

Virtualization Management

Management cluster

Edge cluster Payload cluster

● Start with three hosts

● Start with two clusters

Load balancer

Tenant

Portal

IaaS, PaaS, ITaaS Engine

Portal

Performance

and

capacity

management

vCloud Suite Architecture Overview and Use Cases

Figure 2‑2. Conceptual Design of a vCloud Suite environment

Management cluster

Edge cluster

Payload cluster

The hosts in the management cluster run all management components required to support the software-defined data center. A single management cluster is required within a physical location. ESXi hosts running in the management cluster can be manually installed and configured to boot using local hard drives.

A management cluster provides resource isolation. Production applications, test applications, and other types of applications cannot use the cluster resources reserved for management, monitoring, and infrastructure services. Resource isolation helps management and infrastructure services to operate at their best possible performance level. A separate cluster can satisfy an organization's policy to have physical isolation between management and production hardware.

The Edge cluster supports network devices that provide interconnectivity between environments. It provides protected capacity by which internal data center networks connect via gateways to external networks. Networking edge services and network traffic management take place in the cluster. All external facing network connectivity terminates in this cluster.

The ESXi hosts in the edge cluster are managed by a dedicated vCenter Server instance paired with VMware vCloud Networking and Security. Payload clusters that require access to external networks are managed by the same vCenter Server instance. As the platform scales, you should deploy additional Edge clusters to service specific groups of payload clusters.

This specialized cluster will likely be small and can be made up of older, less capable server systems when compared to the management and payload clusters.

The payload cluster supports the delivery of all consumer workloads. The cluster remains empty until a consumer of the environment begins to populate it with virtual machines. You can scale up by adding more payload clusters.

14 VMware, Inc.

You can create new edge and payload clusters, scale up, or scale out, as the data center grows in size.

NOTE You can choose to combine the management and Edge clusters into a single entity. However, the model with three types of clusters provides the best basis for scaling your environment.

vCloud Suite Components in the Management Cluster

The number of vCloud Suite components in the management cluster increases as you add capabilities. A management cluster can contain a minimal set of products, and you expand it as needed.

Typically, you deploy more vCloud Suite components in the management cluster than you do in other types of clusters.

Figure 2‑3. VMware products in the management cluster

Chapter 2 Architecture Overview

Minimal set of components

Extended set of components

VMware, Inc. 15

An example set of VMware products required for the management cluster always includes a vCenter Server instance. vCenter Orchestrator is a vCloud Suite component that you should deploy at early stage, in order to prepare the environment for IaaS and PaaS capabilities.

As the complexity of the environment increases, you install and configure additional products. vCenter Operations Manager and related products provide advanced monitoring features. vCloud Automation Center is the key element of your IaaS solution. A vCenter Site Recovery Manager instance provides replication to a secondary site.

Virtualization

Orchestration Monitoring

SDDC

Infrastructure

Ready

vCloud Suite Architecture Overview and Use Cases

Software-Defined Data Center Core Infrastructure

The core of vCloud Suite environments consists of vSphere and the associated monitoring and orchestration products, such asvCenter Operations Manager and vCenter Orchestrator.

The software-defined data center infrastructure layer includes the core virtualization, monitoring, and orchestration sub-layers. The infrastructure enables consolidation and pooling of physical resources, in addition to providing orchestration and monitoring capabilities, while reducing the costs associated with operating an on-premise data center.

Once the SDDC infrastructure is in place, you can extend it to provide Infrastructure as a Service (IaaS) and Platform as a Service (PaaS) offerings to consumers of IT resources inside or outside the organization. IaaS and PaaS complete the SDDC platform, and provide further opportunities for extending capabilities. With IaaS and PaaS, you increase the agility of IT and developer operations.

Figure 2‑4. The stages of building the software-defined data center infrastructure

Virtualization and Management as an Element of vCloud Suite Infrastructure on page 16

VMware products provide the virtualization and management capabilities required for the vCloud Suite foundation. You should consider the design choices that are available to you.

Monitoring as an Element of vCloud Suite Core Infrastructure on page 19

Monitoring is a required element of a software-defined data center. The monitoring element provides capabilities for performance and capacity management of related infrastructure components, including requirements, specifications, management, and their relationships.

Orchestration as an Element of vCloud Suite Core Infrastructure on page 21

The software-defined data center requires orchestration capability. In vCloud Suite, you can use vCenter Orchestrator to orchestrate processes by using workflows.

Virtualization and Management as an Element of vCloud Suite Infrastructure

VMware products provide the virtualization and management capabilities required for the vCloud Suite foundation. You should consider the design choices that are available to you.

Virtualization and management components are the core of the software-defined data center. For organizations of all sizes, they reduce costs and increase agility. Establishing a robust foundation for your datacenter requires you to install and configure vCenter Server and ESXi, as well as supporting components.

ESXi and vCenter Server Design Considerations on page 17

Design decisions for the virtualization component of the software-defined data center must address the deployment and support specifics of ESXi and vCenter Server.

Network Design Considerations on page 17

As virtualization and cloud computing become more popular in the data center, a shift in the traditional three-tier networking model is taking place. The traditional core-aggregate-access model is being replaced by the leaf and spine design.

Shared Storage Design Considerations on page 18

A proper storage design provides the basis for a virtual data center that performs well.

16 VMware, Inc.

Chapter 2 Architecture Overview

ESXi and vCenter Server Design Considerations

Design decisions for the virtualization component of the software-defined data center must address the deployment and support specifics of ESXi and vCenter Server.

Consider the following design decisions when planning the deployment of ESXi hosts.

ESXi

Use a tool such as VMware Capacity Planner to analyze the the performance and use of existing servers.

Use supported server platforms that are listed in the VMware Compatibility Guide at

http://www.vmware.com/resources/compatibility.

Verify that your servers meet the minimum required system requirements for running ESXi.

To eliminate variability and achieve a manageable and supportable infrastructure, standardize the

physical configuration of the ESXi hosts.

You can deploy ESXi hosts either manually or by using VMware Auto Deploy. One valid approach is to

deploy the management cluster manually, and implement Auto Deploy as your environment grows.

vCenter Server

You can deploy vCenter Server as a Linux-based virtual appliance or in a 64-bit Windows virtual

machine.

NOTE vCenter Server on Windows scales up to support up to 10,000 powered-on virtual machines. The vCenter Server Virtual Appliance is an alternative choice that comes pre-configured and enables faster deployment method along with reduced Microsoft licensing costs. When using an external Oracle database, the vCenter Server Virtual Appliance can support a maxium of 3,000 virtual machines.

Provide sufficient virtual system resources for vCenter Server.

Deploy the vSphere Web Client and the vSphere Client for user interfaces to the environment. Deploy

the VMware vSphere Command-Line Interface, VMware vSphere PowerCLI, or VMware vSphere Management Assistant for command-line and scripting management.

Network Design Considerations

The network must be designed to meet the diverse needs of many different entities in an organization.

These entities include applications, services, storage, administrators, and users.

The network design should improve availability. Availability is typically achieved by providing

network redundancy

The network design should provide an acceptable level of security. Security can be achieved through

controlled access where required and isolation where necessary.

Simplify the network architecture by using a leaf and spine design.

Configure common port group names across hosts to support virtual machine migration and failover.

Separate the network for key services from one another to achieve greater security and better

performance.

Network isolation is often recommended as a best practice in the data center. In a vCloud Suite environment, you might have several key VLANs, spanning two or more physical clusters.

VMware, Inc. 17

Management cluster

Edge cluster

Payload cluster

VLAN ESXi/DHCP Helper

VLAN IP Storage

VLAN vMotion

VLAN Fault Tolerance

VLAN Management Server

VLAN Fault Tolerance

VLAN Transport/VXLAN VLAN Transport/VXLAN

VLAN Internet

VLAN DMZ

VLAN vMotion VLAN vMotion

VLAN IP Storage VLAN IP Storage

VLAN ESXi/DHCP Helper VLAN ESXi/DHCP Helper

Internet/DMZ

Sample ESXi host Sample ESXi host Sample ESXi host

vCloud Suite Architecture Overview and Use Cases

Figure 2‑5. Network isolation in the software-defined data center

ESXi/DHCP Helper

The helper network is used for PXE booting ESXi images by using Auto Deploy.

IP Storage

Network storage traffic over Ethernet should be isolated for performance and security reasons.

vMotion

vMotion traffic is not encrypted by default. Isolate the vMotion traffic to increase security while migrating the state of virtual machines and the contents of virtual disks between hosts.

Fault Tolerance

Management Server

Shared Storage Design Considerations

FT logging traffic should use a dedicated VLAN.

Management traffic between vCenter Server and ESXi hosts.

A proper storage design provides the basis for a virtual data center that performs well.

The storage design must be optimized to meet the diverse needs of applications, services,

administrators, and users.

Tiers of storage have different performance, capacity, and availability characteristics.

Designing different storage tiers is cost efficient, given that not every application requires expensive,

high-performance, highly available storage.

Fibre Channel, NFS, and iSCSI are mature and viable options to support virtual machine needs.

18 VMware, Inc.

Chapter 2 Architecture Overview

Monitoring as an Element of vCloud Suite Core Infrastructure

VMware monitoring components in vCenter Operations Manager Suite include the following products:

Table 2‑1. Monitoring products in vCloud Suite

Monitoring component Description

vCenter Operations Manager Provides comprehensive visibility and insights into the

performance, capacity and health of your infrastructure.

vCenter Infrastructure Navigator Automatically discovers application services, visualizes

relationships and maps dependencies of applications on virtualized compute, storage and network resources.

vCenter Hyperic Monitors application health and is fundamental to the

operation of VMware AppHA.

A subset of the products can be deployed without damaging the integrity of the solution.

vCenter Operations Manager is distributed as virtual appliance that you can deploy on ESXi hosts. You need to configure the virtual appliance and register it with a vCenter Server system. For an in-depth discussion of vCenter Operations Manager and related products, see

https://www.vmware.com/support/pubs/vmware-vcops-suite-pubs.html.

VMware, Inc. 19

vCenter

vCenter Operations vApp

UI VM

Admin

WebApp

Custom

WebApp

vSphere WebApp

Capacity Analytics

Postgres

FSDB

ActiveMQ

Collector

Analytics VM

Performa nce Analytics

VPN

Hyperic

Log Insight

Network

Complia nce

Storage

Adapters enabled

Management Cluster

Edge Cluster

Payload Clusters

vCenter

vCenter Adapter

vCloud Suite Architecture Overview and Use Cases

Figure 2‑6. Monitoring with vCenter Operations Manager

The vCenter Operations Manager vApp contains two virtual machines. One of the virtual machines runs the analytics engine, and the other runs the user interface component. Plug-ins enable you to add additional functionality, according to the needs of your environment. You can use and configure vCenter Operations Manager by using the Web-based interface.

20 VMware, Inc.

vCenter Orchestrator

configuration

vCenter Orchestrator

design

vCO plug-ins

Embedded

database

Authentication

AD, LDAP or SSO

vCenter Server

Multi Node

vCenter Orchestrator Appliance

Plug-ins enabled

Chapter 2 Architecture Overview

Orchestration as an Element of vCloud Suite Core Infrastructure

The software-defined data center requires orchestration capability. In vCloud Suite, you can use vCenter Orchestrator to orchestrate processes by using workflows.

The orchestration layer of the software-defined data center provides the ability to build macro-like workflows that automate manual processes and is instrumental when delivering repeatable operations. Traditionally, orchestration is implemented when the Infrastructure Service and Platform Application Service layers of the SDDC solution are being considered. In the IaaS layer, vCloud Automation Center can trigger vCenter Orchestrator workflows, and you can publish workflows in your service catalog.

Establishing the orchestration engine early in the process benefits all levels of customer maturity and provides a foundation that the rest of the solution builds on. You should deploy one vCenter Orchestrator instance for each vCenter Server system in your environment.

The main elements of the orchestration layer are:

vCenter Orchestrator

vCenter Orchestrator plug-ins

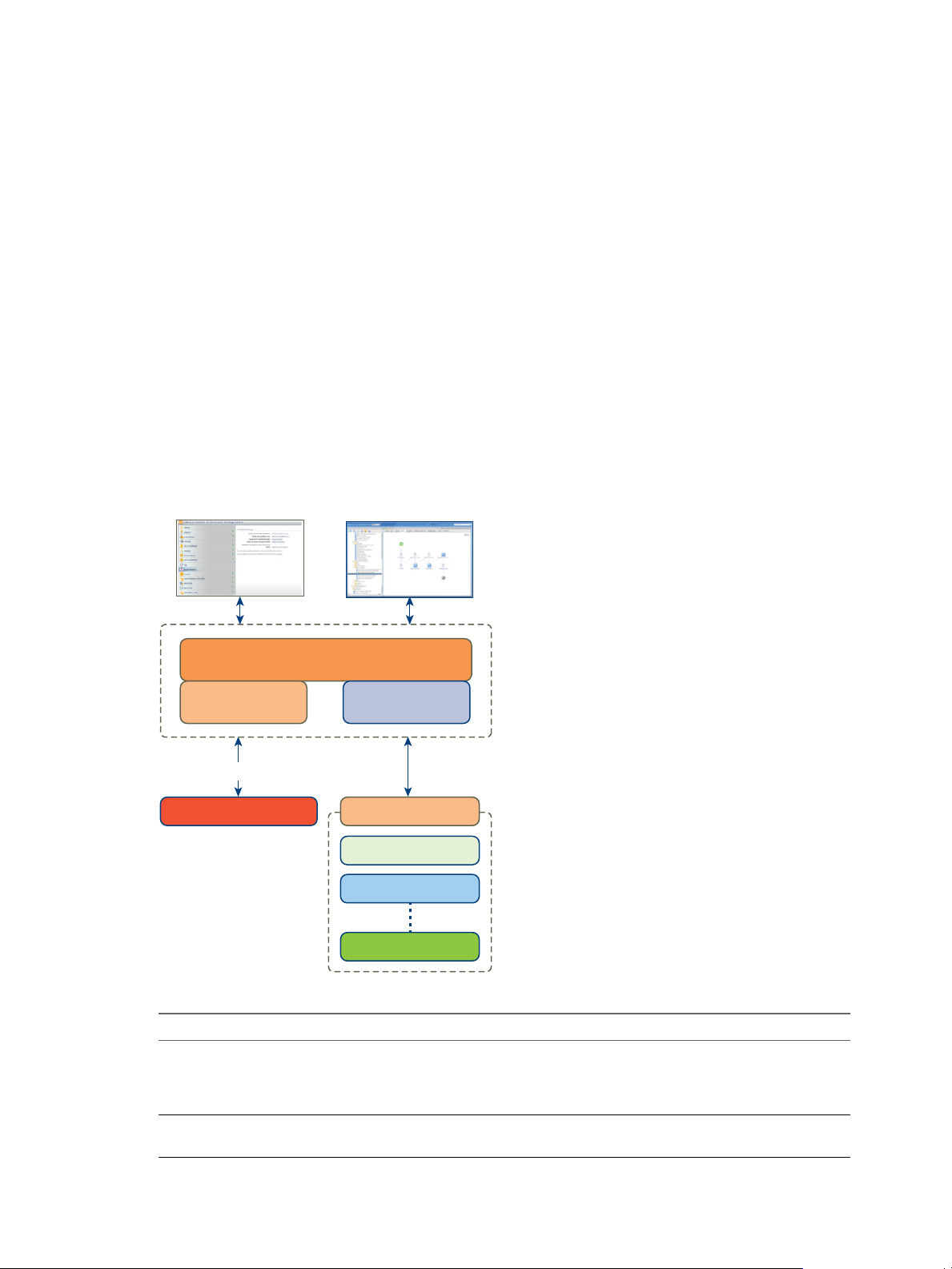

Figure 2‑7. Design of the orchestration layer

VMware, Inc. 21

Table 2‑2. Components of vCloud Suite orchestration

Component Description

vCenter Orchestrator Appliance You can deploy vCenter Orchestrator as a virtual

Authentication Authentication can be provided by Active Directory or

appliance. The vCenter Orchestrator Appliance, running in stand-alone mode (not HA) is the recommended approach for deployment.

vCenter Single Sign-on.

vCloud Suite Architecture Overview and Use Cases

Table 2‑2. Components of vCloud Suite orchestration (Continued)

Component Description

vCenter Orchestrator configuration interface The Web-based interface where you configure the

vCenter Orchestrator designer interface The Web-based interface where your create and customize

vCenter Server plug-in An Orchestrator plug-in that lets you manage multiple

Multi Node plug-in An Orchestrator plug-in that provides remote vCO

Delivering an Infrastructure Service

In the software-defined data center, provider groups or organizations can isolate and abstract resources in the form of infrastructure and application services, and make them available to tenant groups or organizations.

appliance database, SSL certificate, license, and so on.

workflows.

vCenter Server instances. The vCenter Server plug-in provides a library of standard workflows that automate vCenter Server operations.

management and remote workflow execution.

The Infrastructure Service layer delivers a self-service user portal that lowers administrative overhead through the use of policies to provision infrastructure services. Policies allow administrators to control the consumption of services in a granular and flexible fashion. The portal also provides robust approval capabilities.

The core of the IaaS layer is the vCloud Automation Center virtual appliance that you must deploy on an ESXi host and configure.

You can build the infrastructure service core by using the following components:

Table 2‑3. Infrastructure service components

Infrastructure service section Design components

vCloud Automation Center virtual appliance

vCloud Automation Center IaaS

Distributed execution vCloud Automation Center distributed execution

Integration vCloud Automation Center Agent machines

Cost management IT Business Management

vCloud Automation Center Portal Web/App server

vCloud Automation Center vPostgreSQL database

vCloud Automation Center IaaS Web server

vCloud Automation Center IaaS Manager services

managers:

Orchestrator

Workers

22 VMware, Inc.

Table 2‑3. Infrastructure service components (Continued)

Self-Service

Portal

Infrastructure

Components

Services and

Tenants

Cost

Management

Infrastructure

Service Ready

Infrastructure service section Design components

Provisioning infrastructure

Supporting infrastructure

vSphere environment

vCloud Director environment

vCenter Orchestrator environment

Other supported physical, virtual, or cloud

environment

Microsoft SQL database environment

vPostgresSQL database environment (if not embedded

in the virtual appliance)

LDAP or Active Directory environment

SMTP and email environment

The stages of deploying an infrastructure service are illustrated in the graphic below.

Figure 2‑8. IaaS components

Chapter 2 Architecture Overview

For an in-depth discussion of key IaaS concepts, see the vCloud Automation Center documentation.

Self-service portal

vCloud Automation Center provides a secure portal where authorized administrators, developers or business users can request new IT services.

Infrastructure Components

Services and Tenants

vCloud Automation Center requires you to configure vSphere endpoints, Fabric groups, and blueprints.

The service catalog provides a unified self-service portal for consuming IT services. Users can browse the catalog to request items they need, track their requests, and manage their provisioned items.

Cost Management

Understanding and controlling costs is an important SDDC feature. Cost management capability is solutions that integrate with vCloud Automation Center, such as VMware ITBM.

VMware, Inc. 23

Private Network

External Network

Resource Providers

Fabric Groups Fabric Groups

Developers Group

Production Groups Validation Groups

Marketing Groups

Resources on demand Resources on demand

apps

vSE

apps

Tenant 1

apps

vSE

apps

Tenant 2

Private Network

Internet

Corporate

External Network

vSphere Resources

vCloud Resources

External Resources

vCloud Suite Architecture Overview and Use Cases

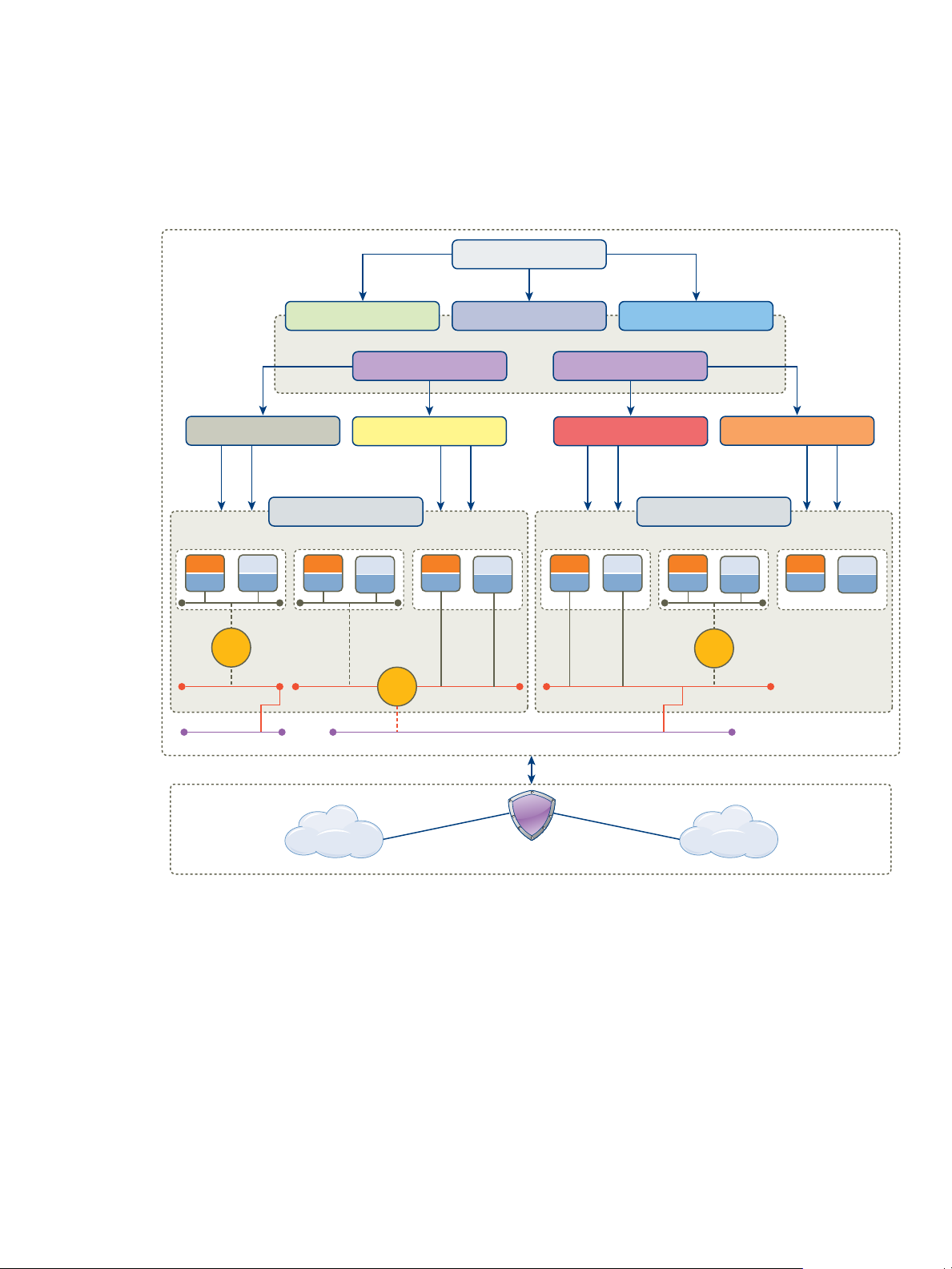

Conceptual Design of an IaaS Environment

In a vCloud Suite environment that is configured to deliver infrastructure as a service, tenants have access to compute, network, and storage resources that have been preconfigured for them by the provider.

Figure 2‑9. Conceptual diagram of an IaaS environment

Resource providers

Providers are groups in the organization that configure and support the underlying virtual infrastructure.

Fabric Groups

Fabric groups organize virtualization compute resources and cloud endpoints by type and intent. An IaaS administrator also assigns one or more fabric administrators to manage the resources in the fabric group.

Business Groups

Create business groups to associate a set of services and resources to a set of users, often corresponding to a line of business, department, or other organizational unit. Users must belong to a business group to request machines.

24 VMware, Inc.

Chapter 2 Architecture Overview

Tenants

The networks in the example diagram are routed by using vShield Edge instances, which in turn connect to internal and external networks.

Tenant can represent business units in a company that subscribe to cloud services from a service provider. Each tenant has its own dedicated configuration. Some system-level configuration is shared across tenants.

Delivering Platform as a Service

Platform-as-a-Service (PaaS) lets you model and provision applications across private, public, and hybrid cloud infrastructures.

PaaS is a type of cloud computing service that provides a computing platform and a solution stack as a service. Along with Software-as-a-Service (SaaS) and Infrastructure-as-Service (IaaS), PaaS is a service model of cloud computing that lets you create an application (or service) using tools and libraries supplied by the provider. You control software deployment and configuration settings. The provider provides the networks, servers, storage, and other services required to host your application.

Automate Application Provisioning

A key aspect of PaaS is the ability to automate the provisioning of applications. VMware vCloud Automation Center is a model-based application provisioning solution that simplifies creating and standardizing application deployment topologies on cloud infrastructures. Application architects use the drag-and-drop interface to create application deployment topologies called application blueprints. These application blueprints define the structure of the application, enable the use of standardized application infrastructure components, and include installation dependencies and default configurations for custom and packaged enterprise applications. You can use the prepopulated and extensible catalog of standard logical templates, application infrastructure service, components, and scripts to model an application blueprint. These blueprints standardize the structure of the application, including software components, dependencies, and configurations, for repeated deployments. Application blueprints are logical deployment topologies that are portable across VMware-based IaaS clouds such as vCloud Director and vCloud Automation Center, and across public clouds such as Amazon EC2.

Using vCloud Automation Center, you "declare" the application and service structure with the assumption that the underlying cloud infrastructure will deliver the necessary compute, network and storage requirements. Once built you can deploy the blueprints on any VMware vSphere-based private or public cloud, delivering on the cloud promise of choice. This application provisioning model frees developers and application administrators from dealing with infrastructure, OS, and middleware configuration issues, and allows you to focus on delivering business value with your applications.

Enterprise users can standardize, deploy, configure, update, and scale complex applications in dynamic cloud environments. These applications can range from simple Web applications to complex custom applications and packaged applications. With its catalog of standard components, or services, vCloud Application Director automates and manages the update life cycle of deployments for multi-tier enterprise applications in hybrid cloud environments.

Monitor Application Performance

Monitoring provides capabilities for performance management related to applications.

Pre-built Application Components

VMware Cloud Management Marketplace provides blueprints, services, scripts and plugins that you can download and use to more rapidly develop your own application services. The pre-built components are provided by leading middleware, networking, security and application vendors using highly reusable and flexible configurations that you can insert into any multi-tier application-provisioning plan.

VMware, Inc. 25

vCloud Suite Architecture Overview and Use Cases

26 VMware, Inc.

Deploying vCloud Suite 3

To leverage the capabilities of vCloud Suite, you must install its components separately and ensure that the required prerequisites and configuration requirements are met.

This book provides high-level design recommendations and deployment sequences. For installation instructions and in-depth discussions of individual vCloud Suite components, see the documentation for those products.

This chapter includes the following topics:

“Install vCloud Suite Components,” on page 27

“Update vCloud Suite Components,” on page 29

“External Dependencies for Deploying vCloud Suite,” on page 30

“System Requirements of vCloud Suite Components,” on page 31

“Security Considerations,” on page 31

“Licensing,” on page 41

Install vCloud Suite Components

VMware, Inc.

Follow the recommended sequence of installation to build a stable and scalable vCloud Suite environment. The recommended installation sequence has been verified for a greenfiled virtual environment.

NOTE If you want to use vCenter Operations Manager to monitor applications, you must install vCenter Infrastructure Navigator first. If you want to use vSphere App HA, you must install vCenter Hyperic first.

You download and install vCloud Suite components separately. Depending on the type of cluster that you are building, you might need to omit some components from the installation sequence.

Prerequisites

Verify that you have system resources that are sufficient for the deployment of vCloud Suite components.

Verify that your environment meets the requirements for external dependencies. See “External

Dependencies for Deploying vCloud Suite,” on page 30.

Verify that you have a valid vCloud Suite license. See “Licensing,” on page 41.

vCloud Suite Architecture Overview and Use Cases

Procedure

1 Install ESXi.

If you install vCenter Server on a physical machine, you can install vCenter Server first.

See Installing ESXi.

2 Install vCenter Server.

See Installing vCenter Server.

3 Install vCloud Networking and Security.

See vShield Installation and Upgrade Guide.

4 Install the following suite components:

Product Installation instructions

vCenter Orchestrator Installing Orchestrator

vCloud Automation Center Installing vCloud Automation Center

vCenter Operations Manager Deployment and Configuration Guide

vCloud Director Installation and Upgrade Guide

5 Install the following suite components:

Product Installation instructions

vCloud Automation Center Application Service Installing vCloud Application Director

vCenter Hyperic vCenter Hyperic Installation and Configuration

6 Install the following suite components:

Product Installation instructions

vCenter Site Recovery Manager Installing SRM

vSphere Replication Installing vSphere Replication

vCenter Infrastructure Navigator Installation and Configuration Guide

vSphere Data Protection Administration Guide

vSphere Big Data Extensions Installing Big Data Extensions

vCenter Configuration Manager Installation Guide

7 Install the following suite components:

Product Installation instructions

vShield Edge vShield Installation and Upgrade Guide

vShield App vShield Installation and Upgrade Guide

vShield Endpoint vShield Installation and Upgrade Guide

vCenter Update Manager Installing Update Manager

28 VMware, Inc.

Update vCloud Suite Components

Updating vCloud Suite components to newer versions requires you to perform separate update procedures. Follow the recommended update order to ensure that vCloud Suite updates complete without problems.

You should perform the update operations according to the recommeded sequence. Some of the products in the sequence are bundled in groups. You can install the products that belong to a specific group in any order.

Prerequisites

Verify that you have the required installation or upgrade packages.

Verify that you have administrator privileges for all systems.

Procedure

1 Upgrade vCloud Automation Center.

See Upgrading to vCloud Automation Center 6.1.

2 Update the following components:

Product Update documentation

vCloud Automation Center Application Service Upgrade Guide

vCenter Configuration Manager Installation Guide

vCloud Director Upgrading vCloud Director

Chapter 3 Deploying vCloud Suite

You can migrate data from Application Director to a fresh installation of vCloud Automation Center Application Service.

3 Update vCloud Networking and Security.

See vShield Installation and Upgrade Guide.

4 Update vCenter Server.

See Upgrading vCenter Server.

5 Update vCenter Orchestrator.

Installing and Upgrading Orchestrator.

6 Update the following components:

Product Update documentation

vCenter Site Recovery Manager Upgrading SRM

vSphere Replication Upgrading vSphere Replication

vCenter Operations Manager Deployment and Configuration Guide

vSphere Data Protection Administration Guide

vCenter Infrastructure Navigator Installation and Configuration Guide

vCenter Hyperic vCenter Hyperic Installation and Configuration

vSphere Big Data Extensions Upgrading Big Data Extensions

VMware, Inc. 29

vCloud Suite Architecture Overview and Use Cases

7 Update ESXi.

See Upgrading Your Hosts.

You should update VMware tools on your VMs after the ESXi update.

8 Update the following components:

Product Installation instructions

vShield Edge vShield Installation and Upgrade Guide

vShield App vShield Installation and Upgrade Guide

vShield Endpoint vShield Installation and Upgrade Guide

You have updated vCloud Suite components.

External Dependencies for Deploying vCloud Suite

External dependencies address other systems or technologies that depend on or might be affected by the vCloud Suite infrastructure.

Table 3‑1. External Dependencies in vCloud Suite

Component Description

Active Directory Active Directory is required to implement and operate the

vCloud Suite infrastructure.

DNS DNS must be configured for connectivity between

vCenter Server, Active Directory, ESXi hosts, and virtual machines.

DHCP/TFP PXE boot is required for vSphere Auto Deploy

functionality.

64-bit Windows OS Some vCloud Suite components can be installed on

Windows Server 2008 and later. vCloud Director requires RHEL or CentOS Linux.

Microsoft SQL or Oracle database vCloud Suite components can work with embedded or

external databases, depending on the product and your environment.

Network infrastructure Network infrastructure with 1Gbps or 10Gbps switches.

Depending on the needs of your environment, higher throughput is recommended.

Storage Area Network Stability and performance of the SAN affects the virtual

machines.

Time synchronization Accurate time keeping and time synchronization is critical

for a healthy vSphere infrastructure. All components, including ESXi hosts, vCenter Server, the SAN, physical network infrastructure, and virtual machine guest operating systems must have accurate time keeping. This is especially critical for virtual machines protected by FT.

Staff Properly trained IT staff is critical for the correct

implementation, operation, support, and enhancement of your environment.

Policies and procedures The policies and procedures governing the use of

information technology must be revised to properly incorporate the unique properties and capabilities of virtualization and cloud operations.

30 VMware, Inc.

System Requirements of vCloud Suite Components

The software and hardware requirement for vCloud Suite depend on the set of components that you have deployed. Information for each product or feature is available in the individual product documentation sets.

Documentation resources

Table 3‑2. List of system requirements documentation for vCloud Suite 5.8 components

Product System requirements documentation

vSphere System Requirements

vCenter Orchestrator Orchestrator System Requirements

vCenter Update Manager System Requirements

vCloud Networking and Security vShield Installation and Upgrade Guide

vCloud Automation Center Preparing for Installation

vCloud Automation Center Application Service System Requirements

vCenter Operations Manager Deployment and Configuration Guide

vCenter Configuration Manager Installation Guide

vCenter Hyperic Supported Configurations and System Requirements

vCenter Infrastructure Navigator Installing vCenter Infrastructure Navigator

vCloud Director Hardware and Software Requirements

vSphere Replication Installing vSphere Replication

vCenter Site Recovery Manager SRM System Requirements

Chapter 3 Deploying vCloud Suite

Security Considerations

The vSphere platform is an inherently secure environment from a technical standpoint, with a minimal hypervisor footprint, APIs for monitoring that eliminate the need for third-party software on the host, secure syslog activity, Active Directory integration, and more. There are however several guidelines for securing a vSphere implementation. See the vSphere hardening guide for detailed configurations.

For a detailed discussion of security considerations for the SDDC core layer, see vSphere Security.

Security and Virtual Machines on page 32

Virtual machines are the containers in which applications and guest operating systems run. By design, all VMware virtual machines are isolated from one another. This isolation enables multiple virtual machines to run securely while sharing hardware and provides both their ability to access hardware and their uninterrupted performance.

Security and Virtual Networks on page 34

If an ESXi host is accessed through vCenter Server, it is typical to protect vCenter Server using a firewall. This firewall provides basic protection for the network.

Securing Virtual Machines with VLANs on page 34

The network can be one of the most vulnerable parts of any system. The virtual machine network requires as much protection as its physical counterpart. Virtual Machine network security can be enhanced in several ways, including through the use of virtual local area networks (VLANS).

VMware, Inc. 31

vCloud Suite Architecture Overview and Use Cases

Securing Standard Switch Ports on page 36

As with physical network adapters, a virtual network adapter can send frames that appear to be from a different machine or impersonate another machine so that it can receive network frames intended for that machine. Also, like physical network adapters, a virtual network adapter can be configured so that it receives frames targeted for other machines.

Securing iSCSI Storage on page 37

The storage configured for a host might include one or more storage area networks (SANs) that use iSCSI. When iSCSI is configured on a host, several measures can be taken to minimize security risks.

Securing ESXi and the ESX Management Interfaces on page 38

Security of the ESXi management interface is critical to protect against unauthorized intrusion and misuse. If a host is compromised in certain ways, the virtual machines it interacts with might also be compromised. To minimize the risk of an attack through the management interface, ESXi is protected with a firewall.

Securing vCenter Server Systems on page 39

Securing vCenter Server includes ensuring security of the host where vCenter Server is running, following best practices for assigning privileges and roles, and verifying the integrity of the clients that connect to vCenter Server.

Encryption and Security Certificates on page 39

ESXi and vCenter Server support standard X.509 version 3 (X.509v3) certificates to encrypt session information sent over Secure Socket Layer (SSL) protocol connections between components. If SSL is enabled, data is private, protected, and cannot be modified in transit without detection.

vCenter Single Sign-On on page 39

vCenter Single Sign-On is a component of the management infrastructure that provides the capability to manage the environment with Active Directory credentials.

Security and Virtual Machines

Even a user with system administrator privileges on a virtual machine's guest operating system cannot breach this layer of isolation to access another virtual machine without privileges explicitly granted by the ESXi system administrator. As a result of virtual machine isolation, if a guest operating system running in a virtual machine fails, other virtual machines on the same host continue to run. The guest operating system failure has no effect on:

The ability of users to access the other virtual machines.

The ability of the operational virtual machines to access the resources they need.

The performance of the other virtual machines.

Each virtual machine is isolated from other virtual machines running on the same hardware. Although virtual machines share physical resources such as CPU, memory, and I/O devices, a guest operating system on an individual virtual machine cannot detect any device other than the virtual devices made available to it.

32 VMware, Inc.

CPU memory disk network and

video cards

SCSI

controller

mouse CD/DVD keyboard

Virtual Machine

Operating System

Virtual Machine Resources

app app app app app

Hardware Network Adapter

links virtual machines to the physical network

Physical Network

virtual network adapter

ESXi

Virtual Machine

virtual network adapter

Virtual Machine

VMkernel

Virtual Networking Layer

Virtual Switch

links virtual machines together

Chapter 3 Deploying vCloud Suite

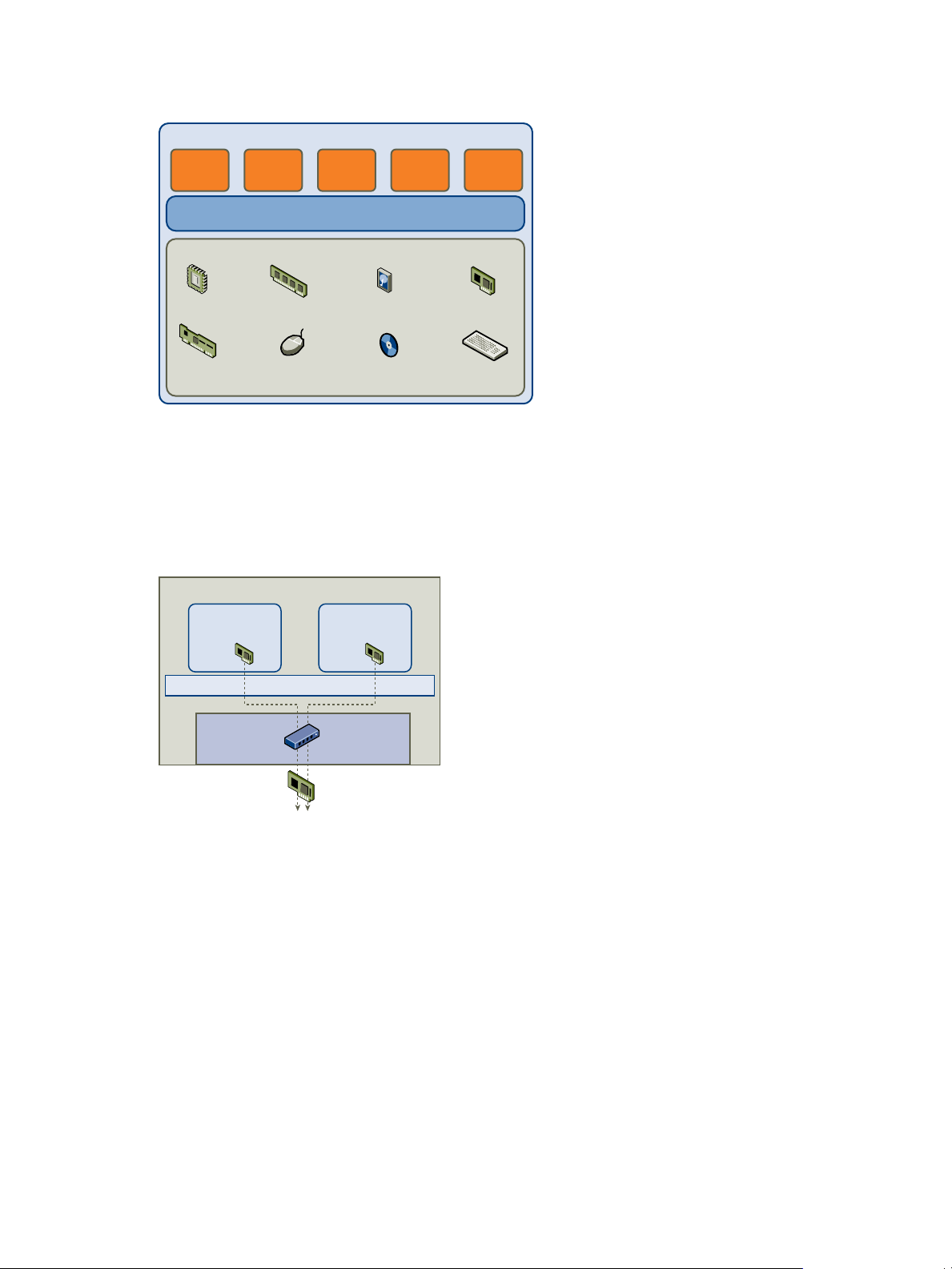

Figure 3‑1. Virtual Machine Isolation

Because the VMkernel mediates the physical resources and all physical hardware access takes place through the VMkernel, virtual machines cannot circumvent this level of isolation.

Just as a physical machine communicates with other machines in a network through a network card, a virtual machine communicates with other virtual machines running in the same host through a virtual switch. Further, a virtual machine communicates with the physical network, including virtual machines on other ESXi hosts, through a physical network adapter.

Figure 3‑2. Virtual Networking Through Virtual Switches

These characteristics apply to virtual machine isolation in a network context:

If a virtual machine does not share a virtual switch with any other virtual machine, it is completely

isolated from virtual networks within the host

If no physical network adapter is configured for a virtual machine, the virtual machine is completely

isolated from any physical networks.

If the same safeguards are used (firewalls, antivirus software, and so forth) to protect a virtual machine

from the network as if it were a physical machine, the virtual machine is as secure as the physical machine.

Virtual machines can be further protected by setting up resource reservations and limits on the host. For example, through the detailed resource controls available in ESXi, a virtual machine can be configured so that it always receives at least 10 percent of the host's CPU resources, but never more than 20 percent.

VMware, Inc. 33

vCloud Suite Architecture Overview and Use Cases

Resource reservations and limits protect virtual machines from performance degradation that would result if another virtual machine consumed excessive shared hardware resources. For example, if one of the virtual machines on a host is incapacitated by a denial-of-service (DoS) attack, a resource limit on that machine prevents the attack from taking up so much of the hardware resources that the other virtual machines are also affected. Similarly, a resource reservation on each of the virtual machines provides that, in the event of high resource demands by the virtual machine targeted by the DoS attack, all the other virtual machines still have enough resources to operate.

By default, ESXi imposes a form of resource reservation by applying a distribution algorithm that divides the available host resources equally among the virtual machines while keeping a certain percentage of resources for use by other system components. This default behavior provides a degree of natural protection from DoS and distributed denial-of-service (DDoS) attacks. Specific resource reservations and limits are set on an individual basis to customize the default behavior so that the distribution is not equal across the virtual machine configuration

Security and Virtual Networks

If an ESXi host is accessed through vCenter Server, it is typical to protect vCenter Server using a firewall. This firewall provides basic protection for the network.

A firewall might lie between the clients and vCenter Server. Alternatively, vCenter Server and the clients can be behind the firewall, depending on deployment. The main point is to provide a firewall at what is considered to be an entry point for the system.

Networks configured with vCenter Server can receive communications through the vSphere Client or thirdparty network management clients that use the SDK to interface with the host. During normal operation, vCenter Server listens for data from its managed hosts and clients on designated ports. vCenter Server also assumes that its managed hosts listen for data from vCenter Server on designated ports. If a firewall is present between any of these elements, it needs to be confirmed that the firewall has open ports to support data transfer.

Firewalls might also be included at a variety of other access points in the network, depending on how the network is planned to be used and the level of security various devices require. Select the locations for firewalls based on the security risks that have been identified for network configuration. The following is a list of firewall locations common to ESXi implementations.

Securing Virtual Machines with VLANs

If the virtual machine network is connected to a physical network, it can be subject to breaches to the same degree that a network made up of physical machines is. Even if the virtual machine network is isolated from any physical network, virtual machines in the network can be subject to attacks from other virtual machines in the network. The requirements for securing virtual machines are often the same as those for physical machines.

Virtual machines are isolated from each other. One virtual machine cannot read or write another virtual machine's memory, access its data, use its applications, and so forth. However, within the network, any virtual machine or group of virtual machines can still be the target of unauthorized access from other virtual machines and might require further protection by external means.

Adding firewall protection to the virtual network by installing and configuring host-based firewalls on

some or all of its virtual machines.

34 VMware, Inc.

Chapter 3 Deploying vCloud Suite

For efficiency, private virtual machine Ethernet networks or virtual networks can be configured. With

virtual networks, a host-based firewall is installed on a virtual machine at the head of the virtual network. This serves as a protective buffer between the physical network adapter and the remaining virtual machines in the virtual network.

Installing a host-based firewall on virtual machines at the head of virtual networks is a good security

practice. However, because host-based firewalls can slow performance, it's important to balance security needs against performance before deciding to install host-based firewalls on virtual machines elsewhere in the virtual network.

Keeping different virtual machine zones within a host on different network segments. If virtual

machine zones on their own network segments are isolated, the risks of data leakage from one virtual machine zone to the next is minimized. Segmentation prevents various threats, including Address Resolution Protocol (ARP) spoofing, in which an attacker manipulates the ARP table to remap MAC and IP addresses, thereby gaining access to network traffic to and from a host. Attackers use ARP spoofing to generate Man in the Middle attacks, DoS attacks, hijack the target system, and otherwise disrupt the virtual network.

Planning segmentation carefully lowers the chances of packet transmissions between virtual machine

zones, which prevents sniffing attacks that require sending network traffic to the victim. Also, an attacker cannot use an insecure service in one virtual machine zone to access other virtual machine zones in the host. Segmentation can be implemented by using either of two approaches, each of which has different benefits.

Use separate physical network adapters for virtual machine zones so that the zones are isolated.

Maintaining separate physical network adapters for virtual machine zones is probably the most secure method and is less prone to misconfiguration after the initial segment creation.

Set up virtual local area networks (VLANs) to help safeguard the network. Because VLANs

provide almost all of the security benefits inherent in implementing physically separate networks without the hardware overhead, they offer a viable solution that can save the cost of deploying and maintaining additional devices, cabling, and so forth.

This level of security can be implemented in different ways.

VLANs are an IEEE standard networking scheme with specific tagging methods that allow routing of packets to only those ports that are part of the VLAN. When properly configured, VLANs provide a dependable means to protect a set of virtual machines from accidental or malicious intrusions.

VLANs let you segment a physical network so that two machines in the network are unable to transmit packets back and forth unless they are part of the same VLAN. For example, accounting records and transactions are among a company’s most sensitive internal information. In a company whose sales, shipping, and accounting employees all use virtual machines in the same physical network, you might protect the virtual machines for the accounting department by setting up VLANs.

VMware, Inc. 35

VM3 VM4

Standard Switch

VM5

Standard Switch

VM6 VM7 VM8

Standard Switch

VM0 VM1 VM2

Standard Switch

VM9 VM10 VM11

VM12 VLAN

VM13 VLAN

VM14 VLAN

Standard Switch

Router

Host 1

Host 3

Host 4

Host 2

Switch 1

Switch 2

Multiple VLANs on the same virtual switch

Broadcast Domains A and B

VLAN A

Broadcast Domain A

VLAN B

Broadcast Domain B

vCloud Suite Architecture Overview and Use Cases

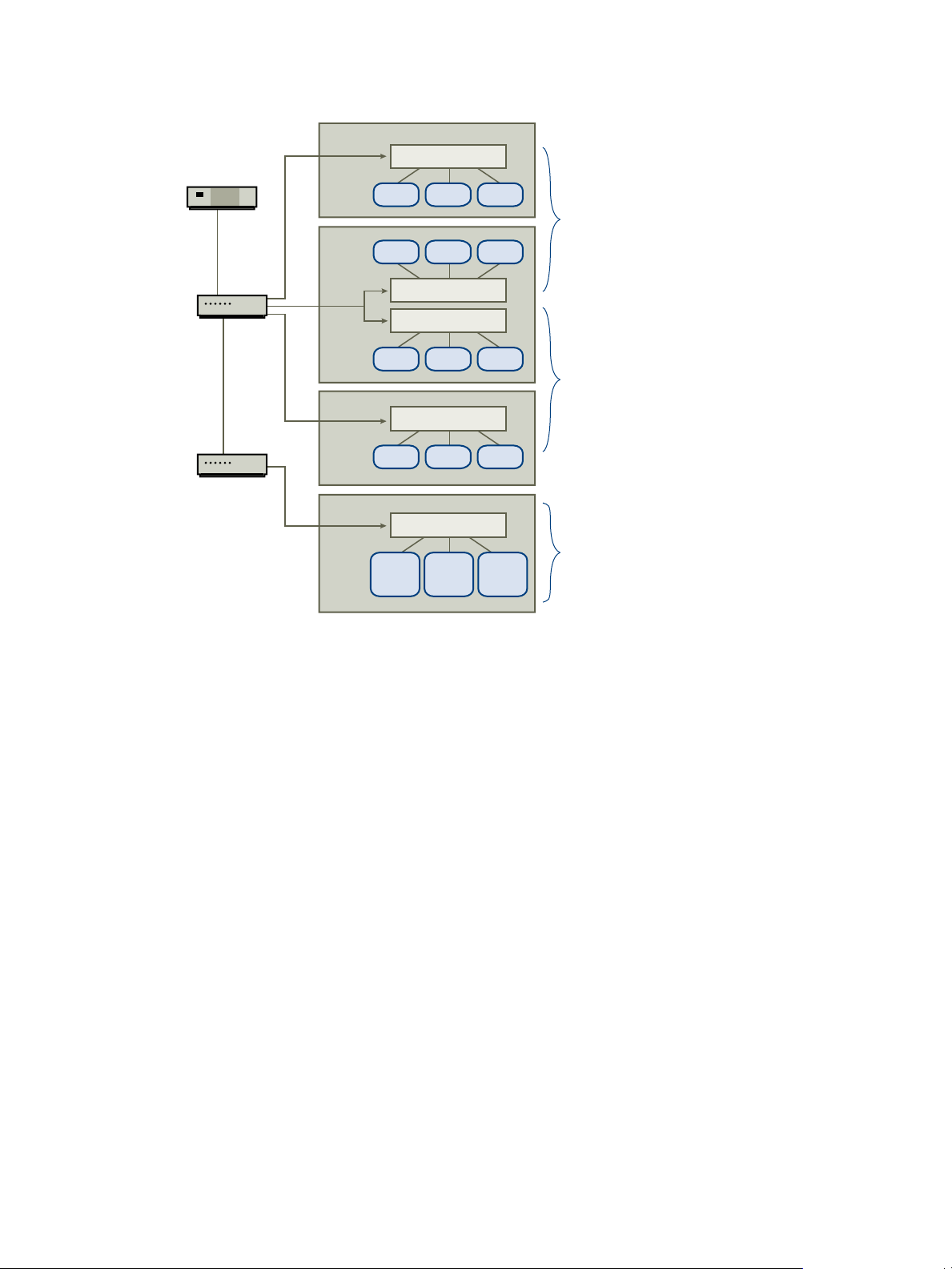

Figure 3‑3. Sample VLAN Layout

In this configuration, all employees in the accounting department use virtual machines in VLAN A and the employees in sales use virtual machines in VLAN B.

The router forwards packets containing accounting data to the switches. These packets are tagged for distribution to VLAN A only. Therefore, the data is confined to Broadcast Domain A and cannot be routed to Broadcast Domain B unless the router is configured to do so.

This VLAN configuration prevents the sales force from intercepting packets destined for the accounting department. It also prevents the accounting department from receiving packets intended for the sales group. The virtual machines serviced by a single virtual switch can be in different VLANs.

Securing Standard Switch Ports

When a standard switch is created, port groups are added to impose a policy configuration for the virtual machines and storage systems attached to the switch. Virtual ports are created through the vSphere Web Client or the vSphere Client.

As part of adding a port or standard port group to a standard switch, the vSphere Client configures a security profile for the port. This security profile can be used so that the host prevents the guest operating systems for its virtual machines from impersonating other machines on the network. This security feature is implemented so that the guest operating system responsible for the impersonation does not detect that the impersonation was prevented.

36 VMware, Inc.

Chapter 3 Deploying vCloud Suite

The security profile determines how strongly the protection is enforced against impersonation and interception attacks on virtual machines. To correctly use the settings in the security profile, one must understand the basics of how virtual network adapters control transmissions and how attacks are staged at this level.

Each virtual network adapter has its own MAC address assigned when the adapter is created. This address is called the initial MAC address. Although the initial MAC address can be reconfigured from outside the guest operating system, it cannot be changed by the guest operating system. In addition, each adapter has an effective MAC address that filters out incoming network traffic with a destination MAC address different from the effective MAC address. The guest operating system is responsible for setting the effective MAC address and typically matches the effective MAC address to the initial MAC address.

When sending packets, an operating system typically places its own network adapter's effective MAC address in the source MAC address field of the Ethernet frame. It also places the MAC address for the receiving network adapter in the destination MAC address field. The receiving adapter accepts packets only when the destination MAC address in the packet matches its own effective MAC address.

Upon creation, a network adapter's effective MAC address and initial MAC address are the same. The virtual machine's operating system can alter the effective MAC address to another value at any time. If an operating system changes the effective MAC address, its network adapter receives network traffic destined for the new MAC address. The operating system can send frames with an impersonated source MAC address at any time. This means an operating system can stage malicious attacks on the devices in a network by impersonating a network adapter that the receiving network authorizes.

Standard switch security profiles can be used on hosts to protect against this type of attack by setting three options. If any default settings for a port are changed, the security profile must be modified by editing standard switch settings in the vSphere Client.

Securing iSCSI Storage

The storage configured for a host might include one or more storage area networks (SANs) that use iSCSI. When iSCSI is configured on a host, several measures can be taken to minimize security risks.

iSCSI is a means of accessing SCSI devices and exchanging data records by using TCP/IP over a network port rather than through a direct connection to a SCSI device. In iSCSI transactions, blocks of raw SCSI data are encapsulated in iSCSI records and transmitted to the requesting device or user.

One means of securing iSCSI devices from unwanted intrusion is to require that the host, or initiator, be authenticated by the iSCSI device, or target, whenever the host attempts to access data on the target LUN. The goal of authentication is to prove that the initiator has the right to access a target, a right granted when authentication is configured. ESXi does not support Kerberos, Secure Remote Protocol (SRP), or public-key authentication methods for iSCSI. Additionally, it does not support IPsec authentication and encryption. Use the vSphere Client or the vSphere Web Client to determine whether authentication is being performed and to configure the authentication method.

iSCSI SANs enable the efficient use of existing Ethernet infrastructures to provide hosts access to storage resources that they can dynamically share. iSCSI SANs provide an economical storage solution for environments that rely on a common storage pool to serve numerous users. As with any networked system, iSCSI SANs can be subject to security breaches.

VMware, Inc. 37

vCloud Suite Architecture Overview and Use Cases

Securing ESXi and the ESX Management Interfaces

To protect the host against unauthorized intrusion and misuse, VMware imposes constraints on several parameters, settings, and activities. Constraints can be relaxed to meet configuration needs, but if done so, measures have to be taken to protect the network as a whole and the devices connected to the host.

Consider the following recommendations when evaluating host security and administration.

To improve security, restrict user access to the management interface and enforce access security

policies like setting up password restrictions.

The ESXi Shell has privileged access to certain parts of the host. Therefore, provide only trusted users

with ESXi Shell login access.

When possible, run only the essential processes, services, and agents such as virus checkers, and virtual

machine backups.

When possible, use the vSphere Web Client or a third-party network management tool to administer

ESXi Server hosts instead of working though the command-line interface as the root user. The usage of the vSphere Client enables limitations to the accounts with access to the ESXi Shell and one can safely delegate responsibilities and set up roles that prevent administrators and users from using capabilities they do not need.

The host runs a variety of third-party packages to support management interfaces or tasks that an operator must perform. VMware does not support upgrading these packages from anything other than a VMware source. If a download or patch is used from another source, management interface security or functions might be compromised. Regularly check third-party vendor sites and the VMware knowledge base for security alerts.

In addition to implementing the firewall, risks to the hosts are mitigated using other methods.

By default, all ports not specifically required for management access to the host are closed. Ports must

be specifically opened if additional services are required.

By default, weak ciphers are disabled and all communications from clients are secured by SSL. The

exact algorithms used for securing the channel depend on the SSL handshake. Default certificates created on ESXi use SHA-1 with RSA encryption as the signature algorithm.

VMware monitors all security alerts that could affect ESXi security and, if needed, issues a security

patch.

Insecure services such as FTP and Telnet are not installed, and the ports for these services are closed by

default. Because more secure services such as SSH and SFTP are easily available, always avoid using these insecure services in favor of their safer alternatives. If insecure services must be used sufficient protection for the host must be implemented, specific ports must be opened to support these services.

To increase the security of the ESXi Server hosts, they can be put in lockdown mode. When lockdown mode is enabled, no users other than vpxuser have authentication permissions, nor can they perform operations against the host directly. Lockdown mode forces all operations to be performed through vCenter Server. When a host is in lockdown mode, vSphere CLI commands cannot be executed from an administration server, from a script, or from VMware vSphere Management Assistant against the host. External software or management tools might not be able to retrieve or modify information from the ESXi host.

38 VMware, Inc.

Chapter 3 Deploying vCloud Suite

Securing vCenter Server Systems

Strictly control vCenter Server administrator privileges to increase security for the system, as follows:

Full administrative rights to vCenter Server should be removed from the local Windows administrator

account and granted to a special-purpose local vCenter Server administrator account. Grant full vSphere administrative rights only to those administrators who are required to have it. Do not grant this privilege to any group whose membership is not strictly controlled.

Avoid allowing users to log in directly to the vCenter Server system. Allow only those users who have

legitimate tasks to perform to log into the system and confirm that these events are audited.

Install vCenter Server using a service account instead of a Windows account. A service account or a

Windows account can be used to run vCenter Server. Using a service account allows to enable Windows authentication for SQL Server, which provides more security. The service account must be an administrator on the local machine.

Check for privilege reassignment when restarting vCenter Server. If the user or user group that is

assigned the Administrator role on the root folder of the server cannot be verified as a valid user or group, the Administrator privileges are removed and assigned to the local Windows Administrators group.

Grant minimal privileges to the vCenter Server database user. The database user requires only certain privileges specific to database access. In addition, some privileges are required only for installation and upgrade. These can be removed after the product is installed or upgraded.

Encryption and Security Certificates

Certificate checking is enabled by default and SSL certificates are used to encrypt network traffic. However, ESXi and vCenter Server use automatically generated certificates that are created as part of the installation process and stored on the server system. These certificates are unique and make it possible to begin using the server, but they are not verifiable and are not signed by a trusted, well-known certificate authority (CA). These default certificates are vulnerable to possible man-in-the-middle attacks. To receive the full benefit of certificate checking, particularly if encrypted remote connections are to be used externally, install new certificates that are signed by a valid internal certificate authority or acquire a certificate from a trusted security authority.

The SSL Certificate Automation Tool is a command-line utility that automates the Self- or CA-signed certificate renewal process for vSphere 5.5. See VMware KB 2057340.

vCenter Single Sign-On

vCenter Single Sign-On is a component of the management infrastructure that provides the capability to manage the environment with Active Directory credentials.

In product versions earlier than vCenter Server 5.1, when users connect to vCenter Server, they were authenticated when vCenter Server validated their credentials against an Active Directory domain or the list of local operating system users. In vCenter Server 5.5, users authenticate through vCenter Single Sign On.

VMware, Inc. 39

vCloud Suite Architecture Overview and Use Cases

ESXi 5.5 is not integrated with vCenter Single Sign-On, and ESXi users cannot be created with the vSphere Web Client. ESXi users must be created and administered with the vSphere Client. vCenter Server is not aware of users that are local to ESXi. In addition, ESXi is not aware of vCenter Server users. However, Single Sign-On can be configured to use an Active Directory domain as an identity source and the ESXi host can be configured to point to the same Active Directory domain to obtain user and group information. This action allows the same set of users to be available to the host and to vCenter Server.

In vCenter Single Sign-On 5.5, the way that vCenter Single Sign-On is deployed and the type of user who installs vCenter Single Sign-On no longer affects which administrator user accounts have privileges on the Single Sign-On server and on vCenter Server. During the vCenter Server installation process, certain users are granted privileges to log in to vCenter Server and certain users are granted privileges to manage vCenter Single Sign-On. The vCenter Server administrator might not be the same user as the vCenter Single Sign-On administrator. This means that when a user logs in to the vSphere Web Client as the default Single Sign-On administrator (administrator@vsphere.local), they might not see any vCenter Server systems in the inventory. The inventory appears to be empty because the only see the systems upon which they have privileges in the vSphere Web Client.

This also means that when an operator logs in to the vSphere Web Client as the default vCenter Server administrator, they might not see the vCenter Single Sign-On configuration tool. The configuration tool is not present because only the default vCenter Single Sign-On Administrator (administrator@vsphere.lcoal) is allowed to view and manage vCenter Single Sign-On after installation. The Single Sign-On administrator can create additional administrator users if necessary.

A conflict might occur if Local OS users cannot be seen or if there is a multiple site or node configuration issue. In that case, the identity source must be configured, or SSO must be used with vsphere.local domain authentication.

After SSO is installed (no matter the configuration), validate the identity sources which are configured so that they are both present and accurate to the way that authentication should proceed. Note that there is only one default domain in Single Sign-On 5.5, and as a result choose the most frequently logged into domain as the default domain.

Single Sign-On provides several different deployment methods to best suit your environment.

Basic deployment

A single standalone instance of vCenter Single Sign-On supports the connectivity of identity sources and is installed on the same host as vCenter Server. This type of deployment meets the requirements of most users.

Multiple instances in the same location

Multiple vCenter Single Sign-On nodes are installed at a local site and configured for high availability. In vSphere 5.5, vCenter Single Sign-On has its own Directory Service that automatically replicates information to other vCenter Single Sign-On nodes in the environment.

Multiple instances in different locations

vCenter Single Sign-On nodes are installed at geographically separate sites. Each site has one or more vCenter Single Sign-On installations and data is replicated between sites. Multi-site deployment is required if configuring Linked Mode vCenter Server instances across sites.

The following vCloud Suite components support vCenter Single Sign-On:

vCenter Server

vCenter Orchestrator

vCloud Automation Center

vCloud Director

vCloud Networking and Security

vSphere Big Data Extensions

40 VMware, Inc.

Licensing

The components of a vCloud Suite edition are activated by using a single licence. You can perform the activation of all components by using the vSphere Web Client or the licensing interfaces of individual products.

vCloud Suite Licensing Model

VMware vCloud Suite 5.8 combines multiple components into a single product to cover the complete set of cloud infrastructure capabilities. When used together, the vCloud Suite components provide virtualization, software-defined data center services, policy-based provisioning, disaster recovery, application management, and operations management.

A vCloud Suite 5.8 edition combines components such as vSphere Enterprise Plus, vCloud Director, vCloud Networking and Security, and others, under a single license. vCloud Suite editions are licensed on a per-processor basis. Many of the vCloud Suite components are also available as standalone products licensed on a per-virtual machine basis. However, when these components are obtained through the vCloud Suite, they are licensed on a per-processor basis.

The components from a vCloud Suite edition are activated with a single license key. For example, if you have a license key for vCloud Suite 5.8 Standard, you can use the same key to activate vSphere Enterprise Plus, vCloud Director, vCloud Networking and Security, and so on.

Chapter 3 Deploying vCloud Suite

All virtual machines running on a processor licensed with a vCloud Suite edition can use all components included in that vCloud Suite edition. To run virtual machines on processors that are not licensed for vCloud Suite, you need individual licenses for the products that you want to use.

vCloud Suite Licenseable Components

The different vCloud Suite 5.8 editions include different sets of components. You must assign the vCloud Suite license to all components in your vCloud Suite edition.

The following vCloud Suite components correspond to vCloud Suite 5.8 Enterprise edition.

Table 3‑3. vCloud Suite 5.8 components that require a license

Components Description

VMware vSphere Provides virtualization technology to serve as the platform

for cloud infrastructure.

VMware vCloud® Director Provides the ability to build secure, multi-tenant clouds by

pooling virtual infrastructure resources into virtual datacenters.

VMware vCloud Networking and Security Provides a security suite for VMware vSphere.

vCloud Networking and Security (formerly vShield) is a critical security component for protecting virtualized datacenters from attacks and misuse to help you achieve your compliance-mandated goals.

VMware vCenter Operations Management Suite Automates operations management and provides

integrated performance, capacity, and configuration management for virtualized and cloud infrastructure.

VMware, Inc. 41

vCloud Suite Architecture Overview and Use Cases

Table 3‑3. vCloud Suite 5.8 components that require a license (Continued)

Components Description

VMware vCenter Site Recovery Manager Provides business continuity and disaster recovery

VMware vCloud Automation Center Provides functionality for deploying and provisioning of

Distributing the Processor Capacity of a vCloud Suite License

Each vCloud Suite license has a certain processor capacity that you can use to license multiple physical processors on ESXi hosts where you run the vCloud Suite components. When you assign a vCloud Suite license key to a host, the amount of processor capacity that is consumed is equal to the number of physical processors on the host.

capabilities that help you plan, test, and perform recovery of virtual machines between one site (the protected site) and another site (the recovery site).

business-relevant cloud services across private and public clouds, physical infrastructure, hypervisors, and public cloud providers.

vCloud Automation Center Enterprise includes vCloud Automation Center Application Service that automates application provisioning in the cloud including deploying and configuring the application's components and dependent middleware platform services on infrastructure clouds.

To license physical processor that run vCloud Suite components, you need to assign the ESXi hosts a vCloud Suite license key with processor capacity that is sufficient to license all physical processors on the host.

For example, to run vCloud Suite on two ESXi 5.x hosts that have four processors each, you need to assign the hosts a vCloud Suite license key with a minimum capacity of eight processors.

You can assign and reassign the processor capacity of a vCloud Suite license key to any combination of ESXi hosts. For example, suppose that you purchase a vCloud Suite license key for 10 processors. You can assign the license key to any of the following combinations of hosts.

Five 2-processor hosts.

Three 2-processor hosts and one 4-processor host.

Two 4-processor hosts and one 2-processor host.

One 8-processor host and one 2-processor host.

Dual-core and quad-core processors, such as Intel processors that combine two or four independent processors on a single chip, count as one processor.

Activating vCloud Suite Components in the vSphere Web Client

You must assign the vCloud Suite license key to all suite components. For components that integrate with the vSphere Web Client, you can use the license management option in the client.

NOTE The vCloud Suite 5.8 license is compatible with vCenter Server 5.1 and 5.5.

Add the vCloud Suite License in the vSphere Web Client

To assign the vCloud Suite license key to the suite components, you must add the key to the license inventory of vCenter Server.

Prerequisites

Required privilege: Global.Licenses

42 VMware, Inc.

Chapter 3 Deploying vCloud Suite

Procedure

1 From the vSphere Web Client navigator home, select Administration, and under Licensing select

Licenses .

2 On the License Keys tab, click Add License Keys .

3 Type the vCloud Suite license key and click Next.

You can copy and paste the license key from My VMware.

4 Click Finish.

What to do next

Assign the vCloud Suite license key to the suite components that integrate with the vSphere Web Client.

Assign the vCloud Suite License to vSphere in the vSphere Web Client

You must assign the vCloud Suite license key to the ESXi hosts that run the vCloud Suite components. You can assign the license key by using the license management option in the vSphere Web Client.

Prerequisites

Verify that the vCloud Suite license key is added in the inventory of vCenter Server. See “Add the

vCloud Suite License in the vSphere Web Client,” on page 42

Required privilege: Global.Licenses

Procedure

1 From the vSphere Web Client navigator home, select Administration, and under Licensing select

Licenses .

2 On the Hosts tab, select the ESXi hosts that run the vCloud Suite components and click Assign License

Key.

To select multiple hosts, use Shift+click.

3 Select the vCloud Suite license key and click OK.

The ESXi hosts are licensed for vCloud Suite.

Activating vCloud Suite Components in the vSphere Client

You must assign the vCloud Suite license to all suite components to unlock the vCloud Suite capabilities. For components that integrate with the vSphere Client, you can use the license management option in the client.

NOTE The vCloud Suite 5.8 license is compatible with vCenter Server 5.1 and 5.5.

Add the vCloud Suite License by Using the vSphere Client

To assign the vCloud Suite license key to the suite components, you must add the key to the license inventory of vCenter Server.

Prerequisites

Required privilege: Global.Licenses

Verify that the vSphere Client is connected to the vCenter Server system.

Procedure

1 In the vSphere Client, select Home > Administration > Licensing.

VMware, Inc. 43

vCloud Suite Architecture Overview and Use Cases

2 Select Manage vSphere Licenses.

3 In the Add License Keys page, type or paste the vCloud Suite license key, and type an optional label for

the key.

4 Click Add License Keys.

5 Review the details for the license key, click Next on the remaining pages of the wizard, and click Finish.

The vCloud Suite license key is added to the license inventory of vCenter Server.

What to do next

Assign the vCloud Suite license key to vSphere, vCenter Operations Management Suite, vCenter Site Recovery Manager, and vCloud Networking and Security.

Assign the vCloud Suite License to vSphere in the vSphere Client

You must assign the vCloud Suite license key to the ESXi hosts that run the components of vCloud Suite.

Prerequisites

Required privilege: Global.Licenses

Verify that the vSphere Client is connected to the vCenter Server system.

Verify that the vCloud Suite license key is added in the repository of vCenter Server. See “Add the

vCloud Suite License by Using the vSphere Client,” on page 43

Procedure

1 In the vSphere Client, select Home > Administration > Licensing.

2 Select Manage vSphere Licenses.

3 Click Next.

4 On the Assign Licenses page, select ESX.

5 Select the ESXi hosts that run the vCloud Suite components.

6 From the Product pane, select the vCloud Suite license key.

7 On the Remove License Keys page, click Next.

8 Click Finish to save your changes.

Assign the vCloud Suite License to vCenter Operations Management Suite in the vSphere Client

Assign the vCloud Suite license key to the components of vCenter Operations Management Suite to use them as part of vCloud Suite.

Prerequisites

Required privilege: Global.Licenses

Verify that the vSphere Client is connected to the vCenter Server system.

Verify that the vCloud Suite license key is added in the repository of vCenter Server. See “Add the

vCloud Suite License by Using the vSphere Client,” on page 43

Procedure

1 In the vSphere Client, select Home > Administration > Licensing.

2 Select Manage vSphere Licenses.

44 VMware, Inc.

Chapter 3 Deploying vCloud Suite

3 Click Next.

4 On the Assign Licenses page, select Solutions.

5 Select the components of vCenter Operations Management Suite that you want to run as part of

vCloud Suite.

6 From the Product pane, select the vCloud Suite license key.

7 On the Remove License Keys page, click Next.

8 Click Finish to save your changes.

Assign the vCloud Suite License to vCloud Networking and Security in the vSphere Client

Assign the vCloud Suite license key to vCloud Networking and Security to use it as part of the suite.

NOTE vCloud Networking and Security components appear under vShield in the vSphere Client.

Prerequisites

Required privilege: Global.Licenses

Verify that the vSphere Client is connected to the vCenter Server system.

Verify that the vCloud Suite license key is added in the repository of vCenter Server. See “Add the

vCloud Suite License by Using the vSphere Client,” on page 43

Procedure

1 In the vSphere Client, select Home > Administration > Licensing.

2 Select Manage vSphere Licenses.

3 Click Next.

4 On the Assign Licenses page, select Solutions.

5 Select vCloud Networking and Security (vShield) .

6 From the Product pane, select the vCloud Suite license key.

7 On the Remove License Keys page, click Next.

8 Click Finish to save your changes.

Assign the vCloud Suite License Key to vCenter Site Recovery Manager

Assign the vCloud Suite license key to vCenter Site Recovery Manager to use it as part of the suite.

Prerequisites

Required privilege: Global.Licenses

Verify that the vSphere Client is connected to the vCenter Server system.

Verify that the vCloud Suite license key is added in the repository of vCenter Server. See “Add the

vCloud Suite License by Using the vSphere Client,” on page 43

Procedure

1 In the vSphere Client, select Home > Administration > Licensing.

2 Select Manage vSphere Licenses.

3 Click Next.

VMware, Inc. 45

vCloud Suite Architecture Overview and Use Cases

4 On the Assign Licenses page, select Solutions.

5 Select vCenter Site Recovery Manager.

6 From the Product pane, select the vCloud Suite license key.

7 On the Remove License Keys page, click Next.

8 Click Finish to save your changes.

Activating vCloud Suite Components by Using Their Own Licensing Interfaces

You must assign the vCloud Suite license to all suite components. vCloud Director, vCloud Automation Center, and vCloud Automation Center Application Service provide their own licensing interfaces for license assignments.

NOTE The vCloud Suite 5.8 license is compatible with vCenter Server 5.1 and 5.5.

Assigning the vCloud Suite License to vCloud Automation Center Application Service

You can assign the vCloud Suite license key to vCloud Automation Center Application Service to enable full functionality.

If vCloud Automation Center Application Service is already installed and running and has another license key assigned, reinstall the product and assign it the vCloud Suite license key.

The license key unlocks the vCloud Automation Center Application Service for Release Automation edition, which includes the basic features, updating a deployed application, and deploying applications to the Amazon EC2 environment capabilities.

Assign the vCloud Suite License to vCloud Director

To use vCloud Director as part of the vCloud Suite, you must assign vCloud Director the vCloud Suite license key.

You can assign the vCloud Suite license key to vCloud Director while installing the component, or you can assign the license key to an already running instance of vCloud Director.

Prerequisites

You must be logged in to vCloud Director as an administrator.

Procedure

1 On the home page of the vCloud Director Web console, select Administration.

2 Under System Settings, select License.

3 In the Serial number text box, type or copy and paste the vCloud Suite license key.

4 Click Apply.

vCloud Director is licensed for vCloud Suite. The Licensed VM count field does not display any number of virtual machines, as vCloud Suite license is per-processor.

Assign the vCloud Suite License to vCloud Automation Center 6.0

To use vCloud Automation Center 6.0 as part of vCloud Suite, you must assign it the vCloud Suite license.

To enable the full functionality of vCloud Automation Center, you must assign the license in both the vCloud Automation Center Appliance and in Infrastructure as a Service.

46 VMware, Inc.

Chapter 3 Deploying vCloud Suite

Procedure

1 Assign the License Key in the vCloud Automation Center Appliance on page 47

You must assign the license key in the vCloud Automation Center Appliance to activate the product.

2 Assign the License Key for Infrastructure as a Service on page 47

You must assign the license key for Infrastructure as a Service to enable IaaS capabilities. Without a license, you cannot configure infrastructure endpoints or other features.

Assign the License Key in the vCloud Automation Center Appliance

You must assign the license key in the vCloud Automation Center Appliance to activate the product.

Procedure

1 Navigate to the vCloud Automation Center Appliance management console by using its fully qualified

domain name (https://vcac-va-hostname.domain.name:5480/).

2 Log in with user name root and the password you specified when deploying the

vCloud Automation Center Appliance.

3 Select vCAC Settings > Licensing.

4 In the New License Key text box, type or copy and paste the vCloud Suite license key.

5 Click Submit Key.

Assign the License Key for Infrastructure as a Service

You must assign the license key for Infrastructure as a Service to enable IaaS capabilities. Without a license, you cannot configure infrastructure endpoints or other features.

Prerequisites

You must assign the license key in the vCloud Automation Center Appliance before you can access the Infrastructure-as-a-Service administration console. See “Assign the License Key in the vCloud Automation

Center Appliance,” on page 47.

Procedure

1 Log in to the vCloud Automation Center console as an IaaS administrator.

2 Select Infrastructure > Administration > Licensing.

3 Click Add License.

The Add License dialog box appears.

4 In the License key text box, type or copy and paste the vCloud Suite license key.

5 Click OK.

6 (Optional) Repeat this procedure to enter additional license keys, for example, if you have standalone

vCloud Automation Center license keys in addition to vCloud Suite license keys.

If you add both a vCloud Suite license key and a standalone vCloud Automation Center license key in IaaS, a message appears that you have overlapping licenses, but it is not an error. You can proceed with adding the license.

The following restrictions apply when assigning multiple licenses to vCloud Automation Center.

Only one vCloud Suite license can be active. If you have an existing license and enter a new license

key, it replaces the previous license.

Only one vCloud Automation Center Advanced Edition or Enterprise Edition license can be active.

If you have an existing license and enter a new license key, it replaces the previous license.

VMware, Inc. 47

vCloud Suite Architecture Overview and Use Cases

When replacing a vCloud Suite or standalone vCloud Automation Center license, the new license

must be of the same level or higher. For example, a license for vCloud Automation Center Advanced Edition can only be replaced by another license for vCloud Automation Center Advanced Edition or Enterprise Edition. A license for vCloud Automation Center Enterprise Edition can only be replaced by another license for vCloud Automation Center Enterprise Edition.

A vCloud Automation Center Desktop license can be used in combination with any vCloud Suite

or standalone vCloud Automation Center license.

After you add a license to IaaS, you cannot remove it.

Monitoring License Usage for vCloud Suite

You can monitor the license usage and the available license capacity for all assigned vCloud Suite licenses by using the license reporting function in vCenter Server.

You can use the license reporting function in vCenter Server to perform the following tasks:

View statistics for the license usage and capacity of vCloud Suite filtered by a vCenter Server system

and time period.

Export license usage reports in CSV files for further analysis and processing.

View the License Usage for vCloud Suite in the vSphere Client

To make sure that the license usage for vCloud Suite meets the compliance criteria for the product, you can regularly track the CPU usage for the assigned vCloud Suite licenses.

vCenter Server takes snapshots of the license usage every hour. A license usage snapshot contains data about the current license assignments and usage. The usage information in the license reporting interface contains aggregated statistics from snapshots that are taken in the period that you select.

Prerequisites

Required privilege: Global.Licenses

Verify that the vSphere Client is connected to the vCenter Server system.

Verify that the vCloud Suite license key is added in the repository of vCenter Server. See “Add the

vCloud Suite License by Using the vSphere Client,” on page 43

Procedure

1 In the vSphere Client, navigate to Home > Administration > Licensing and select the Reporting tab.

2 From the vCenter Server drop-down list, select a vCenter Server system.

Leave the default All vCenter Server instances selection.

3 From the Time period drop-down menu, select a preconfigured or a custom time period for which you

want to aggregate license usage data.

For a custom time period, you must specify the start and end dates, and click Recalculate .

4 From the Products Chart pane, select a vCloud Suite product.

Details about the license usage for vCloud Suite for the selected time period appear in the Product Details pane. The license usage is calculated as the average daily high water mark for the selected period.

48 VMware, Inc.

Chapter 3 Deploying vCloud Suite

View the License Usage for vCloud Suite in the vSphere Web Client

You can use the license reporting function in the vSphere Web Client to track the license usage for vCloud Suite.

Prerequisites

Required privilege: Global.Licenses

Procedure

1 From the vSphere Web Client navigator home, select Administration, and under Licensing select

License Reports.

2 From the vCenter Server drop-down list, select a vCenter Server system.

3 (Optional) To aggregate license usage data for a vCenter Server system that is part of a Linked Mode

group, select Show data only for the selected vCenter Server.

4 From the Time period drop-down menu, select a preconfigured or a custom time period for which you

want to aggregate license usage data.

For a custom time period, you must specify the start and end dates, and click Recalculate .

5 From the Products Chart pane, select a vCloud Suite product.

Export a License Usage Report for vCloud Suite

You can export a report of the license usage for vCloud Suite for a time period and vCenter Server system. The report is exported in a CSV file that you can later open with third-party applications.

The license usage data in an exported report contains the license usage snapshots that vCenter Server collects every hour.

NOTE A tamper-detection feature in vCenter Server protects the license usage information. If the licensing data in the vCenter Server database has been edited, you cannot export a license usage report.

Prerequisites

Required privilege: Global.Licenses

Verify that the vSphere Client is connected to the vCenter Server system.

Verify that the vCloud Suite license key is added in the repository of vCenter Server. See “Add the

vCloud Suite License by Using the vSphere Client,” on page 43

Procedure

1 In the vSphere Client, navigate to Home > Administration > Licensing and select the Reporting tab.

2 Click Export.

3 From the vCenter Server drop-down list, select the vCenter Server system for which you want to export

a license usage report.

Leave the default All vCenter Server instances selection.

VMware, Inc. 49

vCloud Suite Architecture Overview and Use Cases

4 From the Time period drop-down menu, select a preconfigured or a custom time period.

5 Click Export.

6 Save the report on your local system.

Export a License Usage Report for vCloud Suite in the vSphere Web Client

In the vSphere Web Client, you can export a report of the license usage for vCloud Suite for a time period and vCenter Server system. The report is exported in a CSV file that you can later open with third-party applications.

The license usage data in an exported report contains the license usage snapshots that vCenter Server collects every hour.

Prerequisites

Required privilege: Global.Licenses

Procedure

1 From the vSphere Web Client navigator home, select Administration, and under Licensing select

License Reports.

2 Click Export.

3 From the vCenter Server drop-down list, select the vCenter Server system for which you want to export

a license usage report.

If you select a vCenter Server system that is part of a Linked Mode group, the report contains license use data for the entire group.

4 (Optional) To export data for a vCenter Server system that is part of a Linked Mode group, select

Export license data only for the selected vCenter Server instance.

5 From the Time period drop-down menu, select a preconfigured or a custom time period.

6 Click Export.

7 Save the report on your local system.

50 VMware, Inc.

vCloud Suite Use Cases 4

Scenarios in this chapter instruct you how to achieve realistic user goals by using vCloud Suite.

This chapter includes the following topics:

“Disaster Recovery to Cloud,” on page 51

“Infrastructure Provisioning,” on page 57

Disaster Recovery to Cloud

As a system administrator, you can configure cloud failover for virtual machines, so that you can guarantee that important workloads keep running even when your on-site data center experiences problems. You can combine the VM replication functionality provided by the vSphere Replication virtual appliance with the VMware vCloud Air service to achieve business continuity goals without the need for a second data center or additional equipment .

In your on-premise data center, the vSphere Replication virtual appliance lets you select the virtual machines that you want to replicate to a remote site over the Internet. The vCloud Air service can serve as a remote site for your virtual machines, ensuring that failover happens in a predictable and verifiable manner. When the protected virtual machines go offline at the primary site, you can power on their copies in the cloud.

VMware, Inc.

Disaster Recovery to Cloud subscriptions do not include service integration with shared and dedicated provisioning in vCloud Air.

The following VMware products are used in the scenario:

Table 4‑1. vCloud Suite Components Required for Disaster Recovery to Cloud

vCloud Suite component Description

ESXi 5.5 Update 2 The VMware hypervisor that lets you run a virtualized

environment.

vCenter Server 5.5 Update 2 Provides management capabilities in a browser-based

interface, as well as integration points for other vCloud Suite components.

vSphere Replication 5.8 vSphere Replication is an extension to vCenter Server that

provides hypervisor-based virtual machine replication and recovery.

vCloud Suite components that enable you to perform recovery to cloud can coexist with other solutions of compatible version. See “List of vCloud Suite Components,” on page 7.

NOTE You cannot use vSphere Replication to protect virtual machines that are protected by using Site Recovery Manager.

vCloud Suite Architecture Overview and Use Cases

The following example objects are used in the scenario:

Table 4‑2. Sample Environment Details

Object Description

ACME Corp VM 1 A Linux virtual machine that runs one of your mission

ACME Corp VM 2 A Windows virtual machine that runs another of your

critical applications .

mission-critical applications.

52 VMware, Inc.

Figure 4‑1. Disaster recovery to cloud workflow

Start

Purchase a vCloud Air –

DR to Cloud subscription.

Download and deploy the vSphere

Replication 5.8 appliance

Configure your connection to

vCloud Air

Clean up test recovery

Test recovery

Select type of

recovery

Replicate virtual machines

Recovery to vCloud Air

End

Test Failover

Chapter 4 vCloud Suite Use Cases

To verify your setup, you can perform test recoveries before an actual recovery is required. Test recoveries are not enabled by default. You need to file a service request to make the test functionality available.

By using vCloud Connector, you can copy virtual machines from vCloud Air to your on-premise data center.

Prerequisites

VMware, Inc. 53

Verify that your virtual machines are running in a vSphere environment.

vCloud Suite Architecture Overview and Use Cases

Verify that you have sufficient privileges to perform administrative operations in the vSphere Web

Client.

Verify that you have valid licenses for all products in your environment.

Verify that you have vCloud Air credentials for the Disaster Recovery to Cloud service.

Procedure

1 Download and Deploy the vSphere Replication Virtual Appliance on page 54

To start preparing your vCloud Sutite environment for DR2C, you must install and configure vSphere Replication. vSphere Replication is distributed as an OVF virtual appliance.

2 Configure Network Connection to vCloud Air on page 55

You have deployed the vSphere Replication appliance in your on-premise environment. The next step of preparing your environment for DR2C is to set up a connection to vCloud Air.

3 Replicate Virtual Machines to the Cloud on page 56

In the vSphere Web Client, you can select your mission-critical virtual machines for replication to vCloud Air.

4 Recover a Virtual Machine in the Cloud on page 56

By using the Web interface of vCloud Air, you can recover the virtual machines that you replicated. Recovering a virtual machine shuts down the virtual machine at your source site (if possible) and recovers it in the cloud. During recovery, all replication activity is stopped.

Download and Deploy the vSphere Replication Virtual Appliance

To start preparing your vCloud Sutite environment for DR2C, you must install and configure vSphere Replication. vSphere Replication is distributed as an OVF virtual appliance.

You can use vSphere Replication with the vCenter Server Appliance or with a vCenter Server installation on Windows.

Prerequisites

Verify that you have a valid vSphere Replication license.

Verify that you have valid credentials for accessing the vCloud Air service.

Verify that you have the vSphere Client Integration Plug-in installed.

Procedure

1 Visit the VMware corporate Web site or MyVMware to download the vSphere Replication virtual

appliance.

You should save the template file to the local machine on which you use the vSphere Web Client.

2 Log in to the vSphere Web Client.

3 Select vCenter > Hosts and Clusters.

4 Right-click the host on which you want to deploy the appliance, and select Deploy OVF template.

5 Select Local File and browse to the vSphere Replication template file on your local machine.

The default name of the file is vSphere_Replication_OVF10.ovf.

6 Complete the template deployment wizard.

7 Log out of the vSphere Web Client, close the browser, and then log back in.

vSphere Replication is present on the Home tab of the vSphere Web Client.

54 VMware, Inc.

Chapter 4 vCloud Suite Use Cases

What to do next

Configure the connection to vCloud Air.

Configure Network Connection to vCloud Air

You have deployed the vSphere Replication appliance in your on-premise environment. The next step of preparing your environment for DR2C is to set up a connection to vCloud Air.

vSphere Replication replicates the virtual machines from your on-premise data center to vCloud Air by using a secure connection over the Internet.

When you subscribe to the DR2C service, VMware creates two default networks for the service, an isolated network and an external routed network. The gateway for the routed network has a public IP address on its outside interface so that the routed networkon the inside interface is accessible through the Intranet. You can use these networks for your virtual machines protected by the DR2C service.

When you configure VMs for disaster recovery in vSphere Replication by using the Connect to a cloud provider wizard, you specify which networks to use for the Test network and the Recovery network. The network choices that appear in the wizard are the networks configured for vCloud Air.

Procedure

1 In the vSphere Web Client, on the vSphere Replication tab under Manage, click the cloud connection

icon .

The Connect to a Cloud Provider wizard opens.

2 On the Connection settings page, type the cloud provider address, the organization name, and

credentials to authenticate with the cloud.

By default, vSphere Replication uses these credentials to establish a user session to the cloud and for system monitoring purposes. The login credential are in the message that you received with your vCloud Air account. The cloud provider address for vCloud Air has the format

https://unique_identifier.vchs.vmware.com.

3 Click Next.

The Connect to a Cloud Provider wizard displays a list of virtual data centers to which you can connect. A virtual data center that is configured for disaster recovery is created for you in vCloud Air.

4 Select a virtual data center as a target for the connection and click Next.

5 Review your settings and click Finish.

When you add a new connection to the cloud, at first its status appears as Missing network settings

status.

On the vSphere Replication tab under Manage, click the target network settings icon .

7 From the drop-down menus, select a recovery network and a test network, and click Next.

The drop-down menus display only the networks that are configured for vCloud Air.

8 On the Ready to complete page, review your settings and click Finish.

When you test a replication or perform a recovery operation, vCloud Air attaches the virtual machine to the test or recovery network respectively.

What to do next

Select the virtual machines to be replicated to vCloud Air.

VMware, Inc. 55

vCloud Suite Architecture Overview and Use Cases

Replicate Virtual Machines to the Cloud

In the vSphere Web Client, you can select your mission-critical virtual machines for replication to vCloud Air.

When you configure replication, you set a recovery point objective (RPO) to determine the period of time between replication operations. For example, an RPO of 1 hour aims to ensure that a virtual machine loses no more than 1 hour of data during the recovery.

Procedure

1 On the vSphere Web Client Home page, click vSphere Replication.

2 Select the vCenter Server instance that manages your virtual machines, and in the left pane, double-

click Virtual Machines.

3 Select the virtual machines ACME Corp VM 1 and ACME Corp VM 2 to replicate.

You can select multiple inventory objects by using the Ctrl or Shift keys.

4 Right-click the virtual machines and select All vSphere Replication Actions > Configure replication.

The Configure Replication wizard opens, and Disaster Recovery to Cloud validates the virtual machines that can be configured for replication.

5 Verify the validation results and click Next.

6 Select Replicate to a cloud provider and click Next.

7 Select a target virtual data center in the vCloud Air site that you configured in the previous task, and

click Next.

8 On the Target location page, select where to store replication data.

9 (Optional) On the Replication options page, select the quiescing method for the guest operating system

of the source virtual machine and click Next.

10 On the Recovery settings page, use the RPO slider or the time spinners to set the longest period for

which data loss is acceptable in the case of a site failure, and click Next.

The available RPO range is from 15 minutes to 24 hours.

11 Click Finish.

For each source virtual machine that is configured successfully, a replication task appears on the vSphere Replication tab under Monitor. When you configure replication by using vSphere Replication at your source site, the disaster recovery service creates placeholder virtual machines in vCloud Air that represent the virtual machines at your source site.

What to do next

Recover a Virtual Machine in the Cloud

You can recover a virtual machine by using vCloud Air when your source site is no longer accessible. You might be able to begin a recovery from your source site by using your local vSphere Web Client; for example, if you have sufficient warning of an outage and still have access to your local vSphere Web Client so that you can run a planned migration.

56 VMware, Inc.

Chapter 4 vCloud Suite Use Cases

In a production environment, you should verify that you tested the recovery before recovering the virtual machine to the cloud.

Procedure

1 Log in to the vCloud Air Web console.

2 On the Dashboard tab, click the virtual data center that is enabled for disaster recovery.

3 Click the Virtual Machine tab.

The table of virtual machines appears.

4 Select the virtual machines ACME Corp VM 1 and ACME Corp VM 2 to recover.

5 From the menu, click Recovery.

The confirmation dialog box appears.

6 Click Continue.

Recovering the virtual machine has the following result:

In the Virtual Machine tab, the Recovery Status changes from Placeholder or Test to Recovered.

Connects the virtual machine to the production network.

Powers on the virtual machine in the cloud.

After you recover a virtual machine to the cloud, it has the same capabilities that the virtual machine had at the source site. You can access and operate your virtual machine recovered to the cloud for the time periods listed in the vCloud Air documentation.

Infrastructure Provisioning

As a tenant administrator in ACME Corporation, you use the infrastructure service to deploy, configure, and manage workloads, so that you can quickly address the IT needs of your organization.

You can use the vCloud Automation Center portal to provision workloads to a vSphere environment.

VMware, Inc. 57

Start

Request VM from blueprint

Approval and provisioning to

vSphere

Manage and customize VM

Retire VM

End

Manage workload snapshots

vCloud Suite Architecture Overview and Use Cases

Figure 4‑2. Workload Provisioning Workflow

Table 4‑3. Environment Details

vCloud Suite component Description

vSphere endpoint vCloud Automation Center can deploy workloads to a

vSphere blueprint The Inventory Manager blueprint exists in your catalog. The

Configured service with a catalog A service exists with the name Development Infrastructure.

A functional IaaS environment is based on several components.

vSphere environment that administrators configured for use in ACME Corp. A fabric group and a network reservation are configured for the vSphere environment.

You can configure other types of endpoints, for example vCloud Air or AWS.

virtual machine runs an application that is used in ACME Corp. The prefix that is configured for the workload is InventoryMgr-.

58 VMware, Inc.

Chapter 4 vCloud Suite Use Cases

Table 4‑4. vCloud Suite Components Required for the Infrastructure Service

vCloud Suite component Description

ESXi VMware bare-metal hypervisor that lets you run a

virtualized environment.

vCenter Server Provides management capabilities in a browser-based

interface, and integration points for other vCloud Suite components.

vCenter Orchestrator Enables you to create workflows that automate activities in

the data center.

vCloud Automation Center Provides a secure portal where authorized administrators,

developers, or business users can request new IT services.

vCloud Director vCloud Director lets you provision services as virtual data

centers with virtualized compute, networking, storage, and security.

vCloud Networking and Security Enables consumption of networks that

vCloud Networking and Security Manager manages.

Prerequisites

Verify that the following conditions are met.

You have the required components in your environment.

You have a configured vSphere instance to serve as an vCloud Automation Center endpoint.

You have set a reservation policy.

You have created blueprints based on vSphere snapshots.

Procedure

1 Request a Virtual Machine Workload on page 60

A new instance of a virtual machine that runs an inventory management application is required at ACME Corp. As an administrator for the tenant group that is responsible for inventory management, you can use the vCloud Suite Infrastructure as a Service capability to deploy and manage the workload.

2 Provision the Workload on page 61

After you request the workload, you can provision the workload when you receive an approval.

3 Customize the Virtual Machine on page 61

You requested and provisioned the virtual machine. You can customize the virtual machine to increase or decrease the amount of memory, the number of CPUs, and so on.

4 Manage Workload Snapshots on page 62

You deployed and configured the workload. You can create snapshots of your running workloads from the self-service portal.

5 Retire the Virtual Machine on page 62

The final stage in the lifecycle of a workload is the retirement operation. Alternatively, the tenant administrator can send a reclamation request to the owners of machines.

VMware, Inc. 59

vCloud Suite Architecture Overview and Use Cases

Request a Virtual Machine Workload

In this scenario, the infrastructure service is preconfigured for your organization.

Procedure

1 Open a Web browser and log in to the vCloud Automation Center portal.

2 Select Infrastructure > Blueprints > Blueprints.

3 Review the configuration of the Warehouse Manager blueprint.

When deployed, the vSphere blueprint uses the reservation policy vSphere and the machine prefix is WarehouseMgr-.

4 In the vCloud Automation Center portal, click Catalog.

All services are listed.

5 Select a service in the catalog.

All catalog items appear that are linked to the Development Infrastructure service and that are available for the user.

Select the Development Infrastructure service.

6 Click an item to view details.

The Catalog Item Details page shows information regarding the item, including the type and available configurations.

#Machines

Lease duration

#CPUs

Memory (MB)

Storage (GB)

Description

Reason for request

All modifications change the daily and lease costs.

When you are finished reviewing the settings, click Submit , and click OK.

7 Click Request.

What to do next

Wait for an approval from the assigned role, and provision your workload.

60 VMware, Inc.

Chapter 4 vCloud Suite Use Cases

Provision the Workload

After you request the workload, you can provision the workload when you receive an approval.

Procedure

1 In the vCloud Automation Center portal, click Request to monitor status.

The workload request changes status several times during deployment. When it is finished, the request shows the status Successful.

Workloads in the portal can be associated with third-party CMDB systems so that other roles in the company can approve the request before the workloads deploy. The request is coming from vCloud Automation Center through vCenter Orchestrator. Administrators can customize the details that are sent from vCloud Automation Center.

2 Click Items and click InventoryMgr-000 to review workloads requests.

The virtual machine is now deployed.

What to do next

You received an approval and succesfully provisioned the workload. You can customize the virtual machine to adjust the amount of memory or other characteristics, so that the virtual machine performs better.

Customize the Virtual Machine

You requested and provisioned the virtual machine. You can customize the virtual machine to increase or decrease the amount of memory, the number of CPUs, and so on.

You perform the customization in the vCloud Automation Center portal. You cannot add more to the system than the amount permitted by the reservation policy for your organization.

Procedure

1 Review the VM configuration in the VM console.

a Click Connect Using VMRC to launch a remote connection to this virtual machine.

To log in, you need valid credentials for the virtual machine.

2 Click Close.

3 Reconfigure the workload.

a Next to InventoryMgr-000, click the right arrow and select Edit.

b Increase the assigned memory.

On the Execution tab, the default action is to immediately run the request and to shut down the virtual machine before reconfiguration.

c Click Submit to begin the reconfiguration task, and click OK.

4 Verify that memory is increased.

When the status changes to On, click the VM and note the increased amount of memory.

What to do next

After you have customized the virtual machines to meet your requirements, you can snapshot the virtual machine to preserve your changes.

VMware, Inc. 61

vCloud Suite Architecture Overview and Use Cases

Manage Workload Snapshots

You deployed and configured the workload. You can create snapshots of your running workloads from the self-service portal.

Procedure

1 In the vCloud Automation Center portal, click Items and click Machines.

2 Click InventoryMgr-000 and click Snapshots.

3 Click New Snapshot.

4 Click Snapshot the machine's memory and click OK.

5 Wait for the snapshot creation to complete, and click Close.

You can view and delete existing snapshots on the Snapshots tab of the virtual machine.

What to do next

When you have performed the required task by using the provisioned virtual machine, you can archive it.

Retire the Virtual Machine

The final stage in the lifecycle of a workload is the retirement operation. Alternatively, the tenant administrator can send a reclamation request to the owners of machines.

If a blueprint does not specify a lease period, machines are provisioned from that blueprint with no expiration date. If a blueprint specifies a single value for lease duration, machines are provisioned from that blueprint with an expiration date based on the blueprint lease duration.

Procedure

1 In the vCloud Automation Center portal, click Machines.

2 ClickInventoryMgr-000.

3 Click Destroy and confirm the operation.

You requested, provisioned, customized, and retired a workload.

62 VMware, Inc.

Index

activate vCloud Suite components 44 add the vCloud Suite license 42 assign license 46 assign license key 44 assign licenses 42 assign vCloud Suite license

vCenter Operations Management Suite 44 vCenter Site Recovery Manager 45

assign vCloud Suite License, vCloud Networking

and Security 45

business continuity 51, 56

common services 39 conceptual design 13

Deployment 27 design considerations 17 disaster recovery to cloud

configure network connection 55 deploy vSphere Replication 54

DR2C 51, 56

encryption and security certificates 39 ESXi and the ESX Management Interfaces 38 external dependencies 30

glossary 5

IaaS

customize VM 61 provision VM 60 provision workload 61 retire VM 62

take VM snapshot 62 intended audience 5 introduction 7 iSCSI storage 37 iSCSI storage security 37

isolation, virtual machines 32

license, usage 49 license capacity, processor 42 license key

add 43 assign 43, 46

license usage

CPU usage 48 export report 49, 50

monitor 48 license assignment 46 licensing, vCloud Suite 42 logical design 15

Monitoring 19

network 17 networks, security 34

Orchestration layer 21

PaaS 25 platform-as-a-service 25

recover VMs 56 replicate VMs to cloud 56 resource limits and guarantees, security 32

scenarios 51 SDDC Infrastructure 16 SDDC model 11 security

resource guarantees and limits 32

virtual machines 32

virtual machines with VLANs 34 security considerations 31 shared storage 18 standard switch ports 36

VMware, Inc.

vCloud Suite Architecture Overview and Use Cases

system requirements 31

vCenter Server and security 39 vCenter Server systems 39 vCenter Single Sign-On 39 vCloud Suite

components 41 licensing 41, 42 vSphere Web Client 42

vCloud Suite components

activate 43, 44, 46, 47 add license key 43 assign license 43, 44, 46 custom licensing interface 46 license management function 43, 44 license vCloud Director 46

vCloud Automation Center 46, 47 vCloud Suite installation 27 vCloud Suite license, adding 42 vCloud Suite update 29 virtual machines

resource reservations and limits 32

security 32 virtual network, security 34

virtual networks 34 virtualization and management in SDDC 16 VLANs, security 34

64 VMware, Inc.

VMware vCloud Suite - 5.8 Architecture Overview and Use Cases

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

About this book

Introduction to vCloud Suite 1

List of vCloud Suite Components

Architecture Overview 2

Conceptual Design of a vCloud Suite Environment

vCloud Suite Components in the Management Cluster

Software-Defined Data Center Core Infrastructure

Virtualization and Management as an Element of vCloud Suite Infrastructure

ESXi and vCenter Server Design Considerations

Network Design Considerations

Shared Storage Design Considerations

Monitoring as an Element of vCloud Suite Core Infrastructure

Orchestration as an Element of vCloud Suite Core Infrastructure

Delivering an Infrastructure Service

Conceptual Design of an IaaS Environment

Delivering Platform as a Service

Deploying vCloud Suite 3

Install vCloud Suite Components

Update vCloud Suite Components

External Dependencies for Deploying vCloud Suite

System Requirements of vCloud Suite Components

Security Considerations

Security and Virtual Machines

Security and Virtual Networks

Securing Virtual Machines with VLANs

Securing Standard Switch Ports

Securing iSCSI Storage

Securing ESXi and the ESX Management Interfaces

Securing vCenter Server Systems

Encryption and Security Certificates

vCenter Single Sign-On

Licensing

vCloud Suite Licensing Model

vCloud Suite Licenseable Components

Distributing the Processor Capacity of a vCloud Suite License

Activating vCloud Suite Components in the vSphere Web Client

Add the vCloud Suite License in the vSphere Web Client

Assign the vCloud Suite License to vSphere in the vSphere Web Client

Activating vCloud Suite Components in the vSphere Client

Add the vCloud Suite License by Using the vSphere Client

Assign the vCloud Suite License to vSphere in the vSphere Client

Assign the vCloud Suite License to vCenter Operations Management Suite in the vSphere Client

Assign the vCloud Suite License to vCloud Networking and Security in the vSphere Client

Assign the vCloud Suite License Key to vCenter Site Recovery Manager

Activating vCloud Suite Components by Using Their Own Licensing Interfaces

Assigning the vCloud Suite License to vCloud Automation Center Application Service

Assign the vCloud Suite License to vCloud Director

Assign the vCloud Suite License to vCloud Automation Center 6.0

Assign the License Key in the vCloud Automation Center Appliance

Assign the License Key for Infrastructure as a Service

Monitoring License Usage for vCloud Suite

View the License Usage for vCloud Suite in the vSphere Client

View the License Usage for vCloud Suite in the vSphere Web Client

Export a License Usage Report for vCloud Suite

Export a License Usage Report for vCloud Suite in the vSphere Web Client

vCloud Suite Use Cases 4

Disaster Recovery to Cloud

Download and Deploy the vSphere Replication Virtual Appliance

Configure Network Connection to vCloud Air

Replicate Virtual Machines to the Cloud

Recover a Virtual Machine in the Cloud

Infrastructure Provisioning

Request a Virtual Machine Workload

Provision the Workload

Customize the Virtual Machine

Manage Workload Snapshots

Retire the Virtual Machine

Index
