VIZIO VA19L HDTV10T User Manual

Dear VIZIO Customer,

Congratulations on your new VIZIO VA19L HDTV10T High Definition LCD Television purchase. To get the maximum benefit from your HDTV, read these instructions before making any adjustments, and retain them for future reference. We hope you will experience many years of enjoyment from your new HDTV.

For assistance, call (877) 698-4946 or e-mail us at techsupport@VIZIO.com.

To purchase or inquire about accessories and installation services for your HDTV, visit our website at www.VIZIO.com or call toll free at 888- VIZIOCE (888-849-4623).

We recommend you register your HDTV either by visiting our website (www.VIZIO.com) or by completing and mailing in your registration card. For peace of mind and to protect your investment beyond the standard warranty, VIZIO offers on-site extended warranty service plans. These plans give additional coverage during the standard warranty period. Visit our website or call us to purchase a plan.

Write down the serial number located on the back of your HDTV.

__ __ __ __ __ __ __ __ __ __ __ __ __ __

Purchase Date _____________________

VIZIO is a registered trademark of VIZIO, Inc. dba V, Inc.

HDMI logo and “High Definition Multimedia Interface” are registered

trademarks of HDMI Licensing LLC.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

THE TRADEMARKS SHOWN HEREIN ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS; IMAGES USED ARE FOR ILLUSTRATION PURPOSES ONLY. BRAVO, VIZIO AND THE V LOGO AND WHERE VISION MEETS VALUE AND OTHER VIZIO TRADEMARKS ARE THE INTELLECTUAL PROPERTY OF VIZIO INC. PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE OR OBLIGATION. © 2008 VIZIO INC. ALL RIGHTS RESERVED.

Version 9/12/2008 1

www.VIZIO.com

VIZIO VA19L HDTV10T User’s Manual

Important Safety Instructions

Your HDTV is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent your HDTV from being damaged, the following rules should be observed for the installation, use, and maintenance of your HDTV. Read the following safety instructions before operating your HDTV. Keep these instructions in a safe place for future reference.

• To reduce the risk of electric shock or component damage, switch off the power before connecting other components to your HDTV.

• Unplug the power cord before cleaning your HDTV. A damp cloth is sufficient for cleaning your HDTV. Do not use a liquid or a spray cleaner for cleaning your HDTV. Do not use abrasive cleaners.

• Always use the accessories recommended by the manufacturer to insure compatibility.

• When moving your HDTV from an area of low temperature to an area of high temperature, condensation may form in the

housing. Wait before turning on your HDTV to avoid causing fire, electric shock, or component damage.

• Use only with the cart, stand, tripod, bracket, or table specified by manufacturer or sold with your HDTV. When a cart is used, use caution when moving the cart/HDTV combination to avoid injury from tip-over. Do not place your HDTV on an unstable cart, stand, or table. If your HDTV falls, it can injure a person and cause serious damage to your HDTV. Use only a cart or stand recommended by the manufacturer or sold with your HDTV.

• A distance of at least 3 feet should be maintained between your HDTV and any heat source, such as a radiator, heater, oven, amplifier etc. Do not install your HDTV close to smoke. Operating your HDTV close to smoke or moisture may cause fire or electric shock.

• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your HDTV and to protect it from overheating, be sure these openings are not blocked or covered. Do not place your HDTV in a bookcase or cabinet unless proper ventilation is provided.

• Never push any object into the slots and openings on your HDTV cabinet. Do not place any objects on the top of your HDTV. Doing so could short circuit parts causing a fire or electric shock. Never spill liquids on your HDTV.

• Your HDTV should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

• Do not apply pressure or throw objects at your HDTV. This may compromise the integrity of the display. The manufacturer’s warranty does not cover user abuse or improper installations.

• The power cord must be replaced when using different voltage than the voltage specified. For more information, contact your dealer.

• Your HDTV is equipped with a three-pronged grounded plug (a plug with a third grounding pin). This plug will fit only into a grounded power outlet. This is a safety feature. If your outlet does not accommodate the three-pronged, have an electrician install the correct outlet, or use an adapter to ground your HDTV safely.

Do not defeat the safety purpose of the grounded plug.

• When connected to a power outlet, power is always flowing into your HDTV. To totally disconnect power, unplug the power cord.

literature accompanying your HDTV.

• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

• The wall socket should be installed near your HDTV and easily accessible.

• Only power of the marked voltage can be used for your HDTV. Any other voltage than the specified voltage may cause

fire or electric shock

• Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord during electrical storms.

• Unplug your HDTV during a lightning storm or when it will not be used for long period of time. This will protect your HDTV from damage due to power surges.

• Do not attempt to repair or service your HDTV yourself. Opening or removing the back cover may expose you to high voltages, electric shock, and other hazards. If repair is required, contact your dealer and refer all servicing to qualified service personnel.

• Keep your HDTV away from moisture. Do not expose your HDTV to rain or moisture. If water penetrates into your HDTV, unplug the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.

• Do not use your HDTV if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your HDTV yourself.

• Avoid using dropped or damaged appliances. If your HDTV is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of your HDTV may cause fire or electric shock.

• The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-isolated, dangerous voltage within the inside of your HDTV that may be of sufficient magnitude to constitute a risk of electric shock to persons.

• The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the

Version 9/12/2008 2

www.VIZIO.com

VIZIO VA19L HDTV10T User’s Manual

• Do not install your HDTV in an area with heavy dust or high humidity. Operating your HDTV in environments with heavy dust or high humidity may cause fire or electric shock.

• Follow instructions for moving your HDTV. Ensure that the power cord and any other cables are unplugged before moving your HDTV.

• When unplugging your HDTV, hold the power plug, not the cord. Pulling on the power cord may damage the wires inside the cord and cause fire or electric shock. When your HDTV will not be used for an extended period of time, unplug the power cord.

• To reduce risk of electric shock, do not touch the connector with wet hands.

• Insert batteries in accordance with instructions. Incorrect polarities may cause the batteries to leak which can damage the

remote control or injure the operator.

• If any of the following occurs, contact the dealer:

o The power cord fails or frays. o Liquid sprays or any object drops into your HDTV. o Your HDTV is exposed to rain or other moisture. o Your HDTV is dropped or damaged in any way. o The performance of your HDTV changes substantially.

Version 9/12/2008 3

www.VIZIO.com

VIZIO VA19L HDTV10T User’s Manual

Television Antenna Connection Protection

External Television Antenna Grounding

If an outside antenna/satellite dish or cable system is connected to your HDTV, make sure that the antenna or cable system is electrically grounded to provide some protection against voltage surges and static charges.

Article 810 of the National Electrical Code, ANSI/NFPSA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of the grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements of the grounding electrode.

Lightning Protection

For added protection of your HDTV during a lightning storm or when it is left unattended or unused for long periods of time, unplug your HDTV from the wall outlet and disconnect the antenna or cable system.

Power Lines

Do not locate the antenna near overhead light or power circuits, or where it could fall into such power lines or circuits.

Remember, the screen of the coaxial cable is intended to be connected to earth in the building installation.

FCC Bulletin for New TV Owners

After February 17, 2009, a television receiver with only an analog broadcast tuner will require a converter box to receive full power over-the-air broadcasts with an antenna because of the Nation's transition to digital broadcasting. Analog-only TVs should continue to work as before to receive low power, Class A or translator television stations and with cable and satellite TV services, gaming consoles, VCRs, DVD players, and similar products.

Information about the DTV transition is available from http://www.DTV.gov 877 MY VIZIO (877-698-4946), and from http://www.dtv2009.gov or 1-888-DTV-2009 for information about subsidized coupons for digital-to-analog converter boxes.

Your HDTV comes with a built-in tuner capable of processing digital broadcasts, making it easier for you to receive this type of signal without the need of an extra converter box.

or this manufacturer at

Version 9/12/2008 4

www.VIZIO.com

VIZIO VA19L HDTV10T User’s Manual

Table of Contents

FCC Bulletin for New TV Owners...............................................................................................................................4

Opening the Package ............................................................................................ 7

Package Contents......................................................................................................................................................7

Understanding Basic Controls and Connections........................................... 8

Front Bezel.................................................................................................................................................................8

Right Side Panel Controls ..........................................................................................................................................8

Left Side Panel Controls ............................................................................................................................................9

Rear Panel Connections ..........................................................................................................................................10

VIZIO Remote Control..............................................................................................................................................11

Inserting the remote control batteries.......................................................................................................................13

Using a Cable or Satellite Remote Control...............................................................................................................13

Setting Up Your HDTV ......................................................................................... 14

Wall Mounting your HDTV........................................................................................................................................14

Choosing a video connection ...................................................................................................................................15

Connecting Your Cable or Satellite Box ...................................................................................................................16

Using HDMI (Best) ...............................................................................................................................................16

HDMI Connections for Cable or Satellite Boxes with DVI ....................................................................................17

Using Component Video (Better) .........................................................................................................................18

Using S-Video (Better) .........................................................................................................................................18

Using Composite Video (Good)............................................................................................................................19

Using Coaxial (Antenna) (Good) ..........................................................................................................................19

Connecting Coaxial (RF)..........................................................................................................................................20

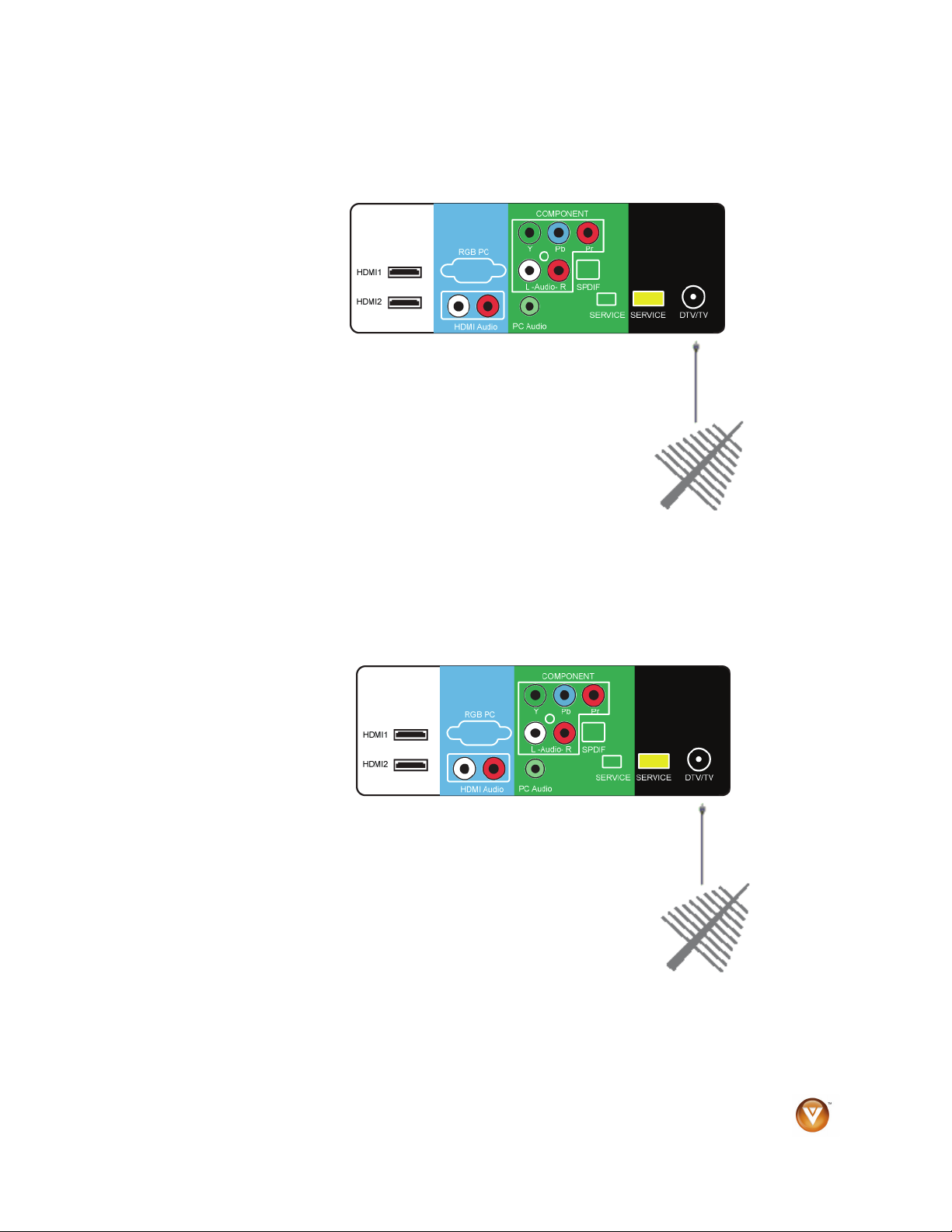

Using Your Antenna or Digital Cable for Standard TV or DTV .............................................................................20

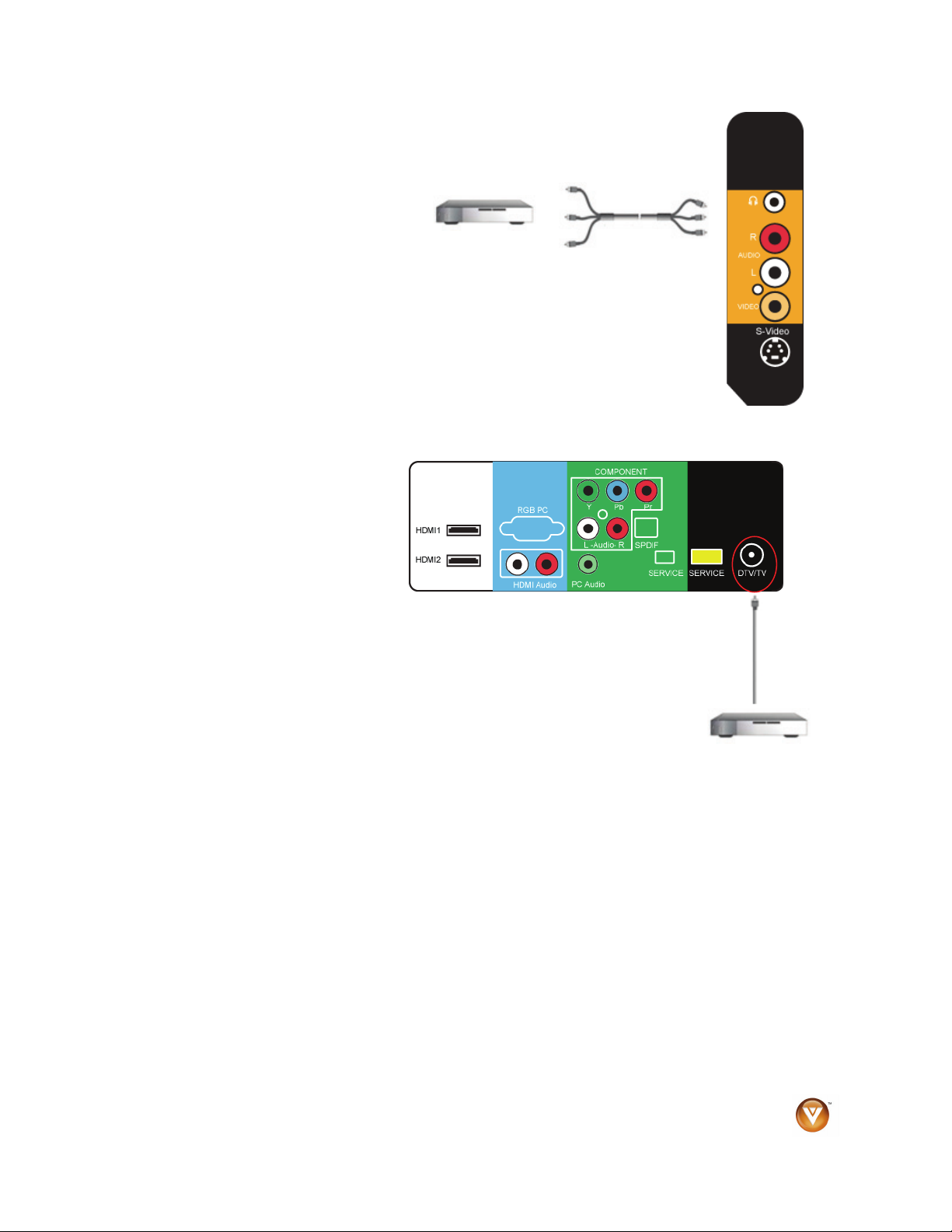

Using the Antenna or Cable through Your VCR ...................................................................................................20

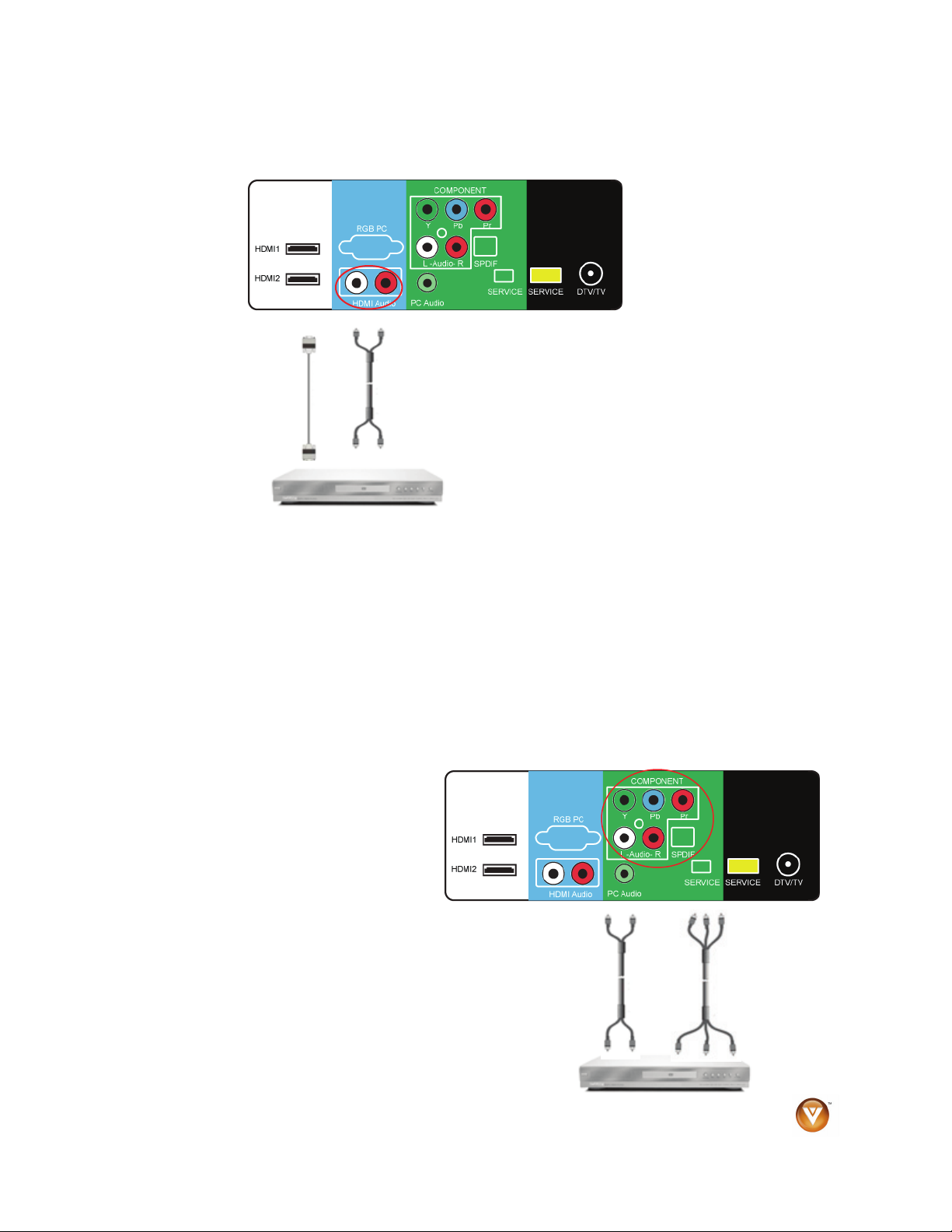

Connecting Your DVD Player...................................................................................................................................21

Using HDMI (Best) ...............................................................................................................................................21

HDMI Connections for DVD Players with DVI ......................................................................................................22

Using Component Video (Better) .........................................................................................................................22

Using S-Video (Better) .........................................................................................................................................23

Using Composite (AV) Video (Good) ...................................................................................................................23

Connecting Your VCR or Video Camera..................................................................................................................24

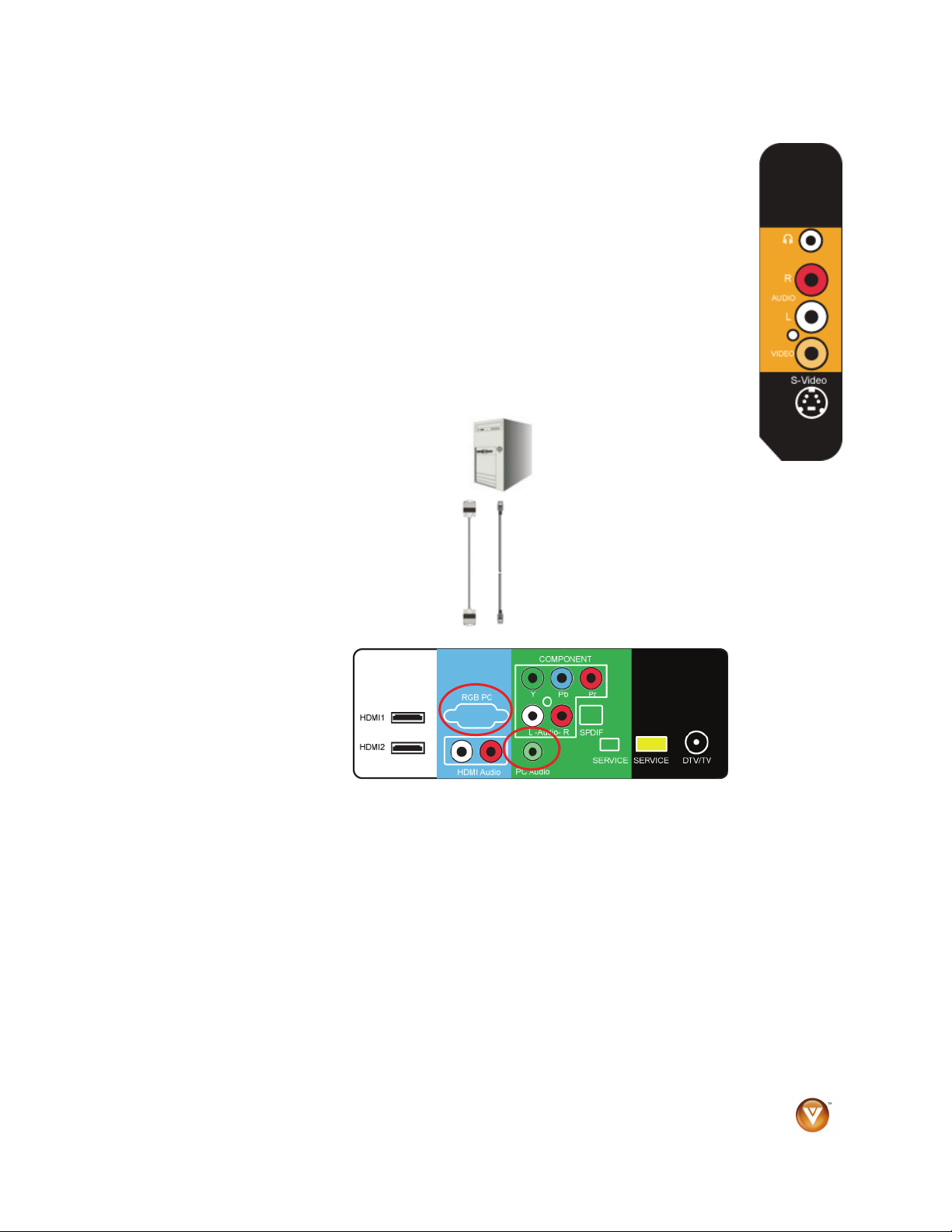

Connecting a Computer ...........................................................................................................................................24

Using your HDTV the first time.................................................................................................................................25

Selecting Inputs........................................................................................................................................................28

Fine-tuning the picture .............................................................................................................................................29

Using the Program Guide.........................................................................................................................................30

Displaying the Information Banner ...........................................................................................................................30

Using the On-Screen Display (OSD)........................................................................................................................31

Advanced Settings.............................................................................................. 32

Adjusting the Picture Settings ..................................................................................................................................32

Adjusting the Audio Settings ....................................................................................................................................33

Adjusting the TV settings .........................................................................................................................................34

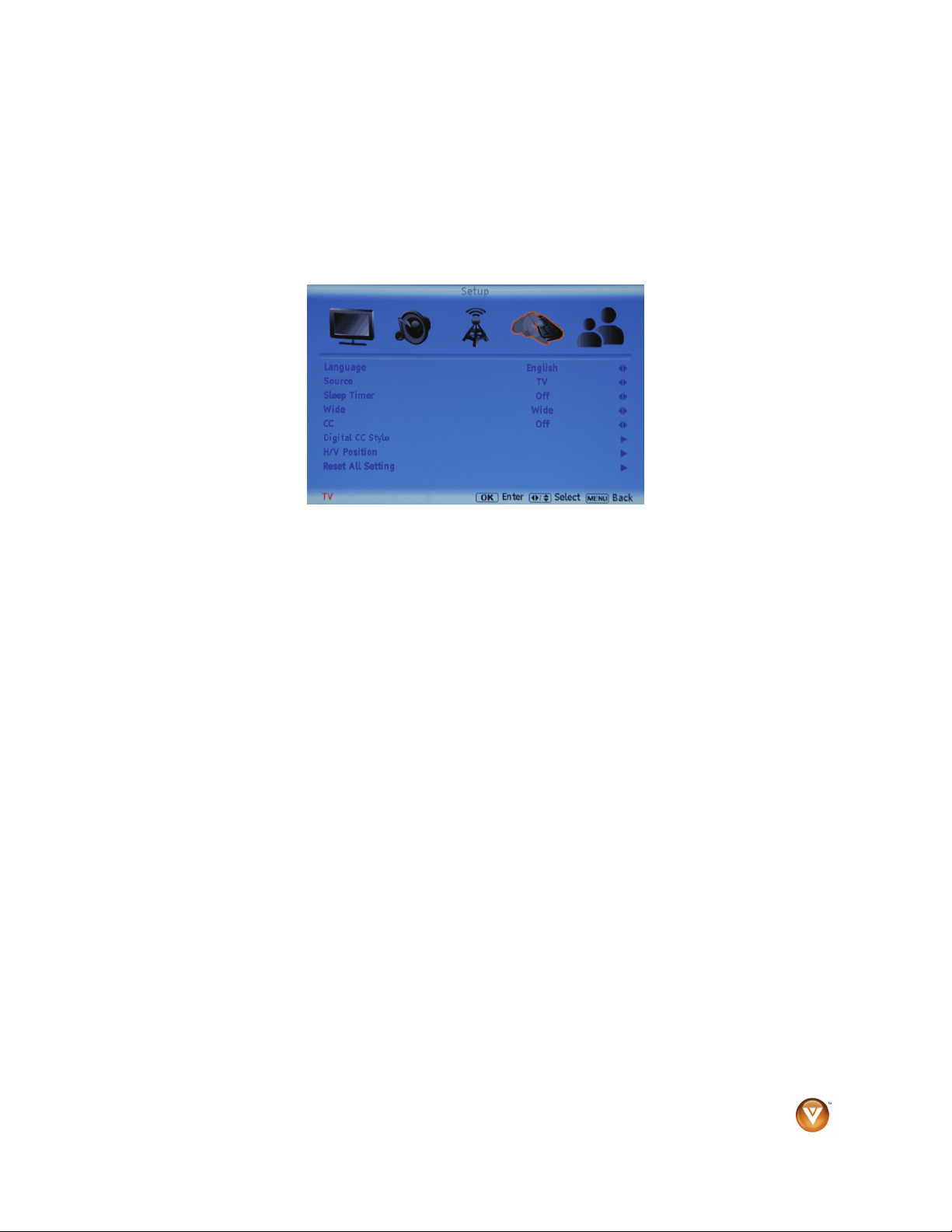

Adjusting the Setup settings.....................................................................................................................................35

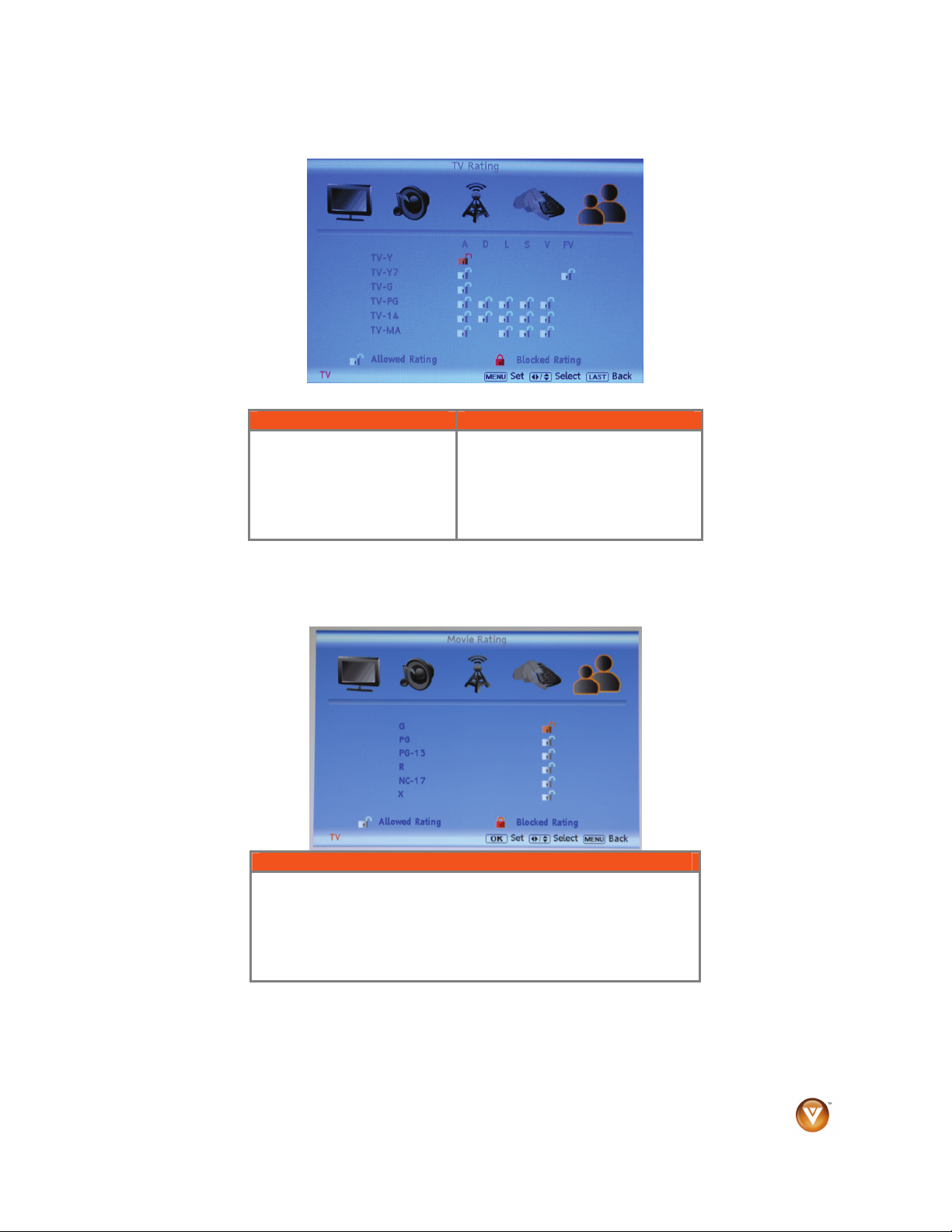

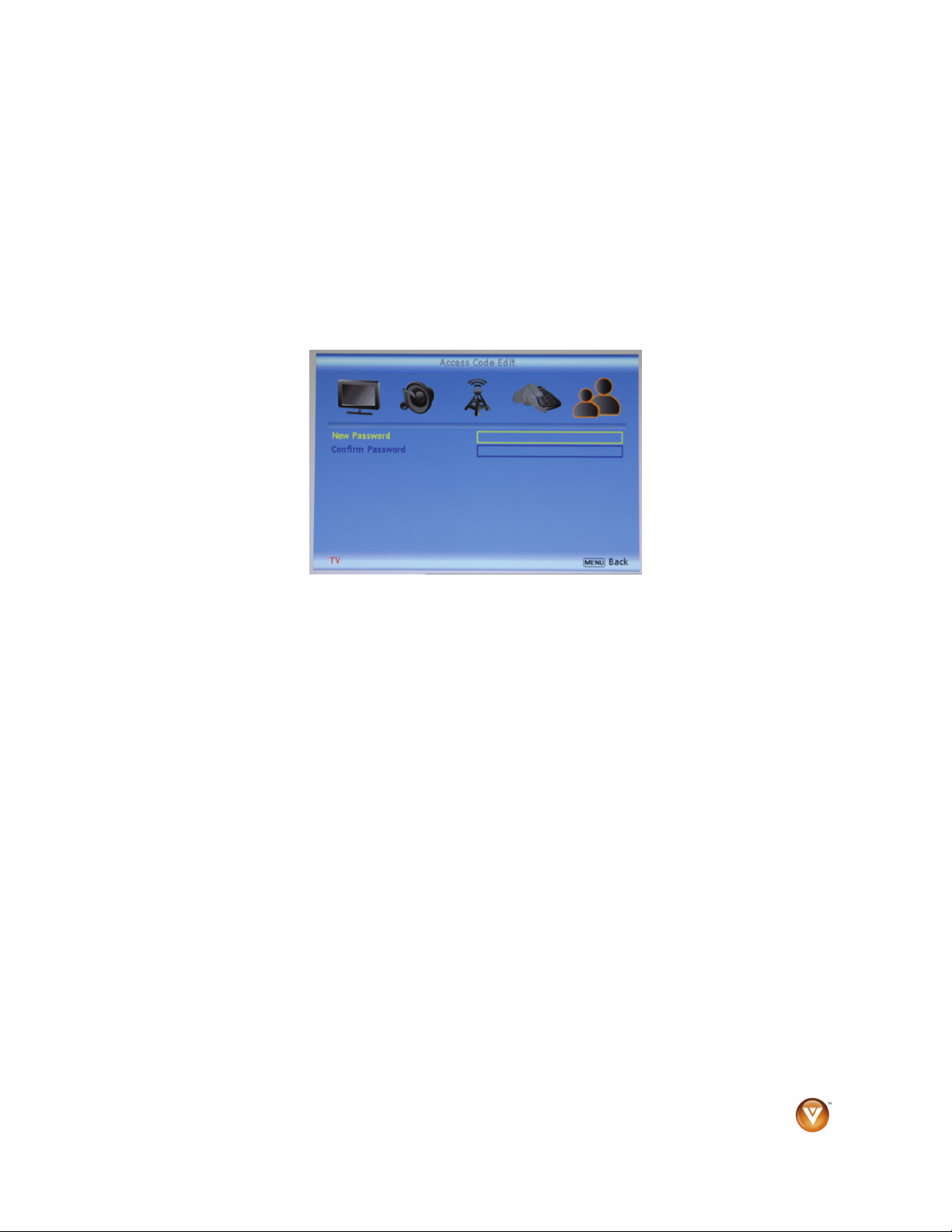

Adjusting the Parental Control settings ....................................................................................................................36

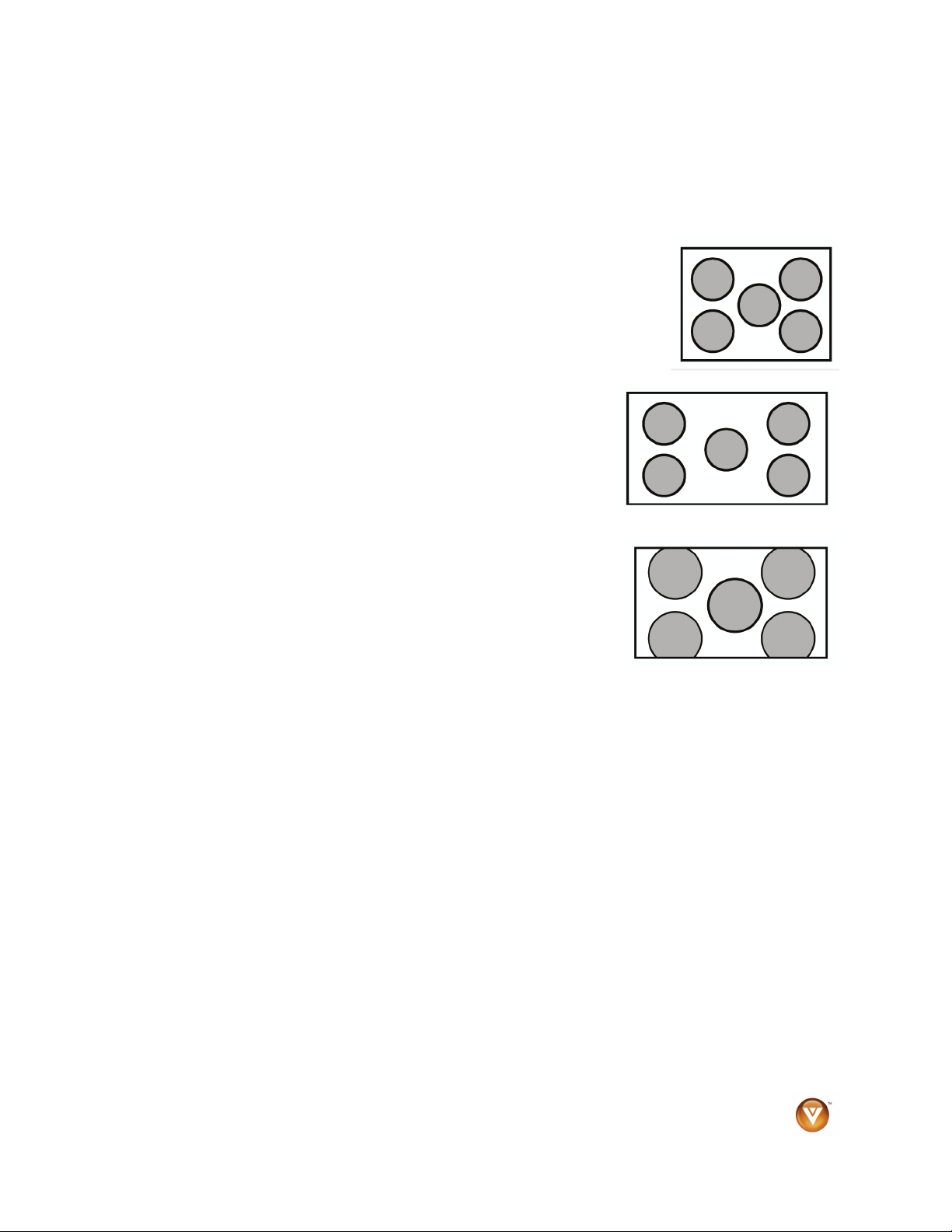

Understanding Viewing Modes.................................................................................................................................39

Normal Mode........................................................................................................................................................39

Wide Mode ...........................................................................................................................................................39

Panoramic Mode ..................................................................................................................................................39

Maintaining and Troubleshooting..................................................................... 40

Maintenance.............................................................................................................................................................40

Important ..............................................................................................................................................................40

Cleaning the Housing and Remote Control ..........................................................................................................40

Cleaning the Screen.............................................................................................................................................40

Troubleshooting .......................................................................................................................................................41

Telephone & Technical Support ...............................................................................................................................42

Regulations and Specifications ....................................................................... 43

Compliance ..............................................................................................................................................................43

FCC Class B Radio Interference Statement.............................................................................................................43

Version 9/12/2008 5

www.VIZIO.com

VIZIO VA19L HDTV10T User’s Manual

Specifications ...........................................................................................................................................................44

Preset Computer Resolutions ..................................................................................................................................44

VIZIO LIMITED PRODUCT WARRANTY ..................................................................... 46

VIZIO RETURN POLICY ............................................................................................ 47

Warranty Replacement Procedure ...........................................................................................................................48

Mail-In Warranty Repair Procedure..........................................................................................................................48

Index .......................................................................................................................49

Version 9/12/2008 6

www.VIZIO.com

VIZIO VA19L HDTV10T User’s Manual

Opening the Package

Your HDTV and its accompanying accessories are carefully packed in a cardboard carton that has been designed to protect it from transportation damage. Once you have opened the carton, check that your HDTV is in good condition and that all of the contents are included.

The glass surface can easily be scratched or broken, so handle your HDTV gently and never place your HDTV with the glass facing downwards on a surface without protective padding.

IMPORTANT: Save the carton and packing material for future shipping.

Package Contents

• VIZIO VA19L HDTV10T

• VIZIO VR1 remote control

• AA batteries for the remote

control (2)

• Power cord

• VIZIO screen cleaning cloth

• This user manual

• Quick Setup Guide

• Registration Card

• VIP Services Brochure

Additional certified accessories for your HDTV are sold separately:

• Wall mounts

• High Definition cables

• Extra or replacement remote

VIZIO also offers installation services and extended warranty services for your HDTV.

To purchase or inquire about additional accessories and services for your VIZIO HDTV, visit our web site at www.VIZIO.com or call us toll free at 888-VIZIOCE (888-849-4623)

Caution: Do not apply pressure or throw objects at your HDTV. This may compromise the

integrity of the display. The manufacturer’s warranty does not cover user abuse or improper installations.

Version 9/12/2008 7

www.VIZIO.com

VIZIO VA19L HDTV10T User’s Manual

Understanding Basic Controls and Connections

Front Bezel

POWER INDICATOR (VIZIO logo):

• White: On.

• Orange: Off.

REMOTE CONTROL SENSOR:

• Point the remote control directly this sensor for the best response.

Right Side Panel Controls

POWER ( )

• Turns your HDTV ON and OFF.

• Activates the On-Screen Display (OSD).

• If a sub-menu is active, returns to the previous menu level.

CHANNEL + / -

• Steps up or down through the TV channels.

• Moves up and down through controls in the OSD menus.

VOLUME + / -

• Increases or decreases the speaker volume.

• Moves left and right in the OSD menus.

INPUT

• Press repeatedly to cycle through the video inputs.

Version 9/12/2008 8

www.VIZIO.com

VIZIO VA19L HDTV10T User’s Manual

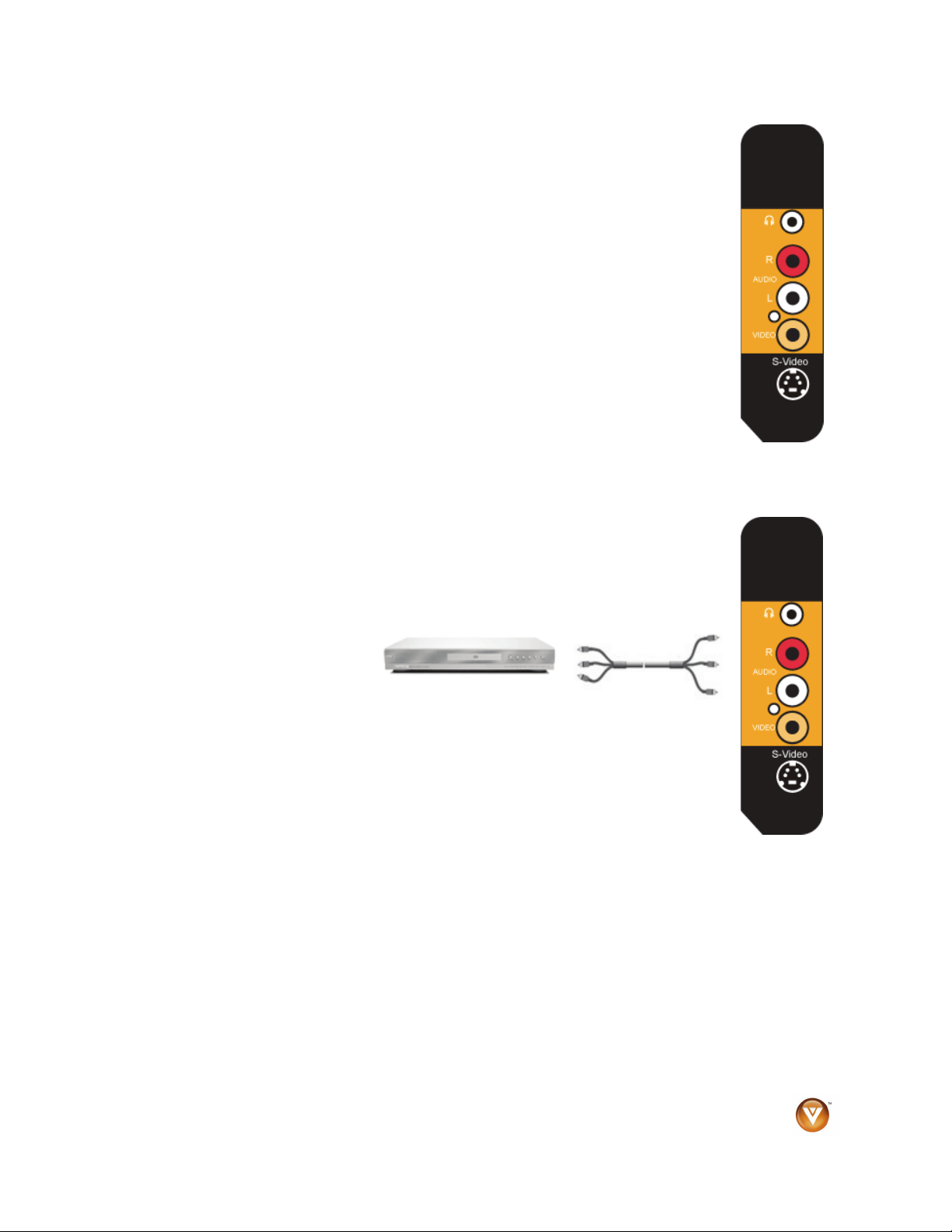

Left Side Panel Controls

Headphone

• Connect your headphones here.

Note: Connecting the headphones turns off the TV speakers off.

Audio R/L

• Connect external audio from a composite or S-Video device, such as a VCR or video game.

Note: The red and white audio connectors are shared between VIDEO and S-VIDEO.

VIDEO

• Connect video from a composite video device, such as a VCR or video game. Use the white and red connectors to connect audio from the same source.

S-Video

• Connect video from an S-Video device such as a VCR or video game. Use the white and red connectors to connect audio from the same source.

Version 9/12/2008 9

www.VIZIO.com

Rear Panel Connections

No. Connection Description

1 HDMI 1

2 HDMI 2

3 RGB PC

4 HDMI Audio

6 PC Audio

7 SPDIF

8 SERVICE

10 AC IN

2 7

COMPONENT

(YPb/CbPr/Cr with Audio L/R)

DTV/TV

(Cable/Antenna)

Connect the primary source for digital video such as a DVD multimedia player or set-top box.

Connect a secondary source for digital video such as a DVD multimedia player or set-top box. To use to a DVI enabled device, connect a DVI-HDMI cable here and connect the analog audio output of the device to the L+R HDMI Audio ports. VIZIO Certified HDMI and HDMI-DVI cables are available for purchase from

www.VIZIO.com

Connect the video from a computer here. Connect the analog audio output of a device to the L+R AUDIO here when

using a DVI enabled device that is connected to the HDMI2 port. Connect a DVD Player or set top box here. From left to right, use white for left

audio and red for right audio, green for Y, blue for Pb (or Cb), and red for Pr (or Cr) inputs.

Connect the audio (1/8 in. mini plug stereo connector) from a computer here. When the DTV input is selected for viewing, the audio associated with the

programming will be available on this SPDIF Optical connector for connection to your home theater system.

For factory service only. Use of this input for any purpose other than factory authorized service will void the manufacturer’s warranty of this equipment.

Connect to an antenna or digital cable for digital TV. For digital TV stations in your area visit www.antennaweb.org

Connect the supplied AC power cord. Jenn: where did the AC IN port go??

VIZIO VA19L HDTV10T User’s Manual

or by calling 888-VIZIOCE (888-849-4623).

Version 9/12/2008 10

www.VIZIO.com

VIZIO VA19L HDTV10T User’s Manual

VIZIO Remote Control

REMOTE LED – Blinks when remote operates.

POWER – Press to turn your HDTV on from Standby

mode. Press it again to return to Standby mode.

NUMBER PAD – Press to select a channel or enter a password.

INPUT – Press repeatedly to cycle through the video inputs.

- (Dash) – In DTV mode (antenna), press the number buttons for the main

channel, press this button, then press the number button for a digital subchannel. For example, to select sub-channel 2 of main channel 28, press 2, press 8, press this button, then press 2.

CH (+ or -) – Press to step up or down through the TV channels.

LAST – Press to recall the previously viewed channel.

MUTE – Press to turn the sound on and off.

VOL (+ or -) – Press to increase or decrease the speaker volume.

MENU – Press to launch the On-Screen Display (OSD) menu.

INFO – Press to display the video image and system information.

GUIDE – Press to display program information. NOTE: This function is only available with DTV.

EXIT – Press to exit the On-Screen Display (OSD) menus.

- After pressing MENU, navigate through the OSD and adjust options, then press OK to select your chosen option.

Version 9/12/2008 11

www.VIZIO.com

VIZIO VA19L HDTV10T User’s Manual

WIDE – Cycle through the available screen formats (Wide, Normal, and Panoramic). Note: in RGB/PC mode the options are 4:3 and 16:9.

SLEEP – Press to select the sleep options from 30 to 120 minutes.

MTS – Select the MTS option (Stereo, SAP, or Mono). In DTV mode,

select alternate audio channels, where available.

CC – select the Closed Caption mode (OFF, CC1, CC2, CC3, or CC4).

TV – Press to select TV mode.

AV – Press repeatedly to cycle between AV1 and AV2 inputs.

COMPONENT – Press to select the Component input.

HDMI – Press repeatedly to cycle between HDMI 1 and HDMI 2 inputs.

RGB – Press to select an RGB component such as a computer.

MODE – Select the picture mode (Custom, Standard, Movie, or Game).

The following buttons are disabled because your HDTV does not have those features:

• FREEZE

• PIP

• PIP CH

• AUDIO

• PIP INPUT

• PIP SIZE

• SWAP

• ZOOM

Remote Control Range

• The effective range of the remote control is approximately 26 feet (8 meters) from the front of the receiver window and 13 feet (4 meters) when 30° to the left and right, 20° up and down.

• Point the remote control at the remote control sensor on the front of your HDTV to send commands.

• Do not place any obstacles between the remote control and the remote control sensor.

VIZIO Remote Control Precautions

• Keep the remote control dry and away from heat sources. Avoid humidity.

• If your HDTV responds erratically to the remote control or does not respond at all, check the

batteries. If the batteries are low or exhausted, replace them with fresh batteries.

• When not using the remote control for a long period of time, remove the batteries.

• Do not take the batteries apart, heat them, or throw them into a fire.

• Do not subject the remote control to undue physical stress, such as striking or dropping it.

• Do not attempt to clean the remote control with a volatile solvent. Wipe it with a clean, damp

cloth.

• Do not mix old and new batteries or different types of batteries.

Version 9/12/2008 12

www.VIZIO.com

VIZIO VA19L HDTV10T User’s Manual

Inserting the remote control batteries

1. Remove the battery compartment cover on the back of the remote control.

2. Insert two AA batteries (included) into the remote control, making sure you match the (+) and (-) symbols on the batteries with the (+) and (-) symbols inside the battery compartment.

3. Re-attach the battery compartment cover.

Precautionary Tips for Inserting the Batteries:

• Only use the specified AA batteries.

• Do not mix new and old batteries. This may result in cracking

or leakage that may pose a fire risk or lead to personal injury.

• Inserting the batteries incorrectly may also result in cracking

or leakage that may pose a fire risk or lead to personal injury.

• Dispose of the batteries in accordance with local laws and

regulations.

• Keep the batteries away from children and pets.

Using a Cable or Satellite Remote Control

You can program your cable or satellite remote control to control your HDTV.

To use a cable or satellite remote control to control your HDTV:

1. Refer to your cable or satellite user guide for information on how to program the remote.

2. If your cable or satellite remote uses a 5-digit code (most Direct TV units), use code 11758 or

10178.

If your cable or satellite remote uses a 4-digit code, use code 1758 or 0178.

If your cable or satellite remote uses a 3-digit code (Echostar or Dish Network), use code 627.

NOTE: Some buttons may not function as expected on your cable or satellite remote control. Typically

power, volume, and mute will work.

Version 9/12/2008 13

www.VIZIO.com

VIZIO VA19L HDTV10T User’s Manual

Setting Up Your HDTV

• Read this user manual carefully before installing your HDTV.

• The power consumption of your HDTV is about 32W. Use the included power cord. When an

extension cord is required, use one with the correct power rating. The cord must be grounded and the grounding feature must not be compromised.

• Your HDTV should be installed on a flat surface to avoid tipping.

• For proper ventilation, you must allow space between the back of your HDTV and the wall.

• If you want to mount your HDTV on the wall, see “Error! Reference source not found.” for

additional information.

• Avoid installing your HDTV in places with high humidity, dust, or smoke so you do not shorten the service life of the electronic components.

• Install your HDTV in a level, landscape orientation, with the VIZIO logo at the bottom to prevent poor ventilation and excessive component damage.

VIZIO offers professional installation services. Contact VIZIO for more information on these services at 888-VIZIOCE (888-849-4623) or www.VIZIO.com.

Wall Mounting your HDTV

Your HDTV can be mounted on the wall for viewing. If you choose to mount your HDTV on the wall, follow the instructions below.

1. Remove the base: a. Disconnect the cables from your HDTV. b. Place your HDTV face down on a soft, flat

surface to prevent damage to the screen.

c. Squeeze the tabs on the base, then remove

the base. d. Remove the neck cover. e. Remove the three (3) screws holding the

neck to your HDTV.

2. Mount your HDTV on the wall: a. Attach your HDTV to a wall mount (sold

separately) using the mounting holes in the back panel of your HDTV.

b. Read the instructions that came with your

specific wall mount to properly hang your HDTV.

Version 9/12/2008 14

www.VIZIO.com

VIZIO VA19L HDTV10T User’s Manual

Additional Information:

Mounting hole pitch Screw type

Screw length

To find the perfect mount for your HDTV, browse VIZIO’s certified wall mount selection at www.VIZIO.com or call 888-VIZIOCE (888-849-4623).

Choosing a video connection

Your HDTV has six different ways to connect your video equipment from a basic connection to the most advanced for digital displays.

Connection Quality (type)

Best (digital)

- - - - - - - - -

Good (analog)

Best (analog)

Better (analog)

Good (analog)

NOTE: For more information refer to the Quick Start Guide.

Connector

100mm horizontally 100mm vertically Metric M4 8mm long

0.7mm pitch Depends on the thickness of the wall mount plate. VIZIO brackets come with different length screws.

Rear & Side Panel Color Code

White (Rear)

Black (Rear)

Blue (Rear)

Green (Rear)

Orange (Side)

Description

HDMI (High-Definition Multimedia Interface). HDMI is the

first and only industry-supported, uncompressed, all-digital audio/video interface. HDMI connects an AV device (such as a set-top box, DVD player, or A/V receiver) to your HDTV using one cable to carry both the audio and video.

DTV Coaxial RF. For digital programming, this input takes advantage of high-definition content.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - TV Coaxial RF. The connection for standard NTSC TV using antenna or cable.

RGB PC (VGA). This is most commonly used connecting a computer.

Component. The video signal is separated into three signals, one containing the black-and-white information and the other two containing the color information. This enhancement over S-Video takes advantage of the superior picture provided by progressive scan DVD players and HDTV formats.

S-Video. The video signal is separated into two signals, one containing the black-and-white information and the other containing the color information. Separating the color in this way avoids ‘cross color’ effects where closely spaced black and white lines are erroneously displayed in color. It also enables text to be displayed more sharply.

Composite. The video signal is carried through the yellow jack and the audio is carried through the white and red jacks. This is the most commonly used video connection.

Version 9/12/2008 15

www.VIZIO.com

VIZIO VA19L HDTV10T User’s Manual

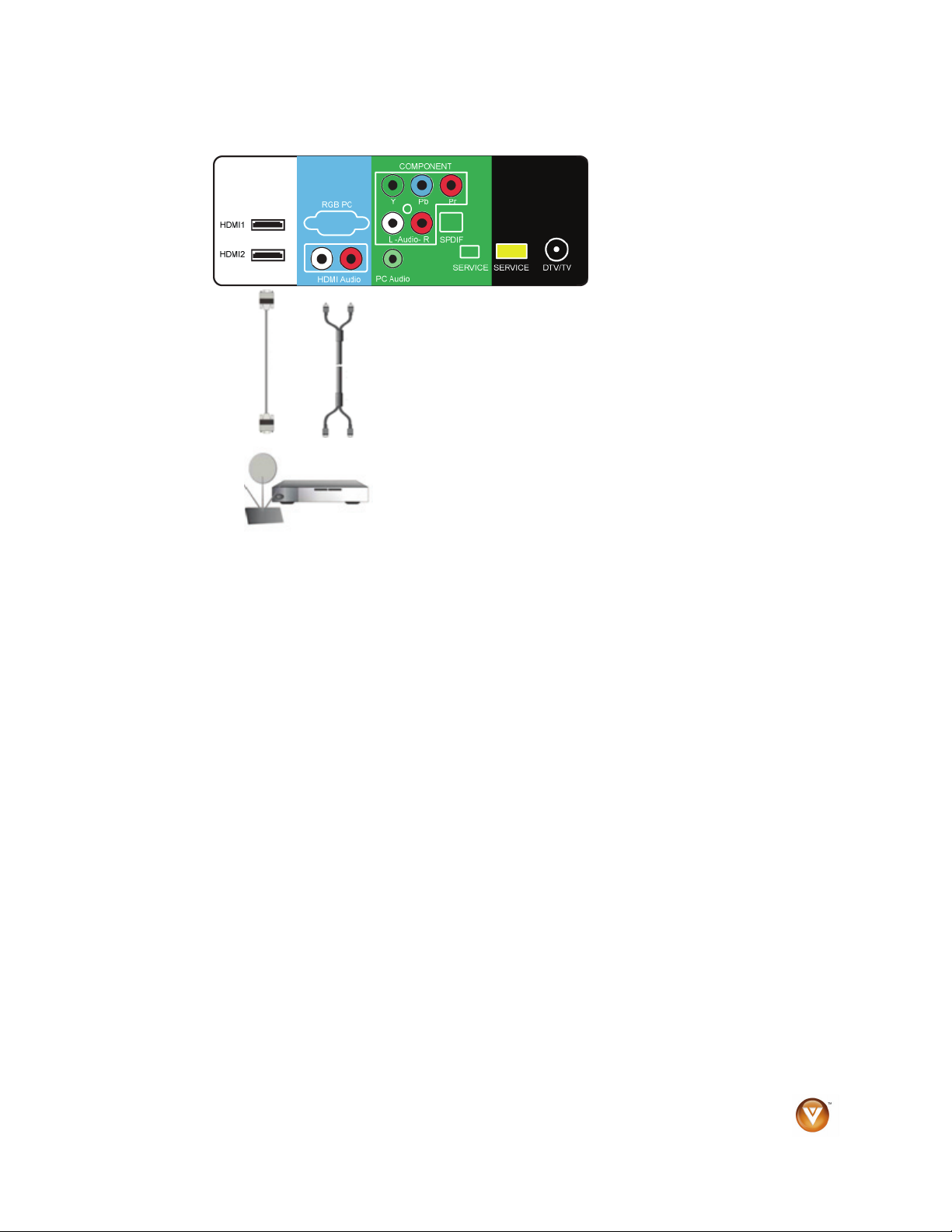

Connecting Your Cable or Satellite Box

You have four options for connecting your cable or satellite box to your HDTV: HDMI, Component, Composite, or Coax (RF). Based on your home theater configuration, you can decide which option is the right one for you. Refer to your set-top box user manual for more information about the video output requirements or consult your cable or satellite operator.

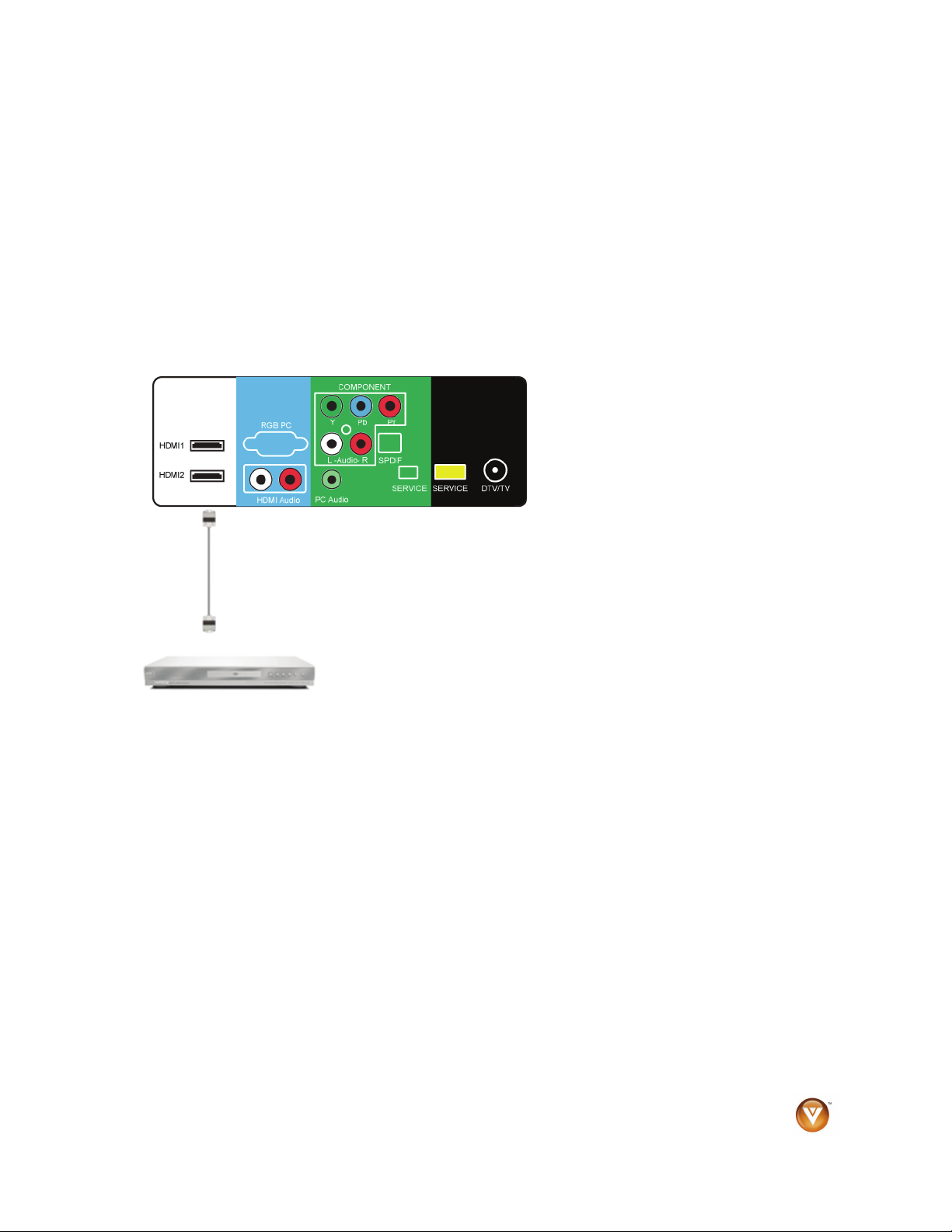

Using HDMI (Best)

Cable and satellite boxes that have a HDMI digital interface should be connected to the HDMI input on your HDTV for optimal results.

NOTE: To maintain the display quality, use a VIZIO certified HDMI cable. Length is available up to up to 32.8 feet (10 meters). See

www.VIZIO.com

849-4623) for details.

1. Turn off your HDTV and set-top box.

2. Connect the HDMI cable from the from the HDMI OUT jack on your set-top box to an available HDMI jack on the back or side of your HDTV.

3. Turn on your HDTV and set-top box.

4. Press HDMI repeatedly on the remote control to view the content. You can also press

INPUT on the remote control.

NOTE:

• If HDMI1 is being used, connect to the HDMI2 port instead.

• The HDMI input on the TV supports High-bandwidth Digital Content Protection

(HDCP). HDCP encrypts the transmission between the video source and the digital display for added security and protection.

or call 1-888-VIZIOCE (1-888-

Version 9/12/2008 16

www.VIZIO.com

+ 36 hidden pages
