VIZIO
QUICK START GUIDE

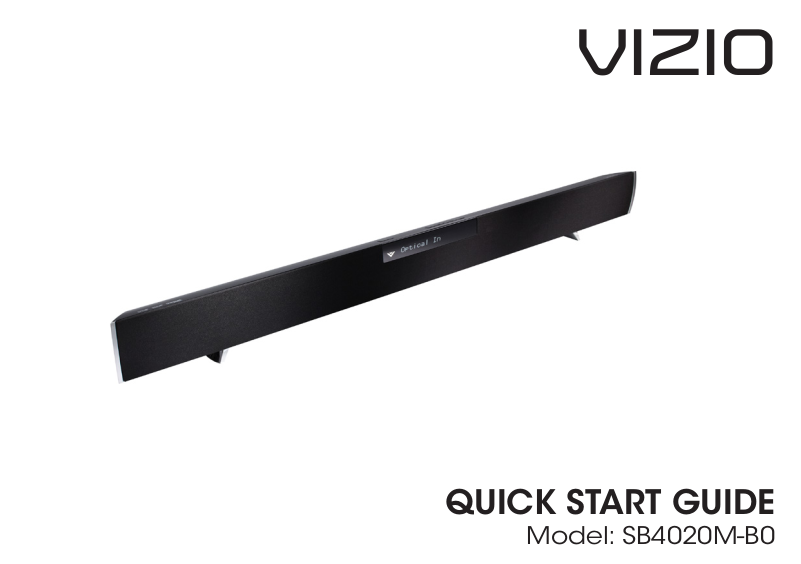

Model: SB4020M-B0
IMPORTANT SAFETY INSTRUCTIONS
Your Sound Bar is designed and manufactured to operate within dened design limits, and misuse may
result in electric shock or re. To prevent your Sound Bar from being damaged, the following rules should
be observed for its installation, use, and maintenance. Please read the following safety instructions
before operating your Sound Bar. Keep these instructions in a safe place for future reference.
• To reduce the risk of electric shock or component damage, switch off the power before connecting
other components to your Sound Bar.
• Unplug the power cord before cleaning your Sound Bar. A damp cloth is sufcient for cleaning. Do not
use a liquid or a spray cleaner on your Sound Bar. Do not use abrasive cleaners.
• Always use the accessories recommended by the manufacturer to insure compatibility.
• When moving your Sound Bar from an area of low temperature to an area of high temperature,
condensation may form in the housing. Wait before turning on your Sound Bar to avoid causing re,
electric shock, or component damage.
• A distance of at least 3 feet should be maintained between your Sound Bar and any heat source, such
as a radiator, heater, oven, amplier etc. Do not install your Sound Bar close to smoke. Operating your
Sound Bar close to smoke or moisture may cause re or electric shock.
• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure
reliable operation of your Sound Bar and to protect it from overheating, be sure these openings are not
blocked or covered. Do not place your Sound Bar in a bookcase or cabinet unless proper ventilation
is provided.
• Never push any object into the slots and openings on your Sound Bar enclosure. Do not place any
objects on the top of your Sound Bar. Doing so could short circuit parts causing a re or electric shock.
Never spill liquids on your Sound Bar.
• Your Sound Bar should be operated only from the type of power source indicated on the label on the
AC/DC Adapters. If you are not sure of the type of power supplied to your home, consult your dealer
or local power company.
• Only power of the marked voltage can be used for your Sound Bar. Any other voltage than the
specied voltage may cause re or electric shock
• The power cord must be replaced when using different voltage than the voltage specied. For more
information, contact your dealer.
• Your Sound Bar AC/DC Adapters are equipped with a three-pronged grounded plug (a plug with a
third grounding pin). This plug will t only into a grounded power outlet. This is a safety feature. If your
outlet does not accommodate the three-pronged, have an electrician install the correct outlet, or use
an adapter to ground your Sound Bar safely.
• Do not defeat the safety purpose of the grounded plug.
• When connected to a power outlet, power is always owing into your Sound Bar. To totally disconnect
power, unplug the power cord.
• The lightning ash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of un-isolated, dangerous voltage within
your Sound Bar that may be of sufcient magnitude to constitute a risk of electric
shock to persons.
• The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and servicing instructions in the literature
accompanying your Sound Bar.
• Do not overload power strips and extension cords. Overloading can result in re or electric shock.
• The wall socket should be located near your Sound Bar and be easily accessible
h
• Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord
during electrical storms.
• Unplug your Sound Bar during a lightning storm or when it will not be used for long periods of time. This
will protect your Sound Bar from damage due to power surges.
• Do not attempt to repair or service Sound Bar yourself. Opening or removing the front cover may
expose you to high voltages, electric shock, and other hazards. If repair is required, contact your dealer
and refer all servicing to qualied service personnel.
• Keep your Sound Bar away from moisture. Do not expose your Sound Bar to rain or moisture. If water
penetrates into your Sound Bar, unplug the power cord and contact your dealer. Continuous use in this
case may result in re or electric shock.
• Do not use your Sound Bar if any abnormality occurs. If any smoke or odor becomes apparent, unplug
the power cord and contact your dealer immediately. Do not try to repair your Sound Bar yourself.
• Avoid using dropped or damaged appliances. If your Sound Bar is dropped and the housing is
damaged, the internal components may function abnormally. Unplug the power cord immediately
and contact your dealer for repair. Continued use of your Sound Bar may cause re or electric shock.
• Do not install your Sound Bar in an area with heavy dust or high humidity. Operating your Sound Bar in
environments with heavy dust or high humidity may cause re or electric shock.
• Ensure that the power cord and any other cables are unplugged before moving your Sound Bar.
• When unplugging your Sound Bar, hold the power plug, not the cord. Pulling on the power cord may
damage the wires inside the cord and cause re or electric shock. When your Sound Bar will not be used
for an extended period of time, unplug the power cord.
• To reduce risk of electric shock, do not touch the connector with wet hands.
• Insert the remote control battery in accordance with instructions. Incorrect polarity may cause the
battery to leak which can damage the remote control or injure the operator.
• If any of the following occurs, contact the dealer:
- The power cord fails or frays
- Liquid sprays or any object drops into your Sound Bar
- Sound Bar is exposed to rain or other moisture
- Sound Bar is dropped or damaged in any way
- The performance of your Sound Bar changes
substantially
The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell
battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just two (2)
Keep new and used batteries away from children. If the battery compartment does not close securely,
If you think batteries might have been swallowed or placed inside any part of the body, seek
A warning that batteries (battery pack or batteries installed) shall not be exposed to
WARNING
DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD
hours and can lead to death.
stop using the product and keep it away from children.
immediate medical attention.
excessive heat such as sunshine, re, or the like.
2
PACKAGE CONTENTS
QUICK START GUIDE
Model: SB4020M
VIZIO
High Denition Sound Bar
Power Adapter w/Cable
This Quick Start Guide
Optical Cable
Wall Mount Template
3
Remote Control
with Battery
Wall Mount Brackets (2)
Stereo RCA to 3.5mm
Audio Cable
CONTROLS & CONNECTIONS
Info Display
Displays volume, input, and other information.
Power
Press to turn
on or off.
Input
Press to change input source.
Volume Up/Down
Press to increase or
decrease overall
volume.
Power Light
When Sound Bar is
on, this light is on.
4
Digital Optical In
USB
1.85
USB
USB
1.85
Digital Coaxial In
Analog 3.5mm In
Wall Mount Posts
Power Port
1.85
USB
USB Port
5
FIRST-TIME SETUP
1
1.85
CHOOSE ONE CABLE AND
CONNECT IT TO YOUR TV
BETTER
DIGITAL OPTICAL
CABLE
Connect the Sound Bar to your TV using one of the connection types to
the left. Choose the best possible connection type.
Be sure the TV port is an audio output, not an audio input.
BETTER
DIGITAL COAXIAL
CABLE*
GOOD GOOD
3.5MM
CABLE
6
3.5MM TO RCA
CABLE
*Not Included
2
1.85
3
4
Plug in
Sound Bar
1.85
7
USB
5
Sound Bar is centered
below the TV, close to ear
level.
For the best surround sound experience, position the Sound Bar as shown.
8
6
Gently pull the plastic tab from
the back of the remote control.
(The plastic tab can be thrown away)
7
Turn your TV on, then press the Power button
on the remote to turn the Sound Bar on.
Press the Input button to switch between
audio sources. For example, if you
connected your TV to Input 1, set the Sound
Bar to Input 1.
Setup is complete.
Power
Input
9
USING THE REMOTE
Power
Press to turn on or off.
Volume Up
Press to increase
overall system volume.
Rewind/Previous
Press and hold to rewind.
Press to go to last track.
Volume Down
Press to decrease
overall system volume.
Input
Press to output audio from the
selected device port. Press
repeatedly to cycle through
available inputs.
SRS TruVolume
When on, SRS TruVolume intelligently normalizes
volume uctuations due to television commercials
or channel changes.
Play/Pause
Press to play or pause track.
Fast Forward/Next
Press and hold to fast forward.
Press to advance to next track.
Mute
Press to turn the sound on or off.
Menu
Press to display menu options.
SRS TruSurround HD
When on, SRS TruSurround HD delivers enveloping,
immersive surround sound, making every seat in
the room the “sweet spot”.
10
EXTENDED FUNCTIONS USING BUTTON COMBINATIONS
+
+
+
Mute/Unmute = Volume Up + Volume Down
Press and hold both buttons for 1 second to
mute/unmute your Sound Bar.
Factory Reset = Power + Volume Up + Volume Down
+
Press and hold all 3 buttons for 10 seconds to return
your Sound Bar to its factory default settings.
THE SOUND BAR INFO DISPLAY
Volume - Increase or decrease volume
Volume
Bass Level - Increase or decrease bass level
Bass
Treble Level - Increase or decrease treble level
Treble
To conserve energy, after displaying a message for several seconds, the Info Display automatically shuts off.
15
9
9
SRS TruVolume - Toggle SRS TruVolume on or off
TruVol
SRS TruSurround - Toggle SRS TruSurround on or off
TSHD
Brightness Level - Increase or decrease brightness level
Bright
11
WALL MOUNTING THE SOUND BAR
LEAVE THIS SPACE BETWEEN THE SOUND BAR AND YOUR TV
MARK HERE
19.75”
MARK HERE
1
Use a phillips-head screwdriver to remove the screws from the Sound Bar stands.
Reinsert the screws for safekeeping. Save the stands for future use.
2
Place the included wall mounting template against the wall under your TV.
Mark the locations of the 4 bracket holes using a pencil.
12
3
USB
1.85
Recommended screw diameter: 4mm
Recommended screw length: 8mm or greater
Attach the brackets to the wall as shown. Gently hang the Sound Bar on the brackets using the
wall mount posts on the back of the Bar.
The screws and anchors depicted are not included. The
appropriate screws and anchors will depend on the material of
your wall. Be sure that the screws and/or anchors you use are
securely fastened and can support the weight of the Sound Bar.
4
Use the cable management hooks to route your audio cables to your TV.
USB
1.85
13
REPLACING THE REMOTE BATTERY
1 2
Insert a at-head screwdriver into the slot as
shown. Gently push down on the tab, then
press and pull downward on the battery
cover to open.
PROGRAMMING YOUR UNIVERSAL REMOTE
Many universal remote controls can be programmed to control your Sound Bar.
As each universal remote works differently, you should refer to your remote’s user manual for
instructions on programming.
14
When replacing an old battery with a
new CR2032, be sure that the + sign on
the battery is facing up. Push the battery
cover until it clicks back into place.
CONNECTING ADDITIONAL DEVICES
Connect up to four different devices to the Sound Bar
(devices shown are examples–you can use any device).
To listen to a device, change the input source on the Sound Bar.
1.85
Optical, Coaxial, and 3.5mm
cables transmit audio only. If
connecting a video device,
you will need a separate
video connection from the
device to your TV.
CABLE
DIGITAL COAXIAL
CABLE*
3.5mm
CABLE
USB
USB THUMB DRIVE™DIGITAL OPTICAL
*Not Included
Game Console Tablet/MP3 Player/Laptop
Network Media Player
15
HELP & TROUBLESHOOTING
All VIZIO products include FREE lifetime technical support.
The VIZIO support team is highly trained and is based in the United States.
We can help with:
• Product Setup
• Technical Problems
• Warranty Questions
• And More
There is no power.
There is no sound.
I hear buzzing or
humming.
Hours of operation:
Monday - Friday: 5 AM TO 9 PM (PST)
Saturday - Sunday: 8 AM TO 4 PM (PST)
Phone:
Email:
(877) 698-4946 (TOLL-FREE)
techsupport@VIZIO.com
Web:
www.VIZIO.com/support
• Press the POWER button on the remote control or on the top of your Sound Bar.
• Ensure the power cord is securely connected.
• Ensure the light on the power adapter is glowing green.
• Plug a different device into the electrical outlet to verify that the outlet is working correctly.
• Increase the volume. Press Volume Up on the remote control or on the top of your Sound Bar.
• Press MUTE on the remote to ensure the Sound Bar is not muted.
• Press INPUT on the remote or on the top of your Sound Bar to select a different input source.
• If you are using a SPDIF/Optical connection, make sure your TV is set to PCM audio output.
• Your TV may be set to variable audio output. Conrm that the audio output setting is set to FIXED or
STANDARD, not VARIABLE. Consult your TV’s user manual for more detailed information.
• If using Bluetooth, ensure that the volume on your source device is turned up and that the device is not
muted.
• If using Bluetooth, ensure that your source device is paired with the Sound Bar.
• Ensure all cables and wires are securely connected.
• Connect a different source device (TV, Blu-ray player, etc) to see if the buzzing persists. If it does not, the
problem may be with the original device.
• Connect your device to a different input on the Sound Bar.
The remote
isn’t working.
• Make sure the plastic tab has been removed from the battery compartment.
• Replace the remote battery with a new one.
• Point the remote directly at the Sound Bar when pressing a button.
• If using a Bluetooth connection, some of the buttons on the remote may not be supported by the
streaming application. (e.g., a music streaming app may not support the Back/Fast Rewind button.)
How do I listen to
SRS TruSurround or
Dolby Digital?
When should I use
Night Mode or
SRS TruVolume™?
I would like to adjust
the sound on the
Sound Bar.
I want to return
my Sound Bar to
factory settings.
• To activate SRS TSHD, press the Menu button on the remote and use the arrow keys to scroll to the TSHD
screen to toggle between on and off.
• To listen to Dolby Digtal, your device must be playing content in Dolby Digital format. Dolby Digital is
only available over Digital Coaxial or Digital Optical.
• Night mode reduces bass output of the Sound Bar so that listening to the bar is less likely to disturb
others. SRS TruVolume™ reduces high volume content like commercials and increases low volume
content, like dialog, so that you have a more uniform listening experience. Night Mode and SRS
TruVolume can be turned on independently or together. • To listen to Dolby Digtal, your device must
be playing content in Dolby Digital format. Dolby Digital is only available over Digital Coaxial or Digital
Optical.
• Adjust the bass and trebel levels using the remote
• Try enabling/disabling SRS TruSurround.
• Disable Night Mode if bass level is too low by pressing the Menu button on the remote and adjusting
the settings.
• Press and hold the Power, Volume Up, and Volume Down buttons for 10 seconds to return your Sound
Bar to its factory default settings.
ONE-YEAR LIMITED WARRANTY
ON PARTS AND LABOR
Covers units purchased as new in United States and Puerto Rico Only
VIZIO provides a warranty to the original purchaser of a new Product against defects in materials and workmanship for a period of one year of non-commercial usage and ninety (90)
days of commercial use. If a Product covered by this warranty is determined to be defective within the warranty period, VIZIO will either repair or replace the Product at its sole option
and discretion.
To obtain warranty service, contact VIZIO Technical Support via email: TechSupport@VIZIO.com or via phone at 877 MY VIZIO (877.698.4946) from 5:00AM to 9:00PM Monday through
Friday and 8:00AM to 4:00PM Saturday and Sunday, Pacic Time, or visit www.VIZIO.com. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE
CENTER. Proof of purchase in the form of a purchase receipt or copy thereof is required to show that a Product is within the warranty period.
Parts and Labor
There will be no charge for parts or labor during the warranty period. Replacement parts and Products may be new or recertied at VIZIO’s option and sole discretion. Replacement
parts and Products are warranted for the remaining portion of the original warranty or for ninety (90) days from warranty service or replacement, whichever is greater.
Type of Service
Defective Products must be sent to a VIZIO service center to obtain warranty service. VIZIO is not responsible for transportation costs to the service center, but VIZIO will cover return
shipping to the customer. PRE-AUTHORIZATION IS REQUIRED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER FOR WARRANTY SERVICE.
Product returns to VIZIO’s service centers must utilize either the original carton box and shipping material or packaging that affords an equal degree of protection. VIZIO Technical
Support will provide instructions for packing and shipping the covered Product to the VIZIO service center.
Limitations and Exclusions
VIZIO’s one-year limited warranty only covers defects in materials and workmanship. This warranty does not cover, for example: cosmetic damage, normal wear and tear, improper
operation, improper voltage supply or power surges, signal issues, damages from shipping, acts of God, any type of customer misuse, modications or adjustments, as well as
installation and set-up issues or any repairs attempted by anyone other than by a VIZIO authorized service center. Products with unreadable or removed serial numbers, or requiring
routine maintenance are not covered. This one year limited warranty does not cover Products sold “AS IS”, “FACTORY RECERTIFIED”, or by a non-authorized reseller.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED OR DESCRIBED ABOVE. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE PERIOD OF TIME SET FORTH ABOVE. VIZIO’S TOTAL LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES
RESULTING FROM ANY CAUSE WHATSOEVER INCLUDING VIZIO’S NEGLIGENCE, ALLEGED DAMAGE, OR DEFECTIVE GOODS, WHETHER SUCH DEFECTS ARE DISCOVERABLE OR
LATENT, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCT. VIZIO SHALL NOT BE RESPONSIBLE FOR LOSS OF USE, LOSS OF INFORMATION OR DATA, COMMERCIAL
LOSS, LOST REVENUE OR LOST PROFITS, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. THIS WARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE.
CHECK www.VIZIO.com FOR THE MOST CURRENT VERSION.
SPECIFICATIONS
Sound Bar:
Inputs:
Outputs:
Two 3” Drivers
1 x 3.5mm Stereo Audio
1 x RCA Stereo Audio
1 x Optical (Toslink)
1 x USB (for MP3 Playback)
1 x RCA Subwoofer Out
Sound Pressure Level:
Frequency Response (Sound Bar):
Voltage:
Compliances:
18
95 dB
90Hz-20kHz
100-240 VAC, 50-60 Hz
FCC, NOM, cULus
LEGAL & COMPLIANCE
FCC Class B Radio Interference Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
Notice:
1. The changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modication to this equipment. It is the responsibilities of the user to correct
such interference.
RF Exposure Information
This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to
radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. This device complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
IC Statement
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired
operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
IC Radiation Exposure Statement
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
Disposal and Recycling
You must dispose of this product properly, according to local laws and regulations. Because this
product contains electronic components and a battery, it must be disposed of separately from
household waste. Contact local authorities to learn about disposal and recycling options.
Other:
Image(s) used under license from Shutterstock.com
19
and are trademarks of SRS Labs, Inc.
TruSurround HD and TruVolume technologies are
incorporated under license from SRS Labs, Inc.
This product qualies for ENERGY STAR in the
“factory default” setting and this is the setting in
which power savings will be achieved. Changing
the factory default settings or enabling other
features will increase power consumption that
could exceed the limits necessary to qualify for
ENERGY STAR rating.
© 2013 VIZIO INC. ALL RIGHTS RESERVED.
130205CH-NC
Loading...
