Vizio SB4020EA0NA, SB4020EA0 User Manual
MODEL
SB4020E-A0-NA
VIZIO
QUICK
START
GUIDE
IMPORTANT SAFETY INFORMATION
Your Sound Bar is designed and manufactured to operate within defined design limits, and misuse may result in electric shock
or fire. To prevent your Sound Bar from being damaged, the following rules should be observed for its installation, use, and
maintenance. Please read the following safety instructions before operating your Sound Bar. Keep these instructions in a safe
place for future reference. Please heed all warnings and follow all instructions.
• To reduce the risk of electric shock or component damage, switch off the power before connecting other components to your Sound Bar.
• When moving your Sound Bar from an area of low temperature to an area of high temperature, condensation may form in the housing.
Wait before turning on your Sound Bar to avoid causing re, electric shock, or component damage.
• Never push any object into the slots and openings on your Sound Bar enclosure. Do not place any objects on the top of your Sound Bar.
Doing so could short circuit parts causing a re or electric shock. Never spill liquids on your Sound Bar.
• Your Sound Bar should be operated only from the type of power source indicated on the label on the AC/DC Adapters. If you are not sure
of the type of power supplied to your home, consult your dealer or local power company.
• Only power of the marked voltage can be used for your Sound Bar. Any other voltage than the specied voltage may cause re or
electric shock
• The power cord must be replaced when using different voltage than the voltage specied. For more information, contact your dealer.
• Do not defeat the safety purpose of the grounded plug.
• When connected to a power outlet, power is always owing into your Sound Bar. To totally disconnect power, unplug the power cord.
• Do not overload power strips and extension cords. Overloading can result in re or electric shock.
• The wall socket should be located near your Sound Bar and be easily accessible
• Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord during electrical storms.
• Do not attempt to repair or service Sound Bar yourself. Opening or removing the front cover may expose you to high voltages, electric
shock, and other hazards. If repair is required, contact your dealer and refer all servicing to qualied service personnel.
• Keep your Sound Bar away from moisture. Do not expose your Sound Bar to rain or moisture. If water penetrates into your Sound Bar,
unplug the power cord and contact your dealer. Continuous use in this case may result in re or electric shock.
• Do not use your Sound Bar if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your
dealer immediately. Do not try to repair your Sound Bar yourself.
• Avoid using dropped or damaged appliances. If your Sound Bar is dropped and the housing is damaged, the internal components may
function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of your Sound Bar may cause
re or electric shock.
• Do not install your Sound Bar in an area with heavy dust or high humidity. Operating your Sound Bar in environments with heavy dust or
high humidity may cause re or electric shock.
• Ensure that the power cord and any other cables are unplugged before moving your Sound Bar.
• When unplugging your Sound Bar, hold the power plug, not the cord. Pulling on the power cord may damage the wires inside the cord and
cause re or electric shock. When your Sound Bar will not be used for an extended period of time, unplug the power cord.
• To reduce risk of electric shock, do not touch the connector with wet hands.
• Insert the remote control battery in accordance with instructions. Incorrect polarity may cause the battery to leak which can damage the
remote control or injure the operator.
• If any of the following occurs, contact the dealer:
- The power cord fails or frays
- Liquid sprays or any object drops into your Sound Bar
- Sound Bar is exposed to rain or other moisture
- Sound Bar is dropped or damaged in any way
- The performance of your Sound Bar changes
substantially
• Keep your Sound Bar away from moisture. Do not expose your Sound Bar to rain or moisture. If water penetrates into your Sound Bar,
unplug the power cord and contact your dealer. Continuous use in this case may result in re or electric shock.
• Unplug the power cord before cleaning your Sound Bar. Clean only with dry cloth. Do not use a liquid or a spray cleaner on your Sound
Bar. Do not use abrasive cleaners.
• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your Sound Bar and
to protect it from overheating, be sure these openings are not blocked or covered. Do not place your Sound Bar in a bookcase or cabinet
unless proper ventilation is provided.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.
• Your Sound Bar AC/DC Adapters are equipped with a three-pronged grounded plug (a plug with a third grounding pin). This plug will t only
into a grounded power outlet. This is a safety feature. If your outlet does not accommodate the three-pronged, have an electrician install the
correct outlet, or use an adapter to ground your Sound Bar safely.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit
from the apparatus.
• Only use attachments/accessories specied by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualied service personal. Servicing is required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
• To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.
• The Apparatus shall not be exposed to dripping or splashing and that no objects lled with liquids, such as vases, shall be placed on
the apparatus.
• The main plug is used as the disconnect device, the disconnect device shall remain readily operable.
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lighting ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of not
isolated dangerous voltage within the product that may be sufcient magnitude to constitute a risk of shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and
servicing instructions in the literature accompanying the appliance.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth
7. Do not block any ventilation openings.
Install in accordance with the manufacturer’s instructions.
• The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can
cause severe internal burns in just two (2) hours and can lead to death.
• Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep
it away from children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
Explanation of WARNING symbols:
DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD
WARNING
PACKAGE CONTENTS
Sound Bar
SUB+
MUTE
SUB-
SRS
SRS
TVOL
TSHD
Remote Control
with Battery
Wall Mount TemplateWall Mount Brackets
Cables may vary slightly from those shown.
MODEL
SB4021E-A0
START
GUIDE
QUICK
VIZIO
This Quick Start GuidePower Adapter with Cable
Stereo RCA to 3.5mm
Audio Cable

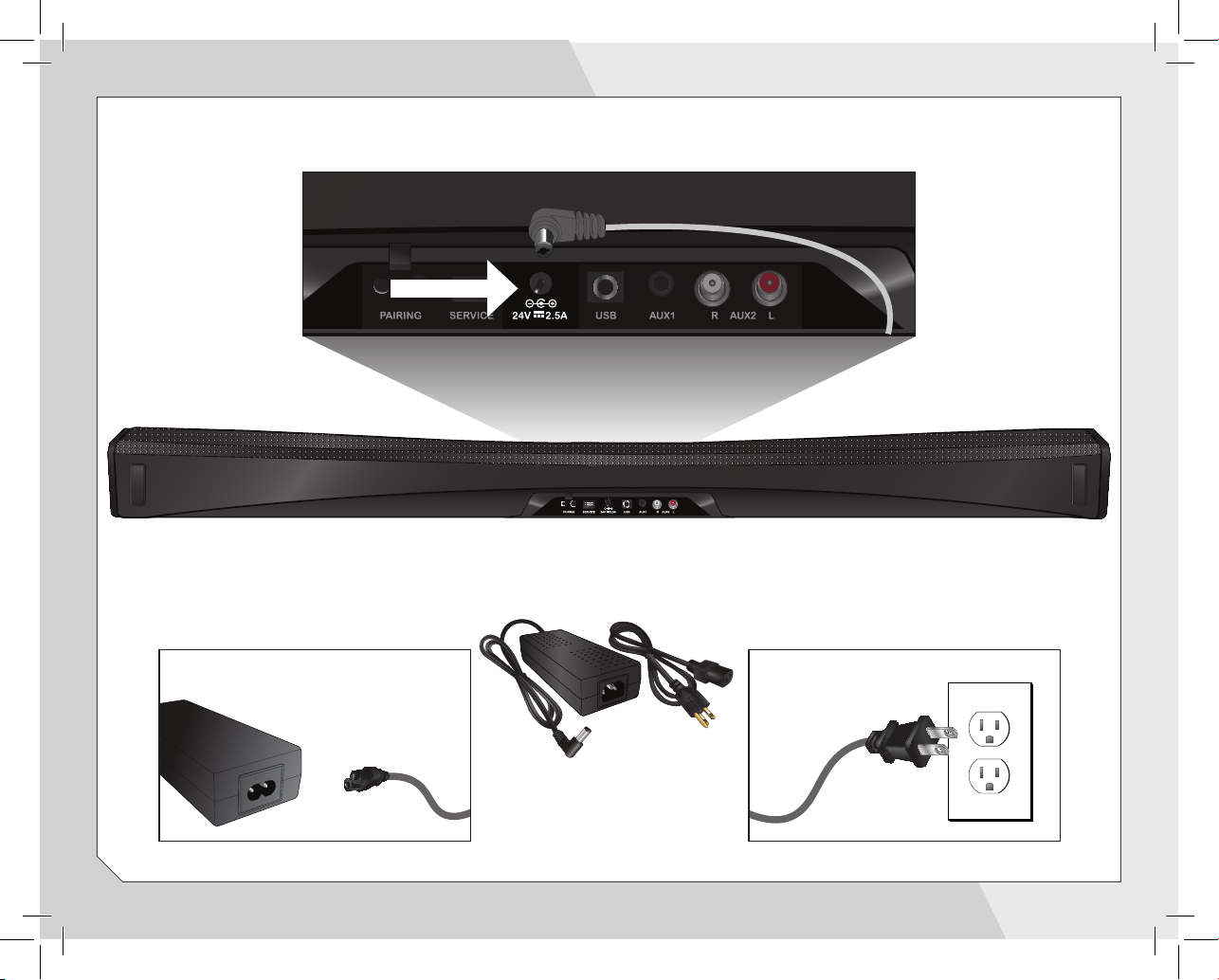

CONNECTIONS
BOTTOM OF SOUND BAR
Located on Side
Power Port
Service Port
(For Service Technician Only)
Aux Input
(Stereo 3.5mm)
Sub Out
(RCA)
Aux Input
(Stereo RCA)
Optical Input
FIRST-TIME SETUP
1
AUDIO OUT
AUDIO OUT
BACK OF YOUR TV*
CHOOSE A METHOD
Connect the included Stereo Cable to a
TV audio output as shown.
BOTTOM OF SOUND BAR
*Not all TVs have the audio outputs shown above. To connect the Sound Bar directly to your other devices (Blu-ray player, game system, etc) see your device’s user manual.
2
3 4
5
Sound Bar is centered
below the TV.
For the best surround sound experience, position the Sound Bar as shown.*
The Sound Bar should be close to ear level.
When using the remote,
point it at the center
of the Sound Bar. The
sensor is located there.
6
Gently pull the plastic tab from
the back of the remote control.
(The plastic tab can be thrown away)
7
Turn your TV on, then press the Power button on the
remote to turn the Sound Bar on.
Power
Press the Input button to cycle through the audio inputs.
For example, if you connected your TV to Aux 1, set the
Sound Bar to Aux 1.
Setup is complete.
Input
SUB-
MUTE
SRS
TVOL
SUB+
TSHD
SRS
USING THE REMOTE
Press to turn on or off.
Press to mute.
Sub Volume Down
Press to decrease subwoofer volume.
(When optional SUB Out is used)
Power
Mute
SUB-
MUTE
SUB+
Volume Up
Press to increase volume.
Sub Volume Up
Press to increase subwoofer volume.
(When optional SUB Out is used)
Volume Down
Press to decrease subwoofer volume.
SRS TVOL
Press to enable/disable SRS TruVolume.
Input
Press to change input source.
SRS
TVOL
SRS
TSHD
SRS TSHD
Press to enable/disable
SRS TruSurround HD
When using the remote, point it at the center of
the Sound Bar. The sensor is located there.
If your remote stops responding, you may need
to replace the battery.
To replace the battery, insert a flat-head
screwdriver into the slot as shown. Gently push
down on the tab, then press and pull downward
on the battery cover to open.
INDICATOR LEDS
LED Indicators located here:
Indicator LEDs flash according to
input selection:
Optical Input 3*
AUX Input 2
AUX Input 1
*Rapid flash indicates incompatible source. If there is no sound output, see Help & Troubleshooting page.
INDICATOR LEDS (CONTINUED)
LED Indicators located here:
When the four center Indicator
LEDs are brightly lit, the selected
SRS mode is enabled. When the
LEDs are not lit, SRS mode is
disabled.
