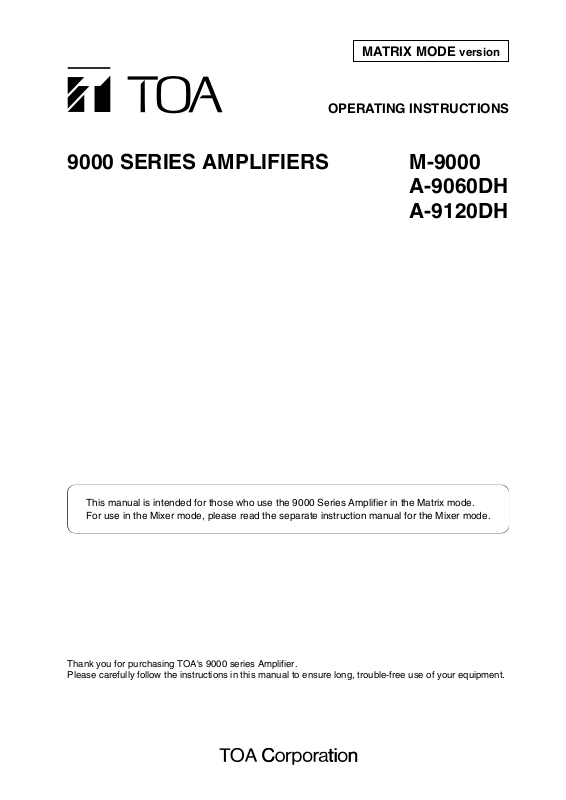

OPERATING INSTRUCTIONS

9000 SERIES AMPLIFIERS M-9000

A-9060DH A-9120DH

Thank you for purchasing TOA's 9000 series Amplifier. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

MATRIX MODE

version

This manual is intended for those who use the 9000 Series Amplifier in the Matrix mode. For use in the Mixer mode, please read the separate instruction manual for the Mixer mode.

TABLE OF CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS ........................................................... 5

2. SAFETY PRECAUTIONS ....................................................................................... 6

3. GENERAL DESCRIPTION .................................................................................... 8

4. FEATURES ................................................................................................................. 8

5. DESCRIPTION OF MATRIX MODE

5.1. General Description ................................................................................................. 9

5.2. Glossary ................................................................................................................. 10

6. INSTALLATION PRECAUTIONS ....................................................................... 11

7. HANDLING PRECAUTIONS ............................................................................... 11

8. NOMENCLATURE AND FUNCTIONS

8.1. M-9000, A-9060DH, A-9120DH

[Front] ..................................................................................................................... 12

[VFD on-screen indications] ................................................................................... 13

[Changing the indicated channels on the LEVEL output meter] ............................. 15

[Changing the input and output meter display status] ............................................ 15

[Rear] ..................................................................................................................... 16

8.2. Optional Modules

8.2.1. D-001T (2-channel input module) ................................................................ 17

8.2.2. T-001T (Audio output expansion module) .................................................... 17

8.2.3. ZP-001T (Zone paging module) ................................................................... 18

8.2.4. C-001T (Control I/O expansion module) ...................................................... 19

9. OPERATION

9.1. Normal Operation Mode

9.1.1. Keys and knobs ............................................................................................ 20

9.1.2. Power ON/OFF ............................................................................................ 20

9.1.3. Changing the input volume .......................................................................... 20

9.1.4. Changing the output volume ........................................................................ 21

9.1.5. Input channel ON/OFF ................................................................................. 21

9.1.6. Output channel ON/OFF .............................................................................. 21

9.2. Zone Paging

9.2.1. Paging port mode ......................................................................................... 22

9.2.2. Ring signal mode ......................................................................................... 22

9.3. Releasing Key Lock ............................................................................................... 23

10. EVENT ACTIVATION OR PAGING WHILE POWER IS OFF .................... 24

11. SYSTEM DESIGN-TO-OPERATION FLOW ................................................... 25

12. SETTING

12.1. Setting Menu Flow ............................................................................................... 26

12.2. Setting Keys and Knobs ....................................................................................... 27

12.3. Basic Setting Operation

12.3.1. Entering the setting mode ........................................................................ 28

12.3.2. Setting screen operation examples .......................................................... 28

12.3.3. Returning from setting mode to normal operation mode .......................... 29

12.4. Audio Input Parameter Setting

12.4.1. Setting flow chart ...................................................................................... 30

12.4.2. Audio input setting items .......................................................................... 31

12.5. Audio Output Name Setting

12.5.1. Setting flow chart ...................................................................................... 33

12.5.2. Audio output setting items ........................................................................ 33

12.6. Event Setting

12.6.1. Setting flow chart ...................................................................................... 34

12.6.2. Event setting items ................................................................................... 35

12.7. Utility Setting

12.7.1. Setting flow chart ...................................................................................... 38

12.7.2. Utility setting items ................................................................................... 40

12.8. Adjustment Mode Setting

12.8.1. Settings in adjustment mode .................................................................... 46

12.8.2. Adjustment mode setting flow chart ......................................................... 48

12.8.3. Adjustment mode setting items ................................................................ 49

12.9. Key Lock Function Setting

12.9.1. Keys that can be locked ........................................................................... 56

12.9.2. Key lock function setting flow chart .......................................................... 57

12.9.3. Key lock function setting items ................................................................. 58

12.9.4. Password setting ...................................................................................... 60

12.9.5. Key lock setting operation ........................................................................ 61

13. RESTORING FACTORY DEFAULT SETTING .............................................. 62

13.1. Default Setting Table

13.1.1. Audio input settings .................................................................................. 63

13.1.2. Audio output settings ................................................................................ 63

13.1.3. Event settings ........................................................................................... 63

13.1.4. Utility settings ........................................................................................... 64

13.1.5. Adjustment mode settings ........................................................................ 65

14. MODULE INSTALLATION

14.1. Module Combination ............................................................................................ 66

14.2. Channel Numbers and Terminal Numbers ........................................................... 66

14.3. Module Installation ............................................................................................... 66

14.4. Module Installation Examples .............................................................................. 67

15. CONNECTIONS

15.1. Control I/O Terminal Connections

15.1.1. Remote volumes 1, 2 ............................................................................... 68

15.1.2. Control inputs 1 – 4 .................................................................................. 68

15.1.3. Control outputs 1 – 4 ................................................................................ 68

15.1.4. Operation by control input ........................................................................ 69

15.2. C-001T Module Connections

15.2.1. Control input terminal ............................................................................... 70

15.2.2. Control output terminal ............................................................................. 70

15.3. RS-232C Connector Connection .......................................................................... 70

15.4. Removable Terminal Plug Connection ..................................................................71

16. RACK MOUNTING BRACKET ATTACHMENT ............................................ 72

17. HOW TO USE THE SUPPLIED SOFTWARE

17.1. General Description ............................................................................................. 73

17.2. Installing the Software .......................................................................................... 74

17.3. Connecting the Unit to the PC .............................................................................. 74

17.4. Setting the Communication Port and Speed ........................................................ 75

17.5. Updating the Firmware ......................................................................................... 76

17.6. Storing or Recalling Parameters Set at the Unit .................................................. 78

17.7. Monitoring the Unit's Operation Status ................................................................ 80

17.8. Activating the Control Input .................................................................................. 82

18. ERROR INDICATIONS .......................................................................................... 83

19. TROUBLESHOOTING .......................................................................................... 84

20. BLOCK DIAGRAM ................................................................................................. 85

21. SIGNAL FLOW DIAGRAM .................................................................................. 86

22. LEVEL DIAGRAM ................................................................................................... 87

23. SPECIFICATIONS

23.1. M-9000 ................................................................................................................. 88

23.2. A-9060DH, A-9120DH .......................................................................................... 89

23.3. Optional Modules

23.3.1. D-001T ..................................................................................................... 91

23.3.2. T-001T ...................................................................................................... 92

23.3.3. C-001T ..................................................................................................... 93

23.3.4. ZP-001T ................................................................................................... 93

1. IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

• Only use attachments/accessories specified by the manufacturer.

• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC REQUIREMENTS

2. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation.

• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or cautions regarding safety.

• After reading, keep this manual handy for future reference.

Safety Symbol and Message Conventions

Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling. Before operating your product, read this manual first and understand the safety symbols and messages so you are thoroughly aware of the potential safety hazards.

When Installing the Unit

• Do not expose the unit to rain or an environment where it may be splashed by water or other liquids, as doing so may result in fire or electric shock.

• Use the unit only with the voltage specified on the unit. Using a voltage higher than that which is specified may result in fire or electric shock.

• Do not cut, kink, otherwise damage nor modify the power supply cord. In addition, avoid using the power cord in close proximity to heaters, and never place heavy objects -- including the unit itself -- on the power cord, as doing so may result in fire or electric shock.

• Avoid installing or mounting the unit in unstable locations, such as on a rickety table or a slanted surface. Doing so may result in the unit falling down and causing personal injury and/or property damage.

• External wiring connected to the terminals marked with requires installation by an instructed person.

• The apparatus shall be connected to a mains socket outlet with a protective earthing connection.

• The socket-outlet shall be installed near the equipment and the plug shall be easily accessible.

• Use the supplied rack mounting bracket when mounting the unit in an equipment rack. Remove four M4 x 8 screws on both sides of the unit, and mount the bracket there using the supplied M4 x 16 screws instead.

When the Unit is in Use

• Should the following irregularity be found during use, immediately switch off the power, disconnect the power supply plug from the AC outlet and contact your nearest TOA dealer. Make no further attempt to operate the unit in this condition as this may cause fire or electric shock.

· If you detect smoke or a strange smell coming from the unit

· If water or any metallic object gets into the unit

· If the unit falls, or the unit case breaks

· If the power supply cord is damaged (exposure of the core, disconnection, etc.)

· If it is malfunctioning (no tone sounds.)

• To prevent a fire or electric shock, never open nor remove the unit case as there are high voltage components inside the unit. Refer all servicing to your nearest TOA dealer.

• Do not place cups, bowls, or other containers of liquid or metallic objects on top of the unit. If they accidentally spill into the unit, this may cause a fire or electric shock.

Indicates a potentially hazardous situation which, if mishandled, could result in death or serious personal injury.

WARNING

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instruction in the literature accompanying the appliance.

When Installing the Unit

• Never plug in nor remove the power supply plug with wet hands, as doing so may cause electric shock.

• When unplugging the power supply cord, be sure to grasp the power supply plug; never pull on the cord itself. Operating the unit with a damaged power supply cord may cause a fire or electric shock.

• Do not block the ventilation slots in the unit's cover. Doing so may cause heat to build up inside the unit and result in fire.

• Avoid installing the unit in humid or dusty locations, in locations exposed to the direct sunlight, near the heaters, or in locations generating sooty smoke or steam as doing otherwise may result in fire or electric shock.

• To avoid electric shocks, be sure to switch off the unit's power when connecting speakers.

• Be sure to follow the instructions below when rack-mounting the unit. Failure to do so may cause a fire or personal injury.

· Install the equipment rack on a stable, hard floor. Fix it with anchor bolts or take other arrangements to

prevent it from falling down.

· When connecting the unit's power cord to an AC outlet, use the AC outlet with current capacity allowable to

the unit.

• Keep the 9000 series amplifiers over 10 cm away from objects that may obstruct air flow to prevent the unit's internal temperature rise.

When the Unit is in Use

• Do not operate the unit for an extended period of time with the sound distorting. This is an indication of a malfunction, which in turn can cause heat to generate and result in a fire.

• Switch off the power, and unplug the power supply plug from the AC outlet for safety purposes when cleaning or leaving the unit unused for 10 days or more. Doing otherwise may cause a fire or electric shock.

Indicates a potentially hazardous situation which, if mishandled, could result in moderate or minor personal injury, and/or property damage.

CAUTION

An all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated in the electrical installation of the building.

L'appareil ne doit pas être exposé aux éclaboussures ou écoulements et tous objets remplis de liquide, tels que vases, ne doivent pas être sur l’appareil.

ATTENTION

The lighting flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

INPUT SELECT

OUTPUT VOLUME

INPUT VOLUME

ON/OFF

OUTPUT SEL

POWER

PARAMETER

UTILITY

MEMORY

ESC/BACK

ENTER

Over 10 cm

Over 10 cm Over 10 cm

3. GENERAL DESCRIPTION

TOA's M-9000 Matrix Mixer is designed to be used in conjunction with optional modules and can be configured for up to 8 inputs and 8 outputs. Usable modules include 4 types of 9000 series plug-in modules, D-001T (for 2 channels of input), T-001T (for output expansion), C-001T (for remote control), and ZP-001T (for zone paging), as well as 900 series input modules. The most appropriate modules can be selected depending on applications.

By changing operation mode, the M-9000 Mixer can be used either as a matrix system suited to BGM or paging broadcasts, or as a mixer that is appropriate for speech or sound reinforcement applications. It is equipped with signal processing and control functions, permitting all parameters to be set at the mixer. Further, settings data can be stored inside the mixer and called up using the keys on the front panel.

The 9000 Series A-9060DH and A-9120DH Amplifiers feature the M-9000's matrix mixer function and come with two 60 W and two 120 W power amplifiers, respectively. Both amplifiers can individually perform multichannel broadcasts.

4. FEATURES

• Either matrix or mixer mode can be selected depending on application for optimum operation.

• Matrix mode is suitable for BGM broadcasts or paging to zoned areas.

• Mixer mode is suitable for speech or sound reinforcement in such applications as hotel meeting rooms, churches or conference rooms.

• Eight module slots enable audio input and output configuration ranging from 1 input and 2 outputs to 8 inputs and 8 outputs.

• All settings can be performed at the unit using the built-in vacuum fluorescent display (VFD), setting keys and Parameter setting knob on the front panel.

• Up to 32 settings can be stored as Event memory (in matrix mode) or as Scene memory (in mixer mode), which can be recalled by the unit or external connected equipment.

• An RS-232C port permits remote control of the unit using an AMX*

or Crestron*2controller, or similar

external equipment.

• A key lock function prevents accidental changes of front panel key or knob operation.

• Volume adjustment, paging initiation, and BGM program selection can be easily remote-controlled. The optional C-001T module permits the number of control inputs and outputs to be increased.

• Paging calls can be performed by a PABX (extension telephone) with the use of the optional ZP-001T module.

• A ducker function*

permits paging calls to be made without interrupting BGM broadcasts when in matrix

mode.

• Because an auto-mixing function (ducker function*

and NOM attenuation function*4) is available when in

mixer mode, the output gain can be automatically adjusted.

AMX is a trademark of AMX Corporation.

Crestron is a trademark of Crestron Electronics, Inc.

The Ducker function automatically attenuates input signals with lower priority when two or more audio signals are simultaneously received.

The NOM (Number of Open Microphones) attenuation function automatically adjusts the output channel gain depending on the number of open microphones.

Important

Be sure to disconnect the power supply plug from the AC outlet when changing the mode. Since the changes in mode will erase all setting contents, download the set files that need to be stored using the supplied PC software.

5.1. General Description

Use the matrix mode when broadcasting BGM or paging calls to zoned areas in such facilities as civic centers, universities, schools, restaurants, bars, and cruise ships. Input signals are basically not mixed but distributed in the matrix mode. Multiple audio input signals can be simultaneously routed to multiple outputs and in addition, paging calls assigned different priority levels can be initiated during BGM broadcast to each zone. The ducker function (refer to the next page) also allows paging calls to be made without interrupting BGM broadcasts to each zone. A maximum of 32 settings related to broadcasts, such as broadcast sound source input channels, interrupt broadcast output channels, BGM source input channels, and broadcast start methods, can be stored as Event memory.

[Application example for a civic center]

5. DESCRIPTION OF MATRIX MODE

Two operation modes are made available to the unit: Matrix mode and Mixer mode. Be sure to select the matrix mode by the Mode switch on the rear panel before using the unit. (The mode switch is factory-preset to the matrix mode.)

This manual describes the instructions on the unit set for the Matrix mode. When you use the unit in the Mixer mode, please read the separate instruction manual for the mixer mode.

MODE

MIXERMATRIX

Mode switch

TelephoneCD

Room 1

1F corridors

9000 series system

Room 1

2F corridors Rest rooms

Room 3 Entrance hall

5.2. Glossary

• Ducker function

The Ducker function automatically attenuates input signals with lower priority when two or more audio signals are simultaneously received. This function cannot be used if any of such received inputs is not set for the Ducker function.

• VOX (Voice Operated Exchange) function (D-001T only)

This function activates the set Event when an audio signal is input. No Event is activated when no input signal exists. If the audio signal drops below a preset level after the VOX function begins operation (i.e. after an audio signal is fed into the module), the set Event is terminated after approximately 5 seconds.

• Event

An "Event" is the unit that defines broadcast pattern and up to 32 Events can be stored.

• Event classification

[ROUTE]

This setting defines which audio input signal is transmitted to which audio output. Multiple outputs can be selected. Input channels set to priority levels 1 – 7 are for priority broadcasts, while the input channel set to priority level 8 is for BGM. Set Trigger to "None," "VOX" (D-001T only) or "Control Input" (1 – 12). Selecting Control Input for Trigger causes the BGM to be activated by pulse trigger, and priority broadcasts to be operated by level trigger. It is possible to synchronize control inputs and control outputs, with output being produced as long as the Event is activated.

[BASE]

In this setting, multiple BGM Events are combined into one Base pattern so that they are simultaneously activated by means of a single activation signal. To use this function, BGM Events (signal routing from input to output) must be preset in the Route settings. Up to 4 Route-set BGM Events can be combined into one Base pattern.

Example: Combining Route-set BGM Events Nos. 1, 2 and 3 into one Base pattern, and assigning the

Base pattern to Event No. 4

When BGM Events to which the same output channel is assigned are individually activated, their broadcast zone depends on the priority setting (first-in-first-out priority, last-in-first-out priority, or mixing) performed in advance for the Events. Though BGM Events combined in a BASE pattern are activated simultaneously, the BGM Event with the smallest input channel number is considered to have been selected first.

Example: Assigning the following two BGM Events to Event No. 3 as Base pattern.

Event 1 = Input 1 Outputs 1 and 2 Event 2 = Input 2 Outputs 2 and 3

In this example, Output 2 is duplicated. However, if system priority is set for "first-in-first-out" priority, BGM is broadcast to the following zones because Input 1 has a priority:

Event 1 = Input 1 Outputs 1 and 2 Event 2 = Input 2 Output 3

For Trigger, select "None" or "Control Input" (1 – 12). In Base settings, VOX cannot be selected for Trigger nor can control outputs be synchronized with control inputs. Base settings are not required when only one BGM program has been set in Route.

• BGM END

Defines the method of stopping BGM broadcasts. Only "Control Input" (1 – 12) can be selected for Trigger. All current BGM broadcasts are stopped. Control outputs cannot be synchronized with control inputs. To stop the specified BGM Event set in Route (including the case that the only one Base pattern is broadcast) when two or more BGM Events are activated, turn off the corresponding input channel at the unit's front panel.

6. INSTALLATION PRECAUTIONS

• Keep the A-9060DH and A-9120DH amplifiers over 10 cm away from objects that may obstruct air flow to prevent the unit's internal temperature rise.

7. HANDLING PRECAUTIONS

• The supplied power supply cord is designed for exclusive use with this unit. Never use it with other equipment.

• Use the unit in locations where the temperature is between –10 and +40 °C (no condensation should be formed), and the humidity is less than 80%.

• The unit is a precision audio component. To prevent failure, avoid locations where it may be exposed to strong shocks or vibrations.

• To clean, be sure to first disconnect the power supply plug from the AC outlet, then wipe with a dry cloth. When extremely dirty, use a soft cloth dampened in neutral detergent. Never use benzene, thinner or chemically-treated towels, which may damage the unit's finish.

Over 10 cm

INPUT SELECT

INPUT VOLUME

OUTPUT VOLUME

ON/OFF

MEMORY

ON/OFF

ENTER

OUTPUT SEL

PARAMETER

POWER

UTILITY

ESC/BACK

Over 10 cmOver 10 cm

8. NOMENCLATURE AND FUNCTIONS

8.1. M-9000, A-9060DH, A-9120DH

[Front]

1. Power switch and Power indicator

Press this switch to turn on the power. The power indicator lights. To turn off the power, hold down the switch for at least 0.5 second.

Note

The power switch is a soft-switch, so the internal microcomputer is still operating even when the power switch is set to OFF.

2. Input channel selection keys

Select the input channel for which the volume is adjusted or parameter is set. Pressing the key causes the corresponding red channel indicator to light on the vacuum fluorescent display (VFD).

3. Vacuum fluorescent display (VFD)

Displays the setting screen, input and output selection status, channel ON/OFF status, input and output level meter indication, and fader position. (Refer to p. 13 "VFD on-screen indications.")

4. Input volume control

Adjusts the gain of the input channel selected with the input channel selection key (2).

5. Input channel ON/OFF key

Turns on or off the channel selected with the input channel selection key (2).

6. Output channel ON/OFF key

Turns on or off the channel selected with the output channel selection key (7).

7. Output channel selection key

Selects the output channel for which the volume is adjusted or parameter is set. The output channel indicators on the VFD light in sequence each time the key is pressed.

8. Output volume control

Adjusts the gain of the output channel selected with the output channel selection key (7).

9. Memory key

Used to save the setting contents in each setting mode, or to delete on-screen indications to enter each setting mode.

10. Enter key

Press this key when such indications as "OK?" are displayed.

11. Parameter setting knob

Rotate this knob to select the setting item or setting contents.

12. Utility menu key

Holding down this key for 2 seconds or more when in normal operation mode switches the display to the setting screen.

13. Escape/Back key

Used to revert back to a previous screen when advanced with the Enter key during setting operation.

14. Screen shift keys [ ]

Move the setting screen or setting item.

This figure represents the M-9000.

INPUT SELECT

TOA 9000 SERIES PRE-AMPLIFIER M-9000

INPUT VOLUME

2 3 4 5 6 7 8

ON/OFF

OUTPUT SEL

OUTPUT VOLUME

MEMORY

ENTER

PARAMETER

UTILITY

ESC/BACK

10 111213 14

POWER

[VFD on-screen indications]

15. 14-Segment,18-digit alphanumeric display

Displays the corresponding setting screen or data when each function key is pressed. Parameters being edited flash.

16. Keylock indicator

Lights when the key lock function is enabled, and flashes while the key lock function is being edited.

17. Emergency indicator

Lights when the control input set for "Emergency mute" becomes active.

18. Unit indicator

Displays the unit of each parameter when it is set.

19. GAIN, dB, Q, FREQ indicators

Lights when the equalizer is adjusted.

20. COM indicator

Remains lit during communications via the RS232C interface.

21. Fault indicator

Lights when the unit's failure or other abnormal conditions are detected. (Refer to p. 83 "ERROR INDICATIONS.")

22. Input meter status indicator

Indicates which the input level (LEVEL) or input fader position (FADER) is being displayed on the input meter (26).

Note

Input level is displayed only when the D-001T module is used.

23. Input level indication

Scale of levels (in dB) for the input meter.

24. Input channel selection indicator (red dot)

Lights when the corresponding input channel is selected, and flashes while parameters are being edited.

25. Input channel ON/OFF indicator (channel number)

The indicators for all channels normally light regardless of whether or not the channels can be selected by the input channel selection keys (2) or can be used (p. 85 "Remarks"), while they flash when turned off by the input channel ON/OFF key (5).

26. Input meter

Indicates the signal level or input fader position of each input channel. Which the meter is indicating is displayed on the input meter status indicator (22).

Notes

• The input meter is kept on even for the channel

that is turned off or muted.

• Input level is displayed only when the

D-001T module is used.

27. Effect indicator

Lights when effect is on, and flashes while the parameters are being edited.

28. Output channel selection indicator (red dot)

Lights when the corresponding output channel is selected, and flashes while parameters are being edited.

29. Output channel ON/OFF indicator (channel number)

Lights when the corresponding output is on (i.e. in operation mode), and flashes when off. The number of channels of which indicators light depends on the modules used.

15 16 18 1917

COM FAULT

FADER

LEVEL

12 345678

0 –10 –20 –30 –40

GAIN d B FREQQ

KEYLOCK

EMERGENCY

GATE

TONE

DUCK

LOUD

NOM

COMP

DELAY

12 34 56 78

21 22 2320 2726 30 31 32

5533

28 2924 25

–10 –20 –30 –40

d B kHz m sec

FADER

LEVEL

30. Output meter

Indicates the signal level or output fader position of each output channel. Which the meter is indicating is displayed on the output meter status indicator (32).

Notes

• When the output channel 1 or 2 corresponding to the A-9060DH's or A-912DH's preamplifier output is turned off or muted, the output channel's meter becomes off.

• Even when the M-9000's preamplifier output channel or the T-001T's output channel is turned off or muted, any output channel's meter is kept on.

31. Output level indication

Scale of levels (in dB) for the output meter.

32. Output meter status indicator

Indicates which the output level (LEVEL) or output fader position (FADER) is being displayed on the output meter (30).

[Changing the input and output meter display status]

Pressing the Down shift key alternately switches the input and output meter display status between the signal level and the fader position. The LEVEL indicators on both input and output meters light when the signal levels are indicated, while the FADER indicators light when the fader positions are indicated.

Note: The figure above is the VFD screen display when the input and output levels are indicated.

[Changing the indicated channels on the LEVEL output meter]

The output meter indicates the signal levels of only a set of 4 channels: CH 1 – 4 (factory-preset) or CH 5 – 8. Pressing the Up shift key alternately switches the level indication between CH 1 – 4 and CH 5 – 8. The LEVEL indicator of the output meter status indicator flashes while the CH 5 – 8 are indicated, and stays lit while the CH 1 – 4 are indicated. In the same manner, the output meter also changes in the Fader indication.

d B kHz m sec

COM FAULT

FADER

LEVEL

12 345678

–10 –20 –30 –40

GAIN d B FREQQ

KEYLOCK

EMERGENCY

GATE

TONE

DUCK

LOUD

NOM

COMP

DELAY

12 34 56 78

FADER

–10 –20 –30

LEVEL

–40

Output meter Output meter status indicator

d B kHz m sec

COM FAULT

FADER

LEVEL

12 345678

–10 –20 –30 –40

Input meter status indicator Output meter status indicator

GAIN d B FREQQ

KEYLOCK

EMERGENCY

GATE

TONE

DUCK

LOUD

NOM

COMP

DELAY

12 34 56 78

–10 –20 –30 –40

FADER

LEVEL

[Rear]

• M-9000

• A-9060DH, A-9120DH

This figure represents the A-9120DH.

33. Speaker output terminal

Connects the 70 V high-impedance speaker.

34. AC inlet

Connects the supplied power cord.

35. RS-232C serial communication port

Connector for communications with a personal computer or control equipment.

36. Functional earth terminal

Hum noise may be generated when external equipment is connected to the unit. Connecting this terminal to the functional earth terminal of the external equipment may reduce the hum noise.

Note: This terminal is not for protective earth.

37. Mode switch

Selects the unit's operation mode (either matrix or mixer). The switch is factory-preset to the matrix mode.

38. Control-I/O connection terminal

Connect a 10 kΩ (linear taper) variable resistor or input the DC voltage of 0 to +10 V to the remote volume control terminals (REMT VOL 1 and 2) when remotely adjusting the volume. Input and output terminals (IN and OUT) are used to change the unit's internal status or output

internal status data to external equipment after having received various control signals.

39. Blank panel (accessory)

Attach the blank panels to open slots.

40. Module slots

900 Series or 9000 Series modules can be inserted into these slots. (Refer to p. 66 "MODULE INSTALLATION.")

41. Preamplifier output and Power amplifier input terminals

[M-9000 Matrix mixer] There are 2 preamplifier output terminals. For unbalanced connection, connect the unit's Hot and Earth terminals to the connected equipment's Signal and GND terminals, respectively. (Keep the unit's Cold terminal free.) 0 dB, 600 Ω, balanced type

[A-9060DH and A-9120DH Amplifiers] There are 2 preamplifier output terminals and 2 power amplifier input terminals. Connecting a plug to the power amplifier input terminal internally disconnects the preamplifier section from the power amplifier section. Both terminals: 0 dB, 300 Ω, unbalanced type

120V 60Hz

RS-232C

M-9000 CU

40W

MODE

MIXERMATRIX

CTRL

REMT

VOL1

REMT

VOL2

I/O

OUT

37 38 39

343536

WARNING

DO NOT CONNECT NEGATIVE(–) TERMINALS TOGETHER.

A-9120DH CU

SP OUT

–

70V OUT 1

70V OUT 2

RS-232C

120V 60Hz

250 W

CLASS 2 WIRING

MODE

MIXERMATRIX

CTRL

REMT

VOL1

REMT

VOL2

I/O

OUT

IN E IN E 1 2 3 4 E 1 2 3 4 E

OUT 1

OUT 2

PRE AMP

H : Hot C : Cold E : Earth

40 41

PRE AMP

IN E IN E 1 2 3 4 E 1 2 3 4 E

OUT 1

PWR AMP

IN 1

PRE AMP

OUT 2

PWR AMP

IN 2

343334353637 38 39 40 41

8.2. Optional Modules

8.2.1. D-001T (2-channel input module)

8.2.2. T-001T (Audio output expansion module)

1. Monaural input terminals [1, 2]

Electronically-balanced 3P removable terminal blocks. Input level: –60 dB to –10 dB selectable. Input impedance is 10 kΩ when the phantom power is OFF, and 3 kΩ when ON.

2. Monaural output terminals [1, 2]

Electronically-balanced 3P removable terminal blocks. Output level: 0 dB Output impedance: 600 Ω For unbalanced connection, connect the unit's Hot and Earth terminals to the connected equipment's Signal and GND terminals, respectively. (Keep the unit's Cold terminal free.)

The D-001T module is designed for use with the 9000 Series amplifiers. Up to 4 modules (8 channels in total) can be inserted into the amplifier. The module can handle signals ranging from microphone level (–60 dB) to line level (–10 dB) in 9 input sensitivity levels. Phantom power (24 V) can be supplied for microphone level (–60 dB to –30 dB) signals. The D-001T module has an internal digital signal processor that can process input signals.

The D-001T module is required to use a VOX (Voice Operated Exchange) function and input channel level

The T-001T module is designed for use with the 9000 Series amplifiers and can expand 2 output channels per module. Since the main unit has 2 fixed outputs, the audio output can be expanded to 8 channels by using a maximum of 3 modules (6 channels).

D-001T

Hot

Cold

Earth

Hot

Cold

Earth

T-001T

Hot

Cold

Earth

Hot

Cold

Earth

8.2.3. ZP-001T (Zone paging module)

3. Telephone input terminal [TEL IN] (Modular jack)

Interface connector for an analog PABX. Connect a PABX to this terminal when using the module in the ring signal mode.

4. Telephone input terminal [TEL IN]

4-pin removable terminal block, 2 pins are used for this input. This terminal is internally connected in parallel with the telephone input terminal (modular jack) (3). Connect a PABX to this terminal when the paging port is used (paging port mode).

5. Control input terminal [CONTACT IN]

4-pin removable terminal block, 2 pins are used for this input. Connect the control output from a PABX to this terminal.

6. Control output terminals [OUT 1, 2, 3, 4]

4-pin removable terminal blocks, control output terminals. This terminal is not used with the current firmware. It will be made usable in the near future when the firmware version is upgraded. For details, please contact your nearest TOA dealer.

The ZP-001T module is designed for use with the 9000 Series amplifiers and functions as an interface to connect the 9000 Series amplifiers to an analog PABX, allowing zone paging to be initiated from the PABX.

There are two operation modes: Ring signal and Paging port modes. Select one of the two modes when using this module. The operation method differs depending on the set operation mode. (Refer to p. 22 "Zone Paging.")

[Requirements of the PABX to be connected to the ZP-001T]

• The PABX shall be complaint with TIA/EIA-464-B standard.

• Specifications or conditions required in each of the following modes shall be satisfied:

Note: The ZP-001T may malfunction if the connected PABX does not meet the above requirements.

(A) When using the module in the Paging port mode

• Connection: Line level paging port

• Signaling method: DTMF (The module cannot be operated with dial pulse.)

• Shall provide no-voltage make contact during paging calls.

• Insensitive to whether loop voltage exists or not, and whether polarity of the loop voltage is reversed or not when a line connection is established.

Note

If the PABX does not meet the above requirements, use the D-001T module and set the trigger to "VOX" (Voice Operated Exchange) to initiate paging. In this case, the paging output channel cannot be selected, which differs from the operation by the ZP-001T.

(B) When using the module in the Ring signal mode

• Connection: Analog two-wire extension line, loop start

• Signaling method: DTMF (The module cannot be operated with dial pulse.)

• Reorder tone: 120 IPM (impulses per minute) or less

• Loop voltage: 24 VDC or more* (polarity insensitive)

• Insensitive to whether polarity of the loop voltage is reversed or not at a call from the PABX.*

• Loop voltage supply shall not be cut off from the beginning of a call to the reorder tone out.*

• The state of CPC (Calling Party Controlled) break or "Open Loop Disconnect" shall be reset at the PABX.*

* Note that there is no need to meet these requirements provided that the ZP-001T's control input terminals

are kept closed. However, noise may be output if the line is physically disconnected during a paging call because the ZP-001T cannot recognize the line cutoff nor stop output for 30 seconds after paging initiation.

ZP-001T

OUT

TEL IN

CONTACT

4 5

8.2.4. C-001T (Control I/O expansion module)

7. Control input terminal [IN 1, 2, 3, 4, 5, 6, 7, 8, E]

9-pin removable terminal block, 8-circuit control input terminal. Individual input functions are assigned on the front panel setting screen of the main unit.

8. Control output terminal [OUT 1, 2, 3, 4, 5, 6, 7, 8, E]

9-pin removable terminal block, 8-circuit control output terminal. Individual output functions are assigned on the front panel setting screen of the main unit.

The C-001T module is designed for use with the 9000 Series amplifiers and can provide up to 8 channels each of input and output expansion. Since the main unit has 4 fixed inputs and outputs each, the control input and output can be expanded to up to 12 channels each when the C-001T module is used.

C-001T

OUT IN

1 2 3 4 5 6 7 8 E

9. OPERATION

To operate the unit in the matrix mode, make necessary settings in advance such as the audio input/output settings and event settings (including broadcast pattern and BGM broadcast group).

9.1. Normal Operation Mode

In the matrix mode, the unit need not be manually operated in normal conditions since the set broadcast patterns can be activated by means of remote control. However, it is also possible to adjust the volume or activate the broadcast patterns directly using the front panel-mounted keys and knobs. This section describes operations that can be performed in normal operation state when the key lock function is disabled and the unit is set to the matrix mode.

9.1.1. Keys and knobs

9.1.2. Power ON/OFF

Power is turned on when the power switch is pressed. To turn off the power, hold down the power switch for 0.5 second or more.

9.1.3. Changing the input volume

Step 1. Press the Input channel selection key to choose the input channel for which you want to change the

volume from those with the illuminated Input channel ON/OFF indicator (channel number). The selected channel's selection indicator (red dot) lights, and the channel name and volume level are displayed on the VFD screen.

Step 2. Adjust the volume using the input volume control.

Tip

Whether the changed volume is saved or not depends on the setting item "Memory erasure or

storage" in the UTILITY setting on page 43.

Step 3. After completing adjustments, press the Memory key.

The channel selection indicator extinguishes and the on-screen indication disappears.

Note

You cannot perform the Utility key operation as long as any indication is displayed in the upper line of the VFD screen. To enter the Utility setting, delete the on-screen indication by pressing the Memory key.

[Front]

TOA 9000 SERIES AMPLIFIER A-9120DH

INPUT SELECT

INPUT VOLUME

ON/OFF

OUTPUT SEL

OUTPUT VOLUME

This figure represents the A-9120DH.

MEMORY

ENTER

Input channel selection keys

Input volume control

Input channel ON/OFF key

Output channel ON/OFF key

Output channel selection key Output volume control

PARAMETER

UTILITY

ESC/BACK

Power switch

Parameter setting knob

Enter key

Memory key

POWER

9.1.4. Changing the output volume

Step 1. Press the Output channel selection key to turn on the Output channel selection indicator (red dot) for

the output channel for which you want to change volume. Channels to be selected will change each time the Output channel selection key is pressed. The channel name and volume level are displayed on the VFD screen.

Step 2. Adjust the volume using the output volume control.

Tip

Whether the changed volume is saved or not depends on the setting item "Memory erasure or

storage" in the UTILITY setting on page 43.

Step 3. After completing adjustments, press the Memory key.

The channel selection indicator extinguishes and the on-screen indication disappears.

Note

9.1.5. Input channel ON/OFF

Input channels alternate between ON and OFF with each depression of the Input channel ON/OFF key. The channel is ON when the input channel ON/OFF indicator (channel number) lights. When an input channel is OFF, the Event including the input channel such as BGM or priority broadcast will not be activated, or cancelled if the Event is in progress.

9.1.6. Output channel ON/OFF

Output channels alternate between ON and OFF with each depression of the Output channel ON/OFF key. The channel is ON when the Output channel ON/OFF indicator (channel number) lights. When an output channel is OFF, no output goes through on the channel and the Event will not be cancelled.

9.2. Zone Paging

This section describes the method of initiating zone paging from a PABX (extension telephone) using the ZP001T Zone Paging Module. Note that the operation method differs depending on the ZP-001T's operation mode setting: paging port mode or ring signal mode.

In both operation modes, when any of the following situations arises, the ZP-001T will not receive calls from the PABX or the line will be cut off if the ZP-001T is being engaged in paging call.

• The input channel for the ZP-001T is turned off.

• The input channel for the ZP-001T is muted by way of the control input.

• Emergency-mute (EMG-MUTE) is activated by way of the control input.

9.2.1. Paging port mode

Step 1. Activate the paging port from the extension telephone.

Since this method differs depending on the type of exchange, please read the instruction manual for the extension telephone. When the paging port is activated and the control input terminal is closed, the ZP-001T module connects the line.

Step 2. Select the output channel.

Press [0] first, followed by the output channel number ([1] – [8] or [9] when selecting all numbers simultaneously). Pressing the [#] key completes the output channel selection.

Example: To select Outputs 2 and 3, press [0] [2] [3] [#].

To make an all-zone call, press [0] [9] [#].

Step 3. Begin paging.

When the pre-paging tone is set to ON (p. 31), begin paging after the tone sounds. When the selected output channel is being used by other broadcast with higher priority level, a busy tone is heard from the handset, indicating that paging cannot be performed.

Step 4. Deactivate the paging port to terminate paging.

Since this method differs depending on the type of exchange, please read the instruction manual for the extension telephone.

9.2.2. Ring signal mode

Step 1. Make a call from the extension telephone to the ZP-001T module.

After a calling tone sounds twice, the ZP-001T receives the call and a callback tone is heard from the handset.

Step 2. Select the output channel.

Press [0] first, followed by the output channel number ([1] – [8] or [9] when selecting all numbers simultaneously). Pressing the [#] key completes the output channel selection.

Example: To select Outputs 2 and 3, press [0] [2] [3] [#].

To make an all-zone call, press [0] [9] [#].

Step 3. Begin paging.

When the pre-paging tone is set to ON (p. 31), begin paging after the tone sounds. Paging can be performed within 30 seconds after the call gets through. After 30 seconds have elapsed, the line is automatically disconnected. When the selected output channel is being used by other broadcast with higher priority level, a busy tone is heard from the handset, indicating that paging cannot be performed.

Step 4. To terminate paging, press [0] [0] [#], and then replace the handset.

If dialing [0] [0] [#]: Pressing a first [0] terminates paging (a DTMF tone for the first [0] is output), and

the ZP-001T disconnects the line after the [#] has been pressed.

If replacing the handset without dial operation: After a signal tone is transmitted about 3 times, the

paging is terminated and the line disconnected.

9.3. Releasing Key Lock

The key lock function prevents the front-mounted keys or knobs from being tampered. (Refer to p. 56 "Key

Lock Function setting.")

You can temporarily operate the locked keys by entering a password to unlock them. Operation after password entry differs depending on the locked keys.

Step 1. Press the locked key.

The password entry screen is displayed with the flashing indication of the character entry position on the extreme left.

Step 2. Press the Enter key if no password has been set.

If the password has been set, enter it using the Input channel selection keys.

Entering a character causes the next character entry position to flash for character entry. When the entered password is correct, the locked key is released. If the registered password is comprised of 1 to 3 characters, as soon as entered 1 to 3 characters agree with them, the locked key is released.

When released keys are those of the type related to input and output operations, they become temporarily operable, but revert to the locked state if they are left unused for 1 minute.

When utility-related keys are released, the key lock menu screen is displayed, clearing the password setting automatically. Move to the screen for which you want to make a change. When wishing to lock the keys using the password even after the setting has been changed, set the password again. (Refer to p. 60) To simultaneously release all locked keys, set the all-key lock function to OFF on the all-key lock ON/OFF setting screen.

When the power switch is locked, the password entry screen is not displayed if the power switch is pressed, and so the power cannot be turned off.

Since the key lock function helps to prevent the front panel keys or knobs from being tampered, their operation can be performed by controls through the control input terminals even if the keys or knobs are locked.

(Example when input keys are locked)

INPUT SELECT

ENTERPASSWORD ____

INPUT SELECT

ENTERPASSWORD___

INPUT SELECT

ENTERPASSWORD

IN1– IN1

+10

10. EVENT ACTIVATION OR PAGING WHILE POWER IS OFF

The 9000 Series amplifiers are designed to initiate paging by way of the ZP-001T module or activate the Event even while the power is OFF*.

* The state that the front panel-mounted power switch is set to OFF position, and the power is still supplied to

the unit from the AC inlet.

The unit operates as follows when the power is switched OFF:

• Events by control input (including the C-001T module) can be activated, but those using the VOX (Voice Operated Exchange) function cannot be activated.

• The unit returns to Power-OFF state after Event or paging completion.

• Broadcasts can be initiated from the ZP-001T regardless of whether the operation mode is set to Ring Signal

or Paging Port.

• Broadcasts cannot be performed for 2 seconds during which the Event is activated and the power amplifier begins to operate.

• When the power is switched OFF while an Event is being activated by way of the control input with the power ON, even if the Event is still left activated, the above-mentioned Events or paging calls from the ZP-001T will have a priority regardless of priority level.

Controls to be performed during power-OFF

The power switch located on the amplifier front panel is a soft-switch, and not a mechanical switch to be used to turn on or off the power supply's primary side. Therefore, the internal microcomputer is still operating even if the power switch is set to OFF.

The following controls can be performed when the power is OFF.

• Remote power control by control input Power can be switched on and off using the external contact.

• Event activation by control input Turns on the unit's power and activates the assigned Event (Trigger-set Event having the input with Priority 1 – 7) using the external contact. The unit returns to power-OFF state after Event operation completion.

• Paging by the ZP-001T Turns on the unit's power. The unit returns to power-OFF state after paging completion.

1. Design the system.

1.1. Determine the input and output equipment.

1.2. Set the input-to-output routing and priority.

2. Prepare equipment.

2.1. Mount modules. (Refer to p. 66.)

2.2. Check to confirm that the Mode switch is set to the matrix mode. (Refer to p. 9.)

2.3. Connect the power source to the unit using the power cord, then turn on the power switch.

3. Perform equipment settings.

3.1. Set the audio input parameters. (Refer to p. 30.)

3.2. Set the audio output names. (Refer to p. 33.)

3.3. Set the Event. (Refer to p. 34.)

3.4. Set the utility function. (Refer to p. 38.)

3.5. Perform preliminary settings for the adjustment function. (Refer to p. 46.)

3.6. Set the key lock function. (Refer to p. 56.)

3.7. Switch off the power. (Refer to p. 20.)

5. Adjust equipment.

5.1. Switch on the power. (Refer to p. 20)

5.2. Make adjustments while monitoring the sound. (Refer to p. 46.)

6. Operate the system.

• Activate set broadcast patterns through remote control. (Refer to p. 68.)

• Perform operation using the front panel keys and knobs. (Refer to p. 20.)

• Make paging calls. (Refer to p. 22.)

11. SYSTEM DESIGN-TO-OPERATION FLOW

4. Install equipment.

4.1. Mount equipment in a rack. (Refer to p. 72.)

4.2. Perform connections. (Refer to p. 68.)

12. SETTING

12.1. Setting Menu Flow

Ensure that the Mode switch on the unit's rear panel is set to the MATRIX position before performing the setting. The setting items include those which must be set before operation (audio input/output, Event, and utility settings), those which are adjusted while actually monitoring the sound (adjustment mode settings), and those which restrict operations of front panel keys and knobs (key lock settings). Select each item on the setting menu screen that appears after entering the setting mode, then proceed to the detailed settings.Broadcast, if present, is not interrupted when you enter the setting menu screen, but is interrupted when you proceed further to the subsequent setting screen except for the Adjustment mode. If the AC power supply is cut off during setting, the parameters that have been set so far are all canceled. When the power returns, the unit is powered up to the normal operation state just before entering the setting mode.

Perform settings related to individual input and output channel names or input sources.

Set the name of each output channel.

Set broadcast patterns, BGM broadcast groups and activation, and BGM broadcast termination.

Perform settings related to remote control, priority (FIFO and LIFO) settings and other utility settings.

Operate the unit actually and adjust the sound in real time while monitoring the sound.

Restrict the use of the unit's front panel-mounted keys and knobs.

Normal operation mode

MEMORY UT IL ITY

PARAMETER

Setting menu screen

I NPUT– SETT I N

PARAMETER

Setting menu screen

UTPUT– SETT IN

PARAMETER

Setting menu screen

EVENT– SET T I N

PARAMETER

Setting menu screen

UTILITY– SETT I N

PARAMETER

(P. 30)

(P. 33)

(P. 34)

(P. 38)

Setting menu screen

ADJUST

PARAMETER

Setting menu screen

KEYL

C K

(P. 46)

(P. 56)

12.2. Setting Keys and Knobs

Output channel ON/OFF key Memory key

Input channel ON/OFF key

[Front]

TOA 9000 SERIES AMPLIFIER A-9120DH

Input channel selection keys

Input volume control

Output channel selection key

Output volume control

INPUT SELECT

INPUT VOLUME

ON/OFF

OUTPUT SEL

OUTPUT VOLUME

Utility menu key

MEMORY

ENTER

PARAMETER

UTILITY

ESC/BACK

POWER

Screen shift keys

Escape/Back key

Parameter setting knob

Enter key

This figure represents the A-9120DH.

12.3. Basic Setting Operation

12.3.1. Entering the setting mode

Holding down the Utility menu key for 2 seconds or more displays the setting menu screen.

Note

You cannot enter the setting mode as long as any indication is displayed in the upper line of the VFD screen. To enter, delete the indication by pressing the Memory key, then hold down the Utility key for 2 seconds or more.

12.3.2. Setting screen operation examples

[Moving the setting screen or setting item]

Use the Screen shift key mainly. (The Enter and Escape/Back keys may also be used.)

Normal operation mode

UTILITY

Setting menu screen

INPUT–SET T I N

• Examples of using the Left and Right shift keys

When moving the setting screen:

SELECT I NPUT CHI NPUT– SETT I N

When moving the setting item on the same screen:

HPF – 400HZ LPF– 12 . 5HPF– 400HZ LPF– 12 . 5

• Example of using the Up and Down shift keys

IN1– INPUT1

IN1 PRIORITY 8

12.3.3. Returning from setting mode to normal operation mode

• Pressing the Escape/Back key when the setting screen is displayed returns the display to the setting start screen on the upper hierarchy level.

• Pressing the Memory key at the setting menu screen saves the setting contents and returns the display to the normal operation mode.

[Setting content selection]

Use the Parameter setting knob in most cases. In some cases, however, use the input and output channel selection keys, or the input and output channel ON/OFF keys.

For example, to select an input channel, use the input channel selection key as shown below.

PARAMETER

I NPUT1 PR IORITY 8

INPUT1 PRIORITY 1

IN1– I NPUT 1SELECT I NPUT CH

INPUT SELECT

Normal operation mode

MEMORY

Setting menu screen

EVENT– SET T I N

ESC/BACK

Setting screen

EVENT0 1 ROUTE

ESC/BACK

Setting screen

EVENT0 1OUT1

12.4.1. Setting flow chart

The screen display examples shown below may differ from actual displays. The on-screen indications shown in red here (actually shown by flashing cursors) are parameters or setting contents to be selected with the Parameter setting knob, input channel selection key or other designated keys. The indications of the [ ], [ ], [ ], and [ ] arrows represent that the screen is switched with the Screen shift key. Use the Parameter setting knob for each parameter selection.

12.4. Audio Input Parameter Setting

Normal operation mode

PARAMETER

MEMORY

Setting menu screen

I NPUT– SETT I N

UTILITY

Press for over 2 seconds.

Input channel selection

SELECT I NPUT CH

(For the channel on which the D-001T is used)

INPUT SELECT

1 – 8

ESC/BACK

Input channel name setting (p. 31)

IN1– _______

Input sensitivity setting (p. 31)

IN1– SENSITIVITY– 10

Phantom power ON/OFF setting (p. 31)

IN1– PHANTOM – O

VOX ON/OFF setting (p. 31)

IN1– V O X – O FF

(For the channel on which the ZP-001T is used)

Pre-paging tone ON/OFF setting (p. 31)

PREPAG ETONE– O FF

Output format setting (p. 32)

UT= OUTPUT S E LECT

Operation mode setting

MODE= PAG ING P ORT

(p. 32)

Priority setting (p. 32)

IN1 PRIORITY 8

Ducker ON/OFF setting (p. 32)

IN1– DUCKER O FF

Input channel name setting

Note

Set the priority level higher than level 8 for the input channel to be used for broadcast (e.g. paging using the ZP-001T) that overrides BGM broadcasts.

12.4.2. Audio input setting items

Use the Parameter setting knob for each parameter selection.

The flashing portion is the cursor position for entering channel name characters. Select a character from the alphanumeric character list by rotating the Parameter setting knob, then move the cursor with the Right shift key. Entering a new name overwrites the existing name, if there is. To delete the character, select [ _ ] (under-bar) with the Parameter setting knob. Space cannot be entered. Up to 7 characters can be used to set the name. Even when an input channel name has been set, some setting screens display the channel number, not the set name.

Set the voice operated exchange (VOX) to ON or OFF.

• ON: Activates the set Event only when the audio signals are input to the module.

• OFF: The VOX function does not work.

Set whether or not to sound a one-tone chime before paging.

Select the input sensitivity from the following 9 levels depending on the input sources:

7 characters (default: IN1 – 8)

Setting Range

–60, –54, –48, –42, –36, –30, –24, –18, –10 dB (default)Setting Range

Set the Phantom power to ON or OFF.

• ON: Supplies the phantom power.

• OFF: Does not supply the phantom power.

ON, OFF (default)

Setting Range

ON, OFF (default)Setting Range

Input channel name setting

IN1– _______

Input Sensitivity setting (when the D-001T is used)

IN1– S E NS I T I V I TY– 10

Phantom Power ON/OFF setting (when the D-001T is used)

IN1– PHANTOM – O

VOX ON/OFF setting (when the D-001T is used)

IN1– V O X – O FF

Pre-paging tone ON/OFF setting (when the ZP-001T is used)

PREPAG ETO NE– O FF

Set the ducker function to ON or OFF. When multiple input signals are simultaneously broadcast, the ducker function automatically attenuates input signals of other channels with lower priority.

The ducker function does not work among the input channels with the same priority level. The function does not work either unless the relevant input channels are all set for the ducker function, permitting all the input signals to be mixed and output.

Assign priority levels of 1 – 8 (high to low) to the selected input signals.

The priority level given to each Event is based on the priority level set here. The signal set to priority level 8 is handled as BGM in Event settings. It is possible to assign the same priority level to multiple inputs. When two or more inputs are simultaneously broadcast in the same zone, the input with higher priority takes precedence. However, when multiple inputs with the same priority are simultaneously broadcast, they are allowed to go through according to the priority settings (refer to p. 44 "Priority setting"). Set the priority level higher than level 8 for the input channel to be used for broadcast (e.g. paging using the ZP-001T) that overrides BGM broadcasts.

Output format setting (when the ZP-001T is used)

Select the paging output.

• OUTPUT SELECT: Sets the 9000 Series amplifiers' output or the T-001T's output as the paging output.

• ZONE SELECT: Sets the ZP-001T's contact output as the paging output. Note that the Zone Select mode cannot be selected with the current firmware.

Select the method of activating paging.

• PAGING PORT: Paging is operated if a start signal (no-voltage make signal) is received from the paging

port when the connection between the unit and PABX is established.

• RING SIGNAL: Paging is operated if an IR signal is received when the connection between the unit and

PABX is established. The ZP-001T module functions as a telephone.

ON, OFF (default)

Setting Range

1 – 8 (default: 8, 7 only when ZP-001T is used) Setting Range

OUTPUT SELECT (default)Setting Range

PAGING PORT (default), RING SIGNAL

Setting Range

UT= O UTPUT S E LECT

Operation mode setting (when the ZP-001T is used)

M O DE= PAG IN

Priority setting

IN1 PRIO RIT Y 8

G P O

Ducker ON/OFF setting

IN1–DUCKER O FF

12.5.1. Setting flow chart

12.5. Audio Output Name Setting

12.5.2. Audio output setting items

The flashing portion is the cursor position for entering channel name characters. Select a character from the alphanumeric character list by rotating the Parameter setting knob, then move the cursor with the Right shift key. Entering a new name overwrites the existing name, if there is. To delete the character, select [ _ ] (under-bar) with the Parameter setting knob. Space cannot be entered. Up to 7 characters can be used to set the name. Even when an output channel name has been set, some setting screens display the channel number, not the set name.

7 characters (default setting: OUT1 – 8)Setting Range

Normal operation mode

UTILITYMEMORY

Press for over 2 seconds.

PARAMETER

Setting menu screen

UTPUT– SETT I N

Output channel selection

SELECTOUTPUTC

OUTPUT SEL

ESC/BACK

Output channel 1 name setting

UT1– _______

OUTPUT SEL

Note

Any output channel name setting screen can return to the output channel selection screen using the Escape/Back key.

Output channel 2 name setting

UT2– _______

OUTPUT SEL

(For the channel on which the T-001T is used)

Output channel 3 name setting

UT3– _______

OUTPUT SEL

Output channel 8 name setting

UT8– _______

OUTPUT SEL

Output channel 1 name setting

Output channel name setting

UT1– _______

12.6.1. Setting flow chart

The screen display examples shown below may differ from actual displays. The on-screen indications shown in red here (actually shown by flashing cursors) are parameters or setting contents to be selected with the Parameter setting knob, input channel selection key or other designated keys. The indications of the [ ], [ ], [ ], and [ ] arrows represent that the screen is switched with the Screen shift key. Unless otherwise specified, use the Parameter setting knob for each parameter selection.

12.6. Event Setting

Normal operation mode

UTILITYMEMORY

PARAMETER PARAMETER PARAMETER

(When Event classification is set to ROUTE)

EVENT01 ROU T E

(When Event classification is set to BGM END)

EVENT01 BGM E ND

(When Event classification is set to BASE)

EVENT01 BASE

PARAMETER

Setting menu screen

EVENT–SETT I N

Press for over 2 seconds.

Event number selection (p. 35)

EVENT01 NON

Event classification setting (p. 35)

EVENT01 NON

To select,

To determine,

INPUT SELECT

1 – 8

OUTPUT SEL

ON/OFF

Input channel setting (p. 35)

EVENT01 IN1

Output channel setting (p. 35)

EVENT01 OUT1

Trigger setting (p. 36)

EVENT01TR I

G C

– IN01

Interlock output control ON/OFF setting (p. 36)

EVENT01 SYNC ON

(When the interlock output control is ON)

Trigger setting (p. 36)

EVENT01TR I

G C

Event classification setting

– IN01

BGM Event number selection (p. 37)

EVENT01 BASE 02

Trigger setting (p. 37)

EVENT01TRI

G C

– IN01

Event classification setting

Interlock output terminal setting (p. 36)

EVENT01 COU T 01

Event classification setting

• Select the output channel using the Output channel selection key. The name of selected output channel is

displayed on the screen. Then confirm the selection by setting the Output channel ON/OFF key to ON (the output channel indicator, red dot on the VFD screen lights).

• Repeat above operations to set multiple outputs.

Set the input channel using the Input channel selection key. The name of the set input channel is displayed on the screen. One input channel can be set per Event.

• NONE: Invalidates the selected Event.

• ROUTE: Sets broadcast patterns consisting of input/output, trigger, and other settings.

• BGM END: Used to perform settings for terminating all Events to which inputs with priority 8 are assigned.

• BASE: Groups broadcast patters which have been set to "Priority 8 Input with Trigger set to NONE " in

Classification ROUTE, so that they may be activated with a single trigger. This classification is normally used to set the Event of BGM broadcasts.

Note: Screens that appear when the Up or Down shift key is pressed differ depending on the Event

classification settings.

12.6.2. Event setting items

Unless otherwise specified, use the Parameter setting knob for each parameter selection.

01 – 32 (default: 01)

Setting Range

NONE (default), ROUTE, BGM END, BASESetting Range

IN1 – 8 (default: IN1)Setting Range

OUT1 – 2, Max. 8 when T-001Ts are added (default: OUT1) Note: 2 or more channels selectable.

Setting Range

Event number selection

EVENT01 NO NE

Event number

Event classification setting

EVENT01 NO NE

Input channel setting (when Event classification is set to ROUTE)

Event classification

EVENT01 IN1

Input channel name

Output channel setting (when Event classification is set to ROUTE)

EVENT01 O UT1

Output channel name

Activating the selected Event terminates all Events for Priority-8 inputs. Set the control input that activates the Event termination.

Set the control output terminals 1 – 4 (1 – 12 when the C-001T is used) which are closed in synchronization with the Event's activation.

Set whether or not to close the control output terminal in synchronization with the Event's activation.

• ON: Control output terminal is closed when the Event is activated. (The terminal is continuously closed

during Event activation.)

• OFF: Control output does not interlock with the Event's activation.

Trigger setting (when Event classification is set to ROUTE)

Set how to activate the selected Event.

• C-IN1 to C-IN04 (C-IN1 to C-IN2 when the C-001T module is used):

Closing the designated control input terminal activates the Event.

• VOX: The event is activated when the selected input channel receives a signal.

Note

The D-001T module must be used for input, and the VOX set to ON in the audio input setting.

• NONE: External control cannot be used for activation. Set the trigger setting here to NONE when

designating the selected Event number as a BGM pattern.

ON, OFF (default)

Setting Range

NONE (default), VOX, C-IN01 – 04 (C-IN01 – 12 when C-001T is used)Setting Range

C-IN01 – 04,

C-IN01 – 12 when C-001T is used

(default: C-IN01)

Note: The control input terminals that have already been set cannot be used.

Setting Range

COUT01 – 04,

C-OUT01 – 12 when C-001T is used

(default: COUT01)

Note: When the interlock output control ON/OFF setting is ON.

Setting Range

EVENT01TRI

Interlock output control ON/OFF setting (when Event classification is set to ROUTE)

EVENT01 SYNC O N

C- IN01

Interlock output terminal setting (when Event classification is set to ROUTE)

EVENT01 CO U T 01

Trigger setting (when Event classification is set to BGM END)

EVENT01TRI

C- IN01

Set how to activate the selected Event.

• C-IN01 to C-IN04 (C-IN01 to C-IN12 when the C-001T module is used):

Closing the designated control input terminal activates the Event. The control input terminals that have already been set cannot be set.

• NONE: External control cannot be used for activation.

BGM Event number selection (when Event classification is set to BASE)

Rotating the Parameter setting knob displays only the priority-8 inputs with the trigger function set to NONE (normally BGM broadcasts) out of the Event numbers with Event classification set to ROUTE. When the Enter key is pressed for confirmation, an asterisk [ ] is displayed on the right of the confirmed number. Up to 4 Event numbers can be set by repeating above-mentioned operations. If the number of confirmed Event numbers exceeds 4, each number is erased in chronological order.

NONE, C-IN01 – 04, C-IN01 – 12 when C-001T is used (default: C-IN01)Setting Range

01 – 32 (default: 01)Setting Range

EVENT01 BASE 02 EVENT01 BASE 0 2

ENTER

Event number Confirmation indicator

Trigger setting (when Event classification is set to BASE)

EVENT01TRI

C- IN01

12.7.1. Setting flow chart

The screen display examples shown below may differ from actual displays. The on-screen indications shown in red here (actually shown by flashing cursors) are parameters or setting contents to be selected with the Parameter setting knob, input channel selection key or other designated keys. Unless otherwise specified, the indications of the [ ], [ ], [ ], and [ ] arrows represent that the screen is switched with the Screen shift key. Unless otherwise specified, use the Parameter setting knob for each parameter selection.

12.7. Utility Setting

Normal operation mode

UTILITYMEMORY

PARAMETER

Setting menu screen

UTILITY– SETT I N

Press for over 2 seconds.

Function selection (p. 40) (when the control input is selected)

UTILITY C- IN

Control input number selection (p. 40)

C- IN01– NON

Control input function setting (p. 40)

C- IN01– NON

PARAMETER

(When the control input function is set to VOLUP) (p. 41)

C- IN01– V O LU

PARAMETER PARAMETER

(When the control input function is set to VOLDOWN) (p. 41)

C- IN01– V O LDOW

PARAMETER

Event assignment display (p. 40)

C - I N0 1 EVENT NONE

Channel number selection

(When the control input function is set to VOLUP or VOLDOWN)

To select,

INPUT SELECT

1 – 8

OUTPUT SEL

(When the control input function is set to MUTE) (p. 41)

C- IN01– MUT

Channel number selection (p. 41)

C- IN01– MUTE IN

Channel number selection (p. 41)

C- IN01– V O LUP IN

Volume increasing level setting (p. 41)

C- IN01– V O LUP 05

Control input function setting Control input function setting

PARAMETER PARAMETER

(When the control input function is set to POWER) (p. 42)

C- IN01– P OW E R

To select,

INPUT SELECT

1 – 8

OUTPUT SEL

Channel number selection (p. 41)

C- IN01– V O LDWN IN1

Volume decreasing level setting (p. 41)

C- IN01– V O L D W

(When the control input function is set to EMG-MUTE)

C- IN01– E

(p. 42)

MG - MUTE

Interlock output control setting (p. 42)

C- IN01– S YNC ON

To the next page

Interlock output control setting

C- IN01– S YNC ON

(p. 41)

(When the interlock output control is ON) Interlock output terminal setting (p. 42)

C- IN01– COUT0

Control input function setting

(When the interlock output control is ON) Interlock output terminal setting (p. 42)

C- IN01– COUT0

Control input function setting

From the previous page

Function selection (when the control output is selected)

UTILILY C-OUT

PARAMETER

Control output number selection

(p. 43)

C-OUT01 NON

Interlock output control display (p. 43)

C-OUT0 1 EVENT NONE

Function selection (when the memory setting at power-off is selected)

UTILITY P OW ERO

PARAMETER

Memory erasure or strage setting

P OW ERO FF–

DEL

Function selection (when the RS-232C is selected) Communication speed setting

UTILITY RS232

S E R I AL SPEED= 576

(p. 43)

(p. 44)

Control output function selection

(p. 43)

C-OUT01 NON

PARAMETER

(When the control output function is set to POWER) (p. 43)

C-OUT01 P OW E R

PARAMETER

Function selection (when the module classification is selected)

UTILITY MO

DUL

PARAMETER

Slot number selection, 900 series module classification setting

LOT

1 = O THERS

Function selection (when the priority is selected) Priority setting

UTILITY PR I ORITY

PARAMETER

P R I ORIT Y FIF

Function selection (when the remote volume control is selected)

UTILITY REMO T E

PARAMETER

Remote volume control channel setting

(p. 44)

R E MO TE1 OUTPUT1

(p. 44)

Function selection (when the Event activation at power-on is selected)

UT I L I TY EVENT

PARAMETER

Setting the Event to be recalled when power is switched on

P OW ERON

– EVENT LAST

(p. 45)

Function selection (when the firmware version is selected)

UT I L I TY VERS I ON

PARAMETER

Firmware version indication (p. 45)

FIRMVERS ION=110

Function selection (when the memory initialization is selected)

UT I L I TY M E MO

PARAMETER

Memory initialization (p. 45)

INITIALIZEOK?

To determine,

ENTER

ESC/BACK

orTo cancel,

Function selection (when the control input is selected)

12.7.2. Utility setting items

• CIN: Sets the functions to be assigned to the control input terminals. Assigning a function to the

control input terminal preset to "Event-Trigger" cancels the "Event-Trigger" function, being replaced with the new function.

• COUT: Sets the functions to be assigned to the control output terminals.

• POWER OFF: Sets whether or not to save data of the volume level set in normal operation mode when the

AC power supply is cut off.

• RS232C: Sets the RS-232C communication speed.

• MODULE: Displays or sets the module classification.

• PRIORITY: Sets priority order when multiple inputs with the same priority are broadcast.

• REMOTE: Sets the input and output channels for which the volume is remotely adjusted.

• EVENT: Sets the Event that is activated when the unit's power is turned on.

• VERSION: Displays the firmware version.

• MEMORY: Initializes memory.

Unless otherwise specified, use the Parameter setting knob for each parameter selection.

NONE (default), VOLUP (volume up), VOLDOWN (volume down), MUTE, POWER, EMG-MUTE (Cut-off by Emergency control)

Setting Range

C-IN (control input, default), C-OUT (control output), POWEROFF, RS232C, MODULE, PRIORITY, REMOTE (remote volume), EVENT (Event activation at power-on), VERSION, MEMORY (memory initialization)

Setting Range

01 – 04, 01 – 12 when C-001T is used (default: 01)

Setting Range

When the Down shift key is pressed with the control input function set to NONE and the cursor at the control input number, the Event number assigned to that control input number can be confirmed. If no Event is assigned to that control input number, the NONE indication is displayed.

[When the function is set to C-IN:]

Sets the functions to be assigned to the control input terminals.

When the displayed control input (C-IN01 in this example) is set to Trigger in the Event setting, the Event number is displayed. If the control input is not set to Trigger, the NONE indication is displayed. Assigning a function to the control input terminal preset to "Event-Trigger" cancels the "Event-Trigger" function, being replaced with the new function.

Function selection

UTILITY C- I N

Control input number selection

C- IN01– NO N

Event assignment display

C- IN01 EVENT NONE

Control input function setting

C- IN01– NO N

Set the volume level (dB) to increase or decrease.

(When the control input function is set to VOLUP:) (When the control input function is set to VOLDOWN:)

Assign the volume-up or volume-down function to the control input. Closing the control input terminal increases or decreases the volume of the set input or output channel.

Using the Input channel or Output channel selection key, select the channel number for which you want to change the volume. One control input can change one input or output channel volume. You can change the sound volume for a channel even with the channel off, but not adjust it while monitoring the sound.

0.5 – 10.0 dB (default: 0.5)

Setting Range

IN1 – 8 (default: IN1)

Setting Range

Assign the function that mutes the input or output channel to the control input. Closing the control input terminal mutes the set channel. An input channel, when muted while in use, occupies the routed output, causing the Event-activated broadcast by the input channel with lower priority not to go through to the same output channel.

Using the Input channel or Output channel selection key, select the channel number to be muted. One control input can mute one input or output channel.

IN1 – 8, OUT1 – 2,

Max. OUT8 when T-001Ts are added

(default: IN1)

Setting Range

Perform ON/OFF setting for the function that closes the control output terminal in synchronization with the control input terminal closure of the set number.

ON, OFF (default)

Setting Range

C- IN01– V O LU

Channel number selection (VOLUP)

C- IN01– V O LUP IN

Volume increasing level setting (VOLUP)

C- IN01– V O LUP 05

C- IN01– V O LDO W

Channel number selection (VOLDOWN)

C- IN01– V O LDW N IN

Volume decreasing level setting (VOLDOWN)

C- IN01– V O L D W

(When the control input function is set to MUTE:)

C- IN01– M UT

Channel number selection (MUTE)

C- IN01– M UTE IN

Interlock output control setting (MUTE)

C- IN01– SYNC O FF

Interlock output terminal setting (MUTE)

This screen is displayed only when the interlock output control setting is set to ON. Set the control output terminal which is closed in synchronization with the control input of the set number. Setting the control output terminal that has been already set as interlock output terminal in the Event setting cancels the former Event-interlocked output.

Assign the power ON/OFF function to the control input. Power turns on when the control input terminal is closed, and turns off when the control input terminal is opened.

Assign the function that simultaneously mutes all output channels to the control input. Closing the control input terminal mutes all output channels. This function is used to mute the output provided from the unit during emergency broadcast operation.

COUT01 – 04,

C-OUT01 – 12 when C-001T is used

(default: COUT01)

Note: When the interlock output control ON/OFF setting is ON.

Setting Range

COUT01 – 04,

C-OUT01 – 12 when C-001T is used

(default: COUT01)

Note: When the interlock output control ON/OFF setting is ON.

Setting Range

Perform ON/OFF setting for the function that closes the control output terminal in synchronization with the control input terminal closure of the set number.

ON, OFF (default)

Setting Range

C- IN01– CO UT01

(When the control input function is set to POWER:)

C- IN01– P O W E R

(When the control input function is set to EMG-MUTE:)

C- IN01– E

MG - M UTE

Interlock output control setting (EMG-MUTE)

C- IN01– SYNC O FF

Interlock output terminal setting (EMG-MUTE)

C- IN01– CO UT01

Turning on the power switch closes the control output terminal.

Set whether or not to save data of the volume level set in normal operation status when the AC power supply is cut off.

• DEL: Data not saved.

• SAVE: Saves data.

This setting is for the case when the AC power supply is cut off. When turned off using the unit's front-mounted power switch, the unit automatically saves the data of all the set volume levels.

When the displayed control output (C-OUT01 in this example) is designated as interlock output in the Event setting, its Event number is displayed. At this time, assigning the control function of "POWER" to this control output terminal cancels the Event-interlocked output. If not designated as interlock output, the NONE indication is displayed in the place of the Event number.

[When the function is set to POWEROFF:]

When the Down shift key is pressed with the control output function set to NONE and the cursor at the control input number, the Event number assigned to that control output number can be confirmed. If no Event is set to that control output number, the NONE indication (nothing assigned) is displayed.

[When the function is set to C-OUT:]

DEL (default), SAVE

Setting Range

01 – 04, 01 – 12 when C-001T is used (default: 01)

Setting Range

Sets the functions to be assigned to the control output terminals.

NONE (default), POWER

Setting Range

Control output number selection

C-O UT01 NO N

Interlock output control display

C-OUT01 EVENT NONE

Control output function selection

C-O UT01 NO N

(When the control output function is set to POWER:)

C-O UT01 P O W E R

Memory erasure or storage setting

P O W ERO FF–

DEL

9.6 k, 19.2 k, 38.4 k, 57.6 k (default), 115.2 k

Setting Range

[When the function is set to RS232C:]

[When the function is set to MODULE:]

Use the Left and Right shift keys to move the setting items on the screen. For slots equipped with 9000 Series plug-in modules, their module model numbers are automatically displayed and cannot be changed. For slots equipped with 900 Series input modules, select their model numbers using the Parameter setting knob. The settings performed here are merely displayed, and have no effect on the audio input and other settings.

1 – 8 (default: 1)

OTHERS (default), B-01, B-11, B-21, B-41, E-03, E-04, E-05, E-06, E-07, L-01, L-11, L-41, M-01, M-03, M-11, M-21, M-41, M-51, M-61, S-01, S-02, S-04, T-01, T-02, T-12, U-01, U-03, U-11, U-12, U-13, U-14, U-21, U-43, U-61, V-01, ML-11T

Setting Range Slot Number

Module Classification

REMOTE 1, REMOTE 2

OFF, INPUT1 – 8, OUTPUT1 – 2, Max. OUTPUT8 when T-001T is used (default for REMOTE1: OUTPUT1, REMOTE2: OUTPUT2)

Setting Range

Remote Volume Terminal Number

Remote Volume Control Channel

Set priorities when multiple inputs with the same priority level are simultaneously broadcast.

• FIFO: Input that comes first is broadcast.

• LIFO: The most recent input is broadcast.

• MIX: All inputs are mixed and broadcast.

[When the function is set to PRIORITY:]

FIFO (default), LIFO, MIX

Setting Range

Set the input or output channels for which the volume is remotely adjusted by way of the unit's rear panelmounted control I/O connection terminal. The indication REMOTE 1 refers to the REMT VOL 1 terminal of the control I/O connection terminal, while the indication REMOTE 2 represents the REMT VOL 2 terminal. Use the Left and Right shift keys to move the setting items on the screen.

[When the function is set to REMOTE:]

Communication speed (bps) setting

SER I AL SPEED= 576

Slot number selection and 900 series module classification setting

SLO T 1 = O THERS

Priority setting

P R I O RIT Y FIF

Remote volume control channel setting

R E M O TE1 O UTPUT1

Set the Event number to be activated when the unit's power is switched on. Since no trigger is provided for Event activation at power-on, select the Event number that corresponds to either the BGM Event or the BASE Event (with [ ] mark suffixed to its Event number), both set in the ROUTE Event setting. When LAST is selected, the unit returns to the state before power-off when turned on. The unit operation depends on the trigger condition at power-on when there was an Event (interrupt broadcast) or function (mute or emergency mute) being activated by a level trigger before power-off.

[When the function is set to EVENT:]

[When the function is set to MEMORY:]

Pressing the Enter key initializes all of the unit's current settings to default settings. To cancel initialization, press the Left shift key or Escape/Back key to revert back to the previous screen.

[When the function is set to VERSION:]

Displays the firmware version number.

LAST (default), 01 – 32 (only for Events set for ROUTE or BASE)

Setting Range

Setting the Event to be recalled when power is switched on

P O W ERON

Firmware version indication

FIRMVERS ION=110

– EVENT LAST

Memory initialization

INITIALIZEOK?

12.8.1. Settings in adjustment mode

In the adjustment mode, audio setting parameters can be set while monitoring the output sound. Input and output gain settings, input sound source equalization*, and sound equalization for individual output zones can be performed. Since the setting parameters are individually adjusted for each Event, perform Event settings in advance.

* Input sound source equalization can be performed only for channels equipped with the D-001T module.

The adjustment procedure is described here using an example when paging is made in Event 2 during BGM broadcast in Event 1.

Step 1. Hold down the Utility menu key for 2 seconds or more in

normal operation state. The setting screen is displayed.

Step 2. Select ADJUST with the Parameter setting knob.

The screen is switched to the adjustment mode.

Note

In the adjustment mode, the Event selected in normal operation state continues to be broadcast.

Step 3. Press the Right shift key.

The Event selection screen is displayed.

Step 4. Using the Parameter setting knob, select the Event number,

then set the selected Event to ON by pressing the Input channel ON/OFF key.

Note

The Event alternates between ON and OFF each time the Input channel ON/OFF key is pressed. Setting ON immediately activates the selected Event, and OFF terminates it.

Step 5. Press the Right shift key.

The input gain setting screen is displayed. To stop the audio output temporarily, press the input channel ON/OFF key.

Step 6. Adjust the gain with the Input volume control.

Step 7. Press the Down shift key to display each input setting screen

and adjust on-screen parameters with the Parameter setting knob. When there are two or more setting items on the screen, select the items with the Left and Right keys.

12.8. Adjustment Mode Setting

UTILITY

I NPUT – SET T

ADJ UST

EVENT0 1 ROUT

PARAMETER

EVENT0 1 ROUT

IN1– IN1

I G

PARAMETER

INPUT VOLUME

EOF

ON/OFF

EON

+10

IN1– IN1

HPF – 400 HZ LPF– 12

+05

Step 8. Return to the input gain setting screen and press the Right

shift key. The output channel selection and gain setting screen is displayed.

Note

To stop the audio output temporarily, press the output channel ON/OFF key.

Step 9. Adjust the gain with the Output volume control.

In this event, pressing the Output channel selection key permits the output channel to be selected. When multiple output channels must be changed, select all of such output channels and adjust their output volume.

Step 10. Press the Down shift key to display each output setting

screen and adjust on-screen parameters with the Parameter setting knob. When there are two or more setting items on the screen, select the items with the Left and Right keys.

Step 11. Return to the output gain setting screen and press the

Escape/Back key. The display reverts to the Event number selection screen.

Step 12. Using the Parameter setting knob, select the Event number

to be set next, then set the selected Event to ON by pressing the Input channel ON/OFF key.

Note

Multiple Events can be set to ON. Make their adjustments one by one.

Step 13. Repeat Steps 5 – 9 to adjust each parameter.

Step 14. After all adjustments are completed, press the Memory key

to exit the adjustment mode. The display reverts to normal operation state.

IN1– IN1

UT1 –OUT1

+10

+100

OUTPUT VOLUME

UT1 –OUT1

+50

BASS + 1 2 TREBL E– 1 0

UT1 –OUT1

+100

ESC/BACK

EVENT0 1 ROUT

EON

PARAMETER

EVENT0 2 ROUT

EVENT0 2 R

IN2– IN2

OUTEO

ON/OFF

ENTER

+10

MEMORY

F F

12.8.2. Adjustment mode setting flow chart

The screen display examples shown below may differ from actual displays. The on-screen indications shown in red here (actually shown by flashing cursors) are parameters or setting contents to be selected with the Parameter setting knob, input channel selection key or other designated keys. ÇsThe indications of the [ ], [ ], [ ], and [ ] arrows represent that the screen is switched with the Screen shift key. Unless otherwise specified, use the Parameter setting knob for each parameter selection.

Normal operation mode

UTILITYMEMORY

Press for over 2 seconds.

To select,

INPUT VOLUME

PARAMETER

Setting menu screen

ADJUST EVENT01– ROUTE ON

Event selection (p. 49)

PARAMETER

To select,

To turn on,

ON/OFF

Input gain settings (p. 49)

IN1– IN1

(For the channel on which the D-001T is used)

BASS and TREBLE settings (p. 49)

BASS+12 TREB LE– 10

Loudness compensation setting (p. 49)

L OUDNESS– ON

EQ ON/OFF, Band number, Gain, Q, and Center frequency settings (p. 50)

E Q 10 +12 07 315

To select,

Output channel selection and Output gain settings

UT1– OUT1

OUTPUT SEL

OUTPUT VOLIME

To select,

BASS and TREBLE settings (p. 49)

BASS+12 TREB LE– 10

Loudness compensation setting (p. 49)

L OUDNESS– ON

Speaker parameter presetting (p. 52)

S P E Q ALL FLA T

Note

Press the Enter key to confirm this setting.

(p. 51)

HPF and LPF settings

HPF– 400 HZ LP F – 125

(p. 50)

Compressor setting (p. 50)

COM

PRESSOR – OFF

VOX (Voice Operated Exchange) setting

(p. 51)

V O X SENSITIVI TY– 30

Ducker attenuation level setting (p. 51)

DUCKER DEPTH – 20

EQ ON/OFF, Band number, Gain, Q, and Center frequency settings

E Q 10 +12 07 315

HPF and LPF settings

HPF– 400 HZ LP F – 125

(p. 50)

Compressor setting (p. 50)

COM

PRESSOR – OFF

Output channel selection

and

Output gain settings

Input gain settings

Rotate the Parameter setting knob to set the loudness compensation function ON/OFF. Setting ON boosts low frequencies.

12.8.3. Adjustment mode setting items

Rotate the Parameter setting knob to obtain the Event No. of which settings are desired to be adjusted. The ON or OFF indication shows the corresponding Event activation status when the unit enters the Adjustment mode. To adjust the Event's setting, turn the Event activation ON using the input channel ON/OFF key. Select the Event here and press the Right shift key to make the Event-related adjustments. You cannot activate the selected Event if the assigned input channel is off.

Unless otherwise specified, use the Parameter setting knob for each parameter selection.

–12 dB to +12 dB (default: 0 dB) 1 dB step

Setting Range

ON, OFF (default)Setting Range

Adjust the input gain with the input volume control. To stop the sound output temporarily, press the input channel ON/OFF key. The input channel, even when set to OFF here, automatically turns ON when the unit returns to the normal operation state. For an input channel that the selected Event does not include, you can select it and make adjustments.

1 – 8 (default: 1)

ON (default), OFF

–∞, –70.0 dB to +10.0 dB (default: 0.0 dB), 0.5 dB steps

Setting Range

Input Channel Selection

Channel Control

Channel Gain

Rotate the Parameter setting knob to set gains. Press the Right or Left shift key to select BASS or TREBLE, of which gain value that flashes can be adjusted.

Event selection

Event activation ON/OFF

EVENT01– R O UTE O N

12345678

FAULT

Event No.

Input channel set in Event setting

1234

KEYLOCK

EMERGENCY

5678

Output channels set in Event setting

Input gain settings

IN1– IN1 O N+100

Input gain

Input ON/OFF

BASS and TREBLE settings (input/output)

BASS+12 TREBLE– 10

Loudness compensation setting (input/output)

L O UDNESS– O N

Rotate the Parameter setting knob to set the cut-off frequencies. Press the Right or Left shift key to select HPF or LPF, of which parameter that flashes can be adjusted.

EQ ON/OFF, Band number, Gain, Q, and Center frequency settings (input/output)

The indications on the right of "EQ" turn on and off as the Parameter setting knob is rotated. When the indication is displayed, EQ is ON and a band number, gain, Q, and center frequency are displayed in this order from left to right. Use the Parameter setting knob to change each parameter, and the Left and Right keys to move the setting items.

OFF (default), 1, 2, 3, 4, 5

Setting Range

ON, OFF (default)

01 to 10 (default: 01)

–12 dB to +12 dB (default: 0 dB), 1 dB steps

0.3, 0.5, 0.7, 1, 1.5 (default), 2, 3, 5

20, 25, 31.5 (default), 40, 50, 63, 80, 100, 125, 160, 200, 250, 315, 400, 500, 630, 800, 1 k, 1.25 k, 1.6 k, 2 k, 2.5 k, 3.15 k, 4 k, 5 k,

6.3 k, 8 k, 10 k, 12.5 k, 16 k, 20 kHz

Setting Range

EQ Band Number

Gain

Center Frequency

OFF (default), 20, 25, 31.5, 40, 50, 63, 80, 100, 125, 160, 200, 250, 315, 400 Hz

OFF (default), 4 k, 5 k, 6.3 k, 8 k, 10 k, 12.5 k, 16 k, 20 kHz

Setting Range

HPF (input/output)

LPF (input/output)

Use the compressor to prevent power amplifier overload or to produce more easily heard sound by averaging the audio level. The number shows the compressor's effectiveness level, which can be set by rotating the Parameter setting knob.

• 1 (Peak limiter) Provides a peak limiter function that protects amplifiers and speakers against damage caused by an

excessive signal input. This level is suited to speech applications.

• 2 (Peak limiter) Provides a peak limiter function that protects amplifiers and speakers against damage caused by an

excessive signal input. This level is suited to musical (vocals) applications.

• 3 (Sonic normalizer) Equalizes the sound volume of reproduced BGM among CDs or pieces of music by boosting small sounds

and lowering big sounds, making the entire sound volume uniform. This level is suited to BGM reproduction.

E Q 10 +12 07 315

Band number Q Center frequency

Gain

HPF and LPF settings (input/output)

HPF– 400 HZ LPF– 125

Compressor setting (input/output)

CO M

PRESSO R – O FF

Set how much the input signal for the channel given lower priority than that of the currently set input channel should be attenuated.

The minus figures in dB represent amount to attenuate input signals. The larger the minus figures, the larger the amount of attenuation. Selecting "OFF" sets the attenuation to infinity, while selecting "0" sets to no attenuation, permitting all input signals to be mixed and output.

• 4 (Speech leveler) Makes paging calls easier to hear by equalizing the difference in speech signal volume that may result from

individual differences in speaker voice volumes or variations in speaker-to-microphone distances. Since the volume is extensively corrected, the feedback margin narrows, making it liable to occurrences of feedback. Therefore, special care must be taken when installing microphones and speakers. This level is suited to microphone speech applications.

• 5 (Speech leveler) Makes paging calls easier to hear by equalizing the difference in speech signal volume that may result from

individual differences in speaker voice volumes or variations in speaker-to-microphone distances. This level 5 is more effective than level 4 described above. Since the volume is extensively corrected, the feedback margin narrows, making it liable to occurrences of feedback. Therefore, special care must be taken when installing microphones and speakers. This level is suited to microphone speech applications.

Set the input signal level necessary for enabling the VOX function.

–40, –35, –30 (default), –25, –20, –15, –10, –5 dB

Setting Range

OFF, –50, –40, –30, –20 (default), –10, 0 dBSetting Range

Select with the output channel selection key the output channel to be adjusted. Adjust the sound volume with the output volume control. To stop the sound output temporarily, press the output channel ON/OFF key. The output channel, even when set to OFF here, automatically turns ON when the unit returns to the normal operation state. You can adjust for two or more output channels by switching to each channel. You can also adjust the output channel that the Event does not include.

OUT1 – 2, Max. 8 when three T-001Ts are used (default: OUT1)

ON (default), OFF

–∞, –70.0 dB to +10.0 dB (default: –20.0 dB), 0.5 dB steps

Setting Range

Output Channel Selection

Channel Control

Channel Gain

VOX (Voice Operated Exchange) setting

V O X SENSITIVI TY– 30

Ducker attenuation level setting

DUCKER DEPTH – 20

Output channel selection and Output gain settings

UT1– O UT1 O N00

Output channel Output ON/OFF

Output gain

Speaker parameter presetting

Optimum equalization can be automatically set depending on the type of speaker to be used. If this function is not used or the speaker to be used is not included in a speaker list, set "SP EQ" to ALL FLAT. When the speaker type is selected from the speaker list, the number of bands that can be set on the next EQ setting screen decreases by the number of bands to be used in the setting performed on this screen. The number of bands to be used differs depending on the type of speaker. To perform this setting, select the speaker model from the speaker list and press the Enter key to confirm.

ALL FLAT (default), F-122, F-122SUBWFER (F-122 with a subwoofer), H-1, H-1SUBWOOFER (H-1 with a subwoofer), H-2, H-2SUBWOOFER (H-2 with a subwoofer), H-3, H-3SUBWOOFER (H-3 with a subwoofer), HB-1, FB-100, SW FOR F-122 (subwoofer for F-122), SR-S4 SINGLE (SR-S4 driven by a single amplifier), HX-5_E, HX-5_E LOCUT (HX-5_E for low-cut), FB-120

Setting Range

F-122 F-122SUBWFER*

GAIN (dB) FREQ (Hz) Q GAIN (dB) FREQ (Hz) Q

Settable EQ bands Settable EQ bands in the EQ setting screen in the EQ setting screen

–

37.5 0.5

–

45 0.5

–

37.5 0.7

–

45 0.7

+11.5 85 2.871 +6.5 80 1.414

–2.5 212 0.667 –4.5 180 0.667

–8 900 2.871 –8 900 2.871

+8 10 k 0.267 +8 11.2 k 0.267

–

20 k 0.7

–

20 k 0.7

EQ 01

EQ 02

EQ 03

EQ 04 (HPF)

EQ 05 (HPF)

EQ 06

EQ 07

EQ 08

EQ 09

EQ 10 (LPF)

*1F-122 with a subwoofer

ALL FLAT (Default)

GAIN (dB) FREQ (Hz) Q

0 31.5 1.5

0 63 1.5

0 125 1.5

0 250 1.5

0 500 1.5

0 1 k 1.5

0 2 k 1.5

0 5 k 1.5

0 8 k 1.5

0 16 k 1.5

EQ 01

EQ 02

EQ 03

EQ 04

EQ 05

EQ 06

EQ 07

EQ 08

EQ 09

EQ 10

[Speaker EQ settings]

P E Q

ALL FLA T

H-1 H-1SUBWOOFER*

GAIN (dB) FREQ (Hz) Q GAIN (dB) FREQ (Hz) Q

Settable EQ bands Settable EQ bands in the EQ setting screen in the EQ setting screen

–

118 0.707

–

118 0.707

+10 125 1.8 +4 125 1.8

–6.5 220 1.414 –6.5 220 1.414

+1.5 5 k 0.305 +1.5 5 k 0.305

–

15.8 k 0.5

–

15.8 k 0.5

EQ 01

EQ 02

EQ 03

EQ 04

EQ 05

EQ 06 (HPF)

EQ 07

EQ 08

EQ 09

EQ 10 (LPF)

*2H-1 with a subwoofer

H-2 H-2SUBWOOFER*

GAIN (dB) FREQ (Hz) Q GAIN (dB) FREQ (Hz) Q

Settable EQ bands Settable EQ bands in the EQ setting screen in the EQ setting screen

–

63 0.707

–

63 0.707

+10 100 1.871 +2.5 100 1.871

–5 200 1.414 –5 200 1.414

+1.5 5 k 0.305 +1.5 5 k 0.305

–

15.8 k 0.5

–

15.8 k 0.5

EQ 01

EQ 02

EQ 03

EQ 04

EQ 05

EQ 06 (HPF)

EQ 07

EQ 08

EQ 09

EQ 10 (LPF)

*3H-2 with a subwoofer

H-3 H-3SUBWOOFER*

GAIN (dB) FREQ (Hz) Q GAIN (dB) FREQ (Hz) Q

Settable EQ bands Settable EQ bands in the EQ setting screen in the EQ setting screen

–

63 0.707

–

63 0.707

+9 100 2.871 +5 100 2.871

–8 220 2.871 –8 220 2.871

+5 500 2.871 +5 500 2.871

+1.5 5 k 0.305 +1.5 5 k 0.305

EQ 01

EQ 02

EQ 03

EQ 04

EQ 05

EQ 06 (HPF)

EQ 07

EQ 08

EQ 09

EQ 10

*4H-3 with a subwoofer

HB-1

GAIN (dB) FREQ (Hz) Q

Settable EQ bands in the EQ setting screen

–

40 1

–

100 1

EQ 01

EQ 02

EQ 03

EQ 04

EQ 05

EQ 06

EQ 07

EQ 08

EQ 09 (HPF)

EQ 10 (LPF)

FB-100

GAIN (dB) FREQ (Hz) Q

Settable EQ bands in the EQ setting screen

–

40 1

–

100 1

EQ 01

EQ 02

EQ 03

EQ 04

EQ 05

EQ 06

EQ 07

EQ 08

EQ 09 (HPF)

EQ 10 (LPF)

SW FOR F-122*

GAIN (dB) FREQ (Hz) Q

Settable EQ bands in the EQ setting screen

–

100 0.5

+2.5 112 0.667

EQ 01

EQ 02

EQ 03

EQ 04

EQ 05

EQ 06

EQ 07

EQ 08

EQ 09 (LPF)

EQ 10

*5Subwoofer for F-122

SR-S4 SINGLE*

GAIN (dB) FREQ (Hz) Q

Settable EQ bands in the EQ setting screen

–

60 1.226

+5 16 k 1.414

EQ 01

EQ 02

EQ 03

EQ 04

EQ 05

EQ 06

EQ 07

EQ 08

EQ 09 (HPF)

EQ 10

*6SR-S4 driven by a single amplifier

HX-5_E*

GAIN (dB) FREQ (Hz) Q

Settable EQ bands in the EQ setting screen

–

60 2.053

+2 65 1.414

–3 800 0.7

–4 2.5 k 2.997

+5 5 k 0.305

EQ 01

EQ 02

EQ 03

EQ 04

EQ 05

EQ 06 (HPF)

EQ 07

EQ 08

EQ 09

EQ 10

*7HX-5 Series

HX-5_E LOCUT*

GAIN (dB) FREQ (Hz) Q

Settable EQ bands in the EQ setting screen

–

90 1.30656

–3 800 0.7

–4 2.5 k 2.997

+5 5 k 0.305

EQ 01

EQ 02

EQ 03

EQ 04

EQ 05

EQ 06

EQ 07 (HPF)

EQ 08

EQ 09

EQ 10

*8HX-5 Series for low-cut use

FB-120*

GAIN (dB) FREQ (Hz) Q

Settable EQ bands in the EQ setting screen

–

40 2.053

–

100 1

EQ 01

EQ 02

EQ 03

EQ 04

EQ 05

EQ 06

EQ 07

EQ 08

EQ 09 (HPF)

EQ 10 (LPF)

*9FB-120 Series

12.9. Key Lock Function Setting

The key lock function prevents equipment malfunctions by disabling operation of each key.

12.9.1. Keys that can be locked

ALL: Locks all keys simultaneously.

INPUT: Locks the Input channel selection keys, Input volume control, and Input channel ON/OFF key.

It is also possible to individually set whether or not to lock for each channel.

OUTPUT: Locks the Output channel selection key, Output volume control, and Output channel ON/OFF key.

It is also possible to individually set whether or not to lock for each channel.

UTIL: Locks the Utility menu key, Memory key, Enter key, Escape/Back key, and Parameter setting knob.

POWER: Locks the Power switch.

This figure represents the M-9000.

INPUT SELECT

TOA 9000 SERIES PRE-AMPLIFIER M-9000

INPUT VOLUME

ON/OFF

OUTPUT SEL

OUTPUT VOLUME

MEMORY

ENTER

PARAMETER

UTILITY

ESC/BACK

POWER

INPUT

OUTPUT UTIL POWER

ALL

12.9.2. Key lock function setting flow chart

The screen display examples shown below may differ from actual displays. The on-screen indications shown in red here (actually shown by flashing cursors) are parameters or setting contents to be selected with the Parameter setting knob, input channel selection key or other designated keys. The indications of the [ ], [ ], [ ], and [ ] arrows represent that the screen is switched with the Screen shift key. Unless otherwise specified, use the Parameter setting knob for each parameter selection.

Normal operation mode

UTILITYMEMORY

Press for over 2 seconds.

PARAMETER

Setting menu screen

KEYLOCK

Lock status display (p. 58)

KEYLOCK UNLOCKE

ENTER

ESC/BACK

All-key lock ON/OFF (p. 58)

KEYLOCK ALL O FF

Password setting (p. 58) Input key lock ON/OFF (p. 58) Input channel selection key lock ON/OFF (p. 58)

SETPASSWO

RD ____

KEYLOCK I NPUT O FF KEYLOCK I NPUT1 O FF

Output channel selection key lock ON/OFF (p. 59)Output key lock ON/OFF (p. 58)

KEYLOCK OUTPUT O FF KEYLOCKOUTPUT1 O FF

Setting key lock ON/OFF (p. 59)

KEYLOCK UT I L O FF

PARAMETER

selects an input channel.

ON/OFF

turns the input channel on or off.

PARAMETER

selects an output channel.

ON/OFF

turns the output channel on or off.

Power switch lock ON/OFF

KEYLOCK POW E R O

All-key lock ON/OFF

(p. 59)

12.9.3. Key lock function setting items

Pressing the Enter key gives access to each key lock setting screen.

Set the keys to be locked on the key lock function setting screen. The KEYLOCK indication lights after setting completion. Since a password is requested if the locked key is pressed, enter the password. Unless otherwise specified, use the Parameter setting knob for each parameter selection.

Passwords can be set only when the keys are not locked. Use the Input channel selection key to set the password and use the Left and Right shift keys to move characters.

Selecting ON locks all keys located on the front panel. If ON/OFF settings differ from key to key, the [- - -] indication is displayed when this screen appears.

Locks all Input channel selection keys, Input channel ON/OFF key, and Input volume control. If ON/OFF settings differ from channel to channel, the [- - -] indication is displayed when this screen appears.

Locks the Input channel selection key, Input channel ON/OFF key, and Input volume control for each input channel. Select with the Parameter setting knob the input channel to be locked, and set the key lock function to ON with the Input channel ON/OFF key.

Locks all Output channel selection keys, Output channel ON/OFF key, and Output volume control. If ON/OFF settings differ from channel to channel, the [- - -] indication is displayed when this screen appears.

Lock status display (No key is locked.) (Any key except the Utility key is locked.)

KEYLOCK UNLOCKE

Password setting

SETPASSW O

All-key lock ON/OFF

KEYLO CK ALL O FF

Input key lock ON/OFF

RD ____

KEYLOCK LOCKE

KEYLO CK I NPUT O FF

Input channel selection key lock ON/OFF

KEYLO CK I NPUT1 O FF

Output key lock ON/OFF

KEYLO CK O UTPUT O FF

Selecting ON locks Utility key, Memory key, Enter key, Escape/Back key, and Parameter setting knob.

Locks the Power switch. Setting this function disables the power switch to be turned off when the unit's power is on. (Power can be turned on whenever the unit is off irrespective of the power switch lock ON/OFF status.) To power off the unit, perform the remote control or turn the power switch off in the normal operation mode after setting the power switch lock function to OFF here and exiting the function setting mode.

Output channel selection key lock ON/OFF

Locks the Output channel selection key, Output channel ON/OFF key, and Output volume control for each Output channel. Select with the Parameter setting knob the Output channel to be locked, and set the key lock function to ON with the Output channel ON/OFF key. The Output channel selection key selects an output channel one by one only in numerical order starting from Channel 1. So, when the output channel selection key is locked at an output channel, the subsequent output channels are not used unless the locked key is unlocked at the channel by entering a password.

KEYLO CKO UTPUT1 O FF

Setting key lock ON/OFF

KEYLO CK UT I L O FF

Power switch lock ON/OFF

KEYLO CK PO W E R O

12.9.4. Password setting

When using a password, set the password before performing lock setting for each key.

Step 1. Hold down the Utility menu key for 2 seconds or more in normal

operation state. The setting screen is displayed.

Step 2. Select KEYLOCK with the Parameter setting knob.

Step 3. Press the Right shift key.

Lock status is displayed.

Step 4. Press the Down shift key.

The Password setting screen is displayed.

Note

No password is factory-preset. (The [ _ _ _ _ ] indication is displayed.)

Step 5. Enter a password using the Input channel selection keys (1 – 8).

The [-] indication on the extreme left flashes first for character entry. Entering a character changes the [-] indication into [ ]. Use up to 4 characters to set the password.

Step 6. Press the Up shift key after setting completion.

The display returns to the key lock status screen.

Step 7. Perform key lock setting.

Advance to Step 4 on the next page.

UTILITY

I NPUT – SET T

KEYLOC K

KEYLOCK UN LOCKED

SETPASSWO

I G

PARAMETER

INPUT SELECT

____

___

SETPASSWO

KEYLOCK UN LOCKED

R D

___

12.9.5. Key lock setting operation

Step 1. Hold down the Utility menu key for 2 seconds

or more in normal operation state. The setting screen is displayed.

Step 2. Select KEYLOCK with the Parameter setting

knob.

Step 3. Press the Right shift key.

Lock status is displayed.

Step 4. Press the Enter key.

The all-key lock ON/OFF setting screen is displayed.

Step 5. Set keys to be locked.

5-1. All-key lock setting

Set "KEYLOCK ALL" function to ON with the Parameter setting knob.

5-2. Selected key(s) lock setting

Press the Shift key to display individual setting screen for each key, and perform the ON/OFF setting with the Parameter setting knob. You can set each input or output channel key to ON or OFF by selecting it on the screen.

Note

The setting flow on the right is an example for locking the input channel 1 key.

Step 6. Press the shift key to return to the all-key

lock setting screen after setting completion, then press the Escape/Back key.

Step 7. Press the Left shift key.

The display returns to the setting menu screen.

Step 8. Press the Memory key.

The display returns to the normal operation state, making the key lock setting valid.

INPUT– SETT

UTILITY

I G

KEYL

-1

CK ALL

KEYLOC K

KEYL

PARAMETER

ESC/BACK

PARAMETER

CK UNLOCKED

ENTER

CK ALL

KEYL

F F

CK I NPUTOF F

CK I NPUT

PARAMETER

CK I NPUT 1ON

CK ALL _ _ _

-2

F F

KEYL

CK LOCKED

C K

ESC/BACK

MEMORY

Step 1. Hold down the Utility menu key for 2 seconds or more

when in normal operation mode.

Step 2. Using the Parameter setting knob, select UTILITY

SETTING, then press the Right shift key.

Step 3. Using the Parameter setting knob or UP/Down shift

key, select MEMORY, then press the Right shift key.

Step 4. Press the Enter key when the "INITIALIZE OK?"

indication is displayed.

To cancel initialization, press the Left shift key or Escape/Back key to revert back to the previous screen.

Follow the procedures below to return all settings to default values while using the unit in the matrix mode. Details of the default values are shown on the next page, "Default Setting Table."

13. RESTORING FACTORY DEFAULT SETTING

Normal operation mode

UTILITY

Setting menu screen

I NPUT– SETT I N

PARAMETER

UTILITY– SETT I N

UTILITY C- IN

PARAMETER

UTILITY

INITIALIZEOK ?

MEMORY

ENTER

13.1.1. Audio input settings

13.1.2. Audio output settings

13.1. Default Setting Table

Default

8 (7 only when ZP-001T is used)

OFF

(IN1 – 8)

[Settings when the ZP-001T is used]

Setting Item

Priority

Ducker

Input Channel Name

OFF

OUTPUT SELECT

PAGING PORT

Pre-paging Tone

Output Format

Operation Mode

[Settings when the D-001T is used]

–10 dB

OFF

Input Sensitivity

Phantom Power

VOX Function

Default

(OUT1 – 8)

Setting Item

Output Channel Name

13.1.3. Event settings

OUT1

NONE

OFF

COUT01 (When the interlock output control is ON)

Input Channel

Output Channel

Trigger

Interlock Output Control

Interlock Output

[When Event classification is set to ROUTE]

Default

NONE

Setting Item

Event Number

Event Classification

C-IN01Trigger

[When Event classification is set to BGMEND]

C-IN01

Event Number

Trigger

[When Event classification is set to BASE]

13.1.4. Utility settings

Default

C-IN

Setting Item

Function Selection

[When the function selection is set to C-IN]

NONE

IN1

0.5

OFF

COUT01 (When the interlock output control is ON)

Control Input Number

Control Input Function Selection

Channel Number

Volume Up/Down Level

Interlock Output Control

Interlock Output Terminal

NONE

Control Output Number

Control Output Function Selection

[When the function selection is set to C-OUT]

DEL

Memory Storage at Power-Off

[When the function selection is set to POWEROFF]

57.6k

Communication Speed (bps)

[When the function selection is set to RS232C]

OTHERS

Slot Number

Module Classification

[When the function selection is set to MODULE]

FIFO

Priority

[When the function selection is set to PRIORITY]

LAST

Event Activation at Power-On

[When the function selection is set to EVENT]

REMOTE1 terminal for OUTPUT1 control, REMOTE2 terminal for OUTPUT2 control

Remote Volume Control Channel

[When the function selection is set to REMOTE]

Default

IN1

0.0 dB

–20 dB

13.1.5. Adjustment mode settings

[Settings when the D-001T is used]

Setting Item

Input Channel Selection

Channel Control

Channel Gain

Ducker Attenuation Level

0 dB

OFF

01 (When EQ = ON and EQ band number = 01)

0 dB (When EQ = ON and EQ band number = 01)

1.5 (When EQ = ON and EQ band number = 01)

31.5 Hz (When EQ = ON and EQ band number = 01)

OFF

–30 dB

BASS/TREBLE

Loudness Compensation

EQ Band Number

Gain

Center Frequency

HPF

LPF

Compressor

VOX Sensitivity

Output Channel Settings

Input Channel Settings

OUT1

–20.0 dB

0 dB

OFF

ALL FLAT

OFF

01 (When EQ = ON and EQ band number = 01)

0 dB (When EQ = ON and EQ band number = 01)

1.5 (When EQ = ON and EQ band number = 01)

31.5 Hz (When EQ = ON and EQ band number = 01)

OFF

Output Channel Selection

Channel Control

Channel Gain

BASS/TREBLE

Loudness Compensation

Speaker Parameter Presetting

EQ Band Number

Gain

Center Frequency

HPF

LPF

Compressor

9000 series modules

Model No. Module function

No. of inputs Maximum mountable No.

D-001T 2-channel Mic/Line input 2 4 ZP-001T Zone paging input 1 1 T-001T 2-channel output

–

C-001T Remote control

–

900 series modules 1 8

14.1. Module Combination

The unit is designed to provide an up to 8-input/8-output configuration in combination with its optional modules. Inputs are configured by only using the modules. (No input terminals are located on the rear panel.) For outputs, 2 output channels are provided on the rear panel and can be expanded by adding modules. There are 4 control inputs and 4 control outputs on the rear panel, which can be expanded to a maximum of 12 inputs and 12 outputs with the additional use of 1 module. 900 Series input modules can also be used together with 9000 Series modules.

14.2. Channel Numbers and Terminal Numbers

• Input channel numbers 1, 2, 3... begin with the input(s) of the module inserted into Slot No. 1.

• Output channels 1 and 2 correspond to the unit's rear panel-mounted preamplifier output terminals 1 and 2,

respectively. When output modules are added, the output channel numbers are 3, 4, 5....beginning with the

output of the module inserted into Slot 5.

• Control input and output terminal numbers correspond to control input and output terminals 1 – 4 on the unit's rear panel. When a C-001T module is added, the additional terminal numbers are from 5 to 12.

14.3. Module Installation

The unit's rear panel-mounted module slot numbers are 1 – 8 from right to left as viewed from the rear. There are rules for module installation. Follow the procedures below to mount the modules.

Notes

• Avoid touching parts and terminals on the module's circuit board when inserting or removing the module.

• Mount the module in the right place and certainly secure it with screws.

Step 1. Insert the D-001T module into the slots,

starting in order from Slot 1 without leaving slots open in between.

Note

Only Slots 1 – 4 can be used for the D-001T module.

Step 2. Insert the T-001T module into the slots,

starting in order from Slot 5 without leaving slots open in between.

Note

Only Slots 5 – 7 can be used for the T-001T module.

14. MODULE INSTALLATION

Important Be sure to detach the power cord when inserting or removing any module.

T-001T

Slot 12345678

D-001T

Slot 12345678

D-001T

Audio

2 inputs

D-001T

Audio

2 inputs

T-001T

Audio

2 outputs

Step 3. Insert the ZP-001T module(s) into the slots in

order without leaving slots open in between.

Note

Start the insertion from Slot No. 1 when no D-001T module is used.

Step 4. Insert the 900 Series input modules.

Notes

• When Slot No. 1 is occupied with the D001T, Slot No. 8 is not used for the 900 Series module. Likewise, when Slot No. 2 is occupied, Slot No. 7 is not used; when Slot No. 3 is occupied, Slot No. 6 is not used; and when Slot No. 4 is occupied, Slot No. 5 is not used.

• Insert the 900 Series input modules in order without leaving slots open in between.

• Use the open slots in increasing slot number order even if the T-001T module is mounted in an intermediate position.

• Insert modules into the slots, starting in order from Slot No. 1 when not mounting the D-001T and ZP-001T.

Step 5. Insert the C-001T module in the open slot

with the lowest slot number.

Step 6. Attach the blank panels supplied with the unit

onto open slots.

Note

If modules are not correctly installed, an error indication is displayed on the VFD screen when the power is turned on. In such cases, check the above procedures again and reinsert the modules.

Open slot

(Attach the

blank panel)

900 series

module

Audio

1 input

900 series

module

Audio

1 input

ZP-001T

Audio

1 input

900 series

module

Audio

1 input

900 series

module

Audio

1 input

900 series

module

Audio

1 input

T-001T

Audio

2 outputs

900 series

module

Audio

1 input

D-001T

Audio

2 inputs

D-001T

Audio

2 inputs

D-001T

Audio

2 inputs

T-001T

Audio

2 outputs

T-001T

Audio

2 outputs

T-001T

Audio

2 outputs

C-001T

Control 8 inputs 8 outputs

14.4. Module Installation Examples

[Example of audio 8-input/8-output and control 12-input/12-output configuration]

Slot No.

2345678

12345678

[Example of audio 6-input/4-output and control 4-input/4-output configuration]

Open slot

(Attach the

blank panel)

Open slot

(Attach the

blank panel)

[Example of audio 3-input/4-output and control 4-input/4-output configuration]

Open slot

(Attach the

blank panel)

Open slot

(Attach the

blank panel)

Open slot

(Attach the

blank panel)

ZP-001T

Slot 18

D-001T

is mounted

(Example when no D-001T is mounted)

(Example when the T-001T is mounted in an intermediate position)

900

T-001T

module

(Example when no D-001Tand ZP-001T are mounted)

C-001T

900

module

Module is mounted

Slot 1234567

ZP-001T

Slot 145678

Slot 1234567

900

module

Slot 18

(Example for an error indication)

MODULE SLOT2ERROR

15.1. Control I/O Terminal Connections

15.1.1. Remote volumes 1, 2

Volume of the input or output channels can be remotely adjusted. (The REMT VOL 1 terminal is factory-preset to output 1, and the REMT VOL 2 to output 2.) Connect a 10 kΩ (linear taper) variable resistor as shown below or input the DC voltage of 0 to +10 V. The larger the variable resistor resistance, the larger the volume, and the smaller its resistance, the smaller the volume.

15.1.2. Control inputs 1 – 4

Connect switch contacts, etc. to these terminals. Open voltage is 3.3 V, and the short-circuit current is 1 mA or less.

15.1.3. Control outputs 1 – 4

Use these terminals to activate LEDs, relays, and other external equipment. Maximum operating current is 50 mA, and the maximum applicable voltage is +27 V.

15. CONNECTIONS

CTRL

I/O

REMT

VOL1

E IN E

REMT

VOL2

2 3

4 E 1 2

OUT

3 4 E

Control-I/O connection terminal

Contact closures, Open collectors, etc. (Open voltage: 3.3 V, Max. 1 mA)

Voltage control 10 kΩ (linear-taper)

LEDs, Relays, etc. (Max. 50 mA)

REMT VOL1

(Remote volume 1)

REMT VOL2

(Remote volume 2)

(Control inputs)

OUT

(Control outputs)

DC voltage 0 to 10 V

Applicable DC voltage Max. 27 V DC

[Pulse trigger]

Use this method to activate operations for which no definite end can be defined, such as Volume Up/Down, BGM and Base pattern activation, and BGM End. Minimum pulse width is 100 ms.

[Level trigger]

Use this method to activate "MUTE," "POWER" (Power ON/OFF remote function), "EMG-MUTE" (Cut-off by emergency control), interrupt broadcasts, and other operations of which start and end must be defined.

For "MUTE," "POWER," and "EMG-MUTE" functions, if operated at the front panel (EMG-MUTE does not accept this access from the front panel) or if other control input to which the same function is assigned is fed, their states are changed by subsequent panel operations or control input activations. The following example shows the change in operation when POWER (Power ON/OFF remote function) is assigned to Control inputs 1 and 2;

Control input 1 will still keep the power ON after Control input 2 turns the power OFF, however the unit's power is OFF.

15.1.4. Operation by control input

Over 100 ms

High

Low

State changes at the falling edge, and is maintained until changed by another trigger.

BASE

BGM END

Broadcast state

BGM broadcast in progress

Activated only for this duration

High

Low

Start End

Control input 1

Control input 2

Unit operation

Power ON

15.3. RS-232C Connector Connection

Use the straight cable when connecting a PC to the unit's RS-232C connector (9P, female).

15.2. C-001T Module Connections

15.2.1. Control input terminal

15.2.2. Control output terminal

For operation by means of the control inputs, refer to

the previous page.

OUT

(Open voltage: 3.3 V, Max. 1 mA)

Contact closures

Open collectors, etc.

LEDs, Relays, etc. (Max. 50 mA)

Applicable DC voltage Max. 27 V DC

9000 Series amplifier

RS-232C connection

(Female)

TXD

RXD

GND

Straight cable

(Male)

RXD

TXD

GND

15.4. Removable Terminal Plug Connection

Be sure to use the supplied removable terminal plugs for connections to the removable terminal blocks.

Cautions

• Be sure to use shielded cables for audio signal lines.

• Avoid soldering stranded or shielded cable, as contact resistance may increase when the cable is tightened

and the solder is crushed, possibly resulting in an excessive rise in joint temperatures.

Cable end treatment

Connector connection

Step 1. Loosen the terminal screw, then

insert the cable.

Step 2. Retighten the terminal screw.

(Pull on the cable to ensure it is securely connected.)

Tip

Recommended slotted screwdriver type: Screwdriver with 3 mm blade width

Solid or stranded cable Shielded cable

7 mm

20 mm

Slotted screwdriver

Shielded cable

3 mmBit shape

Tightens Loosens

Terminal screw

Removable terminal plug (accessory)

Use the supplied rack mounting bracket when mounting the unit in an equipment rack.

Step 1. Remove four M4 x 8 screws on the sides.

The removed screws are no longer used.

Step 2. Attach the rack mounting bracket to the unit using the supplied four M4 x 16 rack mounting bracket

mounting screws.

Notes

• Remove 4 plastic feet on the bottom surface when mounting the unit in a rack.

• Rack mounting screws are not supplied with the unit. Use the screws that are appropriate for the rack.

16. RACK MOUNTING BRACKET ATTACHMENT

Rack mounting bracket screw M4 x 16 (supplied)

Rack mounting bracket (supplied)

VOL

ON/OFF

UTPUT SEL

UME

MEMORY

ENTE

I T

BACK

Screws removed in Step 1 are no longer used.

17.1. General Description

The supplied CD-ROM contains the A-9000 series maintenance software, which executes the following utility programs.

17. HOW TO USE THE SUPPLIED SOFTWARE

[System requirements]

Ensure your PC operates on Windows XP and also meets the following requirements, or this software will not run properly.

Serial port: RS-232C port or compatible with USB-to-RS232C converter

Media & Drive: CD-ROM

Note: Windows is a trademark of Microsoft Corporation.

Updating firmware

Parameter file

Others*

Updates the firmware.

9000 to PC Stores parameters set at the unit to your PC.

PC to 9000 Transfers parameters stored in your PC to the unit.

Status Monitor Monitors the unit's operation status.

Virtual control I/O Activates the control input.

* Used to check the unit at installation.

17.2. Installing the Software

Step 1. Load the supplied CD-ROM into the PC's CD-ROM drive.

Step 2. Double-click the "setup_a9k.exe" icon in the software folder.

Step 3. Designate the folder into which the 9000 series maintenance software is extracted, and click the "OK"

button.

Note

After installation completion, only the software icon is created in the folder designated in the screen at right. The software execution file is moved into the automatically created C:/ProgramFiles/TOA folder after being extracted.

Step 4. After installation completion, confirm the "MaintCtrl.exe" icon is created in the folder designated in

Step 3.

17.3. Connecting the Unit to the PC

Connect the unit's RS-232C port and the PC's RS-232C port with a 9-pin straight cable (male - female).

RS-232C

9-pin straight cable (male – female)

17.4. Setting the Communication Port and Speed

Set the PC's communication port and speed according to the procedure below.

Step 1. Double-click the "MaintCtrl.exe" icon to run the 9000 series

maintenance software. The screen at right is displayed.

Step 2. Pull down the menu from the "Option" button and select

"Communication Setting."

The screen at right is displayed.

Step 3. Select the communication port and speed to match the connected PC.

Then, click the "OK" button. The COM port is factory-preset to "COM1" and the communication speed to "57600."

17.5. Updating the Firmware

Our latest A-9000 firmware is made available on our product information download site (http://www.toaproducts.com/international/). You can also obtain the latest version by downloading it.

Step 1. Double-click the "MaintCtrl.exe" icon to run the 9000 series

maintenance software. The screen at right is displayed.

Step 2. Click the "Updating firmware" button.

The window at right opens. The communication status is displayed in the "Message" box.

Tip

You can also set the communication port here when pressing the "Option" button on the menu bar to select "Communication Setting."

Step 3. Click the "File" button.

The window at right opens.

Step 4. Select the file, then click the "Open"

button. The selected download file is entered in the "Download File" box.

Step 5. Perform the following key operations at the unit to make the unit ready for data reception from the PC.

5-1. Turn the power switch off.

5-2. Press the Input channel 8 selection key, Escape/Back key, and Power switch at the same time.

The unit is placed in standby mode for communications with the PC.

Step 6. Click the "Start" button to start the firmware

file transfer.

The window at right opens.

Step 7. Click the "Exit" button to terminate the program after download completion.

The screen returns to the initial menu screen in Step 1.

INPUT SELECT

INPUT VOLUME

ON/OFF

OUTPUT SEL

OUTPUT VOLUME

MEMORY

ENTER

PARAMETER

UTILITY

ESC/BACK

POWER

Input channel 8 selection key Power switchEscape/Back key

17.6. Storing or Recalling Parameters Set at the Unit

You can back up the parameters set at the unit to your PC, or transfer the parameters stored in your PC to the unit.

Step 1. Double-click the "MaintCtrl.exe" icon to run the 9000 series

maintenance software. The screen at right is displayed.

Step 2. Click the "Parameter file" button.

The window at right opens.

Tip

You can also set the communication port and speed here when pressing the "Option" button on the menu bar to select "Communication Setting."

Step 3. Click the "9000 to PC" button when

storing parameters set at the unit to your PC, while click the "PC to 9000" button to transfer parameters stored in your PC to the unit. The window at right opens.

Step 4. Perform the following key operations at the unit to permit data transmission/reception between the

unit and the PC.

4-1. Turn the power switch off.

4-2. Press the Input channel 8 selection key, Enter key, and Power switch at the same time.

The unit is placed in standby mode for communications with the PC.

INPUT SELECT

INPUT VOLUME

ON/OFF

OUTPUT SEL

OUTPUT VOLUME

MEMORY

ENTER

PARAMETER

UTILITY

ESC/BACK

POWER

Input channel 8 selection key Power switchEnter key

Step 5. Select the file, then click the "Open"

button. The set parameters are transferred from the unit to the PC or from the PC to the unit.

Step 6. Click the "Exit" button to terminate the program after data

transmission completion. The screen returns to the initial menu screen in Step 1.

17.7. Monitoring the Unit's Operation Status

The operation status of the unit can be monitored in real time.

Step 1. Double-click the "MaintCtrl.exe" icon to run the 9000 series

maintenance software. The screen at right is displayed.

Step 2. Click the "Others" button.

The window at right opens.

Tip

You can also set the communication port and speed here when pressing the "Option" button on the menu bar to select "Communication Setting."

Step 3. Click the "Start" button.

Operation status such as the unit's key or knob actions is displayed in real time.

[Screen indications and their descriptions]

Indication Description

KEY INPUT SELECT 1 INPUT SELECT 1 key has been pressed.

KEY POWER long Power switch has been pressed long.

KEY UTILITY & ESC/BACK UTILITY key and ESC/BACK key have been pressed at the

same time.

ROTARY INPUT VOLUME L 1 INPUT VOLUME control has been turned one click

counterclockwise.

CIN CONTROL INPUT 2 (ON) Control input 2 terminal has been turned on.

MATRIX MODE Unit is operating in matrix mode.

MIXER MODE Unit is operating in mixer mode.

POWER ON Power has been turned on.

Step 4. To stop monitoring, click the

"Stop" button.

Step 5. Click the "Exit" button to

terminate the program. The screen returns to the initial menu screen in Step 1.

17.8. Activating the Control Input

You can simulate the unit's control input activation through PC operation.

Step 1. Double-click the "MaintCtrl.exe" icon to run the 9000 series

maintenance software. The screen at right is displayed.

Step 2. Click the "Others" button.

The window at right opens.

Step 3. Click the "Virtual control" tab.

The window at right opens. Terminal 1 – 12 represent the control input terminal numbers.

Step 4. Tick the "Enable" boxes of the control

inputs you want to activate, then select either ON or OFF.

Step 5. Click the "Action" button.

The Control inputs set to ON are activated.

Step 6. Click the "Exit" button to terminate the

program. The screen returns to the initial menu screen in Step 1.

18. ERROR INDICATIONS

Possible cause and Remedy

A module is inserted into a wrong slot. Check to confirm that each module is inserted into a correct slot, and correctly reinsert the module inserted into the wrong slot. (Refer to p. 66.)

There may be overload or excessive signal input. Check input and output signal levels and gain settings, then adjust them as necessary. If the indicator remains lit, consult your TOA dealer.

The unit's Mode switch was shifted from the Mixer mode to the Matrix mode while the AC power supply was shut off. Press the Enter key to erase the data set in the Mixer mode inside the unit.

The unit's Mode switch was shifted from the Matrix mode to the Mixer mode while the AC power supply was shut off. Press the Enter key to erase the data set in the Matrix mode inside the unit.

Module-to-Slot configuration was changed or a module was damaged. Press the Enter key to initialize the memory to default settings. Or press the Escape/Back key to display "MODULE SLOT#No ERROR", then check the error slot. Reinsert the correct module into the slot.

A communication error between the unit and module occurred. Disconnect the AC power supply, then reconnect it. If the indicator remains lit, this may indicate a unit failure. Consult your TOA dealer.

Error indications

MODULE SLOT#No. ERROR

DC PROTECT (OUTPUT #No.)

ERASE MIXER MEMO?

ERASE MATRIX MEMO?

INITIALIZE MEMORY?

The Fault indicator lights.

19. TROUBLESHOOTING

Remedy

If this screw is loose, noise may be produced. Ensure that the screw is tightened.

The unit is designed to digitize audio signals with an AD converter and vary the input level with a digital volume control. Therefore, noise increases if the input or output volume control is set to a level higher than 0 dB while the AD converter input is kept low.

The unit is designed to digitize audio signals with an AD converter and vary the input level with a digital volume control. Therefore, when an extremely large input is fed into the AD converter, the voice remains distorted even if the volume is decreased.

If this screw is loose, phantom power is not supplied. Ensure that the module mounting screw is tightened.

If phantom power is set to OFF in D-001T module input setting, phantom power is not supplied. Set phantom power to ON in the setting.

The D-001T module's phantom power supplies +24 V. If using a condenser microphone powered by over +24 V, separately prepare phantom power supply equipment recommended by the equipment manufacturer.

Symptom

Noise generated.

Excessive noise.

Sound distorted.

Phantom power not supplied.

Condenser microphone does not operate correctly.

Possible Cause

Module mounting screw not securely tightened.

Incorrect module input sensitivity setting.

D-001T module mounting screw not securely tightened.

Phantom power set to OFF in D-001T module input setting.

Condenser microphone of the type powered by over +24 V is used.

20. BLOCK DIAGRAM

DI1 DI2 DI3 DI4

MIXOUT

Dout 1 Dout 2 Dout 3 Dout 4

MIXOUT

Dout 1 Dout 2 Dout 3 Dout 4

MIXOUT

Dout 1 Dout 2 Dout 3 Dout 4

MIXOUT

SLOT#1

SLOT#2

SLOT#3

SLOT#4

SLOT#5

SLOT#6

SLOT#7

SLOT#8

DIN

AIN

I2C

AIN

I2C

AIN

I2C

AIN

I2C

AIN

I2C

AIN

I2C

AIN

I2C

AIN

I2C

TXD

RXD

INTERNAL ADC / MODULE I2S

SIGNAL SELECTORS

ADC

#1 #2

ADC

ANALOG

DIGITAL

ANALOG

DIGITAL

DIS1

DIS2

DI1

DI2

DOUT

1 2

DAC

LPF

NE5532

VOLUME

LPF

NE5532

M-9000

H C E

H: Hot C: Cold E: Earth

H C E

PRE AMP OUT 1

PRE AMP OUT 2

DSP

ADC

#7 #8

Remarks

Each pair of Inputs 1 and 8, 2 and 7, 3 and 6, and 4 and 5 is the analog inputs of ADC (Analog-Digital Converter). So, when a digital input module such as the D-001T is inserted into Slot 1, for example, the digital input selector DIS1 is switched over to the DIGITAL position, thereby disabling the use of analog Inputs 1 and 8. Consequently, Slot 8's analog input (AIN) cannot be used. Likewise, when Slot 2 is occupied by the D-001T, Slot 7's analog input cannot be used; and when Slot 3 is occupied, Slot 6's analog input cannot be used.

ANALOG

DIGITAL

ANALOG

DIGITAL

DIS3

DIS4

DI3

DI4

at ANALOG INPUT at DIGITAL INPUT

I2C

INPUT SELECT SIGNALS

KEY&DISPLAY CONTROL

I2C

TXD

TXDM8

RXDM8

RXD

EEPROM

I2C

CPU

CONTROL I/O

VOLUME

CONTROL

NE5532

A-9060DH/9120DH

PRE AMP

PWR AMP

OUT 1

IN 1

PWR AMP

PRE AMP

IN 2

OUT 2

BTL POWER AMP

RELAY

SPEAKERS

70 V OUT 1

–

70 V

–

OUT 2

FAN

+ –

INPUT SELECT

Vacuum Fluorescent Display

INPUT VOLUME

ON/OFFON/OFF

OUTPUT SEL

OUTPUT VOLUME PARAMETER ESC/BACK

MEMORY

ENTER

UTILITY

POWER

232RXD 232TXD

MODE

R–>V

CONVERT

RXD

TXD

CI1

CI2

CI3

CI4

CO1

CO2

CO3

CO4

MATRIX/MIXER

REMT-VOL1

REMT-VOL2

CONTROL

INPUT

CONTROL

OUTPUT

RS232

MODE SW

AC IN

POWER SUPPLY

MAIN_TRANS

SUB_TRANS (EXCEPT M-9000)

FAN CONTROL

+64 V

POWER AMP

–64 V

+24 V

ANALOG

–24 V

+6 V DSP/AD/DA

+3.3 VBU CPU

–30 V AC5 V VFD AC5 V

21. SIGNAL FLOW DIAGRAM

22. LEVEL DIAGRAM

Digital Domain

(dBV)

+40

+30

+20

+10

–10

–20

–30

–14 dBV

(200 mV)

MIXOUT

SLOT

MODULE SLOT

ANALOG INPUT

Clipping Level

+10 dBV

(3.16 V)

–10 dBV

(316 mV)

Reference Level

–10 dB ATT

AIN

DIN

ADC INPUT

0 dBV

(1 V)

–20 dBV

(100 mV)

ADC

0 dBFS = 1 V

DSP INPUT DSP OUTPUT

MIXER mode

ONLY

0 dBFS

–20 dBFS

FADER MARGIN

10 dB

FADER MARGIN

10 dB

FADER MARGIN

10 dB

0 dBFS

–20 dBFS

DSP

LOW

HIGH

COM

DIN

(dB)

+10

–10

–67 –68 –69 –70

OFF

+9 +8 +7 +6 +5 +4 +3 +2 +1

–1 –2 –3 –4 –5 –6 –7 –8 –9

INPUT

Digital

FADER

(dB)

+10

–10

–67 –68 –69 –70

OFF

+9 +8 +7 +6 +5 +4 +3 +2 +1

–1 –2 –3 –4 –5 –6 –7 –8 –9

CROSS

POINT

Digital

FADER

DOUT

OUTPUT

Digital

FADER

(dB)

+10

AMPLIFY

ONLY

DAC OUTPUT

DAC

0 dBFS = 2 V

+9 +8 +7 +6 +5 +4 +3 +2 +1

+6 dBV

(2 V)

–14 dBV (200 mV)

(dB)

–1 –2 –3 –4 –5 –6 –7 –8 –9

–10

–67 –68 –69 –70

OFF

LPF OUTPUT

SLOT MIX OUT

LPF

(0 dB Gain)

LPF

(0 dB Gain)

+6 dBV

(2 V)

–14 dBV

(200 mV)

VOLUME OUTPUT

VOLUME

OUTPUT

Analog

FADER

ATTENUATION

ONLY

+6 dBV

(2 V)

–14 dBV

(200 mV)

PRE OUT

M-9000

NE5532

(+14 dB Gain)

NE5532

A-9060DH/9120DH

NE5532

(+14 dB Gain)

NE5532

+20 dBV

(10 V)

0 dBV

(1 V)

H: Hot C: Cold E: Earth

PRE AMP OUT 1

PRE AMP OUT 2

POWER AMP

INPUT

PRE

H C

AMP

OUT 1

PRE

H C

AMP

OUT 2

PWR AMP IN 1

PWR AMP IN 2

0 dBV

(1 V)

SPEAKER OUTPUT

70 V

+36.9 dBV

(70 V)

BTL POWER AMP

(+36.9 dB Gain)

BTL POWER AMP

(+36.9 dB Gain)

RELAY

SPEAKERS

70 V

OUT 1

–

70 V

–

OUT 2

23. SPECIFICATIONS

23.1. M-9000

120 V AC, 60 Hz 40 W Max. 8 channels, modular construction (modules optional) Preamplifier output 1, 2: 0 dB*1, 600 Ω, balanced, removable terminal block (3 pins) Analog input (slot 1 – 8): –10 dB*1, 10 kΩ, unbalanced

Digital input (slot 1 – 4): 24 bit/48 kHz MIX output (slot 1 – 8): –14 dB*1, 330 Ω (CH1 prefader output), unbalanced Digital output (slot 5 – 7): 24 bit/48 kHz Power supply (slot 1 – 8): +24 V, –24 V, +6 V DC

–20 dB FS

20 – 20,000 Hz, +1, -3 dB

0.008% (at 22 kHz LPF, 1 kHz, +10 dB

*1output)

At Input short, 20 – 20,000 Hz, ALL FLAT or OFF setting

Output volume min.: 90 dB

Output volume max.: 61 dB (input 1 volume: 0 dB, other inputs: OFF) Over 64 dB (at 20 kHz) Bass: ±12 dB (at 100 Hz), Treble: ±12 dB (at 10 kHz) 10 bands, Frequency: 20 – 20,000 Hz, 31 steps, Variable range: ±12 dB, Q: 0.3 – 5 15 (compatible with TOA speakers only)

–12 dB/oct, Variable frequency range: 20 – 400 Hz, 14 steps –12 dB/oct, Variable frequency range: 4,000 – 20,000 Hz, 8 steps

Depth: 1 – 5 0 – 40 ms (1 ms steps), maximum 40 ms (CH1 + CH2), mixer mode only 32 Matrix mode/Mixer mode (selector switch) Key lock function RS-232C*2, D-sub connector (9P, female)

Control input: 4 inputs, no-voltage make contact input, open voltage: 3.3 V DC,

short-circuit current: under 1 mA, removable terminal block

Control output: 4 outputs, open collector output, withstand voltage: 27 V DC,

control current: 50 mA, removable terminal block

Remote volume: 2 channels, connect a 10 kΩ/linear taper variable resister or

input the DC voltage of 0 to +10 V, removable terminal block –10 to +40°C 35% to 80% RH (no condensation) Panel: Aluminum, hair-line, black

Case: Surface-treated steel plate, black, paint 420 (w) x 107.6 (h) x 353 (d) mm 6 kg

Power Source Power Consumption Audio Input Audio Output Module Slot

Digital Audio Signal Reference Level

Frequency Response Total Harmonic Distortion S/N Ratio

Cross Talk Tone Control Parametric Equalizer Speaker Equalizer High-pass Filter Low-pass Filter Compressor Delay Scene/Event Memory Operation Mode Auxiliary Function Control Input/Output

Operating Temperature Operating Humidity Finish

Dimensions Weight

*10 dB = 1 V *2Allowing it to be controlled by a control system such as AMX and Crestron through RS-232C port.

Notes

• The design and specifications are subject to change without notice for improvement.

• AMX is a trademark of AMX Corporation.

• Crestron is a trademark of Crestron Electronics, Inc.

• Accessories

Power cord (2 m) ............................................. 1

Rack mounting bracket .................................... 2

Rack mounting screw (M4 x 16) ...................... 4

Blank panel ...................................................... 7

Blank panel mounting screw (M3 x 8) ............ 14

Removable terminal plug (3 pins) .................... 2

Removable terminal plug (14 pins) .................. 1

CD-ROM .......................................................... 1

Start guide ........................................................ 1

A-9060DH A-9120DH

120 V AC, 60 Hz

150 W 250 W

Max. 8 channels, modular construction (modules optional) Power amplifier input 1, 2: 0 dB*1, 10 kΩ, RCA pin jack

0 dB*1,300 Ω, unbalanced, RCA pin jack

60 W, 83 Ω x 2, BLT output, 120 W, 41 Ω x 2, BLT output, removable terminal block (4 pins) removable terminal block (4 pins)

Analog input (slot 1 – 8): –10 dB*1, 10 kΩ, unbalanced Digital input (slot 1 – 4): 24 bit/48 kHz MIX output (slot 1 – 8): –14 dB*1, 330 Ω (CH1 prefader output), unbalanced Digital output (slot 5 – 7): 24 bit/48 kHz Power supply (slot 1 – 8): +24 V, –24 V, +6 V DC

–20 dB FS

20 – 20,000 Hz, 0.008% THD

Power amplifier section: 20 – 20,000 Hz, +0, –1 dB Analog input module to speaker output: 20 – 20,000 Hz, +1, –3 dB

Power amplifier section: 0.0008%

(22 kHz LPF, 1 kHz, rated power)

Analog input module to speaker output: 0.008%

(22 kHz LPF, 1 kHz, rated power)

At Input short, 20 – 20,000 Hz, ALL FLAT or OFF setting

Output volume min.: 90 dB (preamplifier output) Output volume max.: 61 dB (preamplifier output,

input 1 volume: 0 dB, other inputs: OFF)

Power amplifier section: 110 dB

Over 64 dB (at 20 kHz)

Bass: ±12 dB (at 100 Hz) Treble: ±12 dB (at 10 kHz)

10 bands, Frequency: 20 – 20,000 Hz, 31 steps, Variable range: ±12 dB, Q: 0.3 – 5

15 (compatible with TOA speakers only)

–12 dB/oct, Variable frequency range: 20 – 400 Hz, 14 steps –12 dB/oct, Variable frequency range: 4,000 – 20,000 Hz, 8 steps

Depth: 1 – 5

0 – 40 ms (1 ms steps), maximum 40 ms (CH1 + CH2), mixer mode only

Matrix mode/Mixer mode (selector switch)

Key lock function RS-232C*2, D-sub connector (9P, female) Control input: 4 inputs, no-voltage make contact input, open voltage: 3.3 V DC,

short-circuit current: under 1 mA, removable terminal block

Control output: 4 outputs, open collector output, withstand voltage: 27 V DC,

control current: 50 mA, removable terminal block

Remote volume: 2 channels, connect a 10 kΩ/linear taper variable resister or

input the DC voltage of 0 to +10 V, removable terminal block

–10 to +40°C

35% to 80% RH (no condensation)

Panel: Aluminum, hair-line, black Case: Surface-treated steel plate, black, paint

420 (w) x 107.6 (h) x 395 (d) mm

9 kg 11 kg

Model No. Power Source Power Consumption Audio Input

Audio Output

Preamplifier Output 1, 2 Speaker Output 1, 2

Module Slot

Digital Audio Signal Reference Level

Power Bandwidth Frequency Response

Total Harmonic Distortion

S/N Ratio

Cross Talk Tone Control

Parametric Equalizer

Speaker Equalizer High-pass Filter Low-pass Filter Compressor Delay Scene/Event Memory Operation Mode Auxiliary Function Control Input/Output

Operating Temperature Operating Humidity Finish

Dimensions Weight

23.2. A-9060DH, A-9120DH

*10 dB = 1 V *2Allowing it to be controlled by a control system such as AMX and Crestron through RS-232C port.

• Accessories

Power cord (2 m) ............................................. 1

Rack mounting bracket .................................... 2

Rack mounting screw (M4 x 16) ...................... 4

Blank panel ...................................................... 7

Blank panel mounting screw (M3 x 8) ............ 14

Removable terminal plug (4 pins) .................... 1

Removable terminal plug (14 pins) .................. 1

CD-ROM .......................................................... 1

Start guide ........................................................ 1

Notes

• The design and specifications are subject to change without notice for improvement.

• AMX is a trademark of AMX Corporation.

• Crestron is a trademark of Crestron Electronics, Inc.

+24 V DC, –24 V DC, +6 V DC 20 mA (at +24 V DC), 20 mA (at –24 V DC), 60 mA (at +6 V DC) 2 channels,

3 kΩ (when the phantom power is ON) / 10 kΩ (phantom power is OFF), electronically-balanced, removable terminal block (3 pins)

–60, –54, –48, –42, –36, –30, –24, –18, –10 dB* (selectable) 20 – 20,000 Hz +1, –3 dB

0.008% (at 1 kHz, 20 – 20,000 Hz BPF, Input sensitivity: –10 dB) Under –112 dB

(at 20 – 20,000 Hz BPF, Input short, Input sensitivity: –60 dB) Over 73 dB

(at 20 – 20,000 Hz BPF, Input short, Input sensitivity: –10 dB) Over 75 dB (at 20 kHz, Input sensitivity: –10 dB) Over 62 dB (at 1 kHz, Input sensitivity: –60 dB) 24 bit ∆∑ADC 48 kHz Bass: ±12 dB (at 100 Hz)

Treble: ±12 dB (at 10 kHz) 10 bands, Frequency: 20 – 20,000 Hz, 31 steps, Variable range: ±12 dB,

Q: 0.3 – 5

–12 dB/oct, Variable frequency range: 20 – 400 Hz, 14 steps –12 dB/oct, Variable frequency range: 4,000 – 20,000 Hz, 8 steps

Depth: 1 – 5 +24 V DC –10 to +40°C Panel: Aluminum, hair-line 35 (w) x 78 (h) x 91.5 (d) mm 82 g

23.3. Optional Modules

23.3.1. D-001T

Power Source Current Consumption Input

Input Sensitivity Frequency Response Total Harmonic Distortion + N Input Equivalent Noise

S/N Ratio

Cross Talk CMRR A/D Converter Sampling Frequency Tone Control

Parametric Equalizer

High-pass Filter Low-pass Filter Compressor Phantom Power Operating Temperature Finish Dimensions Weight

* 0 dB = 1 V

Note: The design and specifications are subject to change without notice for improvement.

• Accessories

Removable terminal plug (3 pins) .................... 2

Module mounting screw ................................... 2

23.3.2. T-001T

+24 V DC, –24 V DC, +6 V DC 35 mA (at +24 V DC), 35 mA (at –24 V DC), 60 mA (at +6 V DC) 2 channels, max. +20 dB* (at 10 kΩ load), 600 Ω, electronically-balanced,

removable terminal block (3 pins) 20 – 20,000 Hz +1, –3 dB

0.005% (at 1 kHz, 20 – 20,000 Hz BPF, 5 V output, 10 kΩ load) Over 73 dB (at 20 – 20,000 Hz BPF) Under –91 dB (at 20 – 20,000 Hz BPF, VOL: –70 dB) Over 87 dB (at 20 kHz) 24 bit ∆∑DAC 48 kHz Bass: ±12 dB (at 100 Hz)

Treble: ±12 dB (at 10 kHz) 10 bands, Frequency: 20 – 20,000 Hz, 31 steps, Variable range: ±12 dB,

Q: 0.3 – 5 15 (compatible with TOA speakers only)

–12 dB/oct, Variable frequency range: 20 – 400 Hz, 14 steps –12 dB/oct, Variable frequency range: 4,000 – 20,000 Hz, 8 steps

Depth: 1 – 5 0 – 40 ms (1 ms step), maximum 40 ms (CH1 + CH2), mixer mode only –10 to +40°C Panel: Aluminum, hair-line 35 (w) x 78 (h) x 91.5 (d) mm 82 g

Power Source Current Consumption Output

Frequency Response Total Harmonic Distortion + N S/N Ratio Residual Noise Cross Talk D/A Converter Sampling Frequency Tone Control

Parametric Equalizer

Speaker Equalizer High-pass Filter Low-pass Filter Compressor Delay Operating Temperature Finish Dimensions Weight

* 0 dB = 1 V

Note: The design and specifications are subject to change without notice for improvement.

• Accessories

Removable terminal plug (3 pins) .................... 2

Module mounting screw ................................... 2

23.3.3. C-001T

23.3.4. ZP-001T

6 V DC 15 mA 8 channels, open voltage: 3.3 V DC, short-circuit: under 1 mA,

removable terminal block (9 pins) 8 channels, open collector output, withstand voltage: 27 V DC,

control current: max. 50 mA, removable terminal block (9 pins) –10 to +40°C Panel: Aluminum, hair-line 35 (w) x 78 (h) x 91.5 (d) mm 62 g

Power Source Current Consumption Control Input

Control Output

Operating Temperature Finish Dimensions Weight

+24 V DC, +6 V DC 38 mA (at +24 V DC), 18 mA (at +6 V DC) 1 line DTMF signal Loop-Start (or Ground-Start, selectable) 0 dB, 600 Ω, balanced, RJ-11 connector/removable terminal block (4 pins) 1 channel, no-voltage make contact, open voltage: 5 V DC,

short-circuit: 0.5 mA, removable terminal block (4 pins) 4 channels, open collector output (isolated), withstand voltage: 35 V DC,

control current: max. 50 mA, removable terminal block (4 pins) –10 to +40°C Panel: Aluminum, hair-line 35 (w) x 78 (h) x 91.5 (d) mm 153 g

Power Source Current Consumption Number of Lines Type of Selectable Signal Signaling System TEL Line Control Input

Control Output

Operating Temperature Finish Dimensions Weight

Note: The design and specifications are subject to change without notice for improvement.

• Accessories

Removable terminal plug (9 pins) .................... 2

Module mounting screw ................................... 2

Note: The design and specifications are subject to change without notice for improvement.

• Accessories

Removable terminal plug (4 pins) .................... 3

Module mounting screw ................................... 2

200510
