Vivotek VS3102 User Manual

VisualServer
VS3102
User's Manual

Before You Use

Surveillance devices may be prohibited by law in your country. Though VisualServer is not only a high performance surveillance system but also a networked video server, ensure that the operation of such devices are legal before installing this unit for surveillance.
It is important to carefully check the contents with the "Package Contents" section after opening the package. Understanding the physical description can prevent damage caused by abnormal usage and reduce most problems during installation.
Basically VisualServer is a network device and should be easy to use for those who already have basic network knowledge. If there is a system error and it does not recover easily due to erroneous configuration, check the section "Auxiliary buttons" to restore factory default settings and run installation again.
VisualServer has been designed for various environments and can be used to build various applications for general security or demonstration purposes. For standard applications, read "System configuration" to understand all functions. To make the best usage of VisualServer, review "Advanced functions" to get creative ideas. To those professional developers, "URL Commands of VisualServer" will be a very helpful reference.
Those paragraphs preceding by may result in serious hazards.
should be fully understood and cautioned. Ignoring the warnings
T: 886-2-22404099 F: 886-2-22404097
1
Table of Contents
Before You Use........................................................................................1
Package Contents...................................................................................6
Physical Description...............................................................................8
Front Panel........................................................................................................... 8
BNC video input........................................................................................................................... 8
RCA audio input........................................................................................................................... 8
Rear Panel ............................................................................................................ 9
Ethernet 10/100 socket.................................................................................................................9
COM port .....................................................................................................................................9
General I/O terminal block.........................................................................................................10
Status LEDs................................................................................................................................ 11
Restore button............................................................................................................................. 12
Power adapter............................................................................................................................. 12
How to Install.......................................................................................13
Ethernet Environment.........................................................................14
Hardware installation......................................................................................... 14
Cable connection........................................................................................................................14
Power on.....................................................................................................................................15
Software configuration....................................................................................... 16
Easy way with installer program................................................................................................16
Manual way with existing programs ..........................................................................................21
First access to VisualServer ............................................................................... 22
Modem Environment...........................................................................24
T: 886-2-22404099 F: 886-2-22404097
2
Hardware installation......................................................................................... 24
Cable connection........................................................................................................................25
Power on.....................................................................................................................................25
Software configuration....................................................................................... 26
Install a new modem................................................................................................................... 26
Setup a new connection.............................................................................................................. 29
First access to VisualServer ............................................................................... 34
How to Use............................................................................................36
Authentication.................................................................................................... 37
Primary user’s capability ................................................................................... 39
Main screen with camera view................................................................................................... 39
PTZ camera control.................................................................................................................... 40
Client Setting...................................................................................................... 41
System configuration ......................................................................................... 43
System parameters ...................................................................................................................... 44
User group administration..........................................................................................................46
Network settings.........................................................................................................................47
Video codec parameters..............................................................................................................51
Motion detection.........................................................................................................................54
PTZ camera configuration..........................................................................................................56
Modem and dialup settings.........................................................................................................61
Application.................................................................................................................................63
Homepage layout settings...........................................................................................................65
One-shot fast configuration via FTP ..........................................................................................66
Advanced functions............................................................................................ 75
Web
Viewing system log ....................................................................................................................75
Viewing system parameters........................................................................................................ 75
Restore factory default settings .................................................................................................. 75
Clear data path for proprietary commands.................................................................................75
T: 886-2-22404099 F: 886-2-22404097
3
FTP
Uploading snapshots periodically to an external FTP server ..................................................... 76
Customizing homepage images..................................................................................................76
Viewing system log ....................................................................................................................77
Uploading the configuration file.................................................................................................77
Software revision upgrade..........................................................................................................77
Telnet
System core debugging...............................................................................................................79
Monitor changed status of digital inputs .................................................................................... 79
Stop information dumping..........................................................................................................79
Query status of digital inputs...................................................................................................... 79
Set digital outputs....................................................................................................................... 80
Erase snapshots stored in Flash memory.................................................................................... 80
Erase logo and graphic buttons...................................................................................................80
Skip installation during the next boot......................................................................................... 80
Reset network for new settings...................................................................................................80
Restore factory default settings .................................................................................................. 80
Reset system............................................................................................................................... 80
URL commands of VisualServer ....................................................................... 81
Capture update Snapshot of JPEG image................................................................................... 81
Move motorized camera in PTZ direction.................................................................................. 81
Preset/Recall camera position.....................................................................................................81
Query status of digital inputs...................................................................................................... 81
Drive digital outputs...................................................................................................................81
Clear data mode serial port driver ..............................................................................................82
Restore factory default settings .................................................................................................. 82
Restart system............................................................................................................................. 82
Page URL ................................................................................................................................... 83
System resource URL.................................................................................................................84
General format of command URL..............................................................................................84
System configuration URL.........................................................................................................84
T: 886-2-22404099 F: 886-2-22404097
4
Security configuration URL .......................................................................................................85
Network configuration URL.......................................................................................................85
Video configuration URL...........................................................................................................86
Image quality configuration URL...............................................................................................87
Camera configuration URL........................................................................................................88
Camera preset configuration URL.............................................................................................. 88
Camera custom command configuration URL........................................................................... 88
Custom camera configuration URL............................................................................................ 89
Modem configuration URL........................................................................................................89
Application configuration URL.................................................................................................. 90
Homepage layout configuration URL ........................................................................................ 91
Appendix...............................................................................................92
A. POST procedure............................................................................................ 92
B. Frequently asked questions ........................................................................... 93
C. Technical specifications ................................................................................ 96
T: 886-2-22404099 F: 886-2-22404097
5

Package Contents

V isualServer VS3102
Power adapter
Camera control cable
Null modem cable
T: 886-2-22404099 F: 886-2-22404097
6
I/O terminal block connector
Wrench
Installation and document CD
Quick installation guide
Warranty card
T: 886-2-22404099 F: 886-2-22404097
7

Physical Description

Front Panel

BNC video input

75Ohms resistance video port for connecting an external camera. To ensure video modulation type being correctly detected, cameras should be attached and powered on before the VisualServer is powered on.

RCA audio input

The audio input is connected by RCA connector of mono-audio Line-In signal.
T: 886-2-22404099 F: 886-2-22404097
8

Rear Panel

Ethernet 10/100 socket

Connect to Ethernet network with a UTP category 5 cable that cannot exceed 100 meters. Once the Ethernet cable is connected without error, VisualServer will utilize Ethernet interface regardless of modem connection.

COM port

This RS232 serial port can connect with a modem or included null modem cable to utilize dial-up network when Ethernet is not available. If VisualServer operates with Ethernet interface, administrators may use this port to control PTZ camera attached to VIDEO.
T: 886-2-22404099 F: 886-2-22404097
9

General I/O terminal block

1 Å DI+ INPUT (Max. 50mA, 12VDC) 2 Å DI- INPUT 3 Å SW_COMMON OUTPUT (short with NC at initial state) 4 Å SW_NOPEN OUTPUT (Max. 1A, 24VDC or 0.5A, 125VAC) 5 Å RS485 B (inverting) 6 Å RS485 A (non-inverting)
VisualServer provides a very flexible general I/O interface to co mbine with the user’s security devices such as sensors, alarms, lighting or door locks. The general I/O terminal block has six pins for device control. These pins can be divided into two categories based on their functions, including RS485 and digital inputs and outputs.
If the device connected to COM has an RS485 interface, wire two control lines to pin 5 and pin 6. After switching to RS485 on the configuration page, the PTZ control commands will be directed through pin 5 and pin 6. If the distance from the controlled device is too far to allow accurate function, an external power source may be used to pull high the RS485 signal.
VisualServer provides one digital input and one relay switch. Pin 1 and pin 2 can be connected to external sensor and the state of voltage will be monitored according to the programmed scripts in configuration. The relay switch can be used to turn on or off external devices.
T: 886-2-22404099 F: 886-2-22404097
10

Status LEDs

Each time VisualServer starts, it will perform a Power-On Self Test, abbreviated as POST hereafter, to examine every hardware module. As soon as the administrator plugs in the power adapter, both LEDs under the network LED will flash one by one until the POST is done. If any module fails, both LEDs will indicate to the users the error according to the pattern listed in Appendix A. If the result is good, both LEDs will turn off for a while and then follows the pattern below. Network interface depends on the peripherals including Ethernet UTP cable, modem or null modem cable. If the Ethernet cable between VisualServer and Ethernet hub is good, VisualServer will choose the Ethernet network. If Ethernet is unavailable but a operational modem is connected, the network interface will be PPP with modem. If either of the above is not the case, VisualServer will try the interface of PPP with null modem.
Network Interface Condition LED2 (Heartbeat) LED3 (Status)
Ethernet
before installed OFF OFF after installed flash OFF during camera control flash Flash
PPP with modem after POST flash ON
before connected ON ON PPP with null modem after connected flash ON
T: 886-2-22404099 F: 886-2-22404097
11

Restore button

There is a button hidden in the box for restoring the system factory default settings. When the system fails to install or operates abnormally, use the included assistant stick in the package and follow the following procedures to reset the system back to its original status.
Poke the assistant stick into the hole to press down on the restore button. Restart the system by unplugging and re-plugging the power jack. While keeping the button pressed, the system will perform POST twice rather than the usual once, which can be observed from the flashing LEDs. After the system flashes the LEDs for the second time, withdraw the stick to release the button. The system will have restored factory default settings at that moment.

Power adapter

Connect the power jack of the included power adapter. Connecting the power adapter should be the last operation while physically installing VisualServer.
T: 886-2-22404099 F: 886-2-22404097
12

How to Install

To easily fit into various environments, VisualServer automatically detects the attached interfaces and configures itself to the best condition. Therefore users need not care whether the connected cameras are either NTSC or PAL, how to select the network between Ethernet and modem, and whether the Ethernet speed is 10Mbps or 100 Mbps. If the connected motorized camera is on the support list, users only need to plug and play without complicated configurations.
VisualServer supports Ethernet and modem interfaces according to the user's existing network. Ethernet can provide higher bandwidth to achieve the best performance while dial-up network with modem is more common in current Internet applications. Refer to the related installation section for your network environment. If both interfaces are available, Ethernet is recommended and will be chosen as the first priority if Ethernet cable and modem are concurrently attached. Managing to install in the other interface will automatically clear the previous network settings to start new installation.
In the following content, "user" refers to those who can access VisualServer and "administrator" refers to the supervisor who has the root password to configure VisualServer in addition to general access. Administrators should carefully read this manual, especially during installation.
T: 886-2-22404099 F: 886-2-22404097
13

Ethernet Environment

Hardware installation

Before installing multiple VisualServers at the well-chosen locations, the administrator should memorize the serial numbers on the packages respectively for future use.

Cable connection

Shut down all the peripheral devices prior to connection. Connect the supplied cables from VisualServer to related devices according to the following steps. Note that the power adaptor must be kept unplugged until other cables are firmly connected.
T: 886-2-22404099 F: 886-2-22404097
14

Power on

Make sure all cables are correctly and firmly connected before turning on VisualServer. Turn on cameras, sensors, alarm devices, and then attach the power adaptor of VisualServer to the electric power socket*. After the POST (power-on self test) is complete and the result is successful, VisualServer is ready for software configuration as described in this manual. At this stage, network speed and video modulation type are automatically detected. If the detection of video modulation fails, administrators may change the setting on the configuration page. Refer to the configuration section for further information.
Connect the power jack of the power adapter to VisualServer prior to plugging the utility end into
the utility power socket. It will reduce accidental electric surge shock.
T: 886-2-22404099 F: 886-2-22404097
15

Software configuration

Easy way with installer program

In order to configure VisualServers remotely, administrators should keep the serial numbers of the new VisualServers for identification and initial passwords. After successfully mounting VisualServers in the proper position, run the Installer program on the appropriate PC to locate the newly installed VisualServers. VisualServers also support manual setup procedures to non-Windows based environments. The manual procedure is described next.
After the POST is done, VisualServer will try to configure itself by detecting the network environment. If there is DHCP service over the network, the Installer program will catch the given information and display the serial number and given IP address for each VisualServer as following figure. If no DHCP service is available, a previous IP address will be displayed instead. In that case, it may be 0.0.0.0 for a brand new unit. When multiple units are mounted, there may be several entries shown in the window. Administrators may click on each entry with "Assigned" field labeled "No" to install sequentially.
T: 886-2-22404099 F: 886-2-22404097
16
The IP address shown in "Current IP Address" field is for the administrator's reference. If the administrator wants to use another IP address, modify the IP text field below the list window.
If the administrator wants to fix the IP address of the unit, check the option "Use this IP whenever system boots" to skip future installation procedures. Otherwise the unit will need installation whenever it is restarted.
T: 886-2-22404099 F: 886-2-22404097
17
When IP and options are O.K., click on . A message window will pop open to inform if the IP address is valid.
If the IP is not taken by another network device in the network, the Installer program will continue with the setup. Otherwise another message window will warn that the assigned IP conflicts. In this case, administrators should ask the network supervisor for a vacant IP address.
T: 886-2-22404099 F: 886-2-22404097
18
After successful notification, administrators may keep the address information for user’s request.
After clicking on on
, the "Assigned" field will be labeled "Yes". Administrators may click directly
to access the newly installed server in the default browser.
T: 886-2-22404099 F: 886-2-22404097
19
While checking “Use this IP whenever system boots”, a dialog window may pop out to ask for “Server FTP Port” and “Root Password” because they are already changed to other than default settings. If the settings are lost, restore default settings and use installer to install again.
Once installation is complete, administrators should follow the actions in the "First access to VisualServer" section for necessary checks and configurations. Experienced administrators may use the customized config.ini script file to perform a quick setup via FTP. Detailed procedure can be found on the section “One-shot fast configuration via FTP”.
To allow users to connect to VisualServer through an easily memorized name, the administrators must first configure the name server in his network. Here is an example: When the administrator wants to set up VisualServer with a fixed IP address and let users connect to VisualServer by typing a name instead of IP address, the administrator may reserve the IP from DHCP service and assign it with name in the domain name service. During VisualServer installation, assign the ready IP address. After successful installation, users may access the VisualServer by the given name.
T: 886-2-22404099 F: 886-2-22404097
20

Manual way with existing programs

In addition to the provided installer program, some common network tools including ARP and PING can be used to install VisualServer. Open a DOS command prompt window to perform the manual installation.
First, type arp –s “assigned IP address” “Ethernet address”
to add an entity in the system’s name table. The Ethernet address is identical to the serial number of VisualServer and should be typed in the appropriate format, with every two characters separated by a hyphen like “uu-vv-ww-xx-yy-zz”.
Once a name entity is added, type ping "assigned IP address”
to invite the new VisualServer. If it replies, that means VisualServer has accepted the assigned IP address and is ready for access. The first several ping requests may fail during the self-configuration period of VisualServer.
T: 886-2-22404099 F: 886-2-22404097
21

First access to VisualServer

When connecting to VisualServer for the first time, administrators should check security and network settings on the configuration page. For complete protection from illegal usage, VisualServer provides two privileges and always needs user name and password before access. The standard level is the USER mode that consists of twenty user profiles. Each user is able to access VisualServer except for system configuration. The twenty user profiles are also maintained by the administrator. The highest level is ROOT mode that only opens to administrators for initial setup, system configuration, user administration and software upgrade. The user name of the administrator is internally assigned to “root”.
When connecting to VisualServer, users will be requested for user name and password by an authentication message window. A root password, identical to the VisualServer's serial number, is needed for the initial access to a newly installed VisualServer. The administrator must change the root password immediately after the initial installation to ensure security. The new root password should be well memorized since there is no way to retrieve or recover it. After changing the password, the browser will display an authentication window again to ask for the new password.
The other important part is network settings. The software configuration above makes VisualServer easily accessed through local networks. However administrators should review the network settings on the configuration page according to the existing service. The safe and easy way is to compare the network settings with another PC or workstation in the same network.
The software installation in the previous section only set the host IP address and default subnet mask as
255.255.255.0. Administrators should change the subnet mask if it differs from the one provided by server. Administrators should also fill in the default gateway, primary and secondary domain name servers if necessary.
By default VisualServer will need administrator's installation every time it reboots. If the network settings are sure to work all the time, disable the install option if this IP address is already reserved for this VisualServer. Clearing this option will skip the installation procedure during the next power-up and use
T: 886-2-22404099 F: 886-2-22404097
22
the previous settings. If the install option stays checked, VisualServer will perform the installation procedure every time the system boots up.
Details about configurations are described in the "How to Use" section. Related figures are attached for easy reference.
T: 886-2-22404099 F: 886-2-22404097
23

Modem Environment

Hardware installation

Before installing VisualServer, the administrator should memorize the serial numbers on the packages respectively for the initial passwords.
To use a dial-up network, the Ethernet socket should be left disconnected since Ethernet is the first priority among available interfaces. After powering up, VisualServer will detect if any external modem is connected to the modem port. Once a modem is detected, the heartbeat LED will flash periodically. If no modem responds, VisualServer will assume the included null modem cable is connected to perform system configuration. Then both lower LEDs will turn on until null modem connection is established.
If users have setup a remote dialup server or subscribed to an ISP service, VisualServer can be configured to dial to the server upon special events. Otherwise it will wait permanently for the user’s call to establish a network connection to provide services.
In the following content, dial-in connection denotes a passive VisualServer waiting for a phone call to establish a point-to-point connection. Dial-out connection denotes an active VisualServer to dial out to the other end of a dial-up server or any Internet service provider, abbreviated as ISP, to request a point-to-point connection.
T: 886-2-22404099 F: 886-2-22404097
24

Cable connection

Shut down the peripheral devices prior to connection. Connect the supplied cables from VisualServer to the related devices according to following steps. Note that power adaptor must be kept unplugged until other cables are firmly connected. For the first access to VisualServer without Ethernet, administrators may use the included null modem cable to connect to COM for direct connection. It is also convenient for administrators to access VisualServer through the null modem cable directly without modem or Ethernet card. After necessary information is entered, a modem can be used to dial into the Internet.

Power on

Make sure all cables are correctly and firmly connected. Turn on cameras, sensors, alarm devices, and then finally attach power adaptor of VisualServer to the electric power outlet*. Since most automatic detections of hardware perform when the system starts, VisualServer should be turned on after all peripherals are turned on and ready.
Connect the power jack of the power adapter to VisualServer prior to plugging the utility end into a
utility power outlet. It will reduce accidental electric surge shock.
T: 886-2-22404099 F: 886-2-22404097
25

Software configuration

For the first time, users should connect the included null modem cable between the COM port of VisualServer and any COM port of the PC for initial setup.

Install a new modem

Open the control panel and double click the modems icon.
T: 886-2-22404099 F: 886-2-22404097
26
Check "Don't detect my modem......" item and click on to install a new modem.
From (Standard Modem Type) choose the Standard 33600 bps Modem and click on
.
T: 886-2-22404099 F: 886-2-22404097
27
Choose the serial port that the included null modem cable is attached to and click on . The null modem is now ready for use.
If no Dial-Up adapter exists in the system, Windows will automatically prompt to install. Press continue.
to
T: 886-2-22404099 F: 886-2-22404097
28

Setup a new connection

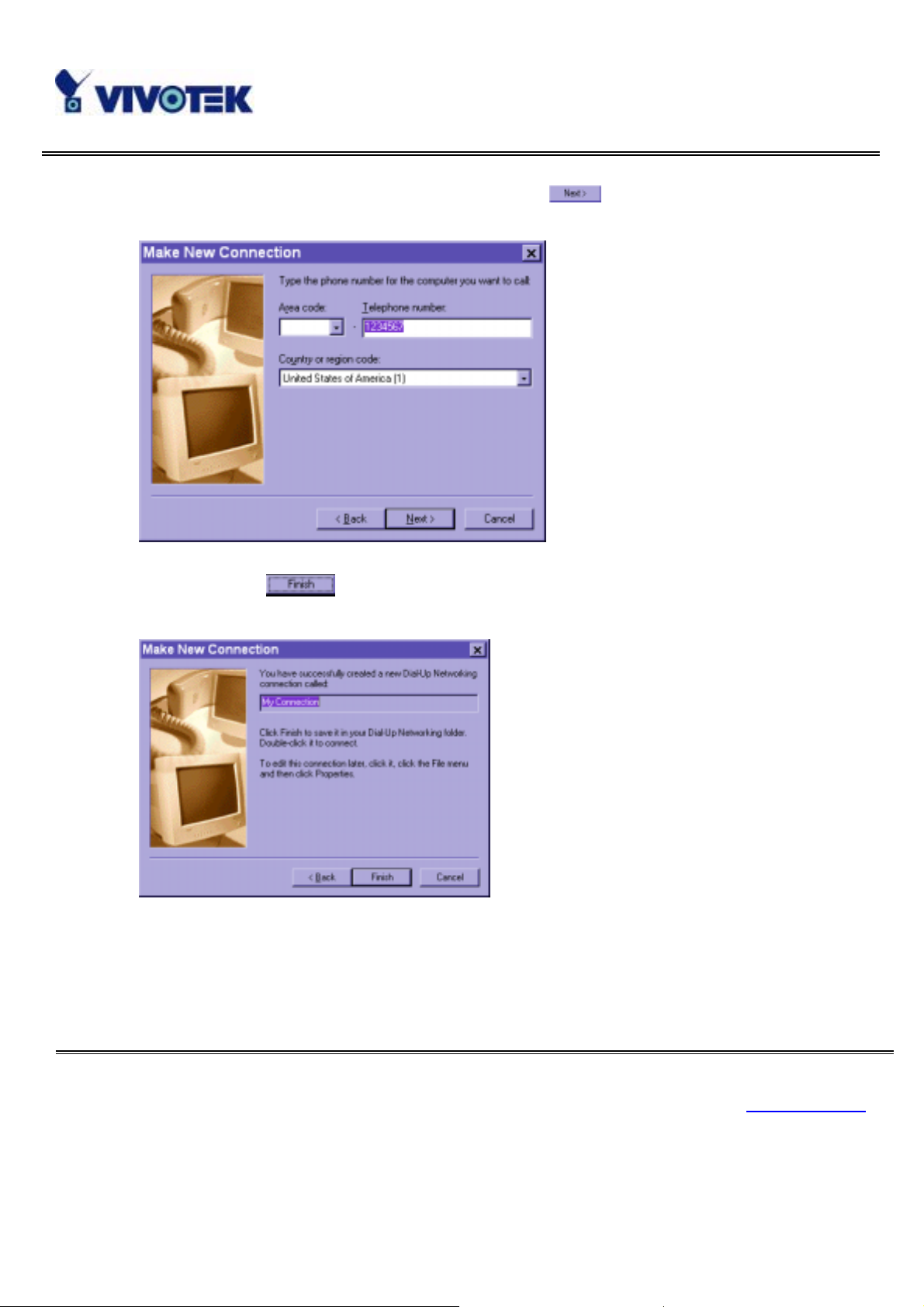

After the 33600 bps modem is installed, open the dialup network folder in Windows to build a new connection.
Select the device as the newly installed standard 33600 bps modem and click on
.
T: 886-2-22404099 F: 886-2-22404097
29
Loading...
+ 68 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
