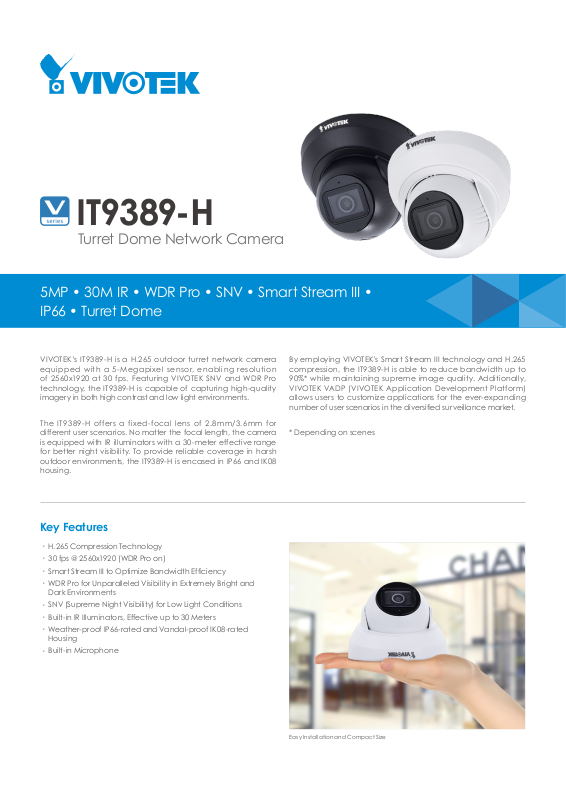

Vivotek IT9389-H Specsheet

IT9389-H

Turret Dome Network Camera

5MP • 30M IR • WDR Pro • SNV • Smart Stream III •
IP66 • Turret Dome

VIVOTEK’s IT9389- H is a H.265 outdoor tur ret network camera
equipped with a 5-Megapixel sensor, enabling resolution
of 2560x1920 at 30 fps. Featur ing VIVOTEK SNV and WDR Pro
technology, the IT9389-H is capable of capturing high-quality
imagery in both high contrast and low light environments.

The IT9389-H offers a fixed-focal lens of 2.8mm/3.6mm for
different user scenarios. No matter the focal length, the camera
is equipped with IR illuminators with a 30-meter effective range
for better night visibilit y. To provide reliable coverage in harsh
outdoor environments, the IT9389-H is encased in IP66 and IK08
housing.

Key Features

H.265 Compression Technology

•

30 fps @ 2560x1920 (WDR Pro on)

•

Smar t Stream II I to Optimize Bandwidth Efciency

•

WDR Pro for Unparalleled Visibility in Extremely Bright and

•

Dark Environments

SNV (Supreme Night Visibility) for Low Light Conditions

•

Built-in IR Illuminators, Effective up to 30 Meters

•

Weather-proof IP66-rated and Vandal-proof IK08- rated

•

Housing

Built-in Microphone

•

By employing VIVOTEK's Smart Stream III technology and H.265
compression, the IT9389- H is able to reduce bandwidth up to
90%* while maintaining supreme image quality. Additionally,
VIVOTEK VADP (VIVOTEK Application Development Platform)
allows users to customize applications for the ever-expanding

number of user scenarios in the diversied surveillance market.

* Depending on scenes

Easy I nstallati on and Co mpact Size

Technical Specications

Model

IT9389-H(2.8mm)
IT9389-H(3.6mm)

System Information

CPU Multimedia SoC (System-on-Chip)

Flash 128MB

RAM 512 MB

Camera Features

Image Senso r 1/2.7" Progressive CMOS

Max. Resolution 2560x1920 (5MP)

Lens Type Fixed-foca l

Focal Length

Aperture F2.0

Iri s type Fixed-iris

Fiel d of View

Shutter Time 1/5 sec. to 1/32,00 0 sec.

WDR Technology WDR Pro

Day/Night Yes

Removable IR-cut lter Yes

IR Illumi nator s

Minimum Illumination

Pan Range 359°

Tilt Range 75°

Rotation Range 180 °

Pan/Tilt/Zoom
Functionalities

On- board Storage

IT93 89-H(2.8mm): f = 2.8 mm
IT93 89-H(3.6m m): f = 3.6 mm

IT9389-H(2.8mm):
103° (Horizontal)
76° (Vertical)
134° (Diagonal)
IT9389-H(3.6mm):
76° (Horizontal)
56° (Vertical)
100° (Diagonal)

Built-in IR ill uminators, effective up to 30
meters with Smart I R, IR LED*2

0.06 Lux @ F2.0 (Color)

0.01 Lux @ F2.0 (B/W)
0 Lux with IR illumi nation on

ePTZ: 48x digital zoom (4x on I E plug -in, 12x
built-i n)

Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recordi ng

Time stamp, text over lay, ip & mi rror;
Cong urable brightness, contrast,

Image Settings

saturation, sharpness, white balance,
exposure control, gain, backlight

compensation, privacy masks; Scheduled
prole settings, HLC, defog, 3DNR, DIS,

video rotation

Audio

Audio Capability One-way Audio

Compression G.711, G.726

Inter face Build-in microphone

Effective Range 5 meters

Network

Users Live viewing for up to 10 clients

IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/

Protocol s

Inter face

ONVIF

RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS,
DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP,
ICMP, ARP, SSL, TLS, CIFS/SMB

10 Base-T/100 Base -TX Ethernet (RJ- 45)
*It is h ighly recommended to use standard

CAT5e & CAT6 cables whi ch are comp liant

with the 3P/ETL s tanda rd.

Suppo rted, specication available at
www.onvif.org

Intelligent Video

Smar t Motion Detection

VCA

VAD P Pac kag e

Five-window video motion detection,

human detection, time lter

Standard VCA (optional)

*Includi ng line crossi ng detection, eld

detection, loitering detection

Genetec package, Trend Micro IoT
Secur ity, Sma rt Mot ion Detection,
Stratocast(su pport)

Alarm and Event

Motion detection, manual tr igger,

Alarm Triggers

Alarm Events

periodical trigger, system boot, recordi ng

notication, camera tampering detection,

audio detection, MicroSD card life
expectancy, Shock Detection

Event notication using HTTP, SMTP, FTP, NAS

ser ver and M icroSD card
File upload via HT TP, SMTP, FTP, NAS ser ver
and MicroSD card

General

Video

Compression H.265, H.26 4, MJPEG

Maximum Frame Rate

Maximum Streams 3 simu ltaneous streams

S/N Ratio

Dynamic Range 120 dB

Video Streaming

30 fps @ 2560x1920
60 fps @ 1920x1080

IT9389-H(2.8mm): 53dB
IT9389-H(3.6mm): 51dB

Adjus table resolution, quality and bitrate,
Smar t Stream III

Connectors

LED Indicato r System power and status i ndicator

Power Input IEEE 802.3af PoE Class 0

Power Consumption

Dimensions

Weig ht

Casing IP66, IK08

RJ- 45 cable connector for Network 10/100
Mbps PoE connection*1

Max. 5.5 W (IR on)
Max. 4.5 W (IR off)

Ø 122 x 99 mm (w/ mounting bracket)
Ø 108 x 79 mm (w/o mounting b racket)

392 g (w/ mounting b racket)
332 g (w/o mounting bracket)
