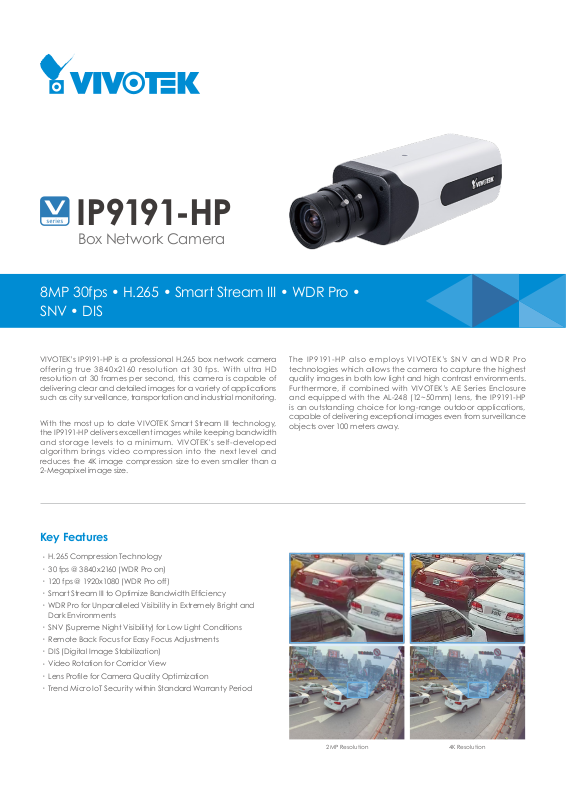

Vivotek IP9191-HP Specsheet

IP9191-HP

Box Network Camera

8MP 30fps • H.265 • Smart Stream III • WDR Pro •
SNV • DIS

VIVOTEK’s IP9191-HP is a professional H.265 box network camera
offering true 3840x 2160 resolution at 30 fps. With ultra HD
resolution at 30 frames per second, this camera is capable of
delivering clear and detailed images for a var iety of applications
such as city surveillance, transportation and industrial monitoring.

With the most up to date VIVOTEK Smar t Stream III technology,
the IP9191-HP delivers excellent images while keeping bandwidth
and storage levels to a minimum. VIVOTEK's self-developed
algorithm brings video compression into the next level and
reduces the 4K image compression size to even smaller than a
2-Megapixel image size.

Key Features

H.265 Compression Technology

•

30 fps @ 3 84 0x 2160 (WDR Pro on)

•

120 fps @ 1920x1080 (WDR Pro off)

•

Smar t Stream III to Optimize Bandwidth Efciency

•

WDR Pro for Unparalleled Visibility in Extremely Bright and

•

Dark Environments

SNV (Supreme Night Visibility) for Low Light Conditions

•

Remote Back Focus for Easy Focus Adjustments

•

DIS (Digital Image Stabilization)

•

Video Rotation for Corridor View

•

Lens Prole for Camera Quality Optimization

•

Trend Micro IoT Securit y within Standard War ranty Period

•

The IP9191-HP also employs VIVOTEK’s SNV and WDR Pro
technologies which allows the camera to capture the highest
quality images in both low light and high contrast envi ronments.
Furthermore, if combined with VIVOTEK’s AE Series Enclosure
and equipped with the AL-248 (12~50mm) lens, the IP9191-HP
is an outstanding choice for long-range outdoor applications,
capable of delivering exceptional images even from sur veillance
objects over 100 meters away.

2MP Res olut ion 4K Reso lution

Technical Specications

Model IP 9191- HP

System Information

CPU Multimedia SoC (System-on-Chip)

Flash 128MB

RAM 1G B

Camera Features

Image Sensor 1/2" Prog ressive CMOS

Maximum Resolution 3840x2160

Lens Type Vari-focal, Remote Back Focus

Focal Length f = 3.9 ~ 10 mm

Aperture F1.5 ~ F2.7

Auto- ir is P-iris (DC-iri s reserved)

Fiel d of View

Shutter Time 1/5 sec. to 1/32,00 0 sec.

WDR Technology WDR Pro

Day/N ig ht

Minimum Illumination

Pan/Tilt/Zoom
Functionalities

On- board Storage

45° ~ 119° (Hor izontal)
25° ~ 63 ° (Vertical)
52° ~ 142° (Diagona l)

Removable IR-cut lter for day & night

function

0.02 Lux @ F1.5 (Color)

0.01 Lux @ F1.5 (B/W)

ePTZ:48x d igital zoom
(4x on IE plug-in, 12x bui lt in)

Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording

Video

Compression H.265, H.264, MJPEG

Maximum F rame Rate

Maximum Streams 3 simu ltaneous stream s

S/N Ratio 60.5 dB

Dynamic Range 120 dB

Video Streaming

Image Settings

30 fps @ 384 0x 2160 (WDR Pro on)
120 fps @ 1920x1080 (WDR Pro off)

Adjus table resol utio n, qua lit y and constant
bit rate control, Smar t Stream II I

Adjus table image size, quality and bit

rate; Time stamp, text overlay, ip &
mir ror; Congurable brightness, contrast,

saturation, sharpness, white balance,
exposure control, gain, backlight
compensation, AE speed, privacy masks;

Scheduled prole settings, HLC, defog,
3DNR, DIS, video rotation, lens prole

Audio

Audio Capability Two-way aud io

Compression G.711, G.726

Inter face

External Mic input
External line output

Network

Users Live viewing for up to 10 client s

IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/

Protocol s

Inter face

ONVIF

RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP,

NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP,

802.1X, UDP, ICMP, ARP, SSL/ TLS

10 Base-T/100 Base-TX Ethernet /1000 Base-T
(RJ-45)
*It is h ighly recommended to use standard

CAT5e & CAT6 cables whi ch are compliant

with the 3P/ETL standard.

Suppo rted, specication avai lable at
www.onvif.org

Intelligent Video

Video Motio n Detection Five-window video motion detection

Alarm and Event

Motion detection, ma nual trigger, digital
input, periodical tr igger, system boot,

Alarm Tri ggers

Alarm Events

recording notication, camera tampering

detection, audio detection, advanced
motion detection, MicroSD card life
expectancy

Event notication using digital output, HTTP,

SMTP, FTP, NAS server and MicroSD card
File upload via HTTP, SMTP, FTP, NAS server
and MicroSD card

General

RJ- 45 cab le con nector for Net wor k
10/100/100 0 Mbps PoE connection *1
Audio i nput *1

Connectors

LED Indicator System power and status i ndicator

Power Input DC 12V, AC 24V, IEEE 802.3af PoE Class 0

Power Consumption Max. 12 W

Dimensions

Weig ht

Safety Certications CE, LVD, FCC Class B, VCCI, C-T ick, UL

Operating Temperature

Humidity 90%

War ranty 36 months

Audio output *1
DC 12V/AC 24V power input *1
Digital input *2
Digital output *2
RS- 485 *1

151 x 70 x 61 mm (w/o lens)
209 x 70 x 61 mm (w/ lens)

671 g (w/o lens)
743 g (w/ lens)

Starting Temperat ure:
0°C ~ 50°C (32 °F ~ 122 °F)
Worki ng Te mperature:

-10°C ~ 50°C (14°F ~ 122° F)

System Requirements

Operating System Microsoft W indows 8/7

Web Browser

Other Players

Mozilla Firefox 7~43 (streaming only)
Inter net Explorer 10/11

VLC: 1.1.11 or above

Quicktime: 7 or above

Included Accessories
