IP9172-LPC (Freeway)
License Plate Capturing Solution
Installation Guide
Rev. 1.0
Document part no.: 625050600G
IP Surveillance
CAUTION:
TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT REMOVE COVER.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
UNPACKING:
Unpack carefully. Electronic components can be damaged if improperly handled or
dropped. If an item appears damaged in shipment, place it properly in its carton and
notify the shipper.
IMPORTANT!:
1. Read and follow Instructions: All operating and user instructions should be read and
followed before the unit is to be operated.
2. Electrical Connections: Only a qualied electrician is allowed to make electrical
connections.
Specications
I
Model Number LPC enclosure
Power Input 24V AC or DC
Max. Output power budget 24W (freeway); 288W at pulsed mode; enabled by
Power Consumption Window heater: 10W; Blower: 2W; Camera: 6 ~ 8W
Environmental Operation Temp. -20°C ~ +50°C (-4°F ~ +149°F)
Protection Level IP68, IK10
Mounting Bracket Fully-cable Management
Construction Die-cast Aluminum Alloy
Coating White epoxy powder coating
Dimensions 502.8 (L) x 170 (W) x 400 (H) mm
Net Weight 6,482g (9.24 lb)
the onboard capacitors.
-20°C ~ 60°C (-4°F ~ 140°F):Max. 60W, AC/DC 24V
-40°C ~ 60°C (-40°F ~ 140°F): Max. 100W, AC/DC
24V
2
Please note the following for different applications:
If you use IP9172-LPC for highway, you must select the LPR scene mode.
Depending on the car speed at your surveillance scene, please select an
appropriate scene mode:
Maximum car speed Scene mode
180km/hr (110mph) LPC-Highway
250km/hr (155mph) LPC-Freeway
The Scene mode option can be found in
settings
.
Application
>
Media
>
English
3
Mounting Conguration & Dimensions
II
Swivel Positions and Directions
135.5 mm
158.5 mm
77.4 mm
170
170 mm
105 mm
USABLE
AREA
502.8 mm
400 mm
255 mm
USABLE AREA
502.8
360
4
Component Description
III
English
Window frame heater
coil
Power distribution
board
Installation Suggestions
IV
M16 1/2" Waterproof cable gland
Ventilation fan
Camera Mounting Platform
If you plan to install this camera enclosure into a tropical, sea coastal, or an environment
where salt water or corrosive industrial waste water/moist are present, please seal each
stainless steel screws and ttings with a silicon grease compounds. This will help prevent
electrolysis to occur and extend the life span of the camera and housing.
IMPORTANT:
1. Disconnect devices: A readily accessible disconnect device in the building installation wiring
should be incorporated.
2. Electrical Connection: Only a qualied electrician is allowed to make electrical connections.
WARNING:
• Please avoid eye exposure or apply appropriate protection, such as wearing a pair of Infrared
protection glasses, when working with the product. Always use camera live view to oberve IR
lighting effects.
5
Installation
V
Install the wall-mount bracket to a preferred location at your installation site. Drill
1.
mounting holes and a cable routing hole (if preferred) on a wall. Install the bracket.
Prepare and route the wiring, Ethernet and 24V power source.
Flip the housing over and place it on a clean, stable surface. Secure the IR illuminator
2.
to the bottom of the housing using the included wrench and 2 hex screws.
x 2
6
Secure the U bracket to the IR illuminator using the included hex screws.
3.
English
7
Prepare power wires, a ground wire, and a CAT5e Ethernet cable. Pass them through
4.
the M16 waterproof connectors under the housing.
Ethernet cable Ø4 ~ 6.5mm
Power wires & DI/DO wires,
a combo cable from IR illuminator
(if applied)
You may need to remove the RJ45 connector, and use a crimping tool to connect the
Ethernet wires to an RJ45 connector inside the enclosure. Use an Ethernet cable of the
width of 4 ~ 6.5mm.
o: white/orange stripe
O: orange solid
g: white/green stripe
B: blue solid
b: white/blue stripe
G: green solid
br: white/brown stripe
BR: brown solid
When done, tighten up and install the waterproof connectors.
5.
o
O
g
B
b
G
br
BR
1
2
3
4
5
6
7
8
8
You can turn the IR illuminator so that its at side is parallel with the housing, and that
6.
you can turn the assembly over and work on the inside of the housing. Put a foam pad
below before you work on the wiring to avoid scratching the surface.
Assemble the camera components, e.g., the CS ring and lens module. Secure the
7.
mounting plate to the bottom of the camera (the label side) using the included screw.
English
There is a plastic mount pad in the package. You do not need the mounting pad
using the VIVOTEK camera.
9
Adjust the camera's position so that the lens module can ush align with the tempered
8.
glass. Secure the camera using the screws and washers to the bottom of the housing.
Lens flush
w/ edge of
enclosure
Connect 24V power source to the power input terminal. Connect power wires from the
9.
DC 12V output to the camera. Connect the 24V power output to drive the external IRs.
AC/DC IN
(+ - )
AC 24V
DC 24V
DC 24V OUT
(+ - )
AC/DC OUT
passthrough
(+ - )
Camera thermal
sensor
DC 12V OUT
(+ - )
Camera heater 30W
Camera heater
15W
10
Window
heater
Fan
IMPORTANT:
You should prepare a power adaptor of the sufcient capacity for supplying 24V input.
Below are the requirements:
Working temperature Total consumption Power adaptor
-20°C ~ 60°C (-4°F ~ -140°F): 60W 3A
-40°C ~ 60°C (-40°F ~ 140°F): 100W 5A
Connect the Ethernet cable to the camera's RJ45 socket.
10.
Also pass the combo cable of the IR illuminator through a waterproof connector.
11.
Connect the day/night signal lines from the IR unit to the DI/DO connectors on the
12.
camera's terminal block. The IP9172 is shown here.
DO+(5V)
DO1-
DI1+
DI0+
DI-
RS485-
RS485+
AC/DC + PW
AC/DC- PW
The day/night mode DI connection enables the synchronization of IR light and the
automated day/night switching mechanism on the camera.
Tout
English
Cable Pinouts (IR Illuminator)
Name Color Gauge Description
V+ Red (20AWG) Power input
V- Black (20AWG)
(I) LED+ Green (26AWG) LED ON/OFF control; pulsed LED control synchronized with camera sensor
(I) LED- Yellow (26AWG) Ground
(O) D/N+ Purple (26AWG) Light sensor status output
(O) D/N- Blue (26AWG) Ground
(O) COM+ Orange (26AWG) RS485 interface control
(O) COM- Brown (26AWG)
12~24V DC±10%
24V AC±10% (50~60Hz), (14.5VDC current controlled)
exposure time.
1. Open = Day
2. Short = Night (20 lux for IR ON); day/night switch will have a 30 sec. delay.
11
A sample connection diagram consisting of CaMate's IR illuminators and the camera is
shown below. Please refer to your camera's documentation if your camera comes with
different pinouts.
AC/DC- PW
Camera
terminal block
AC/DC+ PW
RS485-
RS485+
DI2+
DI-
DI1+
DO2-
Tout
DO+(5V)
AWG26
AWG20
(I) LED+:
(I) LED-:
(O) D/N+:
(O) D/N-:
(O) COM+:
(O) COM-:
Green
Yellow
Purple
Blue
Orange
Brown
AC24V
AWG20
+
-
DC12V
AC24V
You can connect the ground wires together and connect them to the DI- ground pin
13.
on the terminal. Use a small at blade screwdriver to press the lever on the terminal block.
The default for the DI status is listed below:
(O) D/N-
DI Normal: High
(I) LED-
Current Status:
> High - Day mode.
> Low - Night mode (IR is on)
12

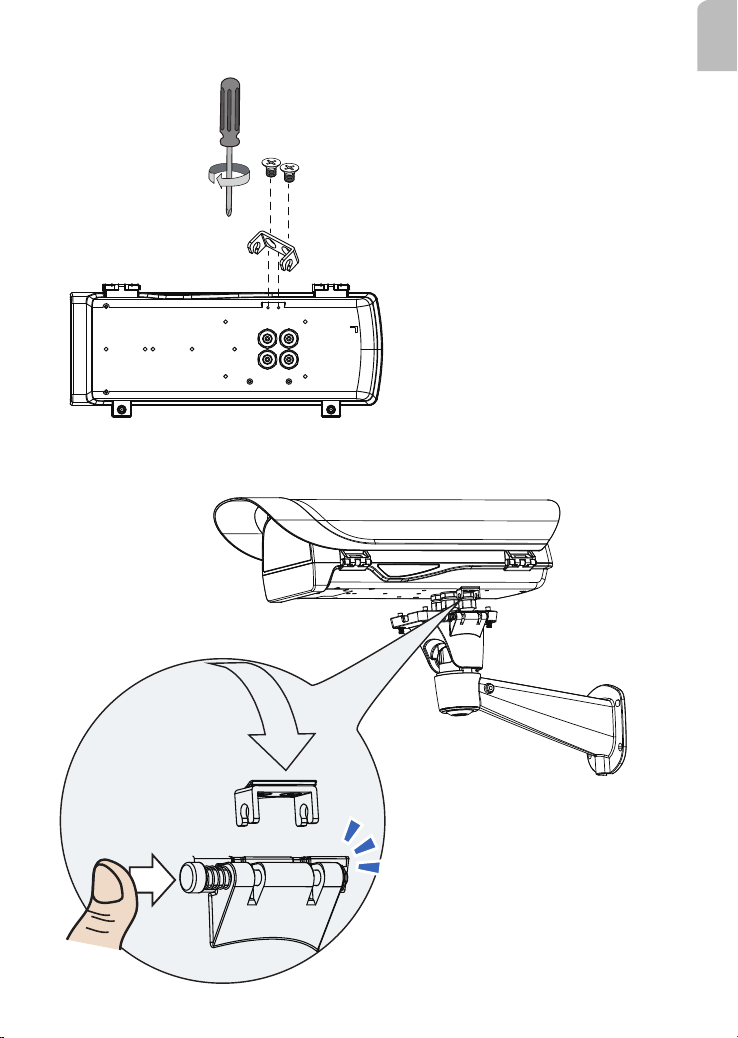

Secure the intersection bracket to the bottom of the housing by driving two screws.
14.
Install the housing to the wall-mount bracket by aiming and pressing the spring
15.
mortise, and hook the bracket onto the groove in the spring mortise.
English
13
When mounting the housing, please carefully place the cable within the cutout on the
bracket. There is a cutout for routing the cable.
Secure the housing to the bracket by fasteninng 4 T30 screws.
16.
T30 x 4
14
Adjust zoom and focus and open a web console to the camera to tune for the best
17.
image. When zoom and focus is done, Close the top cover and fasten the hex screws
from below.
Firmware congurable options:
18.
Make sure that the external IR is turned on in the night mode, and that the IR cut lter
option is synchronized with the digital input you connected (default is Tout).
English
When the "
signal will be triggered to turn on the IR illuminators.
Use the
area. If using a non-iCS lens model (RBF lens), you should manually tune the focus to be
close to the optimal, and then use the auto scan focus function.
Turn on external IR illuminator in night mode
Media
Image > Focus
>
function to tune for a best image focus on your target
" is selected, a digital output
Non-iCS lens
15
If using an iCS lens model, use the auto focus function for an optimal image.
The conguration page automaticallly displays different options according to the lens you
installed.
iCS lens
(reserved for future
implementation)
16
Conguration
In the
>
Media
Image settings
>
page, select an application scenario,
LPC Highway or Freeway mode. The related parameters, such as shutter time, will be
automatically changed for the scenario.
LPC-highway
LPC-street
LPC-parking lot
English
If preferred, e.g., shooting fast moving vehicles, select the
60fps
or
55fps
frame rate.
17
In the night mode, check if the input signals are correctly detected. You may simulate
the night mode by blocking the IR unit's light sensor. Change the triggering parameters if
necessary. Note that the IR unit does not immediately turns on or off. There is a 30-second
buffer time.
NOTE
: When doing the initial testing in lab or ofce, the light sensor of the IR unit may
not react quickly as in the outdoor environment. The lighting level in your ofce may not
be brigtht enough to trigger the light sensor. You can use a ash light to shine on the light
sensor for 30 seconds. Check the live view to see if the IR light is disabled.
The light sensor does not react quickly for that in
realworld applications, vehicle lights in tunnels can
ash and pass by quickly.
Light sensor
To turn on the IR light, blind the IR light sensor to
check (camera enters the night mode and IR should
be turned on within 30 seconds.)
> 30 seconds
18
Enter Conguration > Media > Image > IR control. Congure the Spectrum mode.
English
Mode Spectrum enhanced ICR Head light lter Remark
Visible light
IR light
IR light enhanced
Blue light enchanced
N/A On Off
N/A Off On Default
Yes Off On
Yes On Off
When the Spectrum enhancement is enabled, image contrast is increased to enable better
results for license plate recognition.
19
The parameters of IR illuminator can be controlled via the
enable the connection in the
defaults for the IR illuminator:
none
-
.
Camera ID here
stands for Device ID
Conguration
Pelco D
PTZ
>
, baud rate -
32
Mechanical
>
38400
Customizable IR control
The Default device ID for IR units are listed below:
Model Device ID
IR 850 CM48I8-1040 1
CM80I8-1040 1
CM48I8-2040 2
CM80I8-2040 2
CM48I8-4080 3
CM80I8-4080 3
CM48I8-90120 4
CM80I8-90120 4
CM48I8-180 5
IR 940 CM48I9-1040 11
CM48I9-2040 12
CM48I9-4080 13
CM48I9-90120 14
W5 CM48W5-1040 21
CM48W5-2040 22
CM48W5_4080 23
CM48W5-90120 24
Model Device ID
IR 850
motorized
IR 940
motorized
W5
motorized
CA48I8-1040 31
CA80I8-1040 31
CA48I8-2040 32
CA80I8-2040 32
CA48I8-4080 33
CA80I8-4080 33
CA48I8-90120 34
CA80I8-90120 34
CA48I9-1040 41
CA48I9-2040 42
CA48I9-4080 43
CA48I9-90120 44
CA48W5-1040 51
CA48W5-2040 52
CA48W5_4080 53
CA48W5-90120 54
RS485
connection. You can
window. Select the
, Data bits - 8, Stop bit - 1, Parity
Defaults for IR:
Pelco D
38400
8
1
none
20
FF01
If you need to cascade multiple IR units via the RS485 bus, please contact CaMate (http://
www.lidlight.com/) for a mobile app through which you can change device ID, baud rate,
and so on.
With a motorized IR unit, the IR light zoom control buttons will be available on the home
page of the camera web console. Click to change the IR lights angles. When IR lights
zoom in, the light beams become narrower, the farther the lights can reach. When zoomed
out, the wider the coverage, yet the range decreases.
Mechanical
IR Zoom functions
Use the zoom buttons to control the coverage of your IR lighting.
You can also create custom buttons on a web console, such as IR brightness (Lux),
threshold, dimming, etc. The camera default ID is 0. Make sure it is different from that of
the IR unit.
English
The IR control commands come in an 8 byte format. A sample command is shown below:
FF012101bf0005E7
FF01
Sync Addr Cmd1 Data1 Data2 Data3 Data4 Chks
1111 1111 0000 0001
The format uses Hexadecimal 0-9, A-F. Each 8-bit byte contains two 4-bit hexadecimal
characters. Two hexadecimal characters contained in each 8-bit eld of message.
2101
001000010000 0001 1011 1111 0000 0000 0000 0101 111 0 0111
bf00
21
05E7
bitbit
031
Below is the table of congurable data bit (Data1 ~ Data4) values:
bit 31 ~ 24 Device ID: 01 (default) ~ 127
bit 23 ~ 21 Baud rate (0)1200, (1)2400, (2)4800, (3)9600, (4)19200, (5)38400 (default), (6)57600,
bit 20 ~ 16 Brightness: (0) ~ (31), brightness from 0 ~ 100% (default), increment unit is 2.5%
bit 15 ~ 13 LED control mode: (0) DI, (1) Direct, (2) Timer, (3) Light sensor, (4) DI pulse, (5) LPR, (6)
bit 12 LED status: (0) Off ready only (default), (1) On
bit 11 ~ 10 Fade in/out: (0) Off, (1) Fast, (2) Slow.
bit 9 DI activation polarity: (0) Low (default), (1) High,
bit 8 DO activation polarity: (0) Low (default), (1) High.
bit 7 ~ 6 Reserved
bit 5 ~ 4 DO mode: (0) Light sensor state (default), (1) LED state, (2) Diagnostic
bit 3 ~ 1 Light sensor day/night threshold: (0) 1 Lux, (1) 5 Lux, (2) 10 Lux, (3) 20 Lux, (4) 50
bit 0 LED indicator control: (0) Off, (1) On (default)
(7)115200 bps
LED dimming by light sensor (default).
Lux, (5) 100 Lux, (6) Innite.
You can create custom command buttons by entering the Button name and the command
itself:
Below are some of the command samples:
Threshold 10% Brightness 100% FF012101bf0005E7
Threshold 20% Brightness 100% FF012101bf0007E9
Threshold 50% Brightness 100% FF012101bf0009EB
Brightness 90% FF012101bc0005E4
Brightness 80% FF012101b80005E0
Brightness 70% FF012101b40005DC
Brightness 60% FF012101b00005D8
Brightness 90% FF012101bc0007E6
Brightness 80% FF012101b80007E2
Brightness 70% FF012101b40007DE
Brightness 60% FF012101b00007DA
Brightness 90% FF012101bc0009E8
Brightness 80% FF012101b80009E4
22
Brightness 70% FF012101b40009E0
Brightness 60% FF012101b00009DC
The customized buttons will appear on the main page for easy access to IR control.
English
23
This page is intentionally left blank.
24
Loading...
