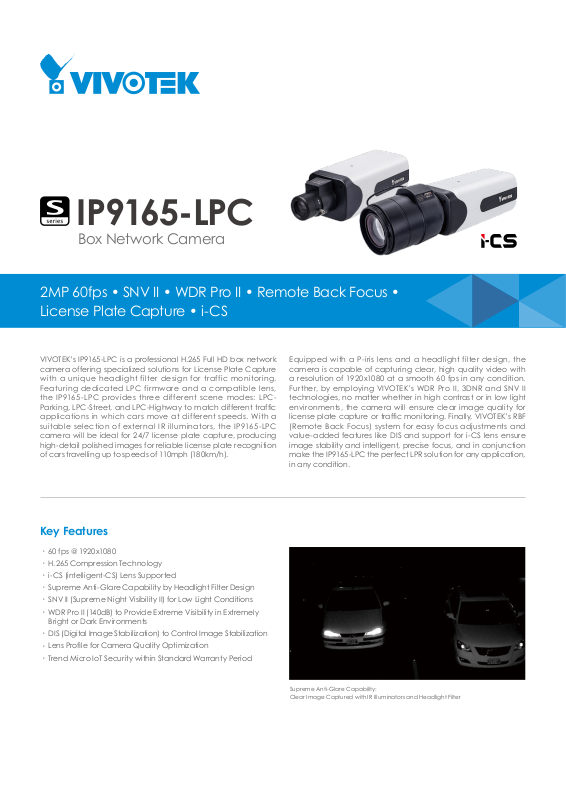

Vivotek IP9165-LPC Specsheet

IP9165-LPC

Box Network Camera

2MP 60fps • SNV II • WDR Pro II • Remote Back Focus •
License Plate Capture • i-CS

VIVOTEK’s IP9165-LPC is a professional H.265 Full HD box network
camera offering specialized solutions for License Plate Capture
with a unique headlight filter design for traffic monitoring.
Featuring dedicated LPC firmware and a compatible lens,
the IP9165-LPC provides three different scene modes: LPC-

Parking, LPC-Street, and LPC-Highway to match different trafc

applications in which cars move at different speeds. With a
suitable selection of external IR illuminators, the IP9165-LPC
camera will be ideal for 24/7 license plate capture, producing
high-detail polished images for reliable license plate recognition
of cars travelling up to speeds of 110mph (180km/h).

Key Features

60 fps @ 1920x1080

•

H.265 Compression Technology

•

i-CS (intelligent- CS) Lens Supported

•

Supreme Anti-Glare Capability by Headlight Filter Design

•

SNV II (Supreme Night Visibilit y II) for Low Light Conditions

•

WDR Pro II (140dB) to Provide Extreme Visibility in Extremely

•

Bright or Dark Environments

DIS (Digital Image Stabilization) to Control Image Stabilization

•

Lens Prole for Camera Quality Optimization

•

Trend Micro IoT Security within Standard Warranty Period

•

Equipped with a P- iris lens and a headlight filter design, the
camera is capable of capturing clear, high qualit y video with
a resolution of 1920x1080 at a smooth 60 fps in any condition.
Further, by employing VIVOTEK’s WDR Pro II, 3DNR and SNV II
technologies, no matter whether in high contrast or in low light
environments, the camera will ensure clear image quality for

license plate capture or trafc monitoring. Finally, VIVOTEK’s RBF

(Remote Back Focus) system for easy focus adjustments and
value-added features like DIS and support for i-CS lens ensure
image stability and intelligent, precise focus, and in conjunction
make the IP9165-LPC the perfect LPR solution for any application,
in any condition.

Supreme Anti-Glare Capability:
Clea r Image Ca ptured wi th IR Ill uminator s and Headlight F ilter

Technical Specications

Model

IP9165-LPC(9- 50mm)
IP 9165- LP C(12 -4 0mm)

System Information

CPU Multimedia SoC (System-on-Chip)

Flash 128MB

RAM 1G B

Camera Features

Image Sensor 1/2" Prog ressive CMOS

Max. Resolution 1920 x1080(2MP)

Lens Type

Focal Length

Aperture

Iri s type

Fiel d of View

Shutter Time 1/60 to 1/16,000 sec.

WDR Technology WDR Pro II

Day/Ni ght Yes

Removable IR-cut lter Yes (Headlight lter design for Anti-Glare)

Minimum Illumination

Pan/Tilt/Zoom
Functionalities

On- board Storage

Var i-focal
Remote Back Focus
i-CS

IP9165- LPC(9-5 0mm): f = 9 ~ 50 mm
IP9165- LPC(12-40mm): f = 12 ~ 40 mm

IP9165- LPC(9-5 0mm): F1.5 ~ F1.6
IP9165- LPC(12-40mm): F1.8 ~ F2.3

IP9165-LPC(9- 50mm): i-CS
IP9165- LPC(12-40mm): P-iris
(i-CS/P-iris/DC-iris all reserved)

IP9165-LPC(9- 50mm):

8.3° ~ 42.8° (H orizontal)

4.7° ~ 24.3° (Ver tical)

9.46° ~ 48.9 ° (Diagonal)
IP 9165- LP C(12 -4 0mm):

11.6° ~ 34.2° (Hor izontal)

6.6° ~ 18.7 ° (Vertical)

13.3° ~ 39.8° (Diagona l)

IP9165-LPC(9- 50mm):

0.01 Lux @ F1.5 (Color)
IP 9165- LP C(12 -4 0mm):

0.08 Lux @ F1.8 (Color)

ePTZ: 48x dig ital zoom
(4x on IE plug-in, 12x built-in)

Slot type: MicroSD/SDHC/SDXC card slot
(Max. SD card capacity:128GB)
Seamless Recording

Video

Compression H.265,H.264, MJPEG

Maximum Frame Rate 60 fps @ 1920x1080

Maximum Streams 4 simu ltaneous streams

S/N Ratio 66.2 dB

Dynamic Range 140 dB

Video Streaming

Adjus table resolution, quality and constant
bit rate control, Sma rt Strea m III

Time stamp, text overlay, ip & mirror;
Cong urable brightness, contra st,

Image Settings

saturation, sharpness, white balance,
exposure control, gain, backlight

compensation, privacy ma sks; Scheduled
prole settings, DIS, video rotation, 3DNR,

defog

Audio

Audio Capability Two-way Audio (fu ll dupl ex)

Compression G.726, G.711

Inter face

External microphone input
External line output

Network

Users Live viewing for up to 10 clients

IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/

Protocol s

Inter face

ONVIF

RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP,

NTP, DNS, DDNS, PPPoE, CoS, QoS, SN MP,

802.1X, UDP, ICMP, ARP, TLS, SSL

10 Base-T/100 Base-TX/1000 Base-T Ethernet
(RJ-45)
*It is h ighly recommended to use standard

CAT5e & CAT6 cables whi ch are compl iant

with the 3P/ETL standard.

Suppo rted, specication available at
www.onvif.org

Intelligent Video

Video Motion Detection Five-window video motion detection

Alarm and Event

Motion detection, manual t rigger, digital

Alarm Trigg ers

Alarm Events

input, period ical trigger, system boot,

recording notication, camera tamper ing

detection, audio detection, MicroSD card
life expectancy

Event notication us ing digital output, HT TP,

SMTP, FTP, NAS server and MicroSD card
File upload via HTTP, SMTP, FTP, NAS server
and MicroSD card

General

RJ- 45 cable connector for
10/100/1000Mpbs Network/PoE connection
Audio input
Audio output

Connectors

LED Indicator System power and status indicator

Power Input

Power Consumption

Dimensions

DC 12V power input*1
AC 24V power input *1
Digital input*2
Digital output*2
RS4 85*1
BNC*1

DC12V/A C2 4V
IEEE 802.3af PoE

DC 12V: Max. 9 W
AC 24V: Max. 18 W
PoE: Max. 9.06 W

IP9165-LPC(9- 50mm):
263 (D) x 78 (W) x 84 (H) mm
IP 9165- LP C(12 -4 0mm):
203 (D) x 70 (W) x 61 (H) mm

Weig ht

680 g (without lens)
790 g (with lens)
